DELCON

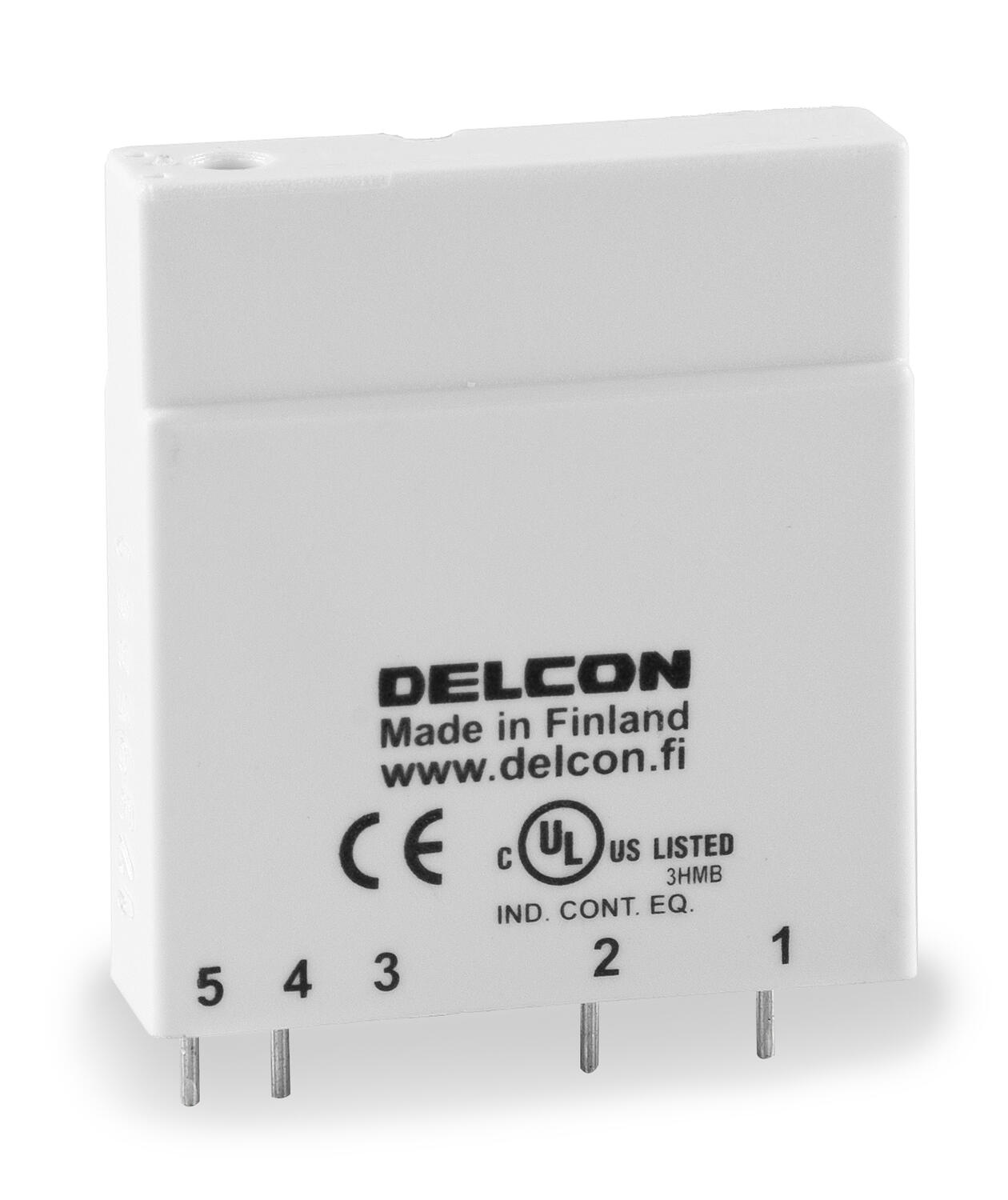

SLI input relay for mA loads
The relays are used as an interface between DC sensors and control systems. The integrated interference protection provides reliable operation even in very demanding electrical environments. Thanks to interference protection, signal cables can be run alongside power cables on, for example, cable racks for more than 1.5 km without capacitive cross-talk affecting relays. The relays have no mechanical parts, which provides very reliable application. If high frequencies occur from sensors for counting inputs, for example, we recommend SLI24CRF.
- DC control / DC load
- Galvanic isolation 4 kV, 8 mm creep distance
- Effective interference elimination
- Compatible with NPNand PNP logic
- LED indication
Selected variant
Specifications
| Power Consumption | 6.5 mA |
|---|---|
| Power Consumption max | 7.5 mA |
| Response Time | 0.3 ms |
| Release Time | 0.3 ms |
| Input voltage dc min | 9 V DC |
| Input voltage dc max | 18 V DC |
| Switching Voltage | 7.5 V |
| Tripping voltage | 6 V |
| Input | 1.8 kΩ |
| Input Voltage Nom | 12 |
| Number of poles | 1 |
| Load Current | 50 mA |
| Leakage current | 1 µA |
| Load Voltage DC max | 60 V |
|---|---|
| Voltage Drop Over The Semi-Conductor at Imax | 0.4 V |
| Voltage Drop | 0.2 V |
| Width | 12.5 mm |
| Temperature range from | -40 °C |
| Temperature range to | 70 °C |
| Temperature range bearing, from | -40 °C |
| Temperature range bearing, to | 70 °C |
| Color | White |
| Weight | 40 g |
| Approvals | CE, UL |
Downloads
Product description
The relays are used as an interface between DC sensors and control systems. The integrated interference protection provides reliable operation even in very demanding electrical environments. Thanks to interference protection, signal cables can be run alongside power cables on, for example, cable racks for more than 1.5 km without capacitive cross-talk affecting relays. The relays have no mechanical parts, which provides very reliable application. If high frequencies occur from sensors for counting inputs, for example, we recommend SLI24CRF.
