CROUZET CONTROL
DIN Timer Solid State Output
Chronos 2 Series

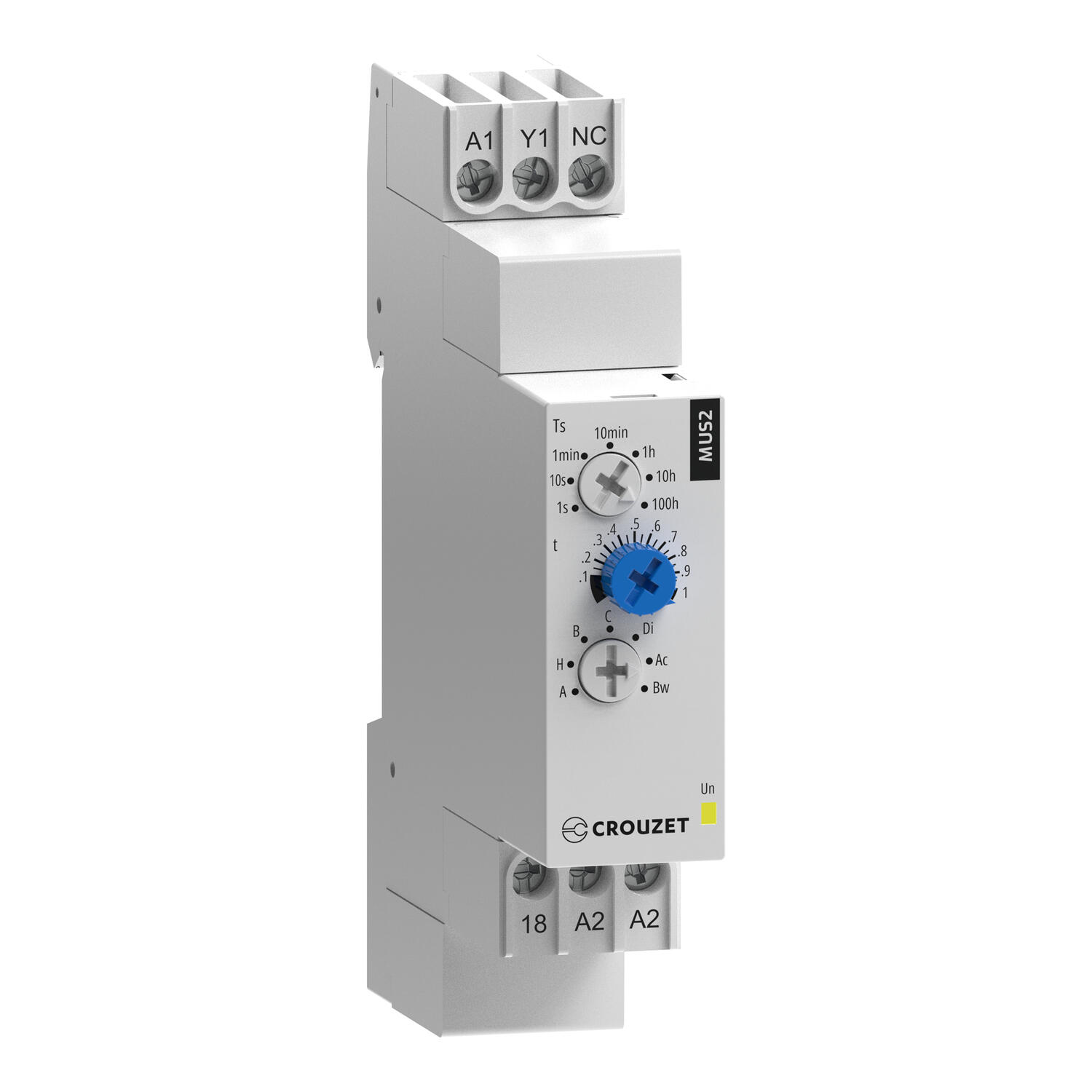

Chronos 2 series timer relays for DIN rail mounting with screw terminal connections and these versions have a 0.7A rated solid state output in a 17.5mm wide housing.
Time range is adjustable (in sub ranges) from 0.1 sec to 100 hours using a selector switch and potentiometer on the front face of the device.
A wide range supply voltage covers most requirements in the standard units.
Some units are single function and some are multi function with the required timing function set by a selector switch on the front face of the device. The available timing functions are defined by a set of letter codes that is common across the whole Crouzet range.

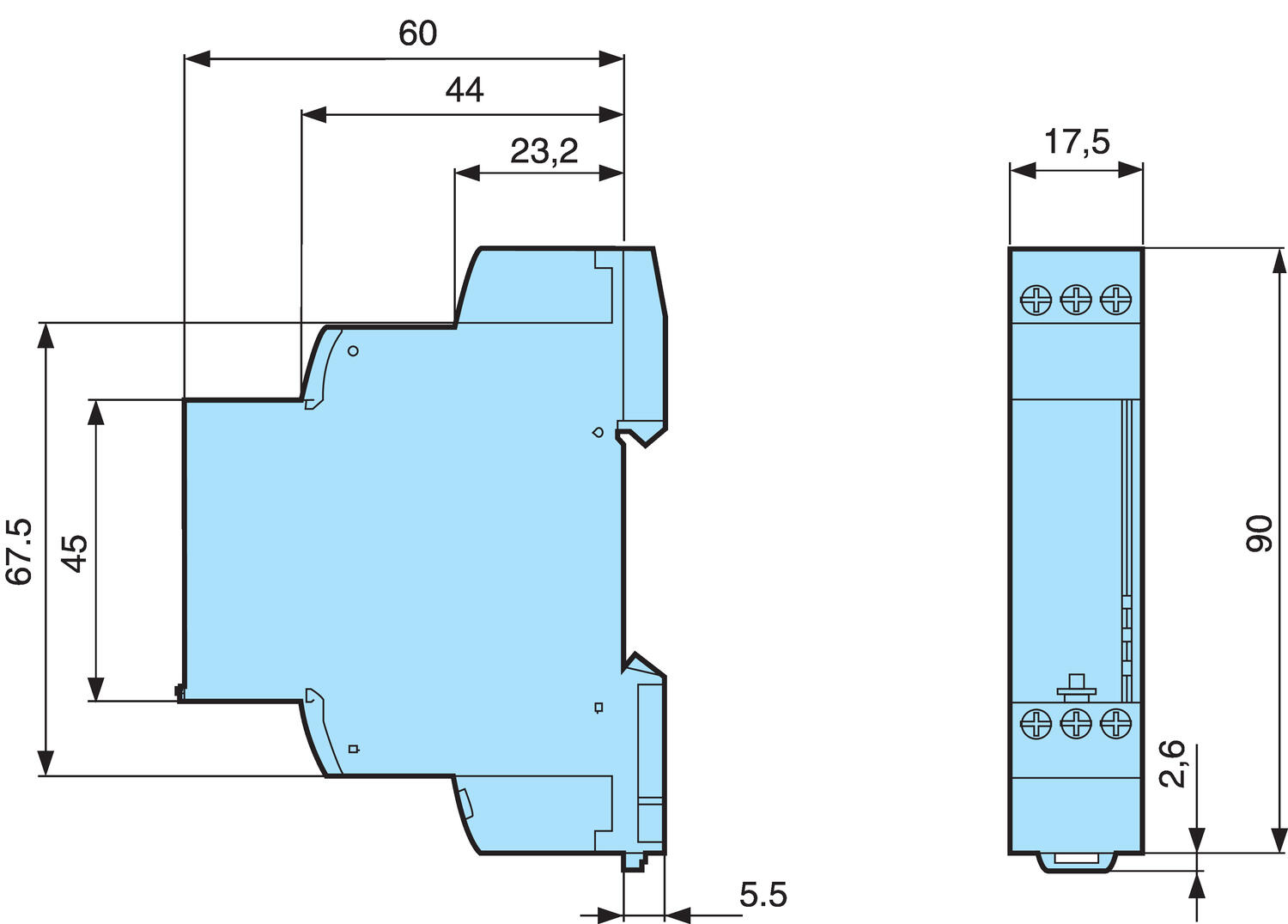

- 17.5mm wide
- Time range 0.1 sec – 100 hrs
- Wide range supply voltage
- Solid state output
Selected variant
Specifications
| Function | A - Delay on energisation, Ac - Timing after closing and opening of control contact, At - Timing on energisation with memory, B - Timing on impulse (one shot), Bw - Pulse output (adjustable), C - Timing after impulse, D - Symmetrical flashing, Di - Symmetrical flashing, H - Timing on energisation - pulse output, Ht - Delay on energisation with memory |
|---|---|
| Time Range | 0,1-1s, 1-10s, 6-60s, 1-10min, 6-60min, 1-10h, 10-100h |
| Response Closing | 50 ms |
| Response From Stroke | 350 ms |
| Repeatability | 0.5 % |
| Multifunction | Yes |
| Output | Solid state |
| Breaking capacity | 0,7 A |
| Switching Current Max | 0.7 A |
| Power Min | 0.01 A |
| Cable Area With Sleeve | 2 x 1,5 mm² |
| Cable Area Without Sleeve | 2 x 2,5 mm² |
|---|---|
| Supply voltage | 24-240V AC |
| Mounting | DIN rail |
| IP Class Connection | IP20 |
| IP Class Front | IP50 |
| Temperature range from | -20 °C |
| Temperature range to | 60 °C |
| Temperature range bearing, from | -30 °C |
| Temperature range bearing, to | 60 °C |
| Approvals | CE, Lloyd´s, RoHS, UL |
Product description
Chronos 2 series timer relays for DIN rail mounting with screw terminal connections and these versions have a 0.7A rated solid state output in a 17.5mm wide housing.
Time range is adjustable (in sub ranges) from 0.1 sec to 100 hours using a selector switch and potentiometer on the front face of the device.
A wide range supply voltage covers most requirements in the standard units.
Some units are single function and some are multi function with the required timing function set by a selector switch on the front face of the device. The available timing functions are defined by a set of letter codes that is common across the whole Crouzet range.
