CROUZET CONTROL
Panel Mount Timer Digital
Syr-Line Series
Now we are launching a new series of digital time relays in the Syr-Line series from Crouzet with clear LCD display that has IP66 enclosure in the front.
The current set time and relay status are shown in the display. Time relays have many different functions as well as up and down counting to choose from.
The programming is very simple and can be locked to prevent accidental change. The time interval is adjustable from 0.001 second and up to 9999 hours and has memory function for time counting in case of potential voltage drop.
The time relays are available with one or two alternating relay outputs that can handle the entire 10A and connect into a 11-pin socket, which allows for both panel and bottom mounting.
- Multifunction
- Display of set and current time
- Time range 0.001 - 9999h
- Backlit LCD display
Selected variant
Specifications
| Function | A - Delay on energisation, Ac - Timing after closing and opening of control contact, Ad - Delay on energisation (no reset), B - Timing on impulse (one shot), C - Timing after impulse, D - Symmetrical flashing, Di - Symmetrical flashing, H - Timing on energisation - pulse output, L - Asymmetrical flashing, Li - Asymmetrical flashing |
|---|---|
| Time Range | 0,001 s - 9999 h |
| Multifunction | Yes |
| Output | Relay 1 pole C/O |
| Breaking capacity | 2500 VA / 300 W |
| Switching Current Max | 10 A |
| Supply voltage | 24-240V AC/DC |

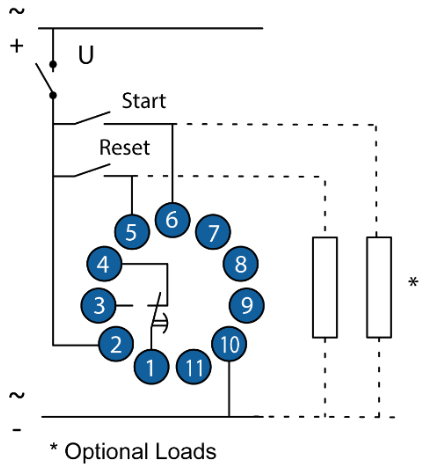

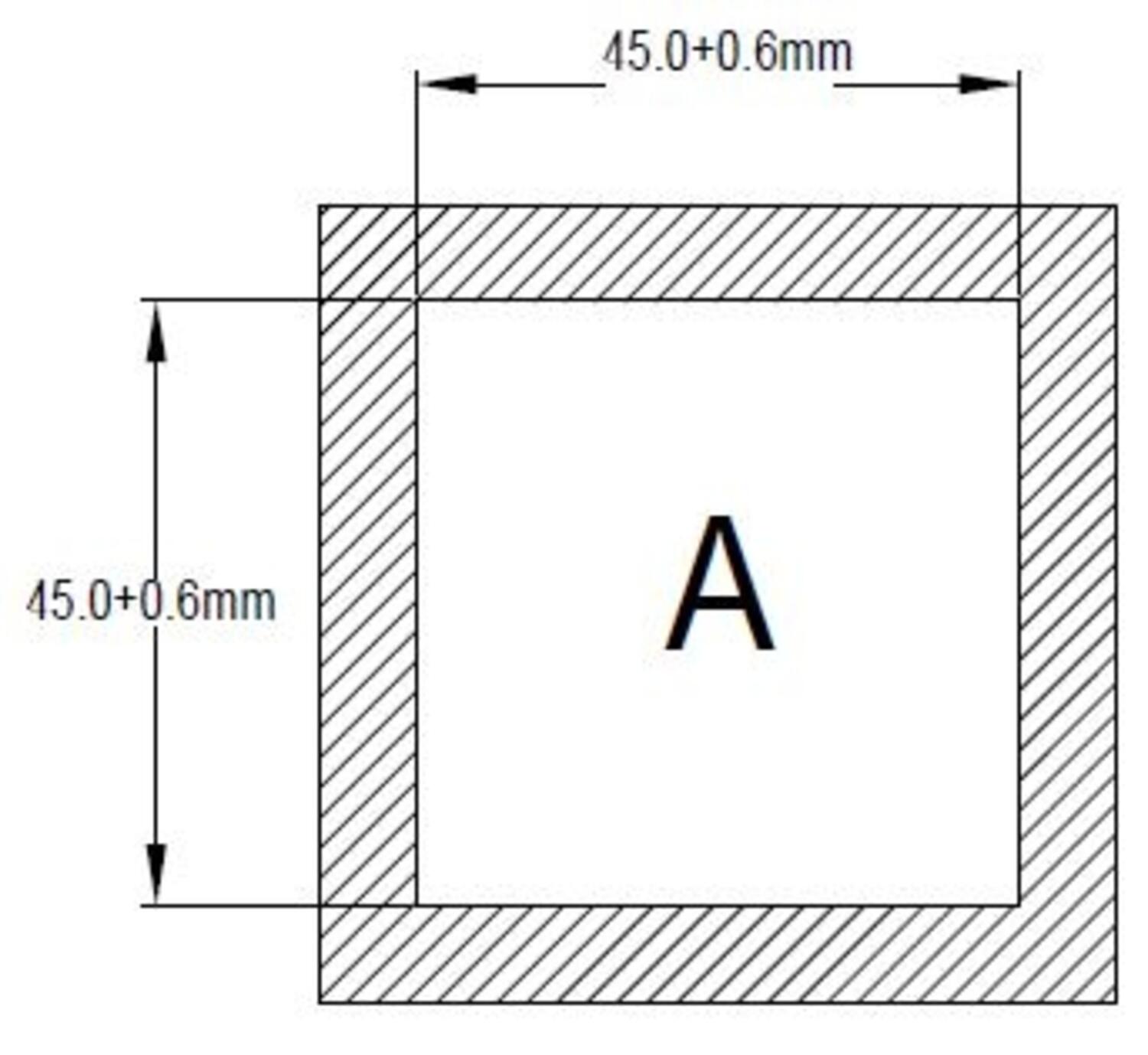

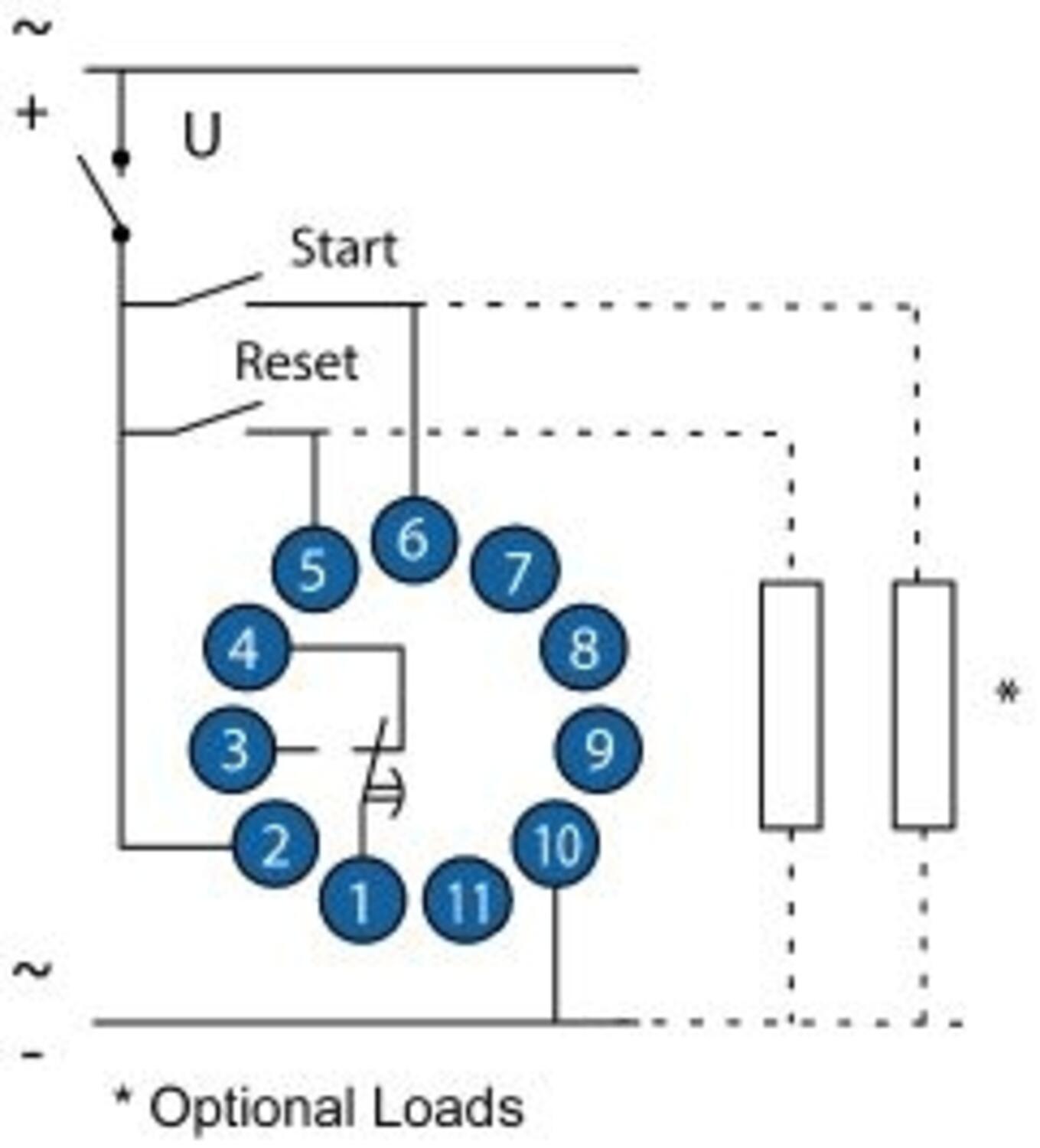

| Mounting | 11-pin socket, Panel mount |
| IP Class Front | IP66 |
| IP Class Housing | IP20 |
|---|---|
| Temperature range from | -10 °C |
| Temperature range to | 60 °C |
| Temperature range bearing, from | -30 °C |
| Temperature range bearing, to | 70 °C |
| Approvals | CE, RoHS, UL |
| Power Consumption | 2.5 VA / 1 W |
Product description
Now we are launching a new series of digital time relays in the Syr-Line series from Crouzet with clear LCD display that has IP66 enclosure in the front.
The current set time and relay status are shown in the display. Time relays have many different functions as well as up and down counting to choose from.
The programming is very simple and can be locked to prevent accidental change. The time interval is adjustable from 0.001 second and up to 9999 hours and has memory function for time counting in case of potential voltage drop.
The time relays are available with one or two alternating relay outputs that can handle the entire 10A and connect into a 11-pin socket, which allows for both panel and bottom mounting.
