CROUZET CONTROL

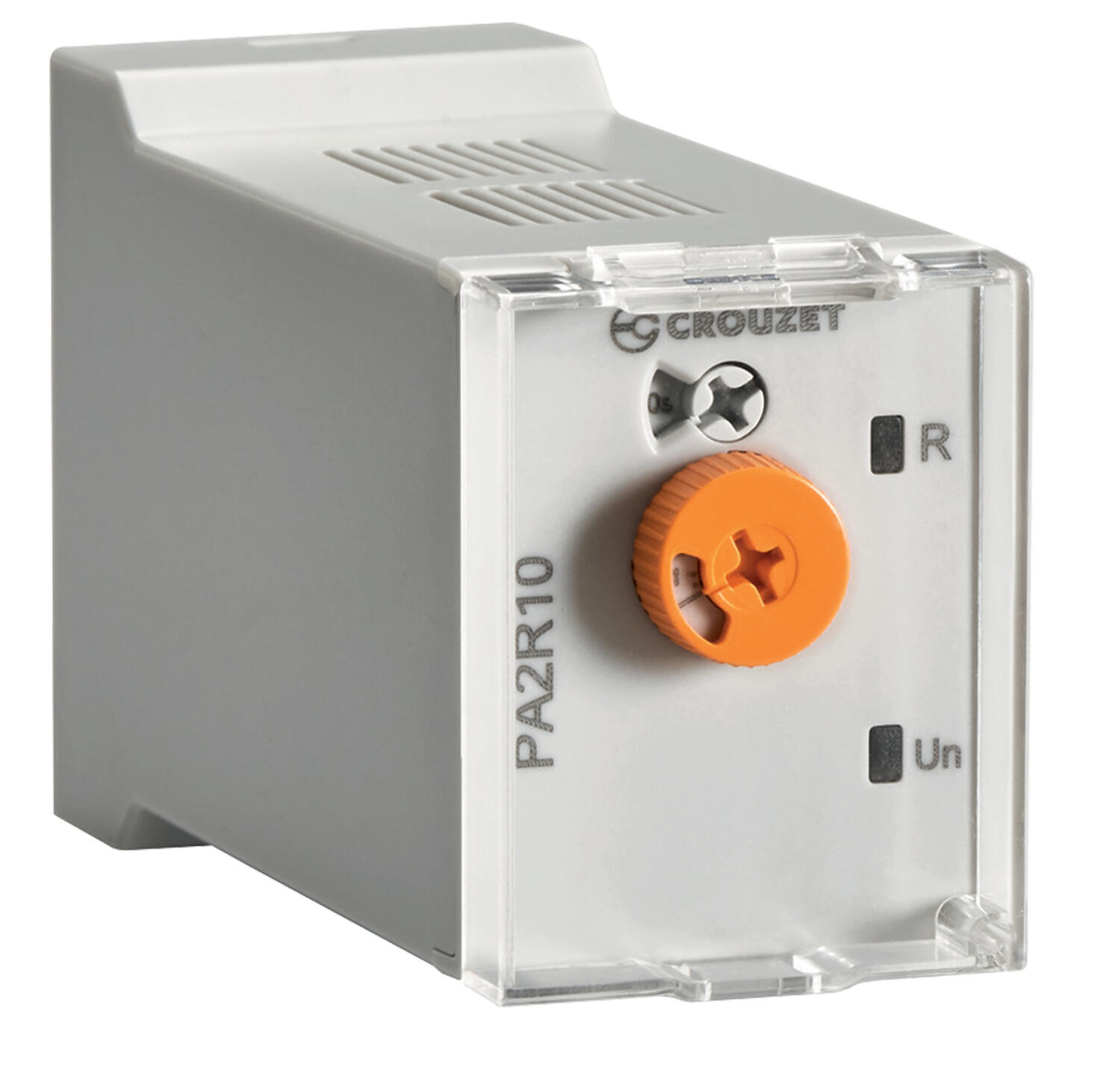

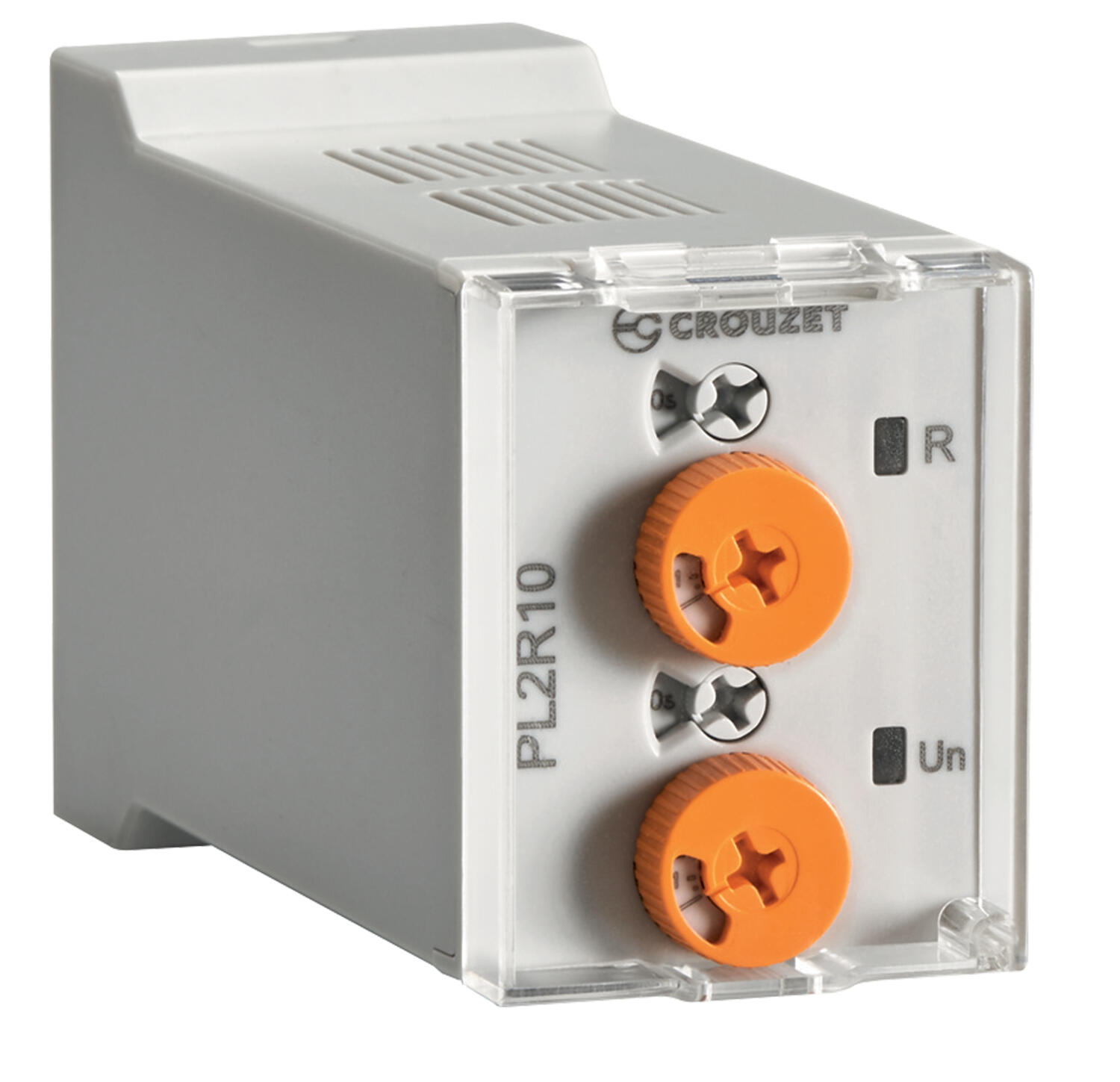

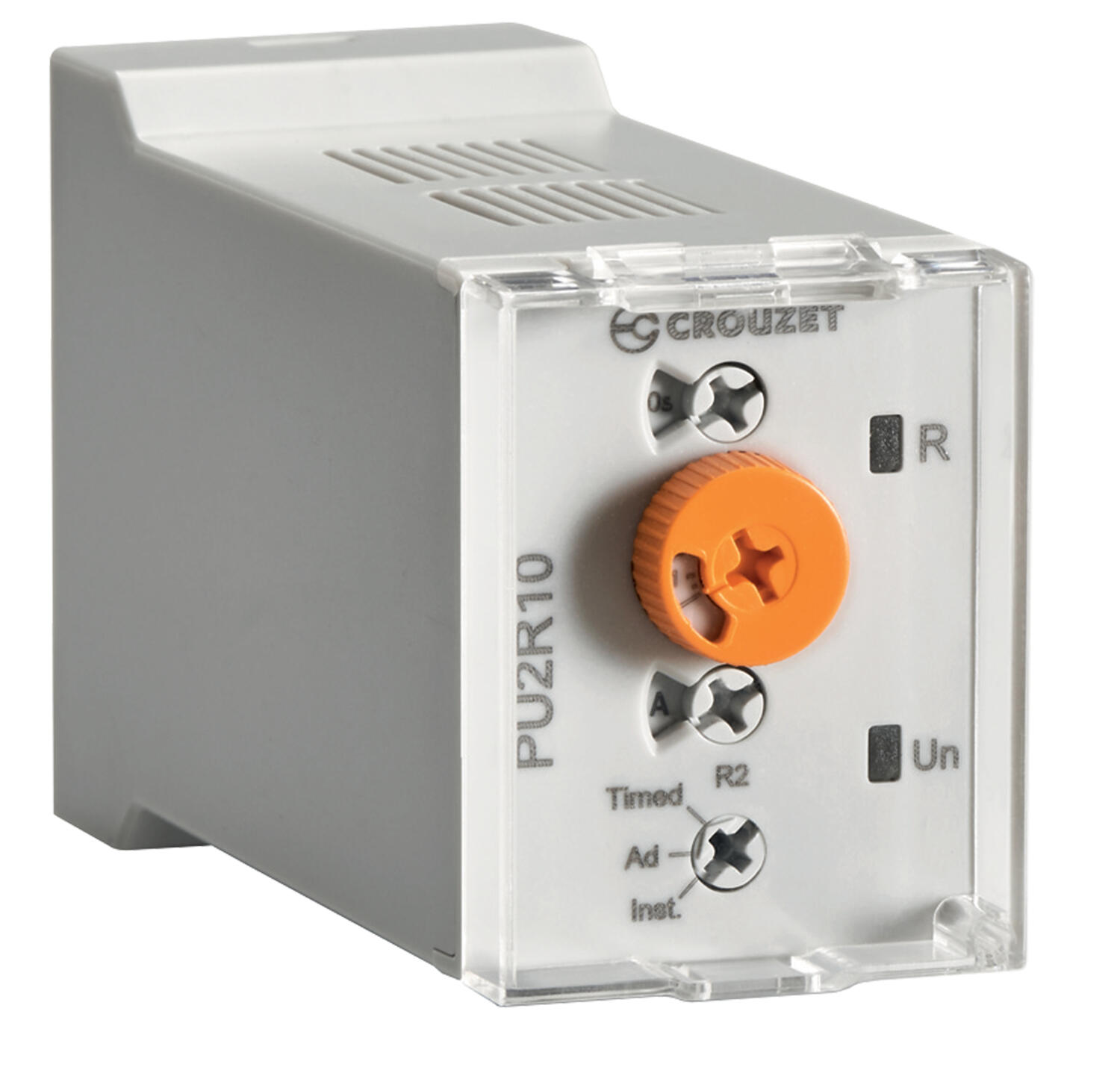

Plug In Timer 11 Pin
Syr-Line Series
SyrLine, the new specialised range from Crouzet. Aimed to satisfy the most unique requirements of any application by innovations in design, engineering and develipment.
The new family of 11 pin plug-in analog timers - multifunction or monofunction, with a wide time range, and with all the classic timing functions.
- Single or Multi-Function
- Multi time range 0.5 sec - 10 days
- Universal supply voltage 12-240Vac/dc
- 2 x 10A rated relay contacts
Selected variant
Specifications

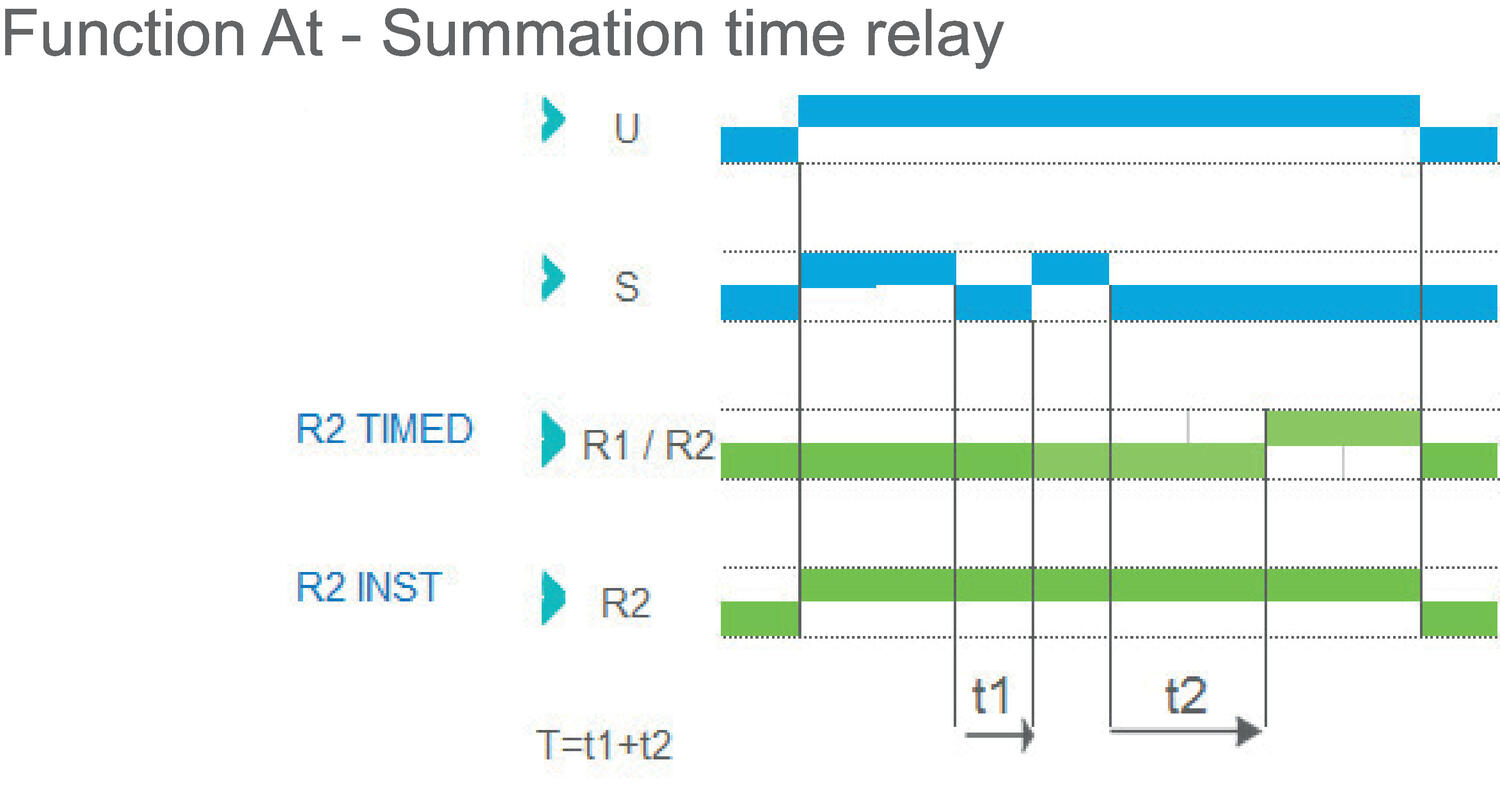

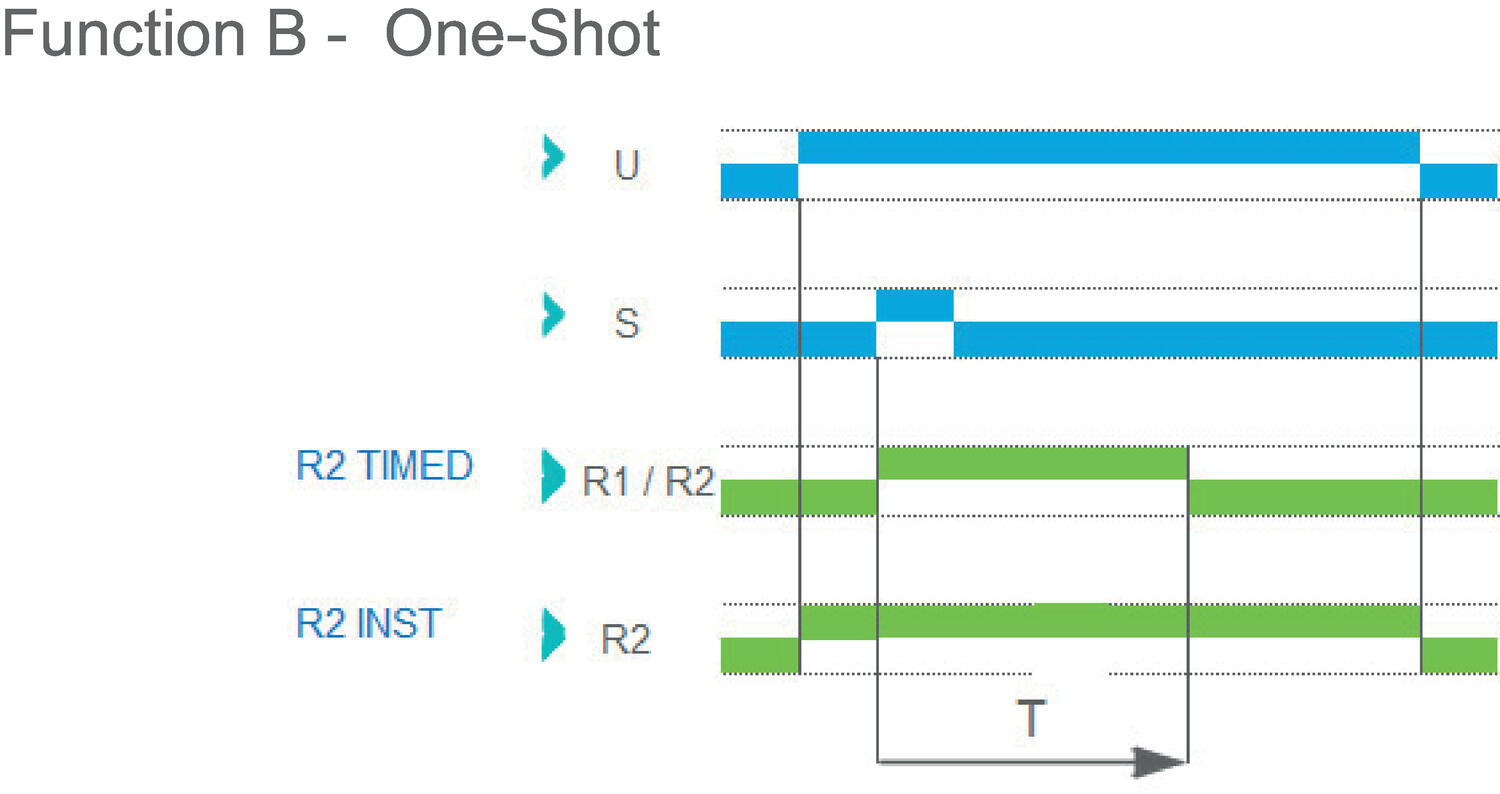

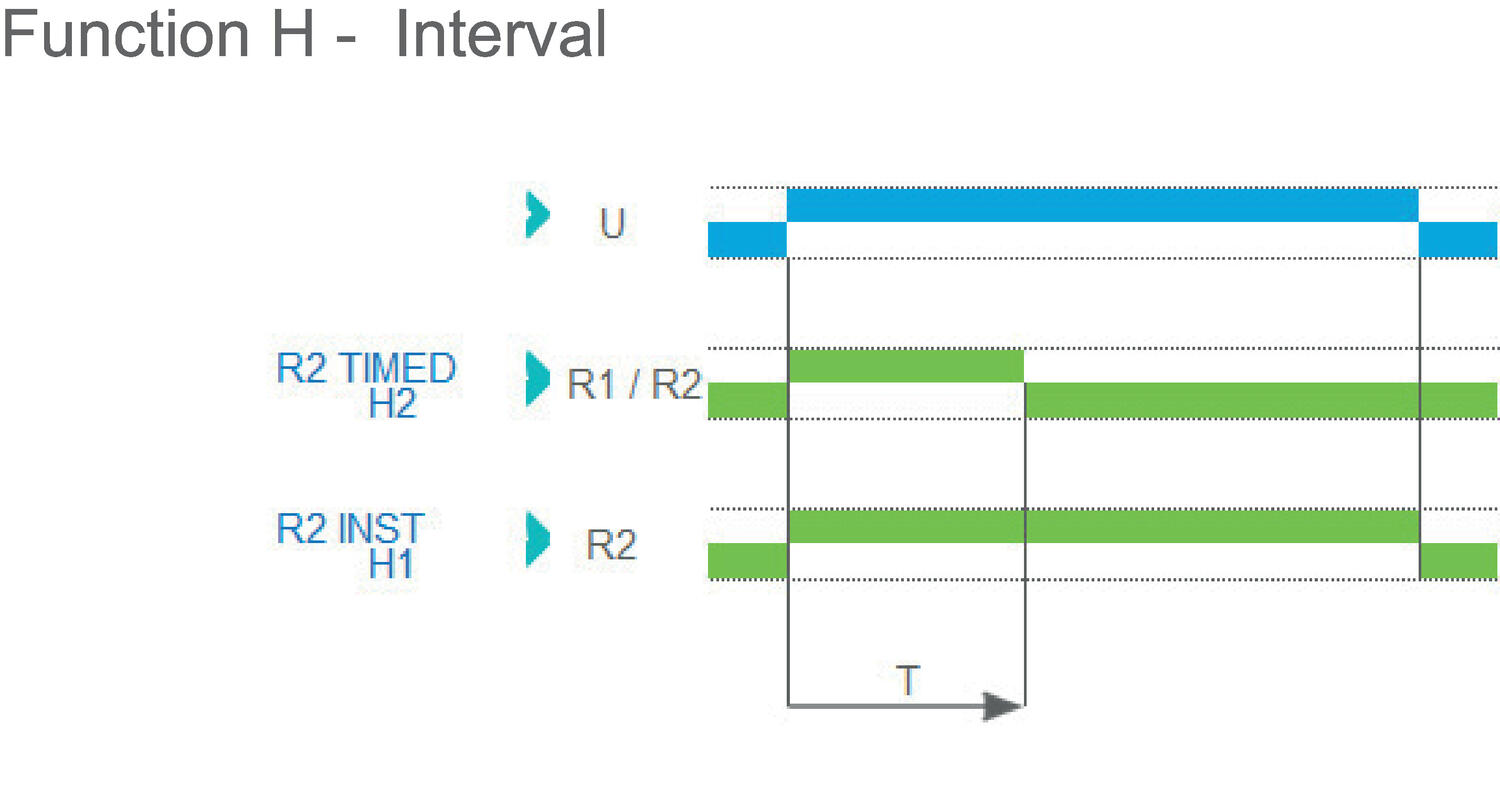

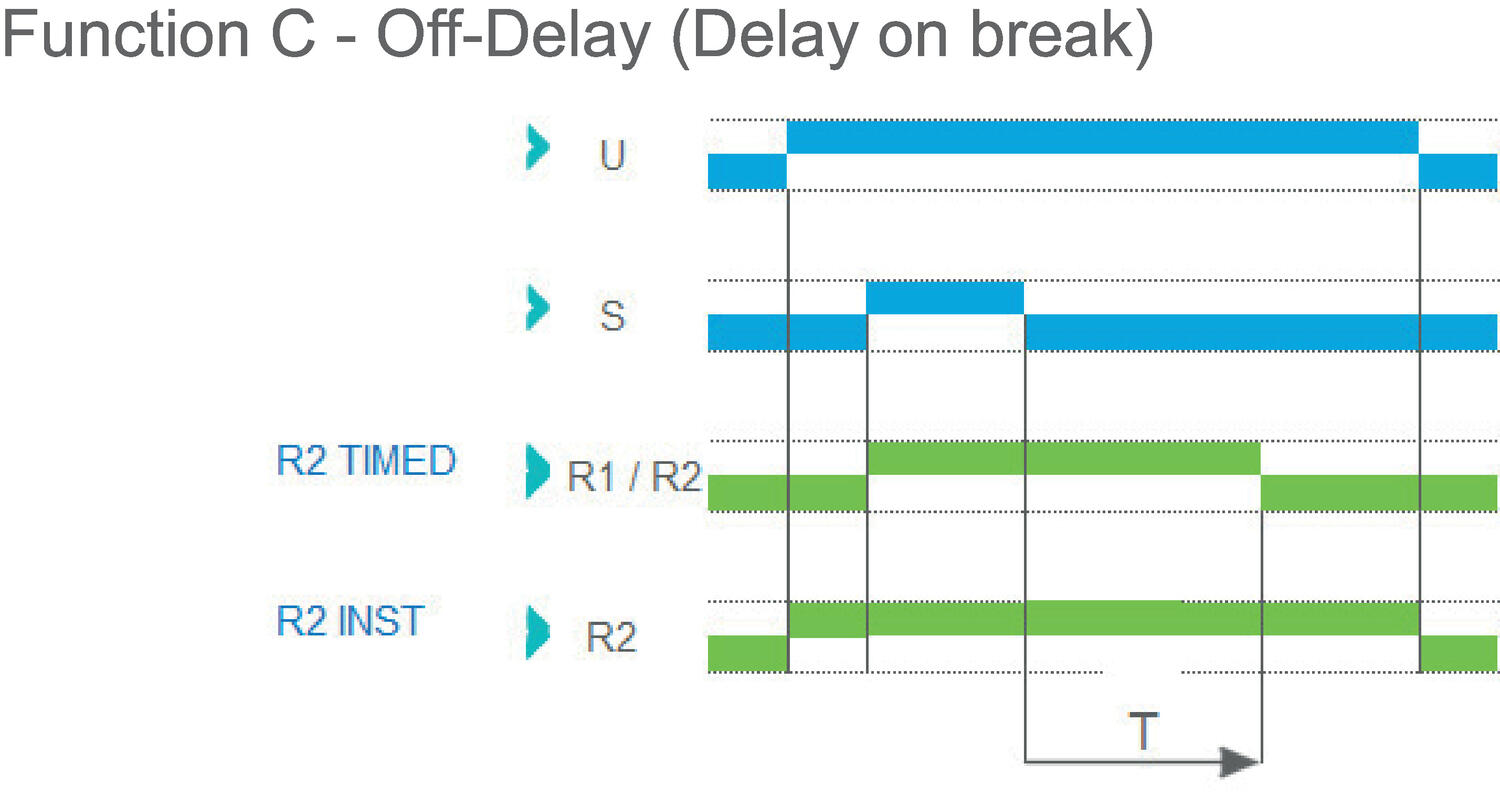

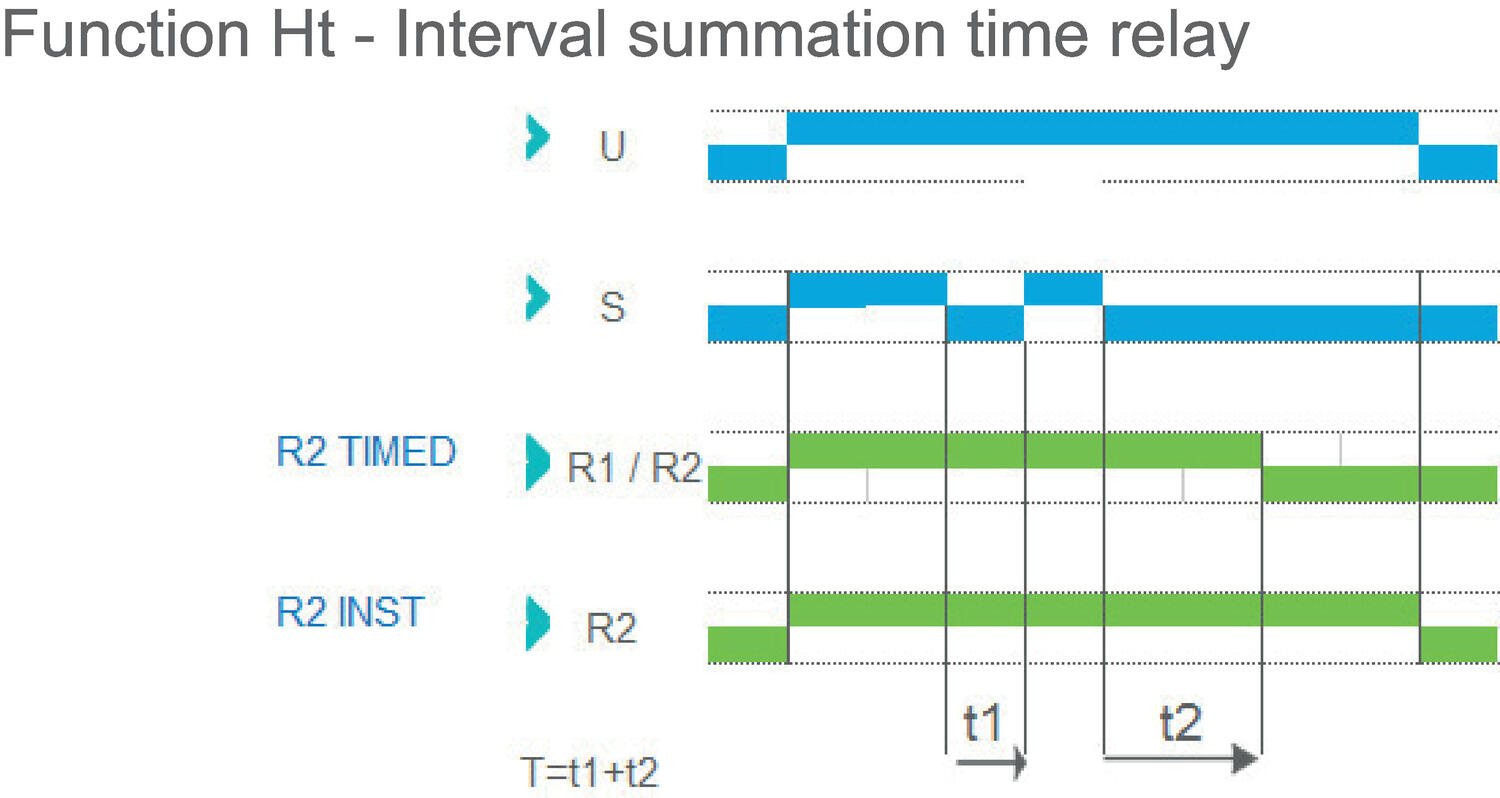

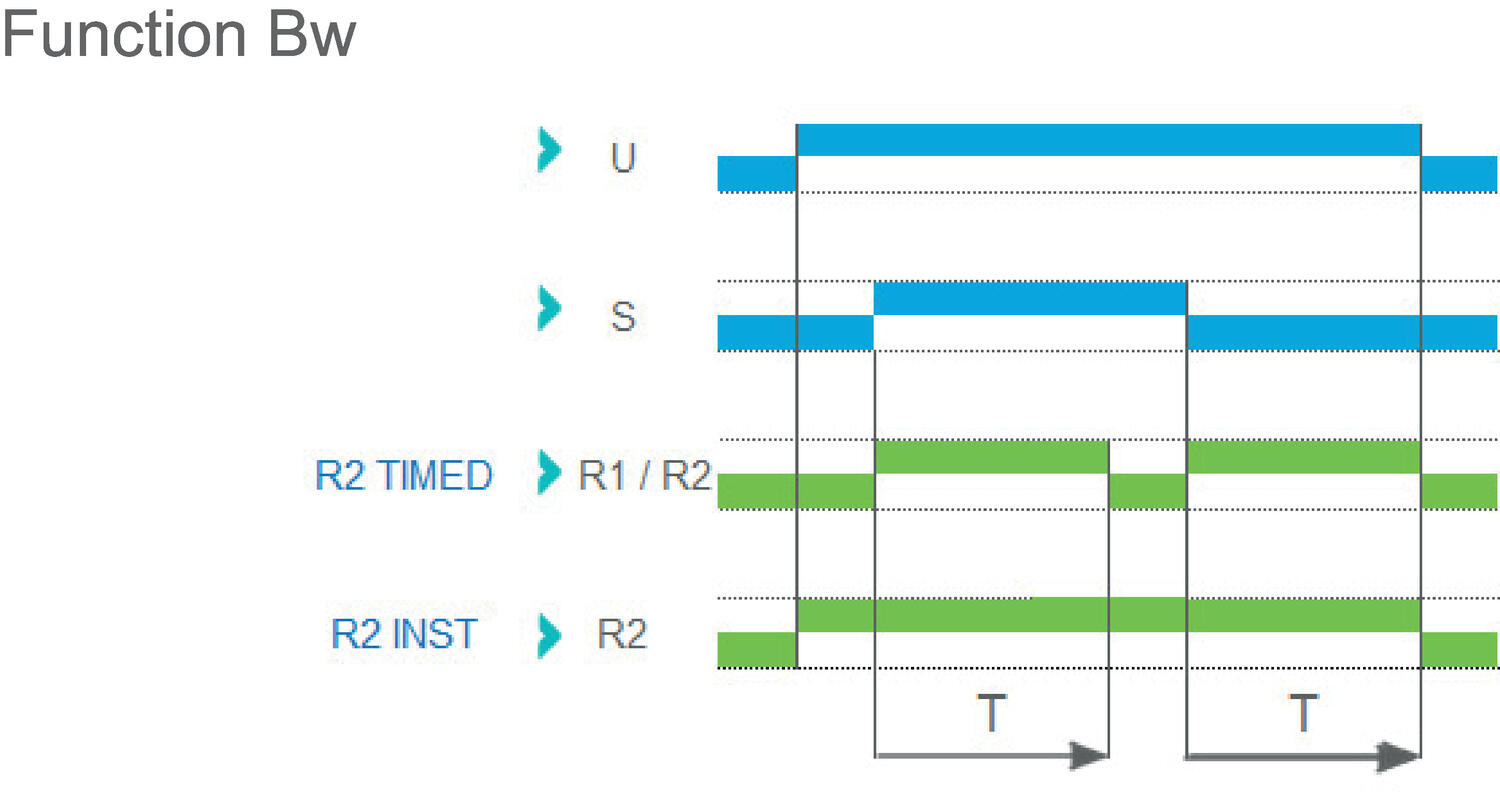

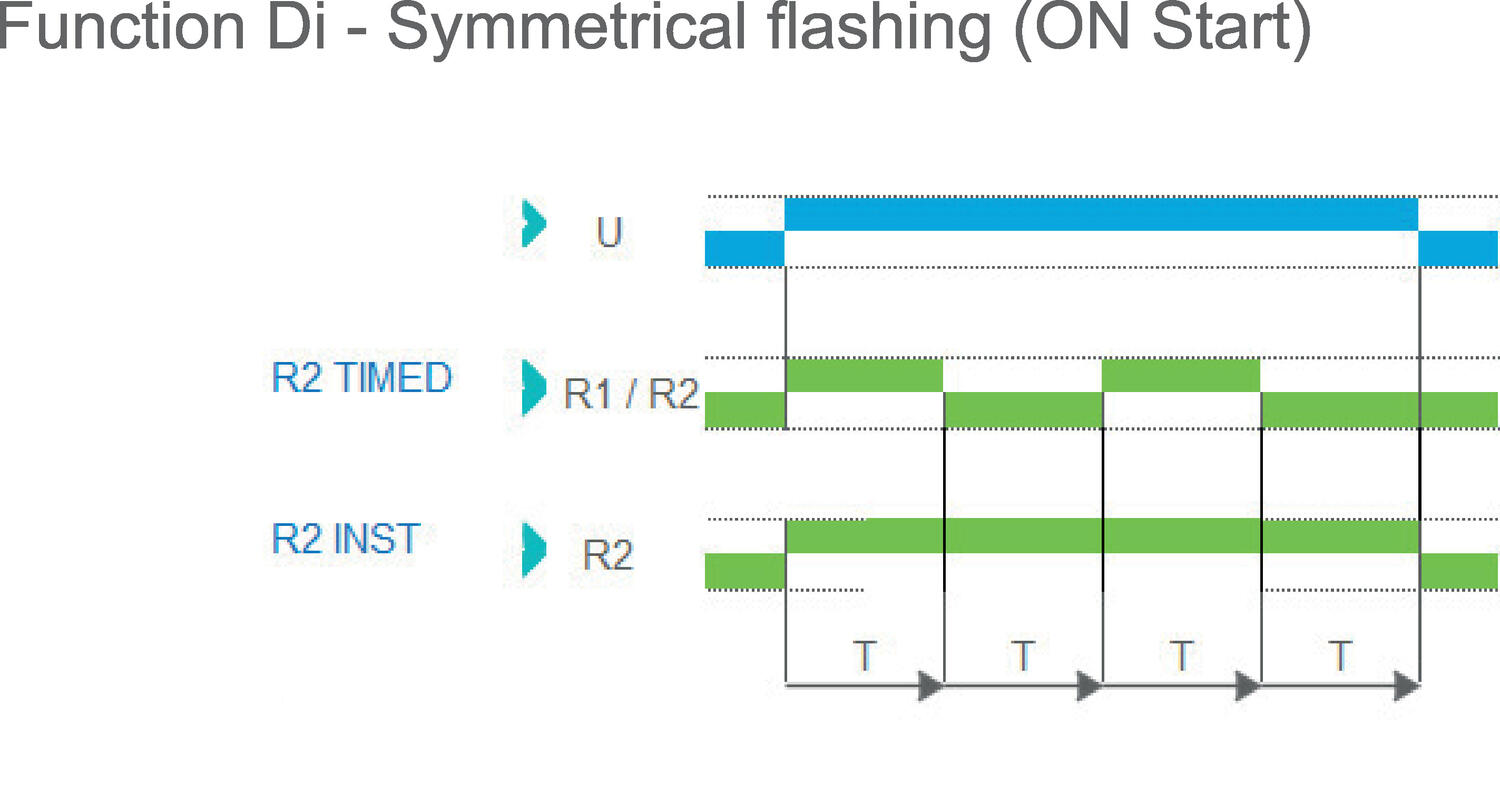

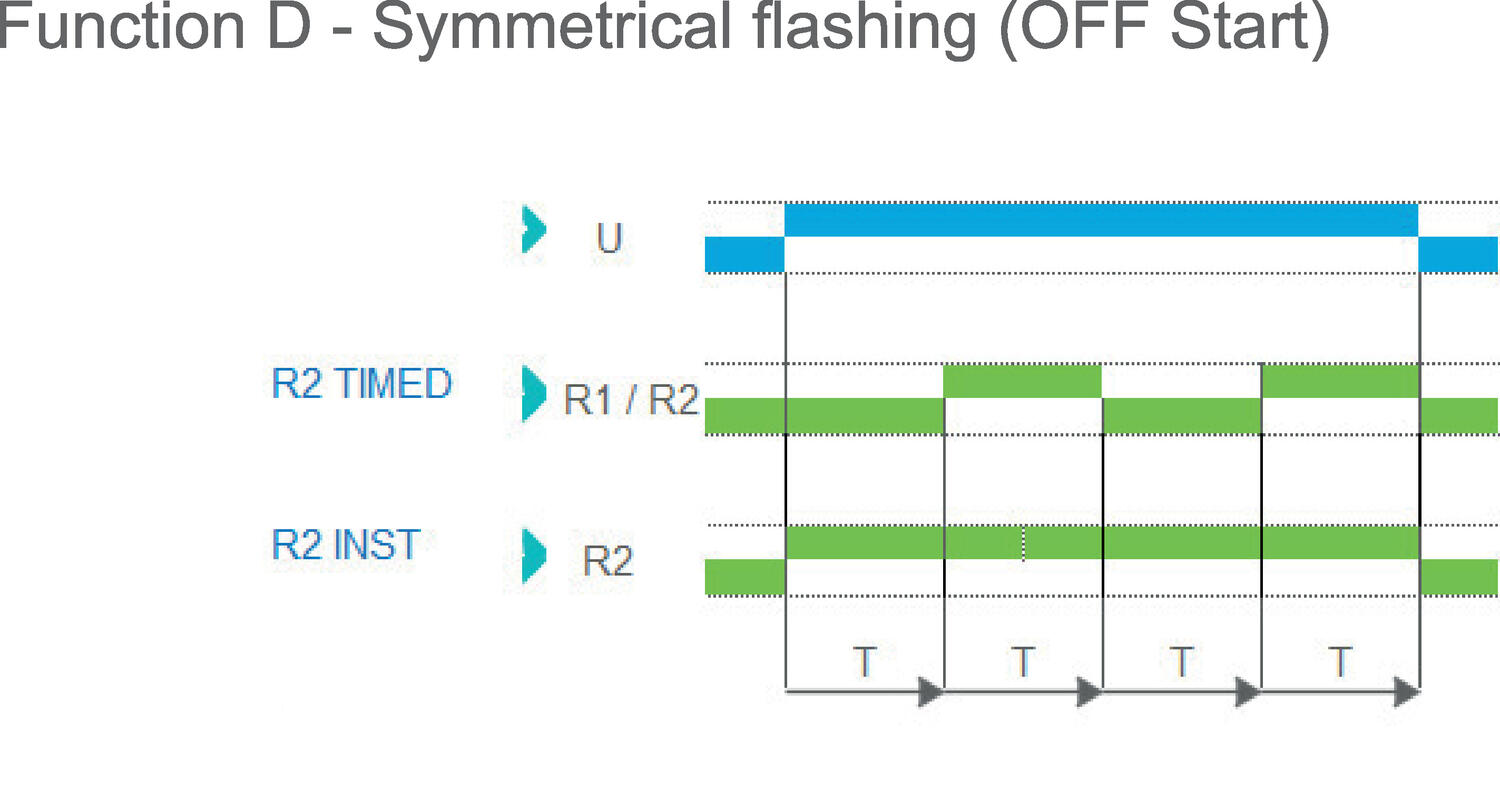

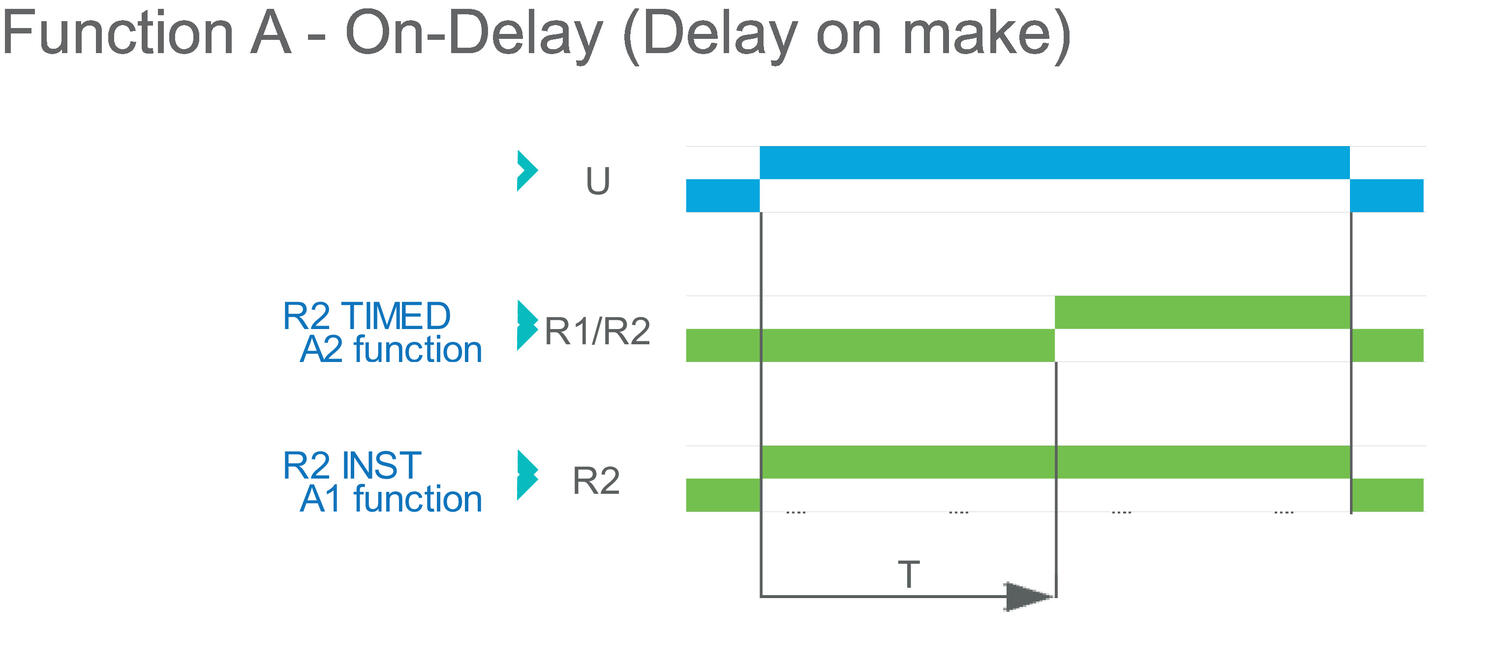

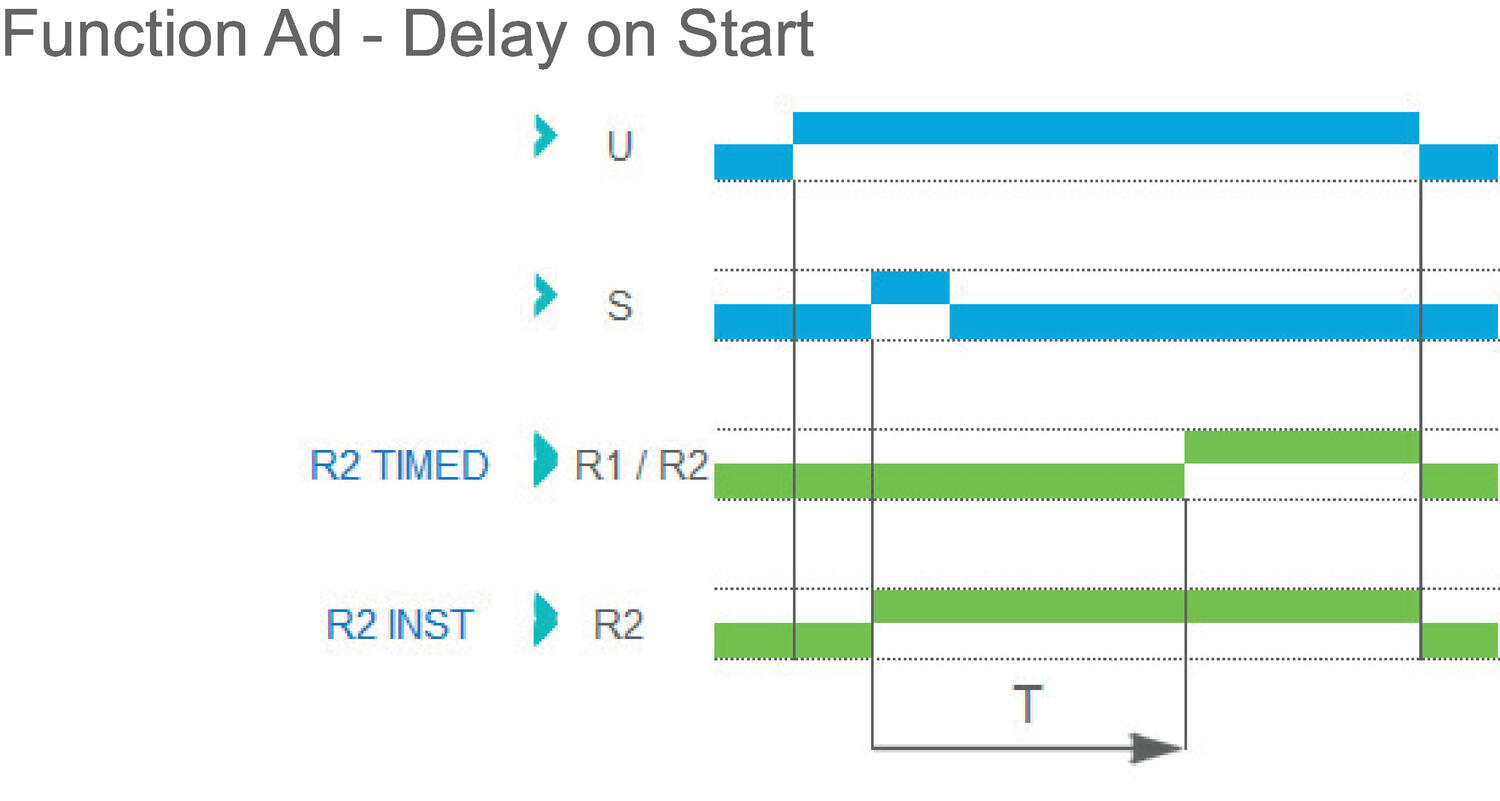

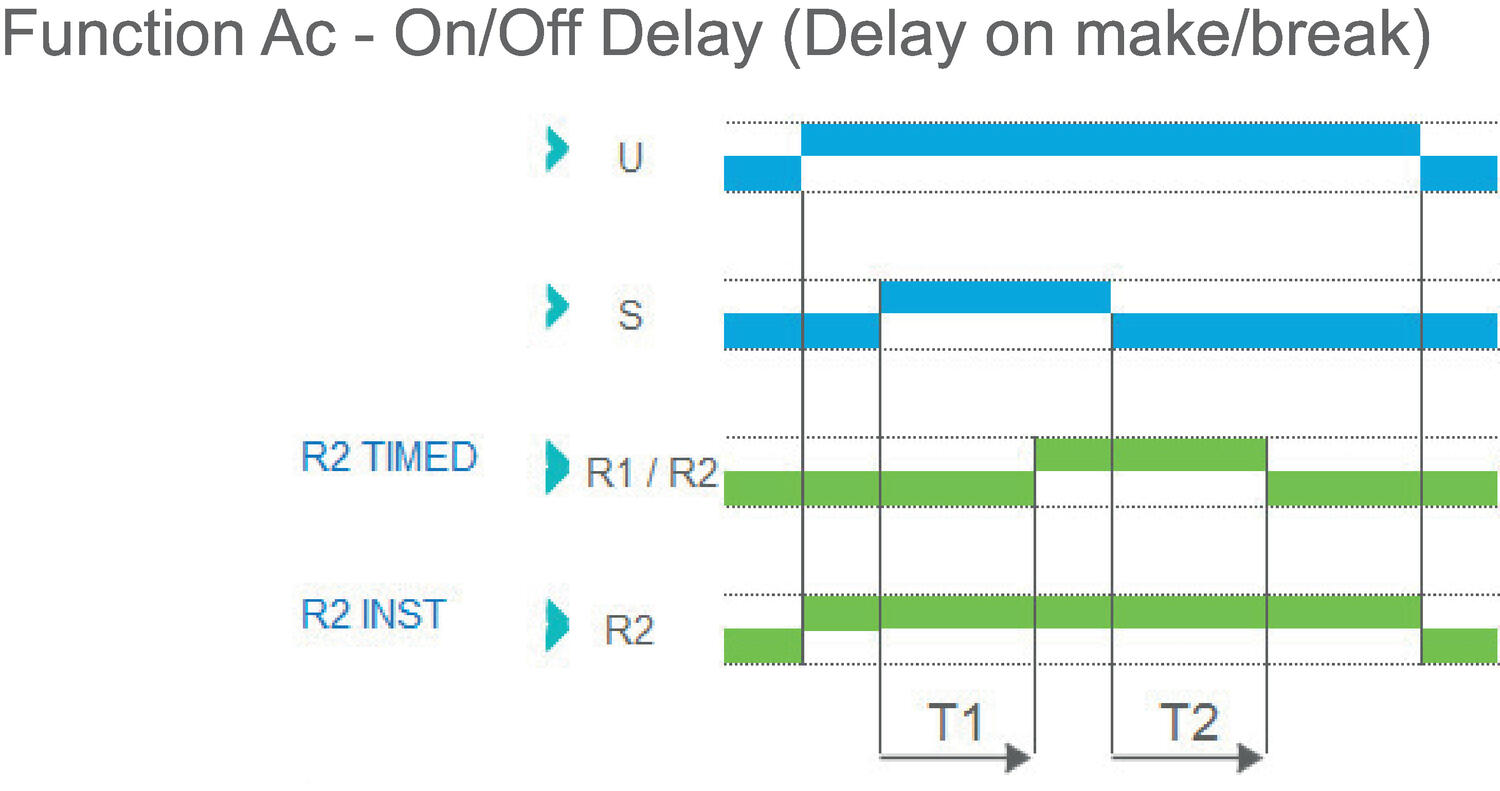

| Function | A - Delay on energisation, Ac - Timing after closing and opening of control contact, Ad - Delay on energisation (no reset), At - Timing on energisation with memory, B - Timing on impulse (one shot), Bw - Pulse output (adjustable), C - Timing after impulse, D - Symmetrical flashing, Di - Symmetrical flashing, H - Timing on energisation - pulse output, Ht - Delay on energisation with memory |
|---|---|
| Time Range | 0,5-10s, 0,05-1min, 0,5-10min, 0,05-1h, 0,5-10h, 0,05-1d, 0,5-10d |
| Response Closing | 40 ms |
| Response From Stroke | 120 ms |
| Repeatability | 0.5 % |
| Multifunction | Yes |
| Output | Relay 2 pole C/O |
| Power Consumption | 1.5 W |
| Breaking capacity | 2500 VA / 300W |
| Switching Current Max | 10 A |
| Supply voltage | 12-240V AC/DC |

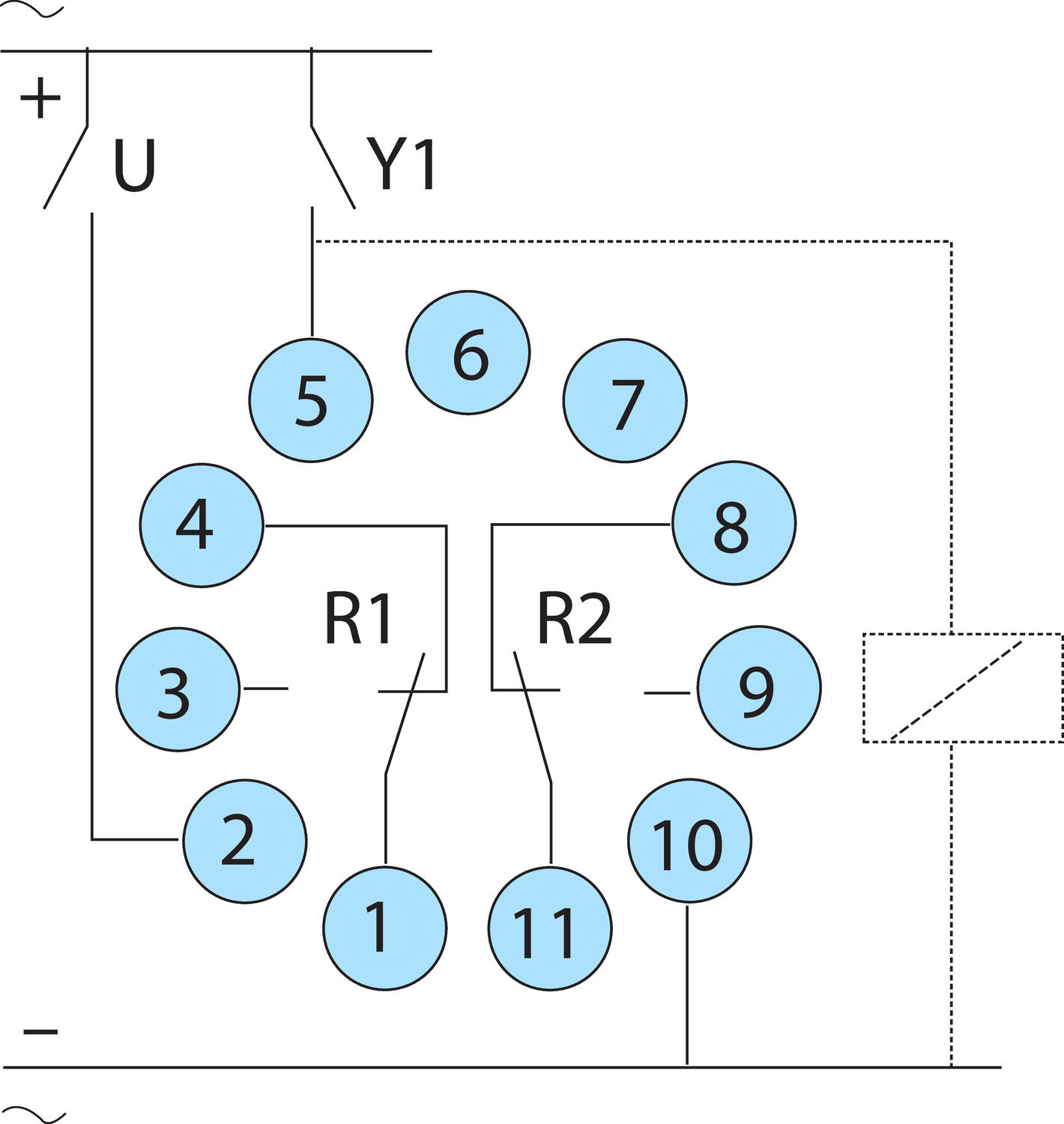

| Mounting | 11-pin socket |
|---|---|
| Temperature range from | -20 °C |
| Temperature range to | 60 °C |
| Temperature range bearing, from | -40 °C |
| Temperature range bearing, to | 70 °C |
| Approvals | CE, cULus, REACH, RoHS |

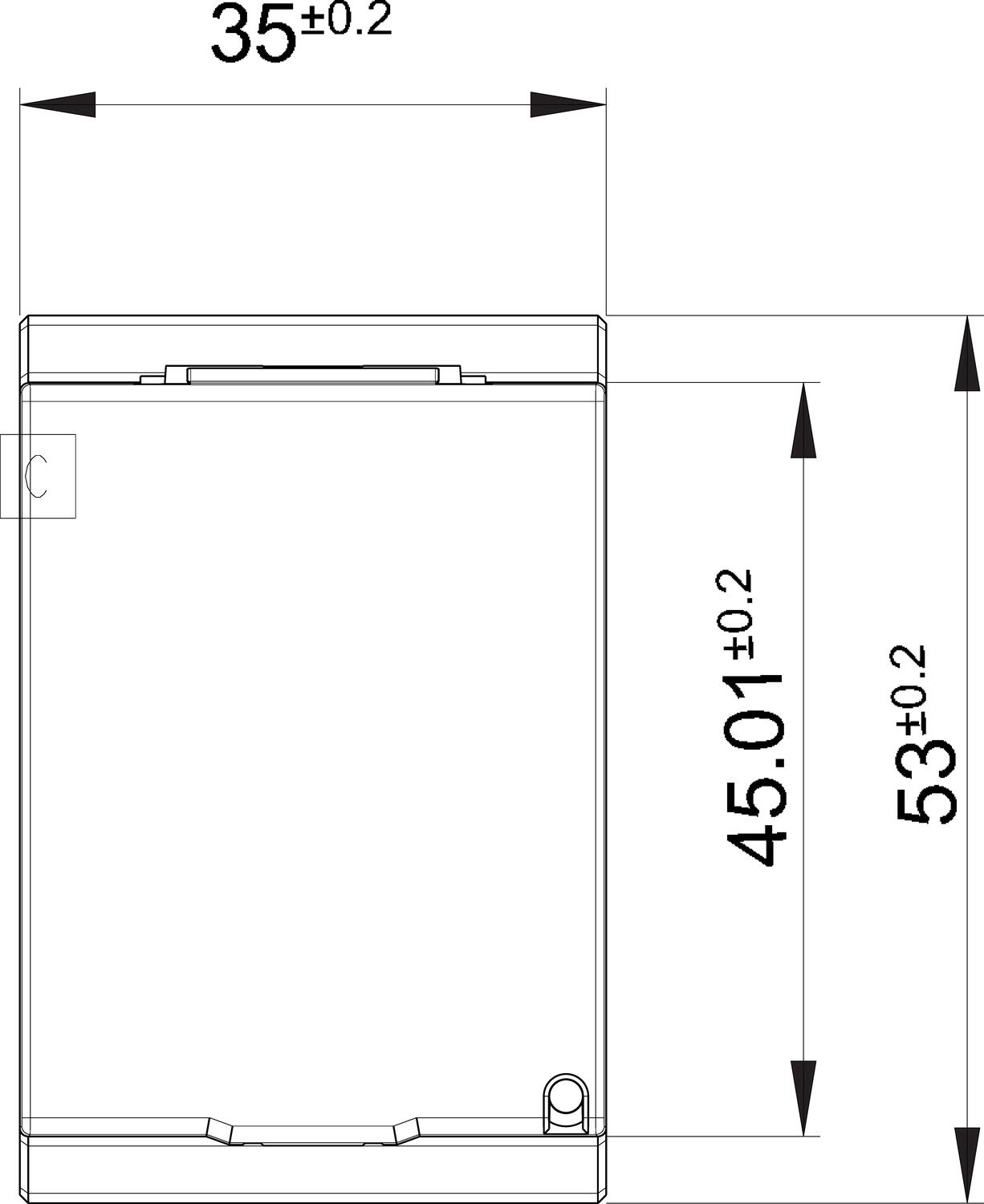

| Width | 35 mm |

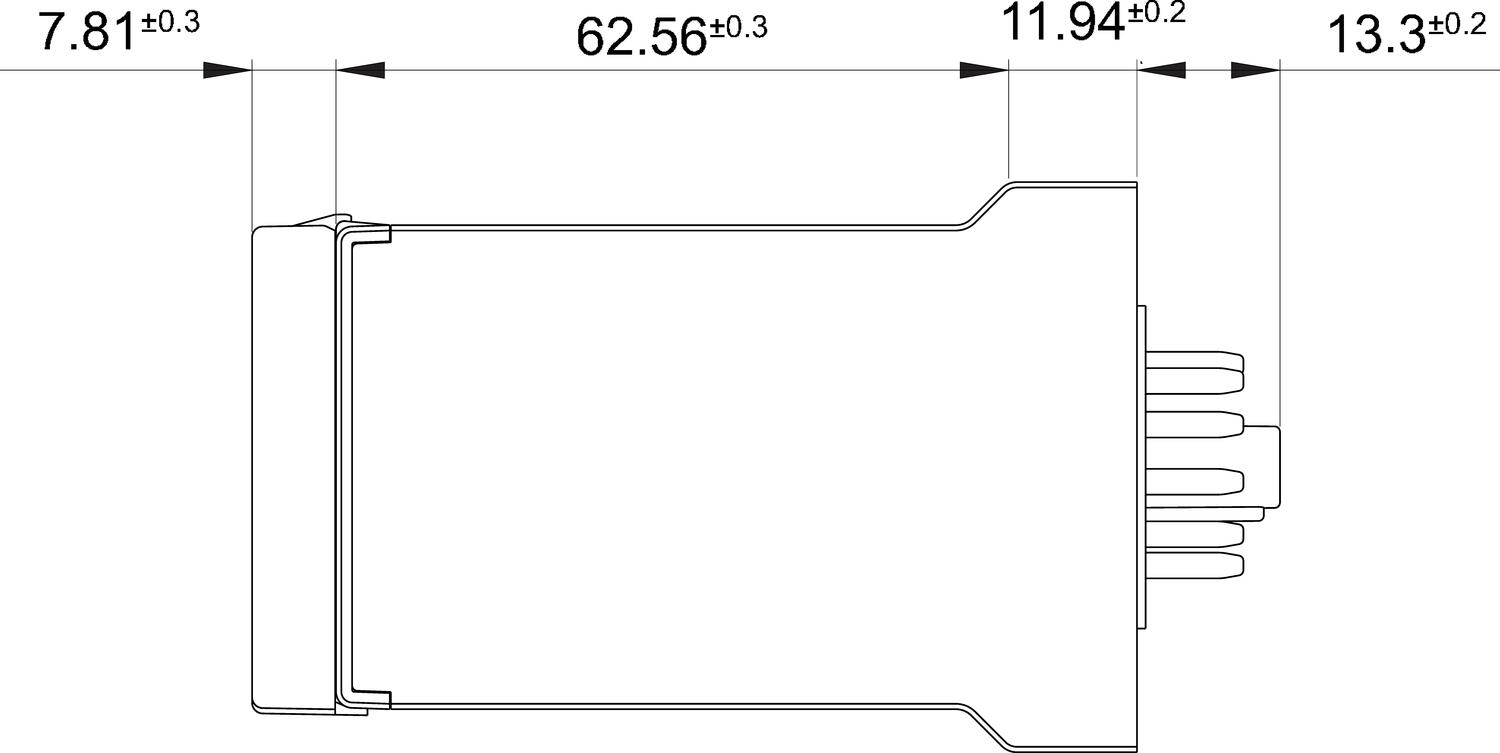

| Depth | 95.6 mm |
| Height | 53 mm |
| IP Class | IP40 |
Product description
SyrLine, the new specialised range from Crouzet. Aimed to satisfy the most unique requirements of any application by innovations in design, engineering and develipment.
The new family of 11 pin plug-in analog timers - multifunction or monofunction, with a wide time range, and with all the classic timing functions.
