TOSI
LOCK 150

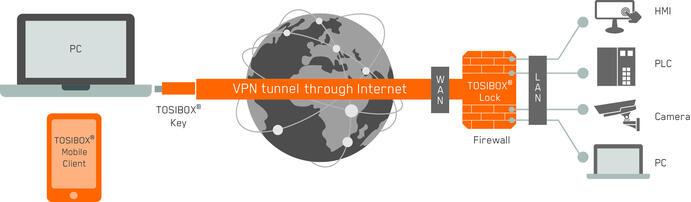

TOSIBOX® Lock 150 is an industrial router with firewall and easy Plug & Go™ connectivity. It serves as an endpoint for secure remote connections. IoT devices connected to the Lock can be securely accessed over the Internet and most LAN and WAN networks through an encrypted VPN connection.
TOSIBOX® Lock 150 is compatible with all existing TOSIBOX® products. Modularity of the products enables easy and fast extension of networks.
- Patented TOSIBOX® Plug & Go™ connection method takes you out of the box and into use in less than 5 minutes, without the need for software installations, network configurations or special IT skills
- NAT and firewall friendly
- VPN throughput up to 10 Mbit/s, end-to-end encryption between TOSIBOX® devices
- Performing at the highest security levels in the industry
- Up to 10 concurrent VPN connections
- Audited and patented security
- Reliability with TosiOnline™ automatic reconnection of dropped connections
- Compact physical size for space conscious environments
- Up to 10 Mb/s VPN throughput
- WAN port & WLAN
- Supports USB 3G/4G modem
- Up to 10 concurrent connections
Selected variant
Specifications
| Authentication of VPN connection | PKI, 3072 bit RCA |
|---|---|
| Height | 35.5 mm |
| LAN port | 3 x 10/100 Mbit/s |
| Length | 132 mm |
| Power Consumption max | 7.2 W |
| Supply voltage | 12-24 V DC |
| WAN port | 10/100 Mbit/s |
| Width | 99 mm |
| VPN encryption | Blowfish 128 bit CBC, AES 128/192/256 bit CBC |
Product description
TOSIBOX® Lock 150 is an industrial router with firewall and easy Plug & Go™ connectivity. It serves as an endpoint for secure remote connections. IoT devices connected to the Lock can be securely accessed over the Internet and most LAN and WAN networks through an encrypted VPN connection.
TOSIBOX® Lock 150 is compatible with all existing TOSIBOX® products. Modularity of the products enables easy and fast extension of networks.
- Patented TOSIBOX® Plug & Go™ connection method takes you out of the box and into use in less than 5 minutes, without the need for software installations, network configurations or special IT skills
- NAT and firewall friendly
- VPN throughput up to 10 Mbit/s, end-to-end encryption between TOSIBOX® devices
- Performing at the highest security levels in the industry
- Up to 10 concurrent VPN connections
- Audited and patented security
- Reliability with TosiOnline™ automatic reconnection of dropped connections
- Compact physical size for space conscious environments
