TOSIBOX

LOCK 500

TOSIBOX® Lock 500 is a high-end connectivity device bringing unprecedented possibilities for customers to manage their operations and to build new IoT solutions. The Lock 500 is ideal for demanding industrial environments and opens up new opportunities in security and office networking sectors.



The new Lock 500 is compatible with all existing TOSIBOX® products. Modularity of the products enables easy and fast extension of networks.

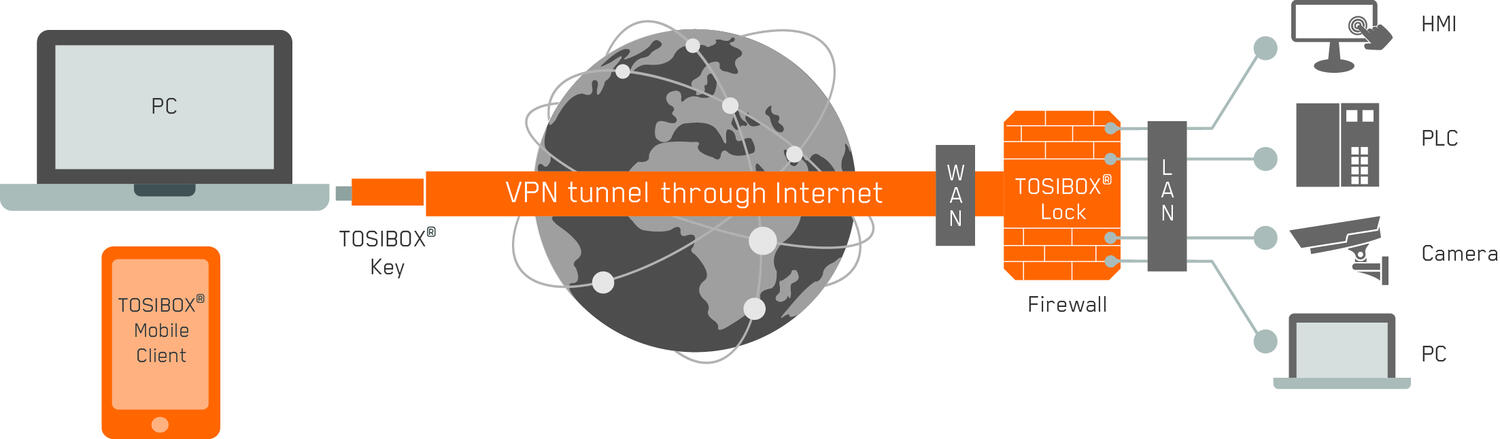

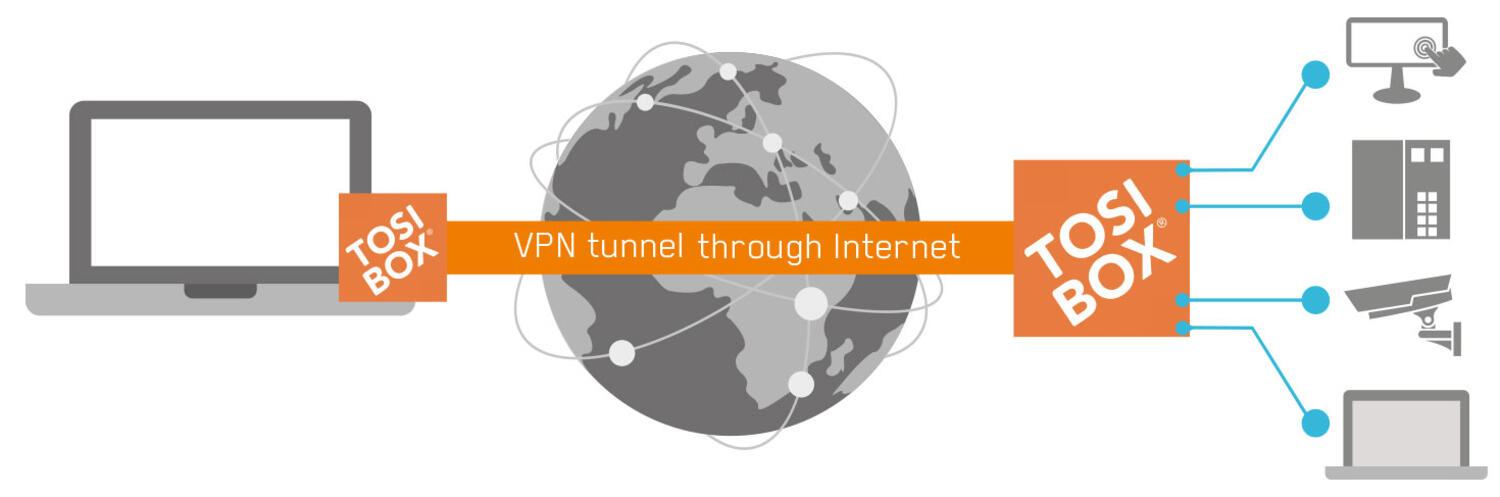

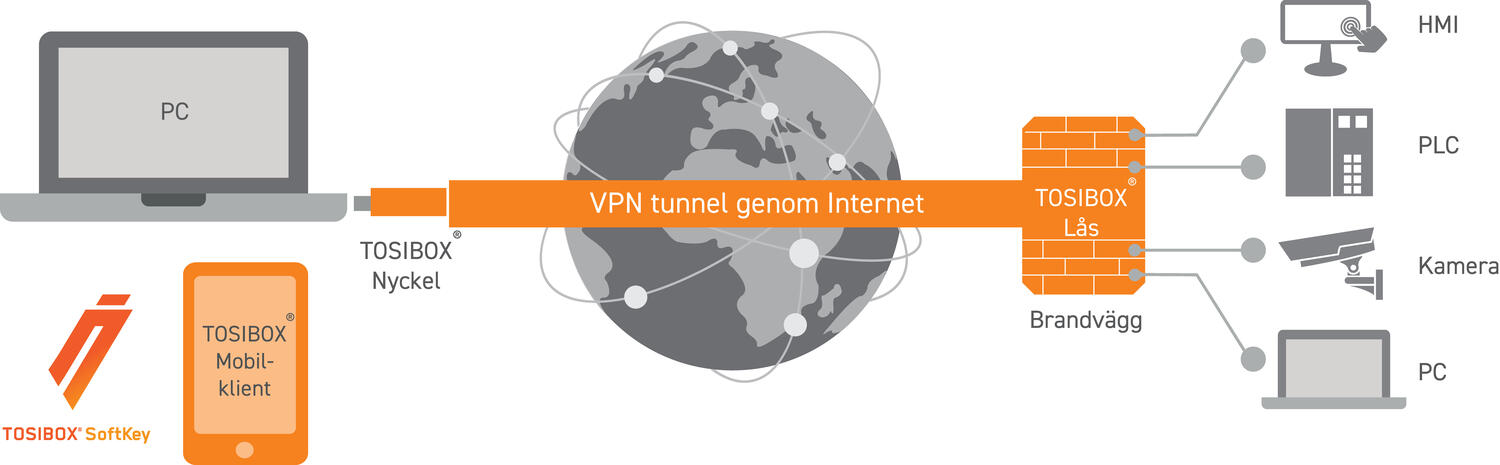

  • Massive VPN throughput for data consuming applications, end-to-end encryption from Key to Lock, Lock to Lock or Lock to (Virtual) Central Lock
  • Up to 50 concurrent VPN connections
  • Integrated WiFi as connectivity method or access point for wireless devices on site.
  • Built-in LTE modem (optional), with three modem variants covering the globe – no external modem needed
  • Dual-SIM slots for operator redundancy allows for even more reliable connectivity
  • TosiOnline™ functionality of automatic reconnection of dropped connections
  • 2/2 x Digital I/O for controlling and monitoring of Lock status and sending SMS in I/O events
  • Industrial design: robust and fanless enclosure, integrated DIN rail bracket and industrial screw-on DC power connector
  • Performing at the highest security levels in the industry
Read more
  • Up to 70 Mb/s VPN throughput
  • WAN port & WLAN
  • Double SIM card port version
  • Integrated I/O
  • Up to 50 concurrent connections

Selected variant

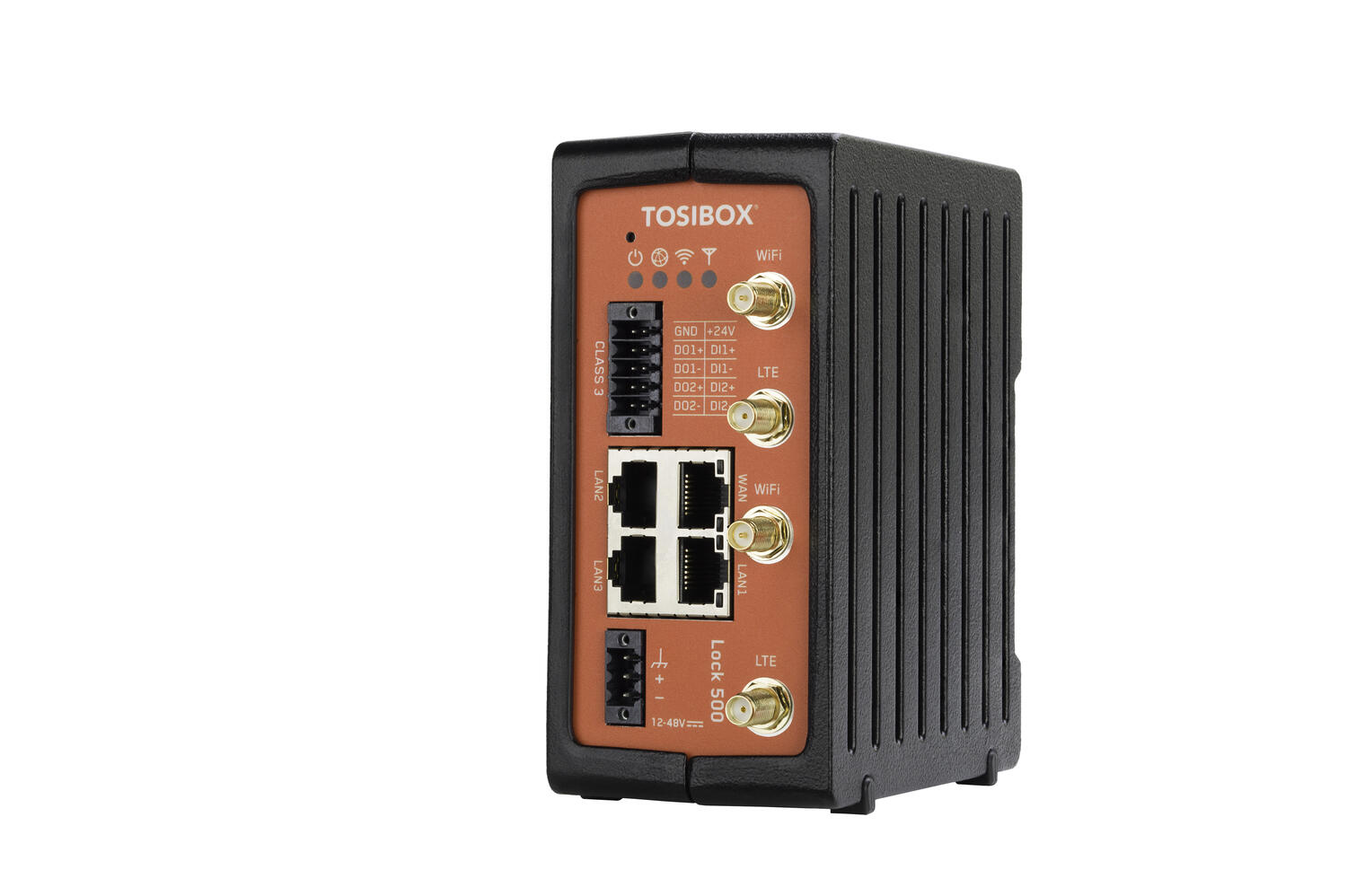

Lock500_4xantenna_front right_hires_v2.png

Art:

Selected variant

Specifications

Data encryption PKI, 3072 bit RCA
Height 110 mm
LAN port 3 x 10/100 Mbit/s
Mounting TS 35/7,5
Power Consumption max 10 W
Supply voltage 12-48 V DC
two-factor authentication Yes
WAN port 10/100 Mbit/s
Width 58 mm
VPN encryption Blowfish 128 bit CBC, AES 128/192/256 bit CBC

Product description

TOSIBOX® Lock 500 is a high-end connectivity device bringing unprecedented possibilities for customers to manage their operations and to build new IoT solutions. The Lock 500 is ideal for demanding industrial environments and opens up new opportunities in security and office networking sectors.



The new Lock 500 is compatible with all existing TOSIBOX® products. Modularity of the products enables easy and fast extension of networks.






  • Massive VPN throughput for data consuming applications, end-to-end encryption from Key to Lock, Lock to Lock or Lock to (Virtual) Central Lock
  • Up to 50 concurrent VPN connections
  • Integrated WiFi as connectivity method or access point for wireless devices on site.
  • Built-in LTE modem (optional), with three modem variants covering the globe – no external modem needed
  • Dual-SIM slots for operator redundancy allows for even more reliable connectivity
  • TosiOnline™ functionality of automatic reconnection of dropped connections
  • 2/2 x Digital I/O for controlling and monitoring of Lock status and sending SMS in I/O events
  • Industrial design: robust and fanless enclosure, integrated DIN rail bracket and industrial screw-on DC power connector
  • Performing at the highest security levels in the industry
