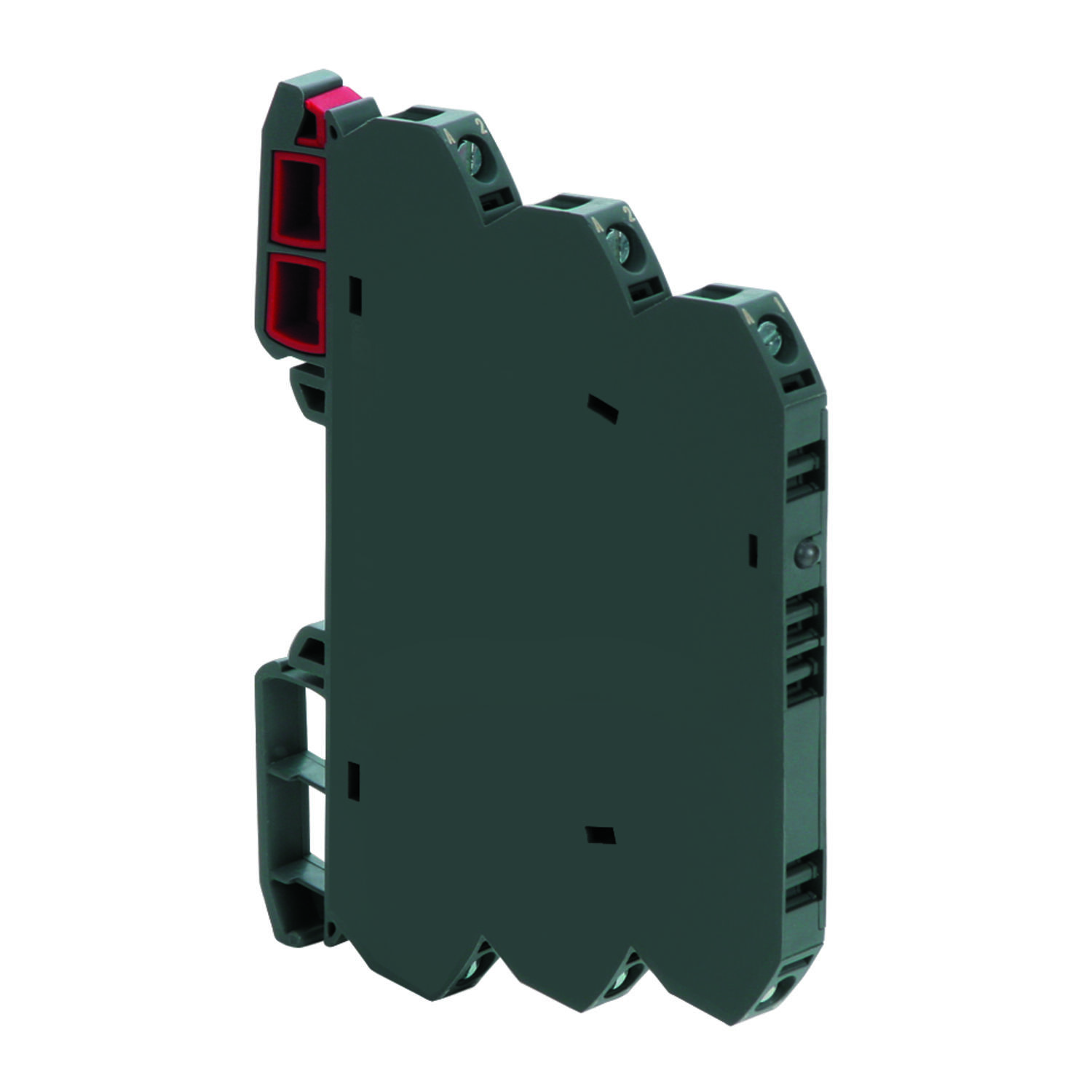

LCIS Passive signal converters 4-20mA/4-20mA
LCIS
Passive signal converters for galvanic isolation of mA signals. Converter requires no external power supply as it receives power via the input signal. Very high amplifier accuracy 0,1% enables the use in low-voltage applications. 1,5kV isolation voltage guarantees a reliable interface between input and output circuits. Green LED light for state indication.
These converters will stay operational despite the output circuit being open. The open-ness of the output circuit has no effect on the input circuit.
- 6,2mm wide
- No need for external power source
- 1500V Isolation
- Open output circuit protection
- Screw or push-in termination
Selected variant
Specifications
| Rise Time | 6 ms |
|---|---|
| Influence Of Load Resistance | <0,06 % per 100 Ω |
| Reaction time | 6 ms |

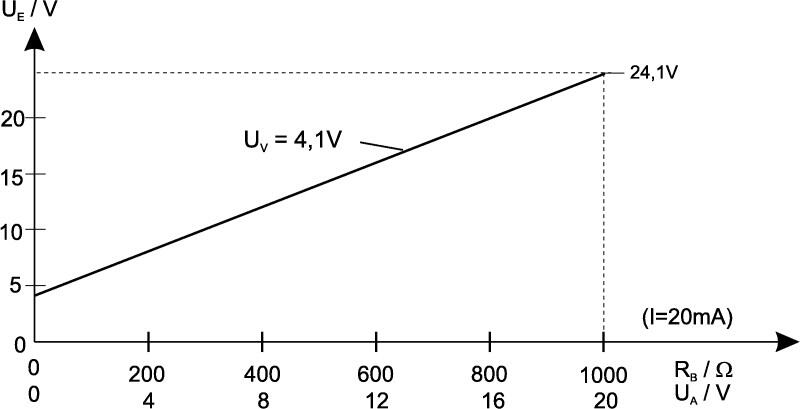

| Load Impedance | 1000 Ω |

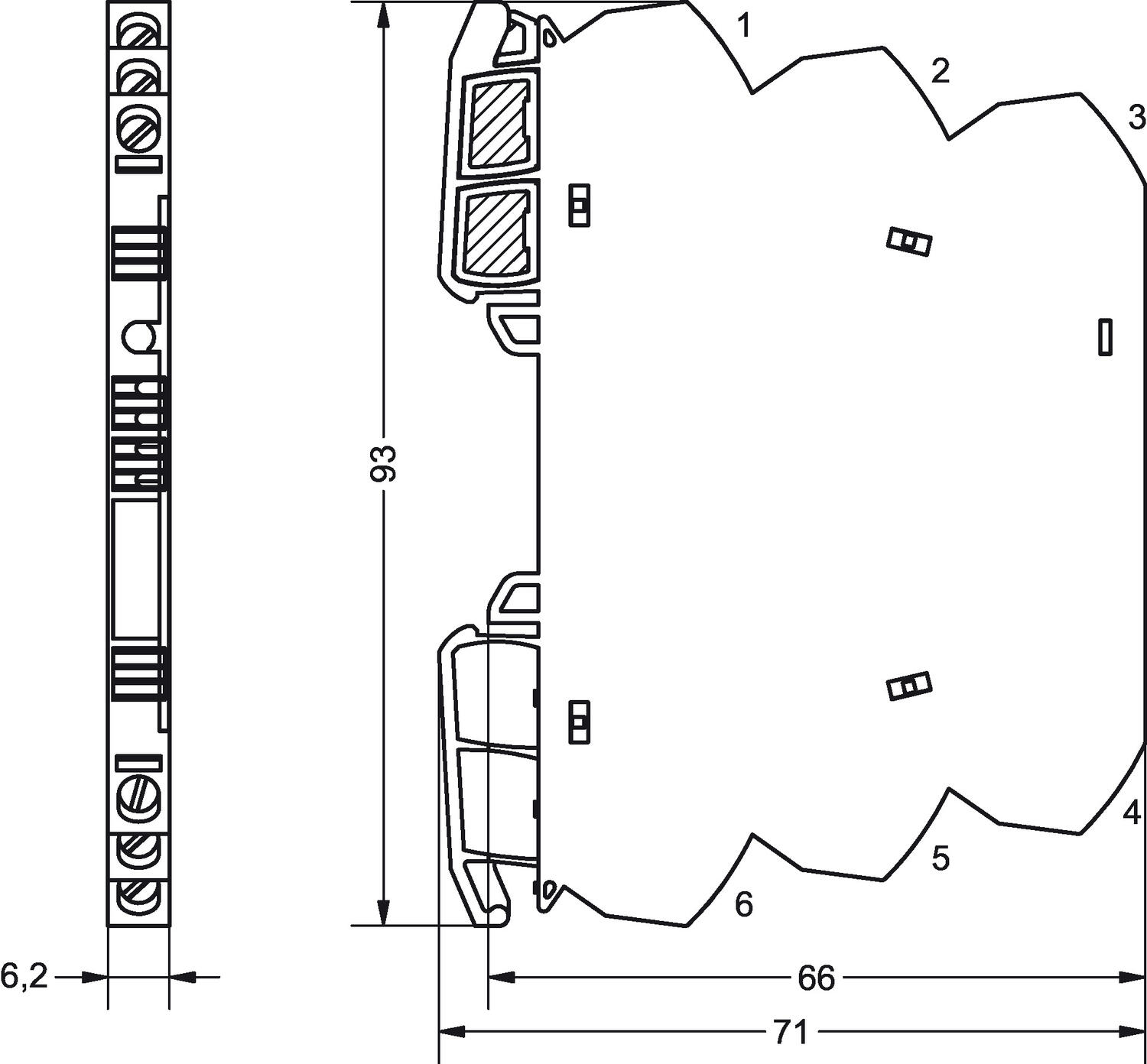

| Height | 93 mm |
| Width | 6.2 mm |
| Depth | 71 mm |
| IP Class | IP20 |
| Weight | 40 g |
| Cross section min | 0.25 mm² |
|---|---|
| Cross Section Max | 2.5 mm² |
| Insulation voltage in/out | 1500 V |
| Temperature range from | -25 °C |
| Temperature range to | 60 °C |
| Temperature range bearing, from | -40 °C |
| Temperature range bearing, to | 80 °C |
Product description
Passive signal converters for galvanic isolation of mA signals. Converter requires no external power supply as it receives power via the input signal. Very high amplifier accuracy 0,1% enables the use in low-voltage applications. 1,5kV isolation voltage guarantees a reliable interface between input and output circuits. Green LED light for state indication.
These converters will stay operational despite the output circuit being open. The open-ness of the output circuit has no effect on the input circuit.
