LÜTZE
LCIS analogue/analogue converter, adjustable
Microcompact splitter features common standard signals and a DIP switch for selecting the input and output signal. The converter is self-calibrating which ensures easy installation. The converter features 3-way galvanic isolation, each terminal can be connected by jumper comb. Extremely compact design, width of 6,2mm only. Can be installed in any position.
- 6,2mm wide

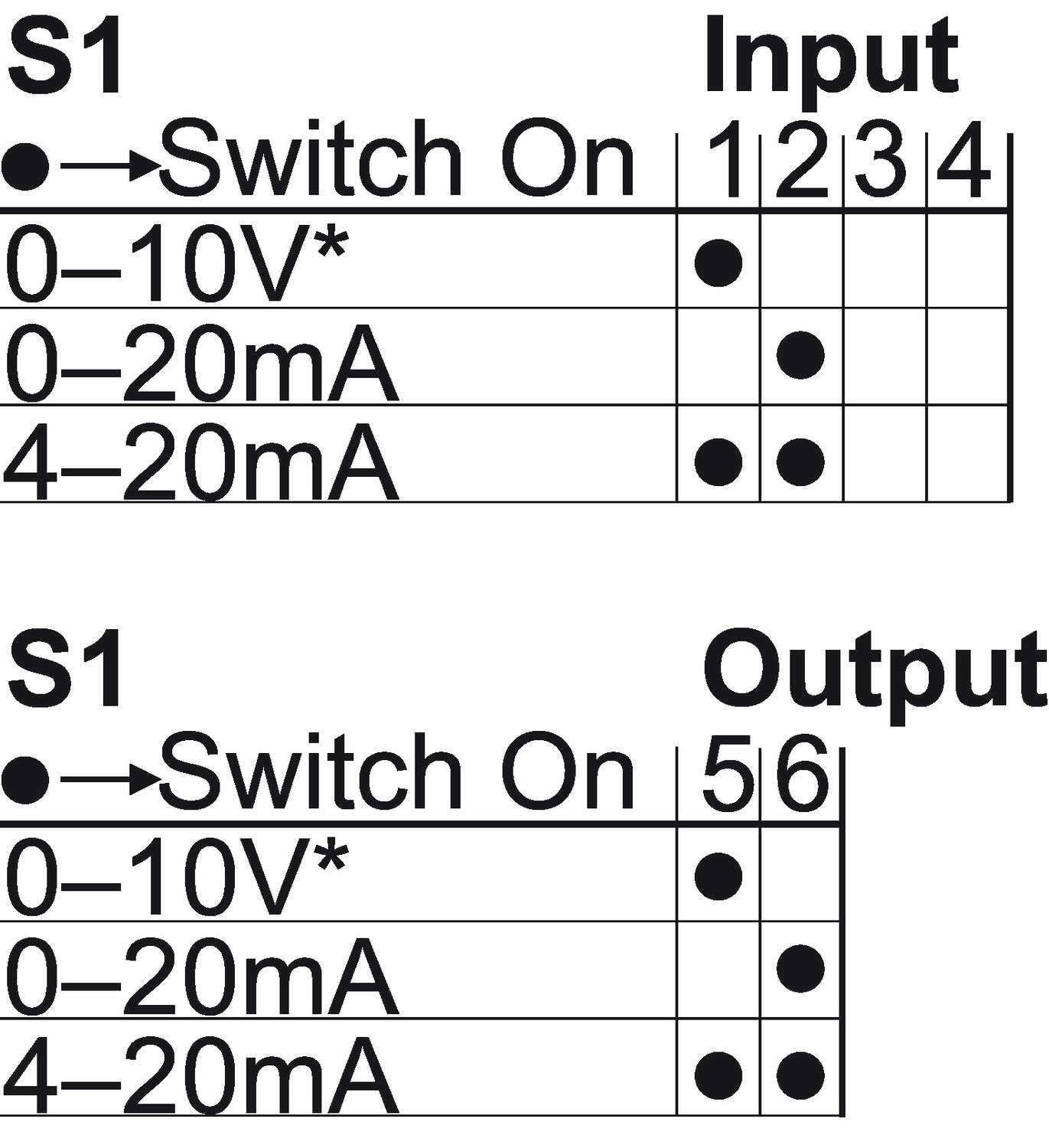

- Input and output selectable via DIP switch
- Automatic calibration
- DNV GL approved
Selected variant
Specifications
| Approvals | CSA, DNV, UL |
|---|---|
| Cross Section Max | 2.5 mm² |
| Cross section min | 0.25 mm² |
| Depth | 73 mm |
| Height | 93 mm |
| Input impedance current mA | 100 Ω |
| Input impedance voltage | 330 kΩ |
| Insulation voltage in/out | 2500 V |
| IP Class | IP20 |
| Linearity | 0,05 % FSR |
| Load impedance power | 500 Ω |
| Load impedance voltage | Min. 2 kΩ |
| Manual switch | No |
| Power Supply AC max | 26.4 V |
| Power Supply AC min | 19.2 V |
|---|---|
| Power Supply DC max | 31.2 V |
| Power Supply DC min | 18 V |
| Reaction time | 17 ms |
| Rise Time | 6 ms |
| Switching Frequency max | 30 Hz @ 3 dB |
| Temperature coefficient | <150 ppm/° K FSR |
| Temperature range bearing, from | -40 °C |
| Temperature range bearing, to | 85 °C |
| Temperature range from | -25 °C |
| Temperature range to | 60 °C |
| Weight | 30 g |
| Width | 6.2 mm |
Product description
Microcompact splitter features common standard signals and a DIP switch for selecting the input and output signal. The converter is self-calibrating which ensures easy installation. The converter features 3-way galvanic isolation, each terminal can be connected by jumper comb. Extremely compact design, width of 6,2mm only. Can be installed in any position.
