Microcompact analog/analog splitter, 1 input / 2 outputs
Microcompact splitter features common standard signals and a DIP switch for selecting the input and output signal. The converter is self-calibrating which ensures easy installation. The converter features 4-way galvanic isolation, each terminal can be connected by jumper comb. Extremely compact design, width of 6,2mm only. Can be installed in any position.

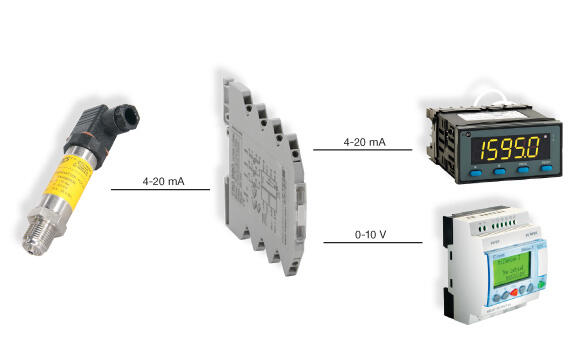

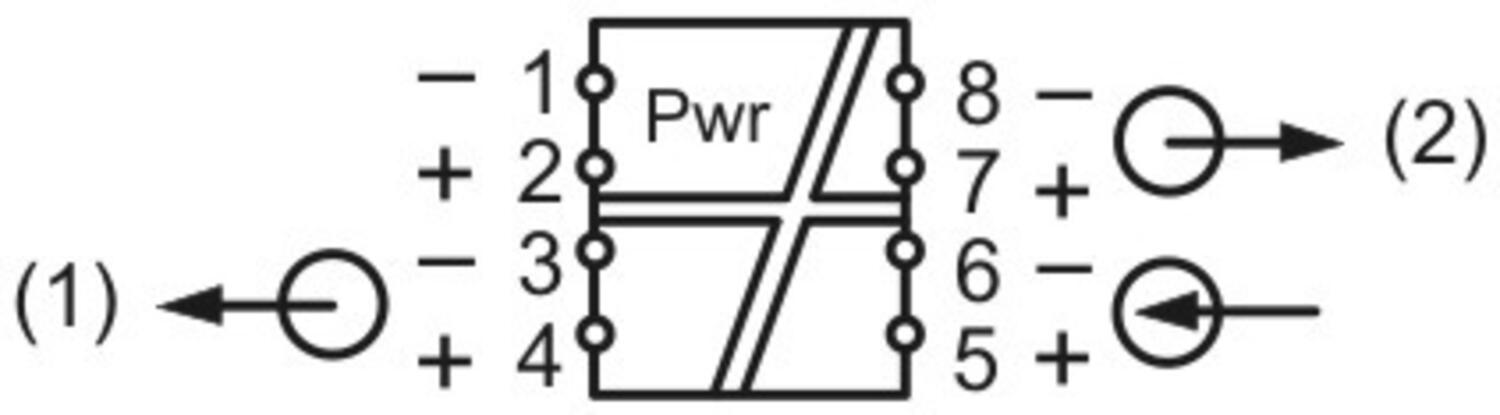

The splitter has 2 outputs for either current or voltage signal: for example the input is 4-20 mA, output #1 could be 4-20 mA and output 2# 0-10V. Splitter can also be programmed in order to achieve the optimal resolution.

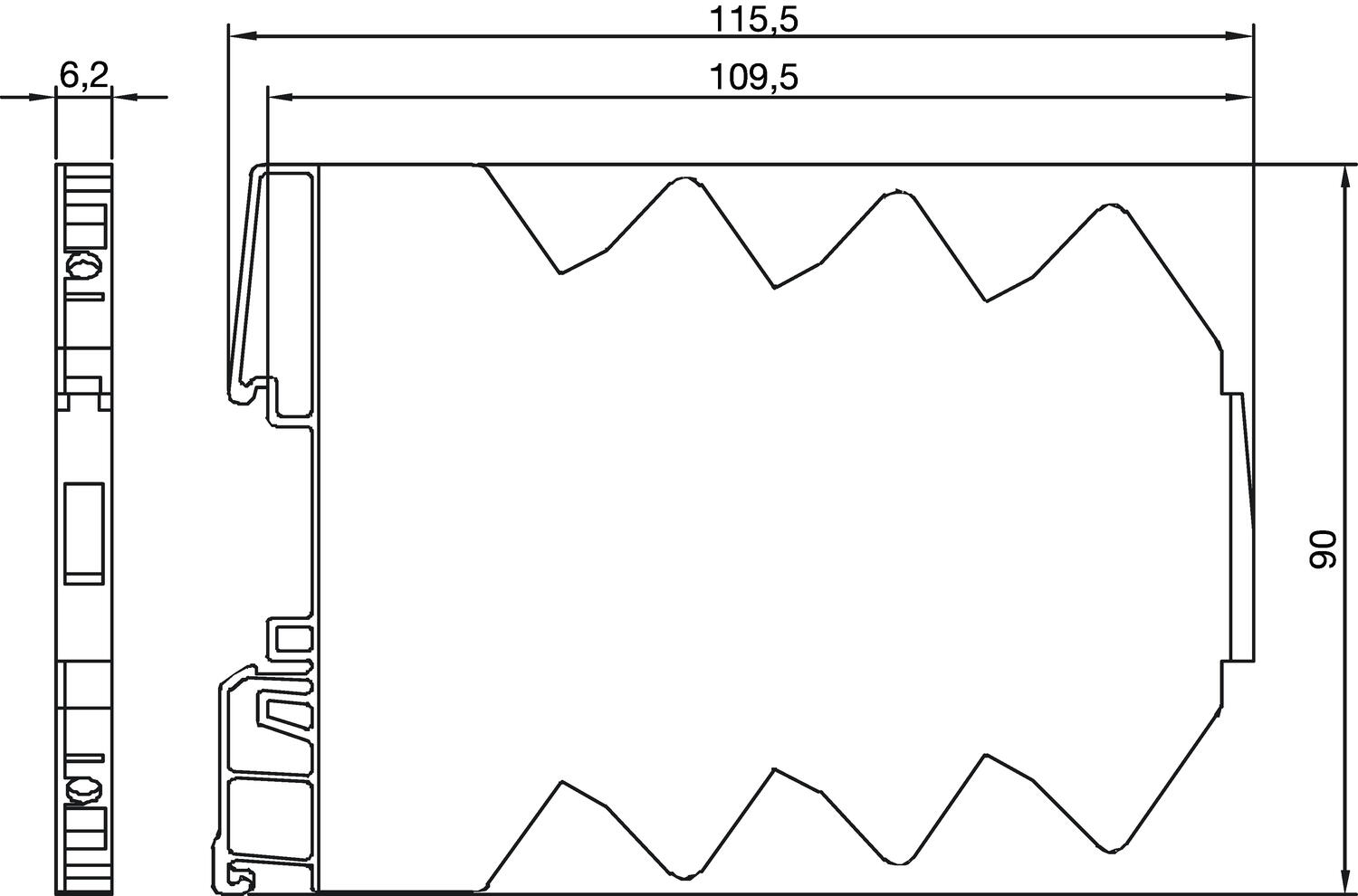

- 6,2mm wide

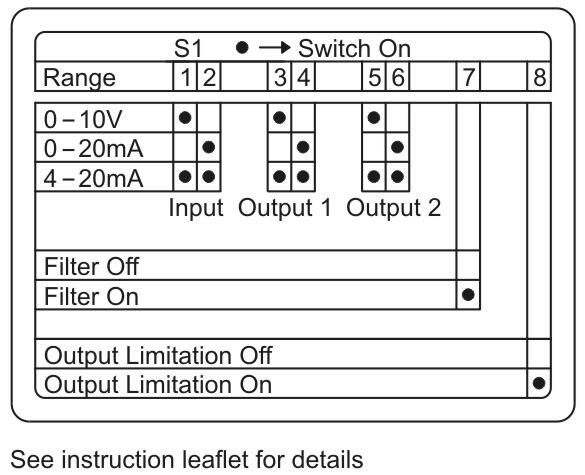

- Input and output selectable
- 4-way isolation, 2,5kV
- Automatic calibration
- 25V DC supply voltage
Selected variant
Specifications
| Approvals | CE, DNV, GL, RoHS |
|---|---|
| Cross Section Max | 1.5 mm² |
| Cross section min | 0.14 mm² |
| Input impedance current mA | 100 Ω |
| Input impedance voltage | 500 kΩ |
| Insulation voltage in/out | 2500 V |
| Load impedance power | 400 Ω @ 0–20 mA, 4–20 mA |
| Load impedance voltage | >2 kΩ @ 0–10 V |
| Power consumption | 13 mA |
| Power Supply DC max | 30 V |
|---|---|
| Power Supply DC min | 16.8 V |
| Power Supply V DC | 24 V DC |
| Temperature range bearing, from | -40 °C |
| Temperature range bearing, to | 85 °C |
| Temperature range from | -40 °C |
| Temperature range to | 70 °C |
| Weight | 50 g |
Product description
Microcompact splitter features common standard signals and a DIP switch for selecting the input and output signal. The converter is self-calibrating which ensures easy installation. The converter features 4-way galvanic isolation, each terminal can be connected by jumper comb. Extremely compact design, width of 6,2mm only. Can be installed in any position.
The splitter has 2 outputs for either current or voltage signal: for example the input is 4-20 mA, output #1 could be 4-20 mA and output 2# 0-10V. Splitter can also be programmed in order to achieve the optimal resolution.
