LÜTZE
Programmable signal converters for analog signals
Lütze programmable signal converter has an input range of + 30...- 30 V and + 50 mA...-50 mA or + 5 A...- 5 A. Output signalcan be selected, options include: 0-20 mA / 4-20 mA / 0-10 V / -10...+10 V / 2-10 V / 0-5 V / 1-5 V. Temperature range is -40 °C...+70 °C .
Converter parametrisation can be done via DIP switch or FDT/DTM software. The software is used for configuring all aspects up to complex real-time calculations for diagnostic and maintenance applications.

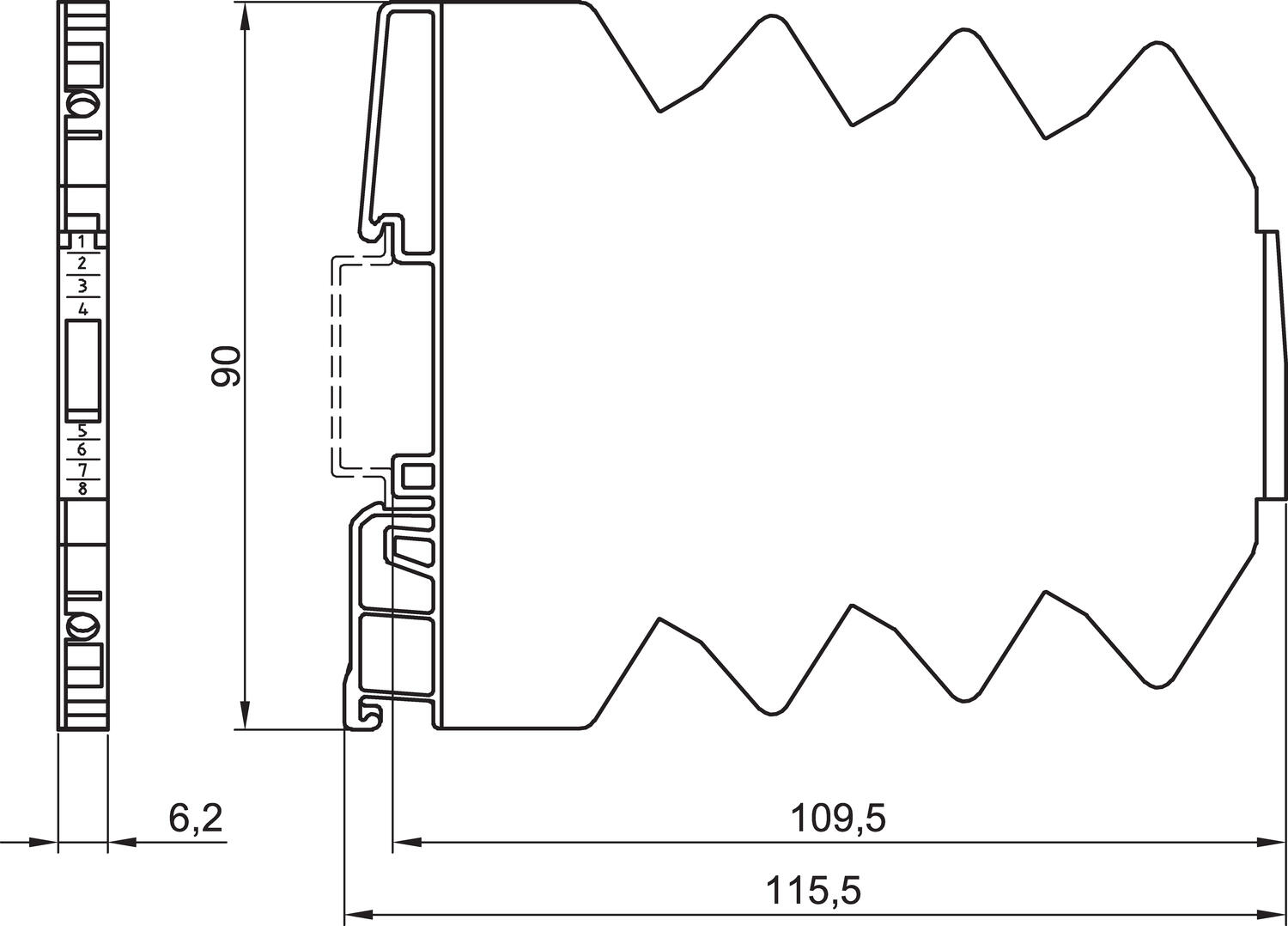

- 6,2mm wide
- Universal input / output, mA / V
- 3-way isolation, 2,5kV
- Adjustable via switch and software FDT/DTM or DIP switch
- 24V DC supply voltage
Selected variant
Specifications
| Approvals | CE, cULus, RoHS |
|---|---|
| Cross Section Max | 1.5 mm² |
| Cross section min | 0.14 mm² |
| IP Class | IP20 |
| Load impedance power | Max. 700 Ω |
| Load impedance voltage | Min. 2 KΩ |
| Power consumption | 18 mA |
| Power Supply DC max | 30 V |
| Power Supply DC min | 16.8 V |
|---|---|
| Temperature range bearing, from | -40 °C |
| Temperature range bearing, to | 85 °C |
| Temperature range from | -40 °C |
| Temperature range to | 70 °C |
| Weight | 50 g |
Product description
Lütze programmable signal converter has an input range of + 30...- 30 V and + 50 mA...-50 mA or + 5 A...- 5 A. Output signalcan be selected, options include: 0-20 mA / 4-20 mA / 0-10 V / -10...+10 V / 2-10 V / 0-5 V / 1-5 V. Temperature range is -40 °C...+70 °C .
Converter parametrisation can be done via DIP switch or FDT/DTM software. The software is used for configuring all aspects up to complex real-time calculations for diagnostic and maintenance applications.
