LÜTZE
LCIS analogue/frequency converters, adjustable

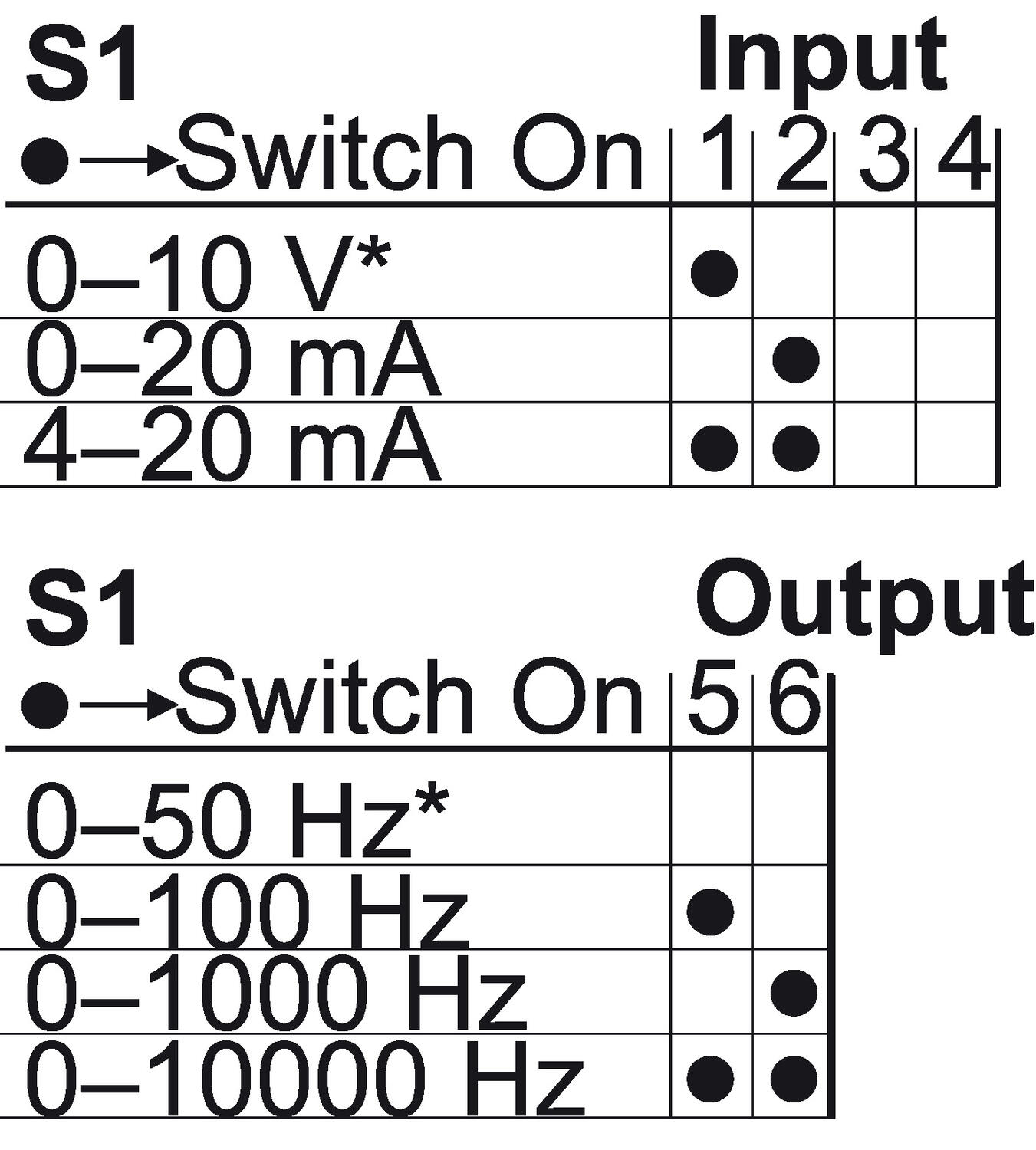

Signal converter for converting common standard signals into corresponding frequency. DIP switch for selecting the input and output signal, output signal range can be selected between 4 different options. Output voltage is 10V. The converter is self-calibrating which ensures easy installation.
The converter features 3-way galvanic isolation, each terminal can be connected by jumper comb. Extremely compact design, width of 6,2mm only. Can be installed in any position.
- 6,2mm wide
- Input and output selectable
- 3-way isolation, 2,5kV
- 24V AC/DC supply voltage
- Screw or Push-in termination
Selected variant
Specifications
| Approvals | CE, CSA, DNV, GL, RoHS, UL |
|---|---|
| Cross Section Max | 2.5 mm² |
| Cross section min | 0.25 mm² |
| Depth | 73 mm |
| Height | 93 mm |
| Input impedance current mA | 100 Ω |
| Input impedance voltage | 330 kΩ |
| Insulation voltage in/out | 2500 V |
| IP Class | IP20 |
| Linearity | 0,05 % FSR |
| Manual switch | Yes |
| Supply voltage | 24 V AC/DC |
|---|---|
| Switching Frequency max | 30 Hz @ 3 dB |
| Temperature coefficient | <150 ppm/° K FSR |
| Temperature range bearing, from | -40 °C |
| Temperature range bearing, to | 80 °C |
| Temperature range from | -25 °C |
| Temperature range to | 60 °C |
| Weight | 29 g |
| Width | 6.2 mm |
Product description
Signal converter for converting common standard signals into corresponding frequency. DIP switch for selecting the input and output signal, output signal range can be selected between 4 different options. Output voltage is 10V. The converter is self-calibrating which ensures easy installation.
The converter features 3-way galvanic isolation, each terminal can be connected by jumper comb. Extremely compact design, width of 6,2mm only. Can be installed in any position.
