Technical data / Documents

Accessories & Related products

Selected variant

Specifications

Approvals CE, cULus, RoHS
Cross Section Max 1.5 mm²
Insulation voltage in/out 1500 V
IP Class IP20
Linearity <0,1 % av max.värdet
Load impedance power <400 Ω
Load impedance voltage >55 kΩ
Power Consumption 0.3 W
Power Supply AC max 28.8 V
Power Supply AC min 19.2 V
Power Supply DC max 30 V
Power Supply DC min 16.8 V
Rise Time 30 ms
Temperature coefficient <150 ppm °C
Temperature range bearing, from -40 °C
Temperature range bearing, to 80 °C
Temperature range from -50 °C
Temperature range to 200 °C

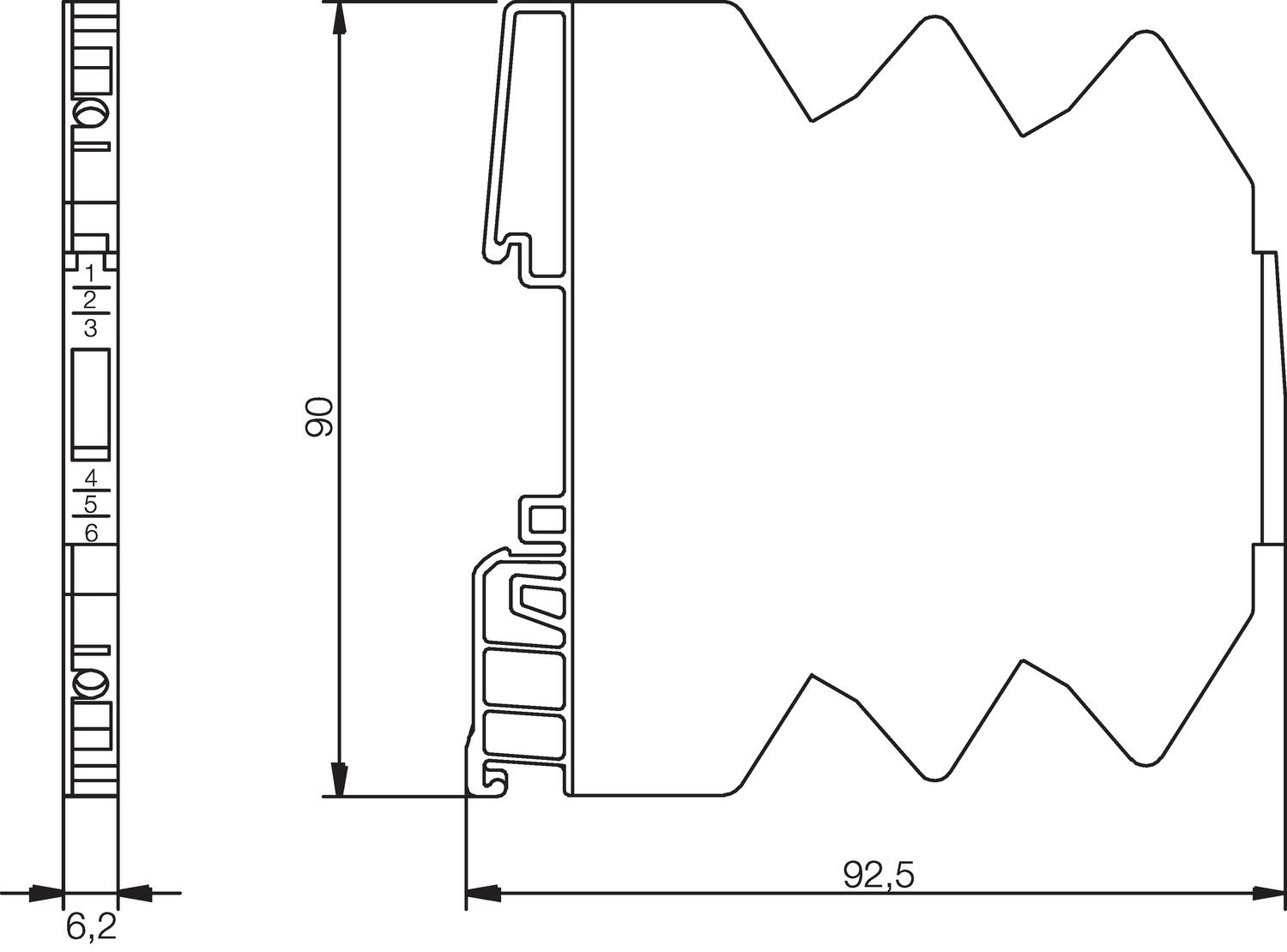

Measurements and connections

Technical illustrations

Accessories

Articles
Photo of converter with several function

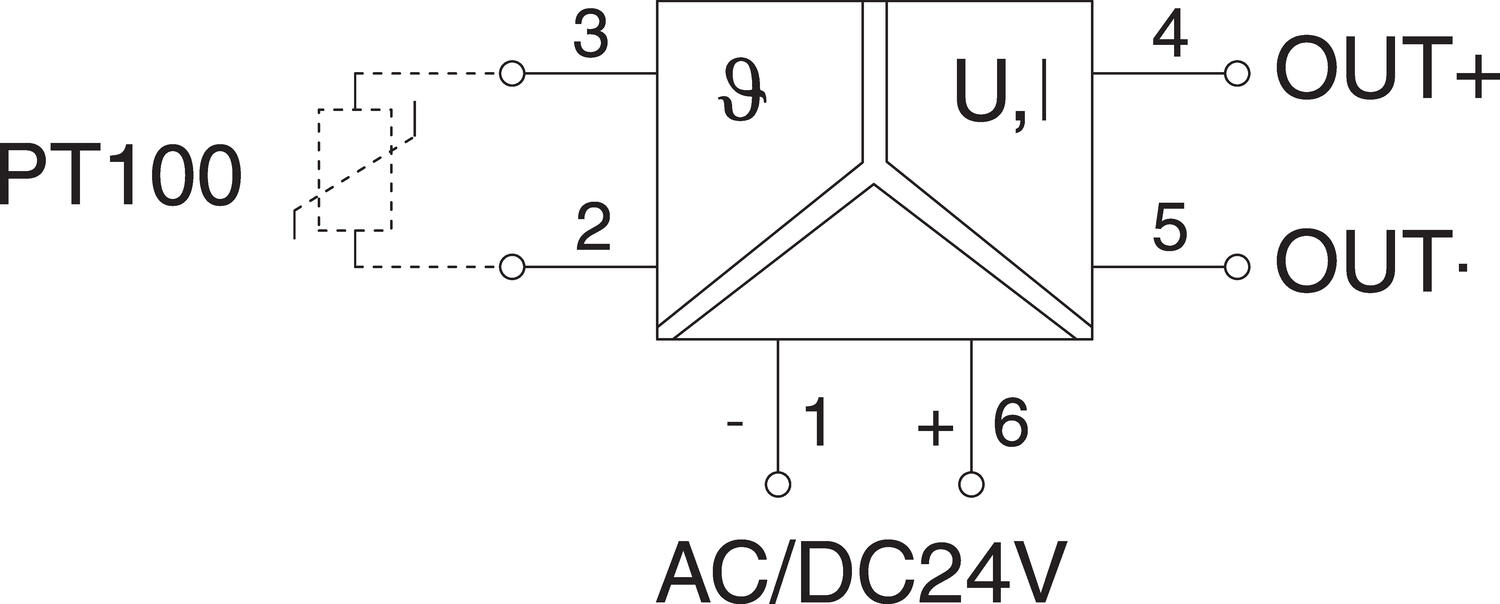

Signal Converter PT-100 2-tråd/ 24V
Art:
750809 Copied
Photo of converter with several function
Signal Converter PT-100 3-tråd/ 24V
Art:
750819 Copied
