Selected variant

Specifications

Approvals CE, cULus, RoHS
Cross Section Max 1.5 mm²
IP Class IP20
Linearity <0,1 % av max.värdet
Load impedance power <400 Ω
Load impedance voltage >5 kΩ
Power Consumption 8 mA
Power Supply AC max 28.8 V
Power Supply AC min 19.2 V
Power Supply DC max 30 V
Power Supply DC min 16.8 V
Reaction time 33 ms
Temperature coefficient <150 ppm/°C
Temperature range bearing, from -40 °C
Temperature range bearing, to 80 °C
Temperature range from -50 °C
Temperature range to 600 °C

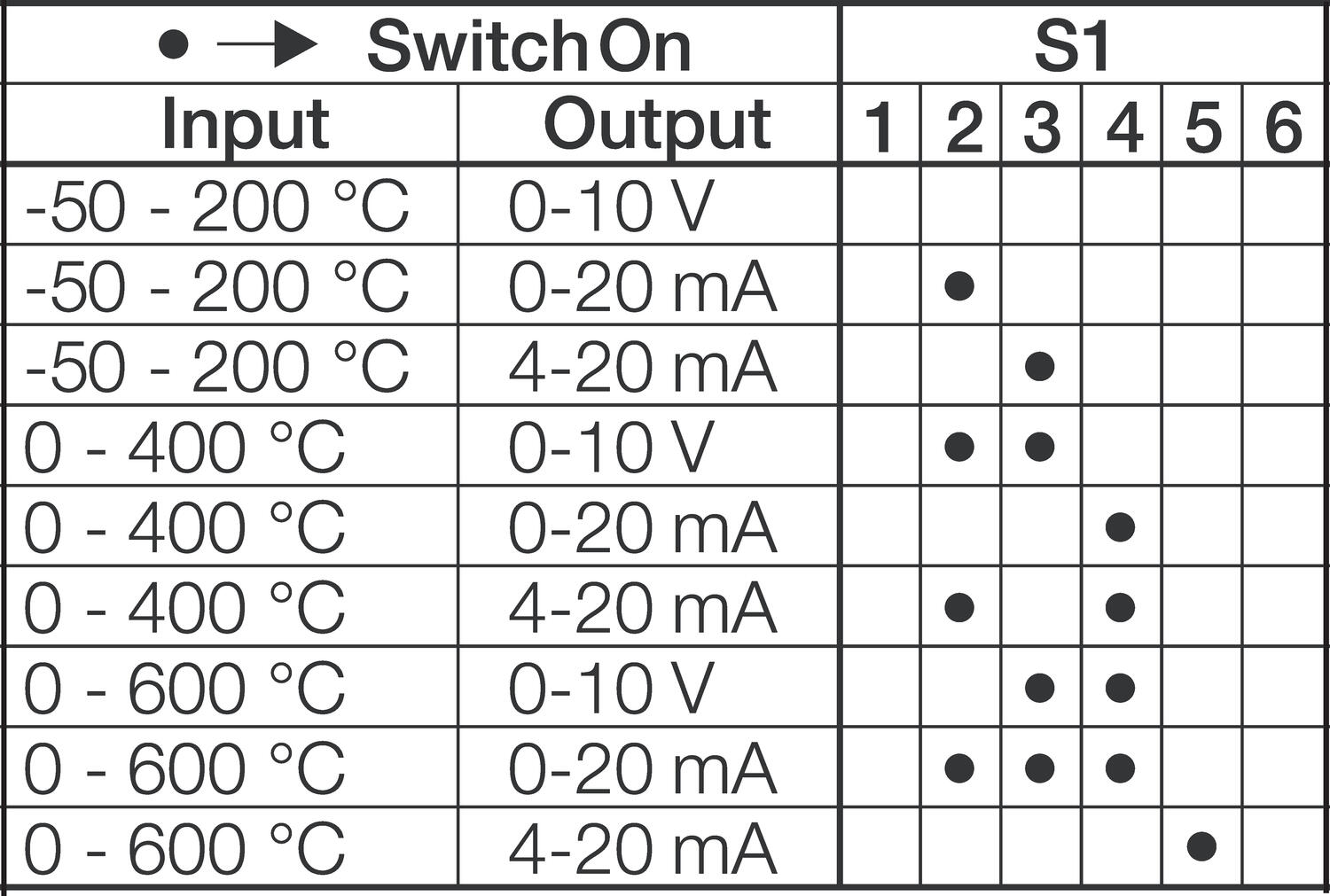

Measurements and connections

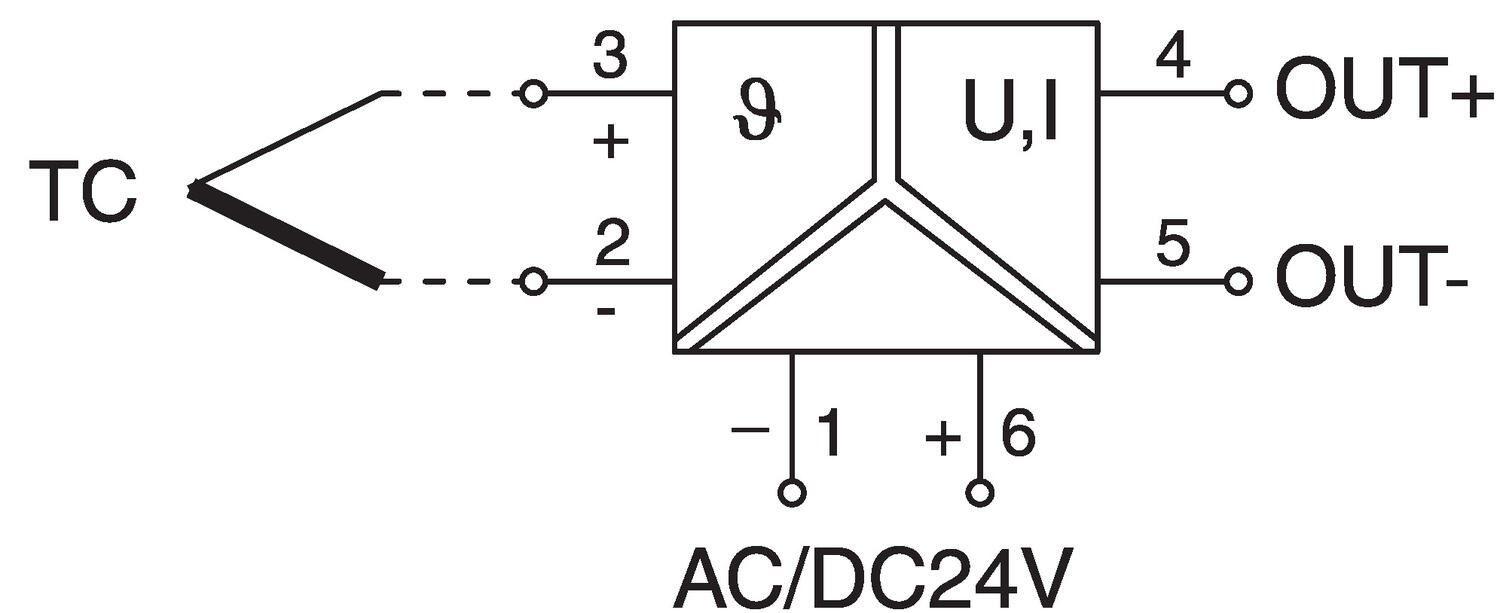

Technical illustrations

Accessories

Articles Power Consumption
Photo of converter with several function
Signal Converter Typ-J. 24V 2-vägs.
Art:
750833 Copied
8 mA
Photo of converter with several function
Signal Converter Typ-J. 24V 3-vägs
Art:
750839 Copied
13 mA
Photo of converter with several function
Signal Converter Typ-K. 24V 3-vägs
Art:
750869 Copied
13 mA
