LÜTZE

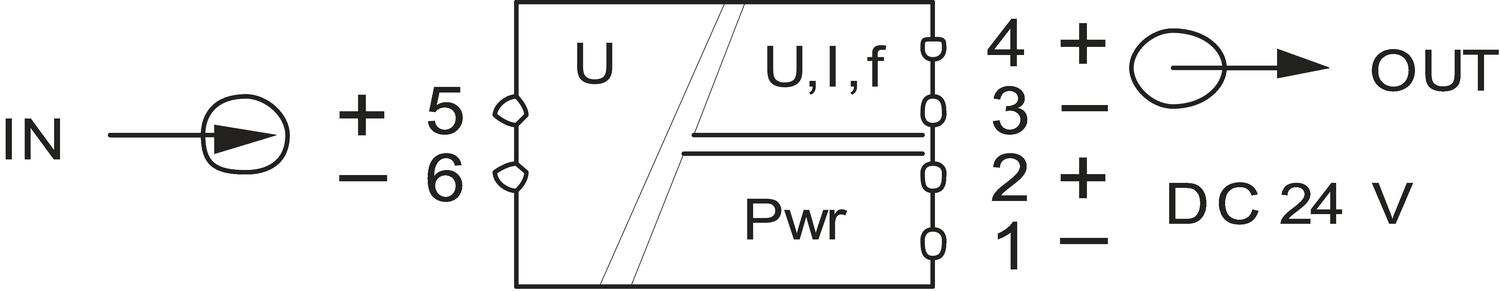

Microcompact voltage/analogue converter, 0-300V AC/DC

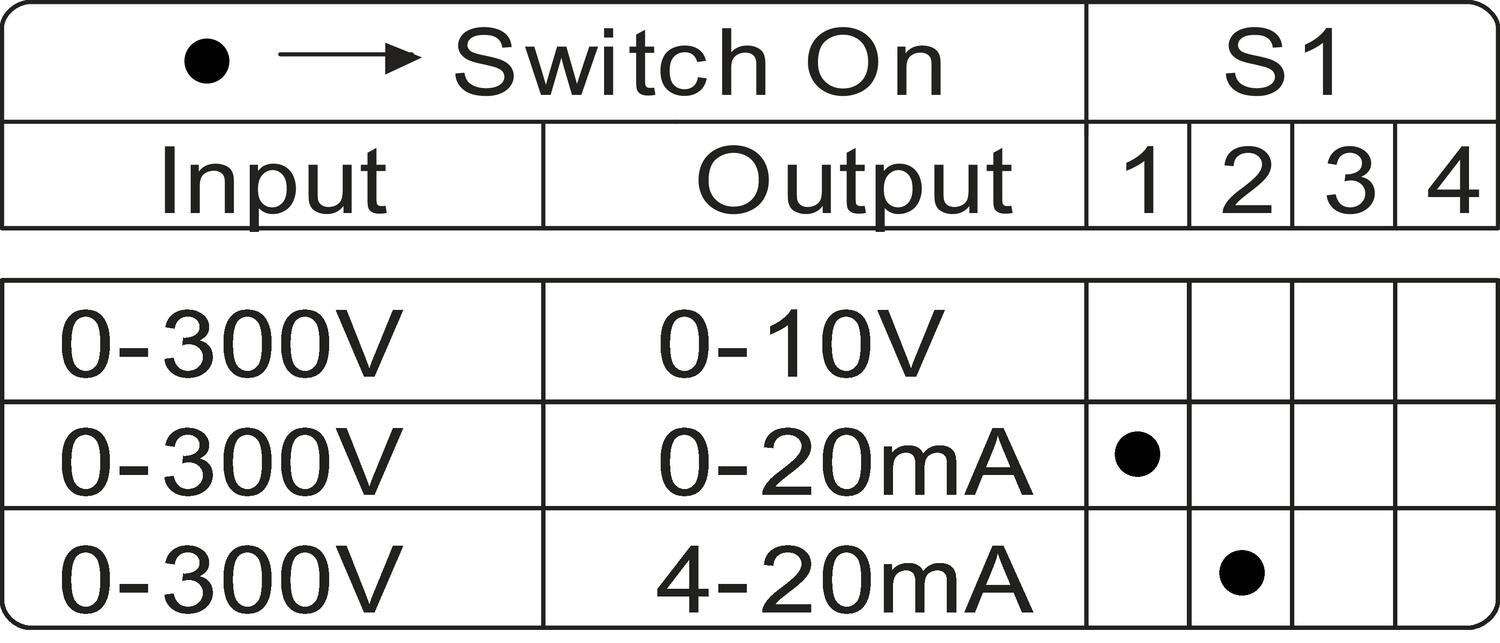

Signal converter for converting 0-300V AC/DC voltage into 0-10V, 0-20mA or 4-20mA standard signal. Output signal selection is done with DIP-switch.
- 6,2mm wide
- Input 0–300 V AC/DC
- Output 0-10 V/0-20 mA/4-20 mA
- 24V DC supply voltage
Selected variant
Specifications
| Approvals | CE, cULus, RoHS |
|---|---|
| Cross Section Max | 1.5 mm² |
| Cross section min | 0.14 mm² |
| Depth | 90 mm |
| Height | 105.5 mm |
| Insulation voltage in/out | 2500 V |
| IP Class | IP20 |
| Linearity | 0,1 % FSR |
| Load impedance power | Max. 400 Ω |
| Load impedance voltage | Min. 1 kΩ |
| Power consumption | 13 mA |
|---|---|
| Power Supply DC max | 30 V |
| Power Supply DC min | 16.8 V |
| Power Supply V DC | 24 V DC |
| Temperature coefficient | <150 ppm/° K FSR |
| Temperature range from | -25 °C |
| Temperature range to | 60 °C |
| Weight | 40 g |
| Width | 6.2 mm |
Downloads
Product description
Signal converter for converting 0-300V AC/DC voltage into 0-10V, 0-20mA or 4-20mA standard signal. Output signal selection is done with DIP-switch.
