AUER SIGNAL

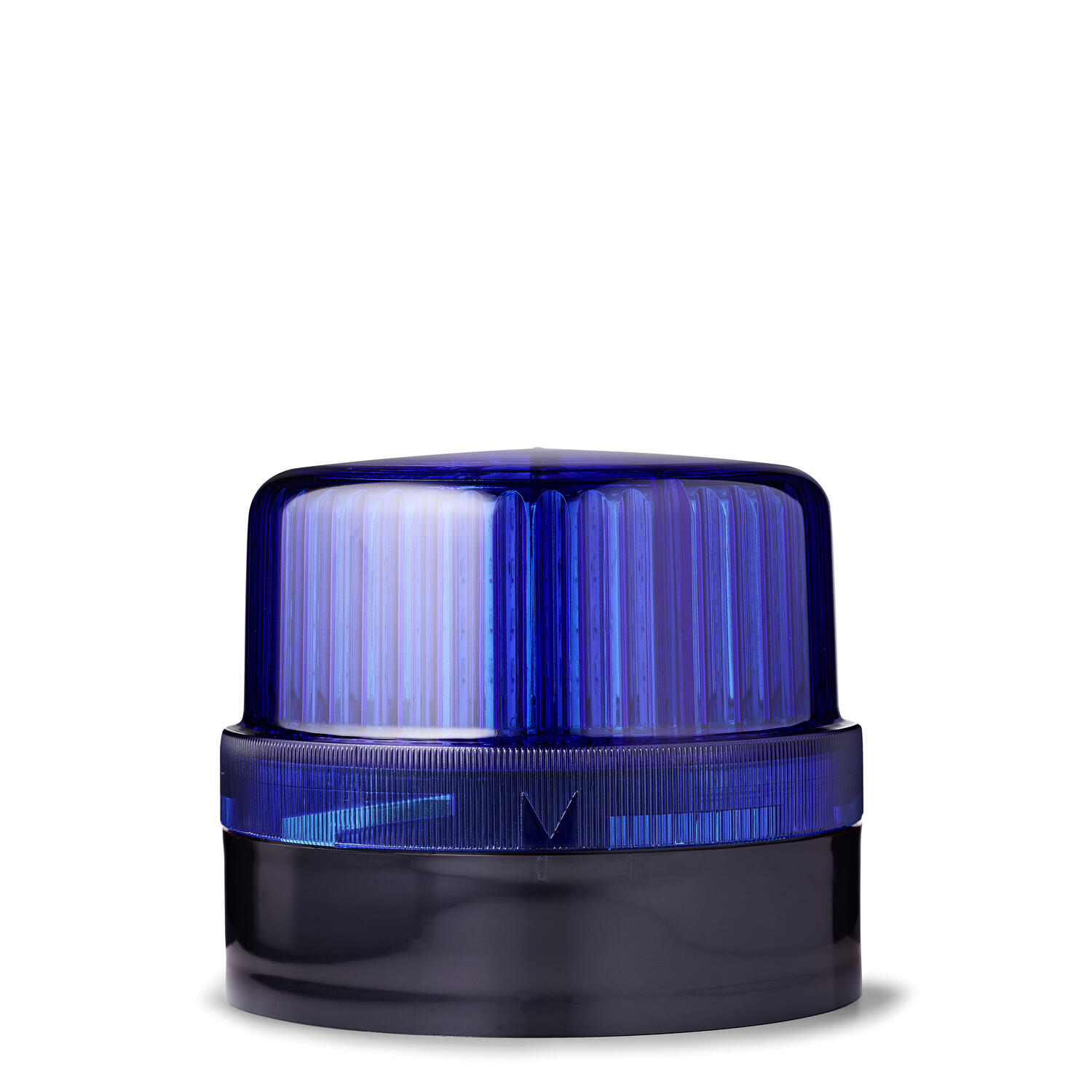

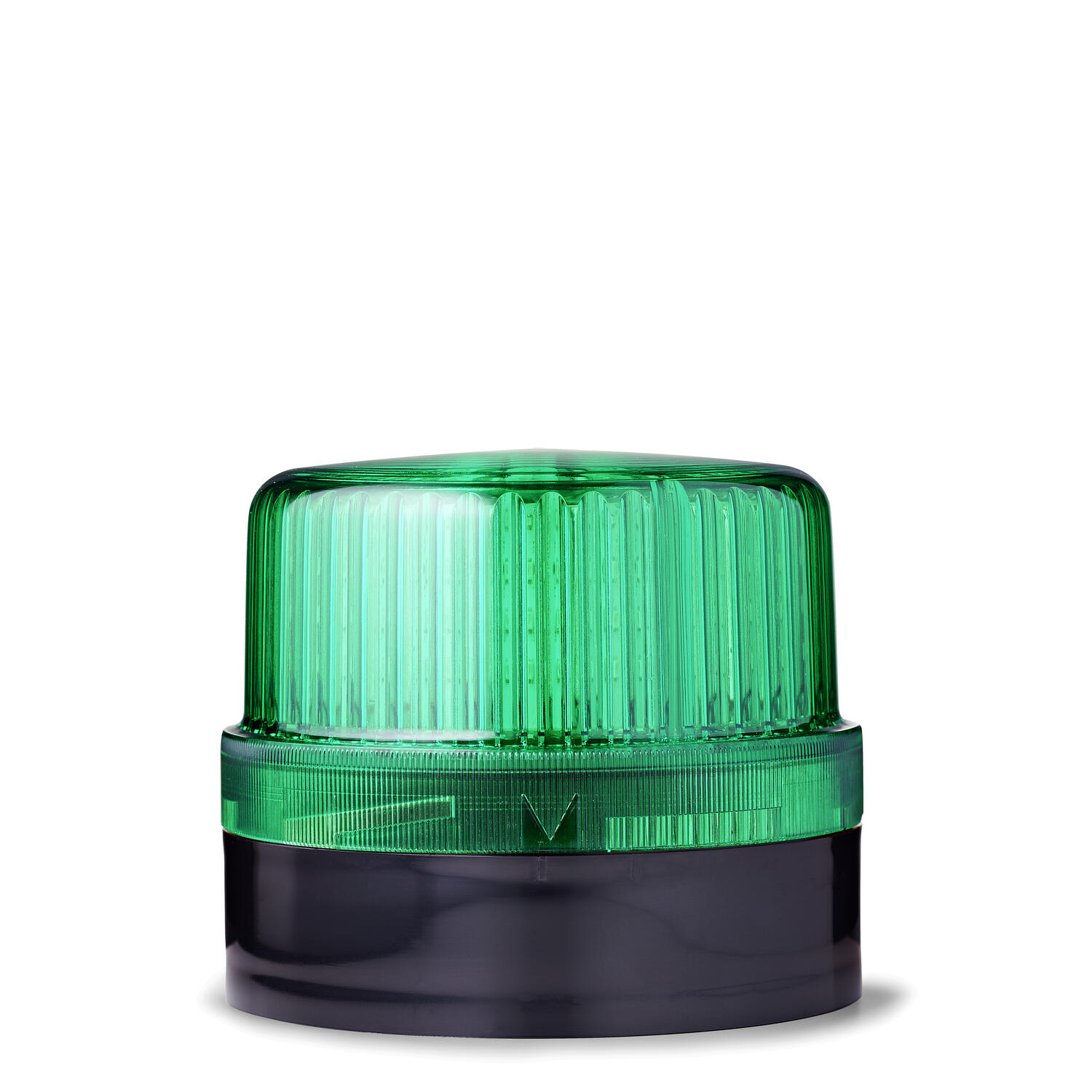

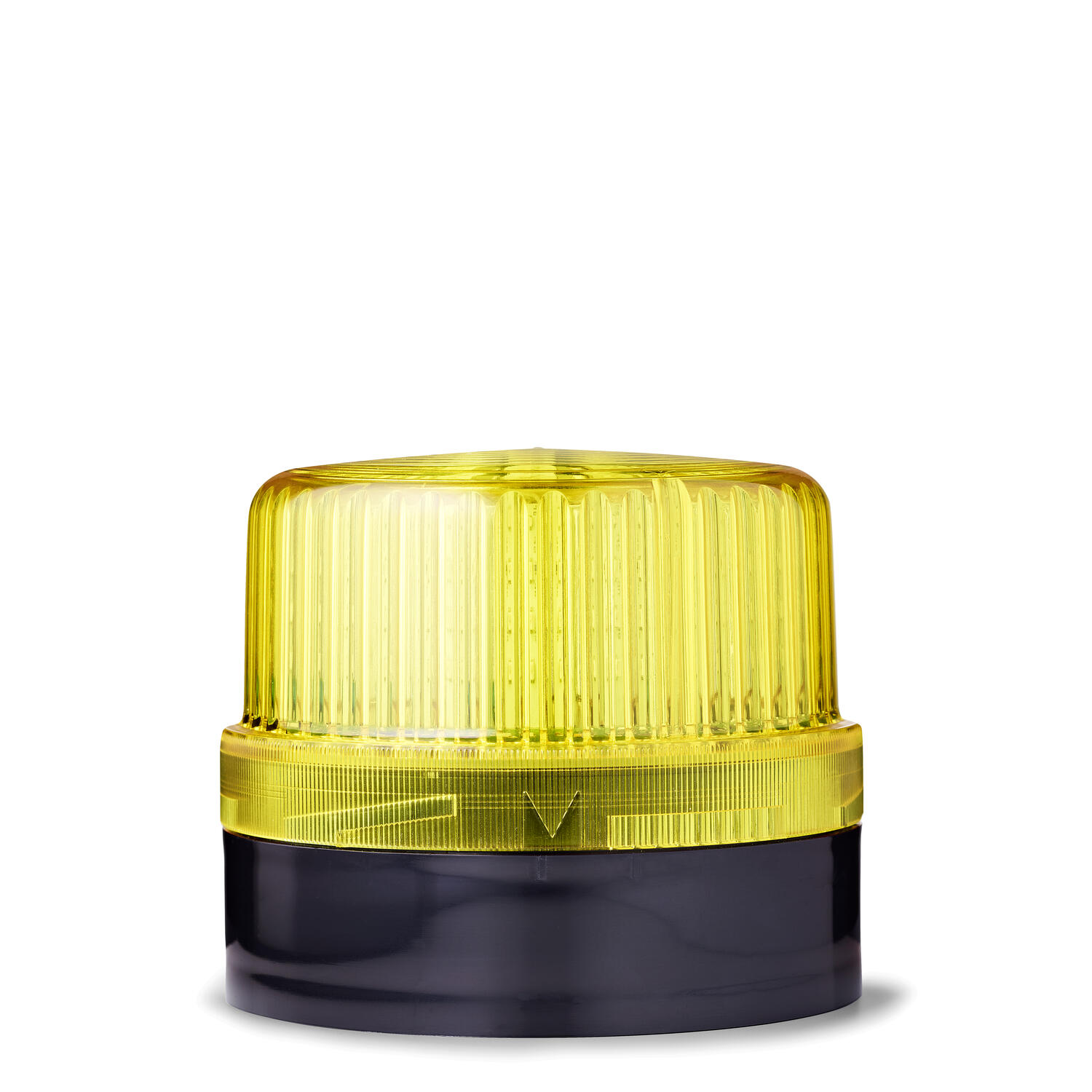

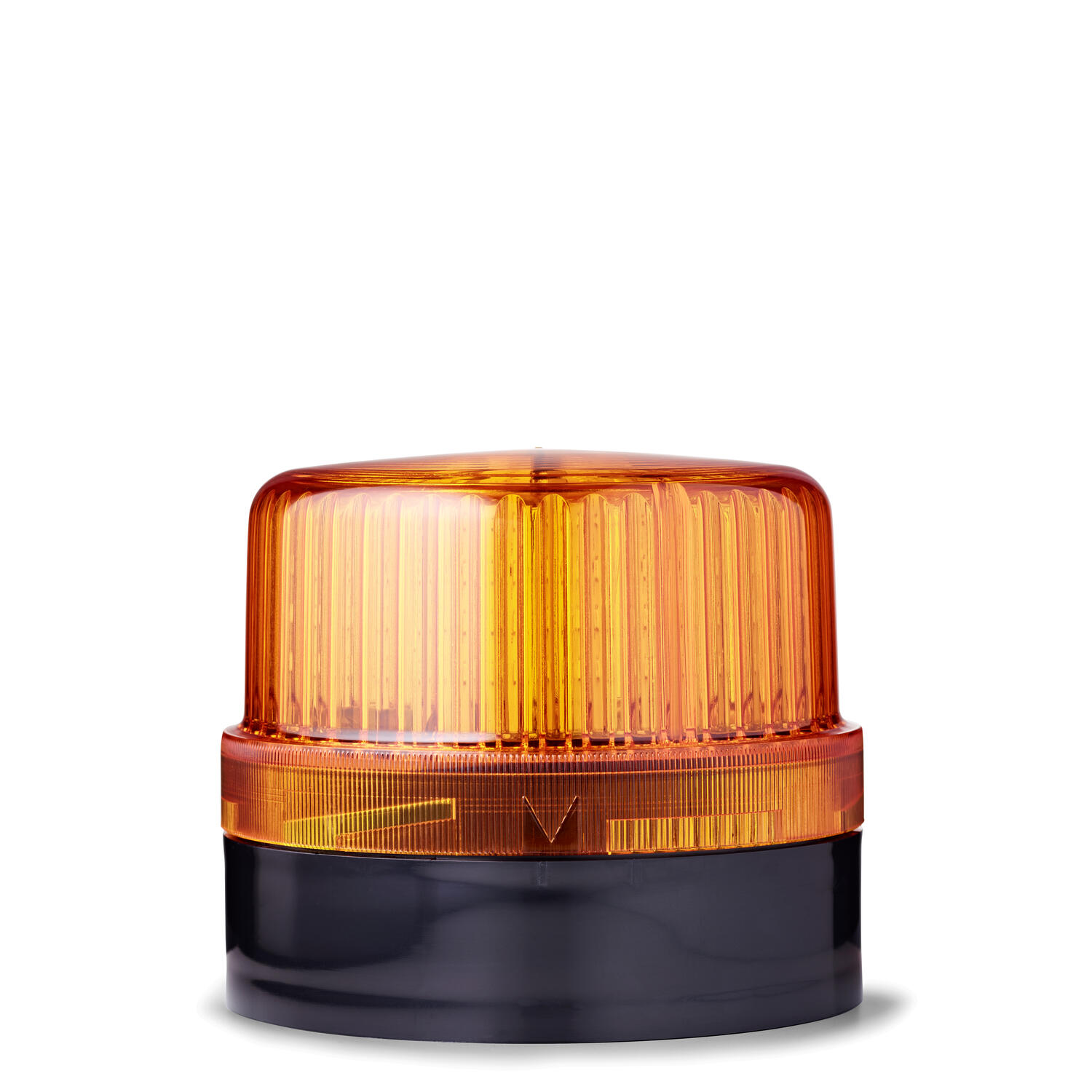

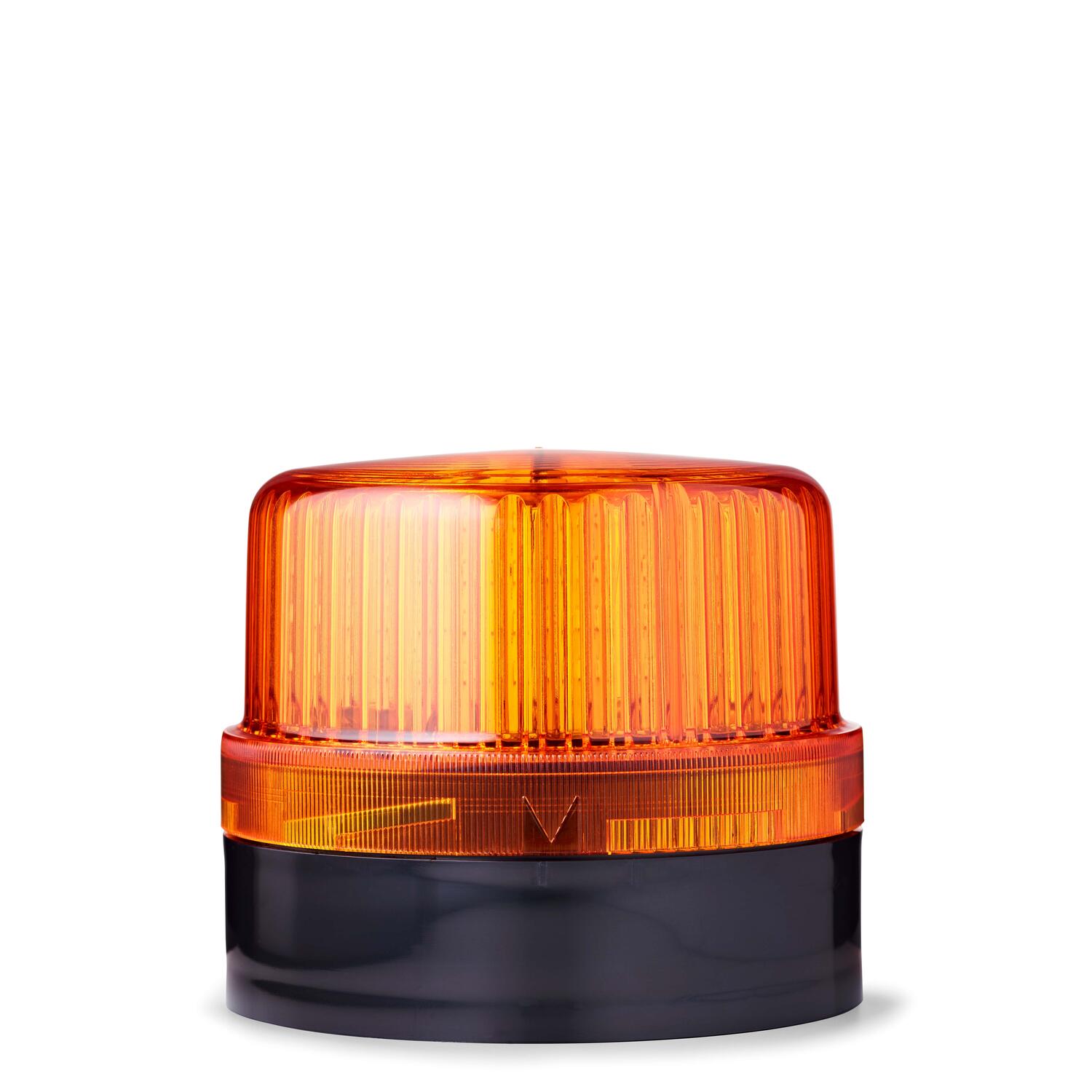

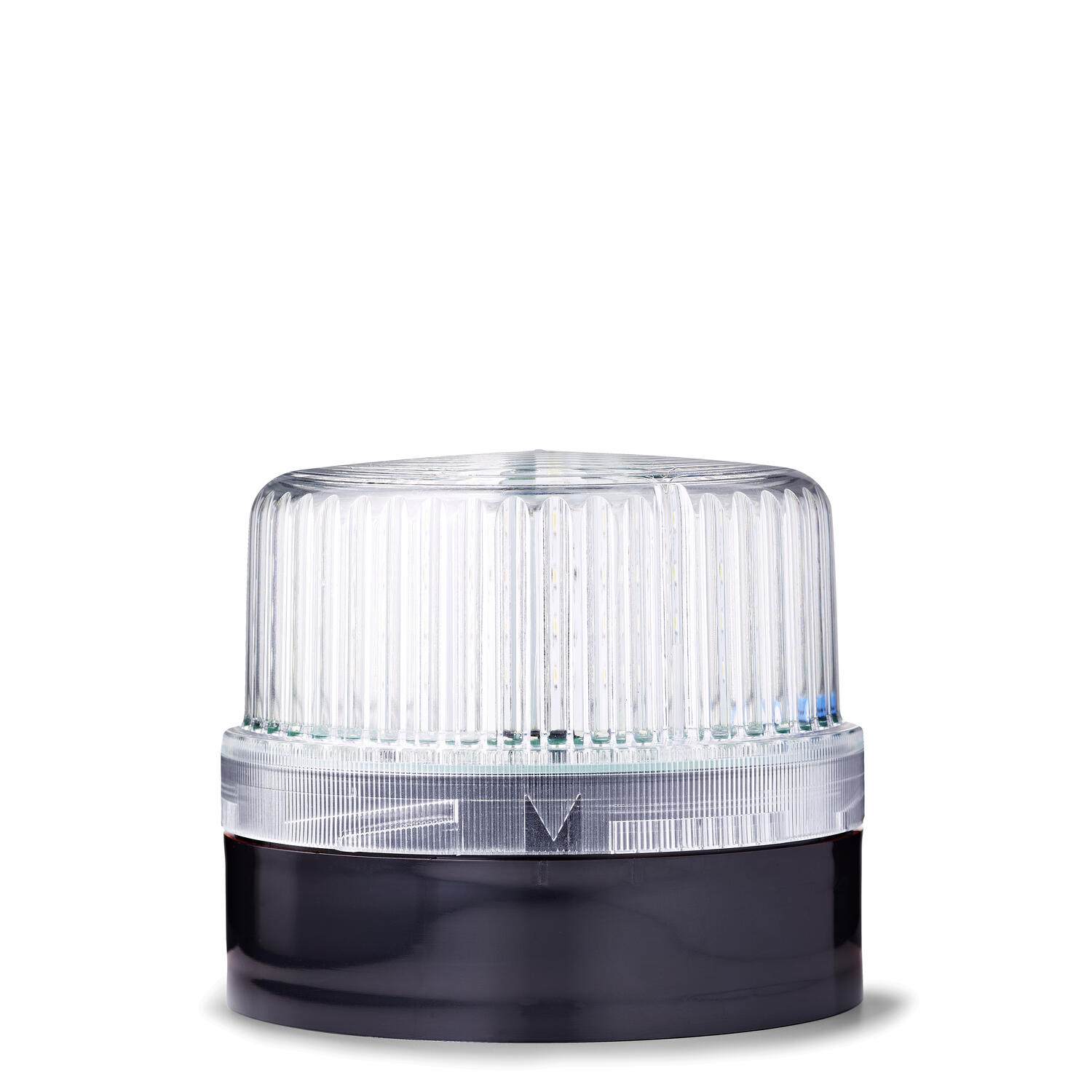

G Series, Xenon Strobe Beacon, Ø120mm
The Series G is AUERs best-value solution for universal applications. The large signal lamp with 48 LEDs produces an excellent frontal and lateral signal effect. The surface-mounted beacon series is available in the size Ø 120 mm with a low calotte. With an ingress protection class of IP65, the G series surface-mounted beacon is recommended for outdoor use.
Mounting options include vertical mounting, this model also contains a bayonet locking system with push button. It is used for general applications due to its attractive price to performance ratio.
- Ø120mm Beacon
- Strobe, Flashing and Steady light options
- Wide control voltage range
Selected variant
Specifications
| Color House | Black RAL 9005 |
|---|---|
| Color Lens | Orange |

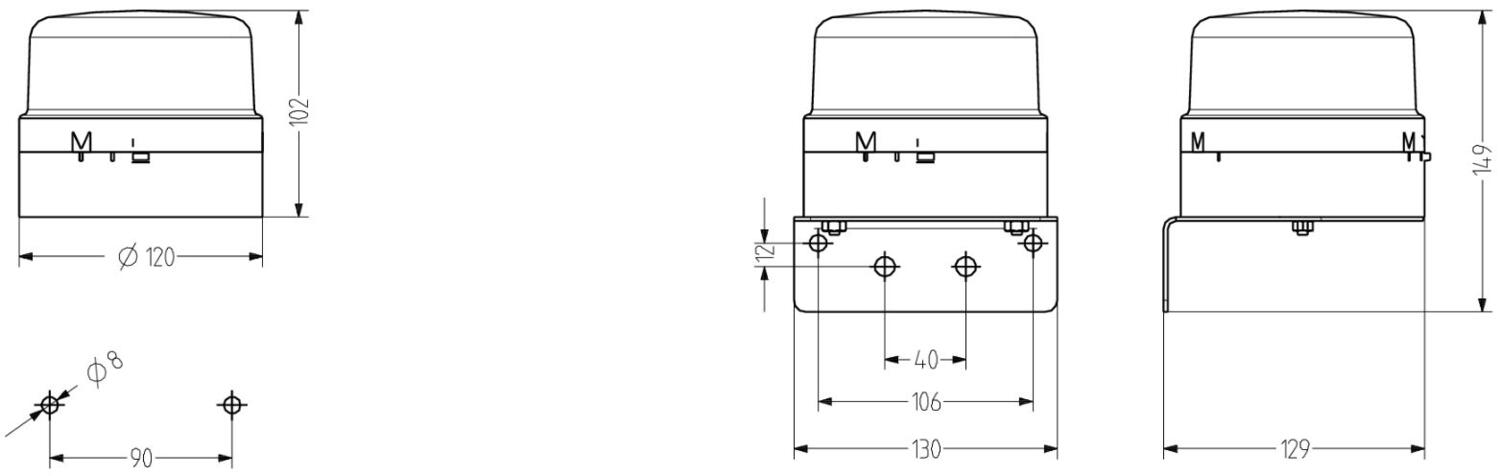

| Diameter | 120 mm |
| Flash Energy | 5 J |
| Flash Frequency | 1 Hz |
| Height | 102 mm |
| IP Class | IP65 |
| Light source | Xenon |
|---|---|
| Light type | Strobe |
| Nominal current | 320 mA |
| Nominal Supply Voltage | 24 V AC/DC |
| Operational Temperature | -30°C ... 50°C |
| Terminal connection | 2.5 mm² |
Product description
The Series G is AUERs best-value solution for universal applications. The large signal lamp with 48 LEDs produces an excellent frontal and lateral signal effect. The surface-mounted beacon series is available in the size Ø 120 mm with a low calotte. With an ingress protection class of IP65, the G series surface-mounted beacon is recommended for outdoor use.
Mounting options include vertical mounting, this model also contains a bayonet locking system with push button. It is used for general applications due to its attractive price to performance ratio.
