AUER SIGNAL
R Series Bases and Accessories
The R Series bases are to be used in combination with the full range of R Series light modules.

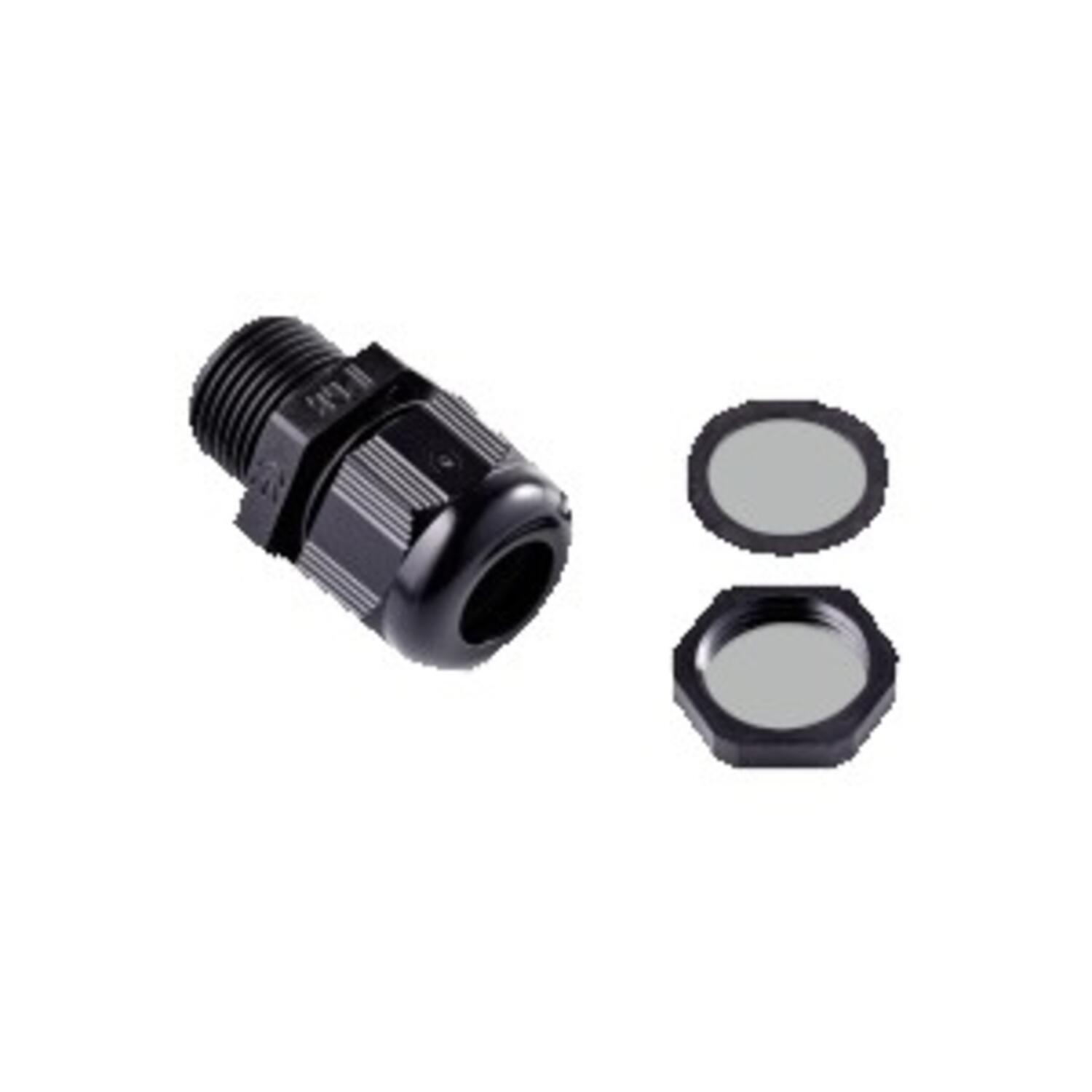

The standard base comes with cable entry from below through a grommet, as well as different hole patterns as knockouts for easy installation.
The universal base has an additional opening for lateral cable entry/exit and there is an option for pole mounting (on 25mm poles).

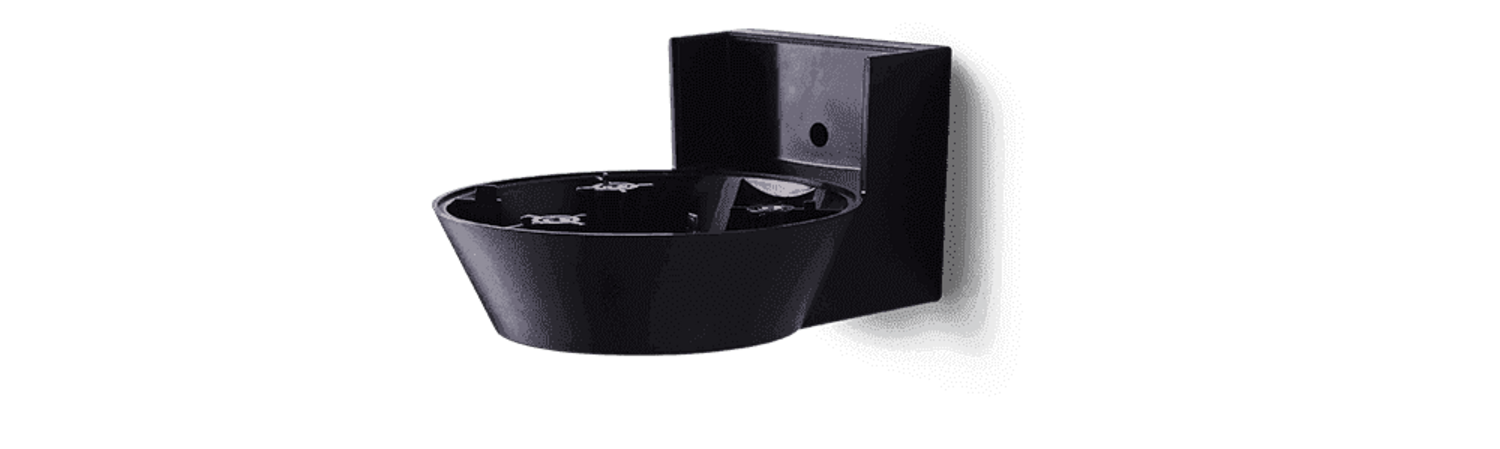

Other mountings are available: metal brackets for standard and universal base, metal bracket for acoustic base, design bracket.
Installation is simple and safe. There is a plug-in terminal in the base for convenient electrical wiring.

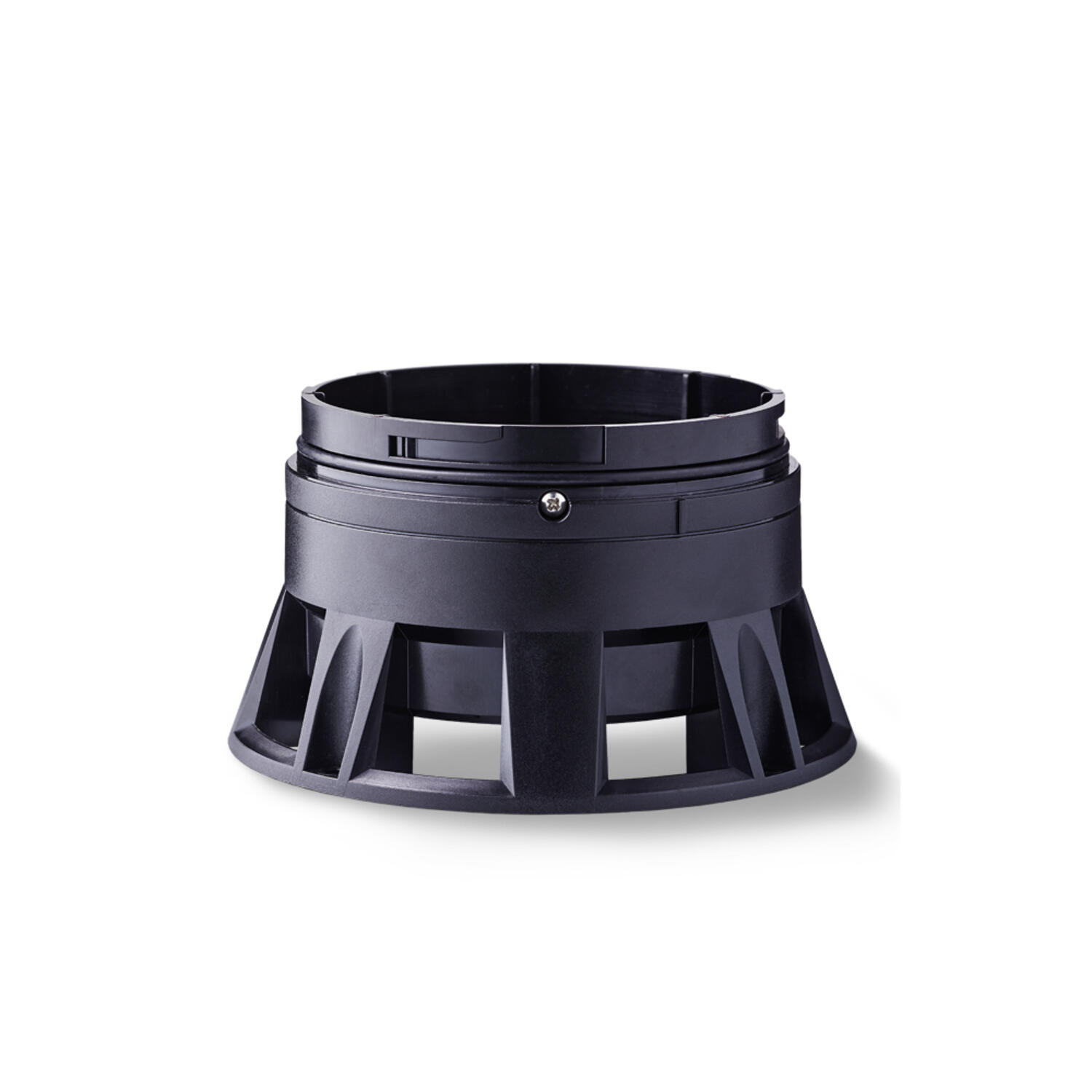

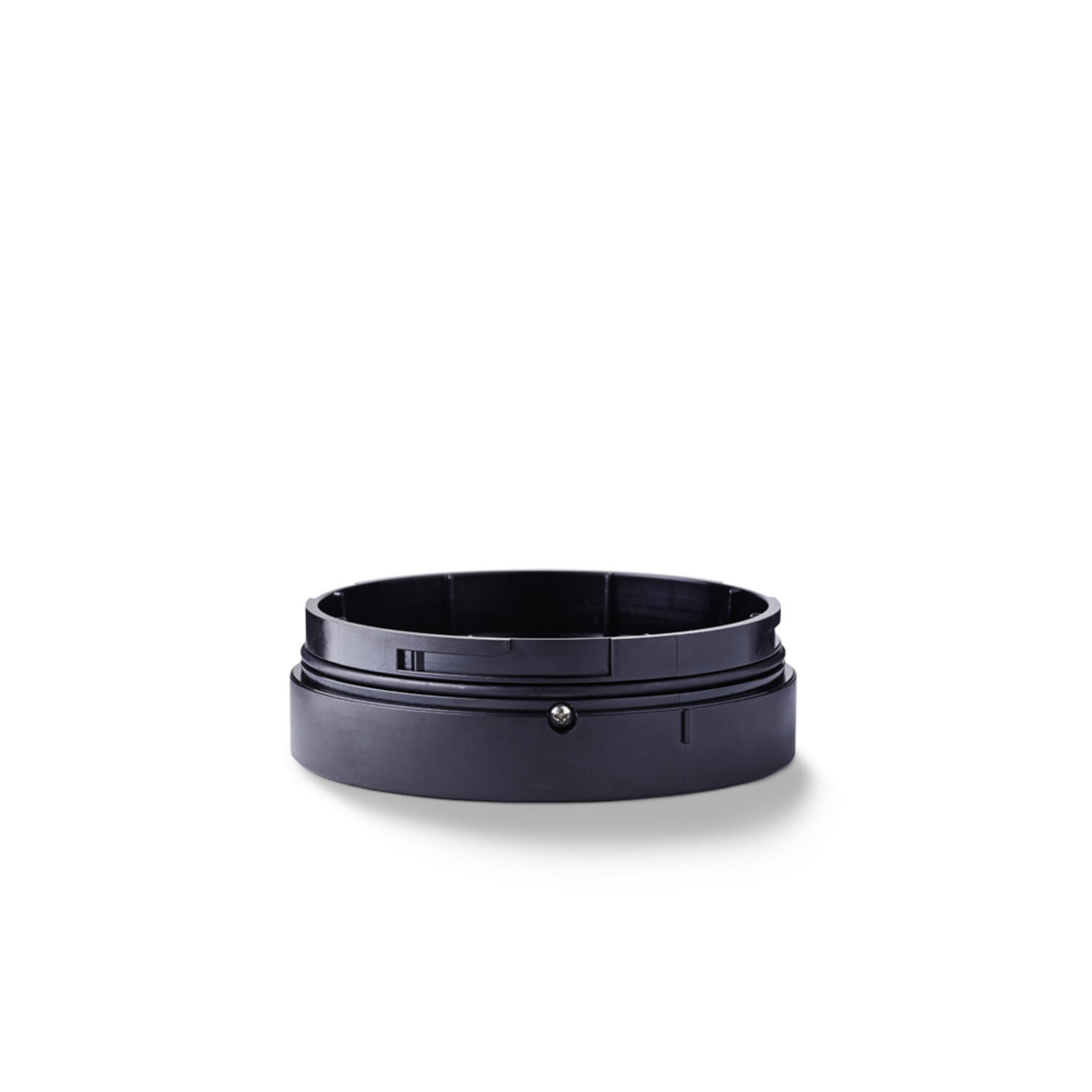

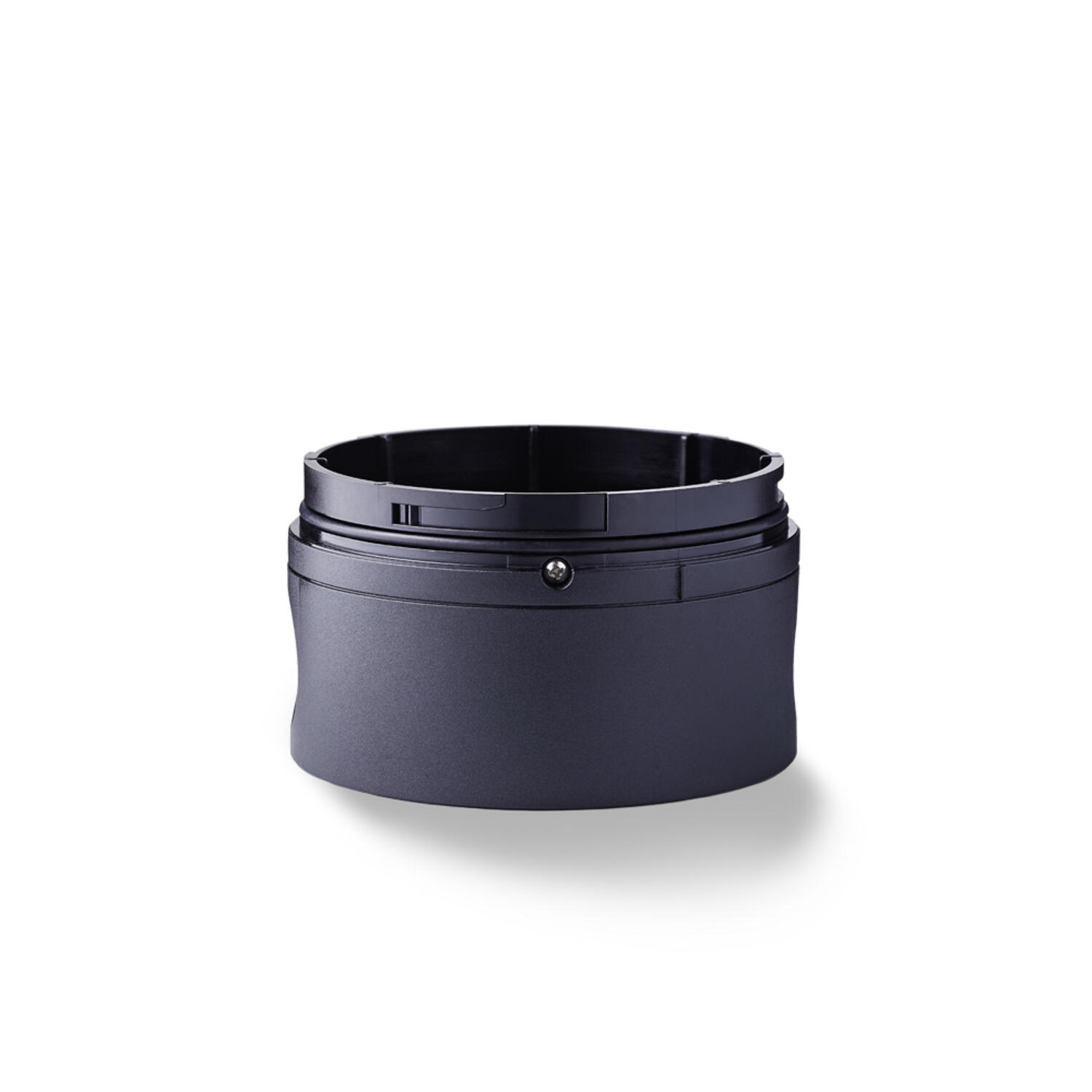

- Bases for R Series Light modules
- Sounder base

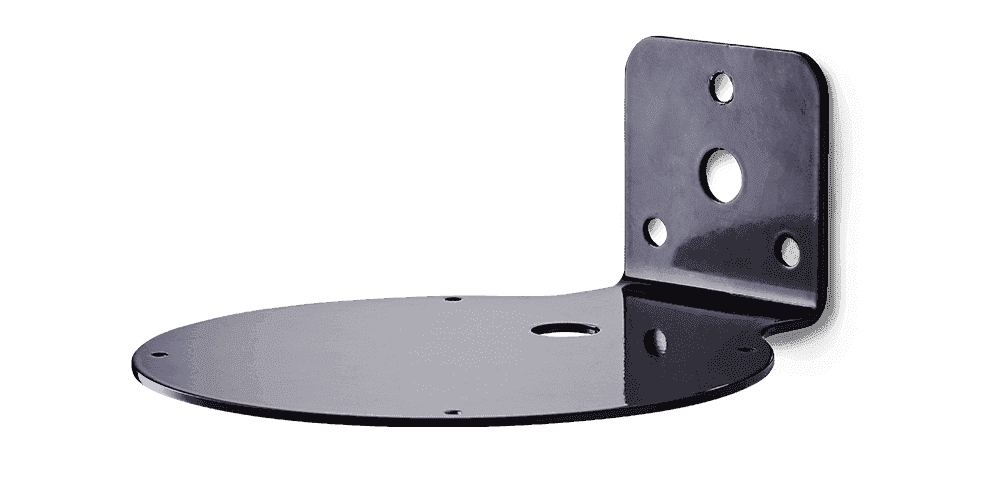

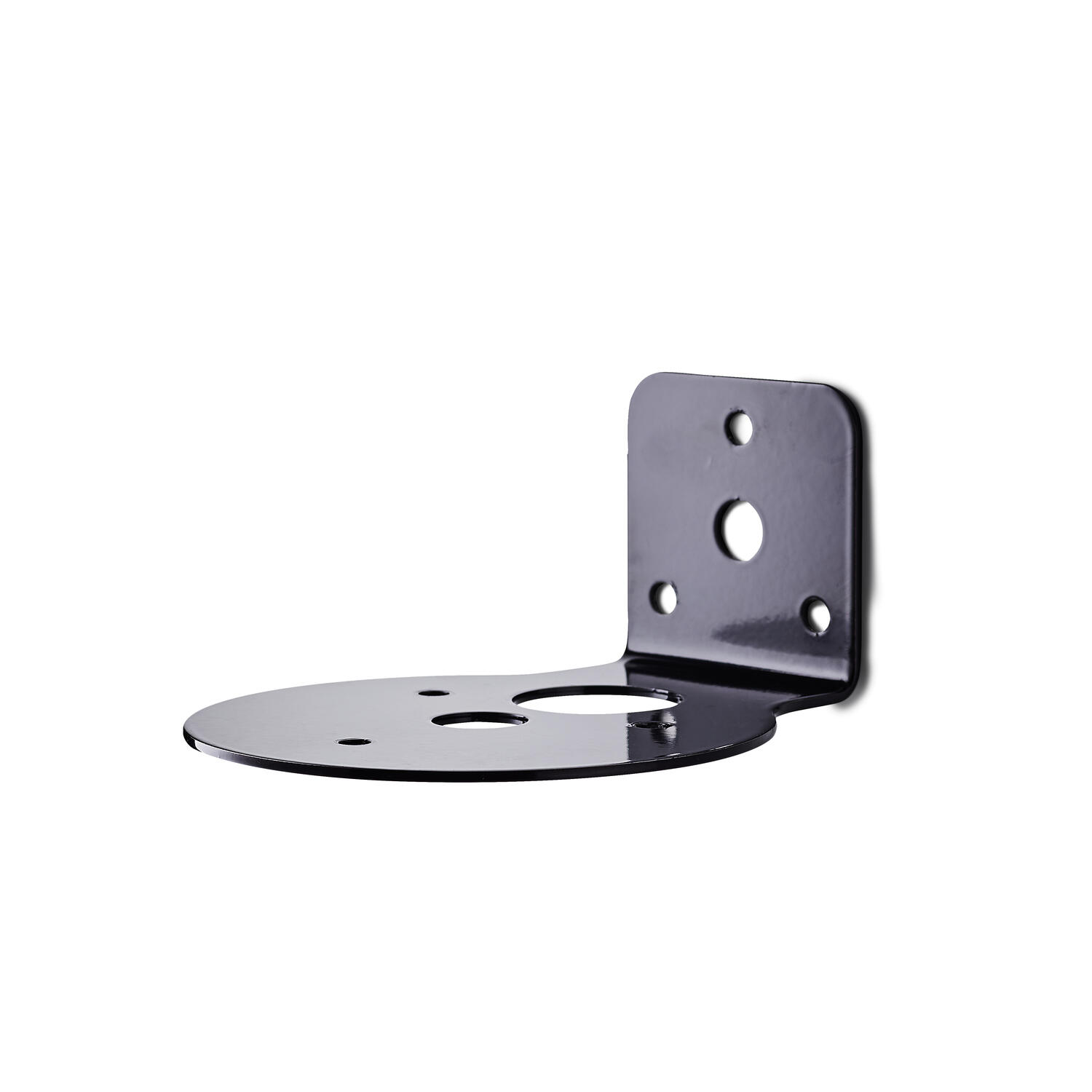

- Mounting brackets

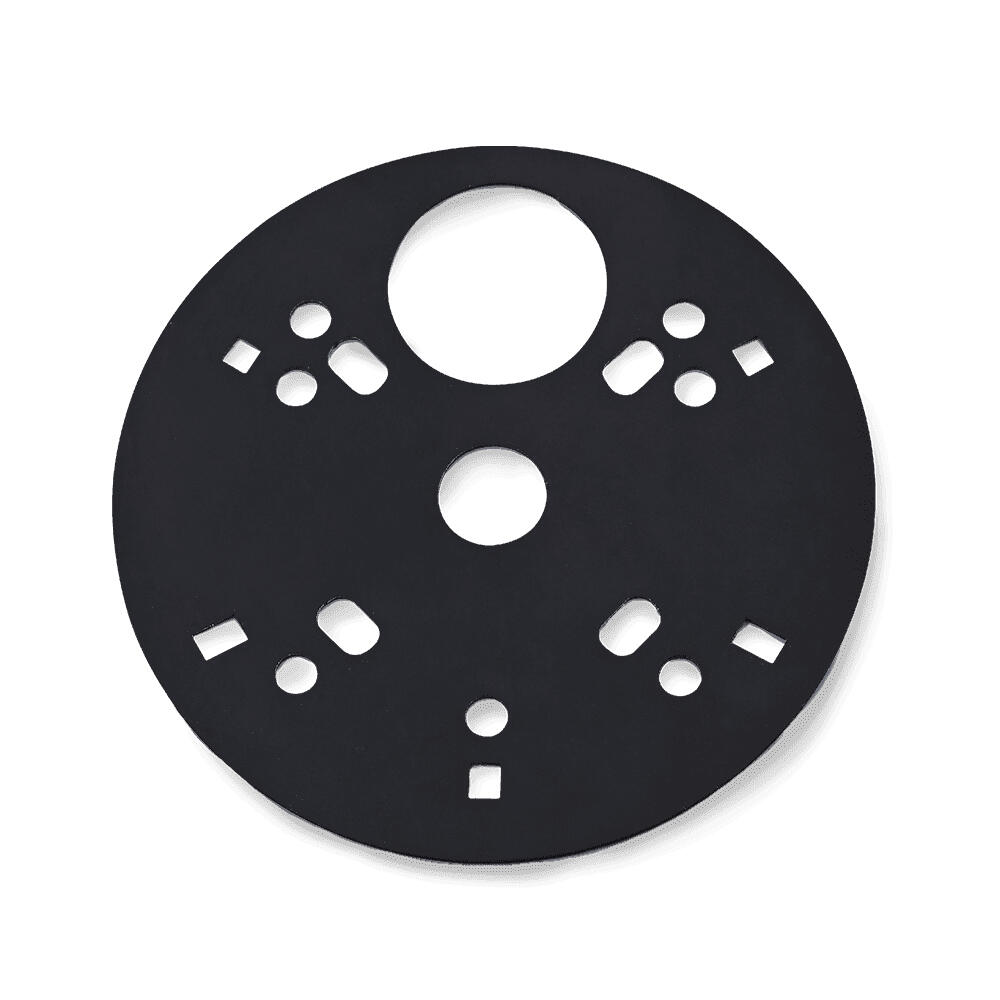

- Additional gaskets
Selected variant
Specifications
| Diameter | 95 mm |
|---|---|
| Height | 19 mm |
| IK Class | 8 |
| IP Class | IP66 |
| Length | 110 mm |
| Mounting | Horizontal |
| Operational Temperature | -30 / +60°C |
| Weight | 84 g |
| Width | 110 mm |
Downloads
Product description
The R Series bases are to be used in combination with the full range of R Series light modules.
The standard base comes with cable entry from below through a grommet, as well as different hole patterns as knockouts for easy installation.
The universal base has an additional opening for lateral cable entry/exit and there is an option for pole mounting (on 25mm poles).
Other mountings are available: metal brackets for standard and universal base, metal bracket for acoustic base, design bracket.
Installation is simple and safe. There is a plug-in terminal in the base for convenient electrical wiring.
