AUER SIGNAL

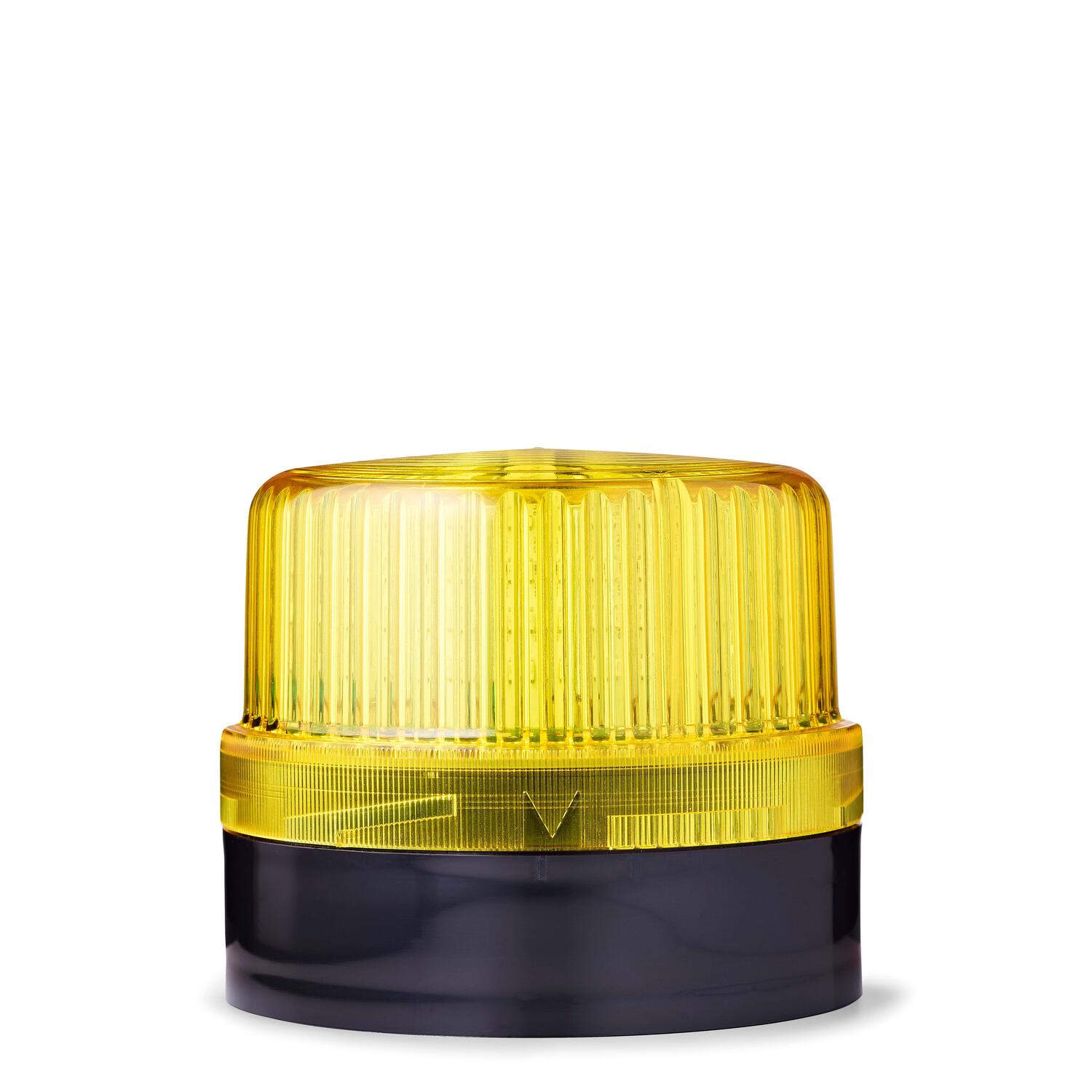

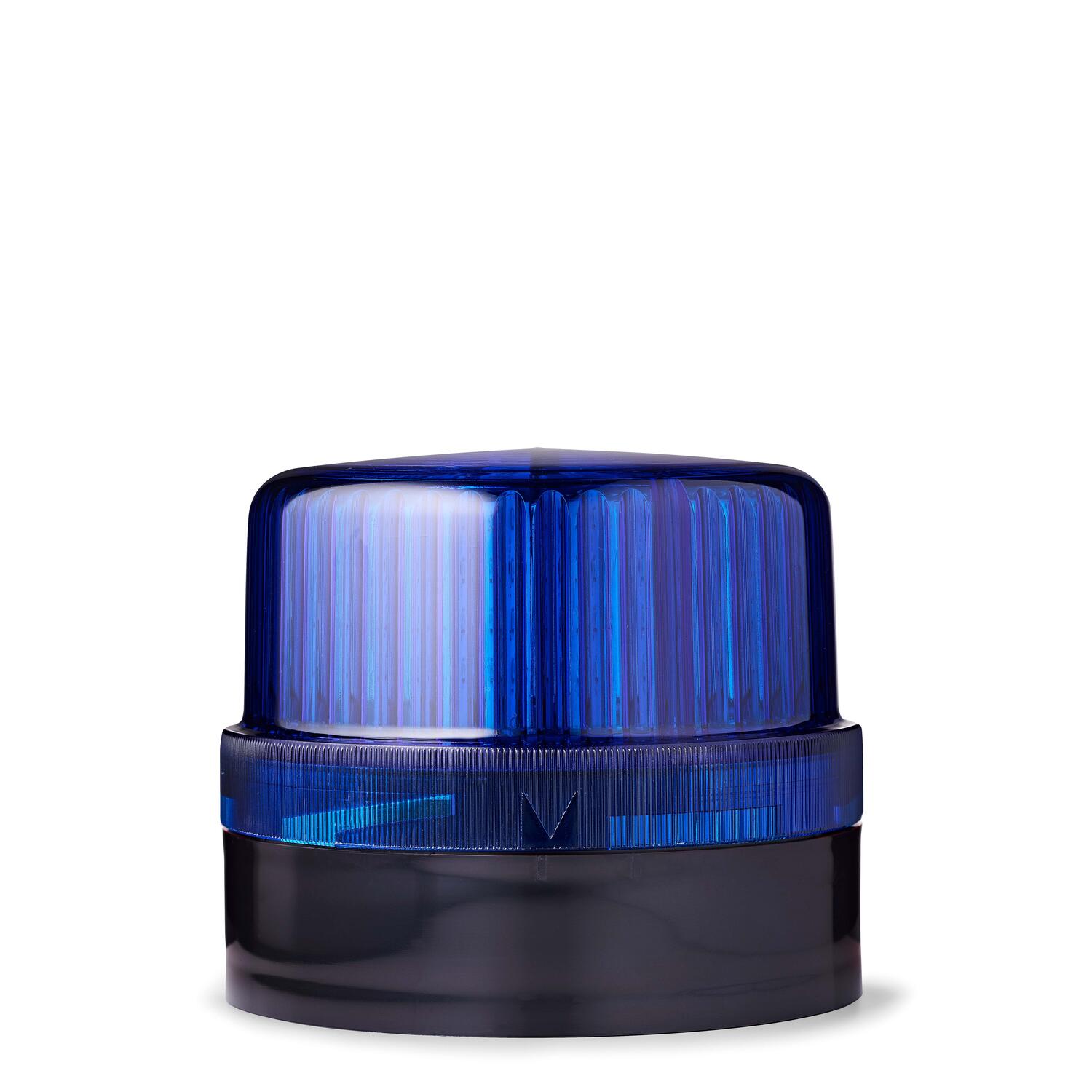

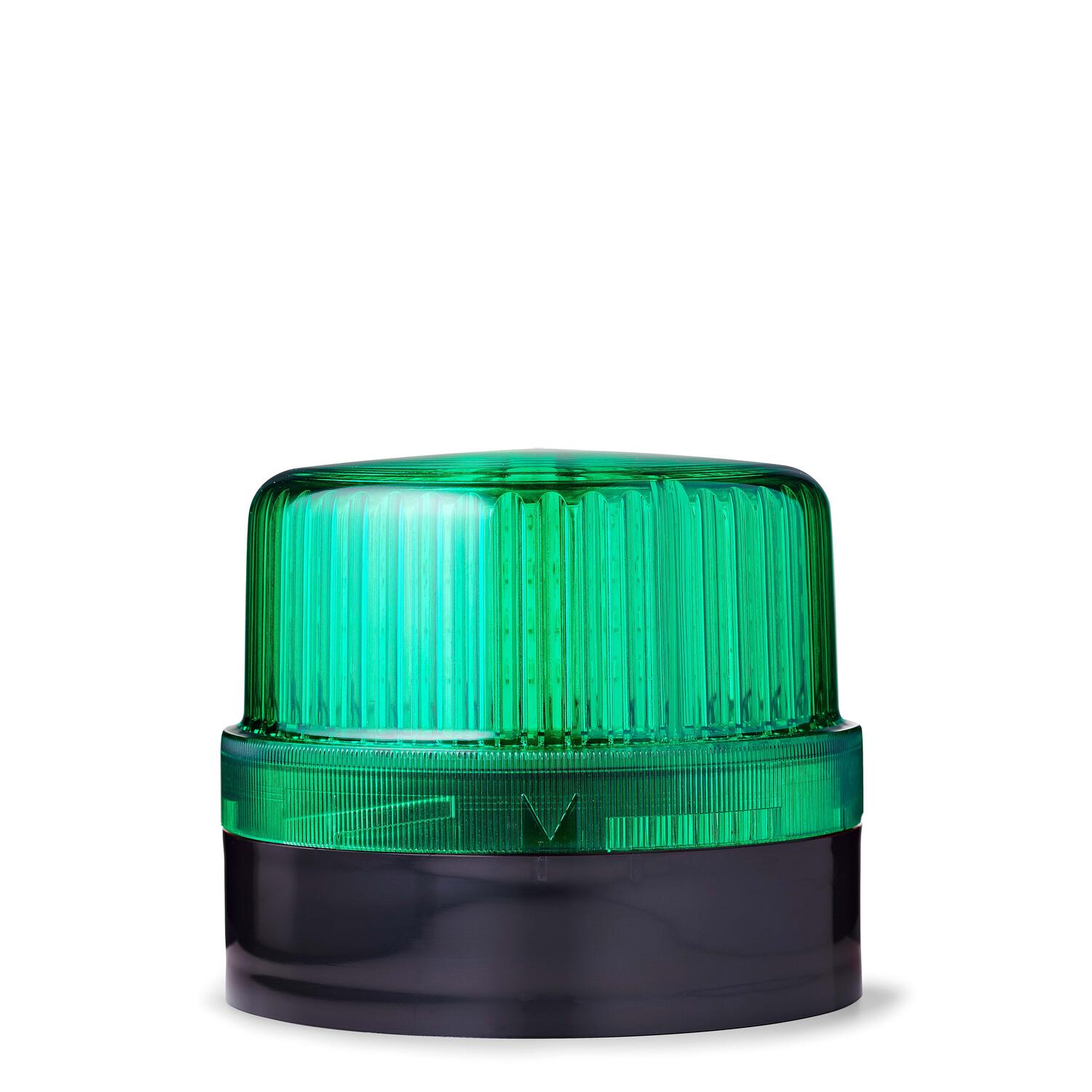

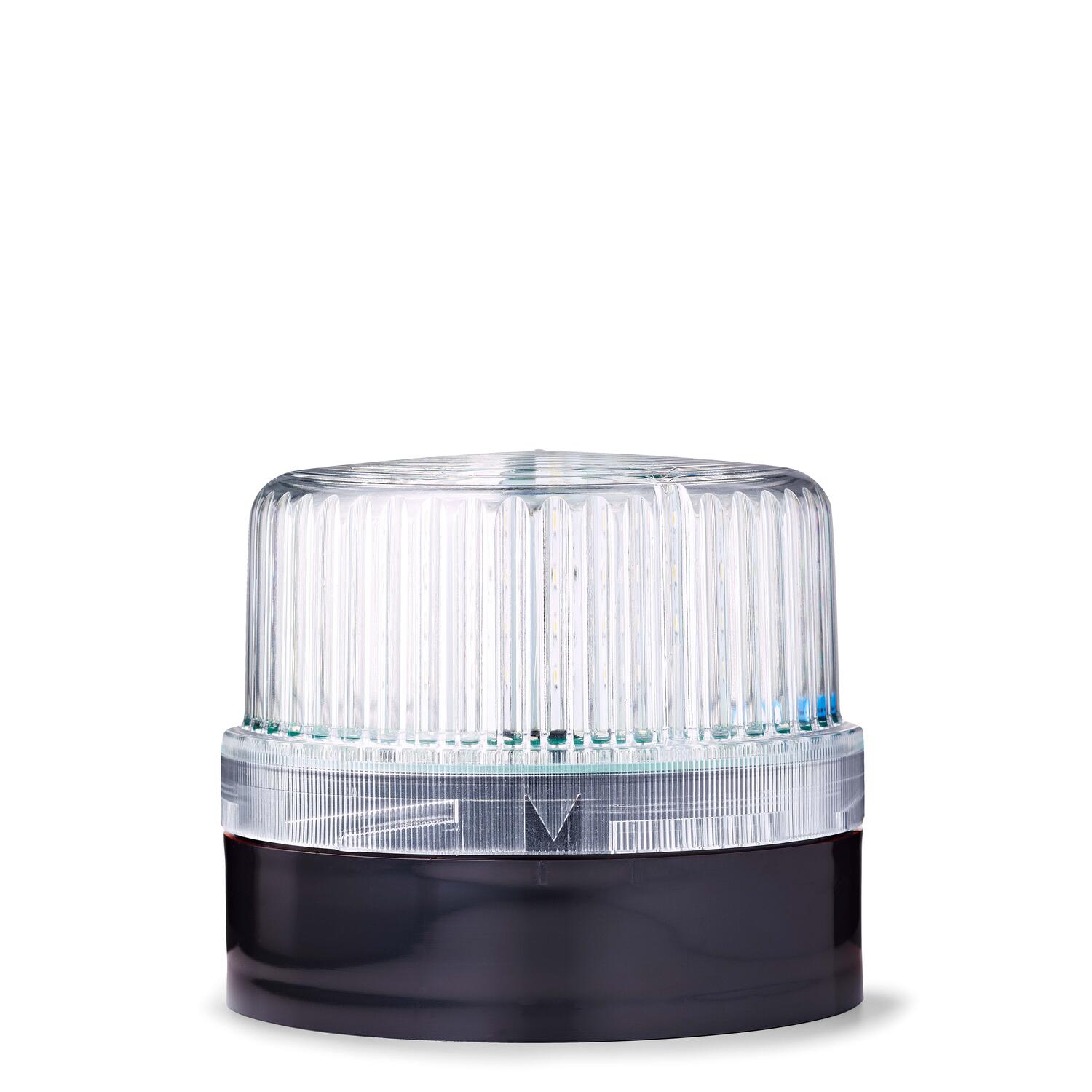

G Series, Warning light Ø120 mm
The Series G is AUERs best-value solution for universal applications. The large signal lamp with 48 LEDs produces an excellent frontal and lateral signal effect. The surface-mounted beacon series is available in the size Ø 120 mm with a low calotte. With an ingress protection class of IP65, the G series surface-mounted beacon is recommended for outdoor use.
Mounting options include vertical mounting, this model also contains a bayonet locking system with push button. It is used for general applications due to its attractive price to performance ratio.
- Fixed or flashing shine
- Max. 25 W
- IP65
- Bayonet connector
Selected variant
Specifications
| Color Lens | Orange |
|---|---|
| Light source | Bulb |
| Color House | Black |
| Lamp Socket | Ba15d |
| Number Of Optional Modules | 1 |
| Nominal Supply Voltage | 12-24 V |
| Lamp power | 25 W |
| Operational Temperature | -30°C ... 60°C |
|---|---|
| Terminal connection | 2.5 mm² |
| Height | 102 mm |
| Diameter | 120 mm |
| Weight | 230 g |
| IP Class | IP65 |
Product description
The Series G is AUERs best-value solution for universal applications. The large signal lamp with 48 LEDs produces an excellent frontal and lateral signal effect. The surface-mounted beacon series is available in the size Ø 120 mm with a low calotte. With an ingress protection class of IP65, the G series surface-mounted beacon is recommended for outdoor use.
Mounting options include vertical mounting, this model also contains a bayonet locking system with push button. It is used for general applications due to its attractive price to performance ratio.
