AUER SIGNAL

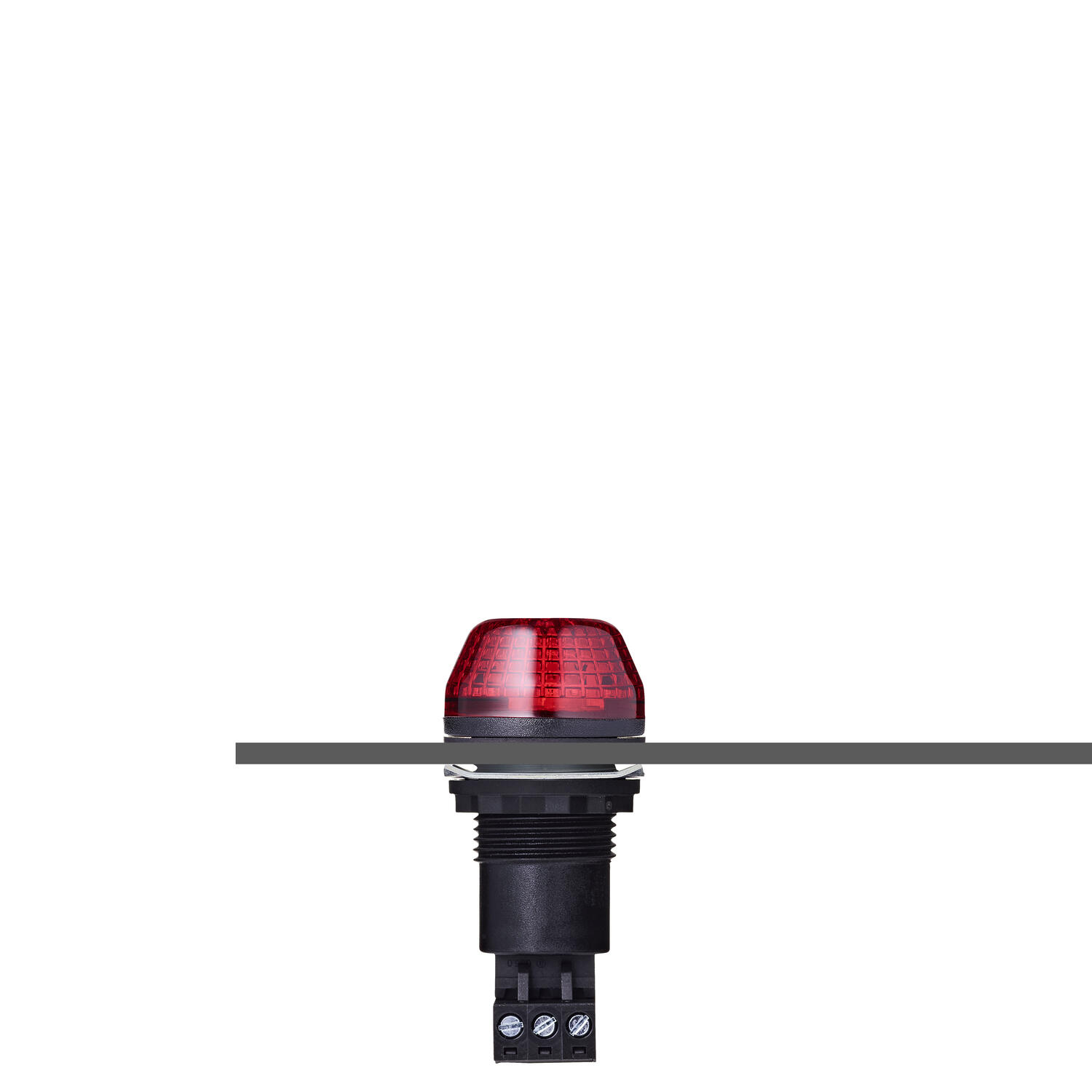

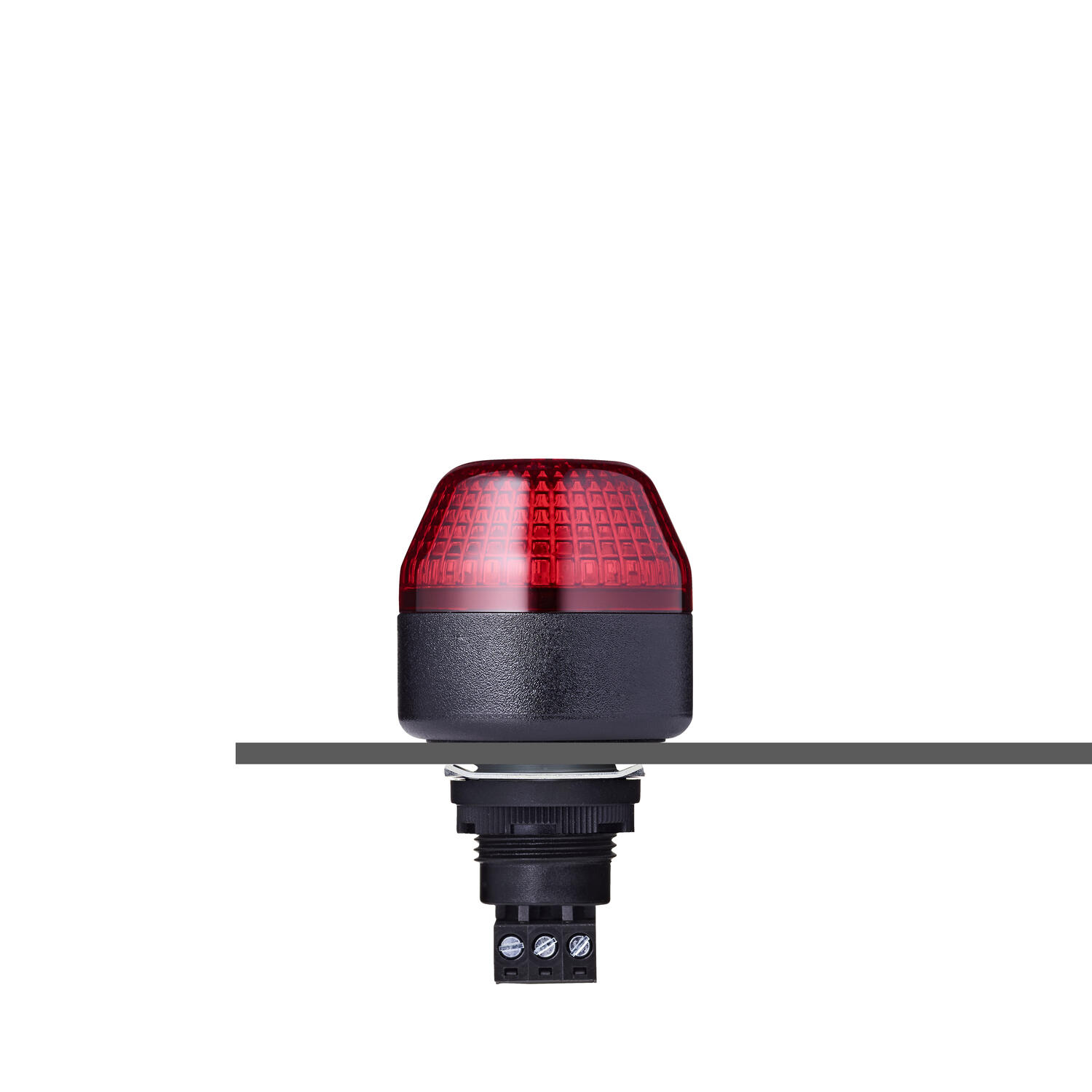

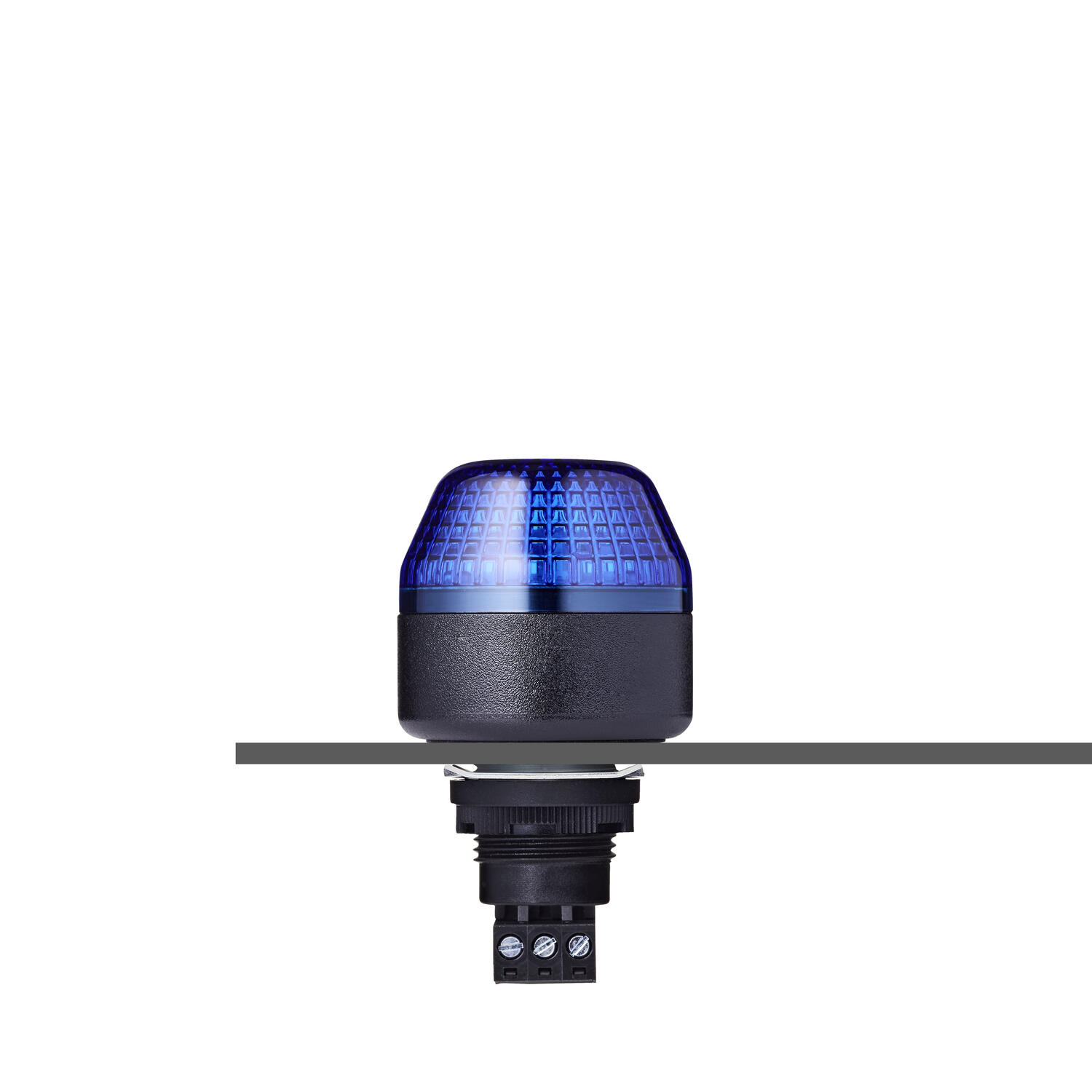

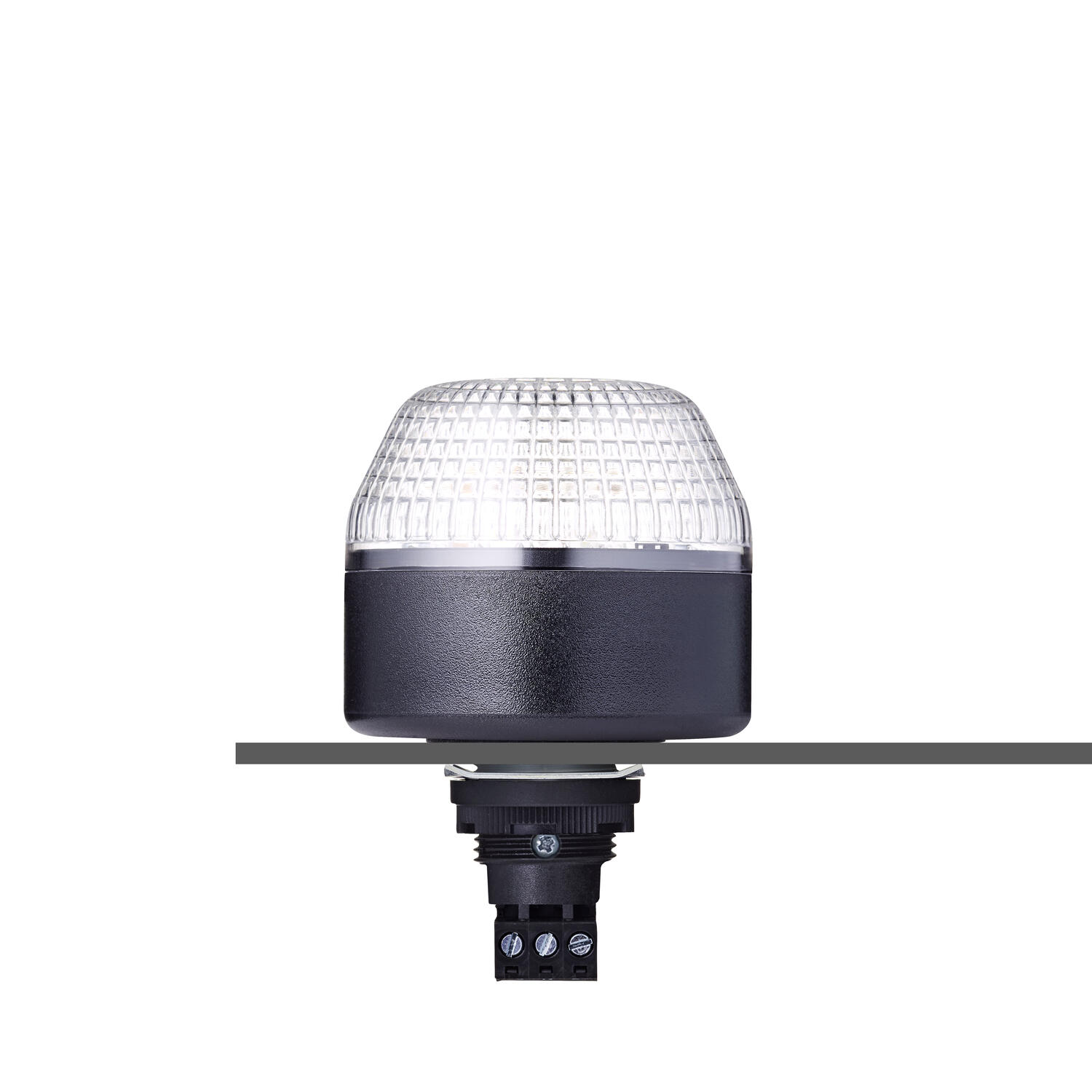

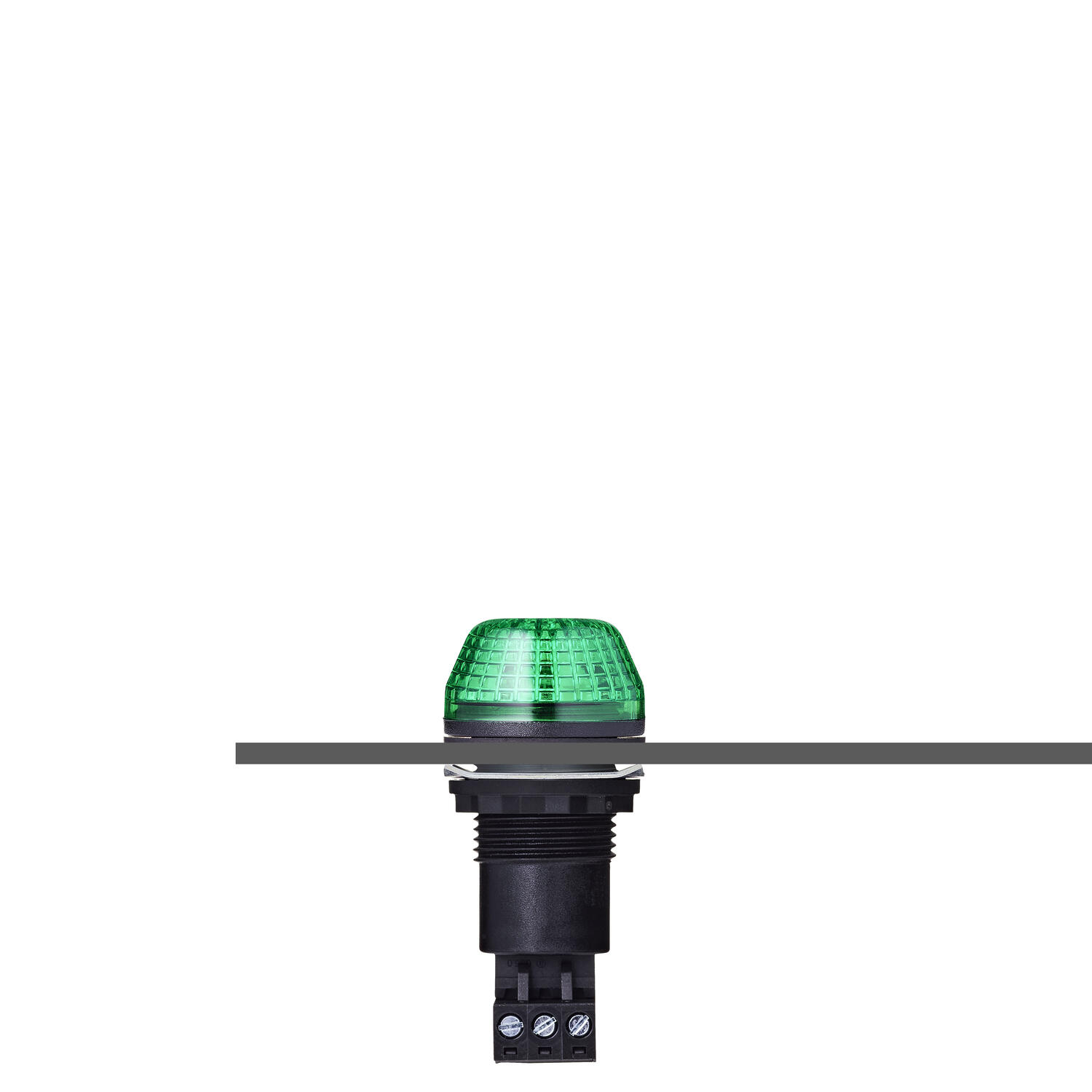

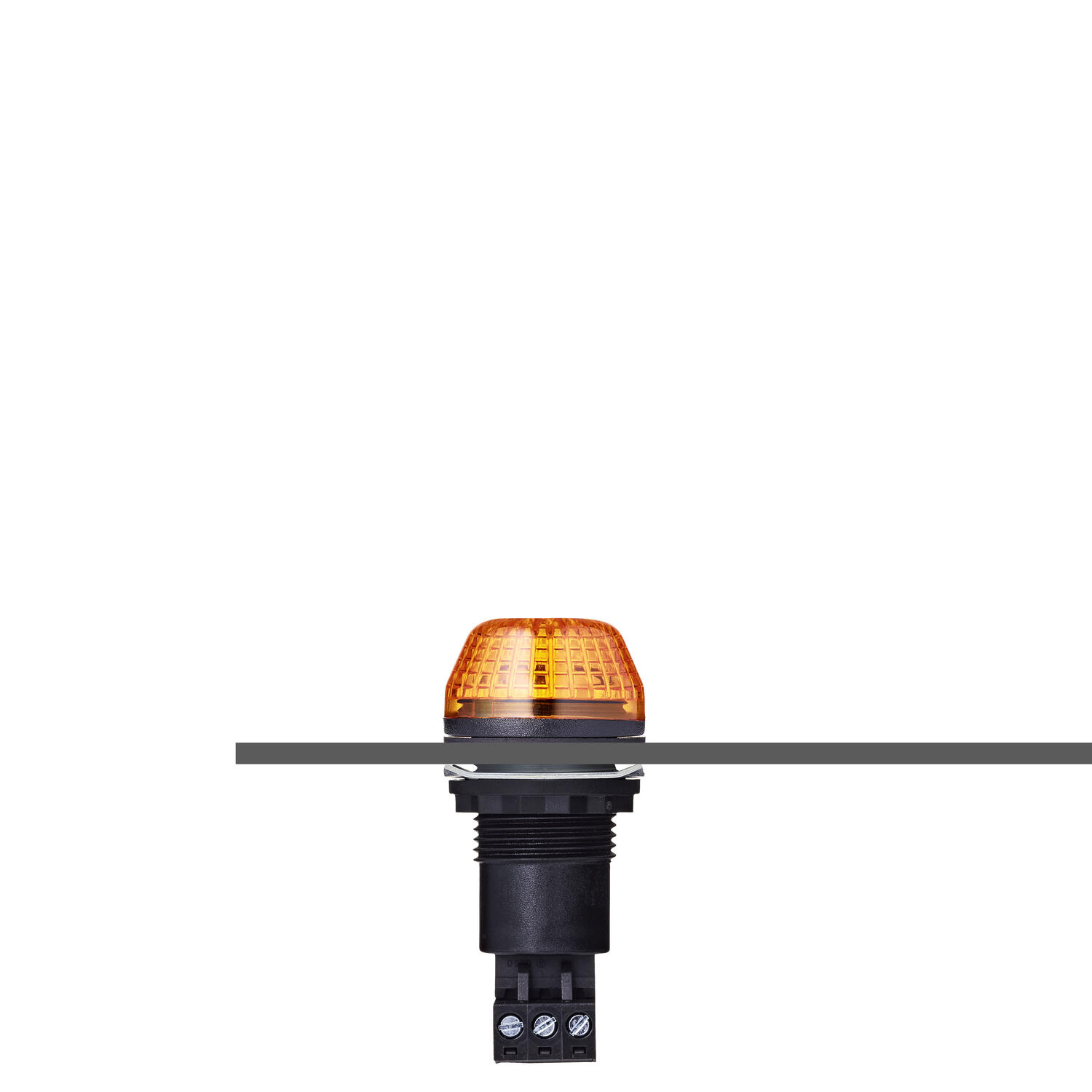

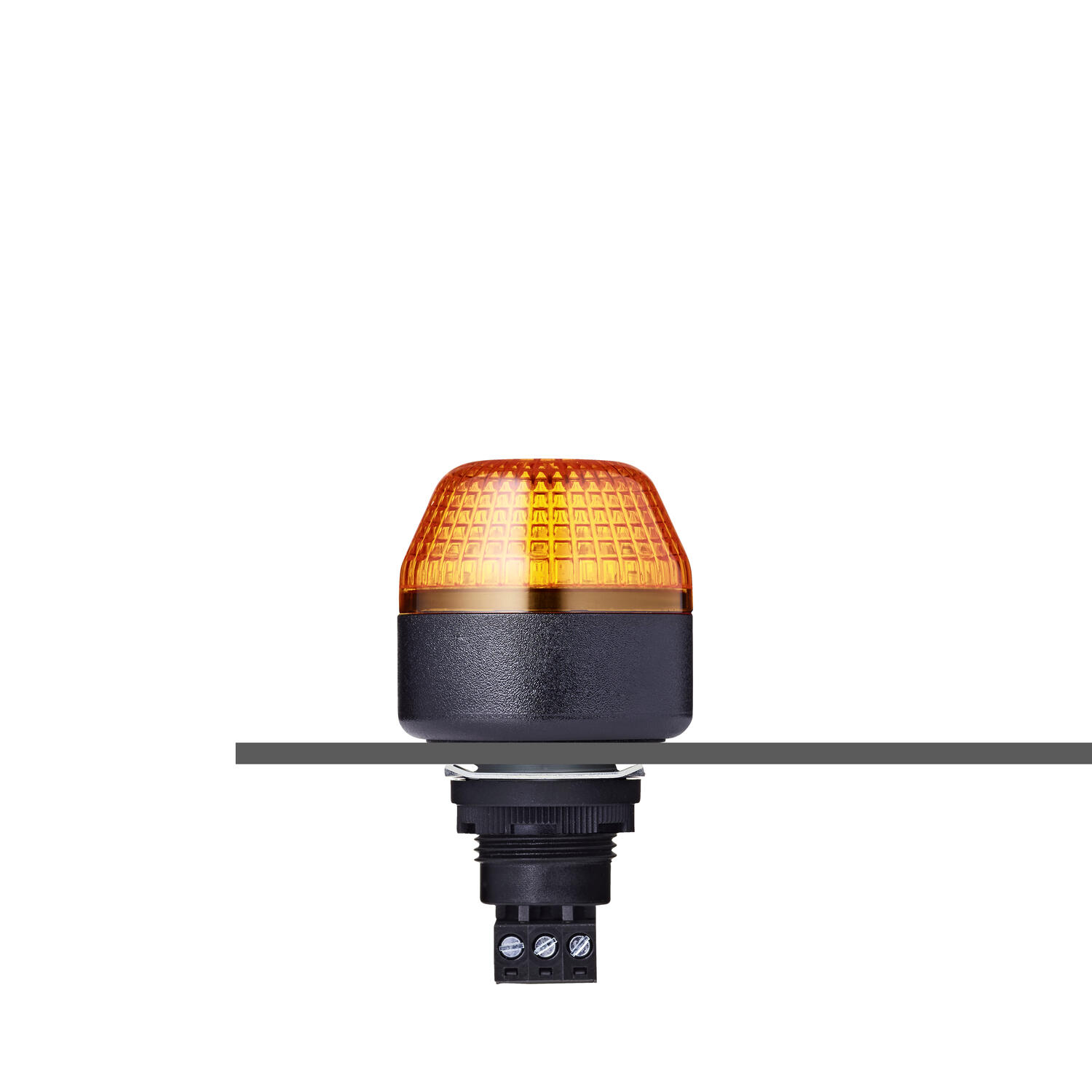

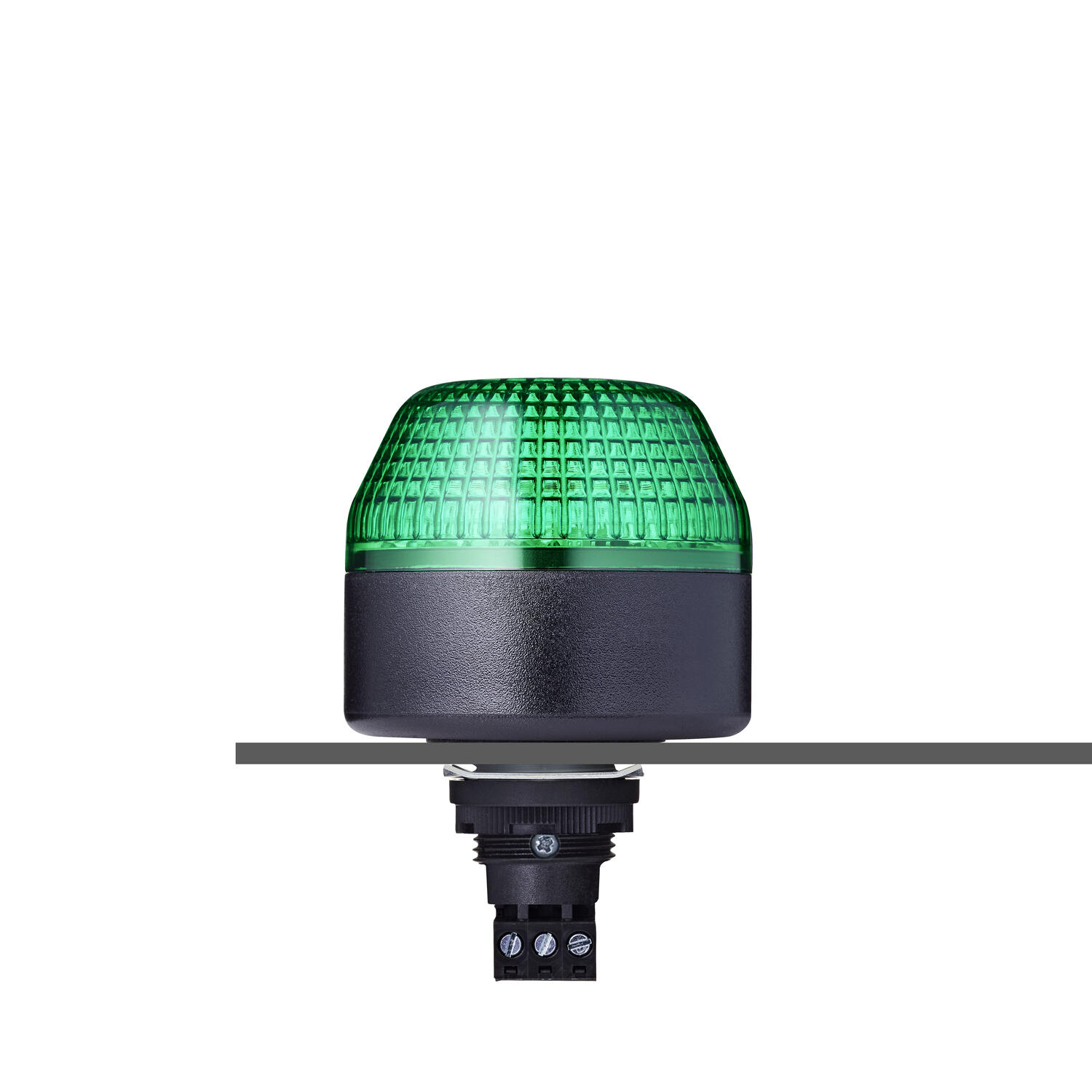

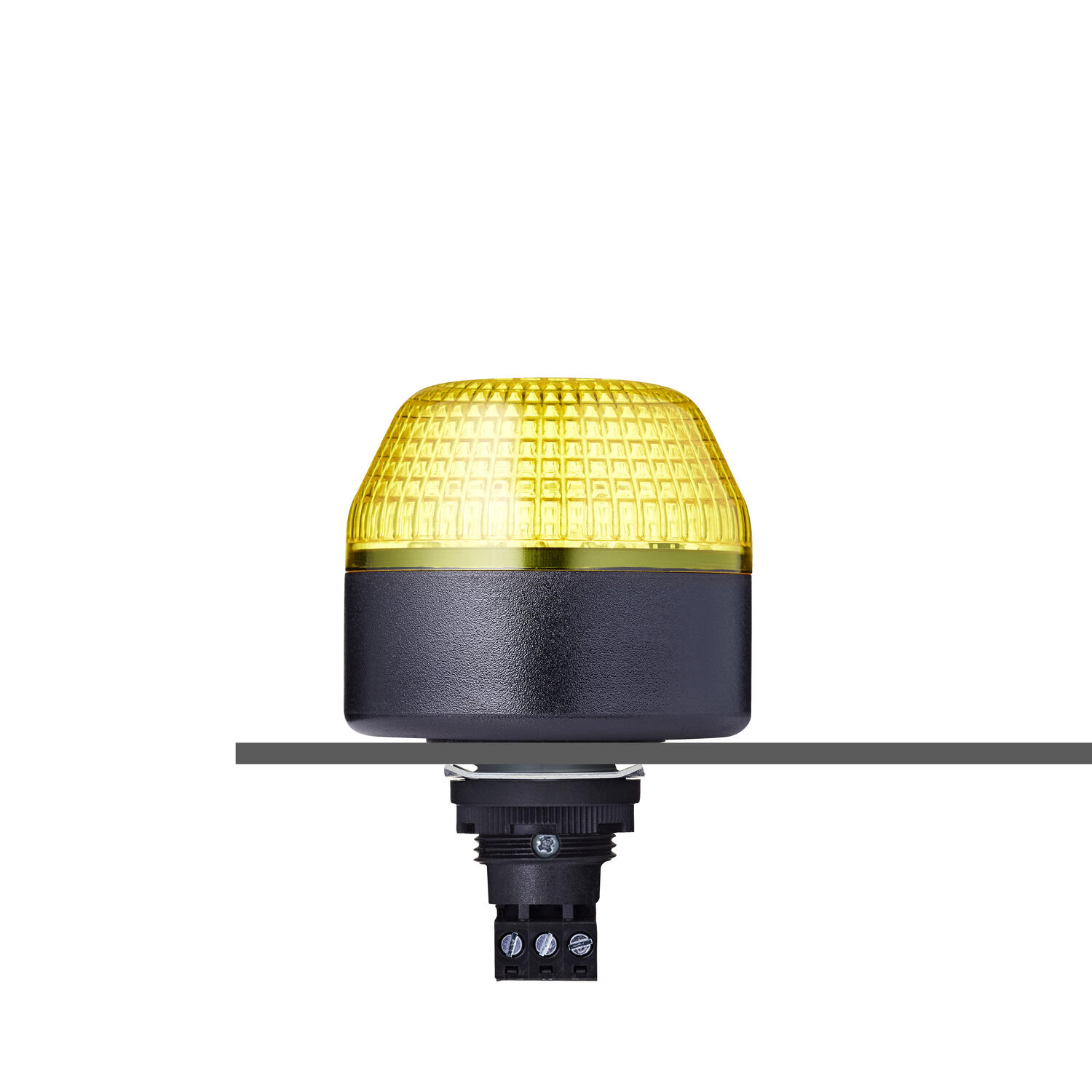

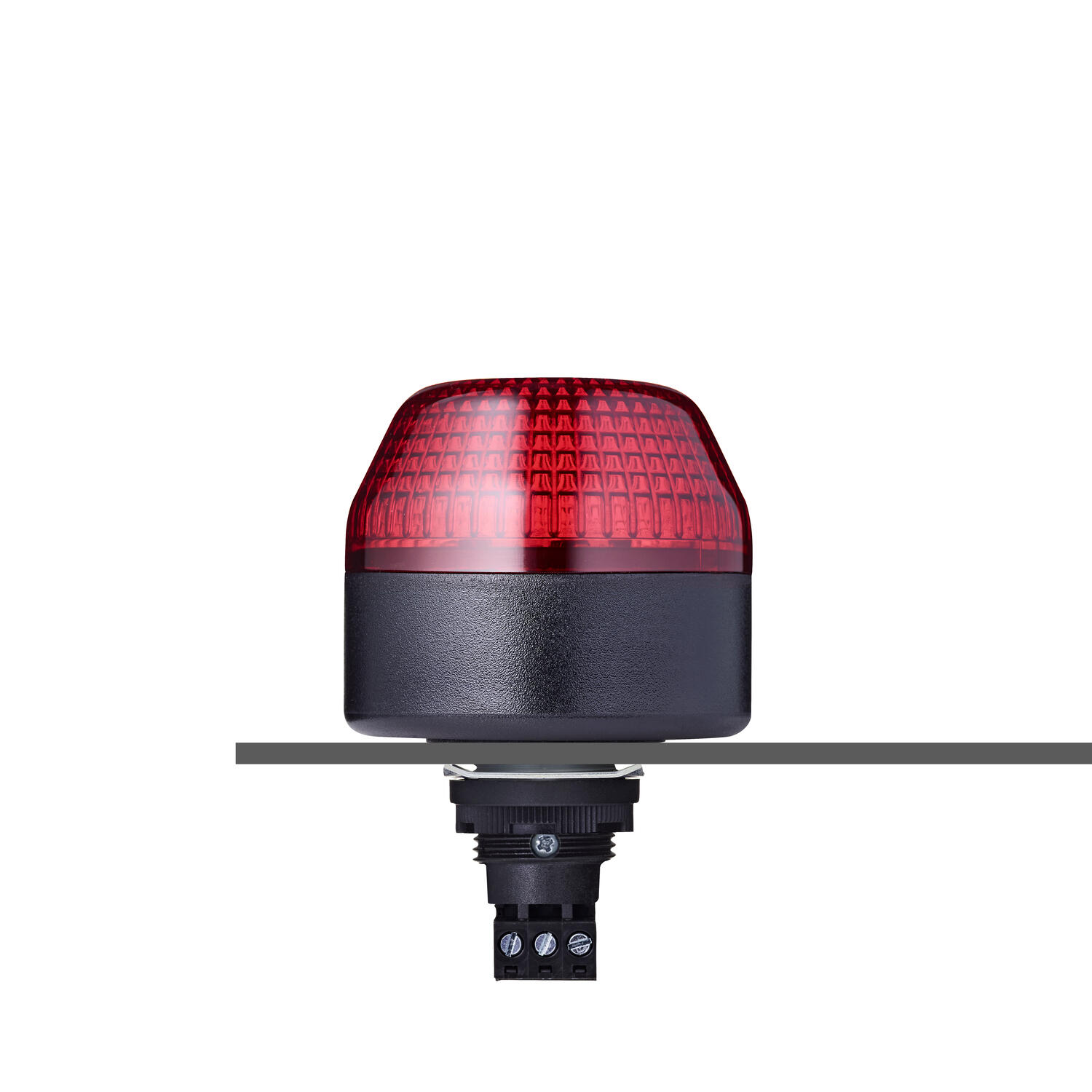

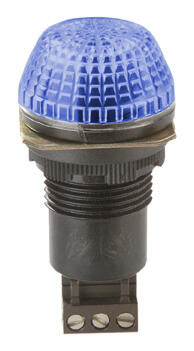

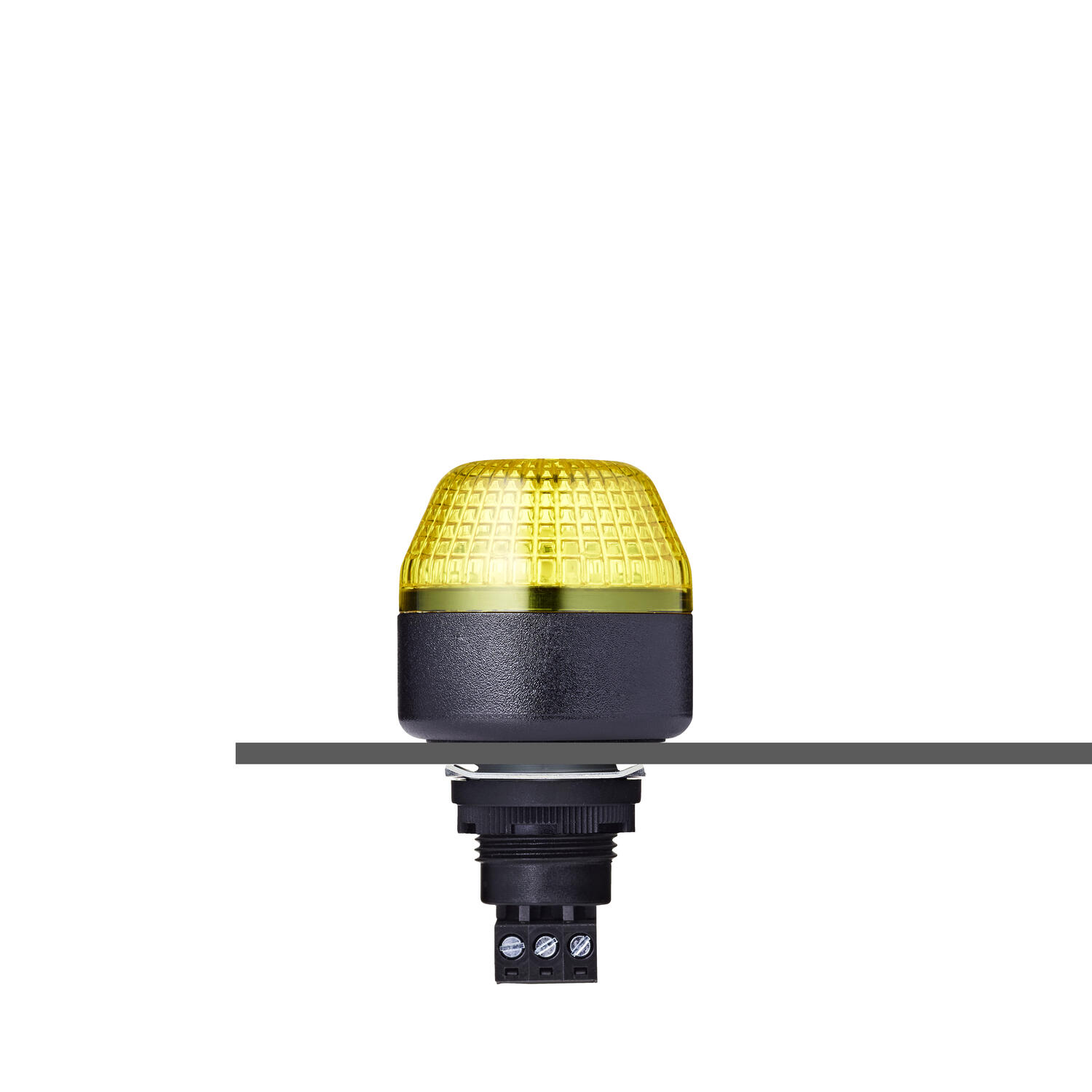

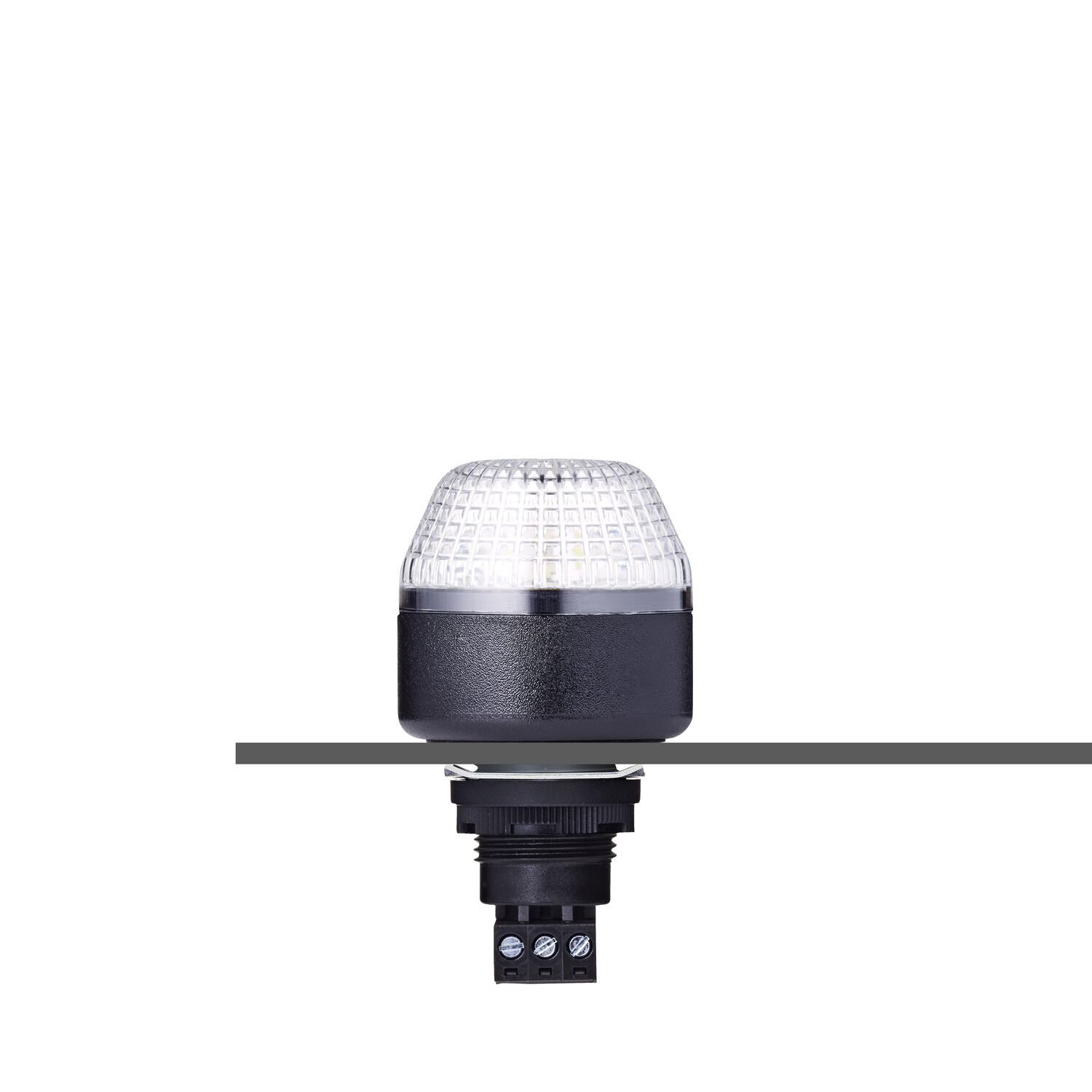

I Series, Panel Mount Beacon, Ø65, Ø45 and Ø30mm
The I series offers a high quality, bright, panel mounted beacon. The units can be single or dual colour, have multiple colour and voltage options and in the case of IMM/IMM can be pre-cable with IP67 Protection.
The comprehensive M22 built-in signal device series is available in three sizes Ø 30 mm, Ø 45 mm und Ø 65 mm. The high luminosity and signal effect is seen all around due to the calotte. The beacon is extremely durable and vibration-resistant, with a high degree of protection of IP65 and IP67 for prewired models. The I Series range can come with a demountable plug in terminal or individually prewired.
A complete range of LED steady/flashing/strobe and multi colour models for versatile applications in the industry, enclosures, etc. It is maintenance free, offers a low current consumption, long life time, shock and vibration-proof. Multi colour models are also available in 6 LED colours individually selectable.
Housing and lenses made of impact resistant polycarbonate, housing colour black or grey.
- Ø65, Ø45 and Ø30mm Panel mount beacons
- Strobe, Flashing and Steady LED options
- Wide control voltage range

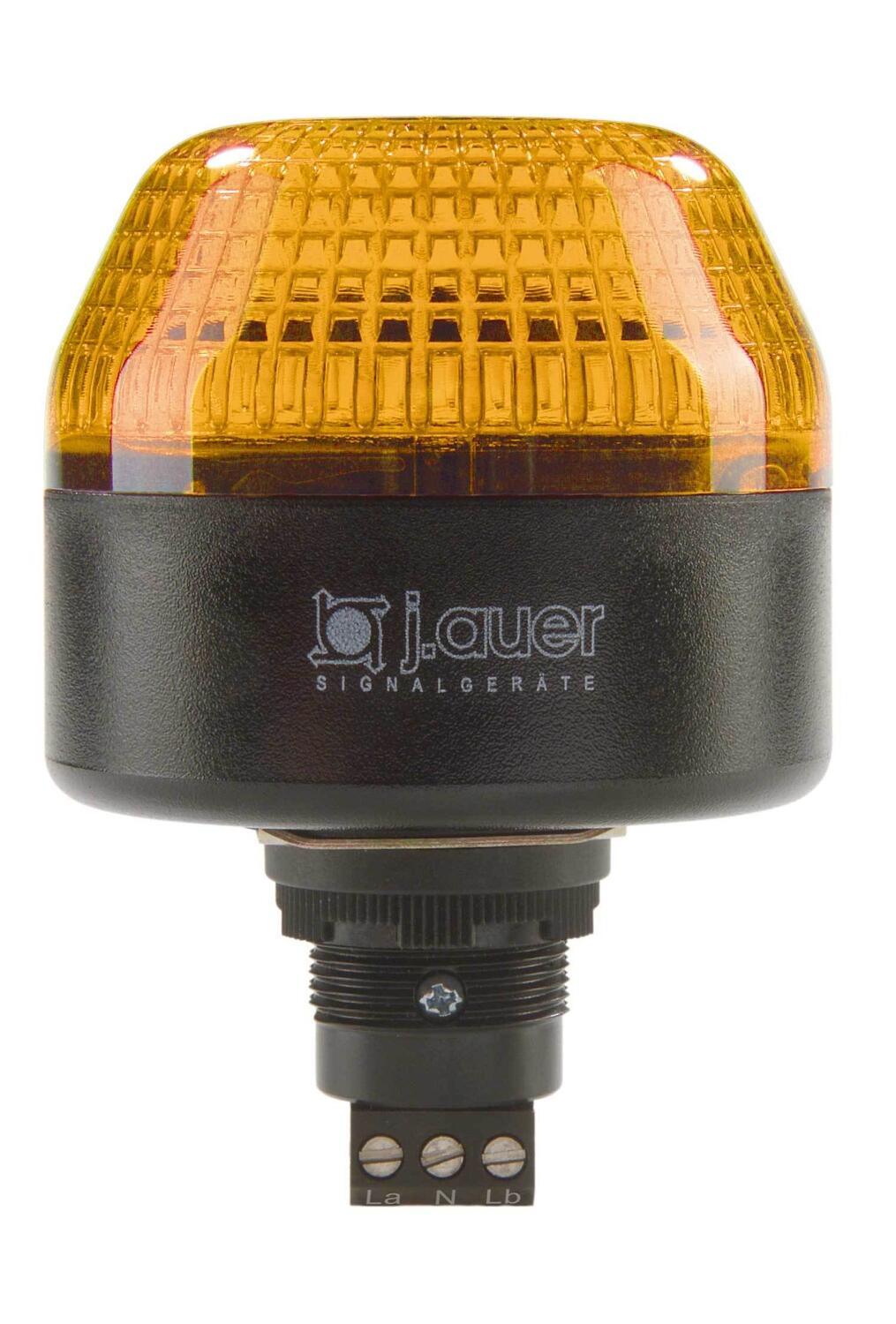

Selected variant
Specifications
Generell data |
|
|---|---|
| Color Lens | Orange |
| Light type | Flash |
| Light source | LED |
| Color House | Black |
| Mounting | Panel mount |
Rated operated conditions |
|
| Nominal Supply Voltage | 230-240 V AC |
| Nominal current | 19 mA |
*Invisible Heading* |
|
|---|---|
| Flash Frequency | 2 Hz |
| Operational Temperature | -25°C ... 60°C |
| Terminal connection | 2.5 mm² |

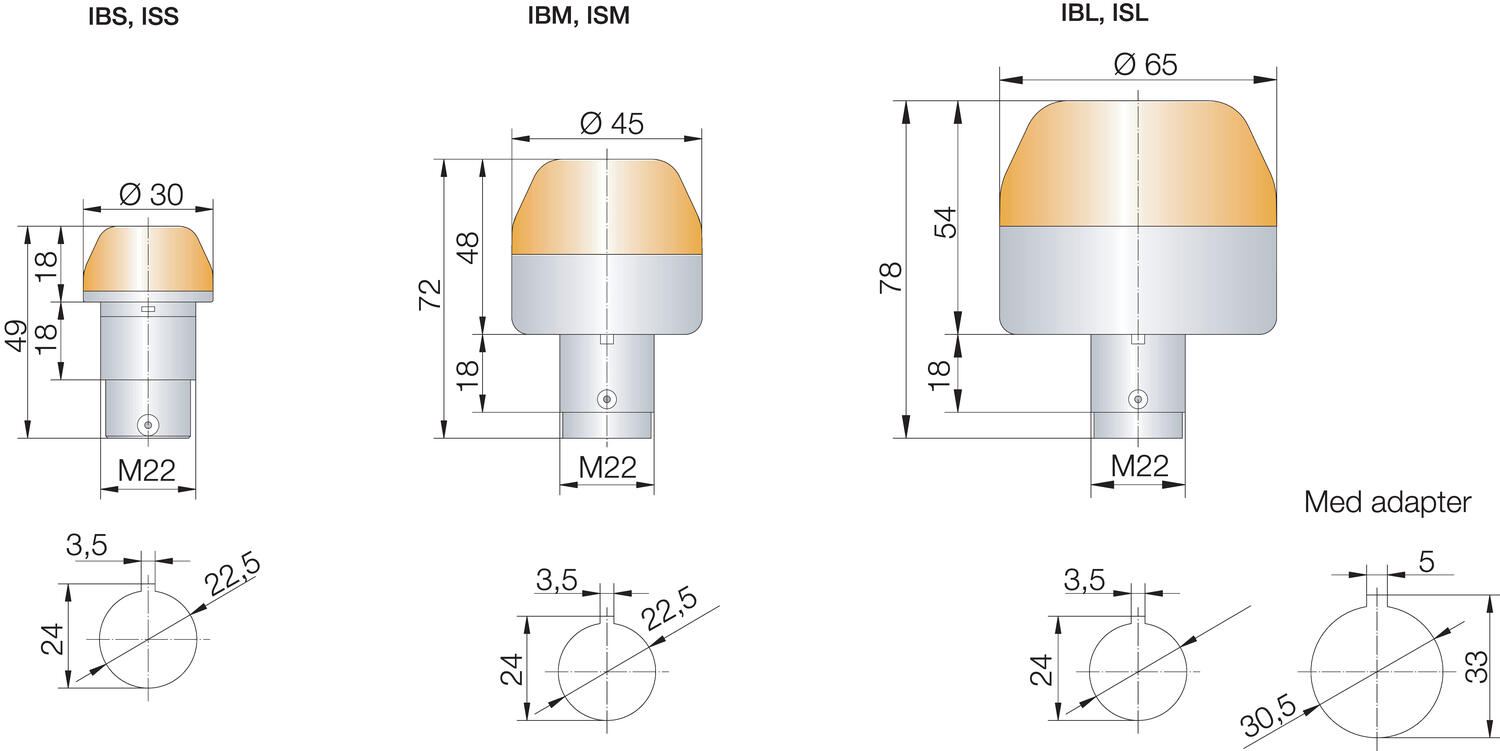

Dimensjoner |
|
| Height | 60 mm |
| Diameter | 30 mm |
Div. data |
|
| IP Class | IP65 |
Product description
The I series offers a high quality, bright, panel mounted beacon. The units can be single or dual colour, have multiple colour and voltage options and in the case of IMM/IMM can be pre-cable with IP67 Protection.
The comprehensive M22 built-in signal device series is available in three sizes Ø 30 mm, Ø 45 mm und Ø 65 mm. The high luminosity and signal effect is seen all around due to the calotte. The beacon is extremely durable and vibration-resistant, with a high degree of protection of IP65 and IP67 for prewired models. The I Series range can come with a demountable plug in terminal or individually prewired.
A complete range of LED steady/flashing/strobe and multi colour models for versatile applications in the industry, enclosures, etc. It is maintenance free, offers a low current consumption, long life time, shock and vibration-proof. Multi colour models are also available in 6 LED colours individually selectable.
Housing and lenses made of impact resistant polycarbonate, housing colour black or grey.
