AUER SIGNAL

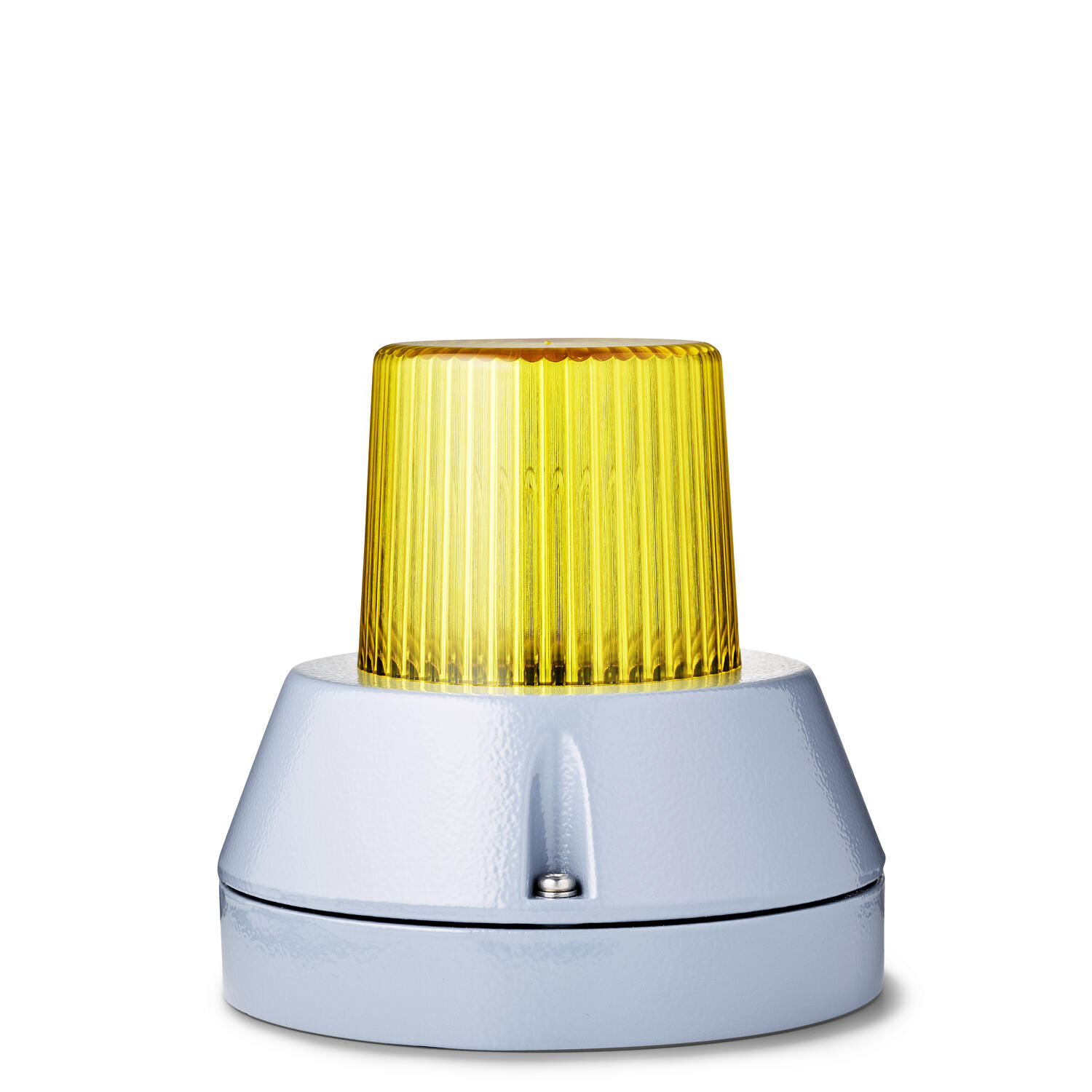

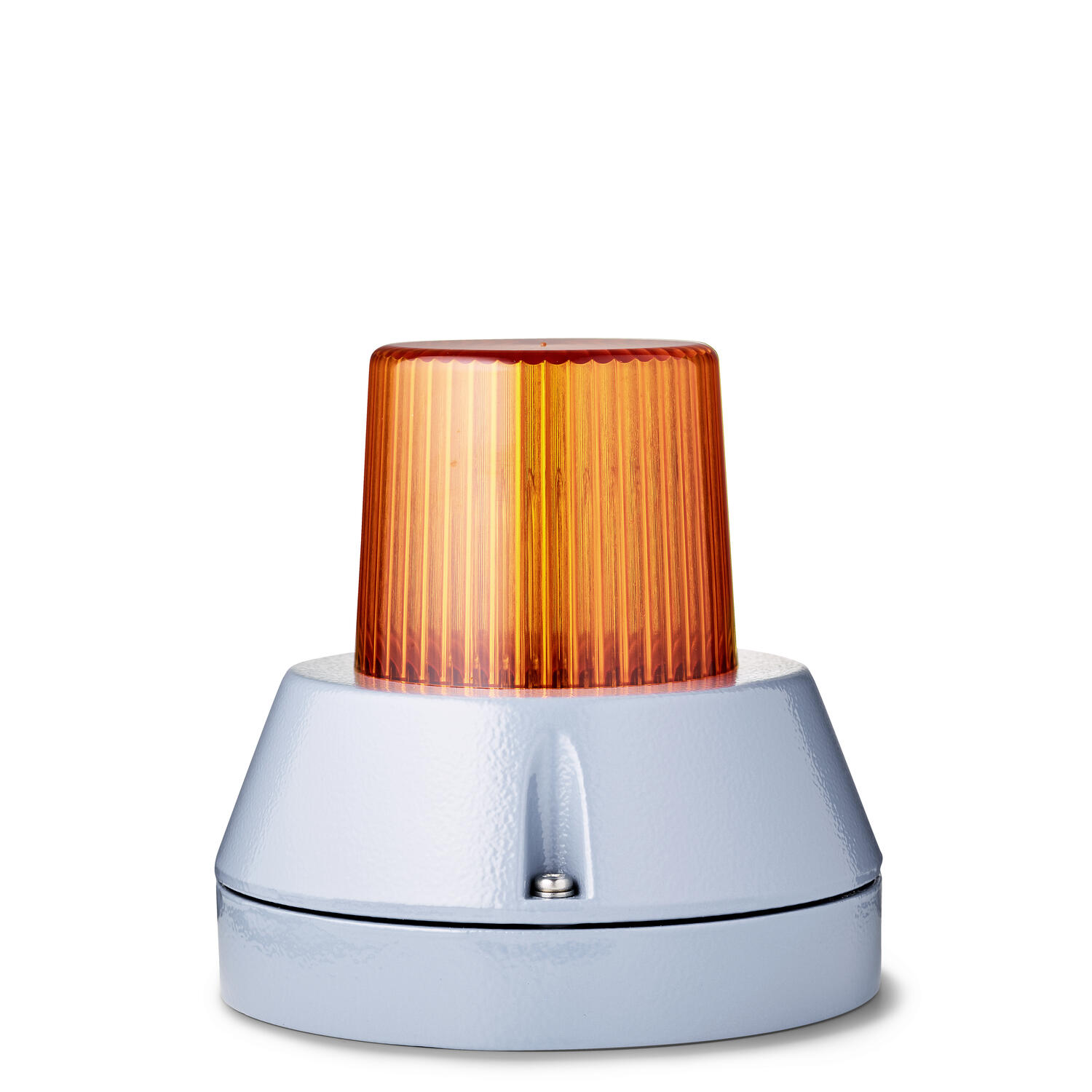

Strobe Beacon, Ø70mm, BZG
A highly robust strobe beacon with aluminium housing for harsh and demanding environments.
The unit is saltwater resistant and can be mounted verticaly or horizontally.
- Ø70mm Strobe beacon
- 15J Strobe output
- 24 V dc or 230/240 V ac
Selected variant
Specifications
Generell data |
|
|---|---|
| Color Lens | Orange |
| Light type | Xenon |
| Light source | Xenon |
| Color House | Grey |
| Mounting | None |
Rated operated conditions |
|
| Flash Energy | 15 J |
| Flash Frequency | 1 Hz |
| Terminal connection | 2.5 mm² |

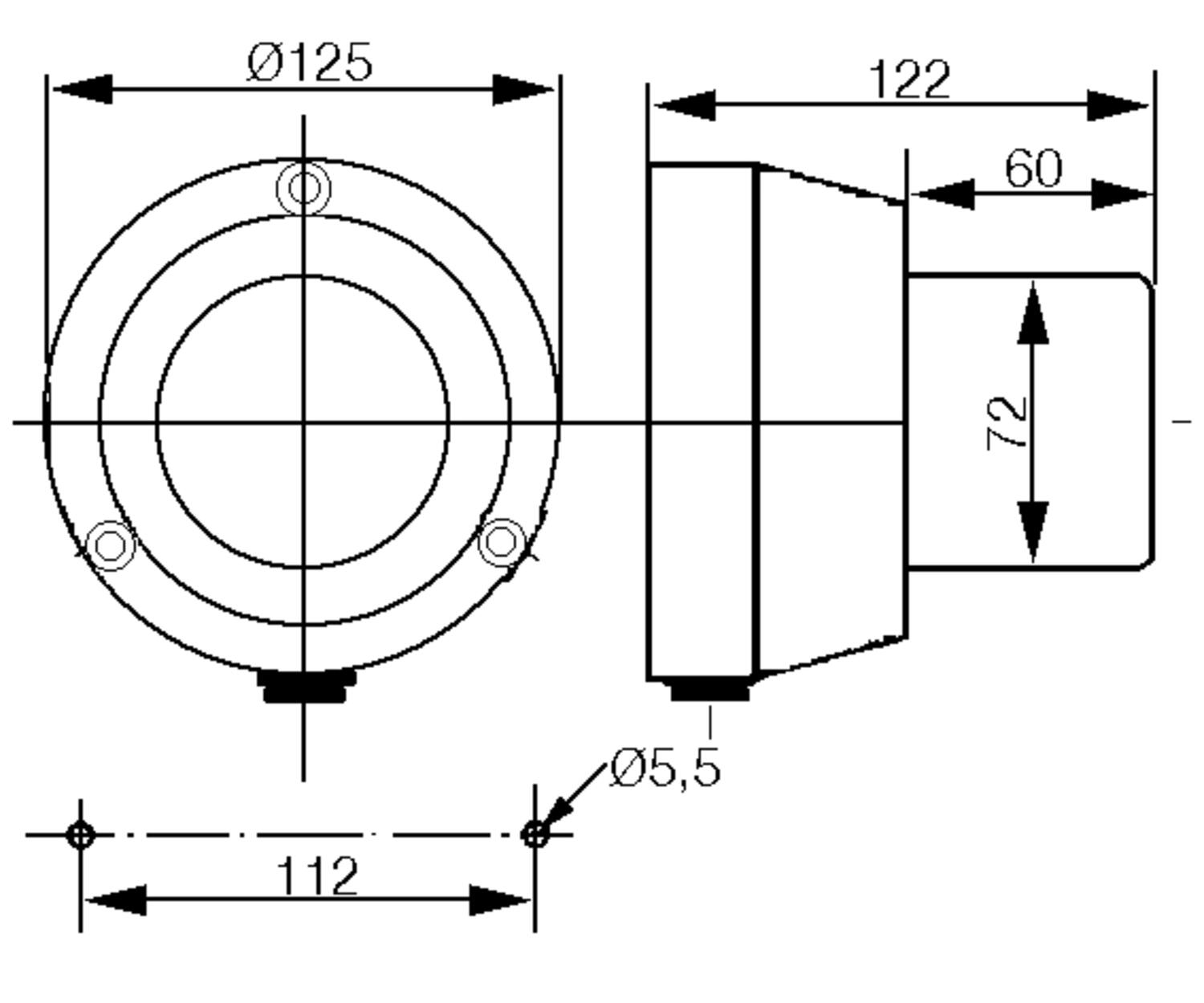

Dimensjoner |
|
| Diameter | 72 mm |
| Weight | 600 g |
Div. data |
|
|---|---|
| IP Class | IP66 |
| Supply Voltage | 230 V |
| Operating Voltage AC Max | 264 V AC |
| Operating Voltage AC Min | 207 V AC |
| Temperature range from | -30 °C |
| Temperature range to | 50 °C |
| Nominal current max | 0.23 A |
| Nominal current min | 0.23 A |
Downloads
Product description
A highly robust strobe beacon with aluminium housing for harsh and demanding environments.
The unit is saltwater resistant and can be mounted verticaly or horizontally.
