AUER SIGNAL

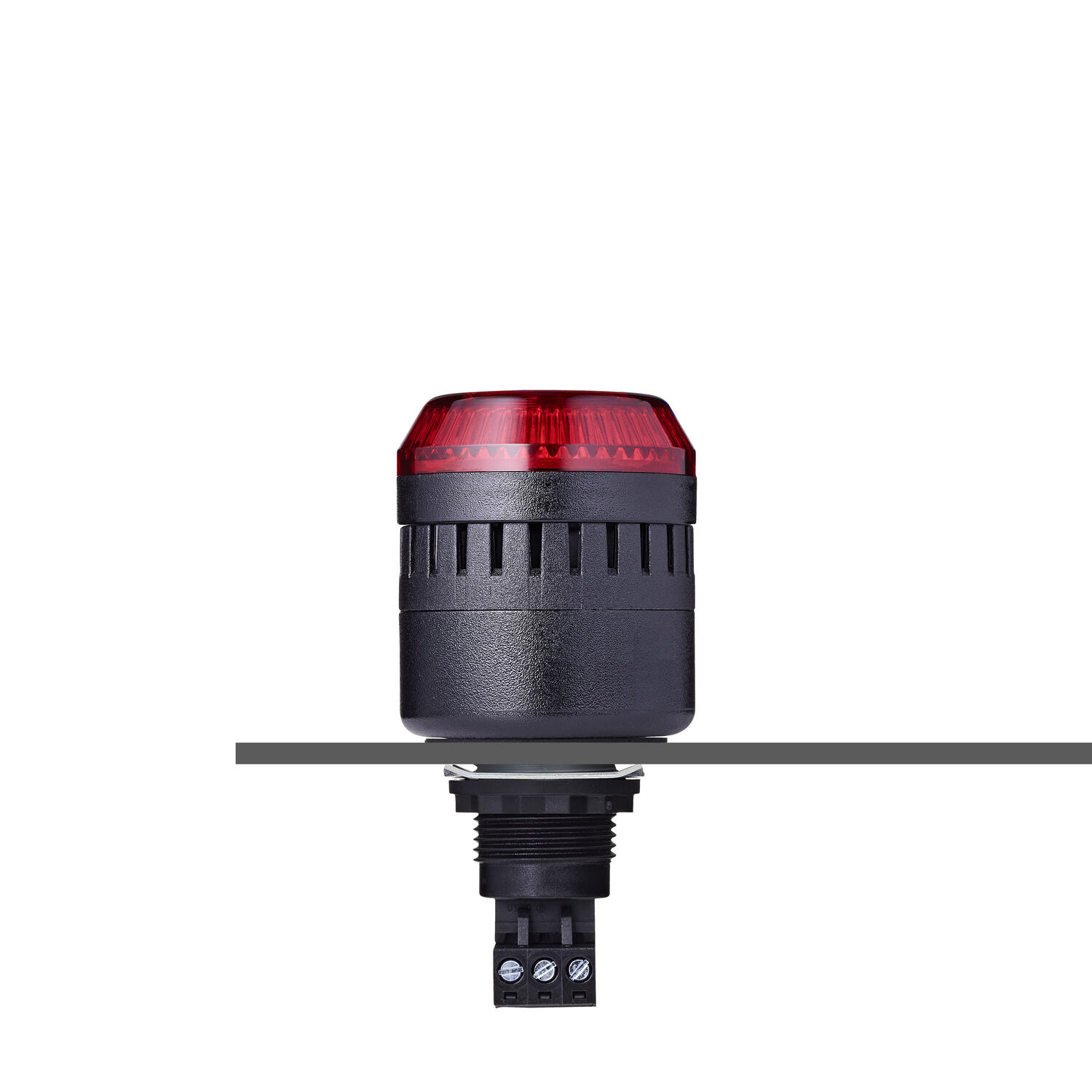

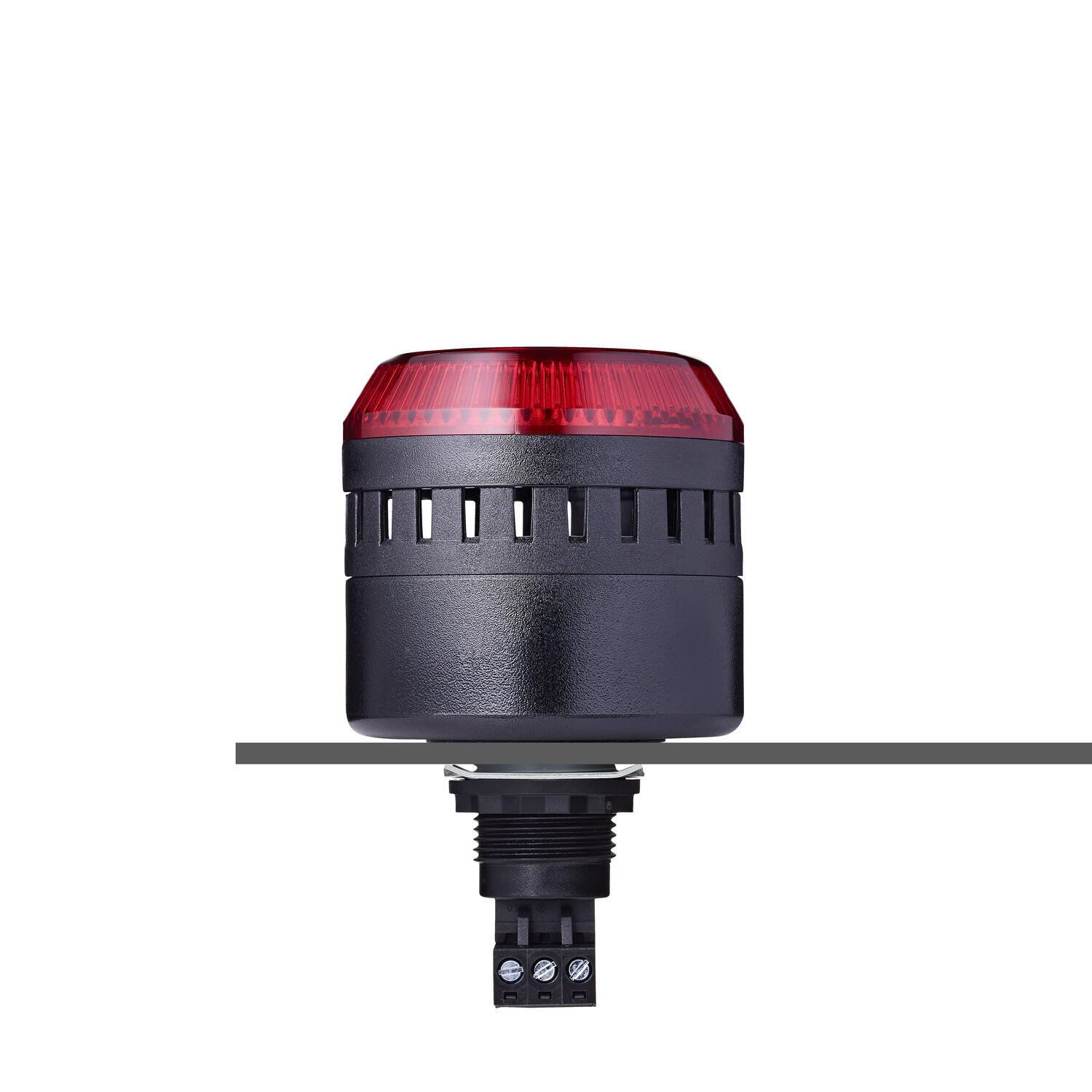

Panel Mount Beacon with Sounder, E Series
The E series of panel mounted LED buzzers offers a high quality and flexible signalling solution.
- universally useable panel mount buzzer with LED control light
- sizes Ø 65 mm – Ø 45 mm
- models:

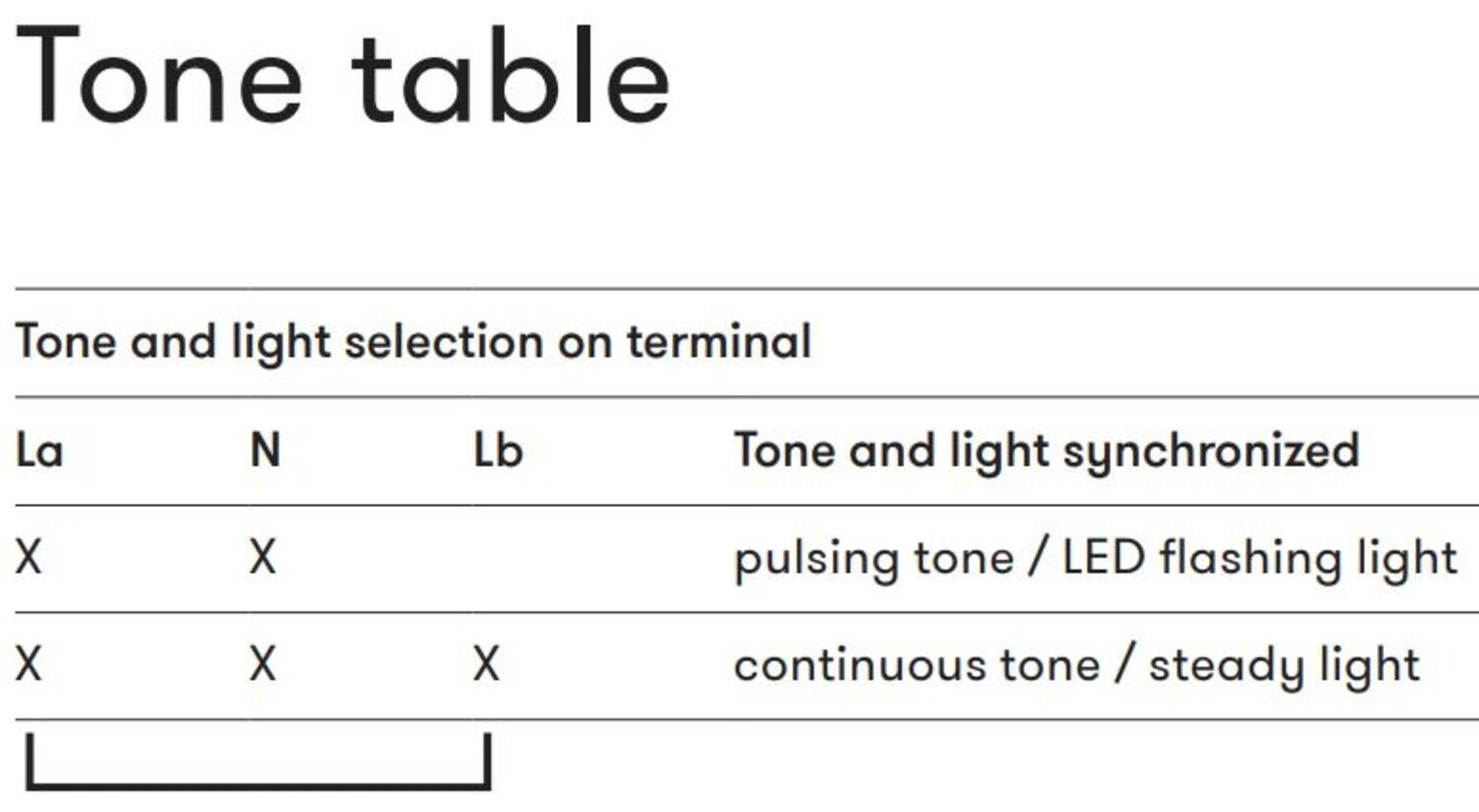

ELG-ELM panel mount buzzer – LED control light sound and light synchronized continuous tone – steady light pulsing tone – flashing light in pulse frequency wobble tone – flashing light in pulse frequency
EDG-EDM panel mount buzzer – LED control light continuous tone and steady light separately switchable
- well distinguishable tone types via terminal selectable (ELG)

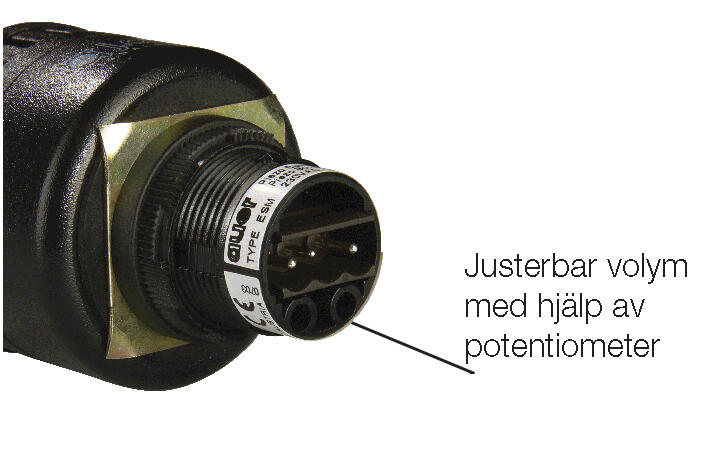

- volume also in mounted condition infinitely adjustable
- LED control light – high brightness, maintenance free
- PLC fit (leakage/inrush current)
- for mounting in Ø 22 mm and 30,5 mm bore holes (with adapter)
- Ø 22.5mm Hole mounted panel mount buzzer with LED beacon
- 85-103 dB Range
- Continuous, Pulsing or wobble tones
Selected variant
Specifications
| Color House | Black |
|---|---|

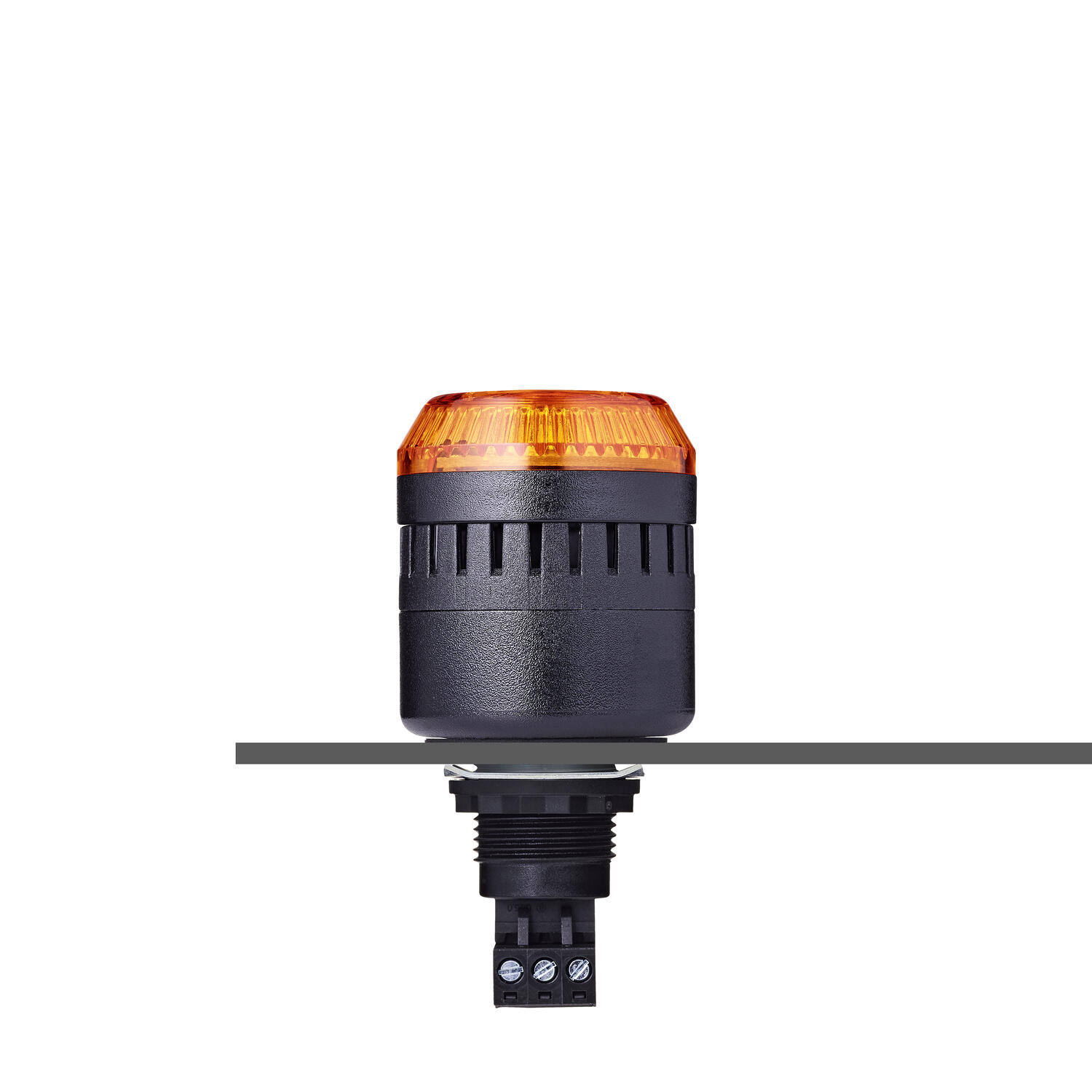

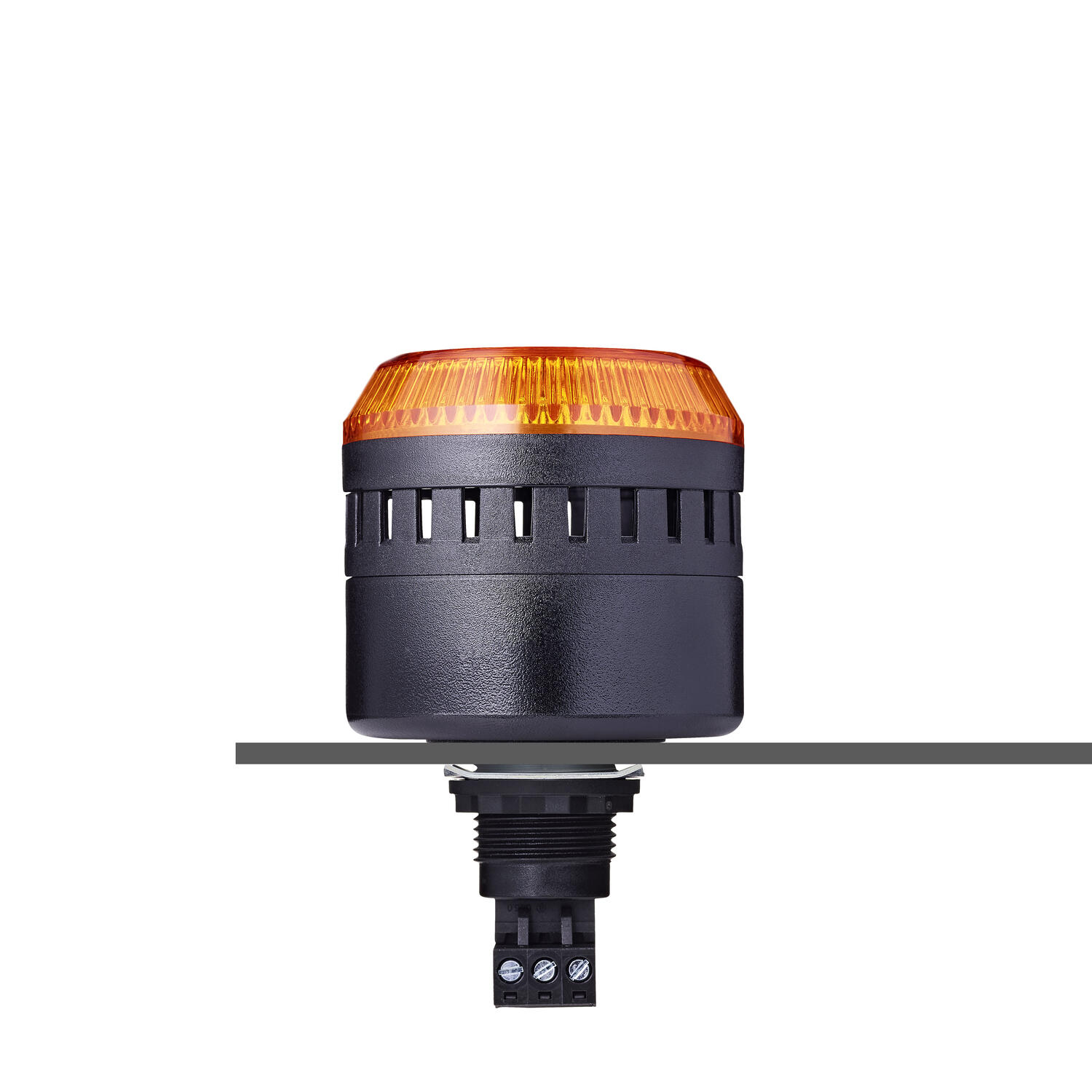

| Color Lens | Orange |

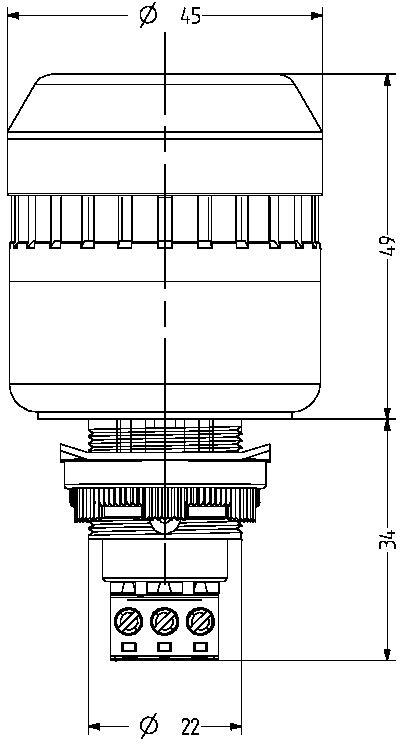

| Diameter | 45 mm |
| Flash Frequency | 2 Hz |
| IP Class | IP65 |
| Light source | LED |
| Light type | Orange LED |
| Mounting | Panel mount |
| Nominal current max | 0.04 A |
| Nominal current min | 0.04 A |
| Number of tones | 3 |
| Operating Voltage AC Max | 253 V AC |
| Operating Voltage AC Min | 207 V AC |
|---|---|
| Sound control | Yes |
| Sound level max | 98 dB |
| Sound level min | 85 dB |
| Supply Voltage | 230 V |
| Temperature range from | -25 °C |
| Temperature range to | 60 °C |
| Terminal connection | 2.5 mm² |
| Tone frequency max | 3500 Hz |
| Tone frequency min | 3500 Hz |
| Weight | 65 g |
Downloads
Product description
The E series of panel mounted LED buzzers offers a high quality and flexible signalling solution.
- universally useable panel mount buzzer with LED control light
- sizes Ø 65 mm – Ø 45 mm
- models:
ELG-ELM panel mount buzzer – LED control light sound and light synchronized continuous tone – steady light pulsing tone – flashing light in pulse frequency wobble tone – flashing light in pulse frequency
EDG-EDM panel mount buzzer – LED control light continuous tone and steady light separately switchable
- well distinguishable tone types via terminal selectable (ELG)
- volume also in mounted condition infinitely adjustable
- LED control light – high brightness, maintenance free
- PLC fit (leakage/inrush current)
- for mounting in Ø 22 mm and 30,5 mm bore holes (with adapter)
