AUER SIGNAL
Vertical Mount Mini Horn with Beacon, K Series

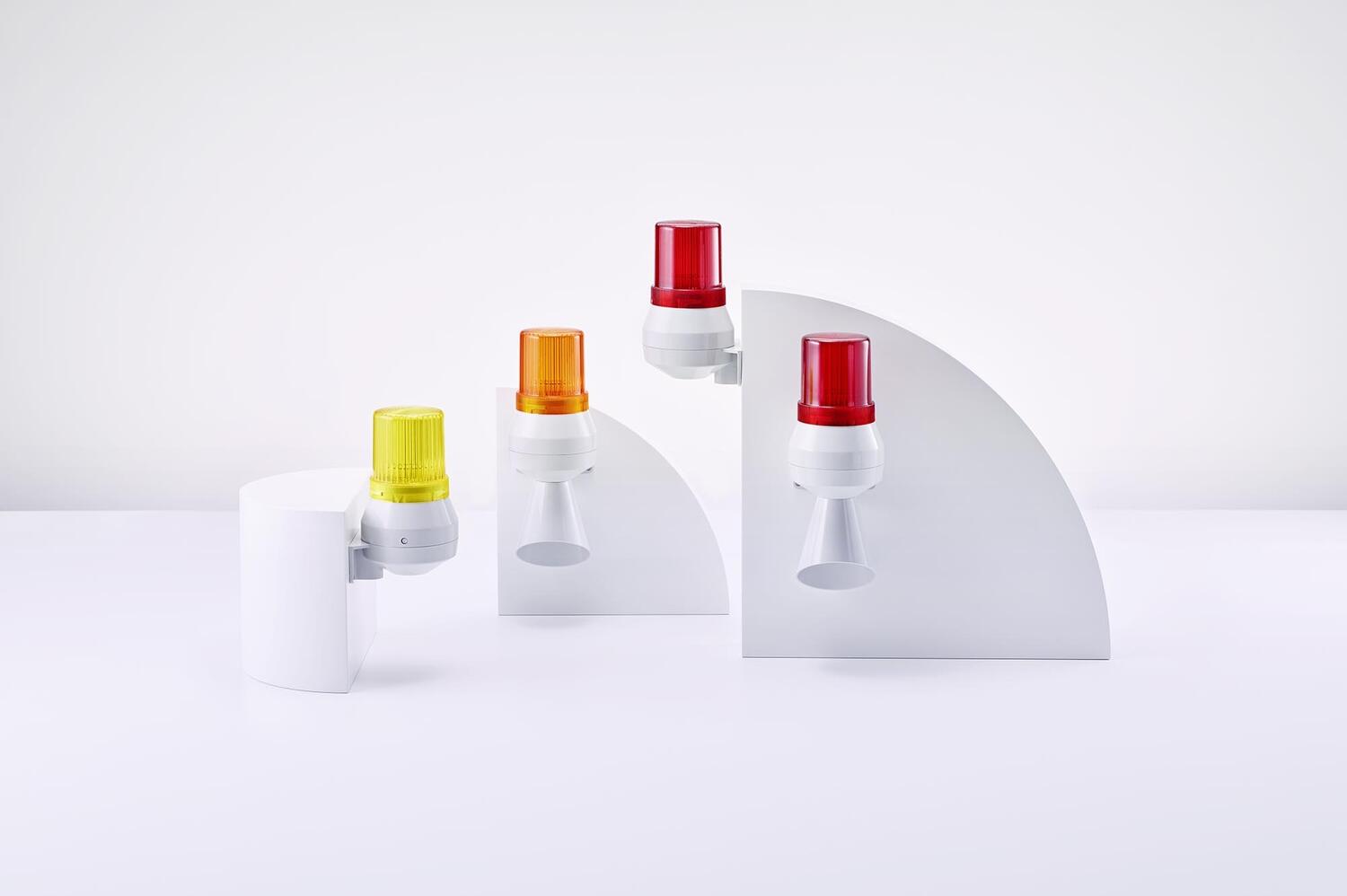

The K series of signal horns give a tough, high quality option for visual and audible signalling.
- Combination of an electromechanical horn with signal beacon or strobe beacon
- For universal visual-audible applications
- Signal beacon Ø 60 mm
- Beacon options:
steady light with bulb or LED bulb (LLL)
flashing light with LED bulb (LLB)
- Models with or without cone
- Sound and light separately switchable
- Attractive price/performance ratio
- 2 mounting widths
Technical Information

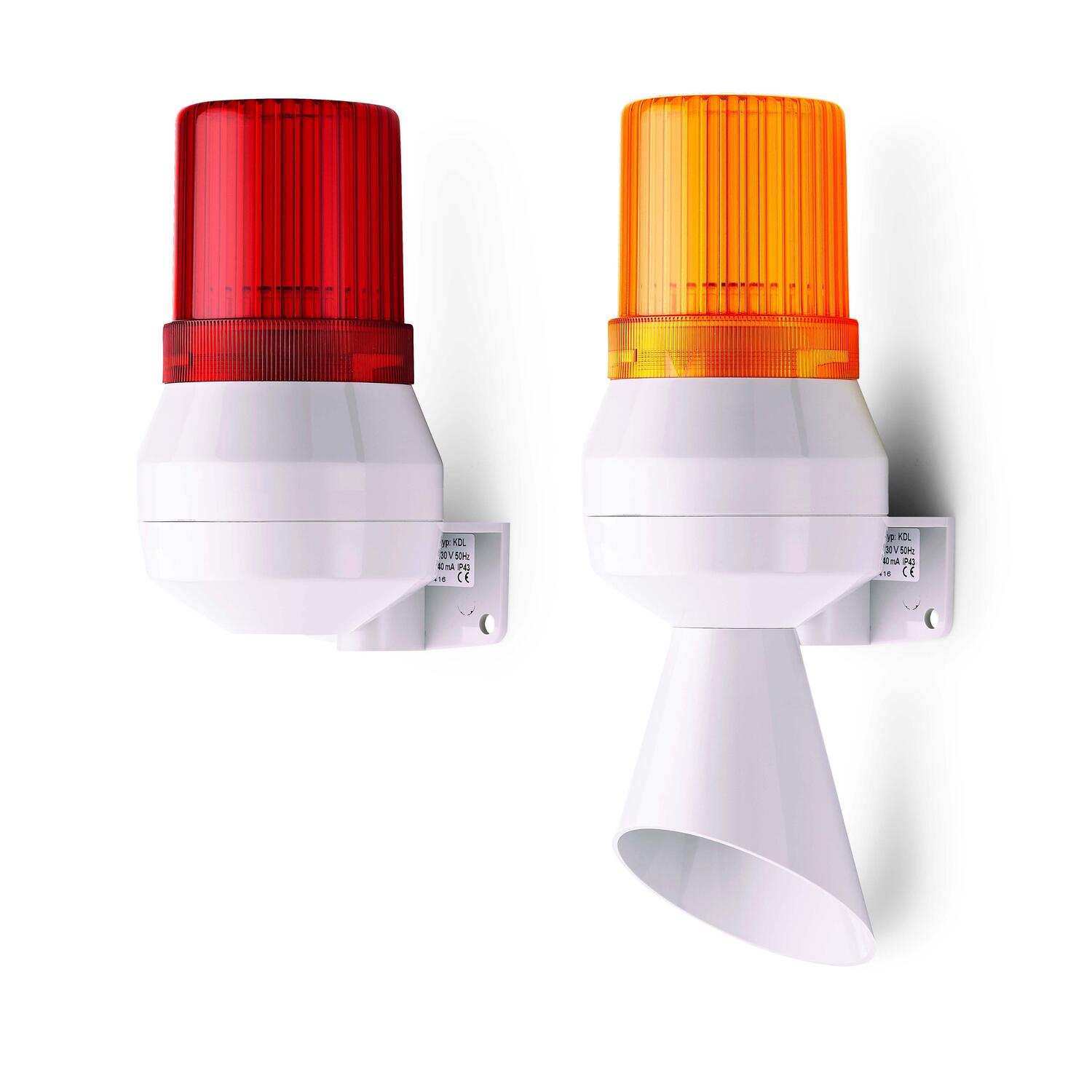

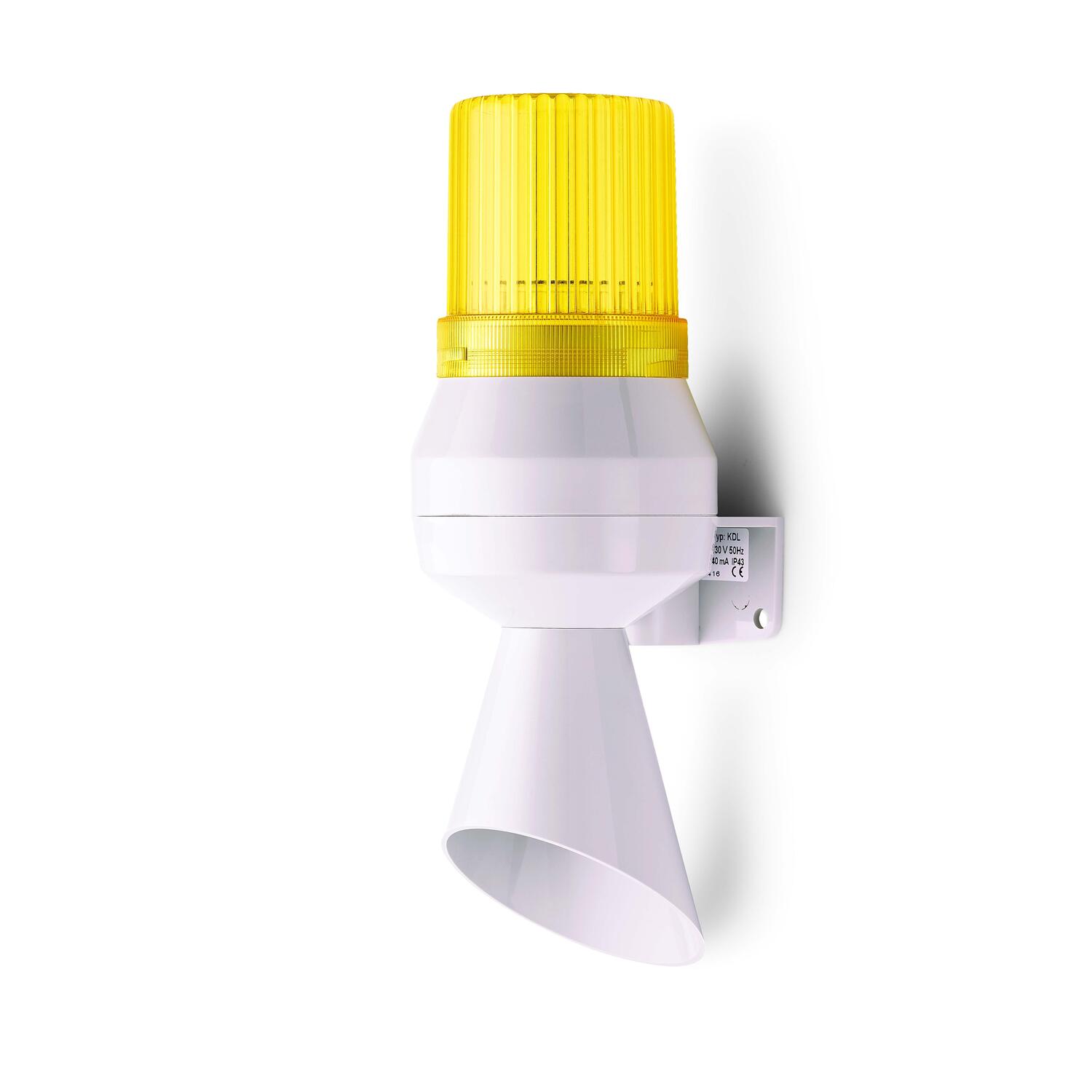

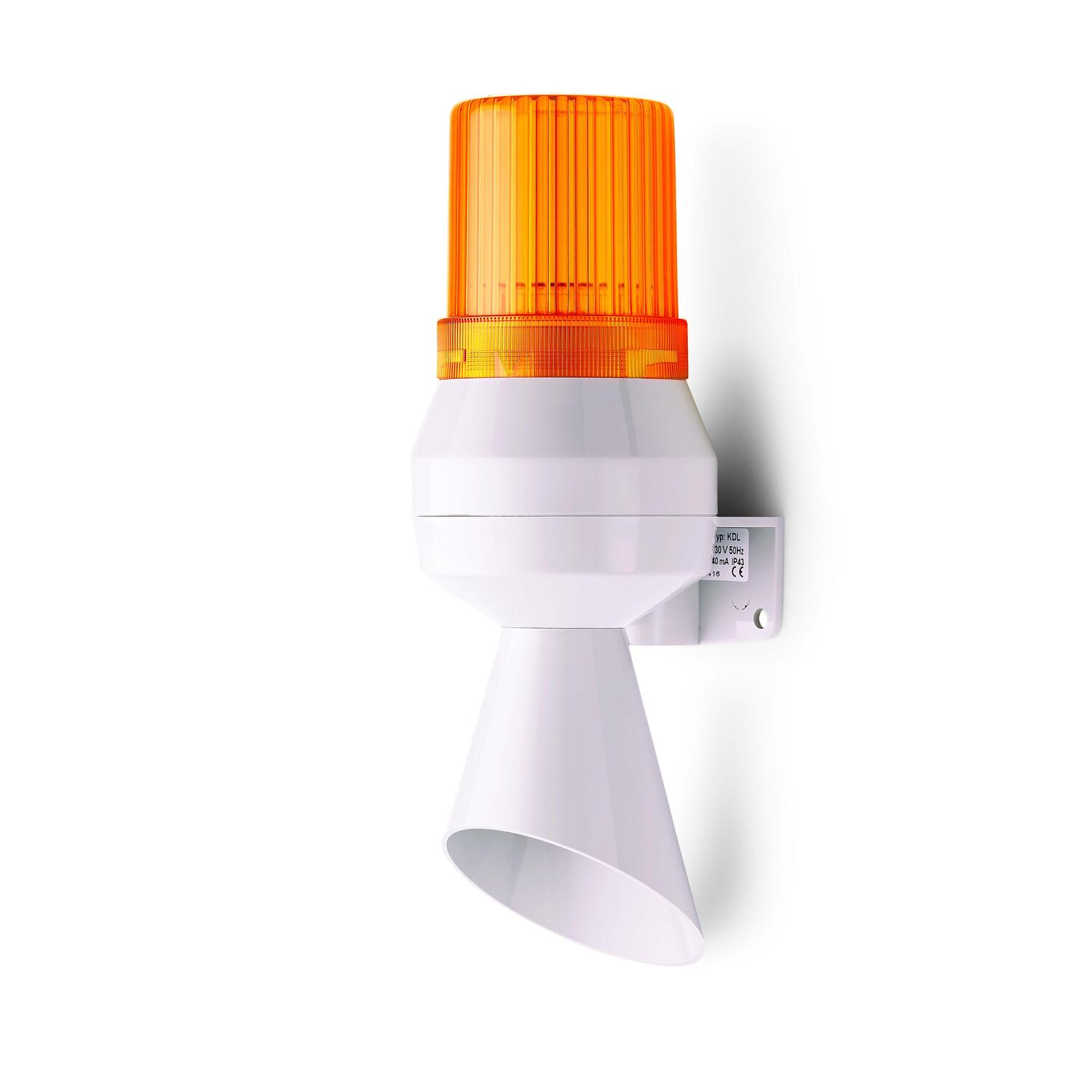

Type | KLL Mini horn - Signal beacon |
Housing | ABS, grey |
Lens colour | amber, red, yellow |
Cable entry | 6,5 - 15 mm |
Cable conduit | surface or buried |
Mounting | sound outlet downwards |
Duty cycle factor | 100% |
Protection class | IP43 NEMA Type 2 |
Radio noise suppression | acc. to CENELEC EN 55014 |
Terminals | up to 2,5 mm2 |
Socket | BA15d |
Temperature range | -25° to +50° C |
Sound pressure | 88 - 92 dB |
Weight (g) | 220 |

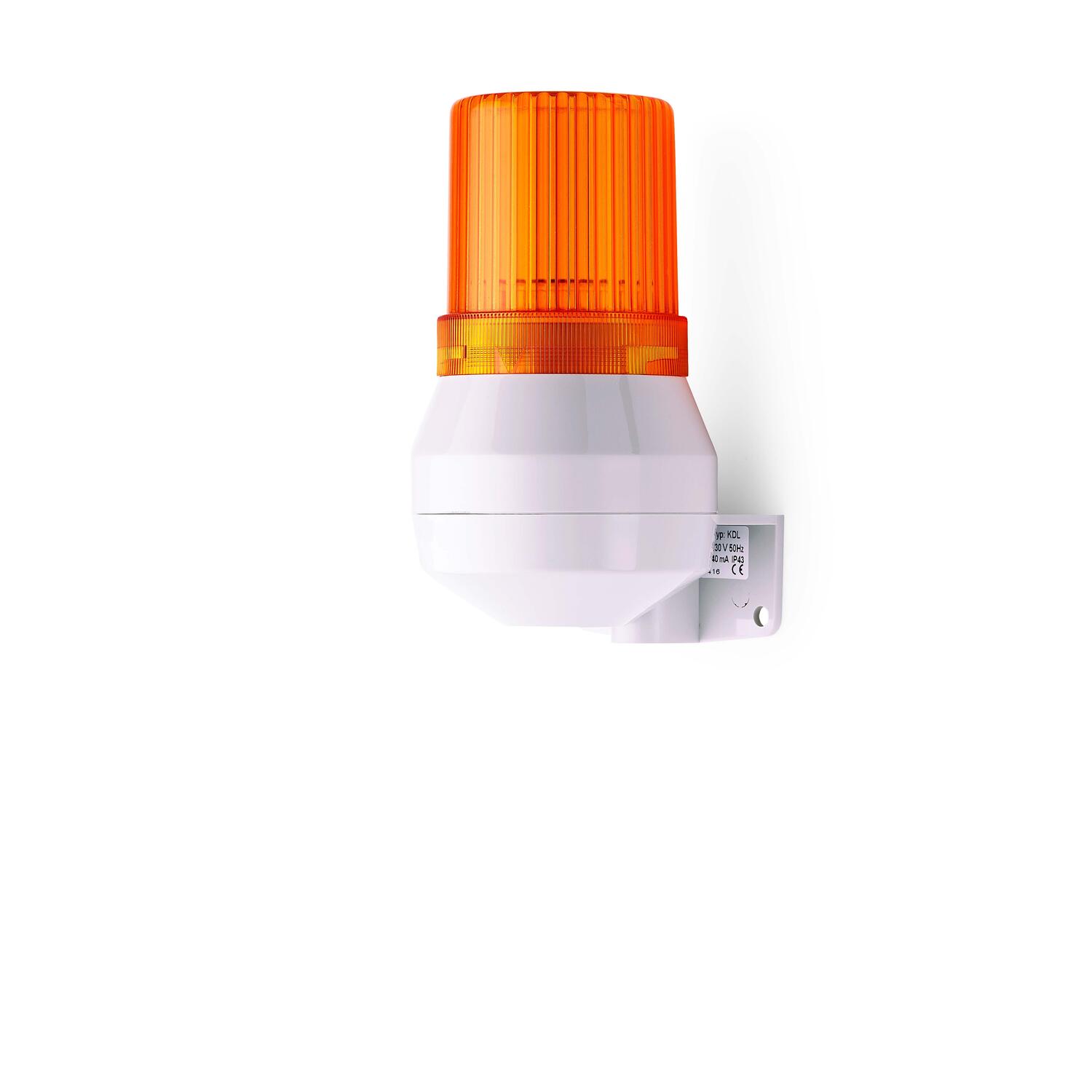

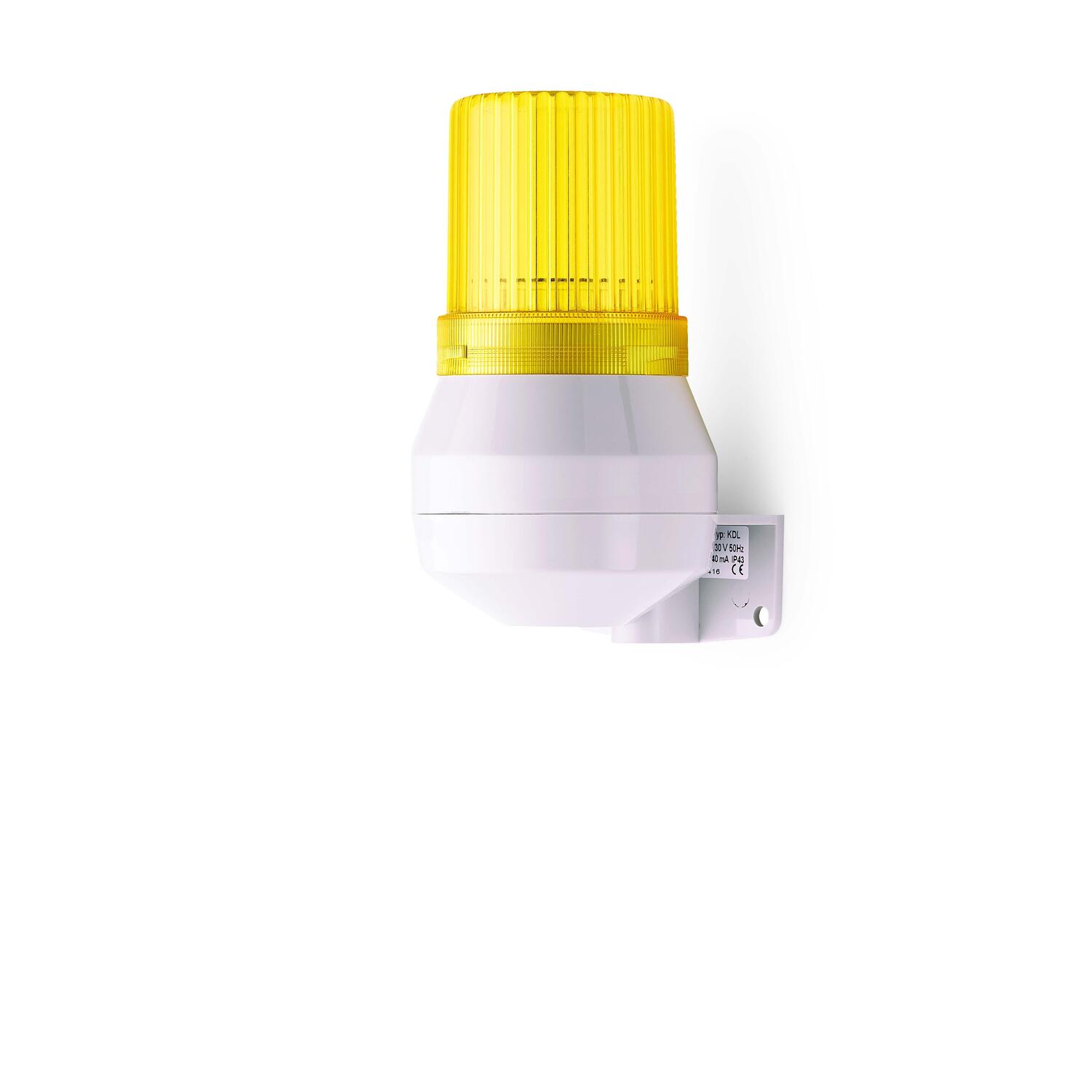

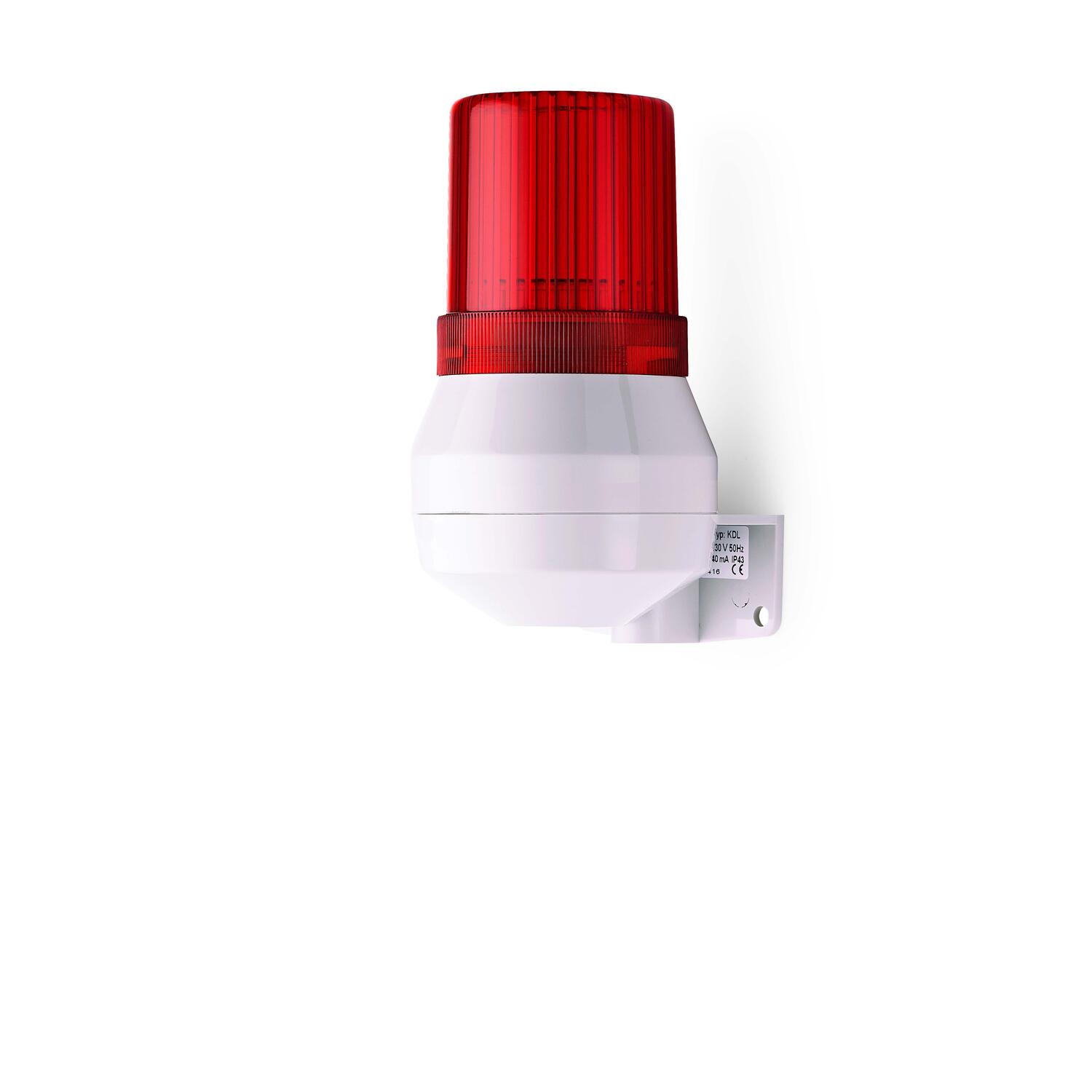

Type | KDL Mini horn - Signal beacon |
Housing | ABS, grey |
Lens colour | amber, red, yellow |
Cable entry | 6,5 - 15 mm |
Cable conduit | surface or buried |
Mounting | sound outlet downwards |
Duty cycle factor | 100% |
Protection class | IP43 NEMA Typ 2 |
Radio noise suppression | acc. to CENELEC EN 55014 |
Terminals | up to 2,5 mm2 |
Socket | BA15d |
Temperature range | -25° to +50° C |
Sound pressure | 88 - 92 dB |
Weight (g) | 200 |
Part Numbers
Type | Nominal Voltage | Nominal Current (A) | Hz | Part Number |
KLH | 24V AC | 0.4 | 50 | 71011C105 |
48V AC | 0.2 | 71011C108 | ||
230V AC | 0.04 | 71011C113 | ||
120V AC | 0.07 | 60 | 71011C210 | |
| ||||
KLL | 24V DC | 0.35 |
| 71011C005 |
| ||||
**C = Colour code for lens; 1=Amber, 2=Red, 7=Yellow | ||||
Bulbs
Type | Voltage | Socket | Wattage | Part Number |
HL31 | 12V | GY 6.35 | 35W | 890035904 |
HL32 | 24V | 890035905 | ||
HL33 | 110/120V | G 6.35 | 890035910 | |
HL36 | 230/240V | 890035913 | ||
XT15 | 15J (Strobe energy) | 890115900 | ||
| ||||
- Vertical mount signal horn with beacon
- 88–92 dB Range
- Steady or Flashing light options
Selected variant
Specifications
| Color Lens | Orange |
|---|---|
| Diameter | 75 mm |
| Flash Energy | 1 J |
| Flash Frequency | 2 Hz |
| IP Class | IP43, NEMA Type 2 |
| Light type | Bulb, LED |
| Number of tones | 1 |
| Sound level max | 92 dB |
|---|---|
| Supply Voltage | 24 V |
| Temperature range from | -20 °C |
| Temperature range to | 50 °C |
| Terminal connection | 2.5 mm² |
| Weight | 220 g |
Product description
The K series of signal horns give a tough, high quality option for visual and audible signalling.
- Combination of an electromechanical horn with signal beacon or strobe beacon
- For universal visual-audible applications
- Signal beacon Ø 60 mm
- Beacon options:
steady light with bulb or LED bulb (LLL)
flashing light with LED bulb (LLB)
- Models with or without cone
- Sound and light separately switchable
- Attractive price/performance ratio
- 2 mounting widths
Technical Information
Type | KLL Mini horn - Signal beacon |
Housing | ABS, grey |
Lens colour | amber, red, yellow |
Cable entry | 6,5 - 15 mm |
Cable conduit | surface or buried |
Mounting | sound outlet downwards |
Duty cycle factor | 100% |
Protection class | IP43 NEMA Type 2 |
Radio noise suppression | acc. to CENELEC EN 55014 |
Terminals | up to 2,5 mm2 |
Socket | BA15d |
Temperature range | -25° to +50° C |
Sound pressure | 88 - 92 dB |
Weight (g) | 220 |
Type | KDL Mini horn - Signal beacon |
Housing | ABS, grey |
Lens colour | amber, red, yellow |
Cable entry | 6,5 - 15 mm |
Cable conduit | surface or buried |
Mounting | sound outlet downwards |
Duty cycle factor | 100% |
Protection class | IP43 NEMA Typ 2 |
Radio noise suppression | acc. to CENELEC EN 55014 |
Terminals | up to 2,5 mm2 |
Socket | BA15d |
Temperature range | -25° to +50° C |
Sound pressure | 88 - 92 dB |
Weight (g) | 200 |
Part Numbers
Type | Nominal Voltage | Nominal Current (A) | Hz | Part Number |
KLH | 24V AC | 0.4 | 50 | 71011C105 |
48V AC | 0.2 | 71011C108 | ||
230V AC | 0.04 | 71011C113 | ||
120V AC | 0.07 | 60 | 71011C210 | |
| ||||
KLL | 24V DC | 0.35 |
| 71011C005 |
| ||||
**C = Colour code for lens; 1=Amber, 2=Red, 7=Yellow | ||||
Bulbs
Type | Voltage | Socket | Wattage | Part Number |
HL31 | 12V | GY 6.35 | 35W | 890035904 |
HL32 | 24V | 890035905 | ||
HL33 | 110/120V | G 6.35 | 890035910 | |
HL36 | 230/240V | 890035913 | ||
XT15 | 15J (Strobe energy) | 890115900 | ||
| ||||
