AUER SIGNAL
Signal tower ModulSignal 50 mm

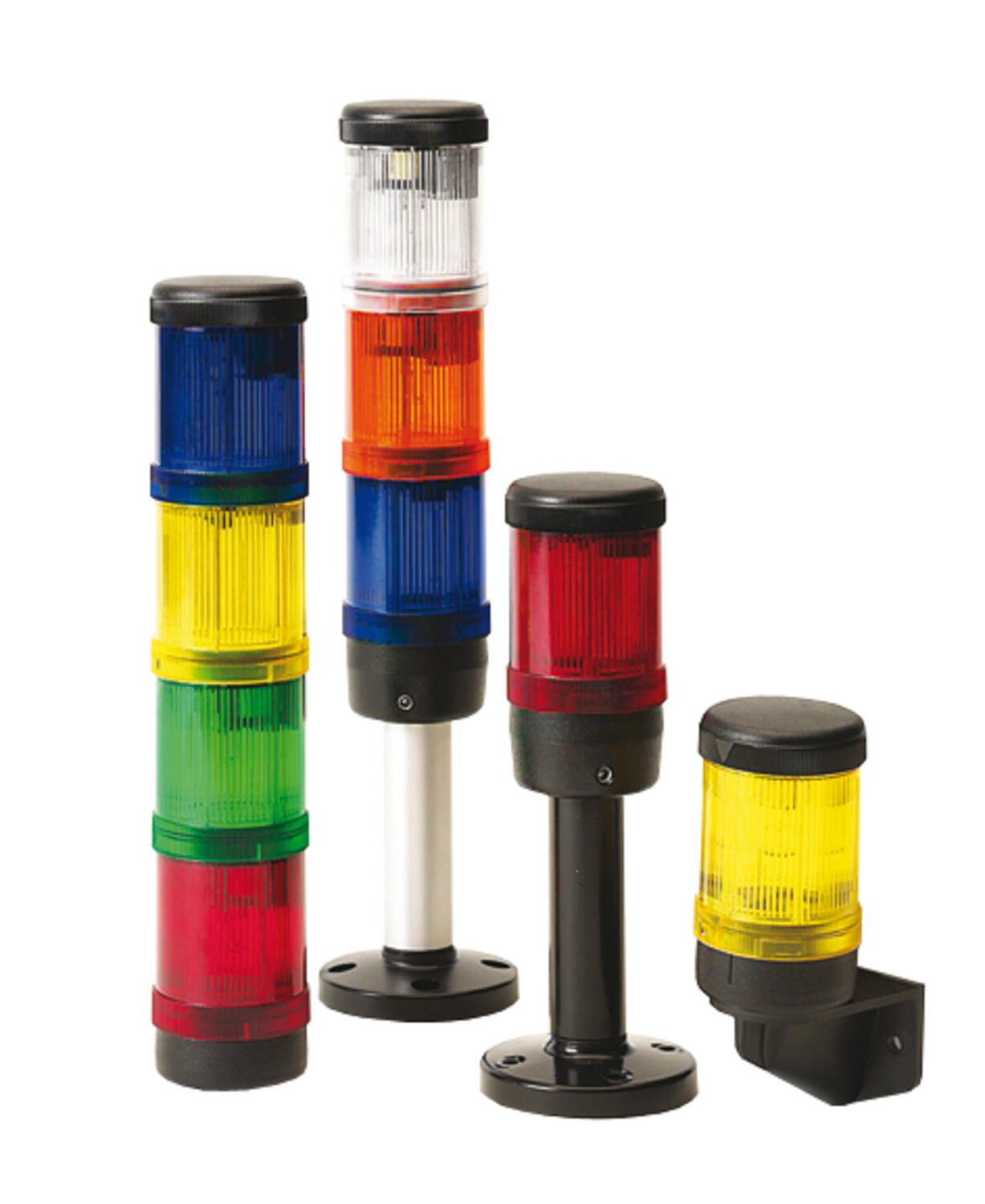

Modular signal towers oncsisting of up to 5 modules. Sound module can be installed as is or 1 - 4 signal modules. Signal modules are compatible with a Ba15d or LED light bulb. LED blubs are highly recommended for demanding environments due to long service life.
The modules are easy to assemble and maintain. A broken light bulb can be changesd without havng to disassemble the whole tower. The base and the modules are protected so all maintanance procedures can be done even with power switched on. The base includes a 6 pole connector numbered from 0 to 5.
- Modular
- IP65 rated
- Temperature range -25 °C...+50 °C
Selected variant
Specifications
| Color House | Black RAL 9005 |
|---|---|
| Color Lens | Orange |
| Diameter | 50 mm |
| IP Class | IP65 |
| Lamp Socket | B15d |
| Number Of Optional Modules | 5 |
| Operating Voltage AC Max | 250 V AC |
| Operating Voltage AC Min | 12 V AC |
| Supply Voltage | 250 V |
|---|---|
| Supply Voltage DC Min | 12 V DC |
| Temperature range from | -25 °C |
| Temperature range to | 50 °C |
| Terminal connection | 2.5 mm² |
| Weight | 100 g |
Product description
Modular signal towers oncsisting of up to 5 modules. Sound module can be installed as is or 1 - 4 signal modules. Signal modules are compatible with a Ba15d or LED light bulb. LED blubs are highly recommended for demanding environments due to long service life.
The modules are easy to assemble and maintain. A broken light bulb can be changesd without havng to disassemble the whole tower. The base and the modules are protected so all maintanance procedures can be done even with power switched on. The base includes a 6 pole connector numbered from 0 to 5.
