AUER SIGNAL

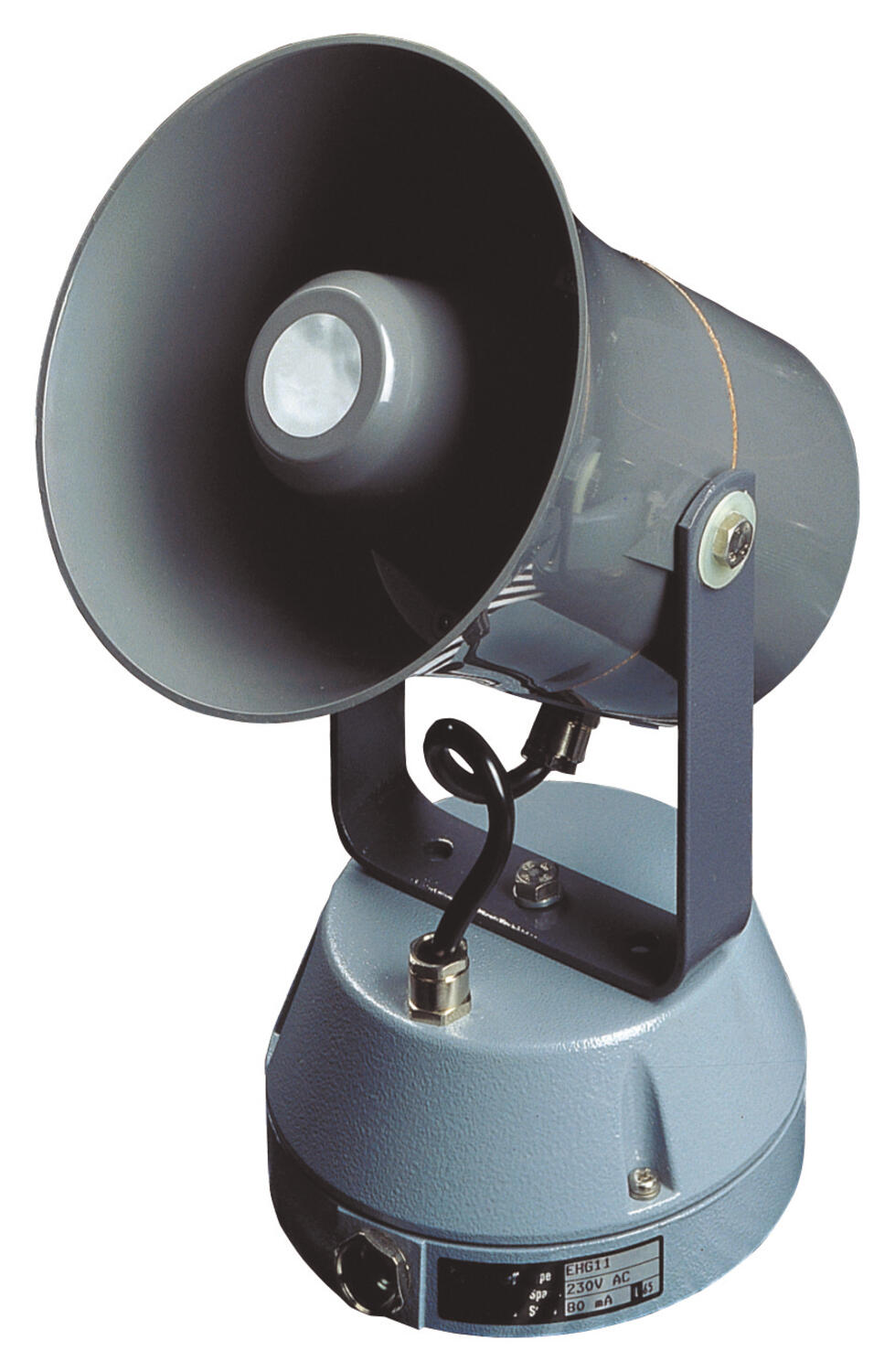

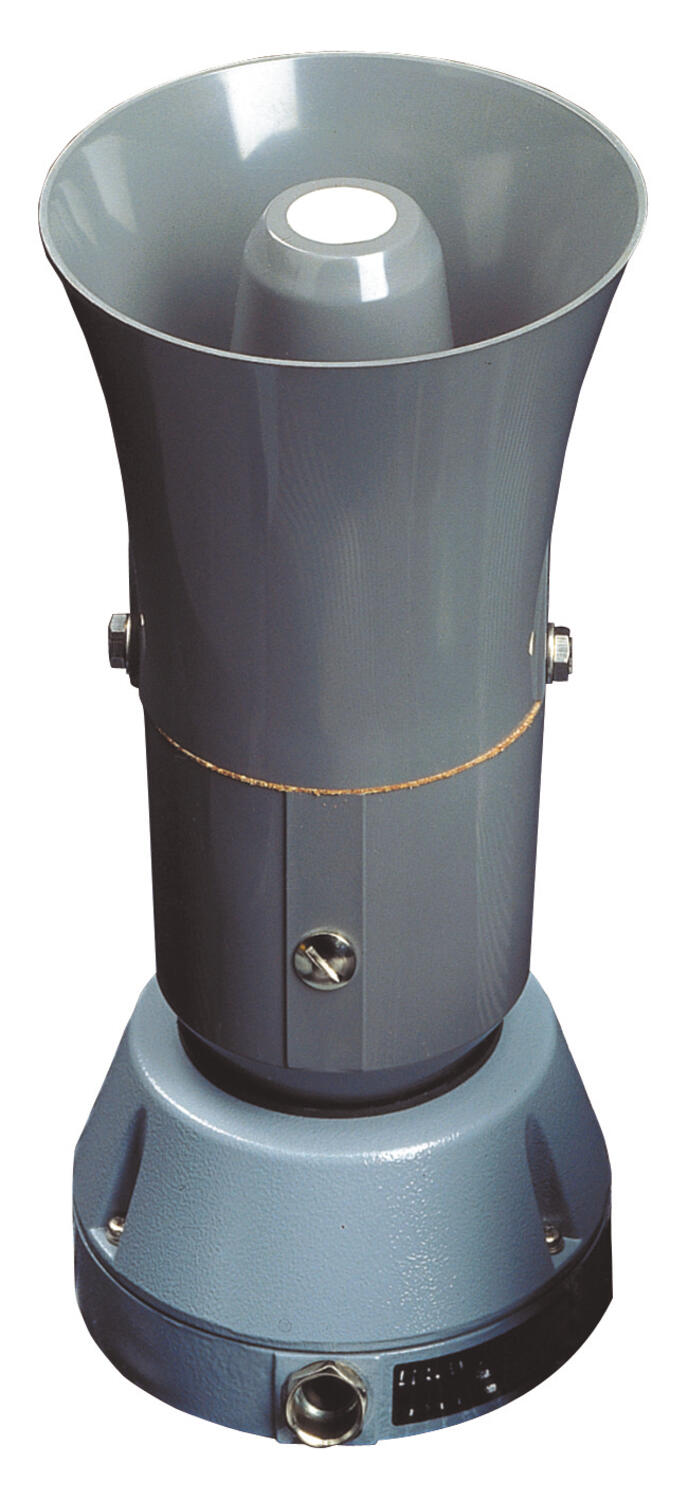

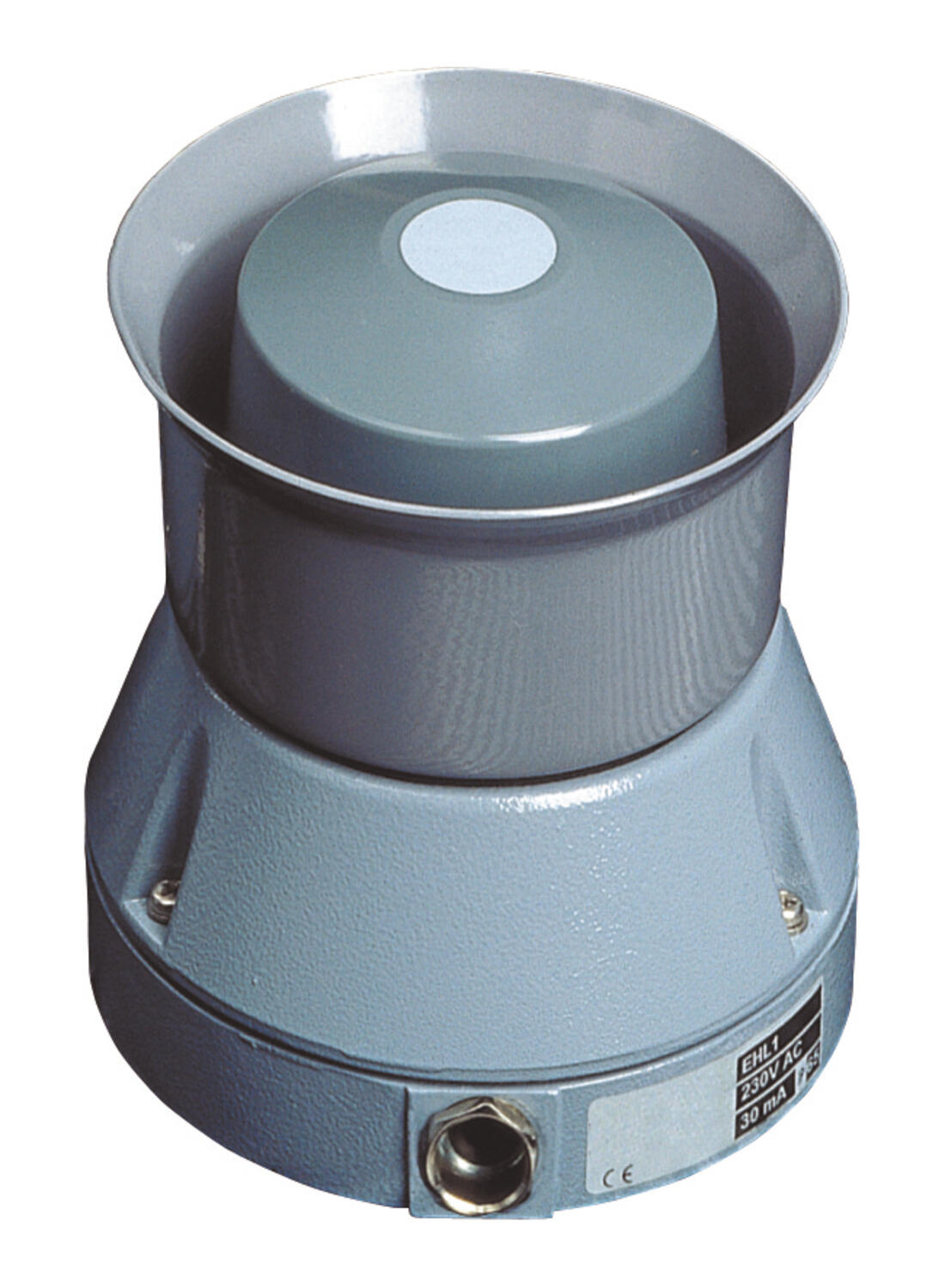

Audio generator EHS/EHF/EHL
Powerful aluminium cast audio generator for demanding operating conditions. For both inside and outside use. 15 different sounds. Special models on request.
Technical specifications
Sound volume (from 1 m distance) | 118 dB, 15 different sounds |
Material, casing | Aluminium, epoxy powder coated |
Strand size | 2.5 mm2 |
Operating temperature | -30 °C...+60 °C |
Voltage | 12-24 V AC/DC, 230-240 V AC |
Current consumption | 600 mA (24 V AC/DC) |
IP-class | IP65 |
Approvals | CE, EMC, LVD |

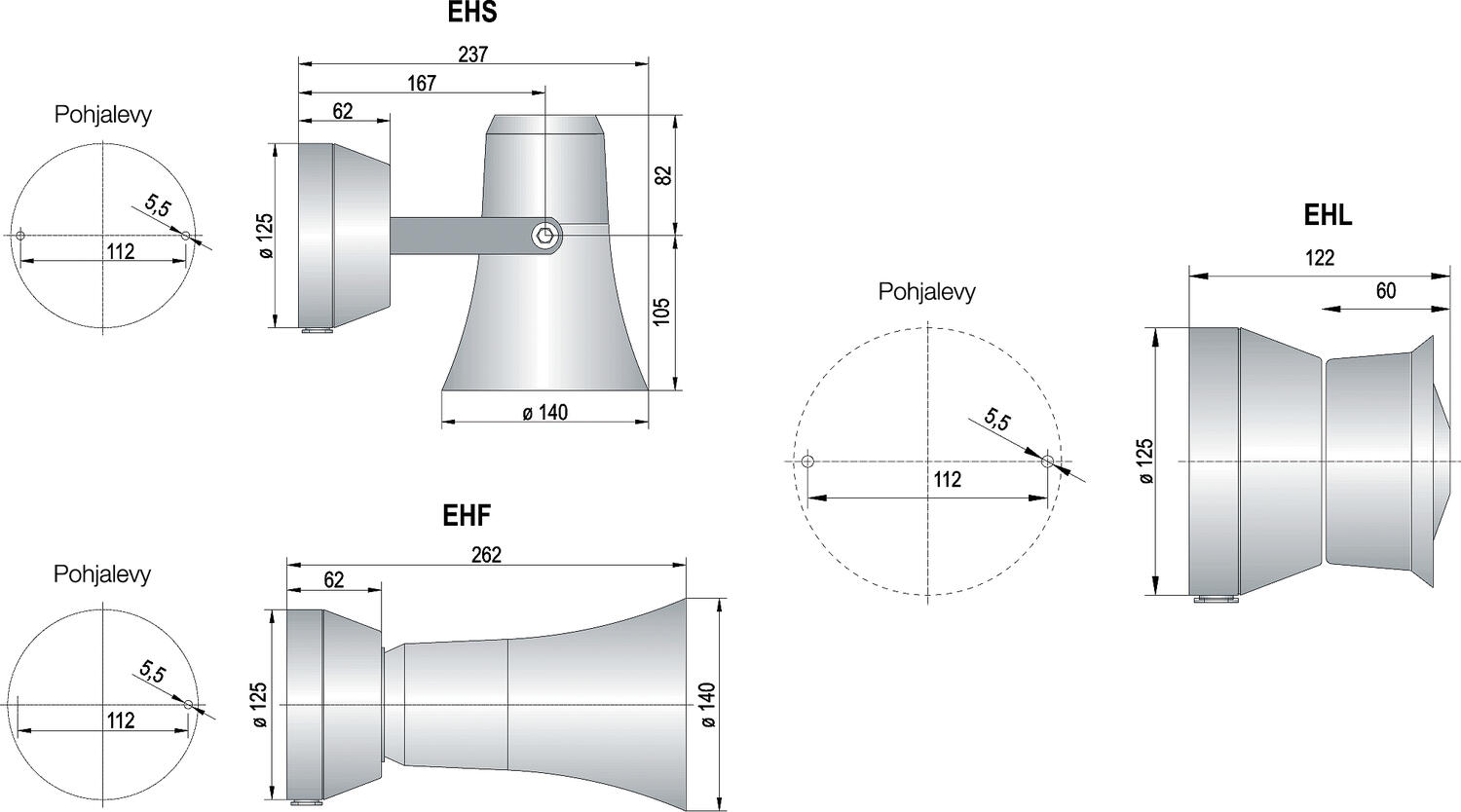

Dimensions
|
Order numbers
Order number | Description | Sound volume | Voltage |
730010405 | EHL-D | 108 dB | 12-24 V AC/DC |
730010313 | EHL-D | 108 dB | 230-240 V AC |
731010405 | EHS-D | 118 dB | 12-24 V AC/DC |
731010313 | EHS-D | 118 dB | 230-240 V AC |
731110405 | EHF-D | 118 dB | 12-24 V AC/DC |
731110313 | EHF-D | 118 dB | 230-240 V AC |
- Electronic audio generator
- up to 118 dB
- IP65
- For demanding use
Selected variant
Specifications
| IP Class | IP66 |
|---|---|
| Sound level max | 118 dB |
| Supply Voltage DC Max | 24 V DC |
| Supply Voltage DC Min | 12 V DC |
| Temperature range from | -30 °C |
| Temperature range to | 60 °C |
Product description
Powerful aluminium cast audio generator for demanding operating conditions. For both inside and outside use. 15 different sounds. Special models on request.
Technical specifications
Sound volume (from 1 m distance) | 118 dB, 15 different sounds |
Material, casing | Aluminium, epoxy powder coated |
Strand size | 2.5 mm2 |
Operating temperature | -30 °C...+60 °C |
Voltage | 12-24 V AC/DC, 230-240 V AC |
Current consumption | 600 mA (24 V AC/DC) |
IP-class | IP65 |
Approvals | CE, EMC, LVD |
Dimensions
|
Order numbers
Order number | Description | Sound volume | Voltage |
730010405 | EHL-D | 108 dB | 12-24 V AC/DC |
730010313 | EHL-D | 108 dB | 230-240 V AC |
731010405 | EHS-D | 118 dB | 12-24 V AC/DC |
731010313 | EHS-D | 118 dB | 230-240 V AC |
731110405 | EHF-D | 118 dB | 12-24 V AC/DC |
731110313 | EHF-D | 118 dB | 230-240 V AC |
