AUER SIGNAL
BU2/BU3
Surface mounted buzzer with high sound level and high IP-class. With its embedded cable, the siren is easily fitted on the machine without any encapsulation.

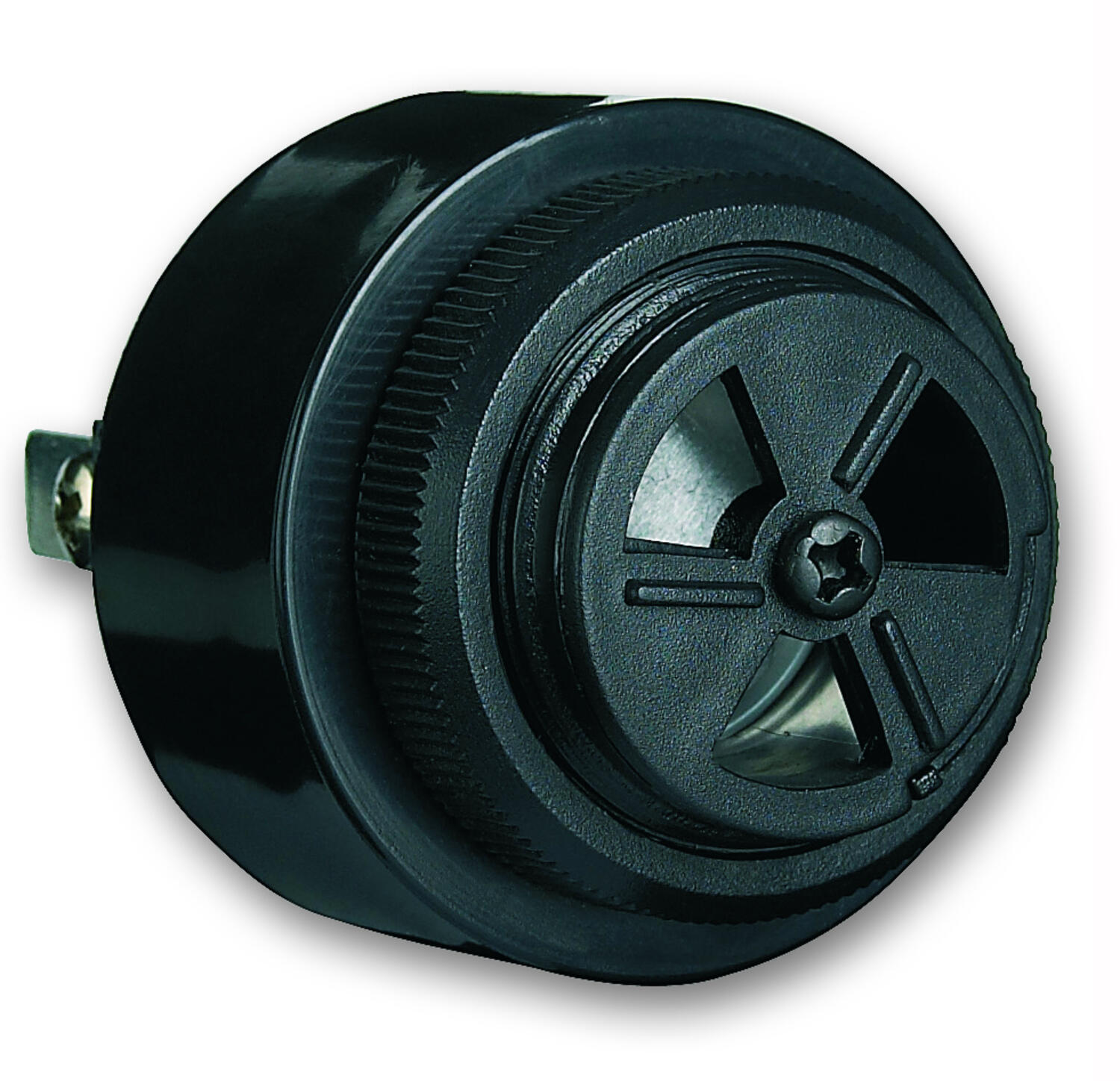

Small panel mounted buzzer with flat terminal connection. The sound is easily adjusted through a window at the front and the sound can be trimmed up to approx. 10 dB
Color House | Black |
---|---|
Diameter | 60 mm |
IP Class | IP66 |
Mounting | Screw |
Nominal current max | 0.3 A |
Nominal current min | 0.3 A |
Number of tones | 1 |
Sound level max | 108 dB |
Sound level min | 108 dB |
Supply Voltage | 12 V |
---|---|
Supply Voltage DC Max | 15 V DC |
Supply Voltage DC Min | 6 V DC |
Temperature range from | -20 °C |
Temperature range to | 70 °C |
Tone frequency max | 2400 Hz |
Tone frequency min | 2200 Hz |
Weight | 110 g |
BU2/BU3
Surface mounted buzzer with high sound level and high IP-class. With its embedded cable, the siren is easily fitted on the machine without any encapsulation.
Small panel mounted buzzer with flat terminal connection. The sound is easily adjusted through a window at the front and the sound can be trimmed up to approx. 10 dB
Delcon's CRA5 plug-in relay revolutionizes the control of difficult-to-handle DC loads. Inductive loads, frequent switching, and high DC voltages are a piece of cake for these relays.
The Lütze LOCC-Box is an intelligent electronic overcurrent protection device that provides reliable protection for 12/24 V DC systems in a narrow housing measuring just 8.1 mm. Integrated + and - terminals save space on the DIN rail.
DF Electric is specialized in the manufacturing of fuse links, fuse holders and control transformers since 1987. Presently the company is leading the Spanish market and is also very active in many export markets due to its competitive range of products.
ComatReleco has launched a new series of push-in sockets specifically designed for time and space savings.
The need for flexible, modular systems shapes machine and system engineering. Decentralization of the system components has proven to be an important factor for success.
Crouzet has honoured the strong Syrelec time relay traditions established in the 1980s, first by Cronos and Cronos 2 series. Now, Crouzet presents the compact and extremely versatile Syr-Line series.
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Articles | Diameter | IP Class | Mounting | Nominal current max | Nominal current min | Operating Voltage AC / DC Max | Operating Voltage AC Max | Operating Voltage AC Min | Sound control | Sound level max | Sound level min | Supply Voltage | Supply Voltage AC / DC Min | Supply Voltage DC Max | Supply Voltage DC Min | Tone frequency max | Tone frequency min | Weight | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]()
Panel BUZZERBU1 12VDC
Art:
B100510004
Copied
|
60 mm
|
IP66
|
Screw
|
0.3 A
|
0.3 A
|
|
|
|
|
108 dB
|
108 dB
|
12 V
|
|
15 V DC
|
6 V DC
|
2400 Hz
|
2200 Hz
|
110 g
|
| |
![]()
Panel BUZZERBU1 24VDC
Art:
B100510005
Copied
|
60 mm
|
IP66
|
Screw
|
0.3 A
|
0.3 A
|
|
|
|
|
108 dB
|
108 dB
|
24 V
|
|
28 V DC
|
12 V DC
|
2400 Hz
|
2200 Hz
|
110 g
|
| |
![]()
Panel mount buzzer, Ø30mm, 12 V ac/dc, BU2
Art:
B100520404
Copied
|
43 mm
|
IP54
|
Panel mount
|
0.02 A
|
0.02 A
|
16 V
|
|
|
Yes
|
90 dB
|
80 dB
|
12 V
|
6 V
|
|
|
3500 Hz
|
2500 Hz
|
35 g
|
| |
![]()
BU2 PULSATING BUZZER 24VAC/DC
Art:
B100520405
Copied
|
43 mm
|
IP54
|
Panel mount
|
0.03 A
|
0.03 A
|
28 V
|
|
|
Yes
|
90 dB
|
80 dB
|
24 V
|
12 V
|
|
|
3500 Hz
|
2500 Hz
|
35 g
|
| |
![]()
BU3 PULSATING BUZZER 230VAC
Art:
B100520313
Copied
|
43 mm
|
IP54
|
Panel mount
|
0.02 A
|
0.02 A
|
|
240 V AC
|
180 V AC
|
Yes
|
90 dB
|
80 dB
|
|
|
|
|
3500 Hz
|
2500 Hz
|
35 g
|
|
Select a variant in the list
