CAL CONTROLS
CAL ET2011 digital thermostat

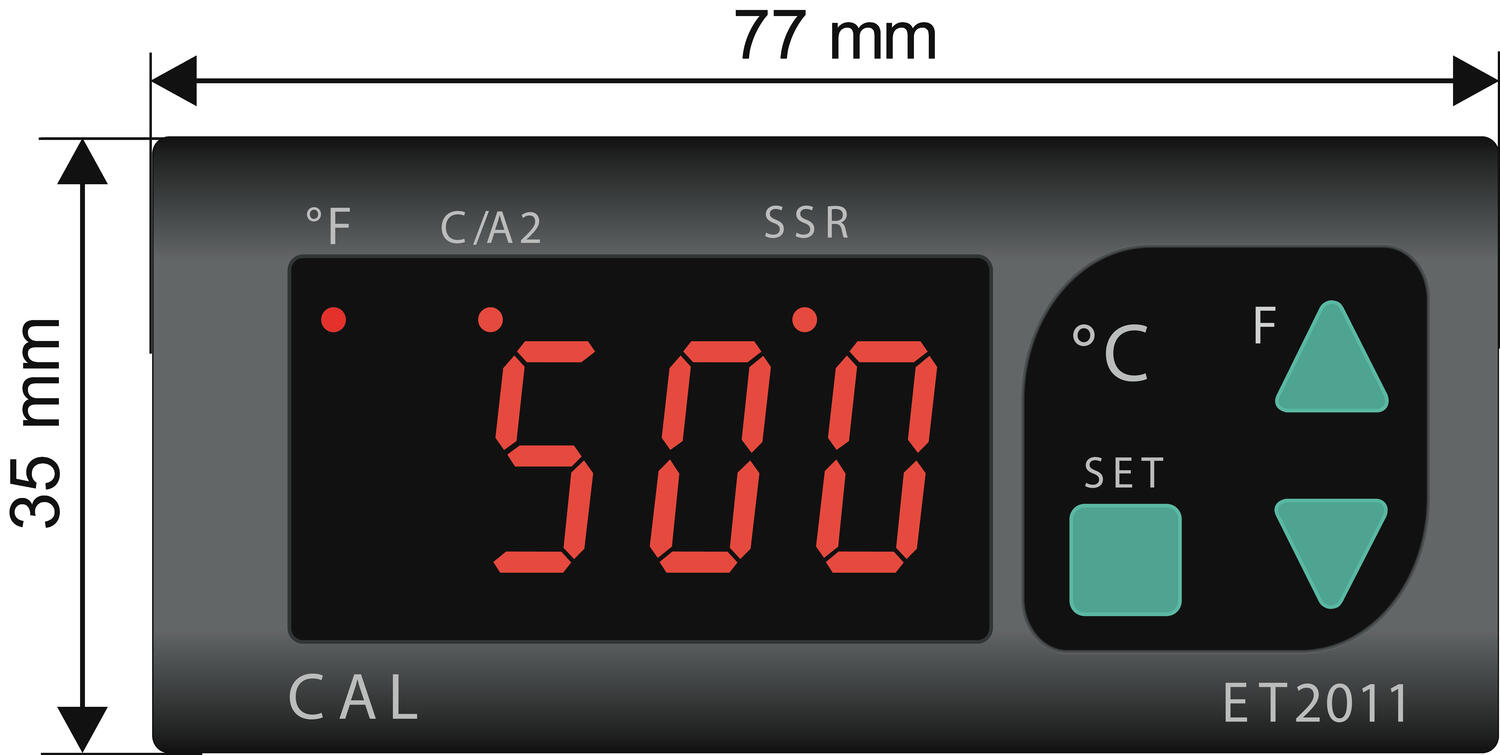

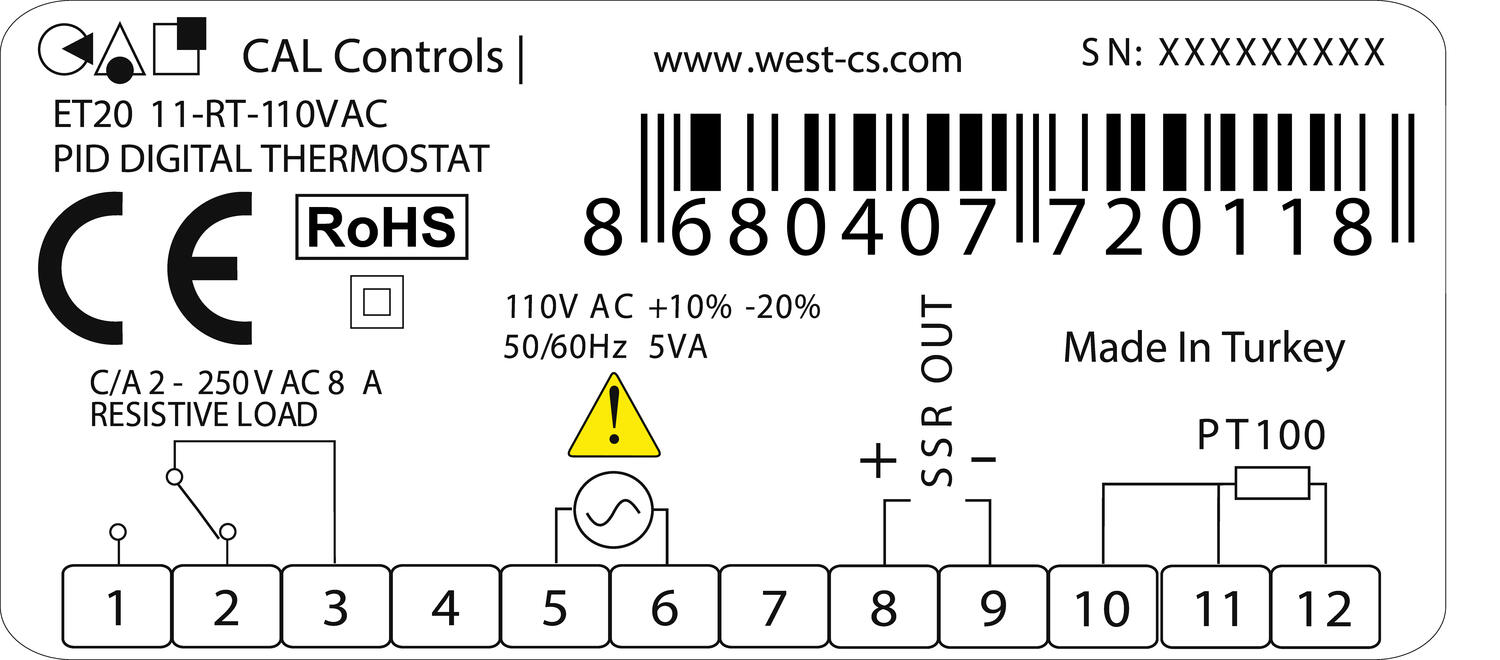

Compact 77mm x 35mm digital thermostat for general industrial applications. Thermocouple or PT100 sensor input and two outputs, relay and SSR. The units are easy to configure and use, have a large clear display with good visibility and a compact design that is fast to install.
- Relay and SSR outputs
- Heating or cooling control
- PT100 or thermocouple input
- Alarm function
Selected variant
Specifications
| Supply voltage | 230 V AC |
|---|---|
| Number of digits | 4 |
| Power Consumption | 5 VA max. |

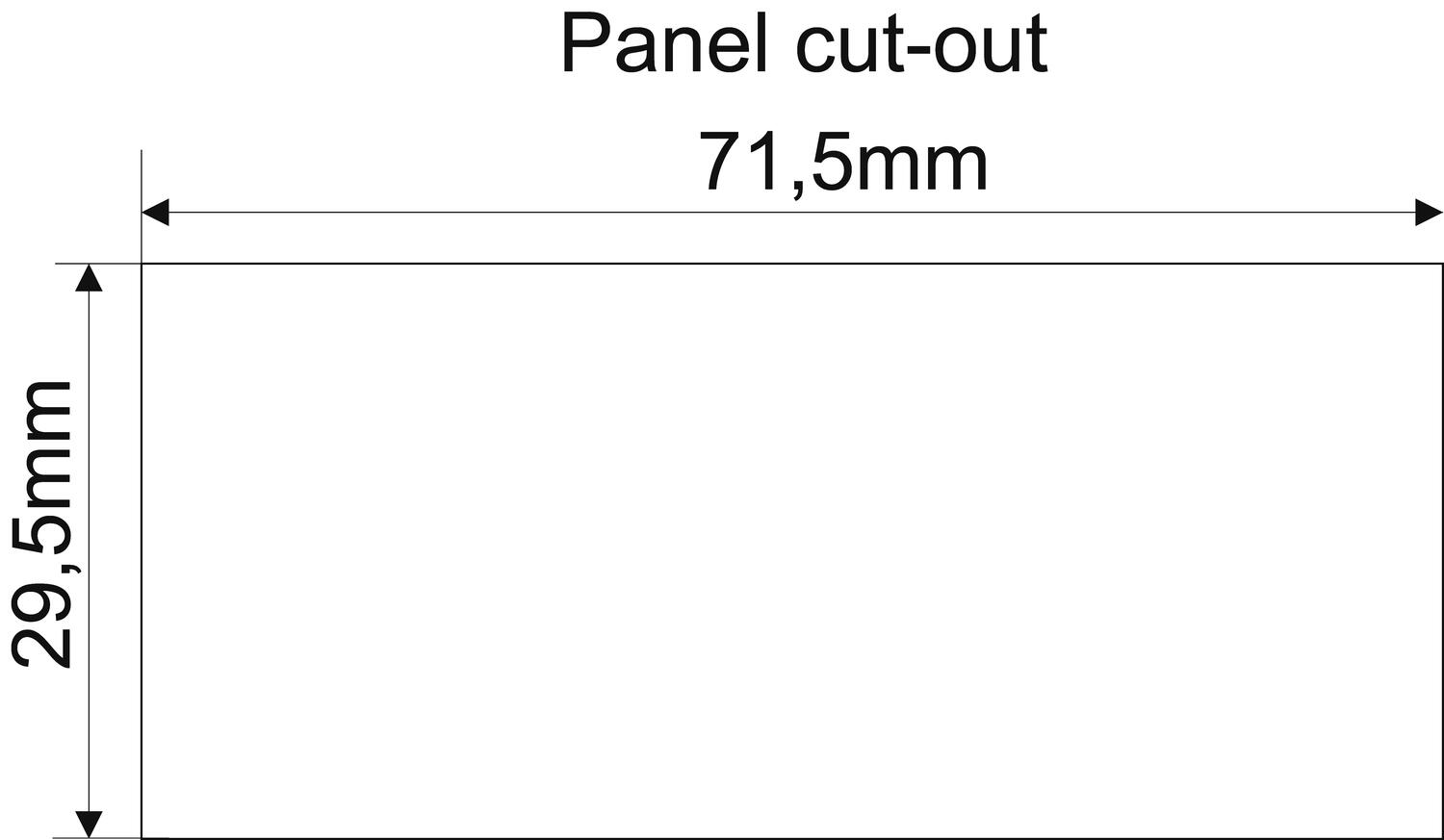

| Panel size | 35x77 mm |
| Temperature range bearing, from | -25 °C |
| Temperature range bearing, to | 70 °C |
| Temperature resistance housing to | 50 °C |
| Output | Logic (SSR), Relay |
| Weight | 200 g |
|---|---|
| Approvals | CE, EMC, RoHS |

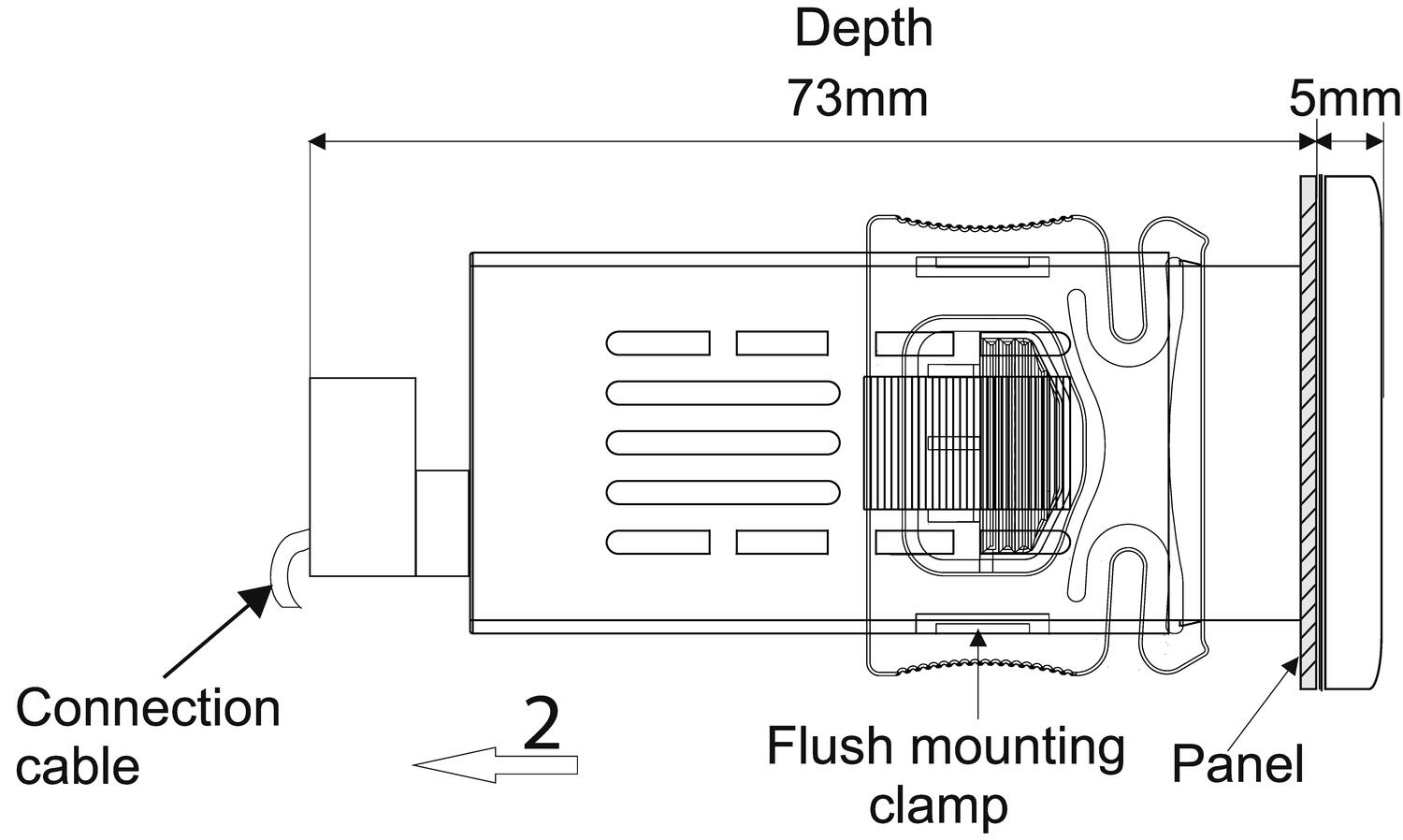

| Depth | 73 mm |
| Digit Height | 12 mm |
| Frequenze | 50-60 |
| IP Class Front | IP65 |
| Mounting | Panel mount |
Product description
Compact 77mm x 35mm digital thermostat for general industrial applications. Thermocouple or PT100 sensor input and two outputs, relay and SSR. The units are easy to configure and use, have a large clear display with good visibility and a compact design that is fast to install.
