RM34 temperature relay
RM34 relay is used for temperature metering. Features a Pt100 sensor (DIN43760) with 2 or 3 wires. You can select between 4 metering ranges. Relay activation, inversion and delay are adjusted by DIP switches in the bottom of the relay. Relay will release in the occasion of short-circuit or cable breakage.
Technical data
Supply | 12 – 50 V DC or 230 V AC |
Isolation voltage | Supply-input-output 3,75 kV |
Power consumption | 3 VA |
Temperature range | -20 °C...+60 °C |
Temp. coefficient | <0,01 %/ºC |
Indications | Green LED steady: |
DIP-switches | S1-S2: relay inversion and reaction delay, see table and functional diagram |
Potentiometers | Pot 1 setpoint , 0-100% of the range |
Hysteresis | 1 °C |
Sensor connections | 6-7 Pt100 |
Max. load, relay | relay 1 (1-3-4) 8 A – 250 V AC |
Weight | 190 g |
EMC | EN50081-1, EN50082-2, EN60730, CE |
SW 1 | SW 2 | ex. no. | Function |
Off | Off | 1 | Relay activates, when setpoint is exceeded, delay on release. |
On | Off | 2 | Relay releases, when setpoint is exceeded, delay on activate. |
Off | On | 3 | Delay on activate, when setpoint is exceeded. |
On | On | 4 | Delay on release, when setpoint is exceeded. |
SW 3 | SW 4 | Mittausalue | |
Off | Off | -50 °C...+50 °C | |
On | Off | 0 °C...100 °C | |
Off | On | 50 °C...150 °C | |
On | On | 100 °C...200 °C | |

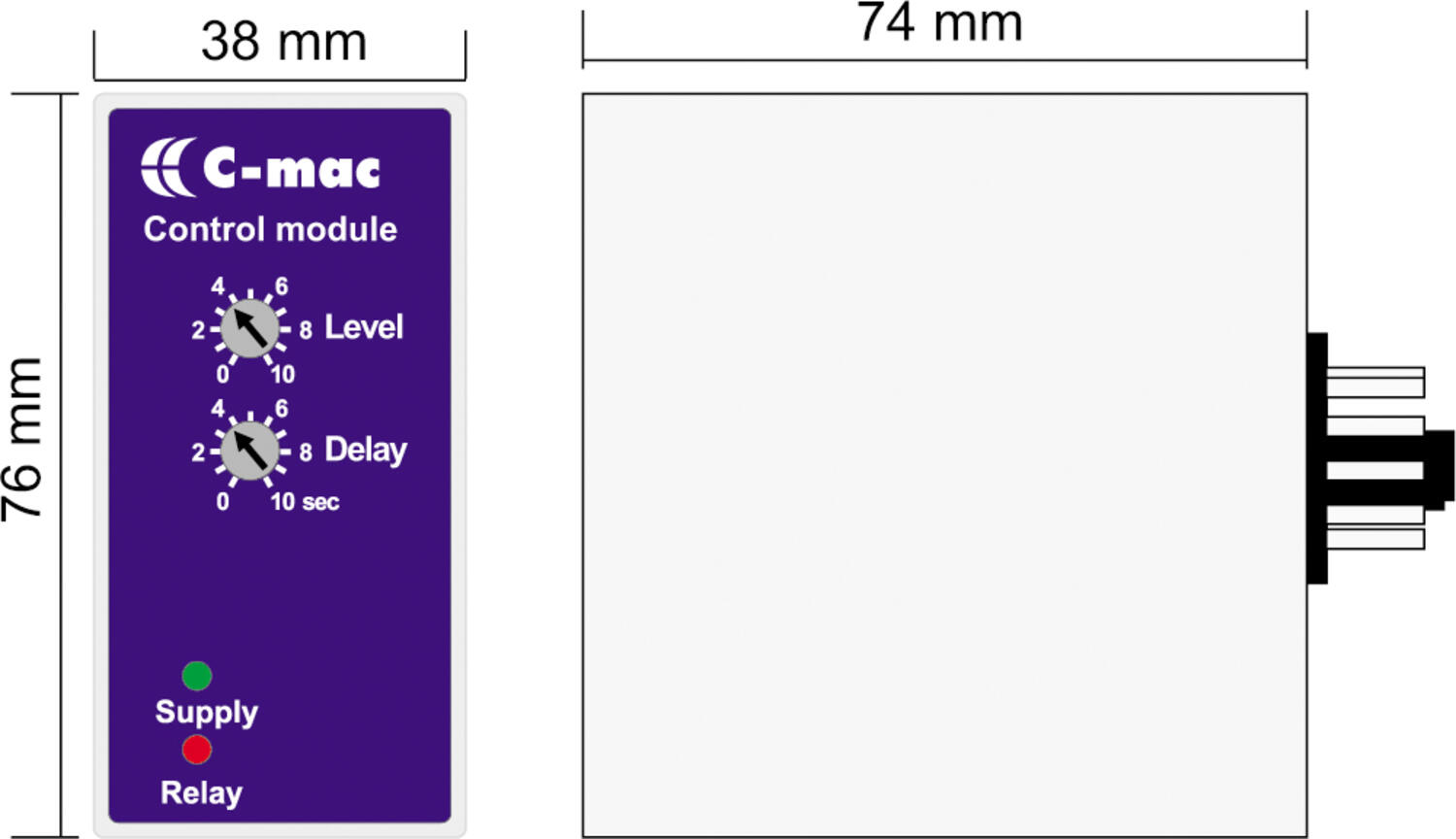

Measurements
Connection diagram
Order numbers
Order number | Description | Supply |
RM3421.230 | Temperature relay | 230 V AC |
RM3424.012 | Temperature relay | 12-50 V DC |
- 4 temperature ranges -50...+200ºC for PT100 sensor
- Adjustable time delay
- Kaksi lähtörelettä ja invertointimahdollisuus
Selected variant
Specifications
| IP Class | IP20 |
|---|---|
| Power Supply DC min | 12 V |
| Power Supply DC max | 50 V |
| Temperature resistance housing from | -20 °C |
| Temperature resistance housing to | 60 °C |
| Weight | 190 g |
| Approvals | CE, EMC |
| Depth | 74 mm |
|---|---|
| Hysteresis Temperature | 1.5 |
| Width | 38 mm |
| Height | 76 mm |
| Materials Cover | Noryl |
| Mounting | DIN rail |
Downloads
Product description
RM34 relay is used for temperature metering. Features a Pt100 sensor (DIN43760) with 2 or 3 wires. You can select between 4 metering ranges. Relay activation, inversion and delay are adjusted by DIP switches in the bottom of the relay. Relay will release in the occasion of short-circuit or cable breakage.
Technical data
Supply | 12 – 50 V DC or 230 V AC |
Isolation voltage | Supply-input-output 3,75 kV |
Power consumption | 3 VA |
Temperature range | -20 °C...+60 °C |
Temp. coefficient | <0,01 %/ºC |
Indications | Green LED steady: |
DIP-switches | S1-S2: relay inversion and reaction delay, see table and functional diagram |
Potentiometers | Pot 1 setpoint , 0-100% of the range |
Hysteresis | 1 °C |
Sensor connections | 6-7 Pt100 |
Max. load, relay | relay 1 (1-3-4) 8 A – 250 V AC |
Weight | 190 g |
EMC | EN50081-1, EN50082-2, EN60730, CE |
SW 1 | SW 2 | ex. no. | Function |
Off | Off | 1 | Relay activates, when setpoint is exceeded, delay on release. |
On | Off | 2 | Relay releases, when setpoint is exceeded, delay on activate. |
Off | On | 3 | Delay on activate, when setpoint is exceeded. |
On | On | 4 | Delay on release, when setpoint is exceeded. |
SW 3 | SW 4 | Mittausalue | |
Off | Off | -50 °C...+50 °C | |
On | Off | 0 °C...100 °C | |
Off | On | 50 °C...150 °C | |
On | On | 100 °C...200 °C | |
Measurements
Connection diagram
Order numbers
Order number | Description | Supply |
RM3421.230 | Temperature relay | 230 V AC |
RM3424.012 | Temperature relay | 12-50 V DC |
