CONTA-CLIP
RK safe box TS35/100

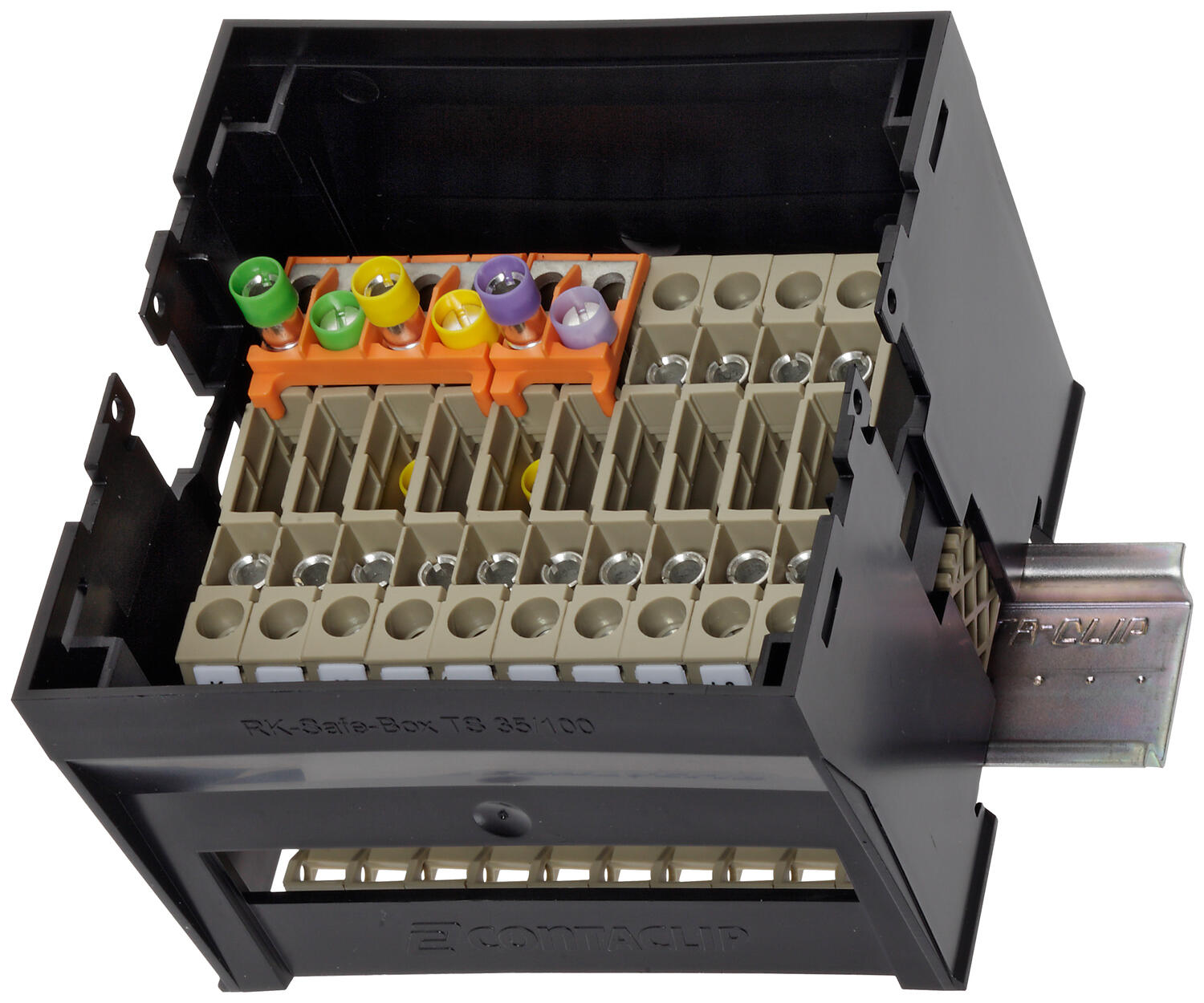

Using their innovative terminal block housing, RK Safe-Box, Contaclip offer you a quick and easy protection for terminal blocks, electronic transformers etc., which are installed on mounting rails. The Safe-Box effectively prevents the unauthorised operation of converter terminals or the changing of the wiring particularly in the pre-meter area of power distribution systems. The side panels are directly on the mounting plate and totally enclose the components or assemblies which are to be protected. The wire-feed through the walls of the box simplifies the wiring and makes the subsequent manipulation of the clamp connections with a closed box impossible. Without the transparent lid, the internal dimensions of the box can be extended by 16 mm using the built-in sliding mechanism. This makes maintenance work or the exchange of terminals or components much easier.
Features:
- Quick and easy to install on TS 35 DIN mounting rails
- Highest mechanical attachment to the mounting rail
- When fitted, it cannot be unlocked from the mounting rail, nor can it be pulled off
- Three seal fitting locations are available

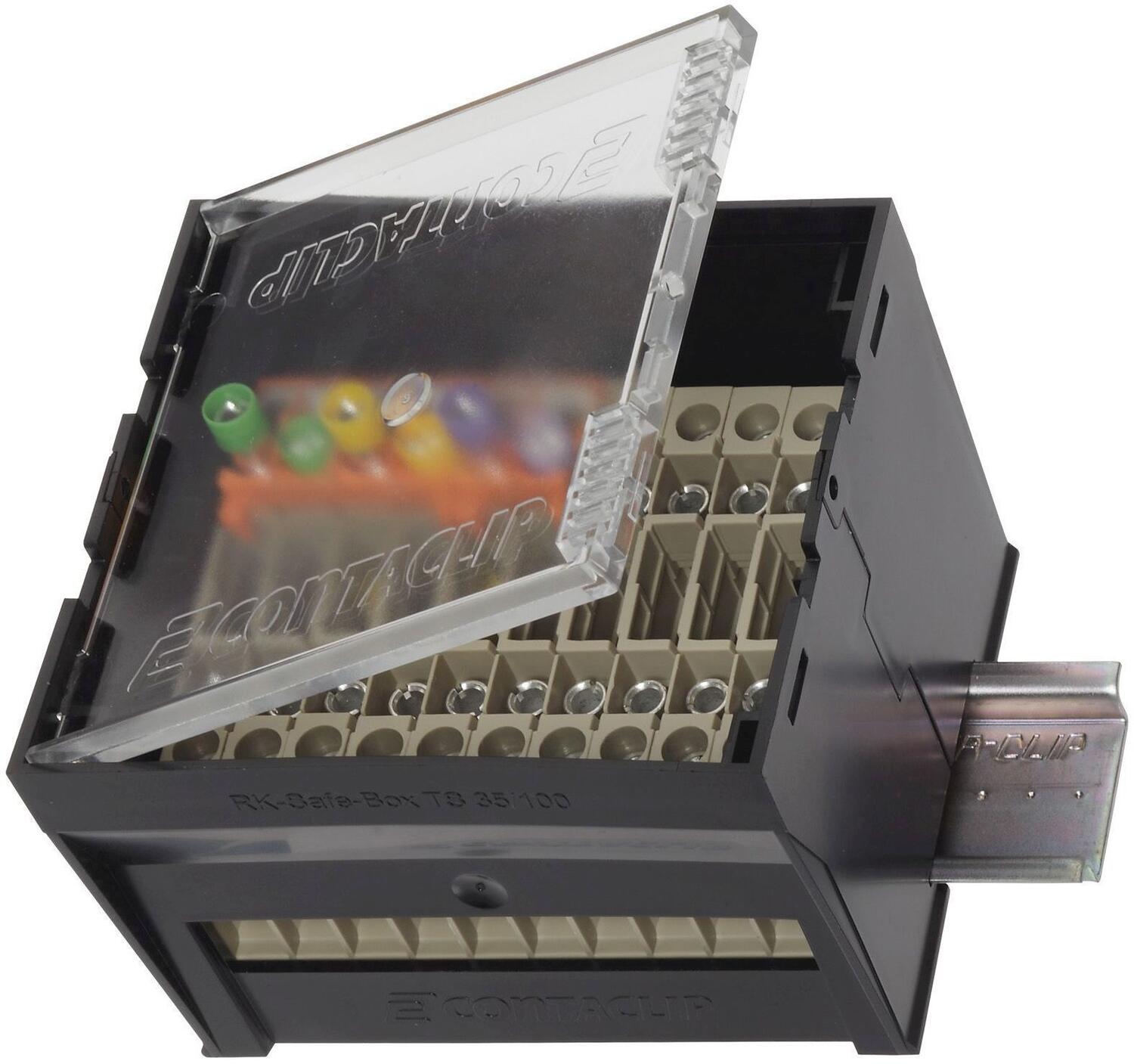

- Transparent lid
- Any alterations are immediately detectable
- The sliding mechanism of the two housing halves means that the installed components are more easily accessible during maintenance.
- Securable cover to prevent access
- Designed for use on CT Link assemblies
- Compatable with PTK disconnect range
Selected variant
Specifications
| Color | Black |
|---|---|
| Country of origin | DE |
| Flamklass | UL94-V0 |
| Height TS 15/5.5 | 76 mm |
| Height TS 35/7.5 | 68.5 mm |
| IP Class | IP20 |
| Length | 91 mm |
| Material | Polyamide 6.6 |
| Operating temperature from | -40 °C |
|---|---|
| Operating temperature to | 120 °C |
| Pack Size | 1 |
| Tariff code | 85369010 |
| Weight | 77 g |
| Width | 101.3 mm |
Product description
Using their innovative terminal block housing, RK Safe-Box, Contaclip offer you a quick and easy protection for terminal blocks, electronic transformers etc., which are installed on mounting rails. The Safe-Box effectively prevents the unauthorised operation of converter terminals or the changing of the wiring particularly in the pre-meter area of power distribution systems. The side panels are directly on the mounting plate and totally enclose the components or assemblies which are to be protected. The wire-feed through the walls of the box simplifies the wiring and makes the subsequent manipulation of the clamp connections with a closed box impossible. Without the transparent lid, the internal dimensions of the box can be extended by 16 mm using the built-in sliding mechanism. This makes maintenance work or the exchange of terminals or components much easier.
Features:
- Quick and easy to install on TS 35 DIN mounting rails
- Highest mechanical attachment to the mounting rail
- When fitted, it cannot be unlocked from the mounting rail, nor can it be pulled off
- Three seal fitting locations are available
- Transparent lid
- Any alterations are immediately detectable
- The sliding mechanism of the two housing halves means that the installed components are more easily accessible during maintenance.
