CONTA-CLIP

Cross connectors for FRK, FSL & FDL range

FQI, FIQI

  • For FRK, FRKD, FDLI, FRKI
  • Insulated plug in

Selected variant


Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

Color Yellow
Material Copper
Insulation Material Polyamide 6.6
Operating temperature to 105 °C
Operating temperature from -40 °C
Flamklass UL94-V2
Number of poles 2
Mounting Push in
Pitch 4.1 mm
Length 4 mm
Width 8.1 mm
Tariff code 85369010
Pack Size 50
Weight 1 g
Country of origin DE

Downloads

Accessories

Related products

Add product as a new cart row

You already added this product. Choose whether to increase quantity on the existing row or add the product as a new row.

Related

TER - control stations
Product news

Quality solutions for motion controls

TER - Tecno Elettrica Ravasi, is our Italian supplier specializing in the manufacture of control stations. TER has over 60 years of experience in the manufacture of control stations.

Stego Loop Heater lämmityselementit
Product news

LOOP Heater for optimal heat distribution

Thanks to their loop design, LOOP heating elements offer excellent heating performance and ensure optimal heat distribution. Read more now!

PISA-M
Product news

Compact electronic overcurrent protection PISA-M

PISA-M is a 4-channel electronic fuse for 12 and 24 V DC systems. The smallest 4-channel electronic fuse with a width of only 22.5 mm!

Delcon relays
Product news

An effective solution Delcon CRA5

Delcon's CRA5 plug-in relay revolutionizes the control of difficult-to-handle DC loads. Inductive loads, frequent switching, and high DC voltages are a piece of cake for these relays.

LOCC-Box Mini
Product news

LOCC-Box Mini

The Lütze LOCC-Box is an intelligent electronic overcurrent protection device that provides reliable protection for 12/24 V DC systems in a narrow housing measuring just 8.1 mm. Integrated + and - terminals save space on the DIN rail.

DF Electric
Product news

DF Electric – new supplier for fuse solutions

DF Electric is specialized in the manufacturing of fuse links, fuse holders and control transformers since 1987. Presently the company is leading the Spanish market and is also very active in many export markets due to its competitive range of products.

Articles Color Material Insulation Material Operating temperature to Operating temperature from Flamklass Number of poles Mounting Pitch Length Width Tariff code Pack Size Weight Country of origin

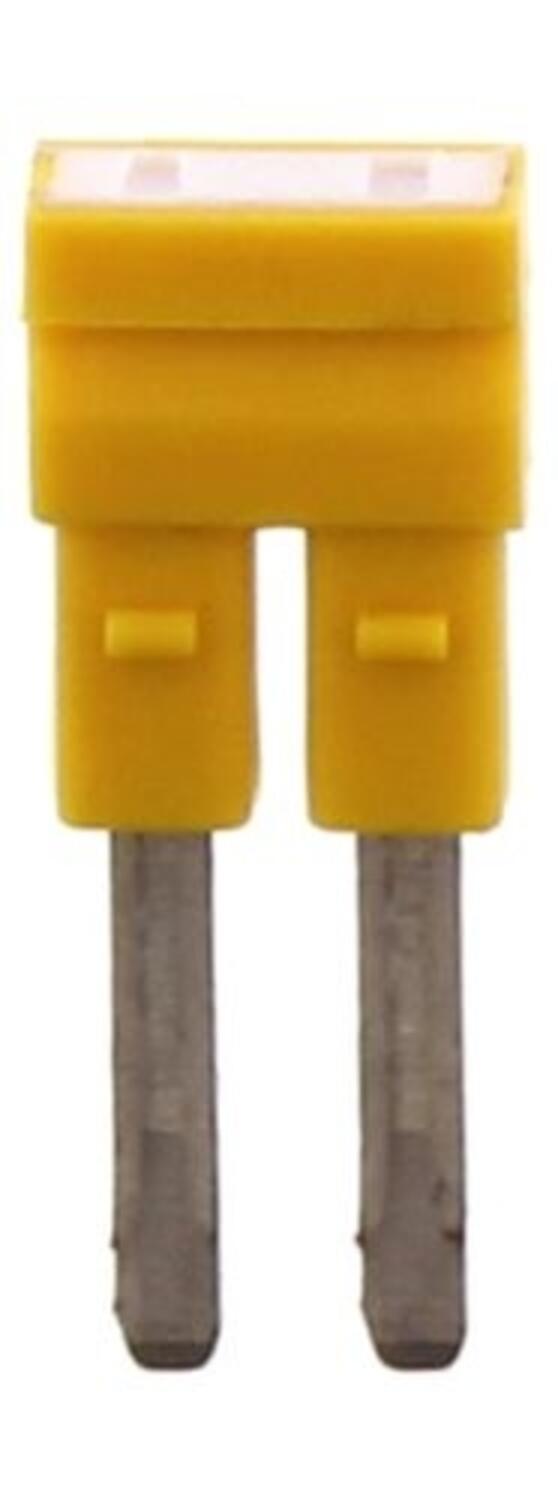

Yellow fuse with two metal pins, suitable for electrical applications.
FQI 1.5/2 YE, 2 Way Cross Connector for FRK 1.5
Art:
3452.8 Copied
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
2
Push in
4.1 mm
4 mm
8.1 mm
85369010
50
1 g
DE

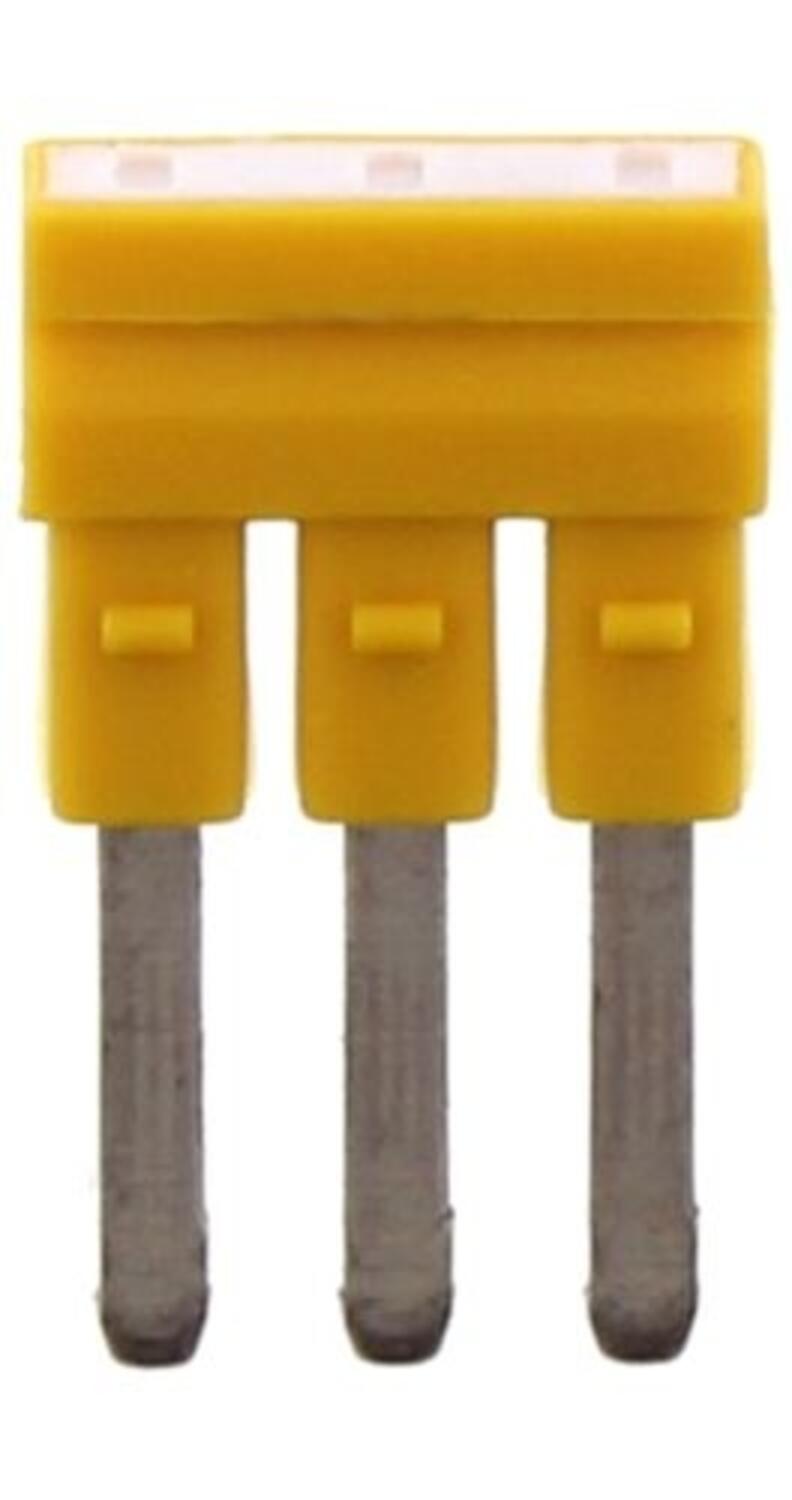

Yellow connector with three pins, ideal for electrical connections and components.
FQI 1.5/3 YE, 3 Way Cross Connector for FRK 1.5
Art:
3453.8 Copied
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
3
Push in
4.1 mm
4 mm
12.2 mm
85369010
50
1.4 g
DE
Yellow connector with four pins for electronic connections
FQI 1.5/4 YE, 4 Way Cross Connector for FRK 1.5
Art:
3454.8 Copied
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
4
Push in
4.1 mm
4 mm
16.3 mm
85369010
20
1.8 g
DE

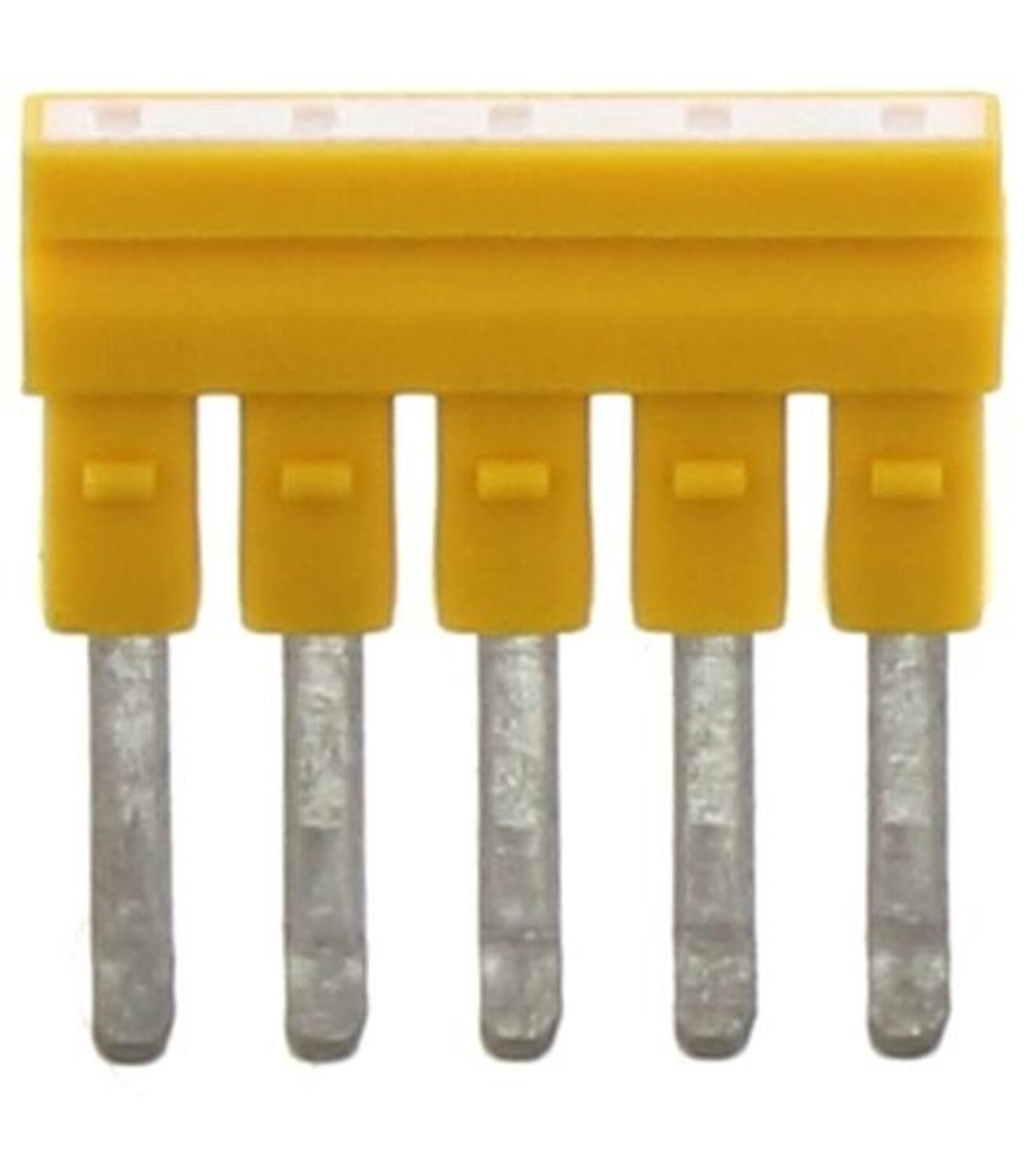

Yellow 5-pin connector with metal pins, suitable for electronic connections and components.
FQI 1.5/5 YE, 5 Way Cross Connector for FRK 1.5
Art:
3455.8 Copied
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
5
Push in
4.1 mm
4 mm
20.4 mm
85369010
20
2.4 g
DE

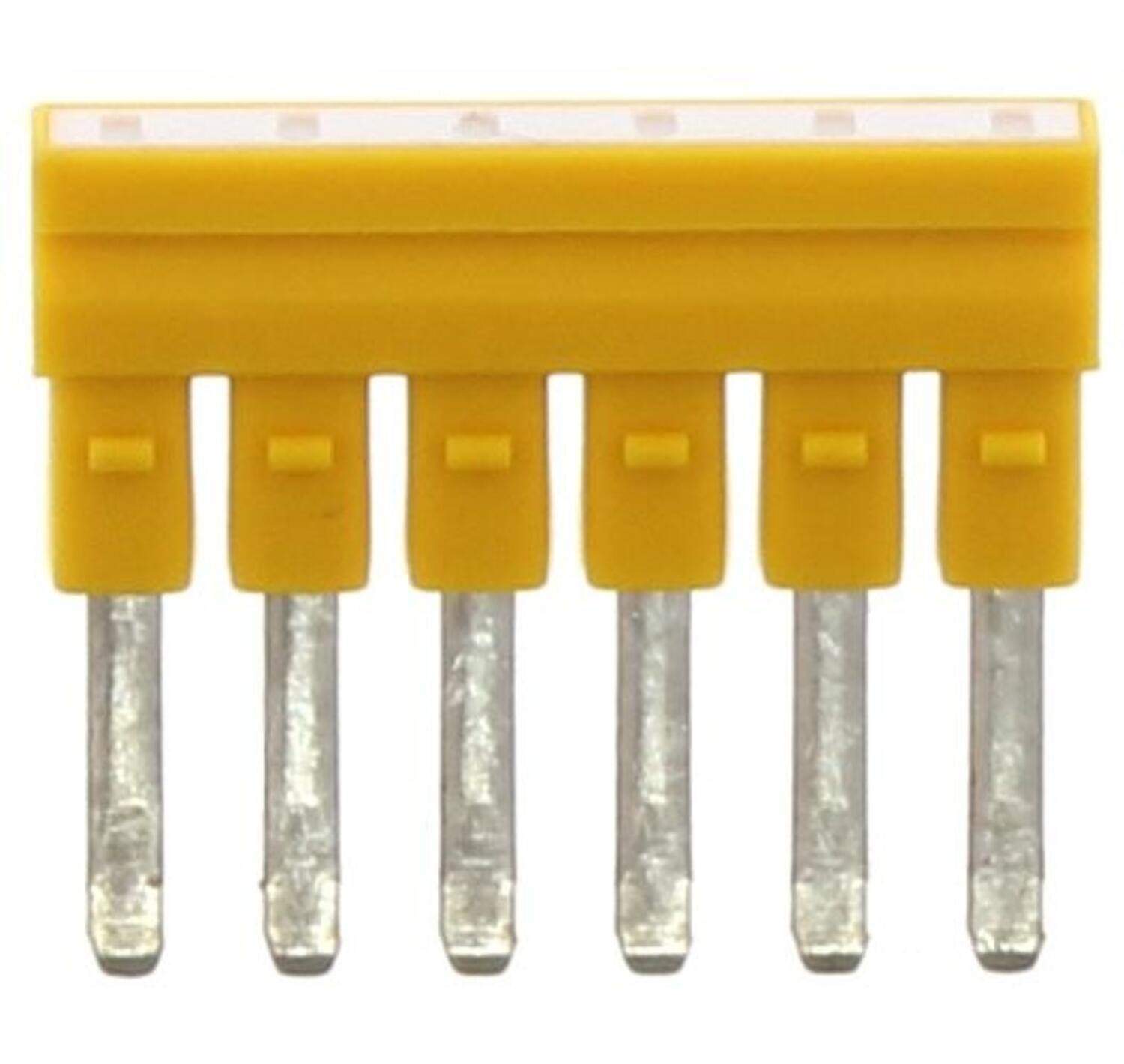

Yellow 6-pin connector with metal pins, suitable for electronic connections.
FQI 1.5/6 YE, 6 Way Cross Connector for FRK 1.5
Art:
3456.8 Copied
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
6
Push in
4.1 mm
4 mm
24.5 mm
85369010
20
2.8 g
DE
Yellow 8-pin header connector with metal pins for electronic connections
FQI 1.5/7 YE, 7 Way Cross Connector for FRK 1.5
Art:
3457.8 Copied
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
7
Push in
4.1 mm
4 mm
28.6 mm
85369010
20
3.4 g
DE
Yellow 8-pin connector with metal pins, ideal for electronic connections

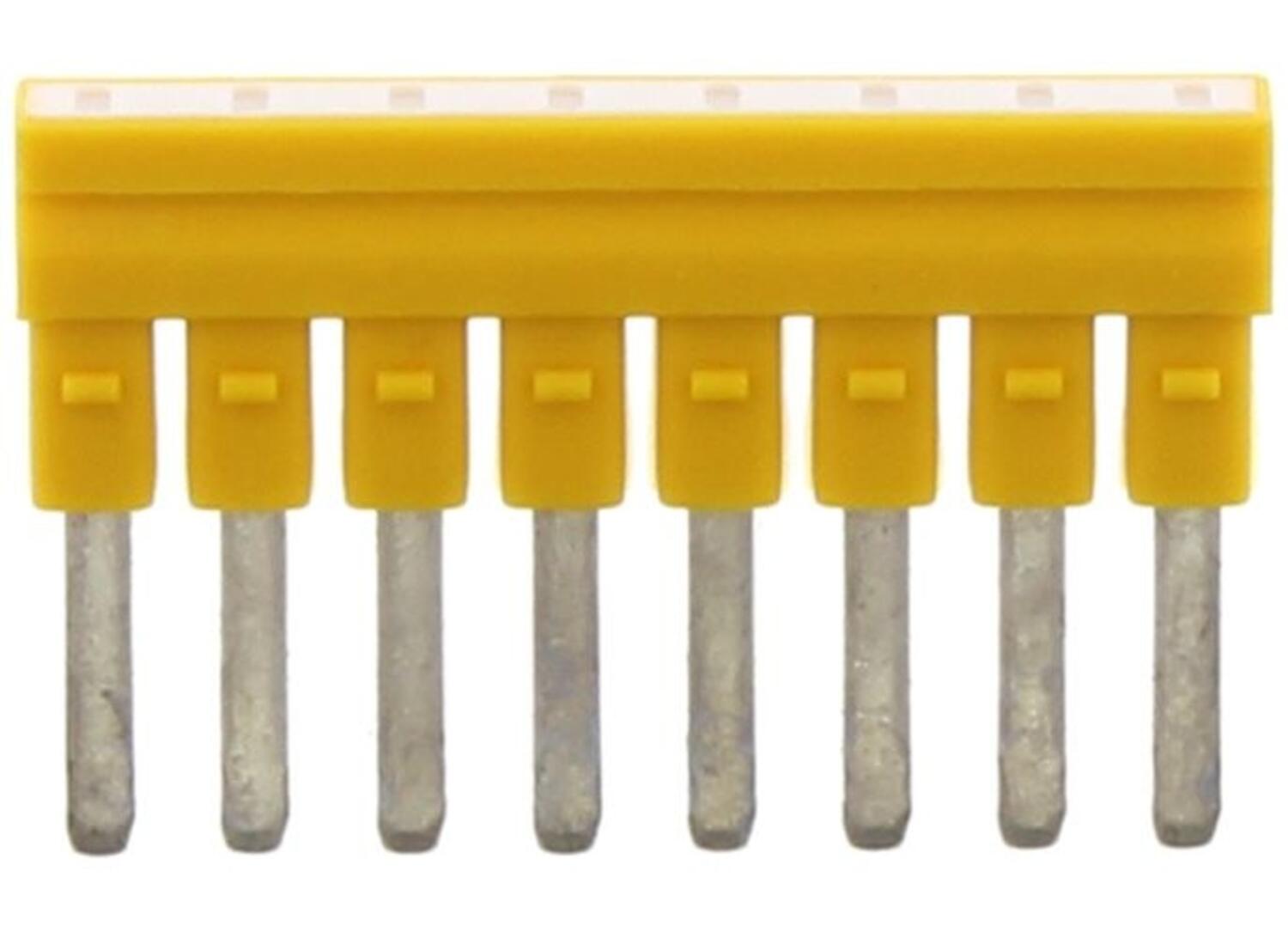

FQI 1.5/8 YE, 8 Way Cross Connector for FRK 1.5
Art:
3458.8 Copied
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
8
Push in
4.1 mm
4 mm
32.7 mm
85369010
10
4 g
DE
Yellow 10-pin connector with metal pins for electronic connections

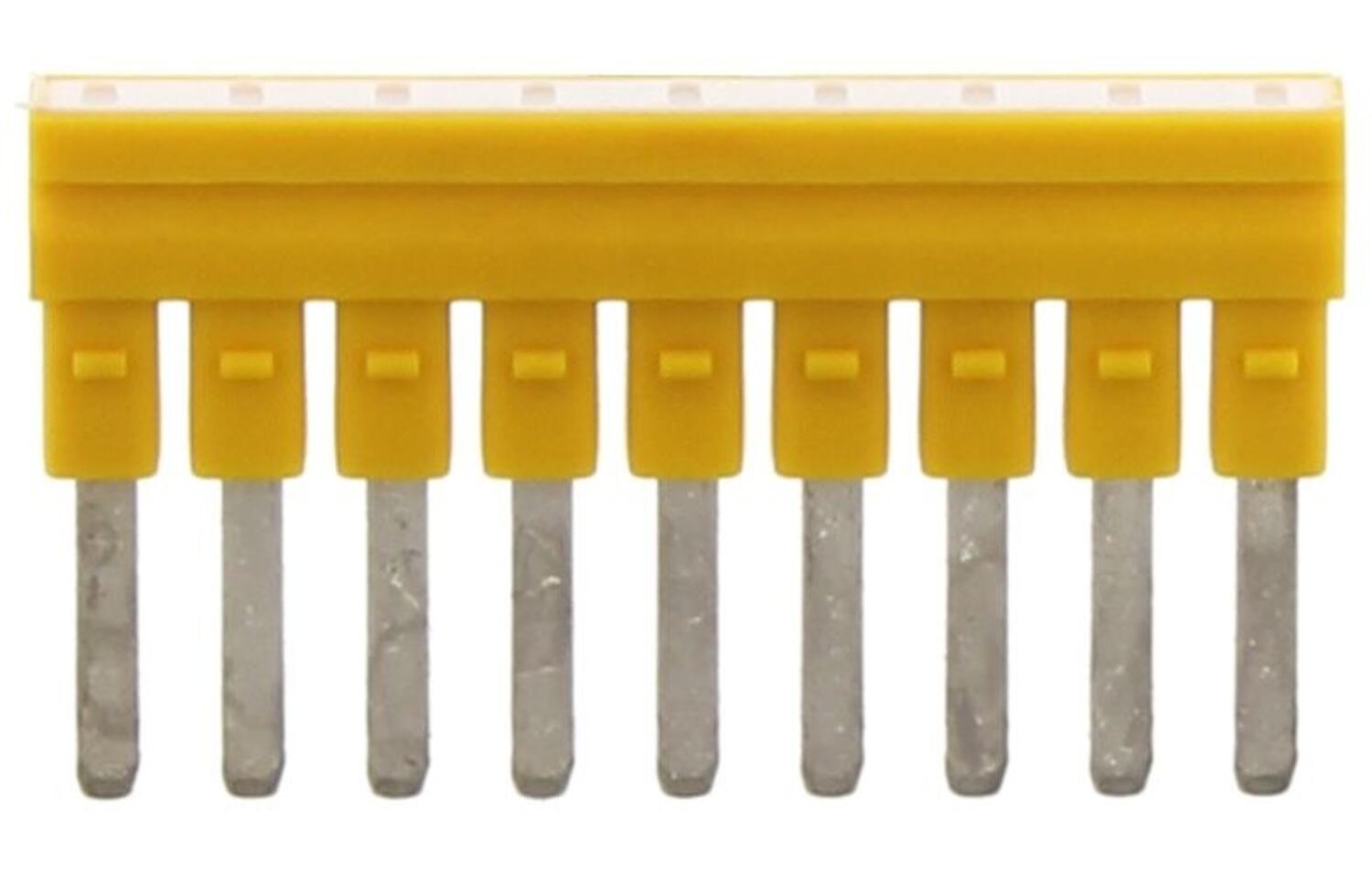

FQI 1.5/9 YE, 9 Way Cross Connector for FRK 1.5
Art:
3459.8 Copied
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
9
Push in
4.1 mm
4 mm
36.8 mm
85369010
10
4.4 g
DE

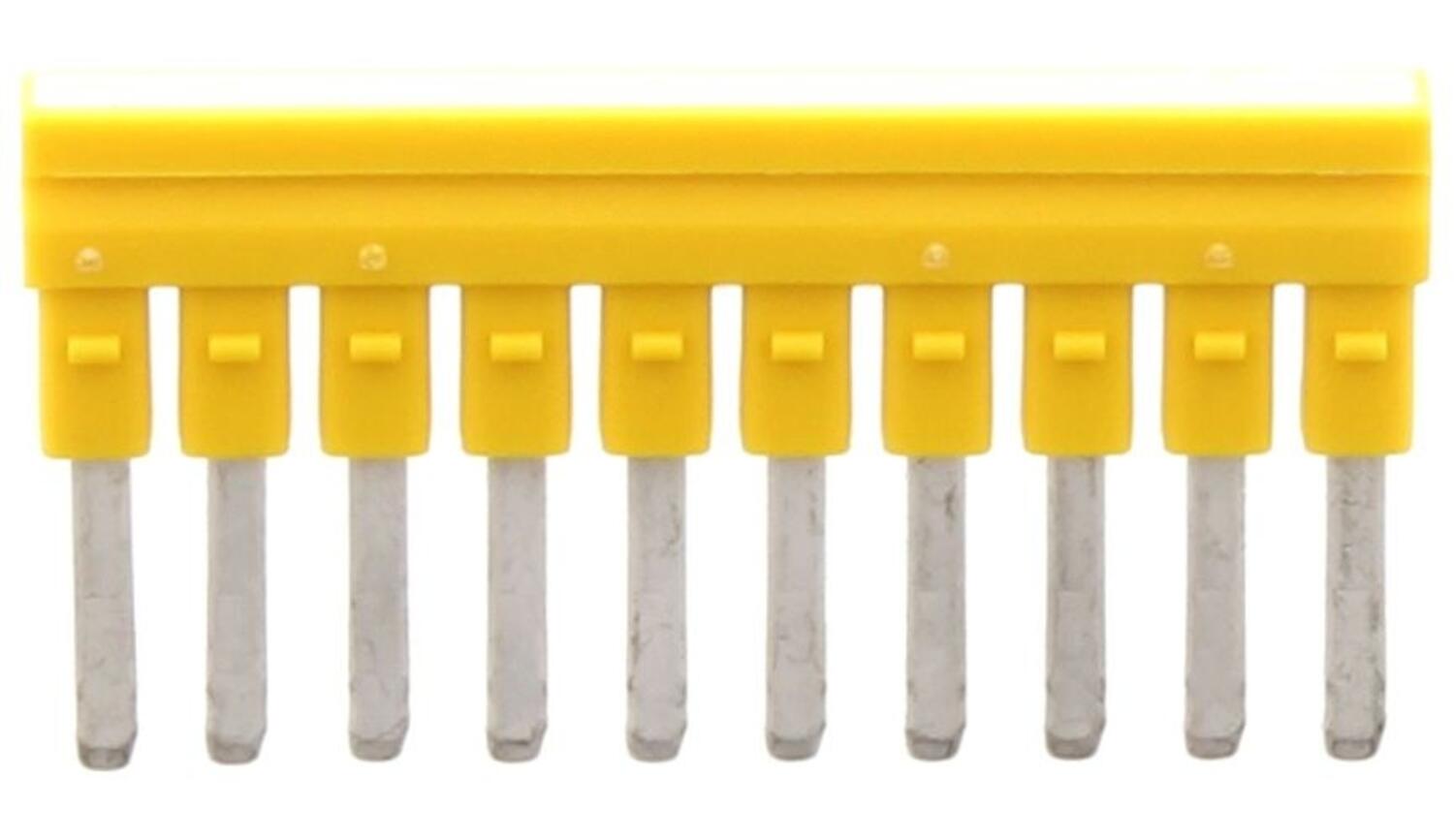

Yellow 10-pin connector with metal pins, suitable for electronic connections
FQI 1.5/10 YE,10 Way Cross Connector for FRK 1.5
Art:
3450.8 Copied
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
10
Push in
4.1 mm
4 mm
40.9 mm
85369010
10
5.2 g
DE

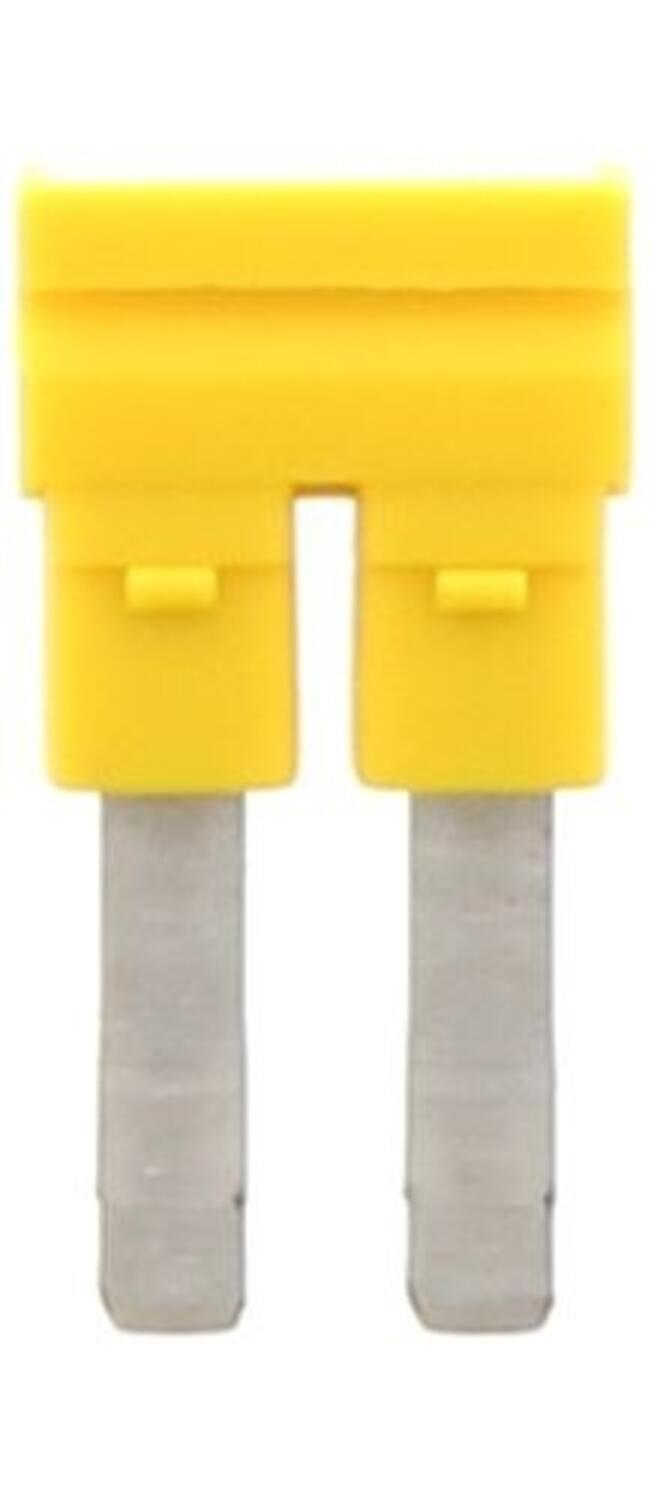

Yellow connector with two metal pins, suitable for electrical connections and components.
FQI 2.5/2 YE, 2 Way Cross Connector for FRK 2.5
Art:
3462.8 Copied
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
2
Push in
5.1 mm
4 mm
10.1 mm
85369010
50
1.2 g
DE

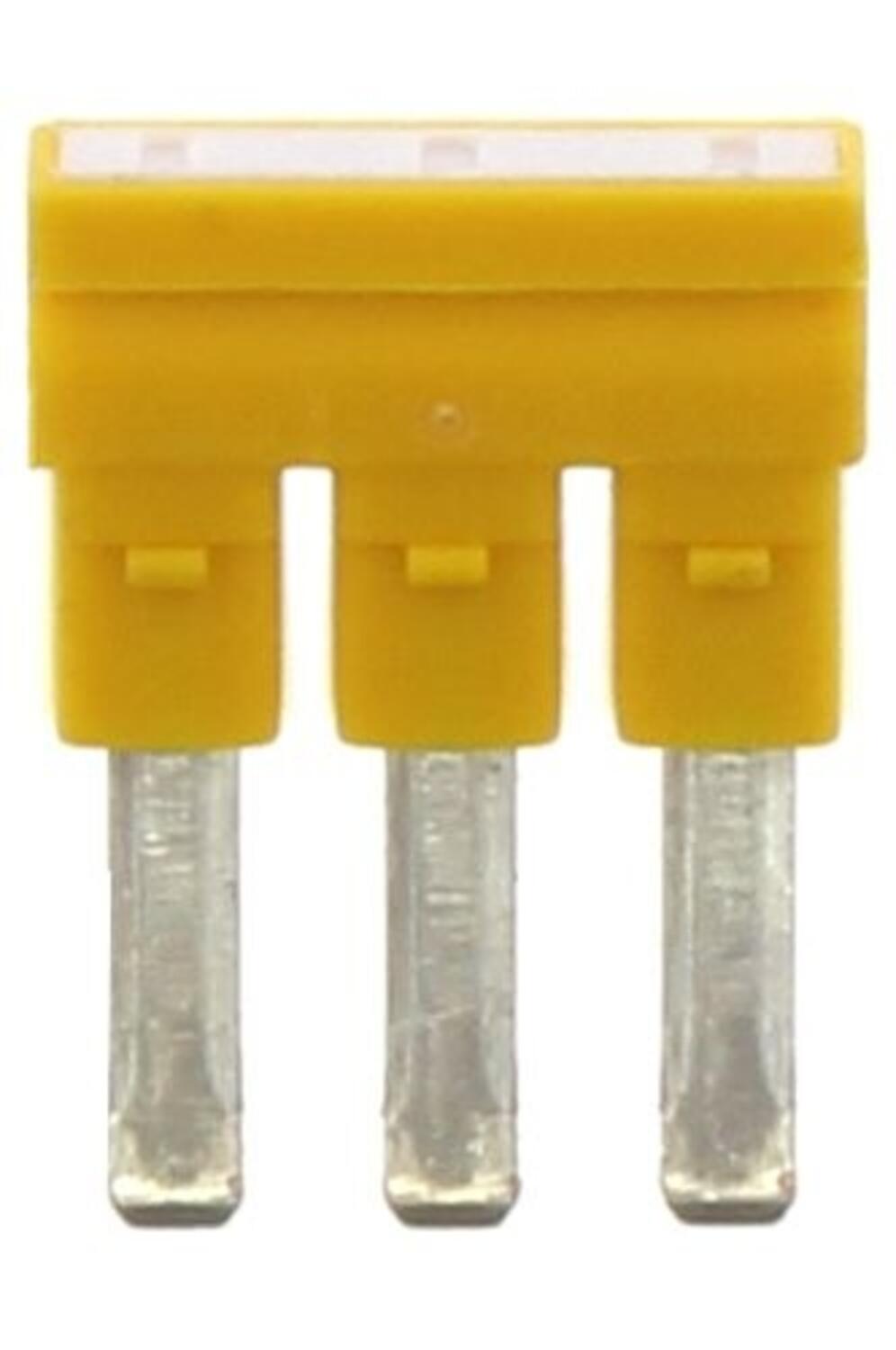

Yellow connector with three pins for electrical connections, model 3463
FQI 2.5/3 YE, 3 Way Cross Connector for FRK 2.5
Art:
3463.8 Copied
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
3
Push in
5.1 mm
4 mm
15.2 mm
85369010
50
2 g
DE

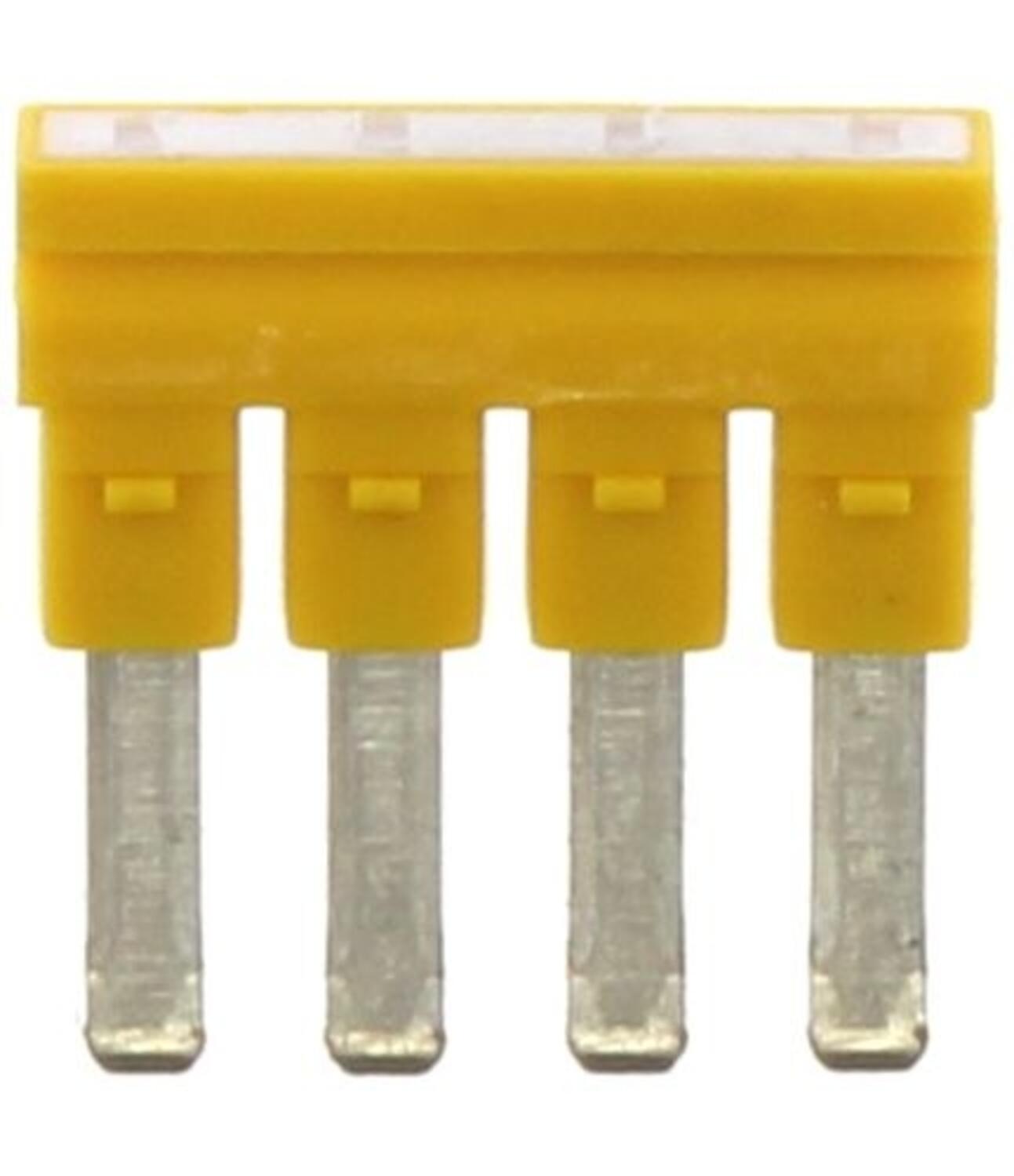

Yellow connector with four pins, suitable for electrical connections and components.
FQI 2.5/4 YE, 4 Way Cross Connector for FRK 2.5
Art:
3464.8 Copied
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
4
Push in
5.1 mm
4 mm
20.3 mm
85369010
20
2.6 g
DE

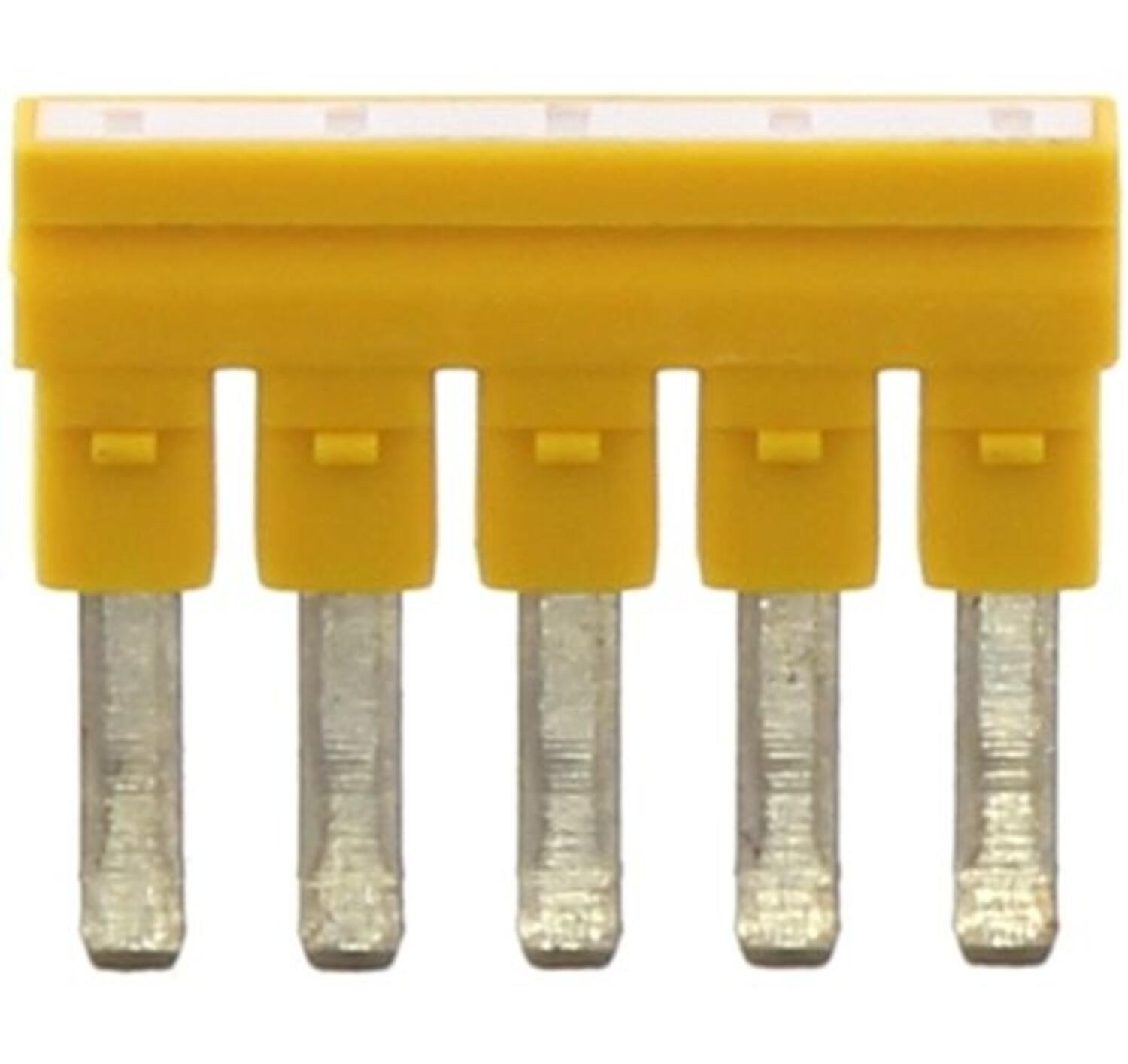

Yellow 5-pole connector with metal pins for electrical connections
FQI 2.5/5 YE, 5 Way Cross Connector for FRK 2.5
Art:
3465.8 Copied
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
5
Push in
5.1 mm
4 mm
25.4 mm
85369010
20
3.2 g
DE

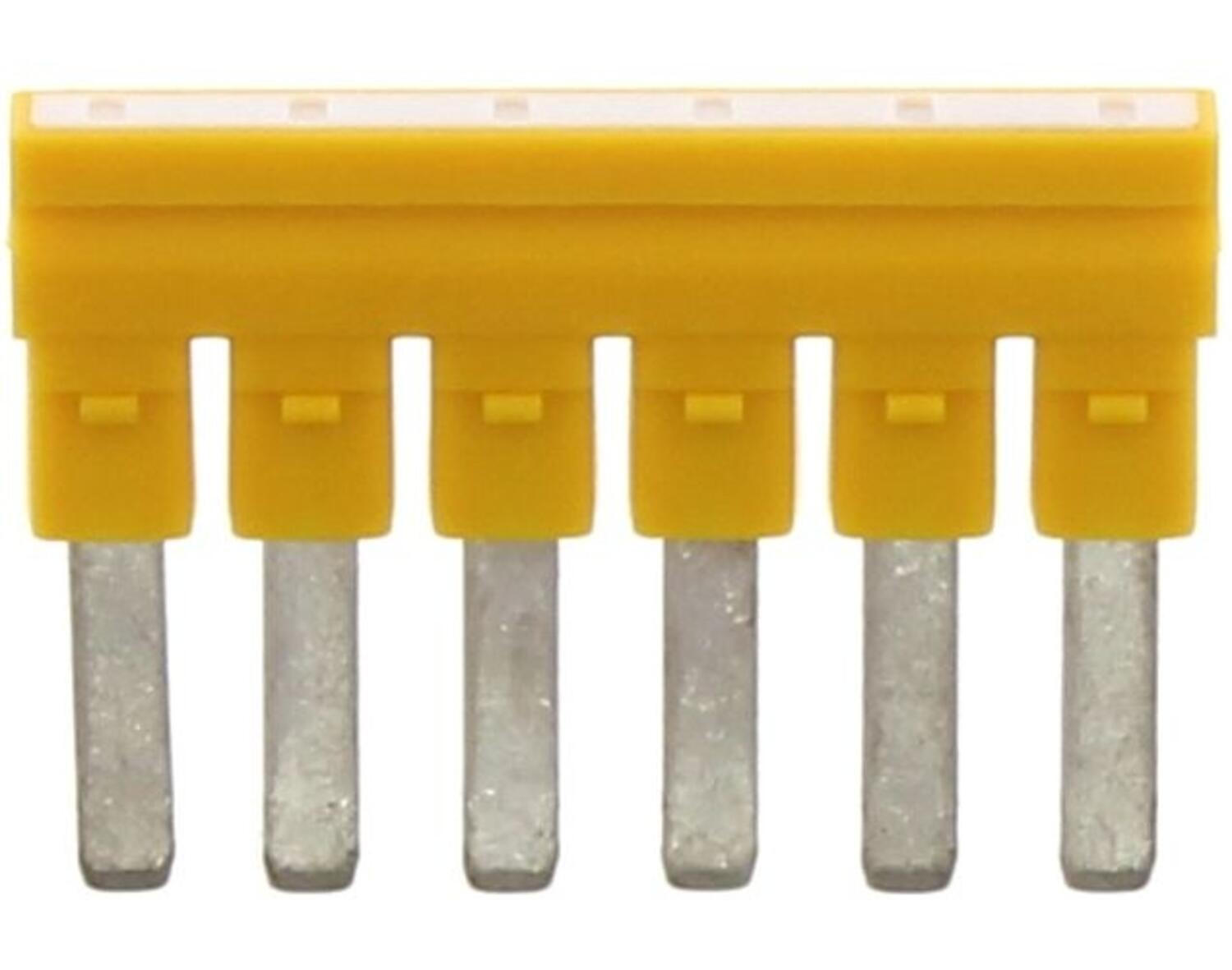

Yellow 6-pole connector with metal pins, suitable for electronic connections
FQI 2.5/6 YE, 6 Way Cross Connector for FRK 2.5
Art:
3466.8 Copied
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
6
Push in
5.1 mm
4 mm
30.5 mm
85369010
20
4 g
DE
Yellow 8-pin connector with metal pins for electronic connections
FQI 2.5/7 YE, 7 Way Cross Connector for FRK 2.5
Art:
3467.8 Copied
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
7
Push in
5.1 mm
4 mm
35.6 mm
85369010
20
4.6 g
DE
Yellow 10-pin connector with metal pins, suitable for electronic connections.
FQI 2.5/8 YE, 8 Way Cross Connector for FRK 2.5
Art:
3468.8 Copied
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
8
Push in
5.1 mm
4 mm
40.7 mm
85369010
10
5.2 g
DE
Yellow 10-pin connector with metal pins, suitable for electronic connections
FQI 2.5/9 YE, 9 Way Cross Connector for FRK 2.5
Art:
3469.8 Copied
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
9
Push in
5.1 mm
4 mm
45.8 mm
85369010
10
6 g
DE

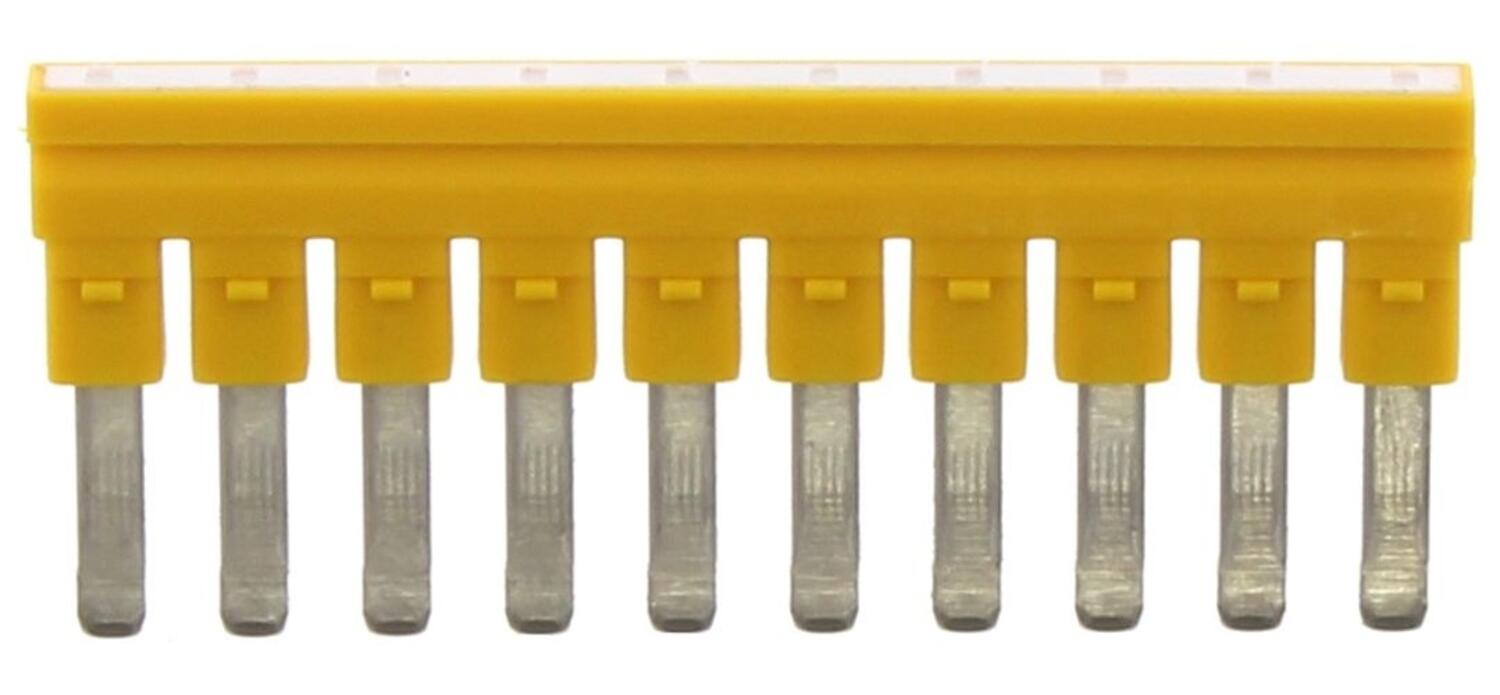

Yellow connector block with ten pins for electrical connections
FQI 2.5/10 YE, 10 Way Cross Connector for FRK 2.5
Art:
3460.8 Copied
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
10
Push in
5.1 mm
4 mm
50.9 mm
85369010
10
6.8 g
DE
Yellow fuse for electrical applications, model 3472
FQI 4/2 YE, 2 Way Cross Connector for FRK 4
Art:
3472.8 Copied
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
2
Push in
6.1 mm
4 mm
12.1 mm
85369010
50
1.38 g
DE

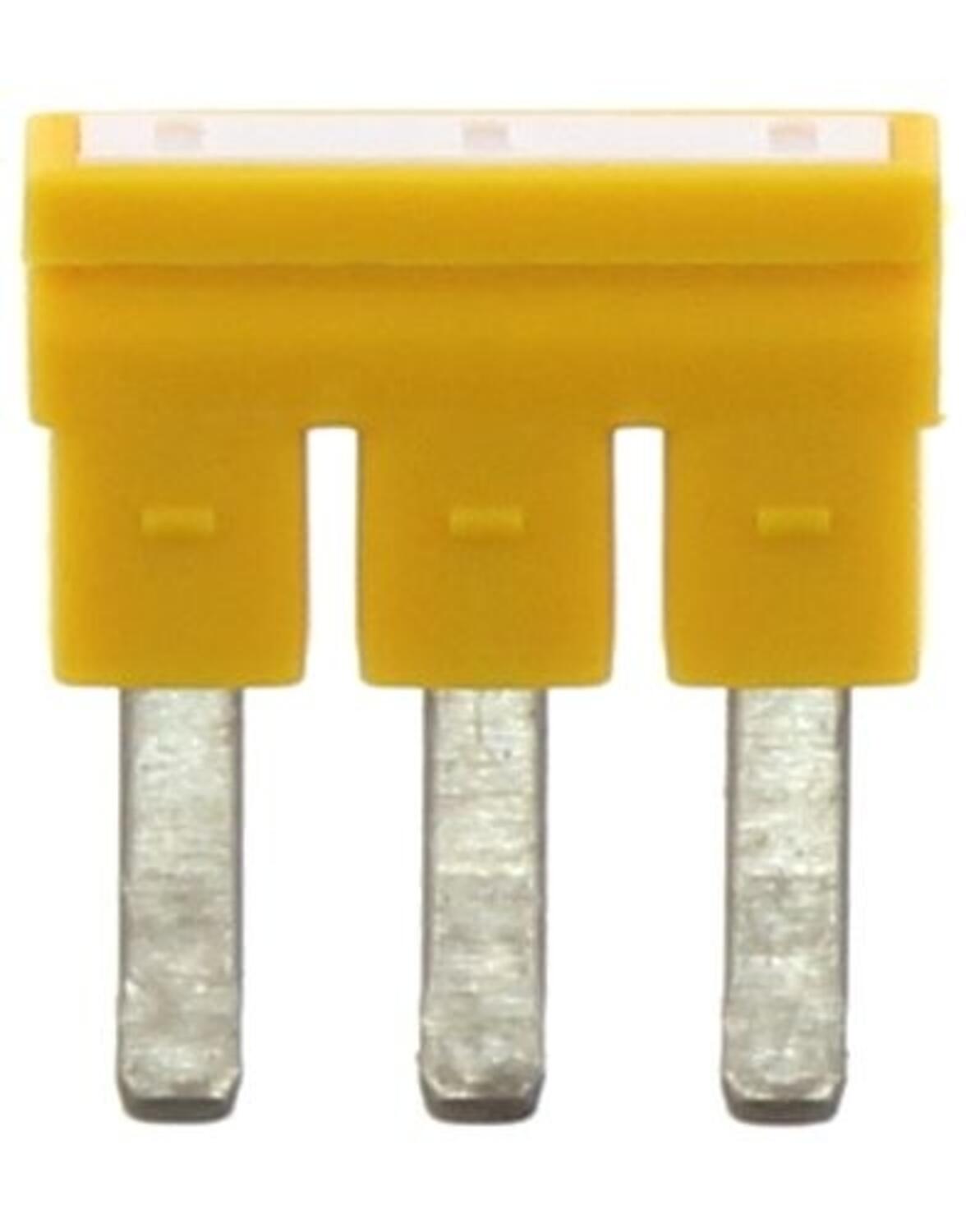

Yellow connector with three metal pins, ideal for electrical connections and components.
FQI 4/3 YE, 3 Way Cross Connector for FRK 4
Art:
3473.8 Copied
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
3
Push in
6.1 mm
4 mm
18.2 mm
85369010
50
2.14 g
DE

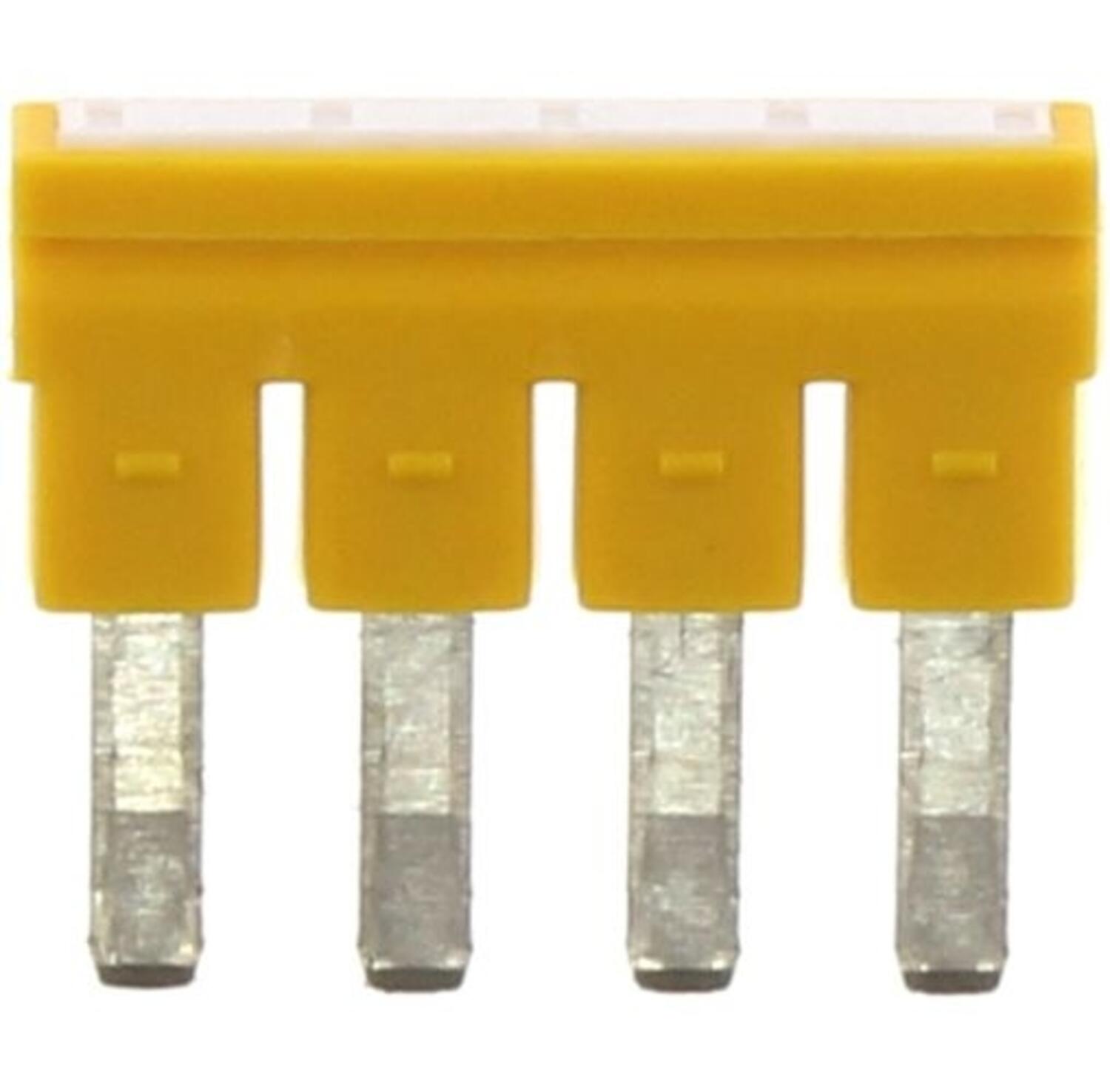

Yellow connector with four pins for electrical connections, model 3474
FQI 4/4 YE, 4 Way Cross Connector for FRK 4
Art:
3474.8 Copied
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
4
Push in
6.1 mm
4 mm
24.3 mm
85369010
20
2.9 g
DE

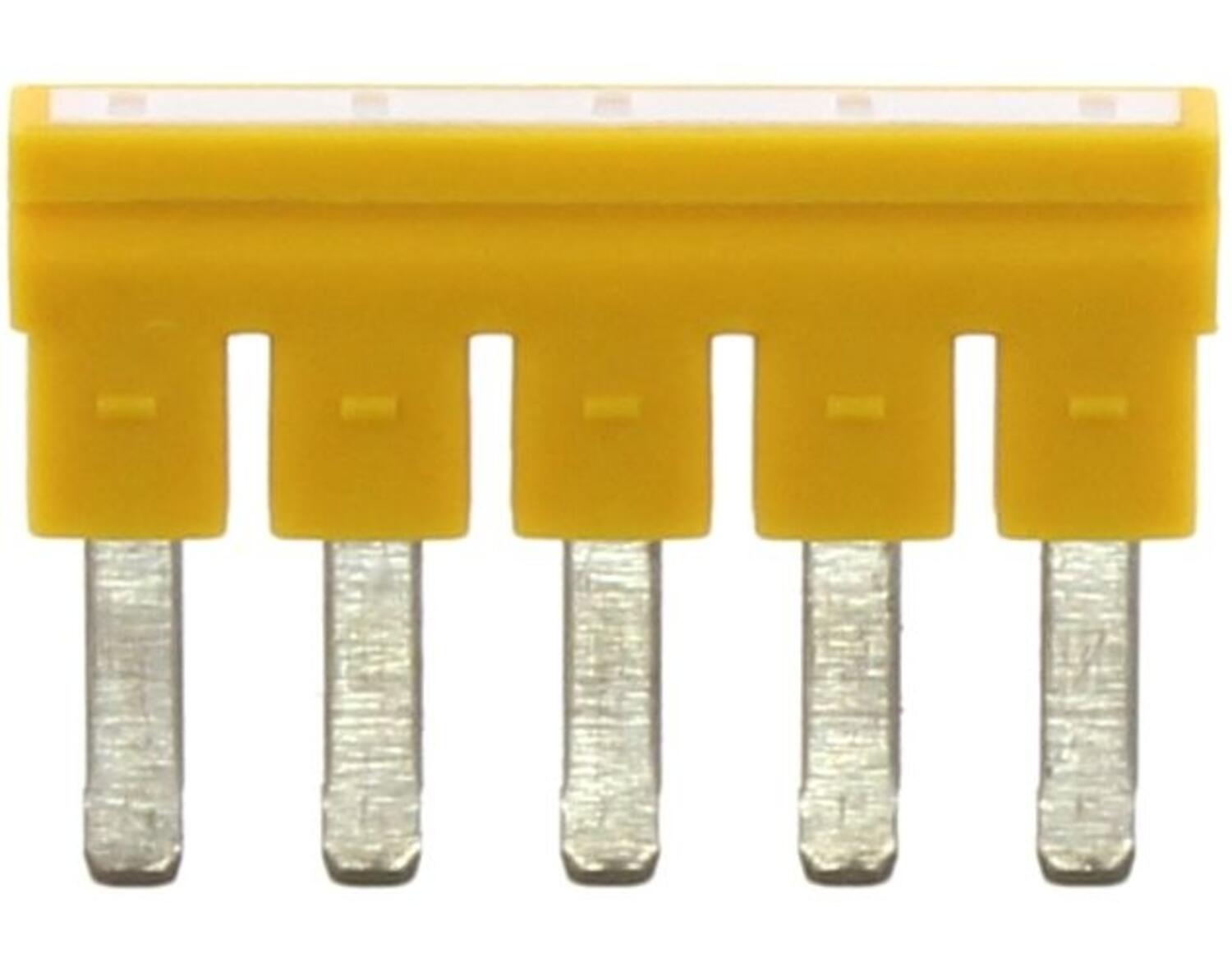

Yellow 5-pin connector with metal pins, suitable for electronic connections.
FQI 4/5 YE, 5 Way Cross Connector for FRK 4
Art:
3475.8 Copied
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
5
Push in
6.1 mm
4 mm
30.1 mm
85369010
20
3.68 g
DE

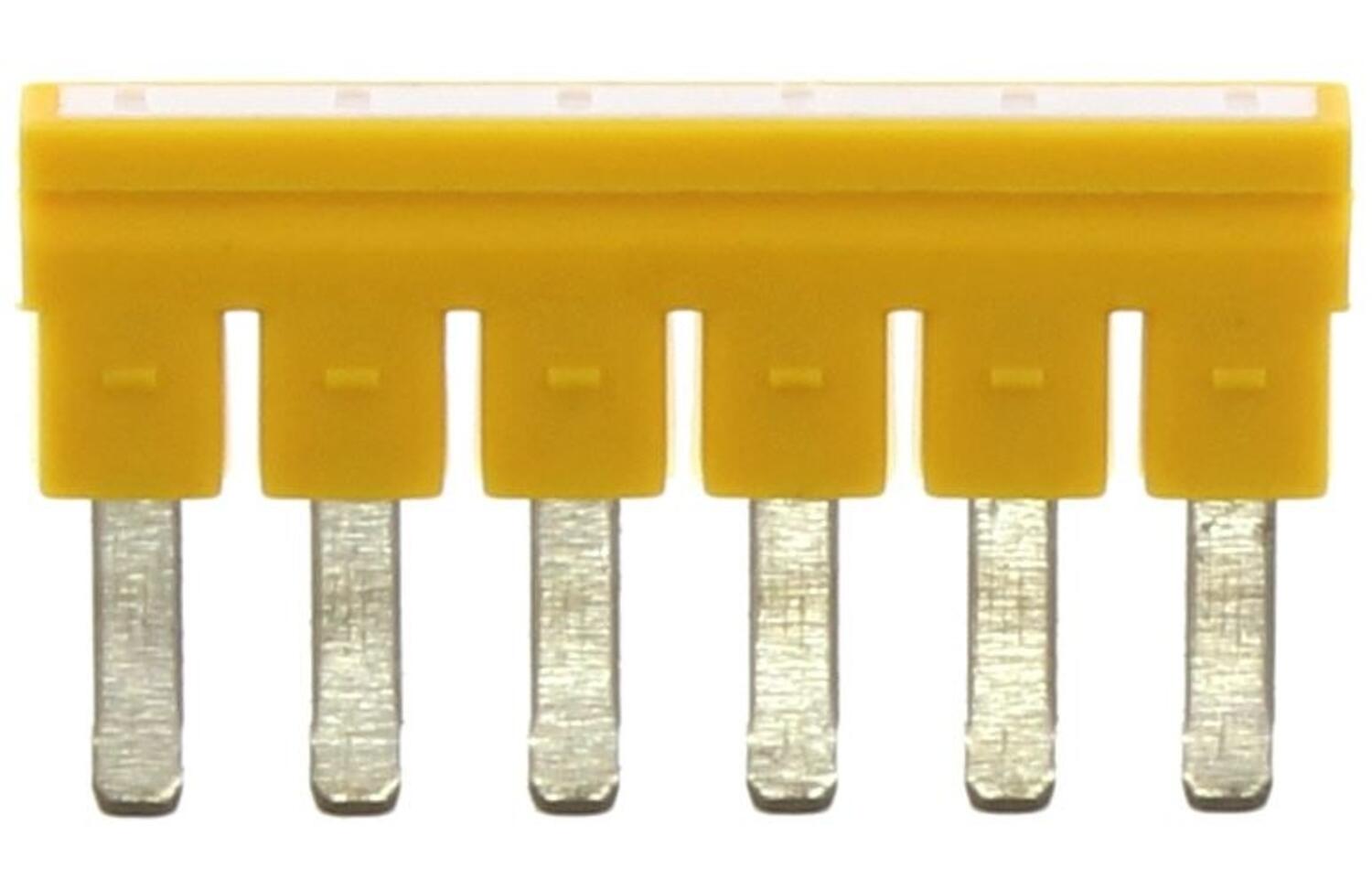

Yellow 6-pin connector with metal pins, ideal for electronic connections.
FQI 4/6 YE, 6 Way Cross Connector for FRK 4
Art:
3476.8 Copied
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
6
Push in
6.1 mm
4 mm
36.5 mm
85369010
20
4.45 g
DE

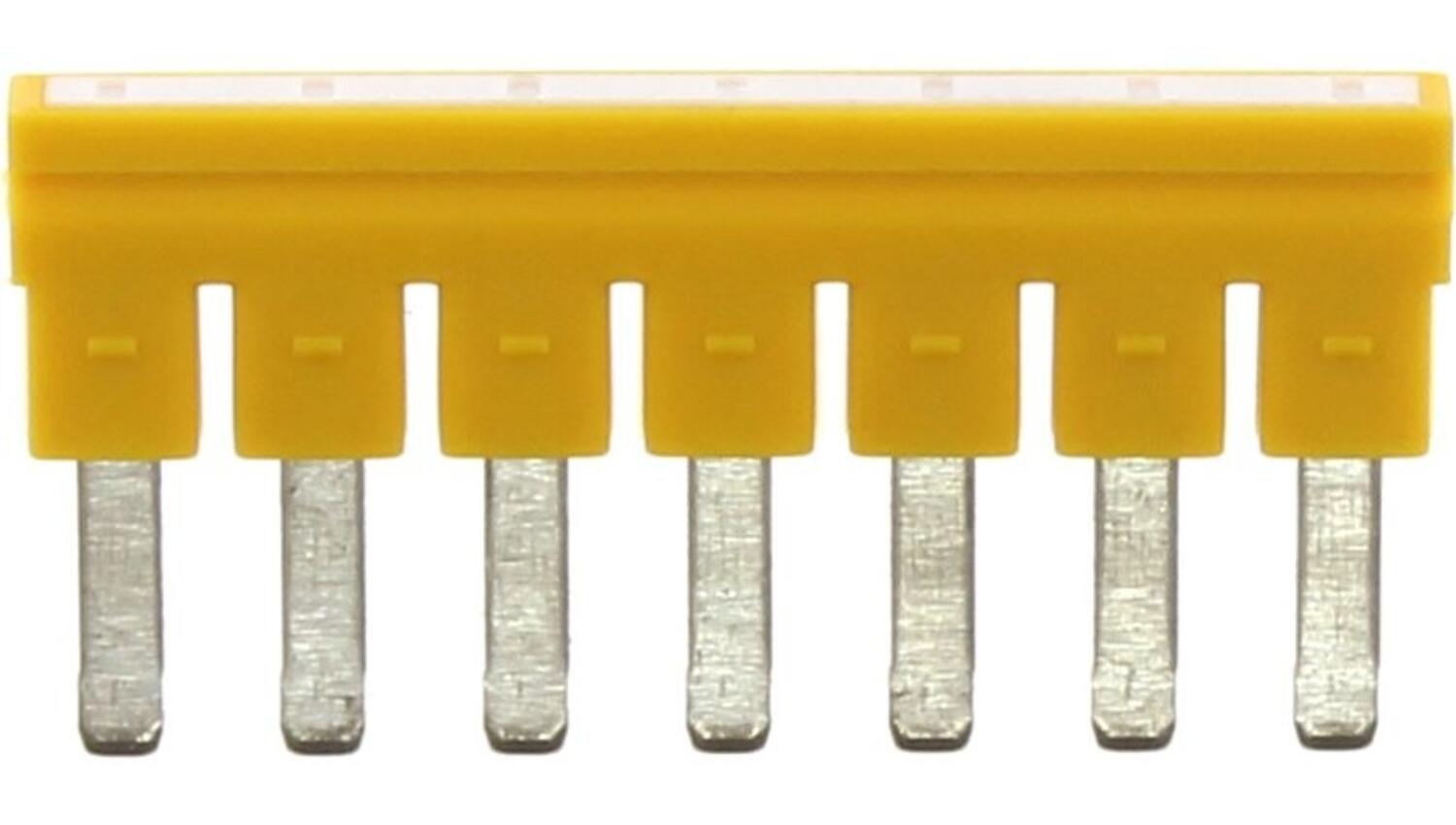

Yellow 8-pin connector with metal pins for electronic connections
FQI 4/7 YE, 7 Way Cross Connector for FRK 4
Art:
3477.8 Copied
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
7
Push in
6.1 mm
4 mm
42.6 mm
85369010
20
5.23 g
DE

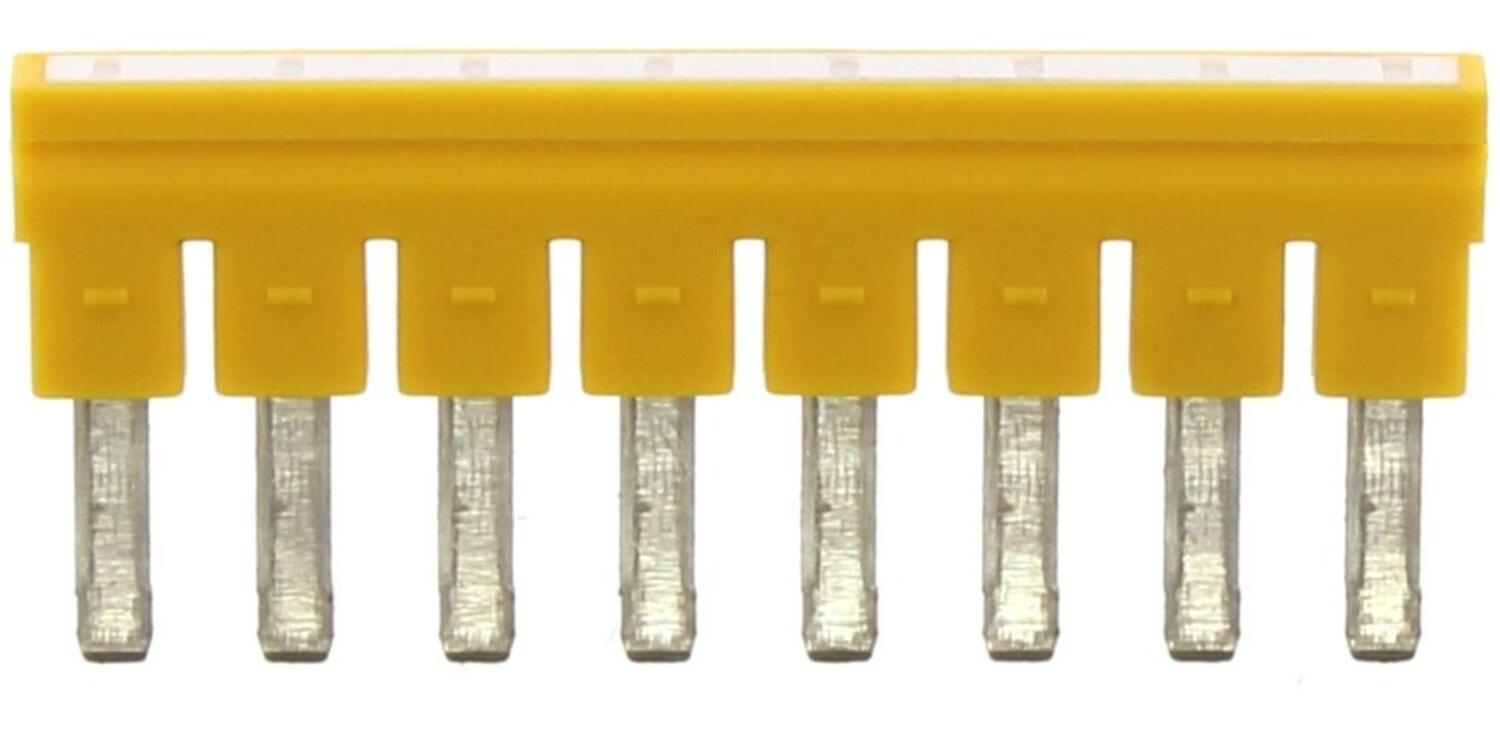

Yellow 8-pin connector with metal pins, suitable for electronic connections.
FQI 4/8 YE, 8 Way Cross Connector for FRK 4
Art:
3478.8 Copied
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
8
Push in
6.1 mm
4 mm
48.7 mm
85369010
10
5.96 g
DE

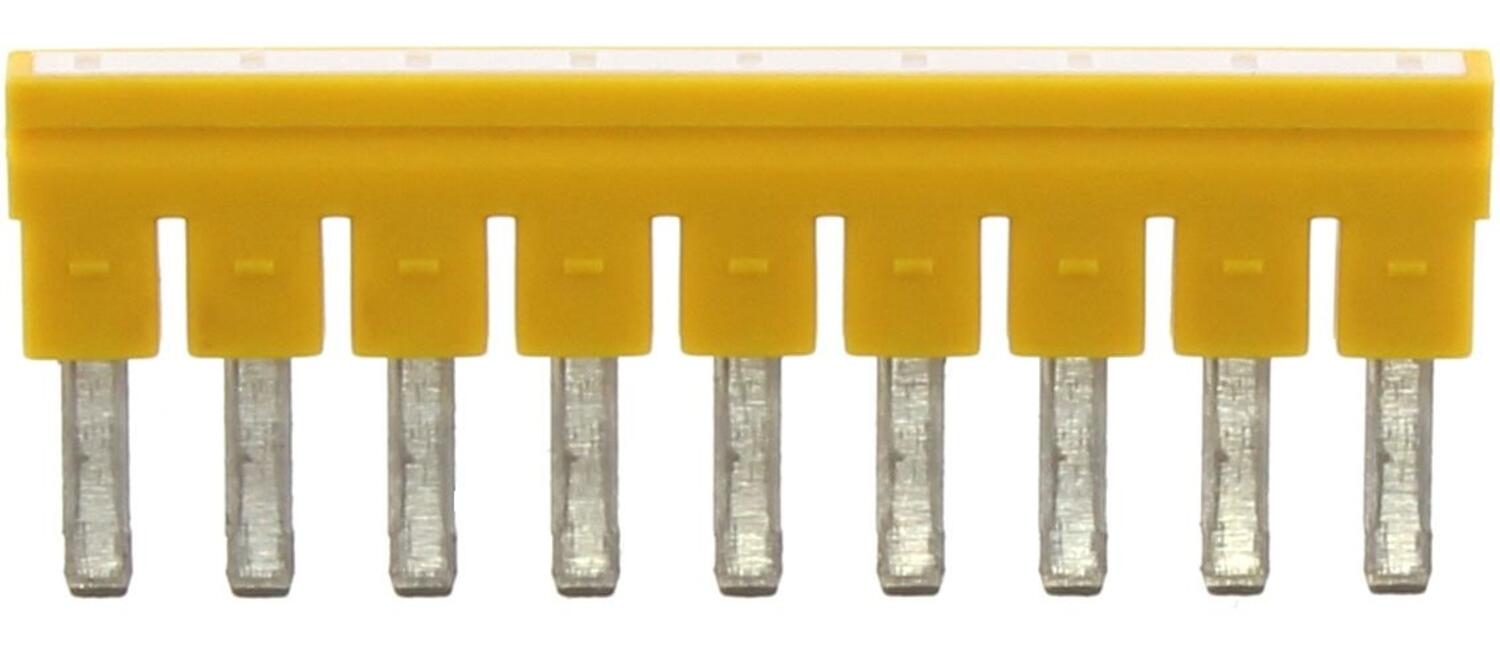

Yellow 10-pin connector with metal pins for electrical connections
FQI 4/9 YE, 9 Way Cross Connector for FRK 4
Art:
3479.8 Copied
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
9
Push in
6.1 mm
4 mm
54.8 mm
85369010
10
6.76 g
DE

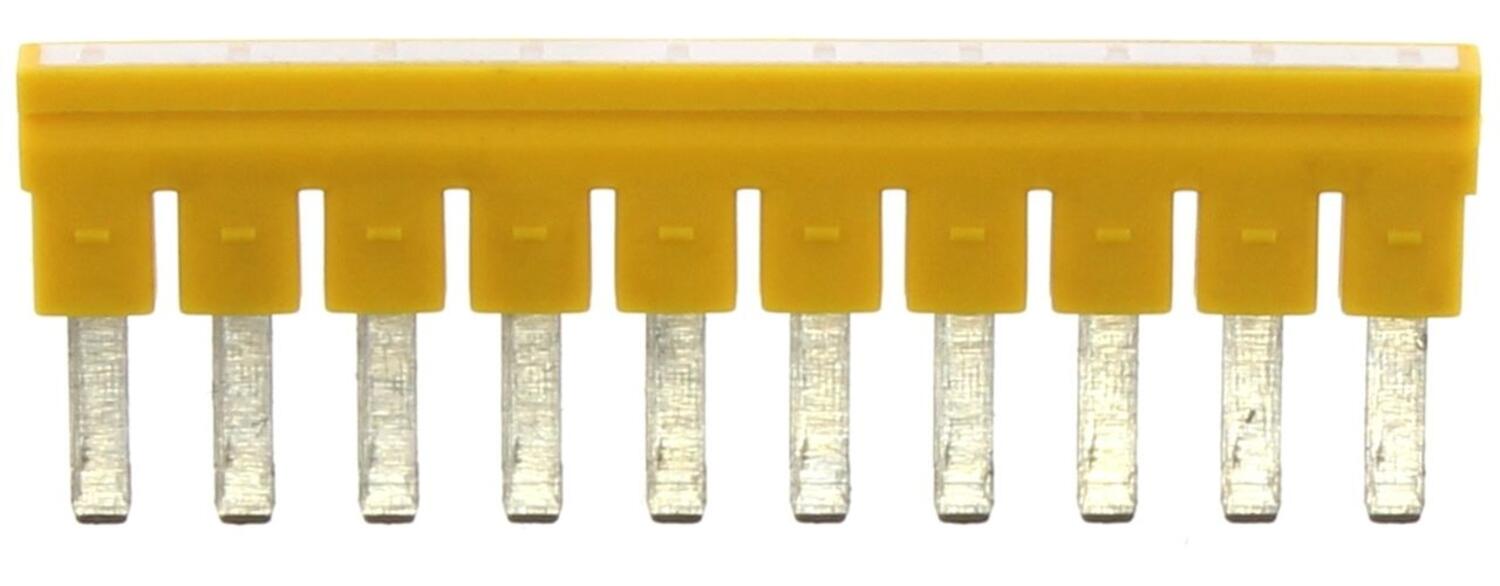

Yellow 10-pin connector with metal pins, ideal for electronic connections.
FQI 4/10 YE, 10 Way Cross Connector for FRK 4
Art:
3470.8 Copied
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
10
Push in
6.1 mm
4 mm
60.9 mm
85369010
10
7.49 g
DE

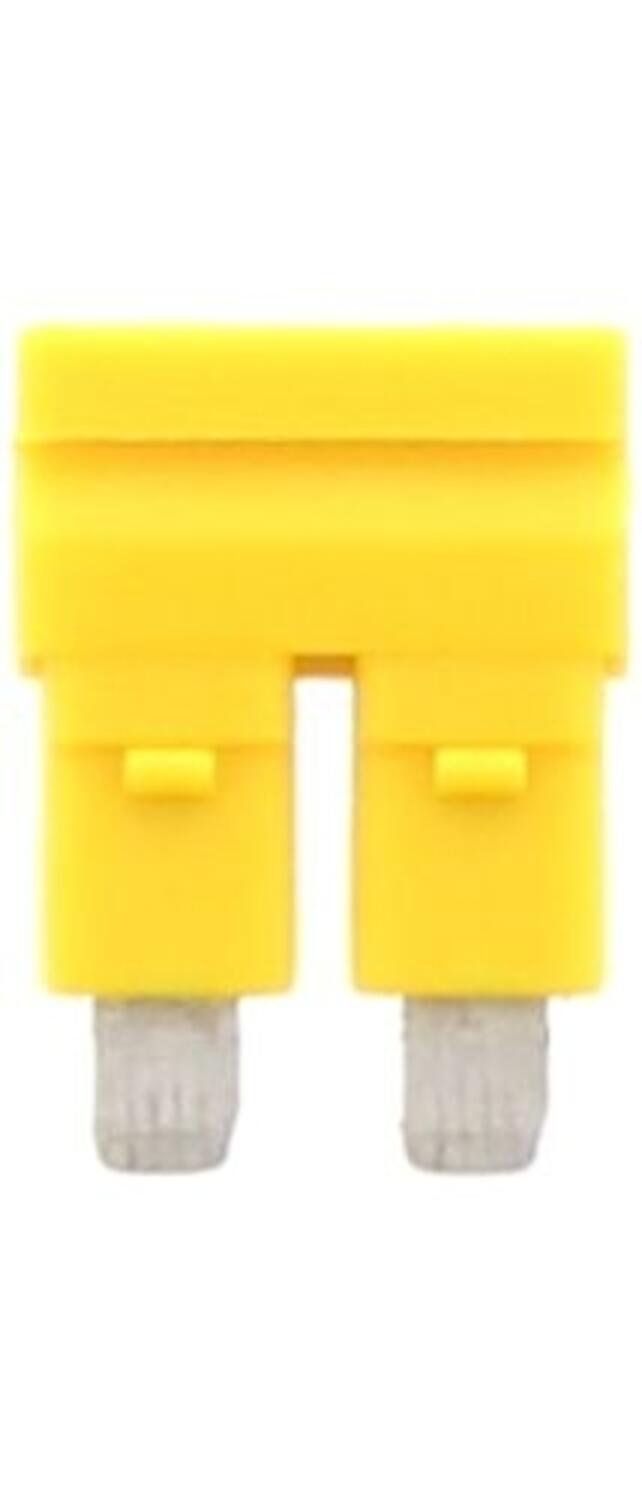

Yellow fuse for electrical applications, model 3492
FQI 2.5-4/2 YE, 2 Way Cross Connector for FRK 2.5-4
Art:
3492.8 Copied
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
2
Push in
5.1 mm
4 mm
10.1 mm
85369010
50
6.76 g
DE

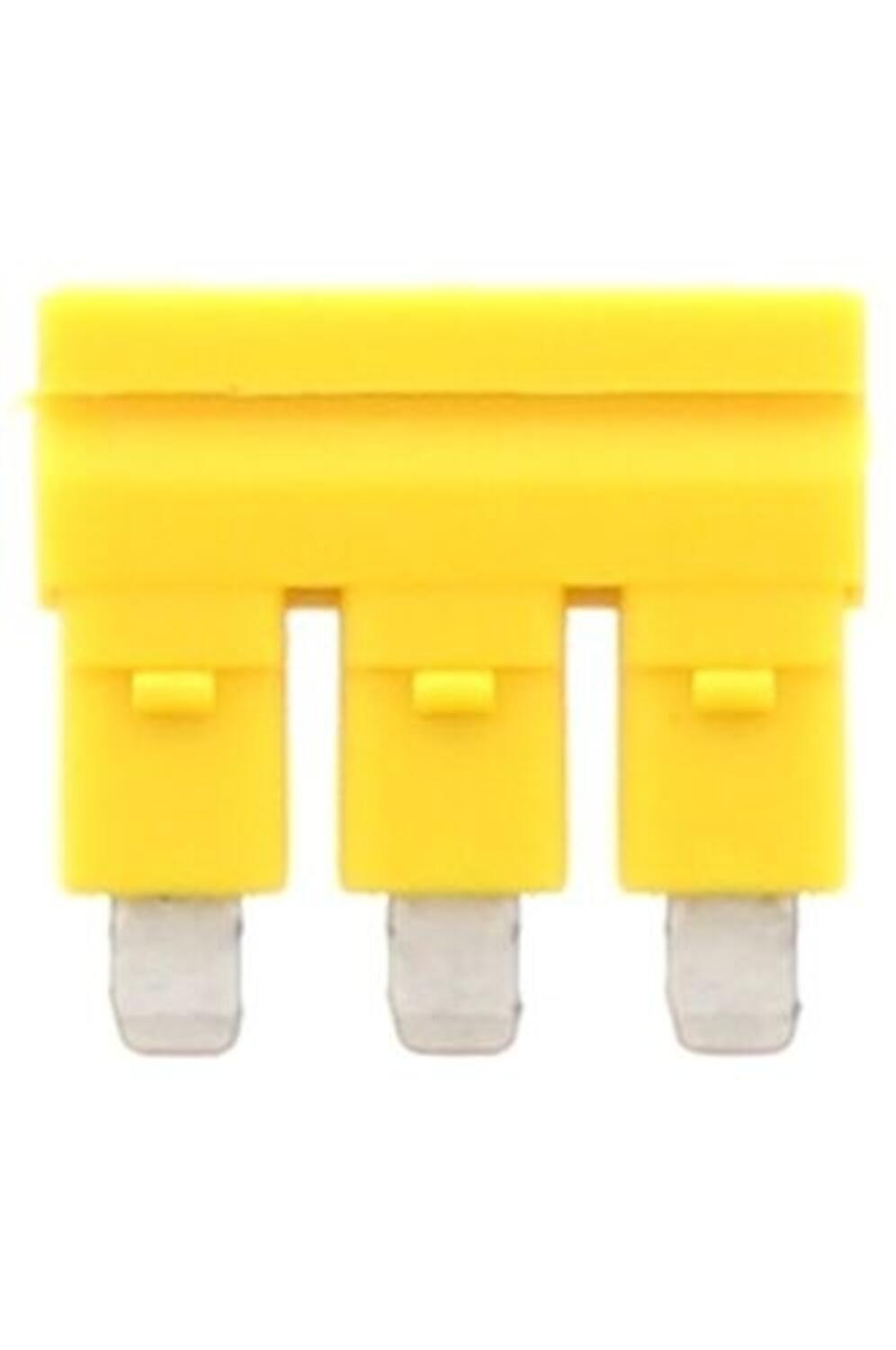

Yellow fuse with three pins, suitable for electrical applications
FQI 2.5-4/3 YE, 3 Way Cross Connector for FRK 2.5-4
Art:
3493.8 Copied
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
3
Push in
5.1 mm
4 mm
15.2 mm
85369010
50
6.76 g
DE

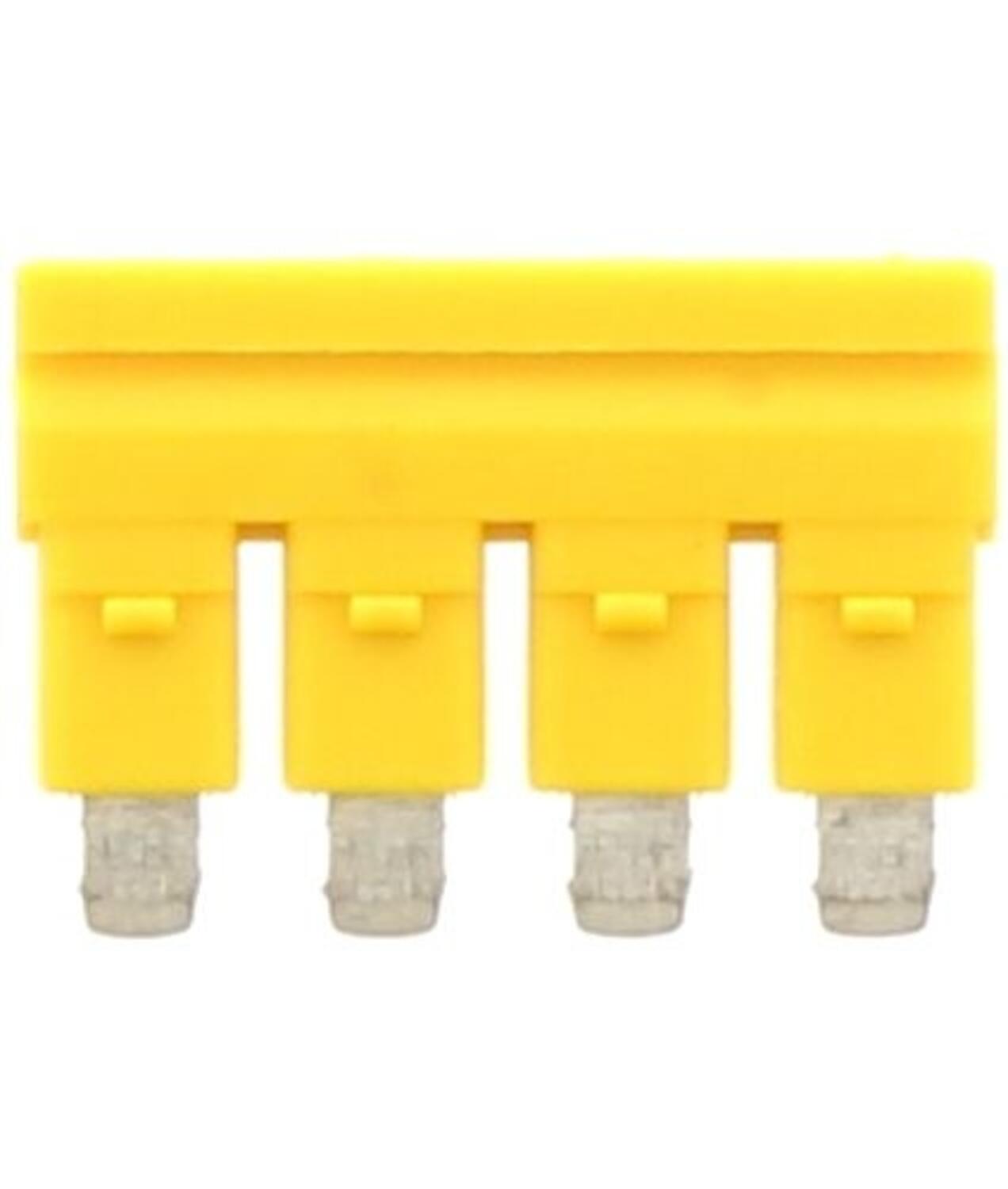

Yellow terminal block with four contacts for electrical applications
FQI 2.5-4/4 YE, 4 Way Cross Connector for FRK 2.5-4
Art:
3494.8 Copied
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
4
Push in
5.1 mm
4 mm
20.3 mm
85369010
20
6.76 g
DE

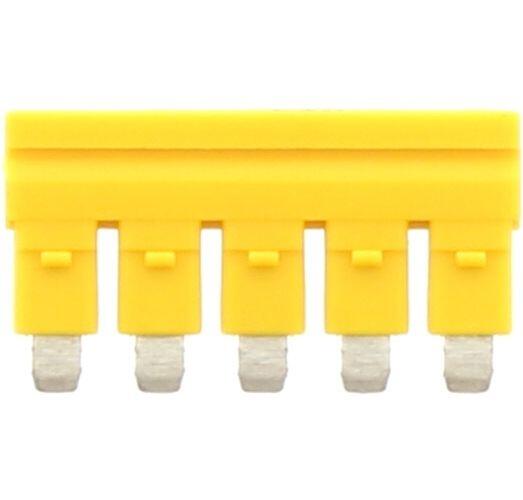

Yellow connector block with five pins for electrical connections
FQI 2.5-4/5 YE, 5 Way Cross Connector for FRK 2.5-4
Art:
3495.8 Copied
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
5
Push in
5.1 mm
4 mm
25.4 mm
85369010
20
6.76 g
DE

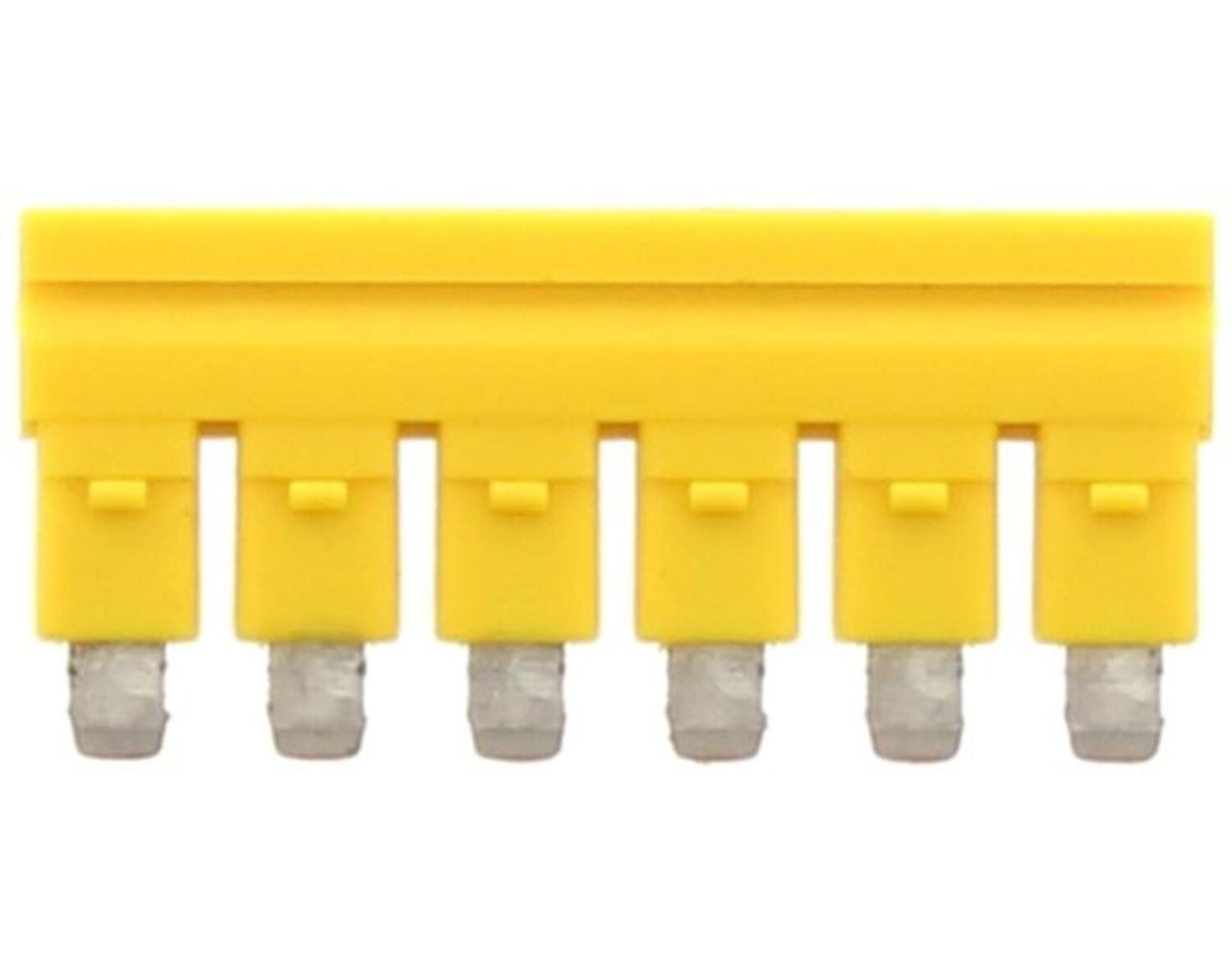

Yellow connector block with six connections for electrical connections
FQI 2.5-4/6 YE, 6 Way Cross Connector for FRK 2.5-4
Art:
3496.8 Copied
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
6
Push in
5.1 mm
4 mm
30.5 mm
85369010
20
6.76 g
DE
Yellow connector block with eight pins for electrical connections
FQI 2.5-4/7 YE, 7 Way Cross Connector for FRK 2.5-4
Art:
3497.8 Copied
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
7
Push in
5.1 mm
4 mm
35.6 mm
85369010
20
6.76 g
DE
Yellow connector block with eight connections for electrical connections

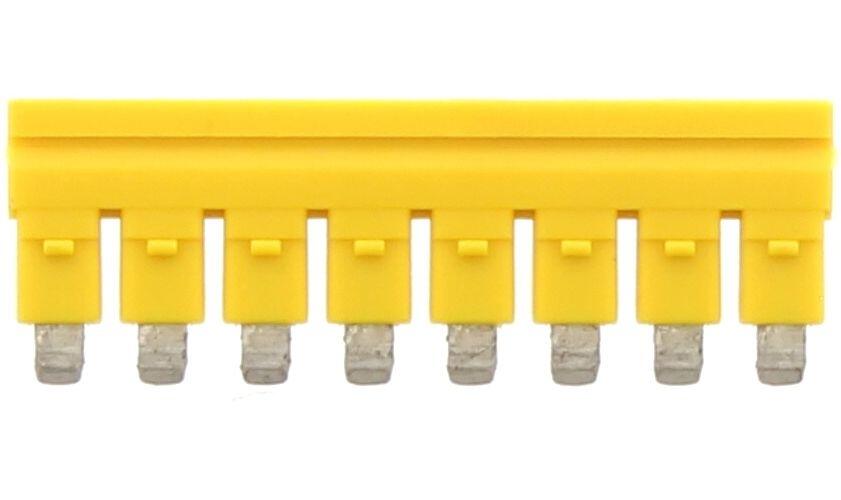

FQI 2.5-4/8 YE, 8 Way Cross Connector for FRK 2.5-4
Art:
3498.8 Copied
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
8
Push in
5.1 mm
4 mm
40.7 mm
85369010
10
6.76 g
DE
Yellow connector block with eight pins for electrical connections

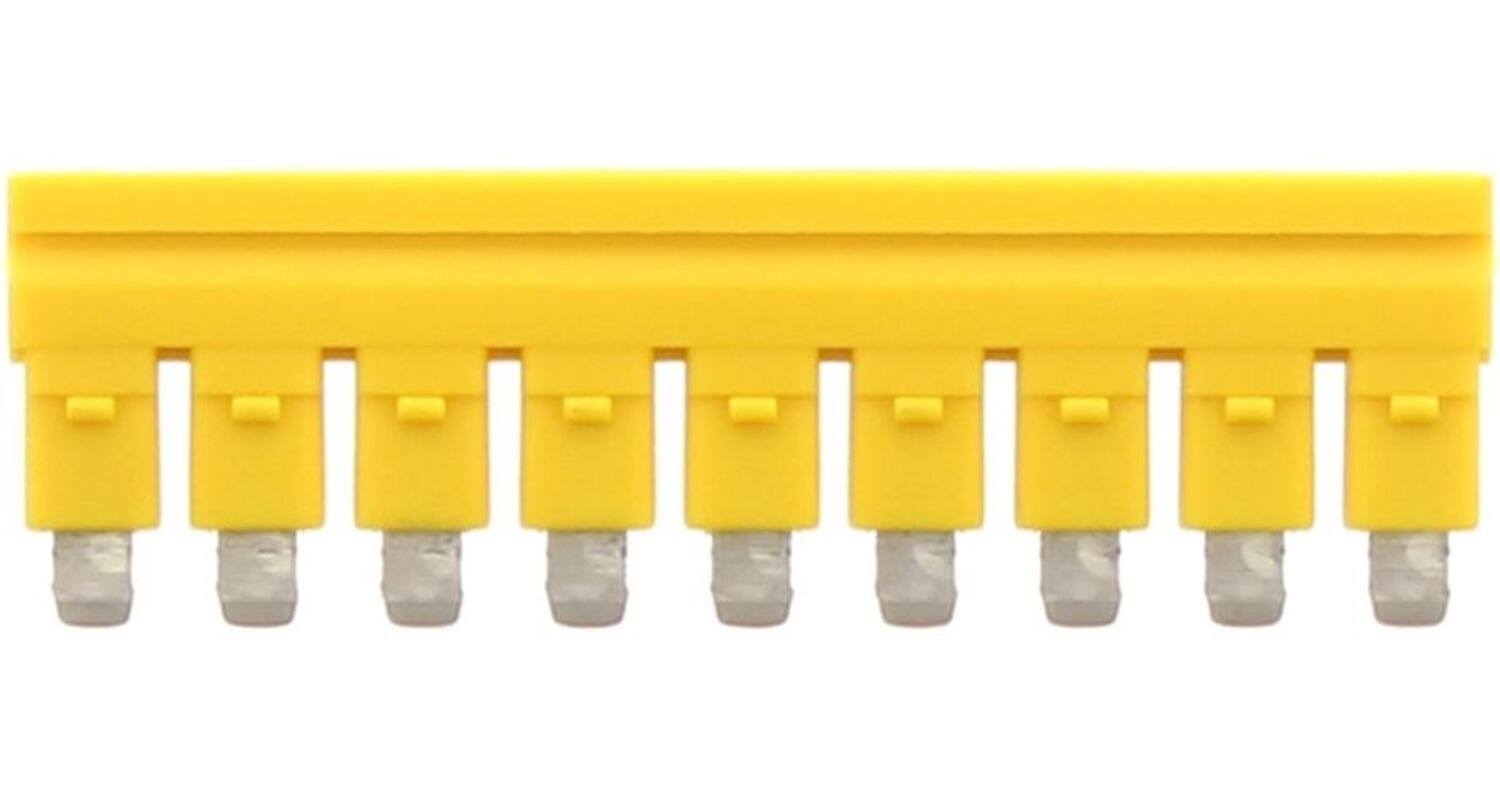

FQI 2.5-4/9 YE, 9 Way Cross Connector for FRK 2.5-4
Art:
3499.8 Copied
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
9
Push in
5.1 mm
4 mm
45.8 mm
85369010
10
6.76 g
DE
Yellow connector block with ten pins for electrical connections

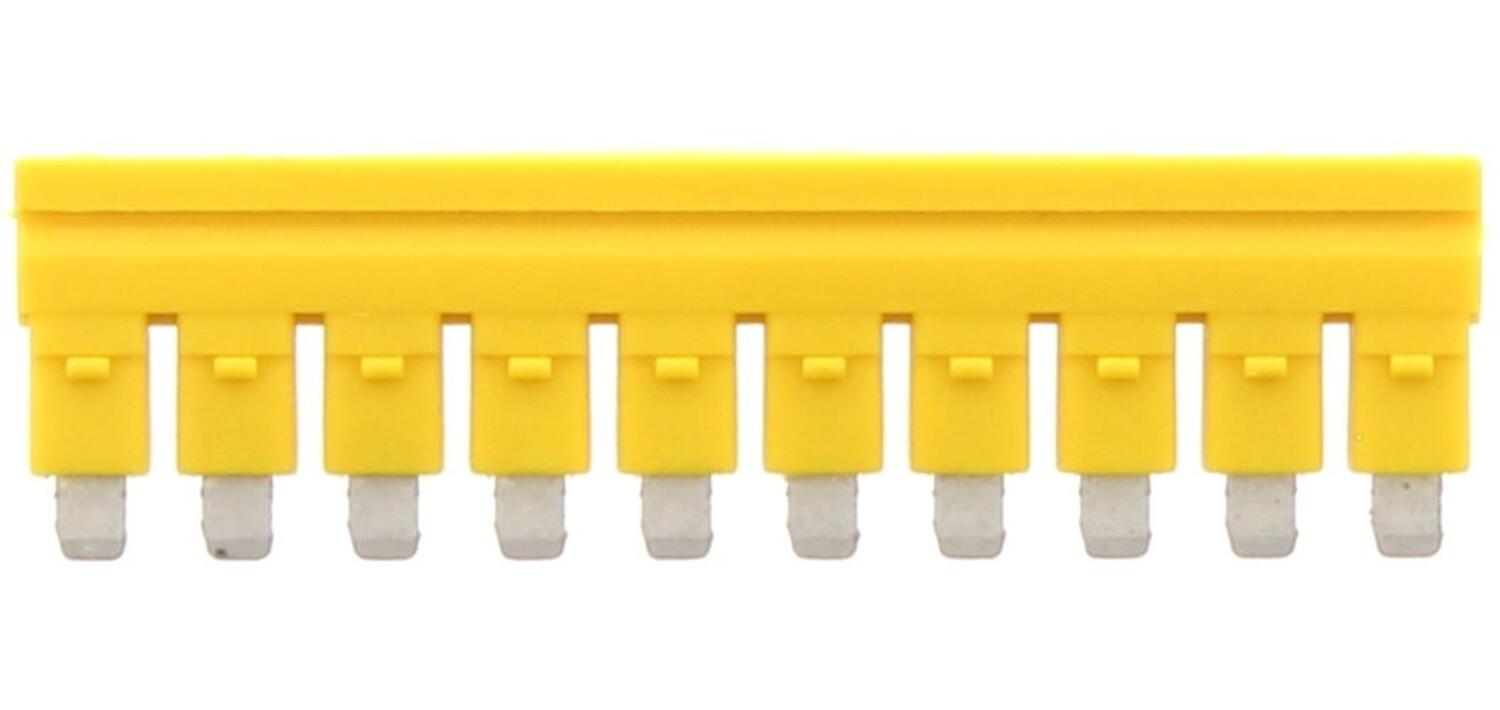

FQI 2.5-4/10 YE, 10 Way Cross Connector for FRK 2.5-4
Art:
3490.8 Copied
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
10
Push in
5.1 mm
4 mm
50.9 mm
85369010
10
6.76 g
DE

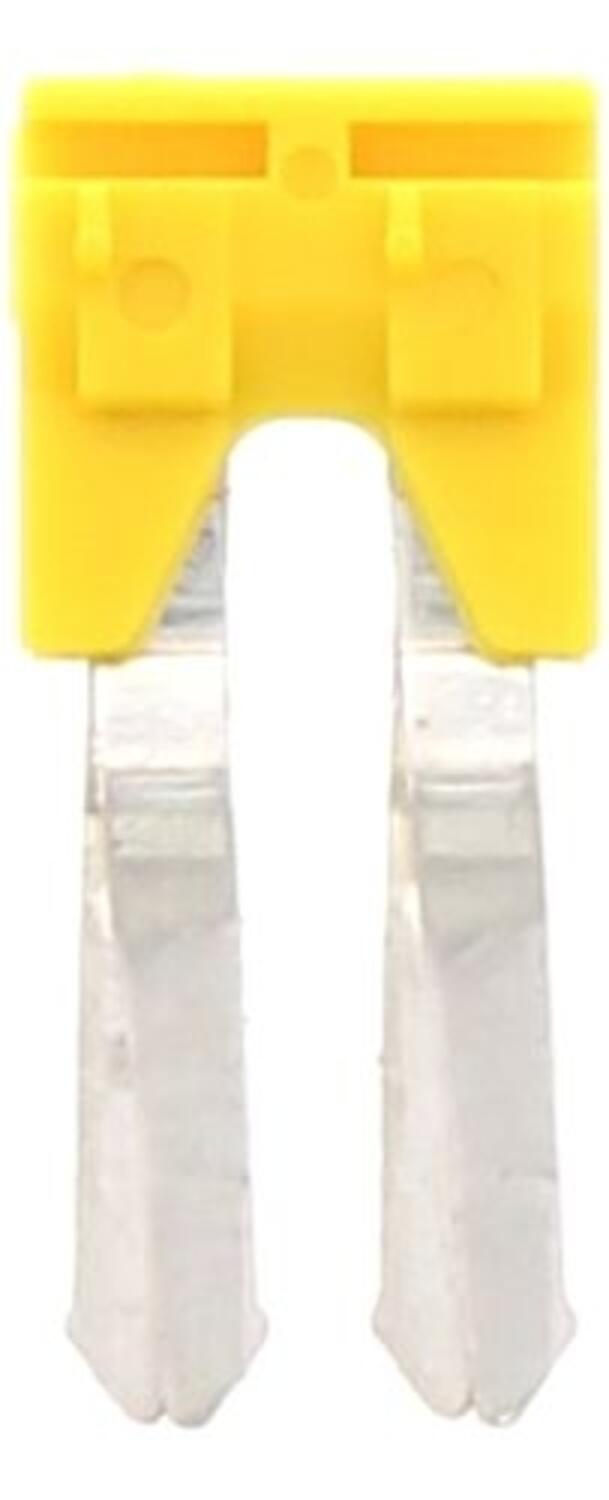

Yellow electrical connector with two metal pins, ideal for connections in electrical systems.
FIQI 2,5-4/2 YE
Art:
17402.8 Copied
Yellow
Bronze
Polyamide 6.6
105 °C
-40 °C
UL94-V2
2
Push in
5.1 mm
3.4 mm
9.6 mm
85369010
50
1.2 g
DE

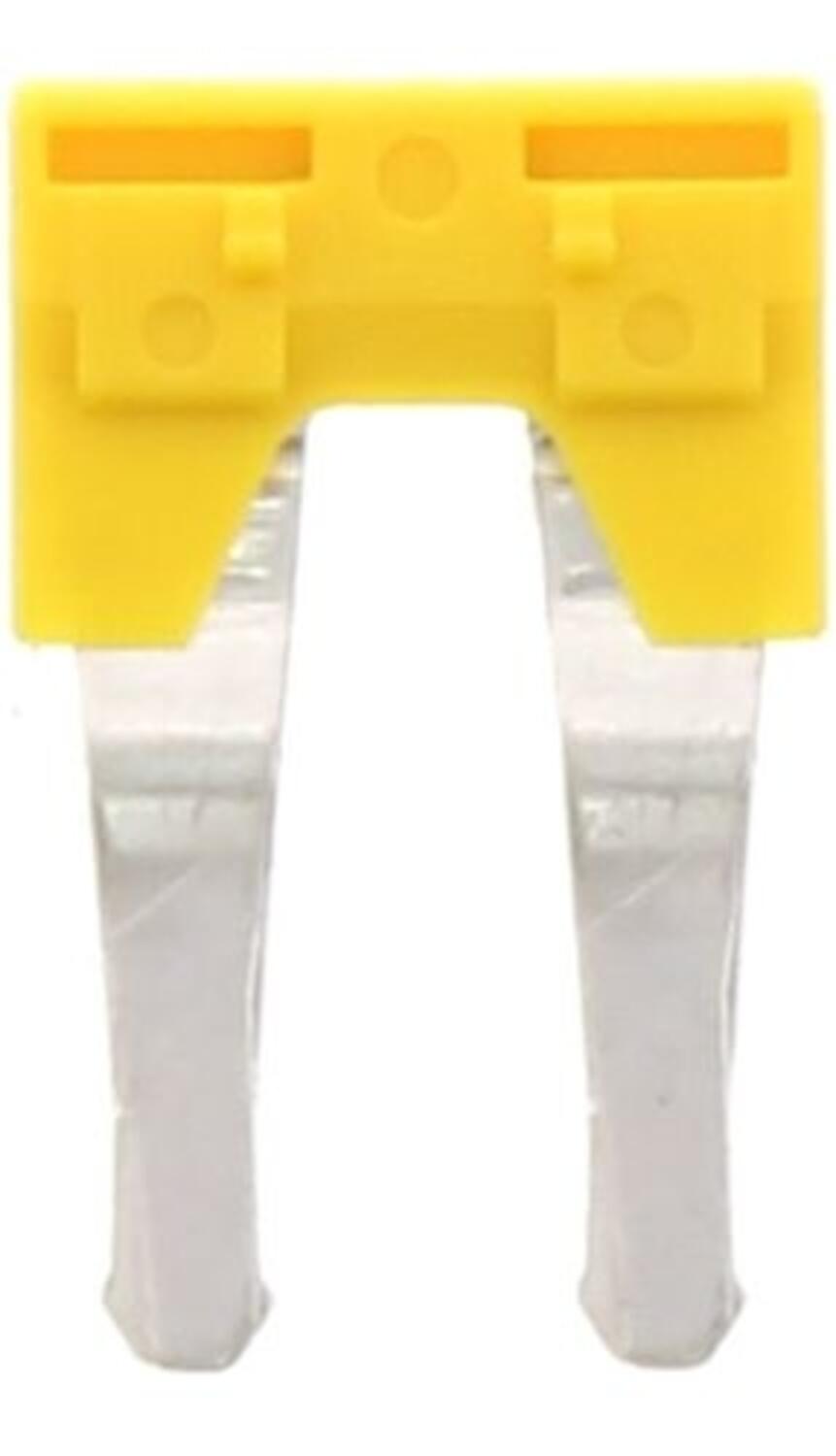

Yellow connector with metal clips for electrical connections, model 17412
FIQI 6-10/2 YE
Art:
17412.8 Copied
Yellow
Copper alloy
Polyamide 6.6
105 °C
-40 °C
UL94-V2
2
Push in
8.1 mm
3.4 mm
13.8 mm
85369010
50
2.2 g
DE

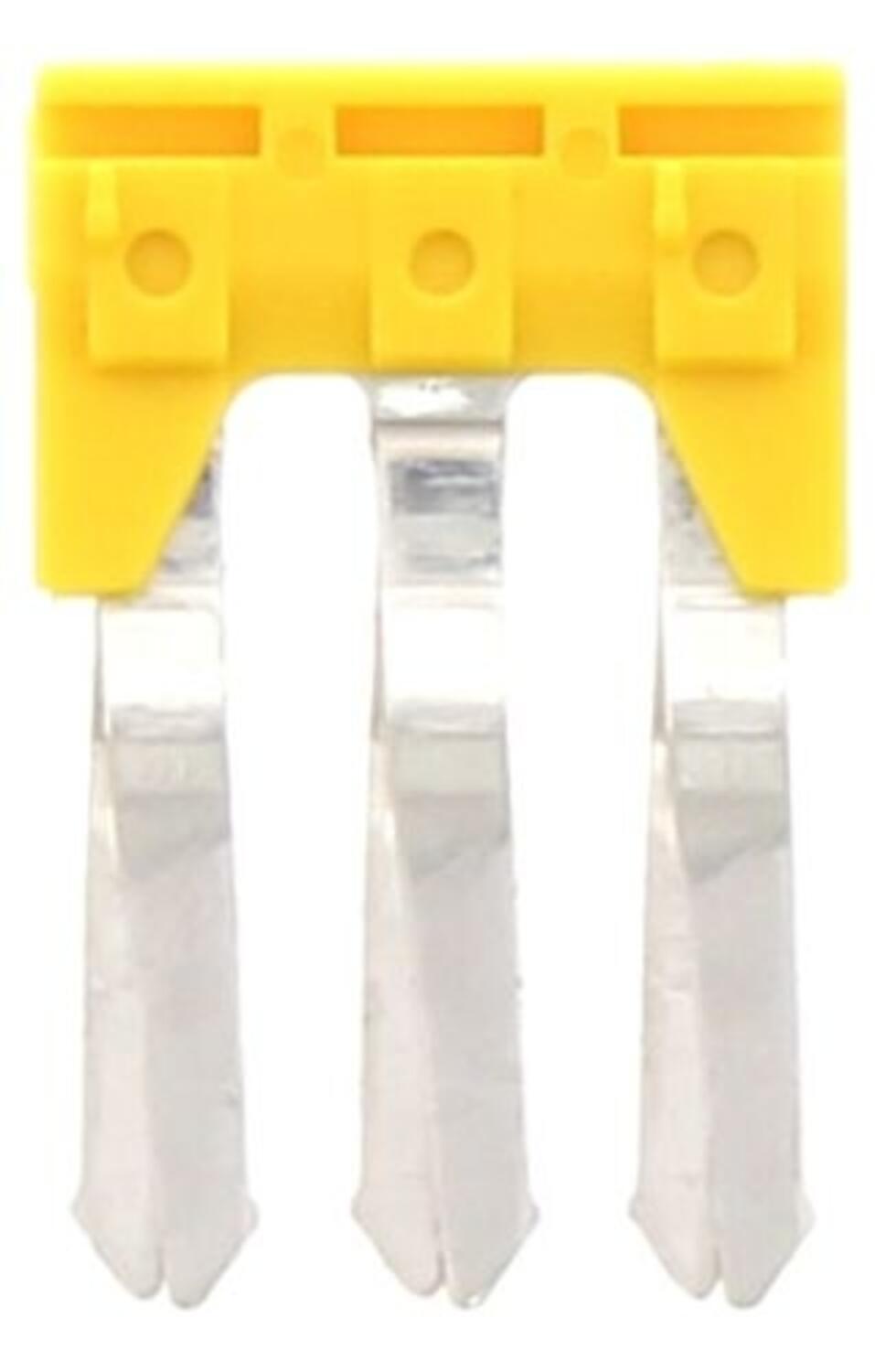

Yellow connector with three metal pins for electrical connections, ideal for industrial use.
FIQI 2,5-4/3 YE
Art:
17403.8 Copied
Yellow
Bronze
Polyamide 6.6
105 °C
-40 °C
UL94-V2
3
Push in
5.1 mm
3.4 mm
14.7 mm
85369010
50
1.7 g
DE
Yellow plastic connector with three metal clips for electrical connections

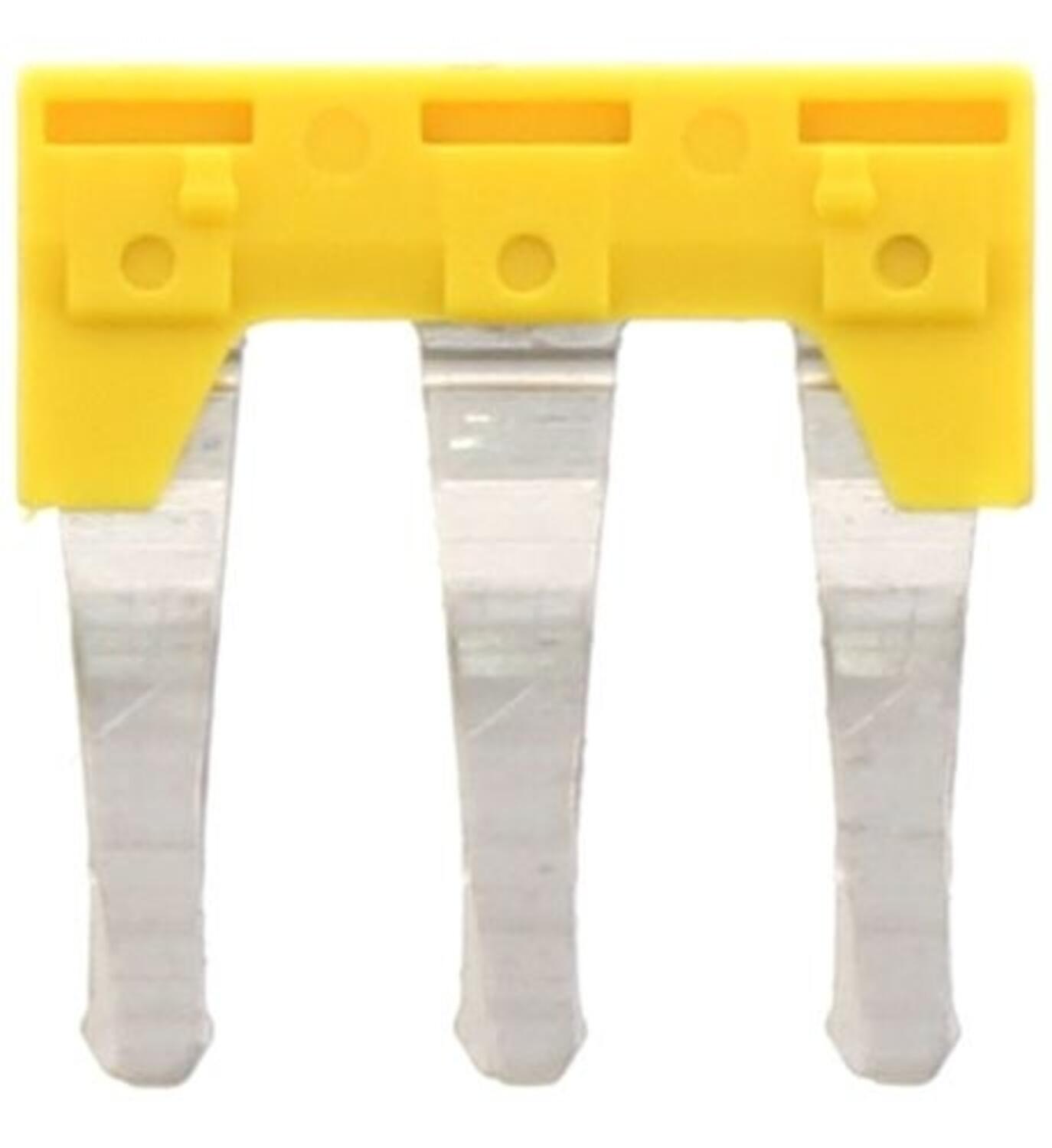

FIQI 6-10/3 YE
Art:
17413.8 Copied
Yellow
Copper alloy
Polyamide 6.6
105 °C
-40 °C
UL94-V2
3
Push in
8.1 mm
3.4 mm
21.9 mm
85369010
50
3.3 g
DE

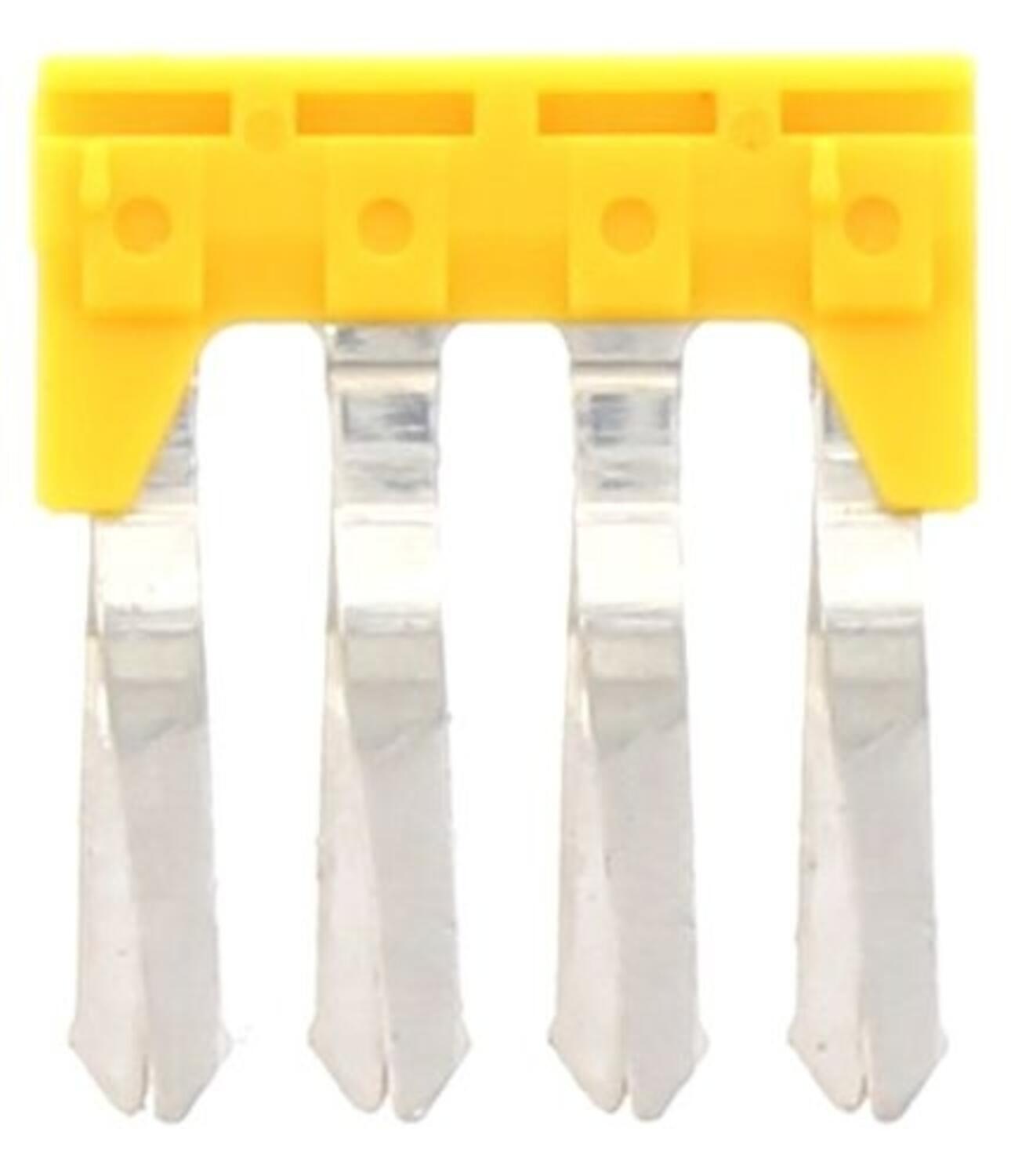

Terminal block with four metal contacts and yellow plastic base
FIQI 2,5-4/4 YE
Art:
17404.8 Copied
Yellow
Bronze
Polyamide 6.6
105 °C
-40 °C
UL94-V2
4
Push in
5.1 mm
3.4 mm
19.8 mm
85369010
20
2.3 g
DE

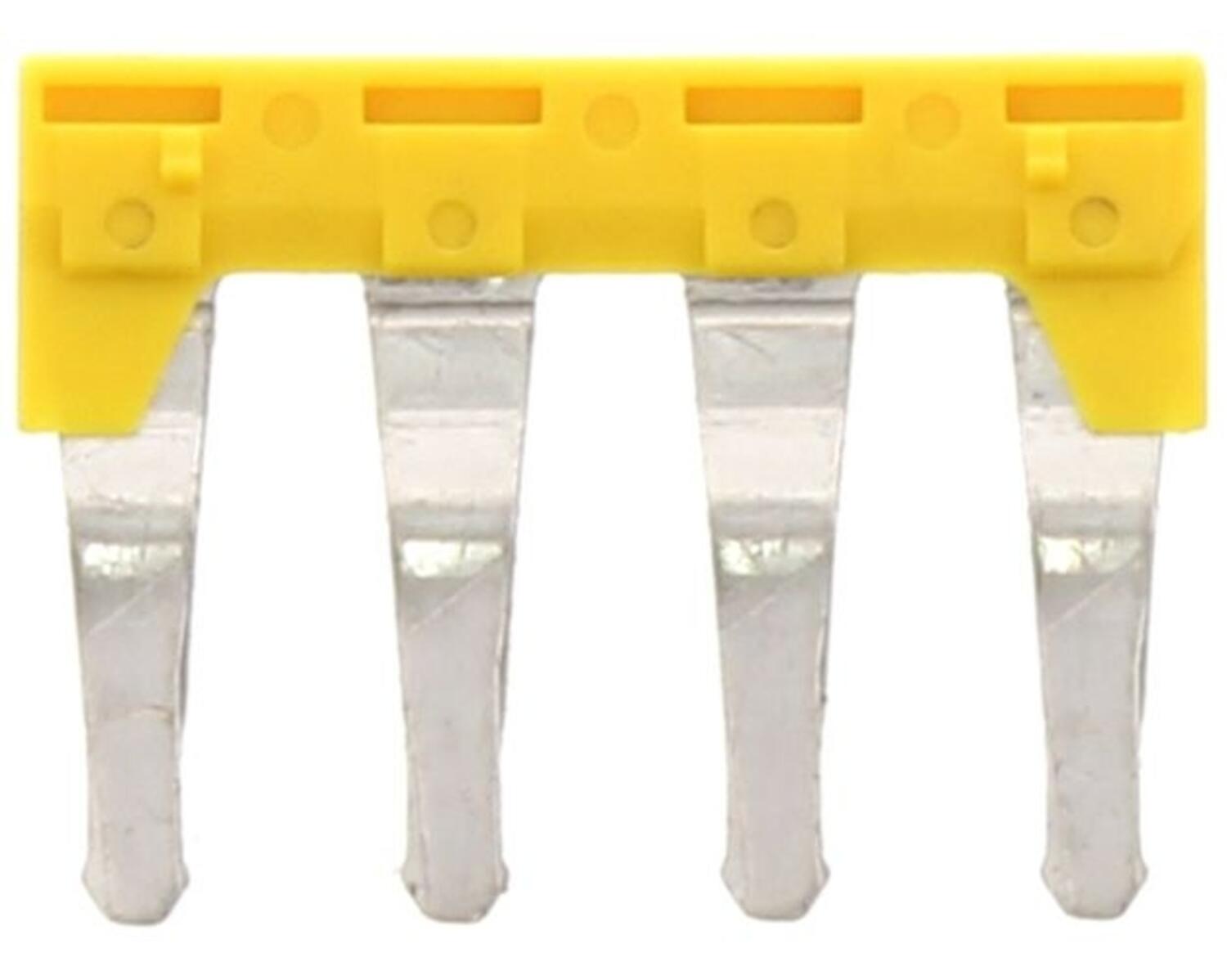

Yellow connector with four metal pins for electrical connections, suitable for industrial use.
FIQI 6-10/4 YE
Art:
17414.8 Copied
Yellow
Copper alloy
Polyamide 6.6
105 °C
-40 °C
UL94-V2
4
Push in
8.1 mm
3.4 mm
30 mm
85369010
20
4.4 g
DE

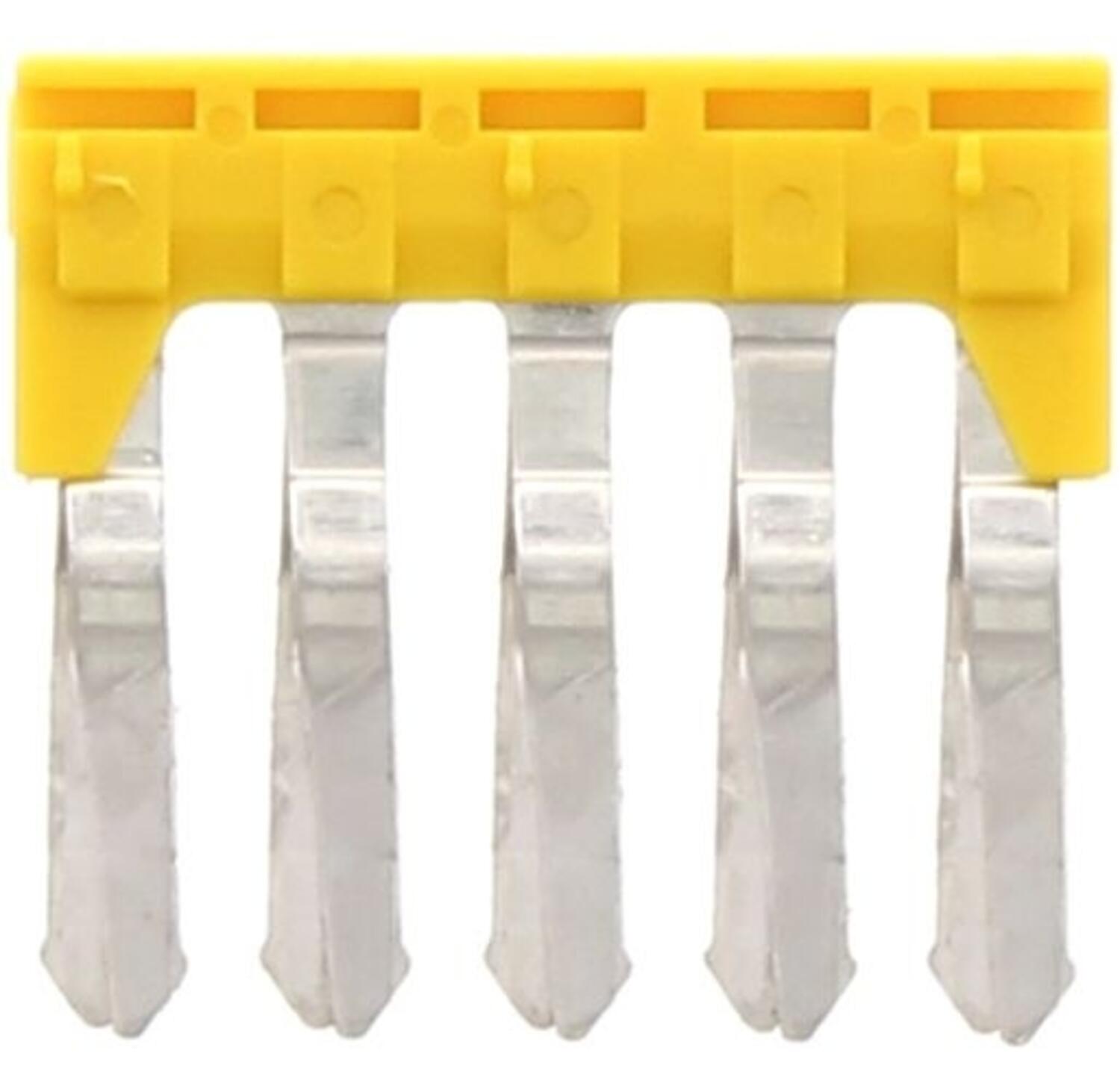

Five-pole connection connector with yellow plastic part and metal pins, ideal for electrical connections.
FIQI 2,5-4/5 YE
Art:
17405.8 Copied
Yellow
Bronze
Polyamide 6.6
105 °C
-40 °C
UL94-V2
5
Push in
5.1 mm
3.4 mm
24.9 mm
85369010
20
3 g
DE
Terminal block with five metal contacts and yellow plastic base, ideal for electrical connections.

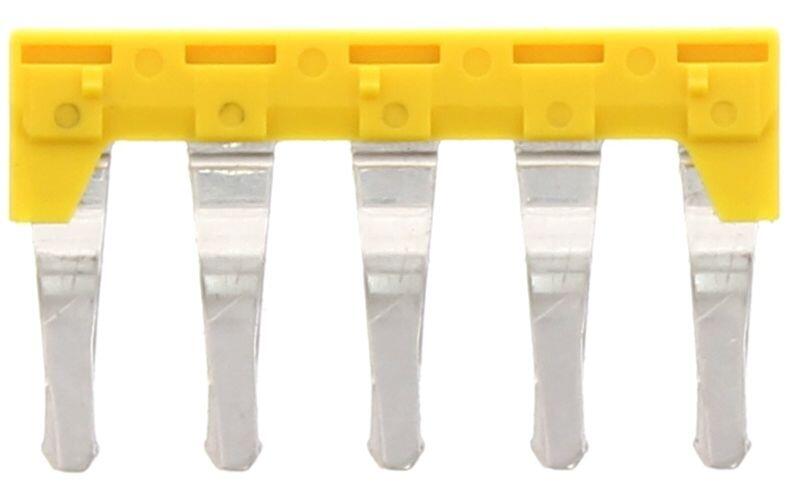

FIQI 6-10/5 YE
Art:
17415.8 Copied
Yellow
Copper alloy
Polyamide 6.6
105 °C
-40 °C
UL94-V2
5
Push in
8.1 mm
3.4 mm
38.1 mm
85369010
20
6 g
DE

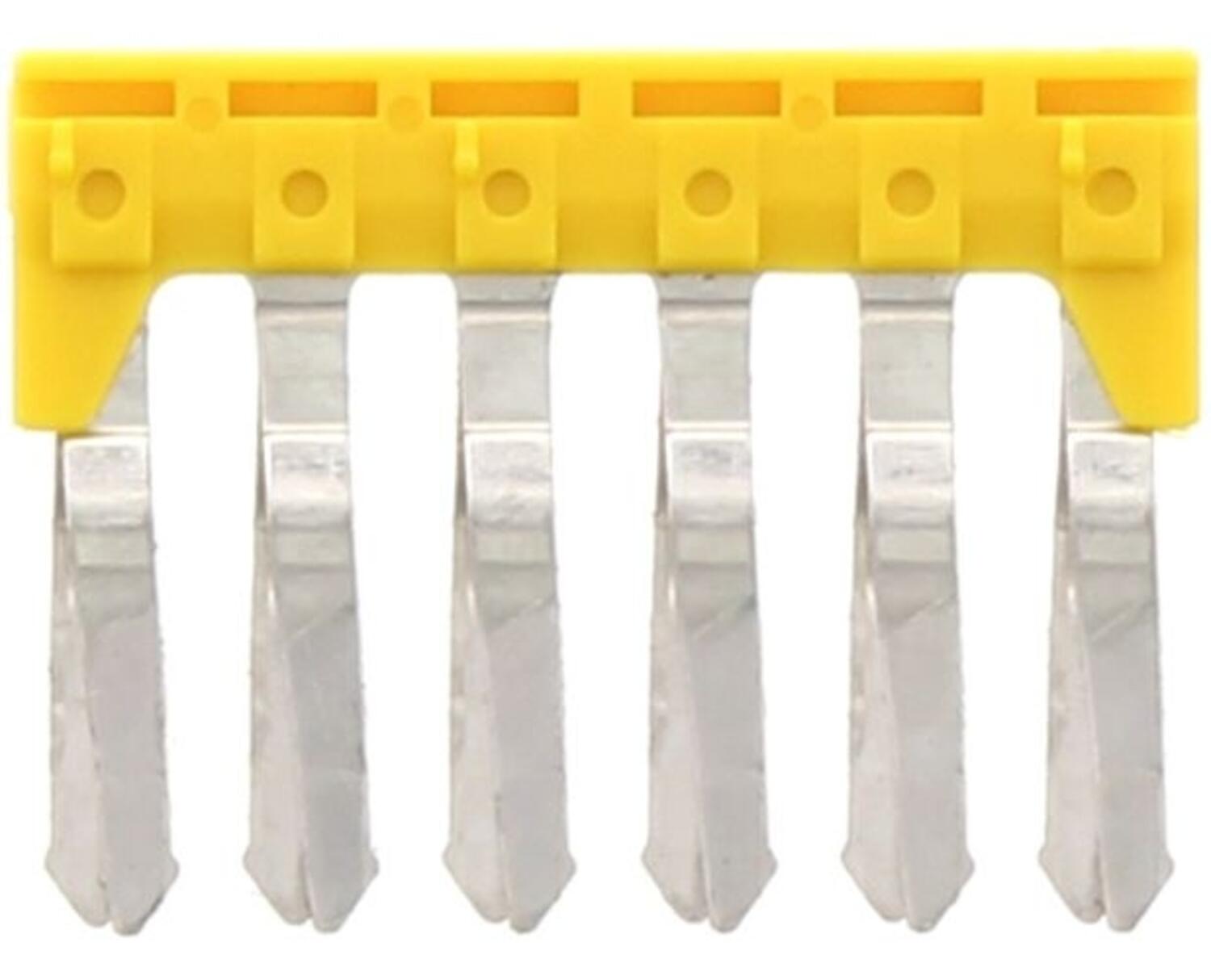

Terminal block with six metal contacts and yellow plastic base
FIQI 2,5-4/6 YE
Art:
17406.8 Copied
Yellow
Bronze
Polyamide 6.6
105 °C
-40 °C
UL94-V2
6
Push in
5.1 mm
3.4 mm
30 mm
85369010
20
3.5 g
DE
Connection connector with yellow plastic part and five metal pins for electrical connections

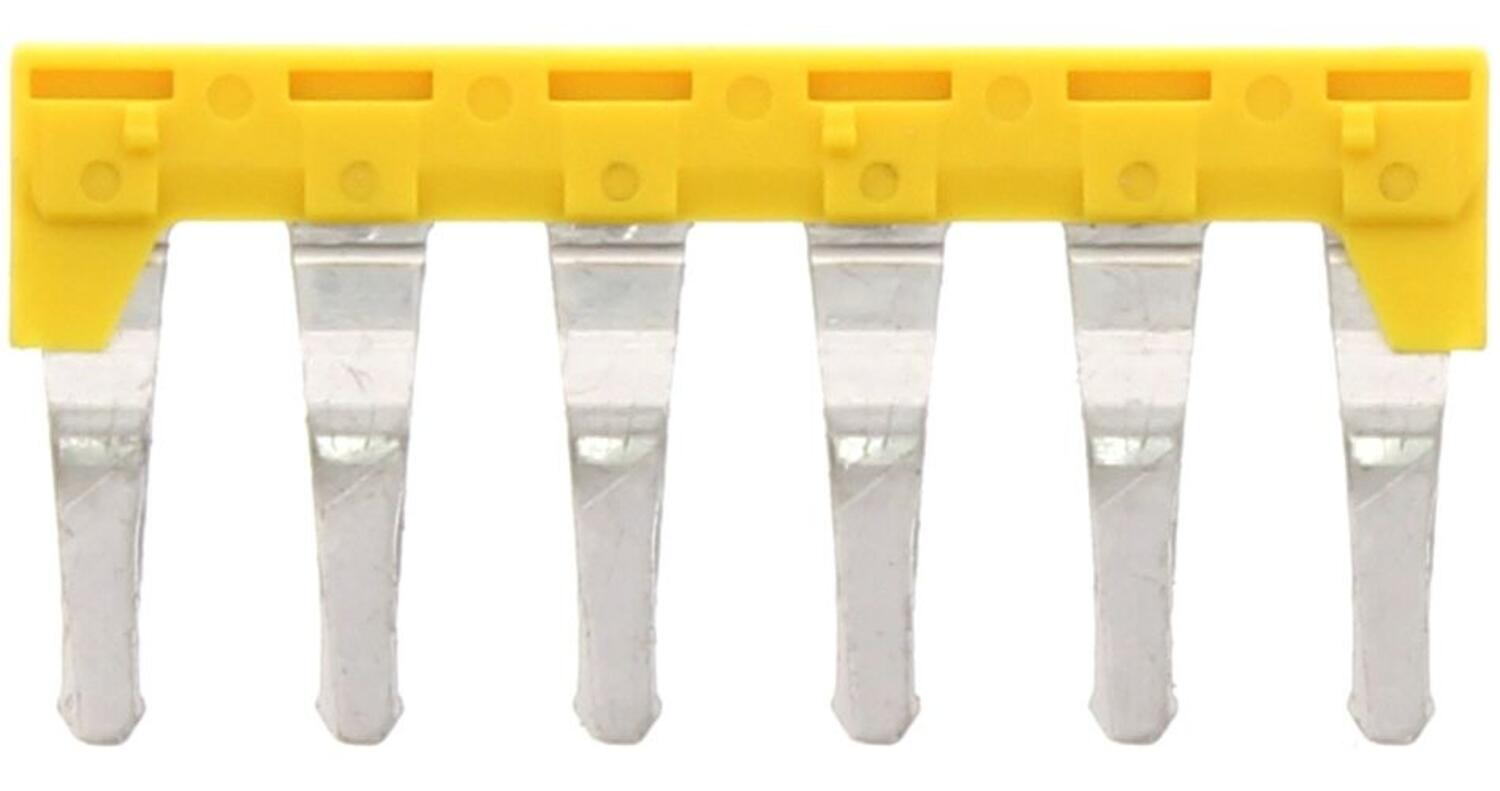

FIQI 6-10/6 YE
Art:
17416.8 Copied
Yellow
Copper alloy
Polyamide 6.6
105 °C
-40 °C
UL94-V2
6
Push in
8.1 mm
3.4 mm
46.2 mm
85369010
20
7 g
DE
Terminal block with yellow contacts and six metal blades for electrical connections

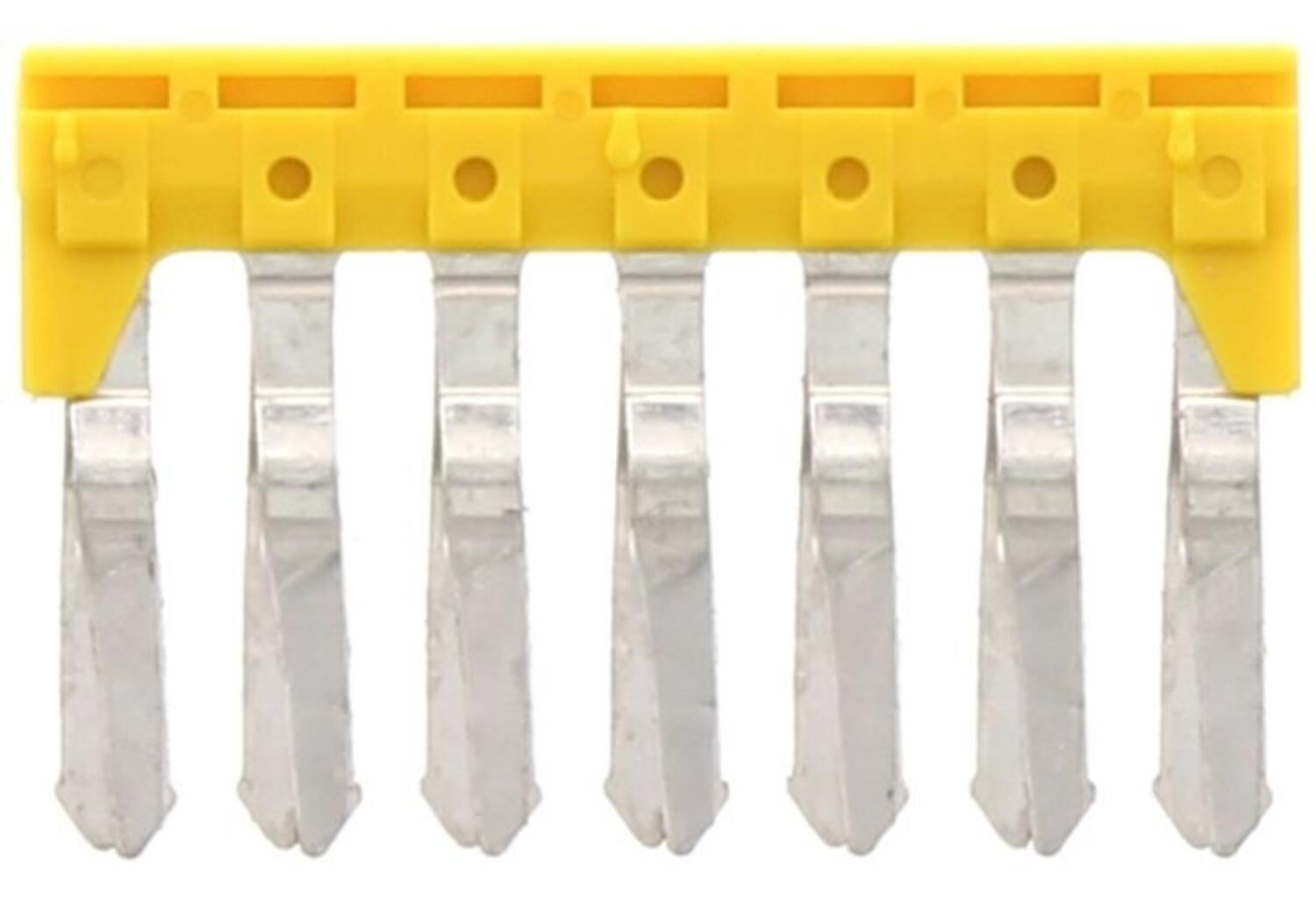

FIQI 2,5-4/7 YE
Art:
17407.8 Copied
Yellow
Bronze
Polyamide 6.6
105 °C
-40 °C
UL94-V2
7
Push in
5.1 mm
3.4 mm
35.1 mm
85369010
20
4 g
DE
Connection connector with yellow plastic part and six metal pins for electrical connections

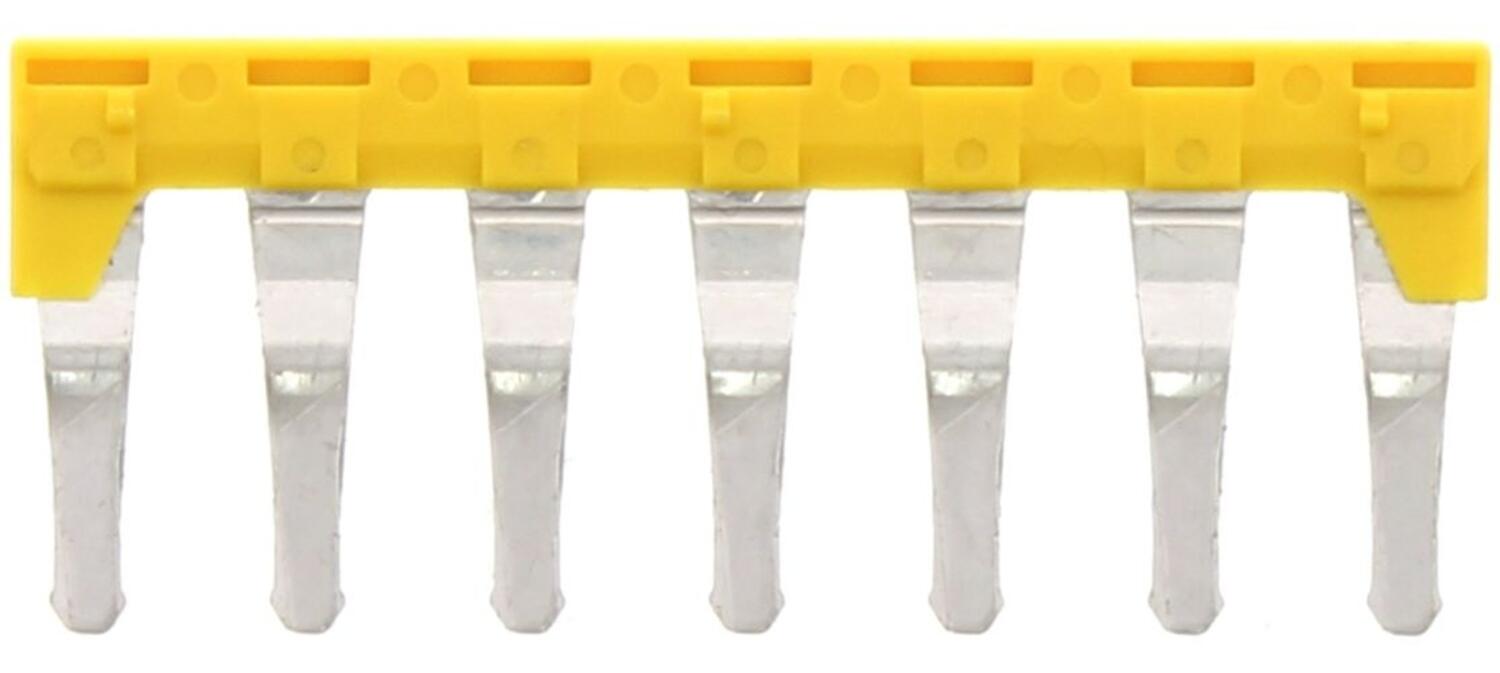

FIQI 6-10/7 YE
Art:
17417.8 Copied
Yellow
Copper alloy
Polyamide 6.6
105 °C
-40 °C
UL94-V2
7
Push in
8.1 mm
3.4 mm
54.3 mm
85369010
20
8 g
DE

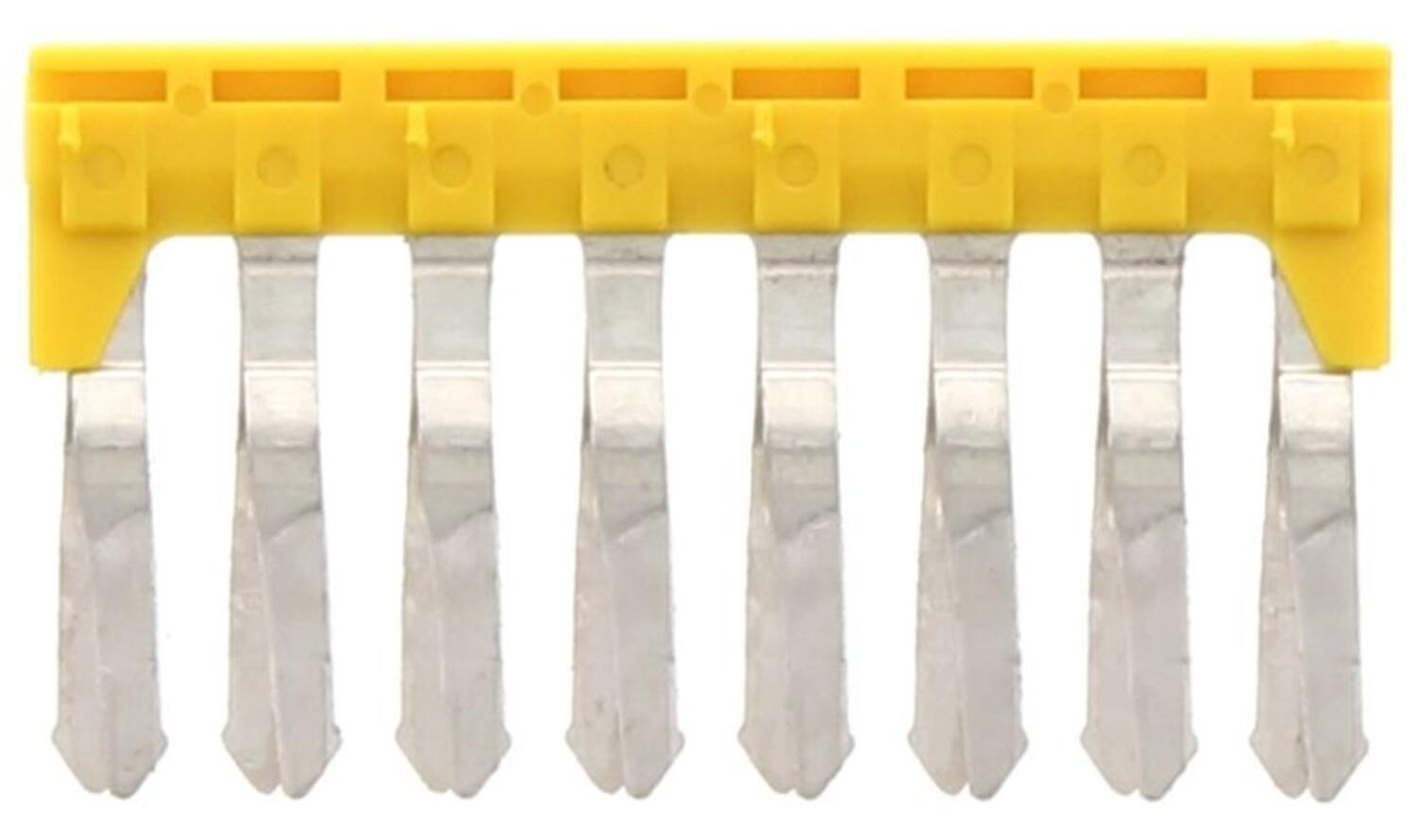

Connection connector with yellow plastic base and eight metal pins for electrical connections
FIQI 2,5-4/8 YE
Art:
17408.8 Copied
Yellow
Bronze
Polyamide 6.6
105 °C
-40 °C
UL94-V2
8
Push in
5.1 mm
3.4 mm
40.2 mm
85369010
10
4.5 g
DE
Yellow connector with eight metal pins for electrical connections, ideal for industrial use.

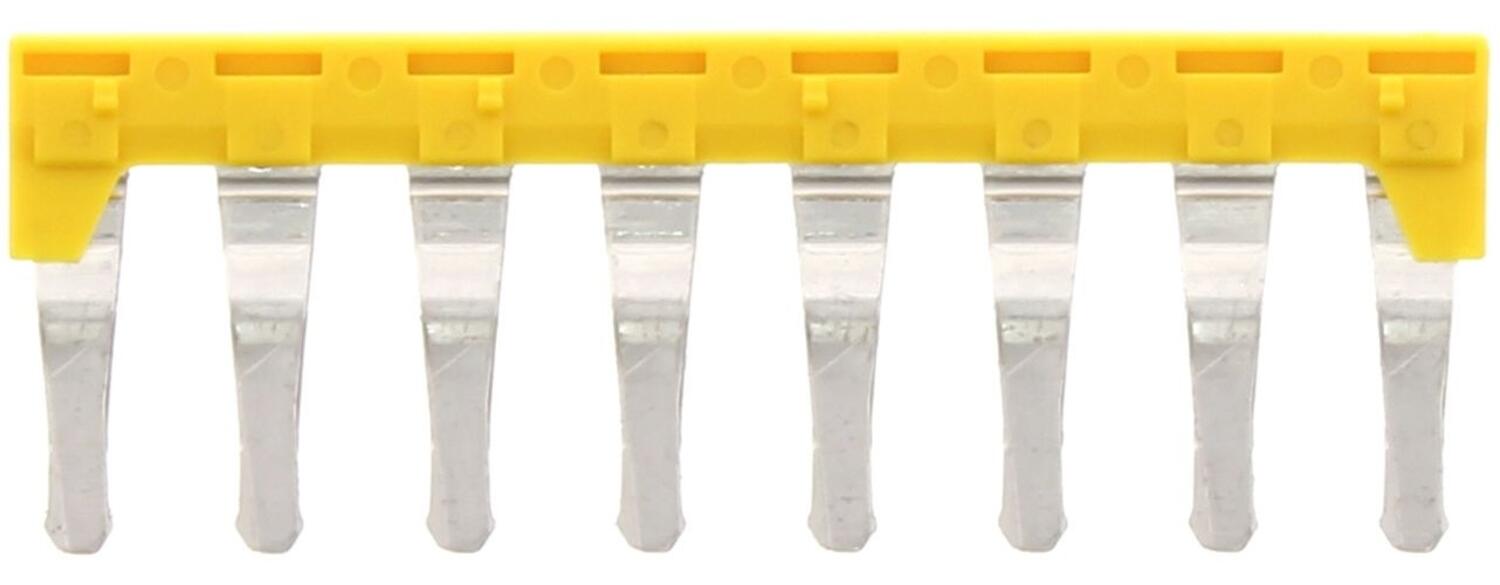

FIQI 6-10/8 YE
Art:
17418.8 Copied
Yellow
Copper alloy
Polyamide 6.6
105 °C
-40 °C
UL94-V2
8
Push in
8.1 mm
3.4 mm
62.4 mm
85369010
10
9 g
DE
Connection connector with yellow plastic base and eight metal pins for electrical connections
FIQI 2,5-4/9 YE
Art:
17409.8 Copied
Yellow
Bronze
Polyamide 6.6
105 °C
-40 °C
UL94-V2
9
Push in
5.1 mm
3.4 mm
45.3 mm
85369010
10
5 g
DE

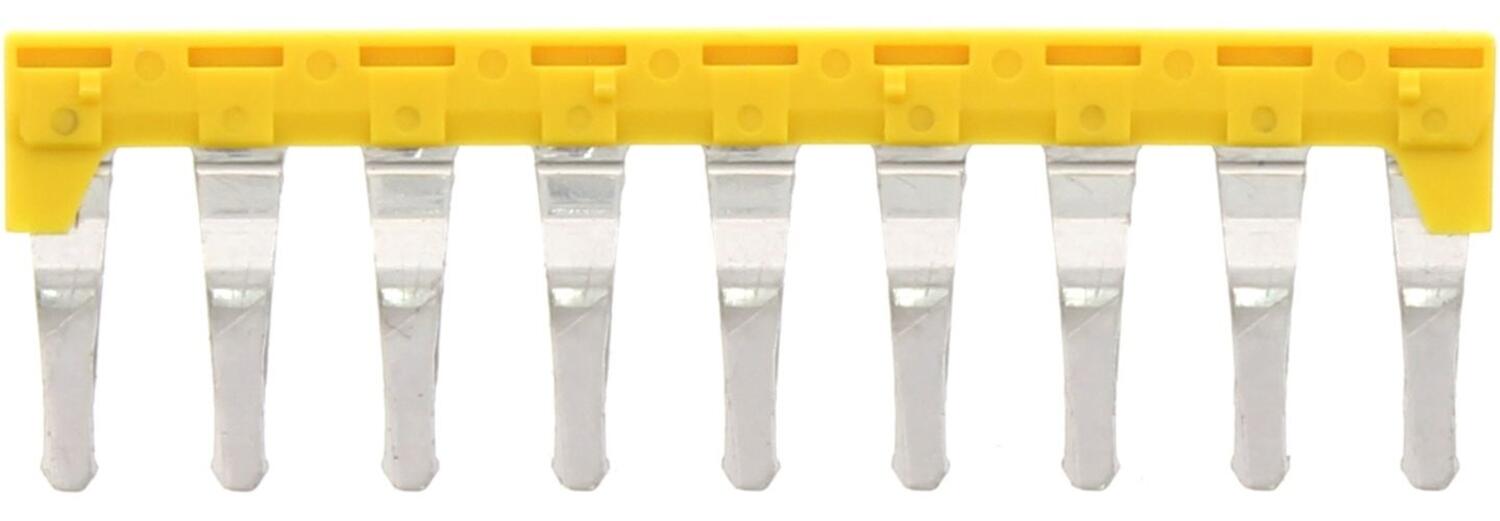

Yellow connector with metal pins for electrical connections, ideal for B2B applications.
FIQI 6-10/9 YE
Art:
17419.8 Copied
Yellow
Copper alloy
Polyamide 6.6
105 °C
-40 °C
UL94-V2
9
Push in
8.1 mm
3.4 mm
70.5 mm
85369010
10
10 g
DE
Connection part with eight metal contacts and yellow plastic base, ideal for electrical connections.

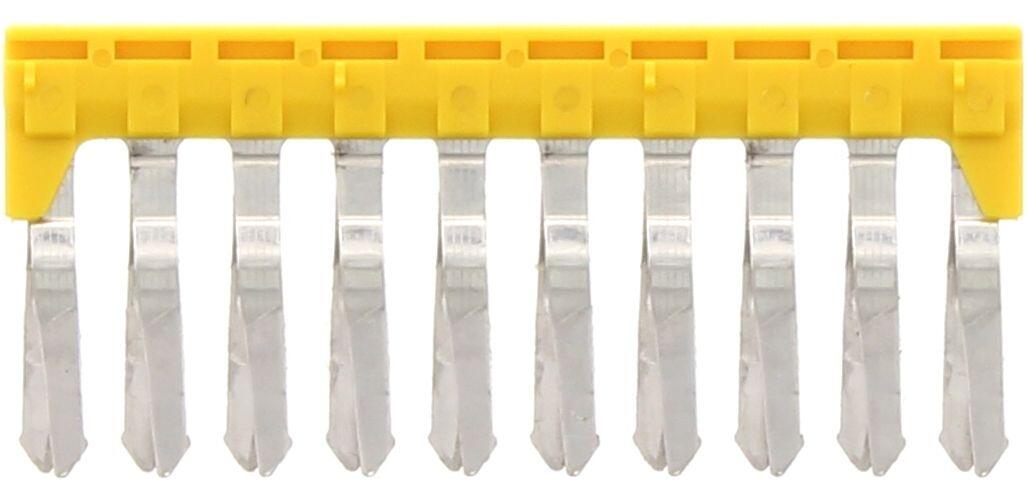

FIQI 2,5-4/10 YE
Art:
17400.8 Copied
Yellow
Bronze
Polyamide 6.6
105 °C
-40 °C
UL94-V2
10
Push in
5.1 mm
3.4 mm
50.4 mm
85369010
10
5.6 g
DE

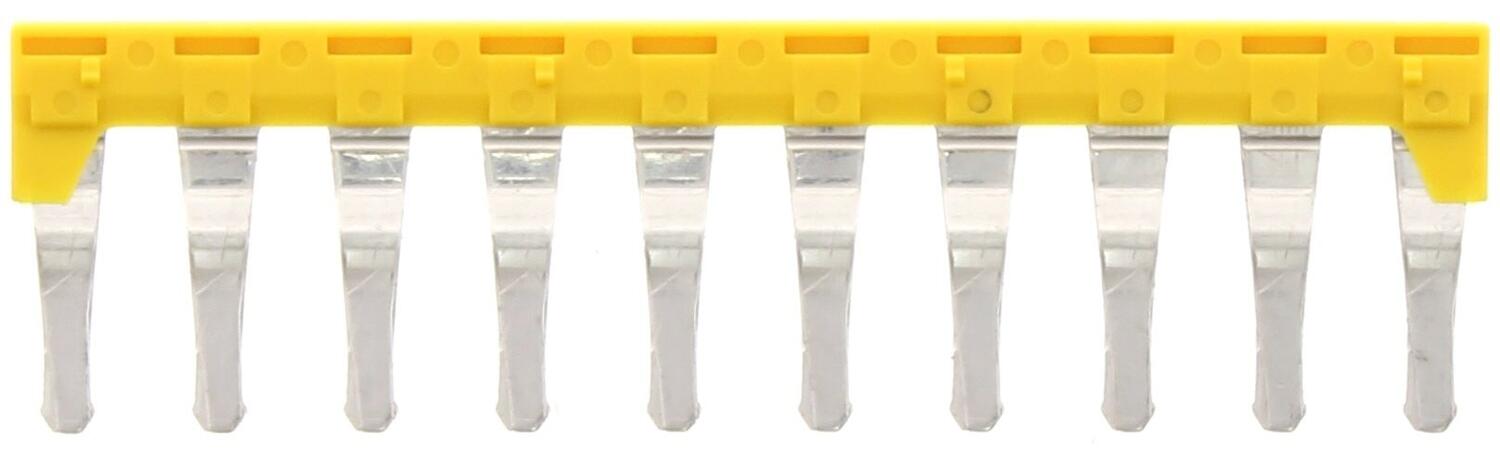

Terminal block with yellow plastic and metal contacts, ideal for electrical connections.
FIQI 6-10/10 YE
Art:
17410.8 Copied
Yellow
Copper alloy
Polyamide 6.6
105 °C
-40 °C
UL94-V2
10
Push in
8.1 mm
3.4 mm
78.6 mm
85369010
10
11 g
DE

Selected variant

Select a variant in the list

Contact us
Please contact us for more information.
Send e-mail
Do you need help?
