CONTA-CLIP

End stops - TS35/TS32 & TS15

TS 15, TS 32, TS35

  • Compact & heavy duty versions
  • Material polyamide 6.6
  • Snap on or Screw mounting

Selected variant


Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

Color Beige
Material Polyamide 6.6
Operating temperature to 105 °C
Operating temperature from -40 °C
Flamklass UL94-V2
Mounting TS 35/7,5
Length 45.5 mm
Width 7.5 mm
Height 31 mm
Tariff code 85389099
Pack Size 50
Weight 4.7 g
Country of origin DE

Downloads

Accessories

Add product as a new cart row

You already added this product. Choose whether to increase quantity on the existing row or add the product as a new row.

Related

TER - control stations
Product news

Quality solutions for motion controls

TER - Tecno Elettrica Ravasi, is our Italian supplier specializing in the manufacture of control stations. TER has over 60 years of experience in the manufacture of control stations.

Stego Loop Heater lämmityselementit
Product news

LOOP Heater for optimal heat distribution

Thanks to their loop design, LOOP heating elements offer excellent heating performance and ensure optimal heat distribution. Read more now!

PISA-M
Product news

Compact electronic overcurrent protection PISA-M

PISA-M is a 4-channel electronic fuse for 12 and 24 V DC systems. The smallest 4-channel electronic fuse with a width of only 22.5 mm!

Delcon relays
Product news

An effective solution Delcon CRA5

Delcon's CRA5 plug-in relay revolutionizes the control of difficult-to-handle DC loads. Inductive loads, frequent switching, and high DC voltages are a piece of cake for these relays.

LOCC-Box Mini
Product news

LOCC-Box Mini

The Lütze LOCC-Box is an intelligent electronic overcurrent protection device that provides reliable protection for 12/24 V DC systems in a narrow housing measuring just 8.1 mm. Integrated + and - terminals save space on the DIN rail.

DF Electric
Product news

DF Electric – new supplier for fuse solutions

DF Electric is specialized in the manufacturing of fuse links, fuse holders and control transformers since 1987. Presently the company is leading the Spanish market and is also very active in many export markets due to its competitive range of products.

Articles Color Material Central Material Operating temperature to Operating temperature from Flamklass Mounting Length Width Height Tariff code Pack Size Weight Country of origin Diameter Of Hole

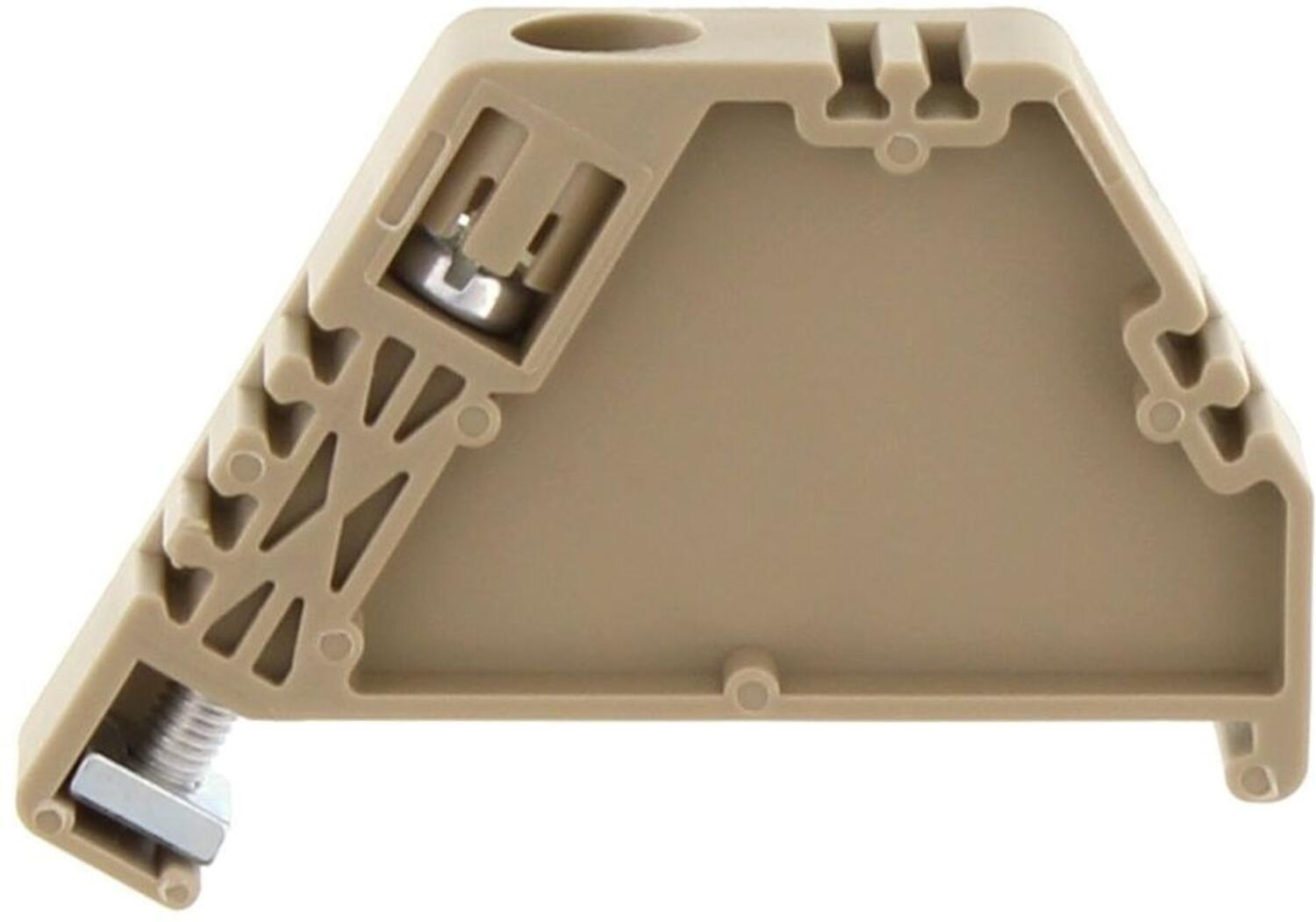

Construction element in beige plastic with integrated screw for mounting
ES 35 Beige, Compact TS35 screw end stop
Art:
2005.2 Copied
Beige
Polyamide 6.6
105 °C
-40 °C
UL94-V2
TS 35/7,5
45.5 mm
7.5 mm
31 mm
85389099
50
4.7 g
DE

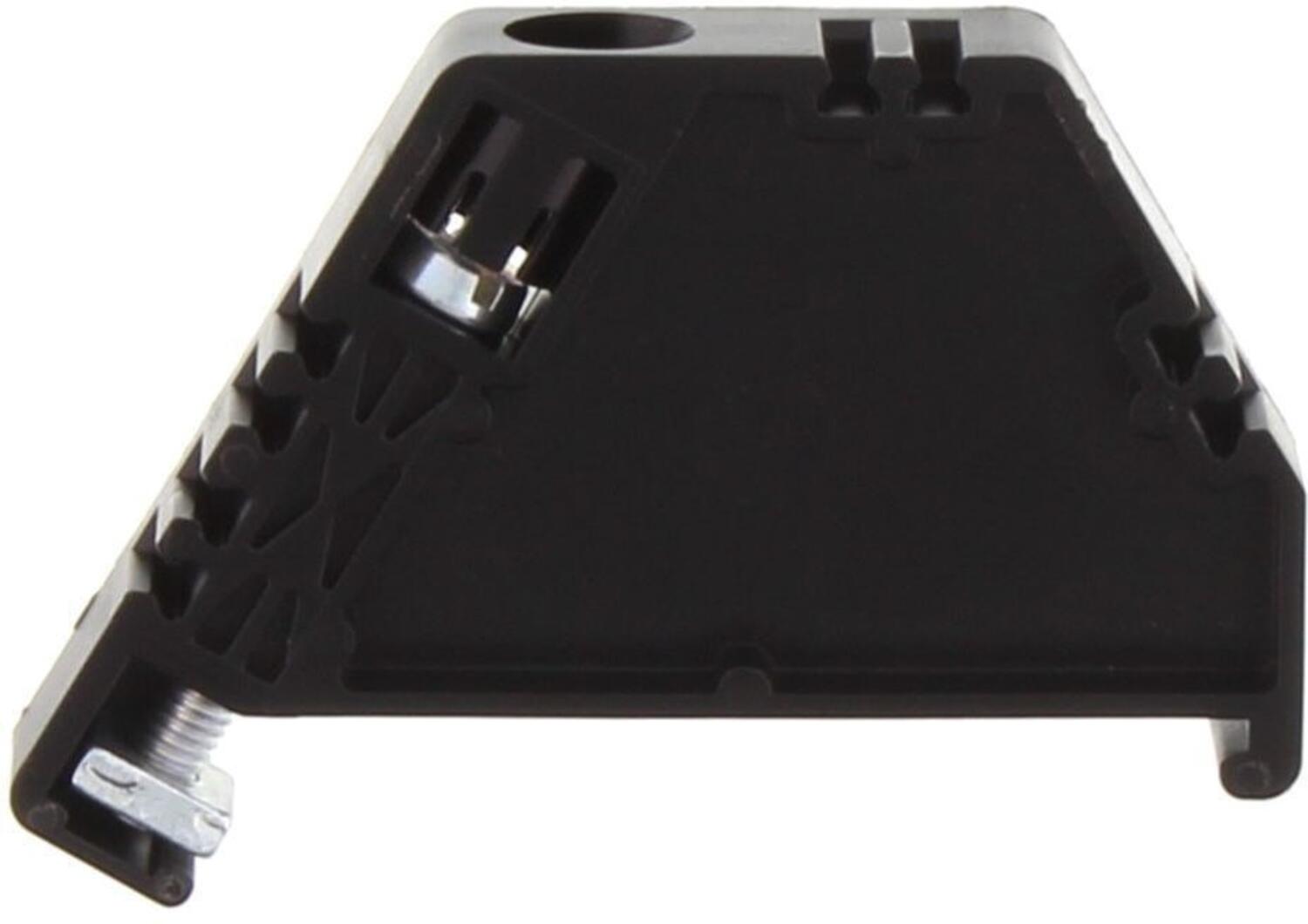

Black plastic bracket with metal components, designed for stable mounting of equipment.
ES 35 - Black, Compact TS35 screw end stop
Art:
2005.4 Copied
Black
Polyamide 6.6
105 °C
-40 °C
UL94-V2
TS 35/7,5
45.5 mm
7.5 mm
31 mm
85389099
50
4.7 g
DE

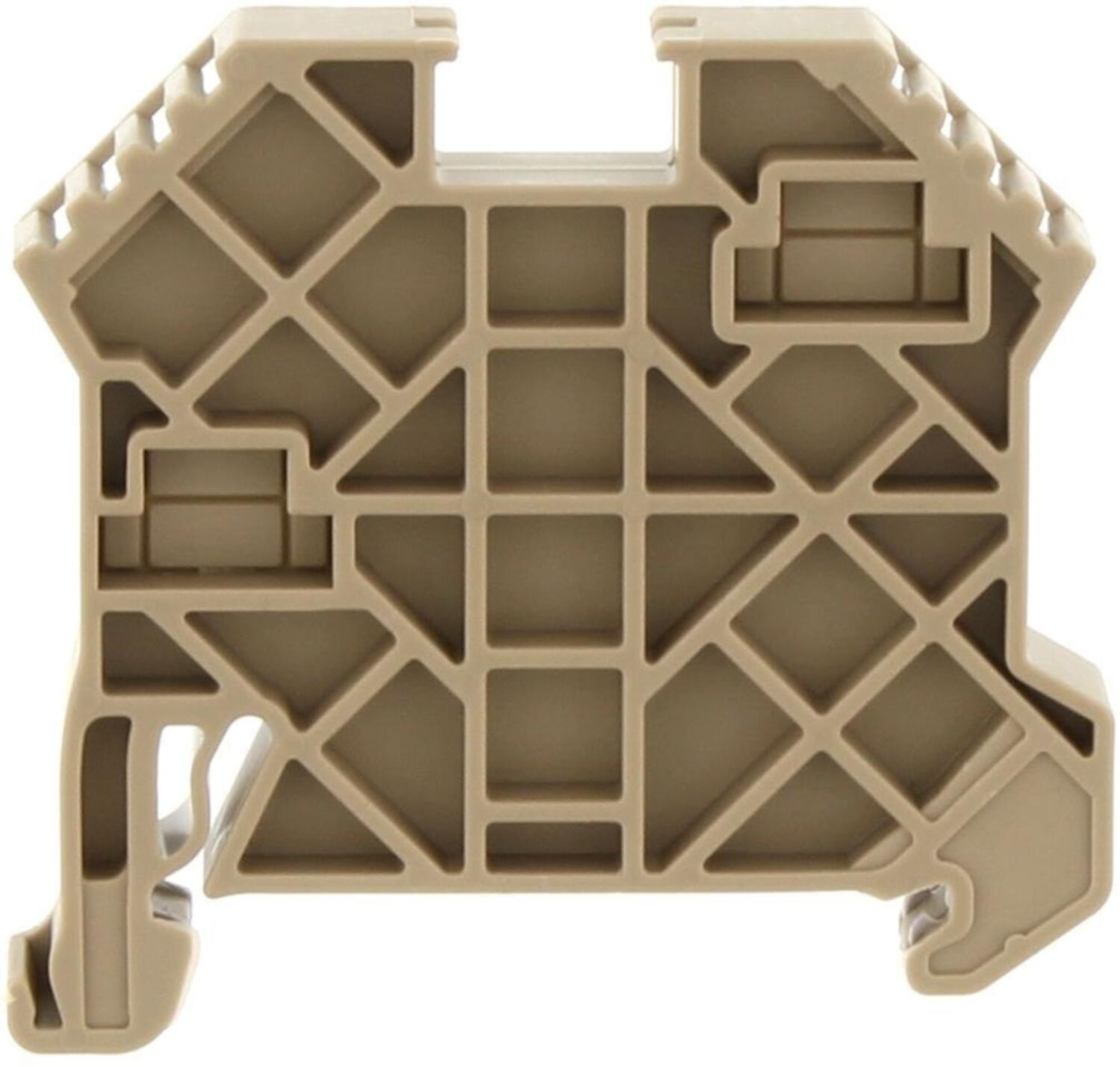

Terminal block in beige plastic with textured surface and mounting bracket for easy installation
SES 35 - Beige, Snap on TS35 heavy duty end stop (SRK Profile)
Art:
17250.2 Copied
Beige
Polyamide 6.6
105 °C
-40 °C
UL94-V2
TS 35/7,5
98 mm
8 mm
47.1 mm
85389099
50
7.95 g
DE

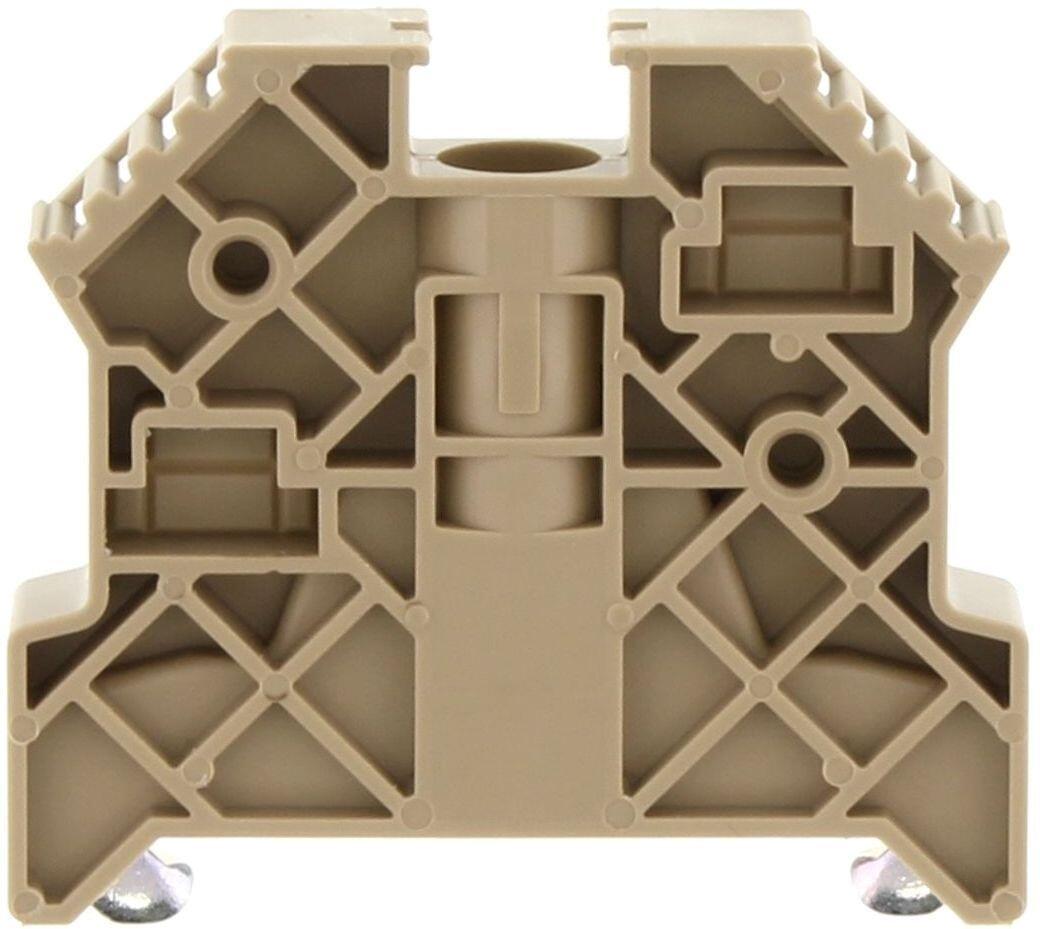

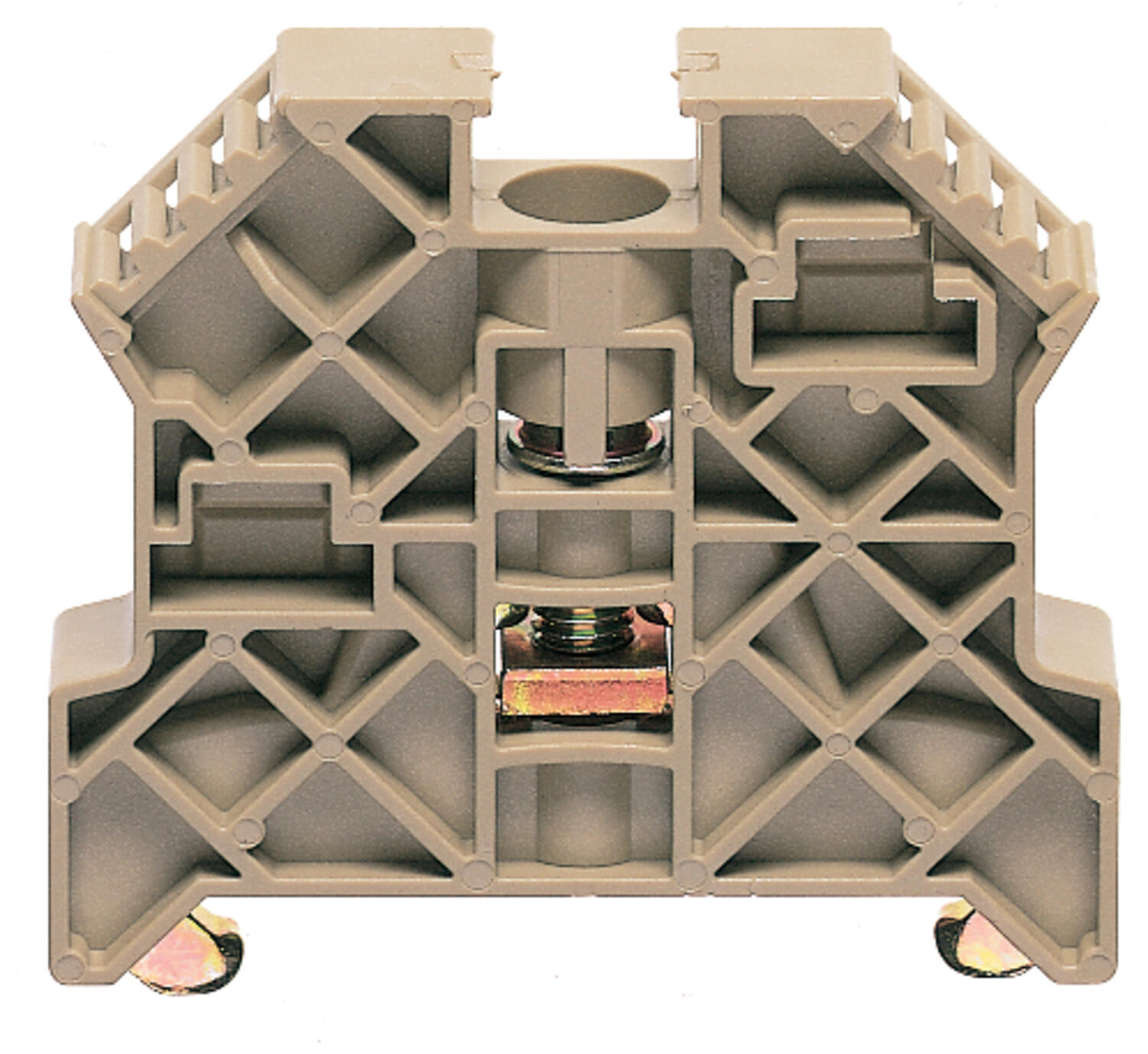

Connection block in beige plastic with detailed structure and mounting for installation
ES 35/K/ST - Beige, Heavy duty TS35 screw end stop
Art:
2828.0 Copied
Beige
Polyamide 6.6
105 °C
-40 °C
UL94-V2
TS 35/7,5
50 mm
9.5 mm
44 mm
85389099
50
20.8 g
DE

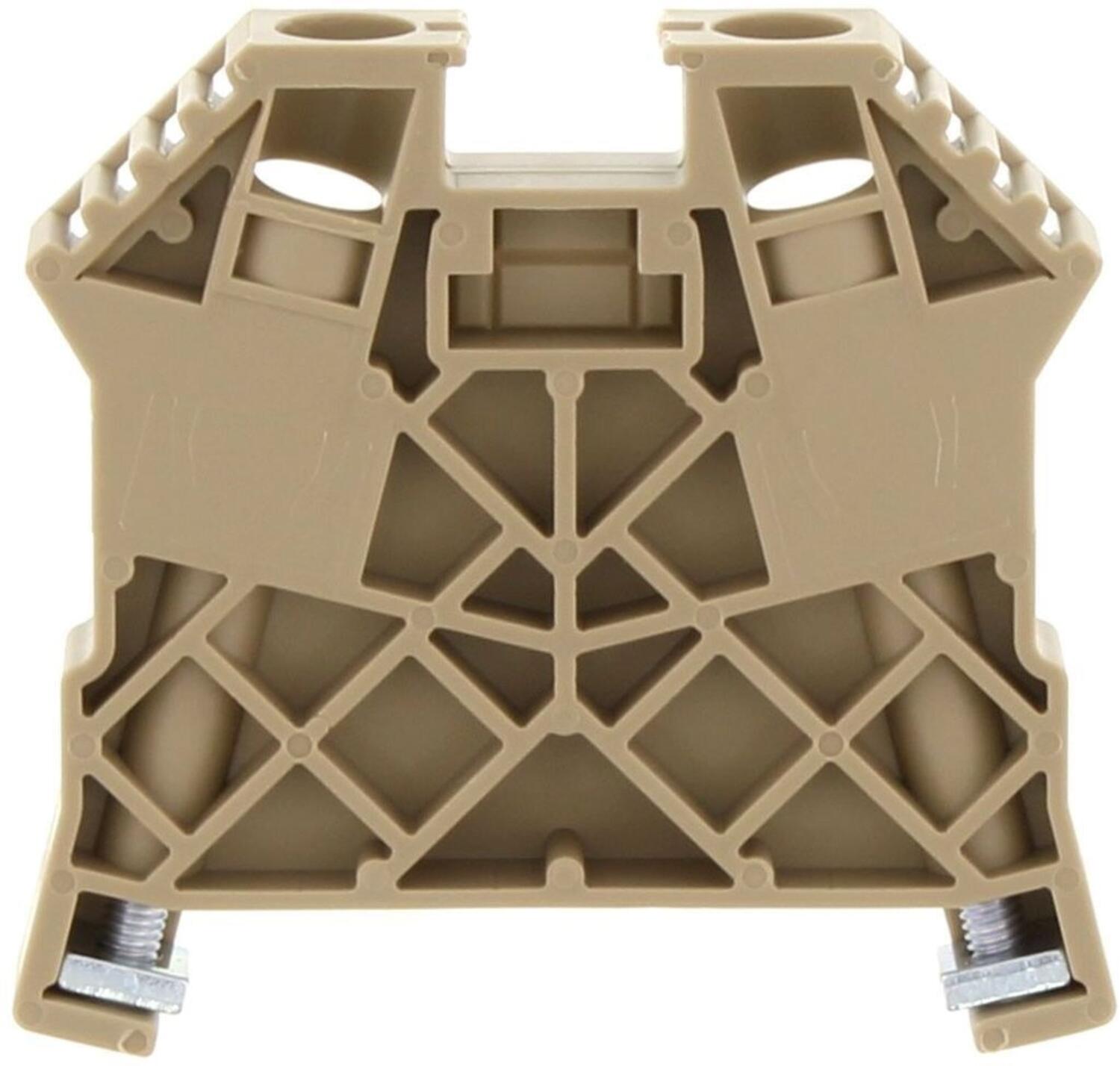

Terminal block in beige plastic with a stable structure and mounting elements, ideal for electrical installations.
ES 35/2/K Beige, Twin screw heavy duty end stop TS35
Art:
2826.2 Copied
Beige
Polyamide 6.6
105 °C
-40 °C
UL94-V2
TS 35/7,5
50 mm
8 mm
47 mm
85389099
50
10.9 g
DE

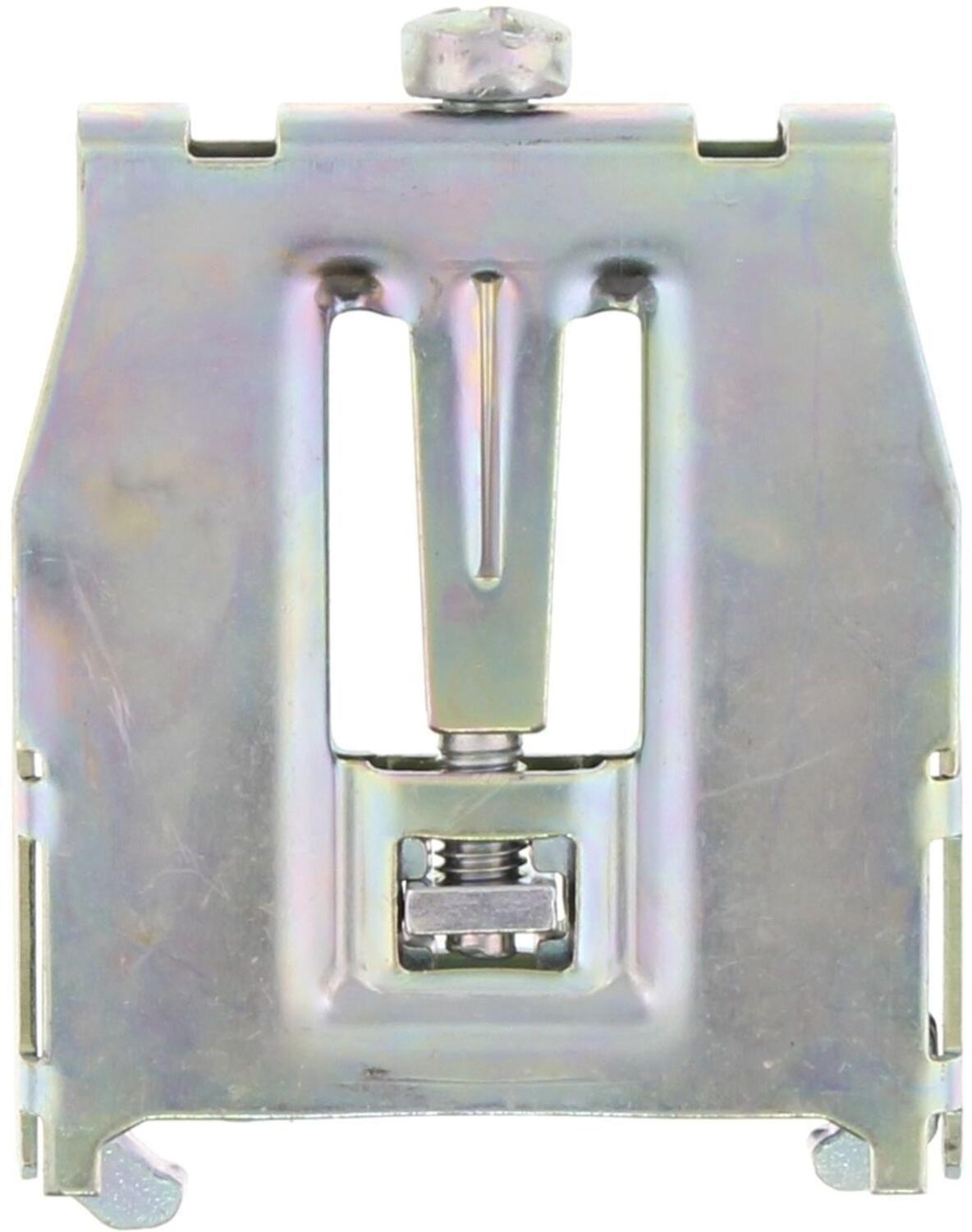

Metal mounting bracket, robust design with adjustable mechanism
HES 35/ST, Metal heavy duty TS35 screw end stop
Art:
2761.0 Copied
Steel
Galvanized
TS 35/7,5
49 mm
10 mm
64 mm
85389099
50
54.6 g
DE

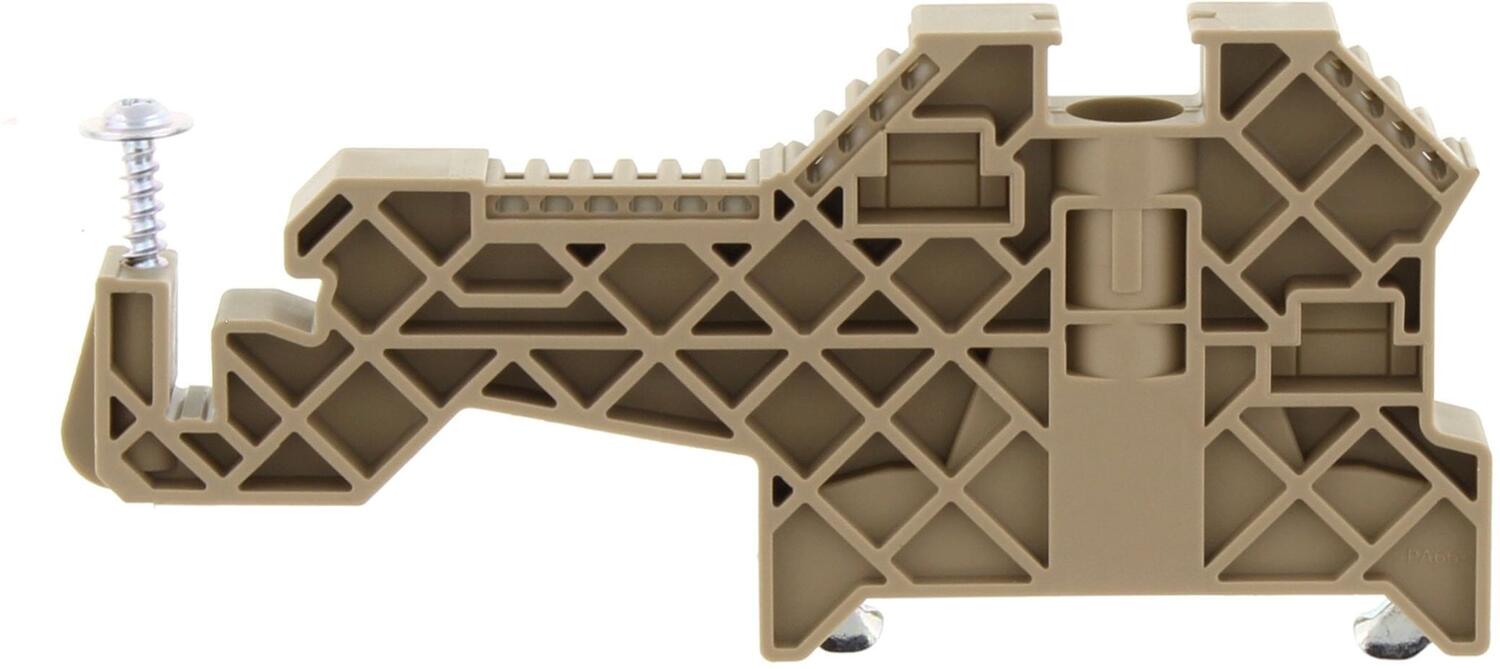

Plastic bracket with screw, designed for stable mounting and durability.
SH-SAB - Beige, Busbar support combined with end stop
Art:
1530.2 Copied
Beige
Polyamide 6.6
105 °C
-40 °C
UL94-V2
TS 35/7,5
50 mm
9.5 mm
44 mm
85389099
10
25.44 g
DE

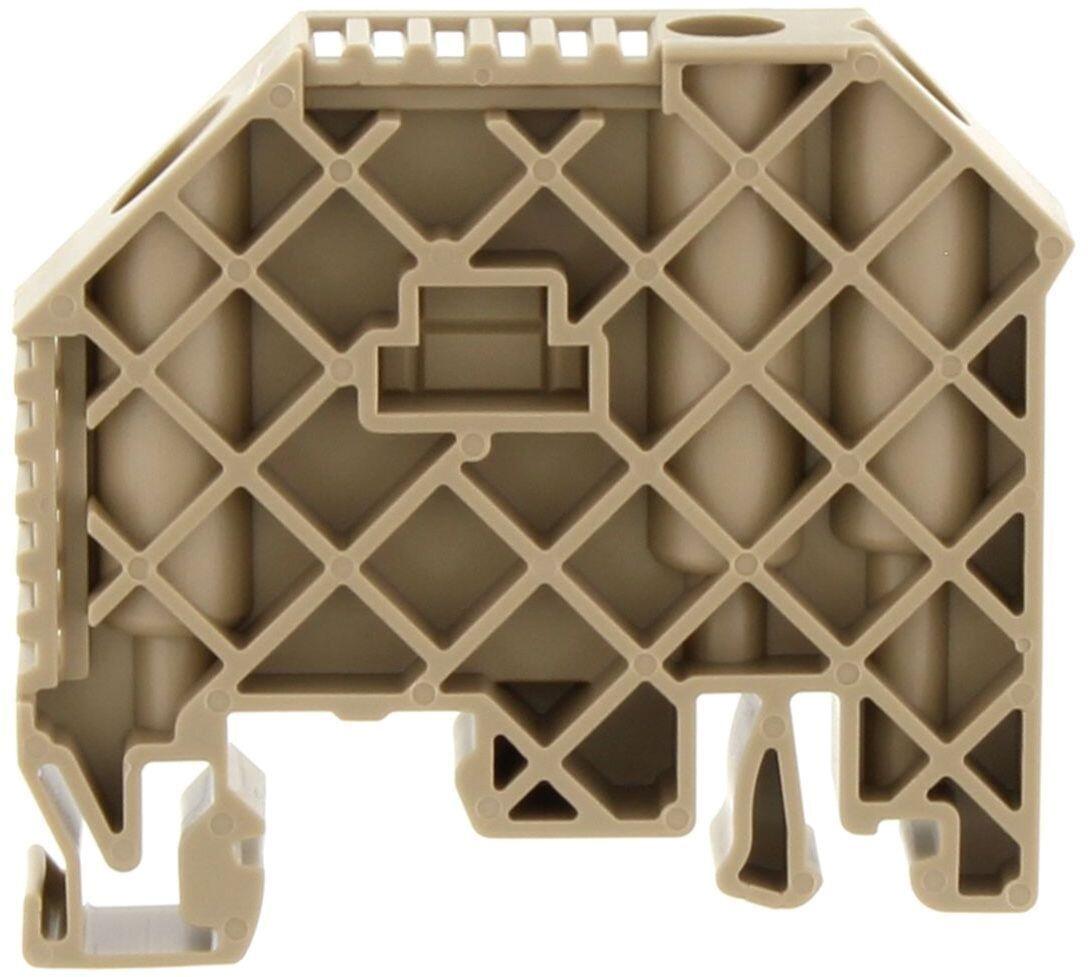

Compact plastic part with a grid pattern, designed for industrial use and durability.
ES 32/35 - Beige, Combi TS32/35 screw end stop
Art:
1424.2 Copied
Beige
Polyamide 6.6
105 °C
-40 °C
UL94-V2
TS 35/7,5 and TS 32
52 mm
9.5 mm
47 mm
85389099
50
11.52 g
DE

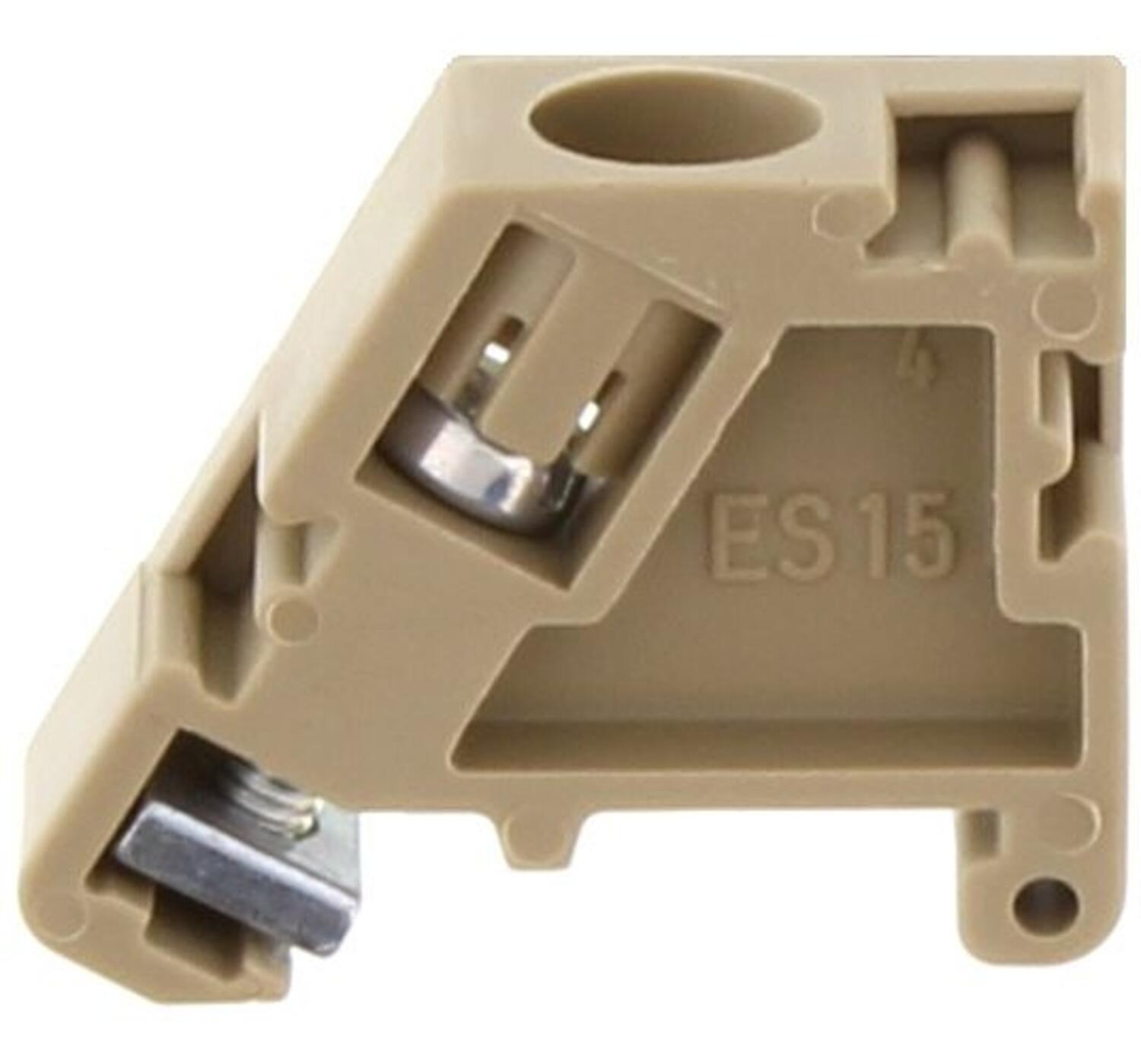

Terminal block ES15 in beige plastic for electrical installations
ES 15 - Beige, Compact TS15 screw end stop
Art:
2074.2 Copied
Beige
Polyamide 6.6
105 °C
-40 °C
UL94-V2
TS 15/5,5
26 mm
7.5 mm
22 mm
85389099
50
2.74 g
CZ

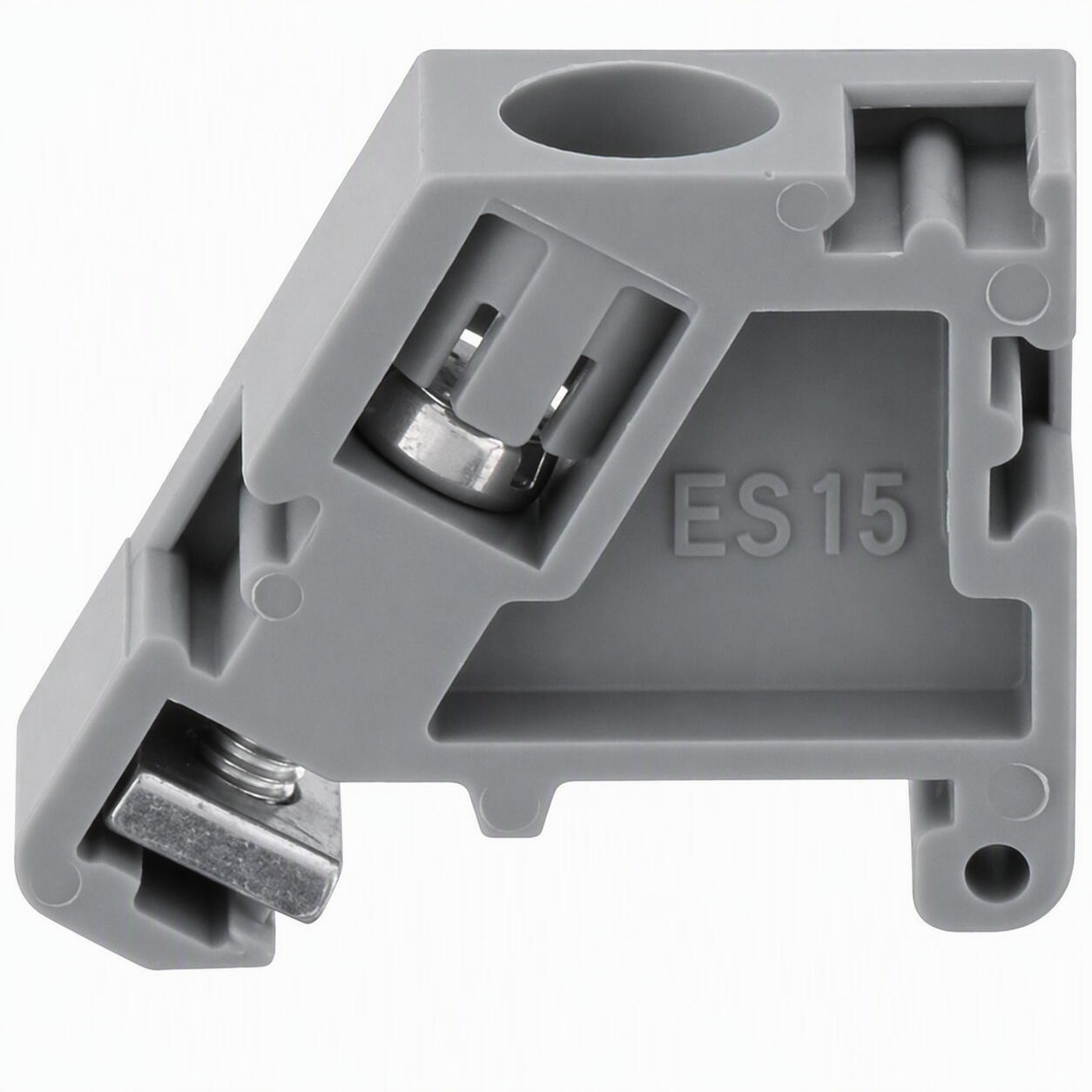

DIN rail end stop ES15 with a gray insulating housing and metal clamping components from CONTA-CLIP
ES15 GREY END STOP TS15
Art:
2074.6 Copied
Grey
Polyamide 6.6
105 °C
-40 °C
UL94-V2
TS 15/5,5
26 mm
7.5 mm
22 mm
85389099
50
2.74 g
CZ

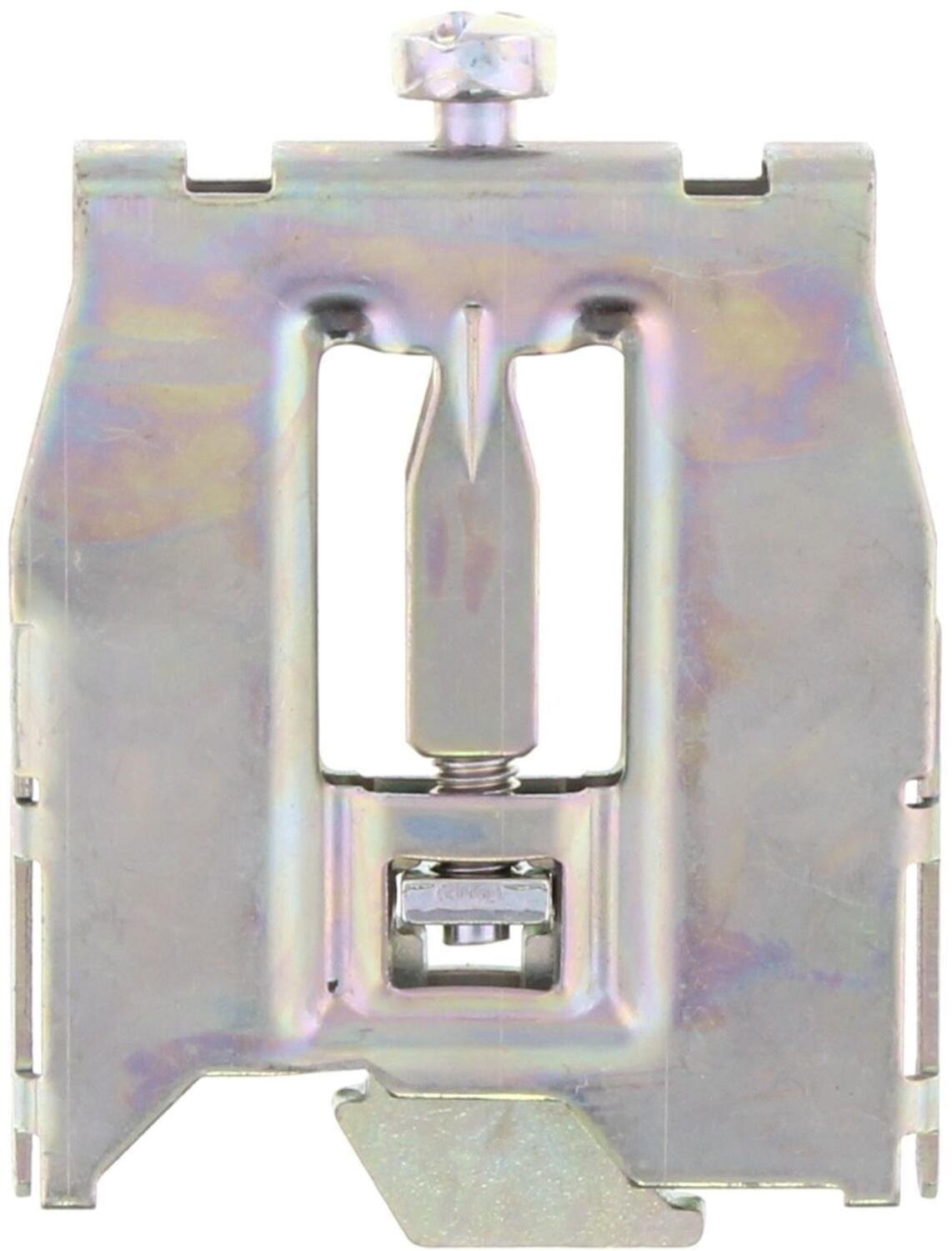

Metal mounting bracket, robust design with adjustable screw for secure installation
HES 32/ST - Metal TS32 screw end stop
Art:
2760.0 Copied
Steel
Galvanized
105 °C
-40 °C
TS 35/7,5
49 mm
10 mm
64 mm
85389099
50
54.6 g
DE
Component part in beige plastic with a grid pattern, designed for durability and functionality.

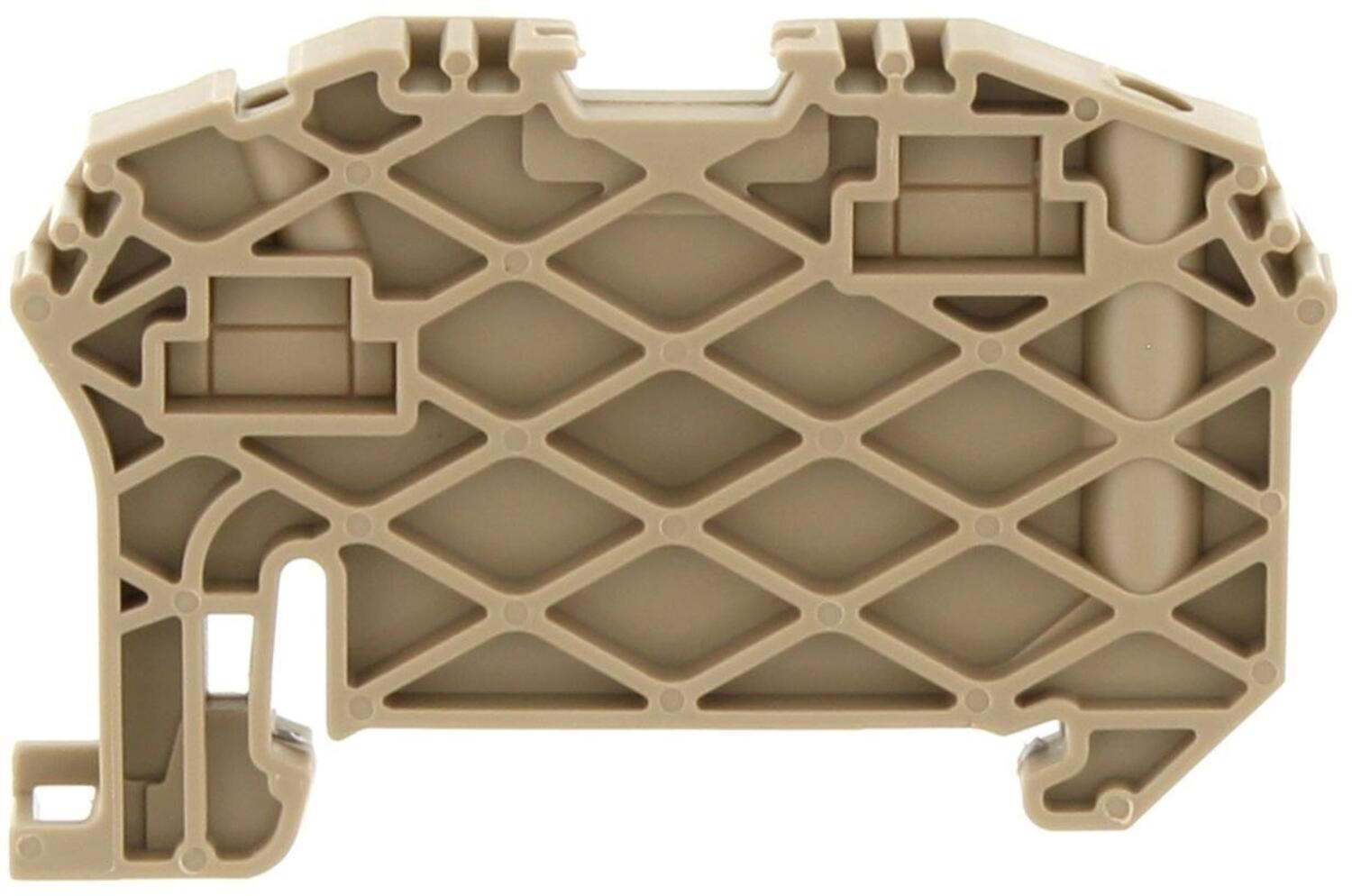

ZES 35 Beige, Snap on TS35 medium profile end stop
Art:
3748.2 Copied
Beige
Polyamide 6.6
105 °C
-40 °C
UL94-V2
TS 35/7,5
59 mm
6 mm
38.5 mm
85389099
50
6.14 g
DE

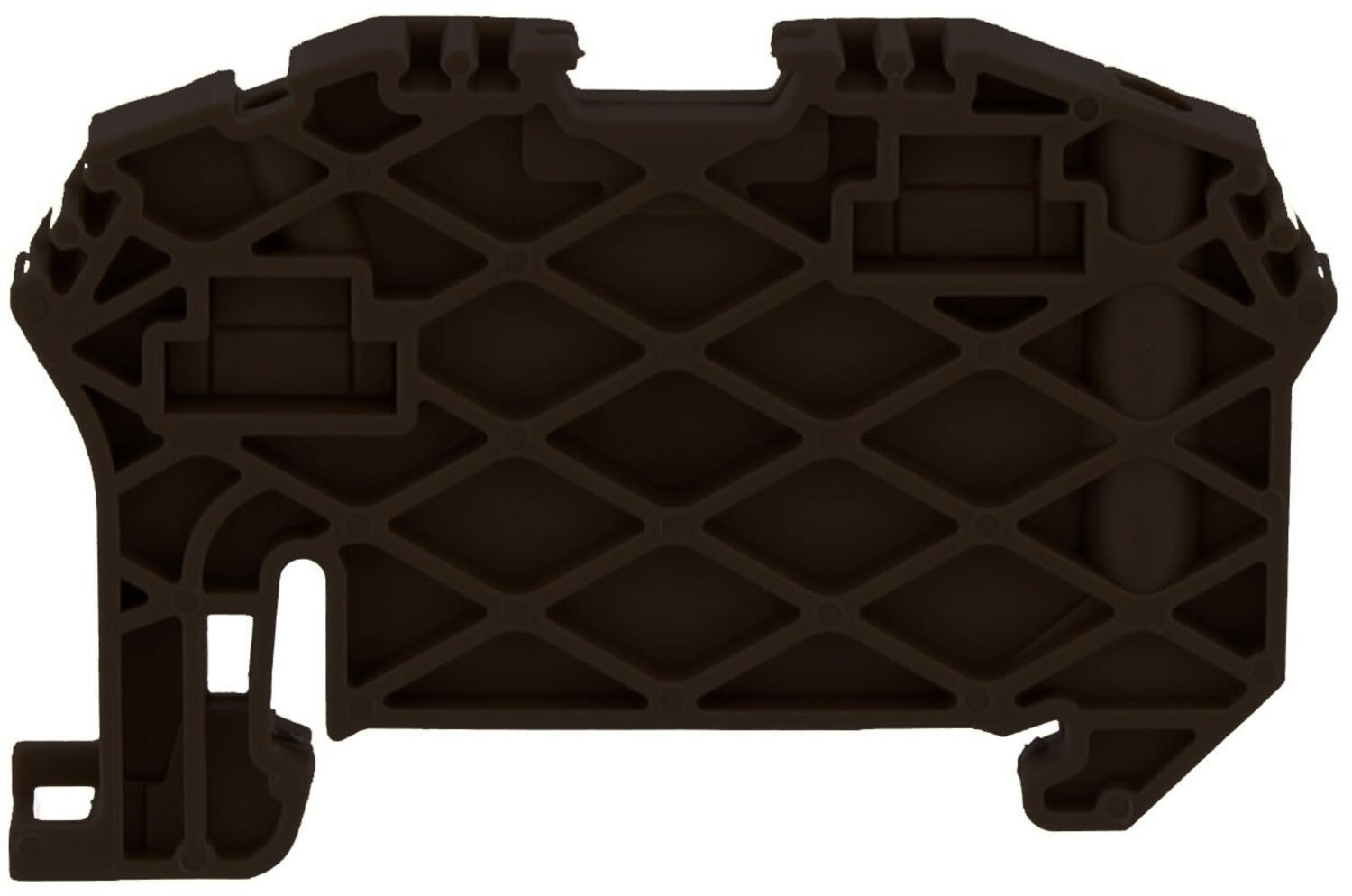

Product image of a black plastic component with a grid pattern, designed for industrial use.
ZES 35 - Black, Snap on TS35 medium profile end stop
Art:
3748.4 Copied
Black
Polyamide 6.6
105 °C
-40 °C
UL94-V2
TS 35/7,5
59 mm
6 mm
38.5 mm
85389099
50
6.14 g
DE

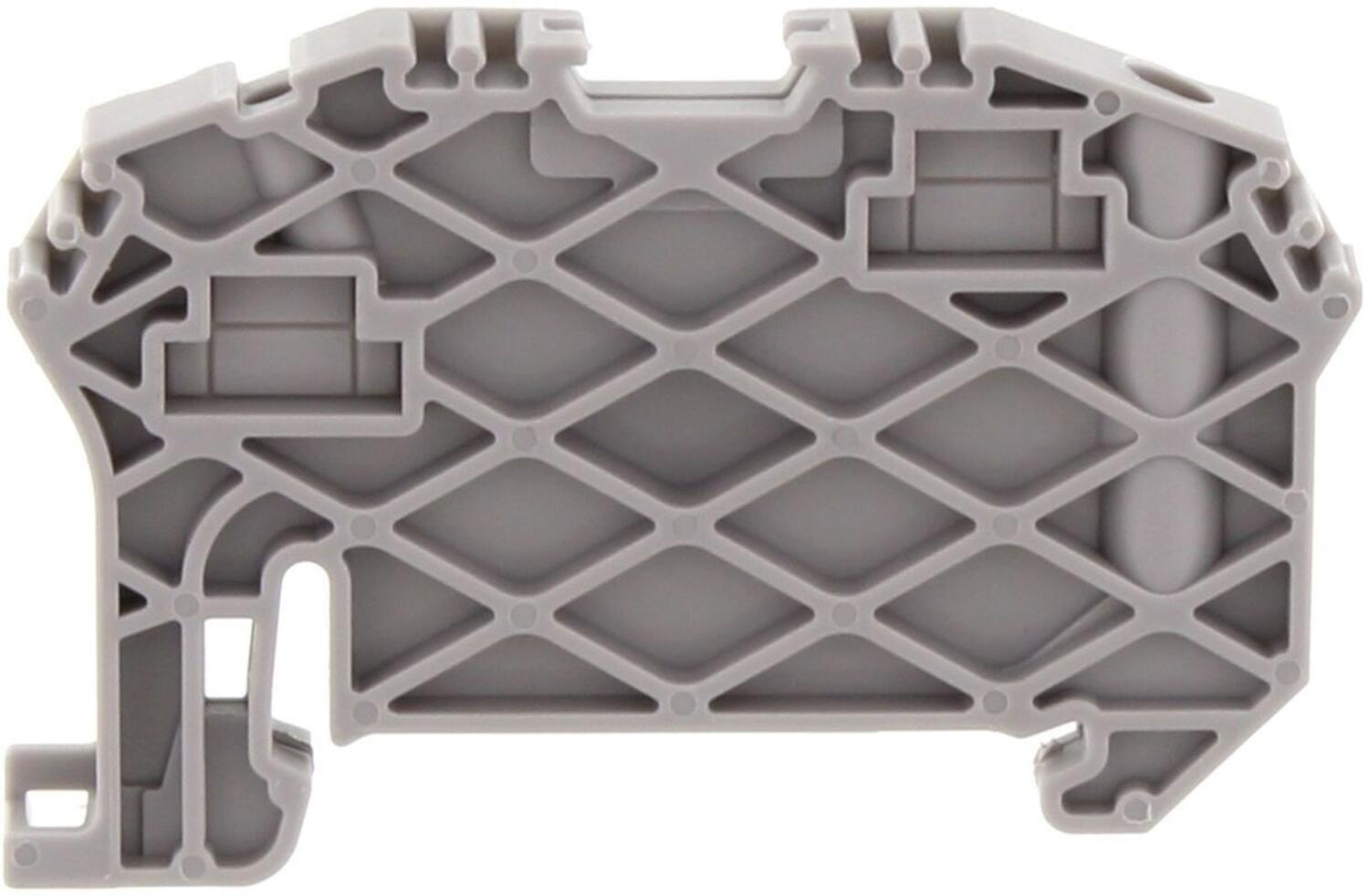

Gray plastic component with a grid pattern, designed for durability and functionality.
ZES 35 - Grey, Snap on TS35 medium profile end stop
Art:
3748.6 Copied
Grey
Polyamide 6.6
105 °C
-40 °C
UL94-V2
TS 35/7,5
59 mm
6 mm
38.5 mm
85389099
50
6.14 g
DE

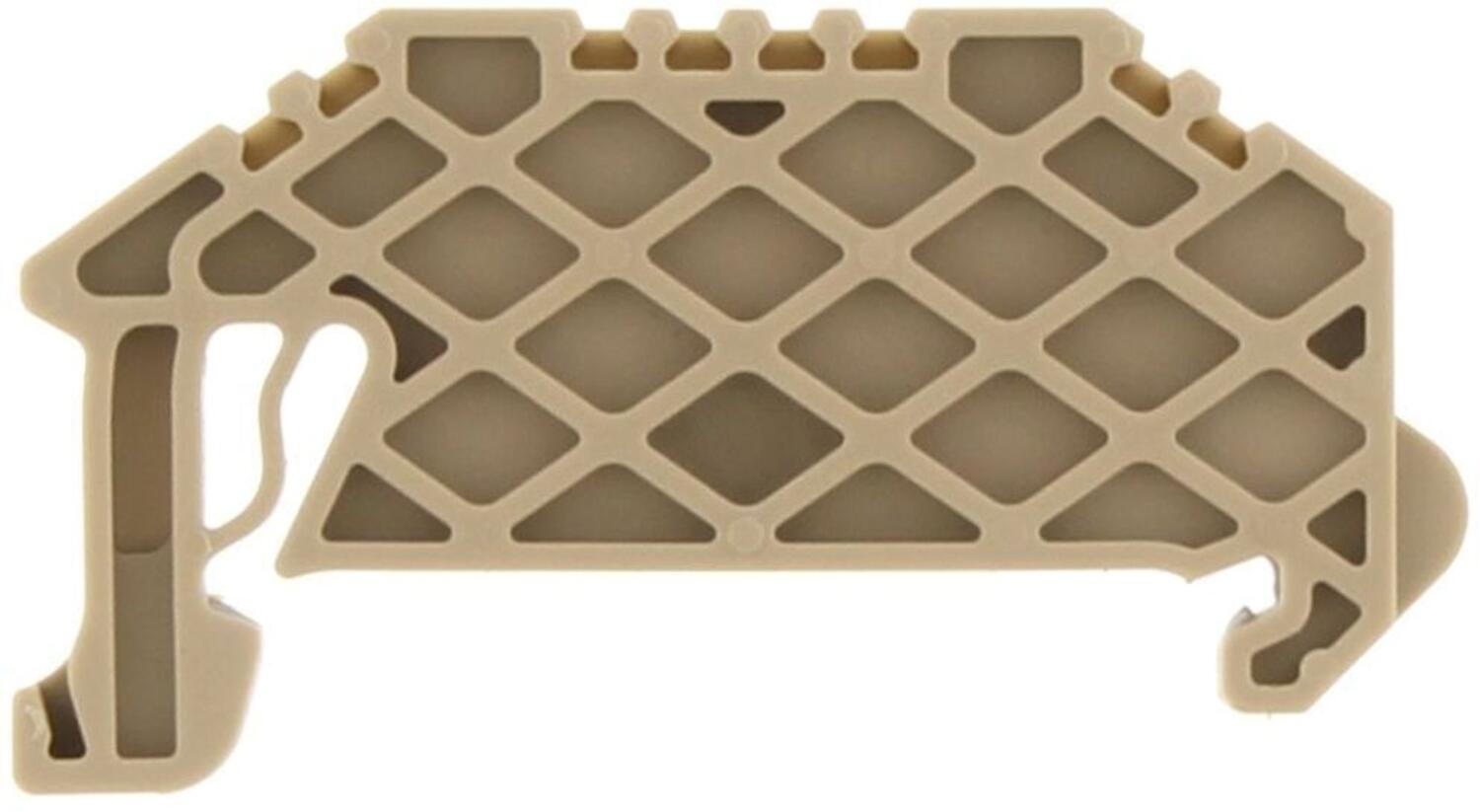

Bracket in beige plastic with a grid pattern, designed to improve grip and stability on equipment
ZES 35/2 - Beige, Snap on TS35 low profile end stop
Art:
3811.2 Copied
Beige
Polyamide 6.6
105 °C
-40 °C
UL94-V2
TS 35/7,5
48 mm
5 mm
26.5 mm
85389099
50
3.15 g
DE

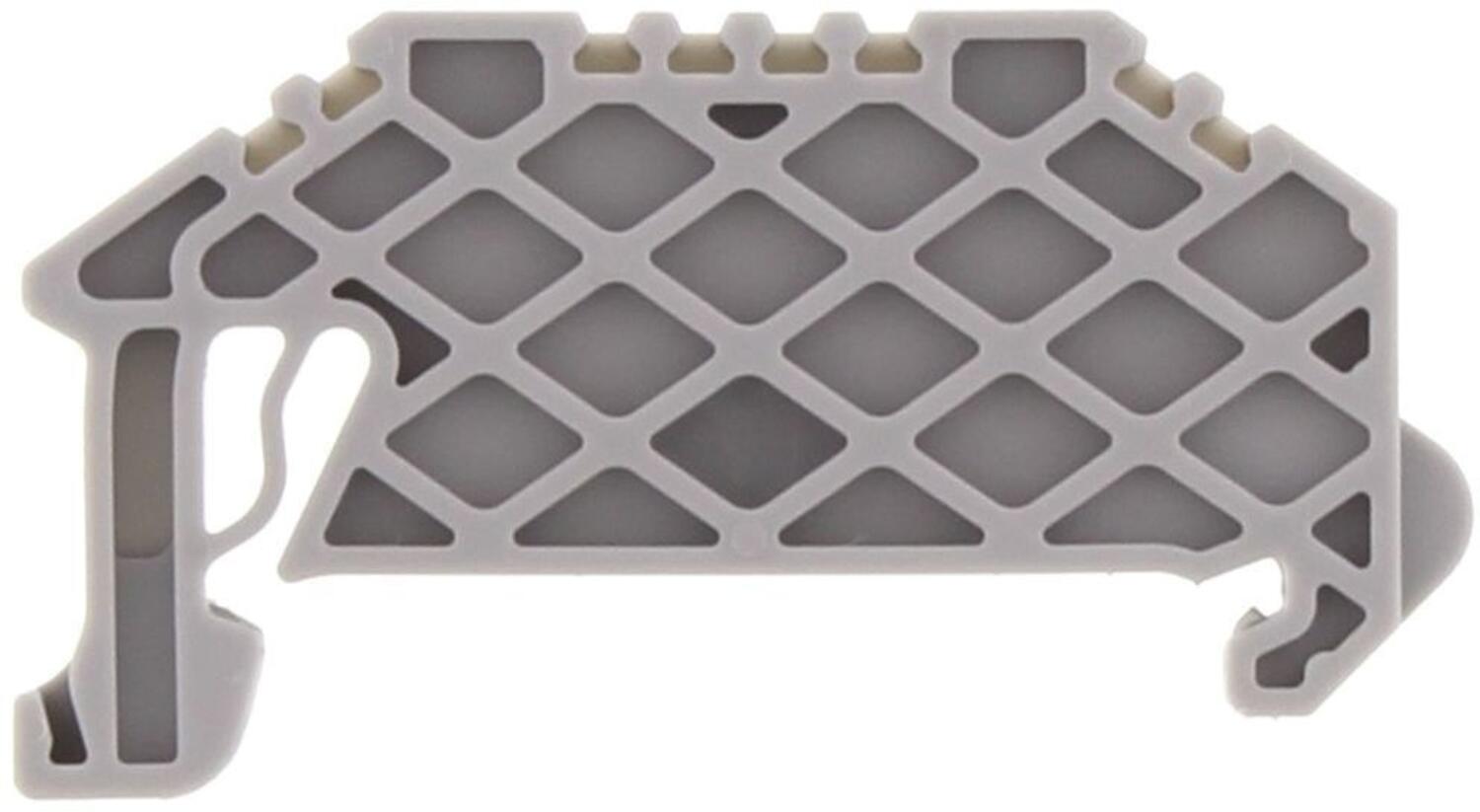

Gray plastic component with a mesh pattern, designed for industrial use
ZES 35/2 - Grey, Snap on TS35 low profile end stop
Art:
3811.6 Copied
Grey
Polyamide 6.6
105 °C
-40 °C
UL94-V2
TS 35/7,5
48 mm
5 mm
26.5 mm
85389099
50
3.15 g
DE

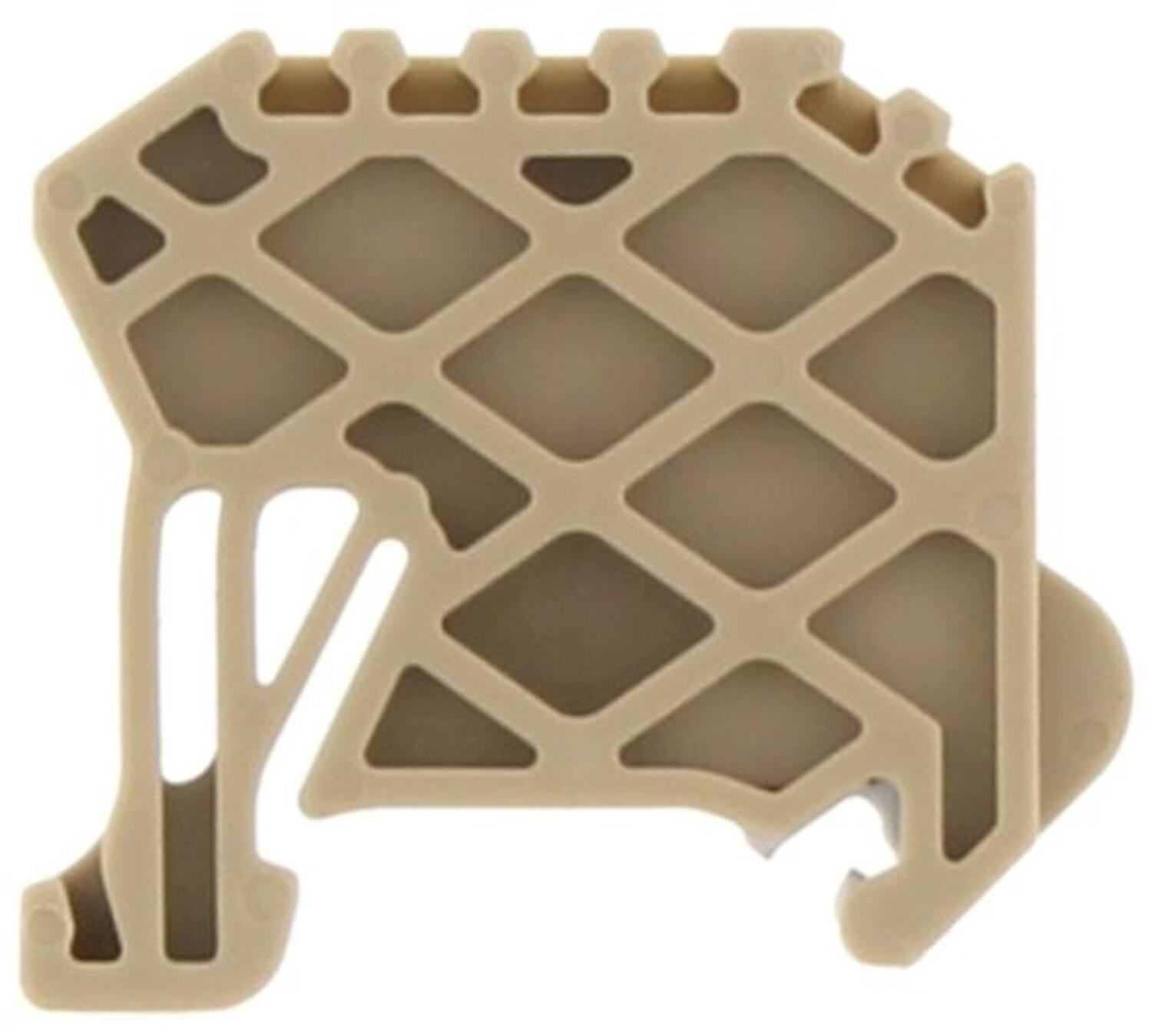

Mounting bracket in beige plastic with a mesh structure, designed to provide stability and support
ZES 15 - Beige, Compact TS15 snap on end stop
Art:
3812.2 Copied
Beige
Polyamide 6.6
105 °C
-40 °C
UL94-V2
TS 15/5,5
27 mm
5 mm
23.5 mm
85389099
50
1.64 g
DE

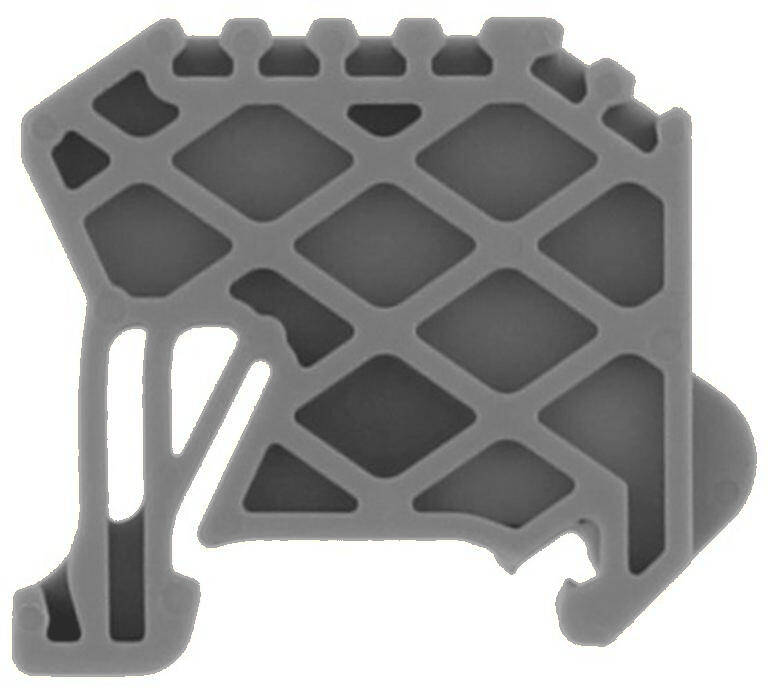

Grey ZES15_CC profile component with a reinforced lattice structure, multiple openings and molded mounting edges
ZES15-GREY END STOP TS15 SNAP ON
Art:
3812.6 Copied
Grey
Polyamide 6.6
105 °C
-40 °C
UL94-V2
TS 15/5,5
27 mm
5 mm
23.5 mm
85389099
50
1.64 g
CZ

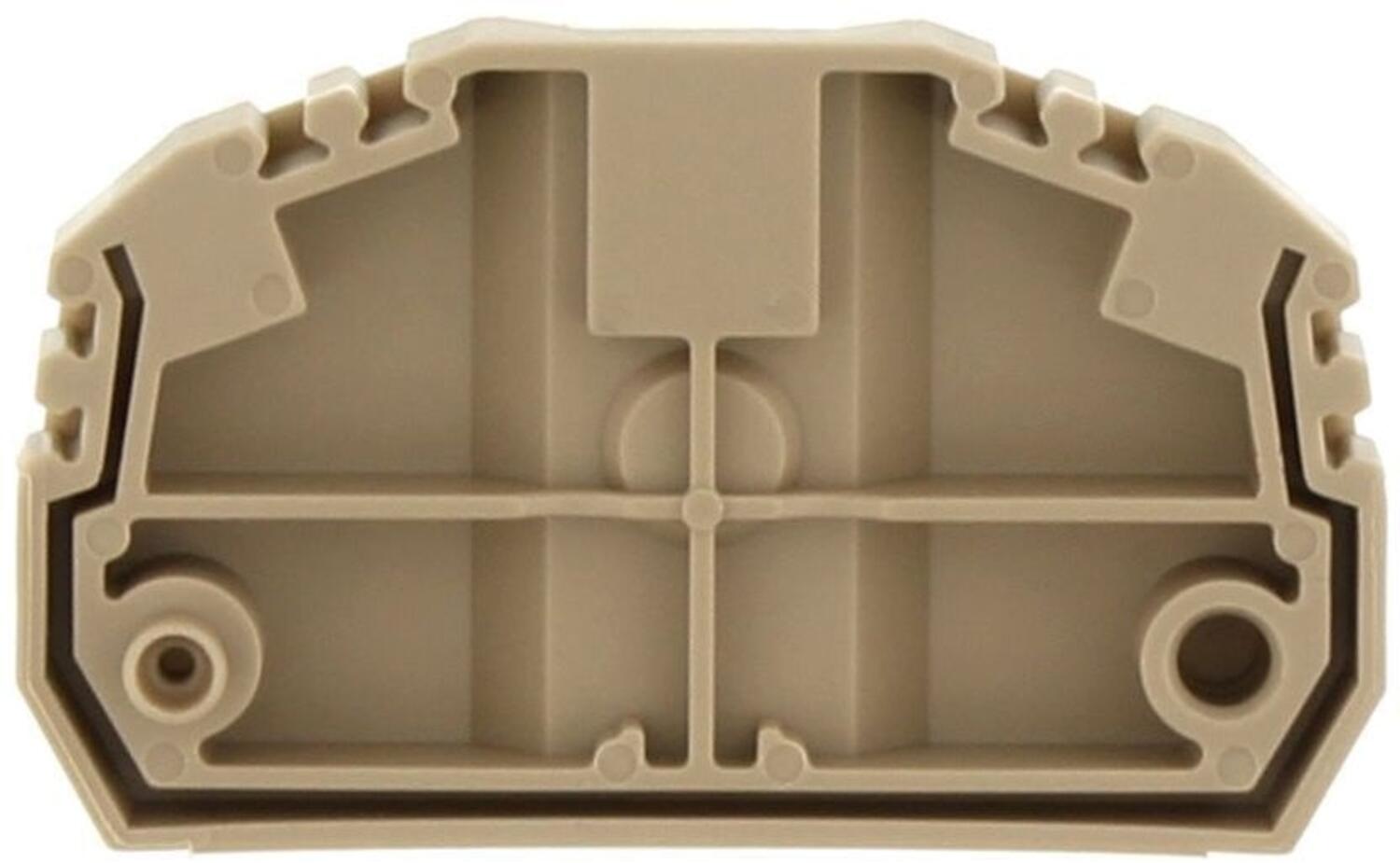

Base part for a component in beige plastic with details for assembly and fastening.
ZEH 1 - Beige, End support for ZSRKD direct mount
Art:
3759.2 Copied
Beige
Polyamide 6.6
105 °C
-40 °C
UL94-V2
40 mm
11.1 mm
24 mm
85389099
50
2.21 g
DE
3.5 mm

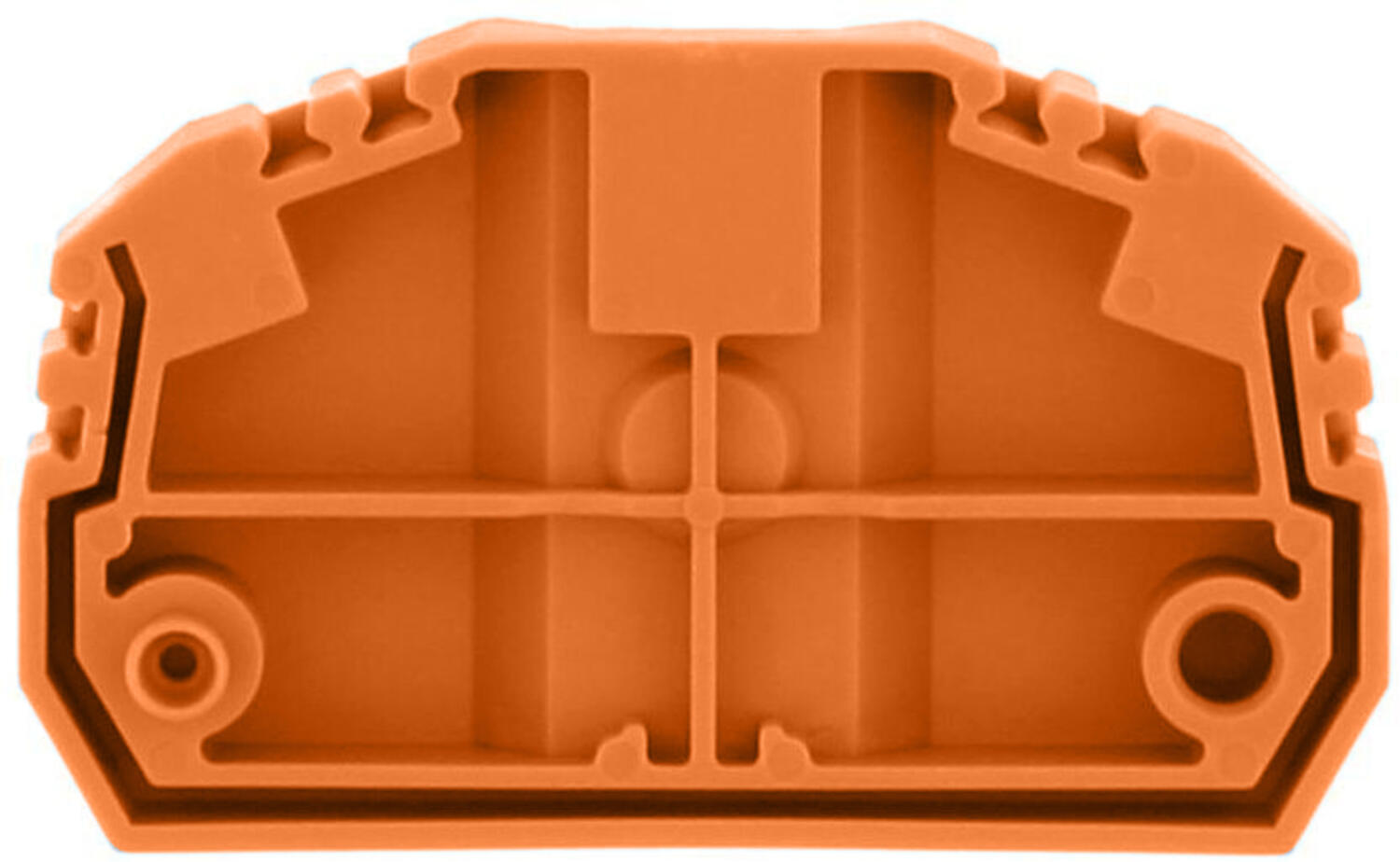

Orange product part from CONTA-CLIP with detailed design for electrical installations
ZEH 1 - Orange, End support for ZSRKD direct mount
Art:
3759.3 Copied
Orange
Polyamide 6.6
105 °C
-40 °C
UL94-V2
40 mm
11.1 mm
24 mm
85389099
50
2.21 g
DE
3.5 mm

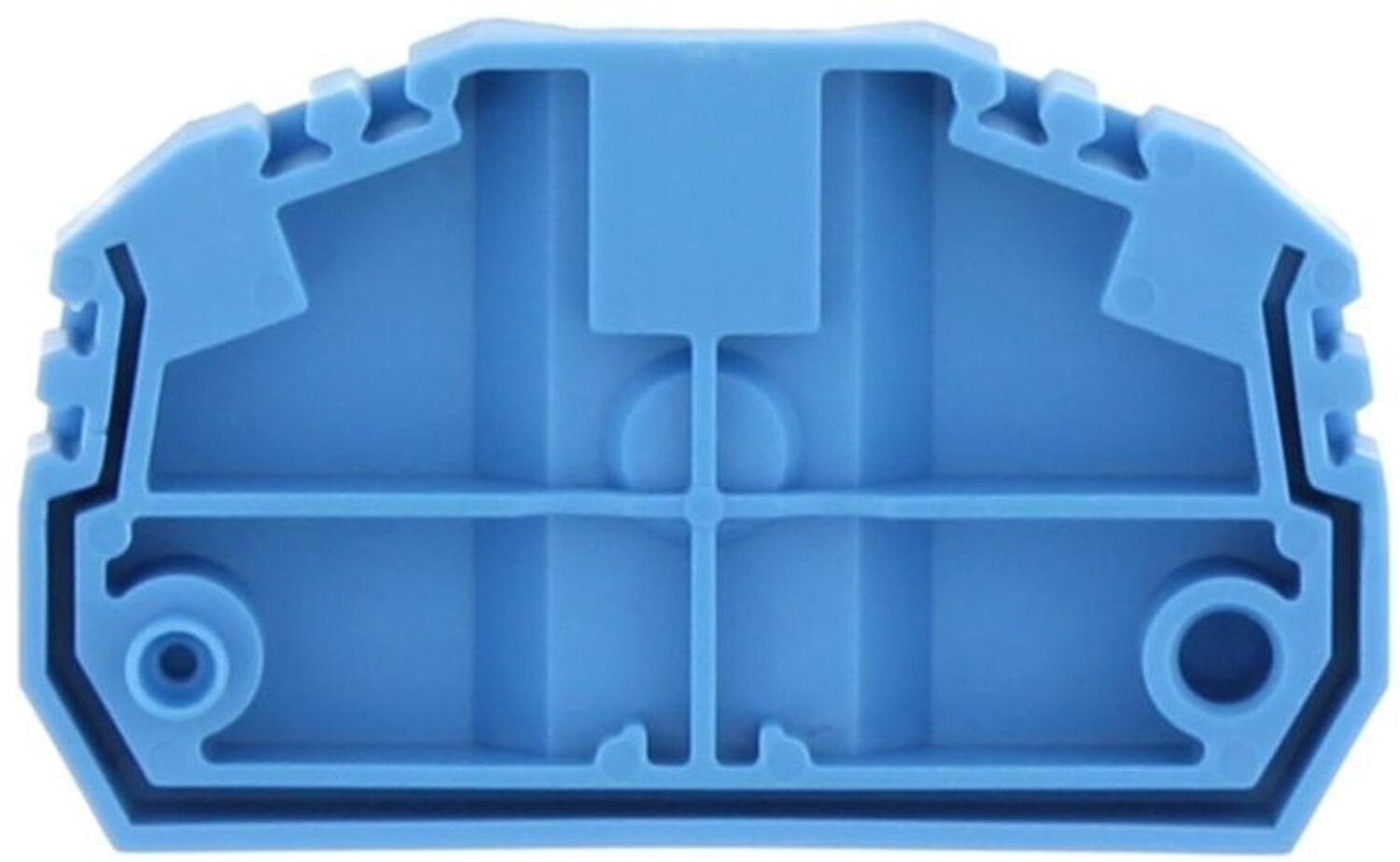

Blue plastic part with detailed design, intended for industrial use.
ZEH 1 - Blue, End support for ZSRKD direct mount
Art:
3759.5 Copied
Blue
Polyamide 6.6
105 °C
-40 °C
UL94-V2
40 mm
11.1 mm
24 mm
85389099
50
2.21 g
DE
3.5 mm

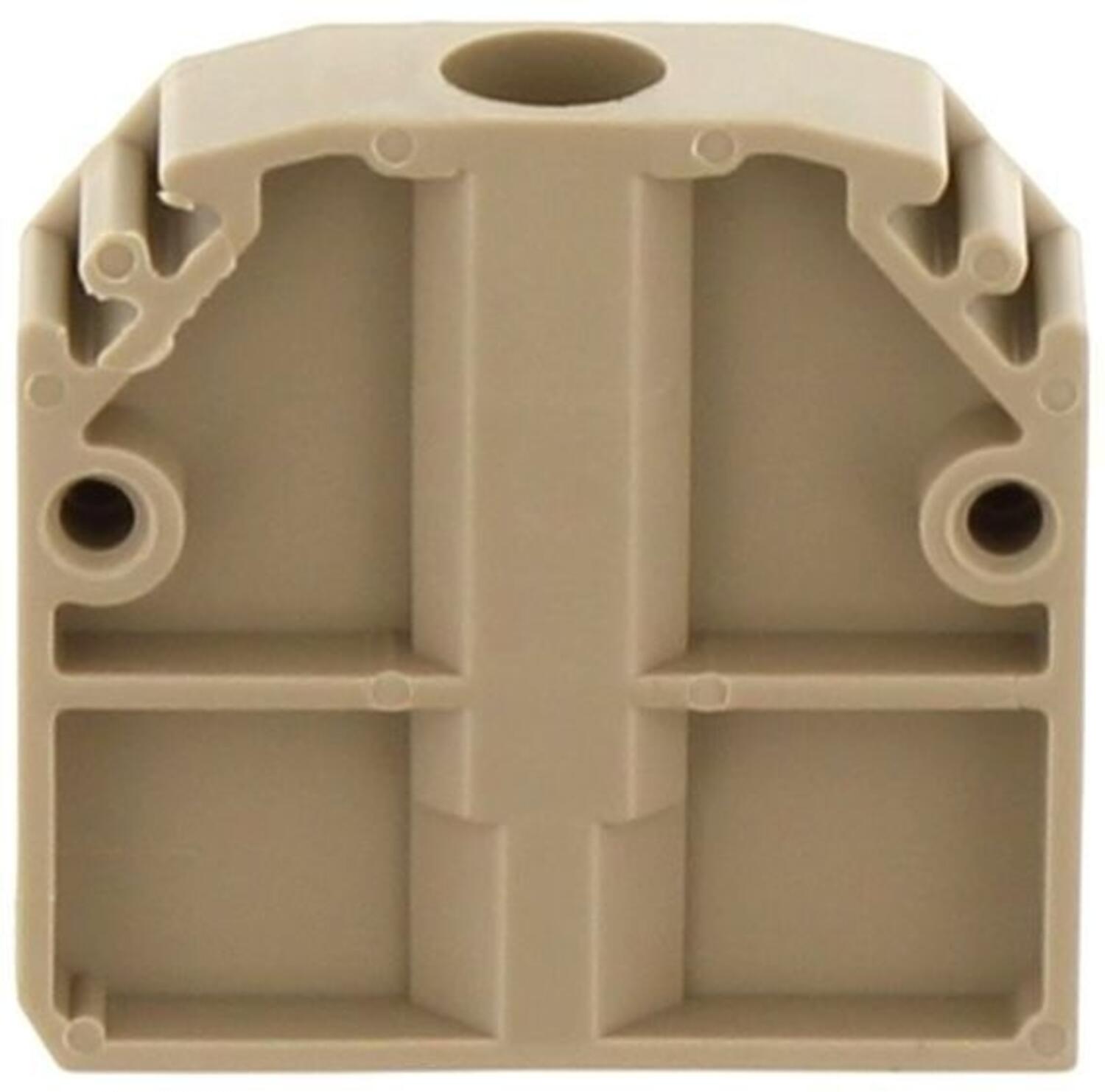

Connection part in beige plastic with multiple mounting holes and a central opening
EH 1 - Beige, End support for RKB 4 direct mount
Art:
2135.2 Copied
Beige
Polyamide 6.6
105 °C
-40 °C
UL94-V2
27 mm
7 mm
21 mm
85389099
50
2.4 g
DE
3.5 mm

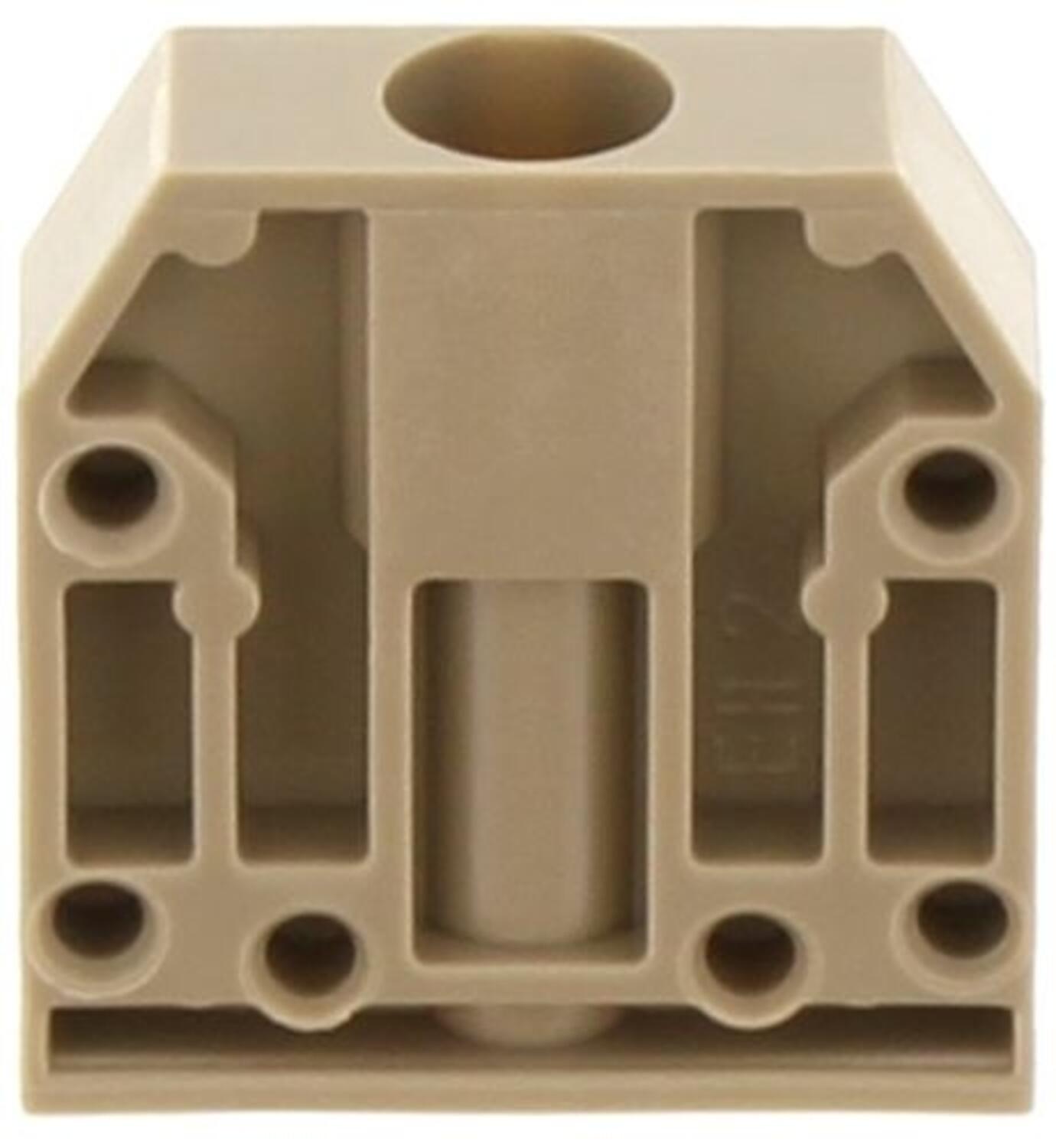

Connection block in beige plastic with multiple connections and a central opening, model 2136
EH 2 - Beige, End support for BKA 2.5/4 direct mount
Art:
2136.2 Copied
Beige
Polyamide 6.6
105 °C
-40 °C
UL94-V2
27 mm
7 mm
21 mm
85389099
50
2.4 g
DE
3.5 mm

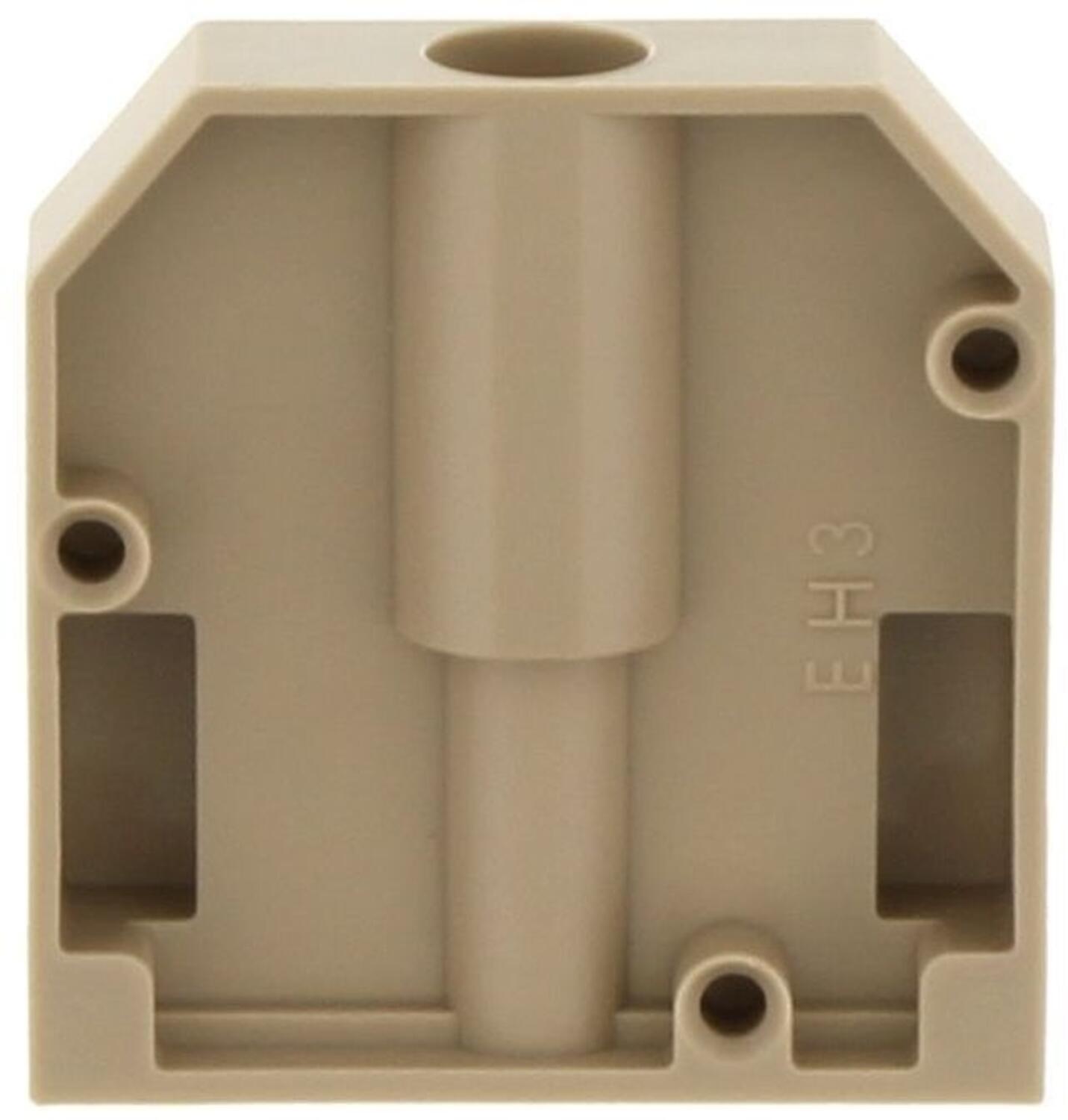

Connection part in beige plastic with central tube and mounting brackets for installation
EH 3 - Beige, End support for BKA 10 direct mount
Art:
2939.2 Copied
Beige
Polyamide 6.6
105 °C
-40 °C
UL94-V2
30 mm
8 mm
31 mm
85389099
20
2.74 g
DE
3.5 mm
