External link cross connectors

AQI External Links

External cross connection links makes it possible to connect potentials of terminals where there is no option of a central cross connection channel.



These links are quicker, easier and a more reliable way of linking than using wire links with ferrules.



When using the external, the rated cross section of wire is reduced to the next smallest size.

Read more
  • Insulated for protection
  • Reliable & secure fixing

Selected variant


Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Rated Current IEC 27 A
Color Yellow
Material Copper
Insulation Material Polyamide 6.6
Operating temperature to 105 °C
Operating temperature from -40 °C
Flamklass UL94-V2
Number of poles 2
Mounting Push in
Pitch 5 mm
Width 9.26 mm
Tariff code 85369010
Pack Size 50
Weight 0.56 g
Additional information für SRK 2,5(1.Gen.)|RKD 2,5|IK 2,5|IKD 2,5|BKA 2,5
Contamination degree 3
Country of origin DE

Downloads

Product description

External cross connection links makes it possible to connect potentials of terminals where there is no option of a central cross connection channel.



These links are quicker, easier and a more reliable way of linking than using wire links with ferrules.



When using the external, the rated cross section of wire is reduced to the next smallest size.

Accessories

Related products

Add product as a new cart row

You already added this product. Choose whether to increase quantity on the existing row or add the product as a new row.

Related

TER - control stations
Product news

Quality solutions for motion controls

TER - Tecno Elettrica Ravasi, is our Italian supplier specializing in the manufacture of control stations. TER has over 60 years of experience in the manufacture of control stations.

Stego Loop Heater lämmityselementit
Product news

LOOP Heater for optimal heat distribution

Thanks to their loop design, LOOP heating elements offer excellent heating performance and ensure optimal heat distribution. Read more now!

PISA-M
Product news

Compact electronic overcurrent protection PISA-M

PISA-M is a 4-channel electronic fuse for 12 and 24 V DC systems. The smallest 4-channel electronic fuse with a width of only 22.5 mm!

Delcon relays
Product news

An effective solution Delcon CRA5

Delcon's CRA5 plug-in relay revolutionizes the control of difficult-to-handle DC loads. Inductive loads, frequent switching, and high DC voltages are a piece of cake for these relays.

LOCC-Box Mini
Product news

LOCC-Box Mini

The Lütze LOCC-Box is an intelligent electronic overcurrent protection device that provides reliable protection for 12/24 V DC systems in a narrow housing measuring just 8.1 mm. Integrated + and - terminals save space on the DIN rail.

DF Electric
Product news

DF Electric – new supplier for fuse solutions

DF Electric is specialized in the manufacturing of fuse links, fuse holders and control transformers since 1987. Presently the company is leading the Spanish market and is also very active in many export markets due to its competitive range of products.

Articles Rated Current IEC Color Material Insulation Material Operating temperature to Operating temperature from Flamklass Number of poles Number Of Poles Mounting Pitch Max voltage with partition Max voltage without partition Length Width Tariff code Pack Size Weight Additional information Contamination degree Country of origin Rated Current Contact surface Voltage Max
Yellow fuse for automotive applications, model 2032, with transparent pins.

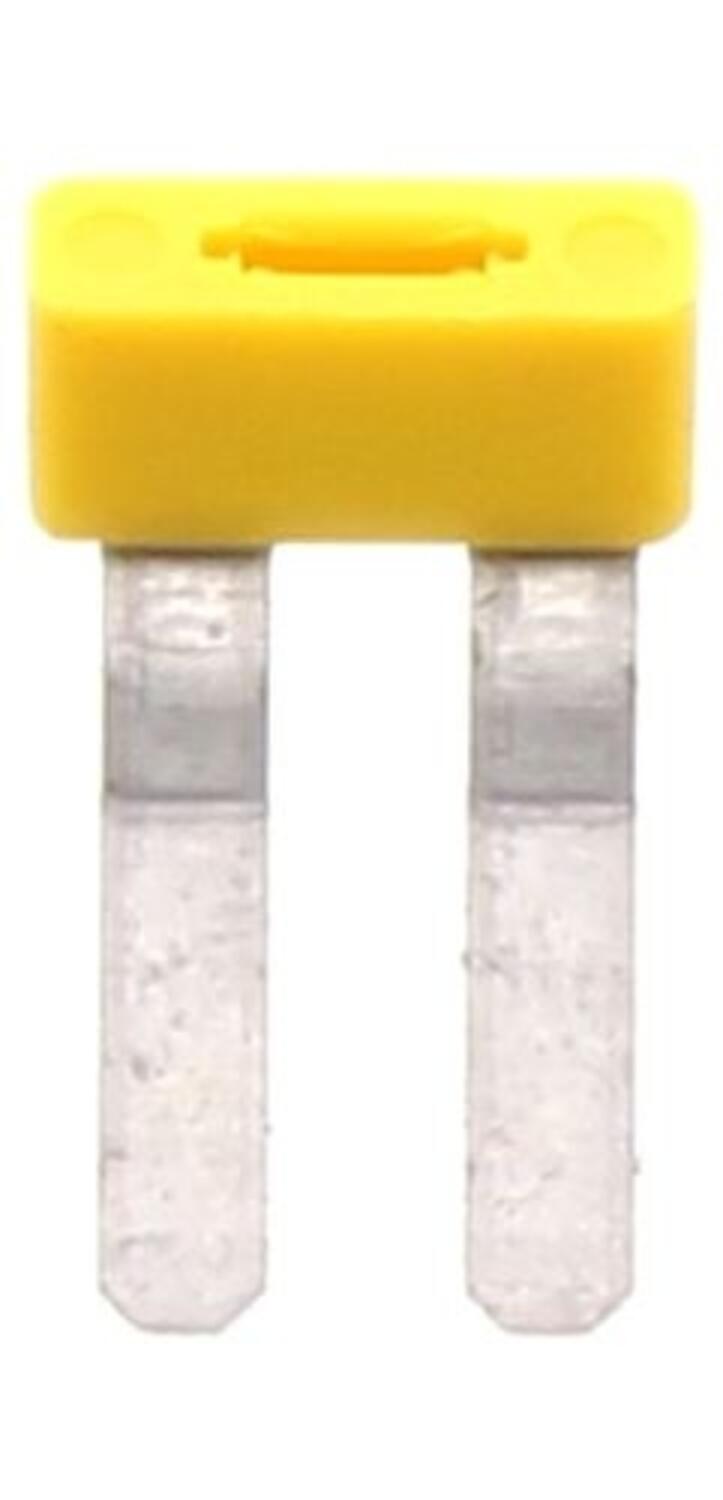

AQI 2/5/11 - 2 pole External Cross connector for SRK2.5/RKD2.5/IK2.5/IKD2.5/BKA2.5
Art:
2032.0 Copied
27 A
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
2
Push in
5 mm
9.26 mm
85369010
50
0.56 g
für SRK 2,5(1.Gen.)|RKD 2,5|IK 2,5|IKD 2,5|BKA 2,5
3
DE
Yellow plastic connector with three metal pins for electrical connections
AQI 3/5/11 - 3 pole External Cross connector for SRK2.5/RKD2.5/IK2.5/IKD2.5/BKA2.5
Art:
2033.0 Copied
27 A
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
3
Push in
5 mm
14.36 mm
85369010
50
0.84 g
für SRK 2,5(1.Gen.)|RKD 2,5|IK 2,5|IKD 2,5|BKA 2,5
3
DE

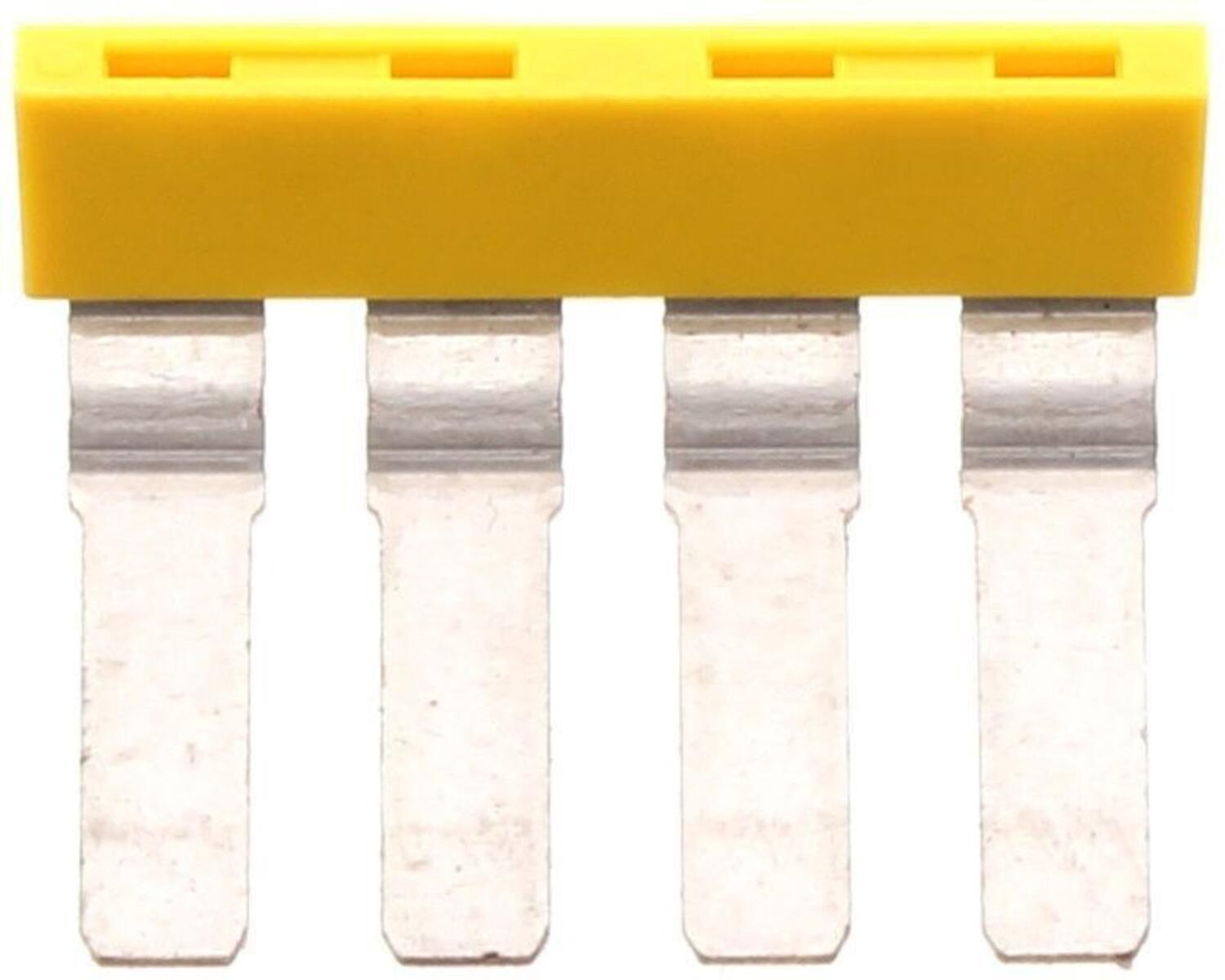

Yellow connector with four metal pins for electrical connections

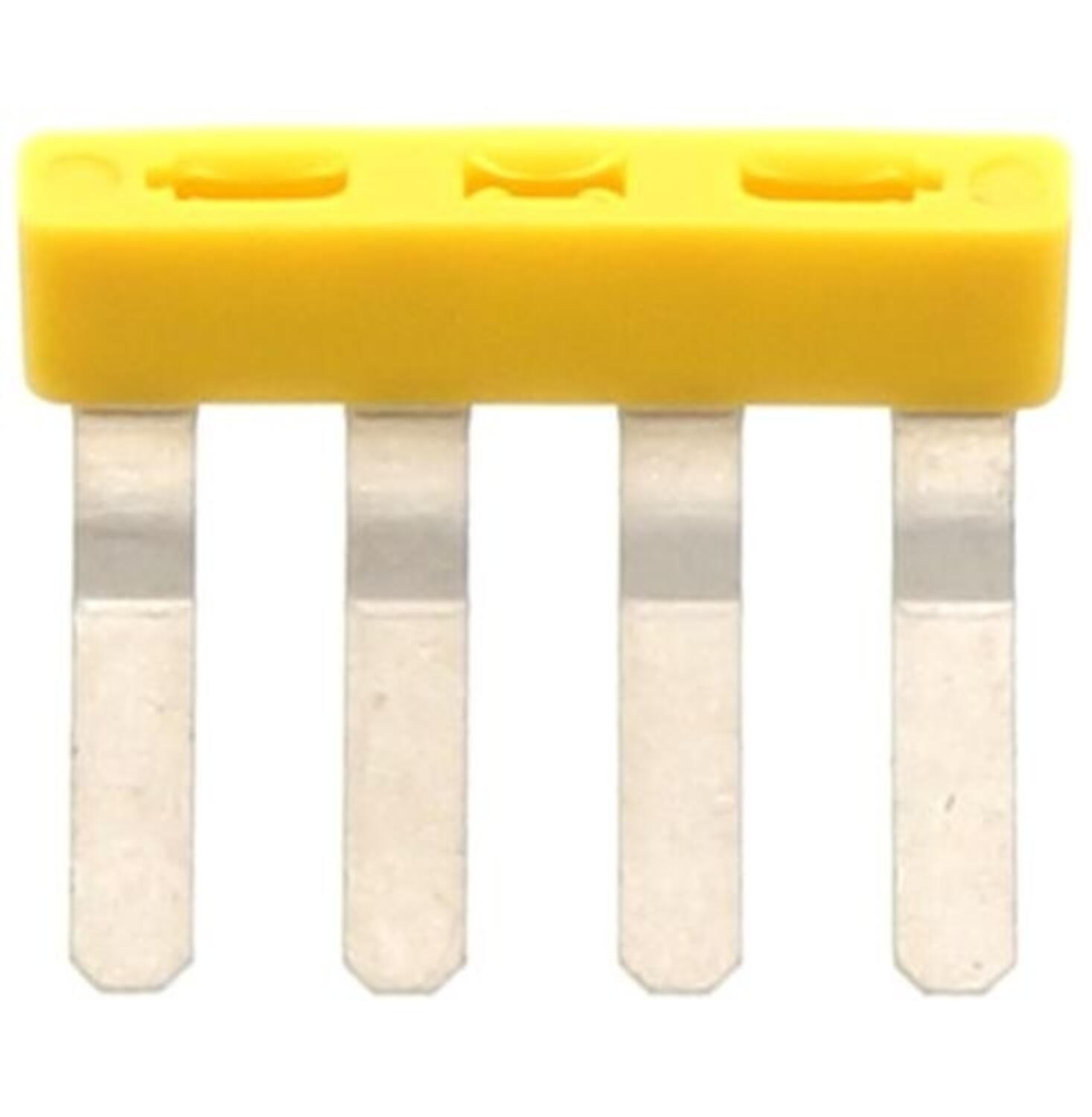

AQI 4/5/11 - 4 pole External Cross connector for SRK2.5/RKD2.5/IK2.5/IKD2.5/BKA2.5
Art:
2044.0 Copied
27 A
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
4
Push in
5 mm
19.46 mm
85369010
50
1.16 g
für SRK 2,5(1.Gen.)|RKD 2,5|IK 2,5|IKD 2,5|BKA 2,5
3
DE
Yellow connector with metal pins for electrical connections, ideal for PCB applications.
AQI 10/5/11 - 10 pole External Cross connector for SRK2.5/RKD2.5/IK2.5/IKD2.5/BKA2.5
Art:
2045.0 Copied
27 A
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
10
Push in
5 mm
50.1 mm
85369010
10
2.64 g
für SRK 2,5(1.Gen.)|RKD 2,5|IK 2,5|IKD 2,5|BKA 2,5
3
DE
Yellow comb with long teeth, ideal for hair cutting and styling.

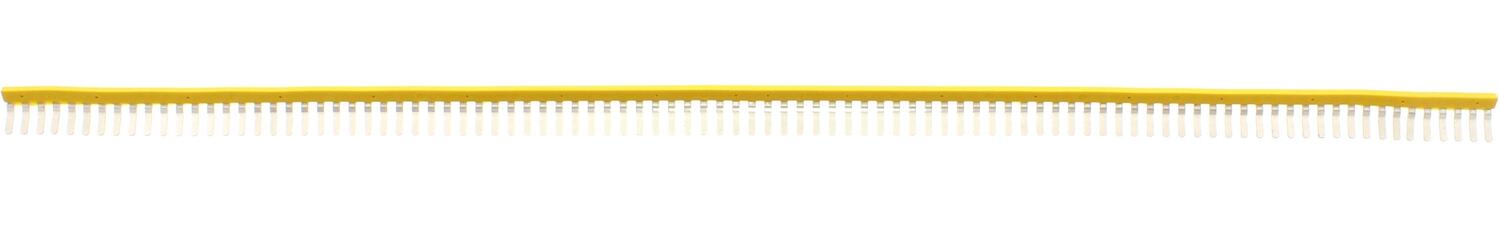

AQI 95/5/11 - 95 pole External Cross connector for SRK2.5/RKD2.5/IK2.5/IKD2.5/BKA2.5
Art:
2107.0 Copied
27 A
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
95
Push in
5 mm
85369010
10
1.78 g
f. SRK 2.5(1.Gen.)|RKD 2,5|BKA 2,5|RK 2,5|IKD 2,5
3
DE
Yellow safety connector with two metal pins, ideal for electrical applications.
AQI 2/5/15 - 2 pole External Cross connector for RK2.5/ZSRK2.5/ZRK2.5/ZRKD2.5/ZIKD2.5/ZTRK2.5/ZIZA1.5/SRK2.52A
Art:
2023.0 Copied
27 A
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
2
Push in
5 mm
9.26 mm
85369010
50
0.66 g
for RK 2,5 | RK 2,5/35 N/2Q
3
DE
Three-pole connector with yellow plastic part for electrical connections

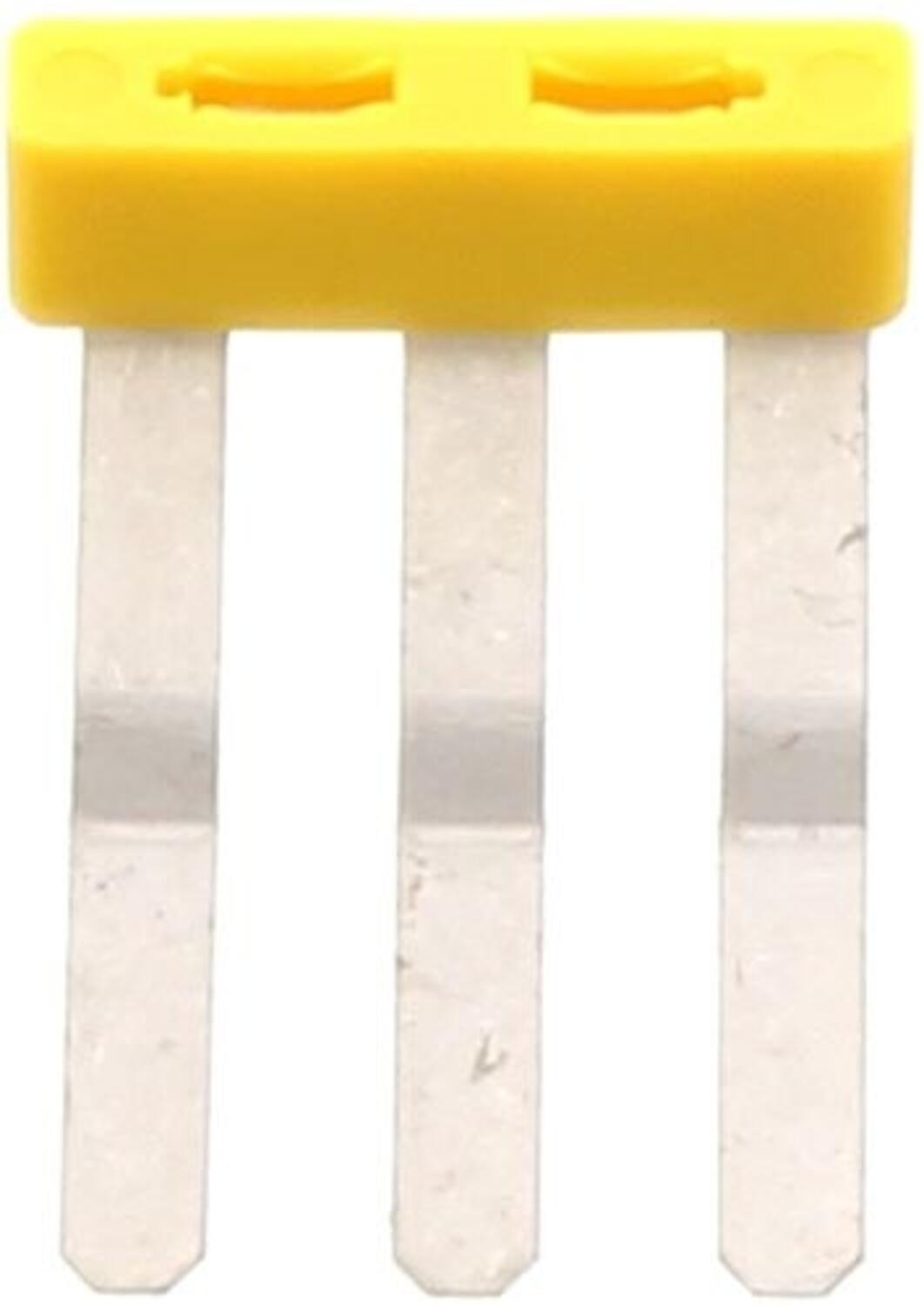

AQI 3/5/15 - 3 pole External Cross connector for RK2.5/ZSRK2.5/ZRK2.5/ZRKD2.5/ZIKD2.5/ZTRK2.5/ZIZA1.5/SRK2.52A
Art:
2024.0 Copied
27 A
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
3
Push in
5 mm
14.36 mm
85369010
50
1.22 g
for RK 2,5 | RK 2,5/35 N/2Q
3
DE
Three-pole connector with metal pins for electrical connections

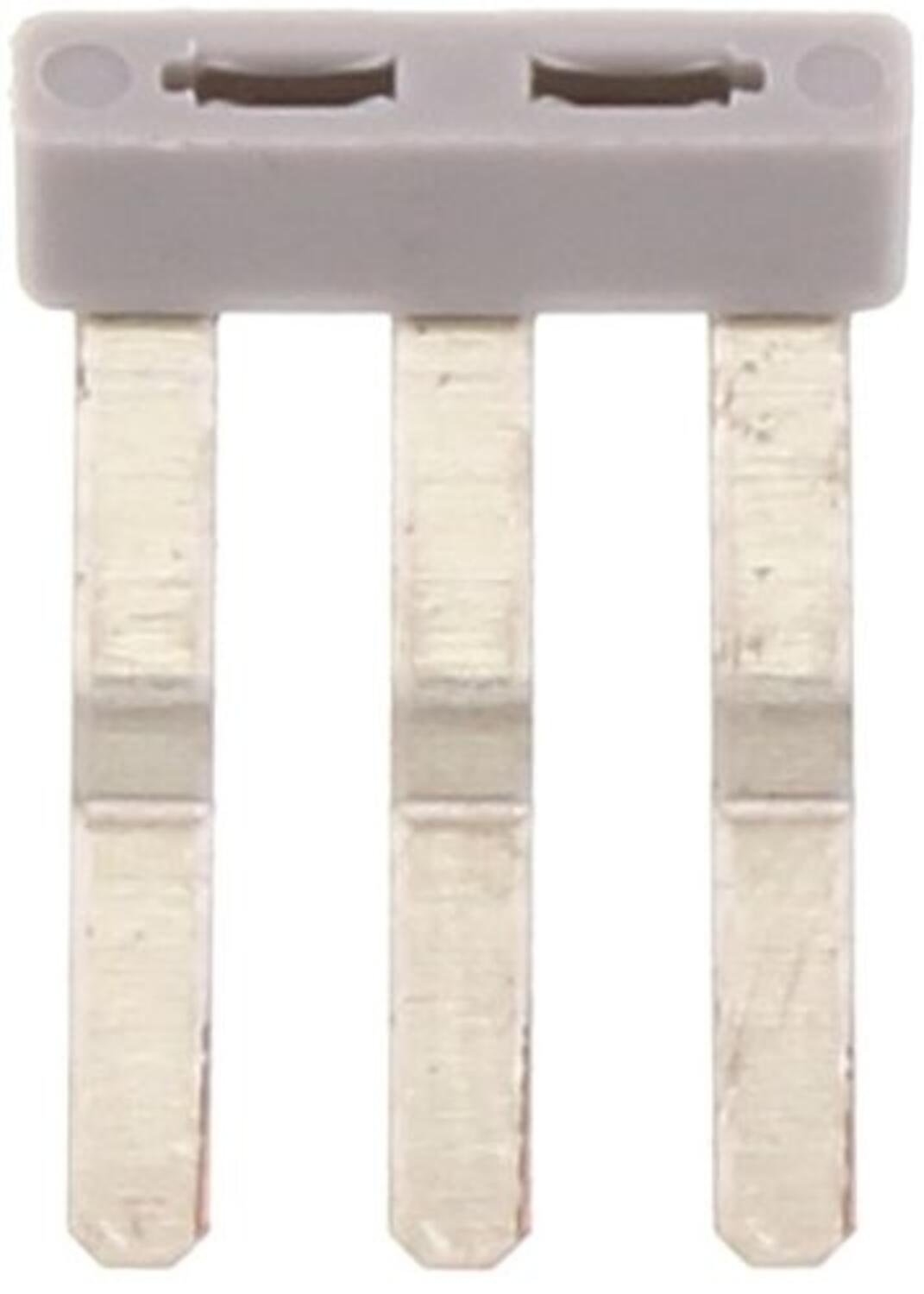

AQI 3/5/15 - 3 pole External Cross connector for RK2.5/ZSRK2.5/ZRK2.5/ZRKD2.5/ZIKD2.5/ZTRK2.5/ZIZA1.5/SRK2.52A, Grey
Art:
2024.6 Copied
27 A
Grey
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
3
Push in
5 mm
14.36 mm
85369010
50
1.22 g
for RK 2,5 | RK 2,5/35 N/2Q
3
DE
Coupling part with four metal pins and a yellow plastic part, ideal for electrical connections.
AQI 4/5/15 - 4 pole External Cross connector for RK2.5/ZSRK2.5/ZRK2.5/ZRKD2.5/ZIKD2.5/ZTRK2.5/ZIZA1.5/SRK2.52A
Art:
2028.0 Copied
27 A
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
4
Push in
5 mm
19.46 mm
85369010
50
1.36 g
for RK 2,5 | RK 2,5/35 N/2Q
3
DE

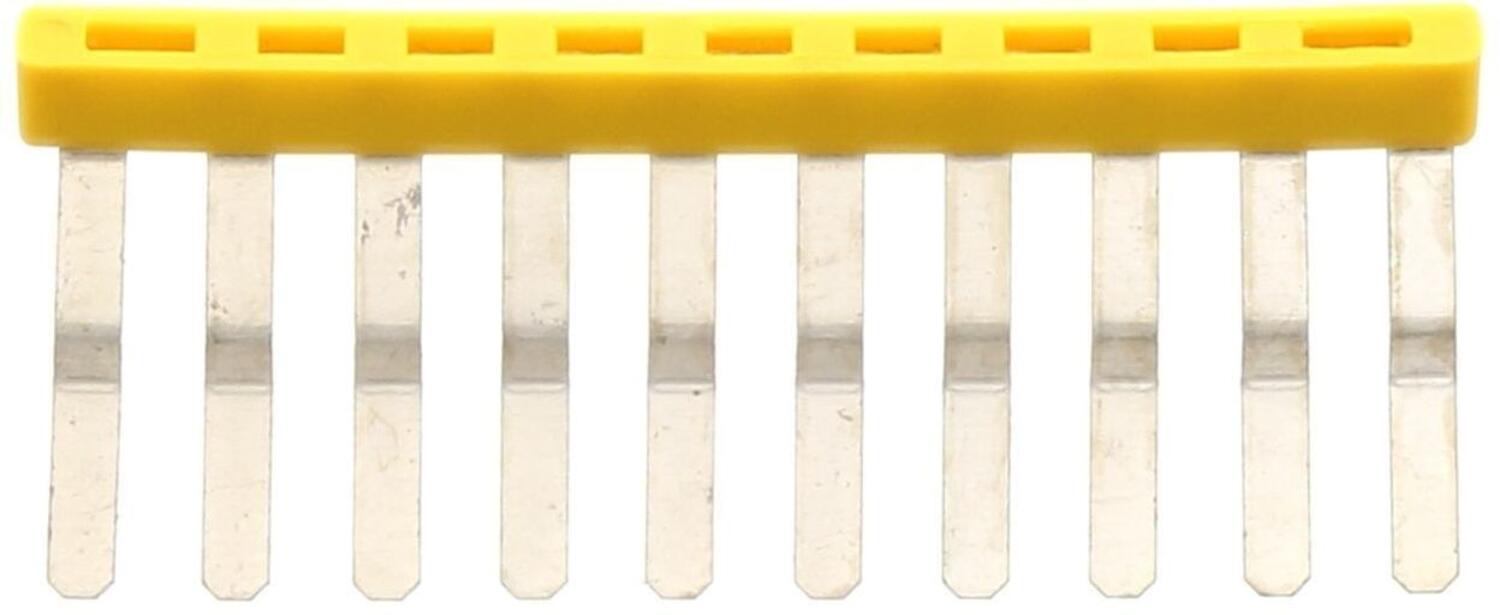

Connector with yellow plastic part and several metal pins for electrical connections
AQI 10/5/15 - 10 pole External Cross connector for RK2.5/ZSRK2.5/ZRK2.5/ZRKD2.5/ZIKD2.5/ZTRK2.5/ZIZA1.5/SRK2.52A
Art:
2029.0 Copied
27 A
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
10
Push in
5 mm
50.1 mm
85369010
10
3.5 g
for RK 2,5 | RK 2,5/35 N/2Q
3
DE
Comb with yellow handle and long teeth, ideal for hairdressers and hairstyling.

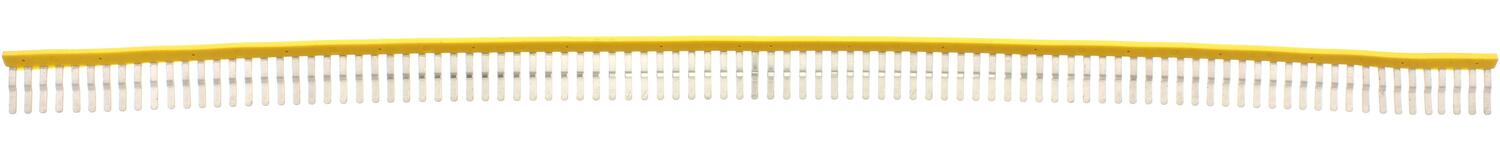

AQI 95/5/15 - 95 pole External Cross connector for RK2.5/ZSRK2.5/ZRK2.5/ZRKD2.5/ZIKD2.5/ZTRK2.5/ZIZA1.5/SRK2.52A
Art:
2030.0 Copied
27 A
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
95
Push in
5 mm
85369010
10
34.2 g
for RK 2.5 | RK 2,5/35N/2Q
3
DE
Yellow fuse with two transparent pins, suitable for electrical applications.
AQI 2/6/11 - 2 pole External Cross connector for RK1.5-4/RKD4/BKA4/VMAK2.5
Art:
2125.0 Copied
27 A
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
2
Push in
6 mm
10.8 mm
85369010
50
1 g
for RK 1,5-4… | RKB 4 | RKD 4 | BKA 4 | VMAK 2,5
3
DE
Yellow plastic connector with three metal pins, suitable for electrical connections and components.

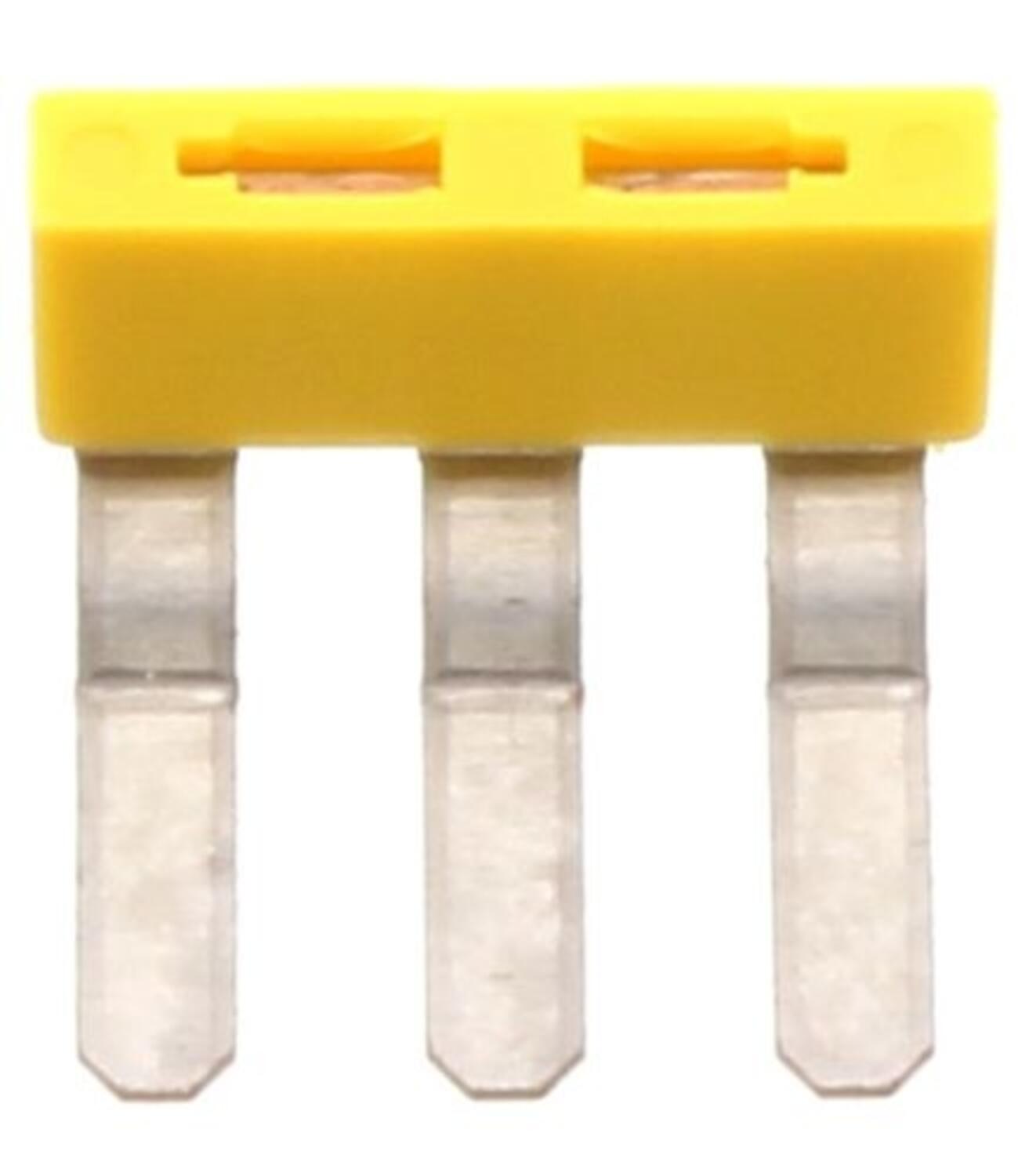

AQI 3/6/11 - 3 pole External Cross connector for RK1.5-4/RKD4/BKA4/VMAK2.5
Art:
2126.0 Copied
27 A
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
3
Push in
6 mm
16.9 mm
85369010
50
0.5 g
for RK 1,5-4… | RKB 4 | RKD 4 | BKA 4 | VMAK 2,5
3
DE
Yellow plastic connector with four metal pins, ideal for electrical connections.
AQI 4/6/11 - 4 pole External Cross connector for RK1.5-4/RKD4/BKA4/VMAK2.5
Art:
2140.0 Copied
27 A
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
4
Push in
6 mm
23 mm
85369010
50
2.28 g
for RK 1,5-4… | RKB 4 | RKD 4 | BKA 4 | VMAK 2,5
3
DE

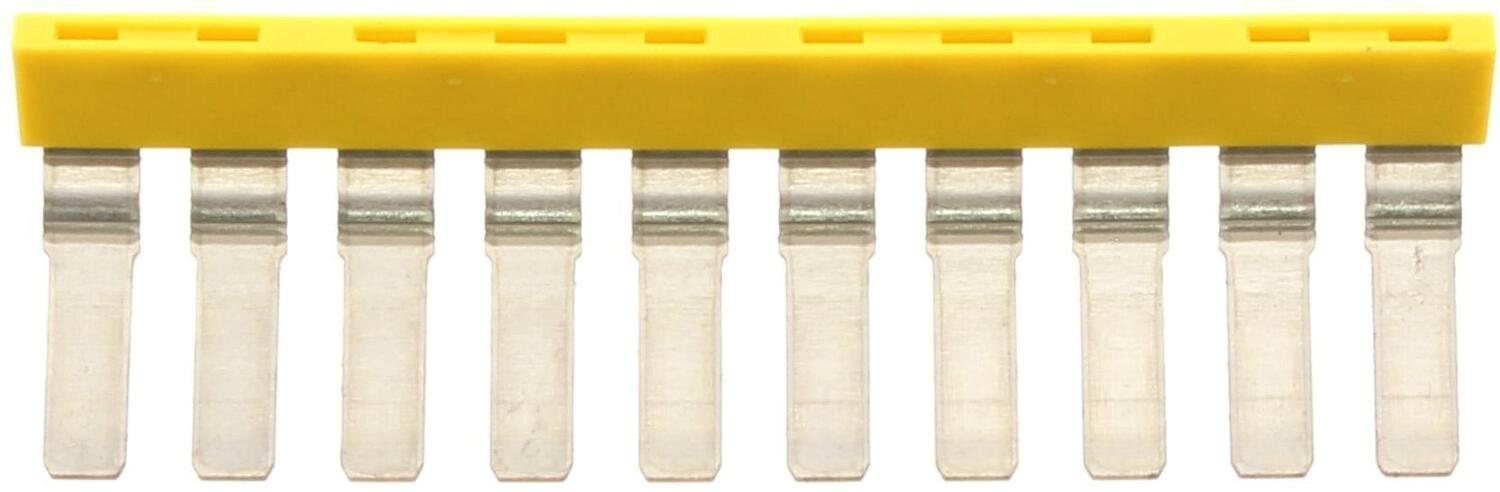

Yellow connector with ten metal pins for electrical connections

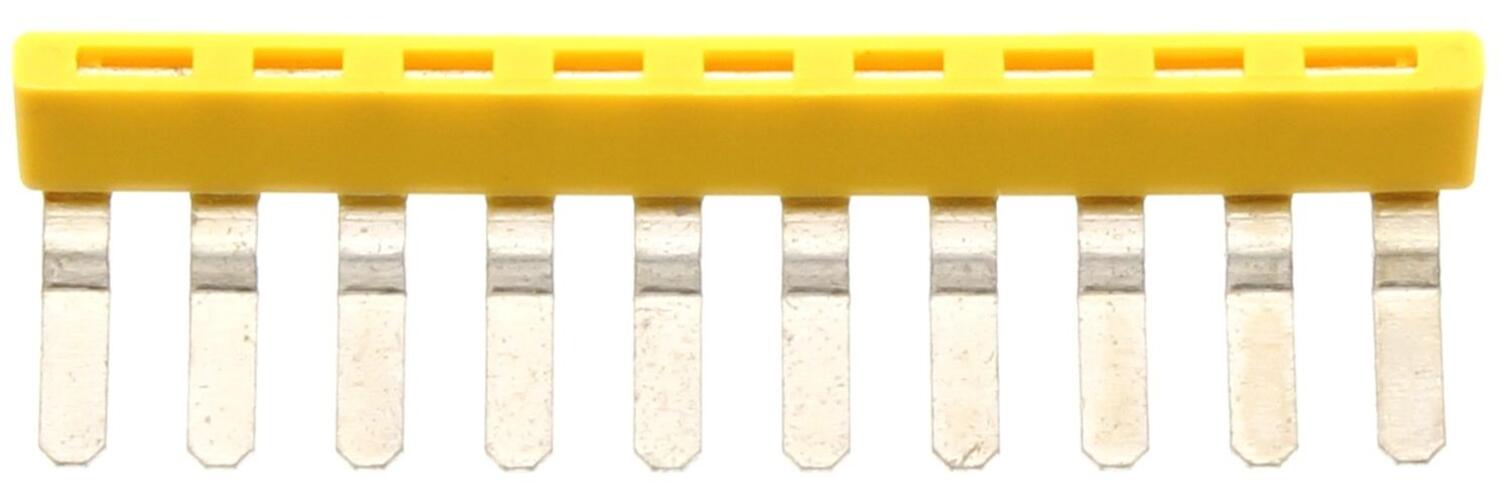

AQI 10/6/11 - 10 pole External Cross connector for RK1.5-4/RKD4/BKA4/VMAK2.5
Art:
2141.0 Copied
27 A
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
10
Push in
6 mm
59.6 mm
85369010
10
5.95 g
for RK 1,5-4… | RKB 4 | RKD 4 | BKA 4 | VMAK 2,5
3
DE
Yellow comb with long teeth, ideal for hair cutting and styling.

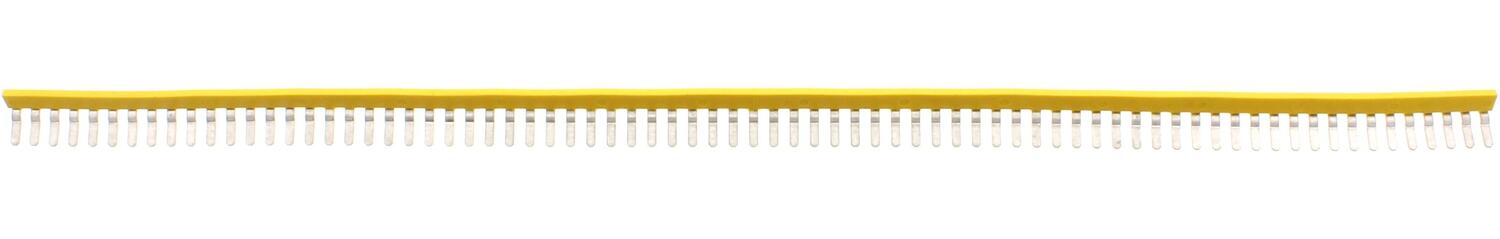

AQI 75/6/11, 75 pole External Cross connector for RK1.5-4/RKD4/BKA4/VMAK2.5
Art:
2481.0 Copied
27 A
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
75
Push in
6 mm
85369010
10
44.6 g
for RK 1,5-4 | RKB 4 | RKD 4 | BKA 4 | VMAK 2,5
3
DE

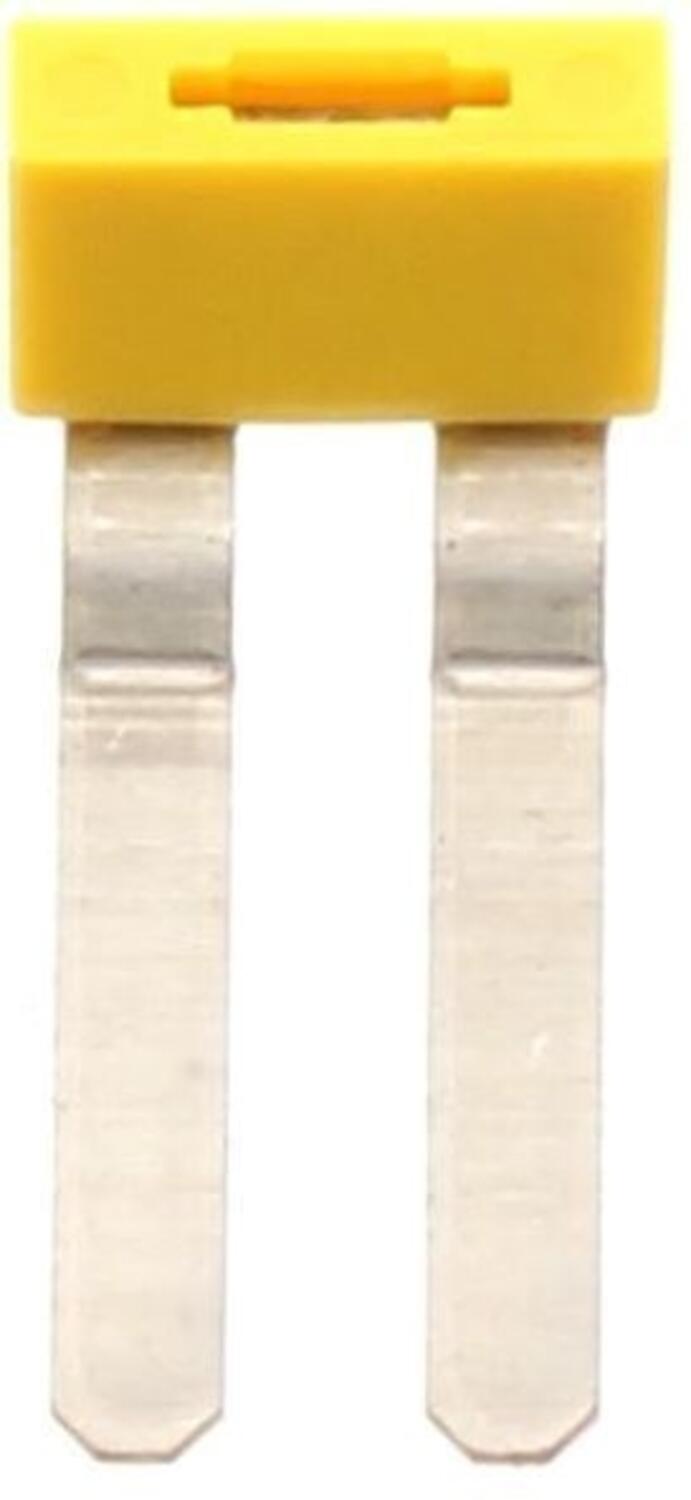

Fuse holder with yellow plastic part and two metal pins, ideal for electrical applications.
AQI 2/6/17 - 2 pole External Cross connector for RK2.5-4/TRK1.5/SRK4
Art:
2064.0 Copied
27 A
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
2
Push in
6 mm
10.8 mm
85369010
50
1.3 g
for RK 2,5-4… | TRK 1,5 | SRK 4/2A
3
DE

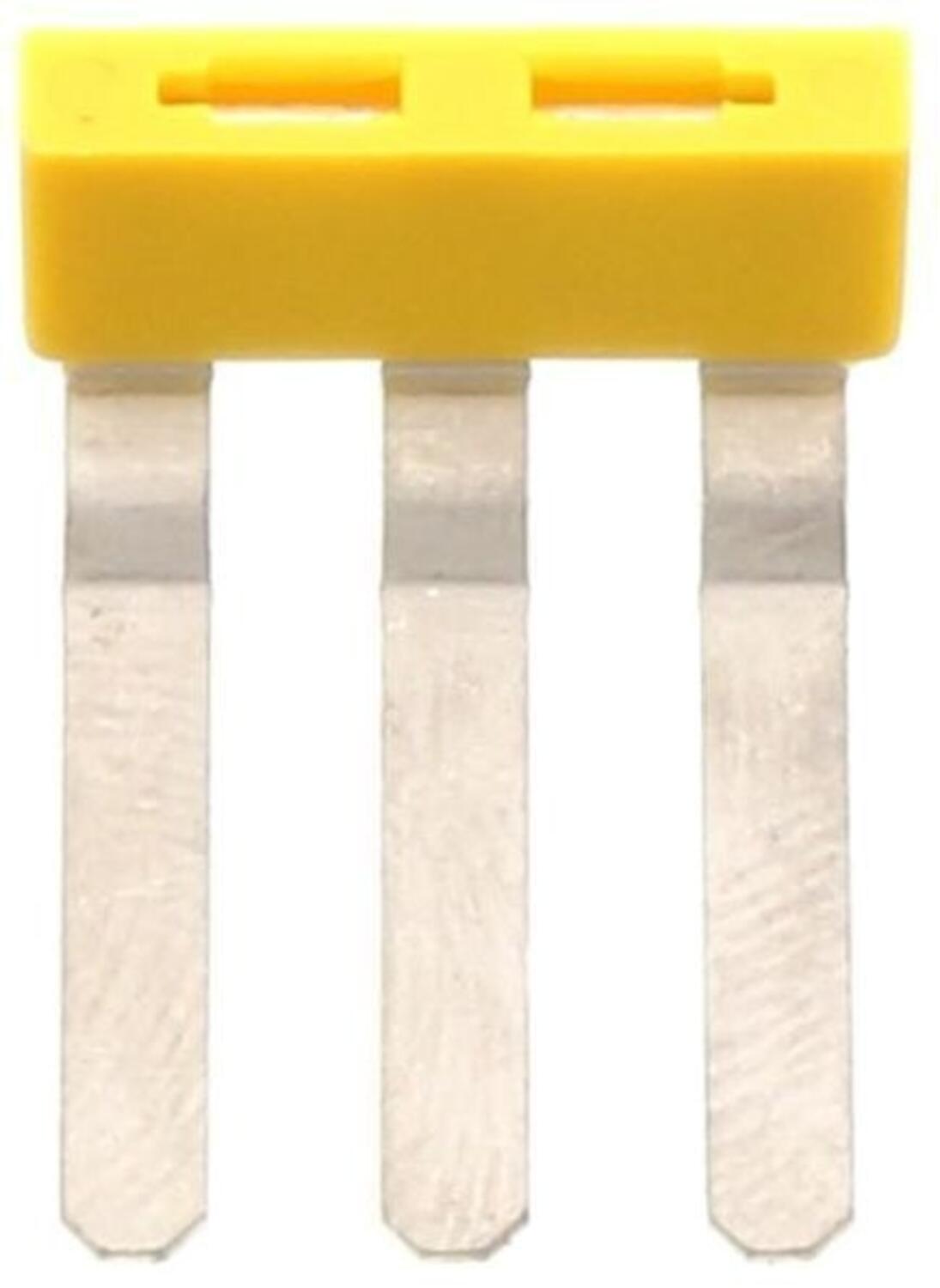

Yellow connector with three metal pins, used for electrical connections.
AQI 3/6/17 - 3 pole External Cross connector for RK2.5-4/TRK1.5/SRK4
Art:
2065.0 Copied
27 A
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
3
Push in
6 mm
16.9 mm
85369010
50
2.04 g
for RK 2,5-4… | TRK 1,5
3
DE
Yellow connector with four metal pins for electrical connections

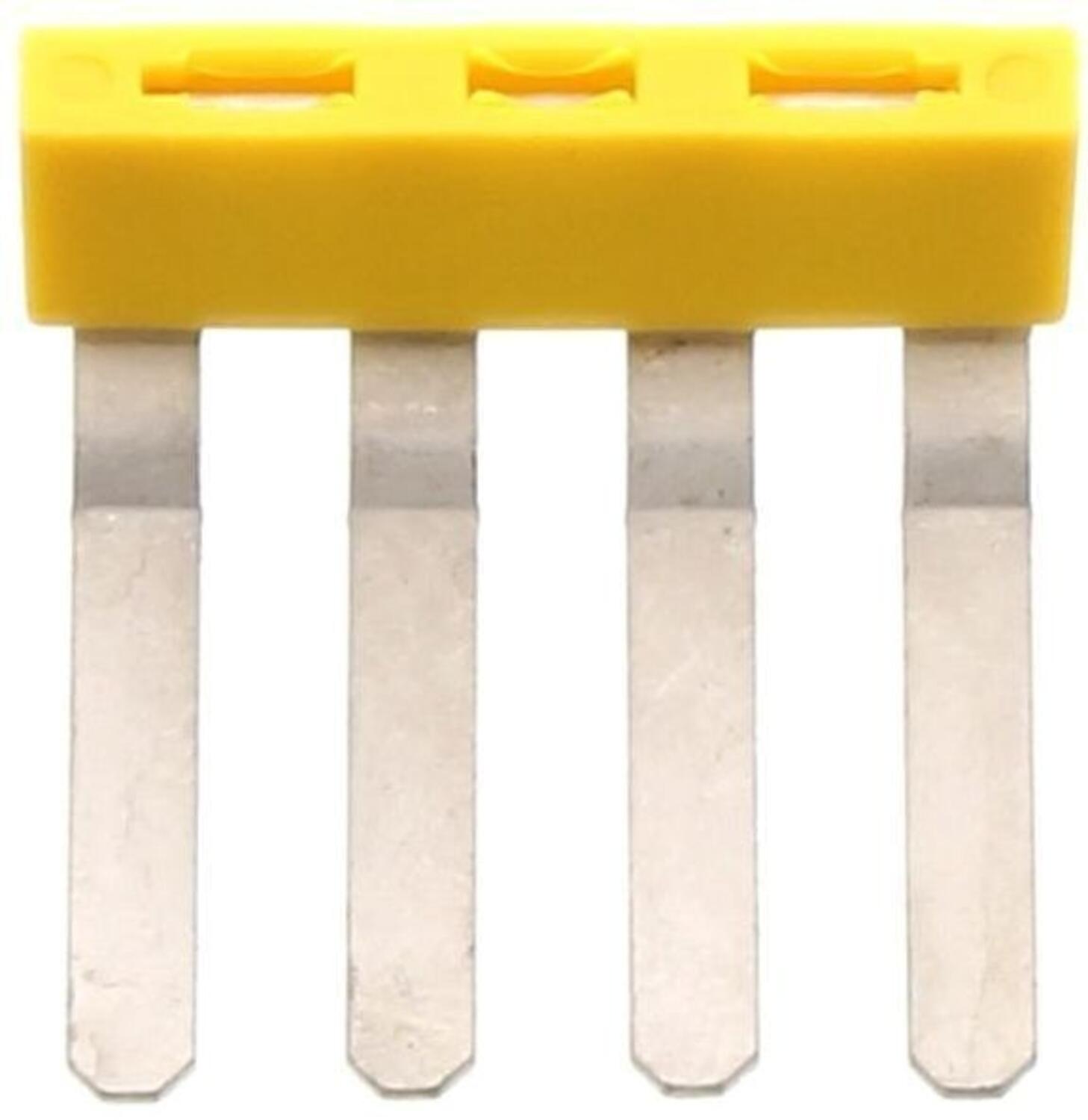

AQI 4/6/17 - 4 pole External Cross connector for RK2.5-4/TRK1.5/SRK4
Art:
2066.0 Copied
27 A
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
4
Push in
6 mm
23 mm
85369010
50
2.72 g
for RK 2,5-4… | TRK 1,5
3
DE
Connection connector with yellow plastic part and metal pins, ideal for electronic connections.
AQI 10/6/17 - 10 pole External Cross connector for RK2.5-4/TRK1.5/SRK4
Art:
2143.0 Copied
27 A
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
10
Push in
6 mm
59.6 mm
85369010
10
7.13 g
for RK 2,5-4… | TRK 1,5
3
DE
Comb with yellow handle and white teeth, ideal for hairstylists and hair styling.

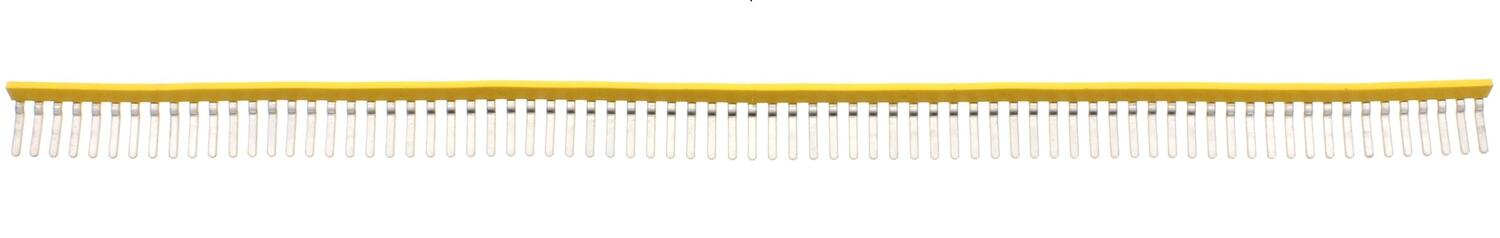

AQI 75/6/17 - 75 pole External Cross connector for RK2.5-4/TRK1.5/SRK4
Art:
2480.0 Copied
27 A
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
75
Push in
6 mm
85369010
10
53 g
for RK 2,5-4 | TRK 1,5
3
DE

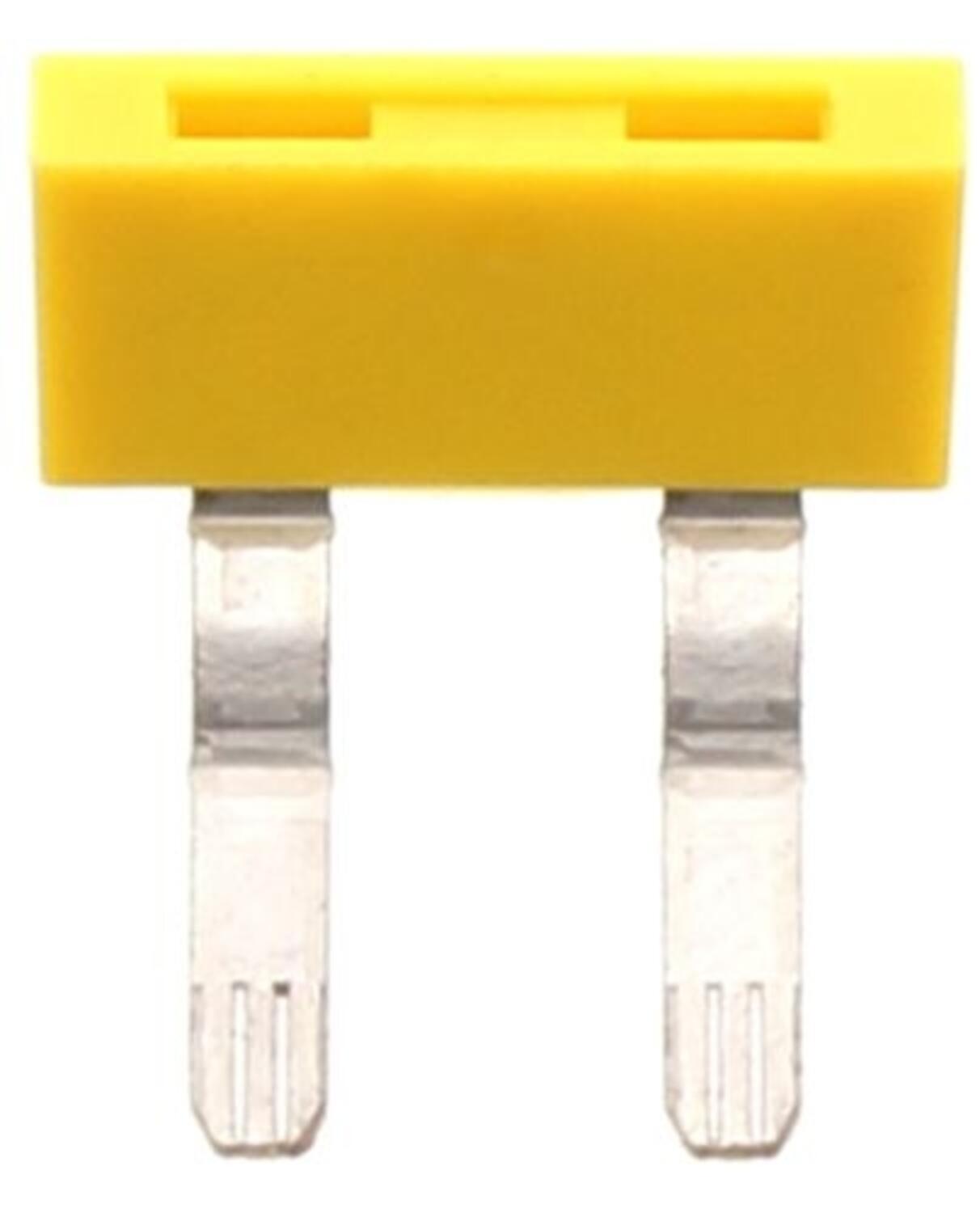

Yellow fuse with two metal pins, suitable for electrical applications.
AQI 2/8/11 - 2 pole External Cross connector for STK1/STK2/STKD1/BKA10
Art:
2067.0 Copied
27 A
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
2
Push in
8 mm
16.1 mm
85389099
50
0.88 g
for BKA 10 | STK 1 | STK 2 | STKD 1
3
DE
Yellow connector with three metal pins, ideal for electrical connections and components.
AQI 3/8/11 - 3 pole External Cross connector for STK1/STK2/STKD1/BKA10
Art:
2068.0 Copied
27 A
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
3
Push in
8 mm
24.2 mm
85389099
50
1.3 g
for BKA 10 | STK 1 | STK 2 | STKD 1
3
DE
Yellow connector with four metal pins for electrical connections

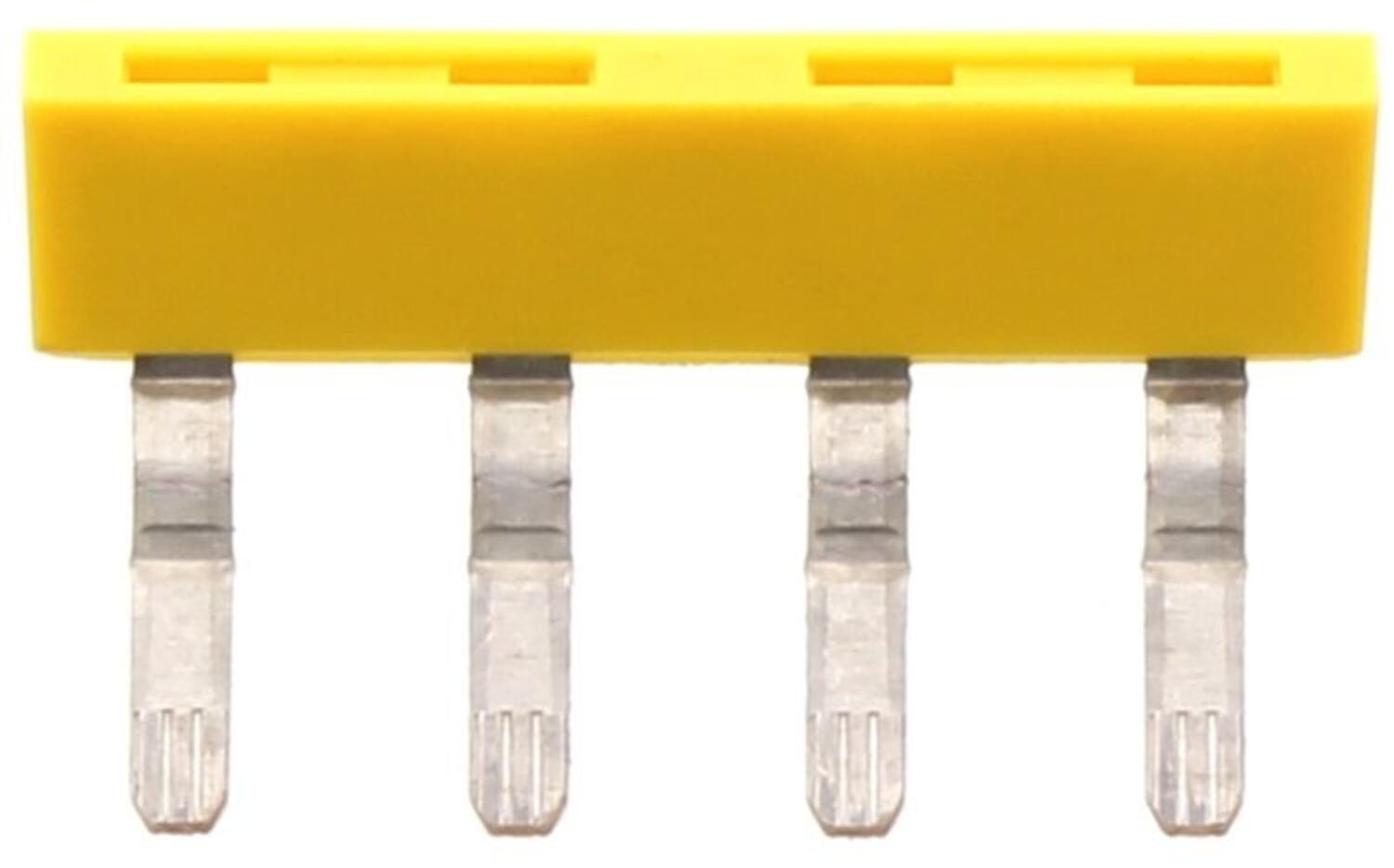

AQI 4/8/11 - 4 pole External Cross connector for STK1/STK2/STKD1/BKA10
Art:
2069.0 Copied
27 A
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
4
Push in
8 mm
32.3 mm
85389099
50
1.78 g
for BKA 10 | STK 1 | STK 2 | STKD 1
3
DE

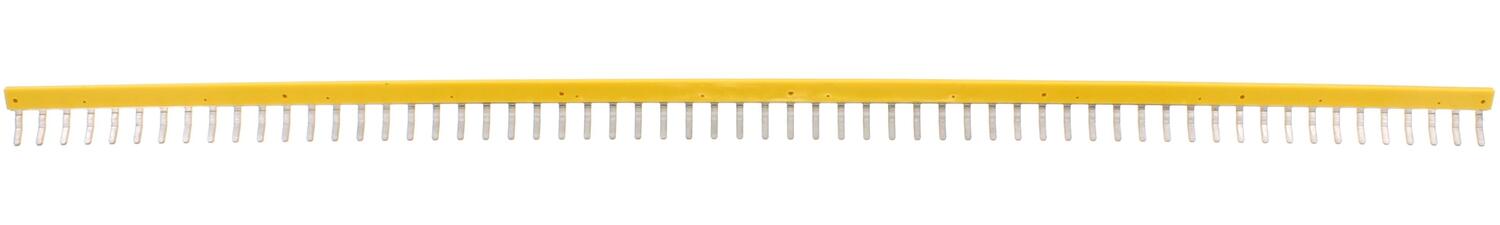

Yellow plastic comb with long teeth, ideal for hairdressers and stylists
AQI 60/8/11 - 60 pole External Cross connector for STK1/STK2/STKD1/BKA10
Art:
3445.8 Copied
57 A
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
60
Push in
8 mm
85369010
1
50 g
for BKA 10 | STK 1 | STK 2 | STKD 1
3
DE
Yellow fuse with two metal pins, suitable for electrical applications

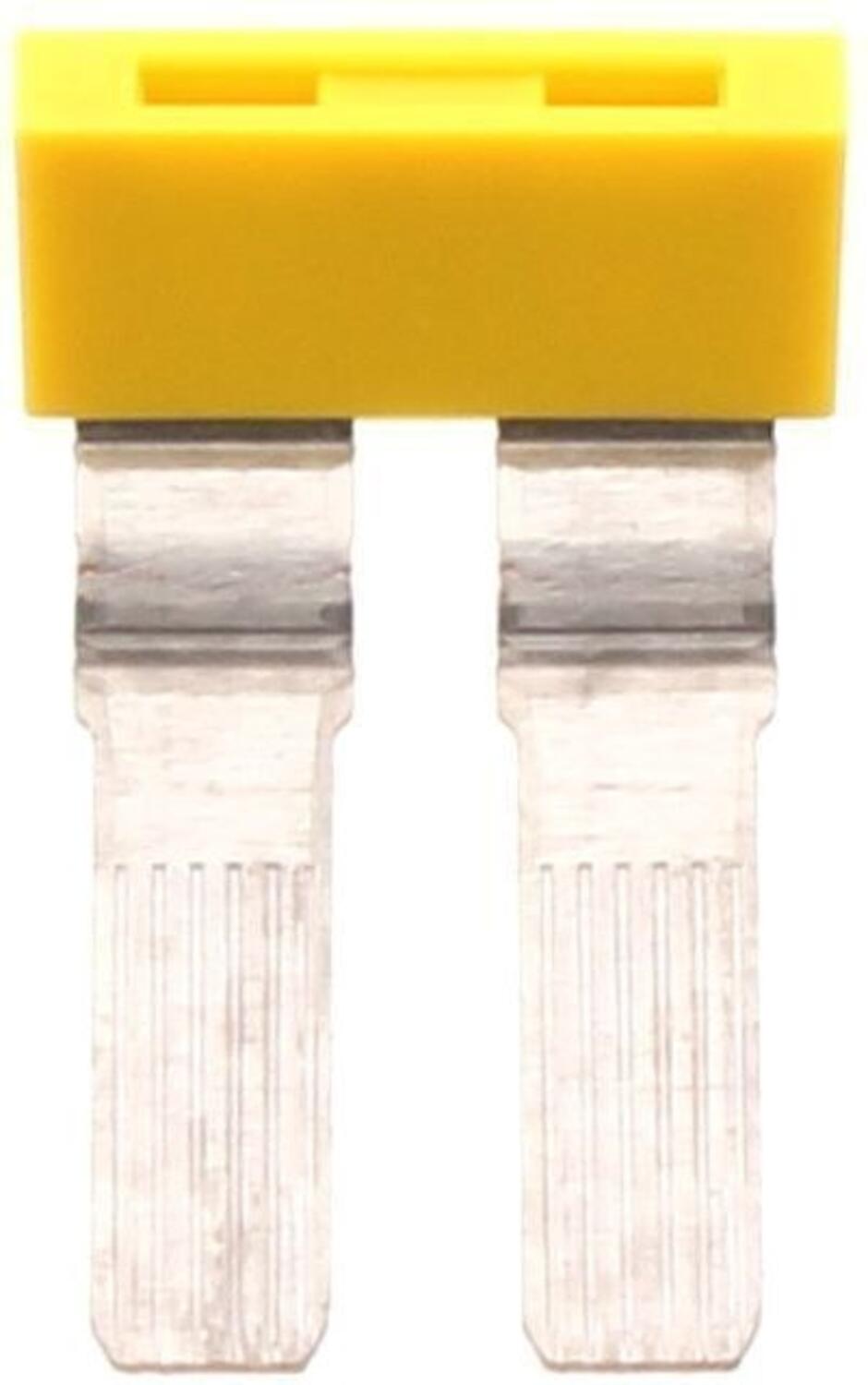

AQI 2/8/18 - 2 pole External Cross connector for RK6-10/TSIK10/PTK/SRK6
Art:
3440.8 Copied
57 A
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
2
Push in
8 mm
16.1 mm
85369010
50
2.6 g
for RK 6-10 | KBL 6-10 | BKA 10 | SIK 10 | PTK
3
DE

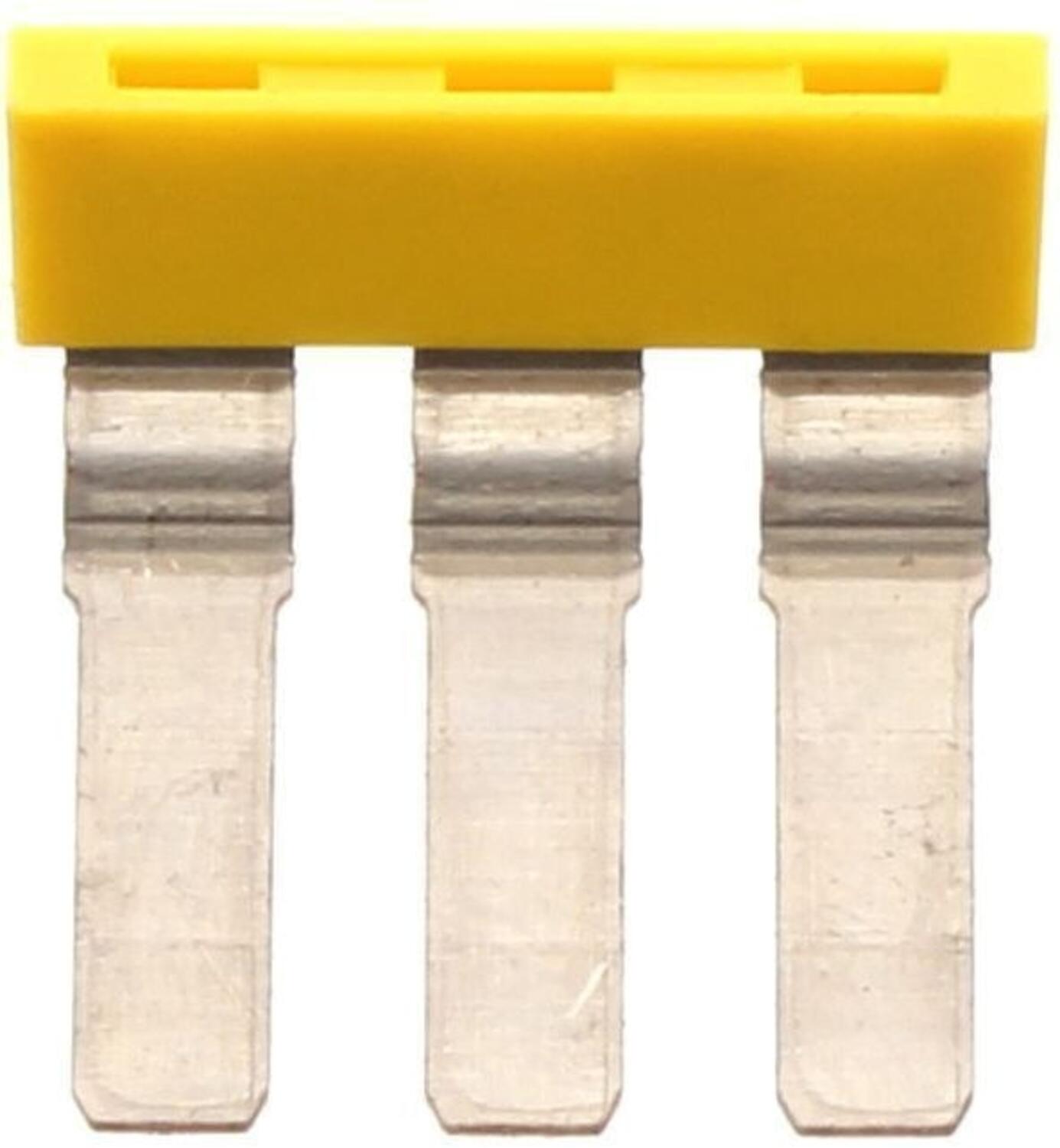

Fuse holder with three metal pins and yellow plastic part, ideal for electrical installations
AQI 3/8/18 - 3 pole External Cross connector for RK6-10/TSIK10/PTK/SRK6
Art:
3441.8 Copied
57 A
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
3
Push in
8 mm
24.2 mm
85369010
50
4 g
for RK 6-10 | KBL 6-10 | BKA 10 | SIK 10 | PTK
3
DE
Yellow plastic connector with four metal pins for electrical connections
AQI 4/8/18 - 4 pole External Cross connector for RK6-10/TSIK10/PTK/SRK6
Art:
3442.8 Copied
57 A
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
4
Push in
8 mm
32.3 mm
85369010
50
5.4 g
for RK 6-10 | KBL 6-10 | BKA 10 | SIK 10 | PTK
3
DE
Yellow connector with metal pins for electrical connections, ideal for B2B applications.
AQI 10/8/18 - 10 pole External Cross connector for RK6-10/TSIK10/PTK/SRK6
Art:
3443.8 Copied
57 A
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
10
Push in
8 mm
80.9 mm
85369010
10
13.8 g
for RK 6-10 | KBL 6-10 | BKA 10 | SIK 10 | PTK
3
DE
Wide plastic comb with yellow handle, ideal for professional use in the hairdressing industry

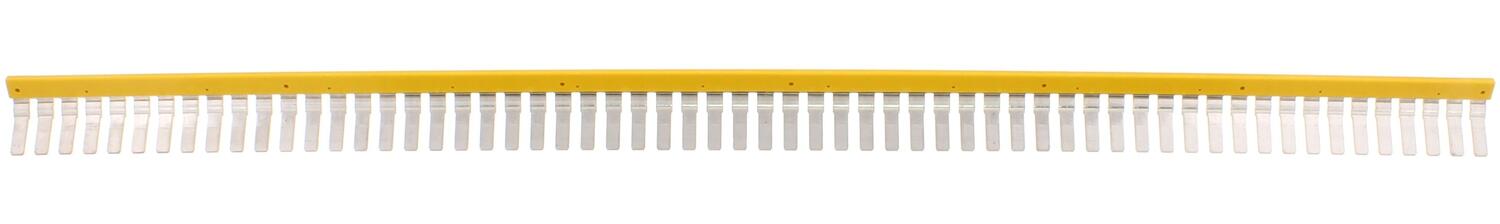

AQI 60/8/18 - 60 pole External Cross connector for RK6-10/TSIK10/PTK/SRK6
Art:
3444.8 Copied
57 A
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
60
Push in
8 mm
85369010
1
85.5 g
for RK 6-10 | KBL 6-10 | BKA 10 | SIK 10 | PTK
3
DE
Yellow fuse with two metal pins, ideal for electrical applications.

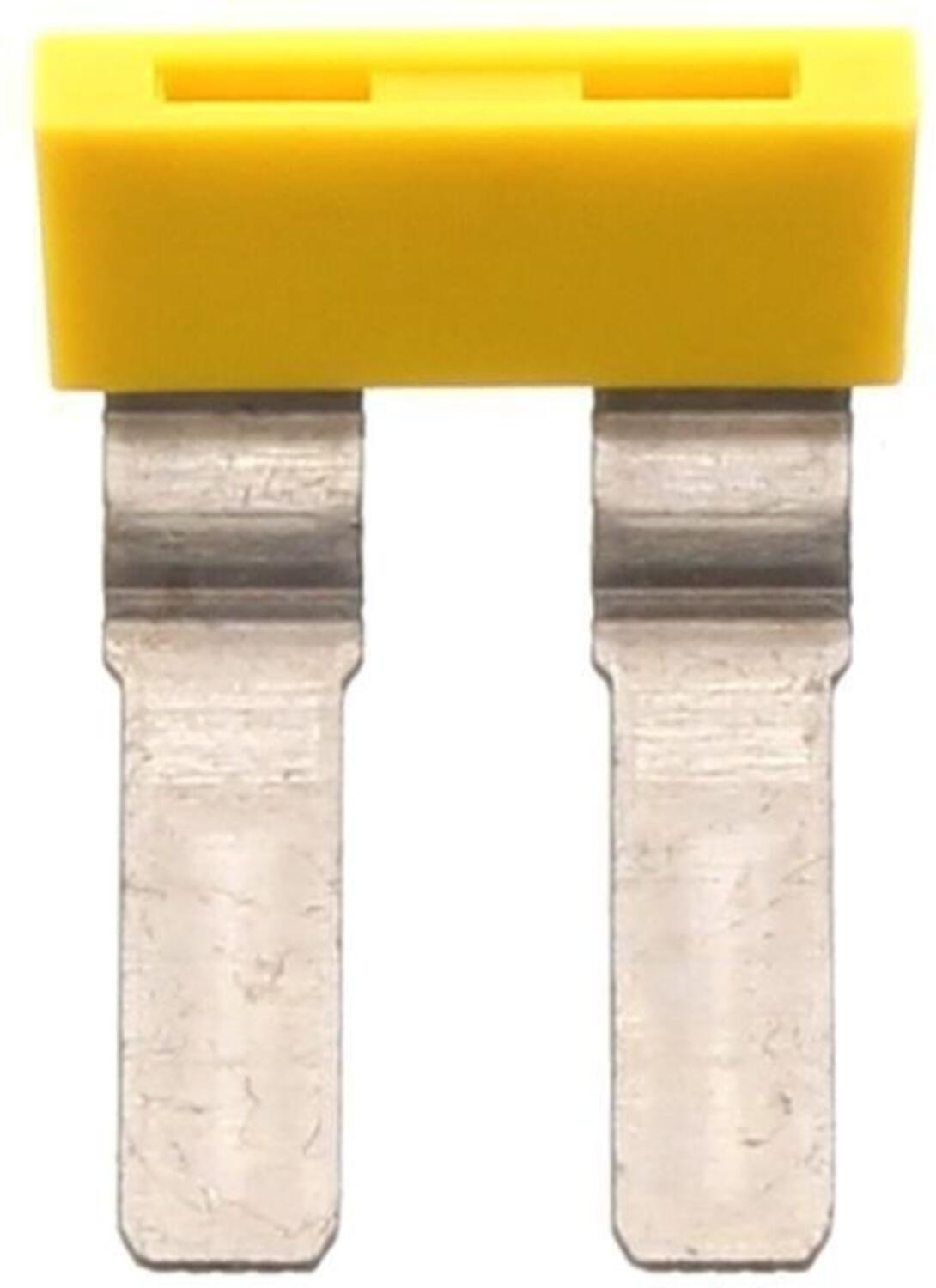

AQI 2/10/18 - 2 pole External Cross connector for SIK10Z/SRK10
Art:
3991.8 Copied
Yellow
Copper
120 °C
-40 °C
UL94-V0
2
Stick on
18.1 mm
85389099
50
2.84 g
DE
57 A
Tinned
Fuse holder with yellow top and three metal pins, ideal for electrical installations

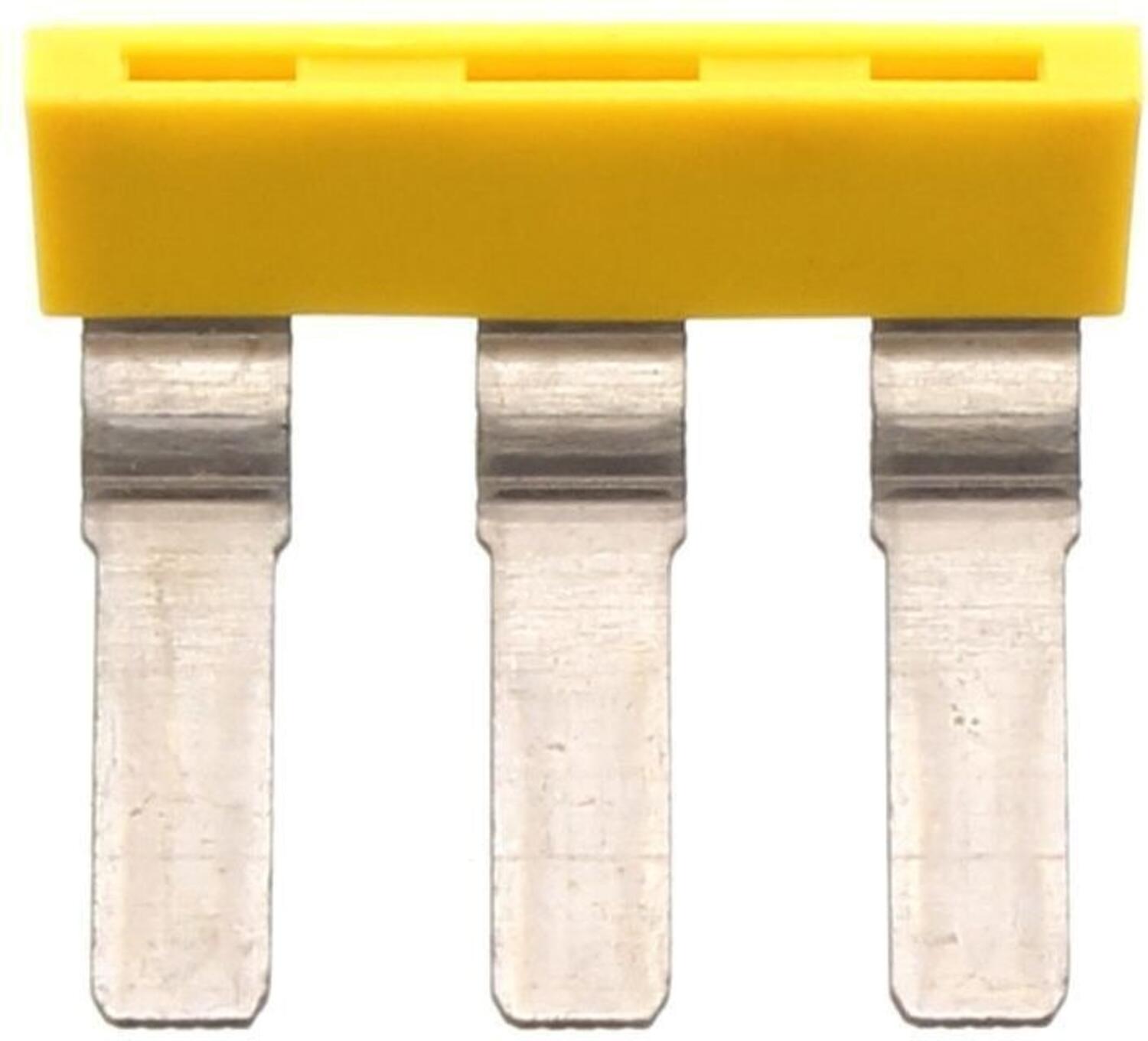

AQI 3/10/18 - 3 pole External Cross connector for SIK10Z/SRK10
Art:
3992.8 Copied
Yellow
Copper
120 °C
-40 °C
UL94-V0
3
Stick on
28.2 mm
85389099
50
4.44 g
DE
57 A
Tinned
Yellow plastic connector with four metal pins for electrical connections

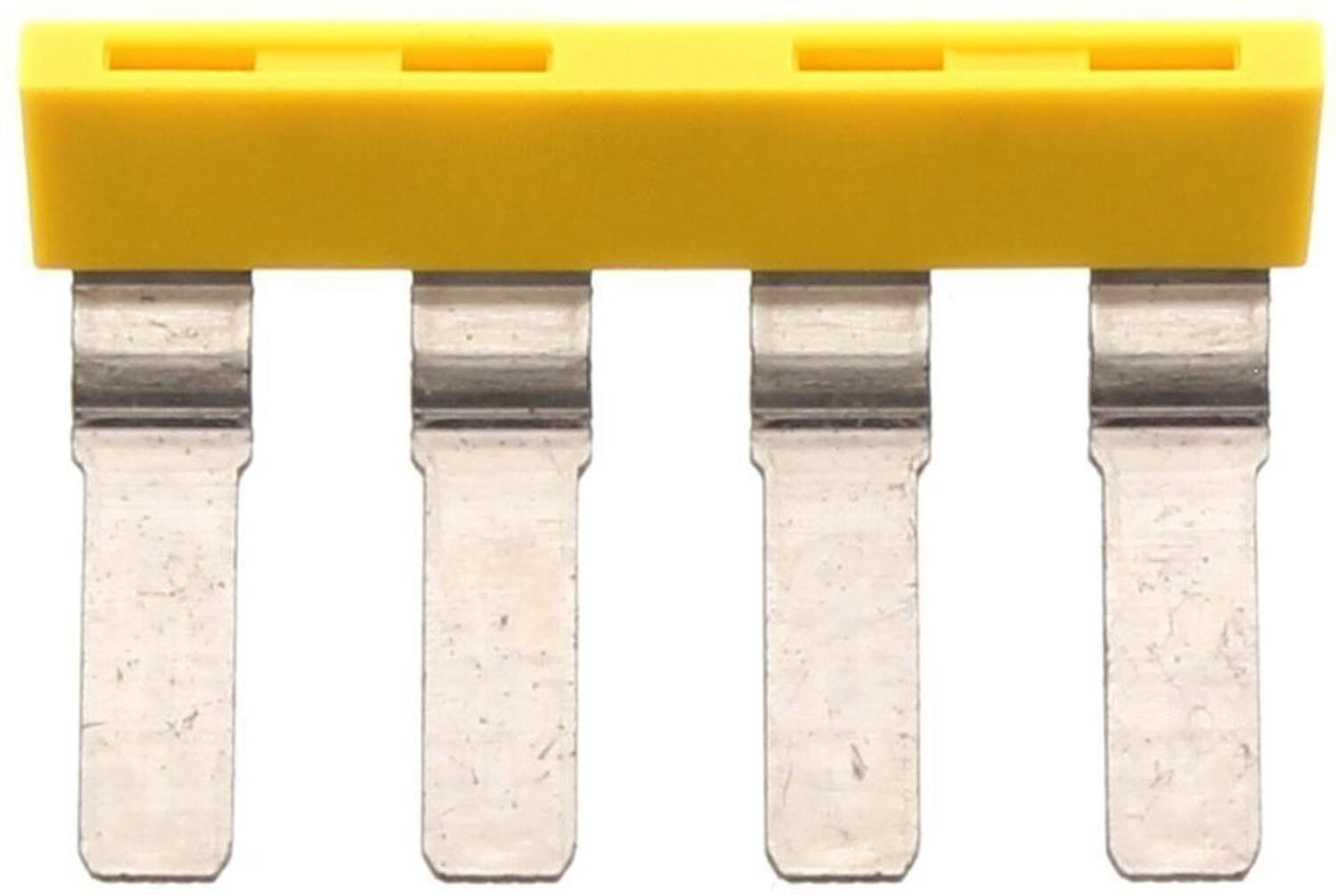

AQI 4/10/18 - 4 pole External Cross connector for SIK10Z/SRK10
Art:
3993.8 Copied
Yellow
Copper
120 °C
-40 °C
UL94-V0
4
Stick on
38.3 mm
85389099
50
5.84 g
DE
57 A
Tinned
Yellow plastic connector with metal pins for electrical connections, ideal for industrial applications.

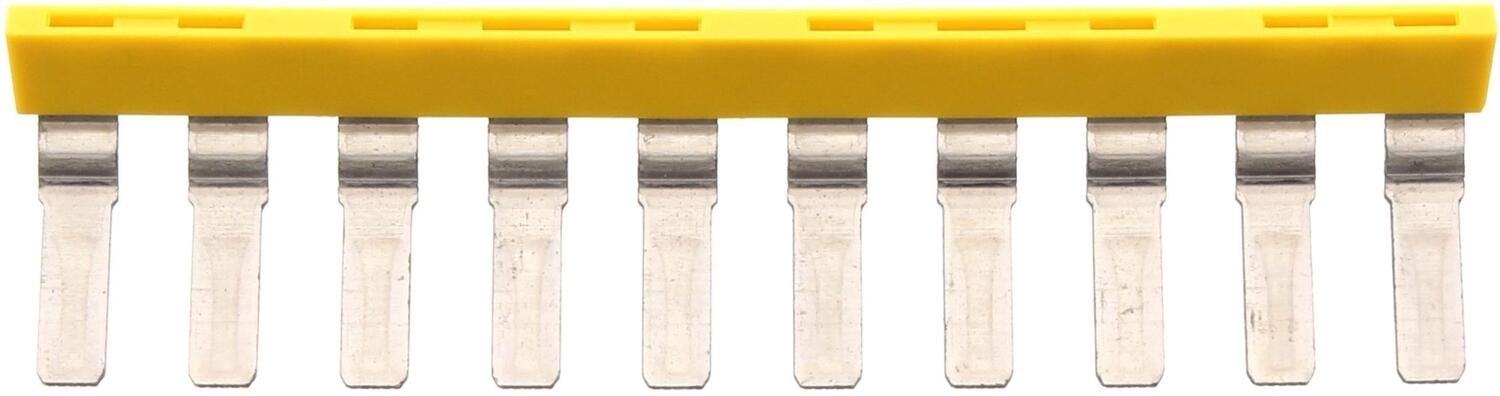

AQI10/10/18 - 10 pole External Cross connector for SIK10Z/SRK10
Art:
3994.8 Copied
Yellow
Copper
120 °C
-40 °C
UL94-V0
10
Stick on
98.9 mm
85389099
10
15.4 g
DE
57 A
Tinned
Yellow plastic comb with long teeth, ideal for professional use in the hairdressing industry
AQI50/10/18 - 50 pole External Cross connector for SIK10Z/SRK10
Art:
3995.8 Copied
Yellow
Copper
120 °C
-40 °C
UL94-V0
50
Stick on
85389099
1
82.6 g
DE
57 A
Tinned
Yellow plastic connector with metal terminals for electrical connections
AQI 2/50 - 2 pole External Cross connector for RK50
Art:
2763.2 Copied
150 A
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
2
Push in
20 mm
1000 V
1000 V
36.44 mm
85369010
5
35.4 g
for RK 50
3
DE
Terminal block with numbered terminals and yellow locking, model 2064_0
AQI 2/50 - 2 pole External Cross connector for RK50, Black
Art:
2763.4 Copied
150 A
Black
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
2
Push in
20 mm
1000 V
1000 V
36.44 mm
85369010
5
35.4 g
for RK 50
3
DE
Three-pole terminal block with metal contacts and yellow plastic cover, ideal for electrical installations.

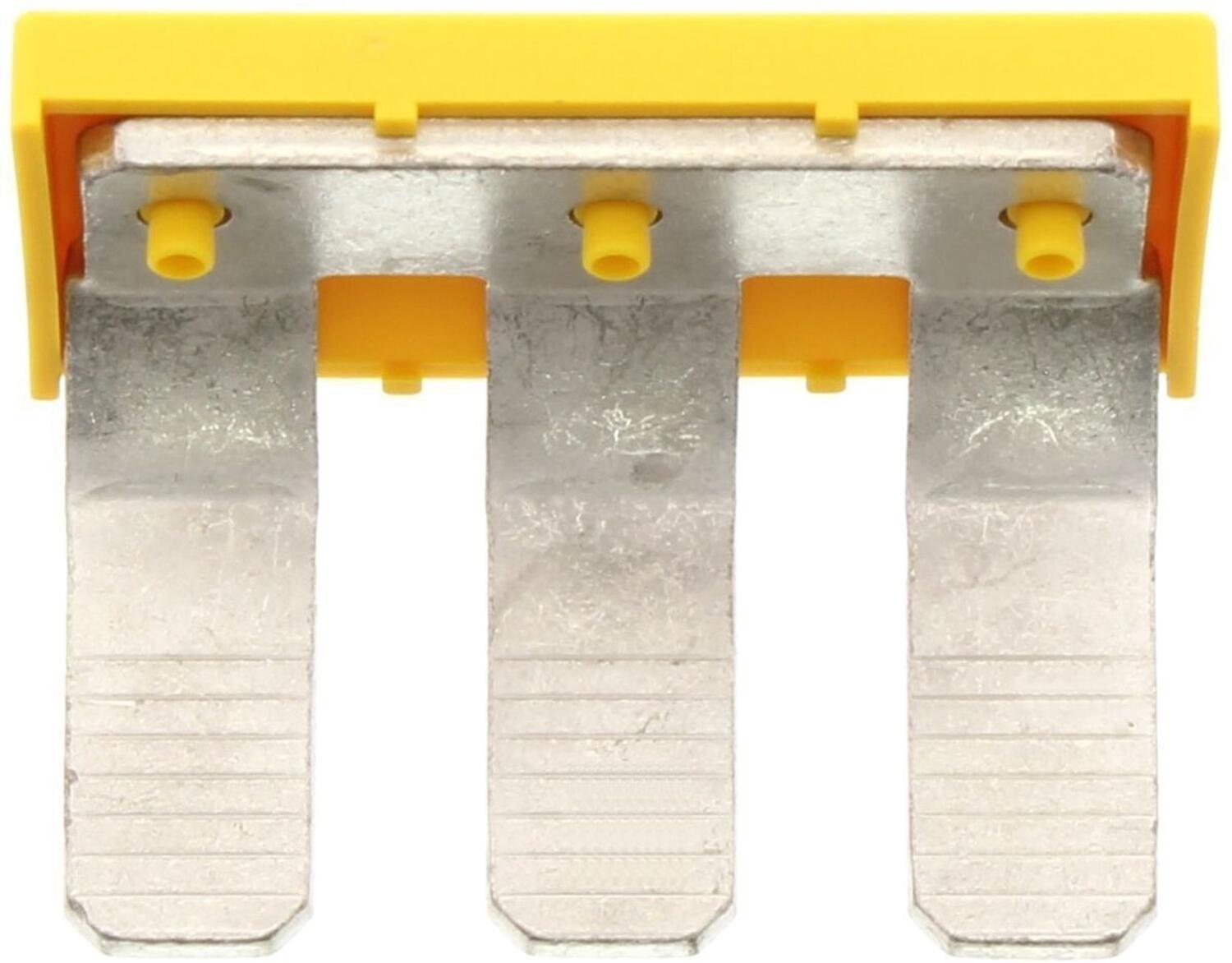

AQI 3/50 - 3 pole External Cross connector for RK50
Art:
2764.2 Copied
150 A
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
3
Push in
20 mm
1000 V
1000 V
57.04 mm
85369010
5
55.8 g
for RK 50
3
DE
Terminal block with numbered terminals and yellow locking, model 2064_0
AQI 3/50 - 3 pole External Cross connector for RK50, Black
Art:
2764.4 Copied
150 A
Black
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
3
Push in
20 mm
1000 V
1000 V
57.04 mm
85369010
5
55.8 g
for RK 50
3
DE
Yellow fuse with metal brackets, suitable for electrical applications.

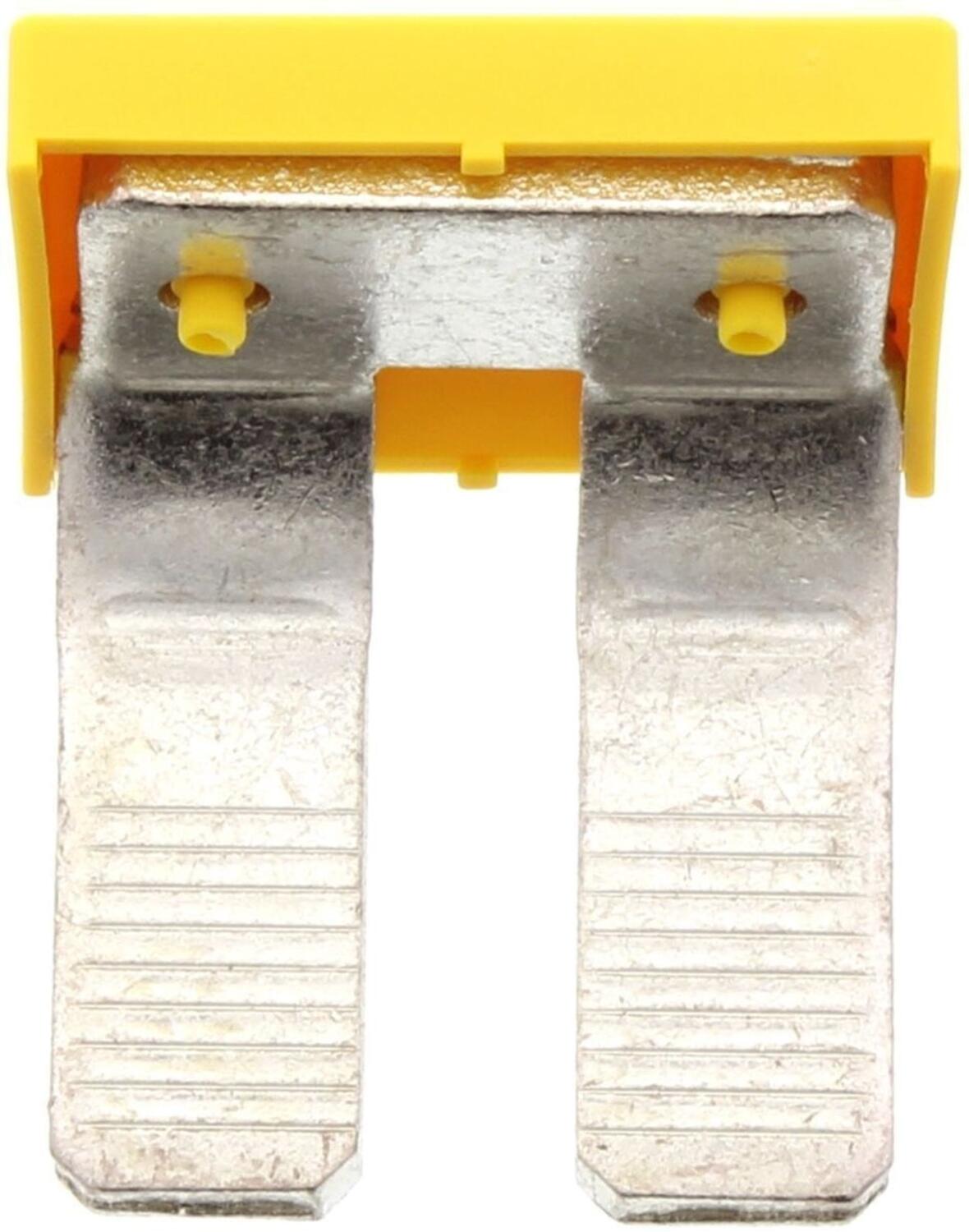

AQI 2/95 - 2 pole External Cross connector for RK95
Art:
2765.2 Copied
232 A
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
2
Push in
25 mm
1000 V
1000 V
44.86 mm
85369010
5
93 g
for RK 95
3
DE
Terminal block with numbered terminals and yellow locking, model 2064_0
AQI 2/95 - 2 pole External Cross connector for RK95, Black
Art:
2765.4 Copied
232 A
Black
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
2
Push in
25 mm
1000 V
1000 V
44.86 mm
85369010
5
93 g
for RK 95
3
DE
Terminal plate with three metal contacts and a yellow plastic cover, ideal for electrical connections.

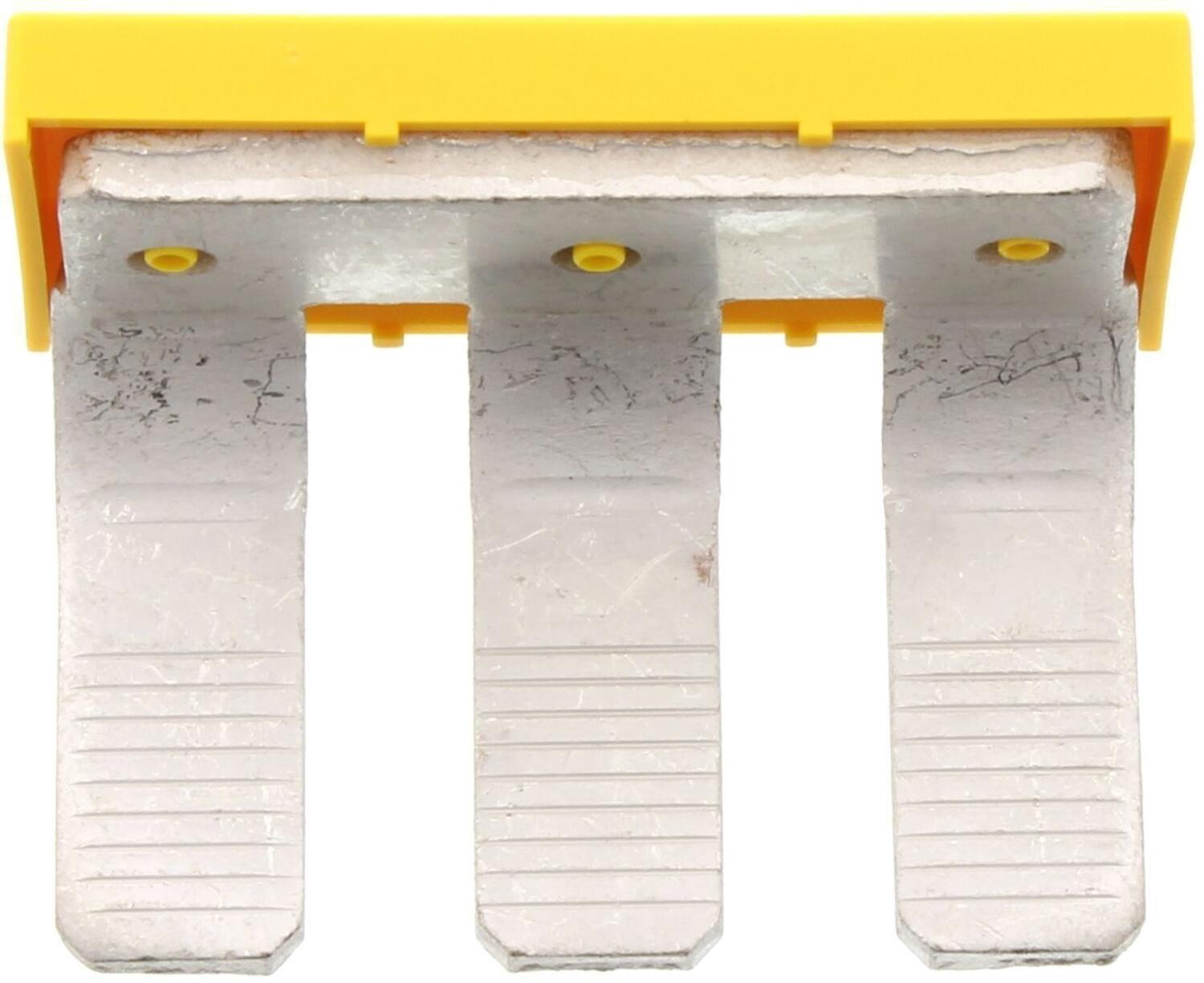

AQI 3/95 - 3 pole External Cross connector for RK95
Art:
2766.2 Copied
232 A
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
3
Push in
25 mm
1000 V
1000 V
70.44 mm
85369010
5
144 g
for RK 95
3
DE
Terminal block with numbered terminals and yellow locking, model 2064_0
AQI 3/95 - 3 pole External Cross connector for RK95, Black
Art:
2766.4 Copied
232 A
Black
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
3
Push in
25 mm
1000 V
1000 V
70.44 mm
85369010
5
144 g
for RK 95
3
DE
Metal contact with yellow plastic cover, designed for electrical connections

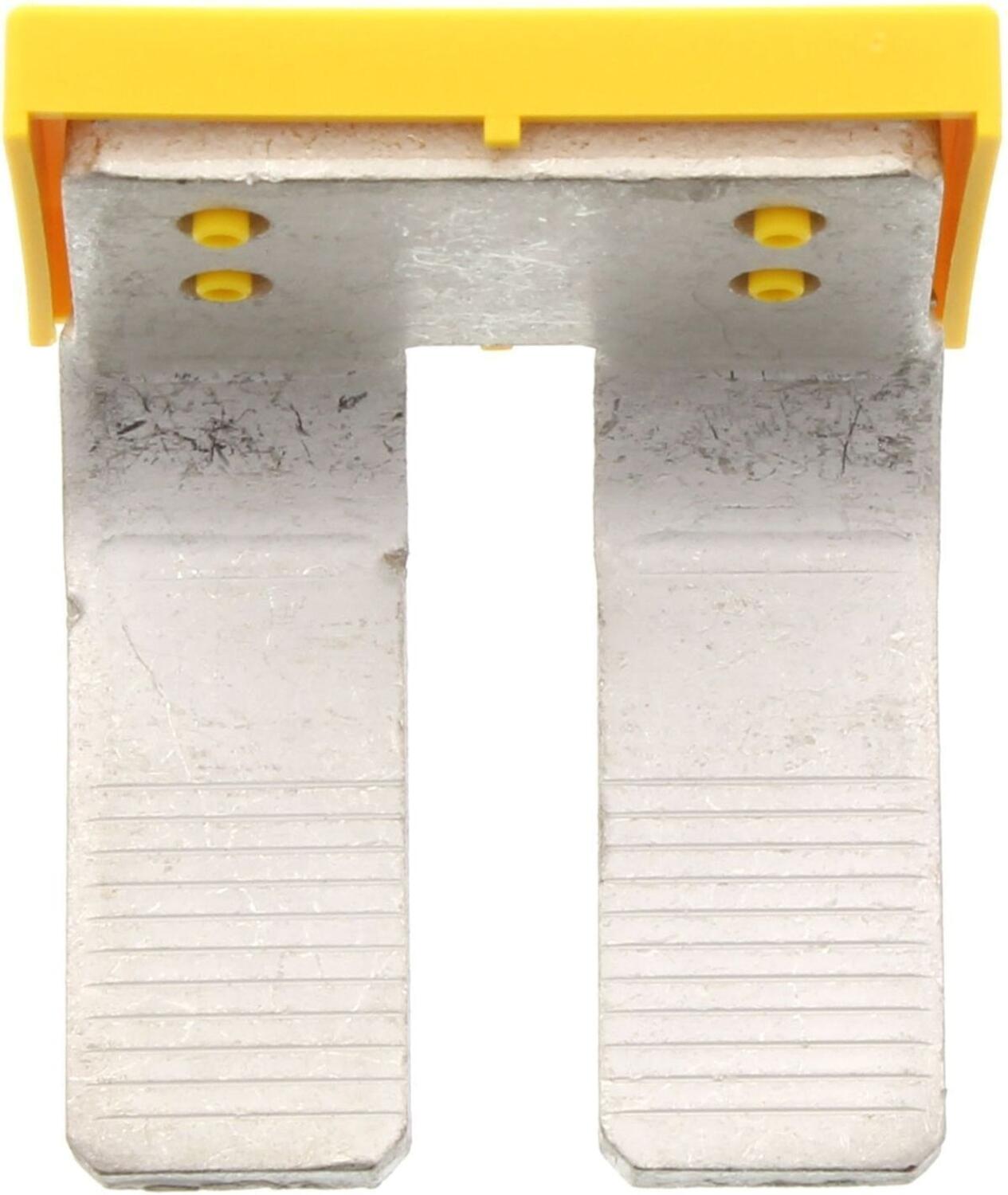

AQI 2/150 - 2 pole External Cross connector for RK150
Art:
2767.2 Copied
309 A
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
2
Push in
31 mm
1000 V
1000 V
56.13 mm
85369010
5
156.8 g
for RK 150
3
DE
Terminal block with numbered terminals and yellow locking, model 2064_0
AQI 2/150 - 2 pole External Cross connector for RK150, Black
Art:
2767.4 Copied
309 A
Black
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
2
Push in
31 mm
1000 V
1000 V
56.13 mm
85369010
5
156.8 g
for RK 150
3
DE
Three metal clamps with yellow plastic part, designed to fasten and support electrical components.

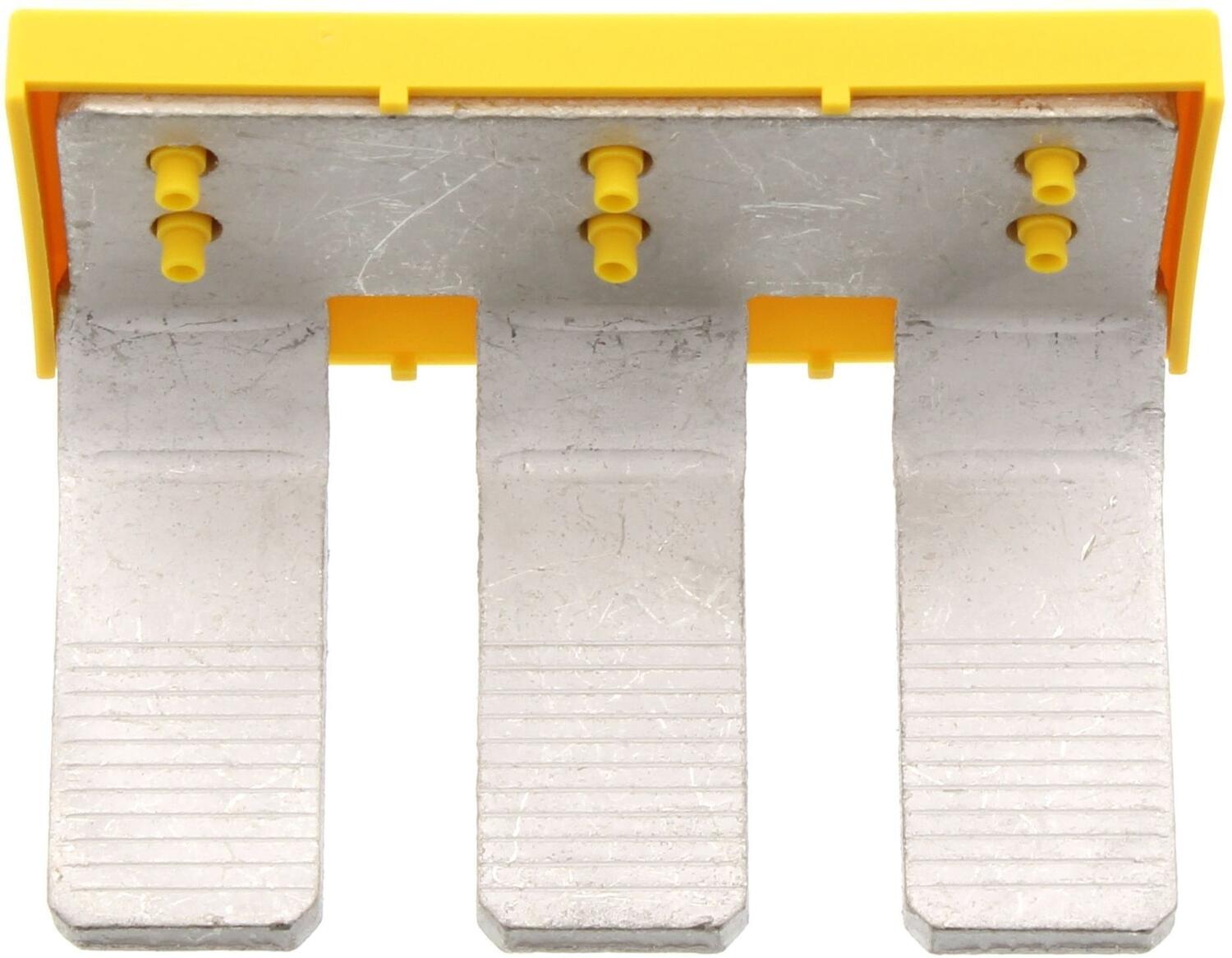

AQI 3/150 - 3 pole External Cross connector for RK150
Art:
2768.2 Copied
309 A
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
3
Push in
31 mm
1000 V
1000 V
87.9 mm
85369010
5
243.4 g
for RK 150
3
DE
Terminal block with numbered terminals and yellow locking, model 2064_0
AQI 3/150 - 3 pole External Cross connector for RK150, Black
Art:
2768.4 Copied
309 A
Black
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
3
Push in
31 mm
1000 V
1000 V
87.9 mm
85369010
5
243.4 g
for RK 150
3
DE
Metal bracket with yellow plastic cover, designed for secure connection and stability

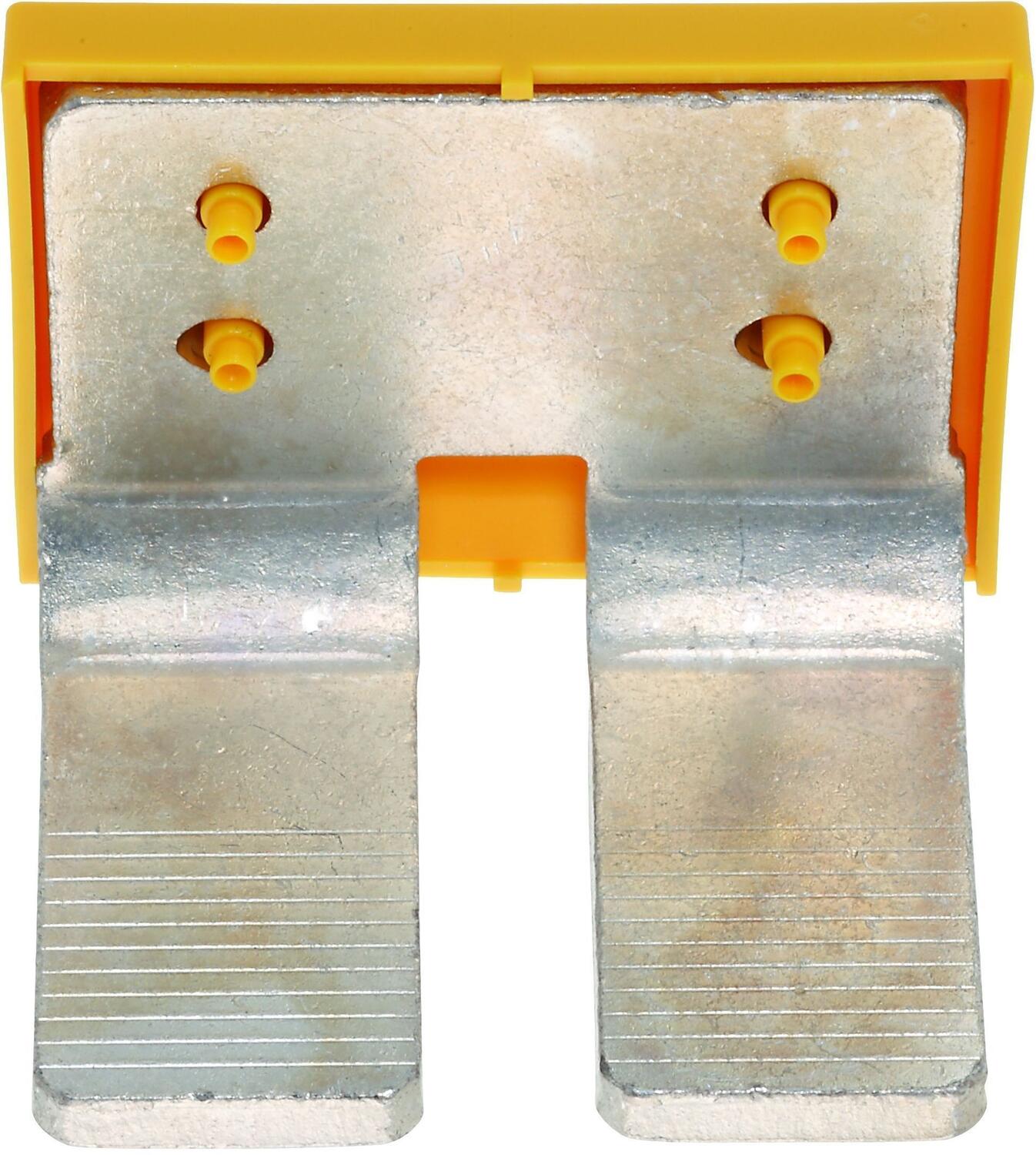

AQI 2/240 - 2 pole External Cross connector for RK240
Art:
2769.2 Copied
380 A
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
2
Push in
36 mm
1000 V
1000 V
66.28 mm
85369010
5
204 g
for RK 240
3
DE
Terminal block with numbered terminals and yellow locking, model 2064_0
AQI 2/240 - 2 pole External Cross connector for RK240, Black
Art:
2769.4 Copied
380 A
Black
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
2
Push in
36 mm
1000 V
1000 V
66.28 mm
85369010
5
204 g
for RK 240
3
DE
Three metal clamps with yellow plastic part for electrical connections

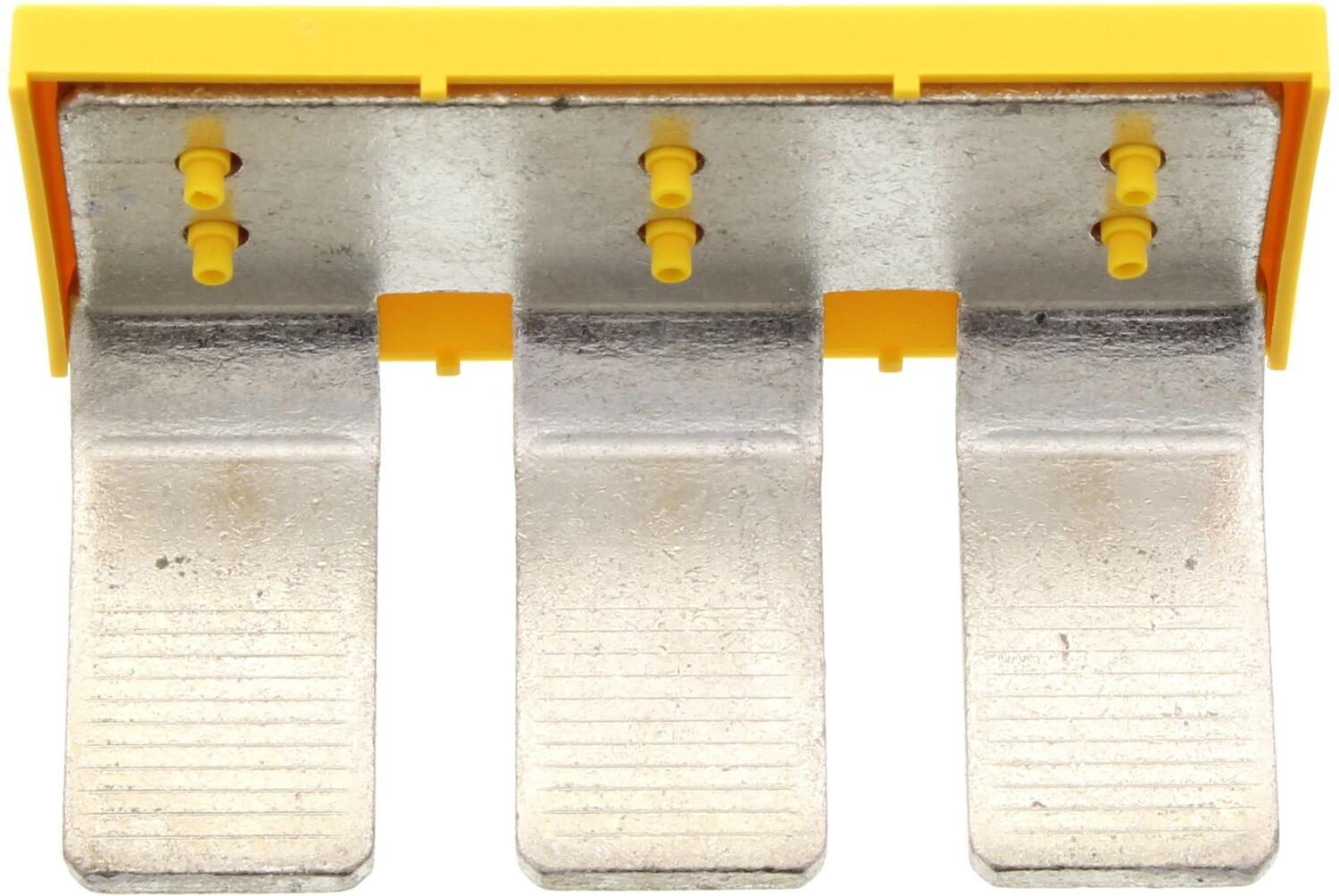

AQI 3/240 - 3 pole External Cross connector for RK240
Art:
2770.2 Copied
380 A
Yellow
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
3
Push in
36 mm
1000 V
1000 V
103.12 mm
85369010
5
317.84 g
for RK 240
3
DE
Terminal block with numbered terminals and yellow locking, model 2064_0
AQI 3/240 - 3 pole External Cross connector for RK240, Black
Art:
2770.4 Copied
380 A
Black
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
3
Push in
36 mm
1000 V
1000 V
103.12 mm
85369010
5
317.84 g
for RK 240
3
DE
Beige fuse holder with two metal contacts, ideal for electrical applications.
AQV 2 PE/N 10 - 2 pole External Cross connector for SL10/RK6-10 Combo
Art:
2181.0 Copied
Beige
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
2
Push in
8 mm
3 mm
15.5 mm
85369010
10
2.62 g
for SL 10/32 | RK 6-10 BU | SL 10/35 | RK 6-10 BU
DE
Beige fuse holder with two metal contacts, ideal for electrical applications.
AQV 2 PE/N 16 - 2 pole External Cross connector for SL16/RK16 Combo ** OUT GOING MATERIAL **
Art:
2182.0 Copied
Beige
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
2
Push in
12 mm
3.7 mm
21 mm
85369010
10
5.45 g
for SL 10/32 | RK 6-10 BU | SL 10/35 | RK 6-10 BU
DE
Connection part in beige plastic with metal brackets, ideal for electrical installations
AQV 2 PE/N 35 - 2 pole External Cross connector for SL35/RK35 Combo
Art:
2183.0 Copied
Beige
Copper
Polyamide 6.6
105 °C
-40 °C
UL94-V2
2
Push in
16 mm
4.6 mm
28 mm
85369010
10
14.4 g
for SL 10/32 | RK 6-10 BU | SL 10/35 | RK 6-10 BU
DE
Black cable holder with metal pins for easy installation and cable organization

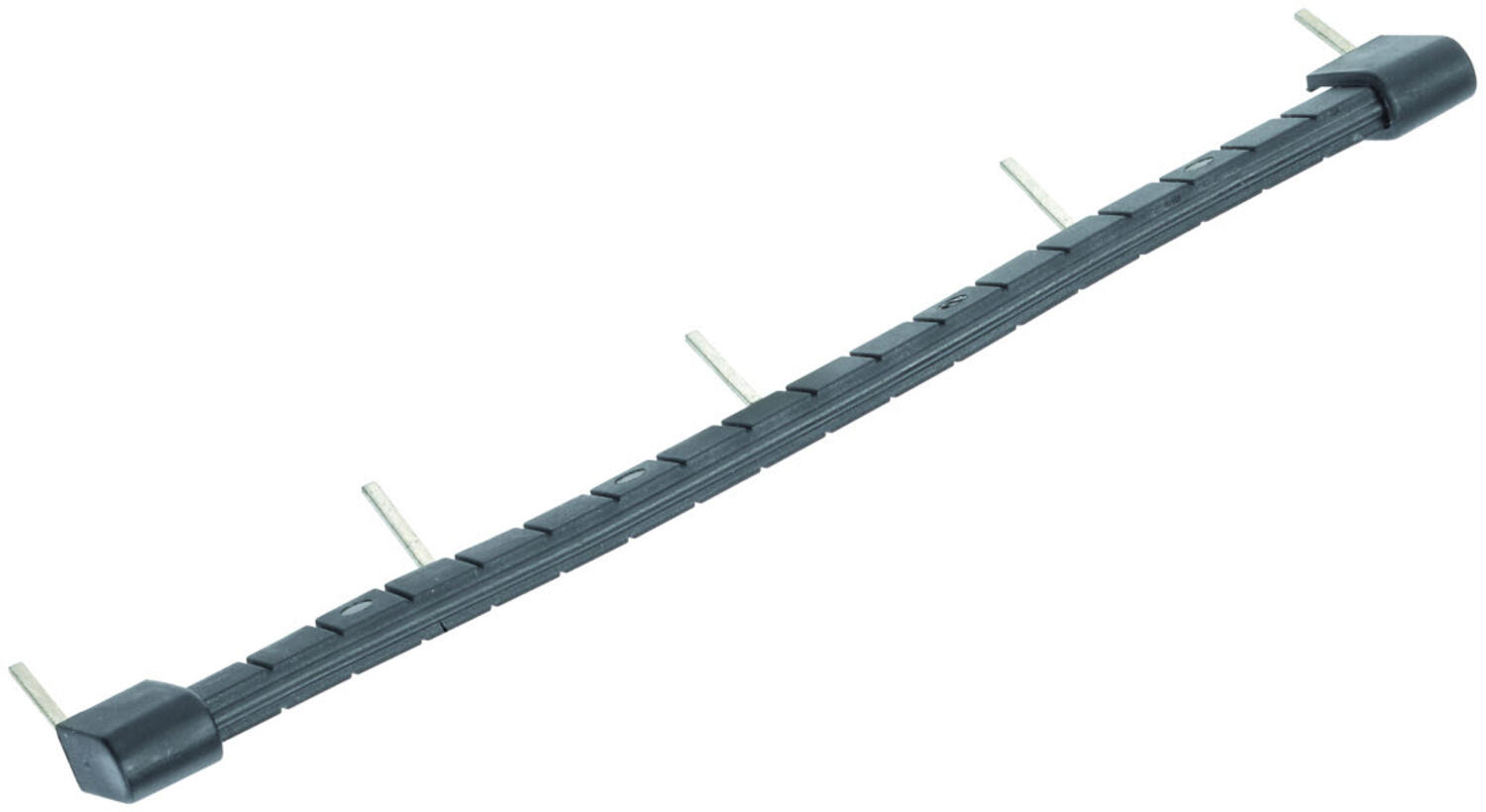

AQI PRS/6 - 6 pole External Cross connector, PRS relay base
Art:
15778.2 Copied
Polyamide 6.6
105 °C
-40 °C
UL94-V2
6
85389099
20
5.4 g
PL
Black mounting strip with metal pins for installation of electrical components

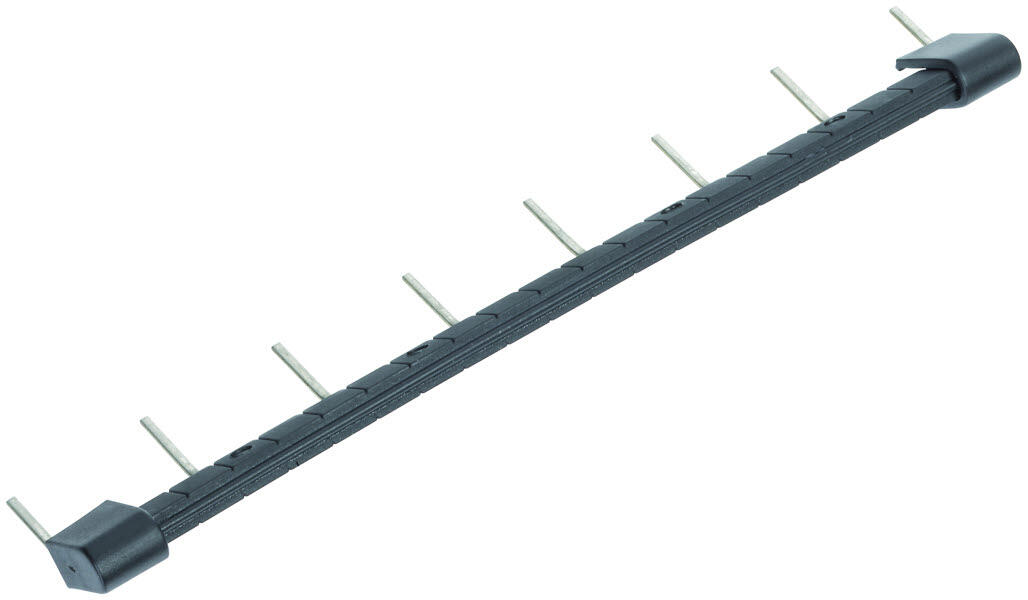

AQI PRS/8 - 8 pole External Cross connector, PRS relay base
Art:
15779.2 Copied
Polyamide 6.6
105 °C
-40 °C
UL94-V2
8
85389099
20
5.1 g
PL
Black connector with gold-plated pins, ideal for electronic connections and components.
AQI/IRC/16 -16 pole External Cross connector, IRC relay base, Black
Art:
16209.4 Copied
6 A
Black
Polyamide 6.6
105 °C
-40 °C
UL94-V2
16
85389099
10
6.1 g
EEC
250 V
Blue terminal block with gold-plated pins for electrical connections

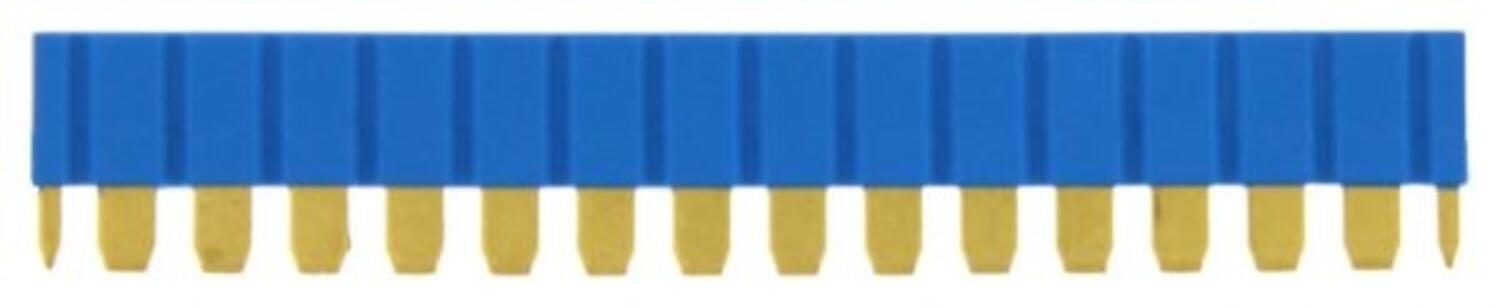

AQI/IRC/16 -16 pole External Cross connector, IRC relay base, Blue
Art:
16209.5 Copied
6 A
Blue
Polyamide 6.6
105 °C
-40 °C
UL94-V2
16
85389099
10
6.1 g
EEC
250 V
Red and yellow connection block for electrical components, ideal for industrial use.
AQI/IRC/16 -16 pole External Cross connector, IRC relay base, Red
Art:
16209.9 Copied
6 A
Red
Polyamide 6.6
105 °C
-40 °C
UL94-V2
16
85389099
10
6.1 g
EEC
250 V
Terminal block with numbered terminals and yellow locking, model 2064_0
AQI/PRC/8, 8 pole External Cross connector, PRC relay base, Black
Art:
15930.4 Copied
10 A
Black
Polyamide 6.6
105 °C
-40 °C
UL94-V2
8
85389099
10
4.7 g
EEC
250 V
Terminal block with numbered terminals and yellow locking, model 2064_0
AQI/PRC/8, 8 pole External Cross connector, PRC relay base, Blue
Art:
15930.5 Copied
10 A
Blue
Polyamide 6.6
105 °C
-40 °C
UL94-V2
8
85389099
10
4.7 g
EEC
250 V
Terminal block with numbered terminals and yellow locking, model 2064_0
AQI/PRC/8 - 8 pole External Cross connector, PRC relay base
Art:
15930.8 Copied
10 A
Yellow
Polyamide 6.6
105 °C
-40 °C
UL94-V2
8
85389099
10
4.7 g
EEC
250 V
Black connector with gold-plated pins, ideal for electronic connections
AQI/PRC/20, 20 pole External Cross connector, PRC relay base, Black
Art:
15545.4 Copied
36 A
Black
Polyamide 6.6
105 °C
-40 °C
UL94-V2
20
85389099
1
7.8 g
EEC
250 V
Blue pin header with 20 pins for electronic connections
AQI/PRC/20, 20 pole External Cross connector, PRC relay base, Blue
Art:
15545.5 Copied
36 A
Blue
Polyamide 6.6
105 °C
-40 °C
UL94-V2
20
85389099
1
7.8 g
EEC
250 V
Yellow connector strip with multiple pins for electrical connections

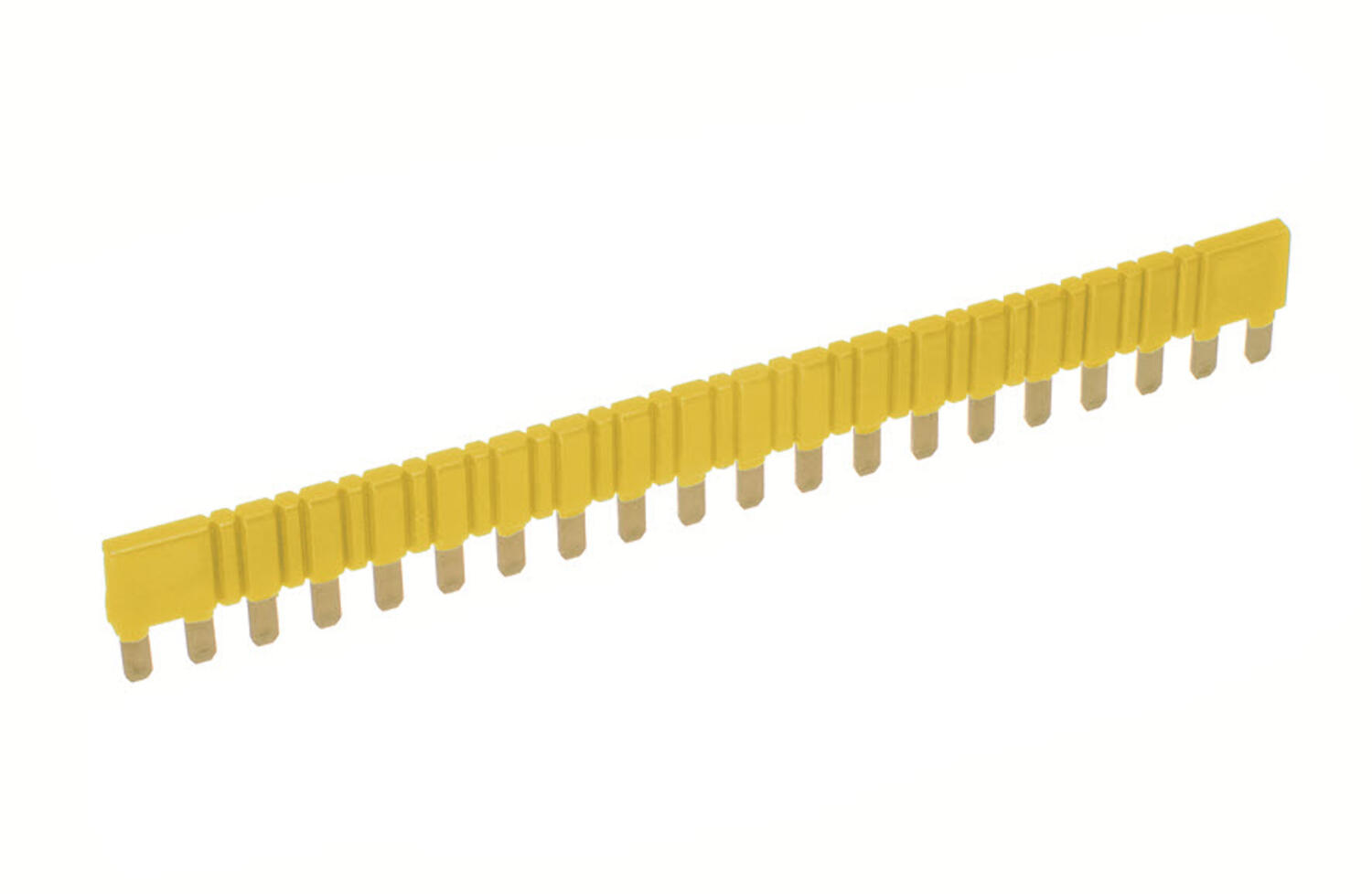

AQI/PRC/20, 20 pole External Cross connector, PRC relay base, Yellow
Art:
15545.8 Copied
36 A
Yellow
Polyamide 6.6
105 °C
-40 °C
UL94-V2
20
85389099
1
7.8 g
EEC
250 V

Selected variant

Select a variant in the list

Contact us
Please contact us for more information.
Send e-mail
Do you need help?
