Feed through terminals - FRK 1.5-16mm²

FRK

The FRK series is the 1st generation of an innovative range of push-in connection terminals. It ranges from the smallest cross-section of 0.2 mm² to 16 mm² in feed-through and snap on Earths, disconnect, fuse and installation terminals. The push-in connection enables a safe and fast connection of rigid and flexible conductors with wire end ferrules. The clever range of accessories significantly reduces assembly and storage costs. With the pluggable potential distribution systems FQI, potentials can be easily multiplied.  The compact FRKI range completes the offer with 6 -10mm compact terminals to complement the FRK offer.











Read more
  • Wiring without tools
  • Material polyamide 6.6
  • Temperature resistance -40 °C...+120 °C
  • Flammability class V0
  • See also FRKI for additional sizes

Selected variant


Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Approvals CSA, CSA US, KEMA KUR, EAC
Color Green
Connections 2
Contamination degree 3
Country of origin BG
Cross connect channels 2
Cross section single wire from 0.2 mm²
Cross section single wire to 1.5 mm²
Cross section stranded wire from 0.2 mm²
Cross section stranded wire to 1.5 mm²
Cross section stranded with ferrule from 0.2 mm²
Cross section stranded with ferrule to 1.5 mm²
Cross-Section 1.5 mm²
CSA test standard C22.2 No 158
CSAus test standard UL 1059
EAC test standard TR ZU 004/2011
Flamklass UL94-V0
Height TS 35/7.5 43 mm
Insulation Material Polyamide 6.6
KEMA KEUR test standard EN 60947-7-1:2009
Length 48.5 mm
Mounting TS 35/7,5
Number of levels 1
Operating temperature from -40 °C
Operating temperature to 120 °C
Overvoltage category III
Pack Size 100
Plug gauge acc. EN 60 947-1 A1
Rated Current CSA 16 A
Rated current CSAus 16 A
Rated Current IEC 17.5 A
Rated impulse voltage 8 kV
Rated wire cross section from (AWG) 24
Rated wire cross section to (AWG) 16
Rated voltage CSAus 600 V
Rated Voltage IEC 800 V
Stripping Length 12 mm
Tariff code 85369010
Weight 6.7 g
Width 4.1 mm
Voltage CSA 600 V

Downloads

Measurements and connections

Product description

The FRK series is the 1st generation of an innovative range of push-in connection terminals. It ranges from the smallest cross-section of 0.2 mm² to 16 mm² in feed-through and snap on Earths, disconnect, fuse and installation terminals. The push-in connection enables a safe and fast connection of rigid and flexible conductors with wire end ferrules. The clever range of accessories significantly reduces assembly and storage costs. With the pluggable potential distribution systems FQI, potentials can be easily multiplied.  The compact FRKI range completes the offer with 6 -10mm compact terminals to complement the FRK offer.











Accessories

Related products

Related

Product news

Push-In sockets that save both time and space

ComatReleco has launched a new series of push-in sockets specifically designed for time and space savings.

Fiepos
Product news

Fiepos — The power supply of the future

The need for flexible, modular systems shapes machine and system engineering. Decentralization of the system components has proven to be an important factor for success.

Syr-Line time relays
Product news

New “all-round” Syr-Line time relays by Crouzet

Crouzet has honoured the strong Syrelec time relay traditions established in the 1980s, first by Cronos and Cronos 2 series. Now, Crouzet presents the compact and extremely versatile Syr-Line series.

PULS Piano PIC
Product news

The recognized Puls quality for an attractive price

The PIANO PIC series is designed for applications that require reliable DIN rail power supplies, which are focused to deliver the most widely required customer functionalities. Our PIC units offer this simplicity without making compromises on PULS’ renowned qualities; efficiency, service lifetime, reliability and size.

WADI cable gland serie
Product news

New WADI cable gland series from Jacob

The new WADI product family by Jacob features a completely redesigned gland rubber, which allows extensive sealing and tightening area.

PULS redundant
Product news

Redundant systems without redundancy modules

With the CP series, PULS offers a unique feature: Power supplies with an integrated decoupling function based on efficient MOSFET technology. This means there is no need for additional redundancy modules in 1+1 and n+1 redundant systems.

Articles Color Connections Cross section single wire to Cross section stranded wire to Cross section stranded with ferrule to Cross-Section Length Plug gauge acc. EN 60 947-1 Rated Current CSA Rated current CSAus Rated Current IEC Rated wire cross section from (AWG) Rated wire cross section to (AWG) Weight Width

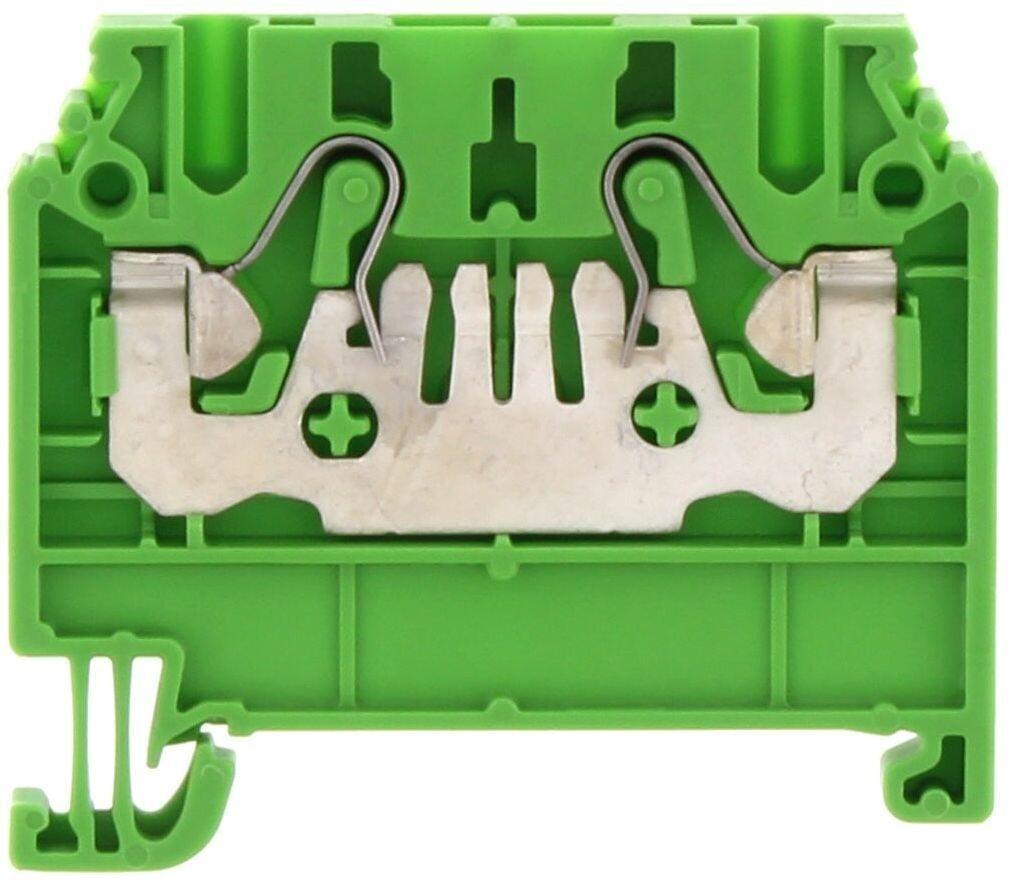

FRK 1.5/2A Green, 1.5mm² Push-in feed through
Art:
3200.1 Copied
Green
2
1.5 mm²
1.5 mm²
1.5 mm²
1.5 mm²
48.5 mm
A1
16 A
16 A
17.5 A
24
16
6.7 g
4.1 mm
FRK 1.5/2A Beige, 1.5mm² Push-in feed through
Art:
3200.2 Copied
Beige
2
1.5 mm²
1.5 mm²
1.5 mm²
1.5 mm²
48.5 mm
A1
16 A
16 A
17.5 A
24
16
6.7 g
4.1 mm
FRK 1.5/2A Orange, 1.5mm² Push-in feed through
Art:
3200.3 Copied
Orange
2
1.5 mm²
1.5 mm²
1.5 mm²
1.5 mm²
48.5 mm
A1
16 A
16 A
17.5 A
24
16
6.7 g
4.1 mm
FRK 1.5/2A Blue, 1.5mm² Push-in feed through
Art:
3200.5 Copied
Blue
2
1.5 mm²
1.5 mm²
1.5 mm²
1.5 mm²
48.5 mm
A1
16 A
16 A
17.5 A
24
16
6.7 g
4.1 mm

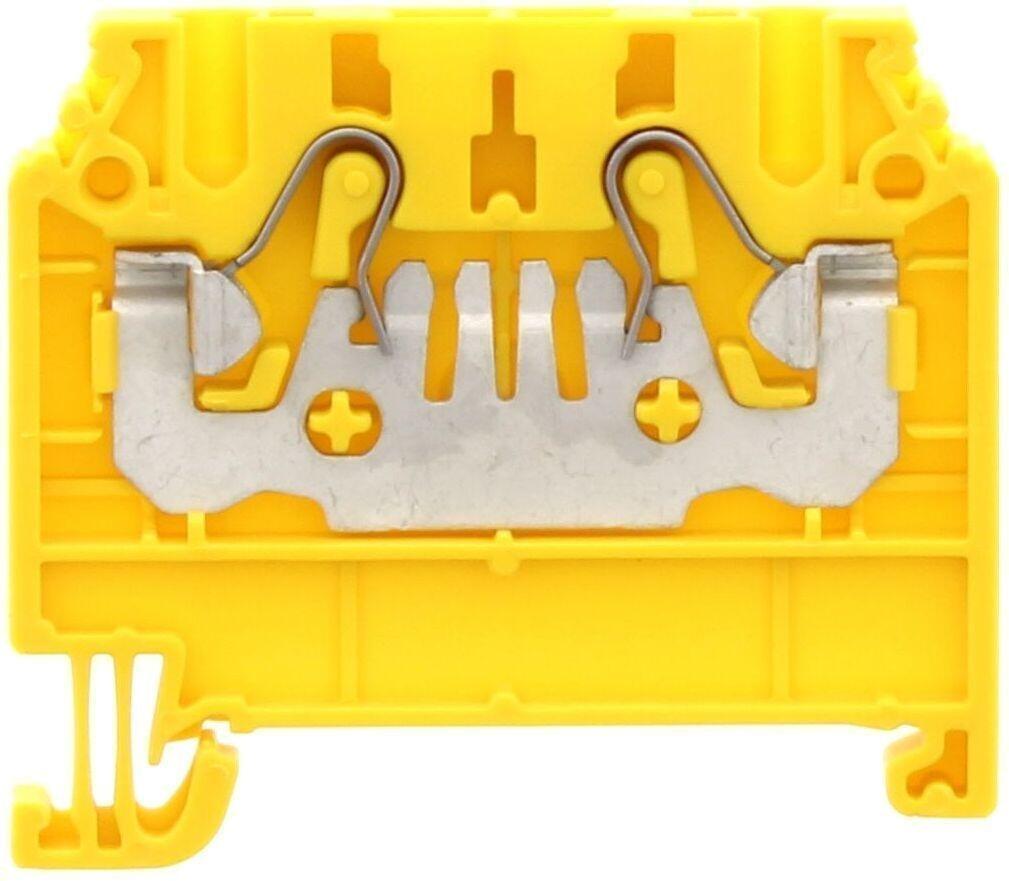

FRK 1.5/2A Yellow, 1.5mm² Push-in feed through
Art:
3200.8 Copied
Yellow
2
1.5 mm²
1.5 mm²
1.5 mm²
1.5 mm²
48.5 mm
A1
16 A
16 A
17.5 A
24
16
6.7 g
4.1 mm

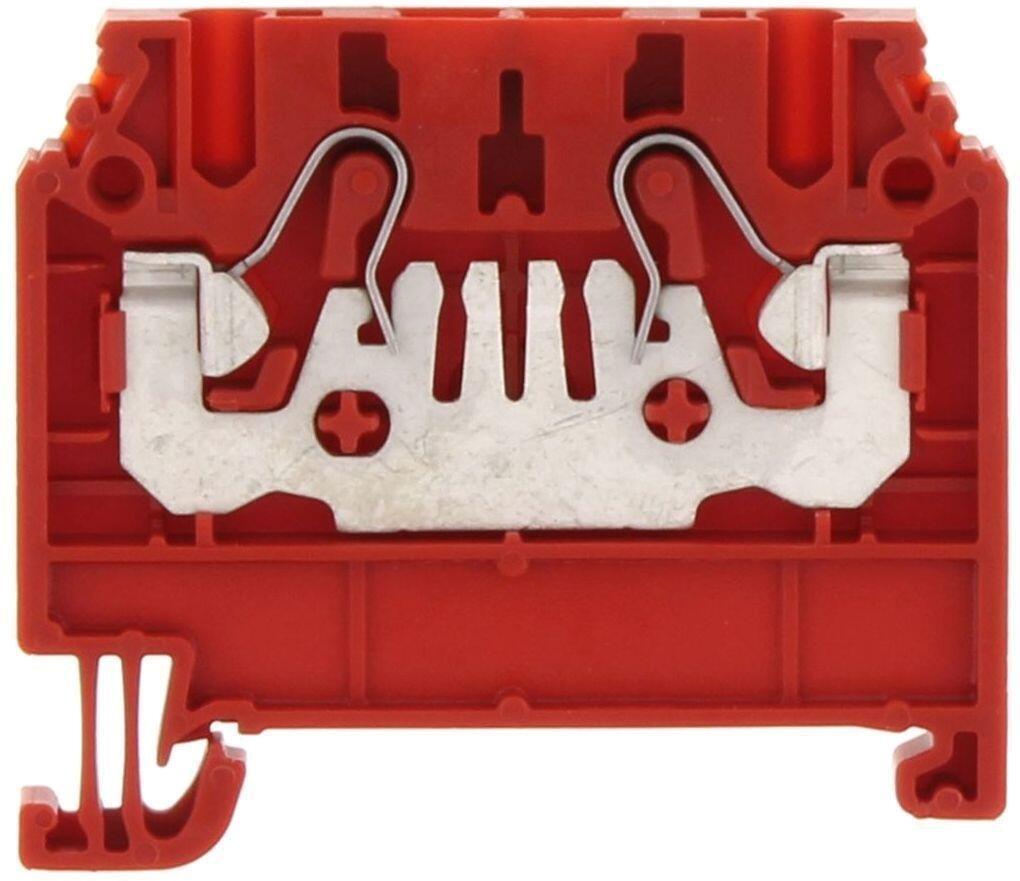

FRK 1.5/2A Red, 1.5mm² Push-in feed through
Art:
3200.9 Copied
Red
2
1.5 mm²
1.5 mm²
1.5 mm²
1.5 mm²
48.5 mm
A1
16 A
16 A
17.5 A
24
16
6.7 g
4.1 mm

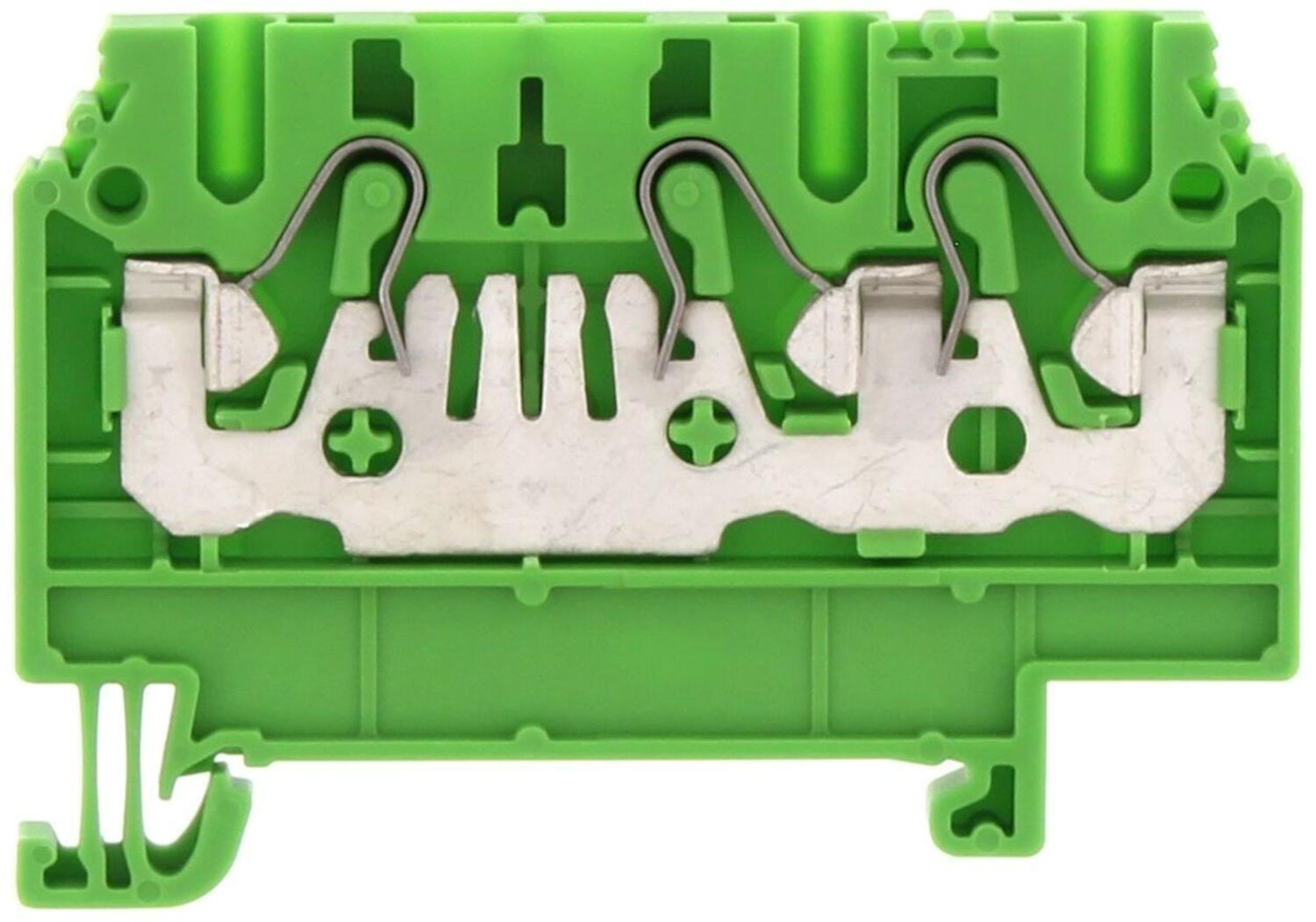

FRK 1.5/3A Green, 1.5mm² Push-in feed through, 1 in, 2 out
Art:
3201.1 Copied
Green
3
1.5 mm²
1.5 mm²
1.5 mm²
1.5 mm²
59.5 mm
A1
16 A
16 A
17.5 A
24
16
8.5 g
4.1 mm

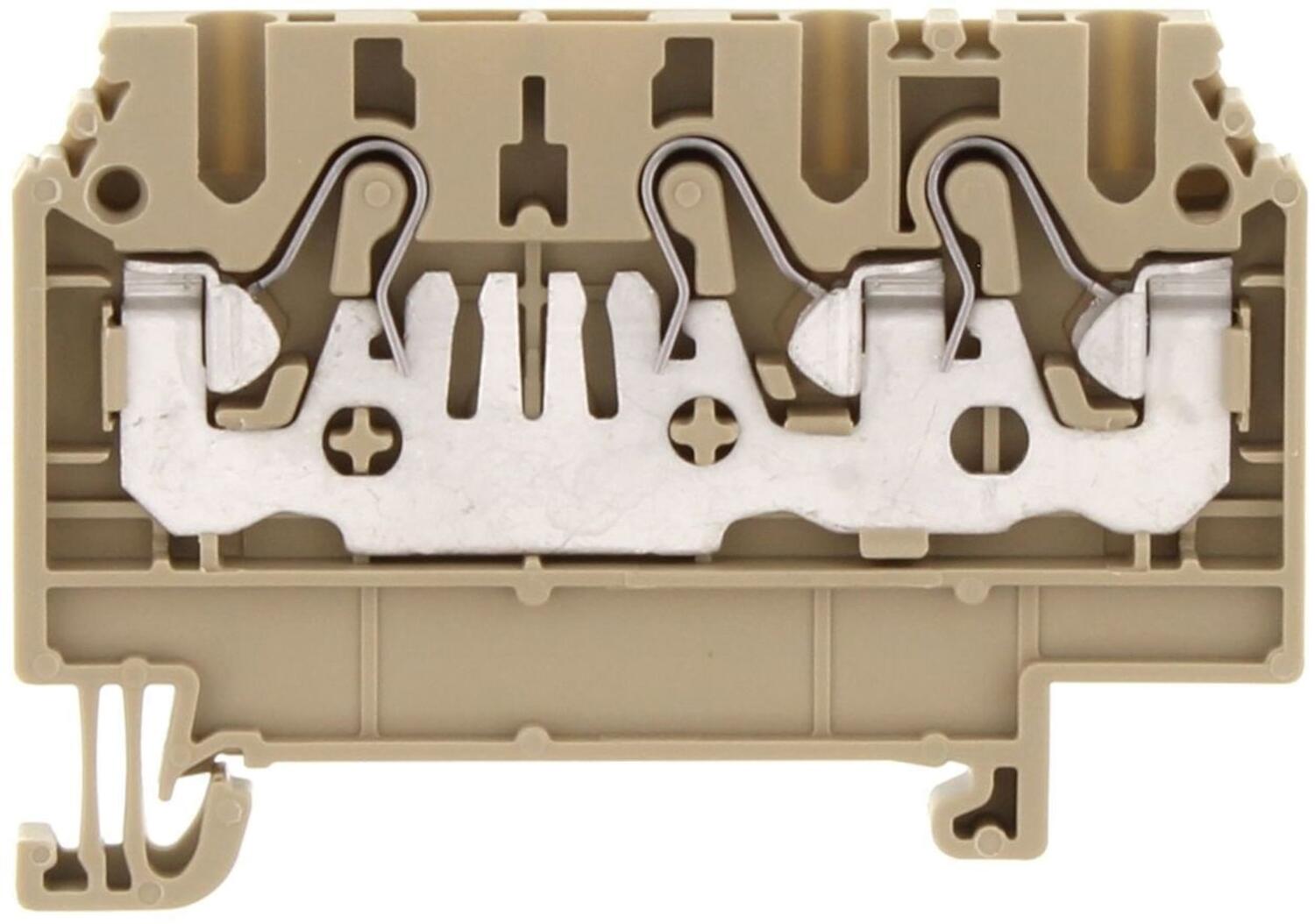

FRK 1.5/3A Beige, 1.5mm² Push-in feed through, 1 in, 2 out
Art:
3201.2 Copied
Beige
3
1.5 mm²
1.5 mm²
1.5 mm²
1.5 mm²
59.5 mm
A1
16 A
16 A
17.5 A
24
16
8.5 g
4.1 mm

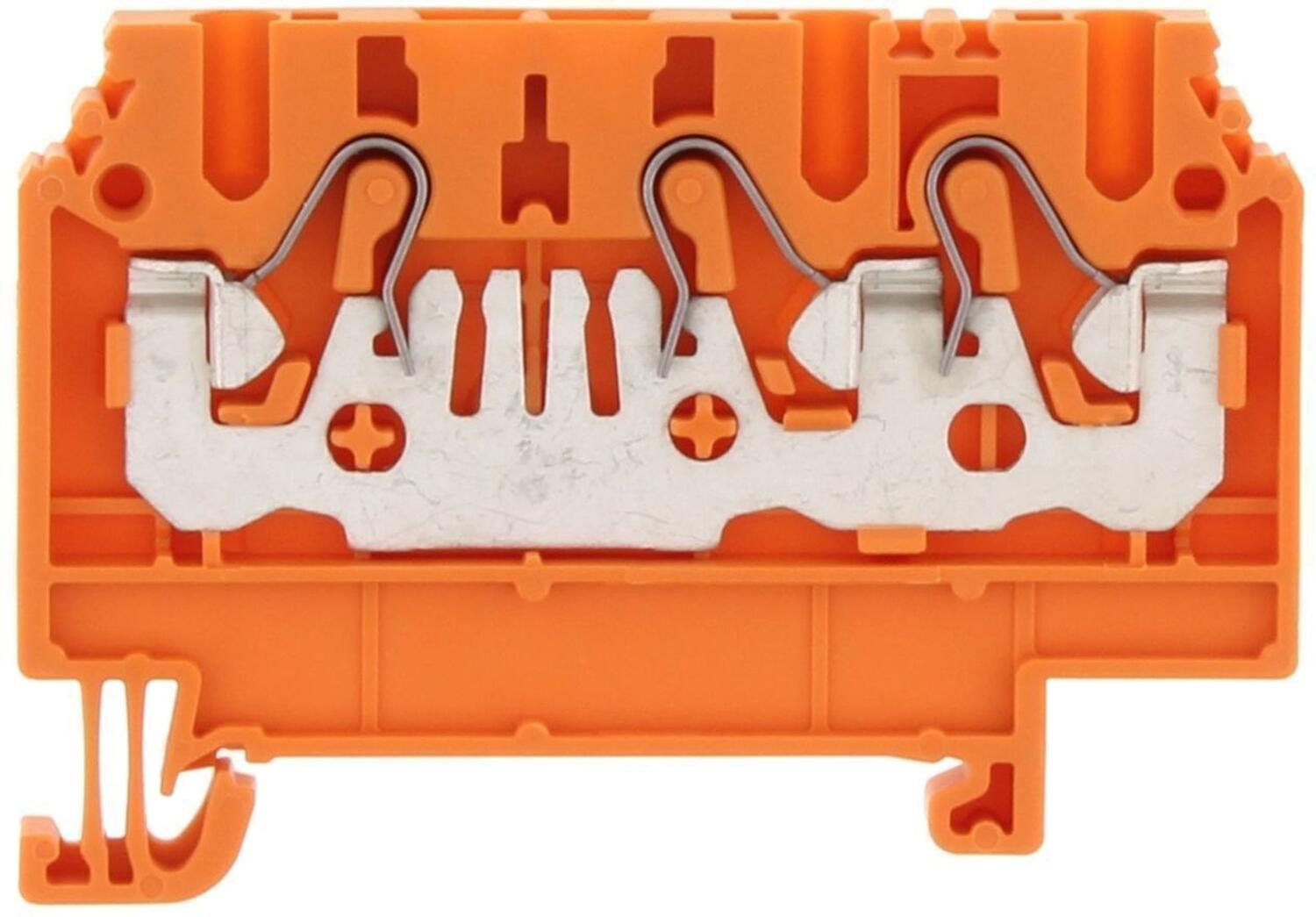

FRK 1.5/3A Orange, 1.5mm² Push-in feed through, 1 in, 2 out
Art:
3201.3 Copied
Orange
3
1.5 mm²
1.5 mm²
1.5 mm²
1.5 mm²
59.5 mm
A1
16 A
16 A
17.5 A
24
16
8.5 g
4.1 mm

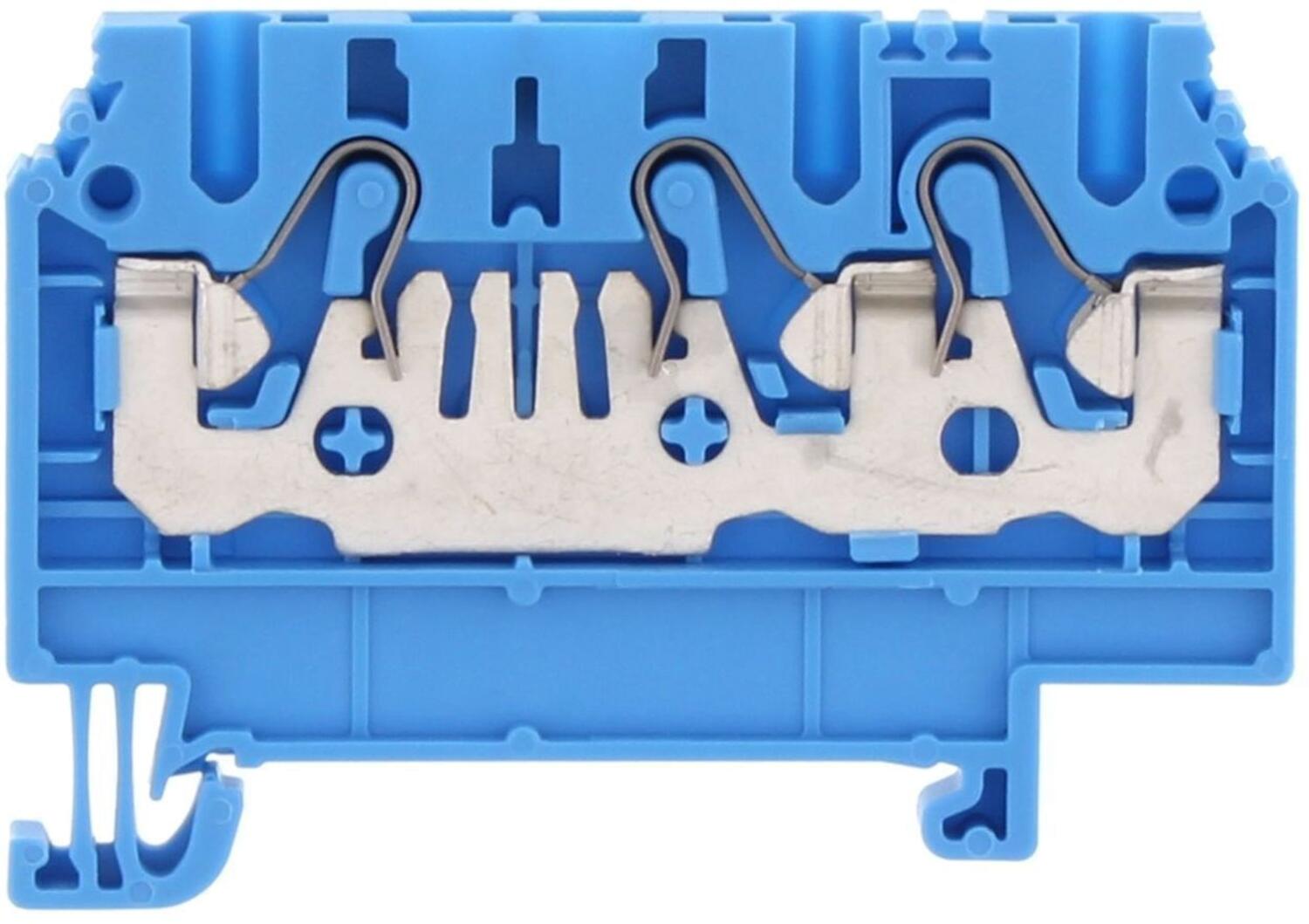

FRK 1.5/3A Blue, 1.5mm² Push-in feed through, 1 in, 2 out
Art:
3201.5 Copied
Blue
3
1.5 mm²
1.5 mm²
1.5 mm²
1.5 mm²
59.5 mm
A1
16 A
16 A
17.5 A
24
16
8.5 g
4.1 mm

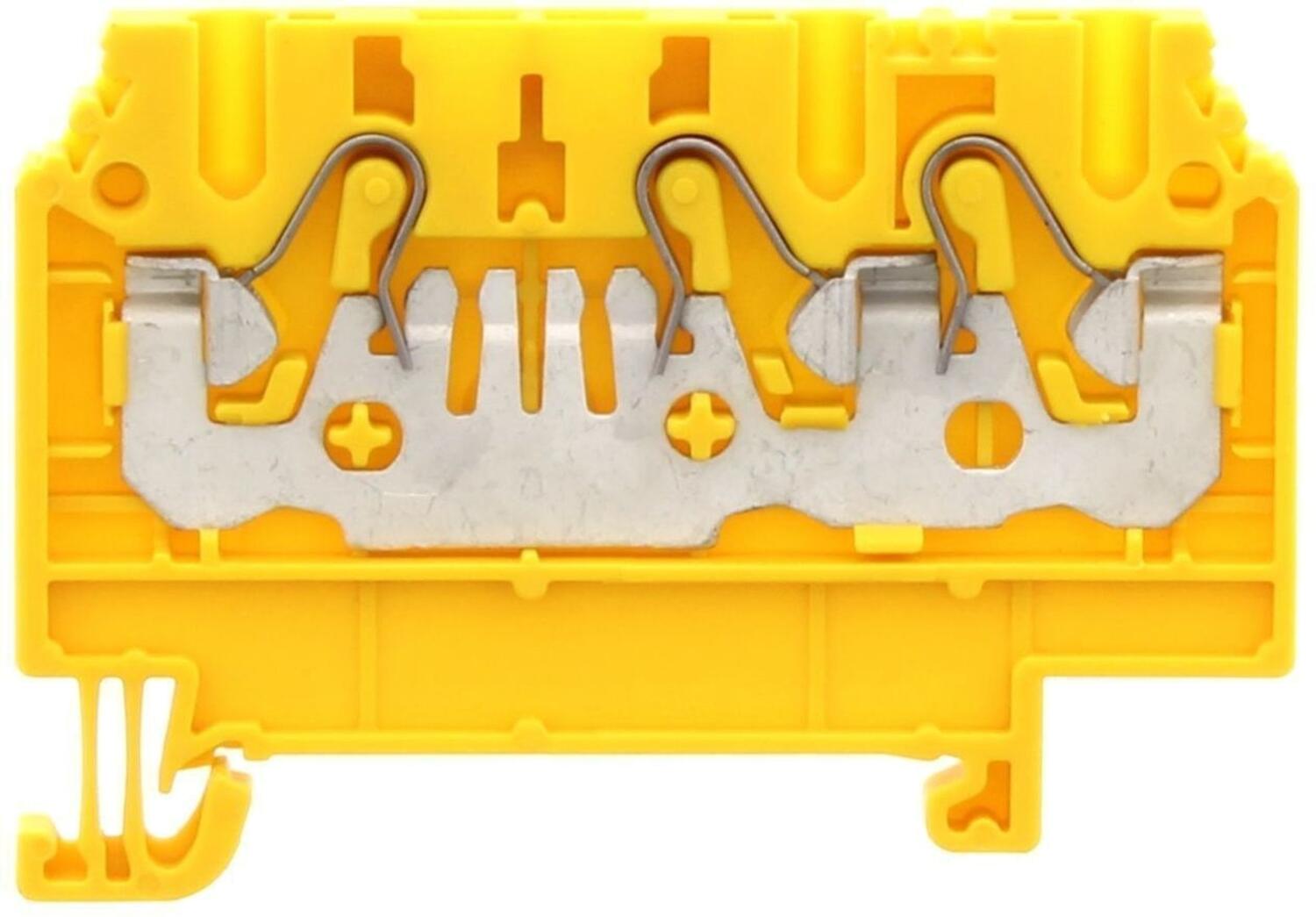

FRK 1.5/3A Yellow, 1.5mm² Push-in feed through, 1 in, 2 out
Art:
3201.8 Copied
Yellow
3
1.5 mm²
1.5 mm²
1.5 mm²
1.5 mm²
59.5 mm
A1
16 A
16 A
17.5 A
24
16
8.5 g
4.1 mm

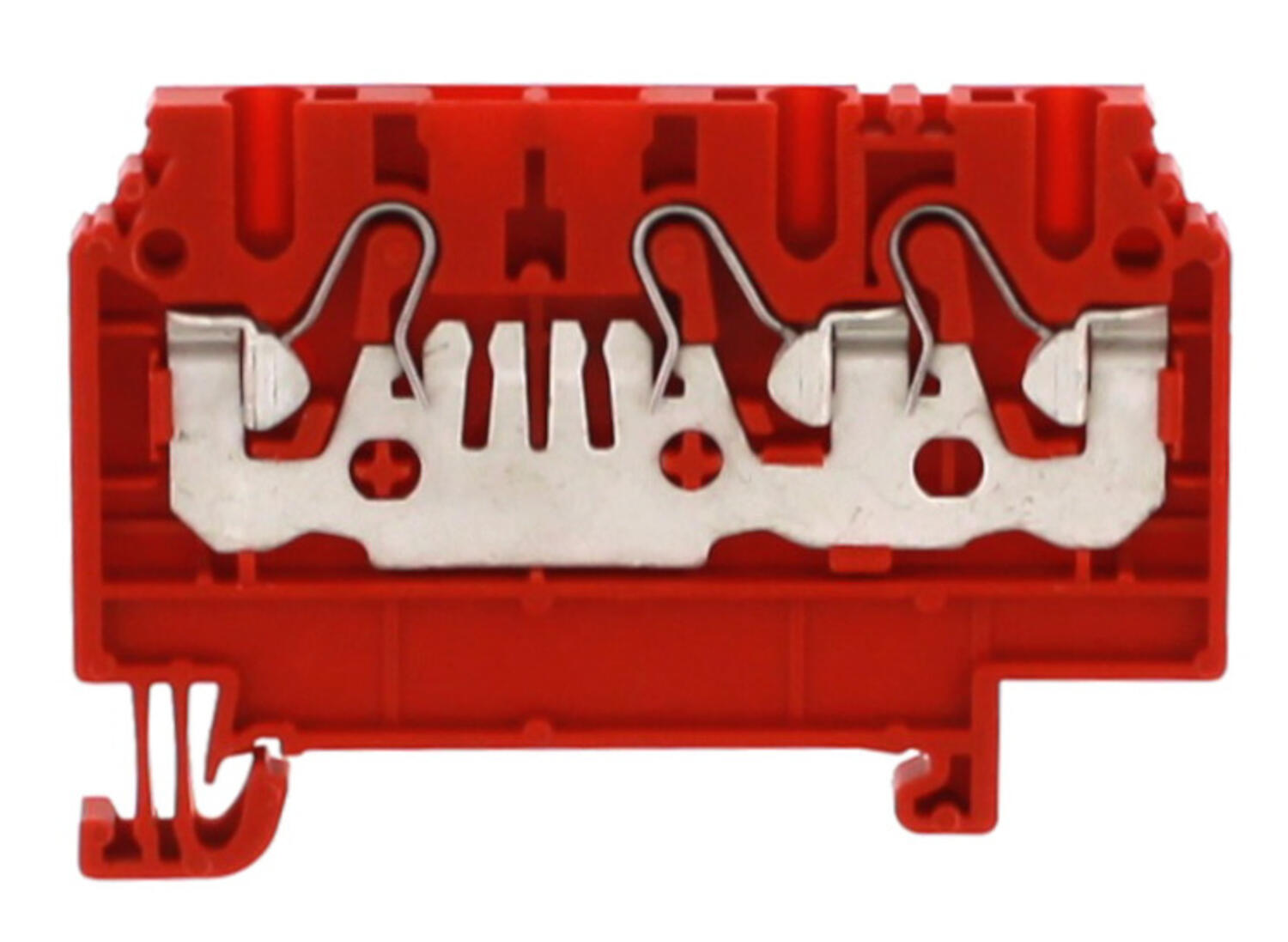

FRK 1.5/3A Red, 1.5mm² Push-in feed through, 1 in, 2 out
Art:
3201.9 Copied
Red
3
1.5 mm²
1.5 mm²
1.5 mm²
1.5 mm²
59.5 mm
A1
16 A
16 A
17.5 A
24
16
8.5 g
4.1 mm

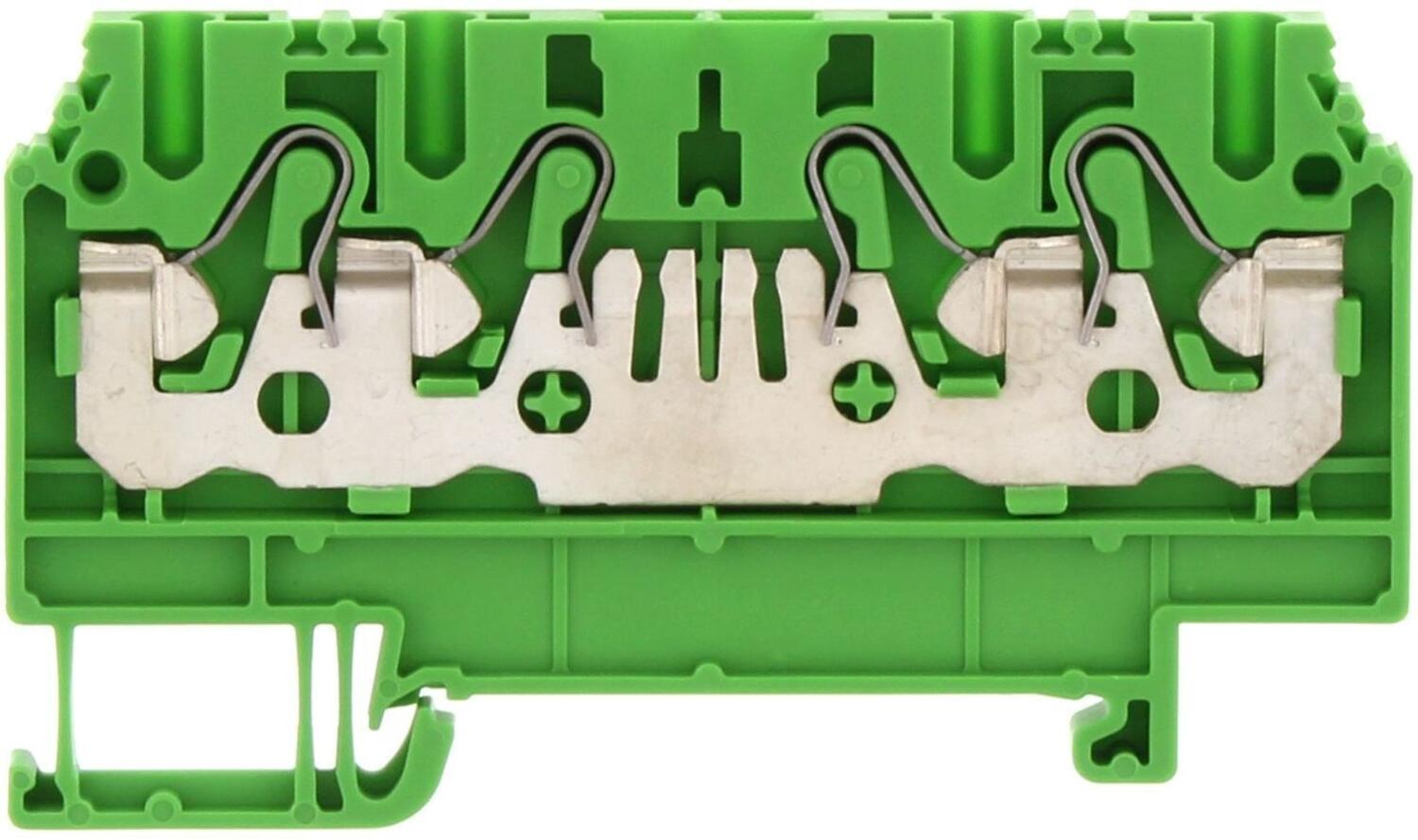

FRK 1.5/4A Green, 1.5mm² Push-in feed through, 2 in, 2 out
Art:
3202.1 Copied
Green
4
1.5 mm²
1.5 mm²
1.5 mm²
1.5 mm²
72.2 mm
A1
16 A
16 A
17.5 A
24
16
10.4 g
4.1 mm

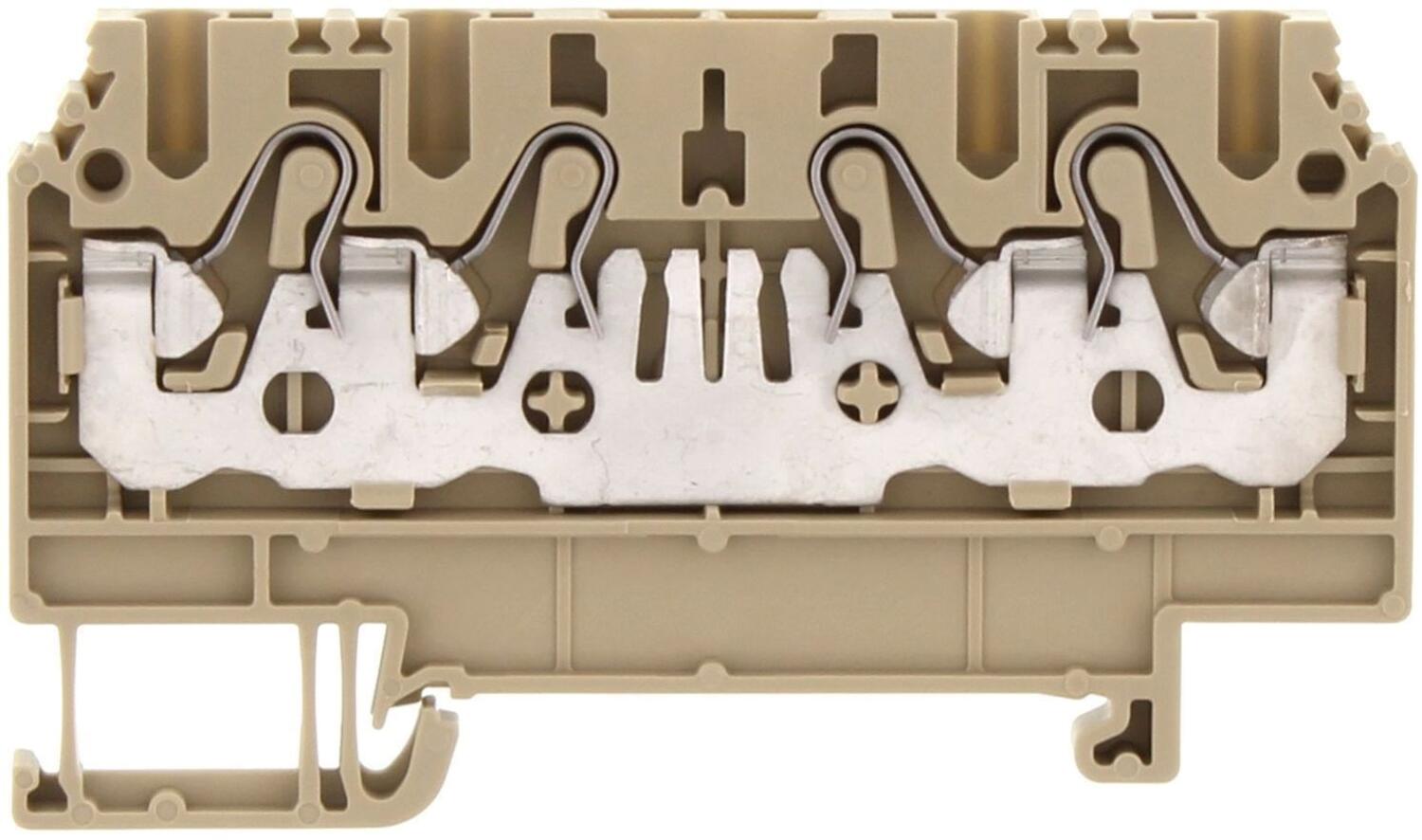

FRK 1.5/4A Beige, 1.5mm² Push-in feed through, 2 in, 2 out
Art:
3202.2 Copied
Beige
4
1.5 mm²
1.5 mm²
1.5 mm²
1.5 mm²
72.2 mm
A1
16 A
16 A
17.5 A
24
16
10.4 g
4.1 mm

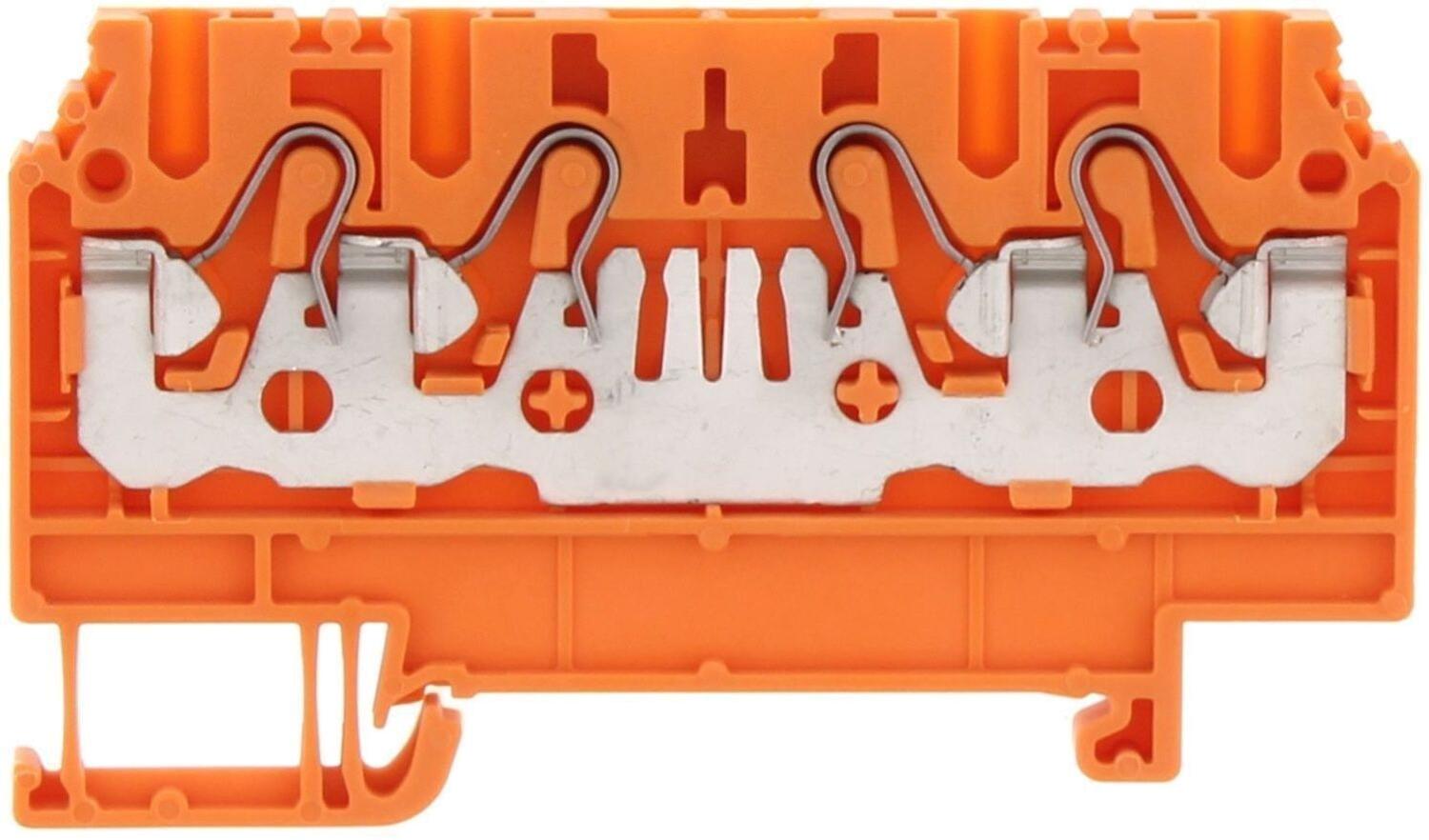

FRK 1.5/4A Orange, 1.5mm² Push-in feed through, 2 in, 2 out
Art:
3202.3 Copied
Orange
4
1.5 mm²
1.5 mm²
1.5 mm²
1.5 mm²
72.2 mm
A1
16 A
16 A
17.5 A
24
16
10.4 g
4.1 mm
FRK 1.5/4A Blue, 1.5mm² Push-in feed through, 2 in, 2 out
Art:
3202.5 Copied
Blue
4
1.5 mm²
1.5 mm²
1.5 mm²
1.5 mm²
72.2 mm
A1
16 A
16 A
17.5 A
24
16
10.4 g
4.1 mm

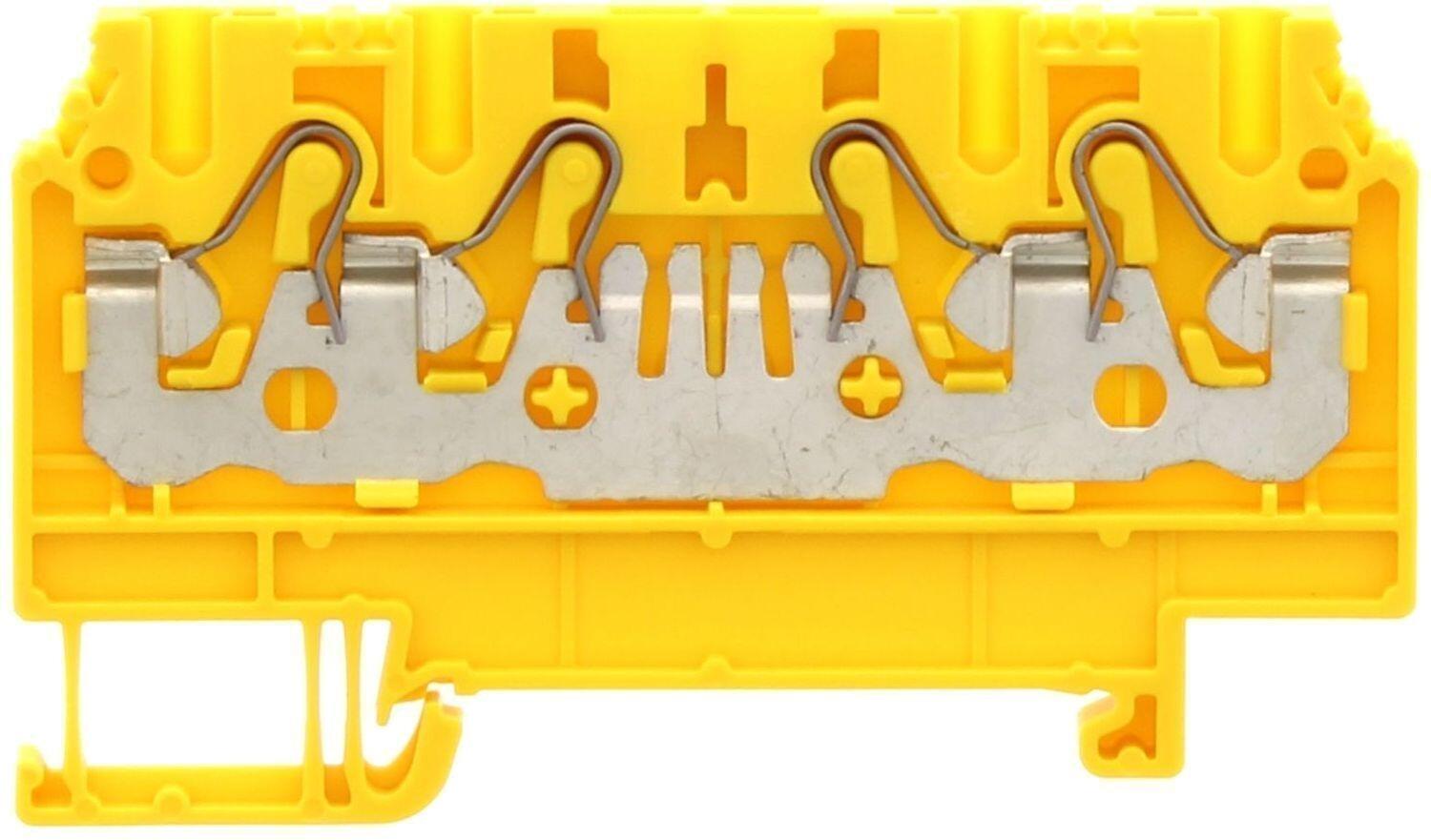

FRK 1.5/4A Yellow, 1.5mm² Push-in feed through, 2 in, 2 out
Art:
3202.8 Copied
Yellow
4
1.5 mm²
1.5 mm²
1.5 mm²
1.5 mm²
72.2 mm
A1
16 A
16 A
17.5 A
24
16
10.4 g
4.1 mm
FRK 1.5/4A Red, 1.5mm² Push-in feed through, 2 in, 2 out
Art:
3202.9 Copied
Red
4
1.5 mm²
1.5 mm²
1.5 mm²
1.5 mm²
72.2 mm
A1
16 A
16 A
17.5 A
24
16
10.4 g
4.1 mm

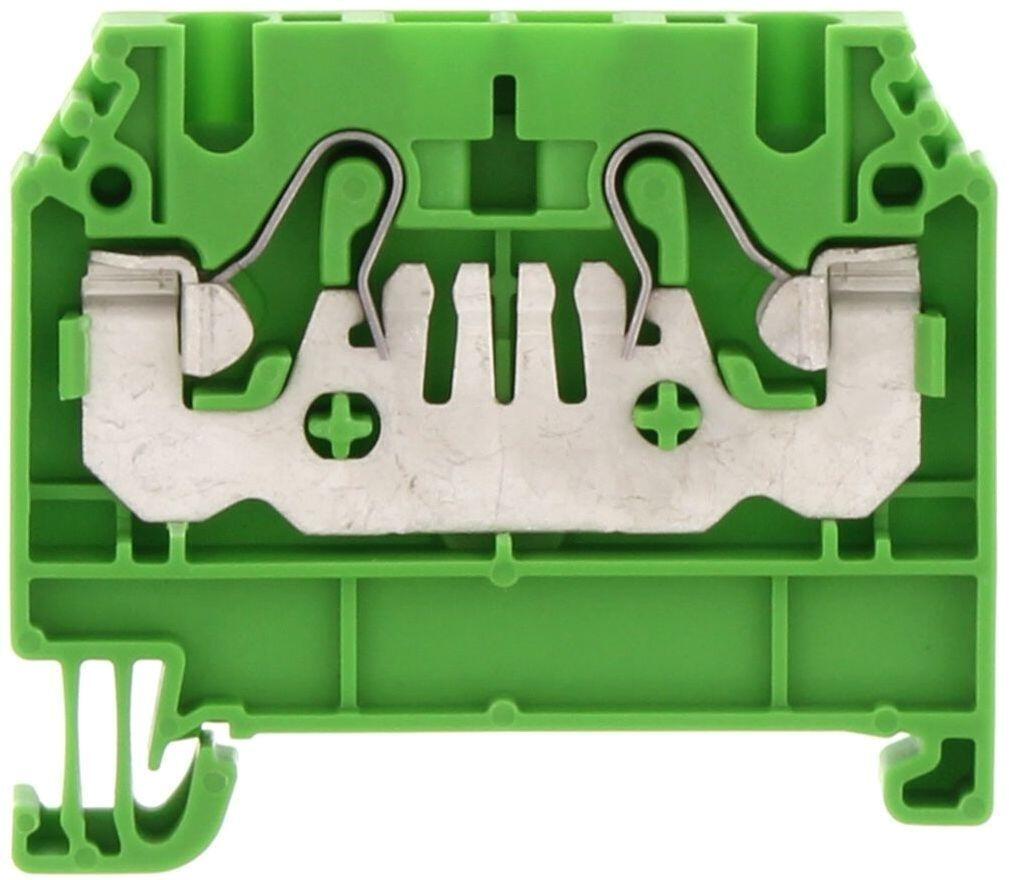

FRK 2.5/2A Green, 2.5mm² Push-in feed through
Art:
3210.1 Copied
Green
2
4 mm²
4 mm²
2.5 mm²
2.5 mm²
48.5 mm
A3
21 A
21 A
24 A
26
12
8.5 g
5.1 mm

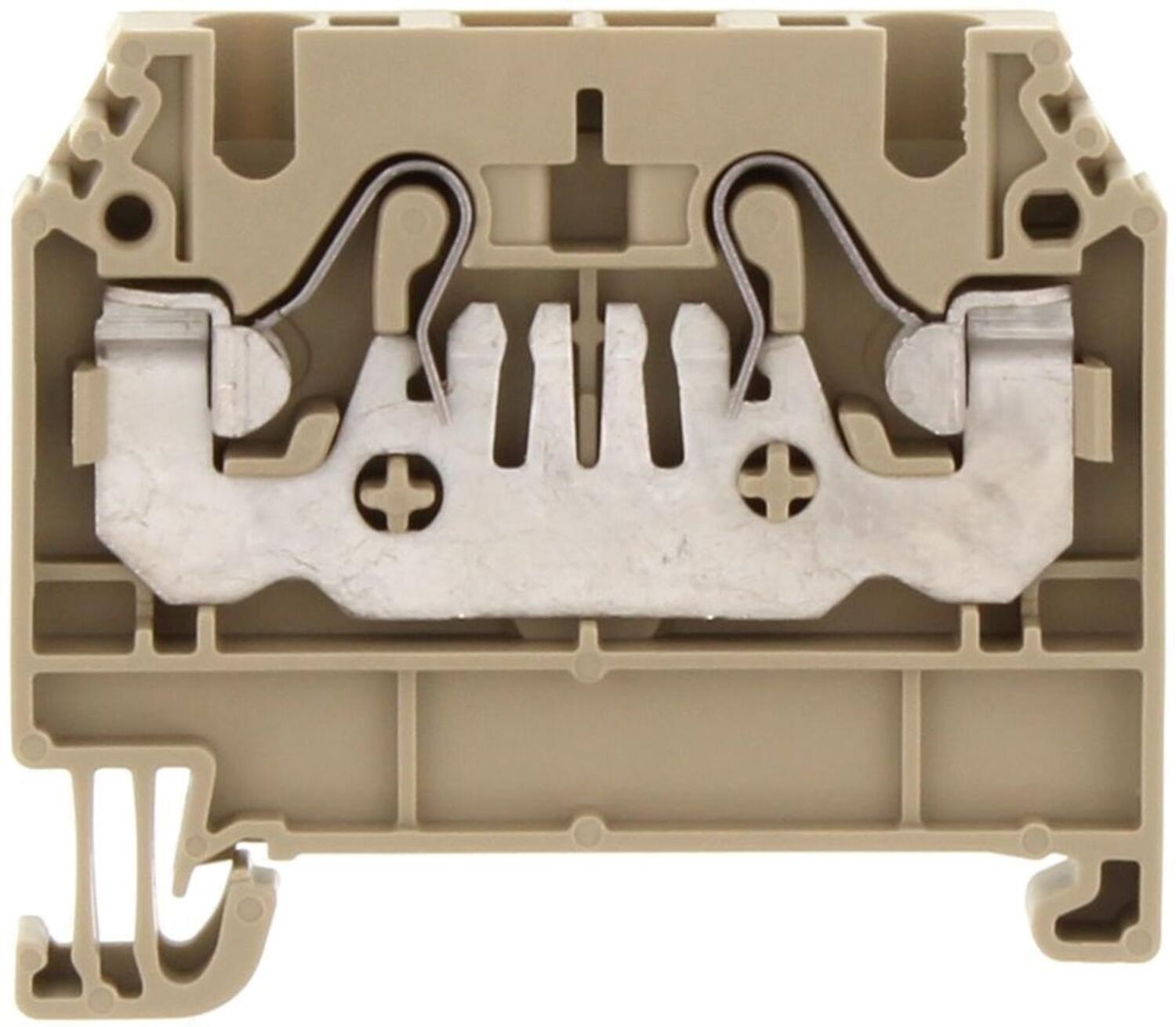

FRK 2.5/2A Beige, 2.5mm² Push-in feed through
Art:
3210.2 Copied
Beige
2
4 mm²
4 mm²
2.5 mm²
2.5 mm²
48.5 mm
A3
21 A
21 A
24 A
26
12
8.5 g
5.1 mm

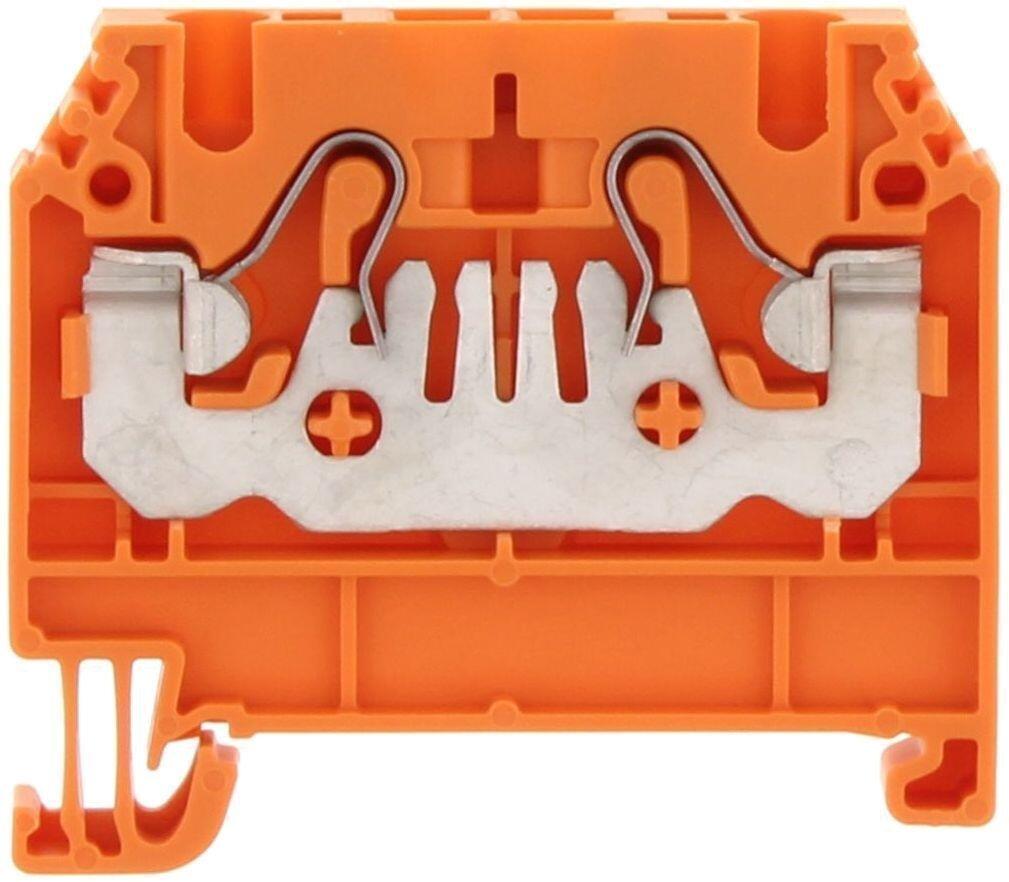

FRK 2.5/2A Orange, 2.5mm² Push-in feed through
Art:
3210.3 Copied
Orange
2
4 mm²
4 mm²
2.5 mm²
2.5 mm²
48.5 mm
A3
21 A
21 A
24 A
26
12
8.5 g
5.1 mm

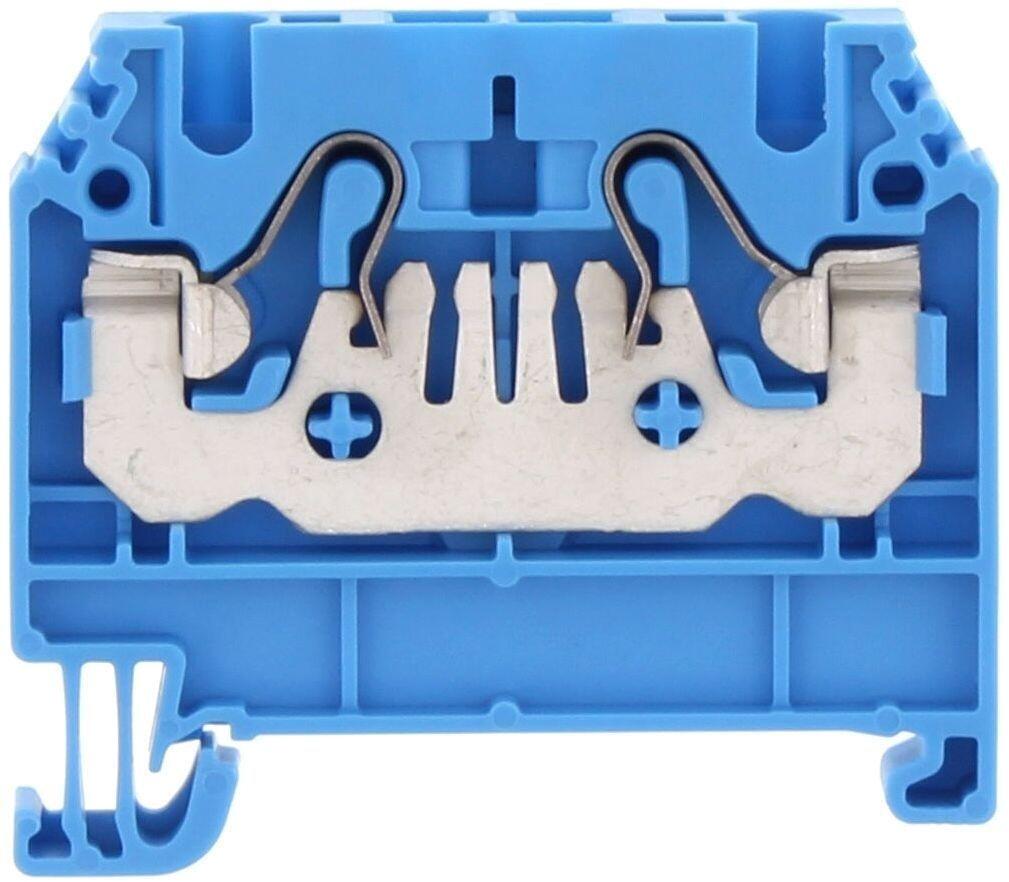

FRK 2.5/2A Blue, 2.5mm² Push-in feed through
Art:
3210.5 Copied
Blue
2
4 mm²
4 mm²
2.5 mm²
2.5 mm²
48.5 mm
A3
21 A
21 A
24 A
26
12
8.5 g
5.1 mm

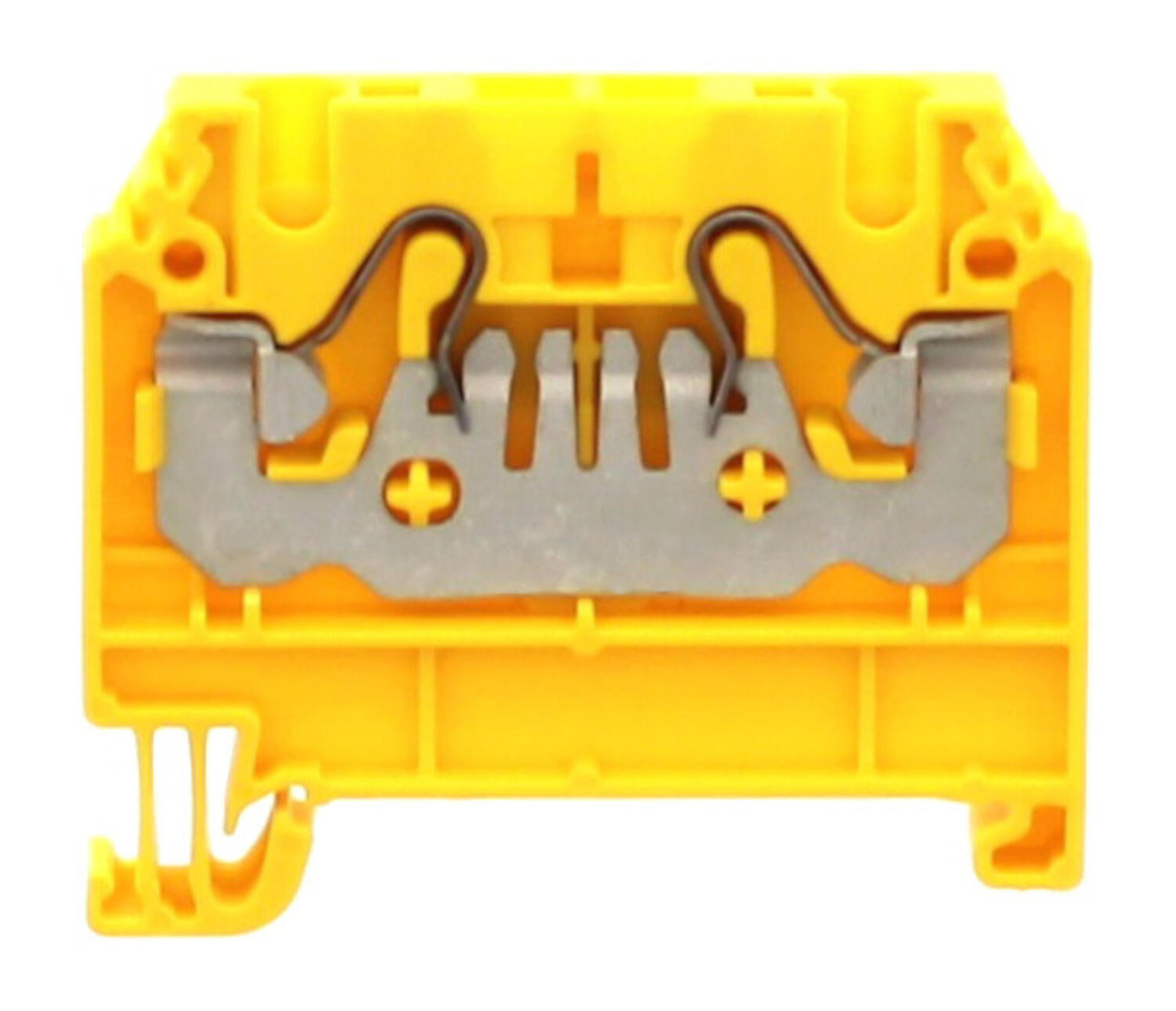

FRK 2.5/2A Yellow, 2.5mm² Push-in feed through
Art:
3210.8 Copied
Yellow
2
4 mm²
4 mm²
2.5 mm²
2.5 mm²
48.5 mm
A3
21 A
21 A
24 A
26
12
8.5 g
5.1 mm

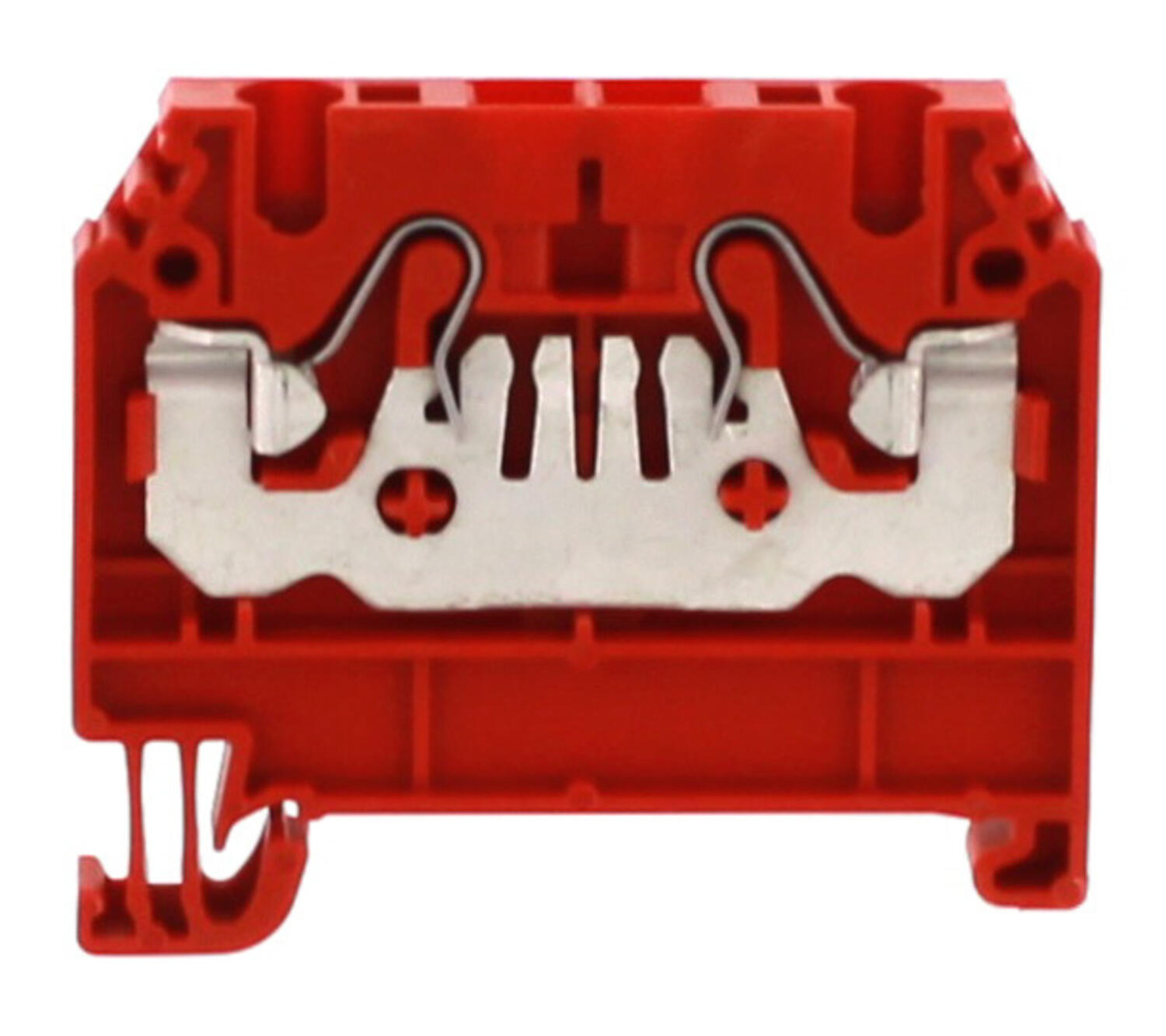

FRK 2.5/2A Red, 2.5mm² Push-in feed through
Art:
3210.9 Copied
Red
2
4 mm²
4 mm²
2.5 mm²
2.5 mm²
48.5 mm
A3
21 A
21 A
24 A
26
12
8.5 g
5.1 mm
FRK 2.5/3A Green, 2.5mm² Push-in feed through, 1 in, 2 out
Art:
3211.1 Copied
Green
3
4 mm²
4 mm²
2.5 mm²
2.5 mm²
63.1 mm
A3
21 A
21 A
24 A
26
12
11.35 g
5.1 mm

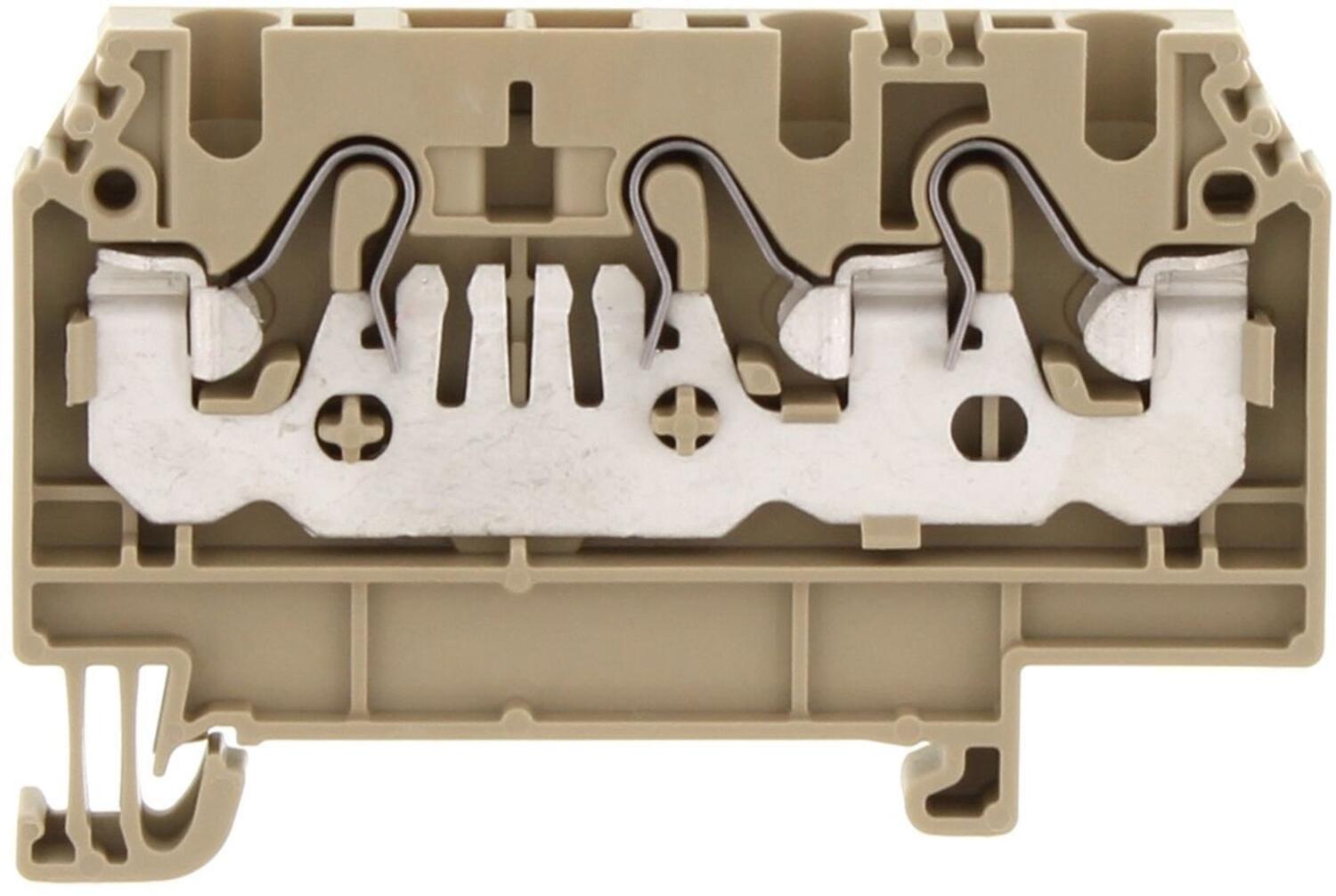

FRK 2.5/3A Beige, 2.5mm² Push-in feed through, 1 in, 2 out
Art:
3211.2 Copied
Beige
3
4 mm²
4 mm²
2.5 mm²
2.5 mm²
63.1 mm
A3
21 A
21 A
24 A
26
12
11.35 g
5.1 mm
FRK 2.5/3A Orange, 2.5mm² Push-in feed through, 1 in, 2 out
Art:
3211.3 Copied
Orange
3
4 mm²
4 mm²
2.5 mm²
2.5 mm²
63.1 mm
A3
21 A
21 A
24 A
26
12
11.35 g
5.1 mm

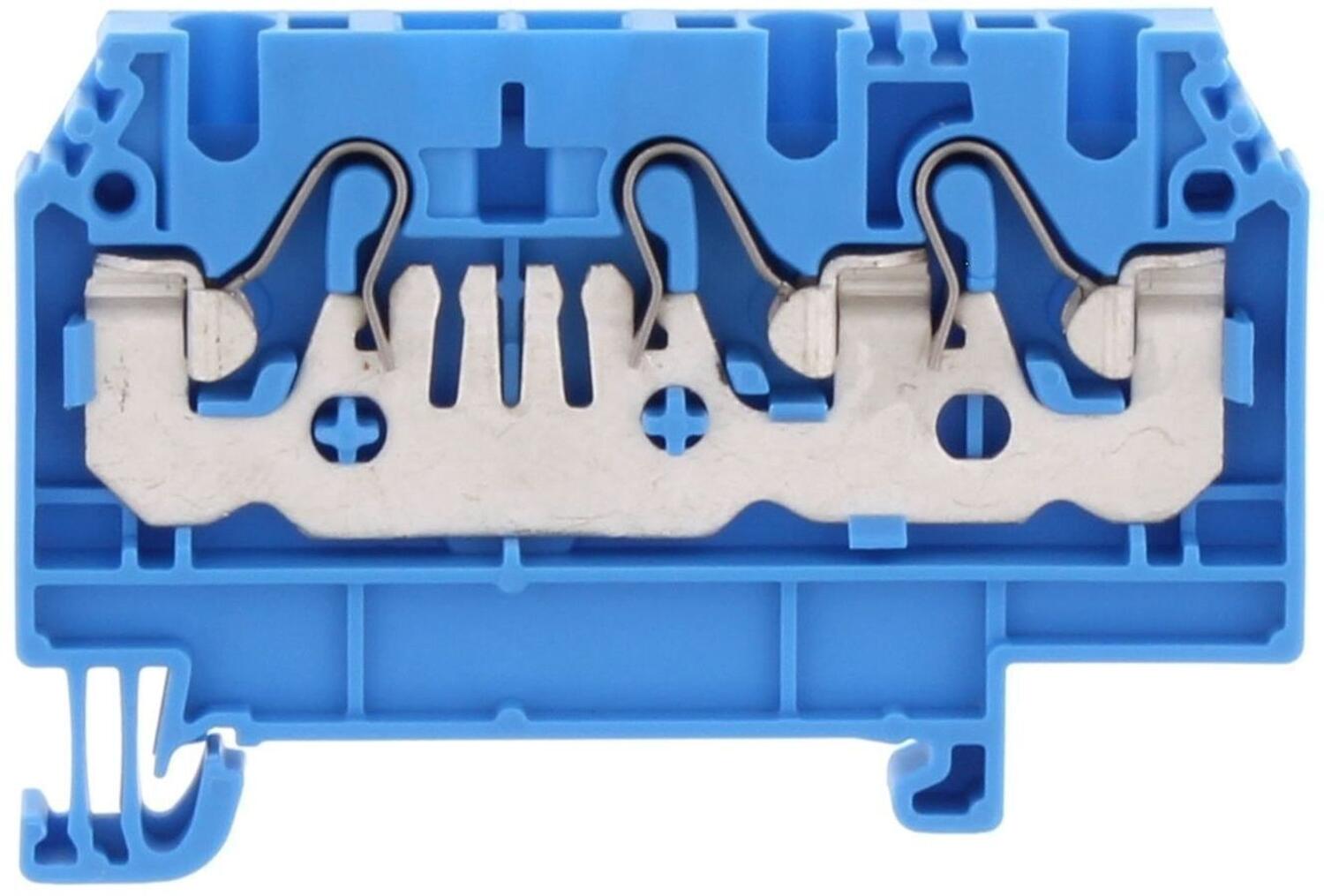

FRK 2.5/3A Blue, 2.5mm² Push-in feed through, 1 in, 2 out
Art:
3211.5 Copied
Blue
3
4 mm²
4 mm²
2.5 mm²
2.5 mm²
63.1 mm
A3
21 A
21 A
24 A
26
12
11.35 g
5.1 mm

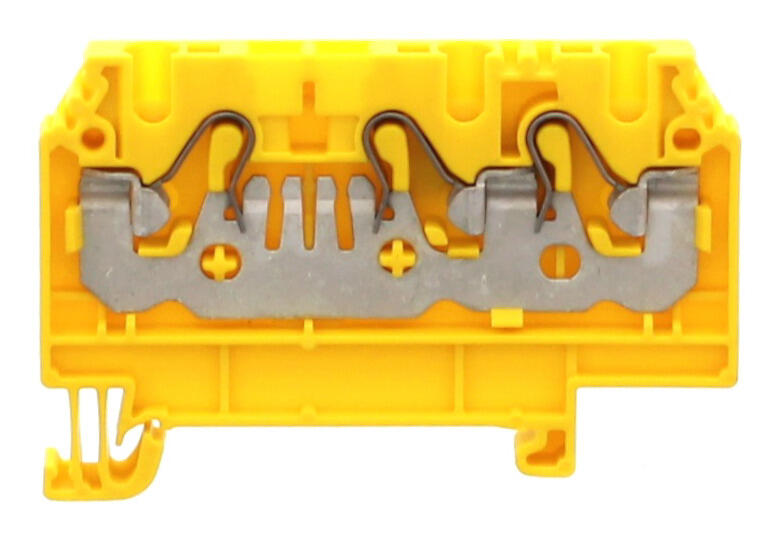

FRK 2.5/3A Yellow, 2.5mm² Push-in feed through, 1 in, 2 out
Art:
3211.8 Copied
Yellow
3
4 mm²
4 mm²
2.5 mm²
2.5 mm²
63.1 mm
A3
21 A
21 A
24 A
26
12
11.35 g
5.1 mm
299556_877.tif
FRK 2.5/3A Red, 2.5mm² Push-in feed through, 1 in, 2 out
Art:
3211.9 Copied
Red
3
4 mm²
4 mm²
2.5 mm²
2.5 mm²
63.1 mm
A3
21 A
21 A
24 A
26
12
11.35 g
5.1 mm
299556_877.tif
FRK 2.5/4A Green, 2.5mm² Push-in feed through, 2 in, 2 out
Art:
3212.1 Copied
Green
4
4 mm²
4 mm²
2.5 mm²
2.5 mm²
77.7 mm
A3
21 A
21 A
24 A
26
12
14.43 g
5.1 mm

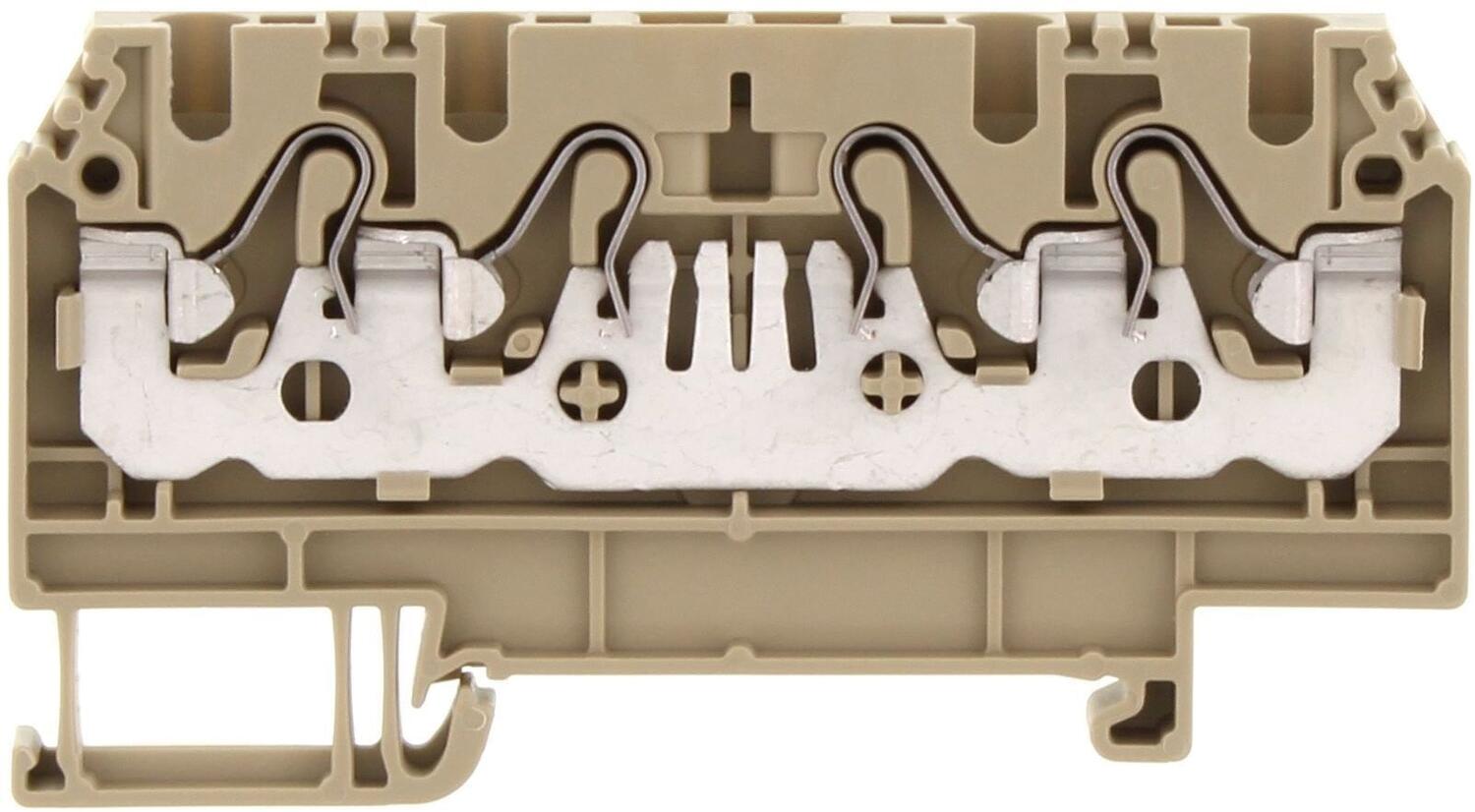

FRK 2.5/4A Beige, 2.5mm² Push-in feed through, 2 in, 2 out
Art:
3212.2 Copied
Beige
4
4 mm²
4 mm²
2.5 mm²
2.5 mm²
77.7 mm
A3
21 A
21 A
24 A
26
12
14.43 g
5.1 mm

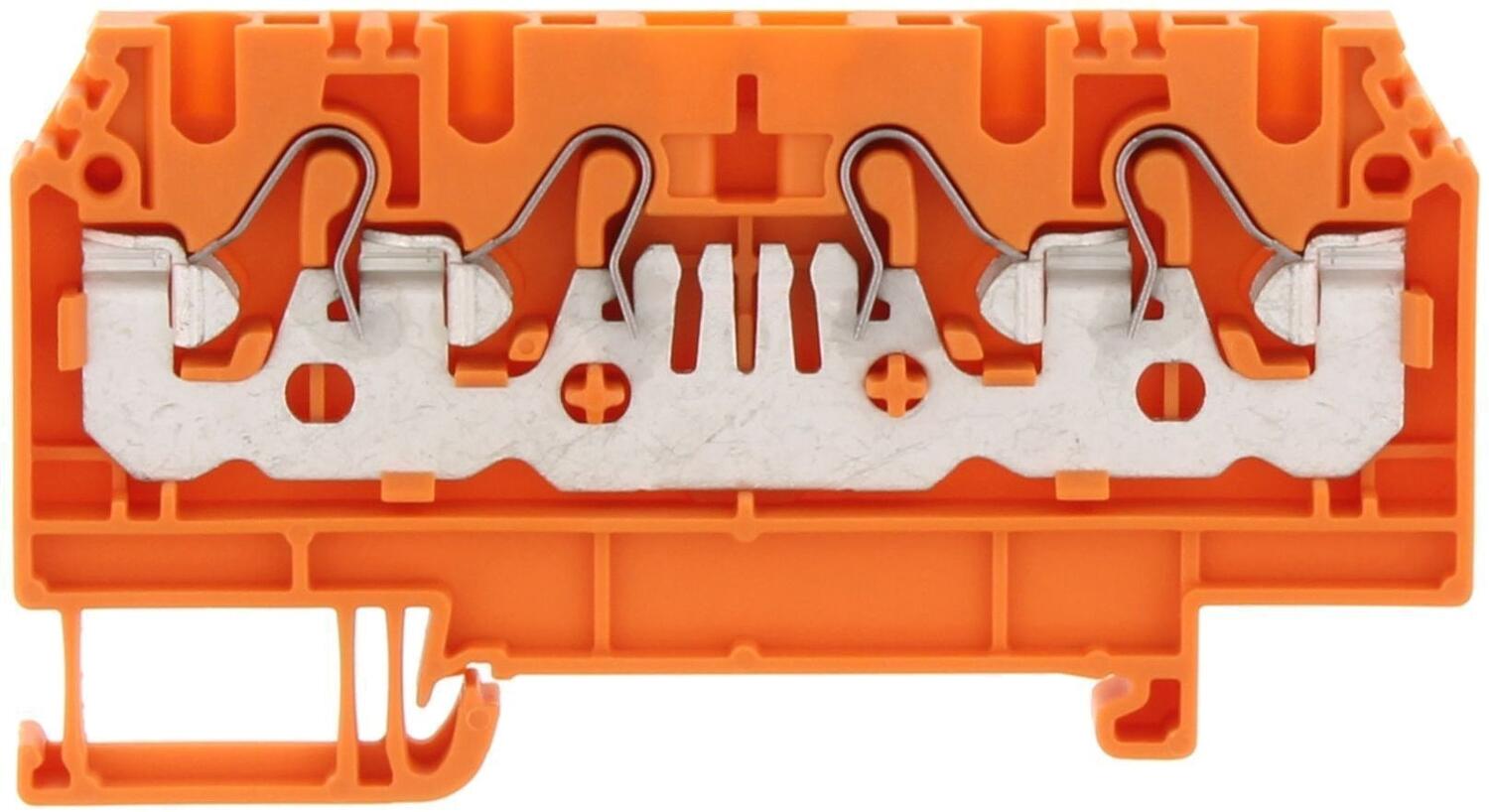

FRK 2.5/4A Orange, 2.5mm² Push-in feed through, 2 in, 2 out
Art:
3212.3 Copied
Orange
4
4 mm²
4 mm²
2.5 mm²
2.5 mm²
77.7 mm
A3
21 A
21 A
24 A
26
12
14.43 g
5.1 mm

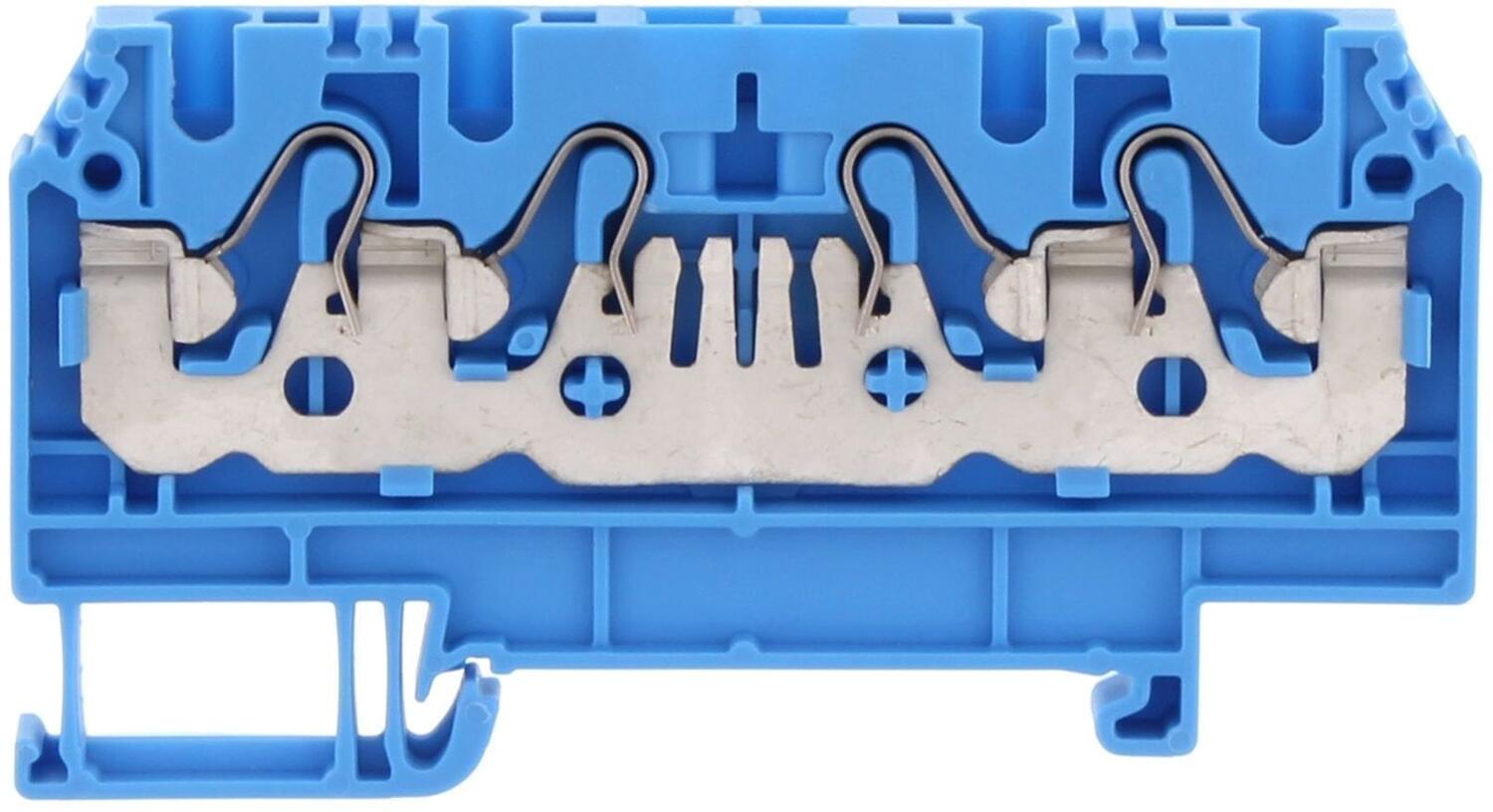

FRK 2.5/4A Blue, 2.5mm² Push-in feed through, 2 in, 2 out
Art:
3212.5 Copied
Blue
4
4 mm²
4 mm²
2.5 mm²
2.5 mm²
77.7 mm
A3
21 A
21 A
24 A
26
12
14.43 g
5.1 mm
299556_877.tif
FRK 2.5/4A Yellow, 2.5mm² Push-in feed through, 2 in, 2 out
Art:
3212.8 Copied
Yellow
4
4 mm²
4 mm²
2.5 mm²
2.5 mm²
77.7 mm
A3
21 A
21 A
24 A
26
12
14.43 g
5.1 mm
299556_877.tif
FRK 2.5/4A Red, 2.5mm² Push-in feed through, 2 in, 2 out
Art:
3212.9 Copied
Red
4
4 mm²
4 mm²
2.5 mm²
2.5 mm²
77.7 mm
A3
21 A
21 A
24 A
26
12
14.43 g
5.1 mm
299556_877.tif
FRK 4/2A Green, 4mm² Push-in feed through
Art:
3220.1 Copied
Green
2
6 mm²
6 mm²
4 mm²
4 mm²
48.5 mm
A4
35 A
35 A
32 A
20
10
10.74 g
6.1 mm

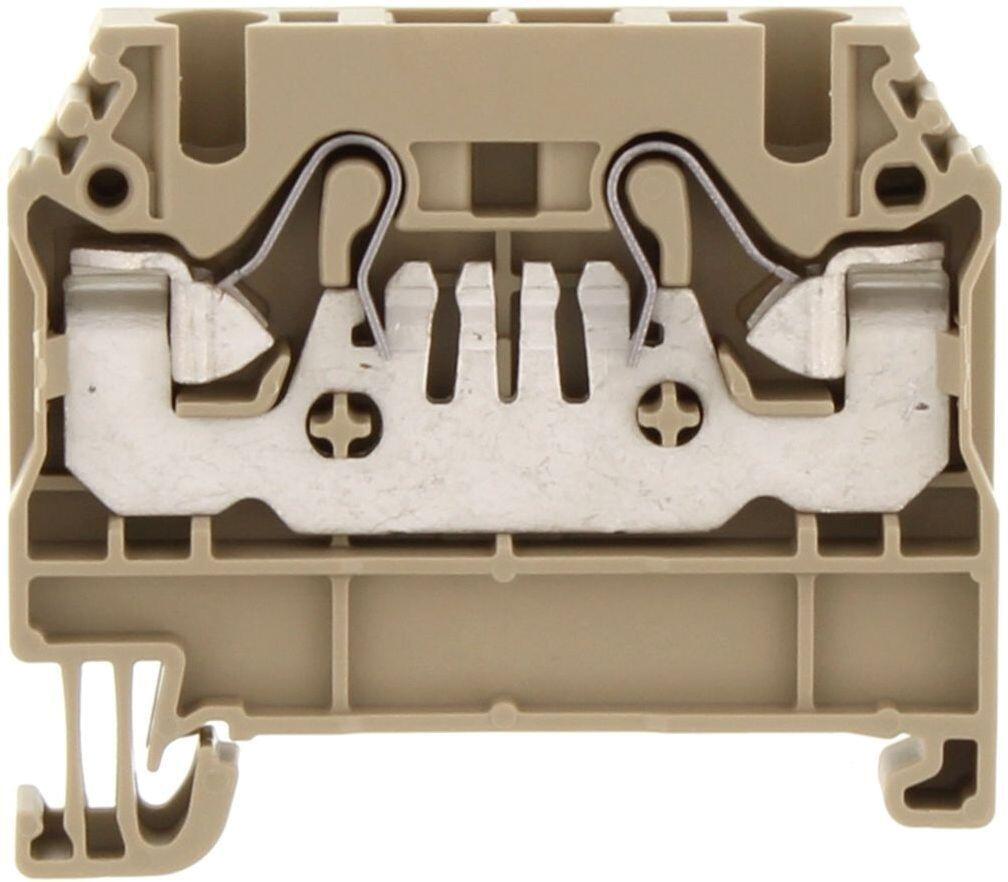

FRK 4/2A Beige, 4mm² Push-in feed through
Art:
3220.2 Copied
Beige
2
6 mm²
6 mm²
4 mm²
4 mm²
48.5 mm
A4
35 A
35 A
32 A
20
10
10.74 g
6.1 mm

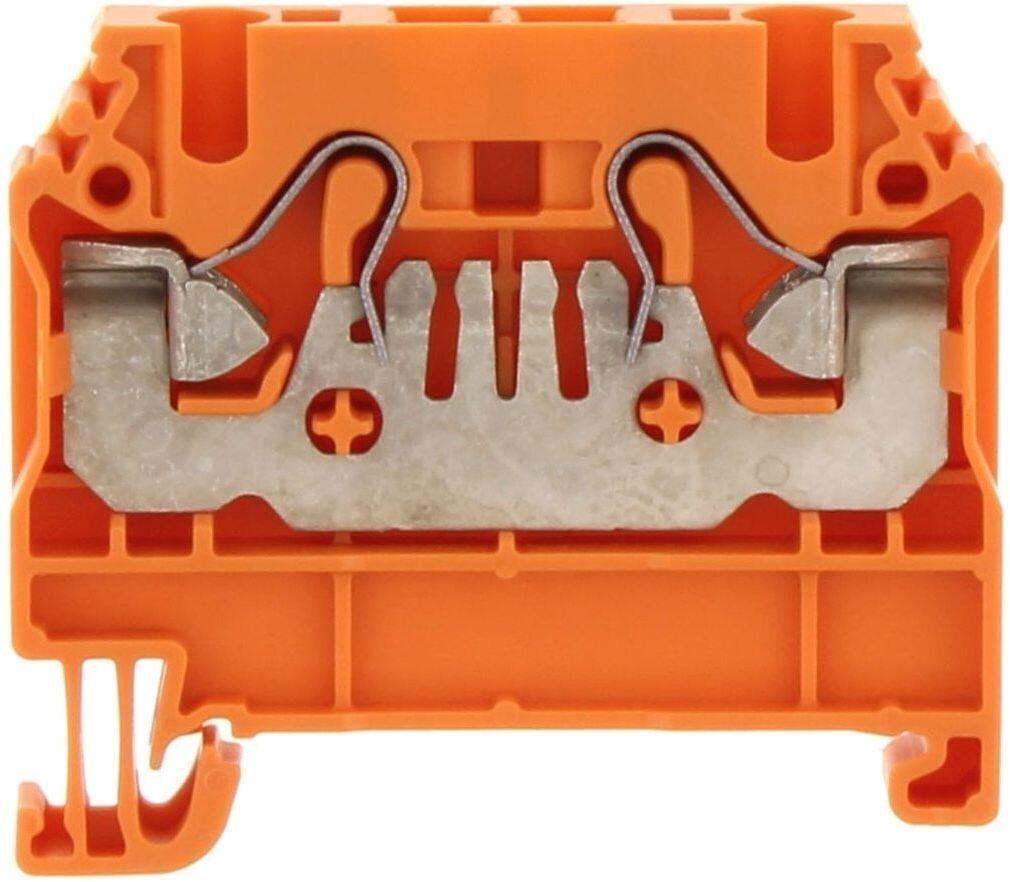

FRK 4/2A Orange, 4mm² Push-in feed through
Art:
3220.3 Copied
Orange
2
6 mm²
6 mm²
4 mm²
4 mm²
48.5 mm
A4
35 A
35 A
32 A
20
10
10.74 g
6.1 mm

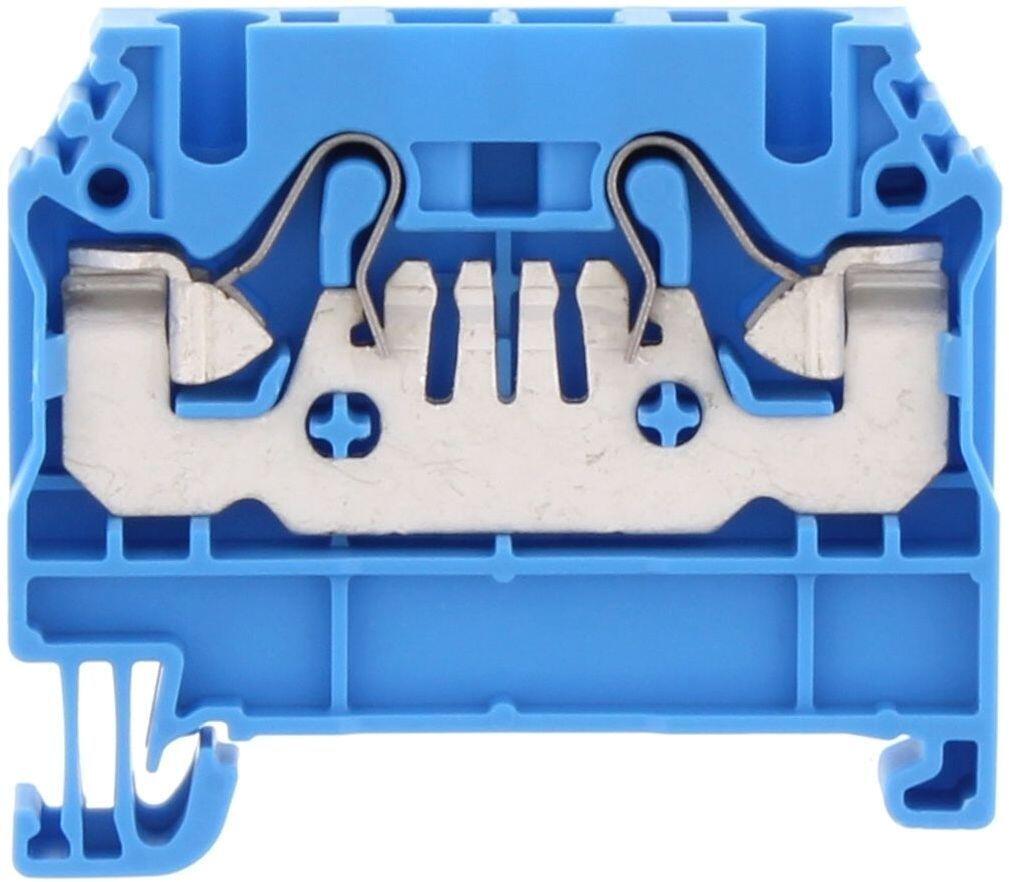

FRK 4/2A Blue, 4mm² Push-in feed through
Art:
3220.5 Copied
Blue
2
6 mm²
6 mm²
4 mm²
4 mm²
48.5 mm
A4
35 A
35 A
32 A
20
10
10.74 g
6.1 mm

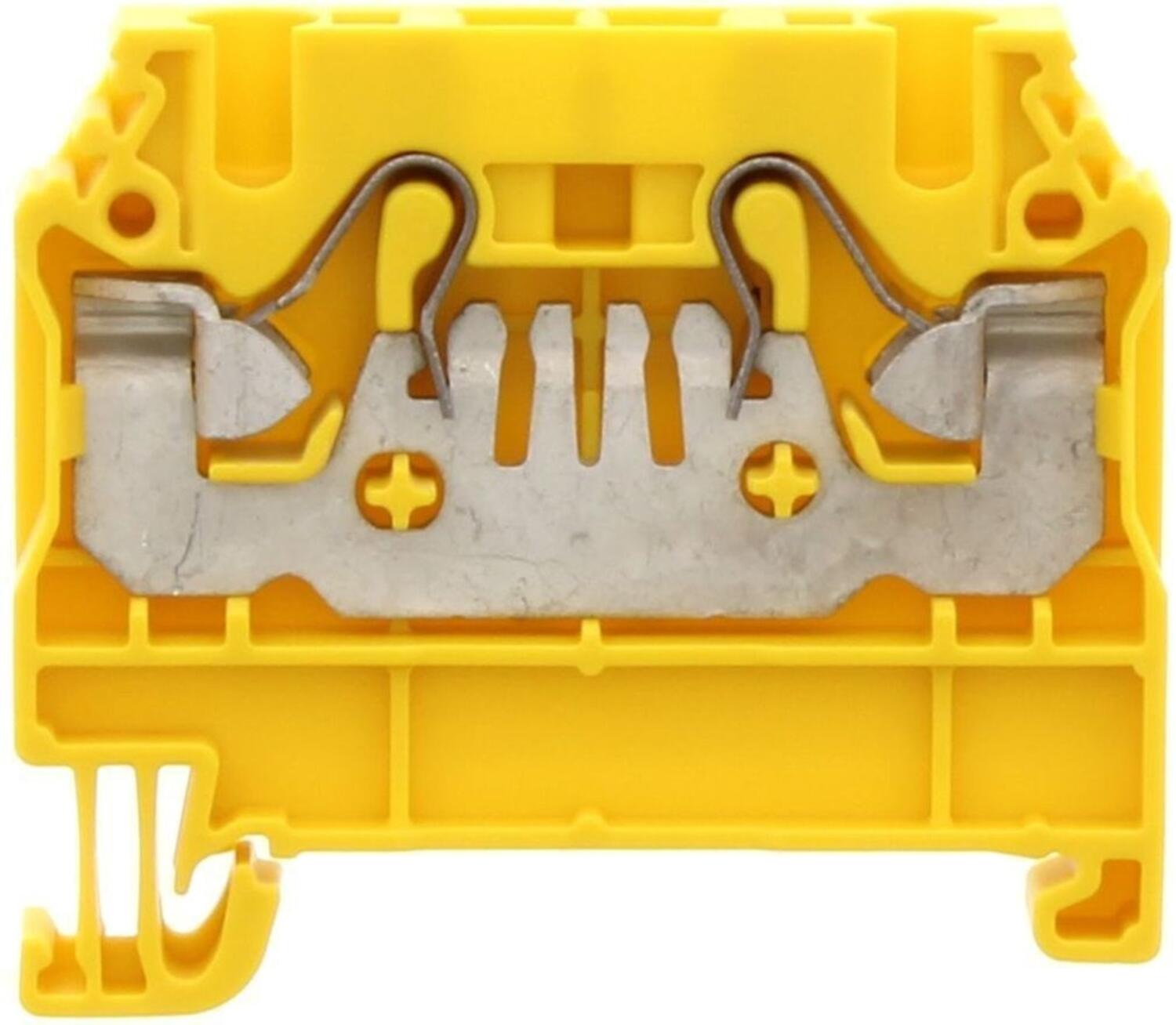

FRK 4/2A Yellow, 4mm² Push-in feed through
Art:
3220.8 Copied
Yellow
2
6 mm²
6 mm²
4 mm²
4 mm²
48.5 mm
A4
35 A
35 A
32 A
20
10
10.74 g
6.1 mm
299556_877.tif
FRK 4/2A Red, 4mm² Push-in feed through
Art:
3220.9 Copied
Red
2
6 mm²
6 mm²
4 mm²
4 mm²
48.5 mm
A4
35 A
35 A
32 A
20
10
10.74 g
6.1 mm
FRK 4/3A Green, 4mm² Push-in feed through, 1 in, 2 out
Art:
3221.1 Copied
Green
3
6 mm²
6 mm²
4 mm²
4 mm²
64.3 mm
A4
35 A
35 A
32 A
20
10
14.17 g
6.1 mm
FRK 4/3A Beige, 4mm² Push-in feed through, 1 in, 2 out
Art:
3221.2 Copied
Beige
3
6 mm²
6 mm²
4 mm²
4 mm²
64.3 mm
A4
35 A
35 A
32 A
20
10
14.17 g
6.1 mm

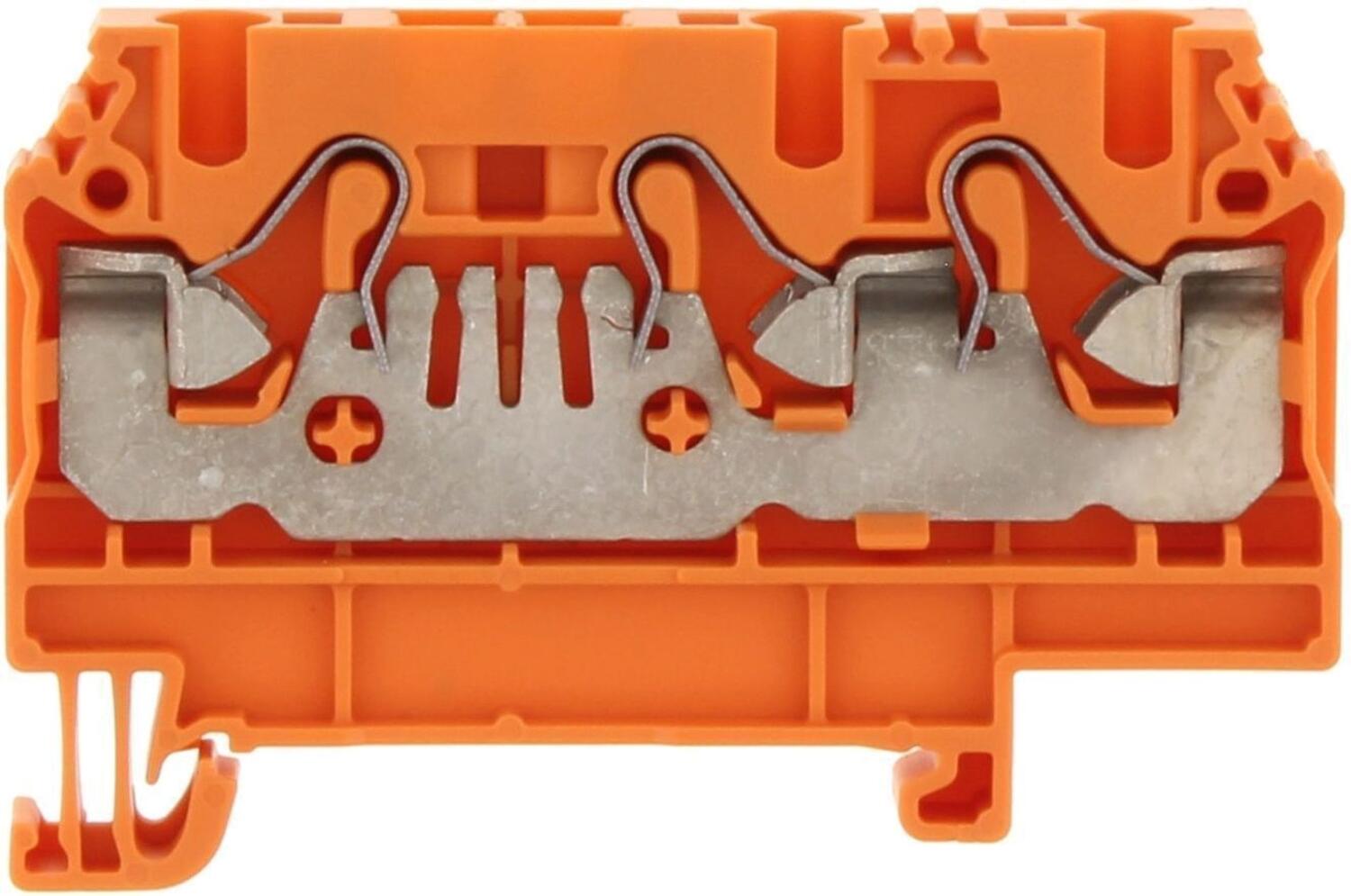

FRK 4/3A Orange, 4mm² Push-in feed through, 1 in, 2 out
Art:
3221.3 Copied
Orange
3
6 mm²
6 mm²
4 mm²
4 mm²
64.3 mm
A4
35 A
35 A
32 A
20
10
14.17 g
6.1 mm

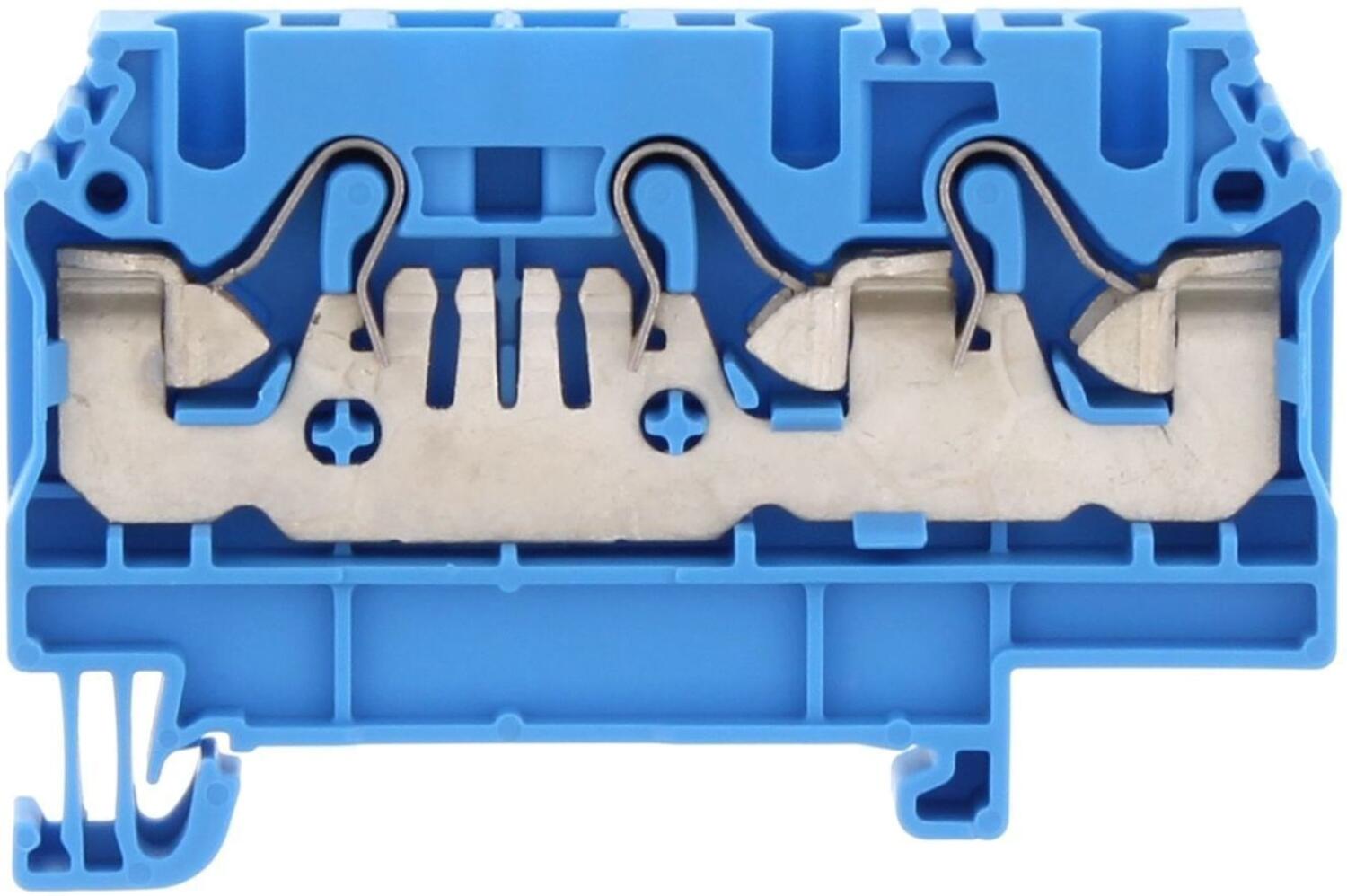

FRK 4/3A Blue, 4mm² Push-in feed through, 1 in, 2 out
Art:
3221.5 Copied
Blue
3
6 mm²
6 mm²
4 mm²
4 mm²
64.3 mm
A4
35 A
35 A
32 A
20
10
14.17 g
6.1 mm

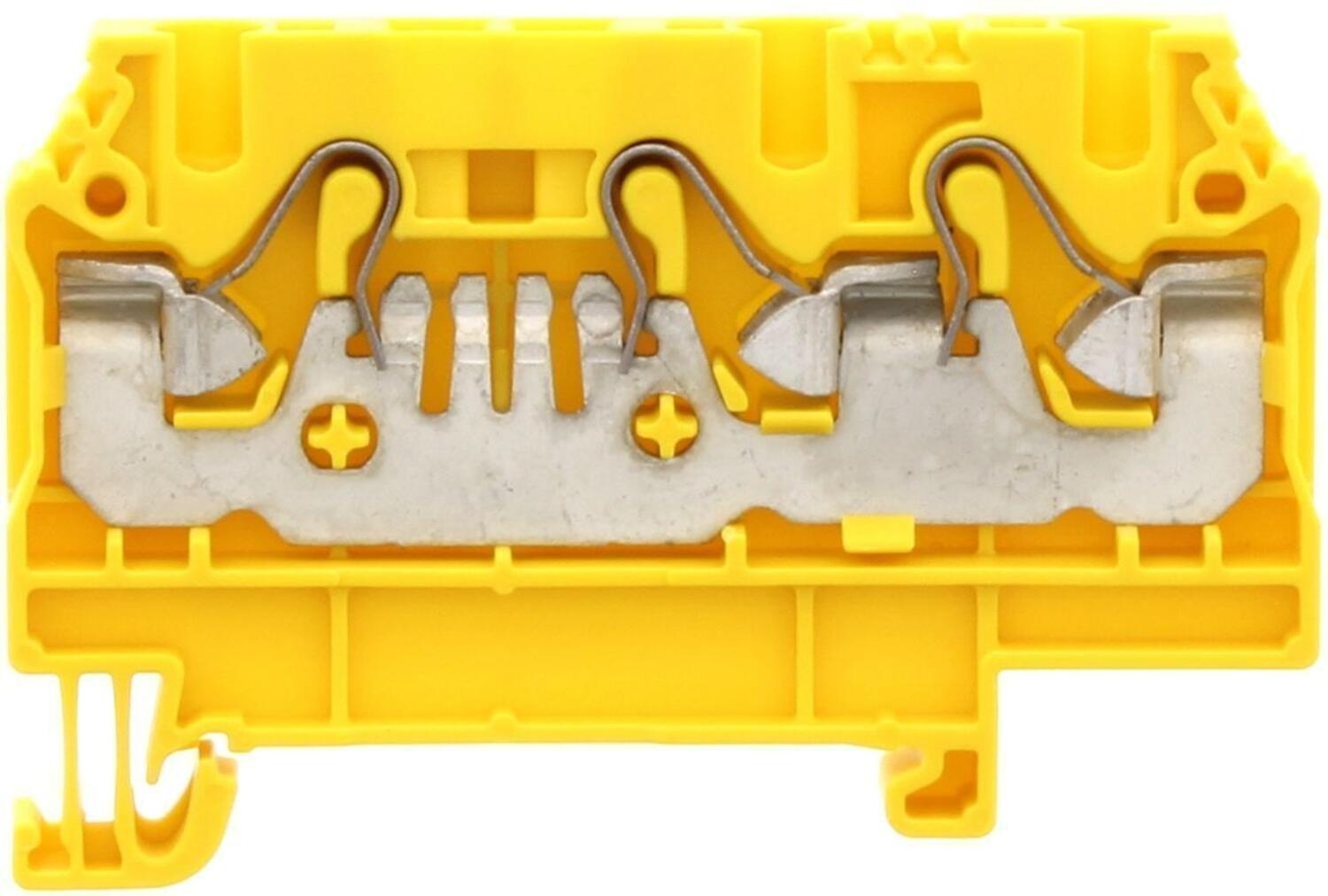

FRK 4/3A Yellow, 4mm² Push-in feed through, 1 in, 2 out
Art:
3221.8 Copied
Yellow
3
6 mm²
6 mm²
4 mm²
4 mm²
64.3 mm
A4
35 A
35 A
32 A
20
10
14.17 g
6.1 mm
299556_877.tif
FRK 4/3A Red, 4mm² Push-in feed through, 1 in, 2 out
Art:
3221.9 Copied
Red
3
6 mm²
6 mm²
4 mm²
4 mm²
64.3 mm
A4
35 A
35 A
32 A
20
10
14.17 g
6.1 mm

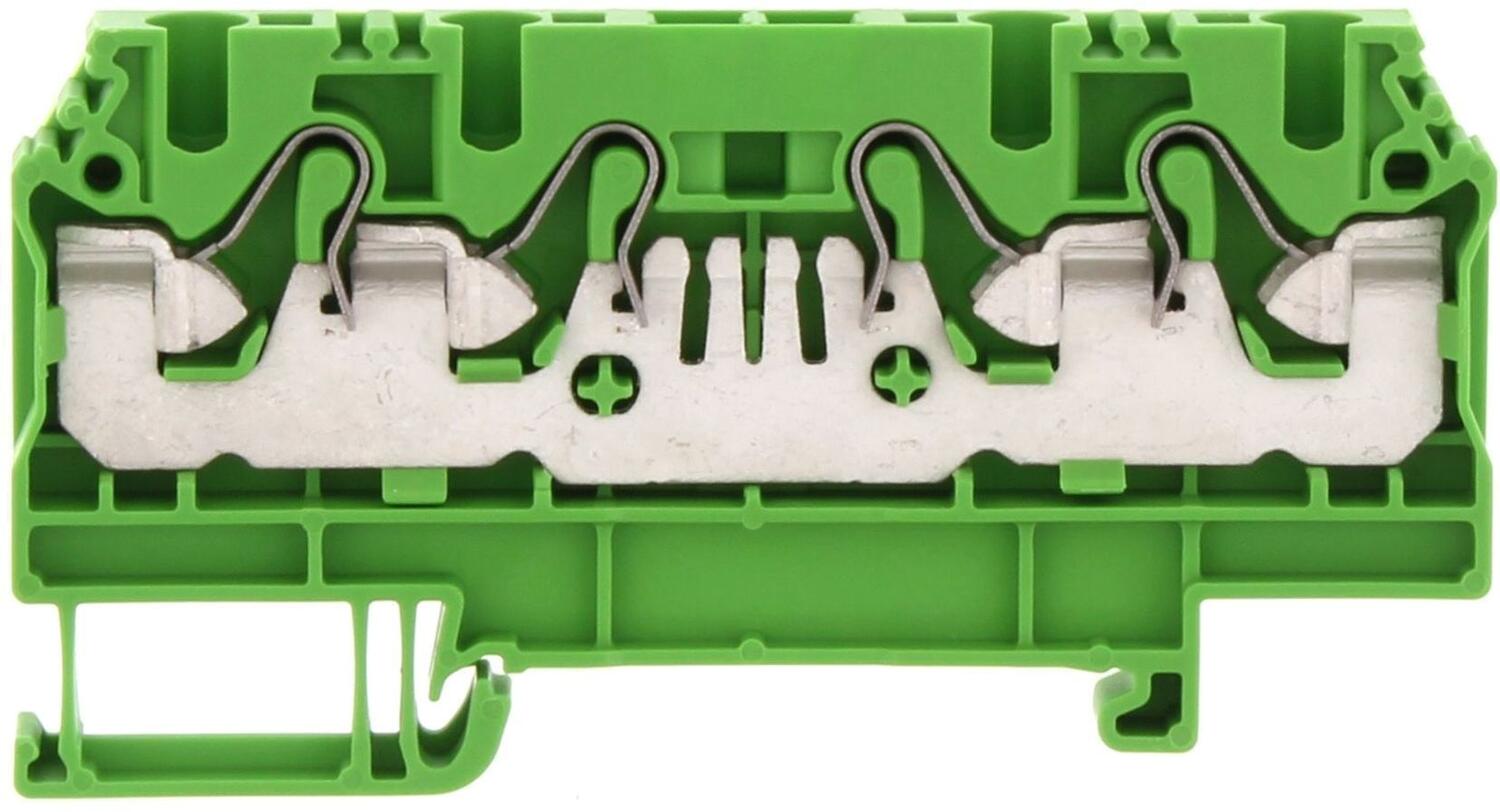

FRK 4/4A Green, 4mm² Push-in feed through, 2 in, 2 out
Art:
3222.1 Copied
Green
4
6 mm²
6 mm²
4 mm²
4 mm²
80 mm
A4
35 A
35 A
32 A
20
10
18.77 g
6.1 mm

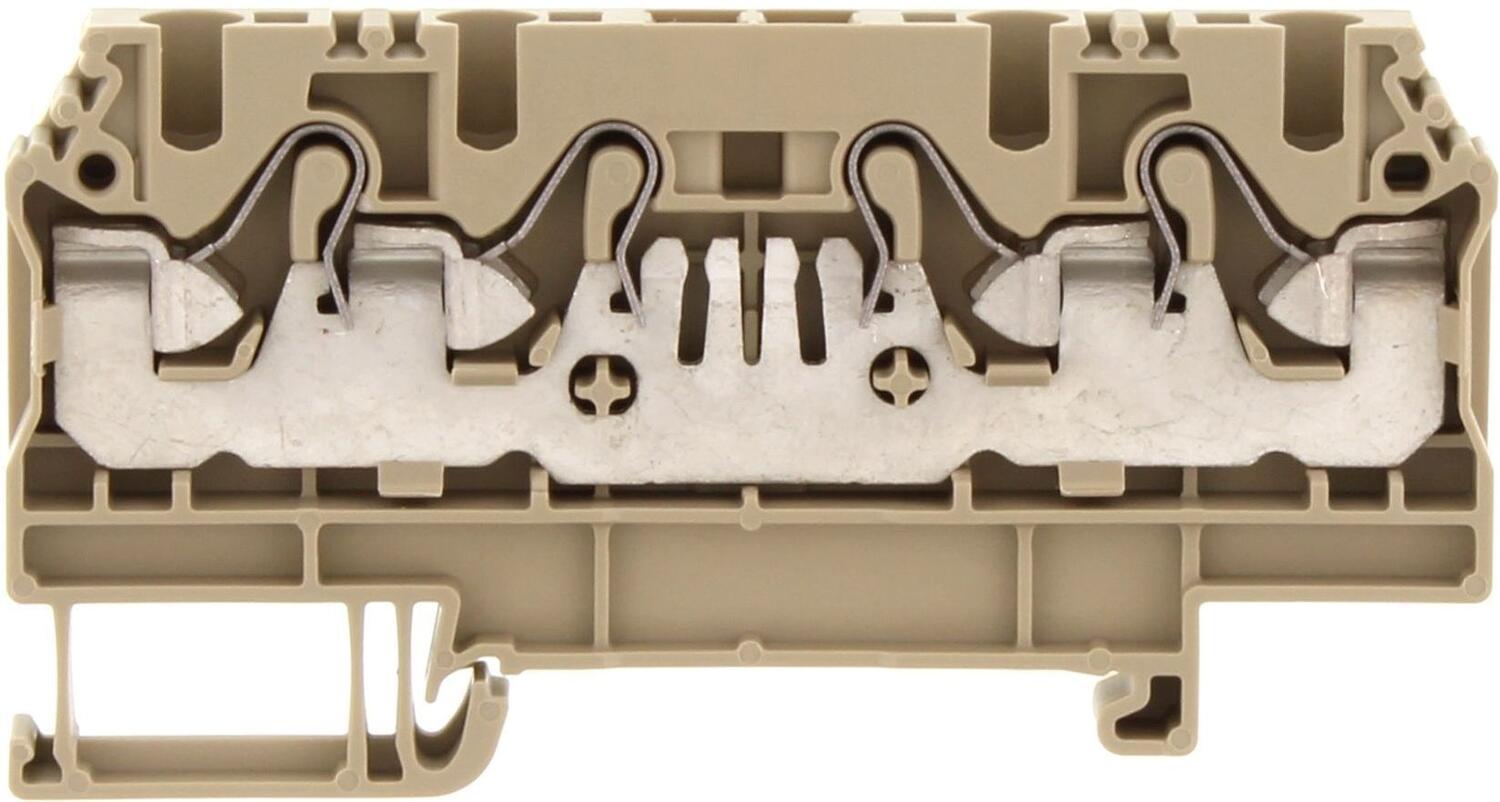

FRK 4/4A Beige, 4mm² Push-in feed through, 2 in, 2 out
Art:
3222.2 Copied
Beige
4
6 mm²
6 mm²
4 mm²
4 mm²
80 mm
A4
35 A
35 A
32 A
20
10
18.77 g
6.1 mm
299556_877.tif
FRK 4/4A Orange, 4mm² Push-in feed through, 2 in, 2 out
Art:
3222.3 Copied
Orange
4
6 mm²
6 mm²
4 mm²
4 mm²
80 mm
A4
35 A
35 A
32 A
20
10
18.77 g
6.1 mm

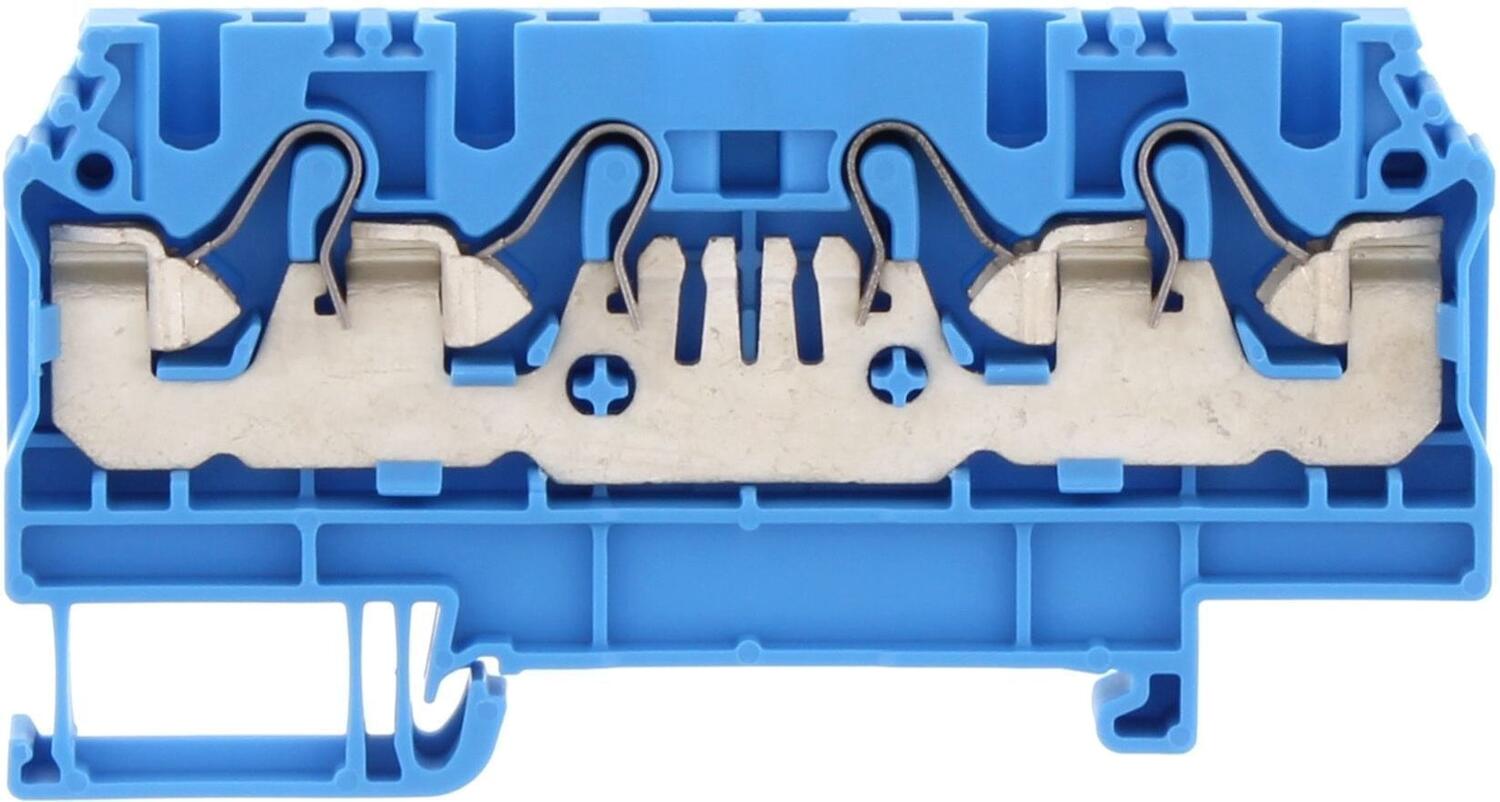

FRK 4/4A Blue, 4mm² Push-in feed through, 2 in, 2 out
Art:
3222.5 Copied
Blue
4
6 mm²
6 mm²
4 mm²
4 mm²
80 mm
A4
35 A
35 A
32 A
20
10
18.77 g
6.1 mm

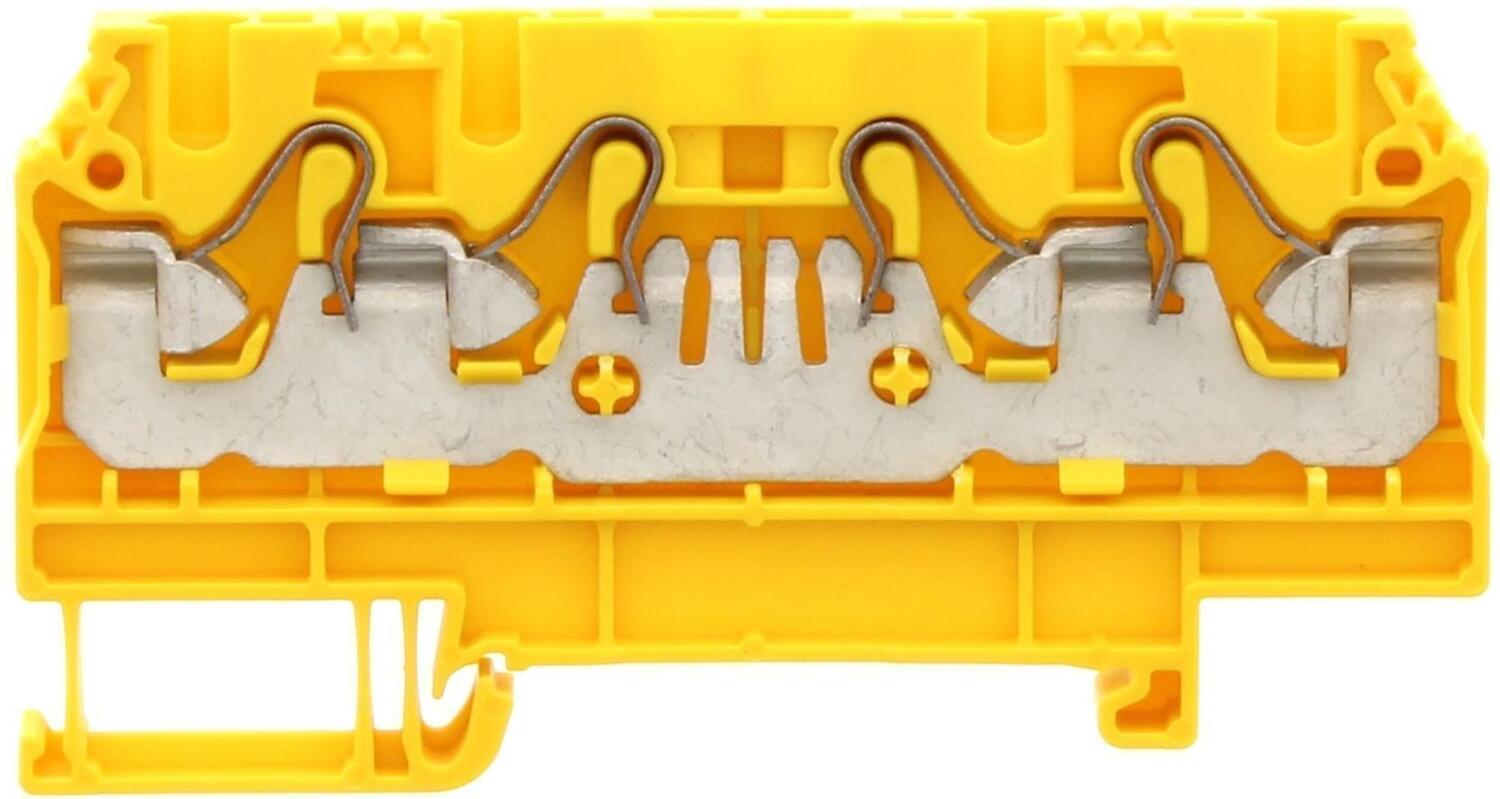

FRK 4/4A Yellow, 4mm² Push-in feed through, 2 in, 2 out
Art:
3222.8 Copied
Yellow
4
6 mm²
6 mm²
4 mm²
4 mm²
80 mm
A4
35 A
35 A
32 A
20
10
18.77 g
6.1 mm
299556_877.tif
FRK 4/4A Red, 4mm² Push-in feed through, 2 in, 2 out
Art:
3222.9 Copied
Red
4
6 mm²
6 mm²
4 mm²
4 mm²
80 mm
A4
35 A
35 A
32 A
20
10
18.77 g
6.1 mm

Selected variant

Select a variant in the list

Contact us
Please contact us for more information.
Send e-mail
Do you need help?
Logo

Cookies on oem.ee

Cookies help us improve your experience with us, so in order to be able to handle login information, offer you personalised content and for basic functionality of this website, we use some cookies.

Functional cookies

These cookies are necessary for the website to work and can not be turned off in our systems. They are usually used only in response to actions you have taken in connection with a service request, for example when setting personal preferences, logging in or filling out a form.

Analytics cookies

These cookies allow us to count the number of visits and traffic sources so that we can measure and improve our website performance. They help us know which pages are more or less popular and how visitors navigate around the site. The information that these cookies collect is aggregated and therefore completely anonymous. If you do not allow these cookies, we do not know when you have visited our website.

Marketing cookies

These cookies can be added by our partners. They can use them to create a profile of you, based on your interests, to show you more relevant information. They do not store any personal information - only information about your browser and device. If you do not accept these cookies, you will have a more general and less customized user experience.
