Feed through terminals - RK 2.5-240mm² RK 1050.2

Approvals	UL, CSA, GL, KEMA KUR, EAC
Color	Beige
Connections	2
Contamination degree	3
Country of origin	CZ
Cross connect channels	1
Cross section single wire from	2.5 mm²
Cross section single wire to	25 mm²
Cross section stranded wire from	2.5 mm²
Cross section stranded wire to	16 mm²
Cross section stranded with ferrule from	2.5 mm²
Cross section stranded with ferrule to	16 mm²
Cross-Section	16 mm²
CSA test standard	C22.2 No 158
EAC test standard	TR ZU 004/2011
Flamklass	UL94-V2
GL test standard	IEC 60947-7-1:2002
Height TS 32	63 mm
Height TS 35/7.5	58.5 mm
Insulation Material	Polyamide 6.6
KEMA KEUR test standard	EN 60947-7-1:2009
Length	50 mm
Mounting	TS 35/7,5 and TS 32
Number of levels	1

Operating temperature from	-40 °C
Operating temperature to	105 °C
Overvoltage category	III
Pack Size	50
Plug gauge acc. EN 60 947-1	B7
Rated Current CSA	70 A
Rated Current IEC	76 A
Rated impulse voltage	8 kV
Rated wire cross section from (AWG)	10
Rated wire cross section to (AWG)	6
Rated Voltage IEC	800 V
Screw size	M 5
Screw type	Slotted
Stripping Length	15 mm
Tariff code	85369010
Torque max	4
Torque Min	2
Type of terminal	Screw Terminals, DIN Rail terminals
UL test standard	UL 1059
Weight	29.7 g
Width	12 mm
Voltage CSA	600 V

Articles	Additional information	Approvals	Banded wire up to	Color	Connections	Cross connect channels	Cross section single wire from	Cross section single wire to	Cross section stranded wire from	Cross section stranded wire to	Cross section stranded with ferrule from	Cross section stranded with ferrule to	Cross-Section	CSA test standard	CSAus test standard	cUL test standard	GL test standard	Height TS 32	Height TS 35/7.5	Length	Mounting	Number of test pick off options	Pack Size	Plug gauge acc. EN 60 947-1	Rated Current CSA	Rated current CSAus	Rated current cUL	Rated Current IEC	Rated Current To UL	Rated impulse voltage	Rated wire cross section from (AWG)	Rated wire cross section to (AWG)	Rated voltage CSAus	Rated voltage cUL	Rated Voltage IEC	Rated Voltage To UL	Screw size	Screw type	Stripping Length	Torque max	Torque Min	Weight	Width	Voltage CSA

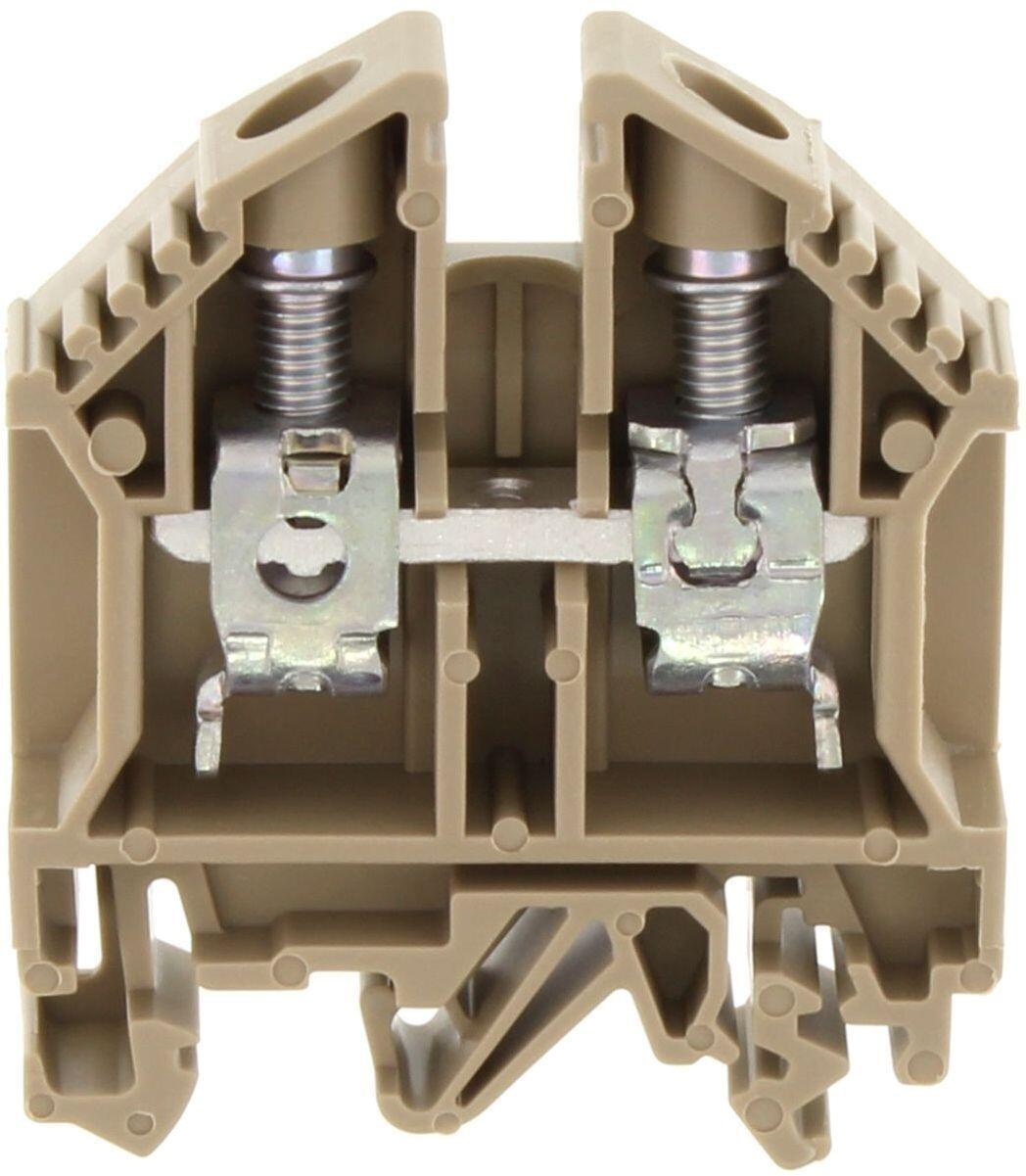

RK 16 Beige, 16mm² feed through, multi-foot Art: 1050.2 Copied		UL, CSA, GL, KEMA KUR, EAC		Beige	2	1	2.5 mm²	25 mm²	2.5 mm²	16 mm²	2.5 mm²	16 mm²	16 mm²	C22.2 No 158			IEC 60947-7-1:2002	63 mm	58.5 mm	50 mm	TS 35/7,5 and TS 32		50	B7	70 A			76 A		8 kV	10	6			800 V		M 5	Slotted	15 mm	4	2	29.7 g	12 mm	600 V

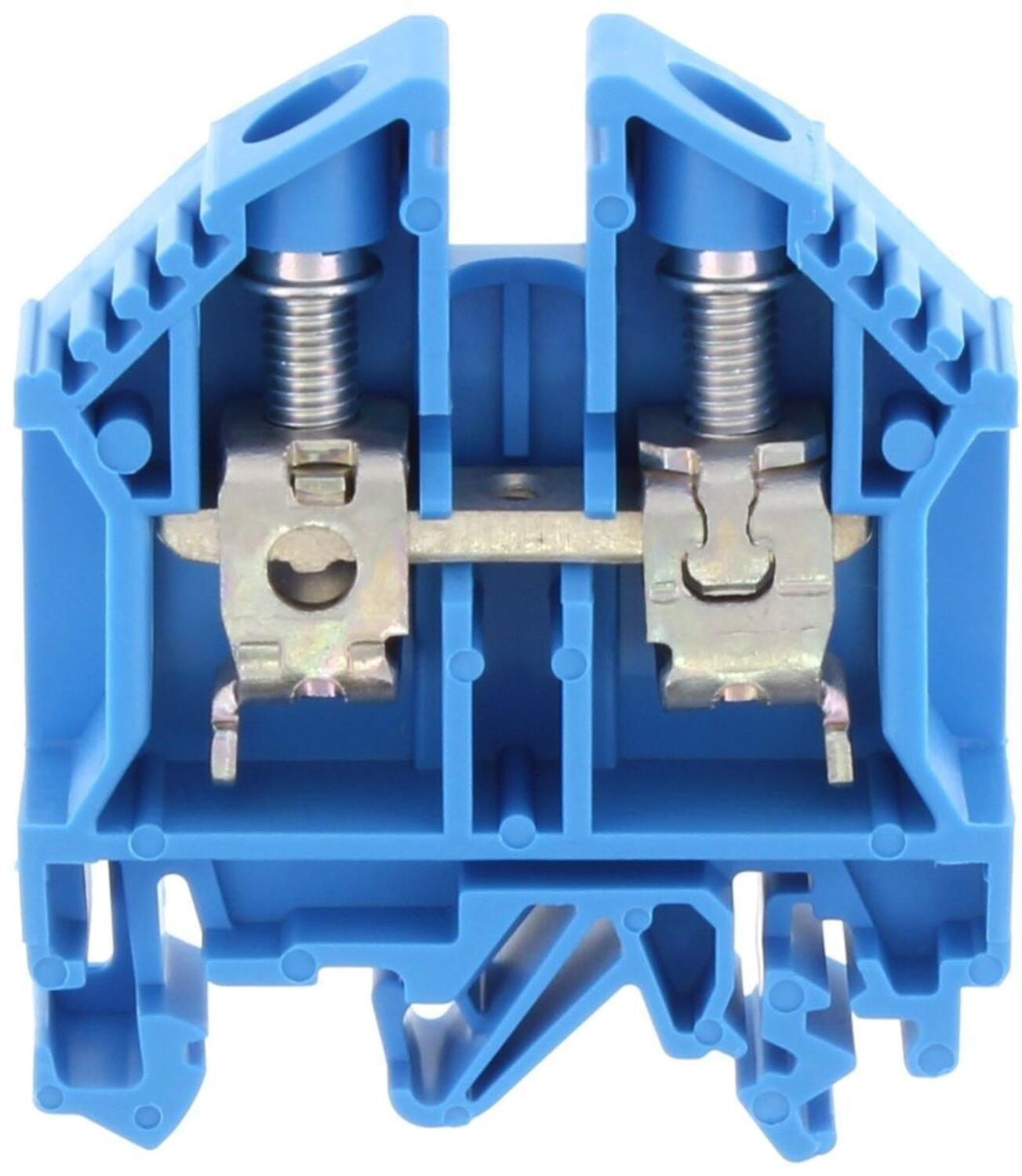

RK 16 Blue, 16mm² feed through, multi-foot Art: 1050.5 Copied		UL, CSA, GL, KEMA KUR, EAC		Blue	2	1	2.5 mm²	25 mm²	2.5 mm²	16 mm²	2.5 mm²	16 mm²	16 mm²	C22.2 No 158			IEC 60947-7-1:2002	63 mm	58.5 mm	50 mm	TS 35/7,5 and TS 32		50	B7	70 A			76 A		8 kV	10	6			800 V		M 5	Slotted	15 mm	4	2	29.7 g	12 mm	600 V

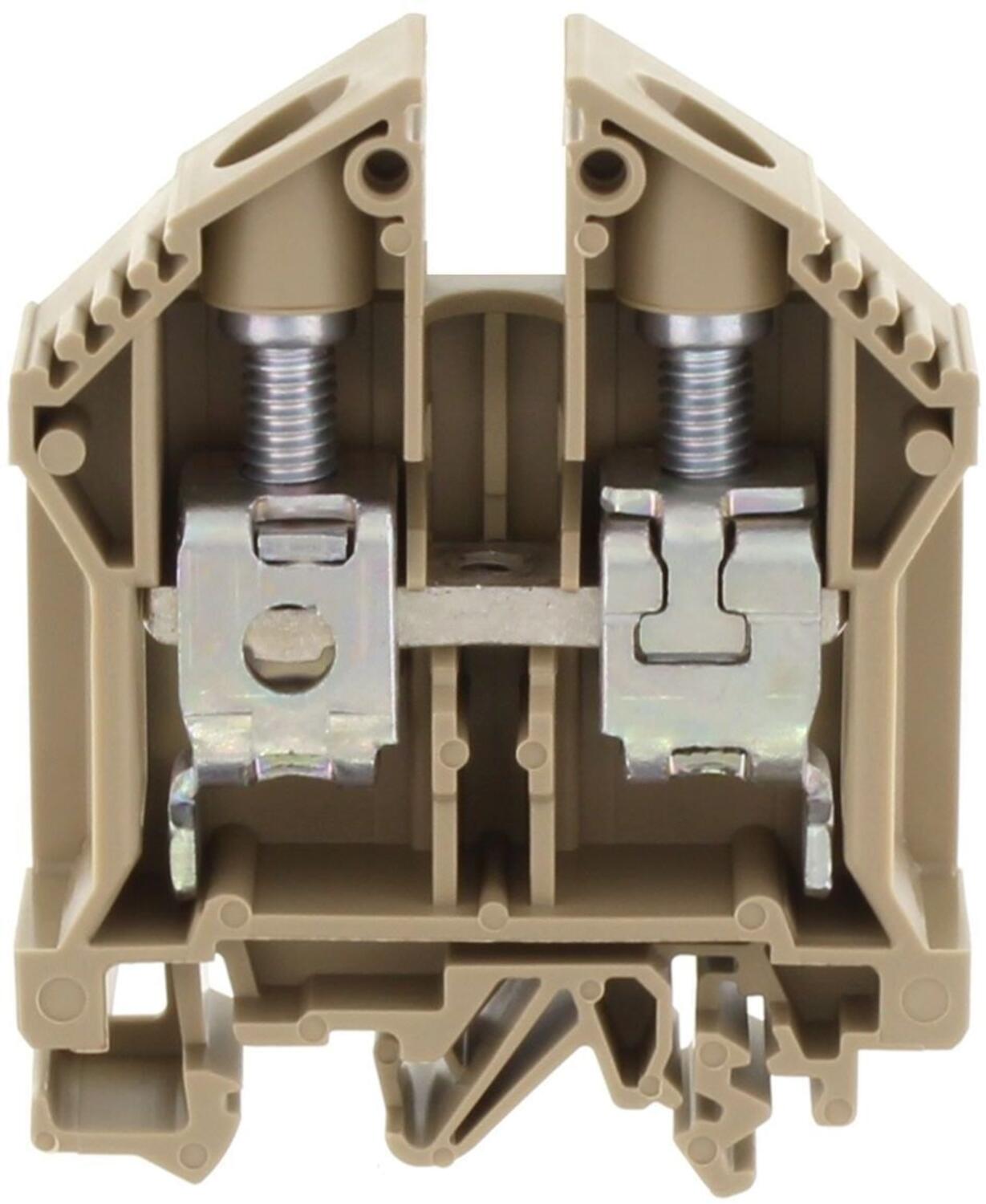

RK 35 Beige, 35mm² feed through, multi-foot Art: 1052.2 Copied		UL, CSA, GL, KEMA KUR, EAC		Beige	2	1	2.5 mm²	50 mm²	2.5 mm²	35 mm²	2.5 mm²	35 mm²	35 mm²	C22.2 No 158			IEC 60947-7-1:2002	76 mm	71.5 mm	58 mm	TS 35/7,5 and TS 32		20	B9	100 A			125 A		8 kV	12	2			800 V		M 6	Slotted	20 mm	5	2.5	60.25 g	16 mm	600 V
RK 35-Blue, 35mm² feed through, multi-foot Art: 1052.5 Copied		UL, CSA, GL, KEMA KUR, EAC		Blue	2	1	2.5 mm²	50 mm²	2.5 mm²	35 mm²	2.5 mm²	35 mm²	35 mm²	C22.2 No 158			IEC 60947-7-1:2002	76 mm	71.5 mm	58 mm	TS 35/7,5 and TS 32		20	B9	100 A			125 A		8 kV	12	2			800 V		M 6	Slotted	20 mm	5	2.5	60.25 g	16 mm	600 V
RK 50 Beige, 50mm² Feed through terminal, multi-foot Art: 1120.2 Copied	with housing pegs and allen screws	UL, CSA, GL, CSA US, KEMA KUR, EAC	11.8 x 5.0 mm	Beige	2		16 mm²	50 mm²	25 mm²	50 mm²	25 mm²	50 mm²	50 mm²	C22.2 No 158	UL 1059		IEC 60947-7-1:2002	82 mm	76.5 mm	79 mm	TS 35/7,5 and TS 32		10	B10	150 A	150 A		150 A	150 A	8 kV	6	1/0	600 V		1000 V	600 V	M 6	Hexagon/Allen key	27 mm	6	3	123.6 g	20 mm	600 V

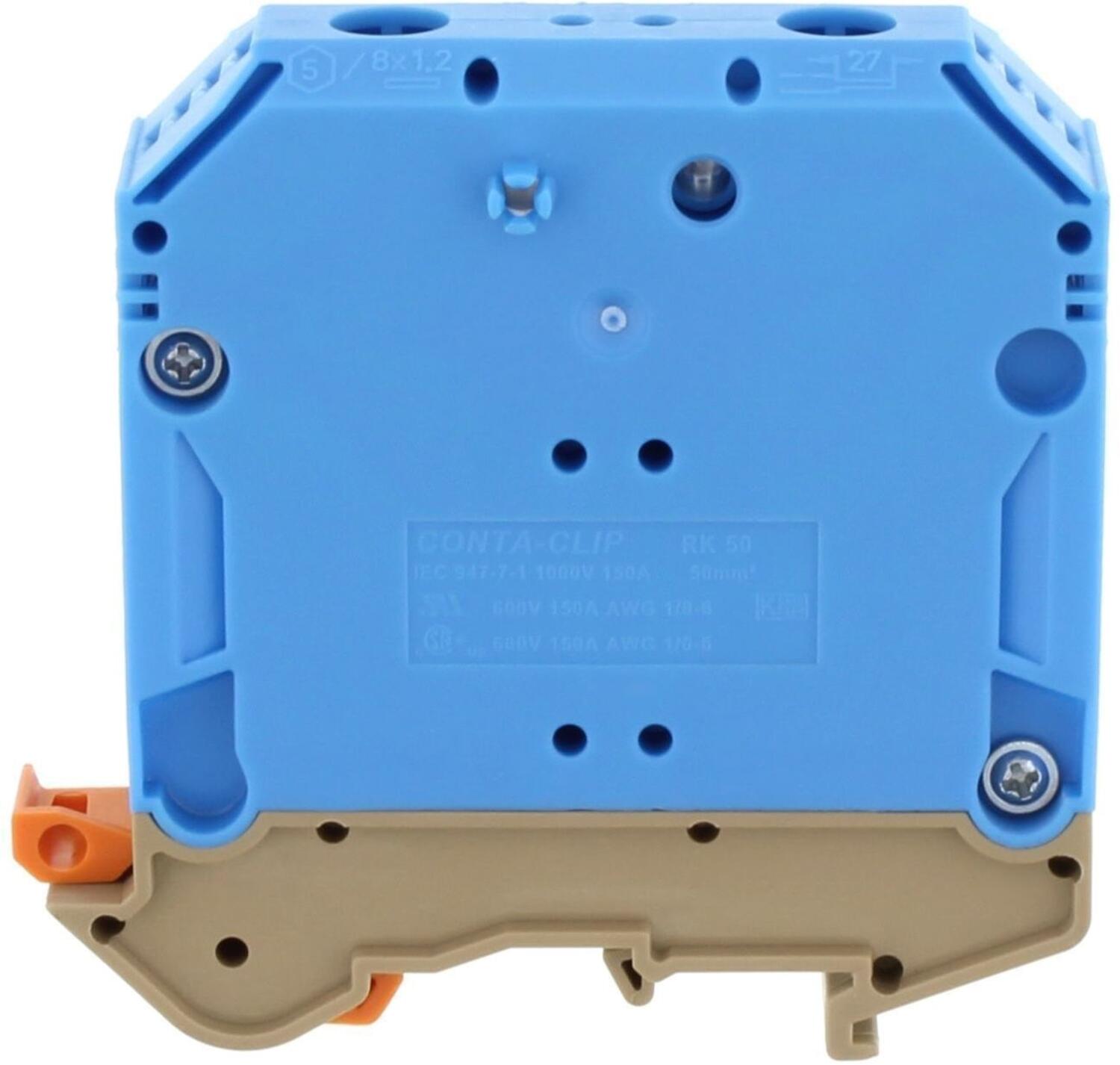

RK 50 Blue, 50mm² Feed through terminal, multi-foot Art: 1120.5 Copied	with housing pegs and allen screws	UL, CSA, GL, CSA US, KEMA KUR, EAC	11.8 x 5.0 mm	Blue	2		16 mm²	50 mm²	25 mm²	50 mm²	25 mm²	50 mm²	50 mm²	C22.2 No 158	UL 1059		IEC 60947-7-1:2002	82 mm	76.5 mm	79 mm	TS 35/7,5 and TS 32		10	B10	150 A	150 A		150 A	150 A	8 kV	6	1/0	600 V		1000 V	600 V	M 6	Hexagon/Allen key	27 mm	6	3	123.6 g	20 mm	600 V

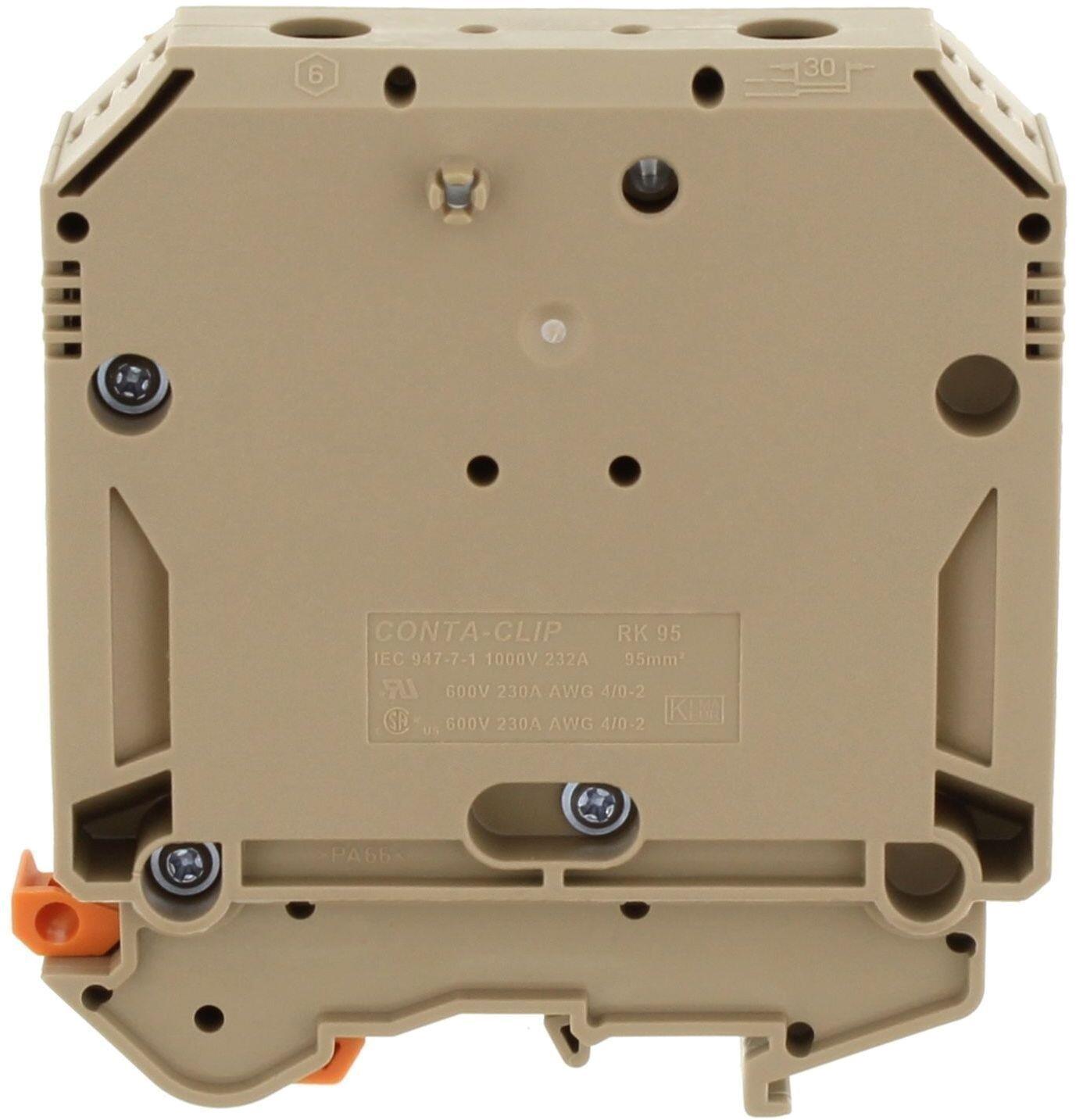

RK 95 Beige, 95mm² Feed through terminal, multi-foot Art: 1122.2 Copied	with housing pegs and allen screws	UL, CSA, GL, CSA US, KEMA KUR, EAC	16.6 x 6.0 mm	Beige	2		25 mm²	95 mm²	35 mm²	95 mm²	35 mm²	95 mm²	95 mm²	C22.2 No 158	UL 1059		IEC 60947-7-1:2002	94 mm	88.5 mm	84 mm	TS 35/7,5 and TS 32		10	B12	230 A	230 A		232 A	230 A	8 kV	2	4/0	600 V		1000 V	600 V	M 8	Hexagon/Allen key	30 mm	12	6	189.6 g	25 mm	600 V

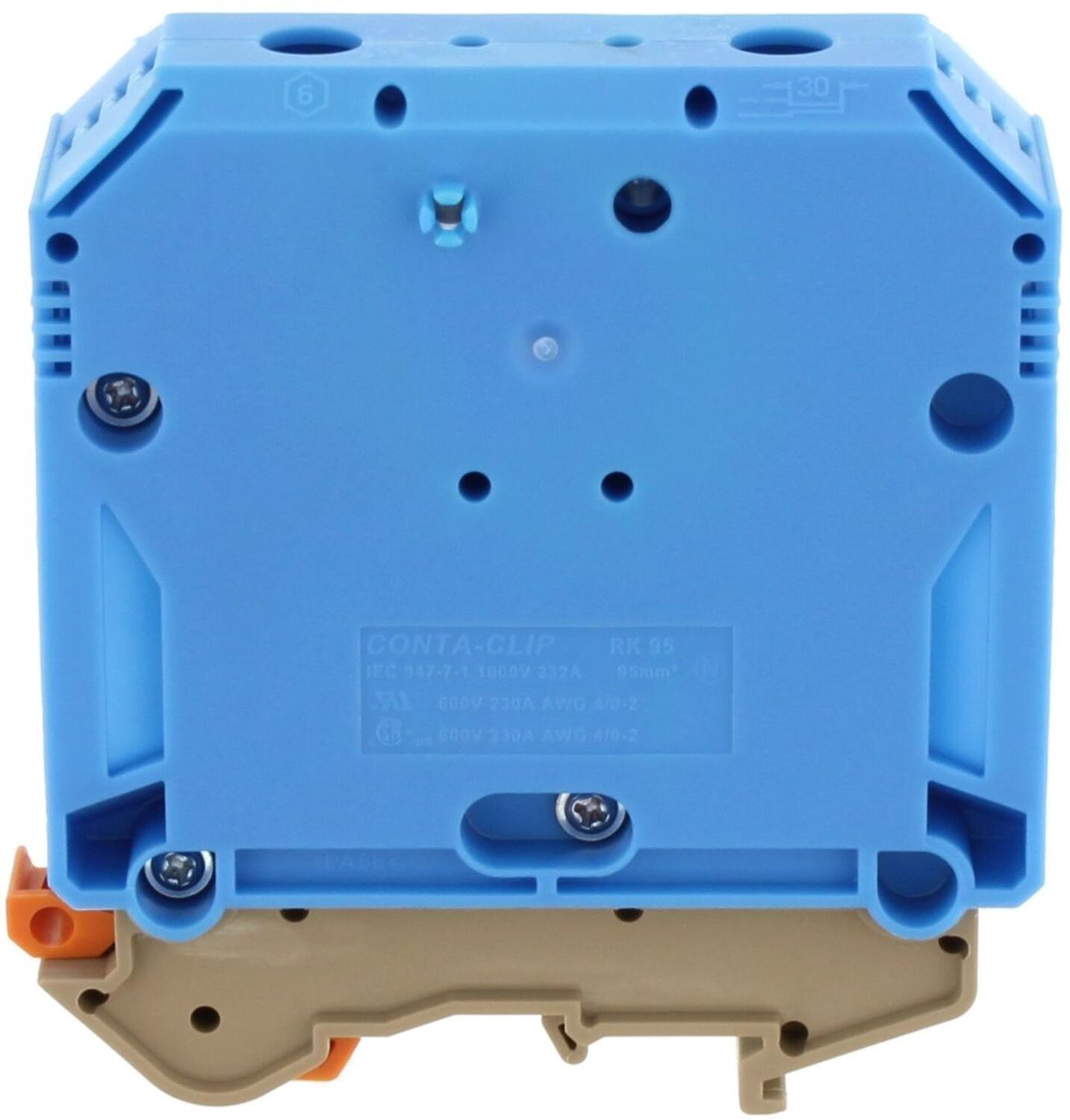

RK 95 Blue, 95mm² Feed through terminal, multi-foot Art: 1122.5 Copied	with housing pegs and allen screws	UL, CSA, GL, CSA US, KEMA KUR, EAC	16.6 x 6.0 mm	Blue	2		25 mm²	95 mm²	35 mm²	95 mm²	35 mm²	95 mm²	95 mm²	C22.2 No 158	UL 1059		IEC 60947-7-1:2002	94 mm	88.5 mm	84 mm	TS 35/7,5 and TS 32		10	B12	230 A	230 A		232 A	230 A	8 kV	2	4/0	600 V		1000 V	600 V	M 8	Hexagon/Allen key	30 mm	12	6	189.6 g	25 mm	600 V
RK 150 Beige, 150mm² Feed through terminal, multi-foot Art: 1124.2 Copied	with housing pegs and allen screws	UL, CSA, GL, CSA US, KEMA KUR, EAC	20 x 8 mm	Beige	2		35 mm²	150 mm²	50 mm²	150 mm²	50 mm²	150 mm²	150 mm²	C22.2 No 158	UL 1059		IEC 60947-7-1:2002	118.5 mm	112.8 mm	93 mm	TS 35/7,5 and TS 32		5	B14	275 A	275 A		309 A	275 A	8 kV	2	300 Kcmil	600 V		1000 V	600 V	M 8	Hexagon/Allen key	38 mm	20	10	312.4 g	31 mm	600 V
RK 150 Blue, 150mm² Feed through terminal, multi-foot Art: 1124.5 Copied	with housing pegs and allen screws	UL, CSA, GL, CSA US, KEMA KUR, EAC	20 x 8 mm	Blue	2		35 mm²	150 mm²	50 mm²	150 mm²	50 mm²	150 mm²	150 mm²	C22.2 No 158	UL 1059		IEC 60947-7-1:2002	118.5 mm	112.8 mm	93 mm	TS 35/7,5 and TS 32		5	B14	275 A	275 A		309 A	275 A	8 kV	2	300 Kcmil	600 V		1000 V	600 V	M 8	Hexagon/Allen key	38 mm	20	10	312.4 g	31 mm	600 V

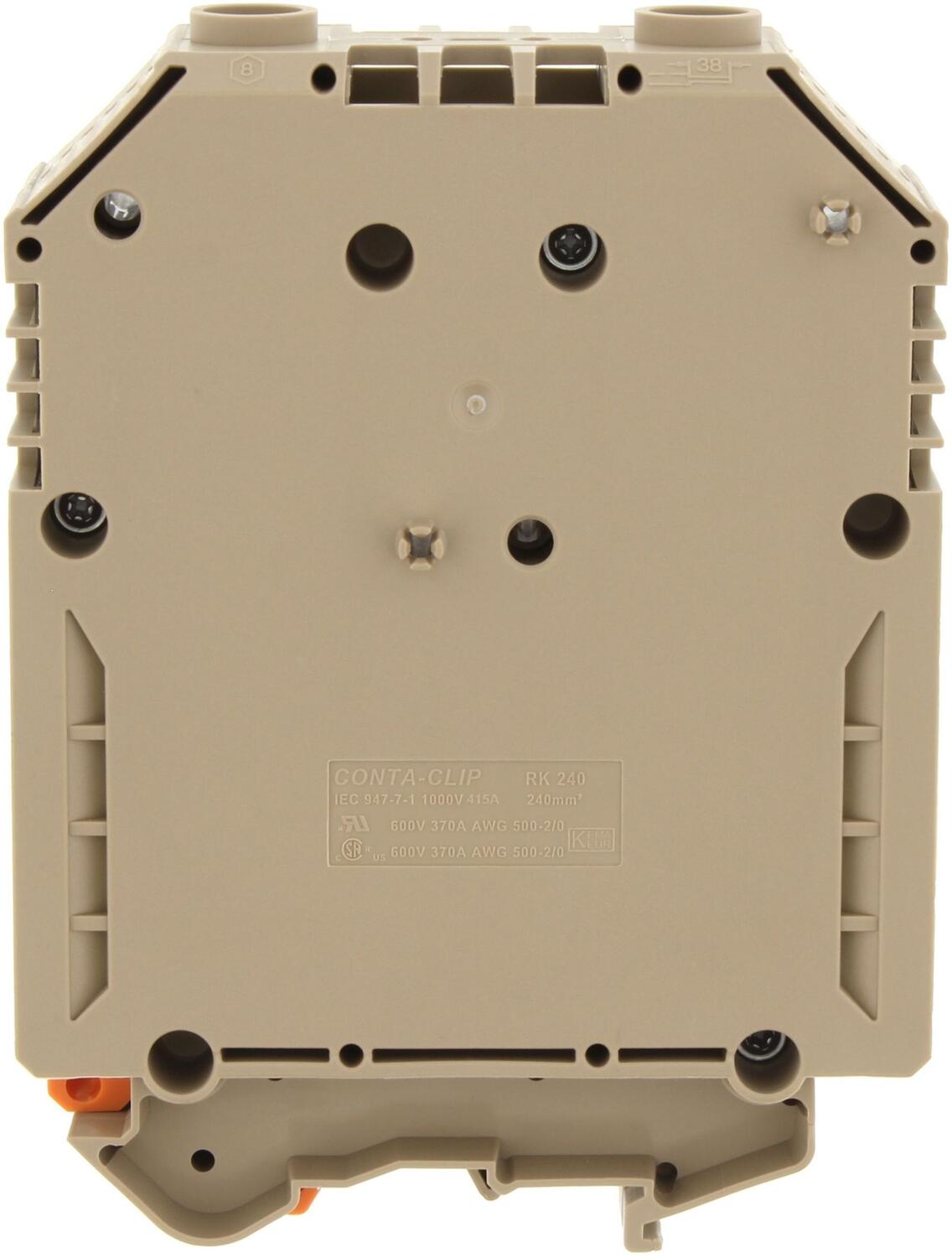

RK 240 Beige, 240mm² Feed through terminal, multi-foot Art: 1126.2 Copied	with housing pegs and allen screws	UL, CSA, GL, CSA US, KEMA KUR, EAC	20 x 12 mm	Beige	2		70 mm²	240 mm²	70 mm²	240 mm²	70 mm²	185 mm²	240 mm²	C22.2 No 158	UL 1059		IEC 60947-7-1:2002	132 mm	126.3 mm	93 mm	TS 35/7,5 and TS 32		5	B16	370 A	370 A		380 A	370 A	8 kV	2/0	500 Kcmil	600 V		1000 V	600 V	M 10	Hexagon/Allen key	38 mm	20	10	373.6 g	36 mm	600 V

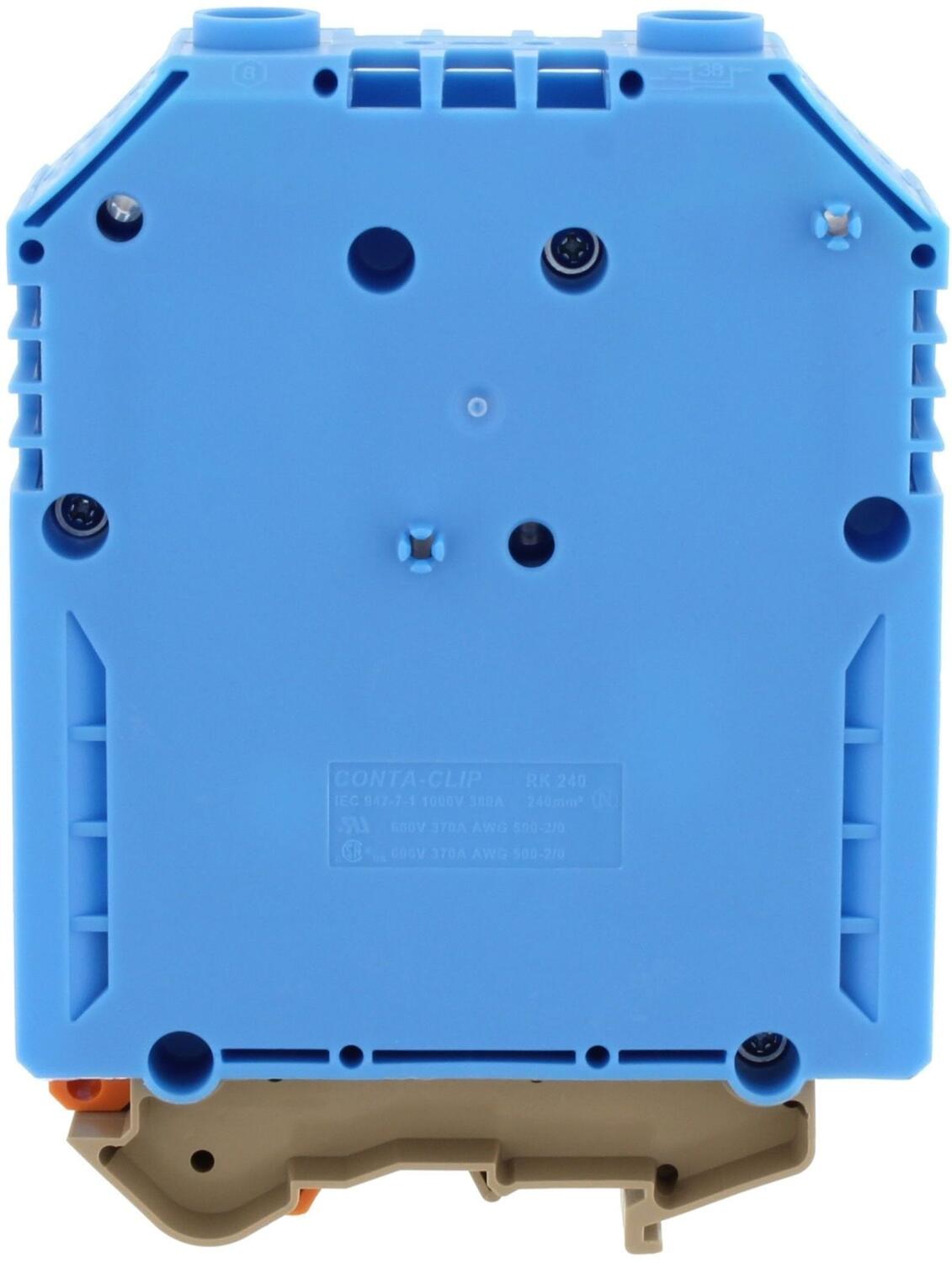

RK 240 Blue, 240mm² Feed through terminal, multi-foot Art: 1126.5 Copied	with housing pegs and allen screws	UL, CSA, GL, CSA US, KEMA KUR, EAC	20 x 12 mm	Blue	2		70 mm²	240 mm²	70 mm²	240 mm²	70 mm²	185 mm²	240 mm²	C22.2 No 158	UL 1059		IEC 60947-7-1:2002	132 mm	126.3 mm	93 mm	TS 35/7,5 and TS 32		5	B16	370 A	370 A		380 A	370 A	8 kV	2/0	500 Kcmil	600 V		1000 V	600 V	M 10	Hexagon/Allen key	38 mm	20	10	370.7 g	36 mm	600 V

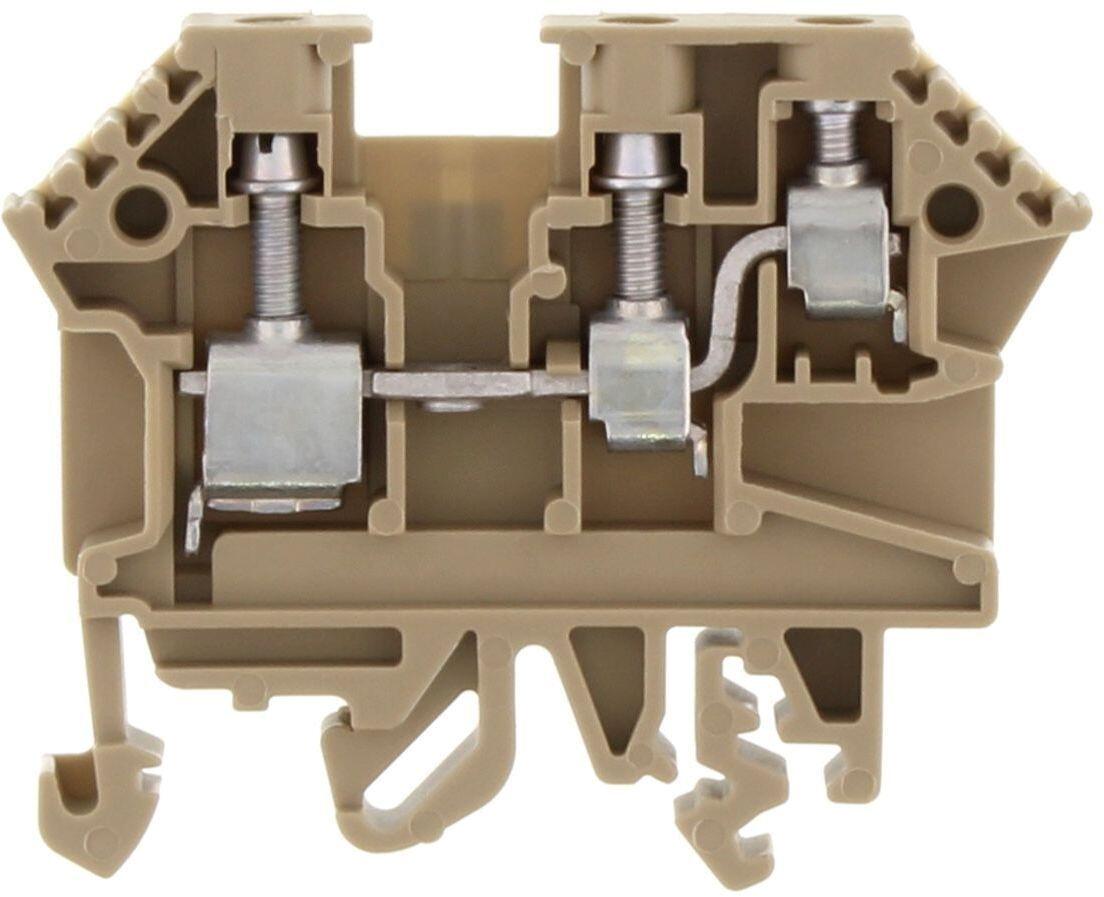

RK 2.5-4/ZR Beige, 2.5mm² Hybrid feed through, 1 in, 2 out, multi-foot Art: 1210.2 Copied		UL, cUL, KEMA KUR, EAC		Beige	3	1	0.2 mm²	4 mm²	0.2 mm²	10 mm²	0.2 mm²	2.5 mm²	4 mm²			C22.2 No 158		51.5 mm	47 mm	57.5 mm	TS 35/7,5	1	100	A4			30 A	24 A	30 A	6 kV	22	12		600 V	500 V	600 V	M 3	Slotted	12 mm	1	0.5	12.33 g	6 mm

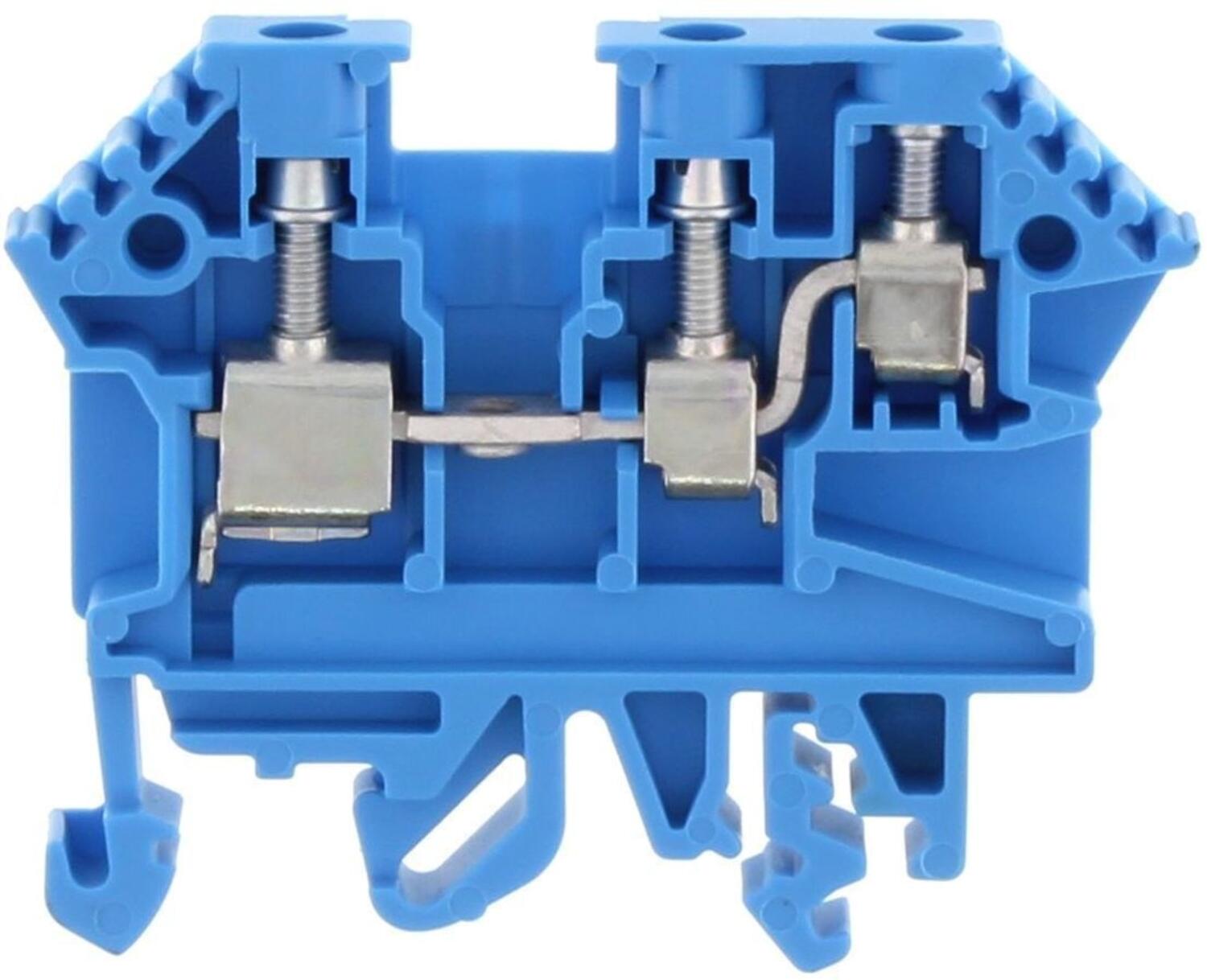

RK 2.5-4/ZR Blue, 2.5mm² Hybrid feed through, 1 in, 2 out, multi-foot Art: 1210.5 Copied		UL, cUL, KEMA KUR, EAC		Blue	3	1	0.2 mm²	4 mm²	0.2 mm²	10 mm²	0.2 mm²	2.5 mm²	4 mm²			C22.2 No 158		51.5 mm	47 mm	57.5 mm	TS 35/7,5	1	100	A4			30 A	24 A	30 A	6 kV	22	12		600 V	500 V	600 V	M 3	Slotted	12 mm	1	0.5	12.33 g	6 mm

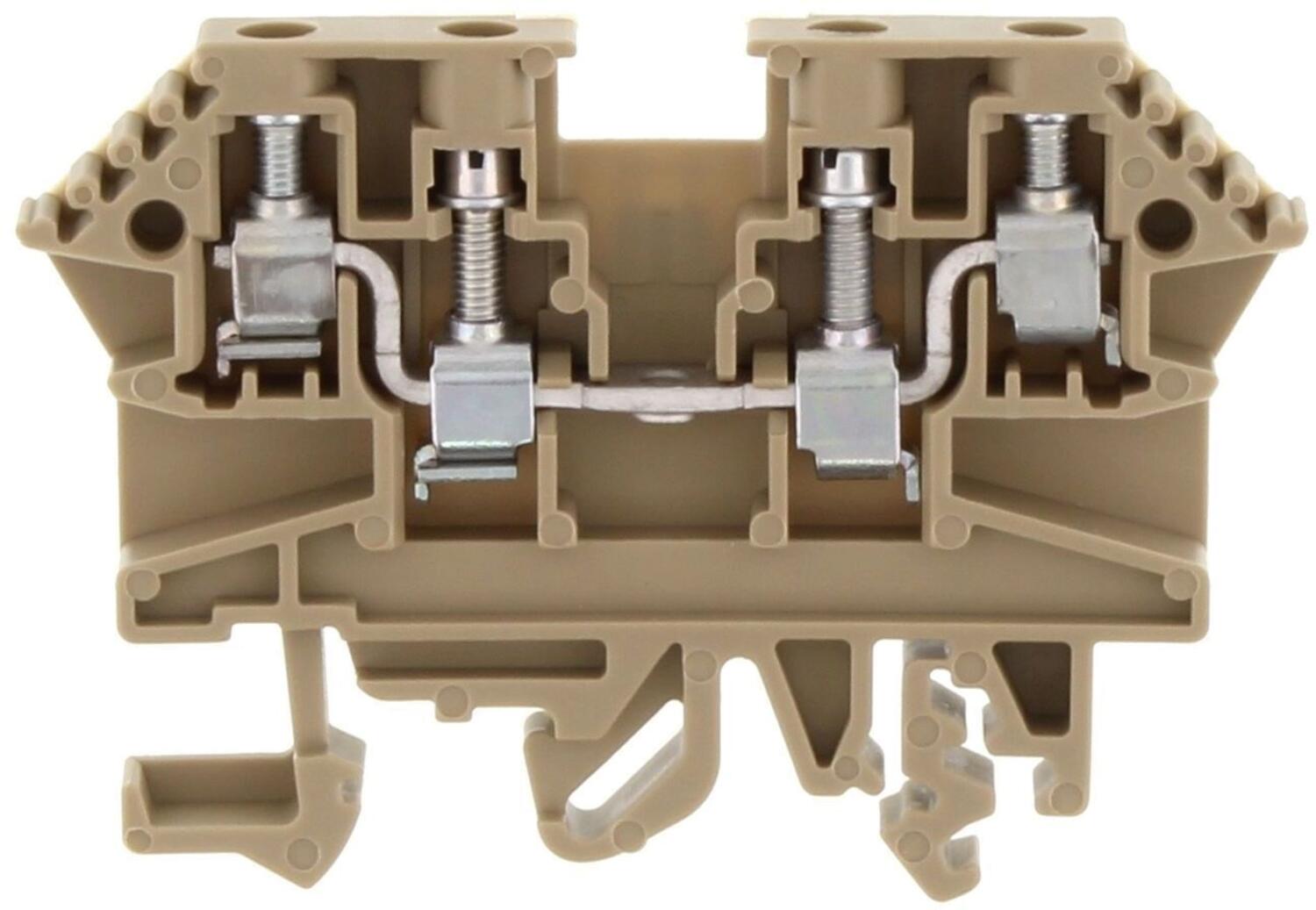

RK 2.5-4/ZRL Beige, 2.5mm² Hybrid feed through, 2 in, 2 out, multi-foot Art: 1211.2 Copied		UL, cUL, KEMA KUR, EAC		Beige	4	1	0.2 mm²	4 mm²	0.2 mm²	4 mm²	0.2 mm²	2.5 mm²	4 mm²			C22.2 No 158		51.5 mm	47 mm	67 mm	TS 35/7,5	1	100	A4			30 A	24 A	30 A	6 kV	22	12		600 V	500 V	600 V	M 3	Slotted	9 mm	1	0.5	13.97 g	6 mm

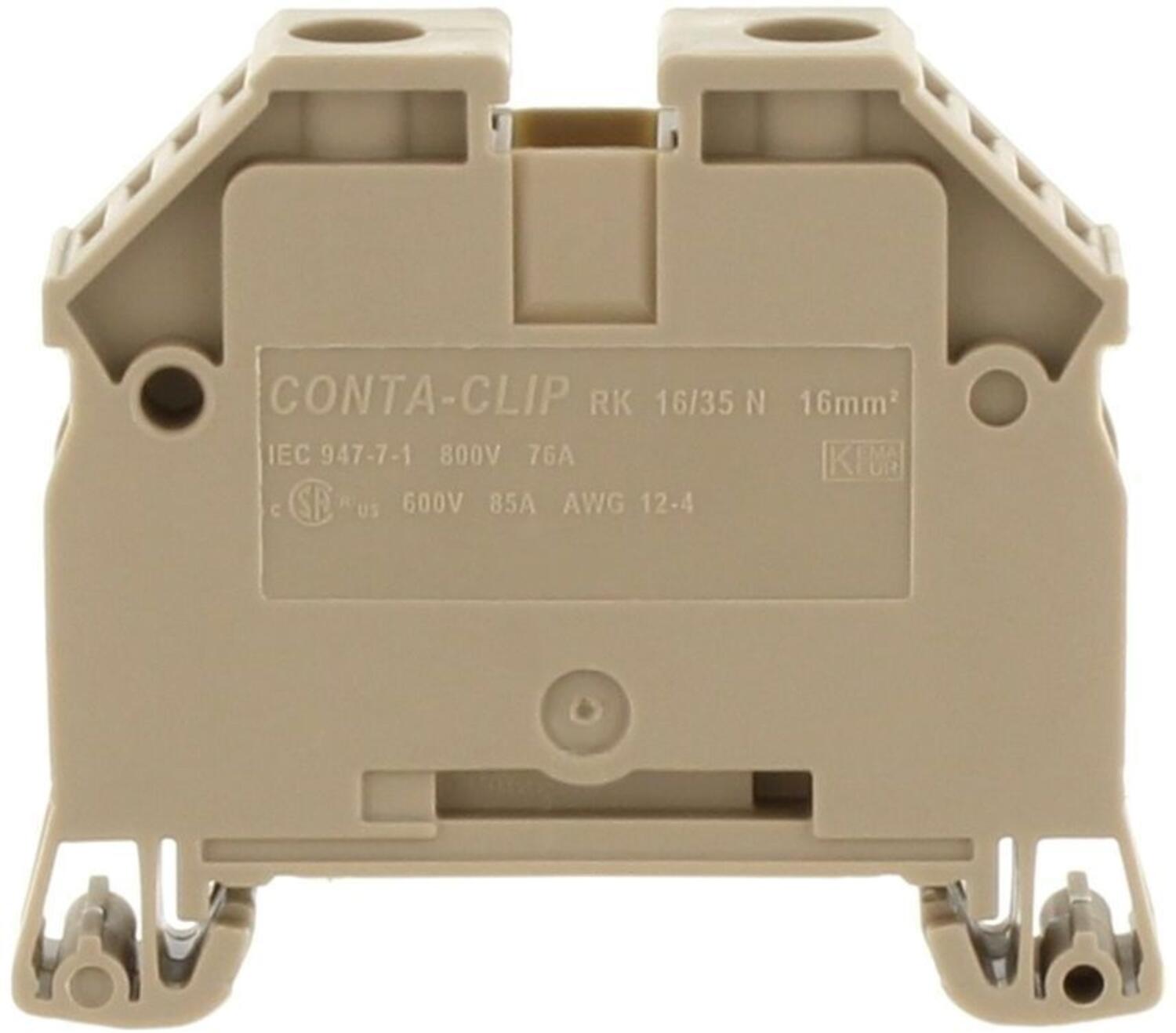

RK 16/35/N Beige, 16mm² feed through, TS35 Art: 1511.2 Copied		UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC		Beige	2	1	2.5 mm²	25 mm²	2.5 mm²	16 mm²	2.5 mm²	16 mm²	16 mm²	C22.2 No 158	UL 1059	C22.2 No 158	IEC 60947-7-1:2002		47 mm	54 mm	TS 35/7,5		50	B7	85 A	85 A		76 A		8 kV	10	6	600 V		800 V		M 5	Slotted	15 mm	4	2	28.44 g	12 mm	600 V

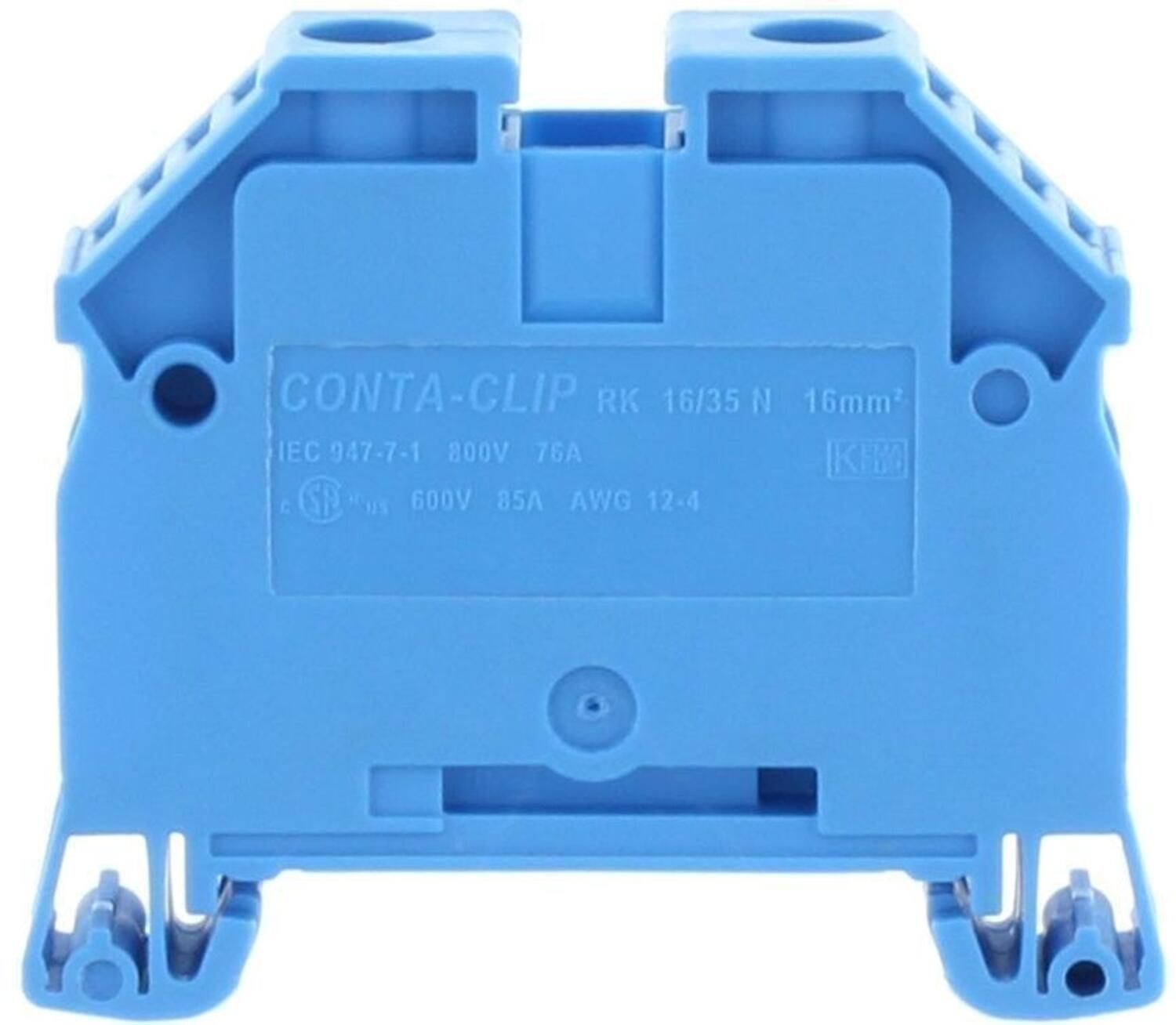

RK 16/35/N Blue, 16mm² feed through, TS35 Art: 1511.5 Copied		UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC		Blue	2	1	2.5 mm²	25 mm²	2.5 mm²	16 mm²	2.5 mm²	16 mm²	16 mm²	C22.2 No 158	UL 1059	C22.2 No 158	IEC 60947-7-1:2002		47 mm	54 mm	TS 35/7,5		50	B7	85 A	85 A		76 A		8 kV	10	6	600 V		800 V		M 5	Slotted	15 mm	4	2	28.44 g	12 mm	600 V

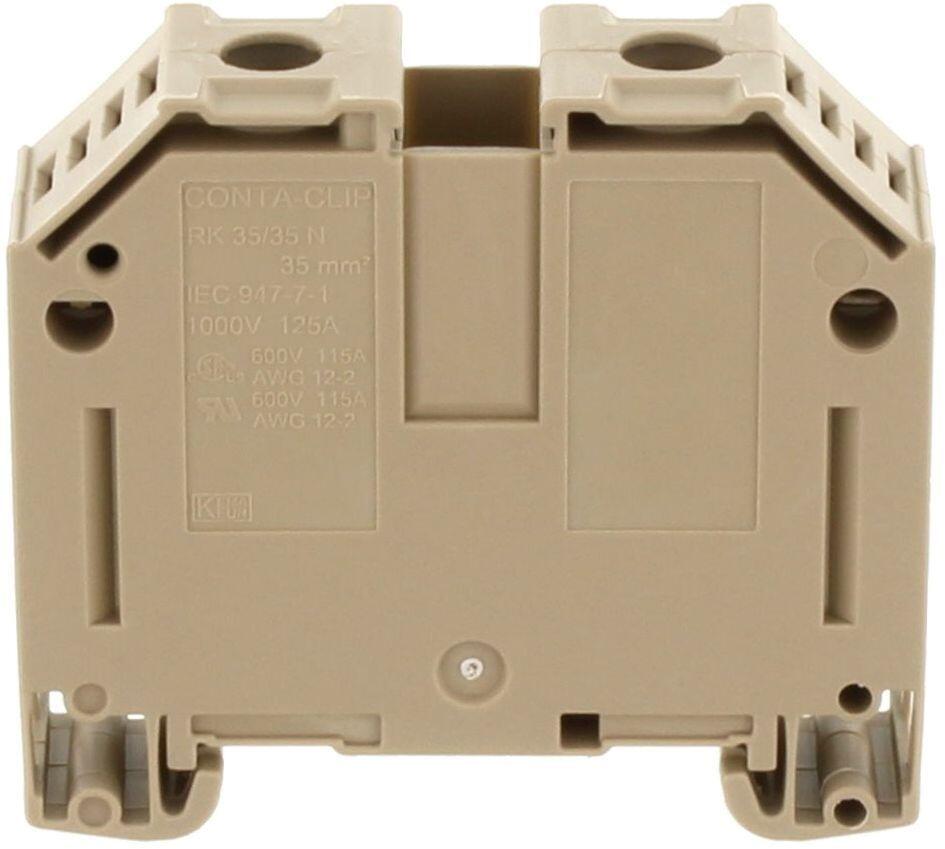

RK 35/35 N Beige, 16mm² feed through, TS35 Art: 17370.2 Copied		UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC		Beige	2	1	2.5 mm²	50 mm²	2.5 mm²	35 mm²	2.5 mm²	35 mm²	35 mm²	C22.2 No 158	UL 1059	C22.2 No 158	IEC 60947-7-1:2002		52 mm	58 mm	TS 35/7,5		20	B9	115 A	115 A		125 A		8 kV	12	2	600 V		800 V		M 6	Slotted	20 mm	5	2.5	54.75 g	16 mm	600 V

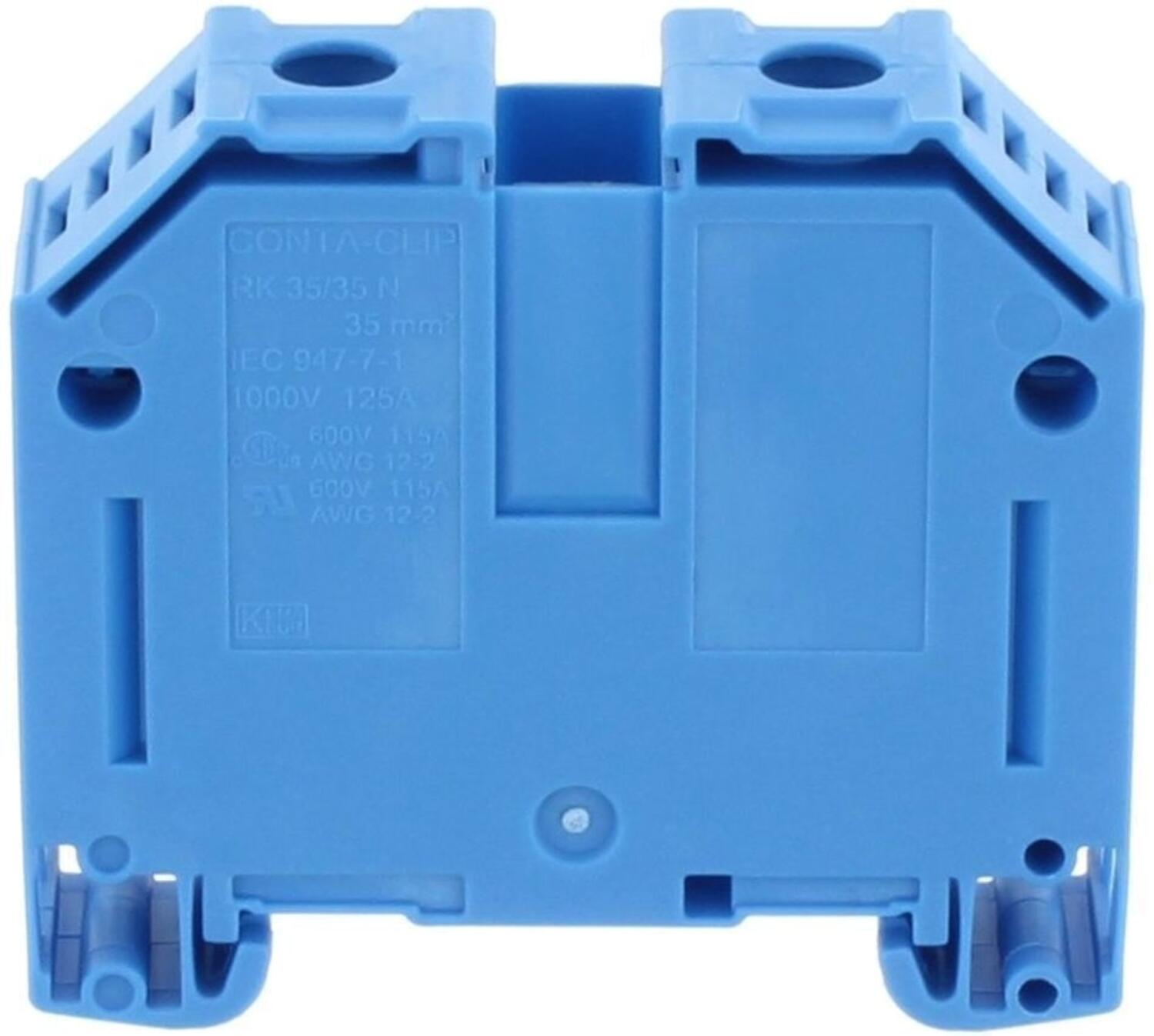

RK 35/35 N Blue, 16mm² feed through, TS35 Art: 17370.5 Copied		UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC		Blue	2	1	2.5 mm²	50 mm²	2.5 mm²	35 mm²	2.5 mm²	35 mm²	35 mm²	C22.2 No 158	UL 1059	C22.2 No 158	IEC 60947-7-1:2002		52 mm	58 mm	TS 35/7,5		20	B9	115 A	115 A		125 A		8 kV	12	2	600 V		800 V		M 6	Slotted	20 mm	5	2.5	54.75 g	16 mm	600 V
