CONTA-CLIP

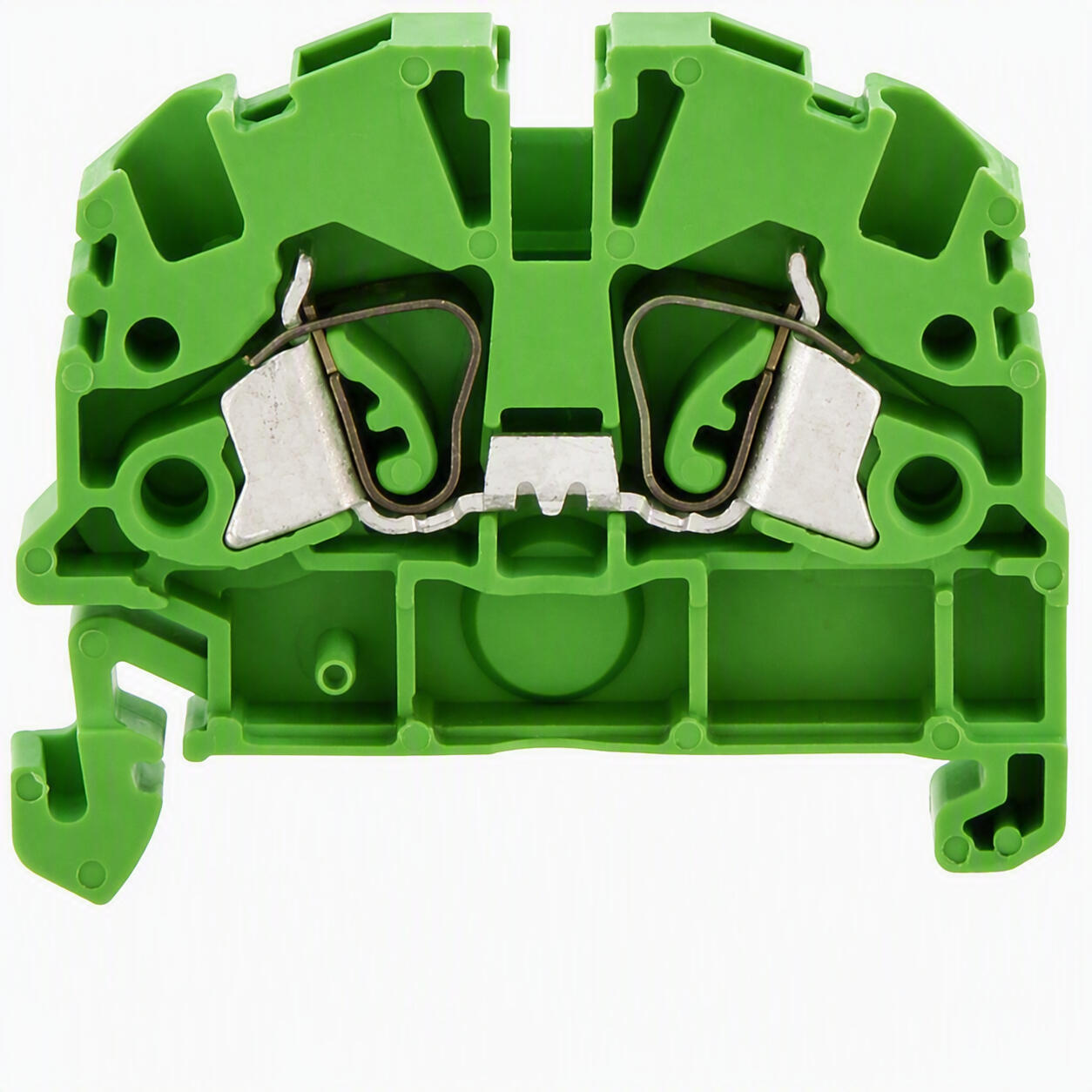

Compact terminals for TS15/TS35 rail - ZSRK/ZSL 2.5mm²

ZSRK, ZSLN

  • Material polyamide 6.6
  • Temperature resistance -40 °C...+120 °C
  • Flammability class V0

Selected variant


Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

Approvals UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
Color Green
Connections 2
Contamination degree 3
Country of origin CZ
Cross connect channels 1
Cross section single wire from 0.5 mm²
Cross section single wire to 4 mm²
Cross section stranded wire from 0.5 mm²
Cross section stranded wire to 4 mm²
Cross section stranded with ferrule from 0.5 mm²
Cross section stranded with ferrule to 2.5 mm²
Cross-Section 2.5 mm²
CSA test standard C22.2 No 158
CSAus test standard UL 1059
cUL test standard C22.2 No 158
EAC test standard TR ZU 004/2011
Flamklass UL94-V0
GL test standard IEC 60947-7-1:2009
Height TS 35/7.5 36.5 mm
Insulation Material Polyamide 6.6
KEMA KEUR test standard EN 60947-7-1:2009
Length 43.5 mm
Load Current Max 24 A
Mounting TS 35/7,5
Number of levels 1
Number of test pick off options 2
Operating temperature from -40 °C
Operating temperature to 120 °C
Overvoltage category III
Pack Size 100
Plug gauge acc. EN 60 947-1 A3
Rated Current CSA 20 A
Rated current CSAus 20 A
Rated current cUL 20 A
Rated Current IEC 24 A
Rated Current To UL 20 A
Rated impulse voltage 8 kV
Rated wire cross section from (AWG) 20
Rated wire cross section to (AWG) 12
Rated voltage CSAus 300 V
Rated voltage cUL 300 V
Rated Voltage IEC 800 V
Rated Voltage To UL 300 V
Stripping Length 10 mm
Tariff code 85369010
UL test standard UL 1059
Weight 5.4 g
Width 5.1 mm
Voltage CSA 300 V

Downloads

Measurements and connections

Accessories

Related products

Related

Stego Loop Heater lämmityselementit
Product news

LOOP Heater for optimal heat distribution

Thanks to their loop design, LOOP heating elements offer excellent heating performance and ensure optimal heat distribution. Read more now!

TER - control stations
Product news

Quality solutions for motion controls

TER - Tecno Elettrica Ravasi, is our Italian supplier specializing in the manufacture of control stations. TER has over 60 years of experience in the manufacture of control stations.

PISA-M
Product news

Compact electronic overcurrent protection PISA-M

PISA-M is a 4-channel electronic fuse for 12 and 24 V DC systems. The smallest 4-channel electronic fuse with a width of only 22.5 mm!

Delcon relays
Product news

An effective solution Delcon CRA5

Delcon's CRA5 plug-in relay revolutionizes the control of difficult-to-handle DC loads. Inductive loads, frequent switching, and high DC voltages are a piece of cake for these relays.

LOCC-Box Mini
Product news

LOCC-Box Mini

The Lütze LOCC-Box is an intelligent electronic overcurrent protection device that provides reliable protection for 12/24 V DC systems in a narrow housing measuring just 8.1 mm. Integrated + and - terminals save space on the DIN rail.

Product news

DF Electric – new supplier for fuse solutions

DF Electric is specialized in the manufacturing of fuse links, fuse holders and control transformers since 1987. Presently the company is leading the Spanish market and is also very active in many export markets due to its competitive range of products.

Articles Approvals Color Connections GL test standard Height TS 15/5.5 Height TS 35/7.5 KEMA KEUR test standard Length Load Current Max Mounting Rated Current CSA Rated current CSAus Rated current cUL Rated Current IEC Rated Current To UL Rated impulse voltage Rated voltage CSAus Rated voltage cUL Rated Voltage IEC Rated Voltage To UL Weight Voltage CSA
299866_877.tif
KDS-DE 2x 4-5 Grey Insert Max 5mmø
Art:
3583.1 Copied
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
Green
2
IEC 60947-7-1:2009
36.5 mm
EN 60947-7-1:2009
43.5 mm
24 A
TS 35/7,5
20 A
20 A
20 A
24 A
20 A
8 kV
300 V
300 V
800 V
300 V
5.4 g
300 V

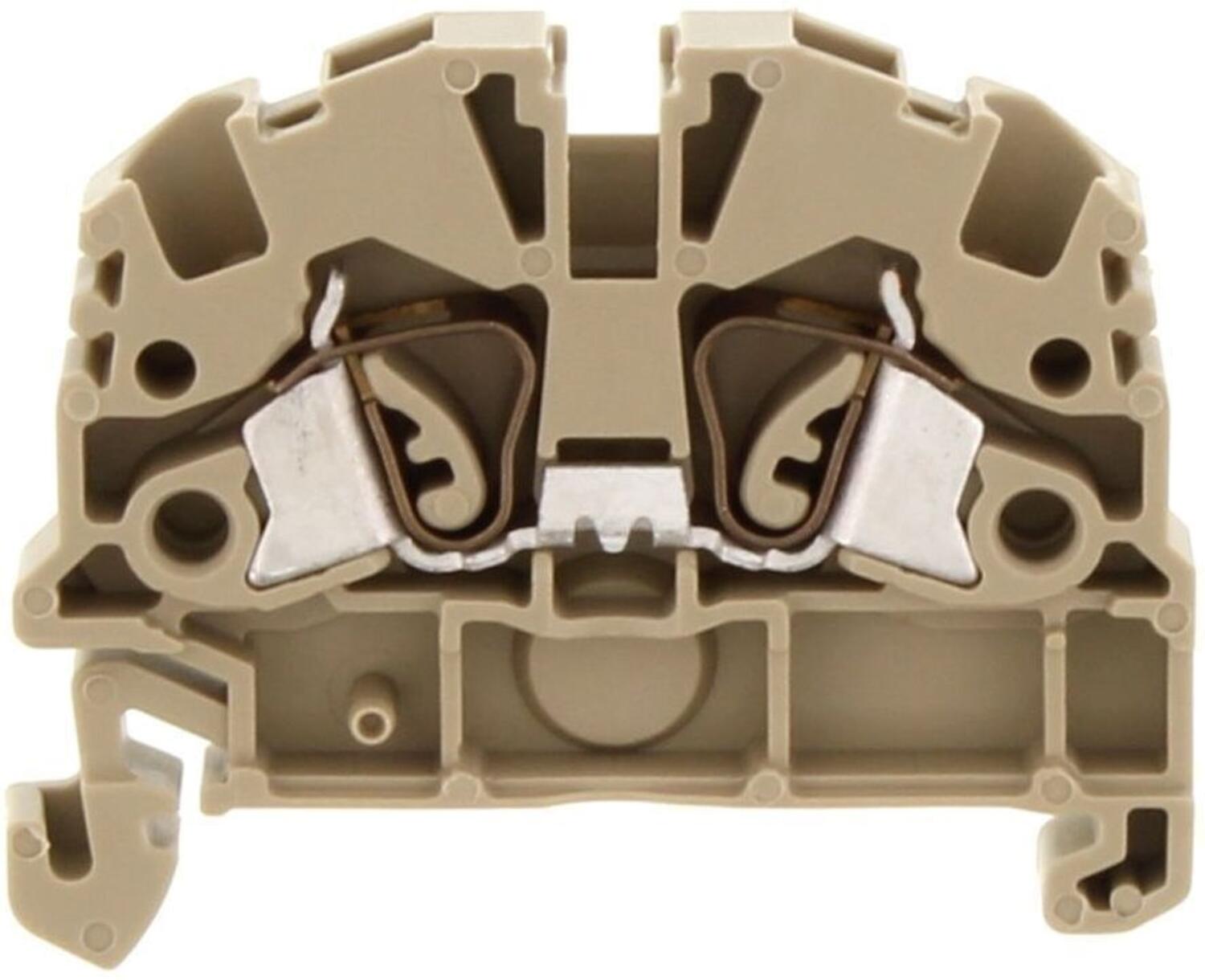

ZSRK 2.5/2A Beige, 2.5mm² Compact tension spring, feed through
Art:
3583.2 Copied
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
Beige
2
IEC 60947-7-1:2009
36.5 mm
EN 60947-7-1:2009
43.5 mm
24 A
TS 35/7,5
20 A
20 A
20 A
24 A
20 A
8 kV
300 V
300 V
800 V
300 V
5.4 g
300 V

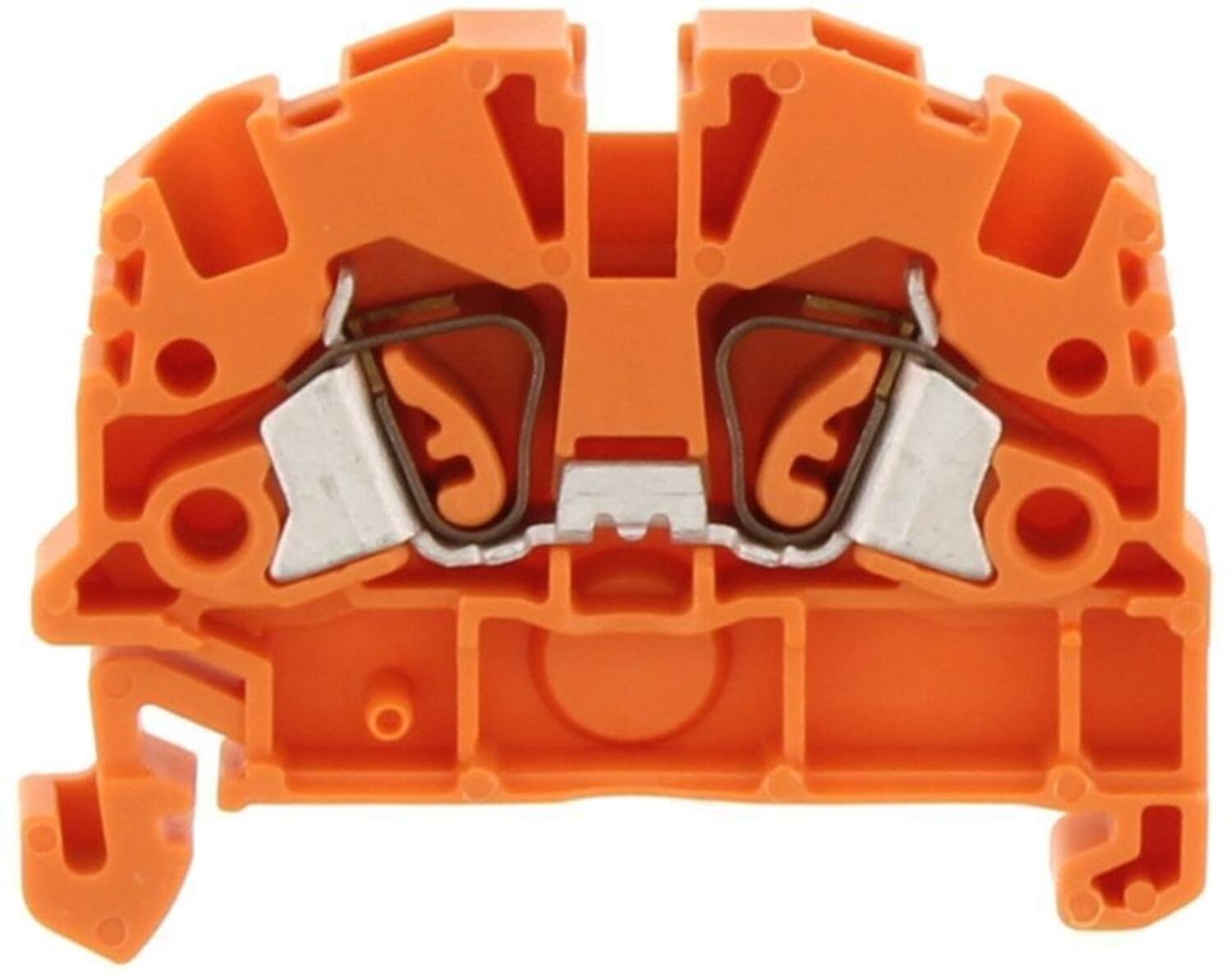

ZSRK 2.5/2A Orange, 2.5mm² Compact tension spring, feed through
Art:
3583.3 Copied
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
Orange
2
IEC 60947-7-1:2009
36.5 mm
EN 60947-7-1:2009
43.5 mm
24 A
TS 35/7,5
20 A
20 A
20 A
24 A
20 A
8 kV
300 V
300 V
800 V
300 V
5.4 g
300 V

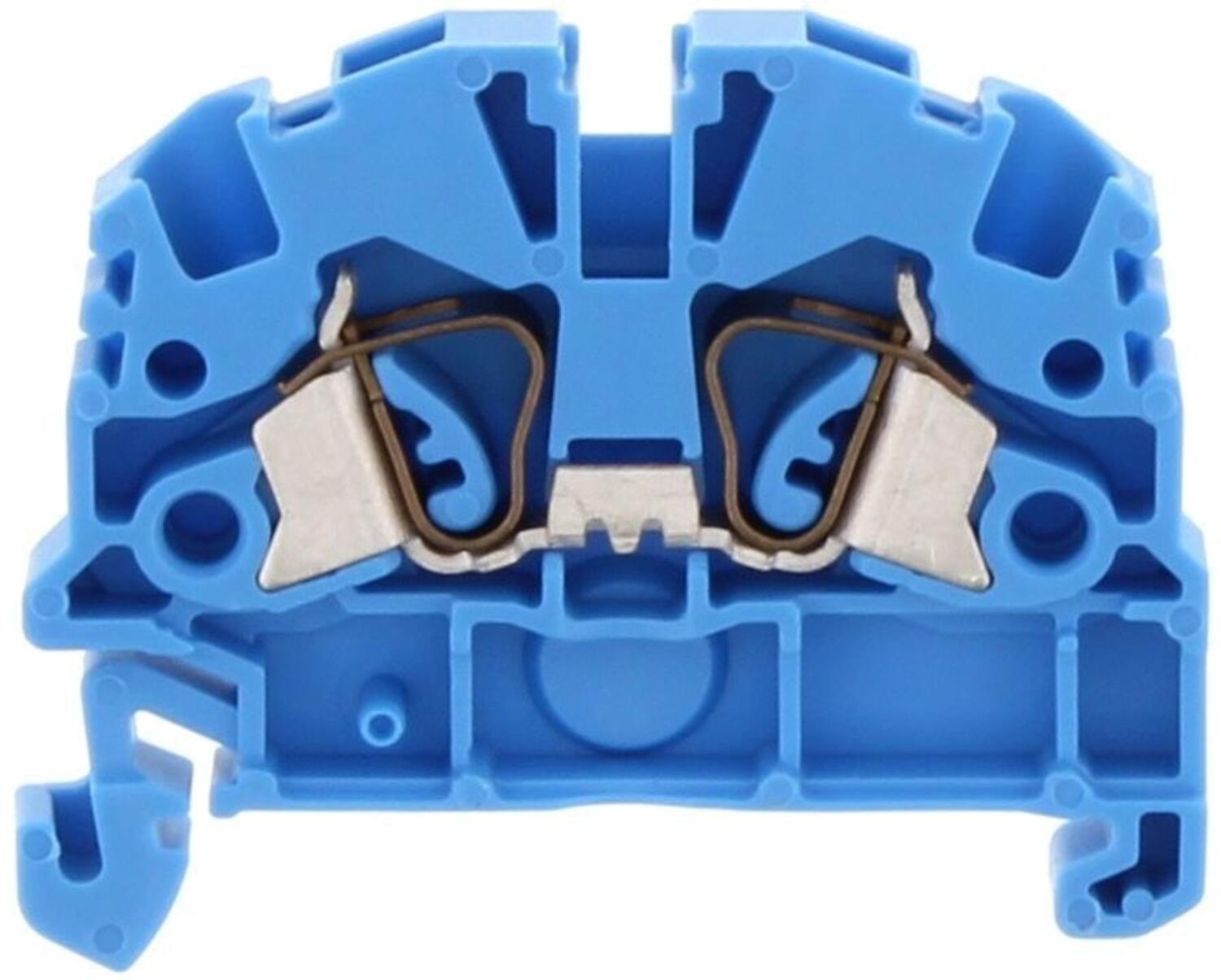

ZSRK 2.5/2A Blue, 2.5mm² Compact tension spring, feed through
Art:
3583.5 Copied
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
Blue
2
IEC 60947-7-1:2009
36.5 mm
EN 60947-7-1:2009
43.5 mm
24 A
TS 35/7,5
20 A
20 A
20 A
24 A
20 A
8 kV
300 V
300 V
800 V
300 V
5.86 g
300 V

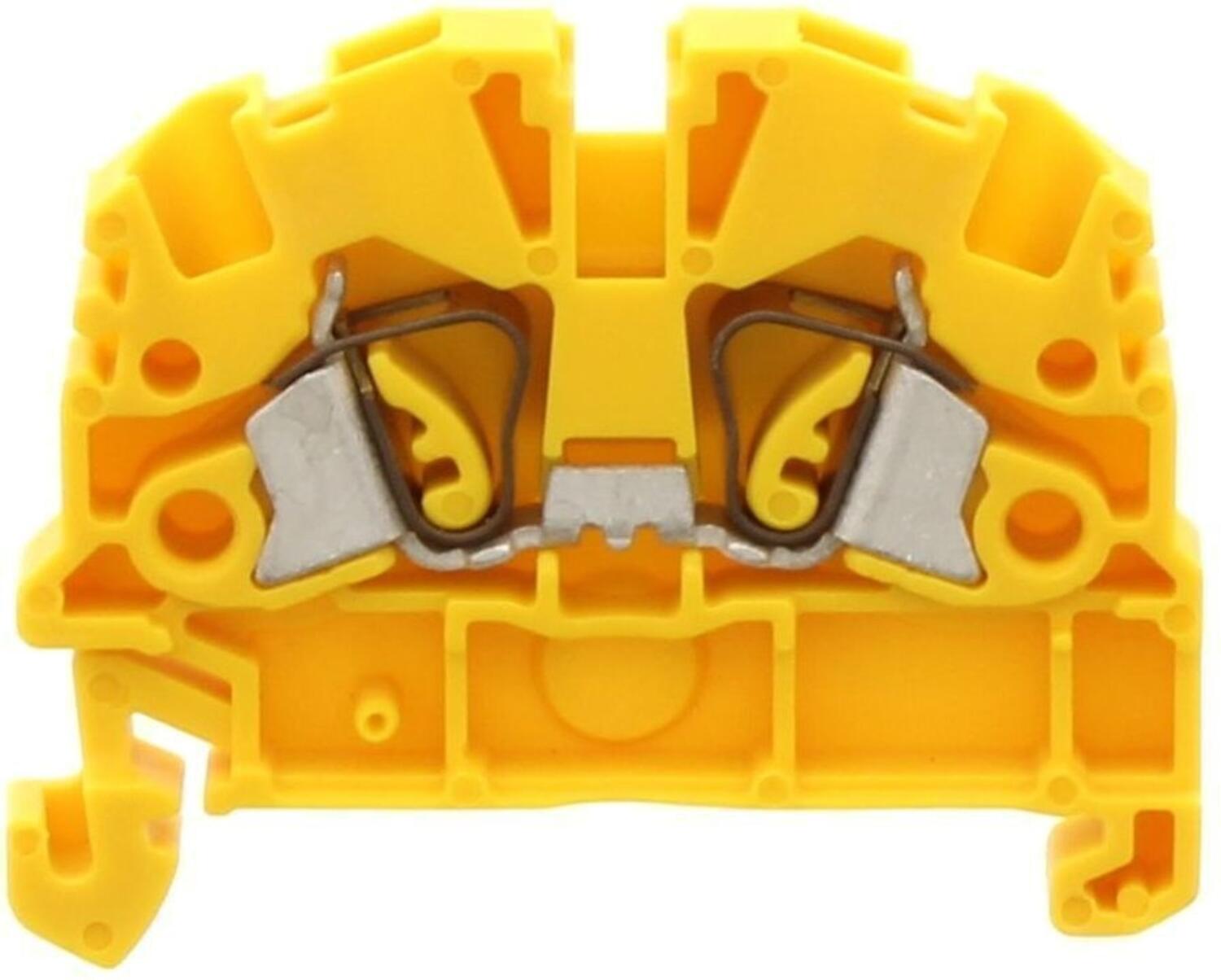

ZSRK 2.5/2A Yellow, 2.5mm² Compact tension spring, feed through
Art:
3583.8 Copied
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
Yellow
2
IEC 60947-7-1:2009
36.5 mm
EN 60947-7-1:2009
43.5 mm
24 A
TS 35/7,5
20 A
20 A
20 A
24 A
20 A
8 kV
300 V
300 V
800 V
300 V
5.4 g
300 V

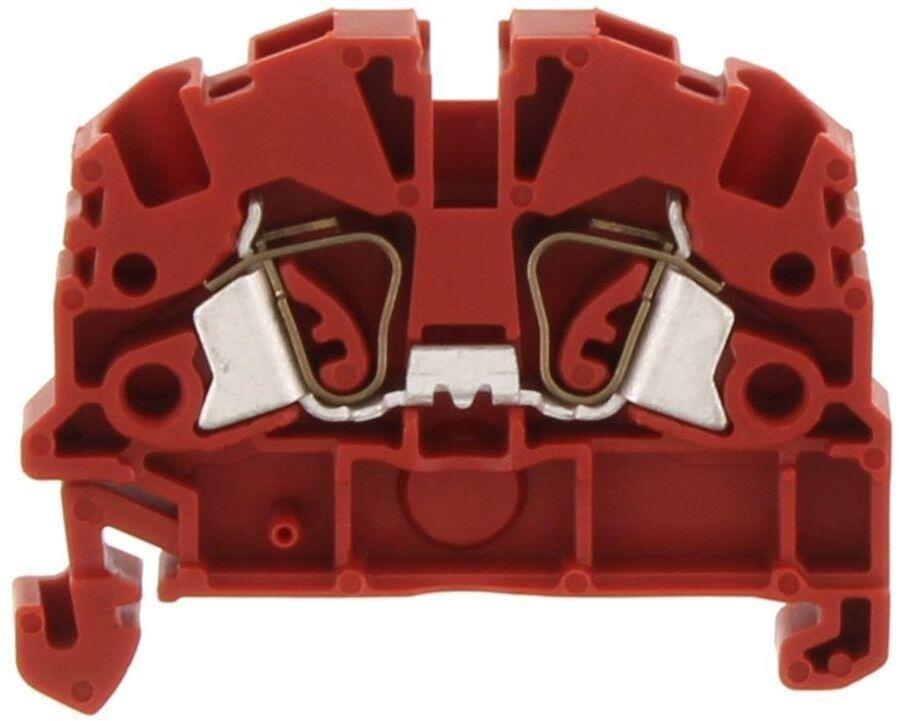

ZSRK 2.5/2A Red, 2.5mm² Compact tension spring, feed through
Art:
3583.9 Copied
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
Red
2
IEC 60947-7-1:2009
36.5 mm
EN 60947-7-1:2009
43.5 mm
24 A
TS 35/7,5
20 A
20 A
20 A
24 A
20 A
8 kV
300 V
300 V
800 V
300 V
5.4 g
300 V

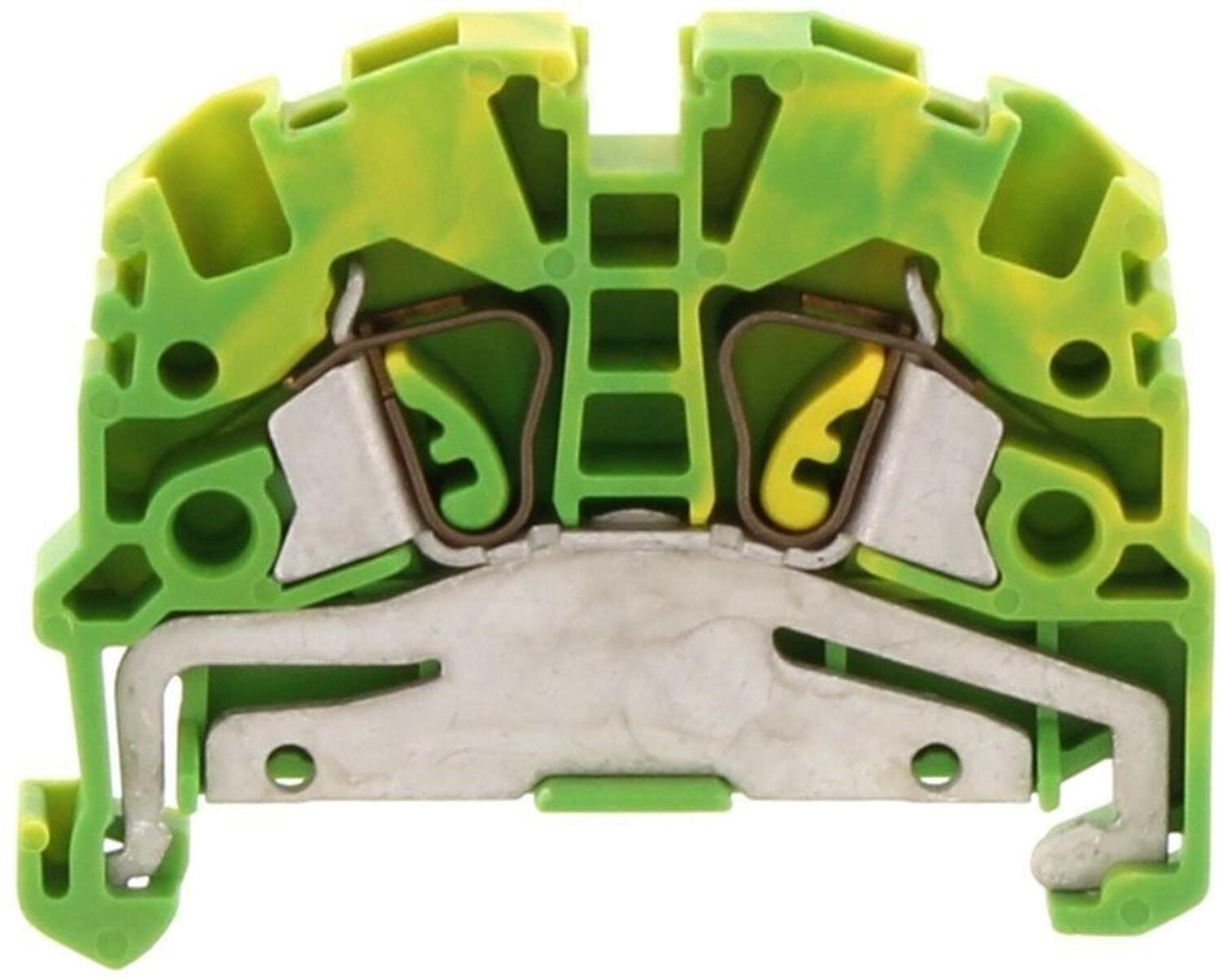

ZSLN 2,5/2A GNYE
Art:
3584.2 Copied
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
Green/yellow
2
IEC 60947-7-2:2009
36.5 mm
EN 60947-7-2:2009
43.5 mm
TS 35/7,5
7 g
299866_877.tif
ZSRK 2.5/2A/15 Green, 2.5mm² Compact tension spring, feed through, TS15
Art:
3585.1 Copied
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
Green
2
IEC 60947-7-1:2009
34 mm
EN 60947-7-1:2009
40 mm
24 A
TS 15/5,5
20 A
20 A
20 A
24 A
20 A
8 kV
300 V
300 V
800 V
300 V
5.4 g
300 V

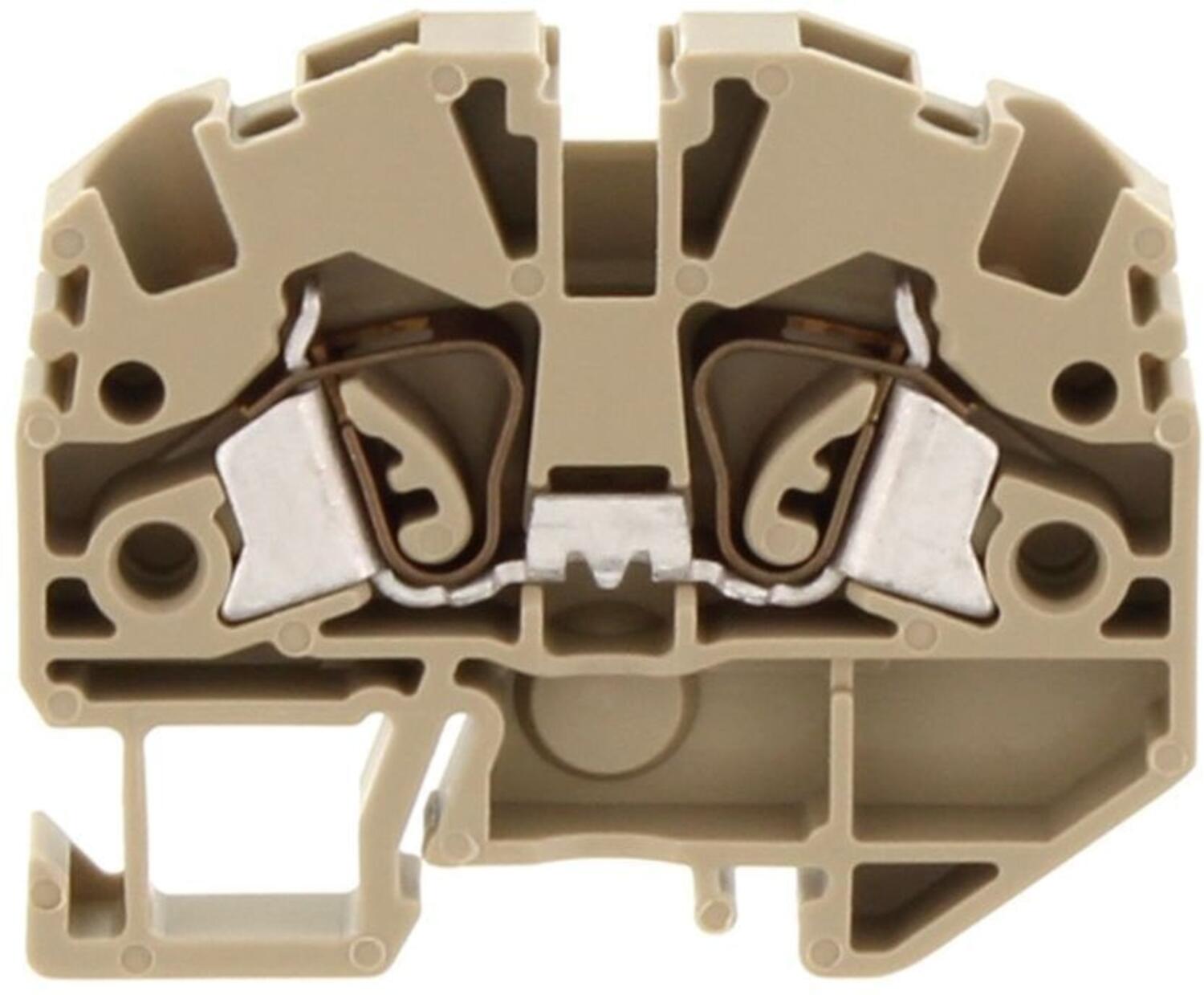

ZSRK 2.5/2A/15 Beige, 2.5mm² Compact tension spring, feed through, TS15
Art:
3585.2 Copied
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
Beige
2
IEC 60947-7-1:2009
34 mm
EN 60947-7-1:2009
40 mm
24 A
TS 15/5,5
20 A
20 A
20 A
24 A
20 A
8 kV
300 V
300 V
800 V
300 V
5.4 g
300 V

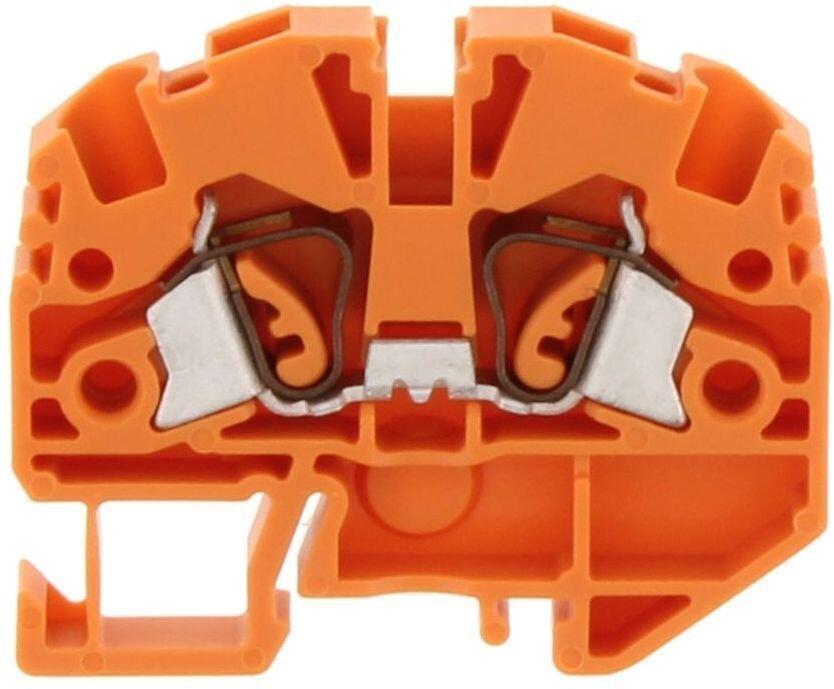

ZSRK 2.5/2A/15 Orange, 2.5mm² Compact tension spring, feed through, TS15
Art:
3585.3 Copied
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
Orange
2
IEC 60947-7-1:2009
34 mm
EN 60947-7-1:2009
40 mm
24 A
TS 15/5,5
20 A
20 A
20 A
24 A
20 A
8 kV
300 V
300 V
800 V
300 V
5.4 g
300 V
299866_877.tif

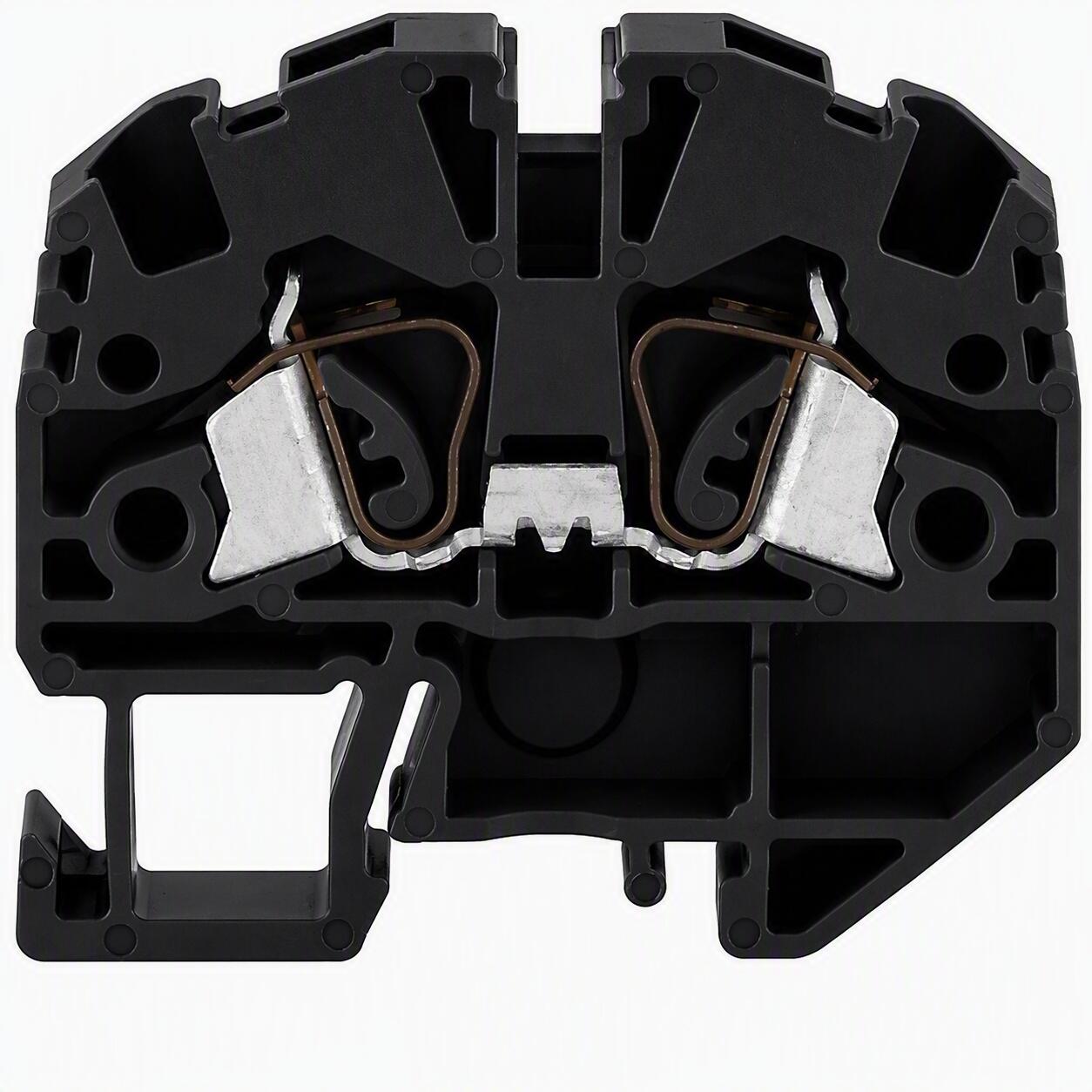

ZSRK 2.5/2A/15 Black, 2.5mm² Ex Compact tension spring, feed through, TS15
Art:
3585.4 Copied
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
Black
2
IEC 60947-7-1:2009
34 mm
EN 60947-7-1:2009
40 mm
24 A
TS 15/5,5
20 A
20 A
20 A
24 A
20 A
8 kV
300 V
300 V
800 V
300 V
5.4 g
300 V

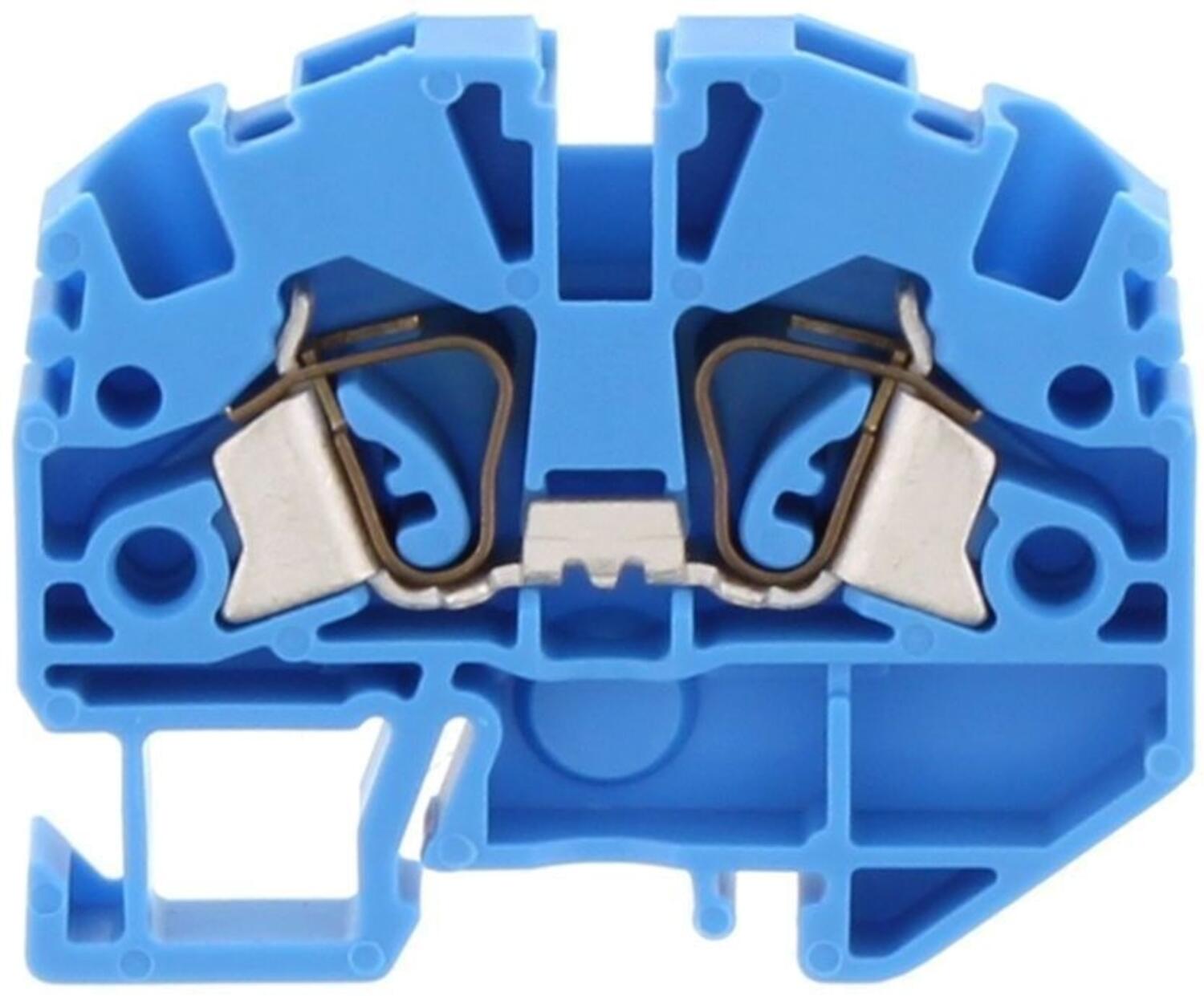

ZSRK 2.5/2A/15 Blue, 2.5mm² Compact tension spring, feed through, TS15
Art:
3585.5 Copied
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
Blue
2
IEC 60947-7-1:2009
34 mm
EN 60947-7-1:2009
40 mm
24 A
TS 15/5,5
20 A
20 A
20 A
24 A
20 A
8 kV
300 V
300 V
800 V
300 V
5.4 g
300 V

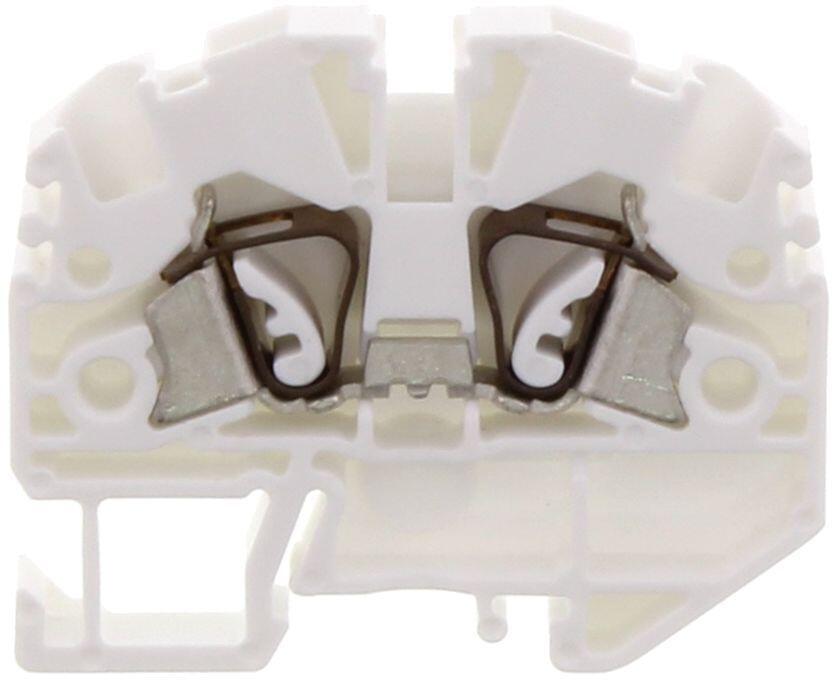

ZSRK 2.5/2A/15 White, 2.5mm² Ex Compact tension spring, feed through, TS15
Art:
3585.7 Copied
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
White
2
IEC 60947-7-1:2009
34 mm
EN 60947-7-1:2009
40 mm
24 A
TS 15/5,5
20 A
20 A
20 A
24 A
20 A
8 kV
300 V
300 V
800 V
300 V
5.4 g
300 V

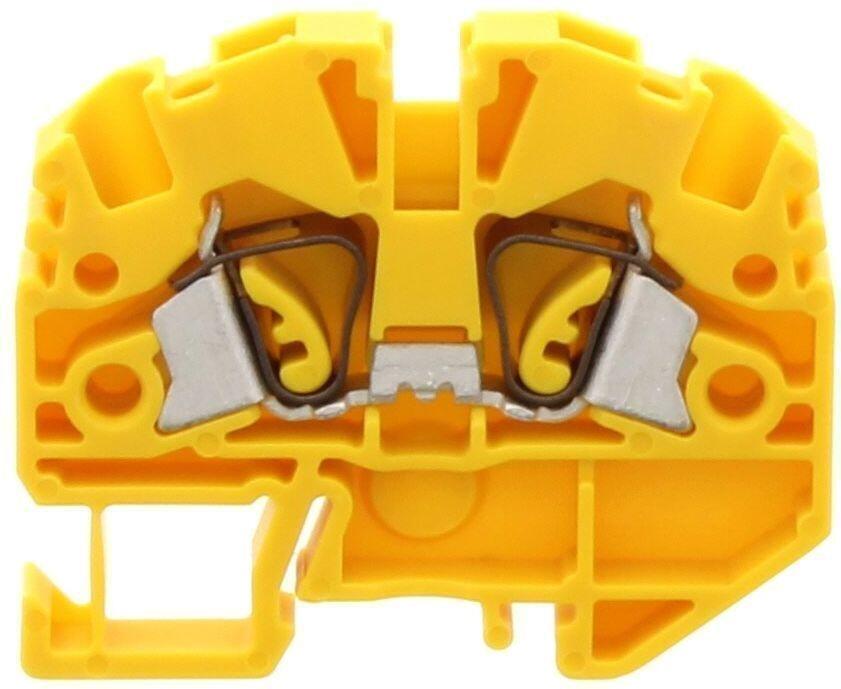

ZSRK 2.5/2A/15 Yellow, 2.5mm² Compact tension spring, feed through, TS15
Art:
3585.8 Copied
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
Yellow
2
IEC 60947-7-1:2009
34 mm
EN 60947-7-1:2009
40 mm
24 A
TS 15/5,5
20 A
20 A
20 A
24 A
20 A
8 kV
300 V
300 V
800 V
300 V
5.4 g
300 V

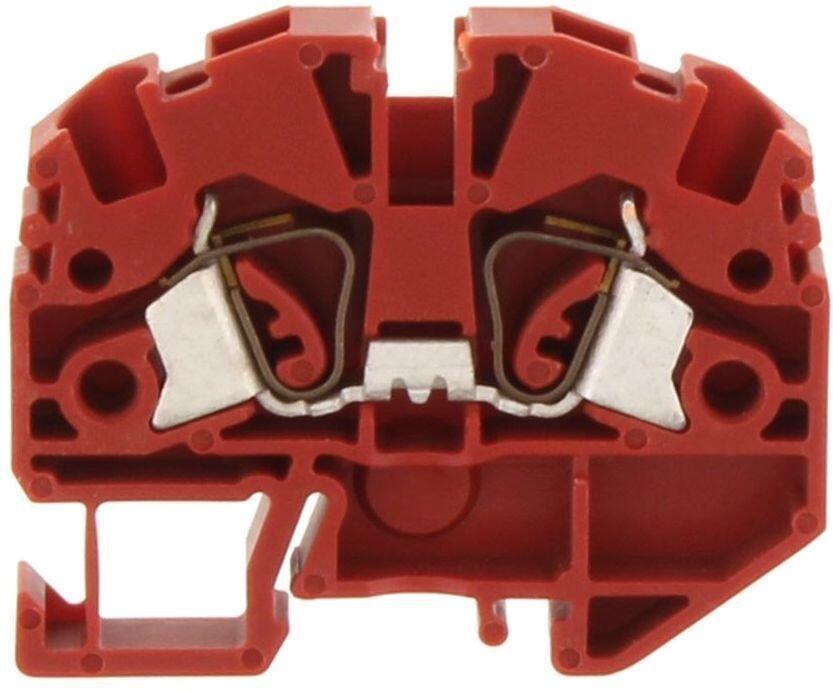

ZSRK 2.5/2A/15 Red, 2.5mm² Compact tension spring, feed through, TS15
Art:
3585.9 Copied
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
Red
2
IEC 60947-7-1:2009
34 mm
EN 60947-7-1:2009
40 mm
24 A
TS 15/5,5
20 A
20 A
20 A
24 A
20 A
8 kV
300 V
300 V
800 V
300 V
5.4 g
300 V

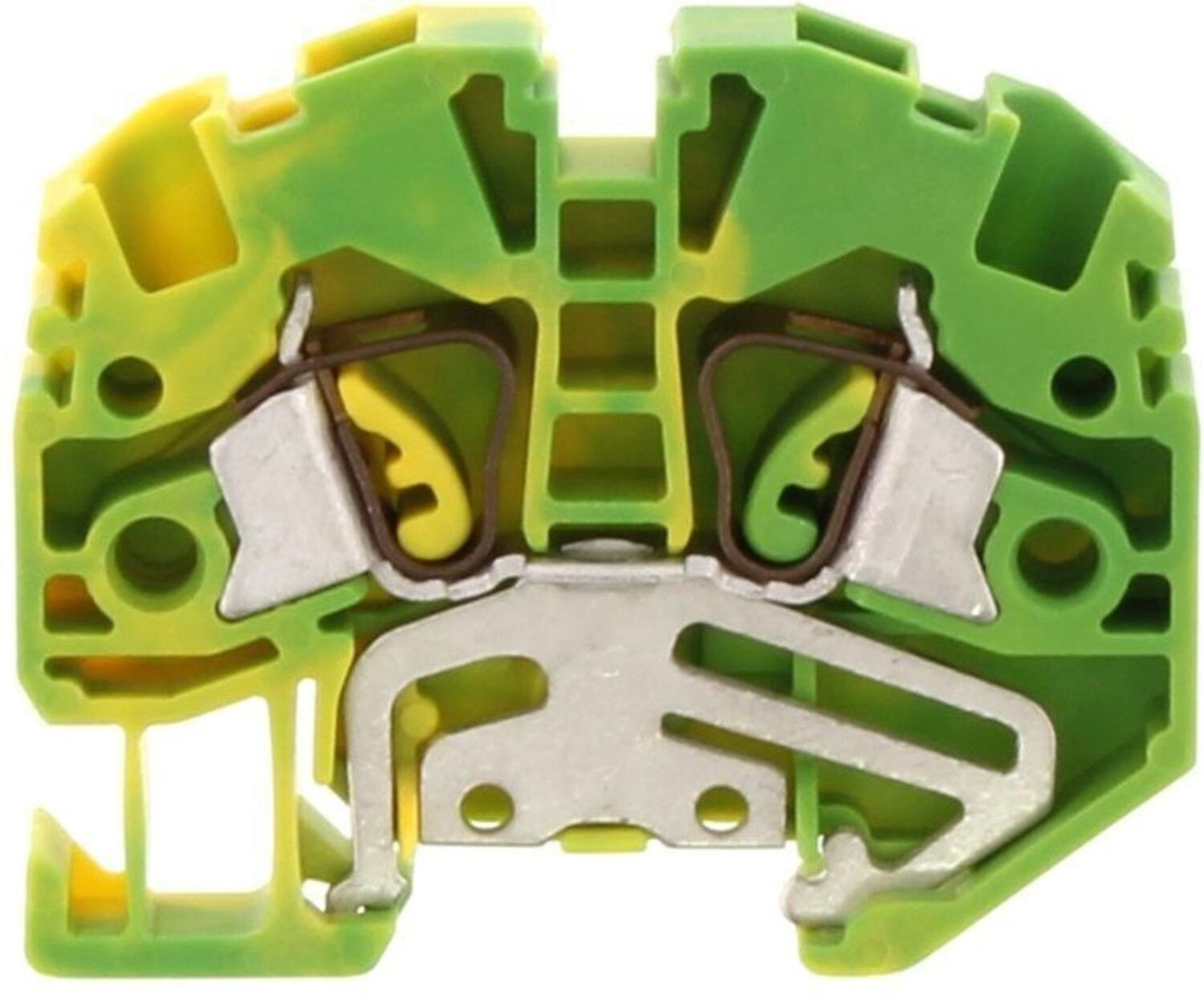

ZSLN 2,5/2A/15 GNYE
Art:
3586.2 Copied
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
Green/yellow
2
IEC 60947-7-2:2009
34 mm
EN 60947-7-2:2009
40 mm
TS 15/5,5
7 g
299866_877.tif

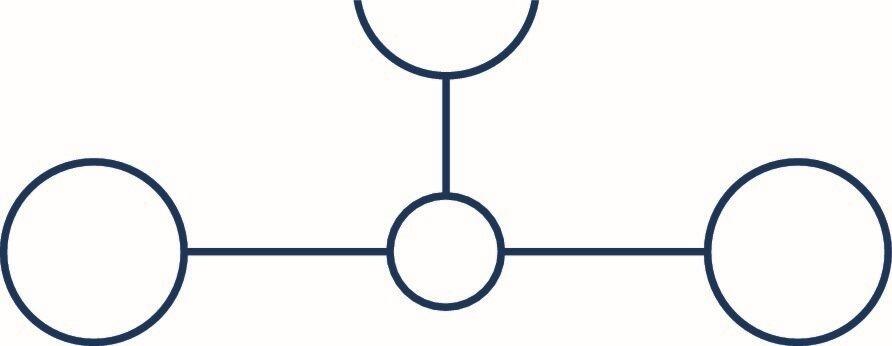

ZSRK 2.5/3A/15 Green, 2.5mm² Compact tension spring, feed through, 1 in, 2 out, TS15
Art:
3599.1 Copied
UL, CSA, CSA US, cUL, KEMA KUR, EAC
Green
3
34 mm
EN 60947-7-1:2009
52 mm
24 A
TS 15/5,5
20 A
20 A
20 A
24 A
20 A
8 kV
300 V
300 V
800 V
300 V
8.06 g
300 V
ZSRK 2.5/3A/15 Beige, 2.5mm² Compact tension spring, feed through, 1 in, 2 out, TS15
Art:
3599.2 Copied
UL, CSA, CSA US, cUL, KEMA KUR, EAC
Beige
3
34 mm
EN 60947-7-1:2009
52 mm
24 A
TS 15/5,5
20 A
20 A
20 A
24 A
20 A
8 kV
300 V
300 V
800 V
300 V
8.06 g
300 V

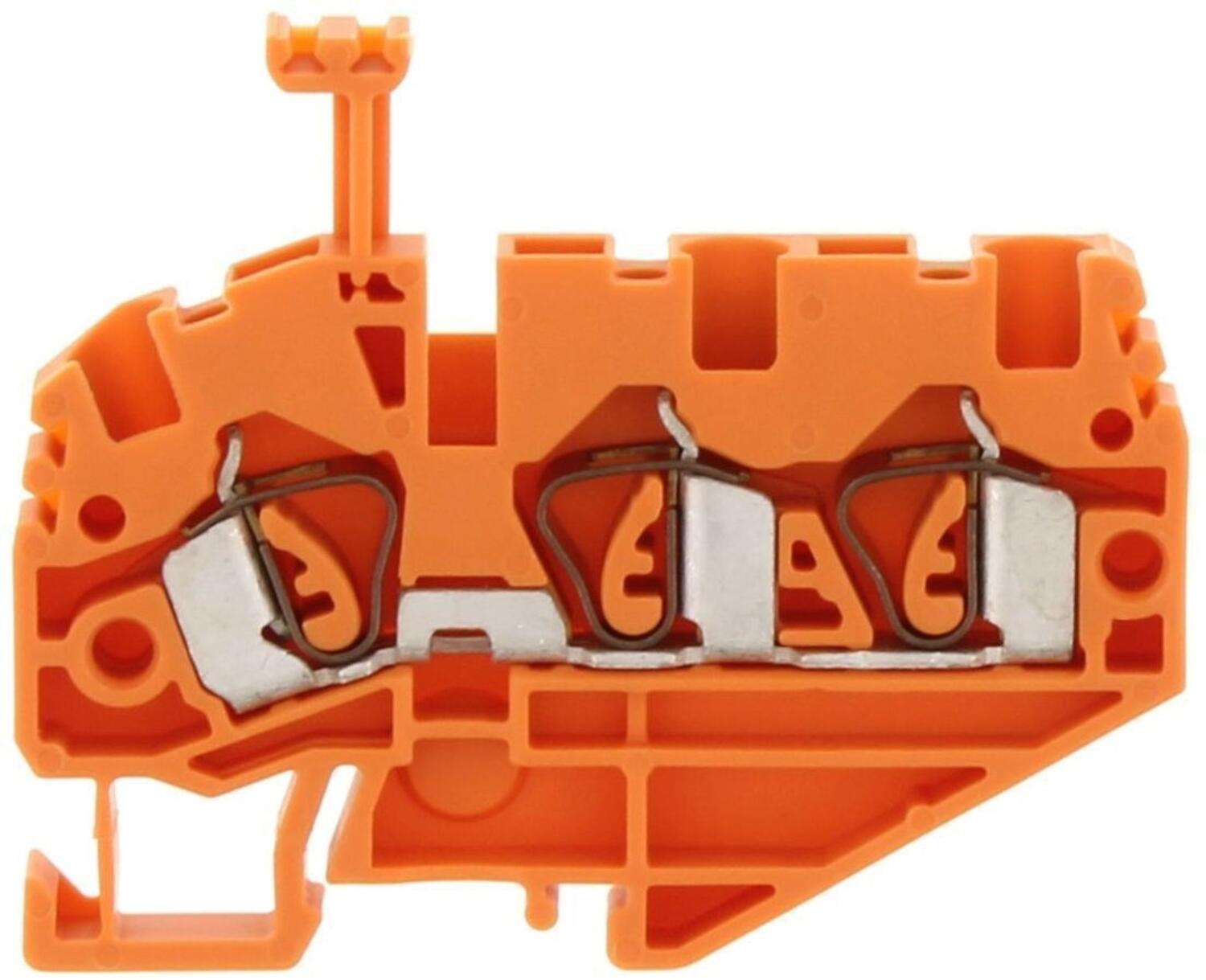

ZSRK 2.5/3A/15 Orange, 2.5mm² Compact tension spring, feed through, 1 in, 2 out, TS15
Art:
3599.3 Copied
UL, CSA, CSA US, cUL, KEMA KUR, EAC
Orange
3
34 mm
EN 60947-7-1:2009
52 mm
24 A
TS 15/5,5
20 A
20 A
20 A
24 A
20 A
8 kV
300 V
300 V
800 V
300 V
8.06 g
300 V

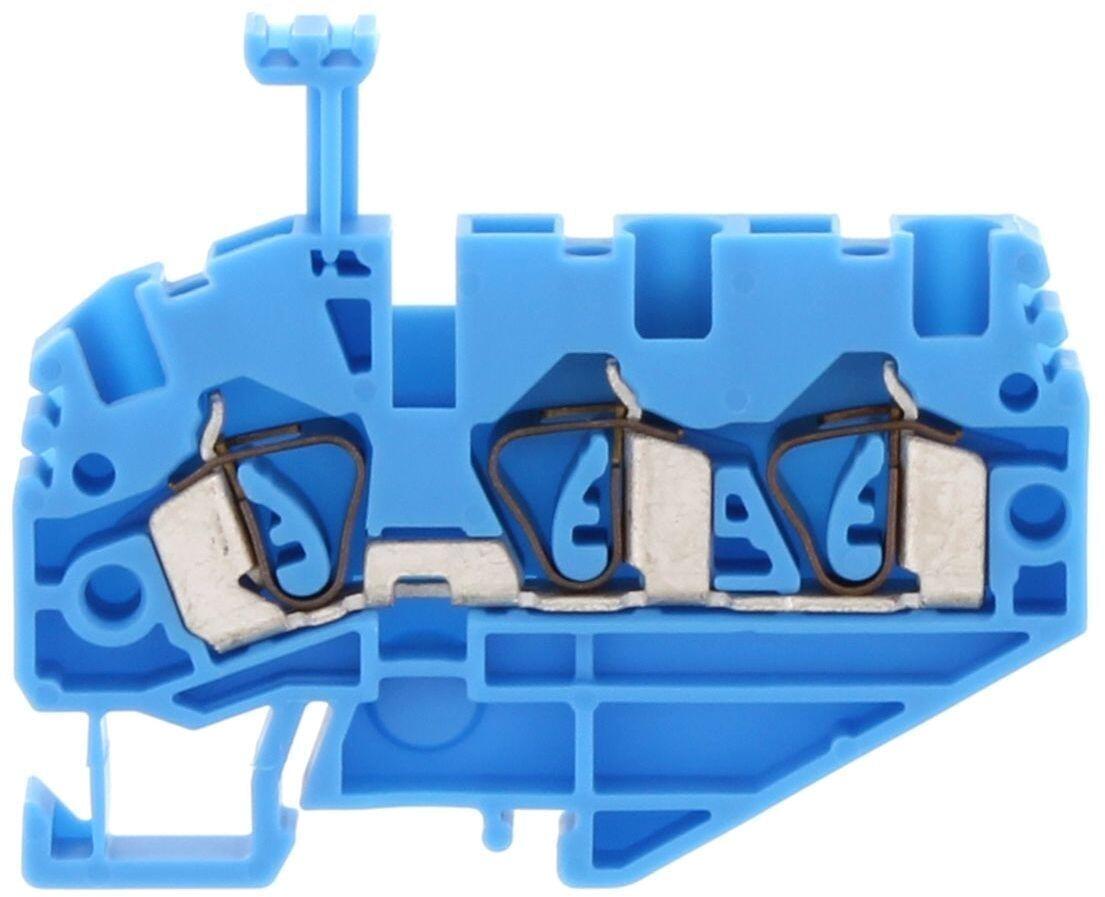

ZSRK 2.5/3A/15 Blue, 2.5mm² Compact tension spring, feed through, 1 in, 2 out, TS15
Art:
3599.5 Copied
UL, CSA, CSA US, cUL, KEMA KUR, EAC
Blue
3
34 mm
EN 60947-7-1:2009
52 mm
24 A
TS 15/5,5
20 A
20 A
20 A
24 A
20 A
8 kV
300 V
300 V
800 V
300 V
8.06 g
300 V
299866_877.tif

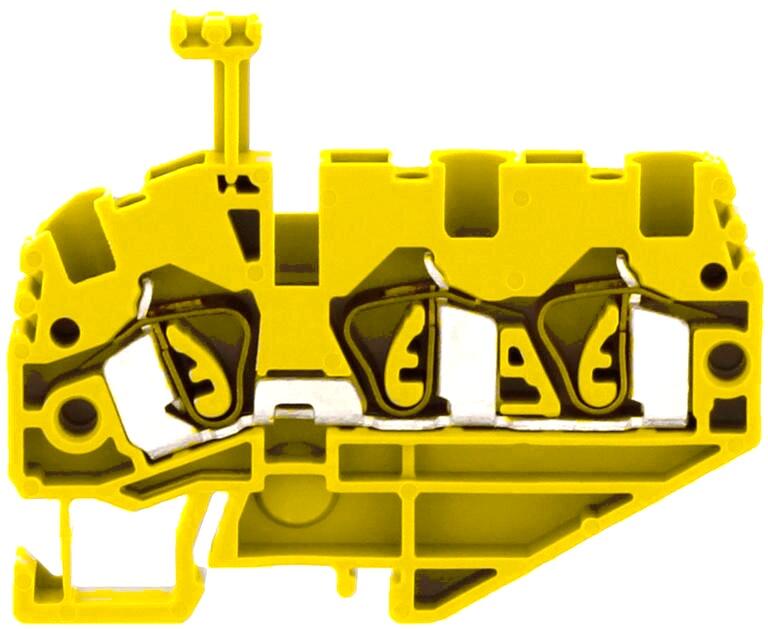

ZSRK 2.5/3A/15 Yellow, 2.5mm² Compact tension spring, feed through, 1 in, 2 out, TS15
Art:
3599.8 Copied
UL, CSA, CSA US, cUL, KEMA KUR, EAC
Yellow
3
34 mm
EN 60947-7-1:2009
52 mm
24 A
TS 15/5,5
20 A
20 A
20 A
24 A
20 A
8 kV
300 V
300 V
800 V
300 V
8.06 g
300 V
299866_877.tif

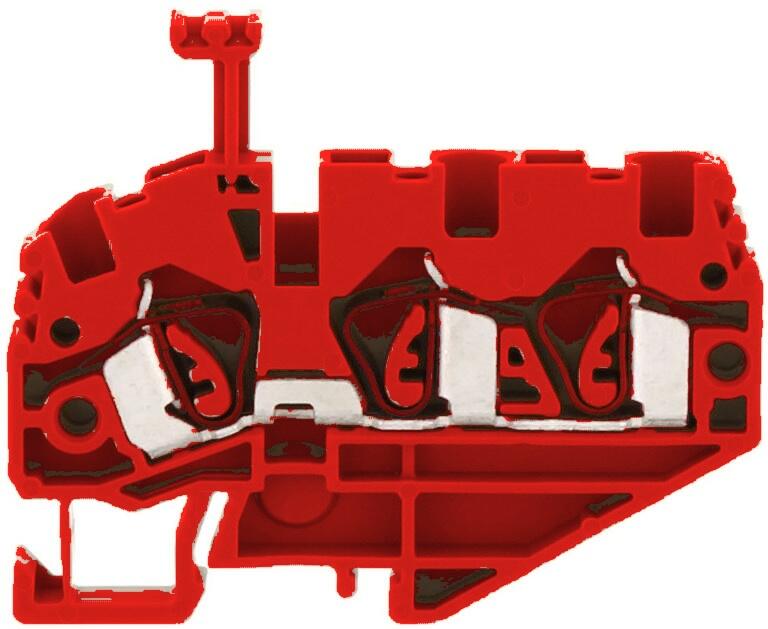

ZSRK 2.5/3A/15 Red, 2.5mm² Compact tension spring, feed through, 1 in, 2 out, TS15
Art:
3599.9 Copied
UL, CSA, CSA US, cUL, KEMA KUR, EAC
Red
3
34 mm
EN 60947-7-1:2009
52 mm
24 A
TS 15/5,5
20 A
20 A
20 A
24 A
20 A
8 kV
300 V
300 V
800 V
300 V
8.06 g
300 V
299866_877.tif

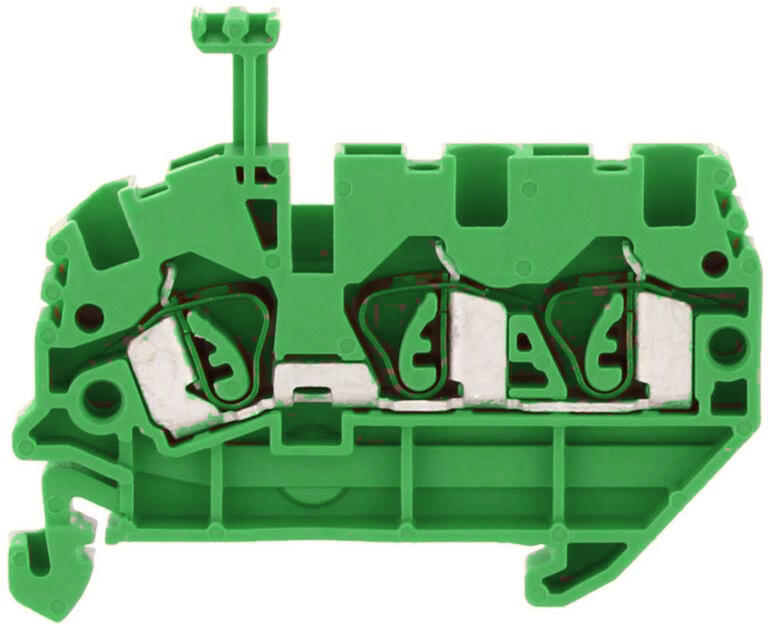

KDS-DEG 32-33 Grey Insert Max 33mmø
Art:
3600.1 Copied
UL, CSA, CSA US, cUL, KEMA KUR, EAC
Green
3
36.5 mm
EN 60947-7-1:2009
55 mm
24 A
TS 35/7,5
20 A
20 A
20 A
24 A
20 A
8 kV
300 V
300 V
800 V
300 V
8.06 g
300 V

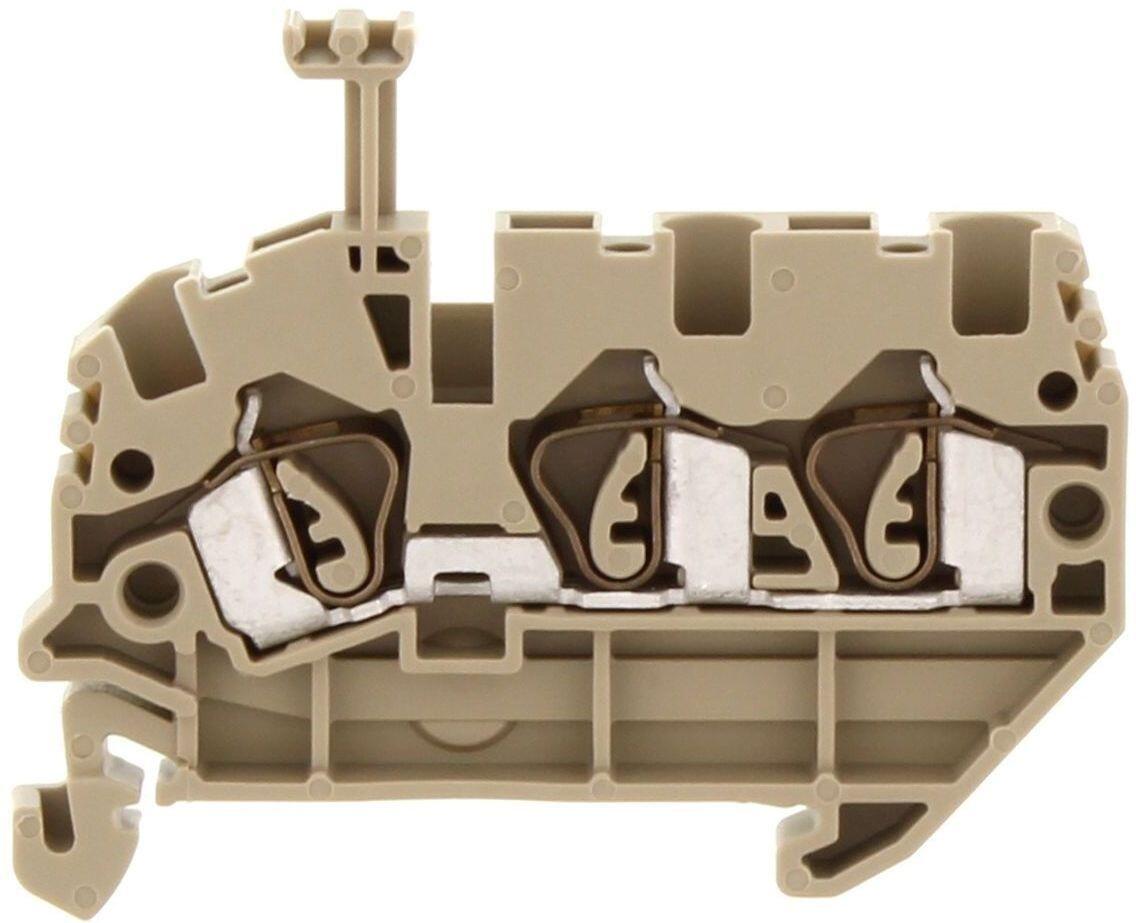

ZSRK 2.5/3A Beige, 2.5mm² Compact tension spring, feed through, 1 in, 2 out
Art:
3600.2 Copied
UL, CSA, CSA US, cUL, KEMA KUR, EAC
Beige
3
36.5 mm
EN 60947-7-1:2009
55 mm
24 A
TS 35/7,5
20 A
20 A
20 A
24 A
20 A
8 kV
300 V
300 V
800 V
300 V
8.06 g
300 V

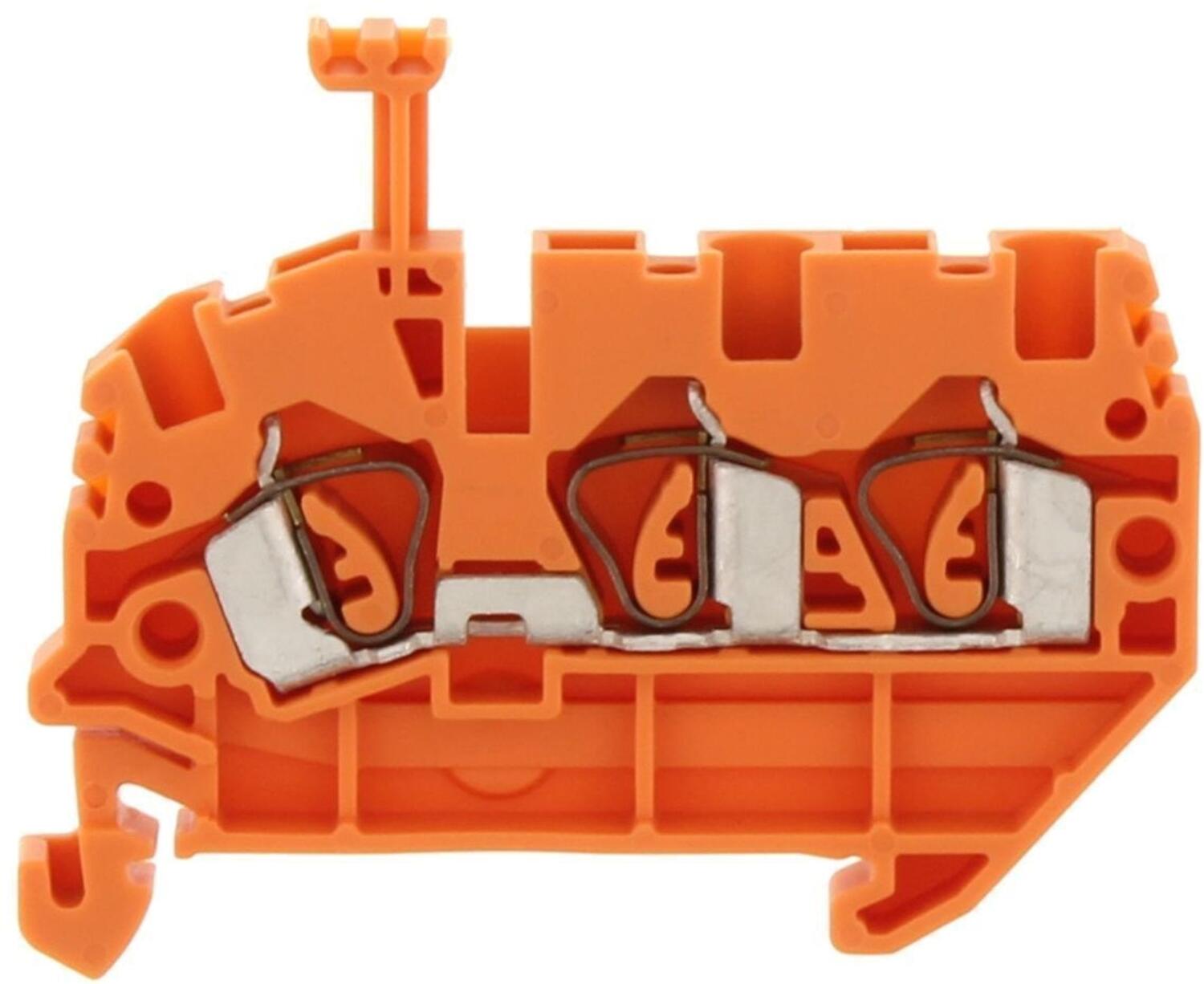

ZSRK 2.5/3A Orange, 2.5mm² Compact tension spring, feed through, 1 in, 2 out
Art:
3600.3 Copied
UL, CSA, CSA US, cUL, KEMA KUR, EAC
Orange
3
36.5 mm
EN 60947-7-1:2009
55 mm
24 A
TS 35/7,5
20 A
20 A
20 A
24 A
20 A
8 kV
300 V
300 V
800 V
300 V
8.06 g
300 V

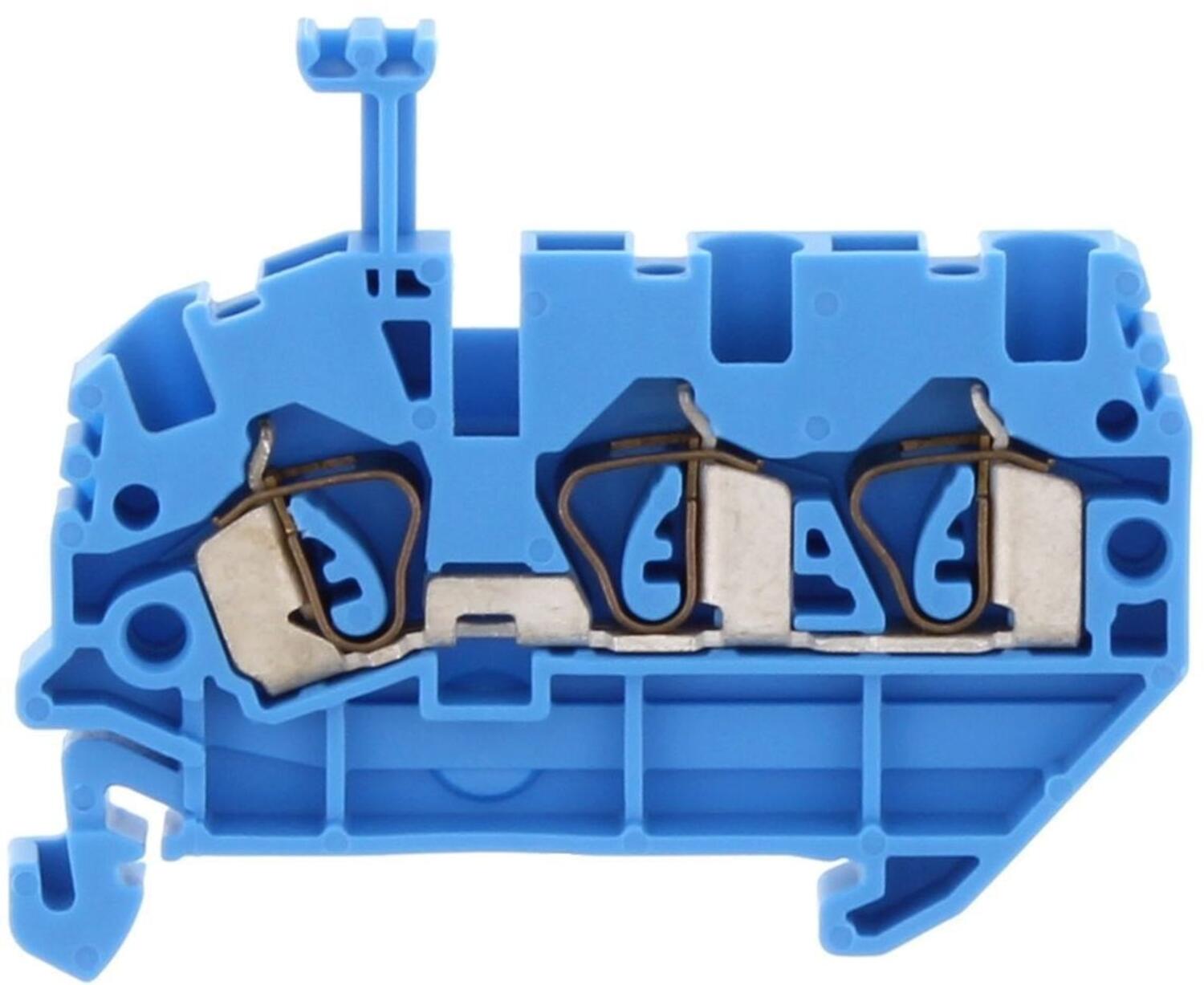

ZSRK 2.5/3A Blue, 2.5mm² Compact tension spring, feed through, 1 in, 2 out
Art:
3600.5 Copied
UL, CSA, CSA US, cUL, KEMA KUR, EAC
Blue
3
36.5 mm
EN 60947-7-1:2009
55 mm
24 A
TS 35/7,5
20 A
20 A
20 A
24 A
20 A
8 kV
300 V
300 V
800 V
300 V
8.06 g
300 V
299866_877.tif

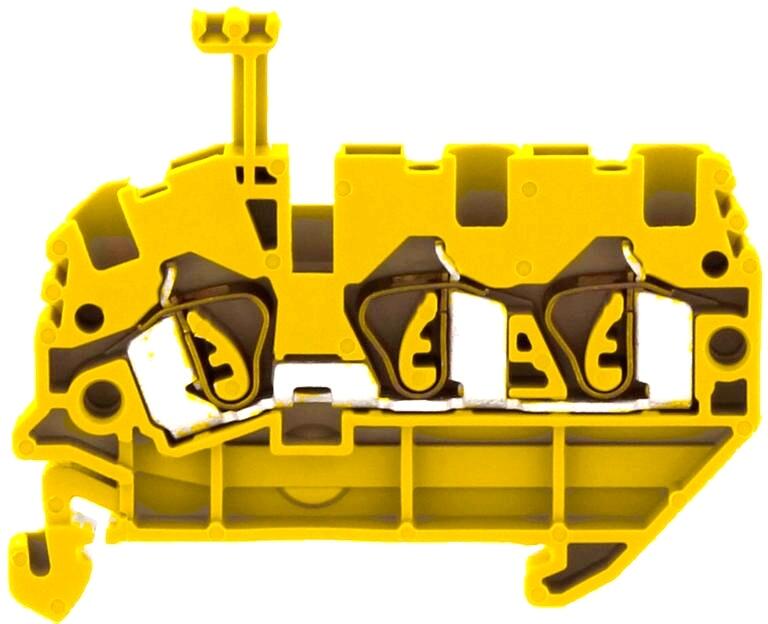

KDS-DE 2x 5-6 Grey Insert Max 6mmø
Art:
3600.8 Copied
UL, CSA, CSA US, cUL, KEMA KUR, EAC
Yellow
3
36.5 mm
EN 60947-7-1:2009
55 mm
24 A
TS 35/7,5
20 A
20 A
20 A
24 A
20 A
8 kV
300 V
300 V
800 V
300 V
8.06 g
300 V
299866_877.tif

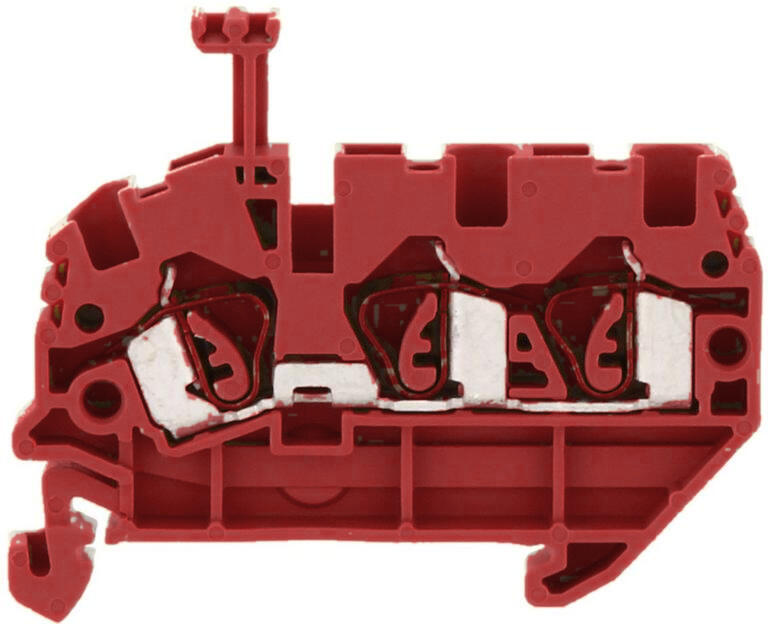

KDS-DE 4x 3-4 Grey Insert Max 4mmø
Art:
3600.9 Copied
UL, CSA, CSA US, cUL, KEMA KUR, EAC
Red
3
36.5 mm
EN 60947-7-1:2009
55 mm
24 A
TS 35/7,5
20 A
20 A
20 A
24 A
20 A
8 kV
300 V
300 V
800 V
300 V
8.06 g
300 V

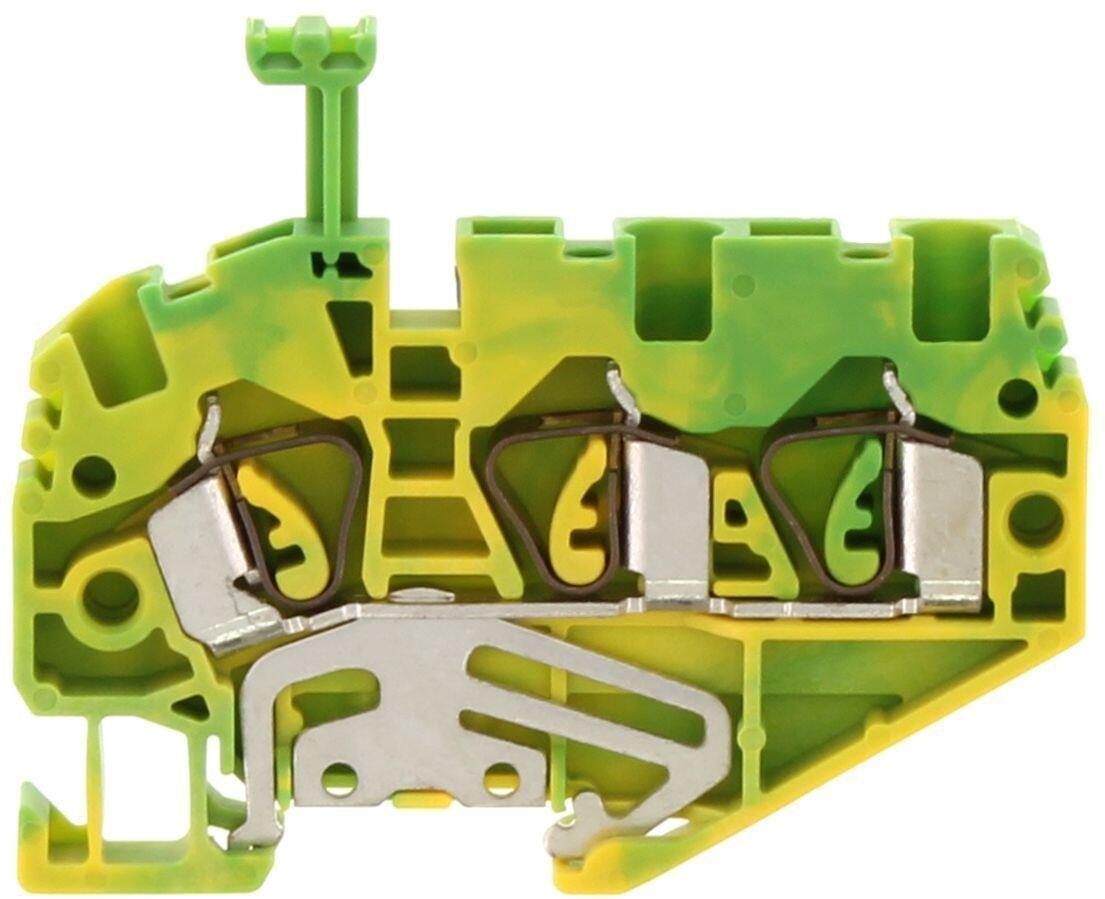

ZSLN 2,5/3A/15 GNYE
Art:
3601.2 Copied
UL, CSA, CSA US, cUL, KEMA KUR, EAC
Green/yellow
3
34 mm
EN 60947-7-2:2009
52 mm
TS 15/5,5
10 g
ZSLN 2,5/3A GNYE
Art:
3602.2 Copied
UL, CSA, CSA US, cUL, KEMA KUR, EAC
Green/yellow
3
36.5 mm
EN 60947-7-2:2009
55 mm
TS 35/7,5
7.65 g

Selected variant

Select a variant in the list

Contact us
Please contact us for more information.
Send e-mail
Do you need help?
Logo

Cookies on oem.ee

Cookies help us improve your experience with us, so in order to be able to handle login information, offer you personalised content and for basic functionality of this website, we use some cookies.

Functional cookies

These cookies are necessary for the website to work and can not be turned off in our systems. They are usually used only in response to actions you have taken in connection with a service request, for example when setting personal preferences, logging in or filling out a form.

Analytics cookies

These cookies allow us to count the number of visits and traffic sources so that we can measure and improve our website performance. They help us know which pages are more or less popular and how visitors navigate around the site. The information that these cookies collect is aggregated and therefore completely anonymous. If you do not allow these cookies, we do not know when you have visited our website.

Marketing cookies

These cookies can be added by our partners. They can use them to create a profile of you, based on your interests, to show you more relevant information. They do not store any personal information - only information about your browser and device. If you do not accept these cookies, you will have a more general and less customized user experience.
