Plug-in connection system - ZST

ZRKS, ZSTK

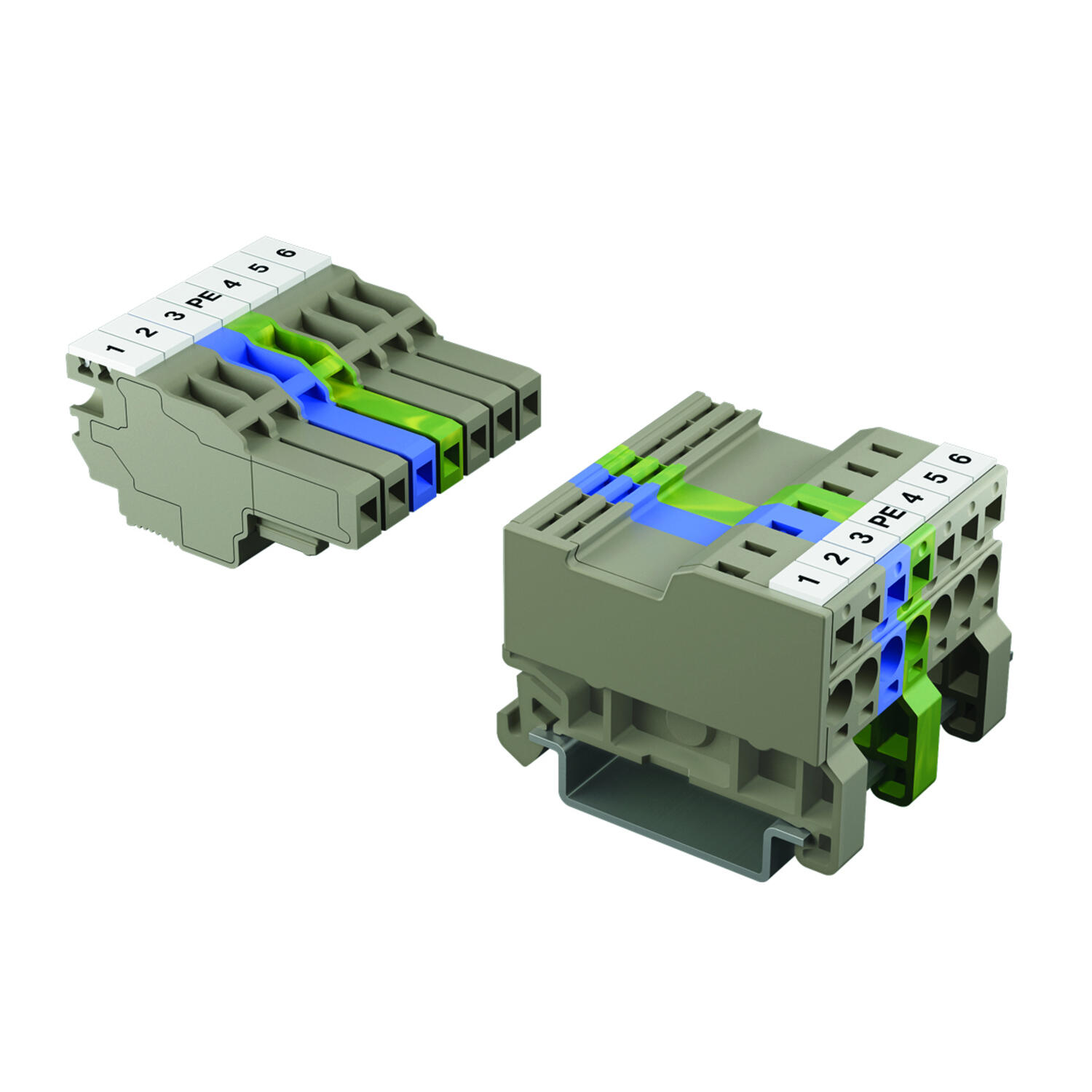

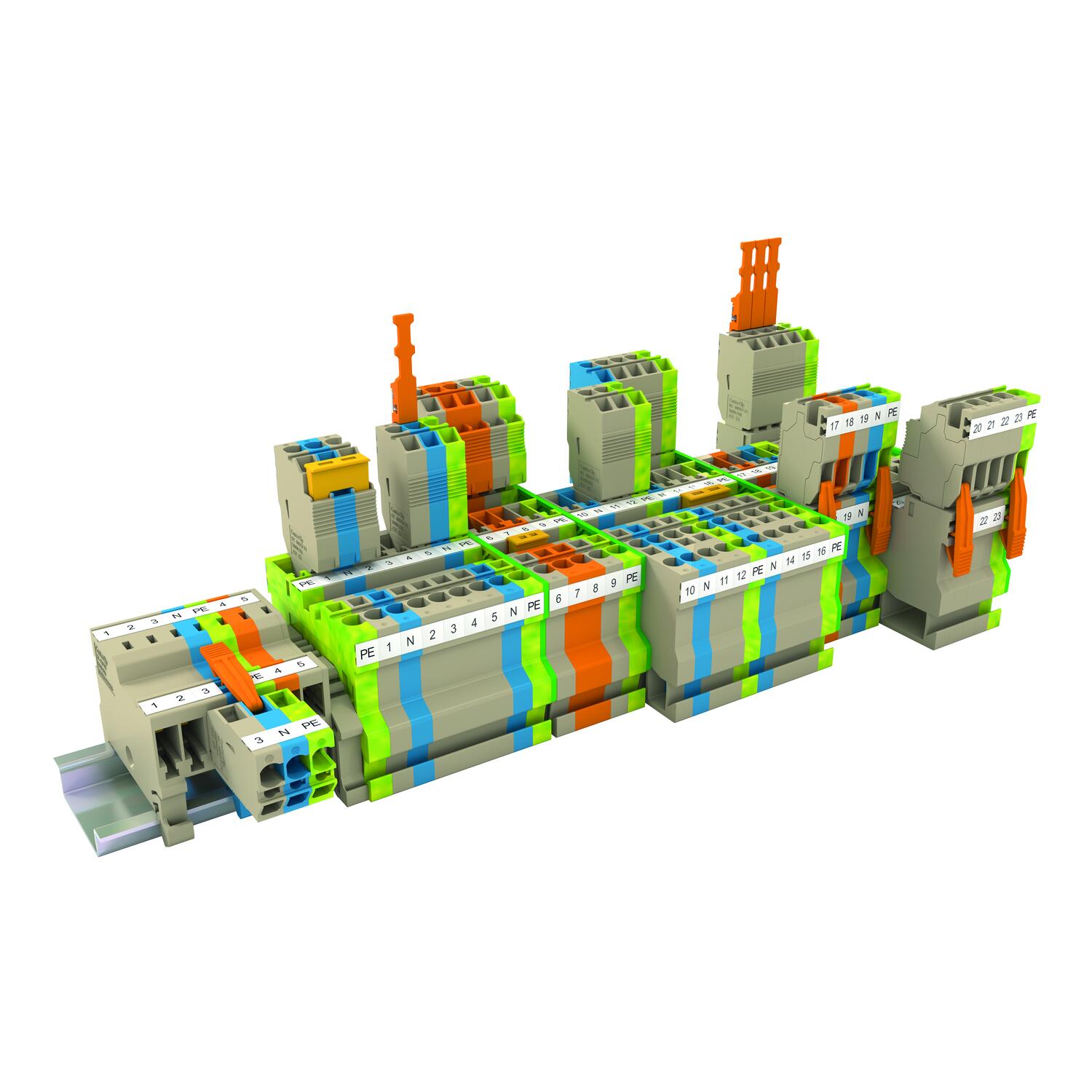

The plug-in connection system ZST is a plug-in system that allows you to achieve a rated current up to 24 A with a rated voltage up to 500 V.


The terminals and the pluggable connectors have a touch-safe design and can be configured easily and combined according to the particular needs of your application.


The basic terminals and connectors can also be coded to make sure the correct plug is mated with the correct socket, when using multiple sets.



All plugs & base terminals have the option of additional snap-on locking latches and strain relief mechanism to ensure that the connected wire and plugs are firmly secured


The ZSTK 2.5 couplings are available as rail-mounted version (for TS15 and TS35) or as a free coupling.



Read more
  • Wire connection type: tension-spring connection
  • Versatile mounting on TS15, TS35 or as free coupling
  • Ratings 500 V, 24 A
  • Touch-safe construction

Selected variant


Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Cross-Section 2.5 mm²
Color Beige
Rated Voltage IEC 500 V
Rated Current IEC 24 A
Mounting TS 35/7,5
Rated impulse voltage 6 kV
Overvoltage category III
Contamination degree 3
Approvals UL, CSA, CSA US, cUL, KEMA KUR, EAC
Length 54 mm
Width 5.1 mm
Height TS 35/7.5 39.5 mm
Height 38.5 mm
Connections 2
Plug gauge acc. EN 60 947-1 A3
Cross connect channels 2
Number of test pick off options 1
Cross section single wire from 0.5 mm²
Cross section single wire to 4 mm²
Cross section stranded wire from 0.5 mm²
Cross section stranded wire to 4 mm²
Cross section stranded with ferrule from 0.5 mm²
Cross section stranded with ferrule to 2.5 mm²
Rated wire cross section from (AWG) 20
Rated wire cross section to (AWG) 12
Stripping Length 10 mm
Insulation Material Polyamide 6.6
Flamklass UL94-V0
Operating temperature from -40 °C
Operating temperature to 120 °C
Rated Voltage To UL 300 V
Rated Current To UL 20 A
UL test standard UL 1059
Voltage CSA 300 V
Rated Current CSA 20 A
CSA test standard C22.2 No 158
Rated voltage CSAus 300 V
Rated current CSAus 20 A
CSAus test standard UL 1059
Rated voltage cUL 300 V
Rated current cUL 20 A
cUL test standard C22.2 No 158
EAC test standard TR ZU 004/2011
KEMA KEUR test standard EN 60947-7-1:2009
Tariff code 85369010
Country of origin CZ
Weight 6.76 g
Pack Size 100

Downloads

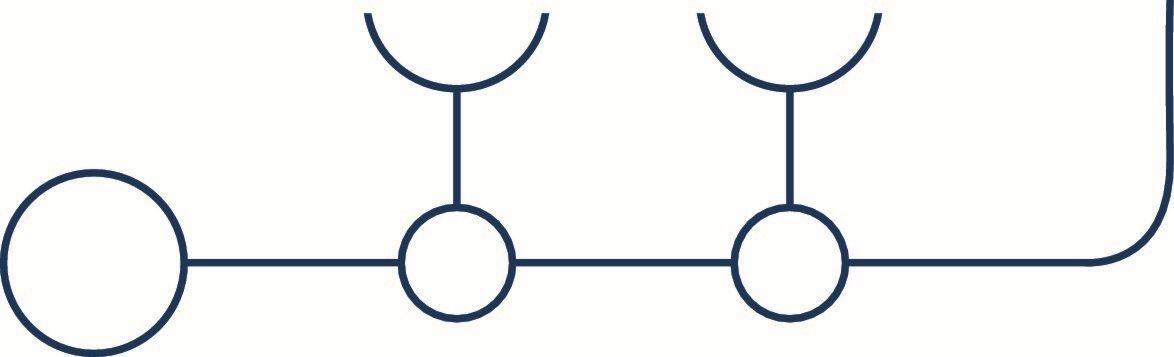

Measurements and connections

Product description

The plug-in connection system ZST is a plug-in system that allows you to achieve a rated current up to 24 A with a rated voltage up to 500 V.


The terminals and the pluggable connectors have a touch-safe design and can be configured easily and combined according to the particular needs of your application.


The basic terminals and connectors can also be coded to make sure the correct plug is mated with the correct socket, when using multiple sets.



All plugs & base terminals have the option of additional snap-on locking latches and strain relief mechanism to ensure that the connected wire and plugs are firmly secured


The ZSTK 2.5 couplings are available as rail-mounted version (for TS15 and TS35) or as a free coupling.



Accessories

Related products

Add product as a new cart row

You already added this product. Choose whether to increase quantity on the existing row or add the product as a new row.

Related

TER - control stations
Product news

Quality solutions for motion controls

TER - Tecno Elettrica Ravasi, is our Italian supplier specializing in the manufacture of control stations. TER has over 60 years of experience in the manufacture of control stations.

Stego Loop Heater lämmityselementit
Product news

LOOP Heater for optimal heat distribution

Thanks to their loop design, LOOP heating elements offer excellent heating performance and ensure optimal heat distribution. Read more now!

PISA-M
Product news

Compact electronic overcurrent protection PISA-M

PISA-M is a 4-channel electronic fuse for 12 and 24 V DC systems. The smallest 4-channel electronic fuse with a width of only 22.5 mm!

Delcon relays
Product news

An effective solution Delcon CRA5

Delcon's CRA5 plug-in relay revolutionizes the control of difficult-to-handle DC loads. Inductive loads, frequent switching, and high DC voltages are a piece of cake for these relays.

LOCC-Box Mini
Product news

LOCC-Box Mini

The Lütze LOCC-Box is an intelligent electronic overcurrent protection device that provides reliable protection for 12/24 V DC systems in a narrow housing measuring just 8.1 mm. Integrated + and - terminals save space on the DIN rail.

DF Electric
Product news

DF Electric – new supplier for fuse solutions

DF Electric is specialized in the manufacturing of fuse links, fuse holders and control transformers since 1987. Presently the company is leading the Spanish market and is also very active in many export markets due to its competitive range of products.

Articles Cross-Section Color Rated Voltage IEC Rated Current IEC Mounting Rated impulse voltage Overvoltage category Contamination degree Approvals Additional information Length Width Height TS 35/7.5 Height TS 15/5.5 Height Connections Number of levels Plug gauge acc. EN 60 947-1 Cross connect channels Number of test pick off options Number of poles Cross section single wire from Cross section single wire to Cross section stranded wire from Cross section stranded wire to Cross section stranded with ferrule from Cross section stranded with ferrule to Rated wire cross section from (AWG) Rated wire cross section to (AWG) Stripping Length Insulation Material Flamklass Operating temperature from Operating temperature to Rated Voltage To UL Rated Current To UL UL test standard Voltage CSA Rated Current CSA CSA test standard Rated voltage CSAus Rated current CSAus CSAus test standard Rated voltage cUL Rated current cUL cUL test standard EAC test standard KEMA KEUR test standard Tariff code Country of origin Weight Pack Size

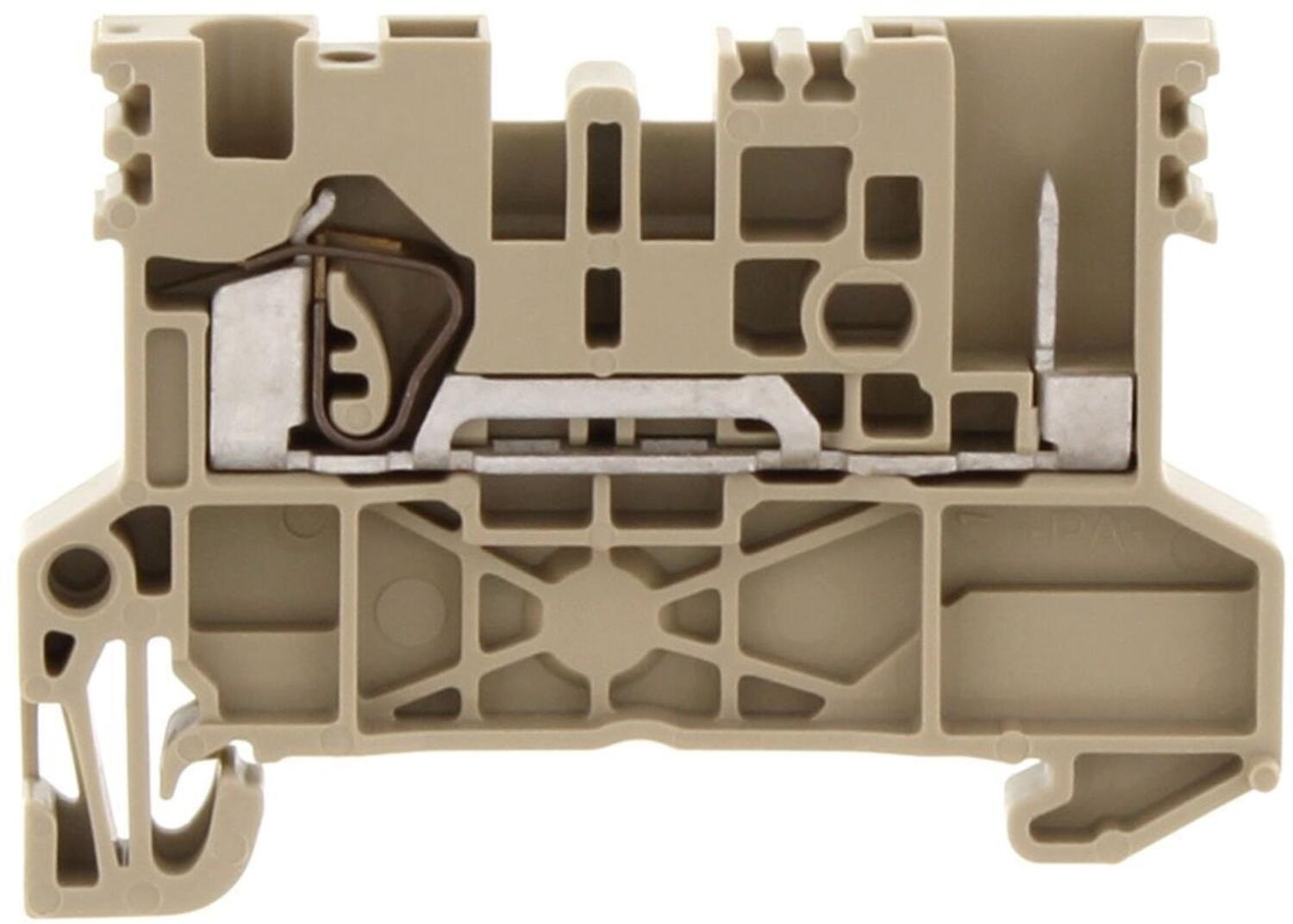

Connection module in beige plastic with metal components, designed for electrical installations.
ZRKS 2,5/1A/1S BG
Art:
3650.2 Copied
2.5 mm²
Beige
500 V
24 A
TS 35/7,5
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
54 mm
5.1 mm
39.5 mm
38.5 mm
2
A3
2
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
6.76 g
100

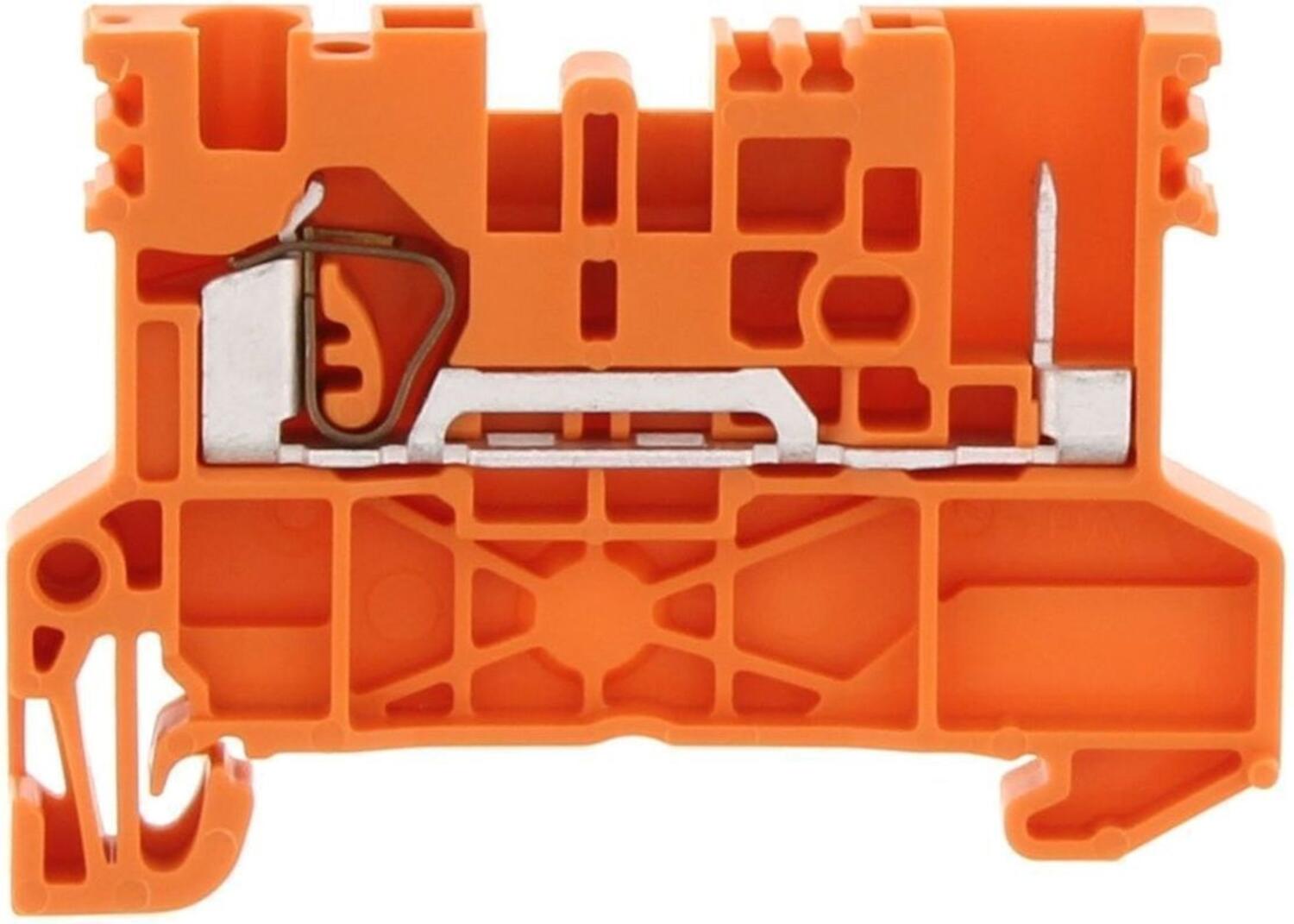

Orange connection block with metal components, ideal for electrical installations and connections.
ZRKS 2,5/1A/1S OG
Art:
3650.3 Copied
2.5 mm²
Orange
500 V
24 A
TS 35/7,5
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
54 mm
5.1 mm
39.5 mm
38.5 mm
2
A3
2
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
6.76 g
100

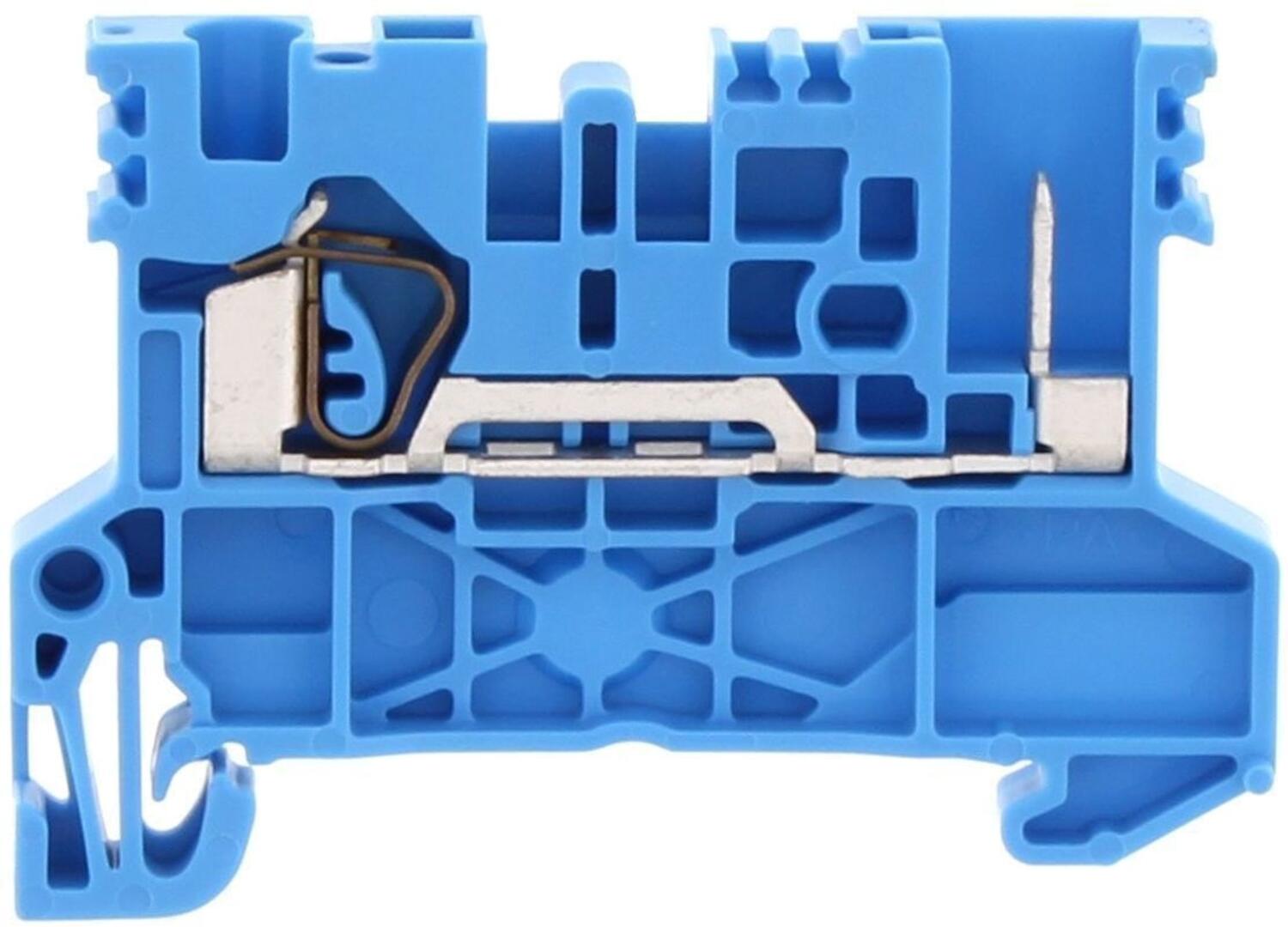

Blue connection clamp with metal components, ideal for electrical installations.
ZRKS 2,5/1A/1S BU
Art:
3650.5 Copied
2.5 mm²
Blue
500 V
24 A
TS 35/7,5
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
54 mm
5.1 mm
39.5 mm
38.5 mm
2
A3
2
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
6.76 g
100

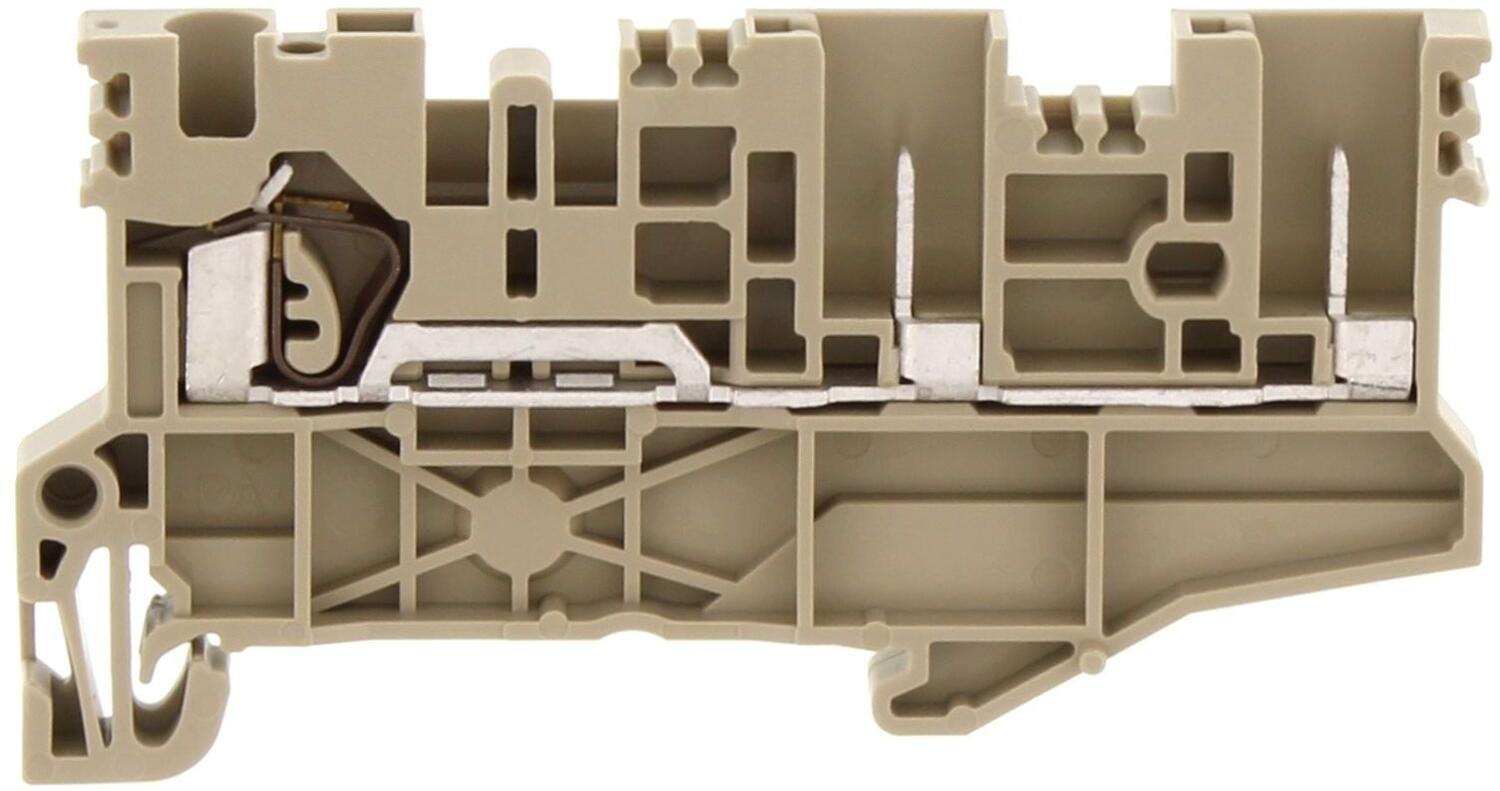

Connection module in beige plastic with metal components, designed for electrical installations.
ZRKS 2,5/1A/2S BG
Art:
3651.2 Copied
2.5 mm²
Beige
500 V
24 A
TS 35/7,5
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
72.5 mm
5.1 mm
39.5 mm
38.5 mm
3
A3
2
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
8.5 g
100

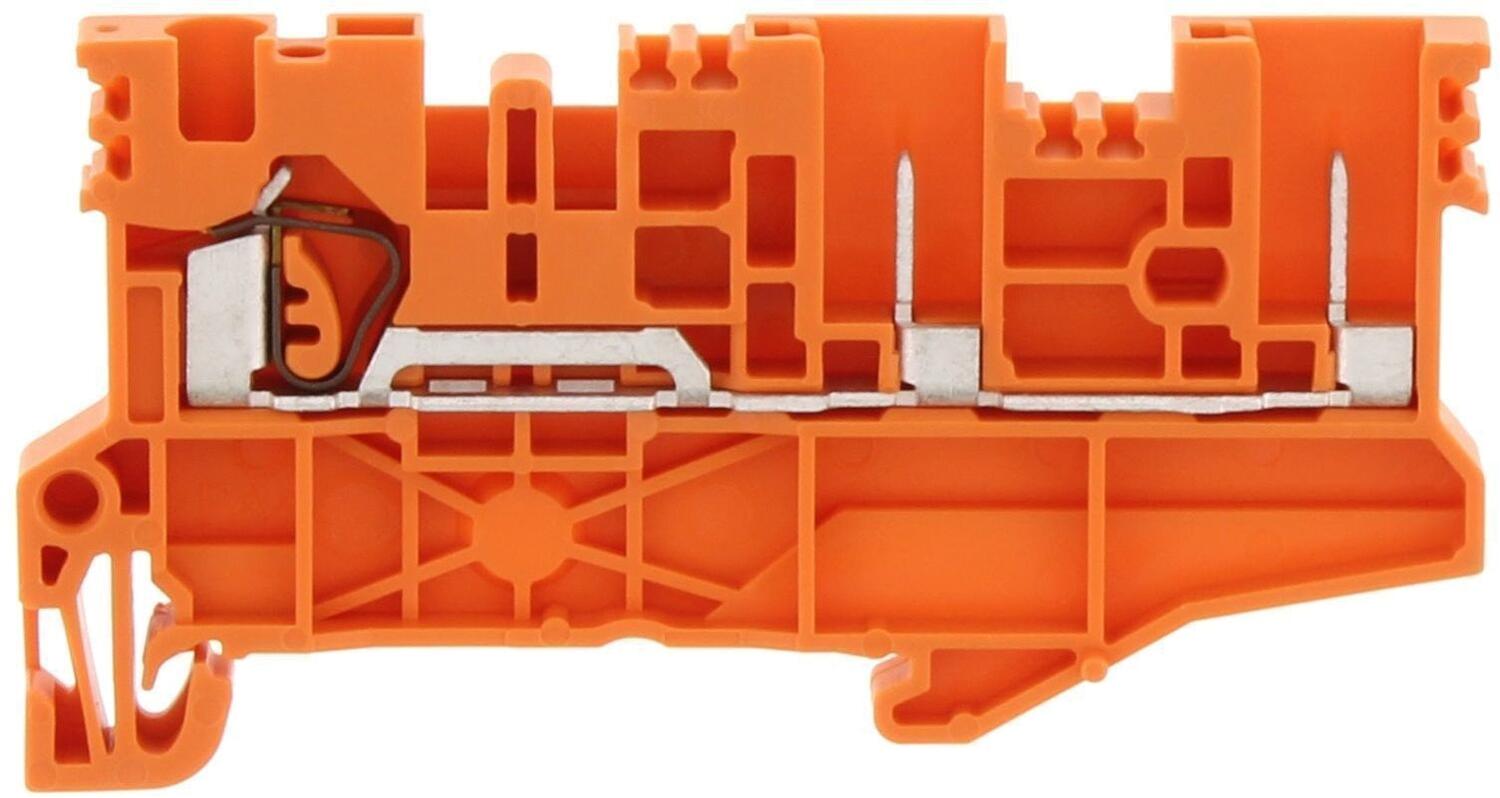

Orange electrical component with metal bracket, designed for efficient connection and installation.
ZRKS 2,5/1A/2S OG
Art:
3651.3 Copied
2.5 mm²
Orange
500 V
24 A
TS 35/7,5
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
72.5 mm
5.1 mm
39.5 mm
38.5 mm
3
A3
2
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
8.5 g
100
Blue electrical component with metal bracket, designed for efficient connection and installation.

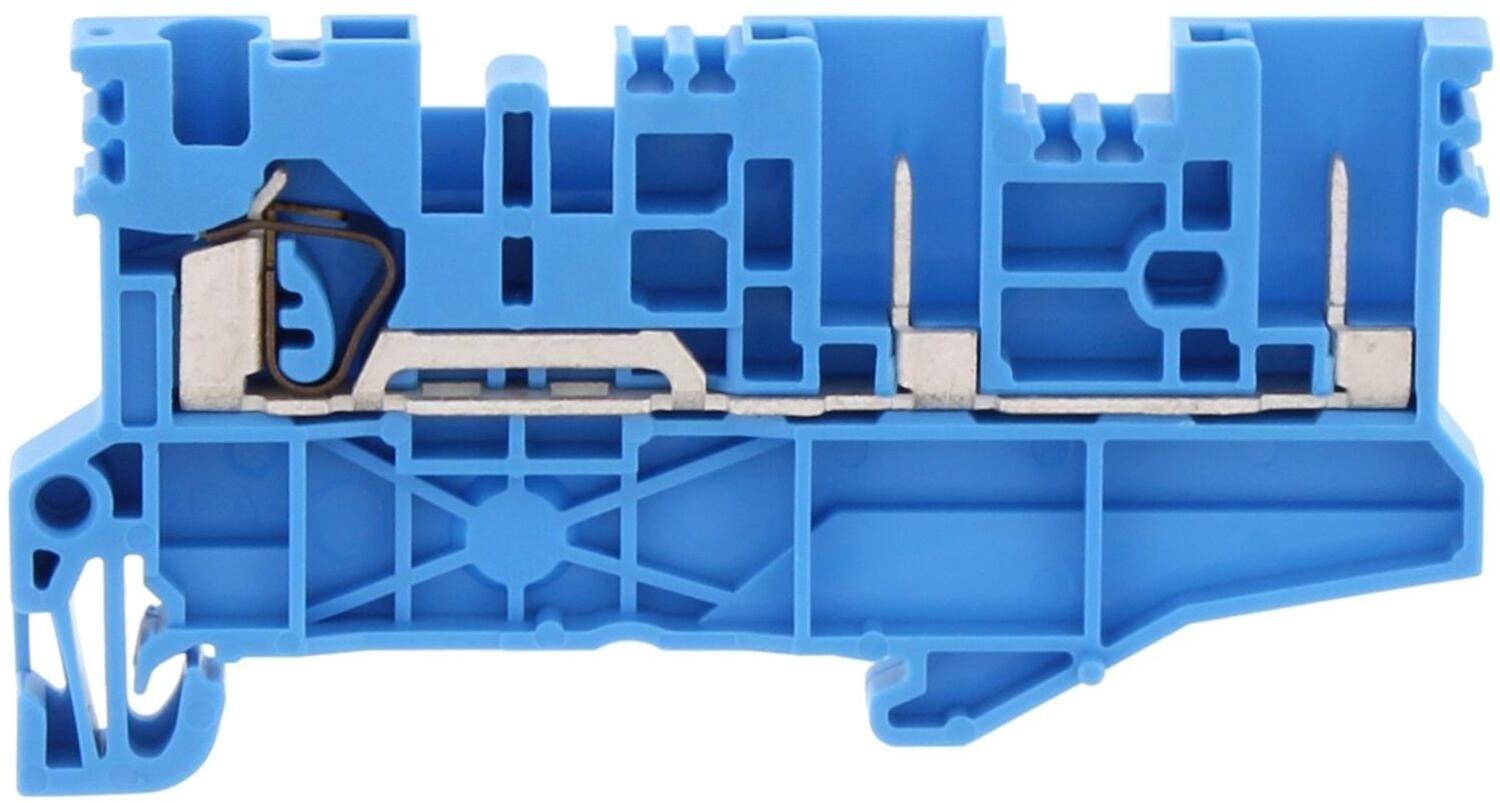

ZRKS 2,5/1A/2S BU
Art:
3651.5 Copied
2.5 mm²
Blue
500 V
24 A
TS 35/7,5
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
72.5 mm
5.1 mm
39.5 mm
38.5 mm
3
A3
2
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
8.5 g
100
Connection module in beige plastic with metal springs and details for electrical connection

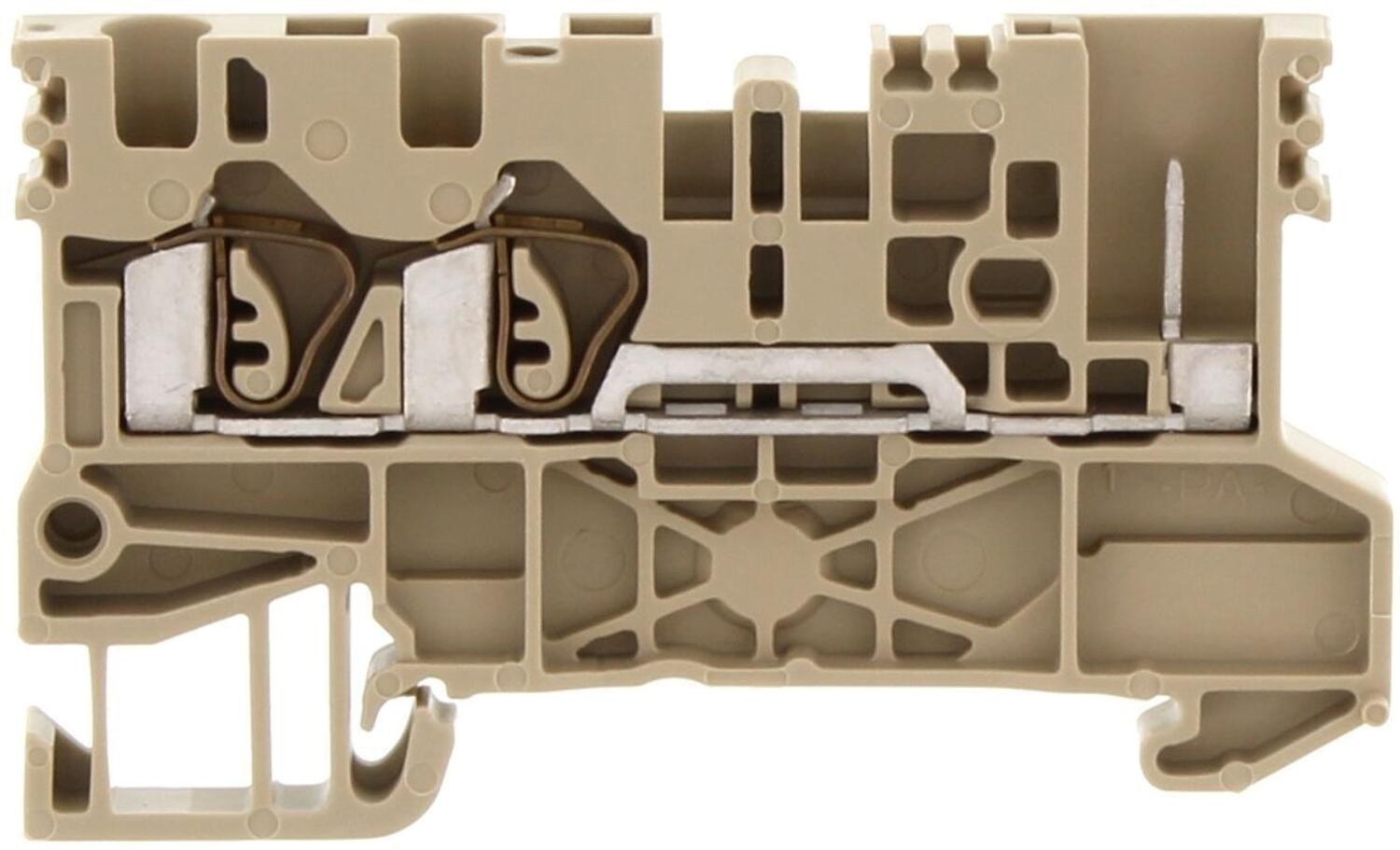

ZRKS 2,5/2A/1S BG
Art:
3652.2 Copied
2.5 mm²
Beige
500 V
24 A
TS 35/7,5
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
64 mm
5.1 mm
39.5 mm
38.5 mm
3
A3
2
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
8.65 g
100

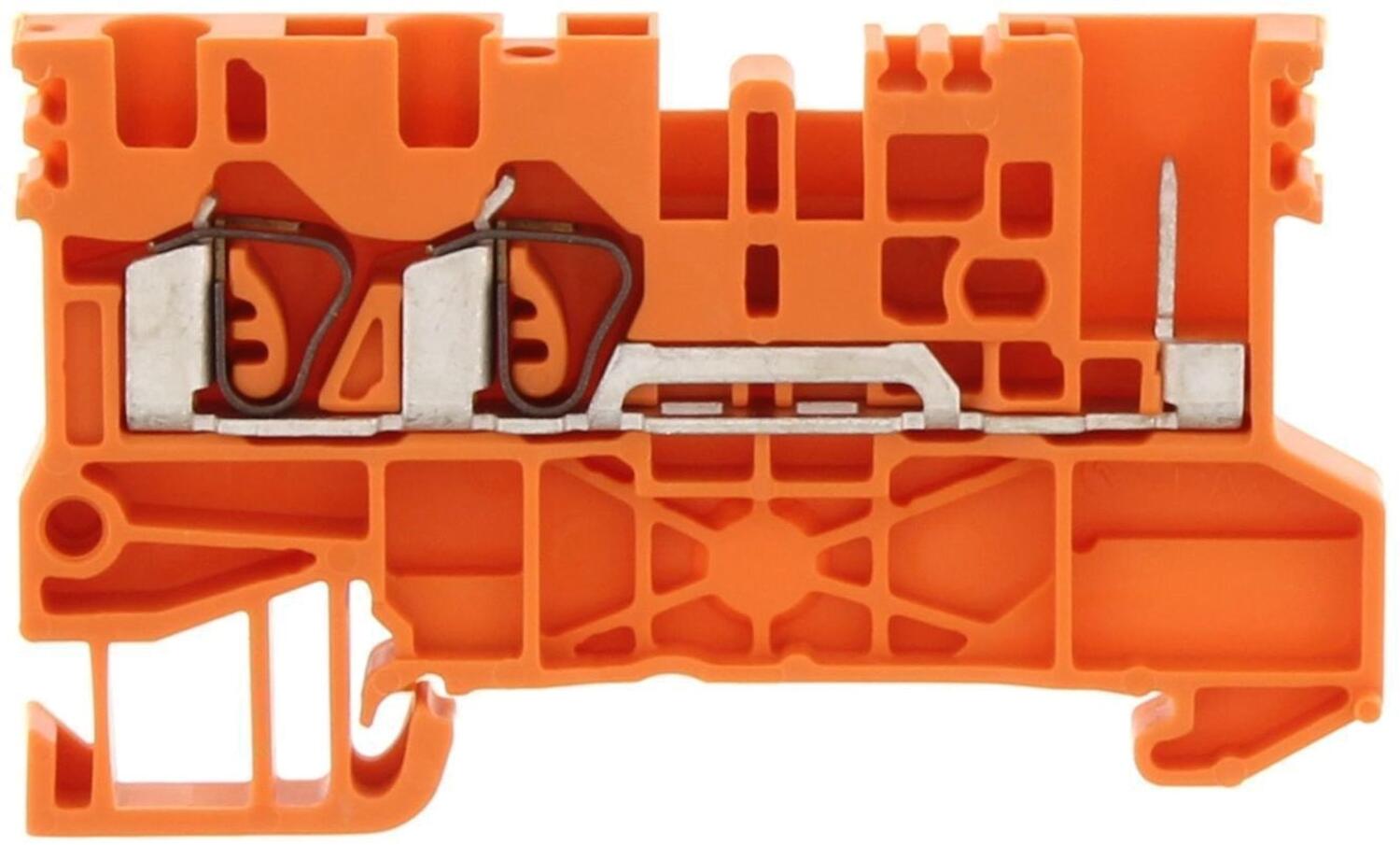

Orange connection clamp with metal components for electrical installations
ZRKS 2,5/2A/1S OG
Art:
3652.3 Copied
2.5 mm²
Orange
500 V
24 A
TS 35/7,5
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
64 mm
5.1 mm
39.5 mm
38.5 mm
3
A3
2
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
8.65 g
100
Blue connection clamp with metal components for electrical installations

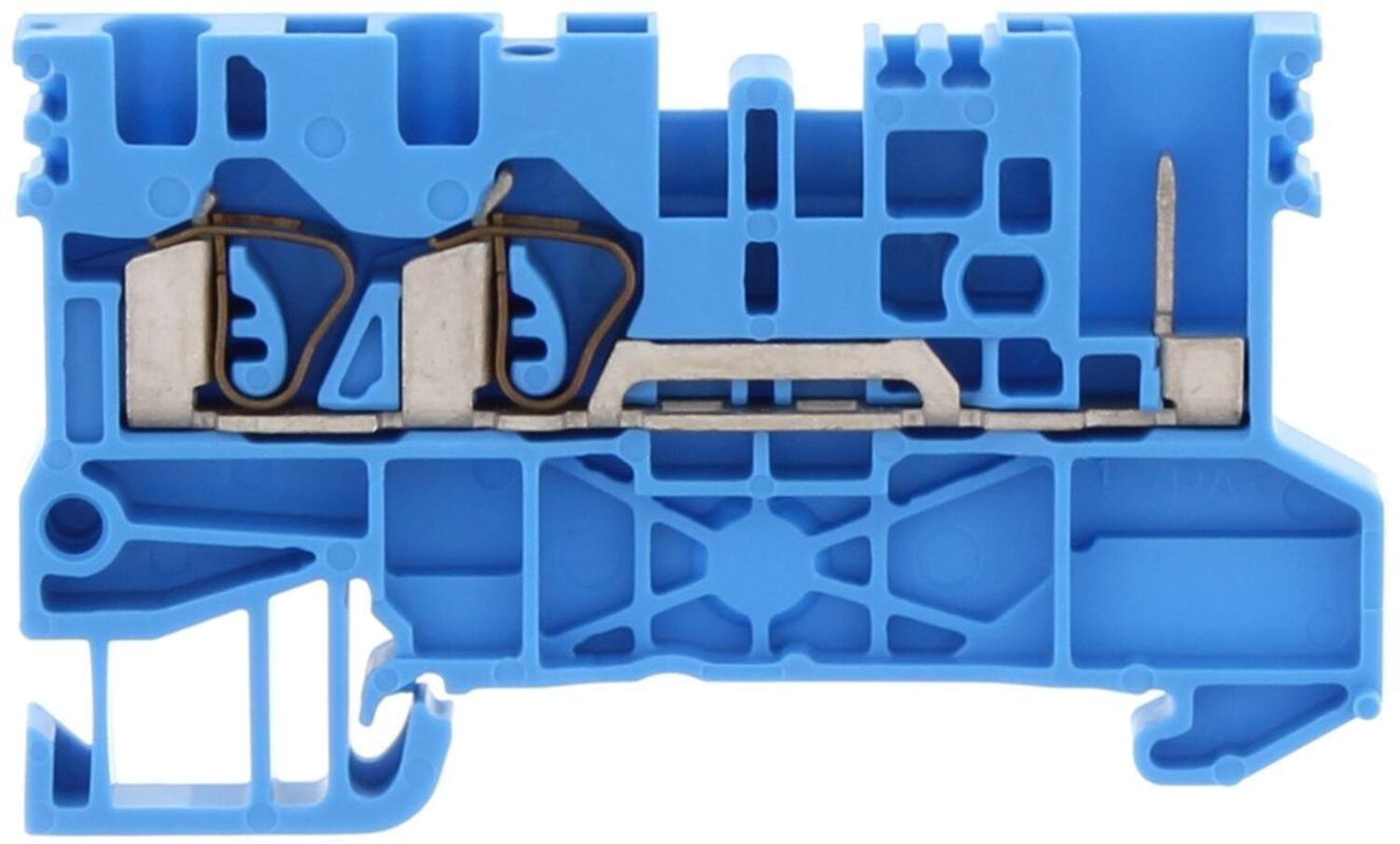

ZRKS 2,5/2A/1S BU
Art:
3652.5 Copied
2.5 mm²
Blue
500 V
24 A
TS 35/7,5
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
64 mm
5.1 mm
39.5 mm
38.5 mm
3
A3
2
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
8.65 g
100

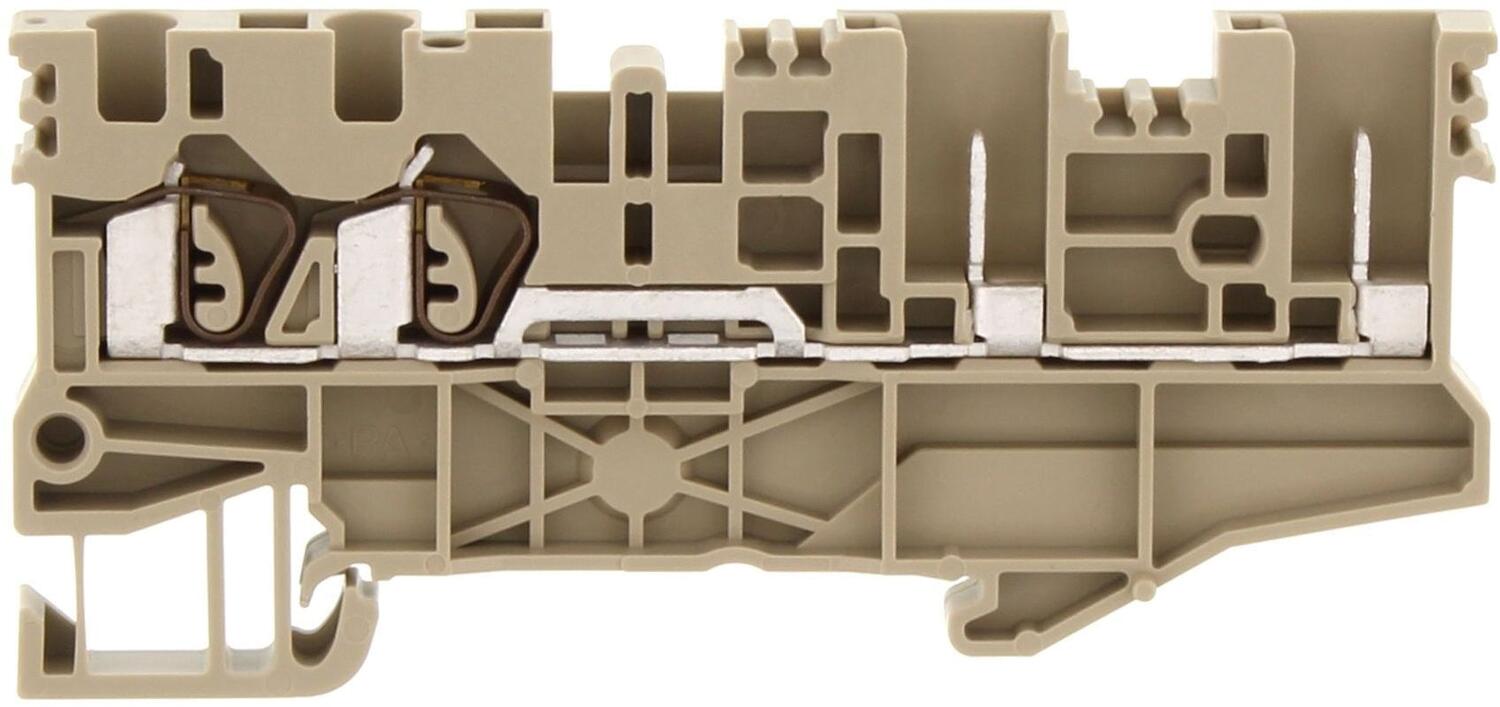

Terminal block in beige plastic with metal components for electrical connections
ZRKS 2,5/2A/2S BG
Art:
3653.2 Copied
2.5 mm²
Beige
500 V
24 A
TS 35/7,5
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
82 mm
5.1 mm
39.5 mm
38.5 mm
4
A3
2
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
10.1 g
100

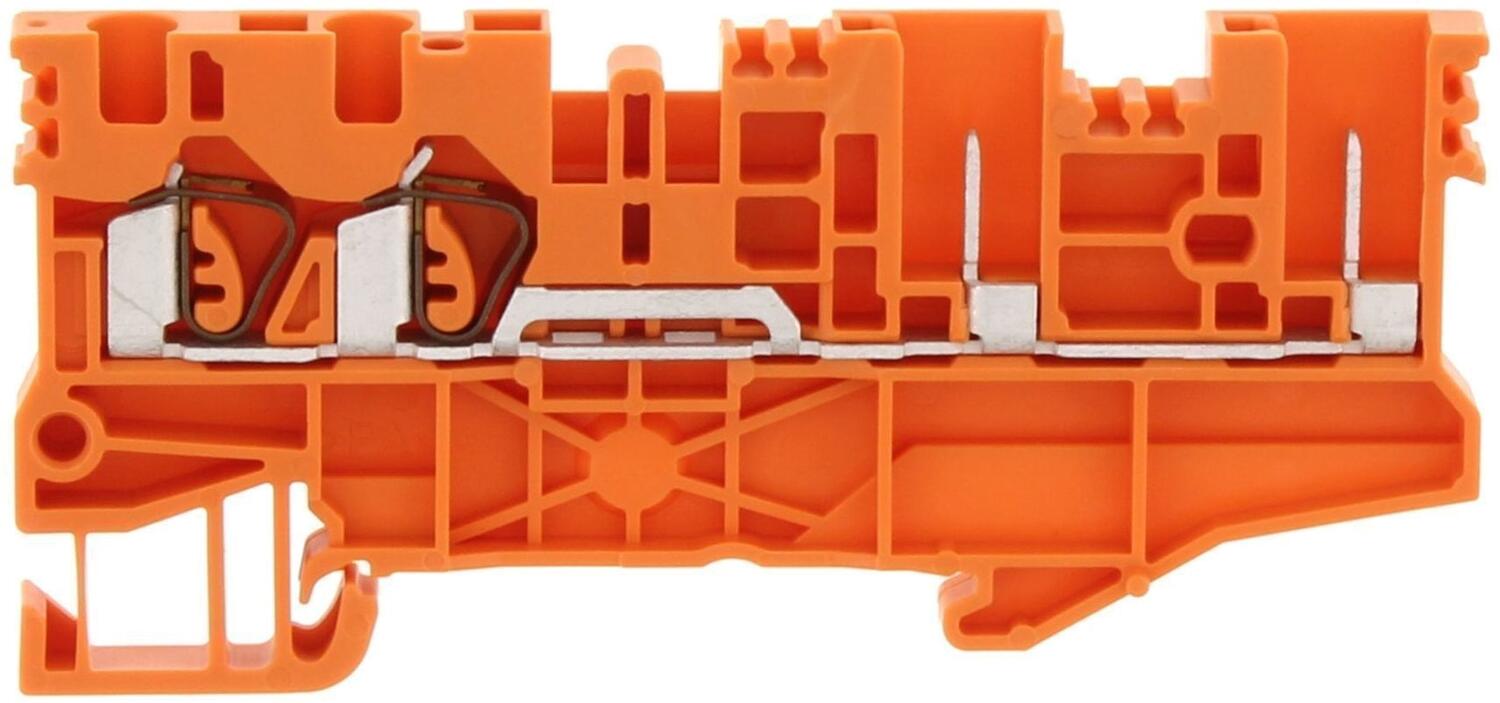

Orange connection clamp with metal components for electrical installations
ZRKS 2,5/2A/2S OG
Art:
3653.3 Copied
2.5 mm²
Orange
500 V
24 A
TS 35/7,5
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
82 mm
5.1 mm
39.5 mm
38.5 mm
4
A3
2
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
10.1 g
100
Blue electrical component with metal brackets, ideal for industrial applications
ZRKS 2,5/2A/2S BU
Art:
3653.5 Copied
2.5 mm²
Blue
500 V
24 A
TS 35/7,5
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
82 mm
5.1 mm
39.5 mm
38.5 mm
4
A3
2
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
10.1 g
100

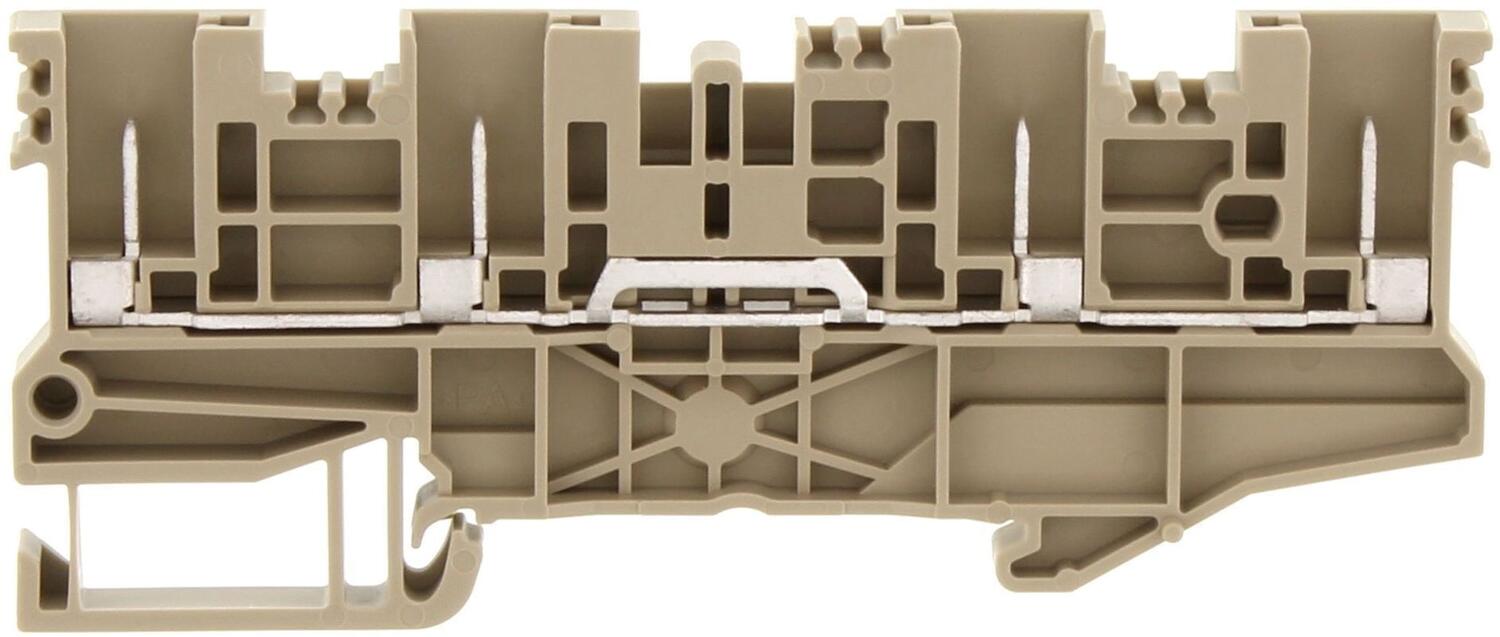

Terminal block in beige plastic with metal components, designed for electrical connections.
ZRKS 2,5/4S BG
Art:
3654.2 Copied
Beige
500 V
24 A
TS 35/7,5
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
90.5 mm
5.1 mm
39.5 mm
38.5 mm
4
2
0
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
11.98 g
100

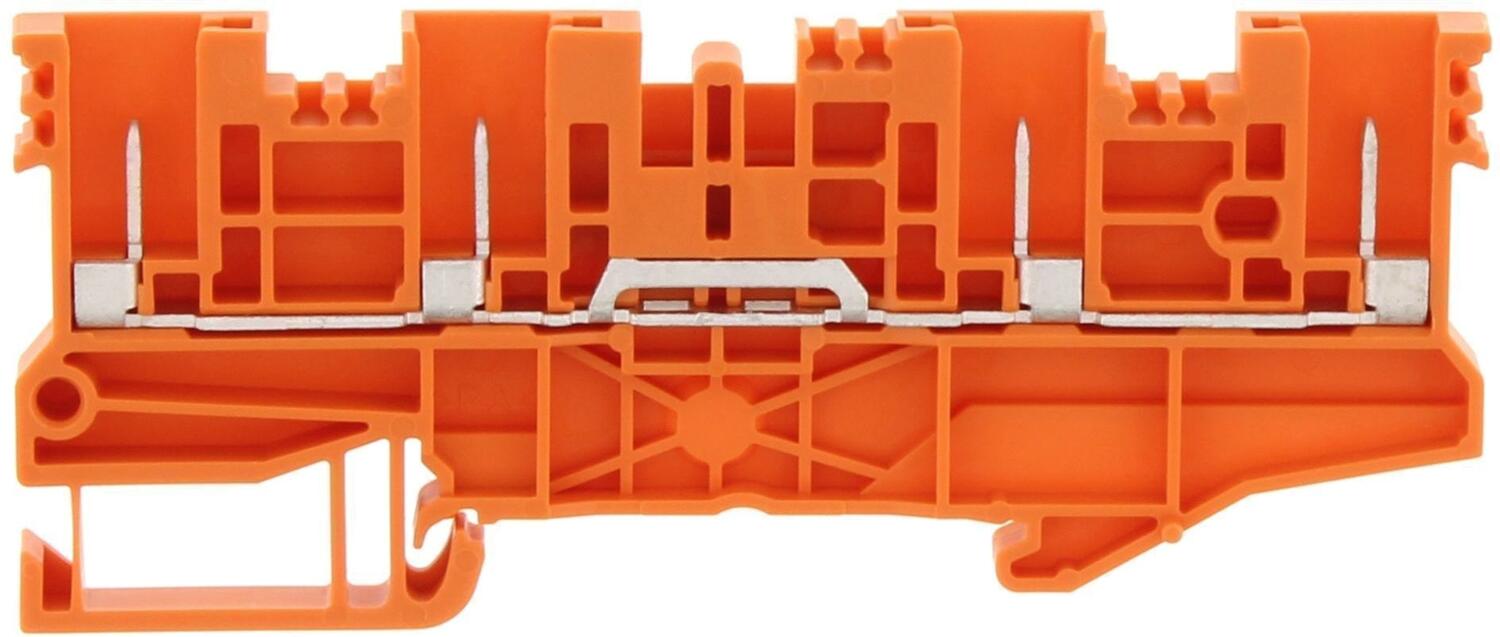

Orange connection clamp with metal contacts for electrical installations
ZRKS 2,5/4S OG
Art:
3654.3 Copied
Orange
500 V
24 A
TS 35/7,5
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
90.5 mm
5.1 mm
39.5 mm
38.5 mm
4
2
0
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
11.98 g
100

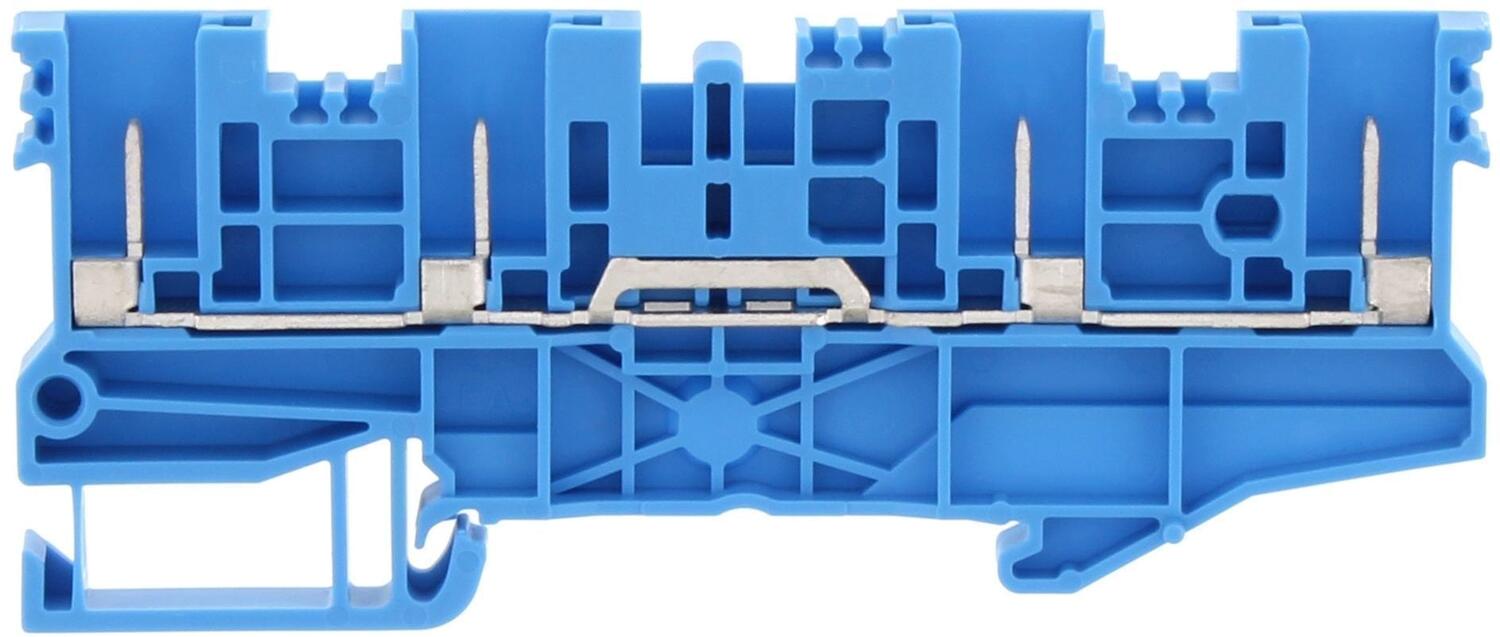

Blue connection clamp with metal components for electrical installations
ZRKS 2,5/4S BU
Art:
3654.5 Copied
Blue
500 V
24 A
TS 35/7,5
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
90.5 mm
5.1 mm
39.5 mm
38.5 mm
4
2
0
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
11.98 g
100

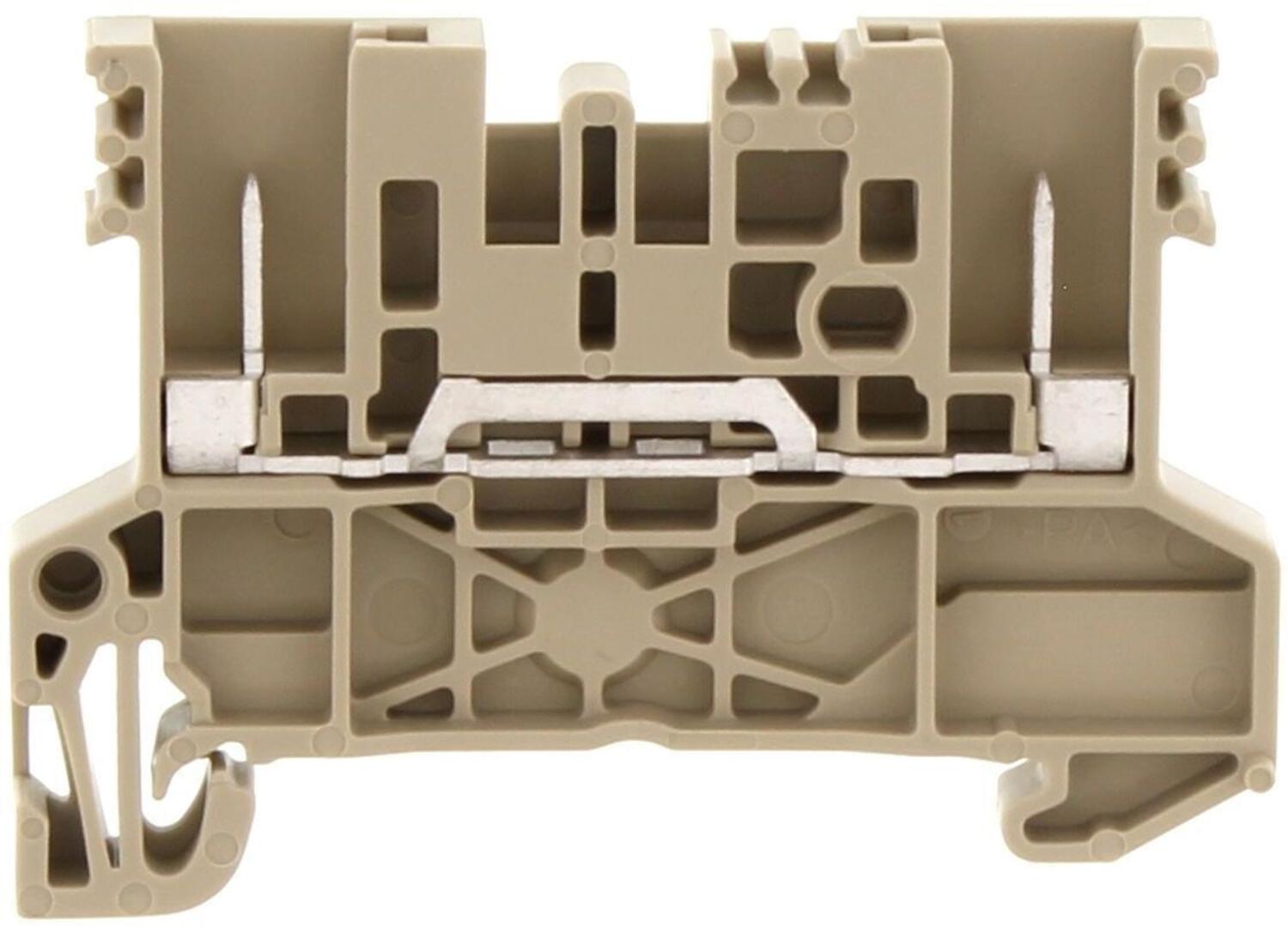

Terminal block in beige plastic with metal components, ideal for electrical installations.
ZRKS 2,5/2S BG
Art:
3655.2 Copied
Beige
500 V
24 A
TS 35/7,5
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
54 mm
5.1 mm
39.5 mm
38.5 mm
2
2
0
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
6.52 g
100

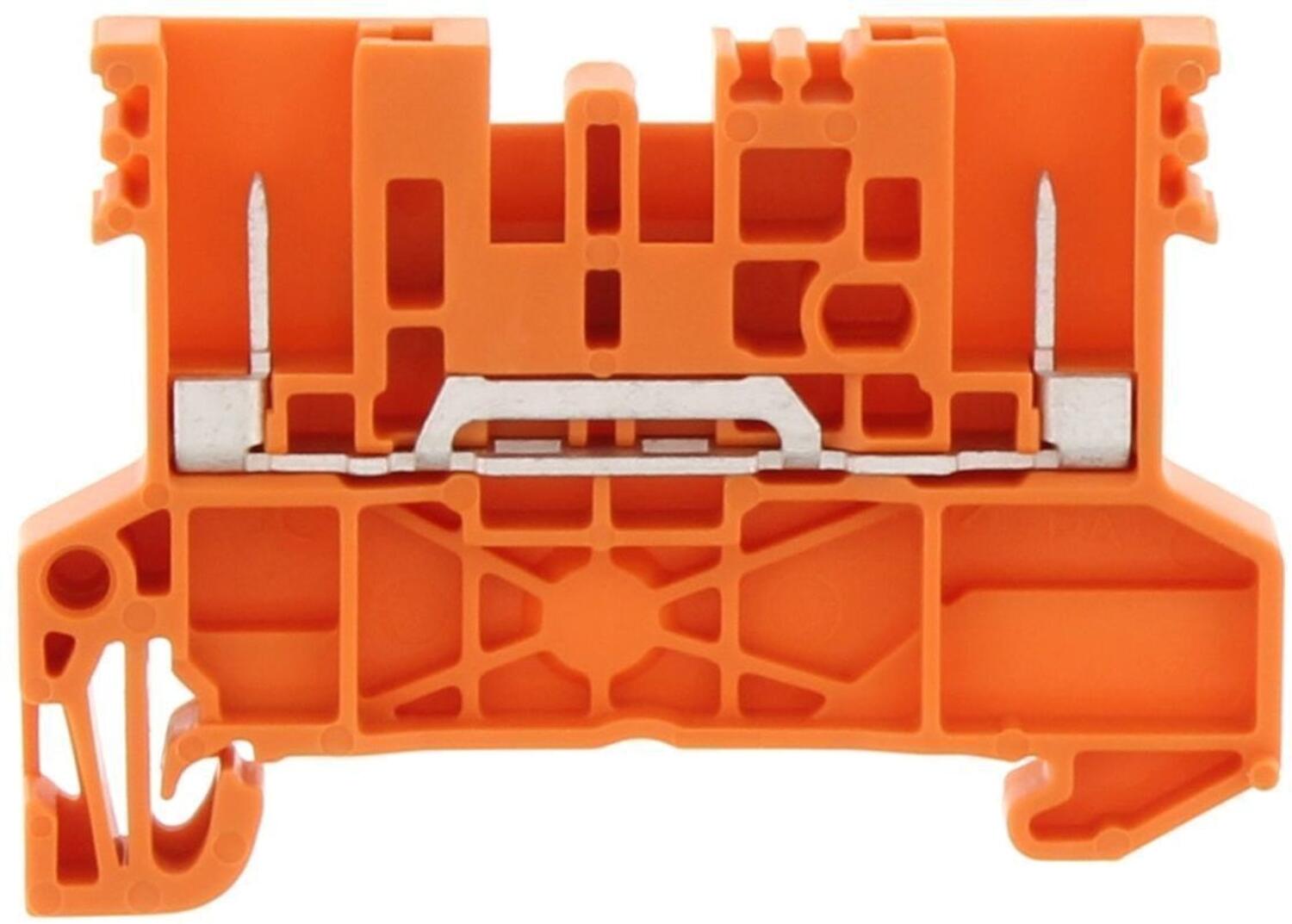

Orange connection clamp with metal contact, ideal for electrical installations
ZRKS 2,5/2S OG
Art:
3655.3 Copied
Orange
500 V
24 A
TS 35/7,5
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
54 mm
5.1 mm
39.5 mm
38.5 mm
2
2
0
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
6.52 g
100

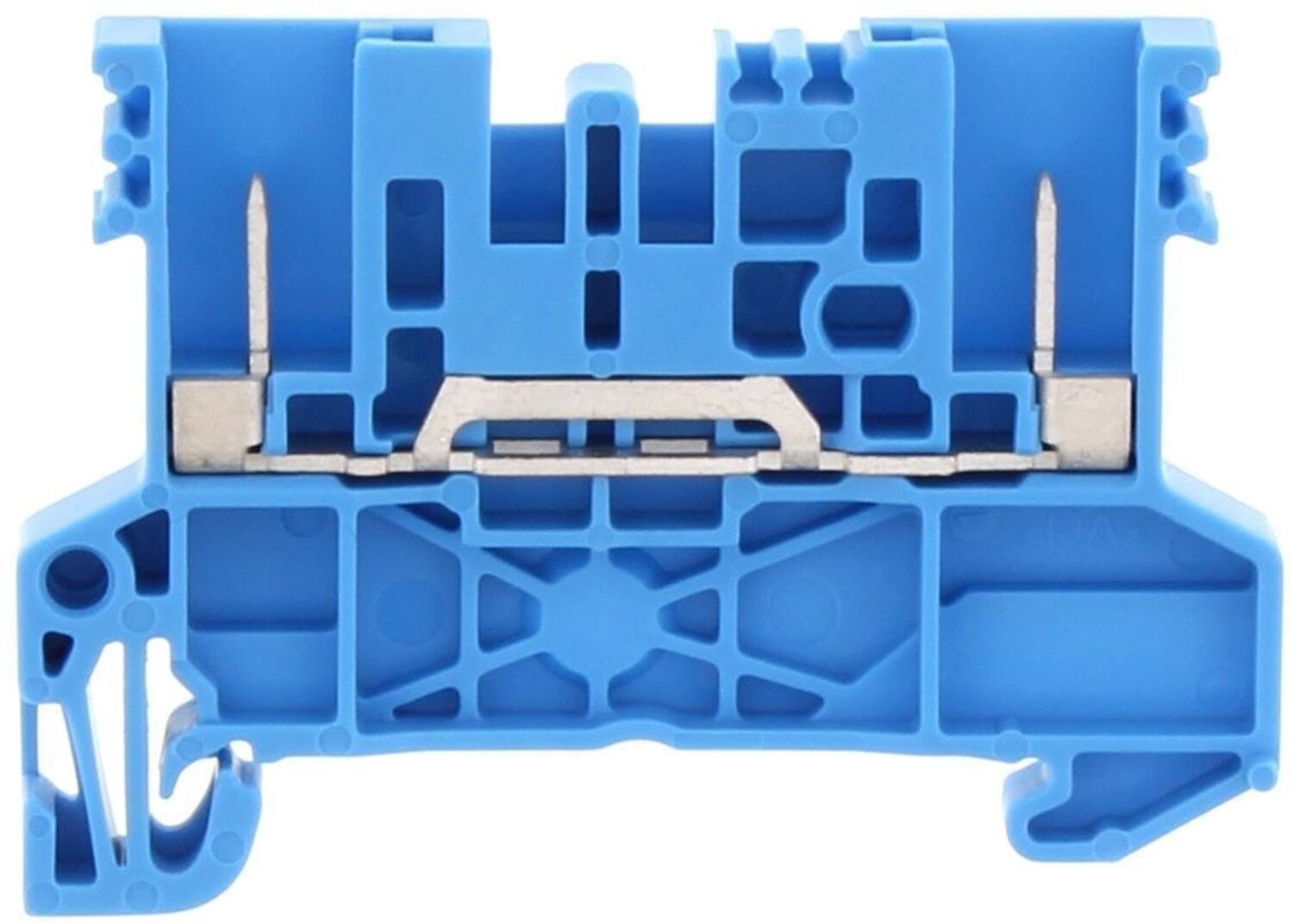

Blue terminal block with metal contact, ideal for electrical connections and installations.
ZRKS 2,5/2S BU
Art:
3655.5 Copied
Blue
500 V
24 A
TS 35/7,5
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
54 mm
5.1 mm
39.5 mm
38.5 mm
2
2
0
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
6.52 g
100

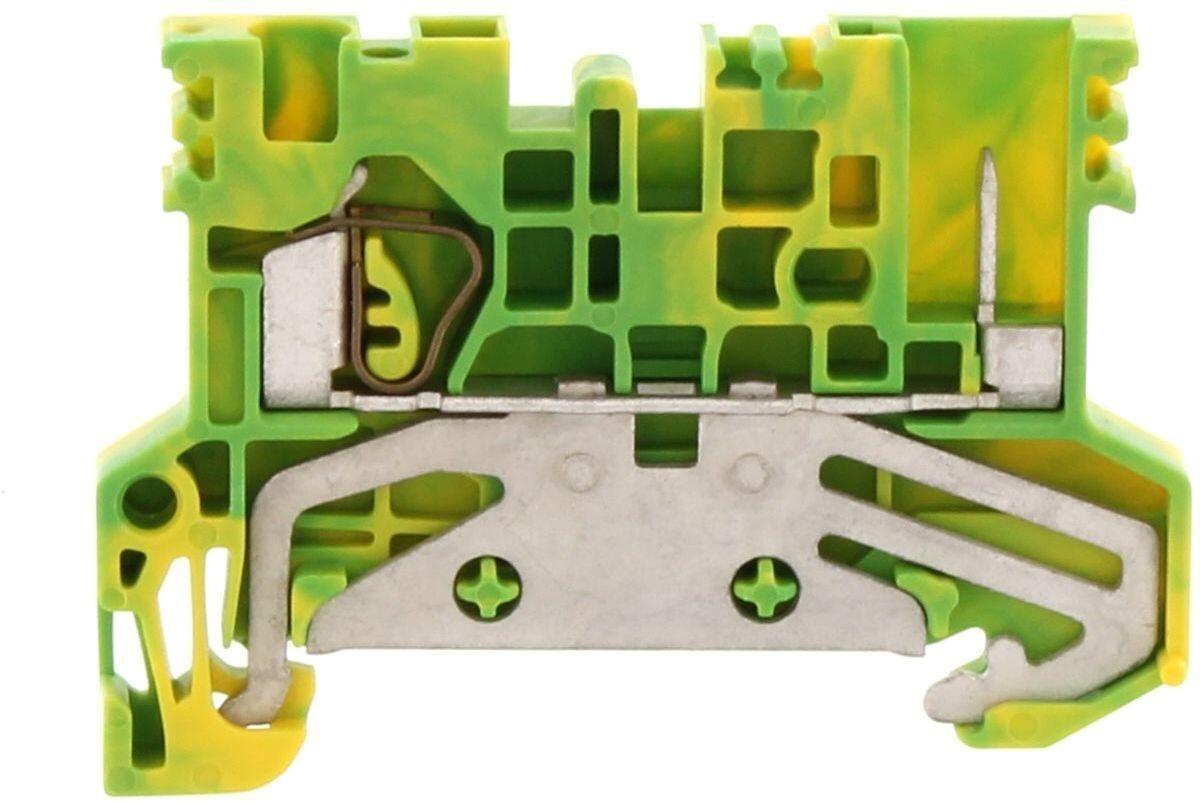

Green and yellow connector clamp with metal components for electrical installations
ZSLS 2,5/1A/1S GNYE
Art:
3660.2 Copied
2.5 mm²
Green/yellow
TS 35/7,5
III
3
UL, CSA, CSA US, cUL, EAC
54 mm
5.1 mm
39.5 mm
38.5 mm
2
1
A3
1
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
UL 1059
C22.2 No 158
UL 1059
C22.2 No 158
TR ZU 004/2011
EN 60947-7-2:2009
85369010
DE
10 g
100
Green and yellow electrical component with metal mounting bracket, ideal for industrial applications.
ZSLS 2,5/1A/2S GNYE
Art:
3661.2 Copied
2.5 mm²
Green/yellow
TS 35/7,5
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
72.5 mm
5.1 mm
39.5 mm
38.5 mm
3
1
A3
1
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
UL 1059
C22.2 No 158
UL 1059
C22.2 No 158
TR ZU 004/2011
EN 60947-7-2:2009
85369010
DE
12 g
100

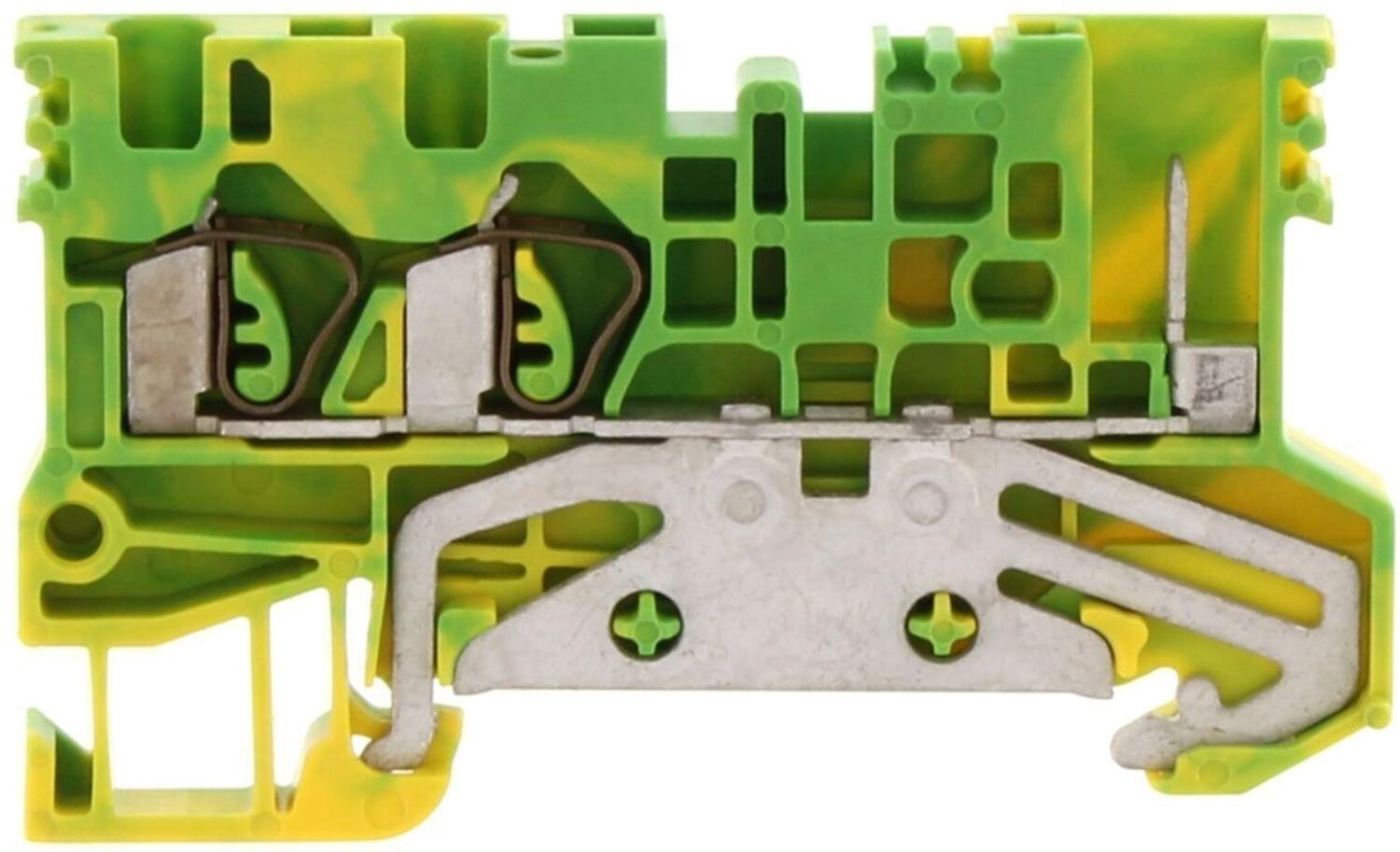

Green and yellow connector clamp with metal components for electrical installations
ZSLS 2,5/2A/1S GNYE
Art:
3662.2 Copied
2.5 mm²
Green/yellow
TS 35/7,5
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
64 mm
5.1 mm
39.5 mm
38.5 mm
3
1
A3
1
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
UL 1059
C22.2 No 158
UL 1059
C22.2 No 158
TR ZU 004/2011
EN 60947-7-2:2009
85369010
DE
12 g
100
Green and yellow connector clamp with metal components for electrical installations
ZSLS 2,5/2A/2S GNYE
Art:
3663.2 Copied
2.5 mm²
Green/yellow
TS 35/7,5
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
82 mm
5.1 mm
39.5 mm
38.5 mm
4
1
A3
1
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
UL 1059
C22.2 No 158
UL 1059
C22.2 No 158
TR ZU 004/2011
EN 60947-7-2:2009
85369010
DE
12 g
100
Green and yellow connection clamp with metal components, ideal for electrical installations.

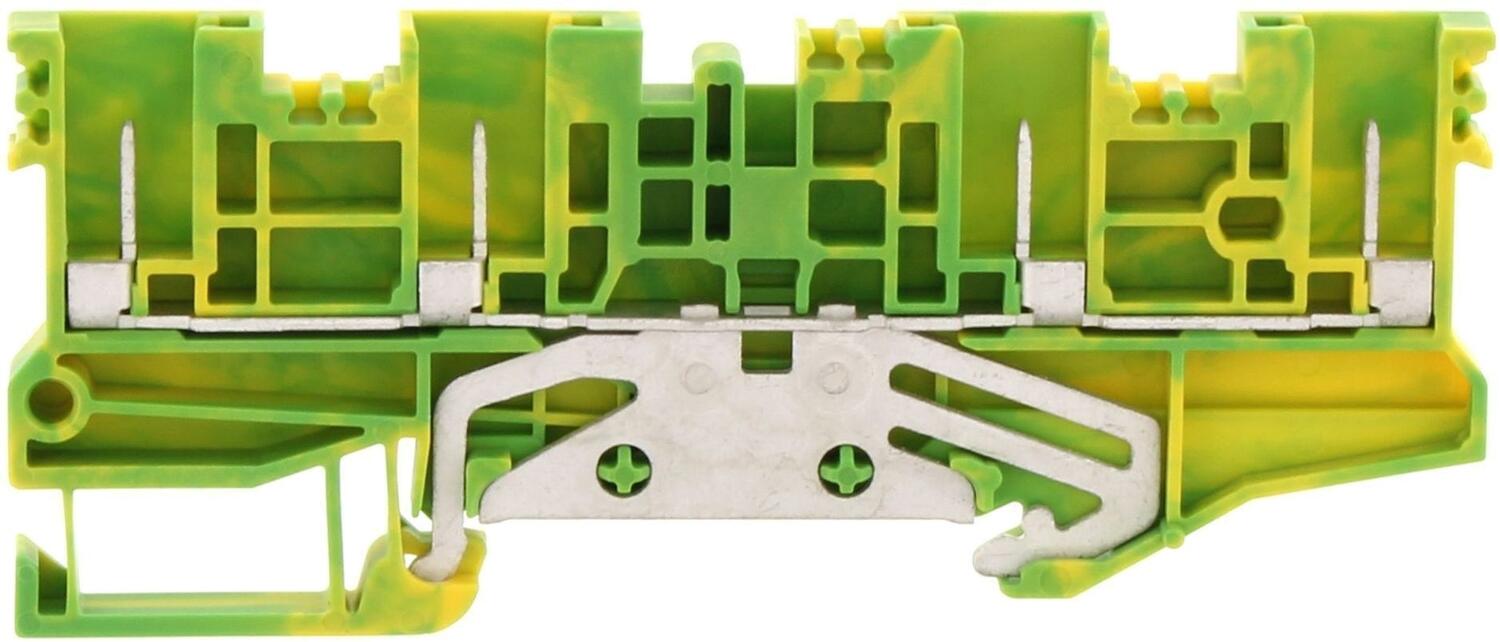

ZSLS 2,5/4S GNYE
Art:
3664.2 Copied
Green/yellow
TS 35/7,5
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
90.5 mm
5.1 mm
39.5 mm
38.5 mm
4
1
1
0
Polyamide 6.6
UL94-V0
-40 °C
120 °C
UL 1059
C22.2 No 158
UL 1059
C22.2 No 158
TR ZU 004/2011
EN 60947-7-2:2009
85369010
DE
13.96 g
100
Green and yellow connection clamp with metal components, ideal for electrical installations.

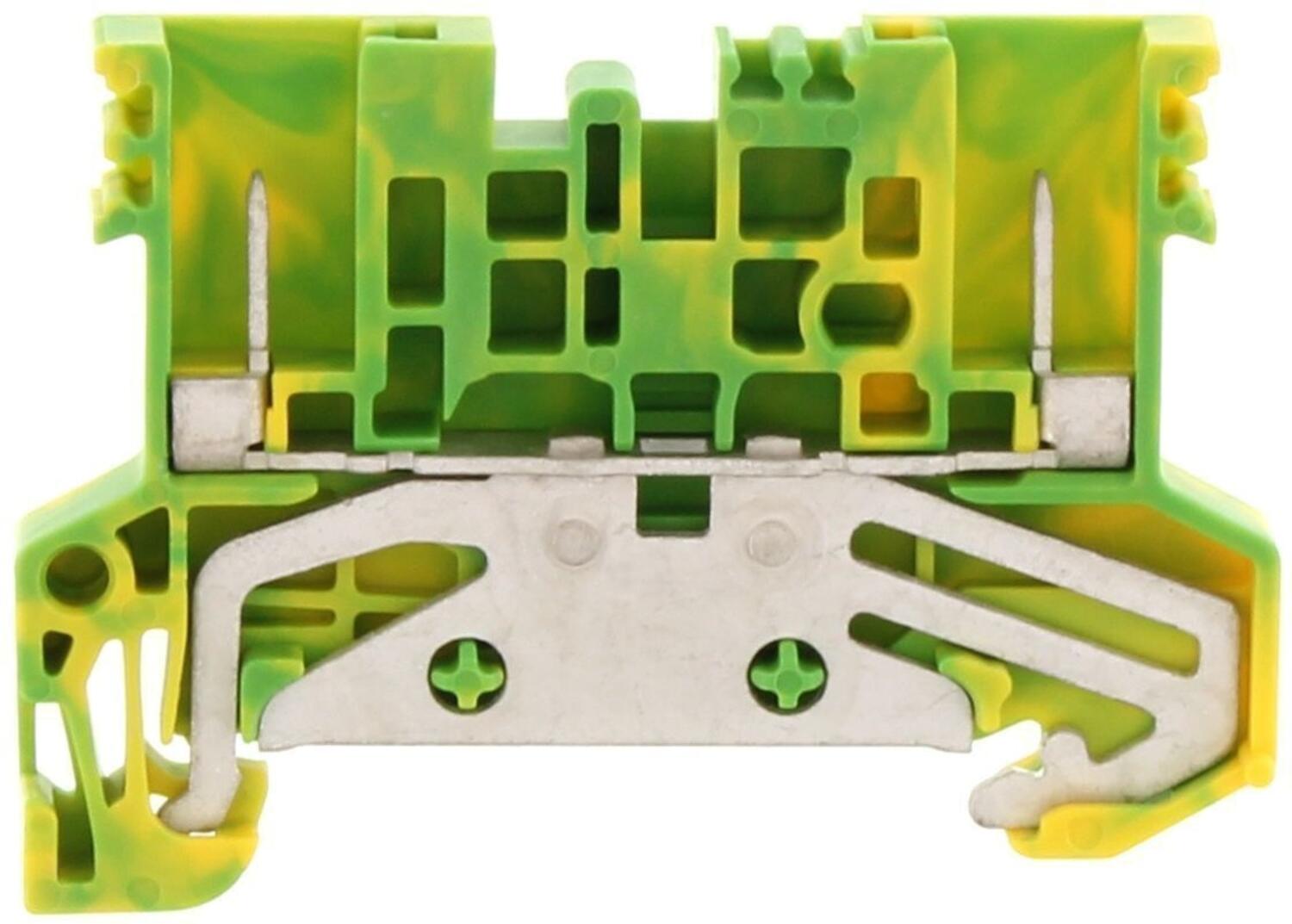

ZSLS 2,5/2S GNYE
Art:
3665.2 Copied
Green/yellow
TS 35/7,5
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
54 mm
5.1 mm
39.5 mm
38.5 mm
2
1
1
0
Polyamide 6.6
UL94-V0
-40 °C
120 °C
UL 1059
C22.2 No 158
UL 1059
C22.2 No 158
TR ZU 004/2011
EN 60947-7-2:2009
85369010
DE
10.97 g
100

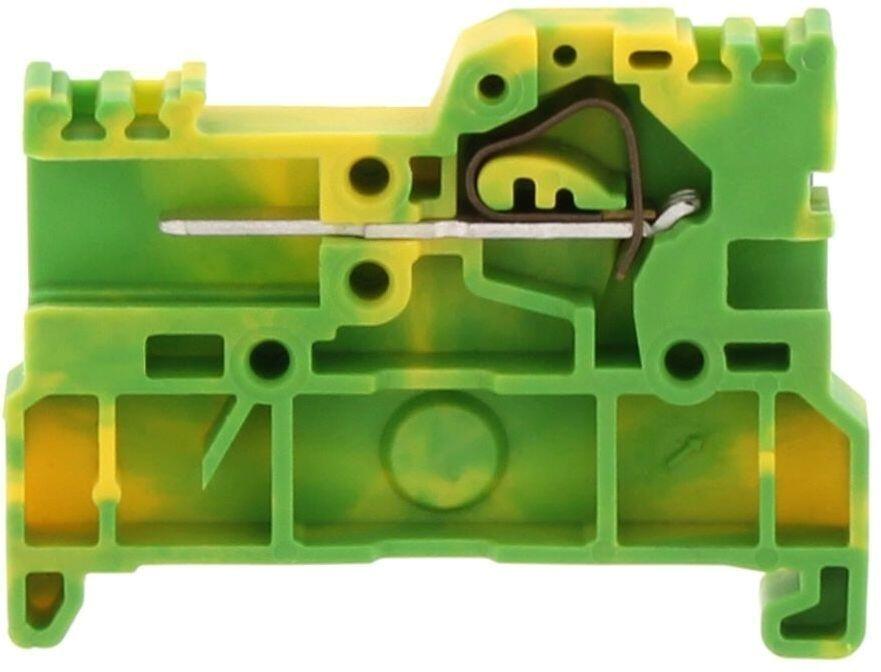

Green and yellow plastic component with metal spring, used for electrical connections
ZSTK 2,5/1A/1S-H/Z/B/35 GNYE
Art:
3667.0 Copied
2.5 mm²
Green/yellow
500 V
24 A
TS 35/7,5
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
44 mm
5.1 mm
35 mm
30 mm
1
1
A3
0
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
4.5 g
100

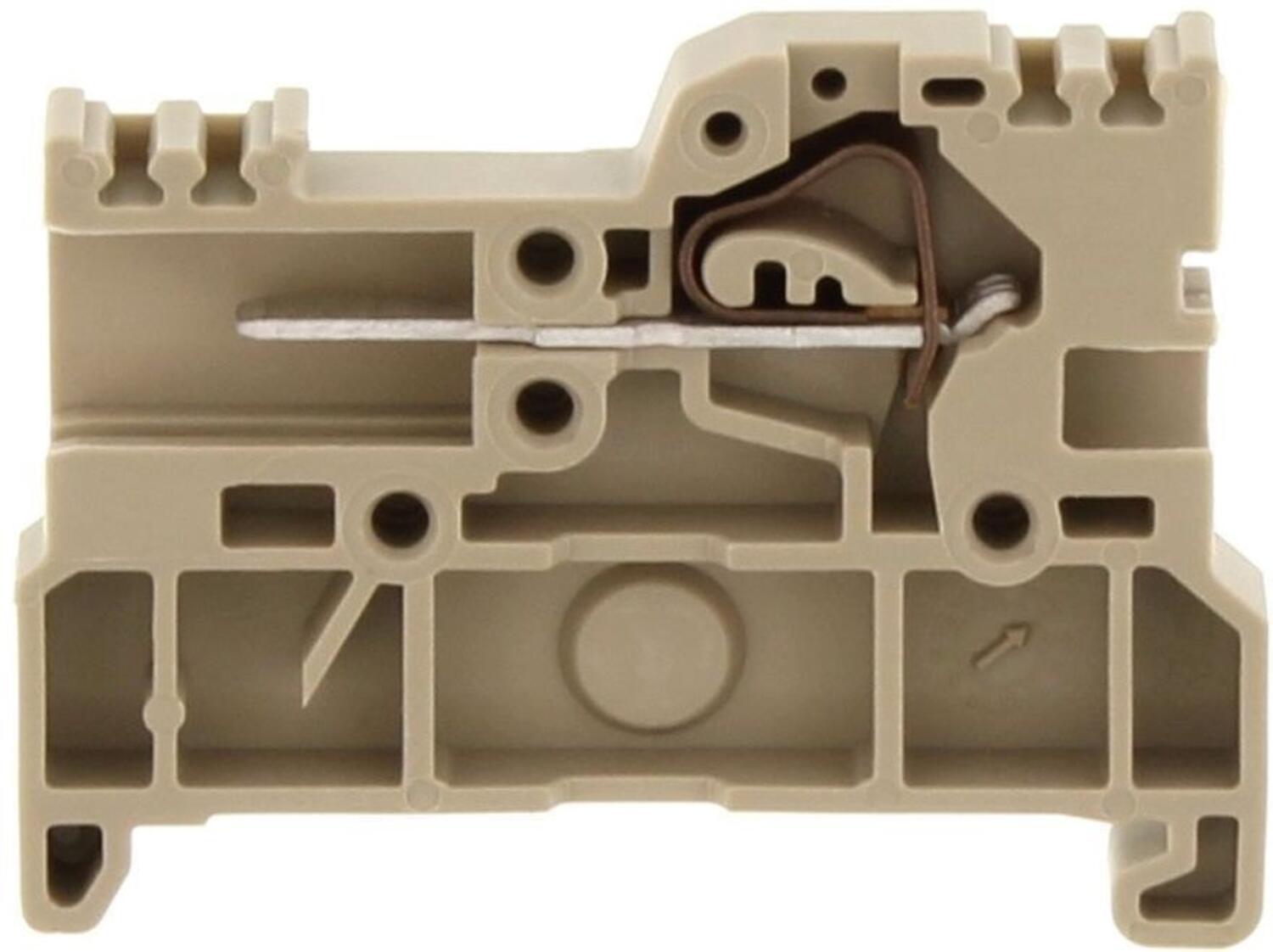

Terminal block in beige plastic with built-in spring mechanism for electrical connections
ZSTK 2,5/1A/1S-H/Z/B/35 BG
Art:
3667.2 Copied
2.5 mm²
Beige
500 V
24 A
TS 35/7,5
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
44 mm
5.1 mm
35 mm
30 mm
1
1
A3
0
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
4.5 g
100

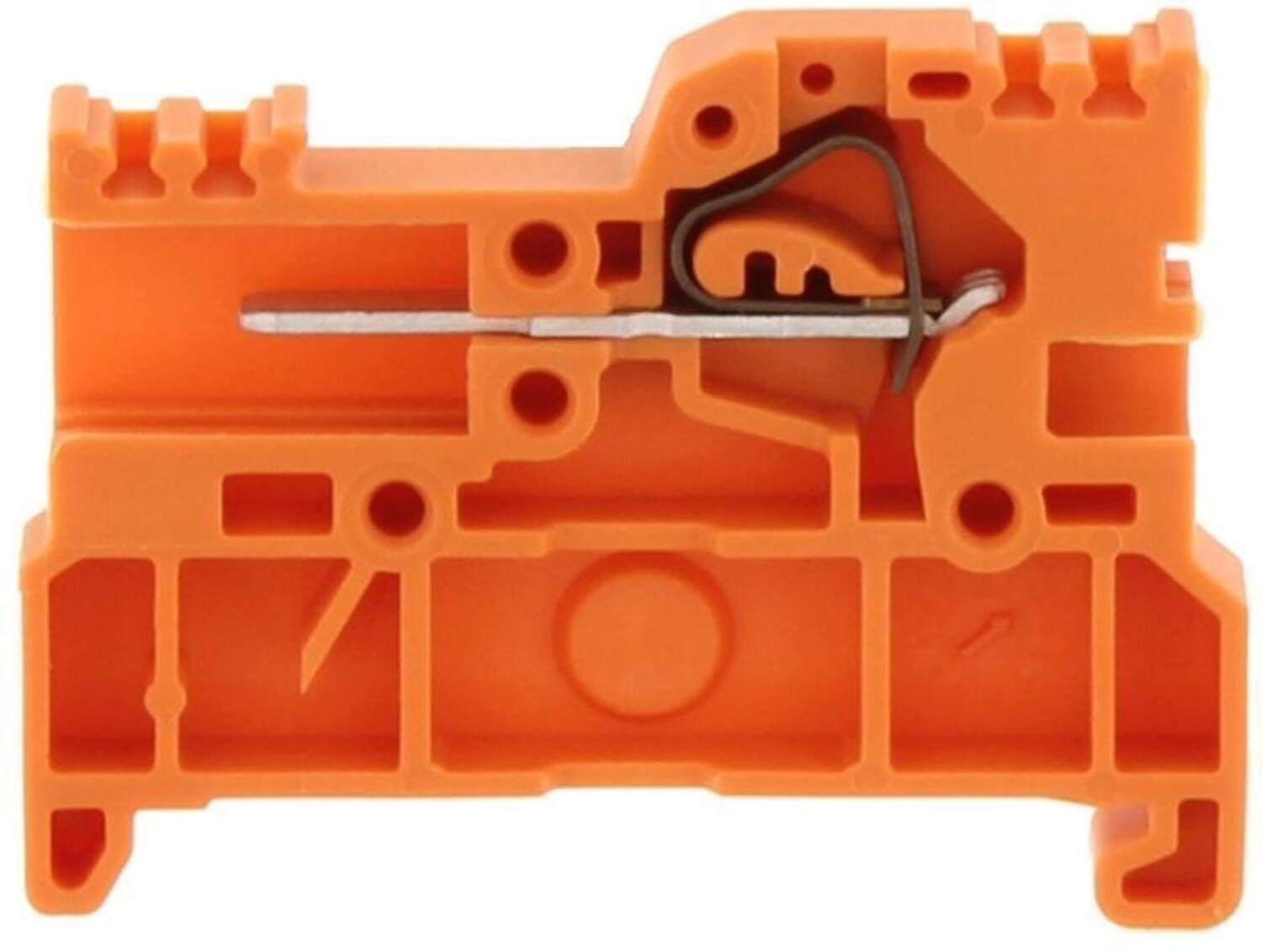

Orange connection block with metal clamp, ideal for electrical installations
ZSTK 2,5/1A/1S-H/Z/B/35 OG
Art:
3667.3 Copied
2.5 mm²
Orange
500 V
24 A
TS 35/7,5
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
44 mm
5.1 mm
35 mm
30 mm
1
1
A3
0
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
4.5 g
100
Blue component with metal spring, used in industrial automation and electrical installations

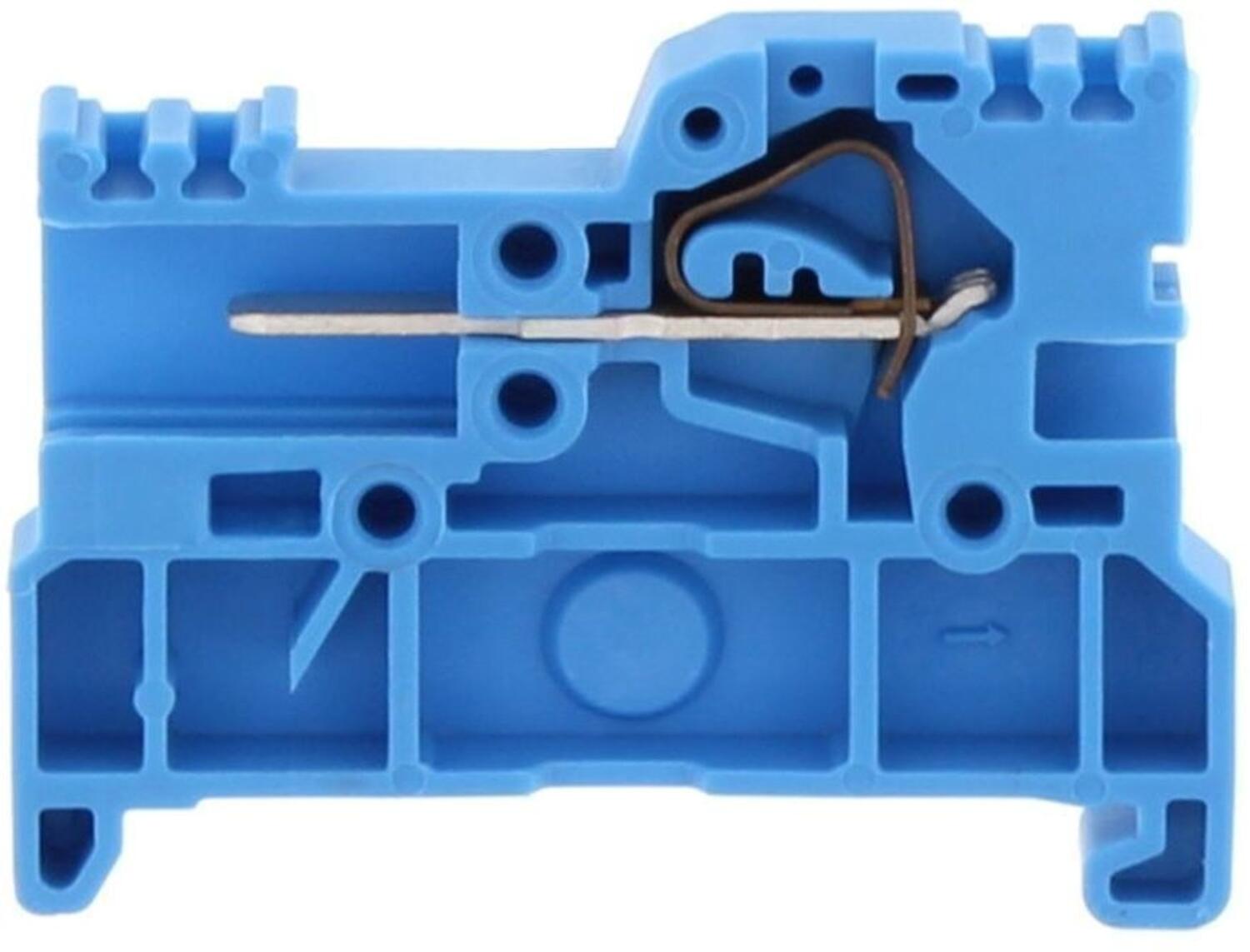

ZSTK 2,5/1A/1S-H/Z/B/35 BU
Art:
3667.5 Copied
2.5 mm²
Blue
500 V
24 A
TS 35/7,5
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
44 mm
5.1 mm
35 mm
30 mm
1
1
A3
0
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
4.5 g
100

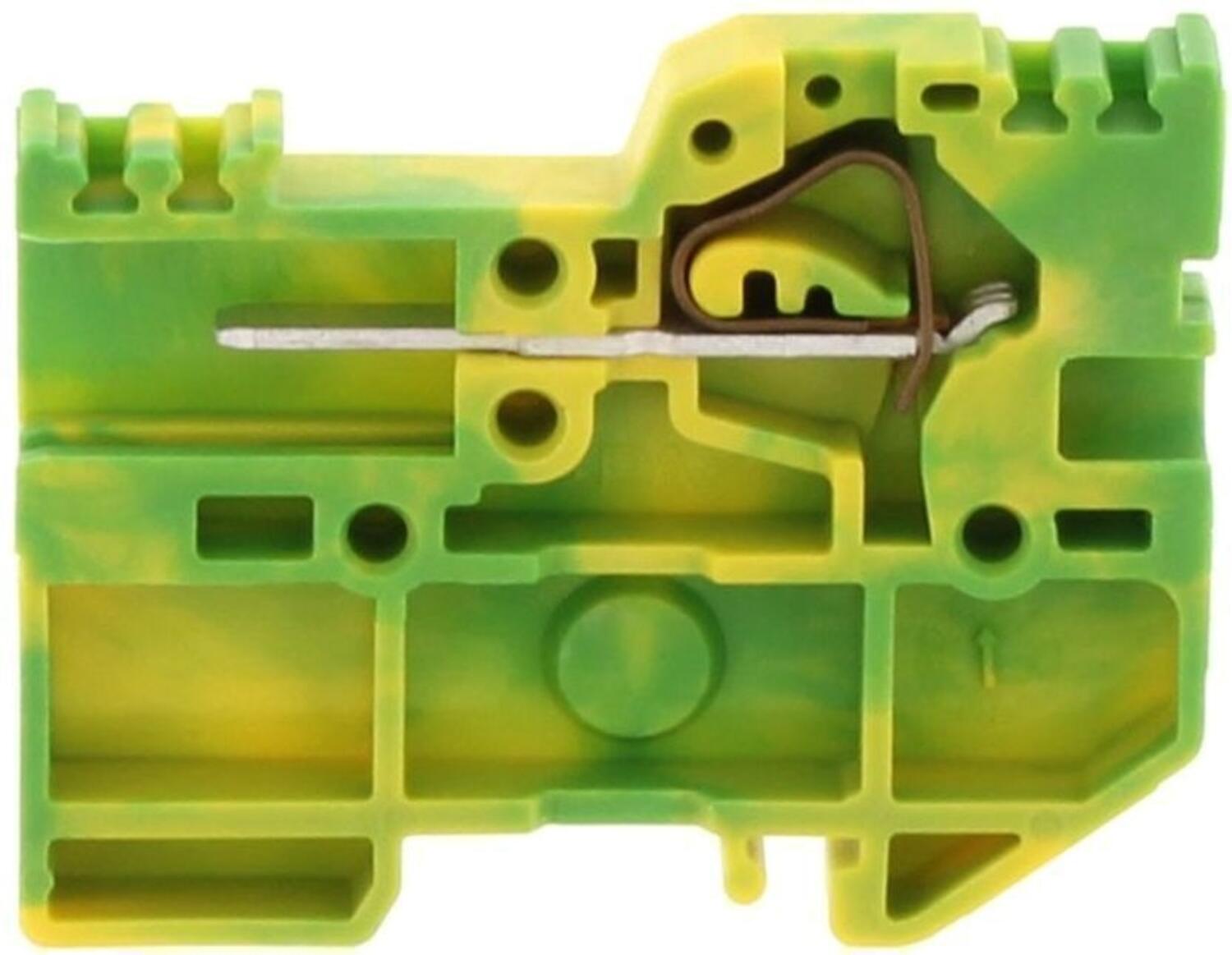

Green and yellow plastic component with built-in spring, used for electrical connections
ZSTK 2,5/1A/1S-H/Z/B/15 GNYE
Art:
3668.0 Copied
2.5 mm²
Green/yellow
500 V
24 A
TS 15/5,5
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
40 mm
5.1 mm
33 mm
32 mm
1
1
A3
0
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
4.25 g
100

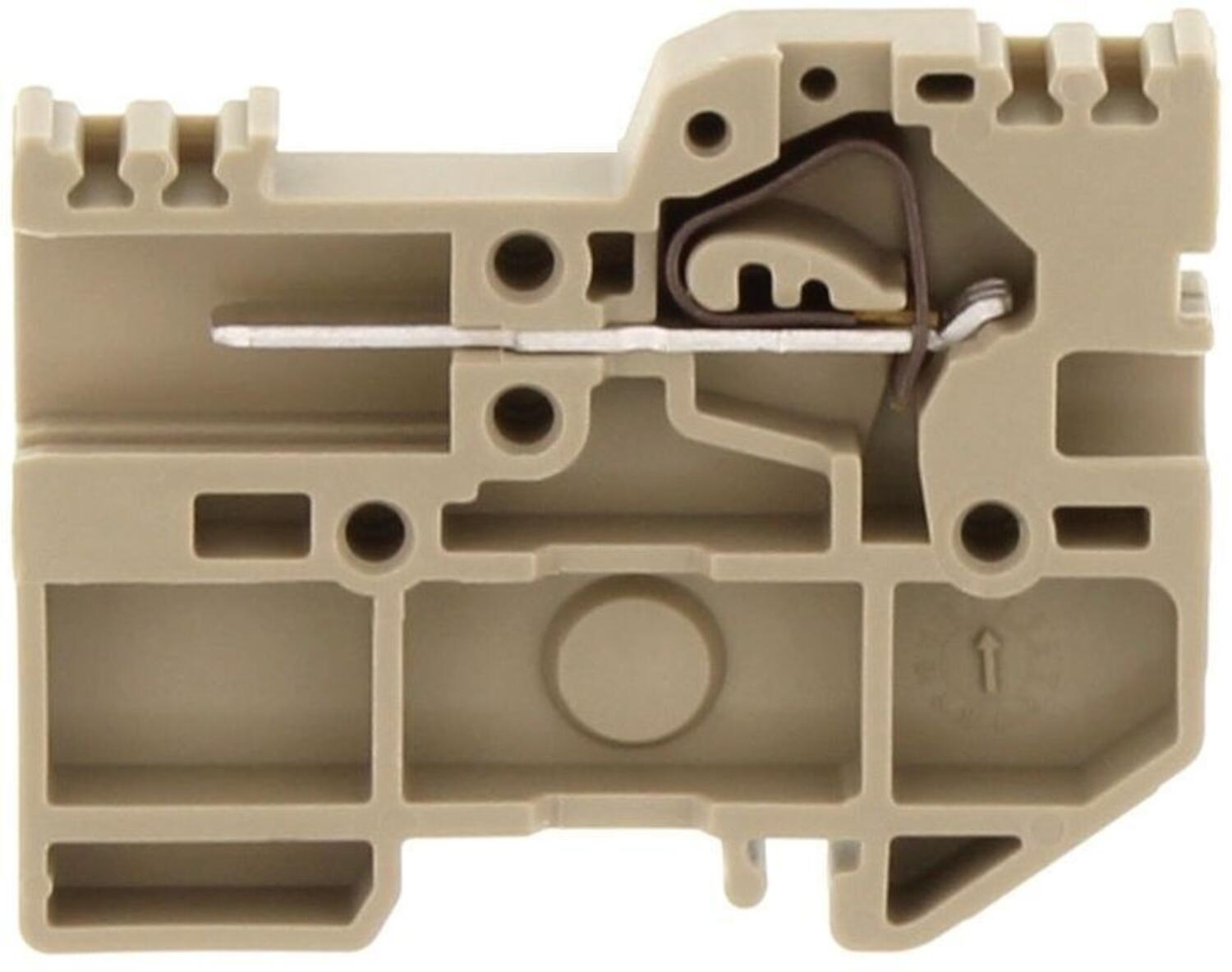

Connection component in beige plastic with detailed design and mounting for electrical connections
ZSTK 2,5/1A/1S-H/Z/B/15 BG
Art:
3668.2 Copied
2.5 mm²
Beige
500 V
24 A
TS 15/5,5
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
40 mm
5.1 mm
33 mm
32 mm
1
1
A3
0
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
4.25 g
100
Orange component with spring and mounting, ideal for electrical installations.

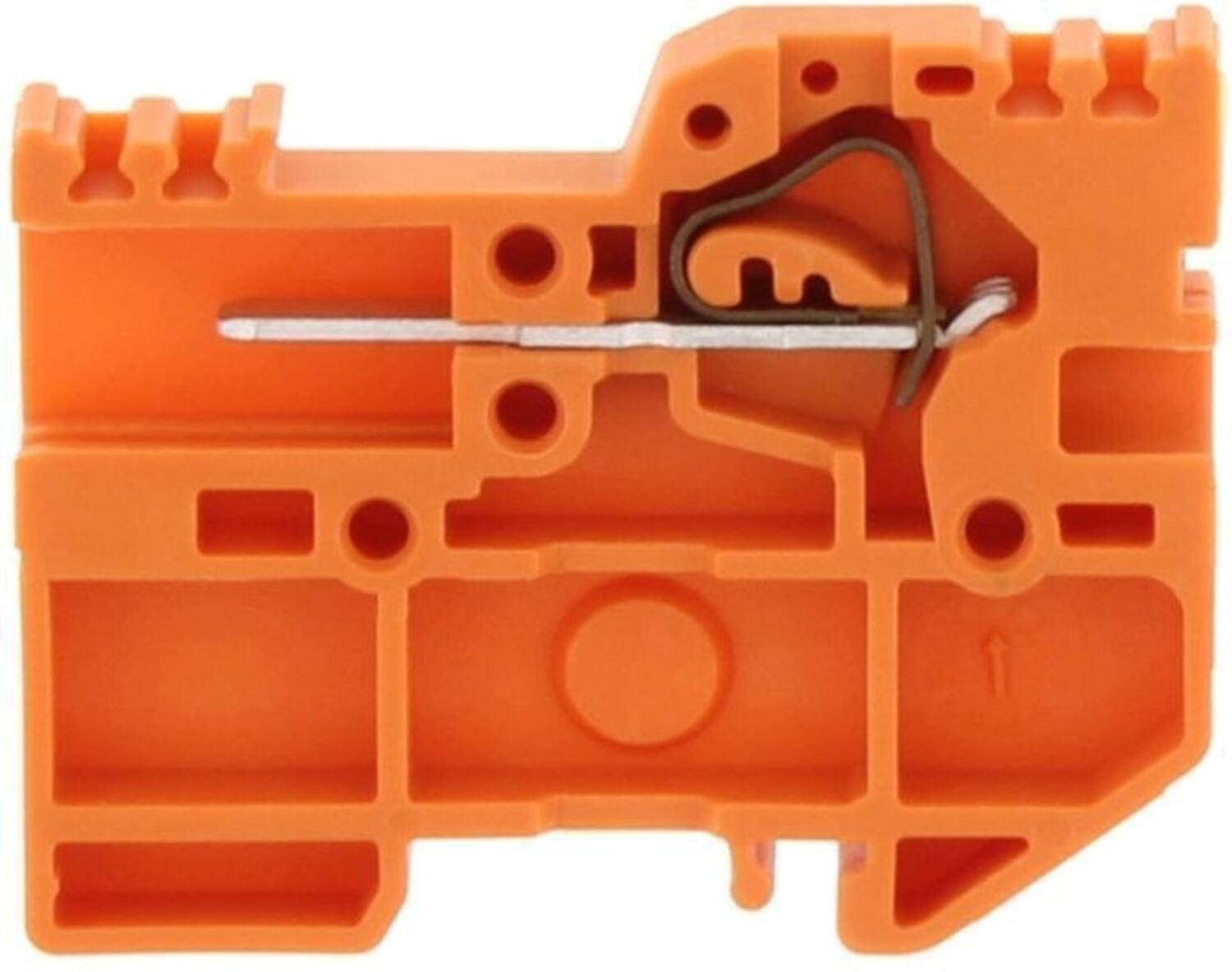

ZSTK 2,5/1A/1S-H/Z/B/15 OG
Art:
3668.3 Copied
2.5 mm²
Orange
500 V
24 A
TS 15/5,5
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
40 mm
5.1 mm
33 mm
32 mm
1
1
A3
0
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
4.25 g
100
Blue electrical component with metal spring, designed for connections and couplings

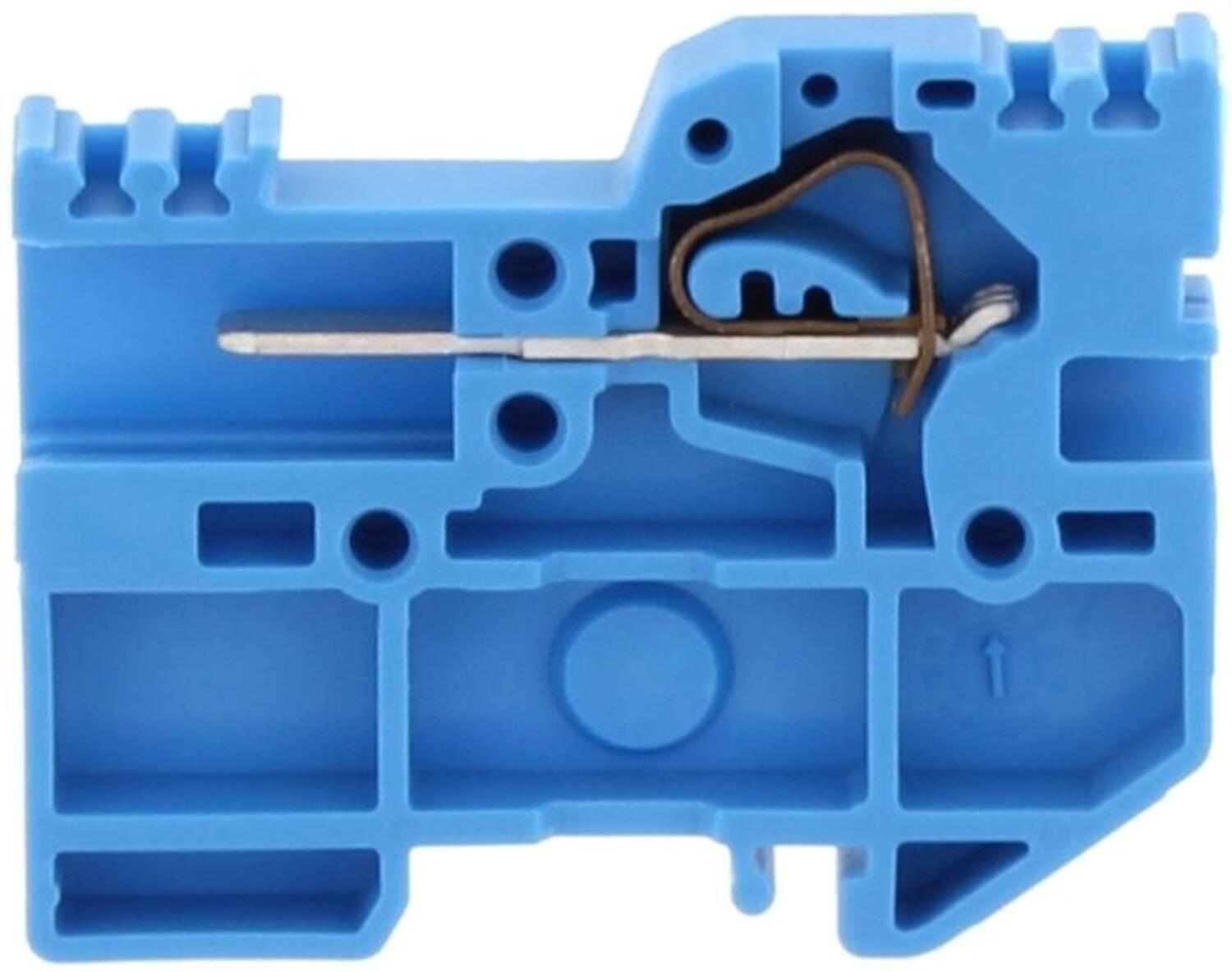

ZSTK 2,5/1A/1S-H/Z/B/15 BU
Art:
3668.5 Copied
2.5 mm²
Blue
500 V
24 A
TS 15/5,5
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
40 mm
5.1 mm
33 mm
32 mm
1
1
A3
0
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
4.25 g
100

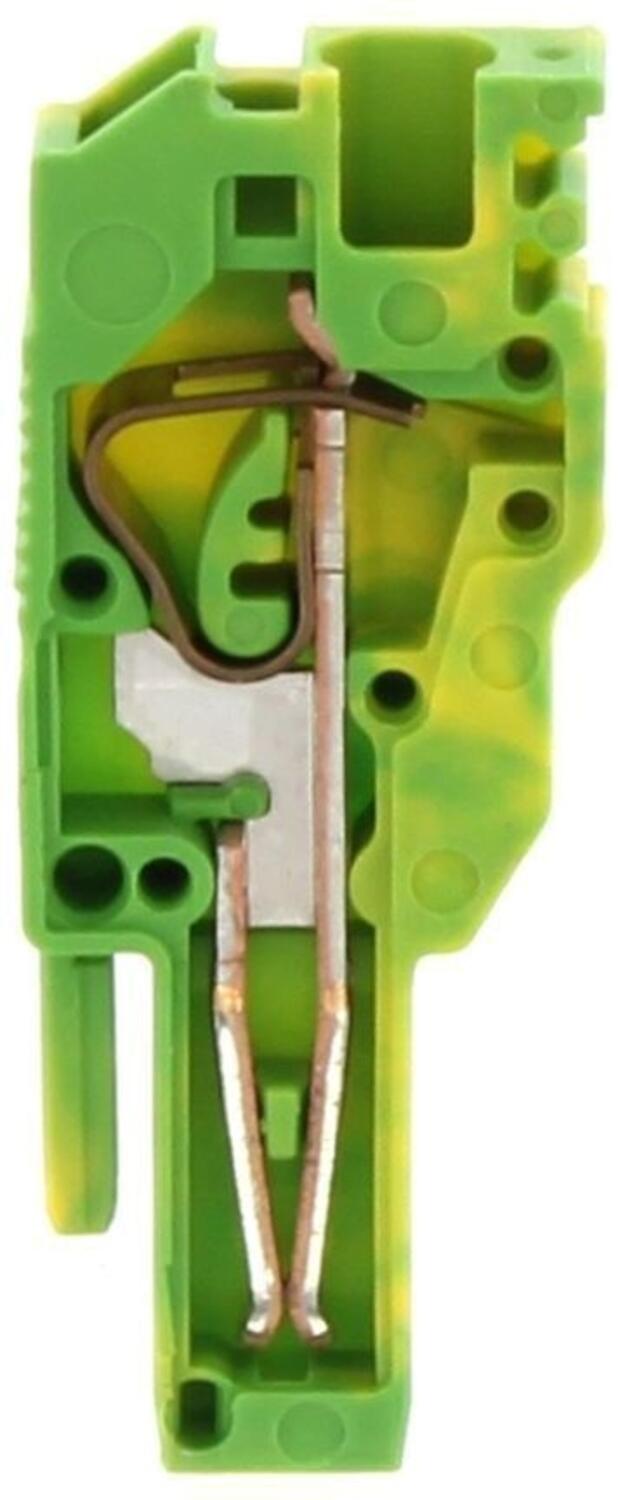

Green connection clamp with metal components for electrical installations
ZST 2,5/1A GNYE
Art:
3670.0 Copied
2.5 mm²
Green/yellow
500 V
24 A
Push in
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
42 mm
5.1 mm
16.5 mm
1
A3
0
1
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
3.124 g
100
Connection module in beige plastic with visible internal components for electrical connections
ZST 2,5/1A BG
Art:
3670.2 Copied
2.5 mm²
Beige
500 V
24 A
Push in
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
42 mm
5.1 mm
16.5 mm
1
A3
0
1
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
3.124 g
100

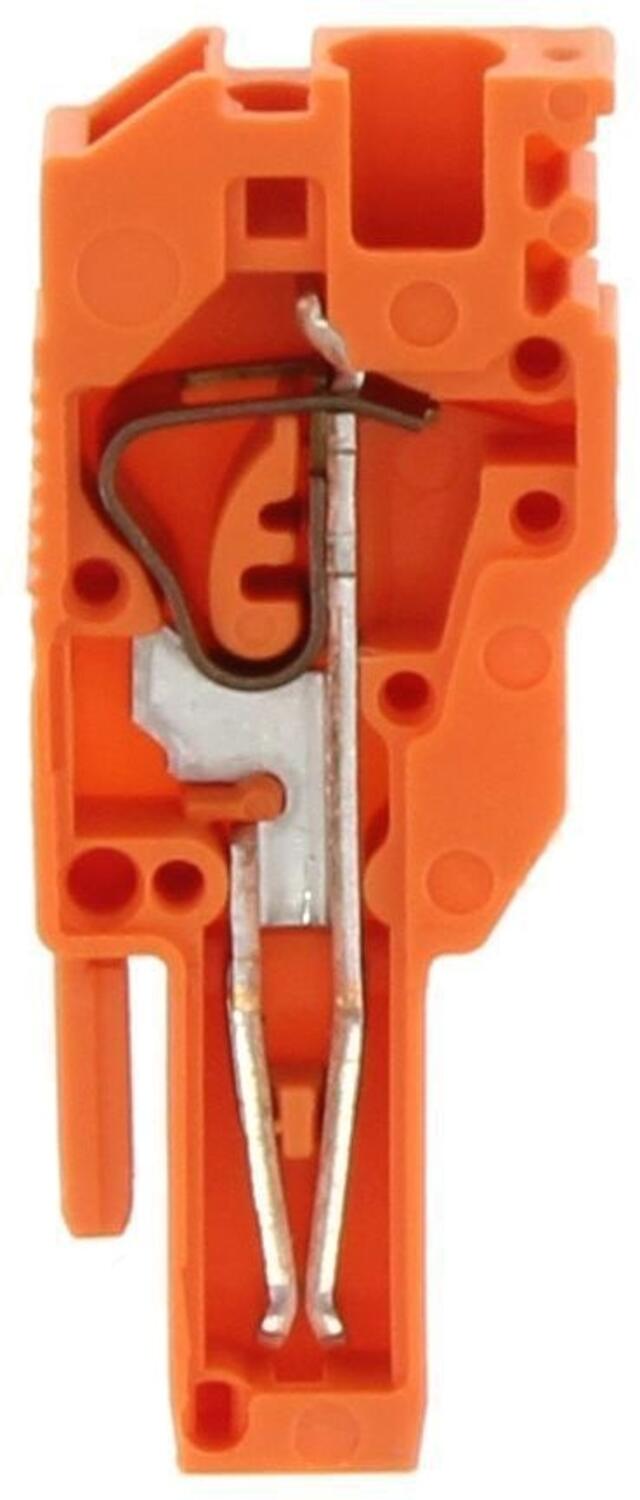

Connection clamp in orange plastic with metal components, designed for electrical connections.
ZST 2,5/1A OG
Art:
3670.3 Copied
2.5 mm²
Orange
500 V
24 A
Push in
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
42 mm
5.1 mm
16.5 mm
1
A3
0
1
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
3.5 g
100

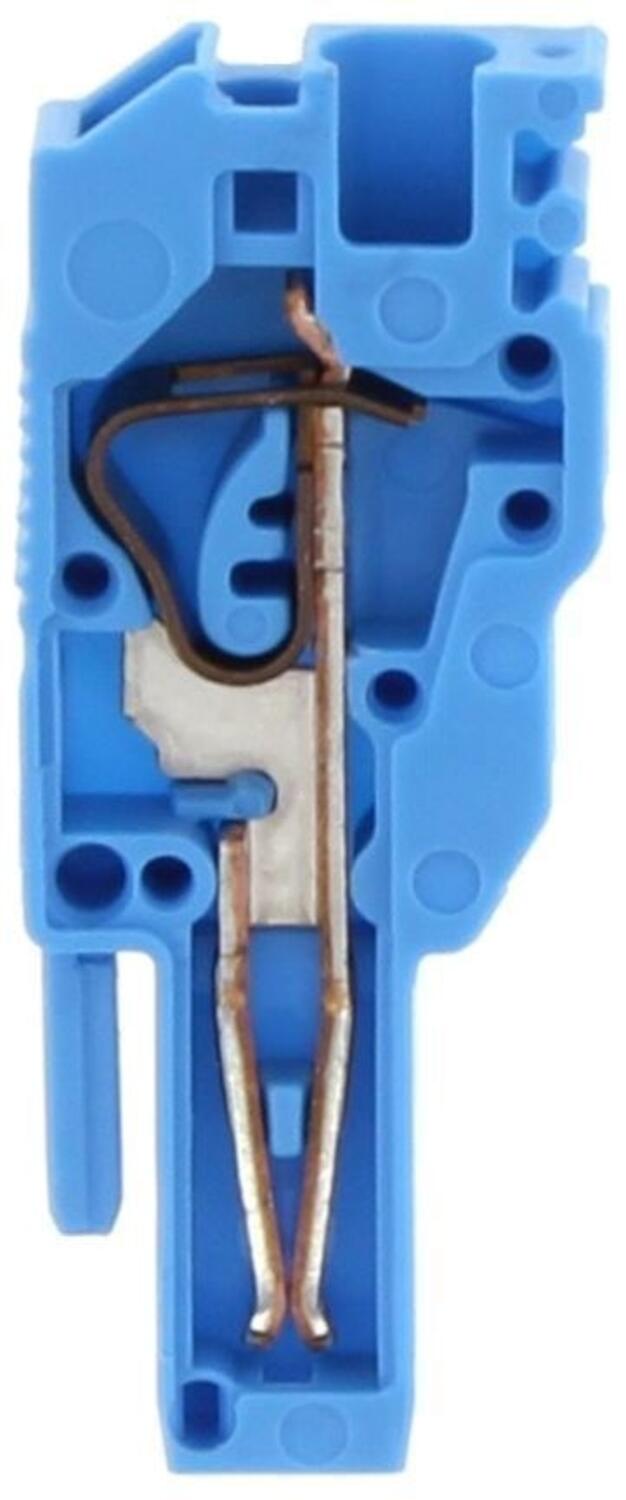

Blue connection clamp with metal components for electrical installations
ZST 2,5/1A BU
Art:
3670.5 Copied
2.5 mm²
Blue
500 V
24 A
Push in
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
42 mm
5.1 mm
16.5 mm
1
A3
0
1
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
3.124 g
100
Green and yellow electrical component with internal wiring, ideal for industrial use
ZST 2,5/1A/Z GNYE
Art:
3671.0 Copied
2.5 mm²
Green/yellow
500 V
24 A
Push in
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
with housing pegs
42 mm
5.1 mm
16.5 mm
1
A3
0
1
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
3.174 g
100

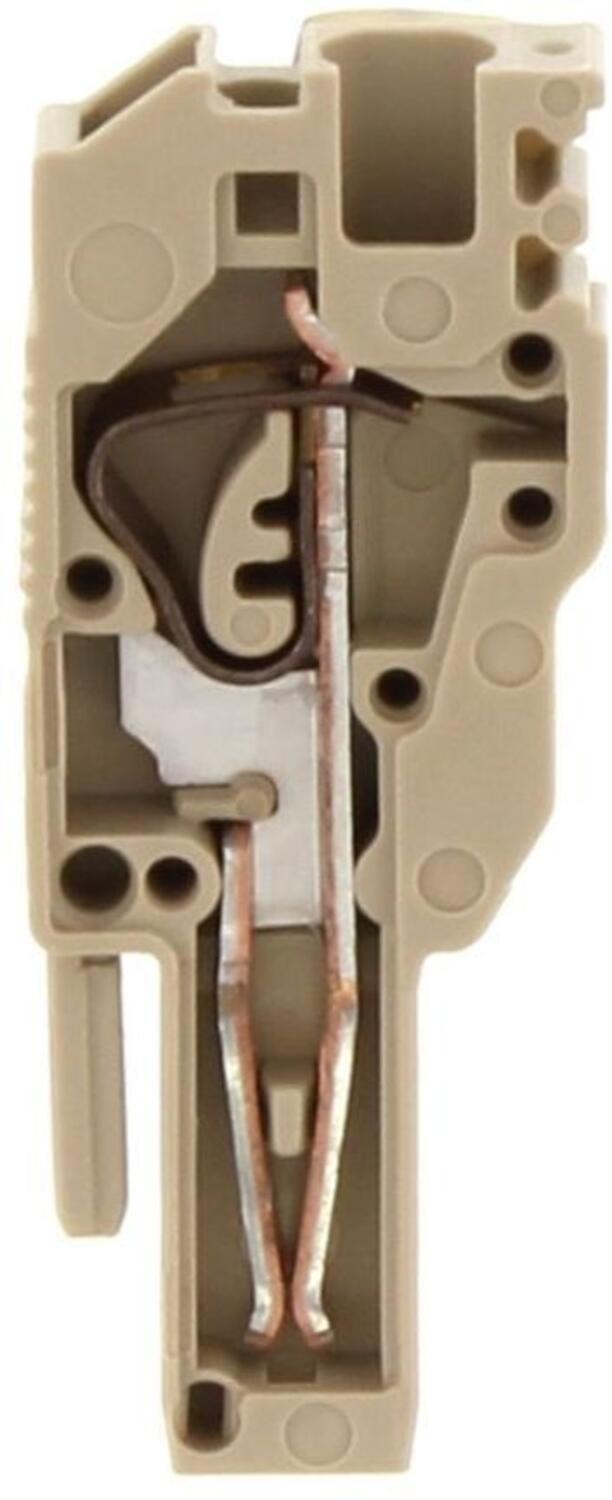

Connection component in beige plastic with metal conductors, designed for electrical installations.
ZST 2,5/1A/Z BG
Art:
3671.2 Copied
2.5 mm²
Beige
500 V
24 A
Push in
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
with housing pegs
42 mm
5.1 mm
16.5 mm
1
A3
0
1
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
3.174 g
100
Terminal block in orange plastic with metal components for electrical connections
ZST 2,5/1A/Z OG
Art:
3671.3 Copied
2.5 mm²
Orange
500 V
24 A
Push in
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
with housing pegs
42 mm
5.1 mm
16.5 mm
1
A3
0
1
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
4 g
100

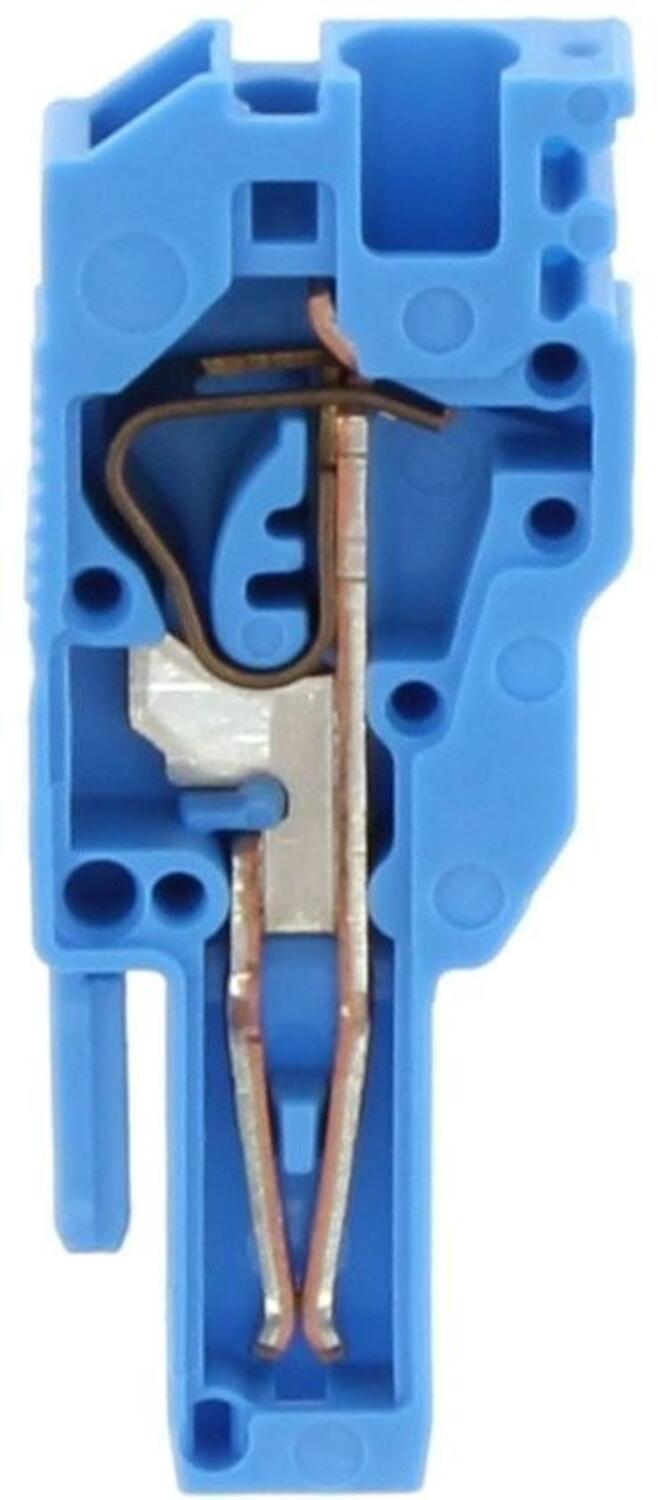

Blue connection clamp with metal conductors for electrical installations
ZST 2,5/1A/Z BU
Art:
3671.5 Copied
2.5 mm²
Blue
500 V
24 A
Push in
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
with housing pegs
42 mm
5.1 mm
16.5 mm
1
A3
0
1
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
3.174 g
100

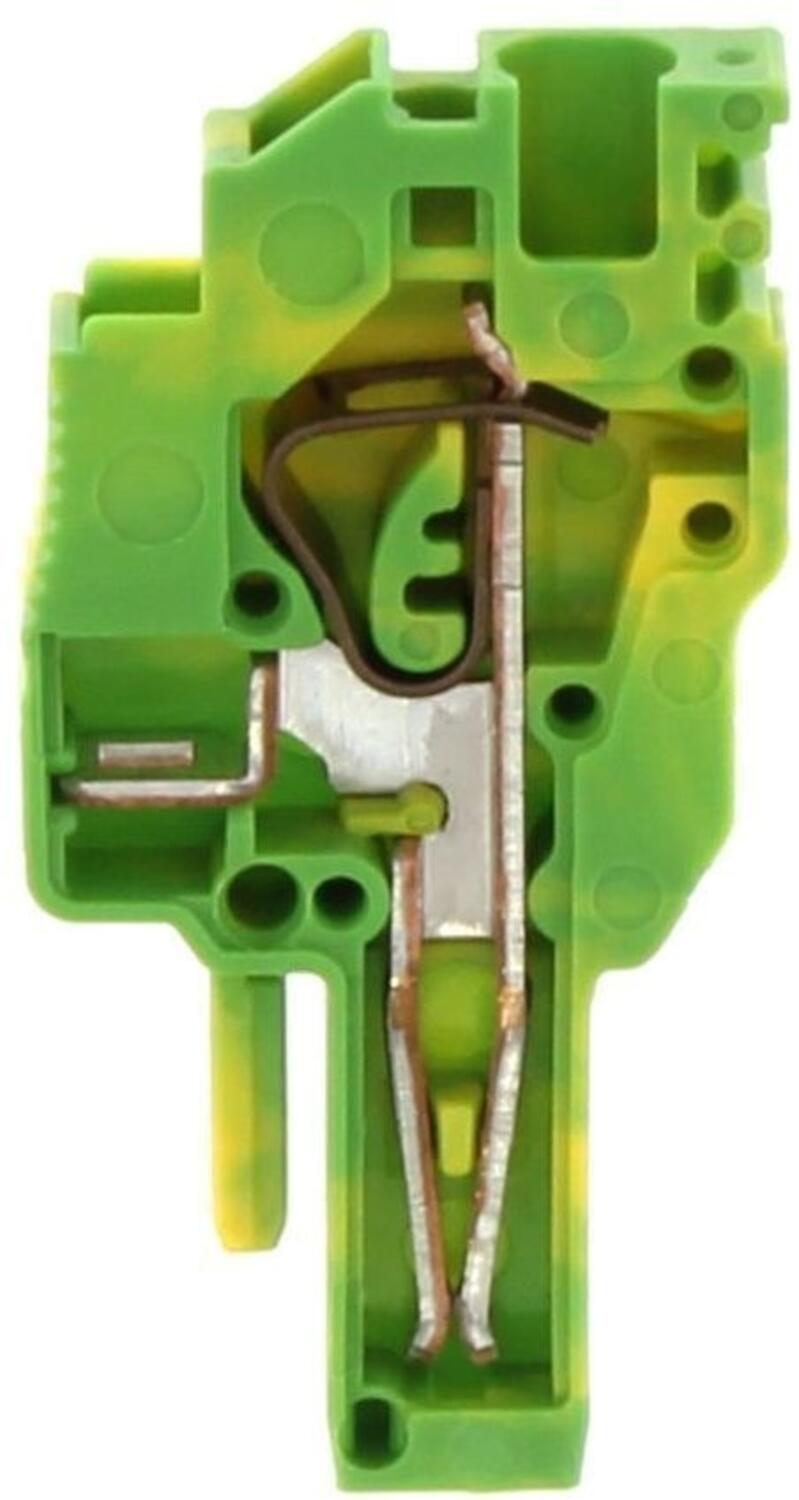

Green electrical connection with metal components, ideal for industrial use.
ZST 2,5/1A/Q GNYE
Art:
3672.0 Copied
2.5 mm²
Green/yellow
500 V
24 A
Push in
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
42 mm
5.1 mm
21 mm
1
A3
1
1
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
4.3 g
100

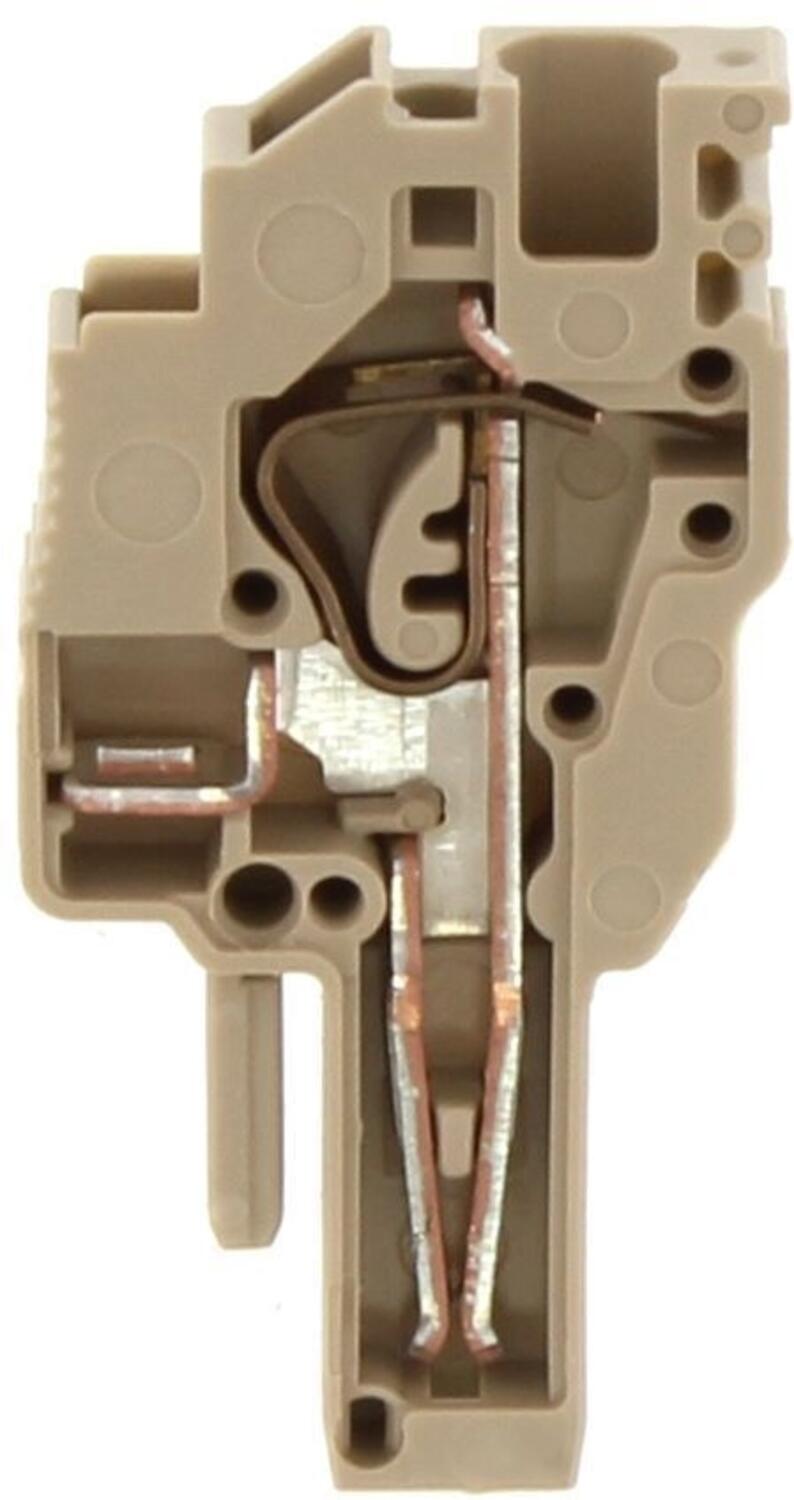

Connection component in beige plastic with visible wires and mechanical parts
ZST 2,5/1A/Q BG
Art:
3672.2 Copied
2.5 mm²
Beige
500 V
24 A
Push in
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
42 mm
5.1 mm
21 mm
1
A3
1
1
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
4.3 g
100
Connecting clamp in orange plastic with metal components for electrical connections
ZST 2,5/1A/Q OG
Art:
3672.3 Copied
2.5 mm²
Orange
500 V
24 A
Push in
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
42 mm
5.1 mm
21 mm
1
A3
1
1
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
4.3 g
100

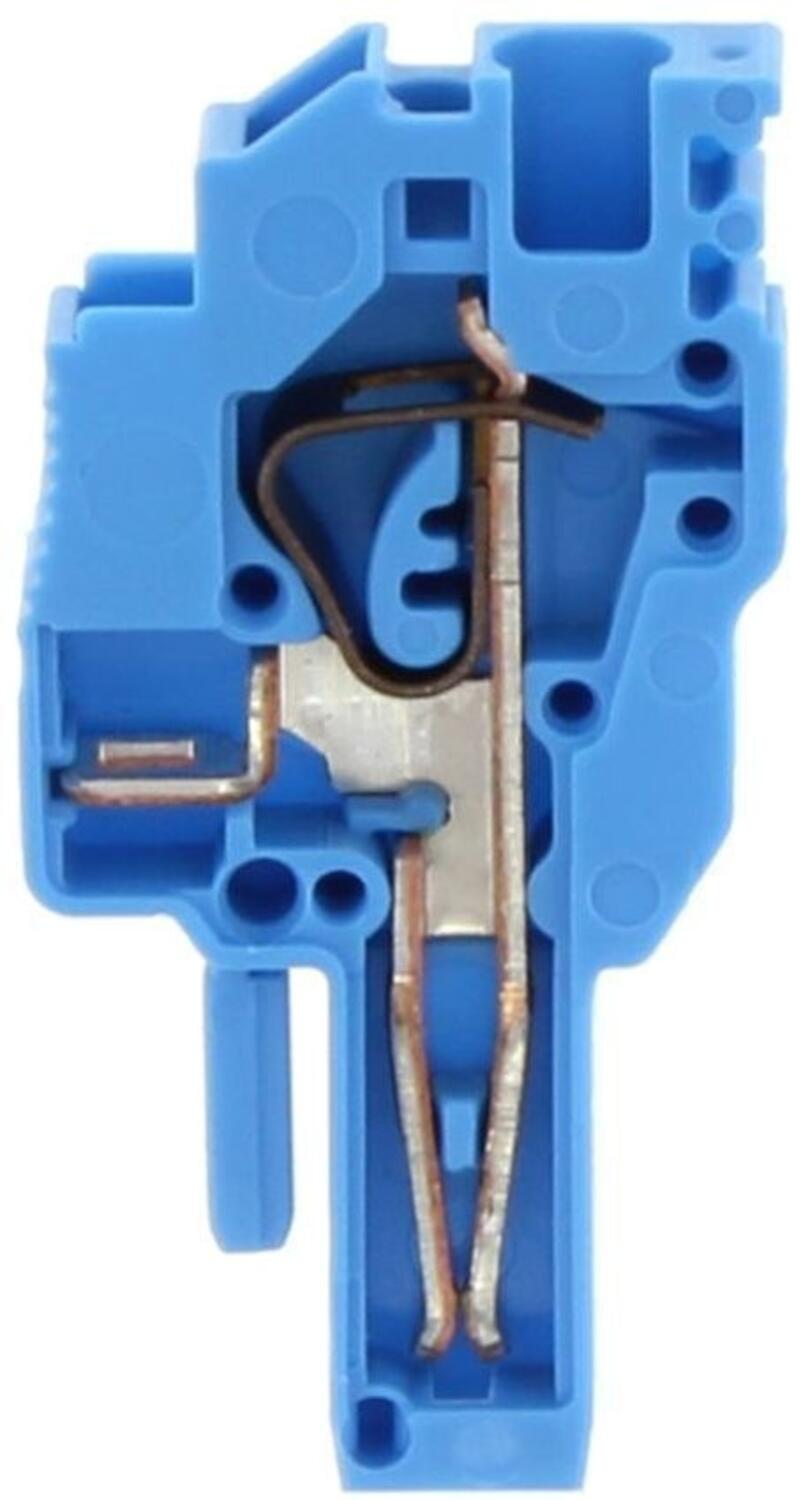

Blue connection clamp with metal contact for electrical installations
ZST 2,5/1A/Q BU
Art:
3672.5 Copied
2.5 mm²
Blue
500 V
24 A
Push in
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
42 mm
5.1 mm
21 mm
1
A3
1
1
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
4.3 g
100

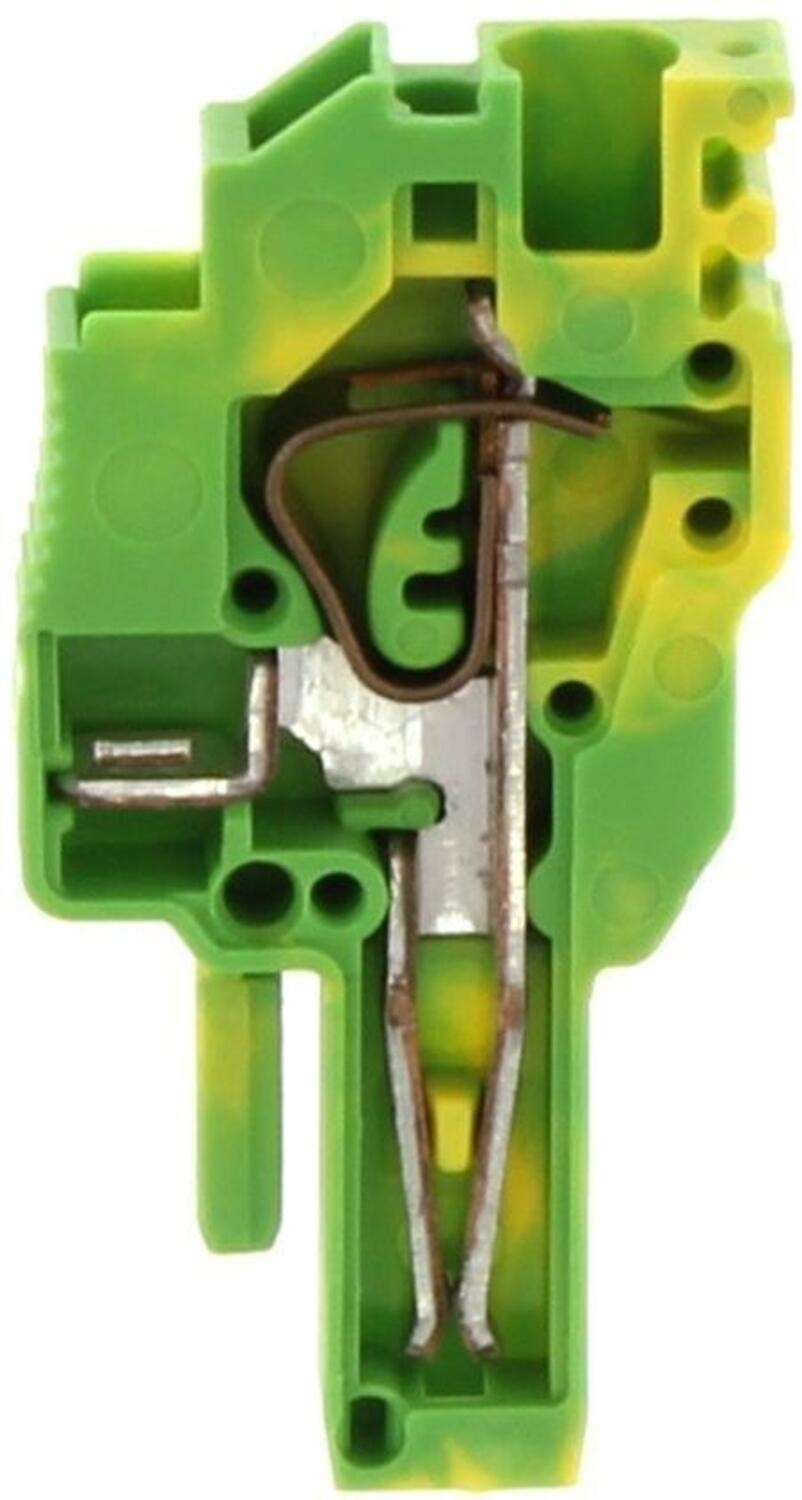

Green connection clamp with metal spring, designed for electrical connections.
ZST 2,5/1A/Q/Z GNYE
Art:
3673.0 Copied
2.5 mm²
Green/yellow
500 V
24 A
Push in
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
with housing pegs
42 mm
5.1 mm
21 mm
1
A3
1
1
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
4.5 g
100

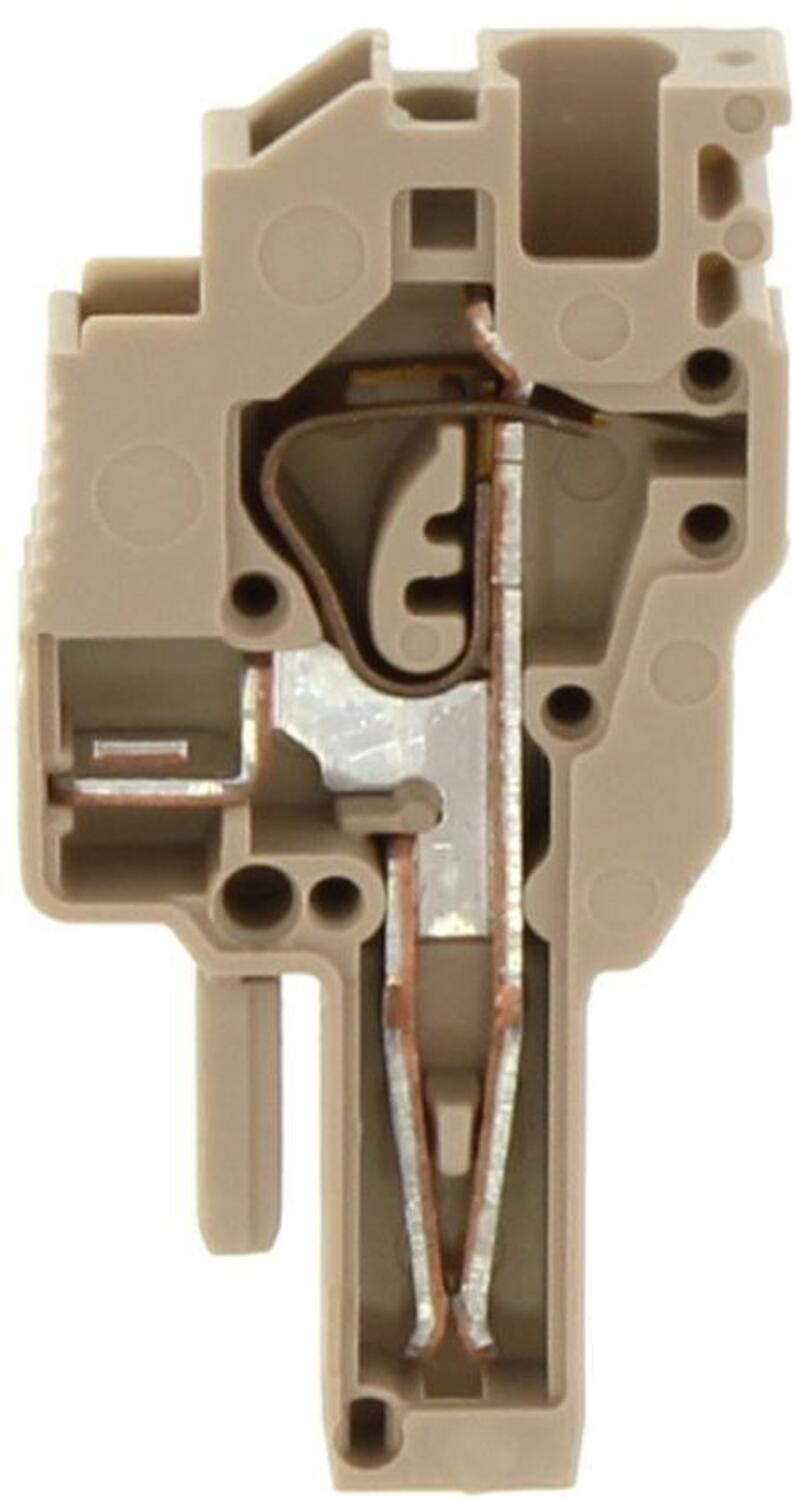

Connection module in beige plastic with visible electrical components and wires
ZST 2,5/1A/Q/Z BG
Art:
3673.2 Copied
2.5 mm²
Beige
500 V
24 A
Push in
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
with housing pegs
42 mm
5.1 mm
21 mm
1
A3
1
1
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
4.5 g
100

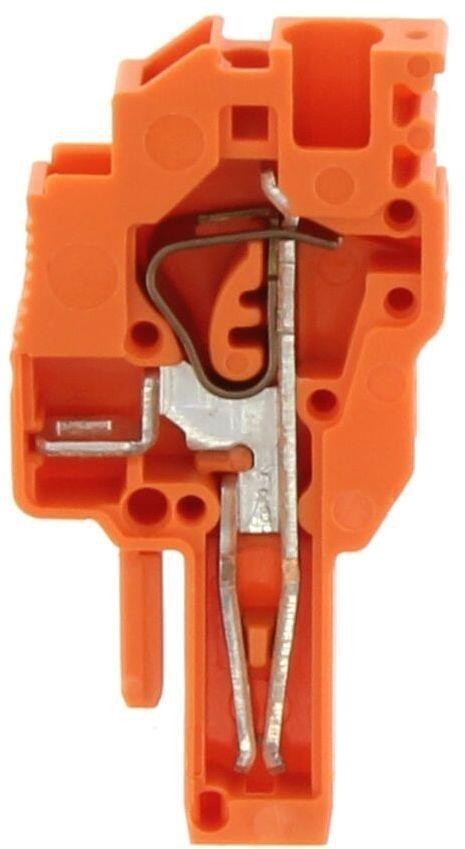

Connecting clamp in orange plastic with metal components for electrical connections
ZST 2,5/1A/Q/Z OG
Art:
3673.3 Copied
2.5 mm²
Orange
500 V
24 A
Push in
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
with housing pegs
42 mm
5.1 mm
21 mm
1
A3
1
1
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
4.5 g
100

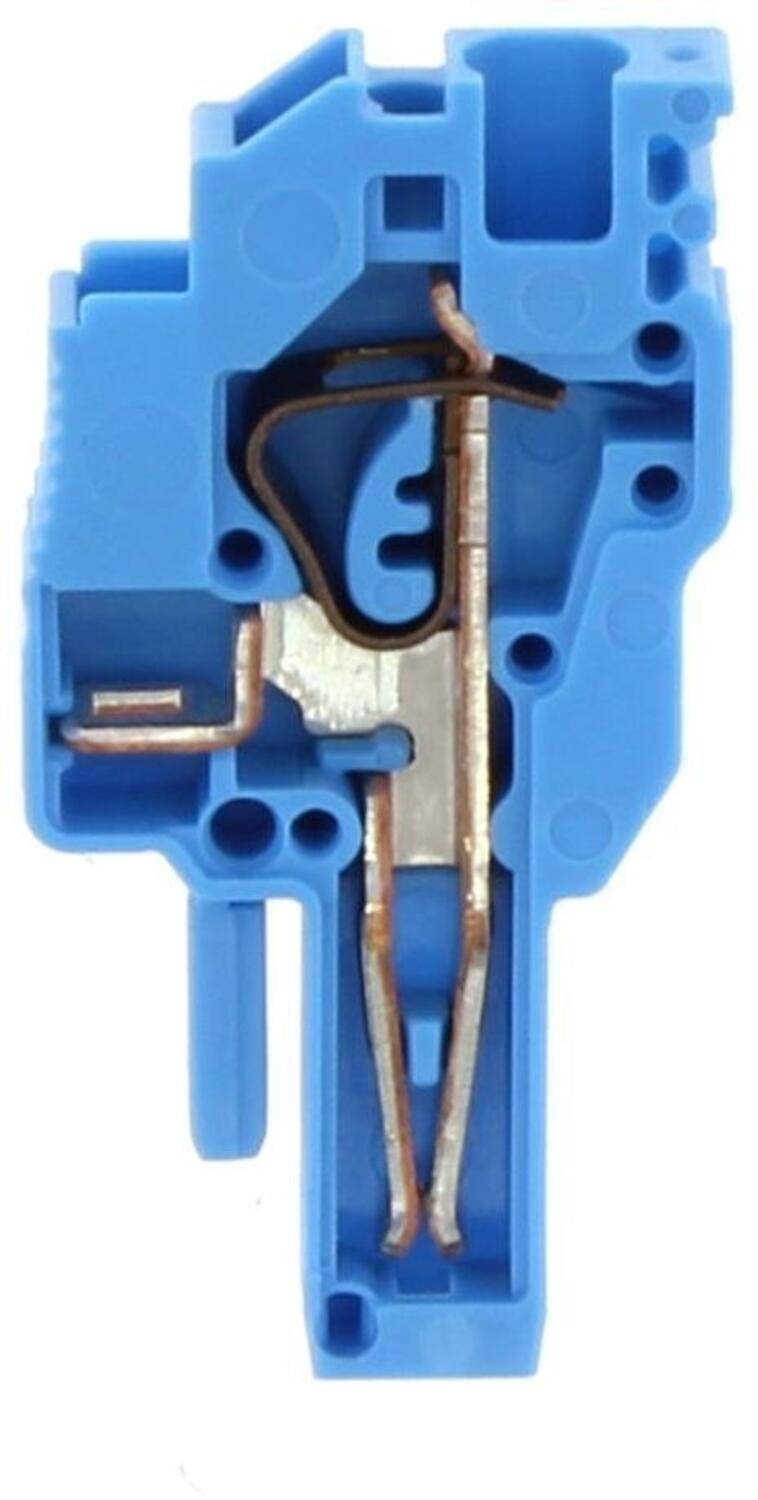

Blue electrical component with metallic contacts, ideal for industrial applications.
ZST 2,5/1A/Q/Z BU
Art:
3673.5 Copied
2.5 mm²
Blue
500 V
24 A
Push in
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
with housing pegs
42 mm
5.1 mm
21 mm
1
A3
1
1
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
4.5 g
100

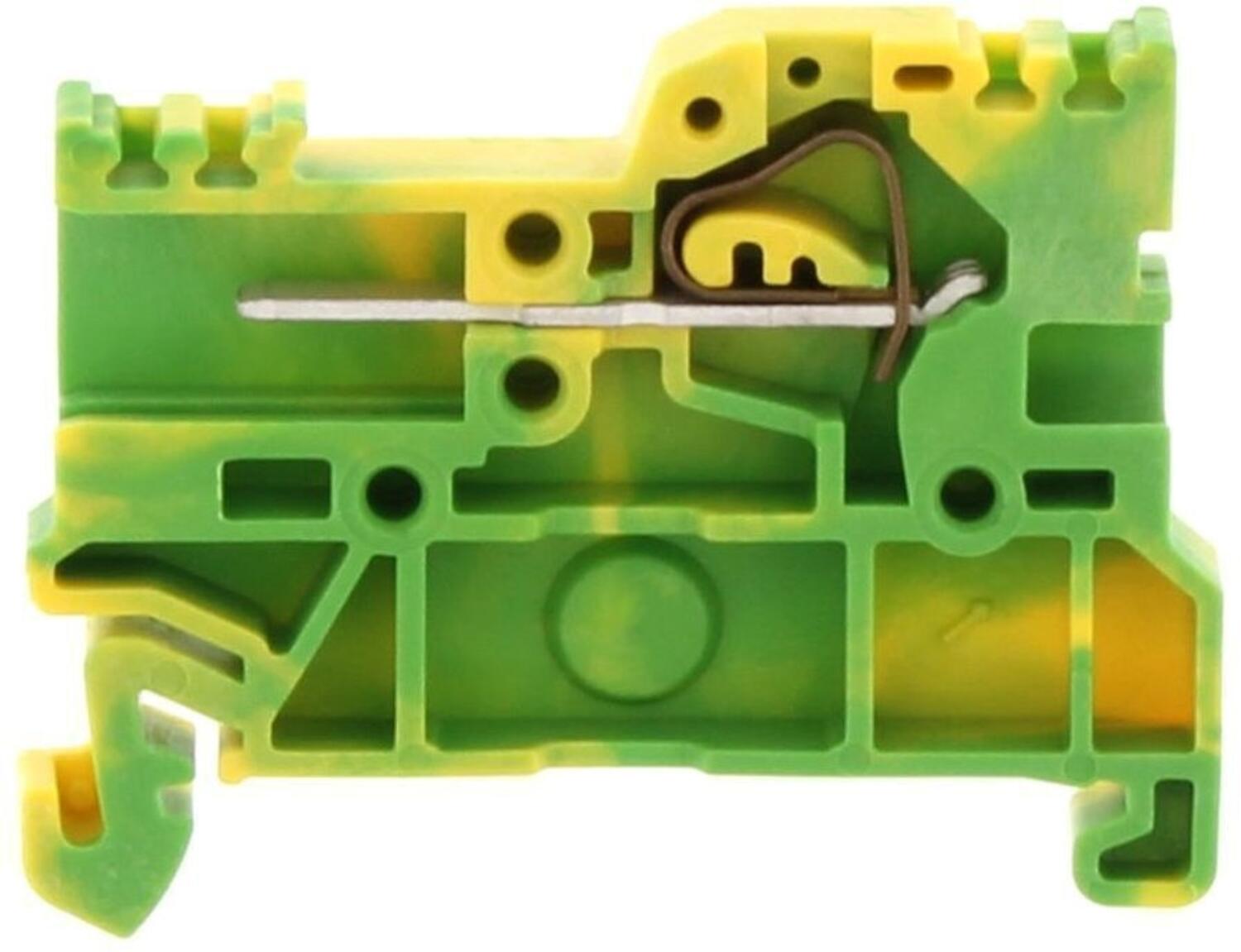

Green and yellow component with detailed structure, intended for industrial use
ZSTK 2,5/1A/1S-H/35 GNYE
Art:
3674.0 Copied
2.5 mm²
Green/yellow
500 V
24 A
TS 35/7,5
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
44 mm
5.1 mm
35 mm
30 mm
2
1
A3
0
1
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
4.5 g
100
Connection module in beige plastic with built-in spring mechanism, designed for electrical installations.
ZSTK 2,5/1A/1S-H/35 BG
Art:
3674.2 Copied
2.5 mm²
Beige
500 V
24 A
TS 35/7,5
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
44 mm
5.1 mm
35 mm
30 mm
2
1
A3
0
1
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
4.5 g
100
Orange connection clamp for electrical installations, robust design with spring mechanism.
ZSTK 2,5/1A/1S-H/35 OG
Art:
3674.3 Copied
2.5 mm²
Orange
500 V
24 A
TS 35/7,5
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
44 mm
5.1 mm
35 mm
30 mm
2
1
A3
0
1
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
4.5 g
100
Blue component for electrical connection with metal bracket, model 3674
ZSTK 2,5/1A/1S-H/35 BU
Art:
3674.5 Copied
2.5 mm²
Blue
500 V
24 A
TS 35/7,5
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
44 mm
5.1 mm
35 mm
30 mm
2
1
A3
0
1
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
4.5 g
100

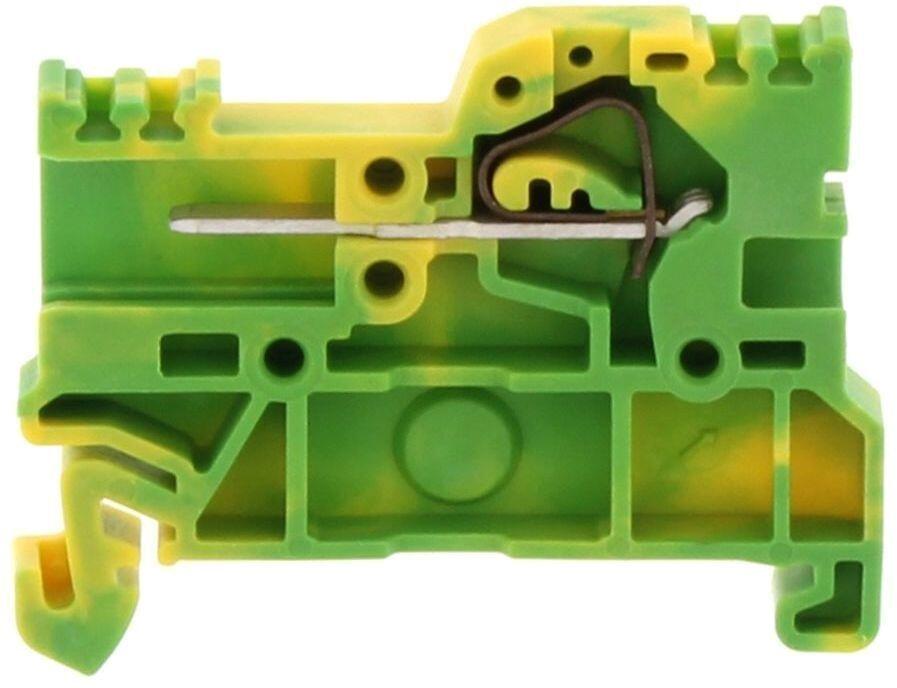

Green and yellow component with spring mechanism, ideal for electrical applications.
ZSTK 2,5/1A/1S-H/Z/35 GNYE
Art:
3675.0 Copied
2.5 mm²
Green/yellow
500 V
24 A
TS 35/7,5
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
44 mm
5.1 mm
35 mm
30 mm
2
1
A3
0
1
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
4.8 g
100

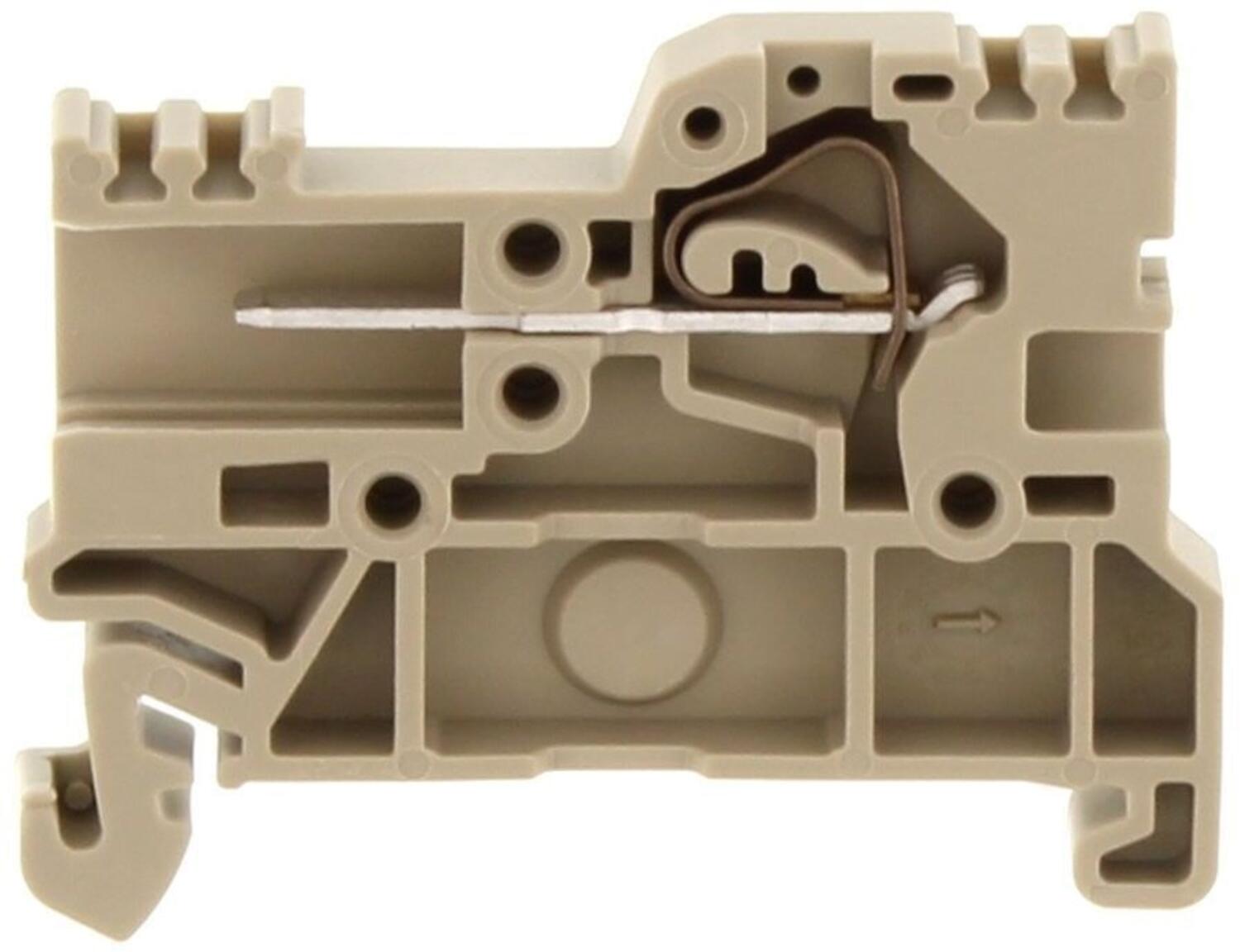

Connection module in beige plastic with built-in spring mechanism, ideal for electrical installations.
ZSTK 2,5/1A/1S-H/Z/35 BG
Art:
3675.2 Copied
2.5 mm²
Beige
500 V
24 A
TS 35/7,5
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
44 mm
5.1 mm
35 mm
30 mm
2
1
A3
0
1
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
4.8 g
100
Orange component for electrical connection with spring mechanism, ideal for industrial applications.
ZSTK 2,5/1A/1S-H/Z/35 OG
Art:
3675.3 Copied
2.5 mm²
Orange
500 V
24 A
TS 35/7,5
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
44 mm
5.1 mm
35 mm
30 mm
2
1
A3
0
1
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
4.8 g
100

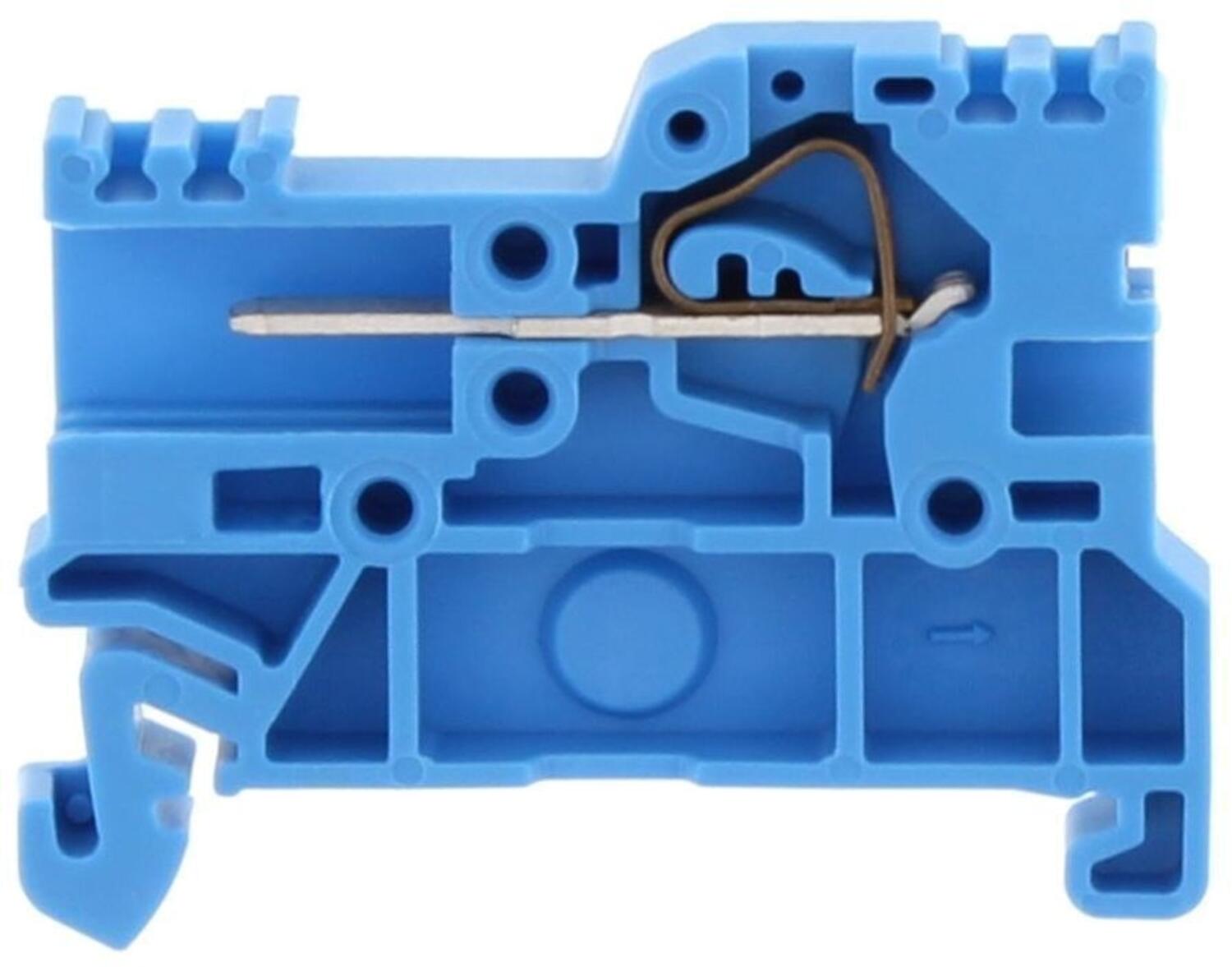

Blue component for electrical connection with metal clamp and detailed design
ZSTK 2,5/1A/1S-H/Z/35 BU
Art:
3675.5 Copied
2.5 mm²
Blue
500 V
24 A
TS 35/7,5
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
44 mm
5.1 mm
35 mm
30 mm
2
1
A3
0
1
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
4.8 g
100

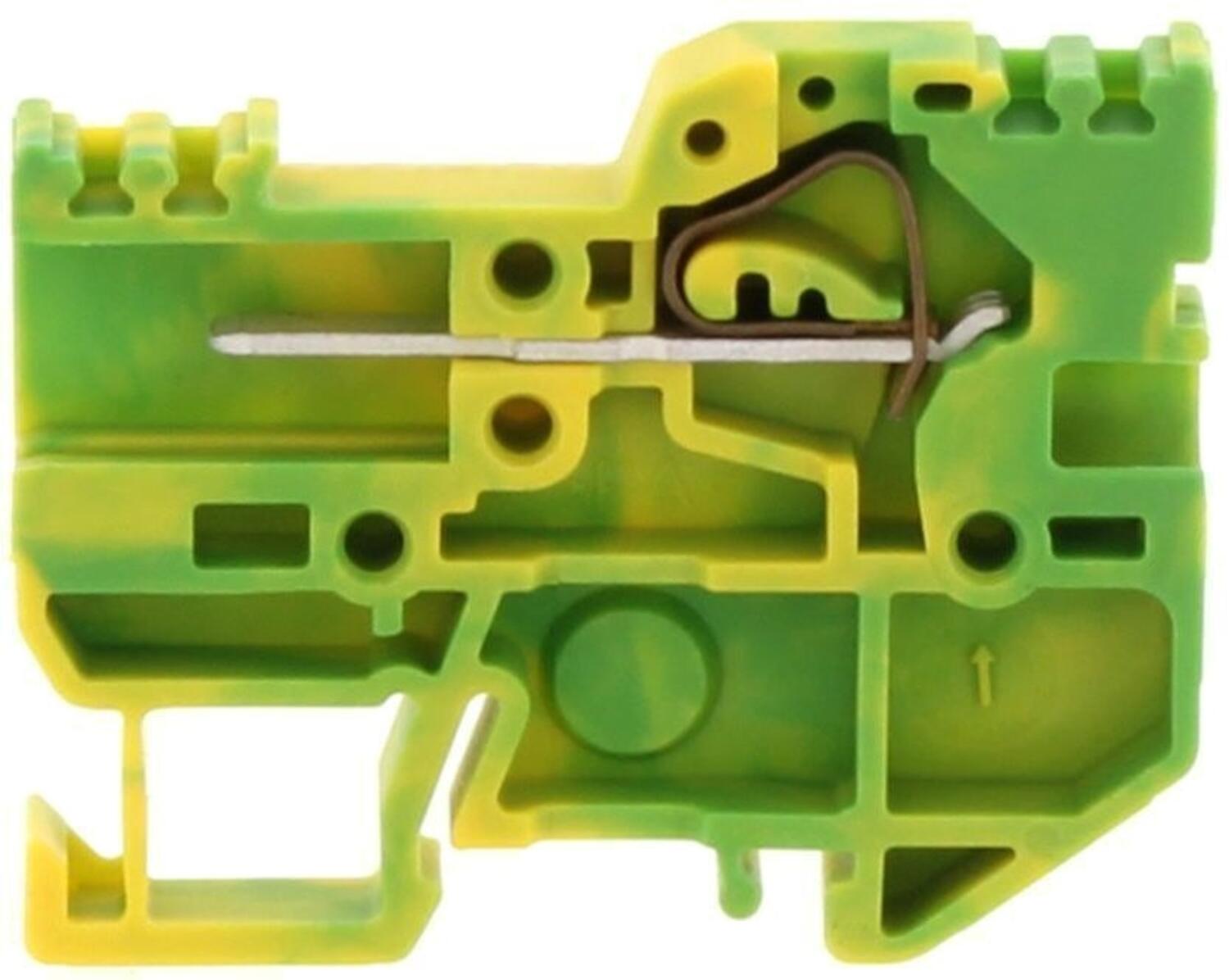

Colorful component with detailed structure, ideal for electrical applications.
ZSTK 2,5/1A/1S-H/15 GNYE
Art:
3676.0 Copied
2.5 mm²
Green/yellow
500 V
24 A
TS 15/5,5
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
40 mm
5.1 mm
33 mm
32 mm
2
1
A3
0
1
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
4.2 g
100

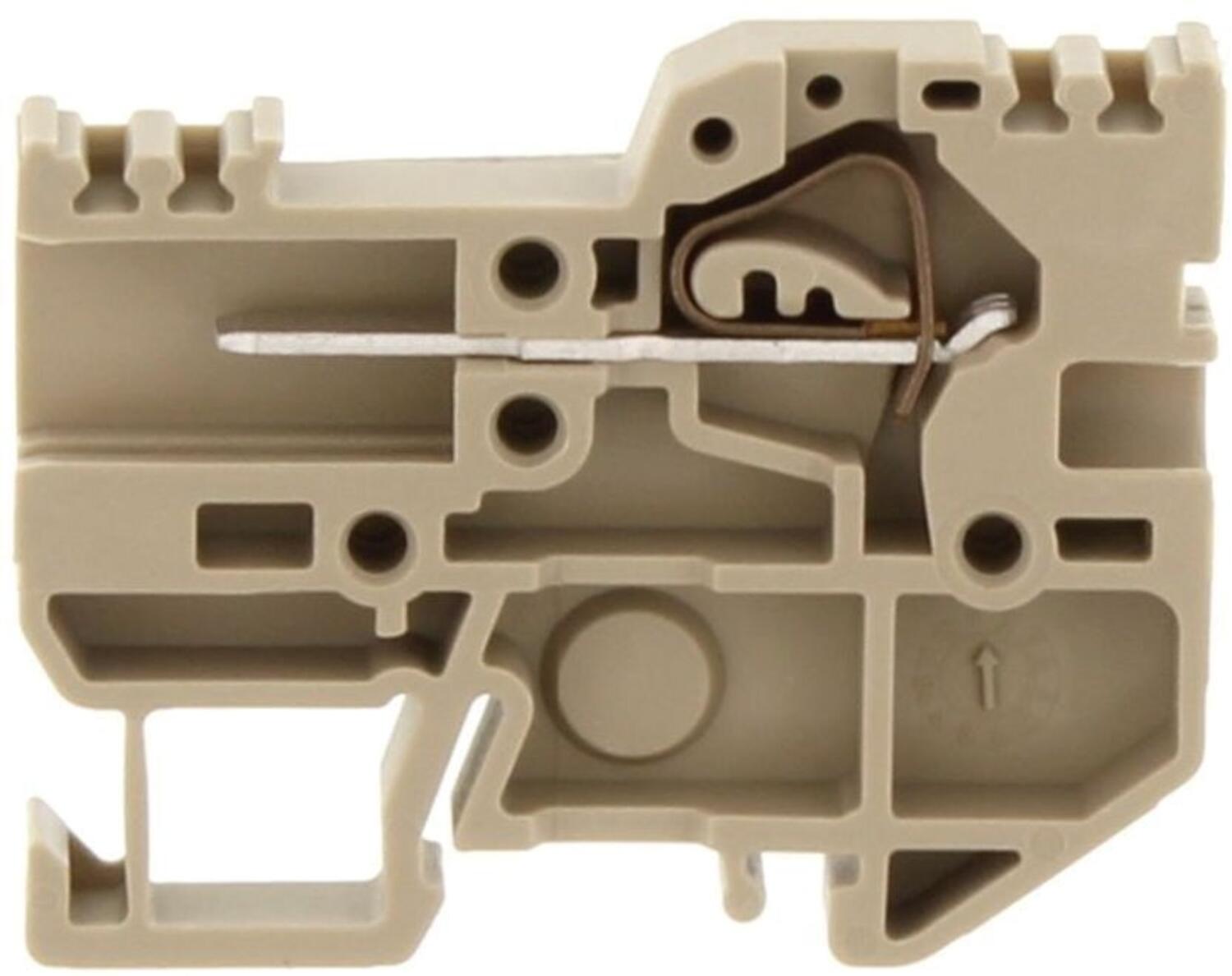

Connection module in beige plastic with built-in spring mechanism for electrical connections
ZSTK 2,5/1A/1S-H/15 BG
Art:
3676.2 Copied
2.5 mm²
Beige
500 V
24 A
TS 15/5,5
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
40 mm
5.1 mm
33 mm
32 mm
2
1
A3
0
1
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZZZZZZ
4.2 g
100

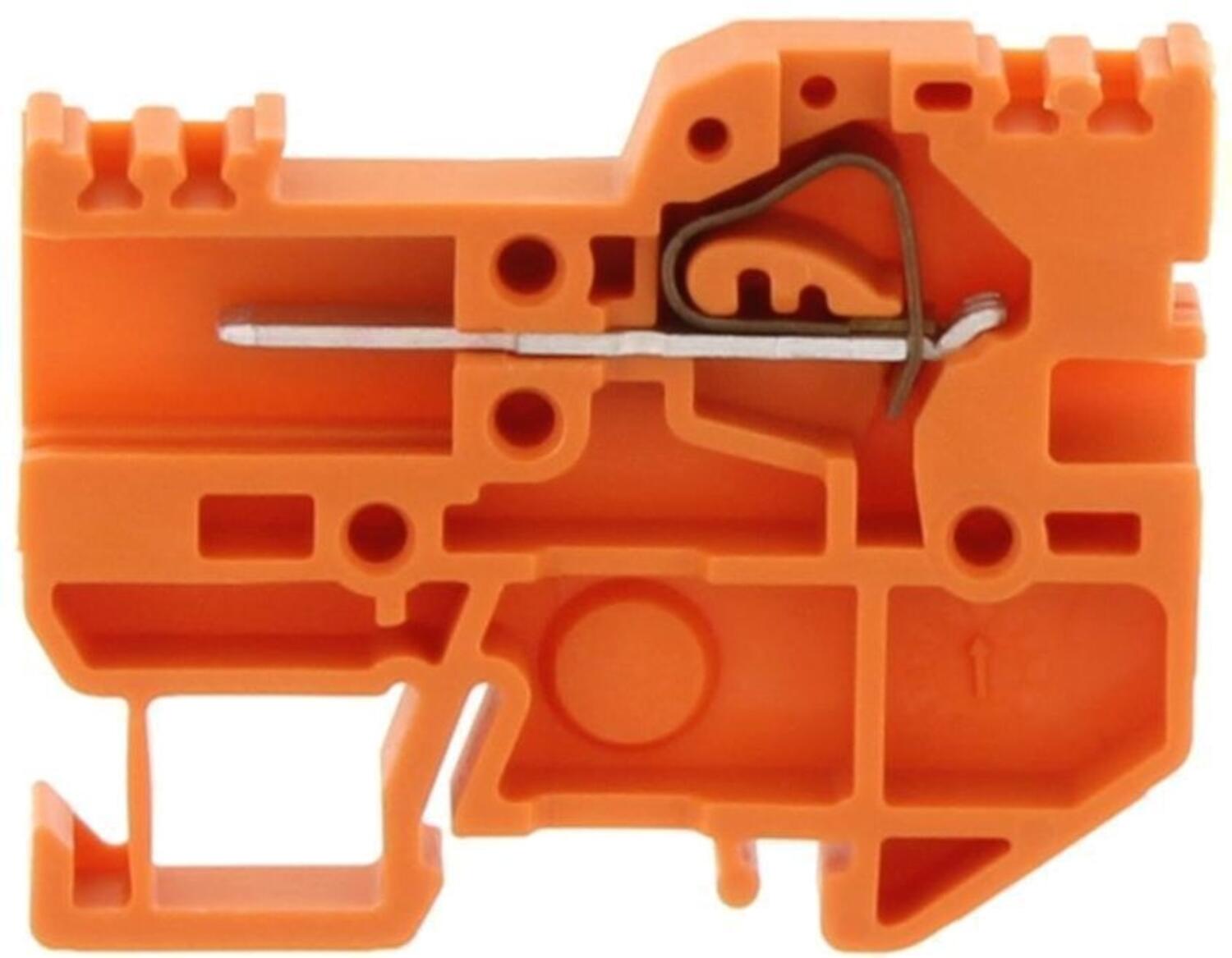

Orange connection part with metal spring, designed for electrical installations
ZSTK 2,5/1A/1S-H/15 OG
Art:
3676.3 Copied
2.5 mm²
Orange
500 V
24 A
TS 15/5,5
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
40 mm
5.1 mm
33 mm
32 mm
2
1
A3
0
1
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
4.2 g
100

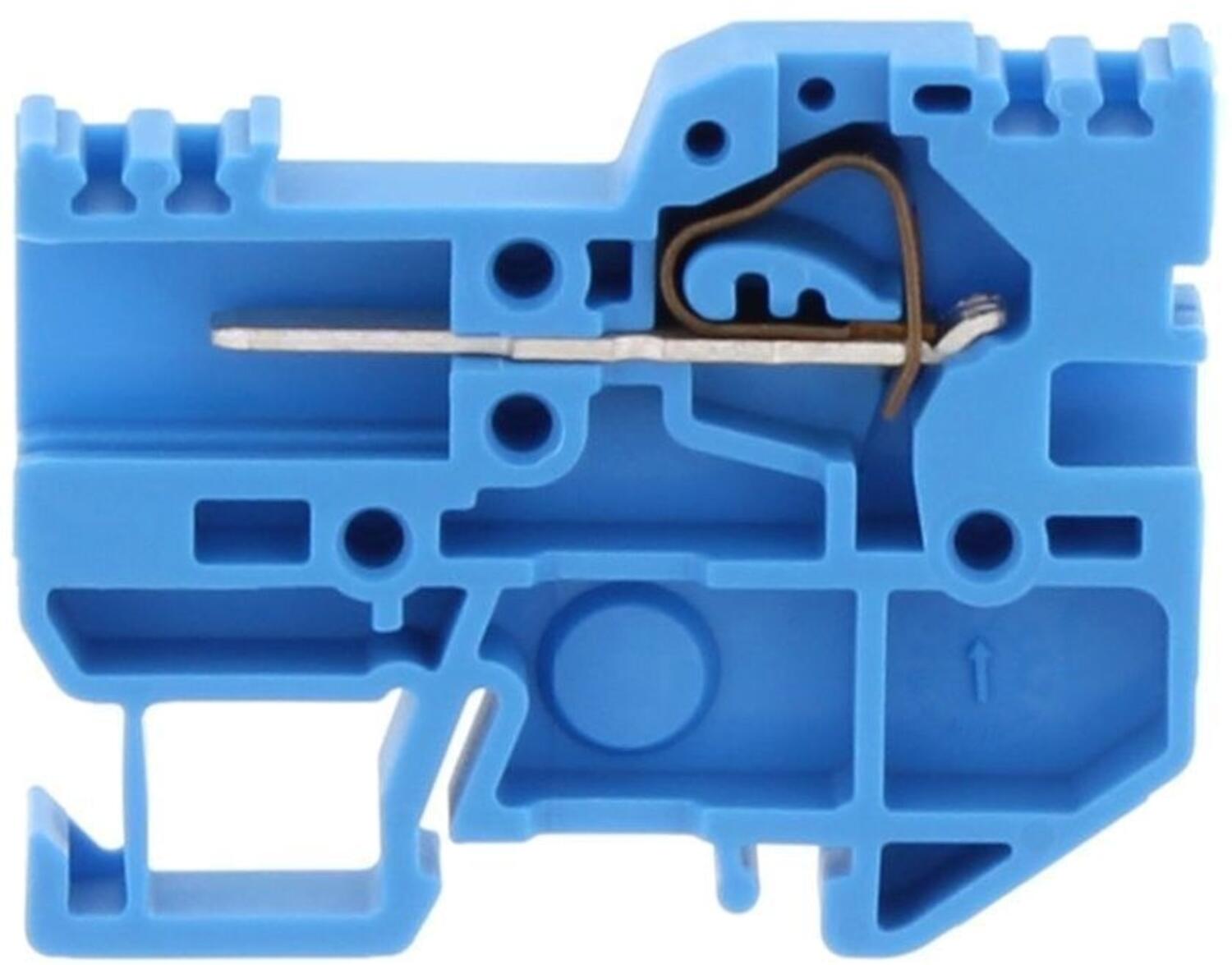

Blue component with metal spring and details for electrical connection
ZSTK 2,5/1A/1S-H/15 BU
Art:
3676.5 Copied
2.5 mm²
Blue
500 V
24 A
TS 15/5,5
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
40 mm
5.1 mm
33 mm
32 mm
2
1
A3
0
1
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
4.2 g
100

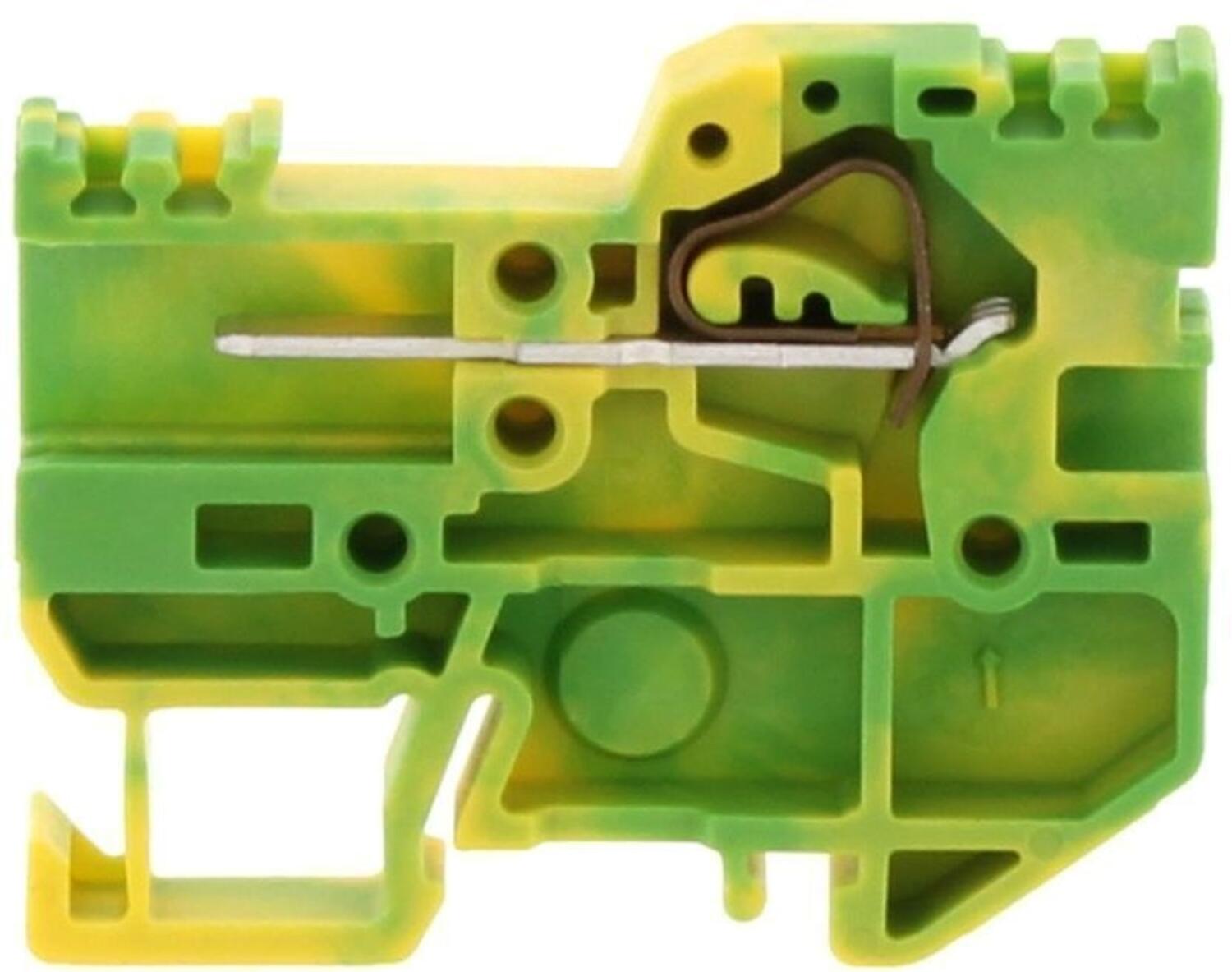

Green and yellow electrical component with built-in spring and multiple connection points
ZSTK 2,5/1A/1S-H/Z/15 GNYE
Art:
3677.0 Copied
2.5 mm²
Green/yellow
500 V
24 A
TS 15/5,5
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
40 mm
5.1 mm
33 mm
32 mm
2
1
A3
0
1
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
4.26 g
100
Connection component in beige plastic with metal spring and details for electrical installation
ZSTK 2,5/1A/1S-H/Z/15 BG
Art:
3677.2 Copied
2.5 mm²
Beige
500 V
24 A
TS 15/5,5
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
40 mm
5.1 mm
33 mm
32 mm
2
1
A3
0
1
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
4.26 g
100

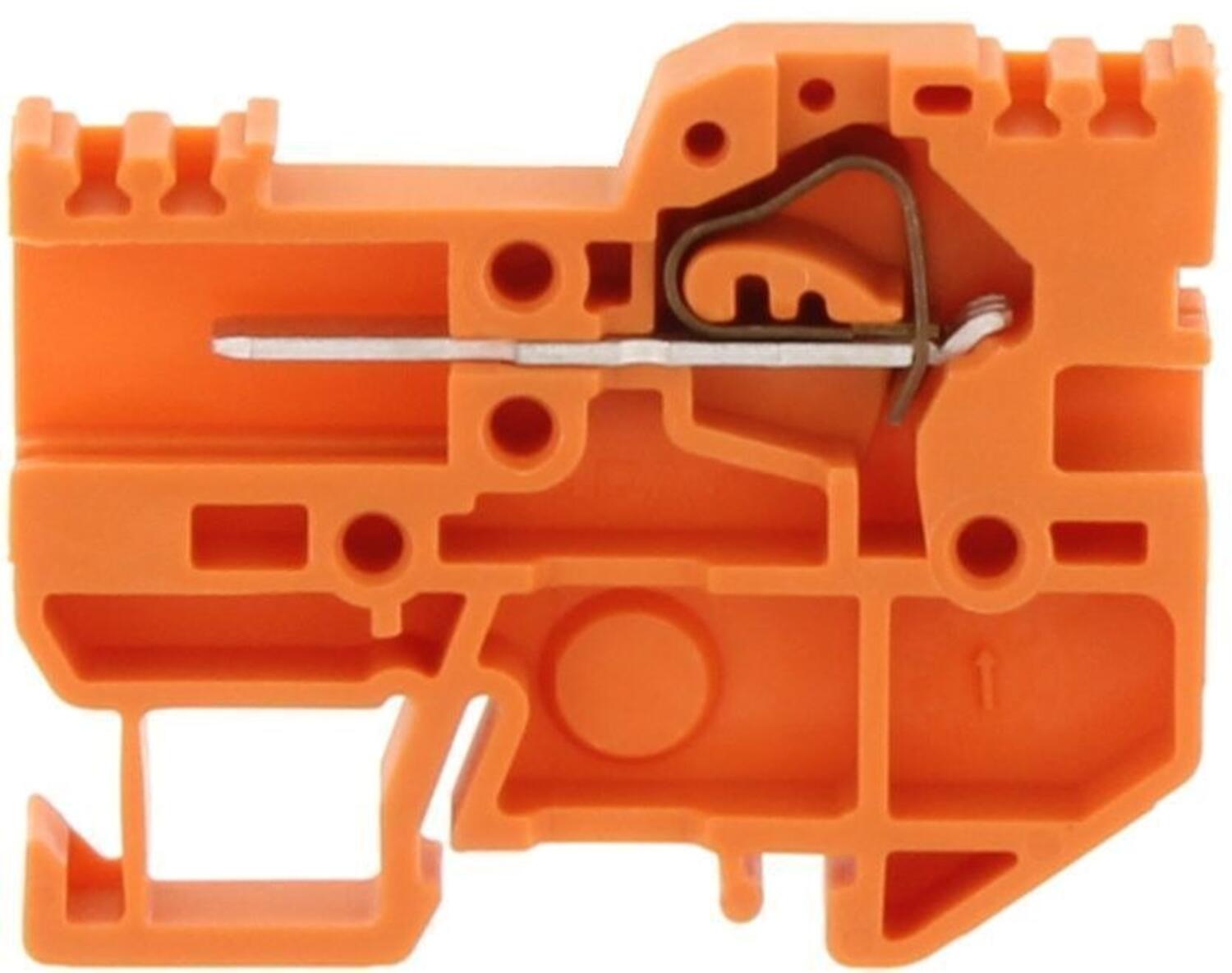

Orange component for electrical connection with metal spring and detailed design
ZSTK 2,5/1A/1S-H/Z/15 OG
Art:
3677.3 Copied
2.5 mm²
Orange
500 V
24 A
TS 15/5,5
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
40 mm
5.1 mm
33 mm
32 mm
2
1
A3
0
1
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
4.26 g
100

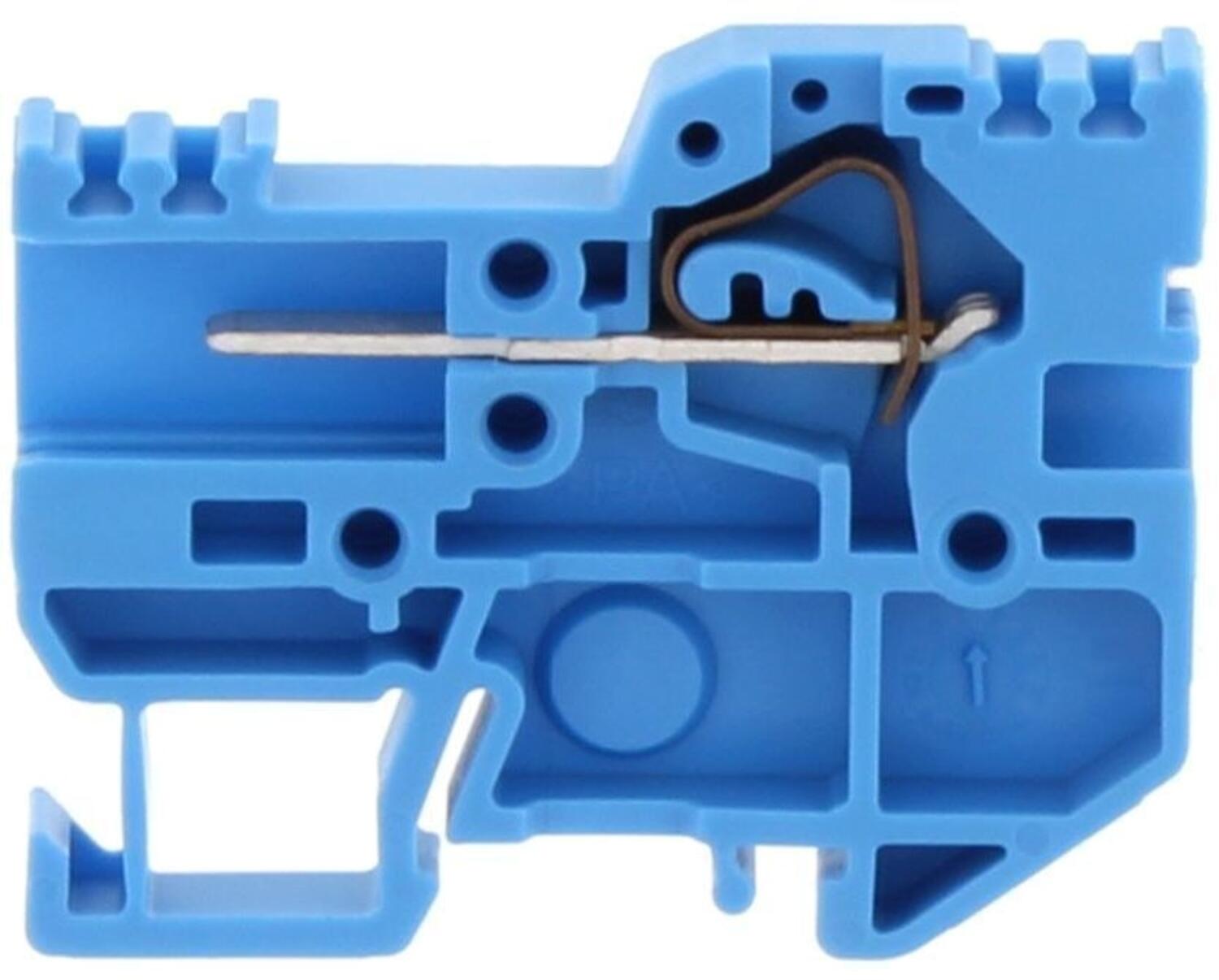

Blue component for electrical connection with integrated spring and detailed design
ZSTK 2,5/1A/1S-H/Z/15 BU
Art:
3677.5 Copied
2.5 mm²
Blue
500 V
24 A
TS 15/5,5
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
40 mm
5.1 mm
33 mm
32 mm
2
1
A3
0
1
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
4.26 g
100
Green and yellow plastic component with integrated spring, used in industrial automation.
ZSTK 2,5/1A/1S-H/B GNYE
Art:
3678.0 Copied
2.5 mm²
Green/yellow
500 V
24 A
Push in
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
40 mm
5.1 mm
19 mm
2
1
A3
0
1
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
4.26 g
100
Connection module in beige plastic with built-in spring mechanism for electrical connections
ZSTK 2,5/1A/1S-H/B BG
Art:
3678.2 Copied
2.5 mm²
Beige
500 V
24 A
Push in
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
40 mm
5.1 mm
19 mm
2
1
A3
0
1
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
4.26 g
100
Orange connection terminal with internal spring mechanism for electrical installations
ZSTK 2,5/1A/1S-H/B OG
Art:
3678.3 Copied
2.5 mm²
Orange
500 V
24 A
Push in
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
40 mm
5.1 mm
19 mm
2
1
A3
0
1
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
4.26 g
100
Blue connection terminal with metal contact, ideal for electrical installations.
ZSTK 2,5/1A/1S-H/B BU
Art:
3678.5 Copied
2.5 mm²
Blue
500 V
24 A
Push in
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
40 mm
5.1 mm
19 mm
2
1
A3
0
1
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
4.26 g
100
Green and yellow plastic component with integrated spring and bracket, ideal for electrical applications.
ZSTK 2,5/1A/1S-H/Z/B GNYE
Art:
3679.0 Copied
2.5 mm²
Green/yellow
500 V
24 A
Push in
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
40 mm
5.1 mm
19 mm
2
1
A3
0
1
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
3.15 g
100
Connection module in beige plastic with built-in spring mechanism for electrical connections
ZSTK 2,5/1A/1S-H/Z/B BG
Art:
3679.2 Copied
2.5 mm²
Beige
500 V
24 A
Push in
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
40 mm
5.1 mm
19 mm
2
1
A3
0
1
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
3.15 g
100
Orange component for electrical connection with metal spring and detailed design for efficient installation
ZSTK 2,5/1A/1S-H/Z/B OG
Art:
3679.3 Copied
2.5 mm²
Orange
500 V
24 A
Push in
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
40 mm
5.1 mm
19 mm
2
1
A3
0
1
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
3.15 g
100
Blue connection terminal with metal pin, ideal for electrical installations.
ZSTK 2,5/1A/1S-H/Z/B BU
Art:
3679.5 Copied
2.5 mm²
Blue
500 V
24 A
Push in
6 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
40 mm
5.1 mm
19 mm
2
1
A3
0
1
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
3.15 g
100

Selected variant

Select a variant in the list

Contact us
Please contact us for more information.
Send e-mail
Do you need help?
