CONTA-CLIP

Disconnect terminals - FTRK 2.5mm²

FTRK

  • Material polyamide 6.6
  • Temperature resistance -40 °C...+120 °C
  • Flammability class V0

Selected variant


Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

Cross-Section 2.5 mm²
Color Beige
Rated Voltage IEC 400 V
Rated Current IEC 18 A
Mounting TS 35/7,5
Rated impulse voltage 6 kV
Overvoltage category III
Contamination degree 3
Approvals CSA, CSA US, KEMA KUR
Additional information with disconnect blade
Length 67.5 mm
Width 5.1 mm
Height TS 35/7.5 45.6 mm
Connections 2
Number of levels 1
Plug gauge acc. EN 60 947-1 A3
Cross connect channels 1
Cross section single wire from 0.2 mm²
Cross section single wire to 4 mm²
Cross section stranded wire from 0.2 mm²
Cross section stranded wire to 4 mm²
Cross section stranded with ferrule from 0.2 mm²
Cross section stranded with ferrule to 2.5 mm²
Rated wire cross section from (AWG) 20
Rated wire cross section to (AWG) 12
Stripping Length 10 mm
Insulation Material Polyamide 6.6
Flamklass UL94-V0
Operating temperature from -40 °C
Operating temperature to 120 °C
Voltage CSA 300 V
Rated Current CSA 15 A
CSA test standard C22.2 No 158
Rated voltage CSAus 300 V
Rated current CSAus 15 A
CSAus test standard UL 1059
KEMA KEUR test standard EN 60947-7-1:2009, EN 60947-7-3:2009
Tariff code 85369010
Country of origin CZ
Weight 11.93 g
Pack Size 100

Downloads

Measurements and connections

Accessories

Related products

Add product as a new cart row

You already added this product. Choose whether to increase quantity on the existing row or add the product as a new row.

Related

TER - control stations
Product news

Quality solutions for motion controls

TER - Tecno Elettrica Ravasi, is our Italian supplier specializing in the manufacture of control stations. TER has over 60 years of experience in the manufacture of control stations.

Stego Loop Heater lämmityselementit
Product news

LOOP Heater for optimal heat distribution

Thanks to their loop design, LOOP heating elements offer excellent heating performance and ensure optimal heat distribution. Read more now!

PISA-M
Product news

Compact electronic overcurrent protection PISA-M

PISA-M is a 4-channel electronic fuse for 12 and 24 V DC systems. The smallest 4-channel electronic fuse with a width of only 22.5 mm!

Delcon relays
Product news

An effective solution Delcon CRA5

Delcon's CRA5 plug-in relay revolutionizes the control of difficult-to-handle DC loads. Inductive loads, frequent switching, and high DC voltages are a piece of cake for these relays.

LOCC-Box Mini
Product news

LOCC-Box Mini

The Lütze LOCC-Box is an intelligent electronic overcurrent protection device that provides reliable protection for 12/24 V DC systems in a narrow housing measuring just 8.1 mm. Integrated + and - terminals save space on the DIN rail.

DF Electric
Product news

DF Electric – new supplier for fuse solutions

DF Electric is specialized in the manufacturing of fuse links, fuse holders and control transformers since 1987. Presently the company is leading the Spanish market and is also very active in many export markets due to its competitive range of products.

Articles Cross-Section Color Rated Voltage IEC Rated Current IEC Mounting Rated impulse voltage Overvoltage category Contamination degree Approvals Additional information Length Width Height TS 35/7.5 Connections Number of levels Plug gauge acc. EN 60 947-1 Cross connect channels Cross section single wire from Cross section single wire to Cross section stranded wire from Cross section stranded wire to Cross section stranded with ferrule from Cross section stranded with ferrule to Rated wire cross section from (AWG) Rated wire cross section to (AWG) Stripping Length Insulation Material Flamklass Operating temperature from Operating temperature to Voltage CSA Rated Current CSA CSA test standard Rated voltage CSAus Rated current CSAus CSAus test standard KEMA KEUR test standard Tariff code Country of origin Weight Pack Size

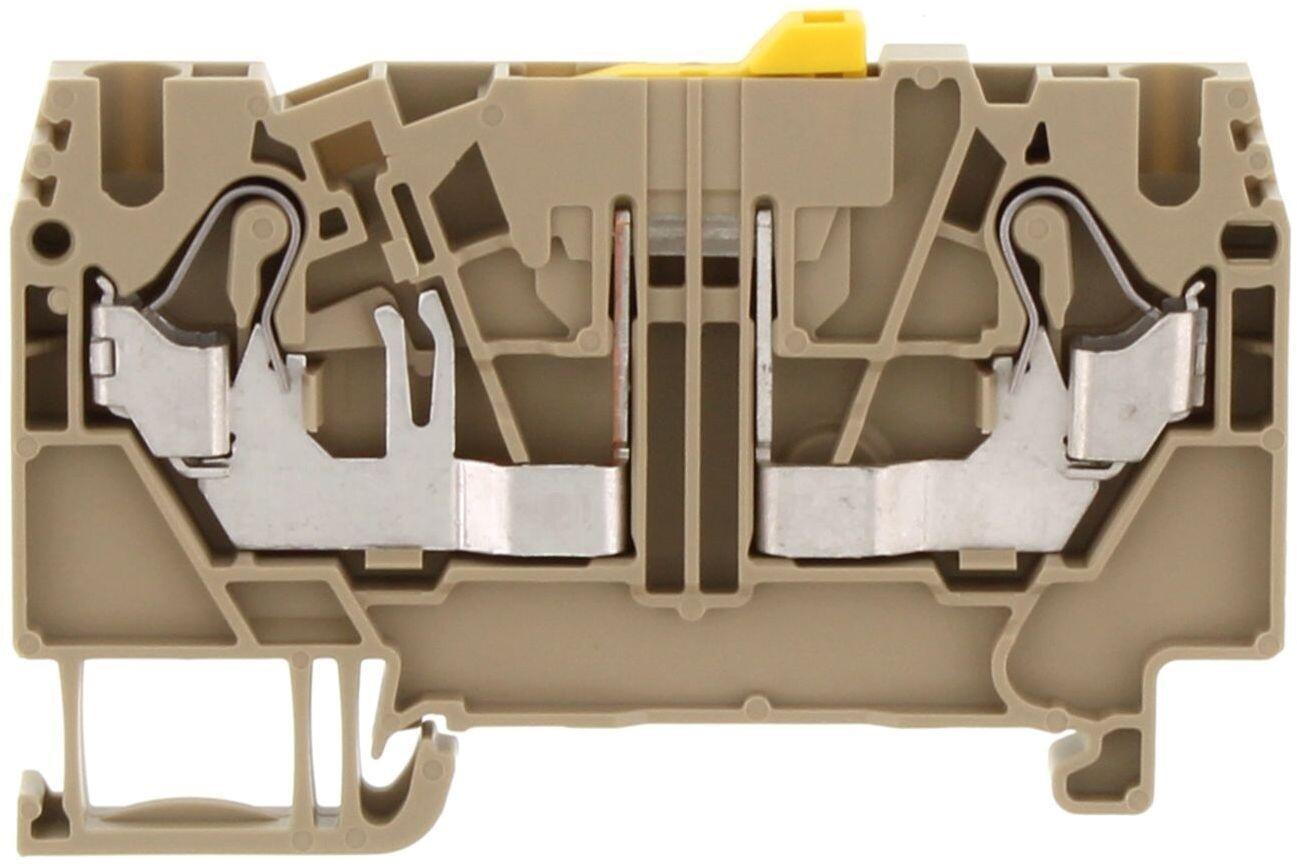

Terminal block from CONTA-CLIP with metal clamps and beige plastic construction
FTRK 2,5/2A/MT BG
Art:
3259.2 Copied
2.5 mm²
Beige
400 V
18 A
TS 35/7,5
6 kV
III
3
CSA, CSA US, KEMA KUR
with disconnect blade
67.5 mm
5.1 mm
45.6 mm
2
1
A3
1
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
15 A
C22.2 No 158
300 V
15 A
UL 1059
EN 60947-7-1:2009, EN 60947-7-3:2009
85369010
CZ
11.93 g
100

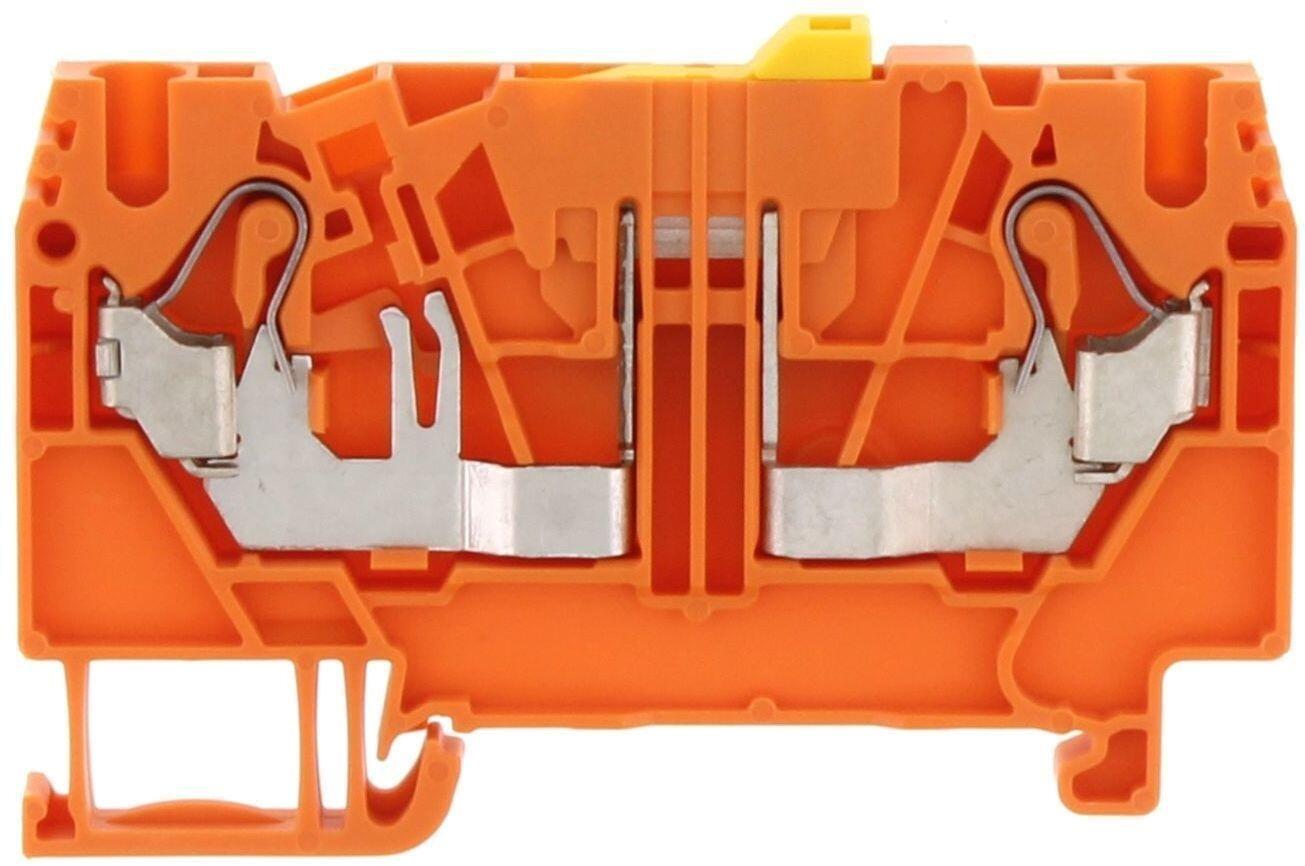

Connection block in orange plastic with metal brackets, designed for electrical connections.
FTRK 2,5/2A/MT OG
Art:
3259.3 Copied
2.5 mm²
Orange
400 V
18 A
TS 35/7,5
6 kV
III
3
CSA, CSA US, KEMA KUR
with disconnect blade
67.5 mm
5.1 mm
45.6 mm
2
1
A3
1
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
15 A
C22.2 No 158
300 V
15 A
UL 1059
EN 60947-7-1:2009, EN 60947-7-3:2009
85369010
CZ
11.93 g
100

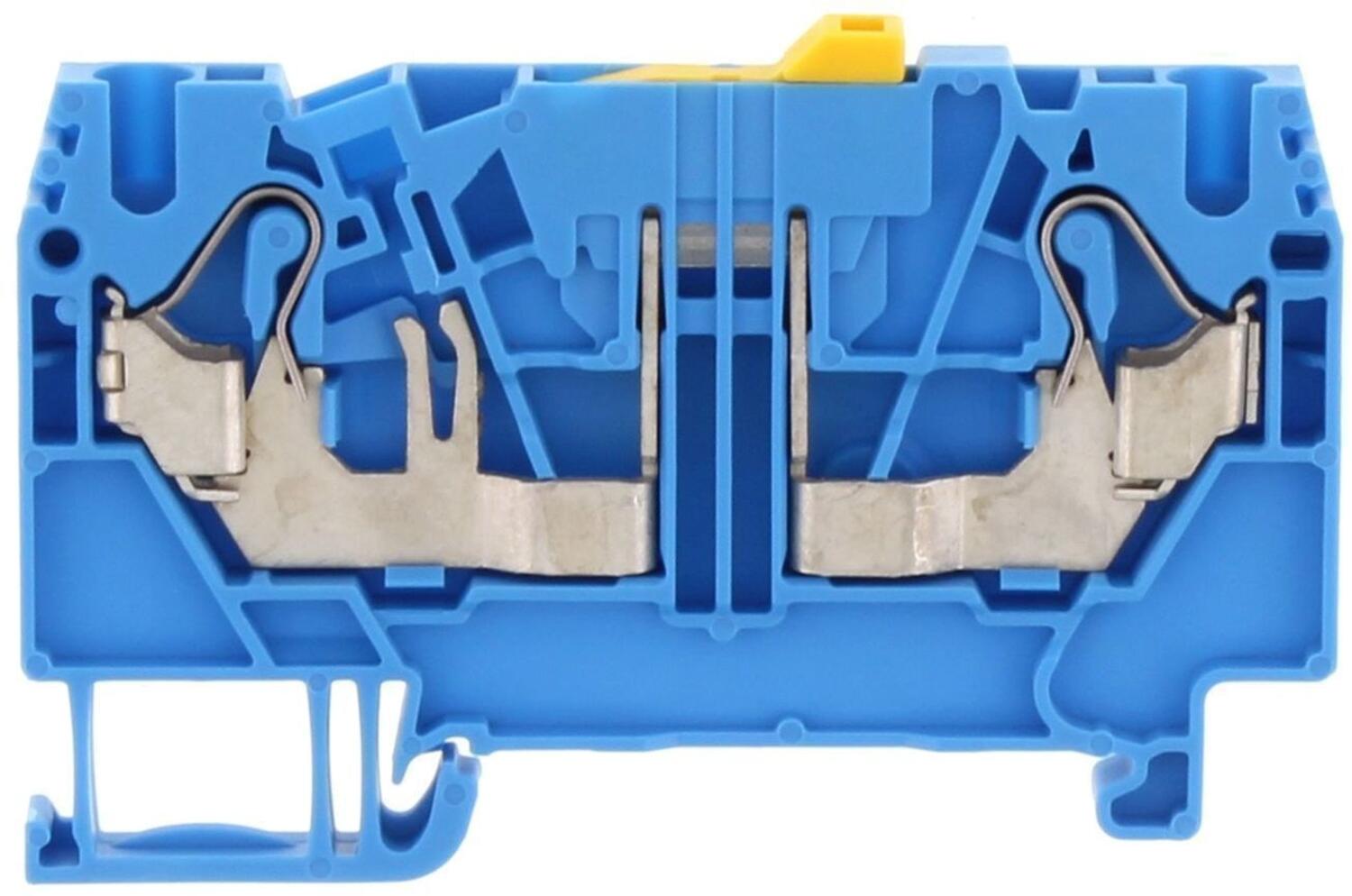

Blue connection clamp with metal brackets for electrical installations
FTRK 2,5/2A/MT BU
Art:
3259.5 Copied
2.5 mm²
Blue
400 V
18 A
TS 35/7,5
6 kV
III
3
CSA, CSA US, KEMA KUR
with disconnect blade
67.5 mm
5.1 mm
45.6 mm
2
1
A3
1
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
15 A
C22.2 No 158
300 V
15 A
UL 1059
EN 60947-7-1:2009, EN 60947-7-3:2009
85369010
CZ
11.93 g
100

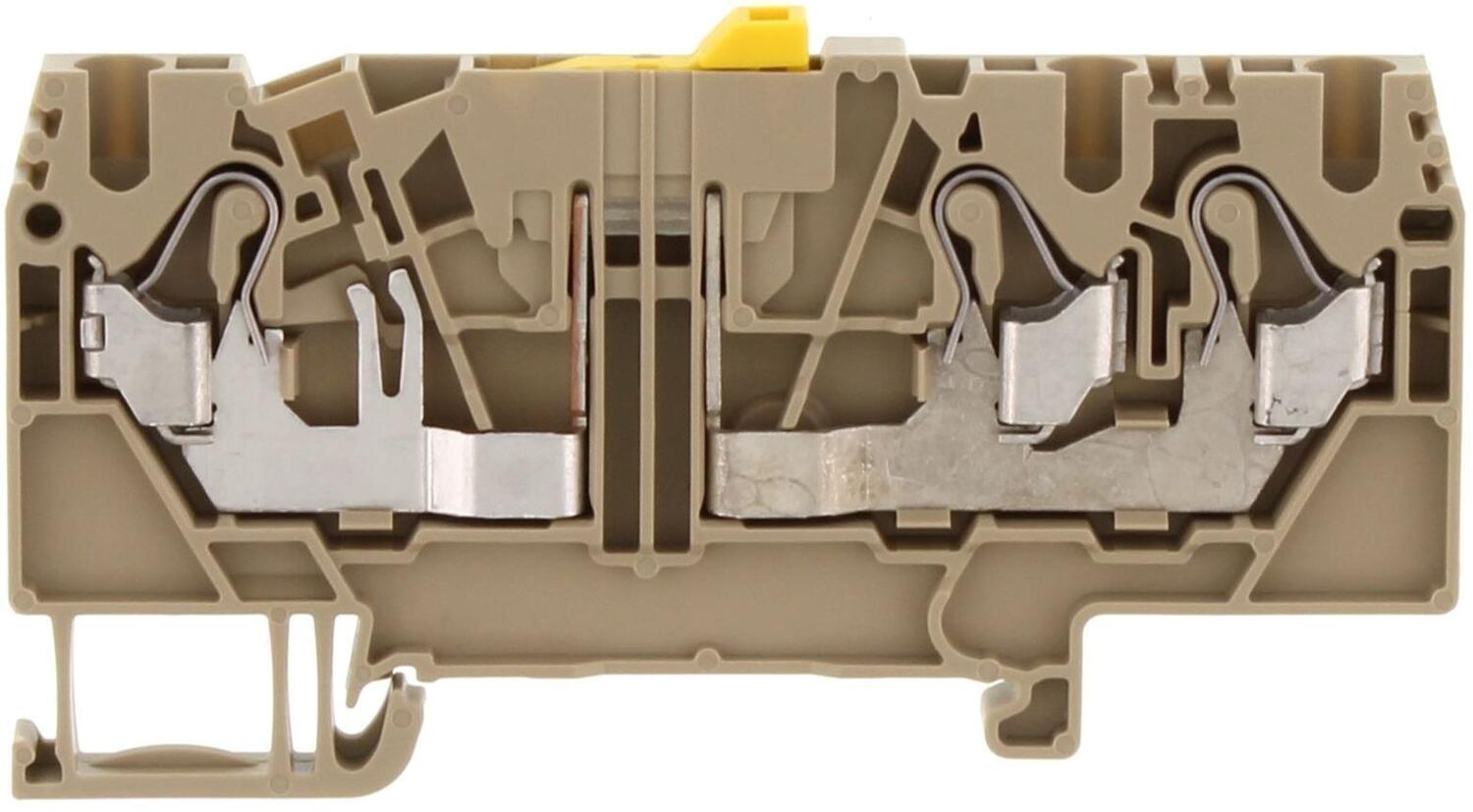

Terminal block from CONTA-CLIP with metal contacts and beige plastic housing
FTRK 2,5/3A/MT BG
Art:
3260.2 Copied
2.5 mm²
Beige
400 V
18 A
TS 35/7,5
6 kV
III
3
CSA, CSA US, KEMA KUR
with disconnect blade
67.5 mm
5.1 mm
45.6 mm
3
1
A3
1
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
15 A
C22.2 No 158
300 V
15 A
UL 1059
EN 60947-7-1:2009, EN 60947-7-3:2009
85369010
CZ
14.93 g
100
299562_877.tif
FTRK 2,5/3A/MT OG
Art:
3260.3 Copied
2.5 mm²
Orange
400 V
18 A
TS 35/7,5
6 kV
III
3
CSA, CSA US, KEMA KUR
with disconnect blade
67.5 mm
5.1 mm
45.6 mm
3
1
A3
1
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
15 A
C22.2 No 158
300 V
15 A
UL 1059
EN 60947-7-1:2009, EN 60947-7-3:2009
85369010
CZ
14.93 g
100

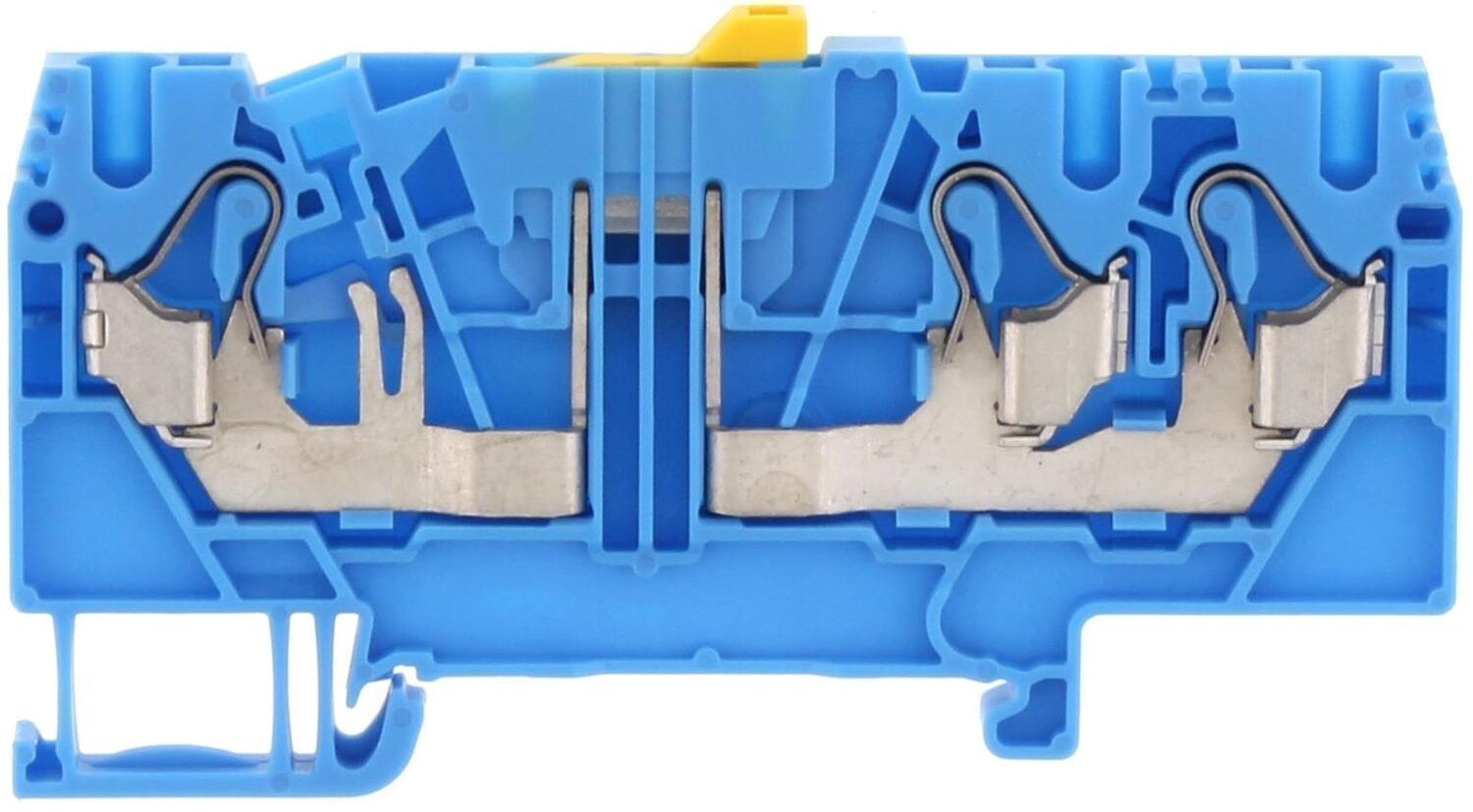

Blue connection clamp with metal brackets for electrical installations
FTRK 2,5/3A/MT BU
Art:
3260.5 Copied
2.5 mm²
Blue
400 V
18 A
TS 35/7,5
6 kV
III
3
CSA, CSA US, KEMA KUR
with disconnect blade
67.5 mm
5.1 mm
45.6 mm
3
1
A3
1
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
15 A
C22.2 No 158
300 V
15 A
UL 1059
EN 60947-7-1:2009, EN 60947-7-3:2009
85369010
CZ
14.93 g
100

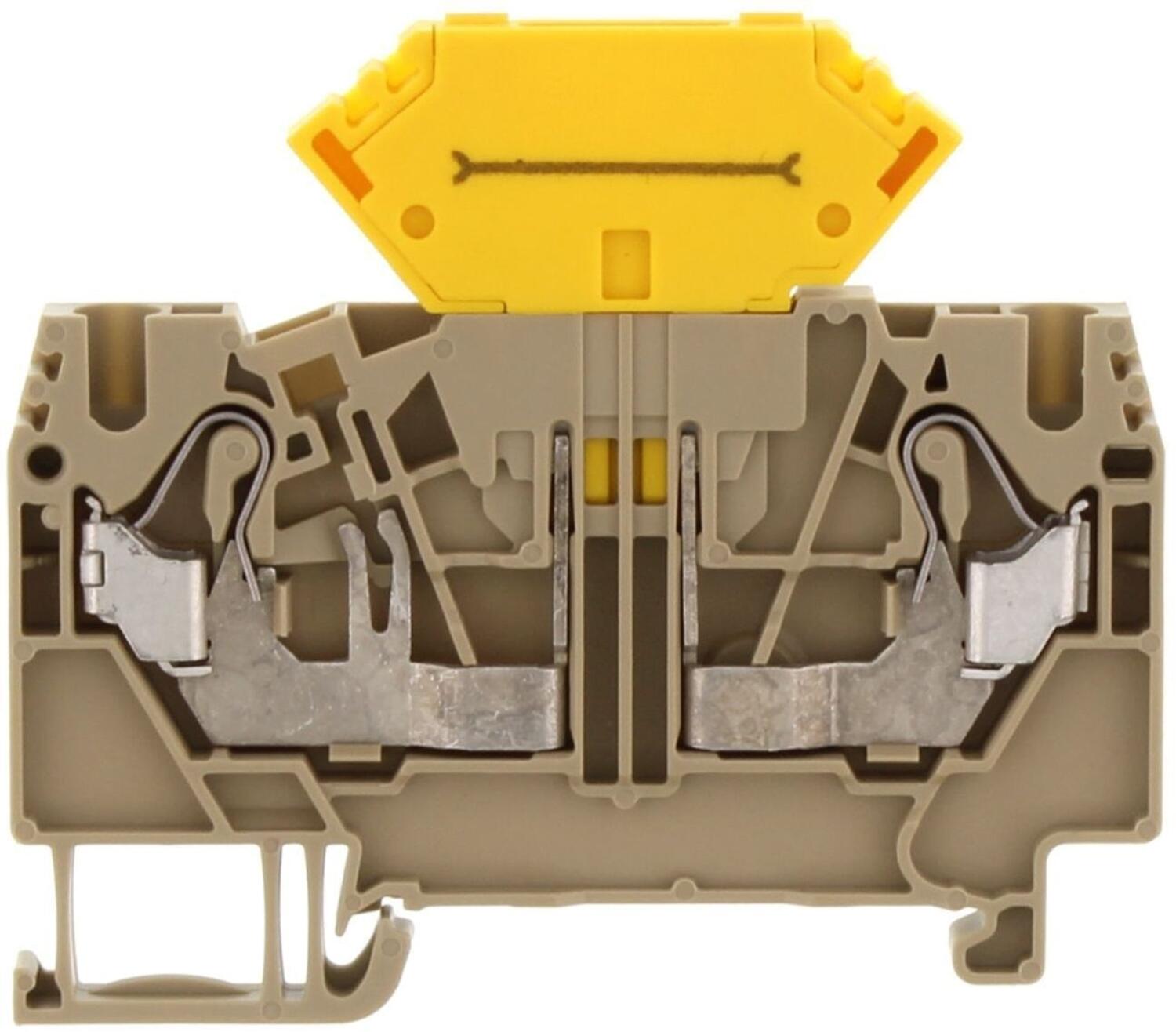

Connection terminal with yellow top and metal contacts, ideal for electrical installations.
FTRK 2,5/2A/ST BG
Art:
3261.2 Copied
2.5 mm²
Beige
400 V
18 A
TS 35/7,5
6 kV
III
3
CSA, CSA US, KEMA KUR
with disconnect-plug (ST with wire jumper)
67.5 mm
5.1 mm
59.5 mm
2
1
A3
1
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
15 A
C22.2 No 158
300 V
15 A
UL 1059
EN 60947-7-1:2009, EN 60947-7-3:2009
85369010
DE
19.9 g
100
299562_877.tif
FTRK 2,5/2A/ST BU
Art:
3261.5 Copied
2.5 mm²
Blue
400 V
18 A
TS 35/7,5
6 kV
III
3
CSA, CSA US, KEMA KUR
with disconnect-plug (ST with wire jumper)
67.5 mm
5.1 mm
59.5 mm
2
1
A3
1
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
15 A
C22.2 No 158
300 V
15 A
UL 1059
EN 60947-7-1:2009, EN 60947-7-3:2009
85369010
DE
19.9 g
100

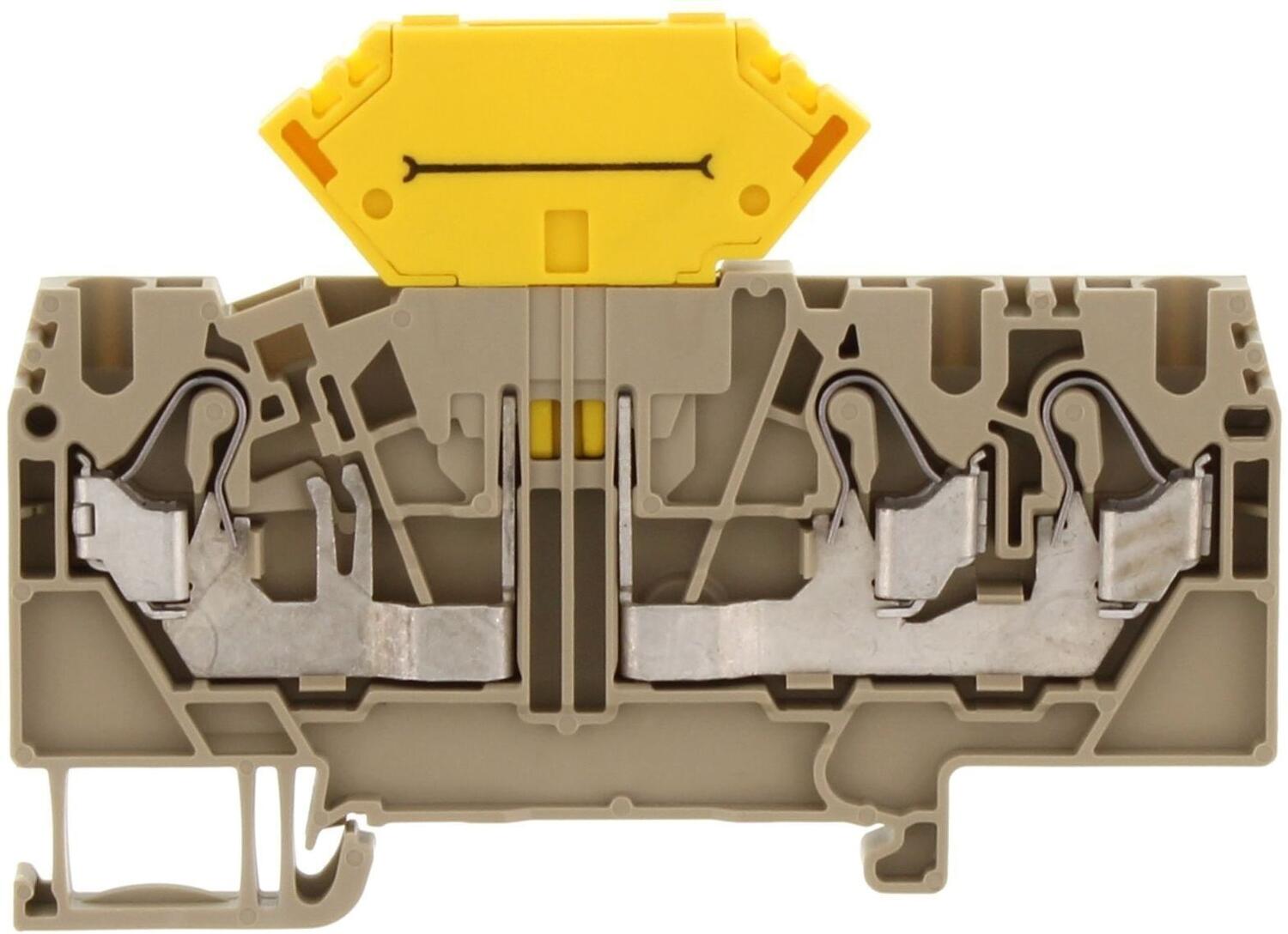

Terminal block from CONTA-CLIP with yellow top and metal contacts, designed for electrical connections.
FTRK 2,5/3A/ST BG
Art:
3262.2 Copied
2.5 mm²
Beige
400 V
18 A
TS 35/7,5
6 kV
III
3
CSA, CSA US, KEMA KUR
with disconnect-plug (ST with wire jumper)
82 mm
5.1 mm
59.5 mm
3
1
A3
1
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
15 A
C22.2 No 158
300 V
15 A
UL 1059
EN 60947-7-1:2009, EN 60947-7-3:2009
85369010
DE
19.9 g
100
299562_877.tif
FTRK 2,5/3A/ST BU
Art:
3262.5 Copied
2.5 mm²
Blue
400 V
18 A
TS 35/7,5
6 kV
III
3
CSA, CSA US, KEMA KUR
with disconnect-plug (ST with wire jumper)
82 mm
5.1 mm
59.5 mm
3
1
A3
1
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
15 A
C22.2 No 158
300 V
15 A
UL 1059
EN 60947-7-1:2009, EN 60947-7-3:2009
85369010
DE
19.9 g
100
