CONTA-CLIP

Fuse terminals - FTRK/FSIK

FTRK, FSIK

  • For glass tube fuses 5x20
  • For automotive fuses
  • Material polyamide 6.6
  • Temperature resistance -40°C...+120°C

Selected variant


Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

Cross-Section 4 mm²
Color Black
Rated Current 18 A
Rated Voltage 400 V
Rated Voltage IEC 400 V
Rated Current IEC 18 A
Fuse size Blade Disconnect
Mounting TS 35/7,5
Rated impulse voltage 6 kV
Overvoltage category III
Contamination degree 3
Approvals Pending, CSA, cCSAus, KEMA KUR
Length 67.5 mm
Width 6.1 mm
Height TS 35/7.5 47 mm
Height 46 mm
Connections 2
Number of levels 1
Plug gauge acc. EN 60 947-1 A3
Cross connect channels 1
Cross section single wire from 0.2 mm²
Cross section single wire to 4 mm²
Cross section stranded wire from 0.2 mm²
Cross section stranded wire to 2.5 mm²
Cross section stranded with ferrule from 0.2 mm²
Cross section stranded with ferrule to 2.5 mm²
Rated wire cross section from (AWG) 24
Rated wire cross section to (AWG) 10
Stripping Length 12 mm
Insulation Material Polyamide 6.6
Flamklass UL94-V0
Operating temperature from -40 °C
Operating temperature to 120 °C
Rated voltage UL 300
Rated Voltage To UL 300 V
Rated Current To UL 15 A
UL test standard UL 1059
Voltage CSA 300 V
Rated Current CSA 15 A
CSA test standard C22.2 No 158
Rated voltage CSAus 300 V
Rated current CSAus 15 A
CSAus test standard UL 1059
KEMA KEUR test standard EN 60947-7-3:2009
Tariff code 85369010
Country of origin BG
Weight 13.72 g
Pack Size 50

Downloads

Accessories

Related products

Add product as a new cart row

You already added this product. Choose whether to increase quantity on the existing row or add the product as a new row.

Related

TER - control stations
Product news

Quality solutions for motion controls

TER - Tecno Elettrica Ravasi, is our Italian supplier specializing in the manufacture of control stations. TER has over 60 years of experience in the manufacture of control stations.

Stego Loop Heater lämmityselementit
Product news

LOOP Heater for optimal heat distribution

Thanks to their loop design, LOOP heating elements offer excellent heating performance and ensure optimal heat distribution. Read more now!

PISA-M
Product news

Compact electronic overcurrent protection PISA-M

PISA-M is a 4-channel electronic fuse for 12 and 24 V DC systems. The smallest 4-channel electronic fuse with a width of only 22.5 mm!

Delcon relays
Product news

An effective solution Delcon CRA5

Delcon's CRA5 plug-in relay revolutionizes the control of difficult-to-handle DC loads. Inductive loads, frequent switching, and high DC voltages are a piece of cake for these relays.

LOCC-Box Mini
Product news

LOCC-Box Mini

The Lütze LOCC-Box is an intelligent electronic overcurrent protection device that provides reliable protection for 12/24 V DC systems in a narrow housing measuring just 8.1 mm. Integrated + and - terminals save space on the DIN rail.

DF Electric
Product news

DF Electric – new supplier for fuse solutions

DF Electric is specialized in the manufacturing of fuse links, fuse holders and control transformers since 1987. Presently the company is leading the Spanish market and is also very active in many export markets due to its competitive range of products.

Articles Cross-Section Color Rated Current Rated Voltage Rated Voltage IEC Rated Current IEC Fuse size Mounting Rated impulse voltage Overvoltage category Contamination degree Approvals Additional information Length Width Height TS 35/7.5 Height Connections Number of levels Plug gauge acc. EN 60 947-1 Cross connect channels Cross section single wire from Cross section single wire to Cross section stranded wire from Cross section stranded wire to Cross section stranded with ferrule from Cross section stranded with ferrule to Rated wire cross section from (AWG) Rated wire cross section to (AWG) Stripping Length Insulation Material Flamklass Operating temperature from Operating temperature to Rated voltage UL Rated Voltage To UL Rated Current To UL UL test standard Voltage CSA Rated Current CSA CSA test standard Rated voltage CSAus Rated current CSAus CSAus test standard KEMA KEUR test standard Tariff code Country of origin Weight Pack Size

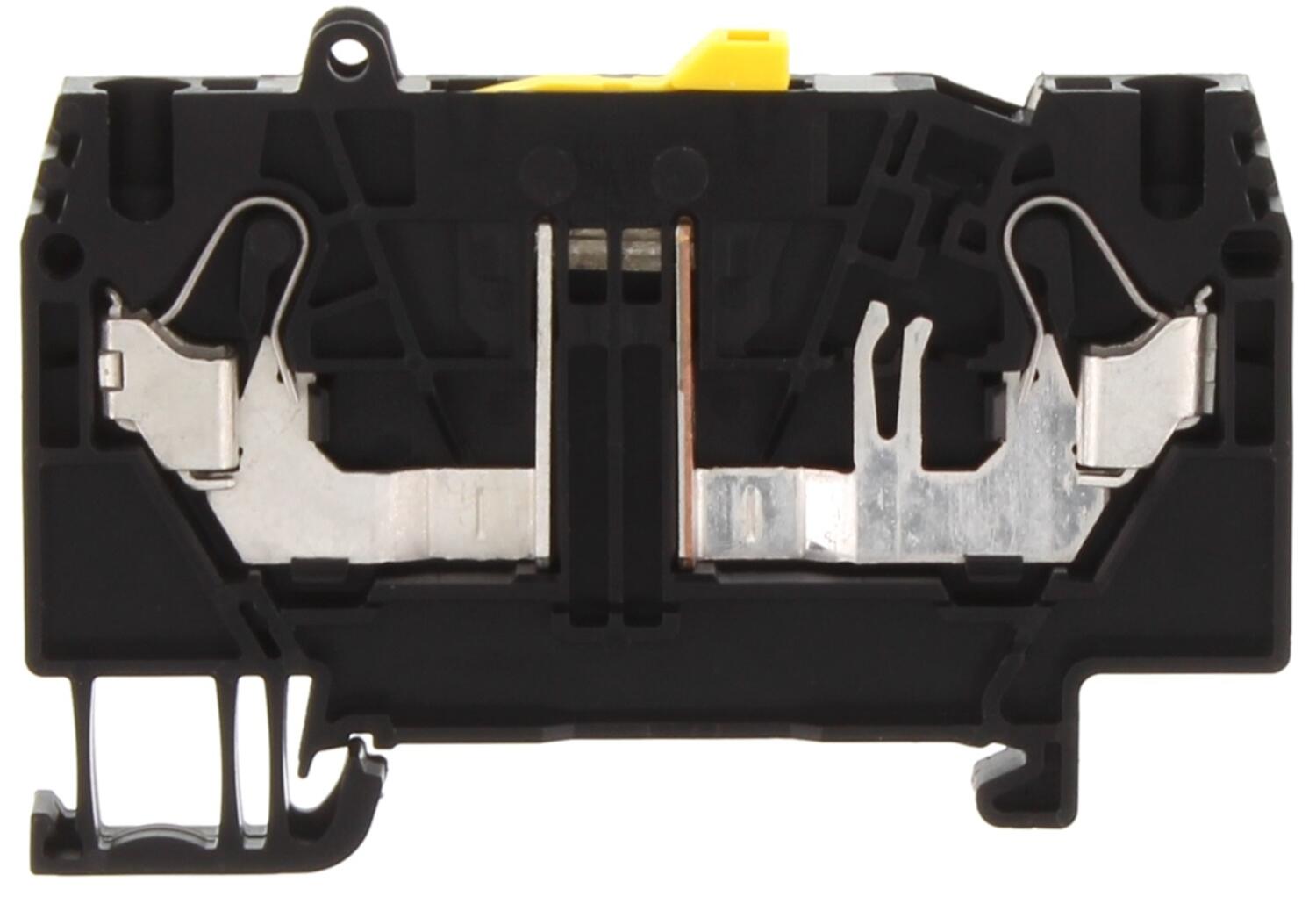

Connection module from CONTA-CLIP with black plastic and metal components, designed for electrical installations.
FSIK 4/2A/MT BK
Art:
3239.4 Copied
4 mm²
Black
18 A
400 V
400 V
18 A
Blade Disconnect
TS 35/7,5
6 kV
III
3
Pending, CSA, cCSAus, KEMA KUR
67.5 mm
6.1 mm
47 mm
46 mm
2
1
A3
1
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
0.2 mm²
2.5 mm²
24
10
12 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300
300 V
15 A
UL 1059
300 V
15 A
C22.2 No 158
300 V
15 A
UL 1059
EN 60947-7-3:2009
85369010
BG
13.72 g
50
Connection device with fuses and metal contacts for electrical installations
FSIK 4/2A BK
Art:
3290.4 Copied
4 mm²
Black
6.3 A
5 x 20 mm
TS 35/7,5
6 kV
III
3
UL, CSA, CSA US, KEMA KUR
67.5 mm
6.1 mm
70 mm
69 mm
2
1
A3
1
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
0.2 mm²
2.5 mm²
24
10
12 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
6.3 A
UL 1059
300 V
6.3 A
C22.2 No 158
300 V
6.3 A
UL 1059
EN 60947-7-3:2009
85369010
BG
17.94 g
25

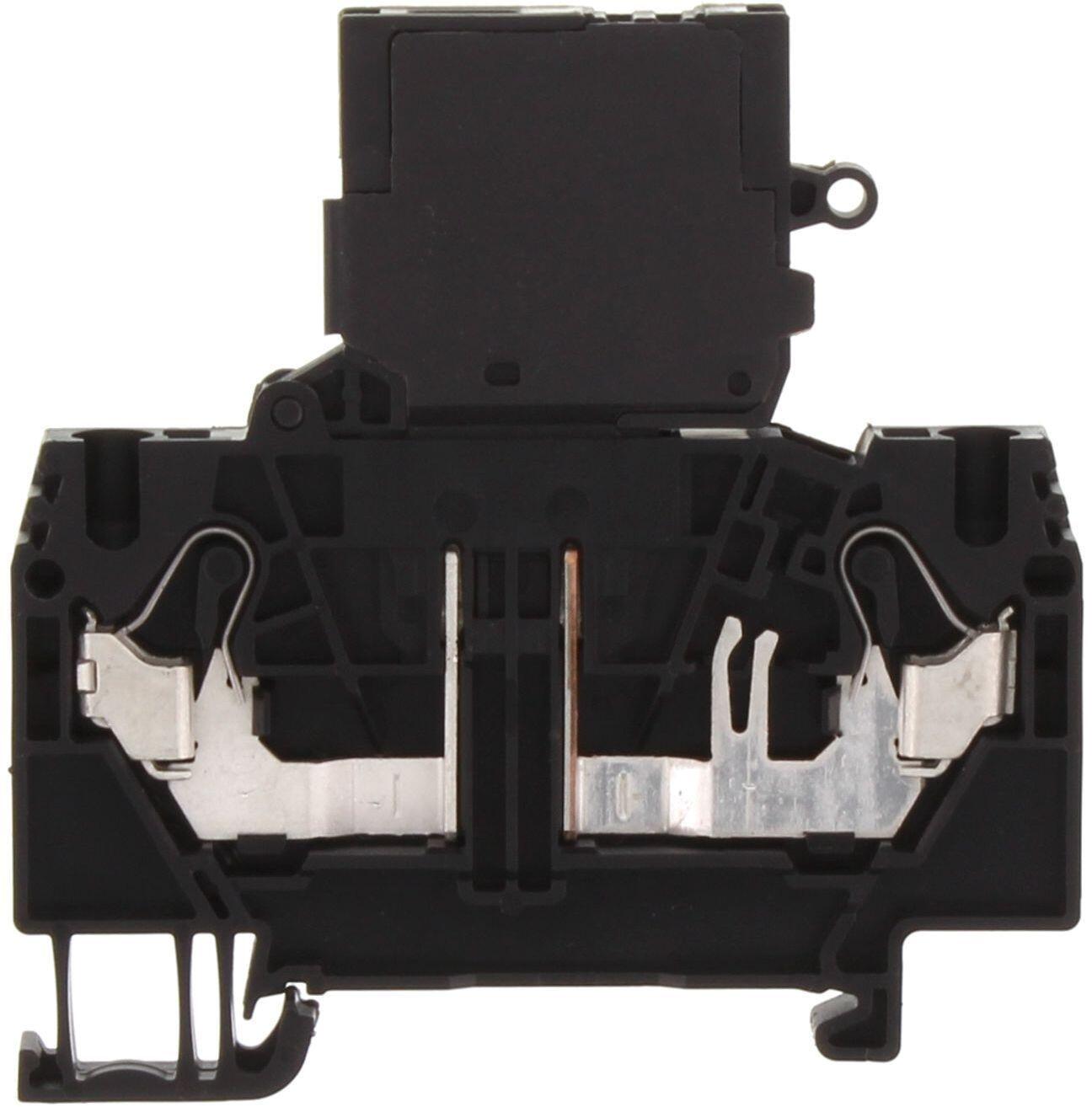

Connection module from CONTA-CLIP with metal contacts and black plastic housing
FSIK 4/2A/LED 12-30V AC/DC BK
Art:
3291.4 Copied
4 mm²
Black
6.3 A
5 x 20 mm
TS 35/7,5
6 kV
III
3
UL, CSA, CSA US, KEMA KUR
67.5 mm
6.1 mm
70 mm
69 mm
2
1
A3
1
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
0.22 mm²
2.5 mm²
24
10
12 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
6.3 A
UL 1059
300 V
6.3 A
C22.2 No 158
300 V
6.3 A
UL 1059
EN 60947-7-3:2009
85369010
DE
87.66 g
25
Connection module from CONTA-CLIP with metal contacts and black plastic housing
FSIK 4/2A/LED 30-60V AC/DC BK
Art:
3292.4 Copied
4 mm²
Black
6.3 A
5 x 20 mm
TS 35/7,5
6 kV
III
3
UL, CSA, CSA US, KEMA KUR
67.5 mm
6.1 mm
70 mm
69 mm
2
1
A3
1
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
0.2 mm²
2.5 mm²
24
10
12 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
6.3 A
UL 1059
300 V
6.3 A
C22.2 No 158
300 V
6.3 A
UL 1059
EN 60947-7-3:2009
85369010
DE
87.66 g
25

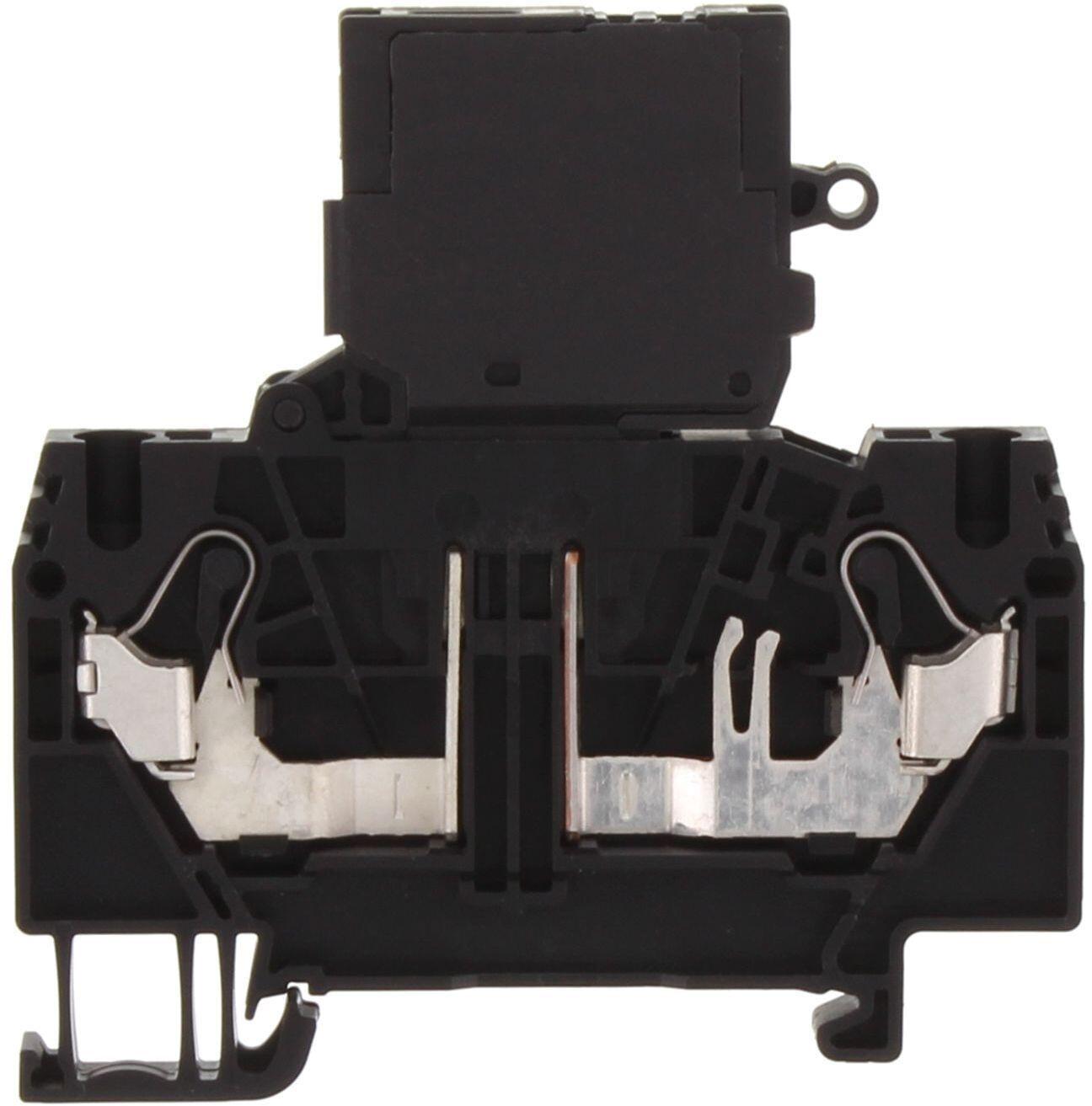

Connection block from CONTA-CLIP with metal contacts and black plastic cover
FSIK 4/2A/LED/110-250V AC/DC BK
Art:
3293.4 Copied
4 mm²
Black
6.3 A
5 x 20 mm
TS 35/7,5
6 kV
III
3
UL, CSA, CSA US, KEMA KUR
67.5 mm
6.1 mm
70 mm
69 mm
2
1
A3
1
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
0.2 mm²
2.5 mm²
24
10
12 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
6.3 A
UL 1059
300 V
6.3 A
C22.2 No 158
300 V
6.3 A
UL 1059
EN 60947-7-3:2009
85369010
DE
87.66 g
25

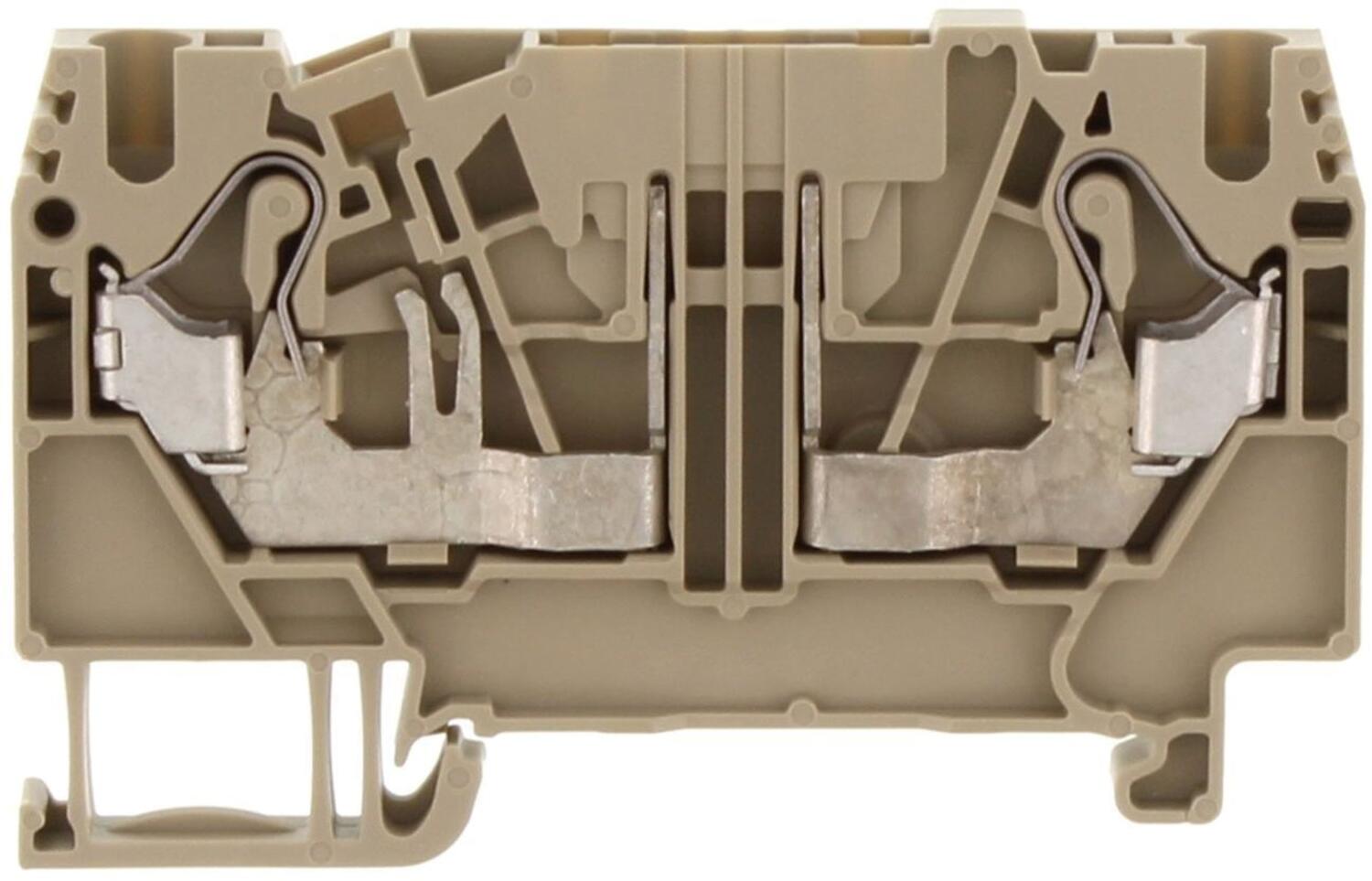

Terminal block from CONTA-CLIP with metal brackets, designed for efficient electrical connection.
FTRK 2,5/2A/OT BG
Art:
3257.2 Copied
2.5 mm²
Beige
400 V
18 A
TS 35/7,5
6 kV
III
3
CSA, CSA US, KEMA KUR
without function element
67.5 mm
5.1 mm
43 mm
2
1
A3
1
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
15 A
C22.2 No 158
300 V
15 A
UL 1059
EN 60947-7-1:2009, EN 60947-7-3:2009
85369010
CZ
10.99 g
100
299562_877.tif
FTRK 2,5/2A/OT BU
Art:
3257.5 Copied
2.5 mm²
Blue
400 V
18 A
TS 35/7,5
6 kV
III
3
CSA, CSA US, KEMA KUR
without function element
67.5 mm
5.1 mm
43 mm
2
1
A3
1
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
15 A
C22.2 No 158
300 V
15 A
UL 1059
EN 60947-7-1:2009, EN 60947-7-3:2009
85369010
CZ
10.99 g
100

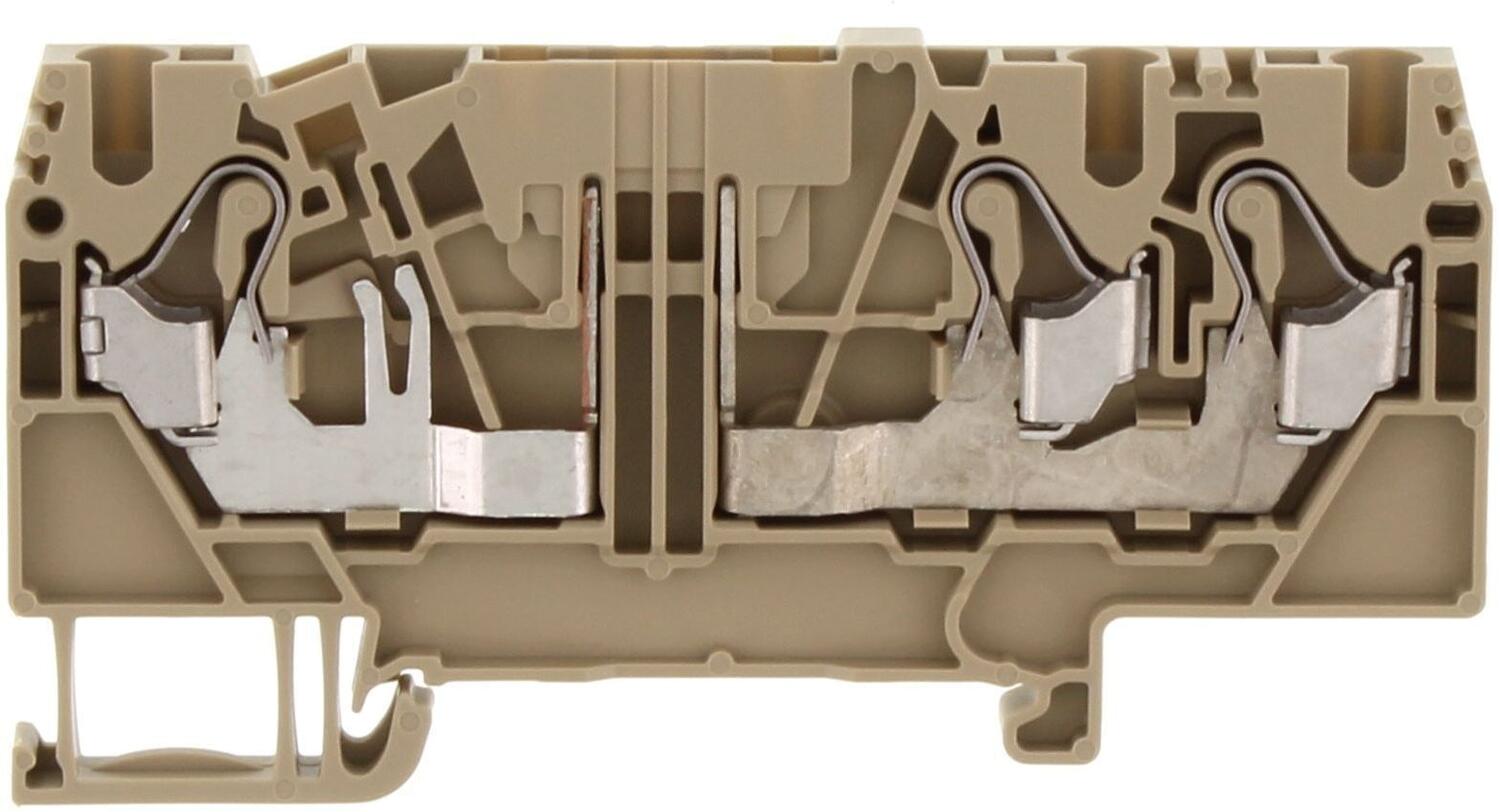

Terminal block with metal contacts and beige plastic housing, designed for electrical connections
FTRK 2,5/3A/OT BG
Art:
3258.2 Copied
2.5 mm²
Beige
400 V
18 A
TS 35/7,5
6 kV
III
3
CSA, CSA US, KEMA KUR
without function element
82 mm
5.1 mm
43 mm
3
1
A3
1
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
15 A
C22.2 No 158
300 V
15 A
UL 1059
EN 60947-7-1:2009, EN 60947-7-3:2009
85369010
CZ
13.94 g
100
299562_877.tif
FTRK 2,5/3A/OT BU
Art:
3258.5 Copied
2.5 mm²
Blue
400 V
18 A
TS 35/7,5
6 kV
III
3
CSA, CSA US, KEMA KUR
without function element
82 mm
5.1 mm
43 mm
3
1
A3
1
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
15 A
C22.2 No 158
300 V
15 A
UL 1059
EN 60947-7-1:2009, EN 60947-7-3:2009
85369010
CZ
13.94 g
100
299562_877.tif
FTRK 2,5/2A/ZS BG
Art:
3263.2 Copied
2.5 mm²
Beige
6.3 A
5 x 20 mm
TS 35/7,5
6 kV
III
3
CSA, CSA US, KEMA KUR
with fuse plug
67.5 mm
5.1 mm
81.2 mm
2
1
A3
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
6.3 A
C22.2 No 158
300 V
6.3 A
UL 1059
EN 60947-7-3:2009
85369010
DE
19.9 g
100
299562_877.tif
FTRK 2,5/2A/ZS BU
Art:
3263.5 Copied
2.5 mm²
Blue
6.3 A
5 x 20 mm
TS 35/7,5
6 kV
III
3
CSA, CSA US, KEMA KUR
with fuse plug
67.5 mm
5.1 mm
81.2 mm
2
1
A3
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
6.3 A
C22.2 No 158
300 V
6.3 A
UL 1059
EN 60947-7-3:2009
85369010
DE
19.9 g
100

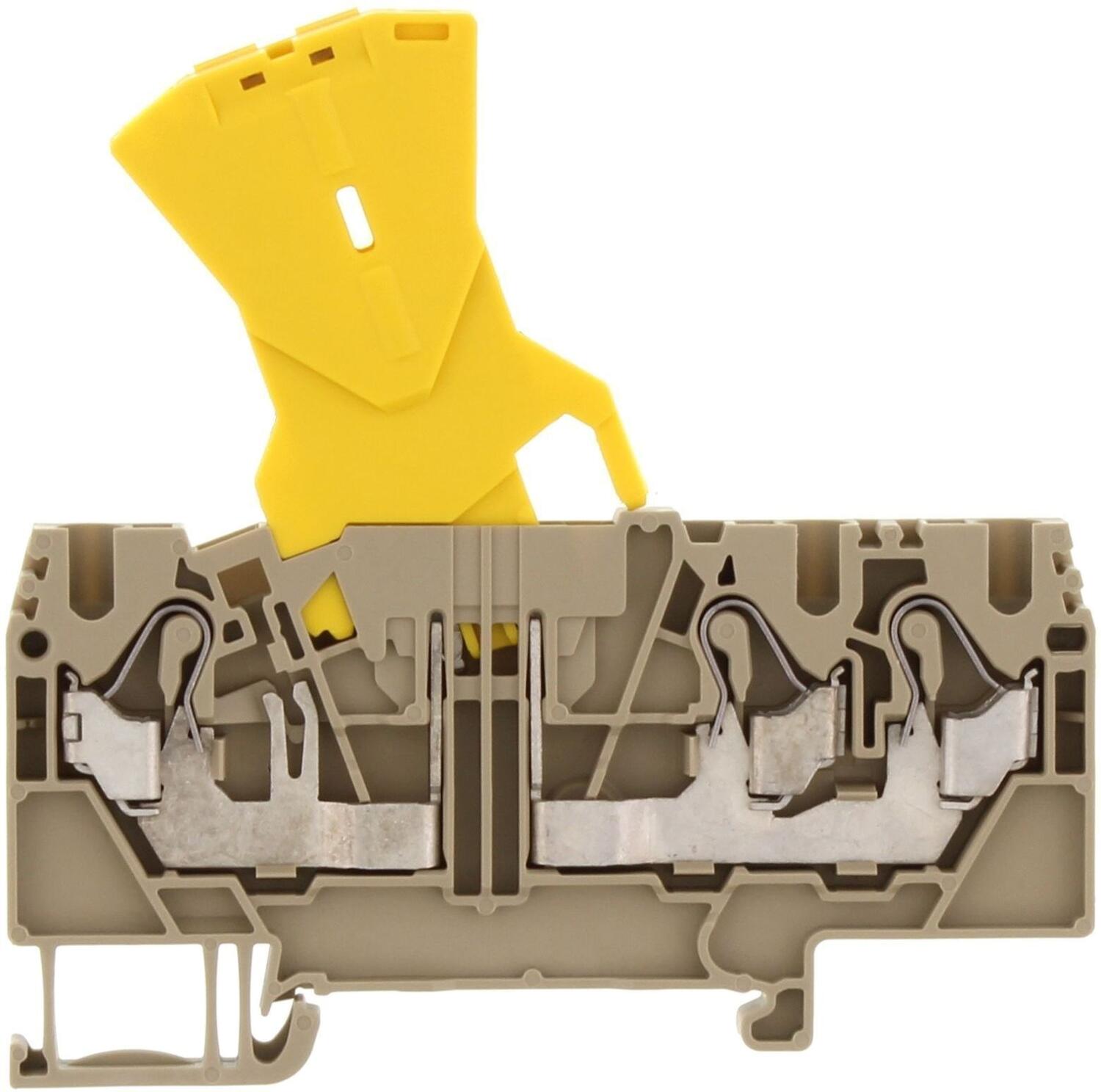

Connection terminal with yellow locking mechanism and metal contacts for electrical connections
FTRK 2,5/3A/ZS BG
Art:
3268.2 Copied
2.5 mm²
Beige
6.3 A
5 x 20 mm
TS 35/7,5
6 kV
III
3
CSA, CSA US, KEMA KUR
with fuse plug
82 mm
5.1 mm
81.2 mm
3
1
A3
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
6.3 A
C22.2 No 158
300 V
6.3 A
UL 1059
EN 60947-7-3:2009
85369010
DE
19.1 g
100
299562_877.tif
FTRK 2,5/3A/ZS BU
Art:
3268.5 Copied
2.5 mm²
Blue
6.3 A
5 x 20 mm
TS 35/7,5
6 kV
III
3
CSA, CSA US, KEMA KUR
with fuse plug
82 mm
5.1 mm
81.2 mm
3
1
A3
1
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
6.3 A
C22.2 No 158
300 V
6.3 A
UL 1059
EN 60947-7-3:2009
85369010
DE
19.1 g
100
