Disconnect terminals - TRK, STK/K

TK, STK/K, STKD/K

Disconnect terminals are commonly used within measurement and control systems. They are ideal for when troubleshooting electrical circuits, when commissioning new systems or refurbishing existing installations.



This series come with a combi-foot for installation on TS 32/TS 35 rails or with a snap-on foot for the TS 15 DIN rail.



The TRK 1.5 is available as a 'blade type' disconnect or with a removable disconnect plug that can be removed and retained by the user to prevent accidental activation.



Features of the TRK 1.5/TRK 1.5 DS



  • Same construction as the standard terminal blocks
  • A sturdy, closed insulation housing
  • The established disconnect-blade with high-quality surfaces
  • Minimal and stable level of contact resistance
  • Touch-safe protection also during the disconnect

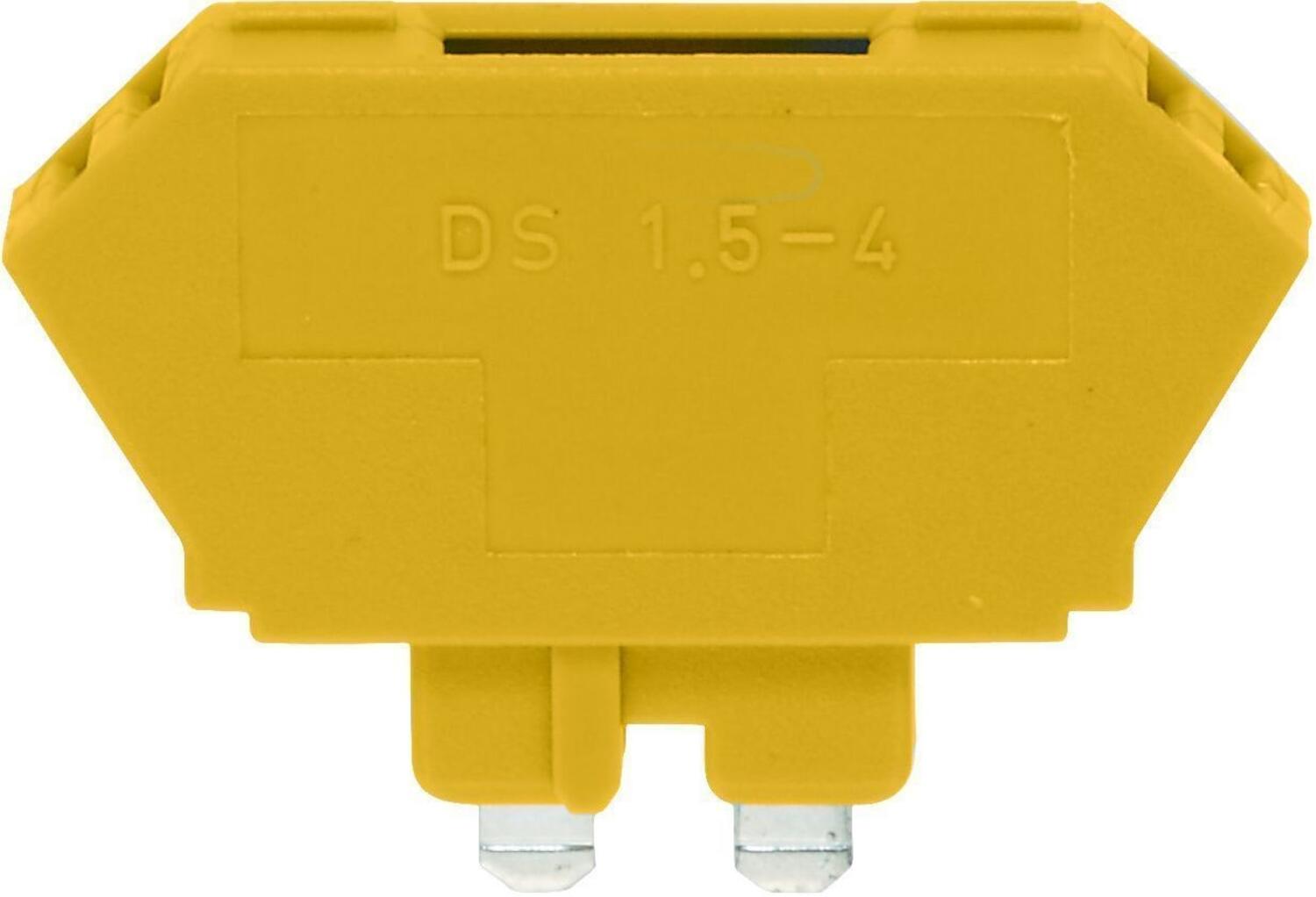

There are 4 -types of DS plugs

  • Disconnect without  circuitry
  • Disconnect plug with wire jumper
  • Disconnect plug  with blocking diode
  • Disconnect plug with pass through diode



STB Versions offers the advantage of a 4mm test socket for pick-off.



TK & STK/K versions are low profile and come with a hinged lever for disconnecting and a contact sleev.



Features of the TK and STK../K



Same construction as the standard terminal fuse blocks

  • Hinged lever latches into fully open position.
  • Disconnect terminals can be used as fuse-disconnect terminals by changing the sleeve (KH5 and KH6.3) to a fuse
  • STKD1/K includes a feed through connection











Read more
  • Material polyamide 6.6
  • Temperature resistance -40 ºC...+105 ºC
  • Flammability class V2
  • Removable plug option

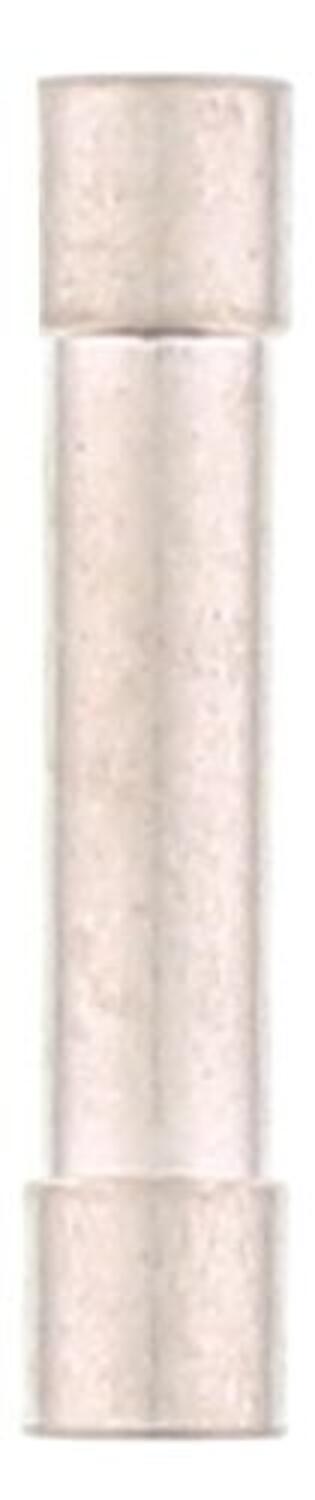

  • Fuse solid links

Selected variant


Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Cross-Section 4 mm²
Color Beige
Rated Voltage IEC 500 V
Rated Current IEC 6.3 A
Mounting TS 35/7,5
Rated impulse voltage 6 kV
Overvoltage category III
Contamination degree 3
Approvals CSA, CSA US
Additional information with contact sleeve
Length 49 mm
Width 8 mm
Height TS 35/7.5 39 mm
Height TS 32 73.3 mm
Connections 2
Number of levels 1
Plug gauge acc. EN 60 947-1 A4
Cross section single wire from 0.2 mm²
Cross section single wire to 4 mm²
Cross section stranded wire from 0.2 mm²
Cross section stranded wire to 4 mm²
Cross section stranded with ferrule from 0.2 mm²
Cross section stranded with ferrule to 2.5 mm²
Rated wire cross section from (AWG) 22
Rated wire cross section to (AWG) 12
Stripping Length 9 mm
Screw size M 3
Screw type Slotted
Torque Min 0.5
Torque max 1
Insulation Material Polyamide 6.6
Flamklass UL94-V2
Operating temperature from -40 °C
Operating temperature to 105 °C
Voltage CSA 500 V
Rated Current CSA 6.3 A
CSA test standard C22.2 No 158
Rated voltage CSAus 500 V
Rated current CSAus 6.3 A
CSAus test standard UL 1059
Tariff code 85369010
Country of origin DE
Weight 13.18 g
Pack Size 100
Type of terminal Screw Terminals, DIN Rail terminals

Downloads

Measurements and connections

Product description

Disconnect terminals are commonly used within measurement and control systems. They are ideal for when troubleshooting electrical circuits, when commissioning new systems or refurbishing existing installations.



This series come with a combi-foot for installation on TS 32/TS 35 rails or with a snap-on foot for the TS 15 DIN rail.



The TRK 1.5 is available as a 'blade type' disconnect or with a removable disconnect plug that can be removed and retained by the user to prevent accidental activation.



Features of the TRK 1.5/TRK 1.5 DS



  • Same construction as the standard terminal blocks
  • A sturdy, closed insulation housing
  • The established disconnect-blade with high-quality surfaces
  • Minimal and stable level of contact resistance
  • Touch-safe protection also during the disconnect



There are 4 -types of DS plugs

  • Disconnect without  circuitry
  • Disconnect plug with wire jumper
  • Disconnect plug  with blocking diode
  • Disconnect plug with pass through diode



STB Versions offers the advantage of a 4mm test socket for pick-off.



TK & STK/K versions are low profile and come with a hinged lever for disconnecting and a contact sleev.



Features of the TK and STK../K



Same construction as the standard terminal fuse blocks

  • Hinged lever latches into fully open position.
  • Disconnect terminals can be used as fuse-disconnect terminals by changing the sleeve (KH5 and KH6.3) to a fuse
  • STKD1/K includes a feed through connection











Accessories

Related products

Add product as a new cart row

You already added this product. Choose whether to increase quantity on the existing row or add the product as a new row.

Related

TER - control stations
Product news

Quality solutions for motion controls

TER - Tecno Elettrica Ravasi, is our Italian supplier specializing in the manufacture of control stations. TER has over 60 years of experience in the manufacture of control stations.

Stego Loop Heater lämmityselementit
Product news

LOOP Heater for optimal heat distribution

Thanks to their loop design, LOOP heating elements offer excellent heating performance and ensure optimal heat distribution. Read more now!

PISA-M
Product news

Compact electronic overcurrent protection PISA-M

PISA-M is a 4-channel electronic fuse for 12 and 24 V DC systems. The smallest 4-channel electronic fuse with a width of only 22.5 mm!

Delcon relays
Product news

An effective solution Delcon CRA5

Delcon's CRA5 plug-in relay revolutionizes the control of difficult-to-handle DC loads. Inductive loads, frequent switching, and high DC voltages are a piece of cake for these relays.

LOCC-Box Mini
Product news

LOCC-Box Mini

The Lütze LOCC-Box is an intelligent electronic overcurrent protection device that provides reliable protection for 12/24 V DC systems in a narrow housing measuring just 8.1 mm. Integrated + and - terminals save space on the DIN rail.

DF Electric
Product news

DF Electric – new supplier for fuse solutions

DF Electric is specialized in the manufacturing of fuse links, fuse holders and control transformers since 1987. Presently the company is leading the Spanish market and is also very active in many export markets due to its competitive range of products.

Articles Cross-Section Color Rated Voltage IEC Rated Current IEC Diode type Mounting Rated impulse voltage Overvoltage category Contamination degree Approvals Additional information Length Width Height TS 35/7.5 Height TS 32 Height TS 15/5.5 Connections Number of levels Plug gauge acc. EN 60 947-1 Number of test pick off options Cross section single wire from Cross section single wire to Cross section stranded wire from Cross section stranded wire to Cross section stranded with ferrule from Cross section stranded with ferrule to Rated wire cross section from (AWG) Rated wire cross section to (AWG) Stripping Length Screw size Screw type Torque Min Torque max Insulation Material Flamklass Operating temperature from Operating temperature to Rated Voltage To UL Rated Current To UL UL test standard Voltage CSA Rated Current CSA CSA test standard Rated voltage CSAus Rated current CSAus CSAus test standard Rated voltage cUL Rated current cUL cUL test standard KEMA KEUR test standard Tariff code Country of origin Weight Pack Size Type of terminal Nemko test standard

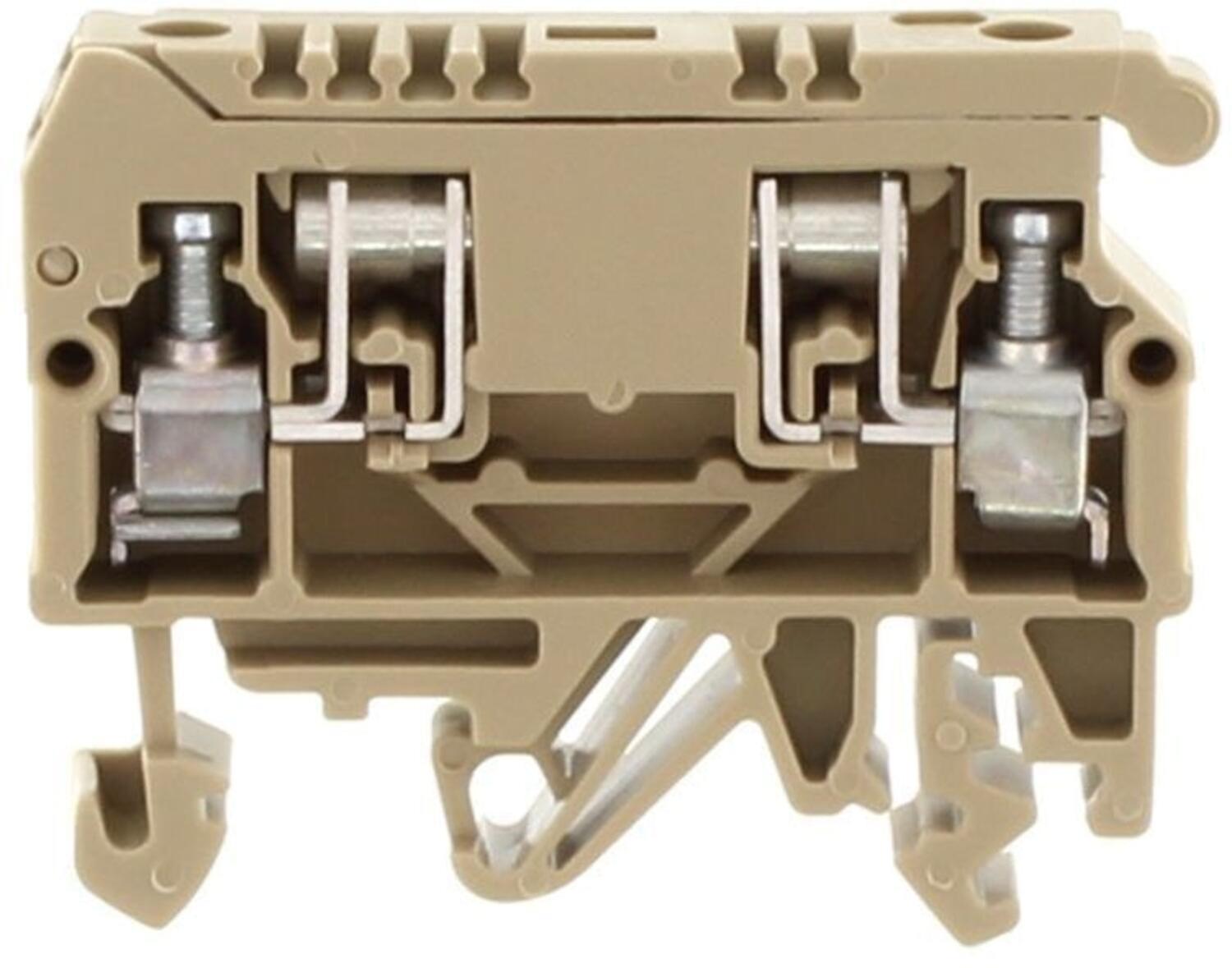

Connection terminal from CONTA-CLIP, beige with two connections and a mount for easy installation.
STK 2/K Beige, 4mm² Compact disconnect terminal, multi-foot
Art:
1381.2 Copied
4 mm²
Beige
500 V
6.3 A
TS 35/7,5
6 kV
III
3
CSA, CSA US
with contact sleeve
49 mm
8 mm
39 mm
73.3 mm
2
1
A4
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
22
12
9 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V2
-40 °C
105 °C
500 V
6.3 A
C22.2 No 158
500 V
6.3 A
UL 1059
85369010
DE
13.18 g
100
Screw Terminals, DIN Rail terminals
Blue connection terminal with two springs and mechanical contacts for electrical installations
STK 2/K Blue, 4mm² Compact disconnect terminal, multi-foot
Art:
1381.5 Copied
4 mm²
Blue
500 V
6.3 A
TS 35/7,5
6 kV
III
3
CSA, CSA US
with contact sleeve
49 mm
8 mm
39 mm
73.3 mm
2
1
A4
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
22
12
9 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V2
-40 °C
105 °C
500 V
6.3 A
C22.2 No 158
500 V
6.3 A
UL 1059
85369010
DE
13.18 g
100
Screw Terminals, DIN Rail terminals
Blue connection terminal from CONTA-CLIP with two connection points for electrical wires
STK 2/15/K Beige, 4mm² Compact disconnect terminal, TS15
Art:
1382.2 Copied
4 mm²
Beige
500 V
6.3 A
TS 15/5,5
6 kV
III
3
CSA, CSA US
with contact sleeve
49 mm
8 mm
34 mm
2
1
A4
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
22
12
9 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V2
-40 °C
105 °C
500 V
6.3 A
C22.2 No 158
500 V
6.3 A
UL 1059
85369010
DE
12.26 g
100
Screw Terminals, DIN Rail terminals
Blue connection terminal for electrical installations with two connections
STK 2/15/K Blue, 4mm² Compact disconnect terminal, TS15
Art:
1382.5 Copied
4 mm²
Blue
500 V
6.3 A
TS 15/5,5
6 kV
III
3
CSA, CSA US
with contact sleeve
49 mm
8 mm
34 mm
2
1
A4
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
22
12
9 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V2
-40 °C
105 °C
500 V
6.3 A
C22.2 No 158
500 V
6.3 A
UL 1059
85369010
DE
12.26 g
100
Screw Terminals, DIN Rail terminals

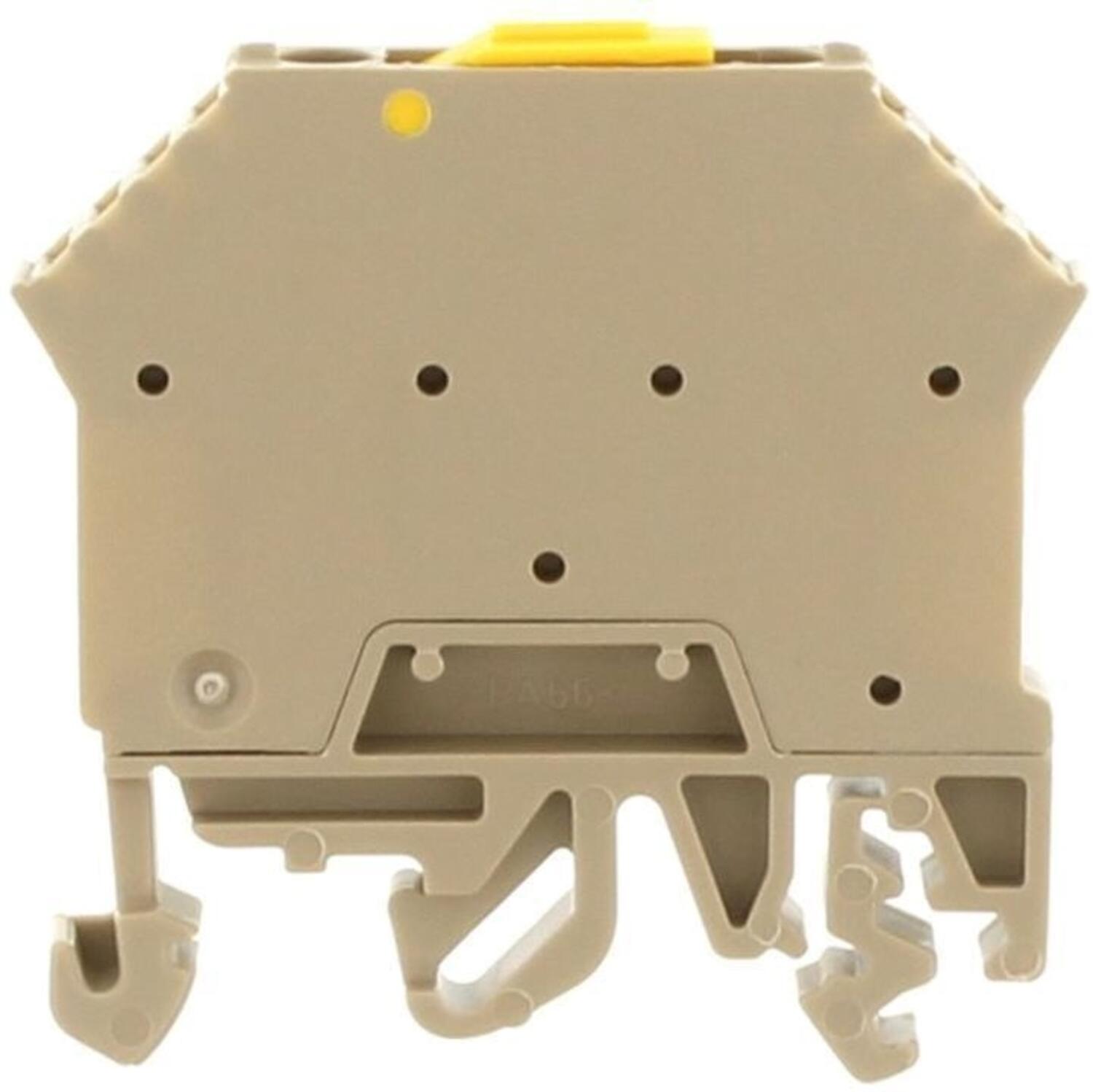

Connection module from CONTA-CLIP, beige with yellow button and multiple connections
TRK 1.5 Beige, 2.5mm² Disconnect terminal, multi-foot
Art:
1390.2 Copied
2.5 mm²
Beige
400 V
10 A
TS 35/7,5
4 kV
III
3
UL, cUL, KEMA KUR, NEMKO
with disconnect knife
48 mm
6 mm
48.3 mm
52.8 mm
2
1
A4
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
22
12
8 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V2
-40 °C
105 °C
600 V
15 A
UL 1059
600 V
15 A
C22.2 No 158
EN 60947-7-1:2009
85369010
CZ
10.73 g
100
Screw Terminals, DIN Rail terminals
EN 60947-7-1:2005
Blue product from CONTA-CLIP, a component with multiple mounts and connections for industrial use.
TRK 1.5 Blue, 2.5mm² Disconnect terminal, multi-foot
Art:
1390.5 Copied
2.5 mm²
Blue
400 V
10 A
TS 35/7,5
4 kV
III
3
UL, cUL, KEMA KUR, NEMKO
with disconnect knife
48 mm
6 mm
48.3 mm
52.8 mm
2
1
A4
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
22
12
8 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V2
-40 °C
105 °C
600 V
15 A
UL 1059
600 V
15 A
C22.2 No 158
EN 60947-7-1:2009
85369010
CZ
10.73 g
100
Screw Terminals, DIN Rail terminals
EN 60947-7-1:2005
Screw Disconnect from CONTA-CLIP with multiple connections and markings for easy installation
TRK 1.5 Grey, 2.5mm² Disconnect terminal, multi-foot
Art:
1390.6 Copied
2.5 mm²
Grey
400 V
10 A
TS 35/7,5
4 kV
III
3
UL, cUL, KEMA KUR, NEMKO
with disconnect knife
48 mm
6 mm
48.3 mm
52.8 mm
2
1
A4
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
22
12
8 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V2
-40 °C
105 °C
600 V
15 A
UL 1059
600 V
15 A
C22.2 No 158
EN 60947-7-1:2009
85369010
CZ
10.73 g
100
Screw Terminals, DIN Rail terminals
EN 60947-7-1:2005
Product image of a CONTA-CLIP component in beige color, designed for electrical installations.

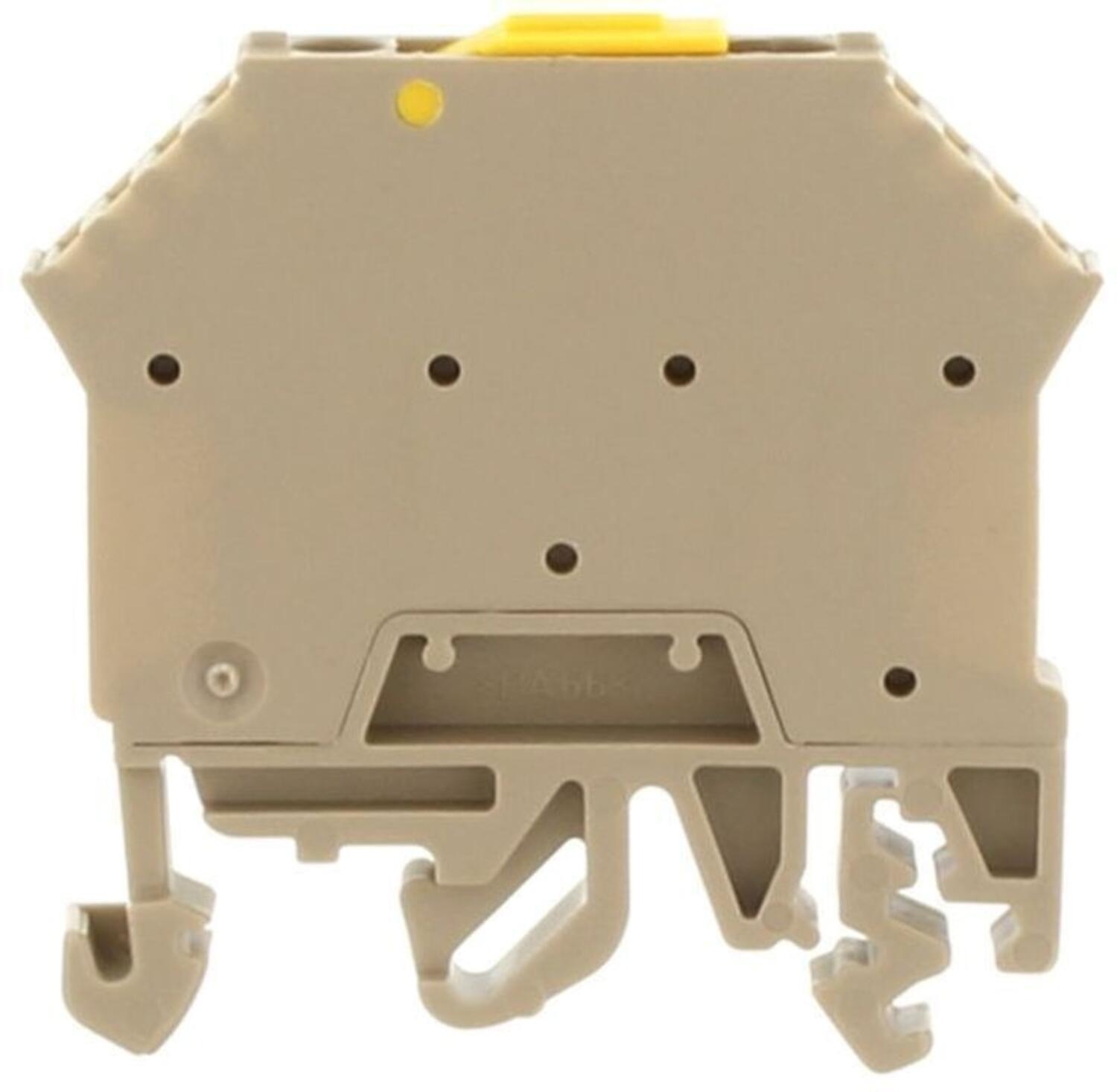

TRK 1.5 Beige, 2.5mm² Disconnect terminal with socket, multi-foot
Art:
1391.2 Copied
2.5 mm²
Beige
400 V
10 A
TS 35/7,5
4 kV
III
3
UL, cUL
with socket screws
48 mm
6 mm
48.3 mm
52.8 mm
2
1
A4
2
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
22
12
8 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V2
-40 °C
105 °C
600 V
15 A
UL 1059
600 V
15 A
C22.2 No 158
85369010
DE
10.73 g
100
Screw Terminals, DIN Rail terminals
Terminal block from CONTA-CLIP, beige with yellow button, designed for electrical connections.

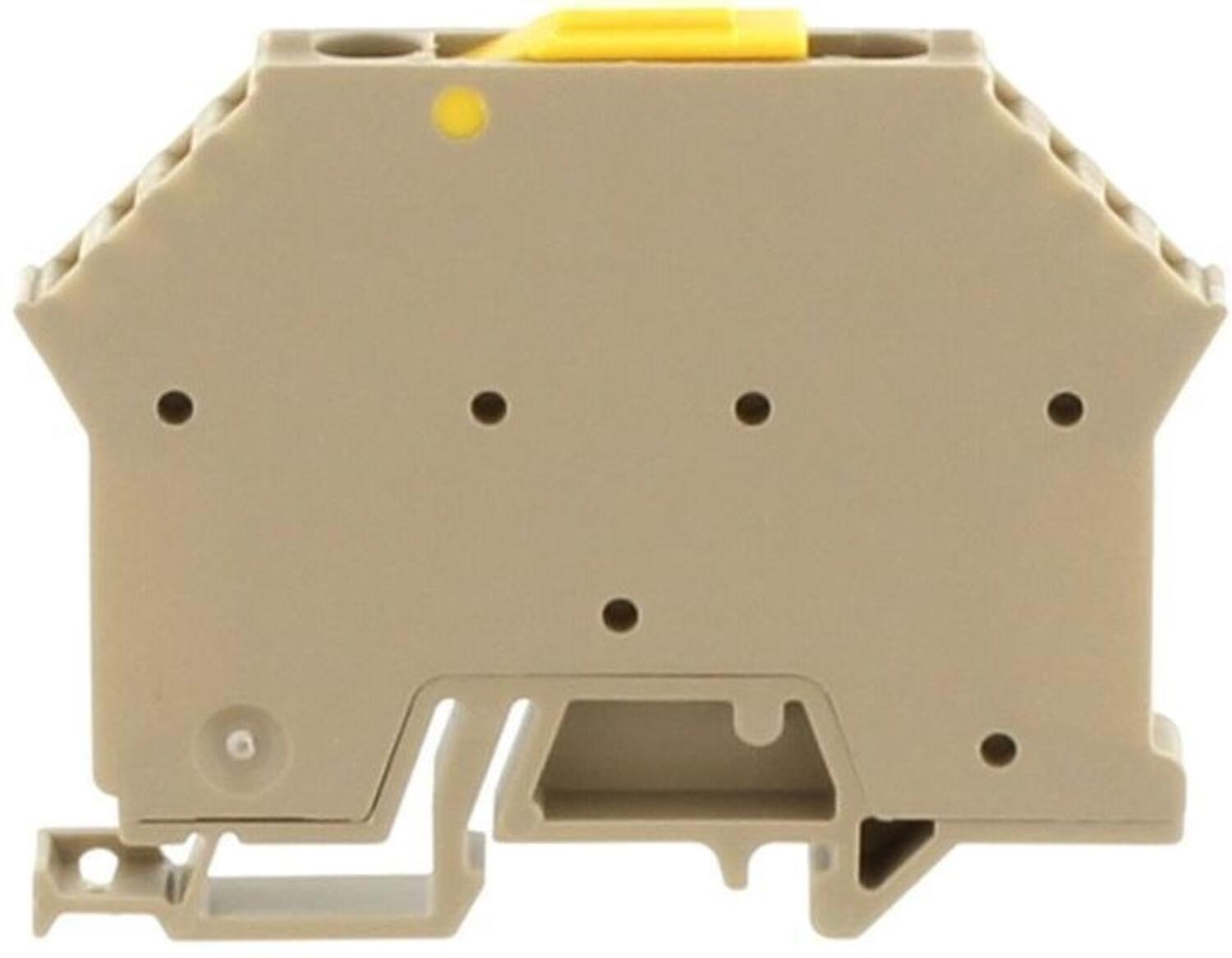

TRK 1.5 Beige, 2.5mm² Disconnect terminal, TS15
Art:
1392.2 Copied
2.5 mm²
Beige
400 V
10 A
TS 15/5,5
4 kV
III
3
UL, cUL, KEMA KUR, NEMKO
with disconnect knife
48 mm
6 mm
38.3 mm
2
1
A4
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
22
12
8 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V2
-40 °C
105 °C
600 V
15 A
UL 1059
600 V
15 A
C22.2 No 158
EN 60947-7-1:2009
85369010
DE
9.57 g
100
Screw Terminals, DIN Rail terminals
EN 60947-7-1:2007
Blue product from CONTA-CLIP, a component with a yellow button and several mounting holes.

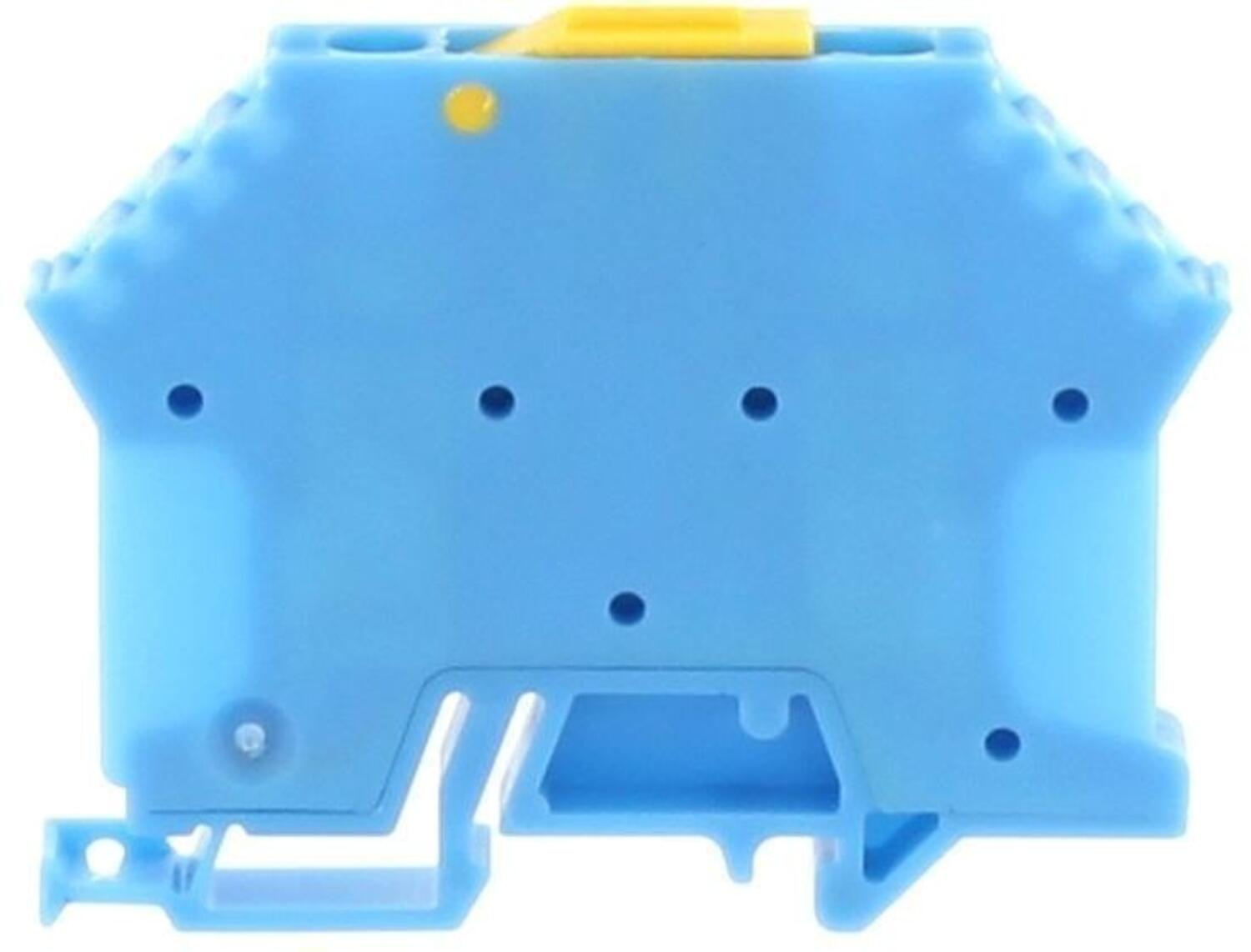

TRK 1.5 Blue, 2.5mm² Disconnect terminal, TS15
Art:
1392.5 Copied
2.5 mm²
Blue
400 V
10 A
TS 15/5,5
4 kV
III
3
UL, cUL, KEMA KUR, NEMKO
with disconnect knife
48 mm
6 mm
38.3 mm
2
1
A4
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
22
12
8 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V2
-40 °C
105 °C
600 V
15 A
UL 1059
600 V
15 A
C22.2 No 158
EN 60947-7-1:2009
85369010
DE
9.57 g
100
Screw Terminals, DIN Rail terminals
EN 60947-7-1:2007

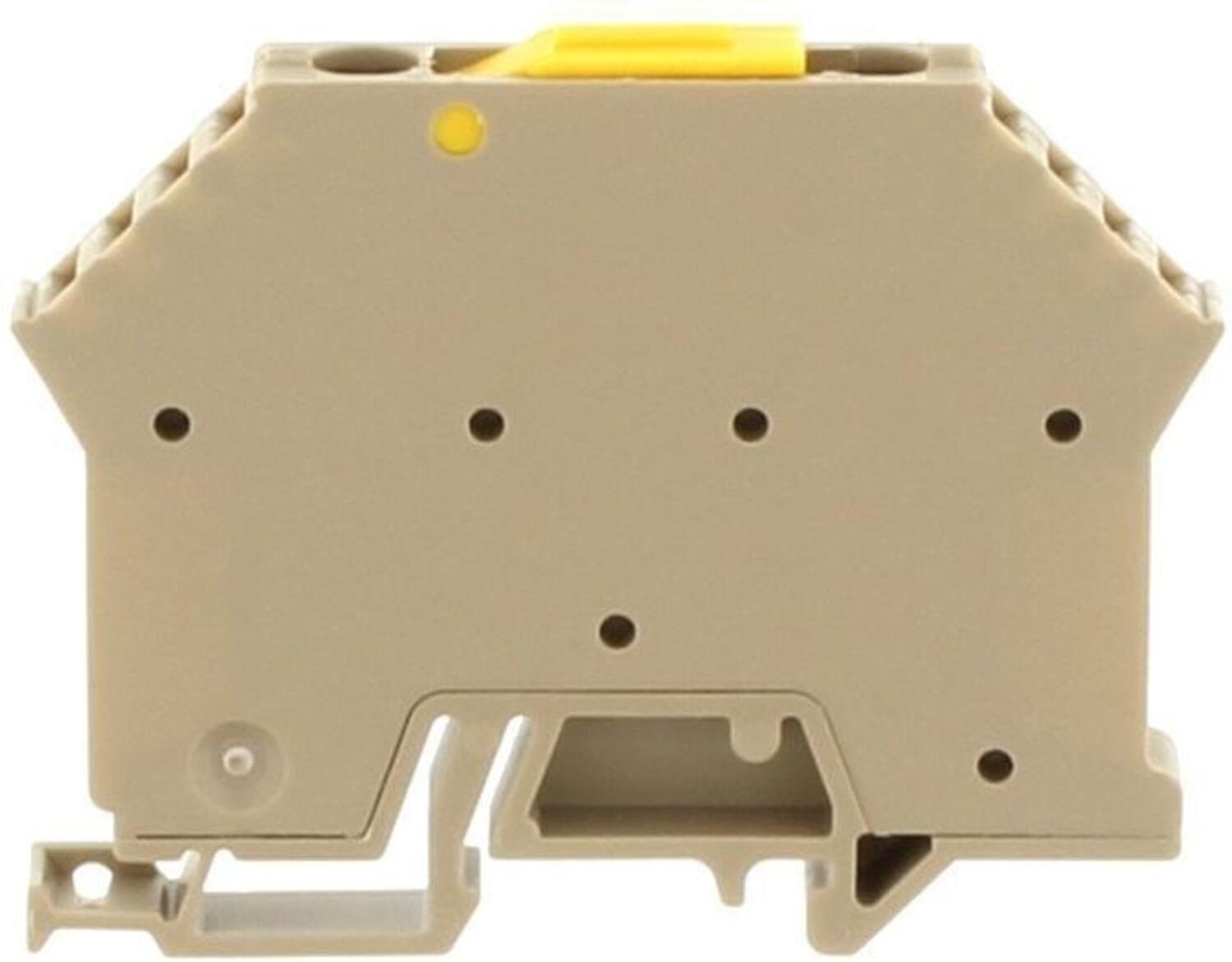

Terminal block from CONTA-CLIP with yellow button and gray color, designed for electrical connections.
TRK 1.5 Beige, 2.5mm² Disconnect terminal with socket, TS15
Art:
1393.2 Copied
2.5 mm²
Beige
400 V
10 A
TS 15/5,5
4 kV
III
3
UL, cUL
with socket screws
48 mm
6 mm
38.3 mm
2
1
A4
2
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
22
12
8 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V2
-40 °C
105 °C
600 V
15 A
UL 1059
600 V
15 A
C22.2 No 158
85369010
DE
9.93 g
100
Screw Terminals, DIN Rail terminals

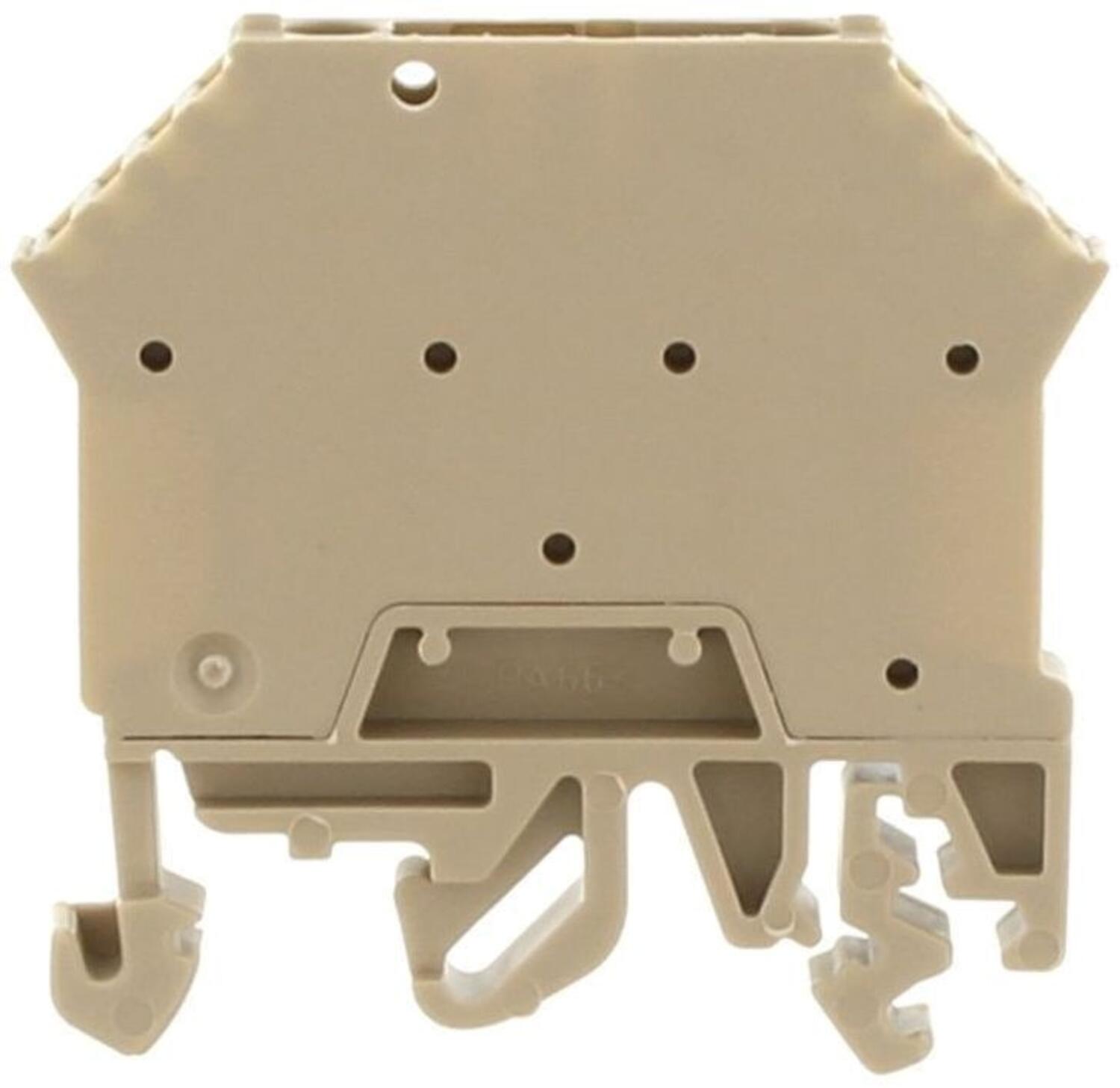

Terminal block from CONTA-CLIP, beige with multiple connection points and mounts.
TRK 1.5 Beige, 2.5mm² Disconnect terminal, multi-foot
Art:
1398.2 Copied
2.5 mm²
Beige
400 V
10 A
TS 35/7,5
4 kV
III
3
UL, cUL, KEMA KUR, NEMKO
without function element
48 mm
6 mm
65 mm
70 mm
2
1
A4
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
22
12
8 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V2
-40 °C
105 °C
600 V
15 A
UL 1059
600 V
15 A
C22.2 No 158
EN 60947-7-1:2009
85369010
CZ
10.04 g
100
Screw Terminals, DIN Rail terminals
EN 60947-7-1:2005
Fuse of type ChangeThis, model 2470, with a slim and cylindrical design.
KH 5, Solid fuse link, 5 x 25mm for STK/SSIK 4 fuse terminals
Art:
2470.0 Copied
85369010
DE
2.06 g
100
Yellow connection clamp DS 1.5-4 for electrical installations
DS 1/TRK 1.5, Disconnect plug for TRK 1.5, Linked
Art:
1400.2 Copied
Yellow
Push in
III
3
with wire jumper
85369010
BG
3.87 g
1
Screw Terminals, DIN Rail terminals
Yellow connection clamp DS 1.5-4 for electrical installations
DS 2/TRK 1.5, Disconnect plug for TRK 1.5, Diode
Art:
1401.2 Copied
Yellow
1000 V
1 A
1N4007
Push in
III
3
with diode 1N4007
85369010
BG
3.87 g
1
Screw Terminals, DIN Rail terminals

Selected variant

Select a variant in the list

Contact us
Please contact us for more information.
Send e-mail
Do you need help?
