Double deck terminals - RKD 2.5-4mm²

RKD, RKDG

  • Screw cross connectors
  • Temperature resistance -40 ºC...+105 ºC
  • Polyamide 6.6 UL94-V2
  • Same level screw option
  • Versions with electronic components fitted

Selected variant


Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

Cross-Section 2.5 mm²
Color Green
Rated Voltage IEC 500 V
Rated Current IEC 24 A
Mounting TS 35/7,5
Rated impulse voltage 6 kV
Overvoltage category III
Contamination degree 3
Approvals UL, KEMA KUR
Length 60.2 mm
Width 5 mm
Height TS 35/7.5 61 mm
Height TS 32 65.5 mm
Connections 2 x 2
Number of levels 2
Plug gauge acc. EN 60 947-1 A3
Cross connect channels 2
Number of test pick off options 1
Cross section single wire from 0.2 mm²
Cross section single wire to 4 mm²
Cross section stranded wire from 0.2 mm²
Cross section stranded wire to 4 mm²
Cross section stranded with ferrule from 0.2 mm²
Cross section stranded with ferrule to 2.5 mm²
Rated wire cross section from (AWG) 22
Rated wire cross section to (AWG) 14
Stripping Length 7 mm
Screw size M 2,5
Screw type Slotted
Torque Min 0.4
Torque max 0.8
Insulation Material Polyamide 6.6
Flamklass UL94-V2
Operating temperature from -40 °C
Operating temperature to 105 °C
UL test standard UL 1059
KEMA KEUR test standard EN 60947-7-1:2009
Tariff code 85369010
Country of origin CZ
Weight 11 g
Pack Size 100
Type of terminal Screw Terminals, DIN Rail terminals

Downloads

Accessories

Related products

Add product as a new cart row

You already added this product. Choose whether to increase quantity on the existing row or add the product as a new row.

Related

TER - control stations
Product news

Quality solutions for motion controls

TER - Tecno Elettrica Ravasi, is our Italian supplier specializing in the manufacture of control stations. TER has over 60 years of experience in the manufacture of control stations.

Stego Loop Heater lämmityselementit
Product news

LOOP Heater for optimal heat distribution

Thanks to their loop design, LOOP heating elements offer excellent heating performance and ensure optimal heat distribution. Read more now!

PISA-M
Product news

Compact electronic overcurrent protection PISA-M

PISA-M is a 4-channel electronic fuse for 12 and 24 V DC systems. The smallest 4-channel electronic fuse with a width of only 22.5 mm!

Delcon relays
Product news

An effective solution Delcon CRA5

Delcon's CRA5 plug-in relay revolutionizes the control of difficult-to-handle DC loads. Inductive loads, frequent switching, and high DC voltages are a piece of cake for these relays.

LOCC-Box Mini
Product news

LOCC-Box Mini

The Lütze LOCC-Box is an intelligent electronic overcurrent protection device that provides reliable protection for 12/24 V DC systems in a narrow housing measuring just 8.1 mm. Integrated + and - terminals save space on the DIN rail.

DF Electric
Product news

DF Electric – new supplier for fuse solutions

DF Electric is specialized in the manufacturing of fuse links, fuse holders and control transformers since 1987. Presently the company is leading the Spanish market and is also very active in many export markets due to its competitive range of products.

Articles Cross-Section Color Rated Voltage IEC Rated voltage Rated Current IEC Diode type Mounting Rated impulse voltage Overvoltage category Contamination degree Approvals Additional information Length Width Height TS 35/7.5 Height TS 32 Connections Number of levels Plug gauge acc. EN 60 947-1 Cross connect channels Number of test pick off options Cross section single wire from Cross section single wire to Cross section stranded wire from Cross section stranded wire to Cross section stranded with ferrule from Cross section stranded with ferrule to Rated wire cross section from (AWG) Rated wire cross section to (AWG) Stripping Length Screw size Screw type Torque Min Torque max Insulation Material Flamklass Operating temperature from Operating temperature to UL test standard Voltage CSA Rated Current CSA CSA test standard Rated voltage CSAus Rated current CSAus CSAus test standard GL test standard EAC test standard KEMA KEUR test standard Tariff code Country of origin Weight Pack Size Type of terminal

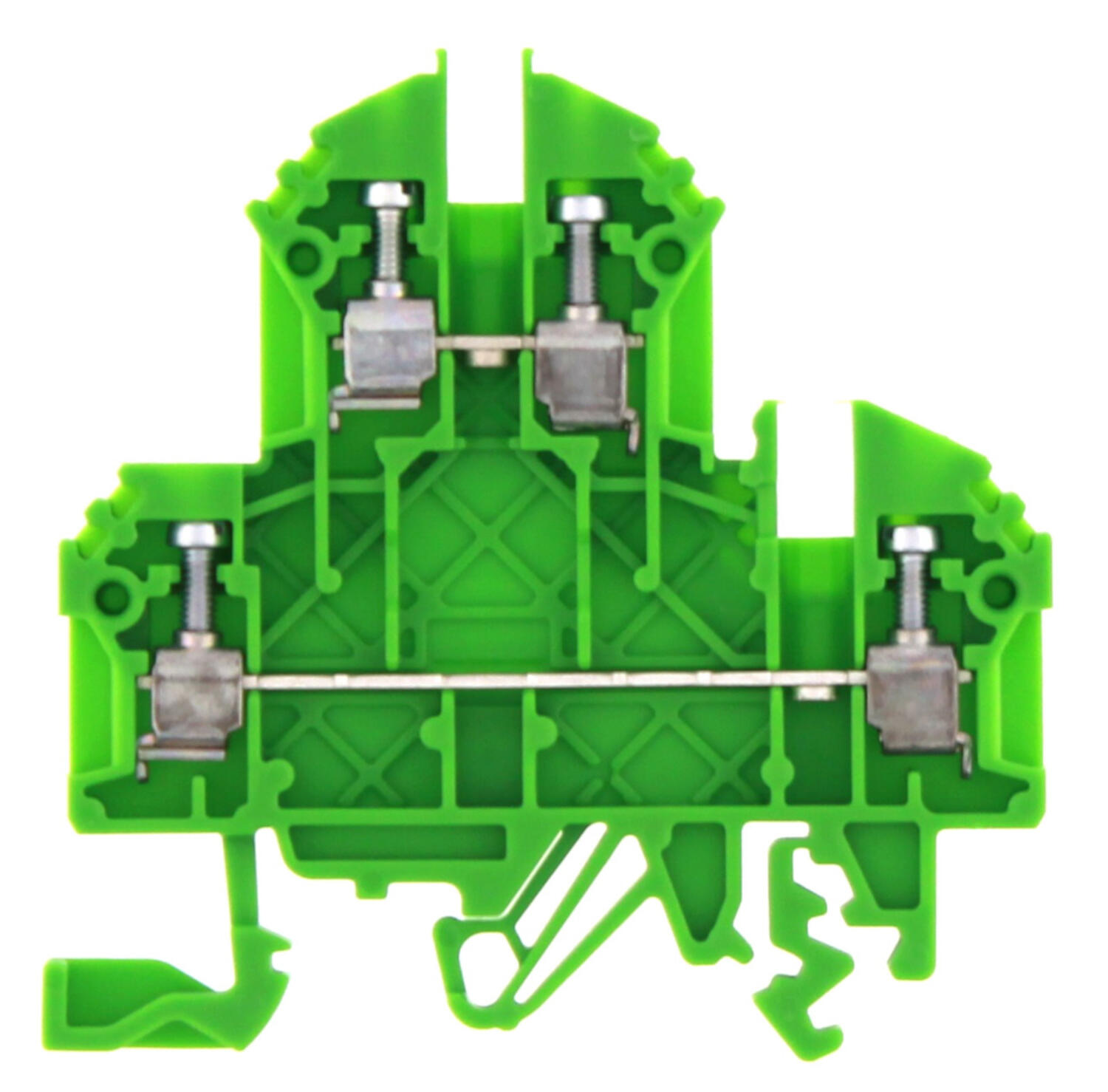

Green product component with metal brackets, designed for electrical installations.
RKD 2.5 Green, 2.5mm² Double deck, multi-foot
Art:
1206.1 Copied
2.5 mm²
Green
500 V
24 A
TS 35/7,5
6 kV
III
3
UL, KEMA KUR
60.2 mm
5 mm
61 mm
65.5 mm
2 x 2
2
A3
2
1
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
22
14
7 mm
M 2,5
Slotted
0.4
0.8
Polyamide 6.6
UL94-V2
-40 °C
105 °C
UL 1059
EN 60947-7-1:2009
85369010
CZ
11 g
100
Screw Terminals, DIN Rail terminals
Terminal block in beige plastic with metal screws for electrical connections

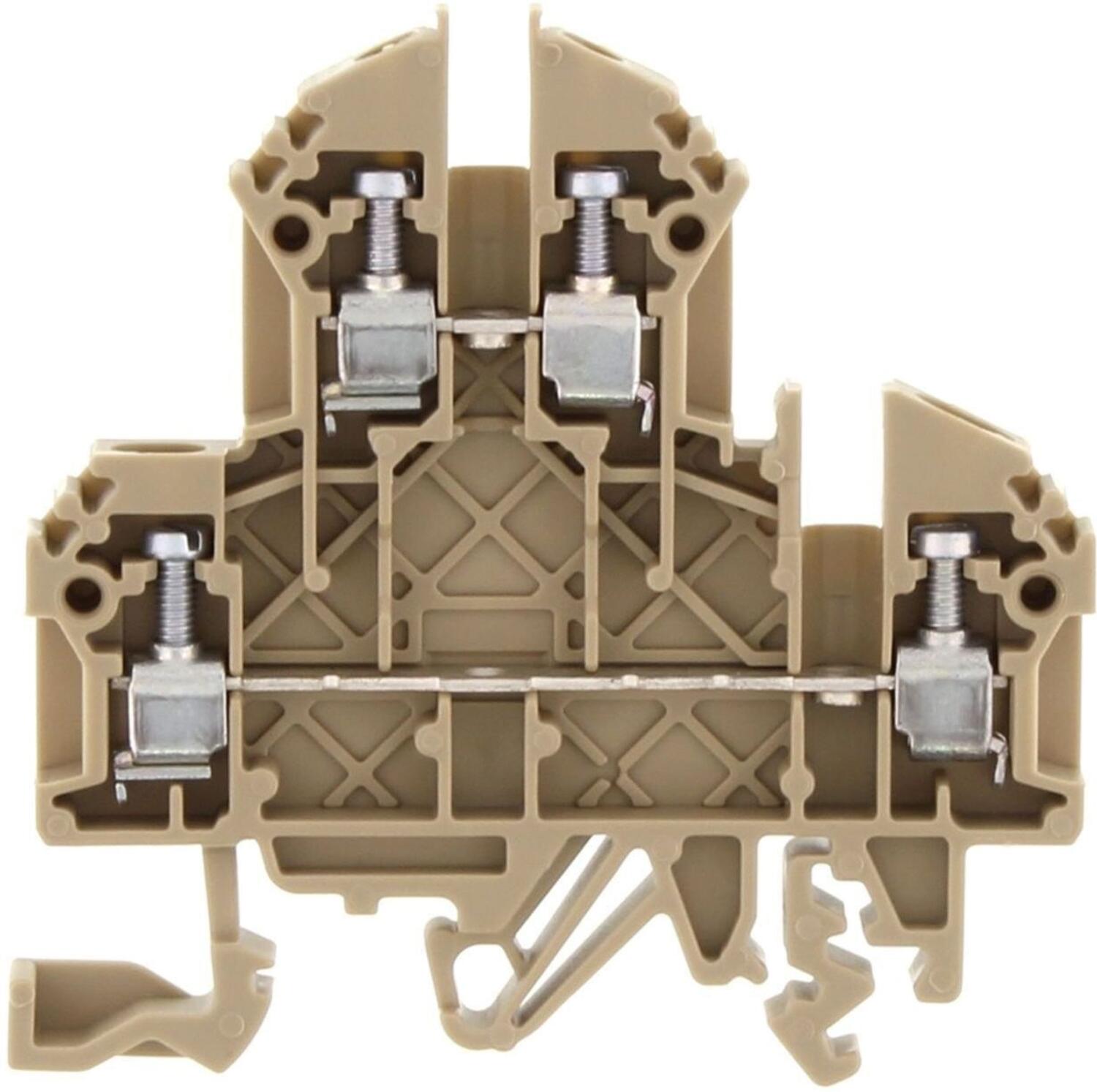

RKD 2,5 Beige, 2.5mm² Double deck, multi-foot
Art:
1206.2 Copied
2.5 mm²
Beige
500 V
24 A
TS 35/7,5
6 kV
III
3
UL, KEMA KUR
60.2 mm
5 mm
61 mm
65.5 mm
2 x 2
2
A3
2
1
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
22
14
7 mm
M 2,5
Slotted
0.4
0.8
Polyamide 6.6
UL94-V2
-40 °C
105 °C
UL 1059
EN 60947-7-1:2009
85369010
CZ
11 g
100
Screw Terminals, DIN Rail terminals
Orange connection clamp with metal brackets and a robust design for electrical installations
RKD 2.5 Orange, 2.5mm² Double deck, multi-foot
Art:
1206.3 Copied
2.5 mm²
Orange
500 V
24 A
TS 35/7,5
6 kV
III
3
UL, KEMA KUR
60.2 mm
5 mm
61 mm
65.5 mm
2 x 2
2
A3
2
1
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
22
14
7 mm
M 2,5
Slotted
0.4
0.8
Polyamide 6.6
UL94-V2
-40 °C
105 °C
UL 1059
EN 60947-7-1:2009
85369010
CZ
11 g
100
Screw Terminals, DIN Rail terminals

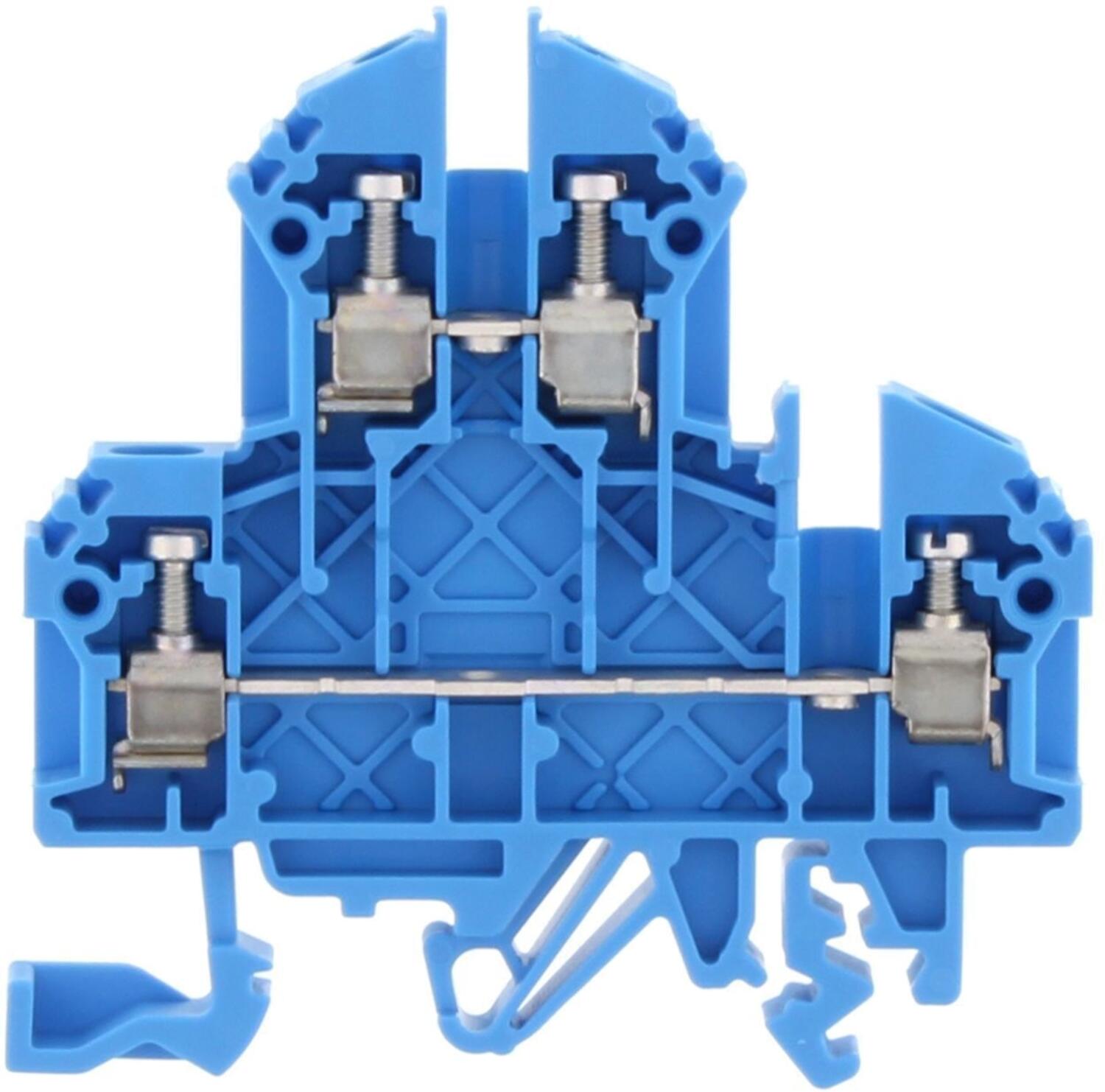

Blue terminal block with metal brackets and detailed internal structure for electrical connections
RKD 2.5 Blue, 2.5mm² Double deck, multi-foot
Art:
1206.5 Copied
2.5 mm²
Blue
500 V
24 A
TS 35/7,5
6 kV
III
3
UL, KEMA KUR
60.2 mm
5 mm
61 mm
65.5 mm
2 x 2
2
A3
2
1
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
22
14
7 mm
M 2,5
Slotted
0.4
0.8
Polyamide 6.6
UL94-V2
-40 °C
105 °C
UL 1059
EN 60947-7-1:2009
85369010
CZ
11 g
100
Screw Terminals, DIN Rail terminals
Terminal block with metal brackets, designed for electrical installations.

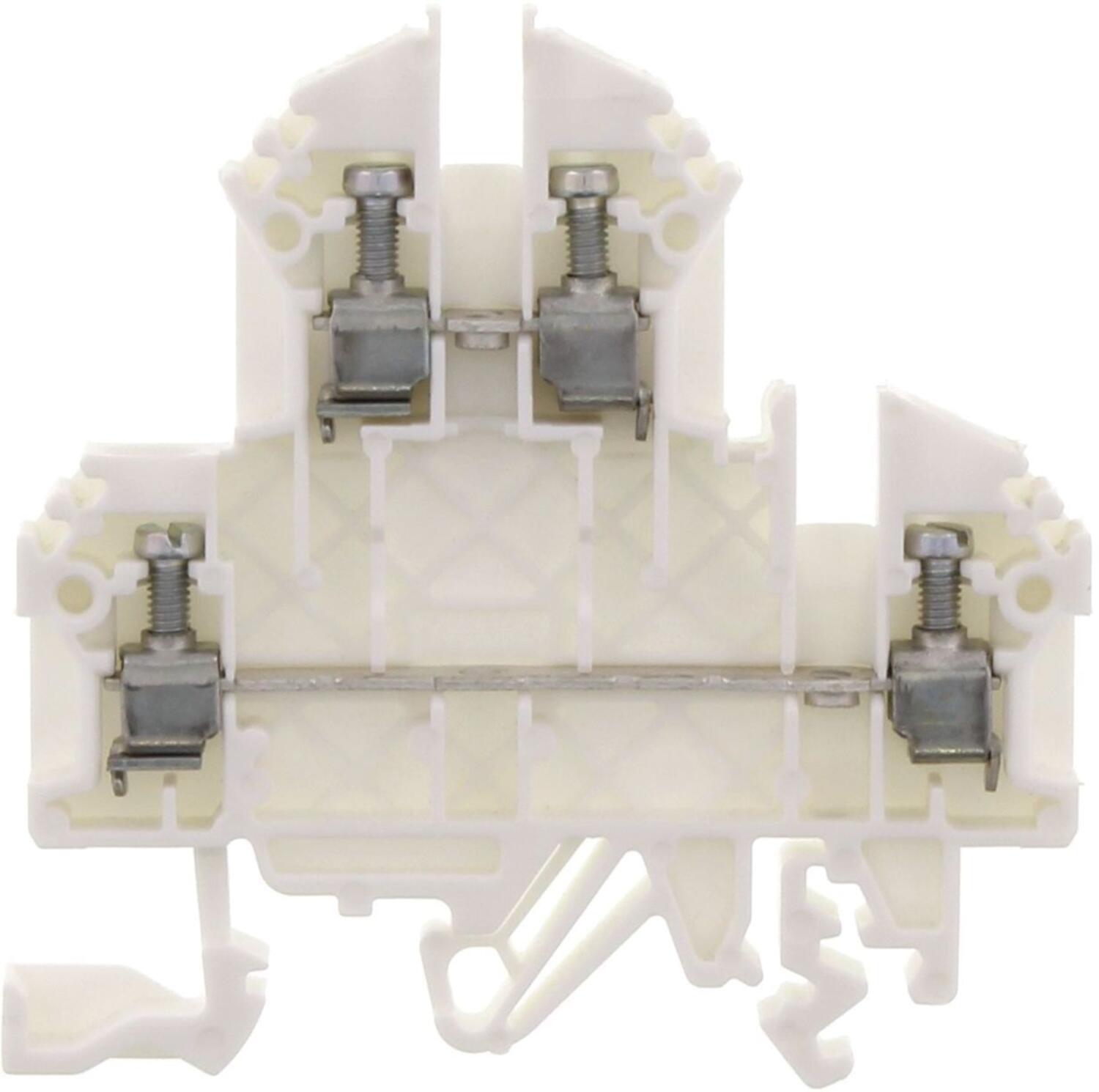

RKD 2.5 White, 2.5mm² Double deck, multi-foot
Art:
1206.7 Copied
2.5 mm²
White
500 V
24 A
TS 35/7,5
6 kV
III
3
UL, KEMA KUR
60.2 mm
5 mm
61 mm
65.5 mm
2 x 2
2
A3
2
1
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
22
14
7 mm
M 2,5
Slotted
0.4
0.8
Polyamide 6.6
UL94-V2
-40 °C
105 °C
UL 1059
EN 60947-7-1:2009
85369010
CZ
11 g
100
Screw Terminals, DIN Rail terminals

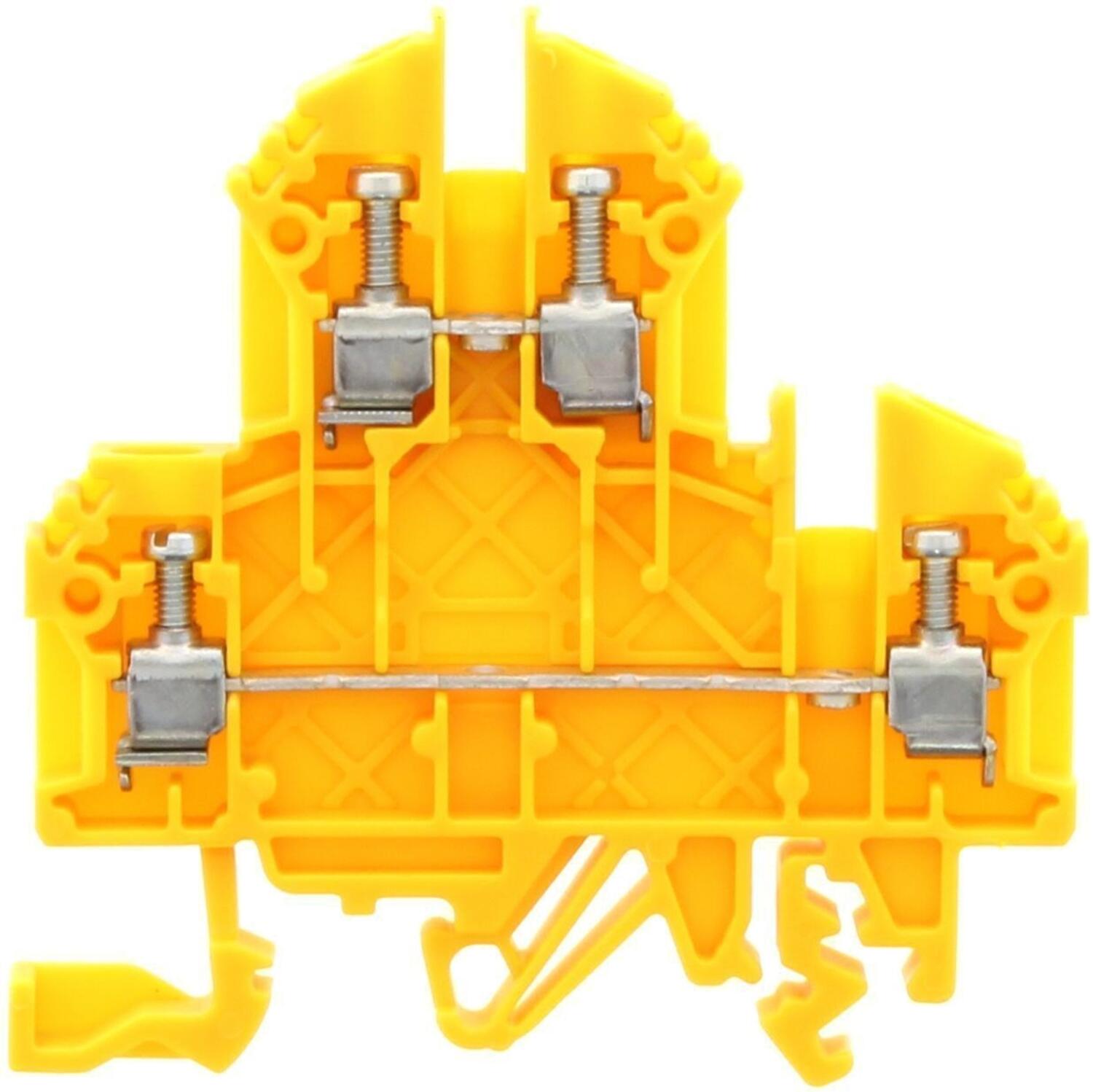

Yellow connection clamp with metal brackets for electrical installations
RKD 2.5 Yellow, 2.5mm² Double deck, multi-foot
Art:
1206.8 Copied
2.5 mm²
Yellow
500 V
24 A
TS 35/7,5
6 kV
III
3
UL, KEMA KUR
60.2 mm
5 mm
61 mm
65.5 mm
2 x 2
2
A3
2
1
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
22
14
7 mm
M 2,5
Slotted
0.4
0.8
Polyamide 6.6
UL94-V2
-40 °C
105 °C
UL 1059
EN 60947-7-1:2009
85369010
CZ
11 g
100
Screw Terminals, DIN Rail terminals
Red terminal block with metal contacts and internal mechanism for electrical connections

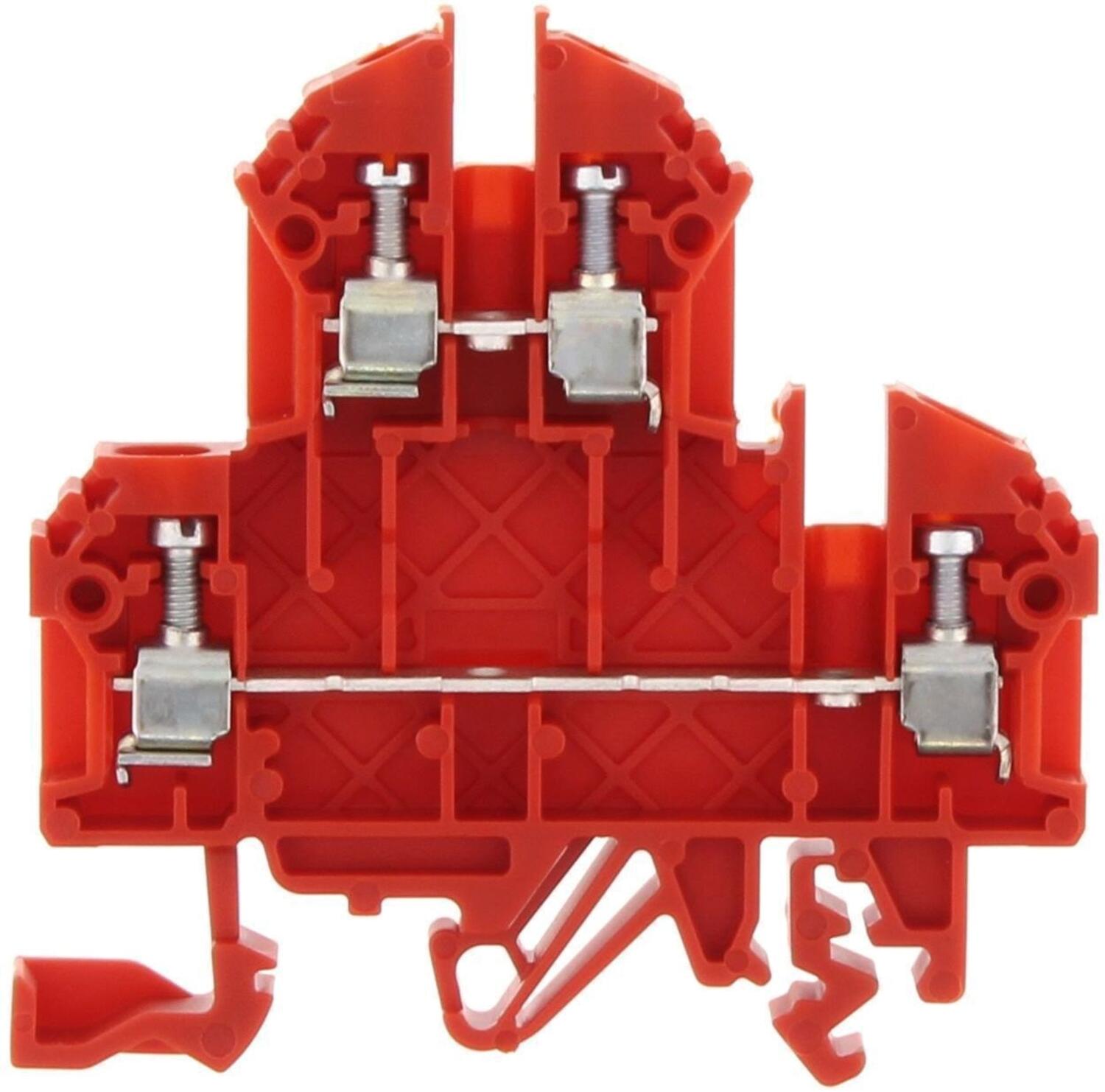

RKD 2.5 Red, 2.5mm² Double deck, multi-foot
Art:
1206.9 Copied
2.5 mm²
Red
500 V
24 A
TS 35/7,5
6 kV
III
3
UL, KEMA KUR
60.2 mm
5 mm
61 mm
65.5 mm
2 x 2
2
A3
2
1
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
22
14
7 mm
M 2,5
Slotted
0.4
0.8
Polyamide 6.6
UL94-V2
-40 °C
105 °C
UL 1059
EN 60947-7-1:2009
85369010
CZ
11 g
100
Screw Terminals, DIN Rail terminals
Terminal block in beige plastic with four connections and metal mounts

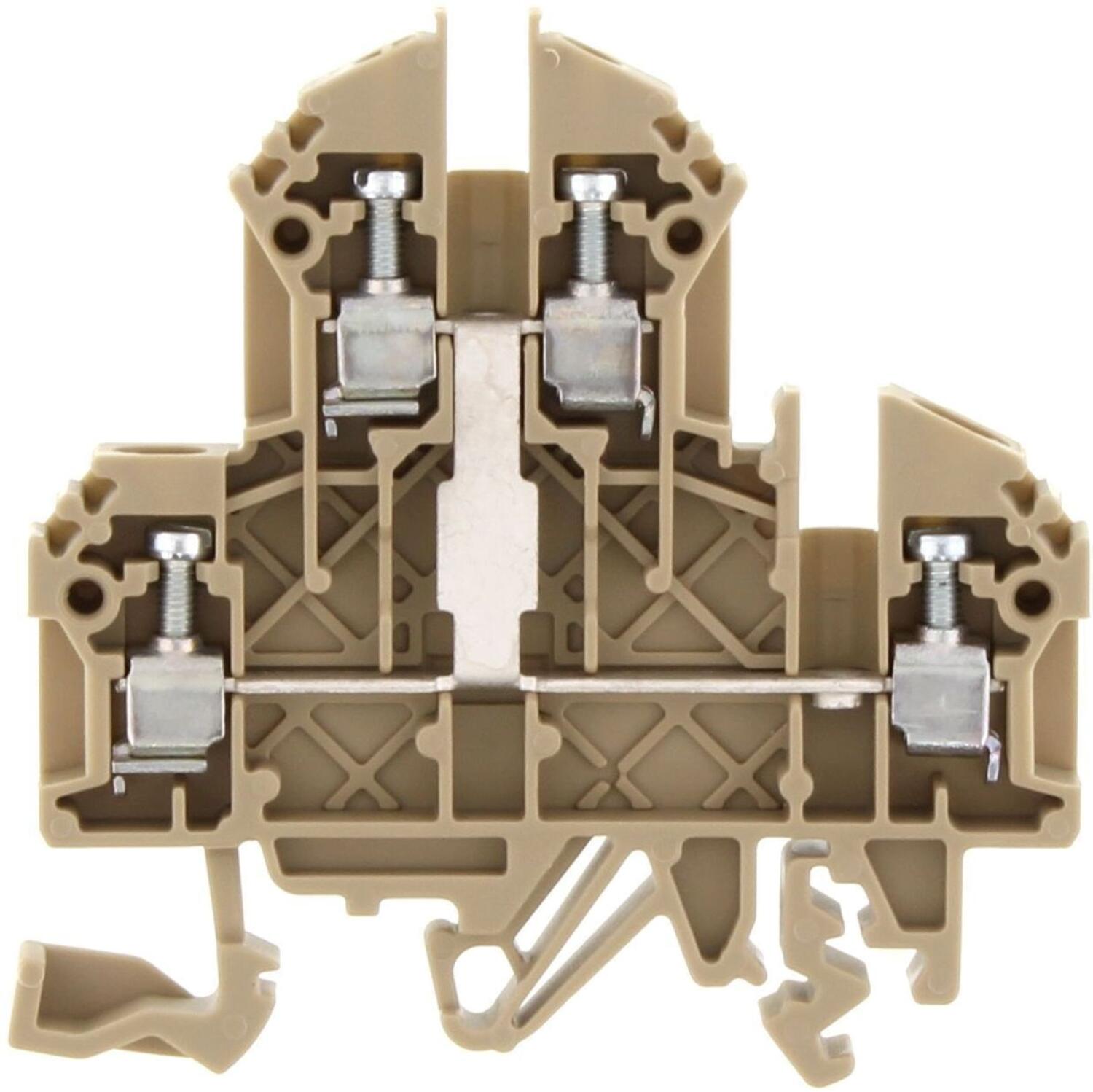

RKD 2.5/SV Beige, 2.5mm² Linked double deck, multi-foot
Art:
1209.2 Copied
2.5 mm²
Beige
500 V
24 A
TS 35/7,5
6 kV
III
3
UL, KEMA KUR
connected vertically
60.2 mm
5 mm
61 mm
65.5 mm
4
2
A3
1
1
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
22
14
7 mm
M 2,5
Slotted
0.4
0.8
Polyamide 6.6
UL94-V2
-40 °C
105 °C
UL 1059
EN 60947-7-1:2009
85369010
CZ
11.7 g
100
Screw Terminals, DIN Rail terminals

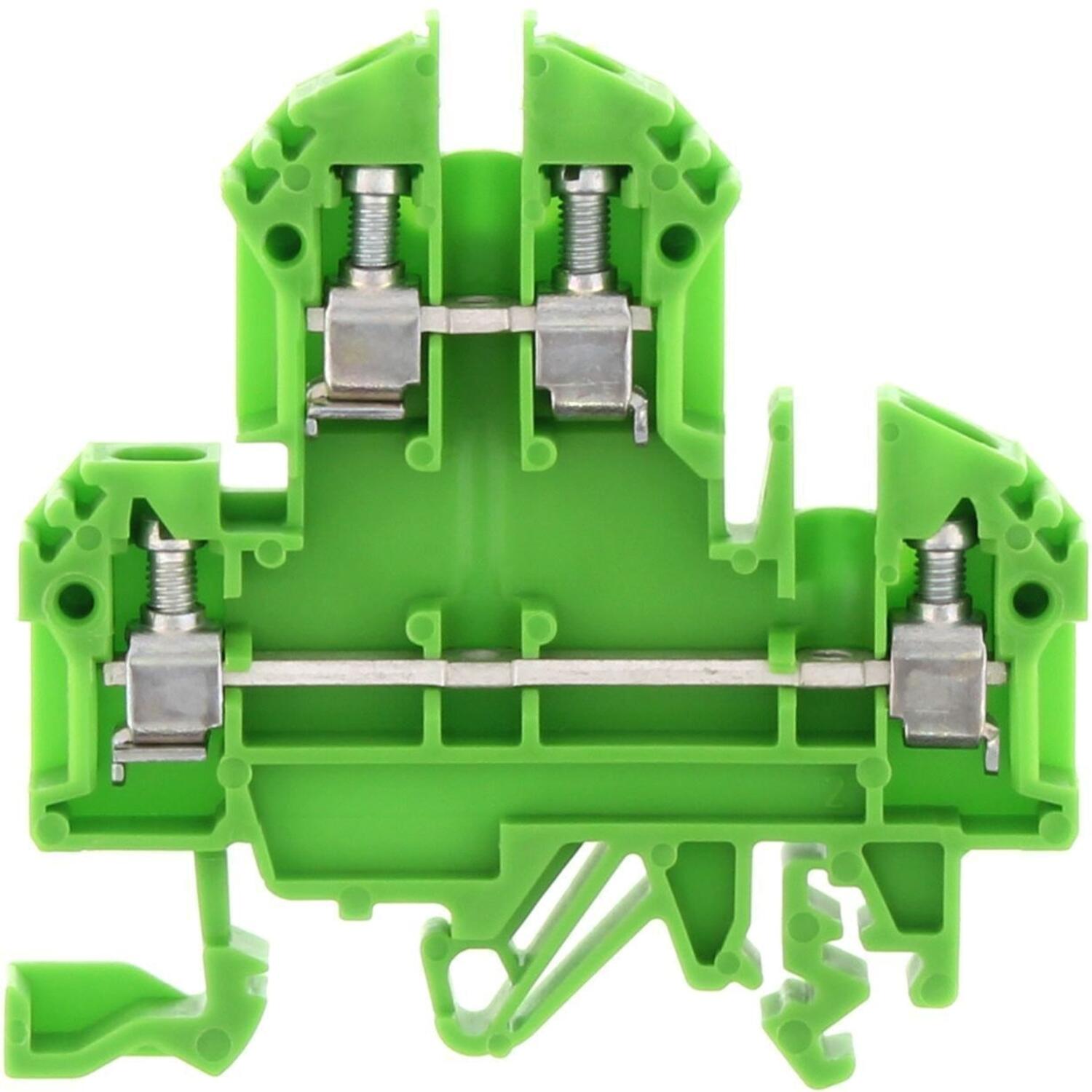

Green electrical connection clamp with metal brackets and springs, ideal for industrial use.
RKD 4 Green, 4mm² Double deck, multi-foot
Art:
1020.1 Copied
4 mm²
Green
500 V
32 A
TS 35/7,5 and TS 32
6 kV
III
3
UL, CSA, GL, KEMA KUR, EAC
60.2 mm
6 mm
61 mm
65.5 mm
2 x 2
2
A4
2
1
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
4 mm²
22
12
9 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V2
-40 °C
105 °C
UL 1059
300 V
25 A
C22.2 No 158
IEC 60947-7-1:2002
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
14.22 g
100
Screw Terminals, DIN Rail terminals
Terminal block in beige plastic with visible screws and wires, ideal for electrical installations
RKD 4 Beige, 4mm² Double deck, multi-foot
Art:
1020.2 Copied
4 mm²
Beige
500 V
32 A
TS 35/7,5 and TS 32
6 kV
III
3
UL, CSA, GL, KEMA KUR, EAC
60.2 mm
6 mm
61 mm
65.5 mm
2 x 2
2
A4
2
1
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
4 mm²
22
12
9 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V2
-40 °C
105 °C
UL 1059
300 V
25 A
C22.2 No 158
IEC 60947-7-1:2002
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
14.22 g
100
Screw Terminals, DIN Rail terminals
Orange terminal block with two springs and metal contacts, designed for electrical installations.

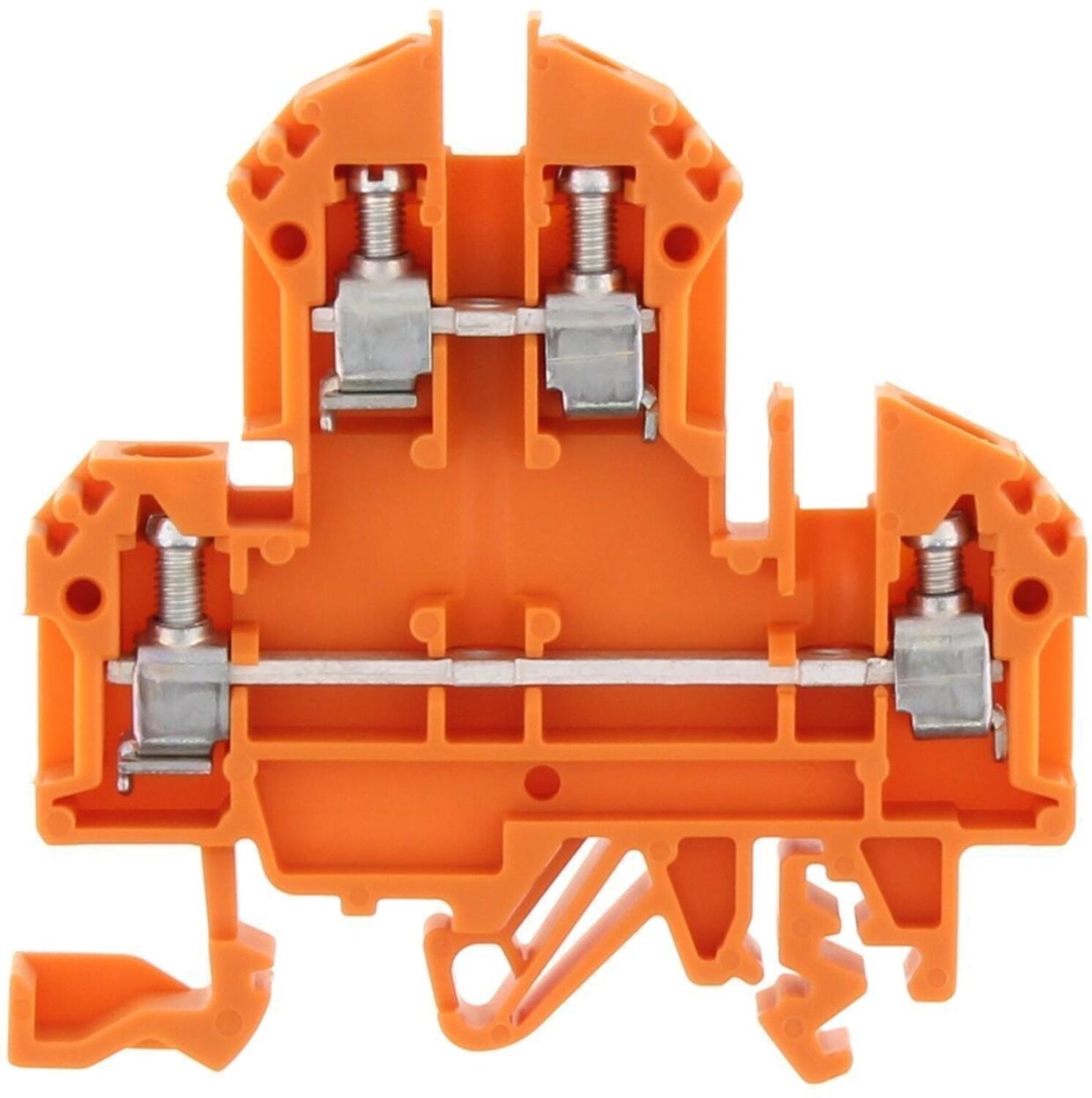

RKD 4 Orange, 4mm² Double deck, multi-foot
Art:
1020.3 Copied
4 mm²
Orange
500 V
32 A
TS 35/7,5 and TS 32
6 kV
III
3
UL, CSA, GL, KEMA KUR, EAC
60.2 mm
6 mm
61 mm
65.5 mm
2 x 2
2
A4
2
1
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
4 mm²
22
12
9 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V2
-40 °C
105 °C
UL 1059
300 V
25 A
C22.2 No 158
IEC 60947-7-1:2002
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
14.22 g
100
Screw Terminals, DIN Rail terminals
Blue terminal block with internal components and springs for electrical connections
RKD 4 Blue, 4mm² Double deck, multi-foot
Art:
1020.5 Copied
4 mm²
Blue
500 V
32 A
TS 35/7,5 and TS 32
6 kV
III
3
UL, CSA, GL, KEMA KUR, EAC
60.2 mm
6 mm
61 mm
65.5 mm
2 x 2
2
A4
2
1
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
4 mm²
22
12
9 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V2
-40 °C
105 °C
UL 1059
300 V
25 A
C22.2 No 158
IEC 60947-7-1:2002
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
14.22 g
100
Screw Terminals, DIN Rail terminals
Terminal block with four connections and metal screws for electrical installations

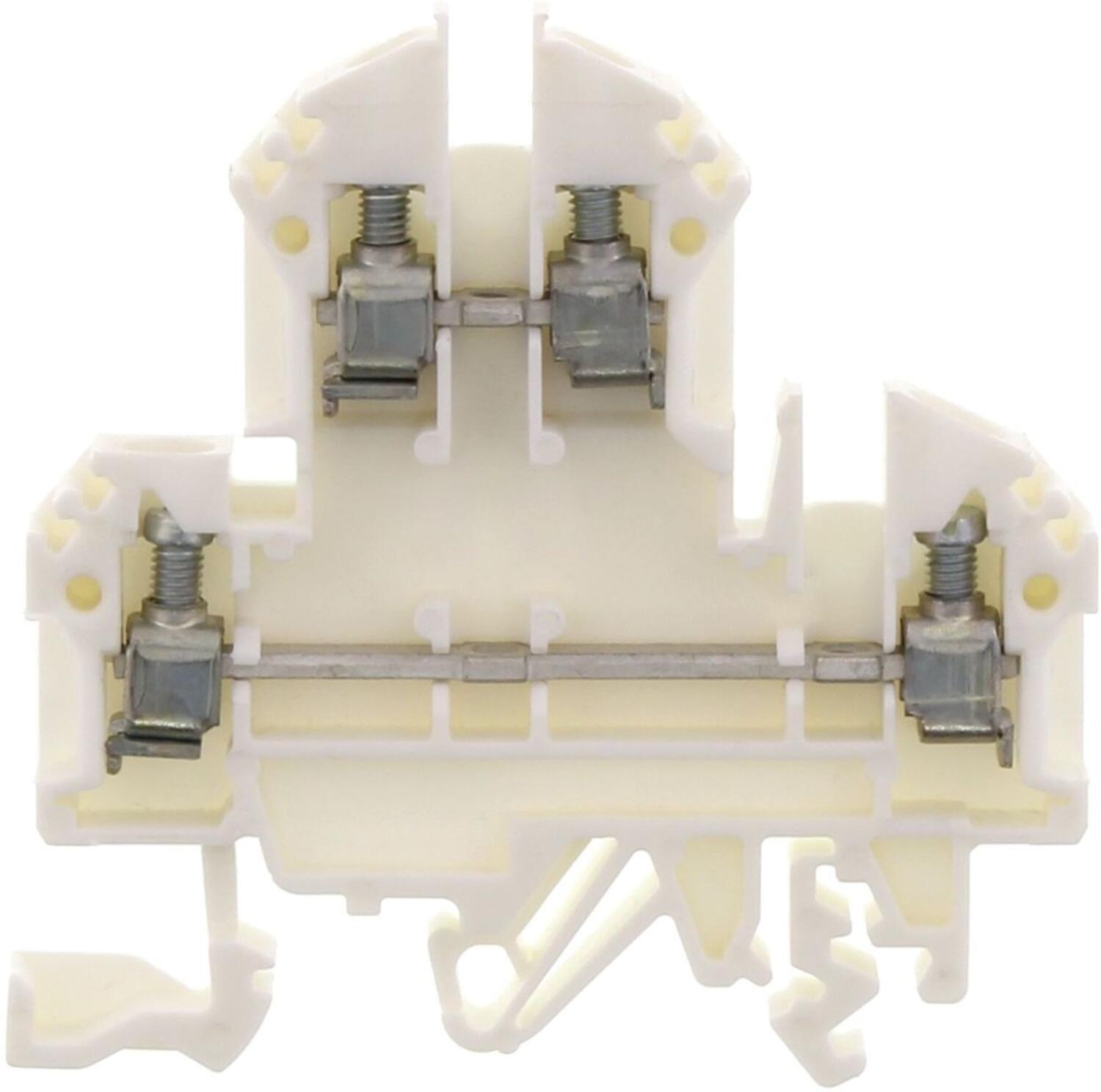

RKD 4 White, 4mm² Double deck, multi-foot
Art:
1020.7 Copied
4 mm²
White
500 V
32 A
TS 35/7,5 and TS 32
6 kV
III
3
UL, CSA, GL, KEMA KUR, EAC
60.2 mm
6 mm
61 mm
65.5 mm
2 x 2
2
A4
2
1
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
4 mm²
22
12
9 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V2
-40 °C
105 °C
UL 1059
300 V
25 A
C22.2 No 158
IEC 60947-7-1:2002
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
14.22 g
100
Screw Terminals, DIN Rail terminals

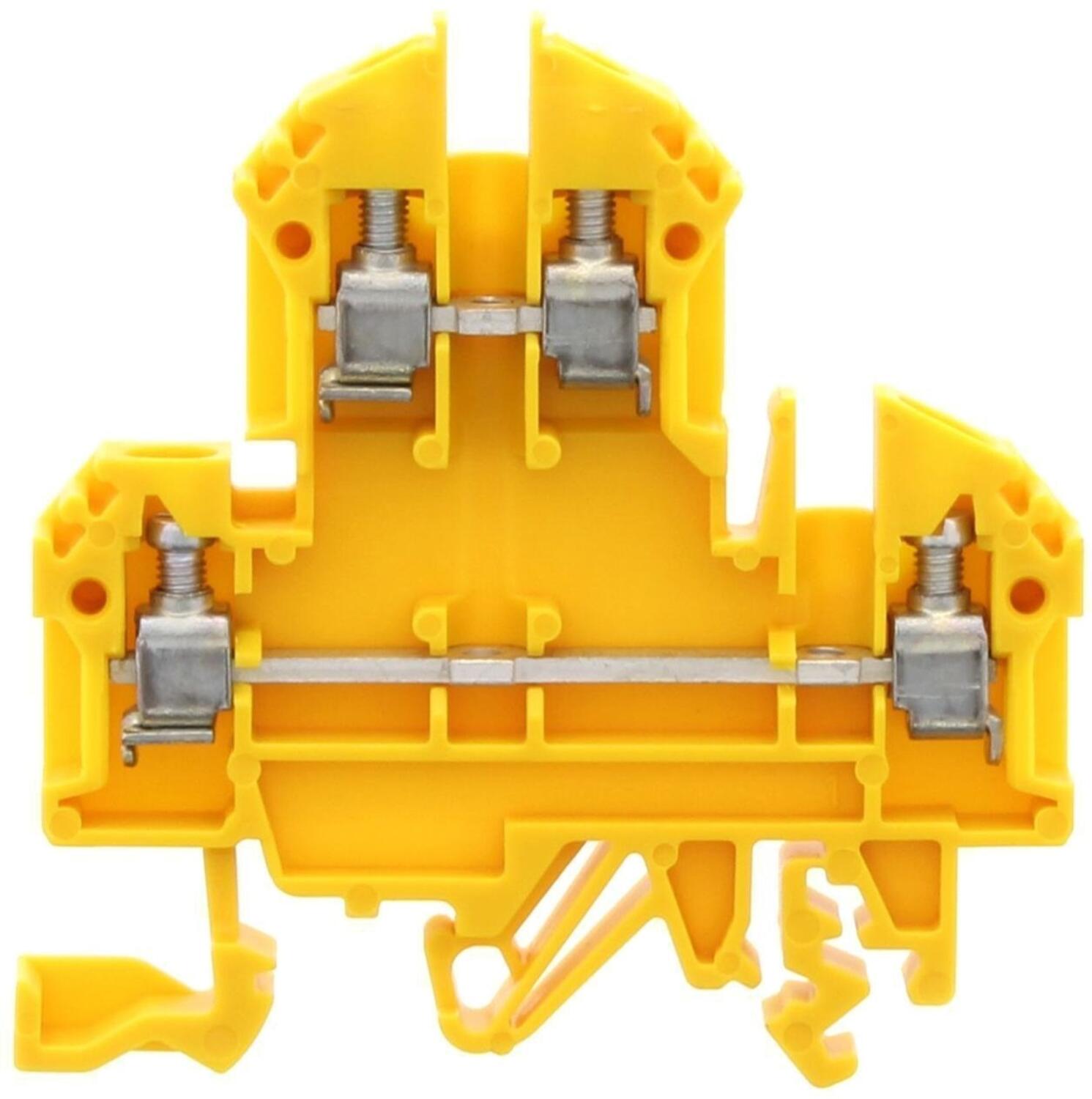

Yellow connection clamp with metal brackets, ideal for electrical installations.
RKD 4 Yellow, 4mm² Double deck, multi-foot
Art:
1020.8 Copied
4 mm²
Yellow
500 V
32 A
TS 35/7,5 and TS 32
6 kV
III
3
UL, CSA, GL, KEMA KUR, EAC
60.2 mm
6 mm
61 mm
65.5 mm
2 x 2
2
A4
2
1
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
4 mm²
22
12
9 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V2
-40 °C
105 °C
UL 1059
300 V
25 A
C22.2 No 158
IEC 60947-7-1:2002
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
14.22 g
100
Screw Terminals, DIN Rail terminals
Red terminal block with two connections and springs for secure electrical connection

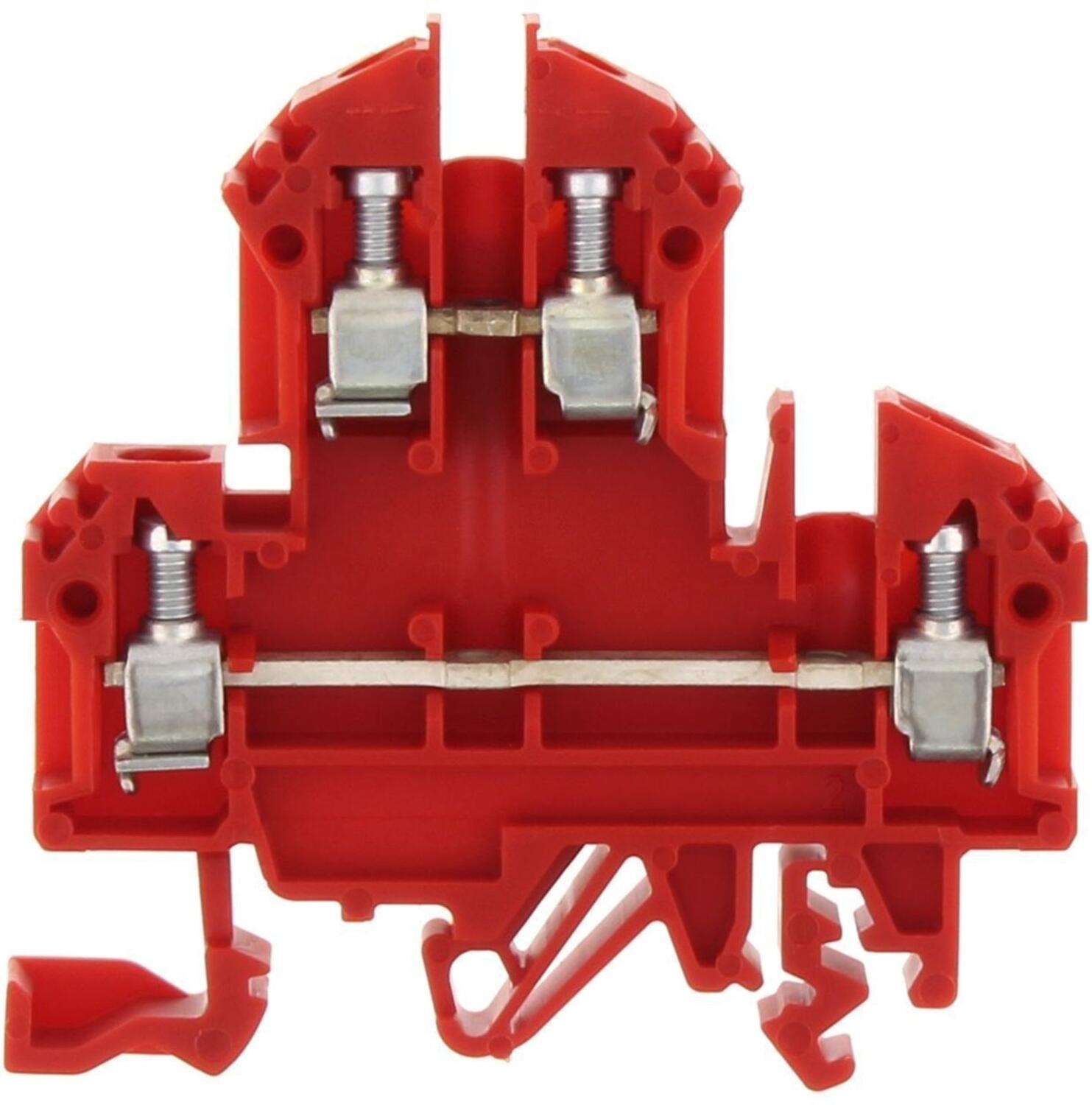

RKD 4 Red, 4mm² Double deck, multi-foot
Art:
1020.9 Copied
4 mm²
Red
500 V
32 A
TS 35/7,5 and TS 32
6 kV
III
3
UL, CSA, GL, KEMA KUR, EAC
60.2 mm
6 mm
61 mm
65.5 mm
2 x 2
2
A4
2
1
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
4 mm²
22
12
9 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V2
-40 °C
105 °C
UL 1059
300 V
25 A
C22.2 No 158
IEC 60947-7-1:2002
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
14.22 g
100
Screw Terminals, DIN Rail terminals
Terminal block in beige plastic with metal brackets, designed for electrical connections.

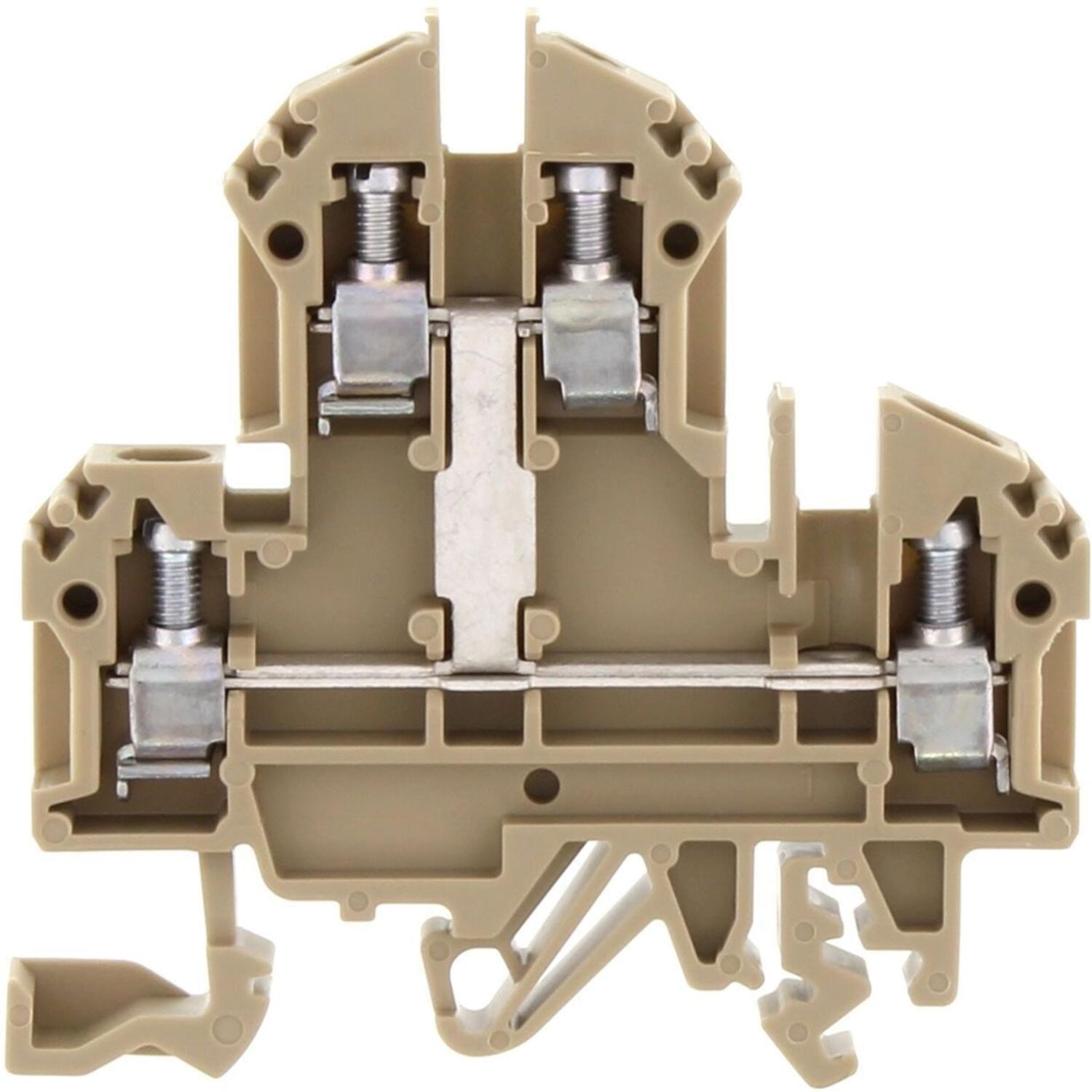

RKD 4 Beige, 4mm² Linked double deck, multi-foot
Art:
1027.2 Copied
4 mm²
Beige
500 V
32 A
TS 35/7,5 and TS 32
6 kV
III
3
UL, CSA, CSA US, KEMA KUR, EAC
connected vertically
60.2 mm
6 mm
61 mm
65.5 mm
4
2
A4
1
1
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
4 mm²
22
12
9 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V2
-40 °C
105 °C
UL 1059
300 V
30 A
C22.2 No 158
300 V
30 A
UL 1059
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
14.83 g
100
Screw Terminals, DIN Rail terminals
Terminal block in beige plastic with two connections and a central metal clip

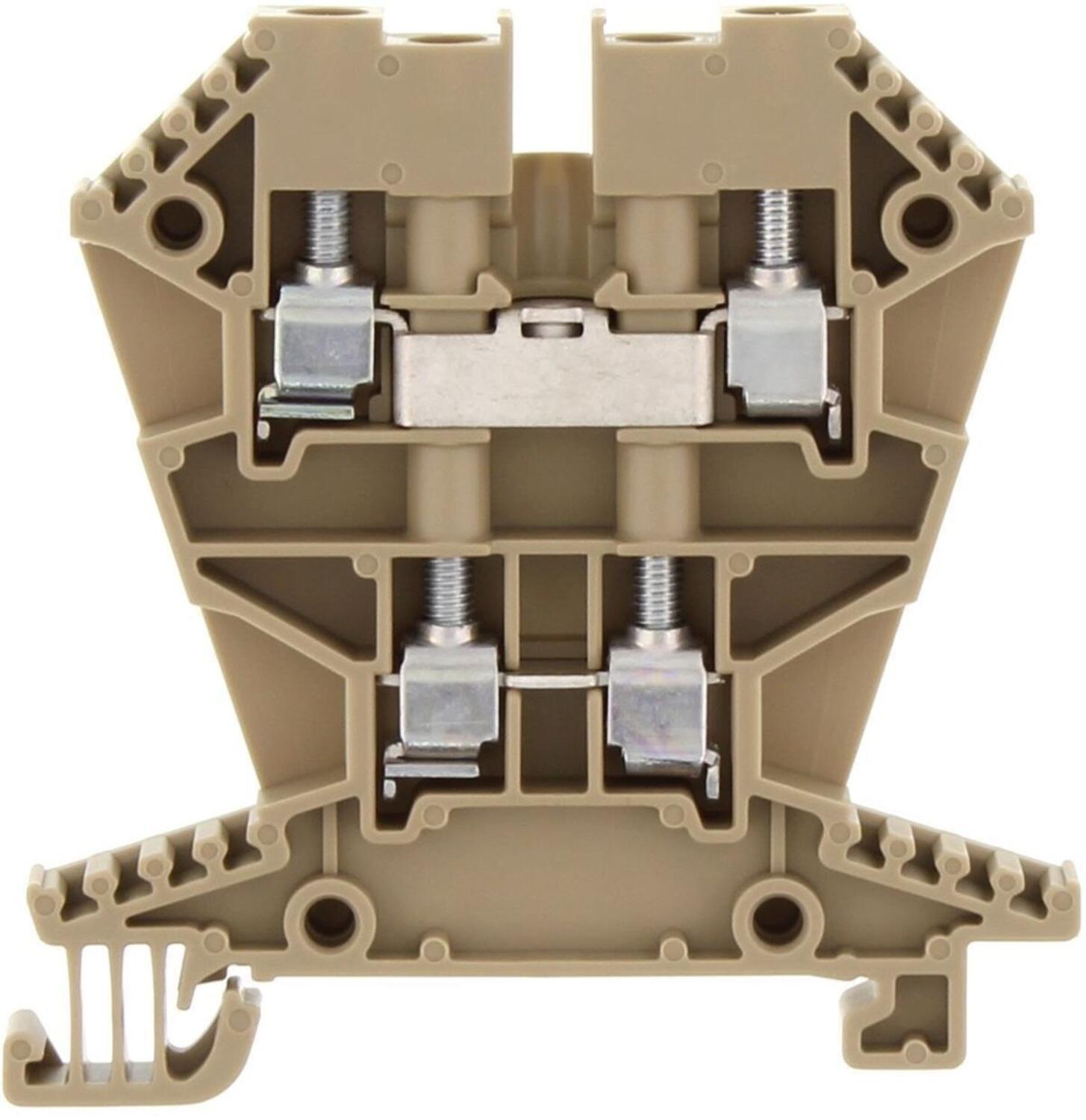

RKDG 4 Beige, 4mm² Double deck, same level
Art:
2584.2 Copied
4 mm²
Beige
500 V
32 A
TS 35/7,5
6 kV
III
3
KEMA KUR
58.5 mm
6 mm
60 mm
2 x 2
2
A4
1
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
4 mm²
22
12
9 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V2
-40 °C
105 °C
EN 60947-7-1:2009
85369010
DE
16.06 g
100
Screw Terminals, DIN Rail terminals
Blue connection clamp with metal fittings for electrical installations

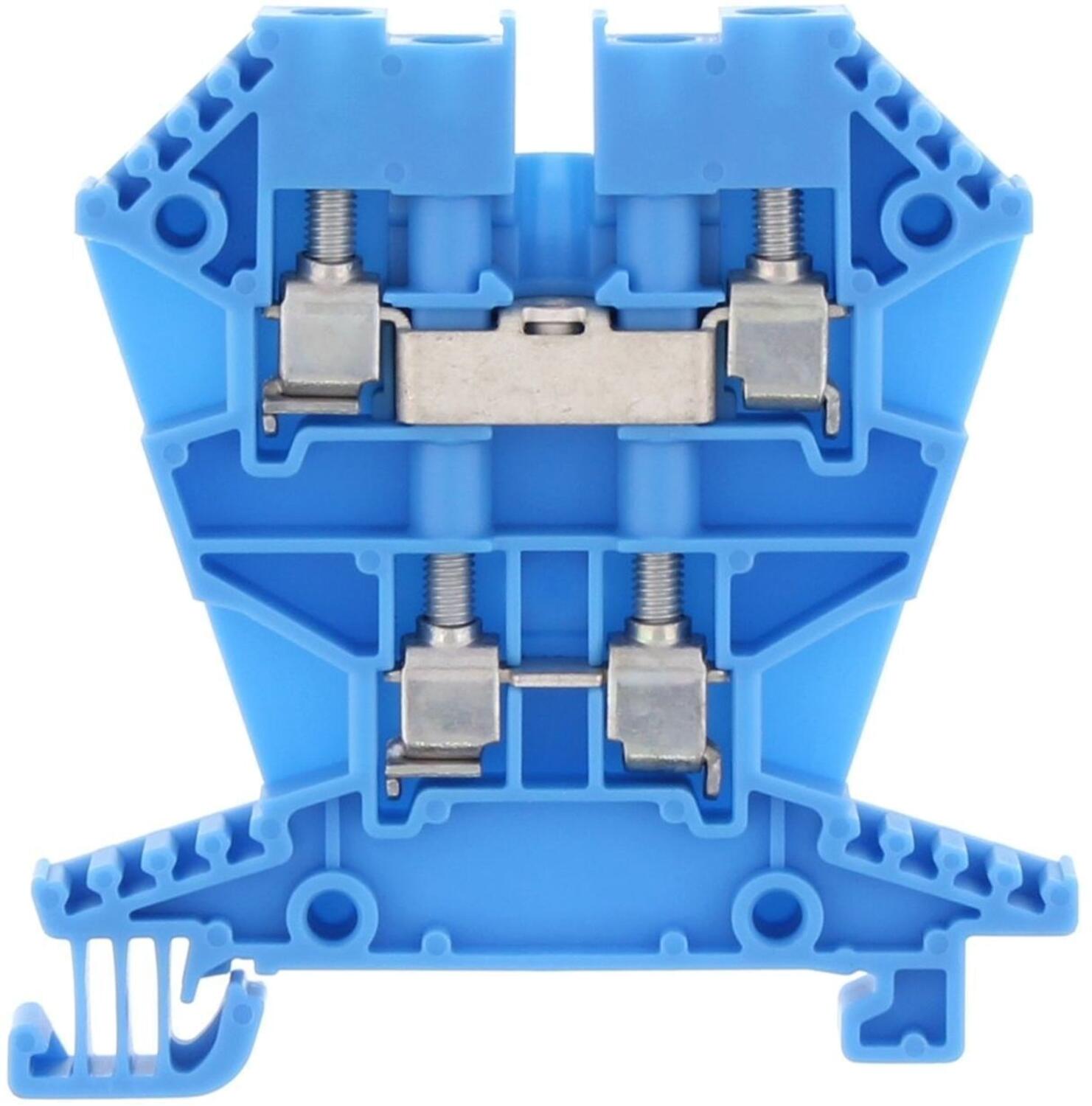

RKDG 4 Blue, 4mm² Double deck, same level
Art:
2584.5 Copied
4 mm²
Blue
500 V
32 A
TS 35/7,5
6 kV
III
3
KEMA KUR
58.5 mm
6 mm
60 mm
2 x 2
2
A4
1
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
4 mm²
22
12
9 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V2
-40 °C
105 °C
EN 60947-7-1:2009
85369010
DE
16.06 g
100
Screw Terminals, DIN Rail terminals
Terminal block in beige plastic with metal brackets and a central contact for electrical connections

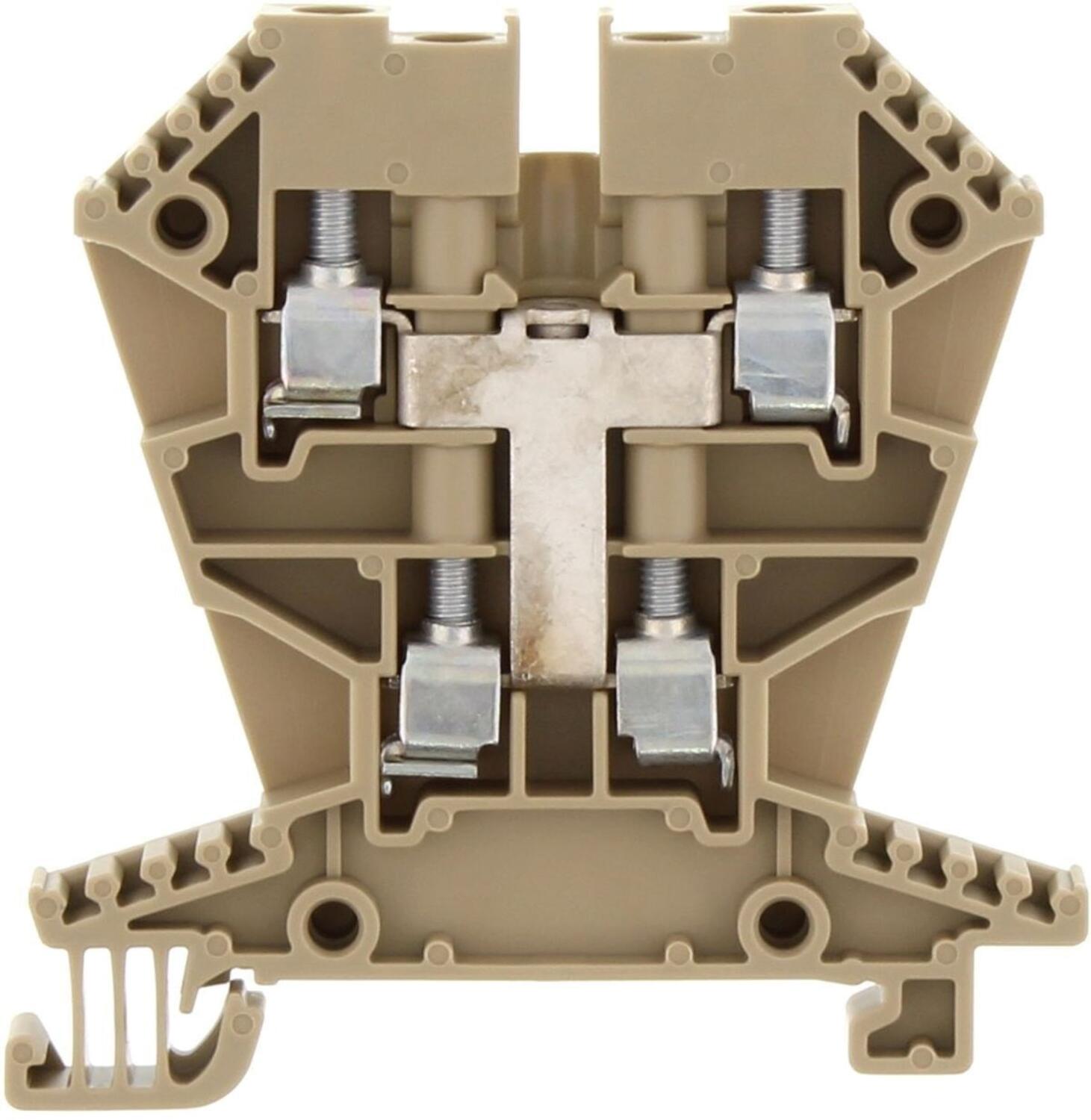

RKDG 4/SV Beige, 4mm² Linked double deck, same level
Art:
17048.2 Copied
4 mm²
Beige
500 V
32 A
TS 35/7,5
6 kV
III
3
KEMA KUR
connected vertically
58.5 mm
6 mm
60 mm
4
2
A4
1
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
4 mm²
22
12
9 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V2
-40 °C
105 °C
EN 60947-7-1:2009
85369010
DE
16.06 g
100
Screw Terminals, DIN Rail terminals
Terminal block with two connections and built-in protection component, beige colour
RKD 4/D1 Beige, 4mm² Double deck with diode, linked, multi-foot
Art:
1046.2 Copied
4 mm²
Beige
400 V AC
1 A
1N4007 / 1000V / 1A
TS 35/7,5 and TS 32
6 kV
III
3
UL, CSA, GL, KEMA KUR, EAC
with diodes
60.2 mm
6 mm
61 mm
65.5 mm
2
A4
2
1
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
4 mm²
22
12
9 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V2
-40 °C
105 °C
UL 1059
300 V
25 A
C22.2 No 158
IEC 60947-7-1:2002
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
14.6 g
100
Screw Terminals, DIN Rail terminals
Terminal block in beige plastic with metal components and wires for electrical connections

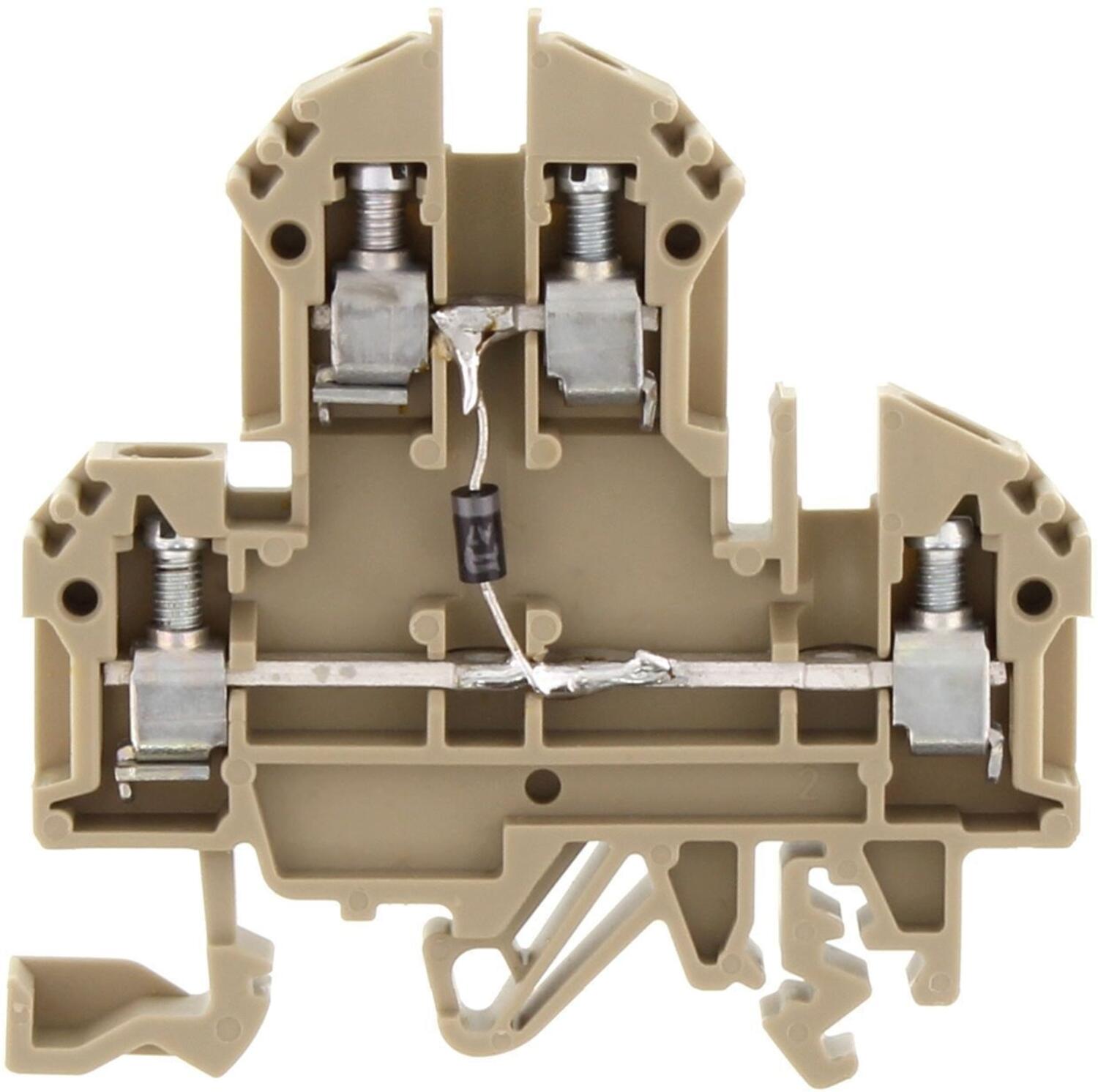

RKD 4/D2 Beige, 4mm² Double deck with diode, linked, multi-foot
Art:
1047.2 Copied
4 mm²
Beige
400 V AC
1 A
1N4007 / 1000V / 1A
TS 35/7,5 and TS 32
6 kV
III
3
UL, CSA, GL, KEMA KUR, EAC
with diodes
60.2 mm
6 mm
61 mm
65.5 mm
2
A4
2
1
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
4 mm²
22
12
9 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V2
-40 °C
105 °C
UL 1059
300 V
25 A
C22.2 No 158
IEC 60947-7-1:2002
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
14.8 g
100
Screw Terminals, DIN Rail terminals

Selected variant

Select a variant in the list

Contact us
Please contact us for more information.
Send e-mail
Do you need help?
