CONTA-CLIP

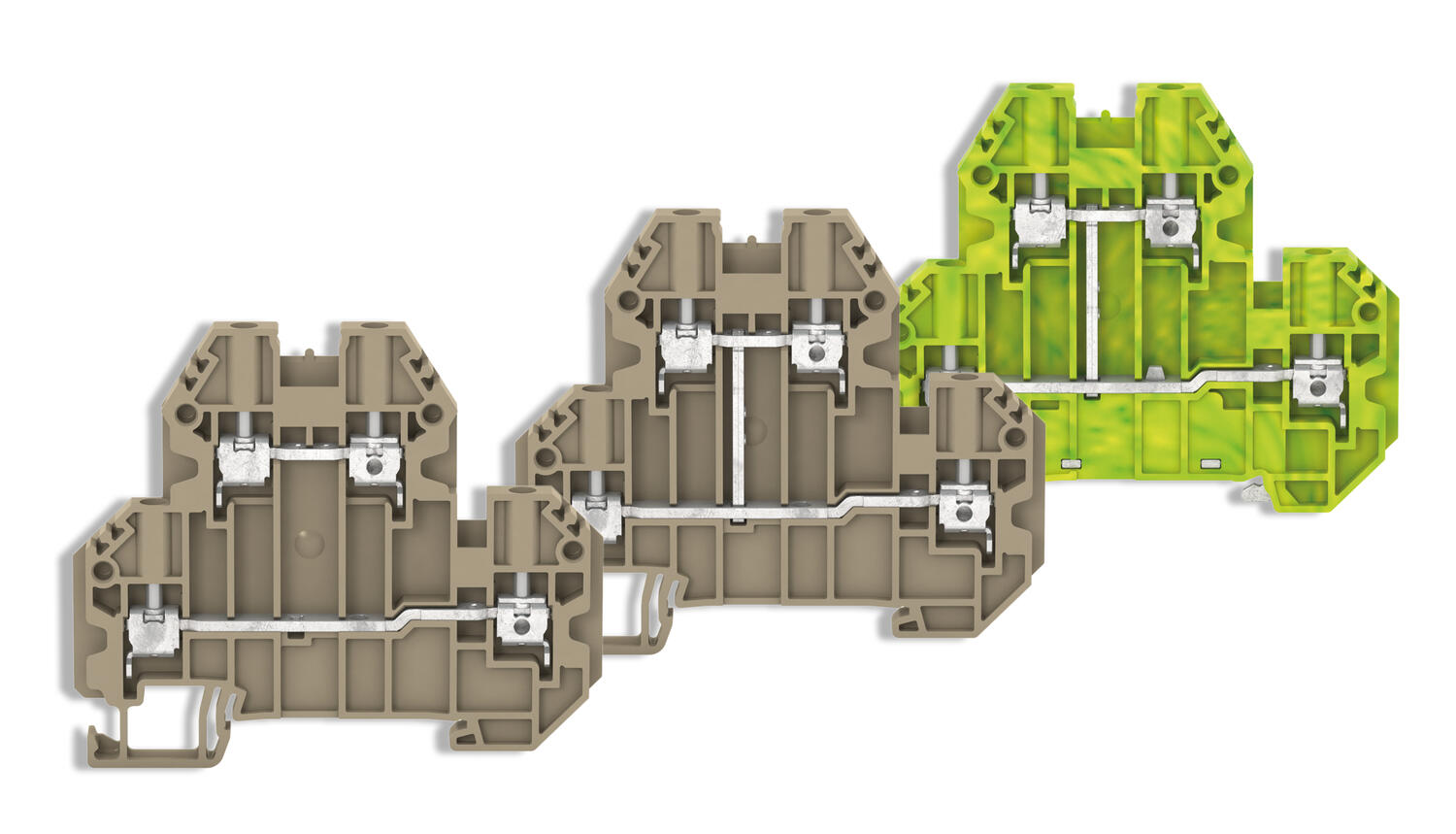

Double Deck terminals - SRKD/SSLD 2.5-10mm²

SRKD, SSLD

The SRKD terminal blocks are available to suit wire sizes 2.5 mm², 4 mm² and 10 mm². The standard SRKD models have two potentials with 2 x 2 connections, further options include linked versions with four connections on one potential and as a protective earth terminal with a snap-on PE foot contact.



The SRKD range is compatible with the ‘Plug in’ cross connectors used in the existing SRK range. Just like the established SRK series, the new SKRD units feature a compact housing and provide excellent stability, vibration resistance, and optimal attachment of the wires to the contact point.



The terminals are equipped with a large wire entry bay that makes the insertion of wires easy and effortless. The connection of multiple wires is also possible. The terminal’s robust housing safely anchors all the metal parts on the inside. The foot construction of the snap-on units ensures a reliable, firm hold on the mounting rail.









Read more
  • Pluggable cross connectors, compatible with SRK series
  • Snap on Earth
  • Linked versions
  • 1000V rated
  • Material polyamide 6.6 UL 94-V0

Selected variant


Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Cross-Section 2.5 mm²
Color Beige
Rated Voltage IEC 1000 V
Rated Current IEC 24 A
Load Current Max 32 A
Mounting TS 35/7,5
Rated impulse voltage 8 kV
Overvoltage category III
Contamination degree 3
Approvals UL, cUL, KEMA KUR, EAC
Length 76 mm
Width 5.1 mm
Height TS 35/7.5 65 mm
Connections 2 x 2
Number of levels 2
Plug gauge acc. EN 60 947-1 A3
Cross connect channels 3
Number of test pick off options 1
Cross section single wire from 0.2 mm²
Cross section single wire to 4 mm²
Cross section stranded wire from 0.2 mm²
Cross section stranded wire to 4 mm²
Cross section stranded with ferrule from 0.2 mm²
Cross section stranded with ferrule to 2.5 mm²
Rated wire cross section from (AWG) 30
Rated wire cross section to (AWG) 12
Stripping Length 10 mm
Screw size M 2,5
Screw type Slotted
Torque Min 0.4
Torque max 0.8
Insulation Material Polyamide 6.6
Flamklass UL94-V0
Operating temperature from -40 °C
Operating temperature to 120 °C
Rated Voltage To UL 600 V
Rated Current To UL 20 A
UL test standard UL 1059
Rated voltage cUL 600 V
Rated current cUL 20 A
cUL test standard C22.2 No 158
EAC test standard TR ZU 004/2011
KEMA KEUR test standard EN 60947-7-1:2009
Tariff code 85369010
Country of origin CZ
Weight 15.85 g
Pack Size 100
Type of terminal Screw Terminals, DIN Rail terminals

Downloads

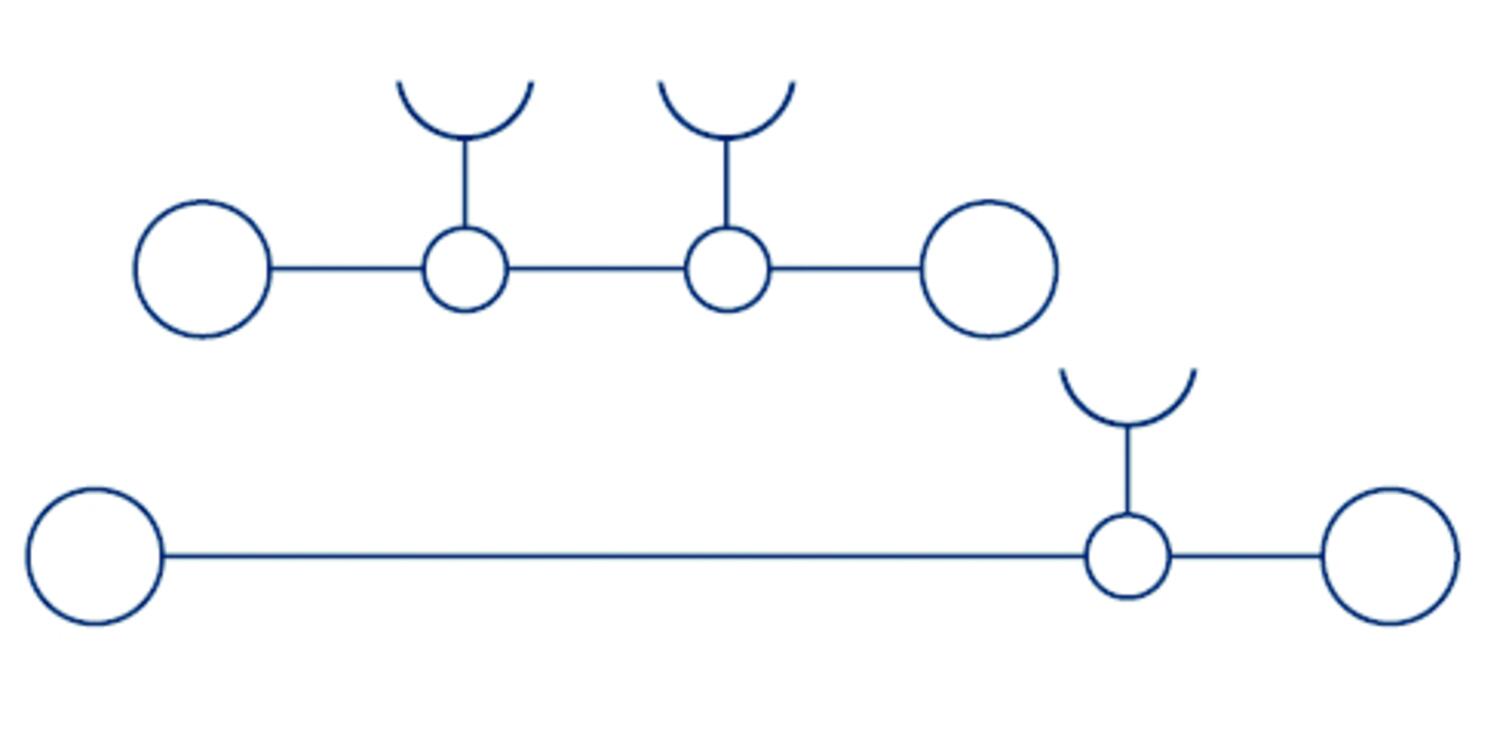

Measurements and connections

Product description

The SRKD terminal blocks are available to suit wire sizes 2.5 mm², 4 mm² and 10 mm². The standard SRKD models have two potentials with 2 x 2 connections, further options include linked versions with four connections on one potential and as a protective earth terminal with a snap-on PE foot contact.



The SRKD range is compatible with the ‘Plug in’ cross connectors used in the existing SRK range. Just like the established SRK series, the new SKRD units feature a compact housing and provide excellent stability, vibration resistance, and optimal attachment of the wires to the contact point.



The terminals are equipped with a large wire entry bay that makes the insertion of wires easy and effortless. The connection of multiple wires is also possible. The terminal’s robust housing safely anchors all the metal parts on the inside. The foot construction of the snap-on units ensures a reliable, firm hold on the mounting rail.









Accessories

Related products

Add product as a new cart row

You already added this product. Choose whether to increase quantity on the existing row or add the product as a new row.

Related

TER - control stations
Product news

Quality solutions for motion controls

TER - Tecno Elettrica Ravasi, is our Italian supplier specializing in the manufacture of control stations. TER has over 60 years of experience in the manufacture of control stations.

Stego Loop Heater lämmityselementit
Product news

LOOP Heater for optimal heat distribution

Thanks to their loop design, LOOP heating elements offer excellent heating performance and ensure optimal heat distribution. Read more now!

PISA-M
Product news

Compact electronic overcurrent protection PISA-M

PISA-M is a 4-channel electronic fuse for 12 and 24 V DC systems. The smallest 4-channel electronic fuse with a width of only 22.5 mm!

Delcon relays
Product news

An effective solution Delcon CRA5

Delcon's CRA5 plug-in relay revolutionizes the control of difficult-to-handle DC loads. Inductive loads, frequent switching, and high DC voltages are a piece of cake for these relays.

LOCC-Box Mini
Product news

LOCC-Box Mini

The Lütze LOCC-Box is an intelligent electronic overcurrent protection device that provides reliable protection for 12/24 V DC systems in a narrow housing measuring just 8.1 mm. Integrated + and - terminals save space on the DIN rail.

DF Electric
Product news

DF Electric – new supplier for fuse solutions

DF Electric is specialized in the manufacturing of fuse links, fuse holders and control transformers since 1987. Presently the company is leading the Spanish market and is also very active in many export markets due to its competitive range of products.

Articles Cross-Section Color Rated Voltage IEC Rated Current IEC Load Current Max Mounting Rated impulse voltage Overvoltage category Contamination degree Approvals Additional information Length Width Height TS 35/7.5 Connections Number of levels Plug gauge acc. EN 60 947-1 Cross connect channels Number of test pick off options Cross section single wire from Cross section single wire to Cross section stranded wire from Cross section stranded wire to Cross section stranded with ferrule from Cross section stranded with ferrule to Rated wire cross section from (AWG) Rated wire cross section to (AWG) Stripping Length Screw size Screw type Torque Min Torque max Insulation Material Flamklass Operating temperature from Operating temperature to Rated Voltage To UL Rated Current To UL UL test standard Rated voltage cUL Rated current cUL cUL test standard EAC test standard KEMA KEUR test standard Tariff code Country of origin Weight Pack Size Type of terminal Number of terminals per level
Connection terminal from CONTA-CLIP, beige with metal brackets for electrical connections.

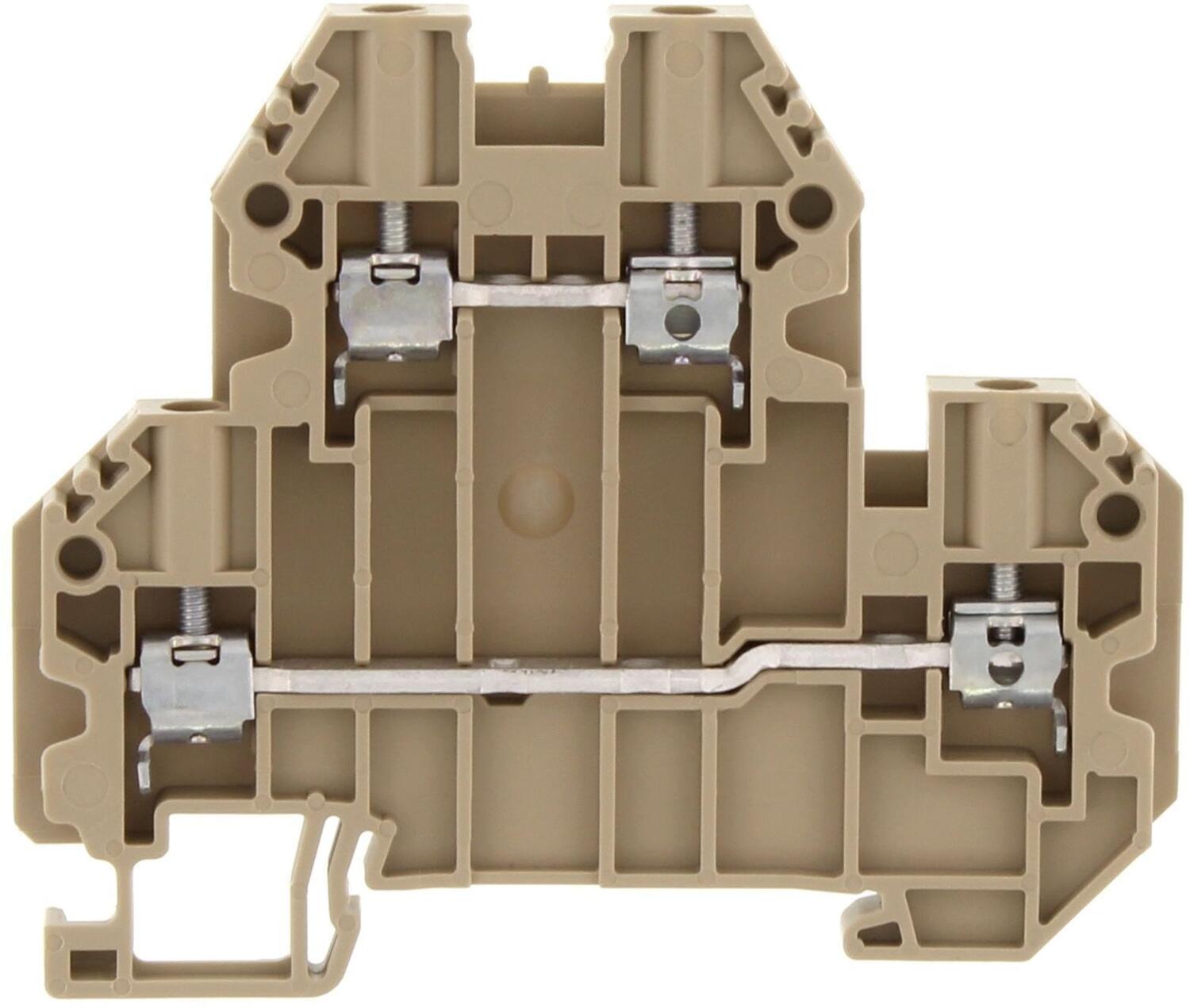

SRKD 2.5 Beige, 2.5mm² double deck terminal
Art:
17180.2 Copied
2.5 mm²
Beige
1000 V
24 A
32 A
TS 35/7,5
8 kV
III
3
UL, cUL, KEMA KUR, EAC
76 mm
5.1 mm
65 mm
2 x 2
2
A3
3
1
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
30
12
10 mm
M 2,5
Slotted
0.4
0.8
Polyamide 6.6
UL94-V0
-40 °C
120 °C
600 V
20 A
UL 1059
600 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
15.85 g
100
Screw Terminals, DIN Rail terminals
Connection terminal in orange plastic with metal components, designed for electrical connections
SRKD 2.5 Orange, 2.5mm double deck terminal
Art:
17180.3 Copied
2.5 mm²
Orange
1000 V
24 A
32 A
TS 35/7,5
8 kV
III
3
UL, cUL, KEMA KUR, EAC
76 mm
5.1 mm
65 mm
2 x 2
2
A3
3
1
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
30
12
10 mm
M 2,5
Slotted
0.4
0.8
Polyamide 6.6
UL94-V0
-40 °C
120 °C
600 V
20 A
UL 1059
600 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
15.85 g
100
Screw Terminals, DIN Rail terminals

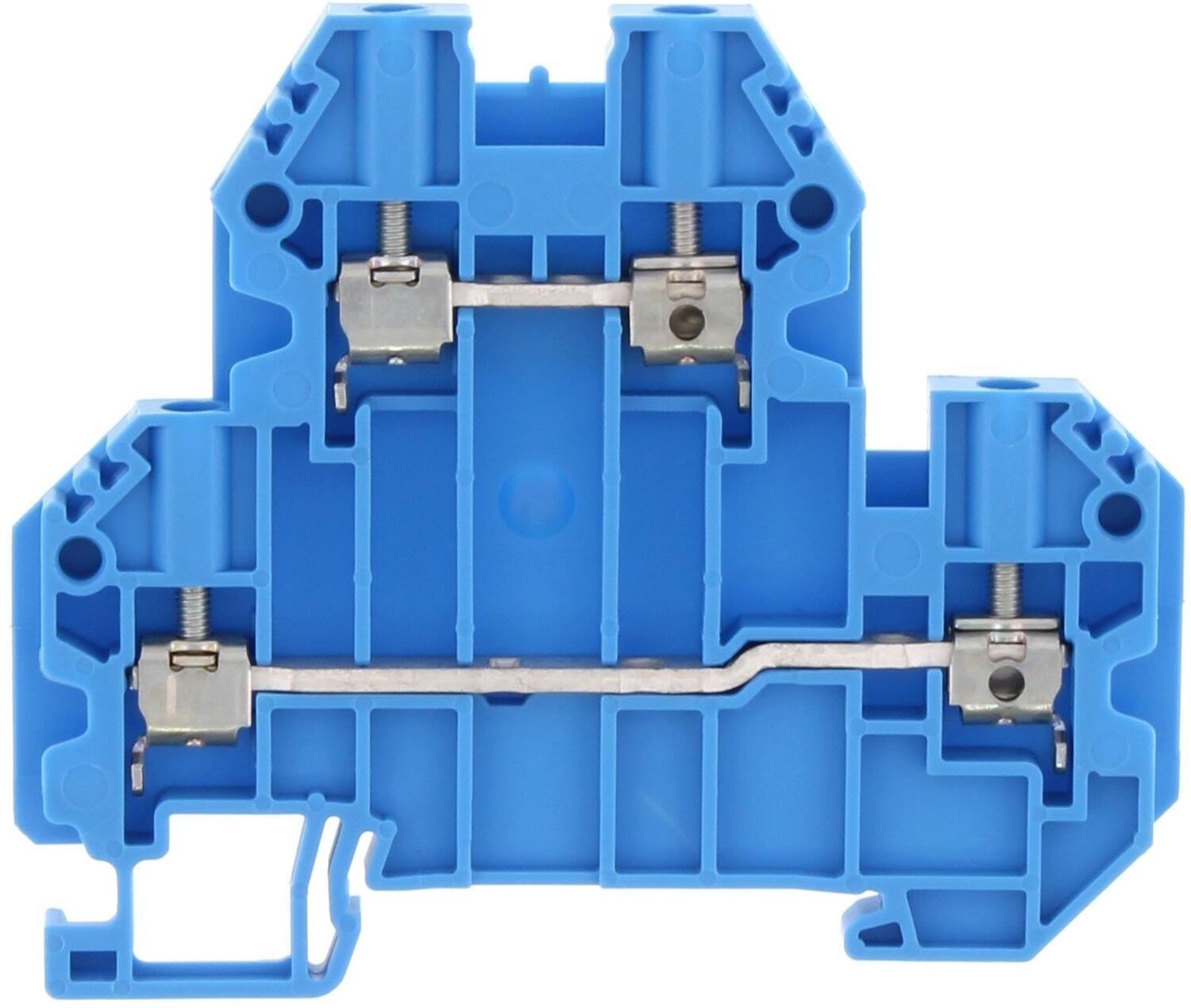

Blue terminal block with metal contacts for electrical connections
SRKD 2.5 Blue, 2.5mm² double deck terminal
Art:
17180.5 Copied
2.5 mm²
Blue
1000 V
24 A
32 A
TS 35/7,5
8 kV
III
3
UL, cUL, KEMA KUR, EAC
76 mm
5.1 mm
65 mm
2 x 2
2
A3
3
1
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
30
12
10 mm
M 2,5
Slotted
0.4
0.8
Polyamide 6.6
UL94-V0
-40 °C
120 °C
600 V
20 A
UL 1059
600 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
15.85 g
100
Screw Terminals, DIN Rail terminals
Terminal block from CONTA-CLIP with gray plastic and metal components, designed for electrical connections.

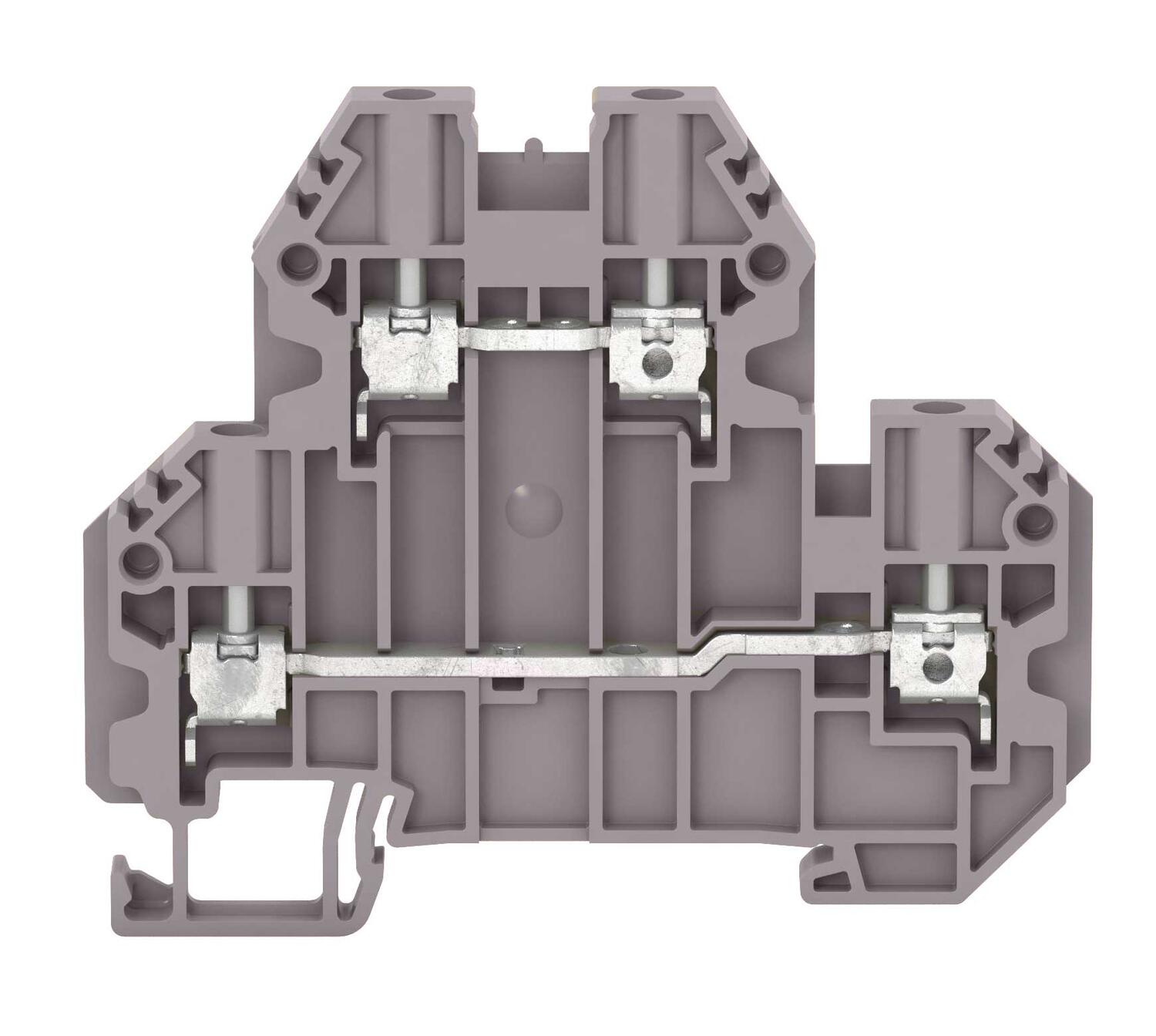

SRKD 2.5 Grey, 2.5mm double deck terminal
Art:
17180.6 Copied
2.5 mm²
Grey
1000 V
24 A
32 A
TS 35/7,5
8 kV
III
3
UL, cUL, KEMA KUR, EAC
76 mm
5.1 mm
65 mm
2 x 2
2
A3
3
1
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
30
12
10 mm
M 2,5
Slotted
0.4
0.8
Polyamide 6.6
UL94-V0
-40 °C
120 °C
600 V
20 A
UL 1059
600 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
15.85 g
100
Screw Terminals, DIN Rail terminals
Terminal block from CONTA-CLIP with metal contacts and beige plastic construction

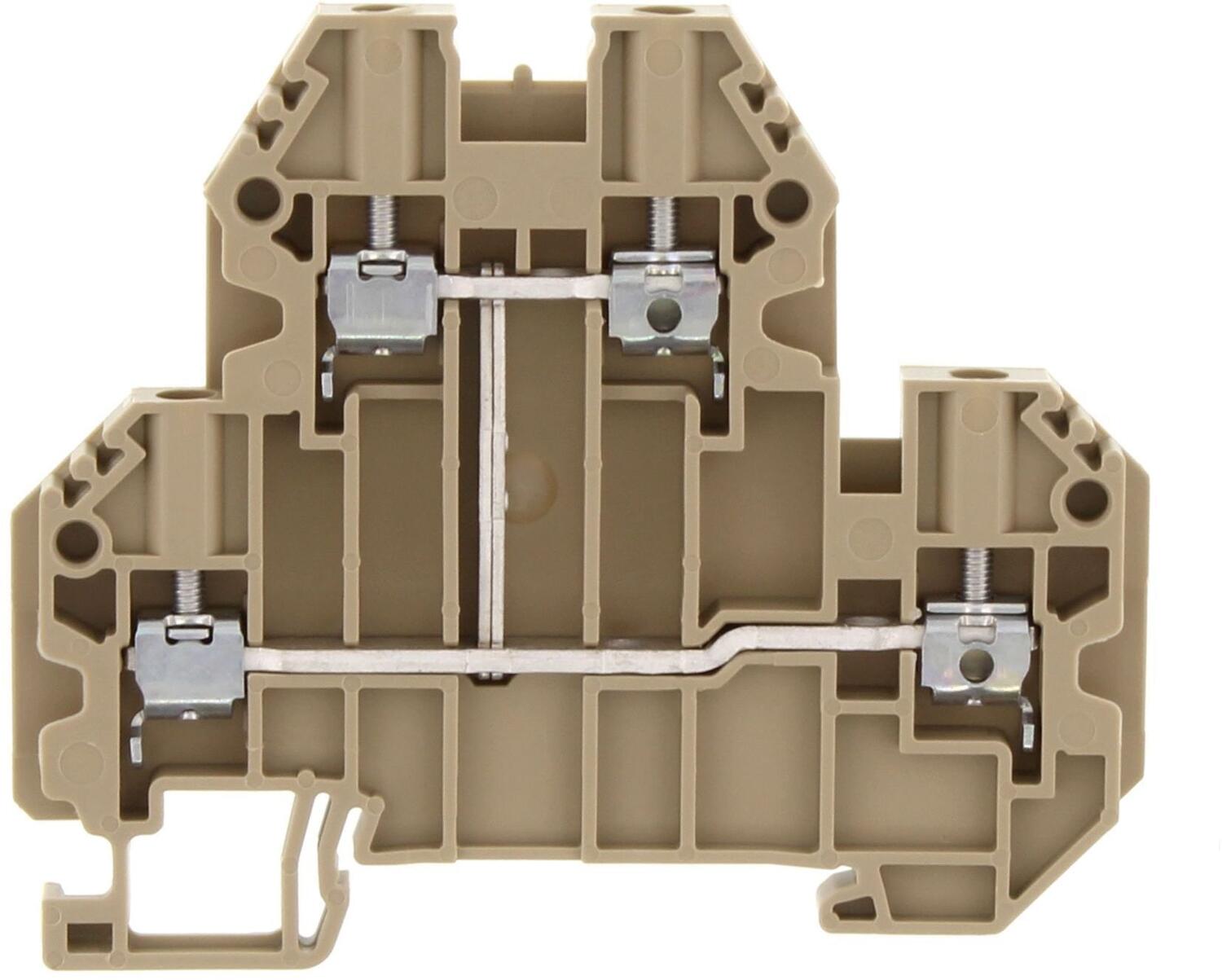

SRKD 2.5/SV Beige, 2.5mm² linked double deck terminal
Art:
17181.2 Copied
2.5 mm²
Beige
1000 V
24 A
32 A
TS 35/7,5
8 kV
III
3
UL, cUL, KEMA KUR, EAC
connected vertically
76 mm
5.1 mm
65 mm
4
2
A3
2
1
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
30
12
10 mm
M 2,5
Slotted
0.4
0.8
Polyamide 6.6
UL94-V0
-40 °C
120 °C
600 V
20 A
UL 1059
600 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
16.95 g
100
Screw Terminals, DIN Rail terminals
Blue terminal block with metal connections for electrical installations

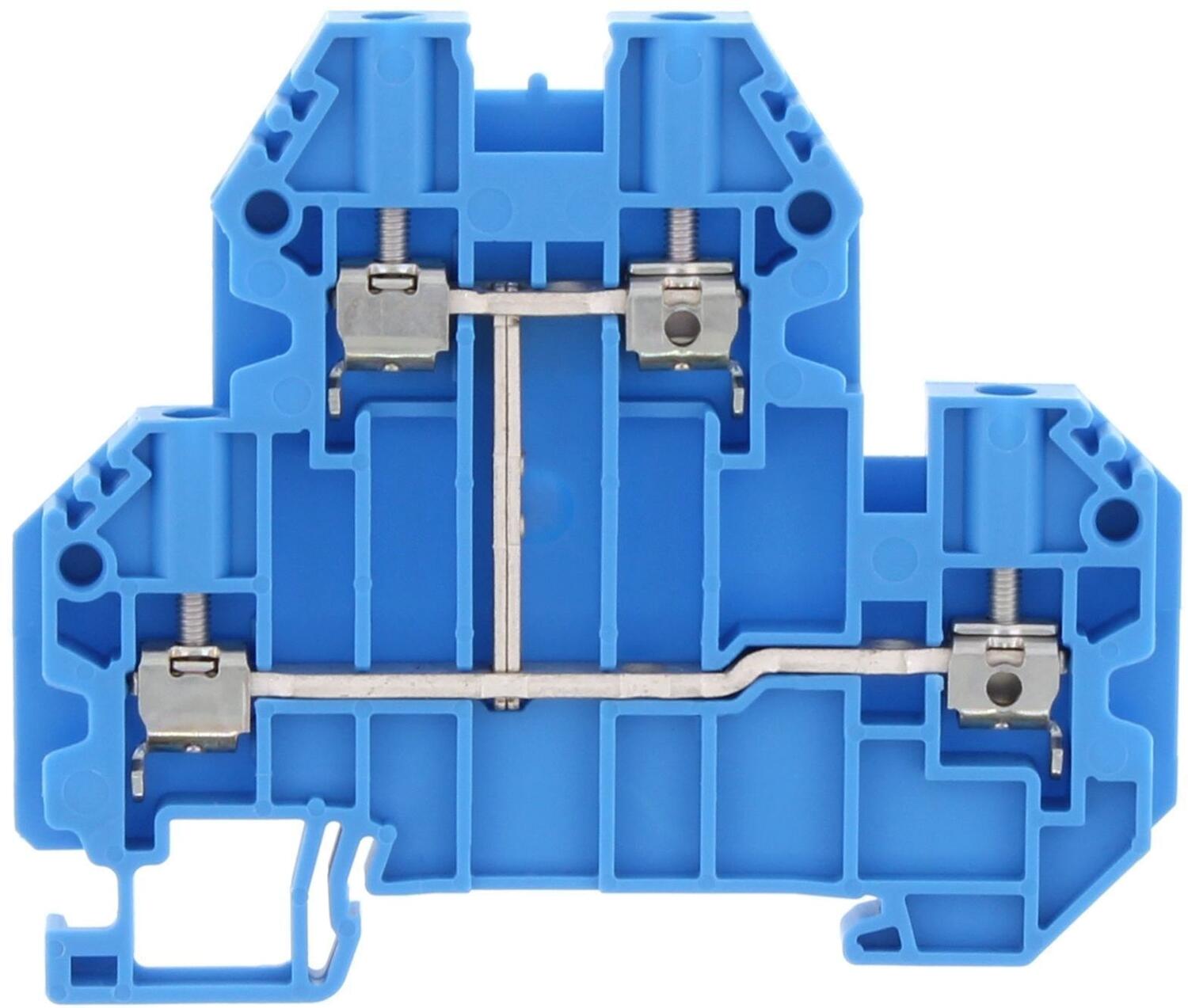

SRKD 2.5/SV Blue, 2.5mm² linked double deck terminal
Art:
17181.5 Copied
2.5 mm²
Blue
1000 V
24 A
32 A
TS 35/7,5
8 kV
III
3
UL, cUL, KEMA KUR, EAC
connected vertically
76 mm
5.1 mm
65 mm
4
2
A3
2
1
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
30
12
10 mm
M 2,5
Slotted
0.4
0.8
Polyamide 6.6
UL94-V0
-40 °C
120 °C
600 V
20 A
UL 1059
600 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
16.95 g
100
Screw Terminals, DIN Rail terminals
Colorful connection terminal with metal mounts and transparent design, ideal for electrical installations.

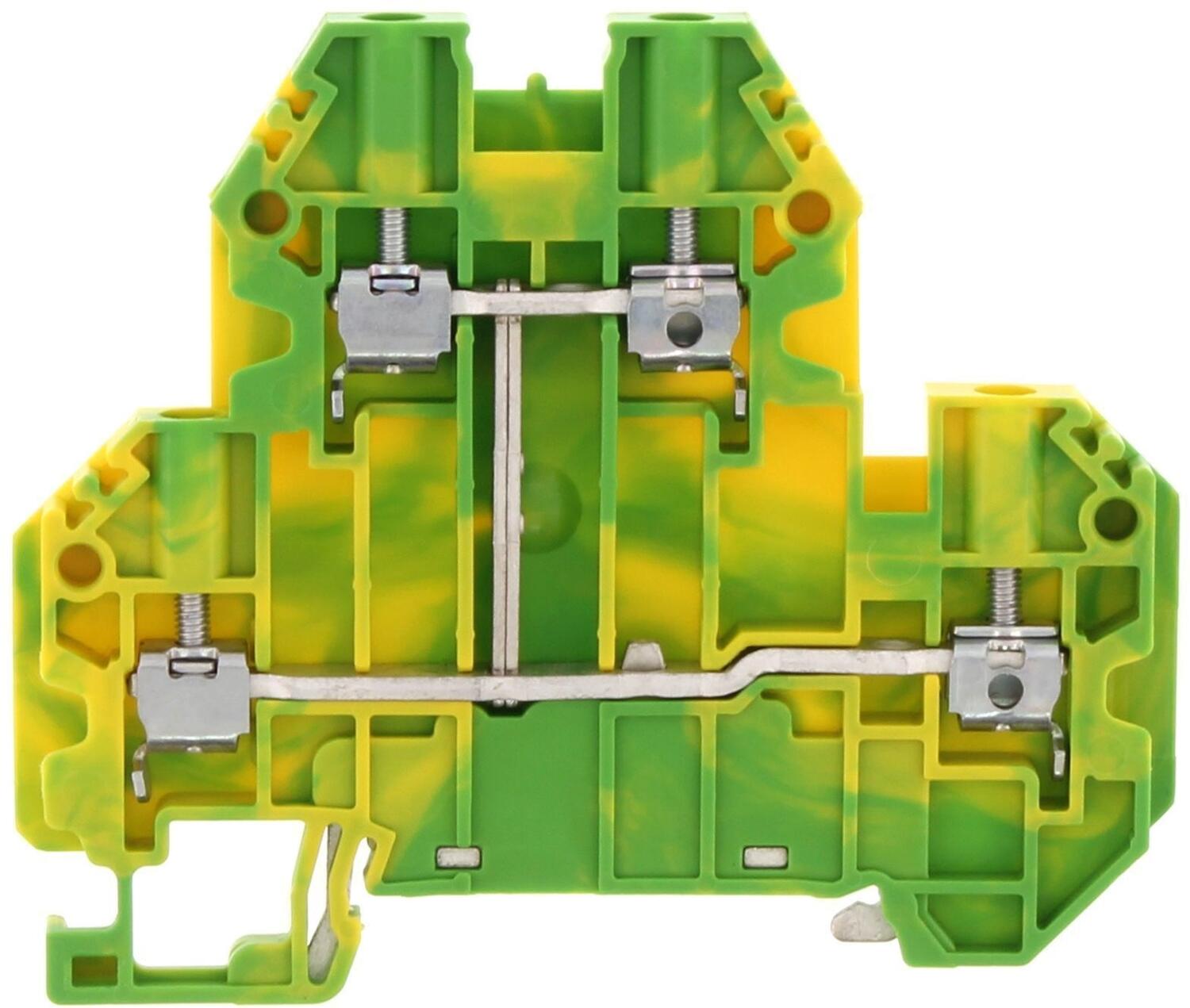

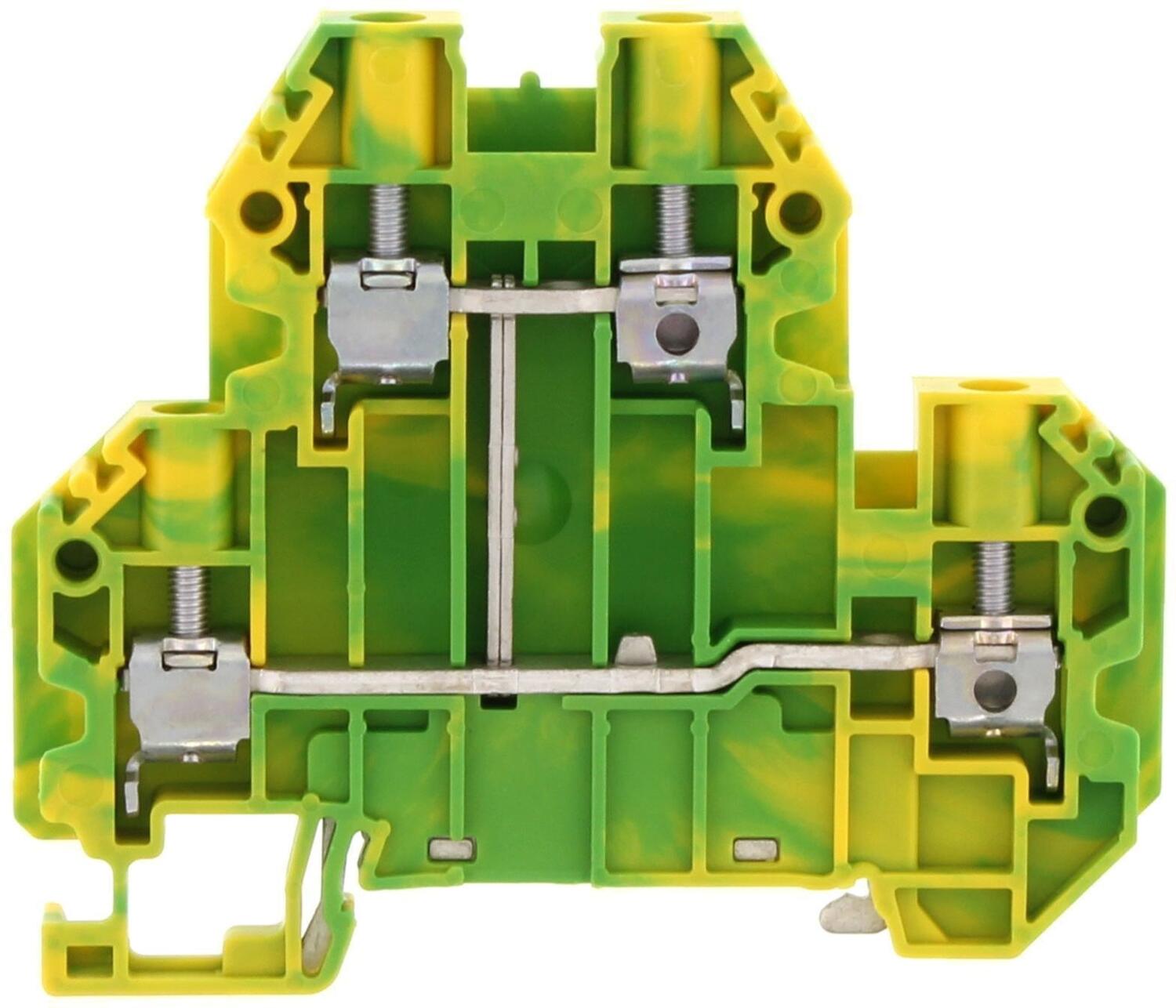

SSLD 2.5, Snap on 2.5mm² linked double deck earth terminal
Art:
17182.2 Copied
2.5 mm²
Green/yellow
TS 35/7,5
III
3
UL, cUL, KEMA KUR, EAC
76 mm
5.1 mm
65 mm
4
2
A3
2
1
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
30
12
10 mm
M 2,5
Slotted
0.4
0.8
Polyamide 6.6
UL94-V0
-40 °C
120 °C
UL 1059
C22.2 No 158
TR ZU 004/2011
EN 60947-7-2:2009
85369010
CZ
20.76 g
100
Screw Terminals, DIN Rail terminals
Connection terminal from CONTA-CLIP with beige plastic and metal components, designed for electrical connections.

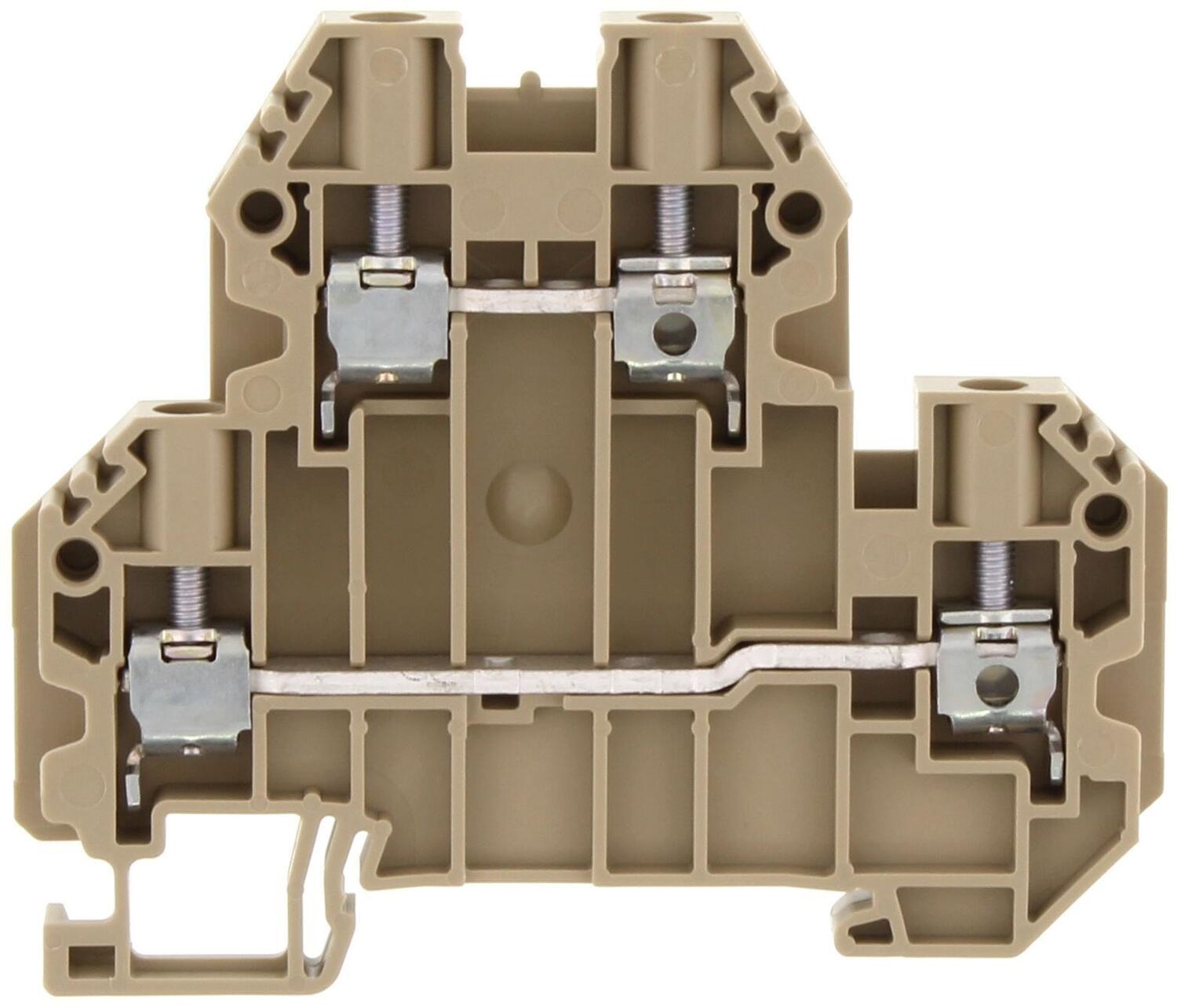

SRKD 4 Beige, 4mm² double deck terminal
Art:
17185.2 Copied
4 mm²
Beige
1000 V
32 A
41 A
TS 35/7,5
8 kV
III
3
UL, cUL, KEMA KUR, EAC
76 mm
6.1 mm
65 mm
2 x 2
2
A4
3
1
0.2 mm²
6 mm²
0.2 mm²
6 mm²
0.2 mm²
4 mm²
26
10
10 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V0
-40 °C
120 °C
600 V
30 A
UL 1059
600 V
30 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
20.85 g
100
Screw Terminals, DIN Rail terminals
Blue terminal block with metal connectors for electrical connections

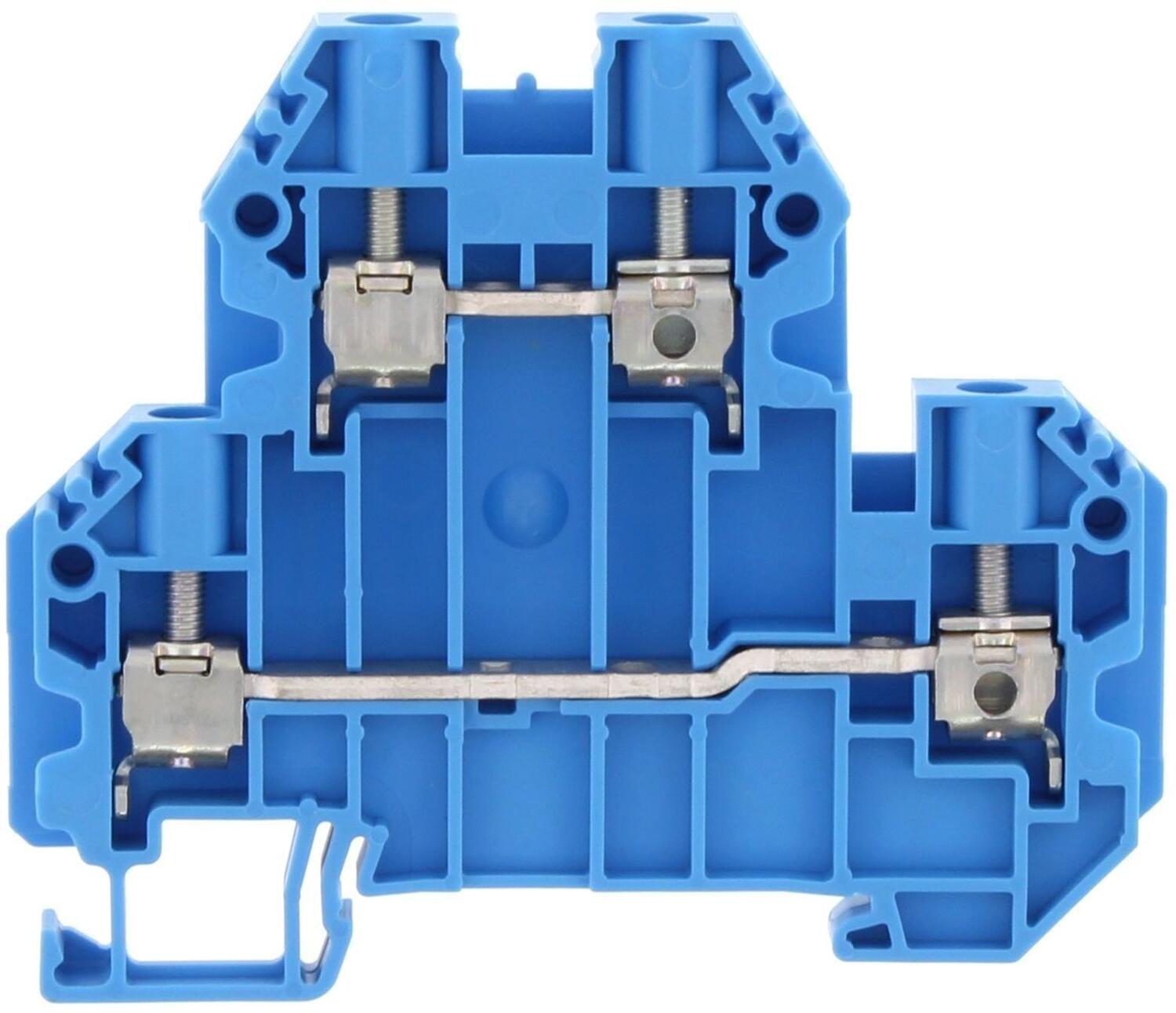

SRKD 4 Blue, 4mm² double deck terminal
Art:
17185.5 Copied
4 mm²
Blue
1000 V
32 A
41 A
TS 35/7,5
8 kV
III
3
UL, cUL, KEMA KUR, EAC
76 mm
6.1 mm
65 mm
2 x 2
2
A4
3
1
0.2 mm²
6 mm²
0.2 mm²
6 mm²
0.2 mm²
4 mm²
26
10
10 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V0
-40 °C
120 °C
600 V
30 A
UL 1059
600 V
30 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
20.85 g
100
Screw Terminals, DIN Rail terminals
Connection terminal from CONTA-CLIP with beige plastic and metal components, designed for electrical connections.
SRKD 4/SV Beige, 4mm² linked double deck terminal
Art:
17186.2 Copied
4 mm²
Beige
1000 V
32 A
41 A
TS 35/7,5
8 kV
III
3
UL, cUL, KEMA KUR, EAC
connected vertically
76 mm
6.1 mm
65 mm
4
2
A4
2
1
0.2 mm²
6 mm²
0.2 mm²
6 mm²
0.2 mm²
4 mm²
26
10
10 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V0
-40 °C
120 °C
600 V
30 A
UL 1059
600 V
30 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
21.81 g
100
Screw Terminals, DIN Rail terminals
Blue terminal block with metal contacts for electrical connections

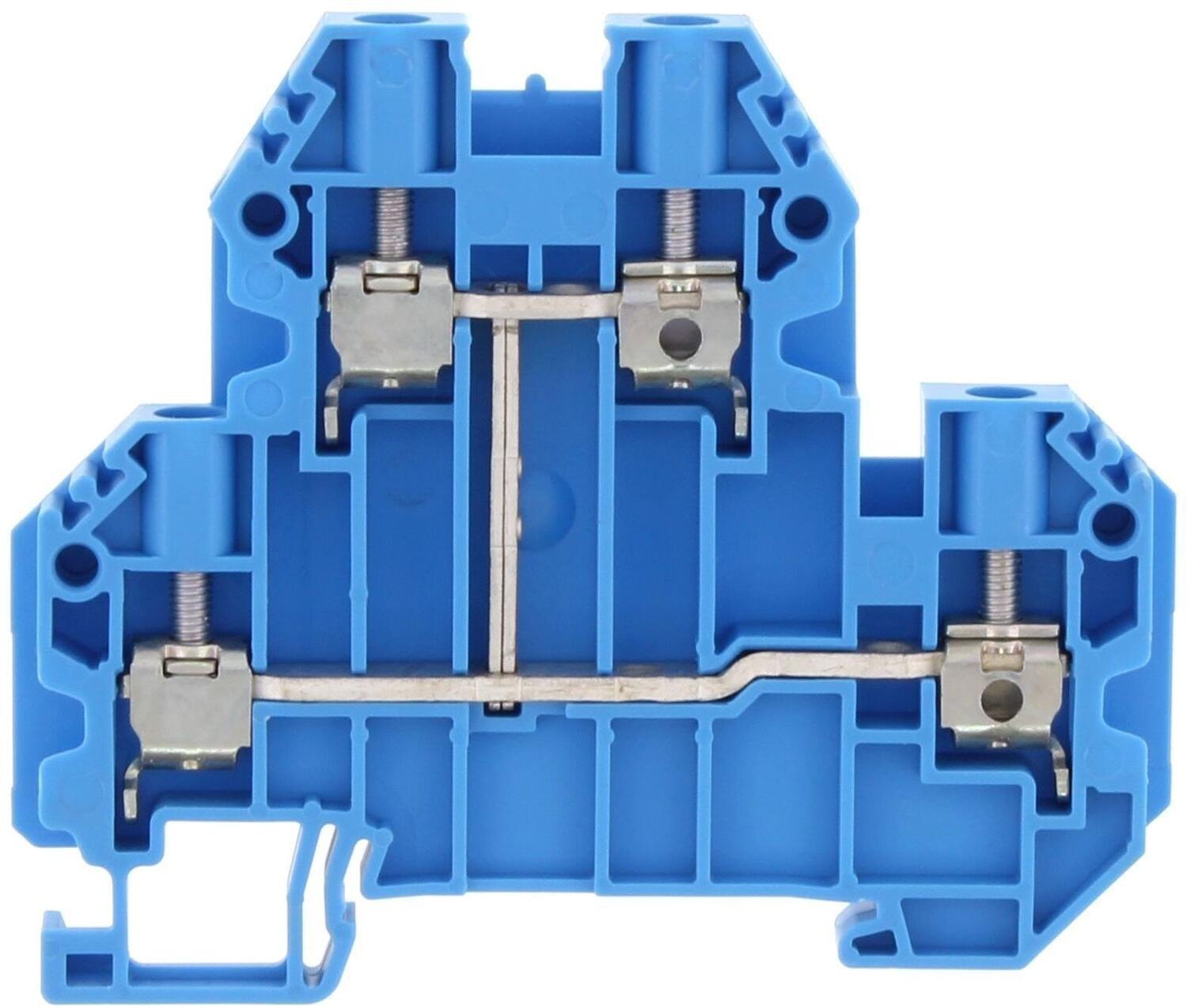

SRKD 4/SV Blue, 4mm² linked double deck terminal
Art:
17186.5 Copied
4 mm²
Blue
1000 V
32 A
41 A
TS 35/7,5
8 kV
III
3
UL, cUL, KEMA KUR, EAC
connected vertically
76 mm
6.1 mm
65 mm
4
2
A4
2
1
0.2 mm²
6 mm²
0.2 mm²
6 mm²
0.2 mm²
4 mm²
26
10
10 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V0
-40 °C
120 °C
600 V
30 A
UL 1059
600 V
30 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
21.81 g
100
Screw Terminals, DIN Rail terminals
Connection terminal in green and yellow plastic with metal brackets, ideal for electrical installations.
SSLD 4, Snap on 4mm² linked double deck earth terminal
Art:
17187.2 Copied
4 mm²
Green/yellow
TS 35/7,5
III
3
UL, cUL, KEMA KUR, EAC
76 mm
6.1 mm
65 mm
4
2
A4
2
1
0.2 mm²
6 mm²
0.2 mm²
6 mm²
0.2 mm²
4 mm²
26
10
10 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V0
-40 °C
120 °C
UL 1059
C22.2 No 158
TR ZU 004/2011
EN 60947-7-2:2009
85369010
CZ
25.69 g
100
Screw Terminals, DIN Rail terminals
Connection terminal from CONTA-CLIP, beige with metal brackets for electrical connections.

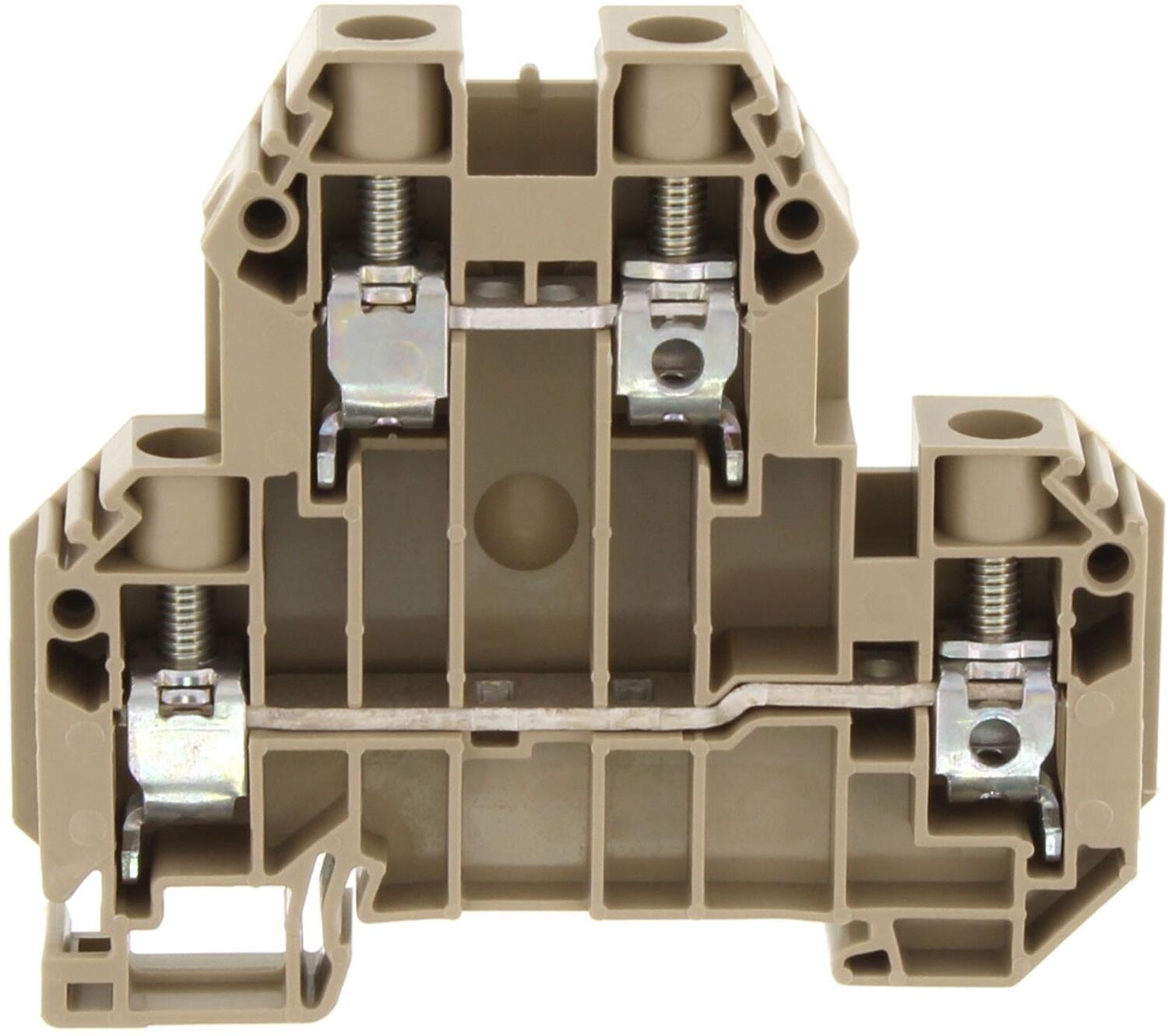

SRKD 10 Beige, 10mm² double deck terminal
Art:
17190.2 Copied
10 mm²
Beige
1000 V
57 A
76 A
TS 35/7,5
8 kV
III
3
UL, cUL, KEMA KUR, EAC
76 mm
10.1 mm
68 mm
2 x 2
2
B7
3
1
0.2 mm²
16 mm²
0.2 mm²
16 mm²
0.2 mm²
10 mm²
18
6
10 mm
M 4
Slotted
1.2
2.4
Polyamide 6.6
UL94-V0
-40 °C
120 °C
600 V
65 A
UL 1059
600 V
65 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
33.09 g
50
Screw Terminals, DIN Rail terminals
Blue terminal block from CONTA-CLIP with metal connections and robust design for electrical installations

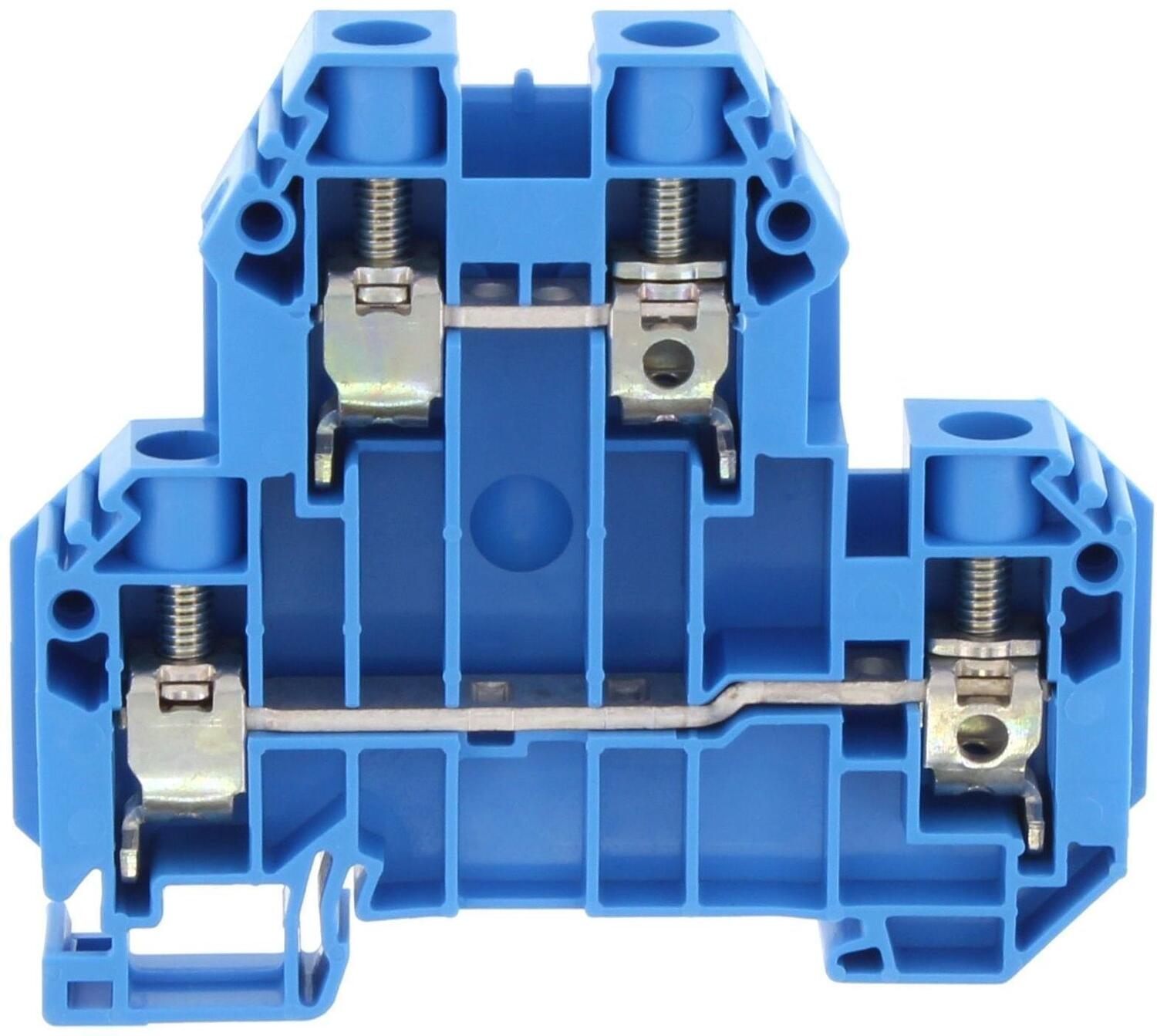

SRKD 10 Blue, 10mm² double deck terminal
Art:
17190.5 Copied
10 mm²
Blue
1000 V
57 A
76 A
TS 35/7,5
8 kV
III
3
UL, cUL, KEMA KUR, EAC
76 mm
10.1 mm
68 mm
2 x 2
2
B7
3
1
0.2 mm²
16 mm²
0.2 mm²
16 mm²
0.2 mm²
10 mm²
18
6
10 mm
M 4
Slotted
1.2
2.4
Polyamide 6.6
UL94-V0
-40 °C
120 °C
600 V
65 A
UL 1059
600 V
65 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
33.09 g
50
Screw Terminals, DIN Rail terminals

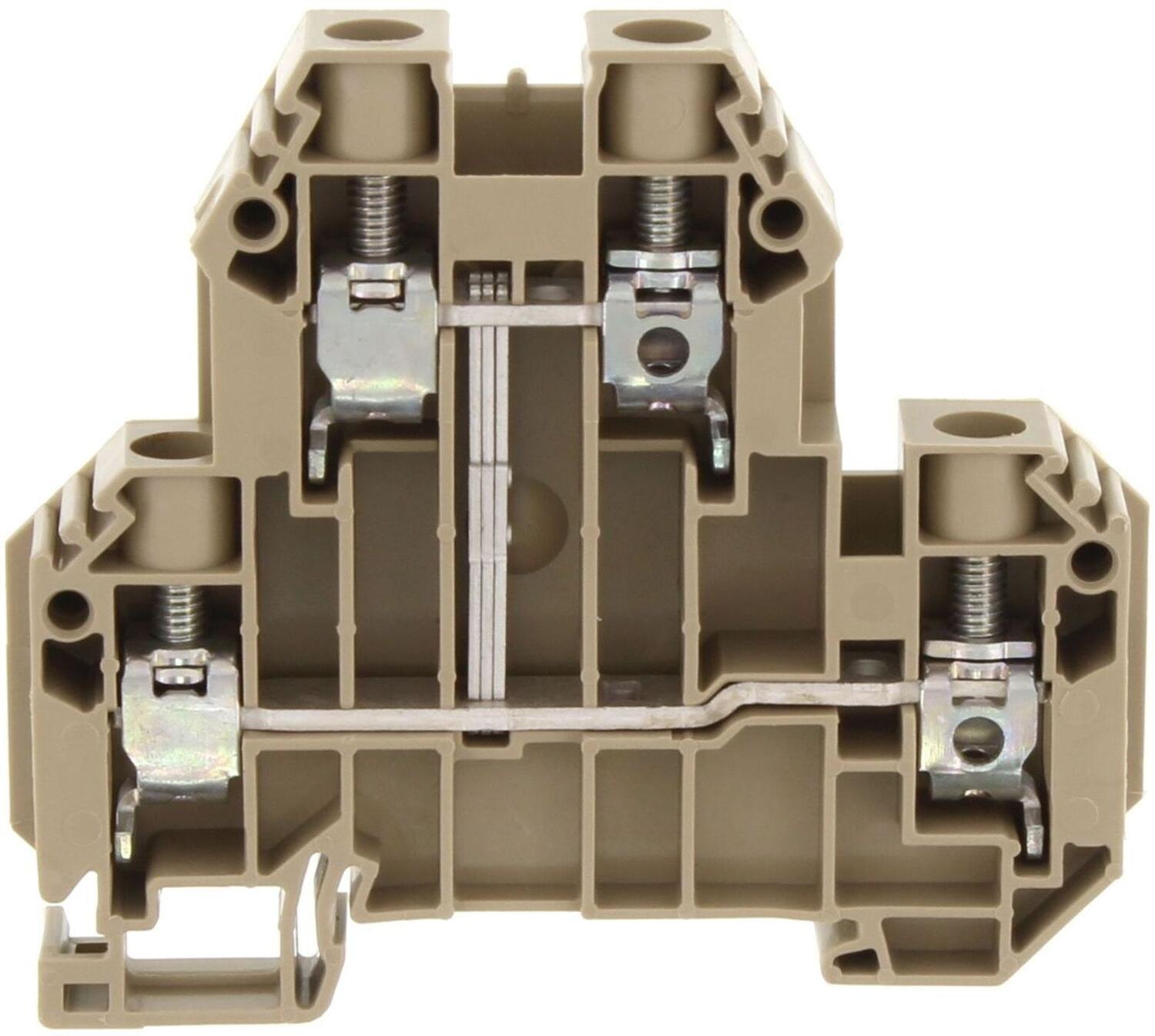

Connection terminal from CONTA-CLIP with two connections and robust design for industrial use
SRKD 10/SV Beige, 10mm² linked double deck terminal
Art:
17191.2 Copied
10 mm²
Beige
1000 V
57 A
76 A
TS 35/7,5
8 kV
III
3
UL, cUL, KEMA KUR, EAC
connected vertically
76 mm
10.1 mm
68 mm
4
2
B7
2
1
0.2 mm²
16 mm²
0.2 mm²
16 mm²
0.2 mm²
10 mm²
18
6
10 mm
M 4
Slotted
1.2
2.4
Polyamide 6.6
UL94-V0
-40 °C
120 °C
600 V
65 A
UL 1059
600 V
65 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
37.62 g
50
Screw Terminals, DIN Rail terminals
Blue terminal block with metal connections and springs for electrical installations

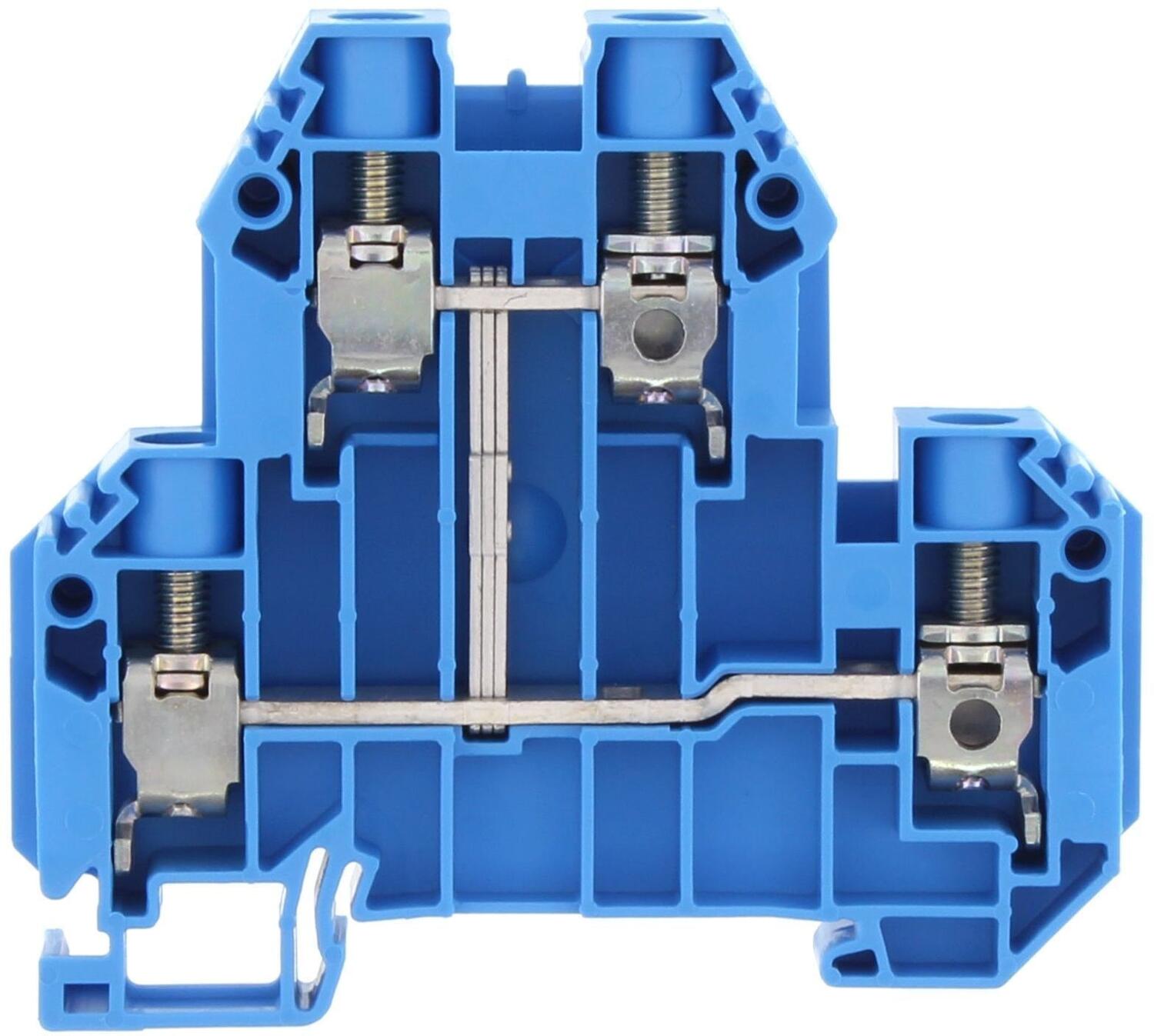

SRKD 10/SV Blue, 10mm² linked double deck terminal
Art:
17191.5 Copied
10 mm²
Blue
1000 V
57 A
76 A
TS 35/7,5
8 kV
III
3
UL, cUL, KEMA KUR, EAC
connected vertically
76 mm
10.1 mm
68 mm
4
2
B7
2
1
0.2 mm²
16 mm²
0.2 mm²
16 mm²
0.2 mm²
10 mm²
18
6
10 mm
M 4
Slotted
1.2
2.4
Polyamide 6.6
UL94-V0
-40 °C
120 °C
600 V
65 A
UL 1059
600 V
65 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
37.62 g
50
Screw Terminals, DIN Rail terminals
Green and yellow connection terminal with metal components for electrical installations

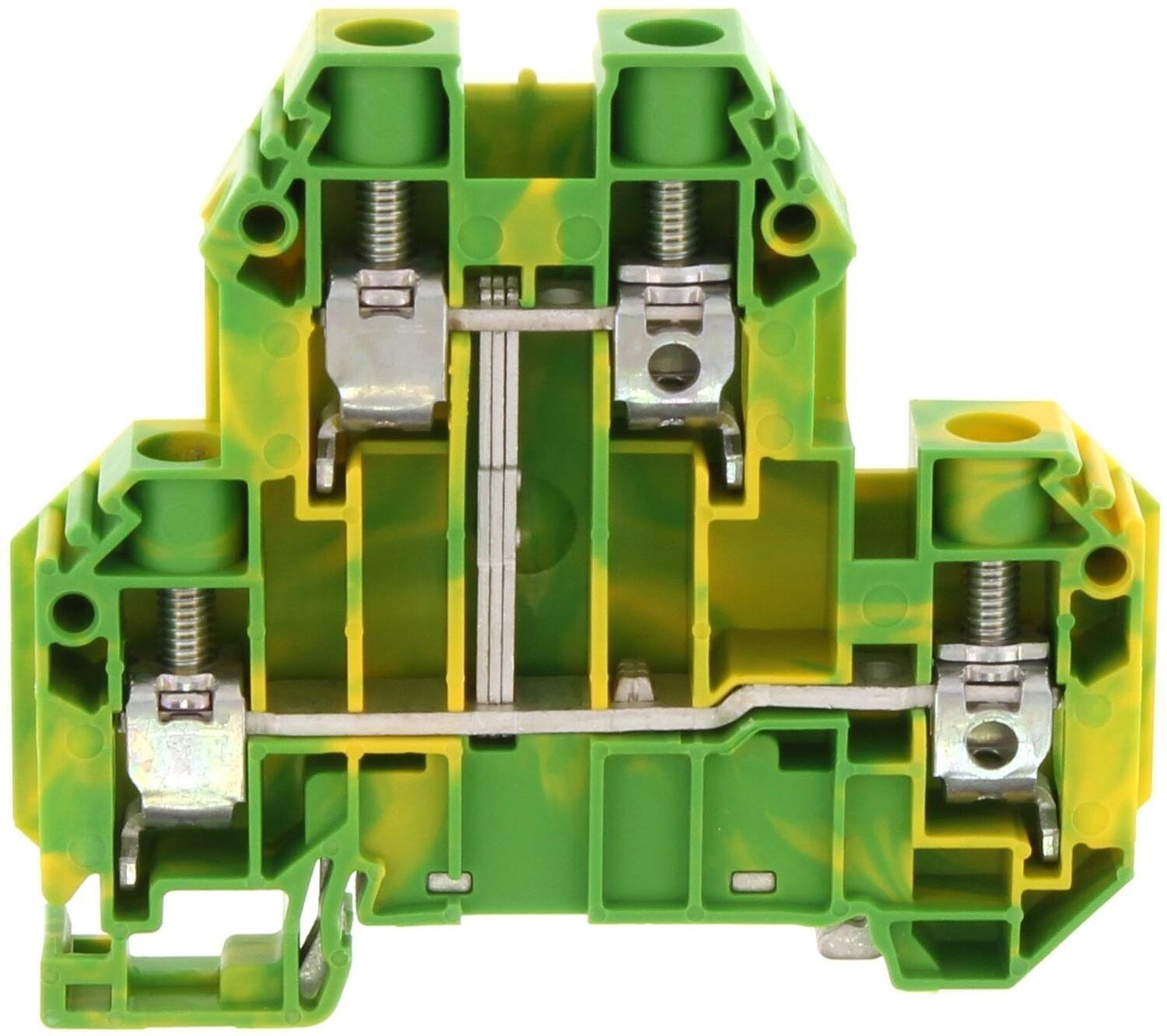

SSLD 10, Snap on 10mm² linked double deck earth terminal
Art:
17192.2 Copied
10 mm²
Green/yellow
TS 35/7,5
III
3
UL, cUL, KEMA KUR, EAC
76 mm
10.1 mm
68 mm
4
2
B7
2
1
0.2 mm²
16 mm²
0.2 mm²
16 mm²
0.2 mm²
10 mm²
18
6
10 mm
M 4
Slotted
1.2
2.4
Polyamide 6.6
UL94-V0
-40 °C
120 °C
UL 1059
C22.2 No 158
TR ZU 004/2011
EN 60947-7-2:2009
85369010
CZ
48.06 g
50
Screw Terminals, DIN Rail terminals
Strang_SRKD2,5-10.tif
SRKD2.5/SV-BROWN DDECK LINKED 2.5mm
Art:
17181.0 Copied
2.5 mm²
Brown
1000 V
24 A
32 A
8 kV
lll
3
UL, KEMA KUR, cUL, EAC
76 mm
5.1 mm
65 mm
4
2
A3
2
1
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
30
12
10 mm
Slotted
0.4
0.8
Polyamide 6.6
UL94-V0
-40 °C
120 °C
600 V
20 A
UL 1059
600 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
16.95 g
100
Screw Terminals, DIN Rail terminals
2

Selected variant

Select a variant in the list

Contact us
Please contact us for more information.
Send e-mail
Do you need help?
