CONTA-CLIP

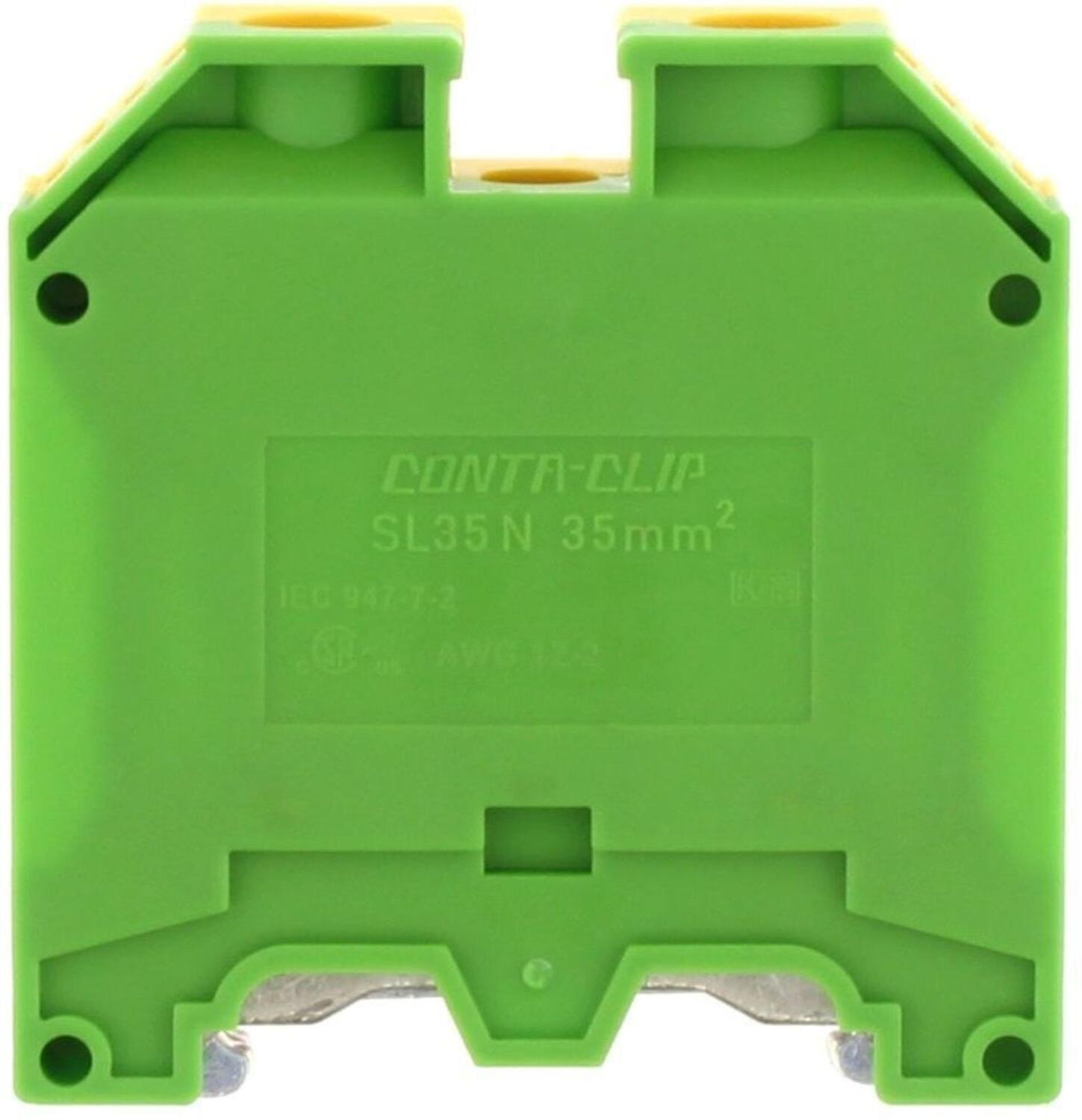

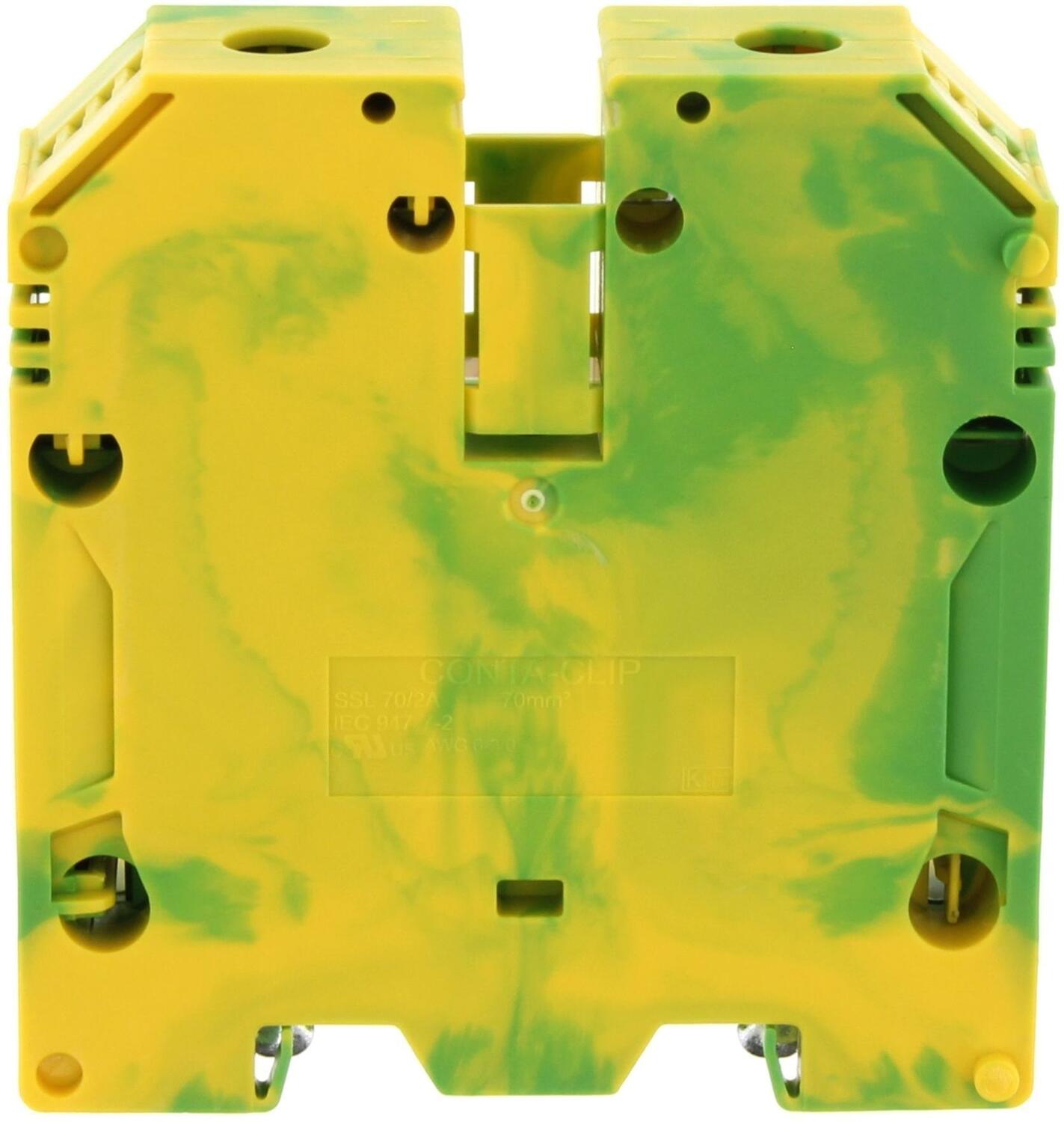

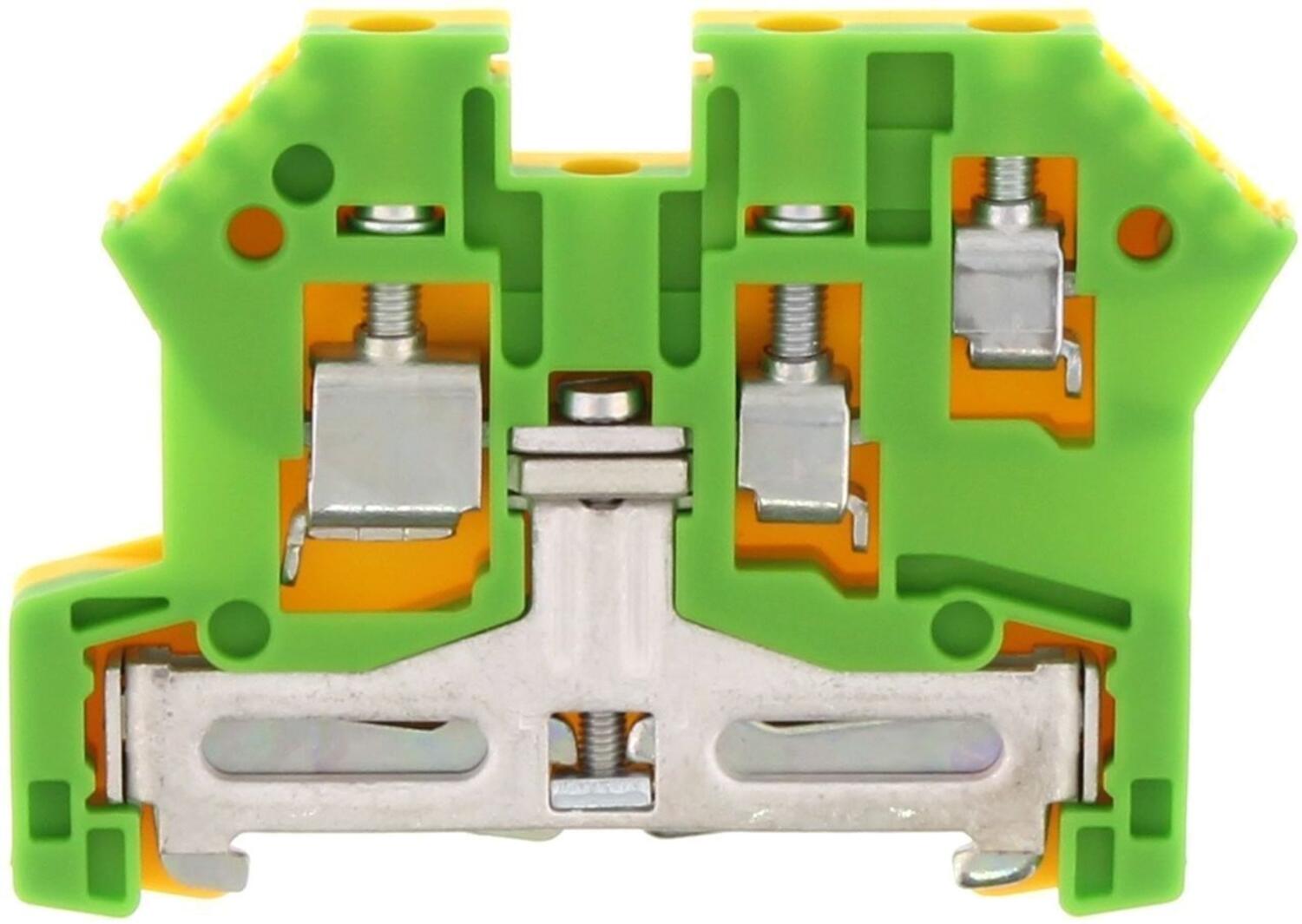

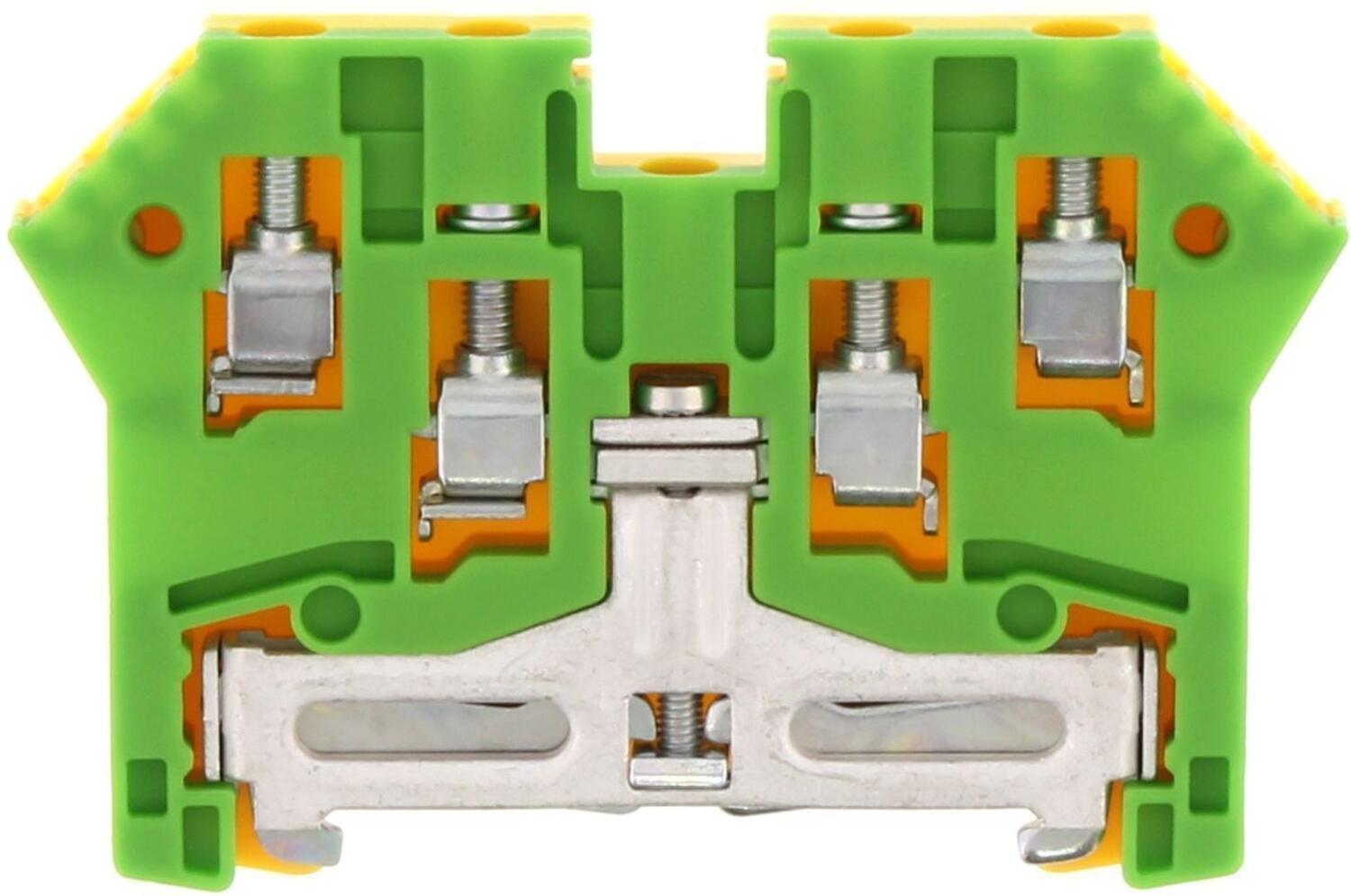

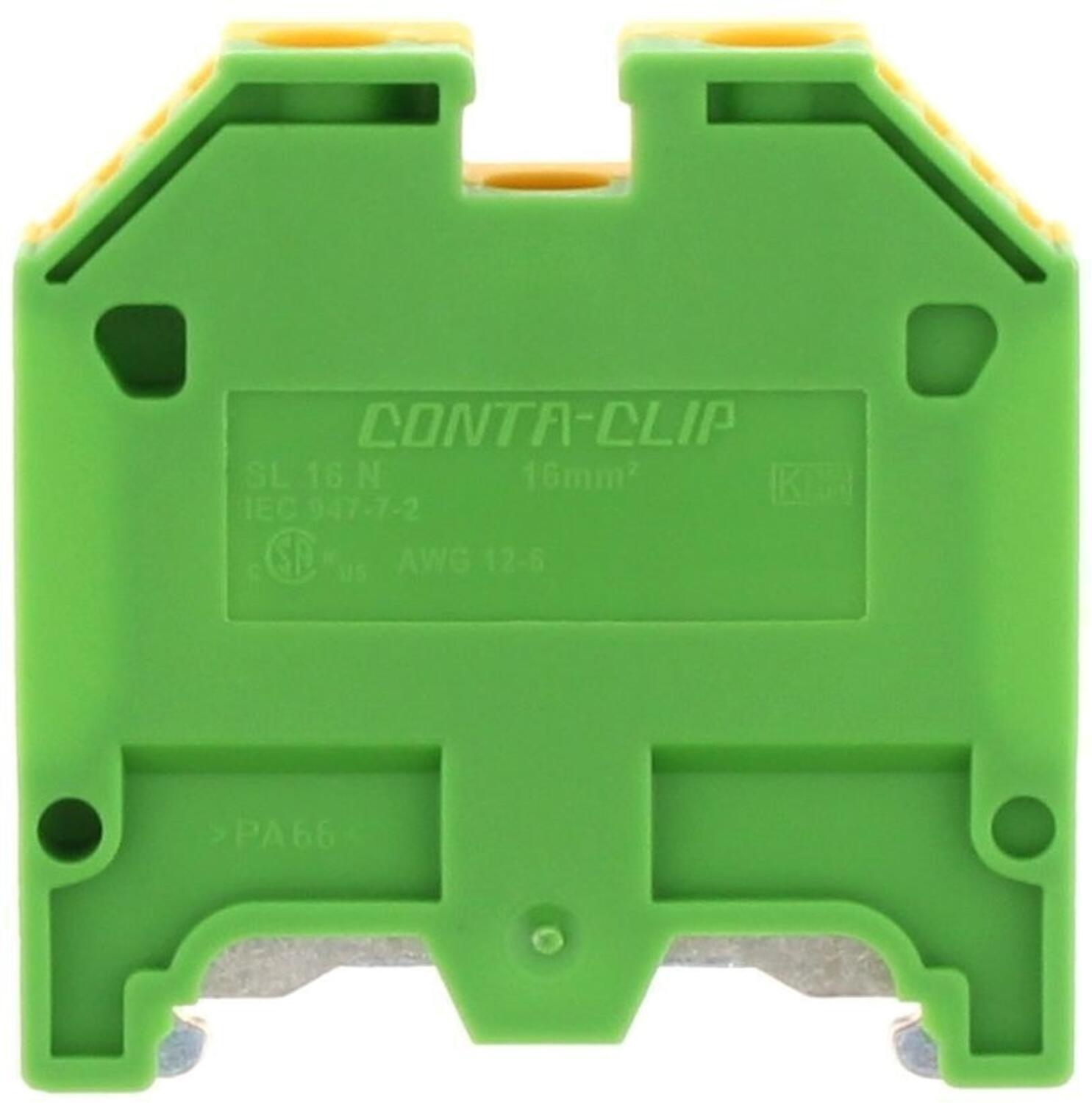

Earth terminals - Screw on - SL 2.5-35 mm², SSL 50-70mm²
SL, SSL
The RK and SL range is the original traditional terminal range feed-through featuring the proven screw-connection system and screw in cross connectors.
This range is available with the ‘multi-foot’ construction, so will fit on TS35 and TS15 – ‘Top Hat’ rail or the less common TS32 – ‘G-Rail’, still used in some applications today.
The range also includes disconnect terminals, fused terminals, actuator, sensor, motor-connection terminals and a range of direct mount options.
For applications where space is at a premium the TS15 range is small and compact, but can still accommodate 4mm² cable sizes.
- Screw to rail construction
- SL - Material polyamide 6.6 - UL94-V2
- Temperature resistance -40 ºC...+105 ºC
- SSL - Material polyamide 6.6 - UL94-V0
- Temperature resistance -40 ºC...+120 ºC
Selected variant
Specifications
| Cross-Section | 2.5 mm² |
|---|---|
| Color | Green/yellow |
| Mounting | TS 35/7,5 |
| Overvoltage category | III |
| Contamination degree | 3 |
| Approvals | EAC |
| Length | 62 mm |
| Width | 6 mm |
| Height TS 35/7.5 | 47 mm |
| Connections | 3 |
| Number of levels | 1 |
| Plug gauge acc. EN 60 947-1 | A4 |
| Cross section single wire from | 0.2 mm² |
| Cross section single wire to | 4 mm² |
| Cross section stranded wire from | 0.2 mm² |
| Cross section stranded wire to | 4 mm² |
| Cross section stranded with ferrule from | 0.2 mm² |
| Cross section stranded with ferrule to | 2.5 mm² |
| Rated wire cross section from (AWG) | 22 |
|---|---|
| Rated wire cross section to (AWG) | 12 |
| Stripping Length | 9 mm |
| Screw size | M 3 |
| Screw type | Slotted |
| Torque Min | 0.5 |
| Torque max | 1 |
| Insulation Material | Polyamide 6.6 |
| Flamklass | UL94-V2 |
| Operating temperature from | -40 °C |
| Operating temperature to | 105 °C |
| EAC test standard | TR ZU 004/2011 |
| Tariff code | 85369010 |
| Country of origin | DE |
| Weight | 23.2 g |
| Pack Size | 100 |
| Type of terminal | Screw Terminals, DIN Rail terminals |
Product description
The RK and SL range is the original traditional terminal range feed-through featuring the proven screw-connection system and screw in cross connectors.
This range is available with the ‘multi-foot’ construction, so will fit on TS35 and TS15 – ‘Top Hat’ rail or the less common TS32 – ‘G-Rail’, still used in some applications today.
The range also includes disconnect terminals, fused terminals, actuator, sensor, motor-connection terminals and a range of direct mount options.
For applications where space is at a premium the TS15 range is small and compact, but can still accommodate 4mm² cable sizes.
