CONTA-CLIP

Feed through terminals - SRK 2.5-120mm²

SRK



Packed with innovative features

The SRK range of screw terminals from Conta Clip is packed with innovative features designed to increase connection strength, speed up your assembly times and optimize your stock.

Now available for cable sizes from 2.5mm² to 120mm²



Cutting edge design & quality materials

Conta Clip has proved it is still possible to improve the design of even the most long established components. They are characterised by their compact housing shape, exceptional stability, good vibration resistance and improved wire grip at the terminal point.



Fast assembly & connection

The easy to operate screw connection makes it easy and safe to connect both solid and flexible wires with or without ferrules. The protective earth terminals have rail connections on both sides of the foot, they simply snap onto the din-rail with no need for screws. The insulated cross connectors are pluggable and simply pushed in to place in one of two channels in the top of each terminal. These features dramatically speed up assembly time but still ensure maximum mechanical and electrical security.







Flexibility to optimize your stock

You can use a cutting tool to shorten the pluggable cross connectors as required. Once cut the exposed edge is simply covered using the innovative push on insulation cap to ensure touch protection is fully maintained. Where once many different variations of cross connectors needed to be stocked you now need only one length of cross connectors and some end caps helping reduce inventory costs.

Available in the following colours; Yellow, Blue, Black & Red.



Clear concise marking

Most applications demand clearly marked terminals. The four way labelling channel in conjunction with a wide range of markers allows a variety of possibilities. Pre-marked labels are available with standard letters & digits or custom labels can be marked here at OEM Automatic to your exact requirements.



• Feed-through & protective earth terminals

• Compact design

• Wide range of sophisticated accessories

• Pluggable insulated cross connectors that can be easily modified to suit (up to 35mm²)

• Cross connectors can carry max rated current & voltage of the terminals

• Large wire entry bay positioned at the same level across all terminal types

• Global standards

Read more
  • Pluggable cross connectors up to 35mm²
  • Available in 9 colours
  • 1000V rated
  • Material polyamide 6.6 - UL94-V0
  • Temperature resistance -40 ºC...+120 ºC

Selected variant


Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Cross-Section 2.5 mm²
Color Green
Rated Voltage IEC 1000 V
Rated Current IEC 24 A
Load Current Max 32 A
Mounting TS 35/7,5
Rated impulse voltage 8 kV
Overvoltage category III
Contamination degree 3
Approvals UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
Explosion proof Yes
Length 48 mm
Width 5 mm
Height TS 35/7.5 47 mm
Connections 2
Number of levels 1
Plug gauge acc. EN 60 947-1 A3
Cross connect channels 2
Number of test pick off options 1
Cross section single wire from 0.2 mm²
Cross section single wire to 4 mm²
Cross section stranded wire from 0.2 mm²
Cross section stranded wire to 4 mm²
Cross section stranded with ferrule from 0.2 mm²
Cross section stranded with ferrule to 2.5 mm²
Rated wire cross section from (AWG) 30
Rated wire cross section to (AWG) 12
Stripping Length 10 mm
Screw size M 2,5
Screw type Slotted
Torque Min 0.4
Torque max 0.8
Insulation Material Polyamide 6.6
Flamklass UL94-V0
Operating temperature from -40 °C
Operating temperature to 120 °C
Rated Voltage To UL 600 V
Rated Current To UL 25 A
UL test standard UL 1059
Voltage CSA 600 V
Rated Current CSA 25 A
CSA test standard C22.2 No 158
Rated voltage CSAus 600 V
Rated current CSAus 25 A
CSAus test standard UL 1059
Rated voltage cUL 600 V
Rated current cUL 25 A
cUL test standard C22.2 No 158
GL test standard IEC 60947-7-1:2009
EAC test standard TR ZU 004/2011
KEMA KEUR test standard EN 60947-7-1:2009
Tariff code 85369010
Country of origin DE
Weight 7.11 g
Pack Size 100
Type of terminal Screw Terminals, DIN Rail terminals

Downloads

Measurements and connections

Product description



Packed with innovative features

The SRK range of screw terminals from Conta Clip is packed with innovative features designed to increase connection strength, speed up your assembly times and optimize your stock.

Now available for cable sizes from 2.5mm² to 120mm²



Cutting edge design & quality materials

Conta Clip has proved it is still possible to improve the design of even the most long established components. They are characterised by their compact housing shape, exceptional stability, good vibration resistance and improved wire grip at the terminal point.



Fast assembly & connection

The easy to operate screw connection makes it easy and safe to connect both solid and flexible wires with or without ferrules. The protective earth terminals have rail connections on both sides of the foot, they simply snap onto the din-rail with no need for screws. The insulated cross connectors are pluggable and simply pushed in to place in one of two channels in the top of each terminal. These features dramatically speed up assembly time but still ensure maximum mechanical and electrical security.







Flexibility to optimize your stock

You can use a cutting tool to shorten the pluggable cross connectors as required. Once cut the exposed edge is simply covered using the innovative push on insulation cap to ensure touch protection is fully maintained. Where once many different variations of cross connectors needed to be stocked you now need only one length of cross connectors and some end caps helping reduce inventory costs.

Available in the following colours; Yellow, Blue, Black & Red.



Clear concise marking

Most applications demand clearly marked terminals. The four way labelling channel in conjunction with a wide range of markers allows a variety of possibilities. Pre-marked labels are available with standard letters & digits or custom labels can be marked here at OEM Automatic to your exact requirements.



• Feed-through & protective earth terminals

• Compact design

• Wide range of sophisticated accessories

• Pluggable insulated cross connectors that can be easily modified to suit (up to 35mm²)

• Cross connectors can carry max rated current & voltage of the terminals

• Large wire entry bay positioned at the same level across all terminal types

• Global standards

Accessories

Related products

Add product as a new cart row

You already added this product. Choose whether to increase quantity on the existing row or add the product as a new row.

Related

TER - control stations
Product news

Quality solutions for motion controls

TER - Tecno Elettrica Ravasi, is our Italian supplier specializing in the manufacture of control stations. TER has over 60 years of experience in the manufacture of control stations.

Stego Loop Heater lämmityselementit
Product news

LOOP Heater for optimal heat distribution

Thanks to their loop design, LOOP heating elements offer excellent heating performance and ensure optimal heat distribution. Read more now!

PISA-M
Product news

Compact electronic overcurrent protection PISA-M

PISA-M is a 4-channel electronic fuse for 12 and 24 V DC systems. The smallest 4-channel electronic fuse with a width of only 22.5 mm!

Delcon relays
Product news

An effective solution Delcon CRA5

Delcon's CRA5 plug-in relay revolutionizes the control of difficult-to-handle DC loads. Inductive loads, frequent switching, and high DC voltages are a piece of cake for these relays.

LOCC-Box Mini
Product news

LOCC-Box Mini

The Lütze LOCC-Box is an intelligent electronic overcurrent protection device that provides reliable protection for 12/24 V DC systems in a narrow housing measuring just 8.1 mm. Integrated + and - terminals save space on the DIN rail.

DF Electric
Product news

DF Electric – new supplier for fuse solutions

DF Electric is specialized in the manufacturing of fuse links, fuse holders and control transformers since 1987. Presently the company is leading the Spanish market and is also very active in many export markets due to its competitive range of products.

Articles Cross-Section Color Rated Voltage IEC Rated Current IEC Load Current Max Mounting Rated impulse voltage Overvoltage category Contamination degree Approvals Explosion proof Length Width Height TS 35/7.5 Connections Number of levels Plug gauge acc. EN 60 947-1 Cross connect channels Number of test pick off options Cross section single wire from Cross section single wire to Cross section stranded wire from Cross section stranded wire to Cross section stranded with ferrule from Cross section stranded with ferrule to Rated wire cross section from (AWG) Rated wire cross section to (AWG) Stripping Length Screw size Screw type Torque Min Torque max Insulation Material Flamklass Operating temperature from Operating temperature to Rated Voltage To UL Rated Current To UL UL test standard Voltage CSA Rated Current CSA CSA test standard Rated voltage CSAus Rated current CSAus CSAus test standard Rated voltage cUL Rated current cUL cUL test standard GL test standard EAC test standard KEMA KEUR test standard Tariff code Country of origin Weight Pack Size Type of terminal

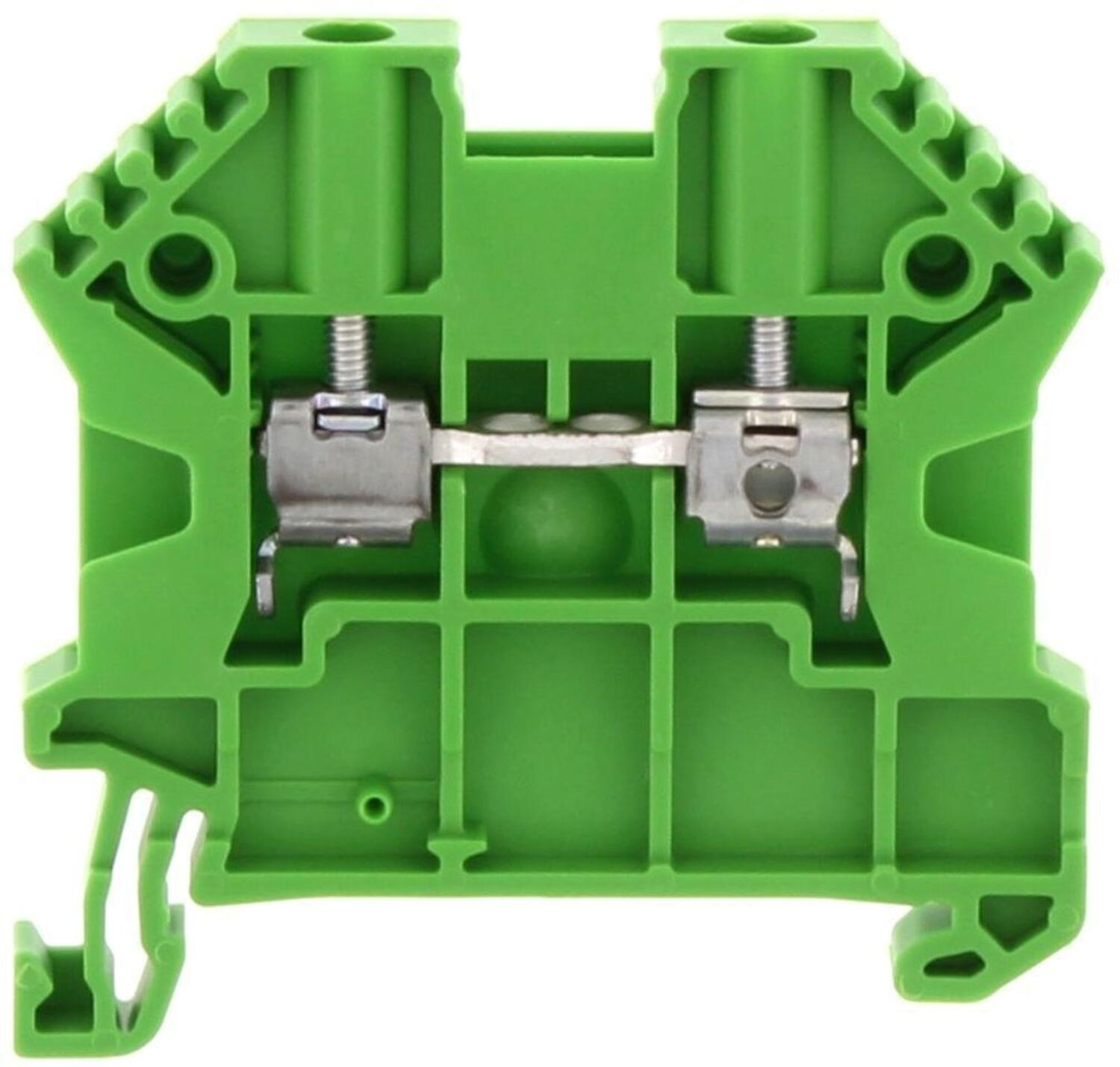

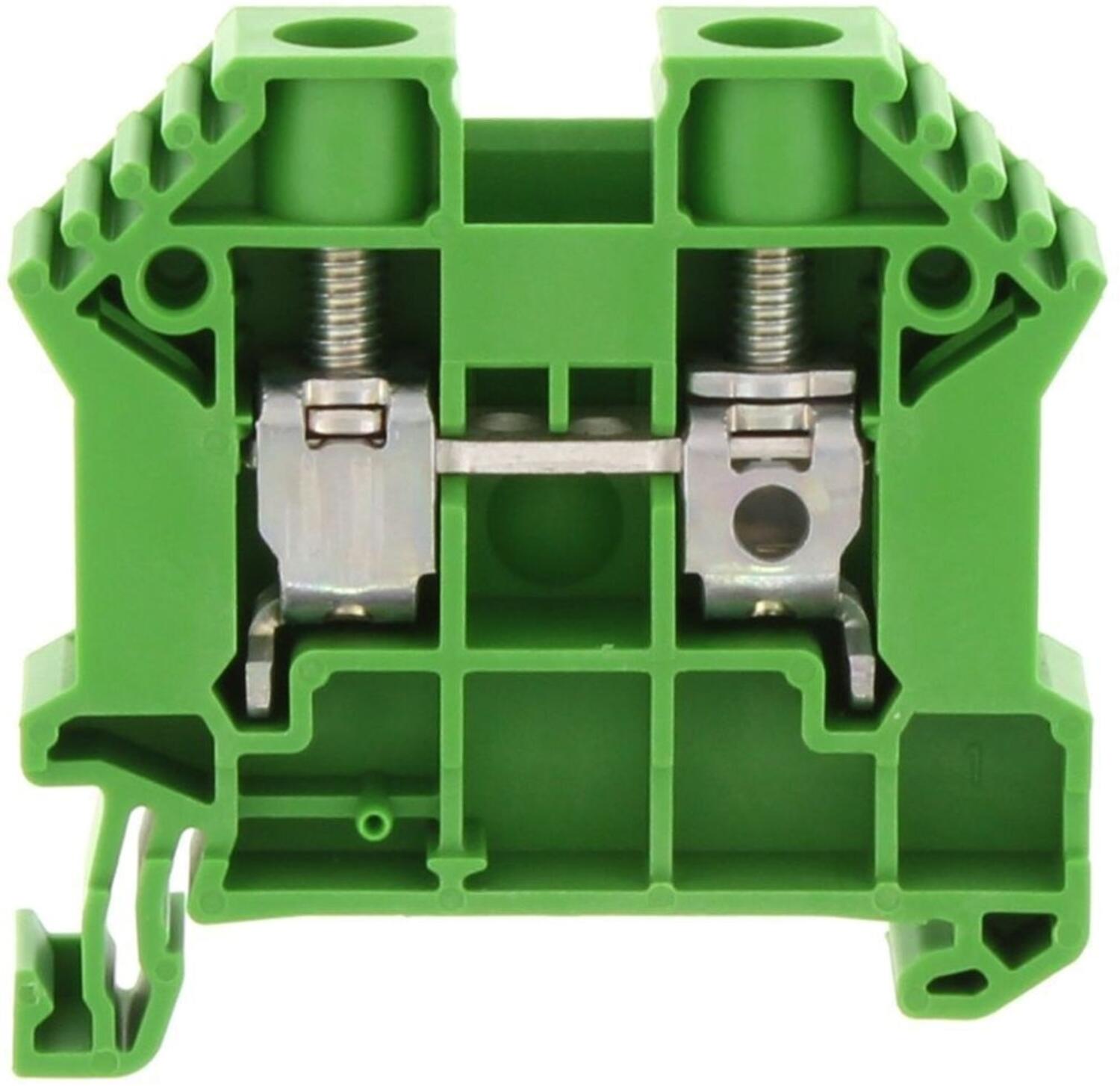

Green connection clamp with metal components for electrical installations
SRK 2.5/2A Green, 2.5mm² Feed through terminal
Art:
17100.1 Copied
2.5 mm²
Green
1000 V
24 A
32 A
TS 35/7,5
8 kV
III
3
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
Yes
48 mm
5 mm
47 mm
2
1
A3
2
1
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
30
12
10 mm
M 2,5
Slotted
0.4
0.8
Polyamide 6.6
UL94-V0
-40 °C
120 °C
600 V
25 A
UL 1059
600 V
25 A
C22.2 No 158
600 V
25 A
UL 1059
600 V
25 A
C22.2 No 158
IEC 60947-7-1:2009
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
7.11 g
100
Screw Terminals, DIN Rail terminals

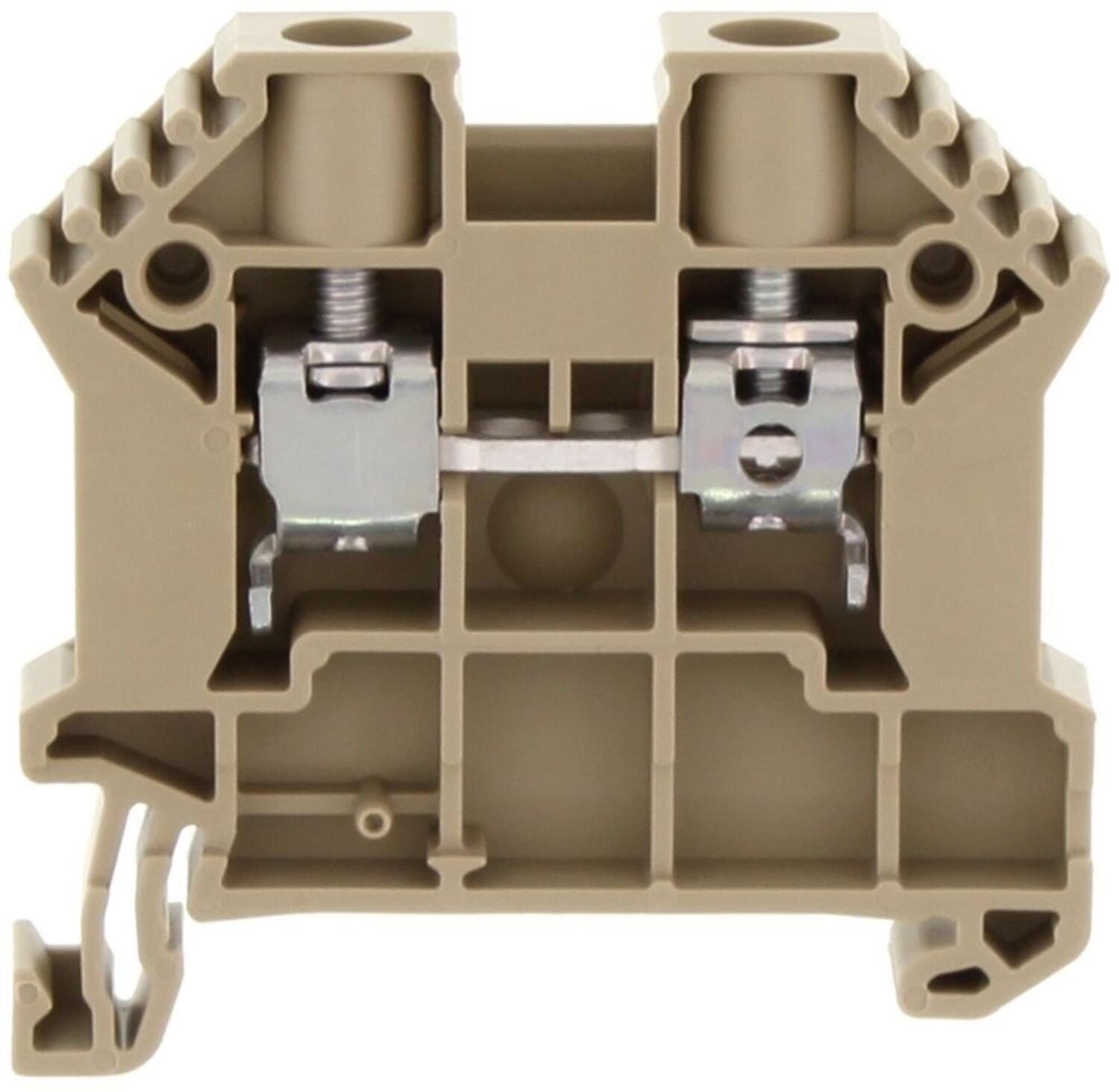

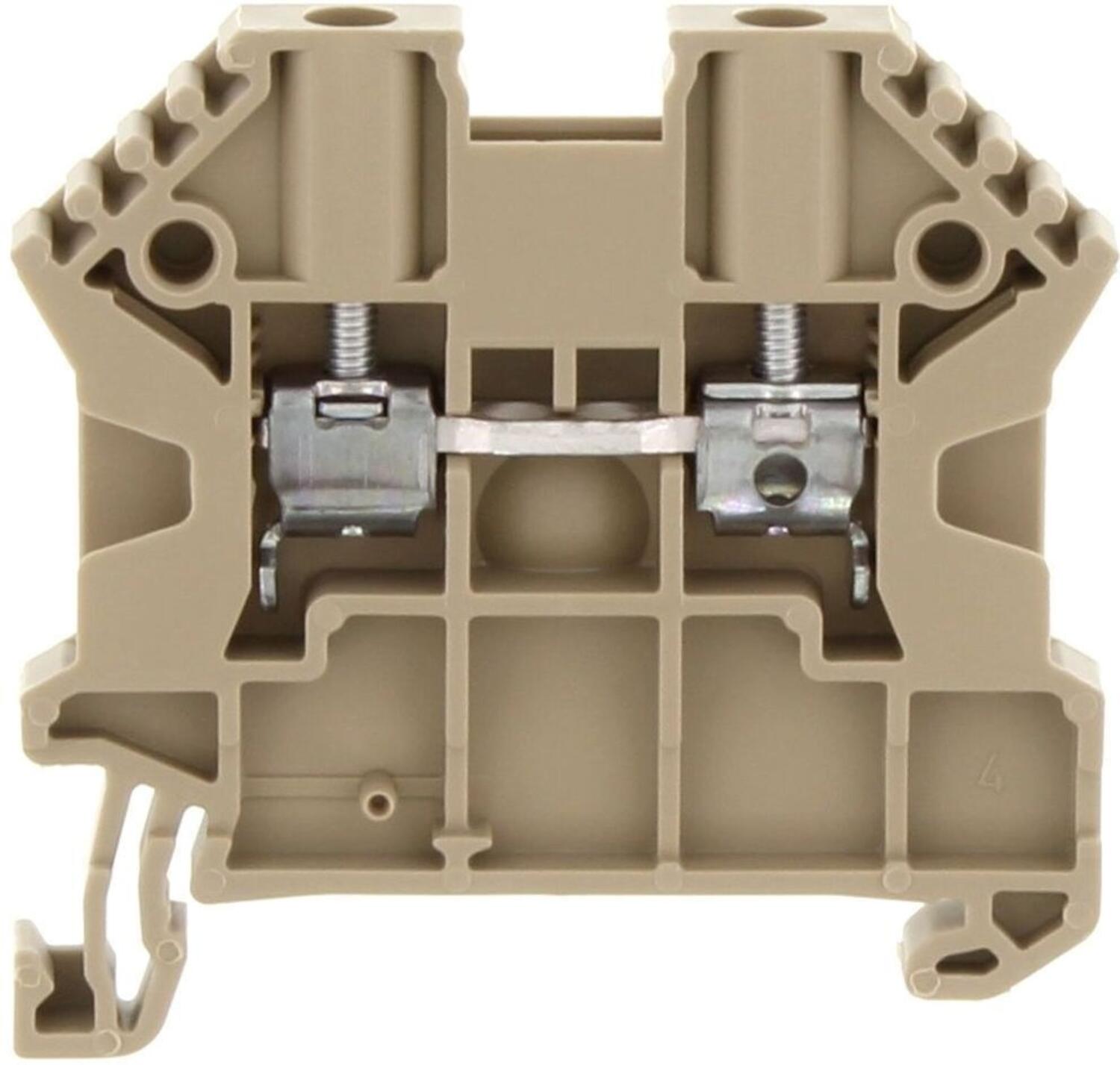

Terminal block from CONTA-CLIP, beige with metal clamps for electrical connections
SRK2.5/2A - 2.5mm Feed Through Terminal Beige
Art:
17100.2 Copied
2.5 mm²
Beige
1000 V
24 A
32 A
TS 35/7,5
8 kV
III
3
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
Yes
48 mm
5 mm
47 mm
2
1
A3
2
1
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
30
12
10 mm
M 2,5
Slotted
0.4
0.8
Polyamide 6.6
UL94-V0
-40 °C
120 °C
600 V
25 A
UL 1059
600 V
25 A
C22.2 No 158
600 V
25 A
UL 1059
600 V
25 A
C22.2 No 158
IEC 60947-7-1:2009
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
7.11 g
100
Screw Terminals, DIN Rail terminals

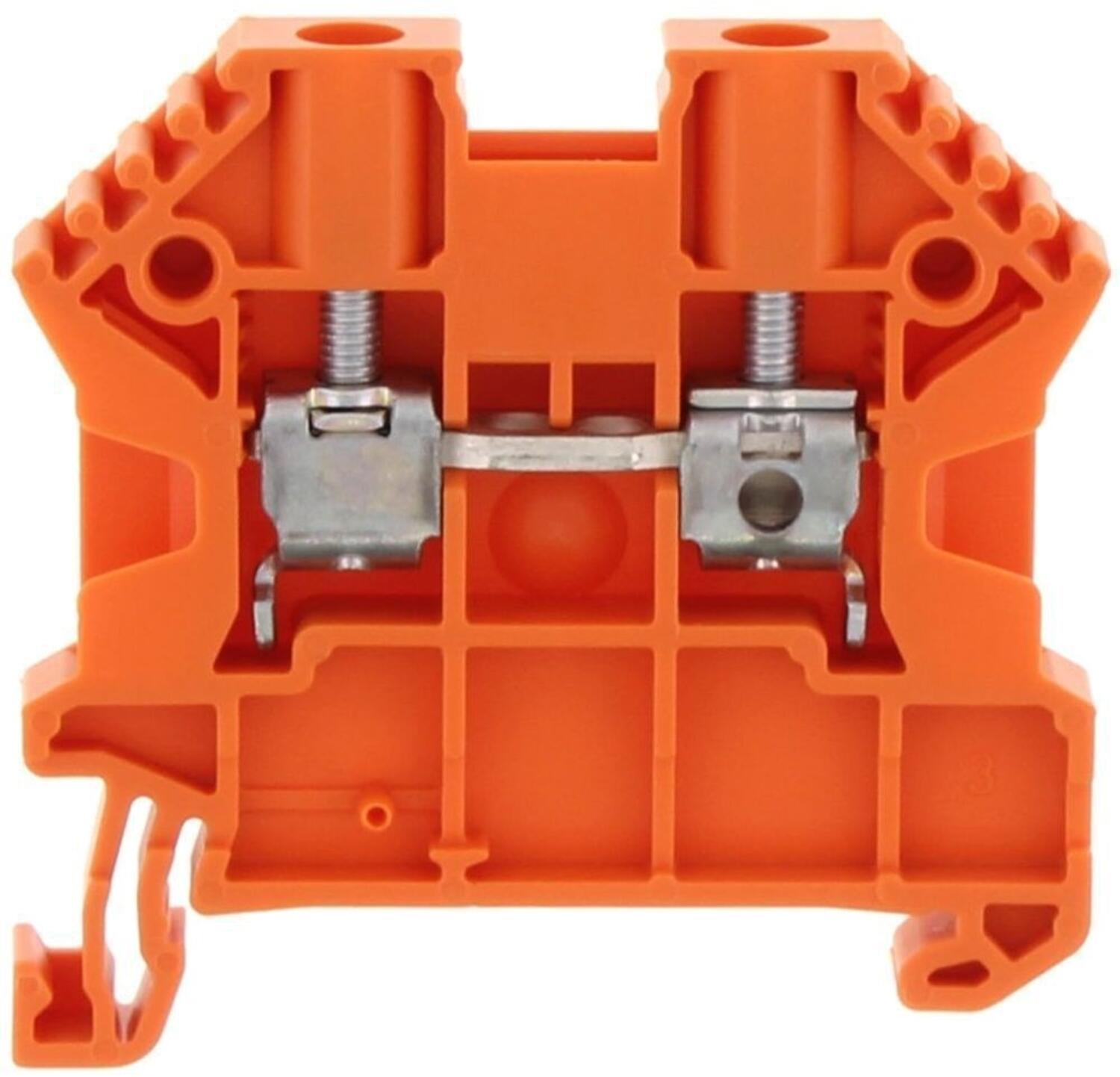

Terminal block in orange plastic with metal contacts for electrical connections
SRK 2.5/2A Orange, 2.5mm² Feed through terminal
Art:
17100.3 Copied
2.5 mm²
Orange
1000 V
24 A
32 A
TS 35/7,5
8 kV
III
3
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
Yes
48 mm
5 mm
47 mm
2
1
A3
2
1
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
30
12
10 mm
M 2,5
Slotted
0.4
0.8
Polyamide 6.6
UL94-V0
-40 °C
120 °C
600 V
25 A
UL 1059
600 V
25 A
C22.2 No 158
600 V
25 A
UL 1059
600 V
25 A
C22.2 No 158
IEC 60947-7-1:2009
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
7.11 g
100
Screw Terminals, DIN Rail terminals

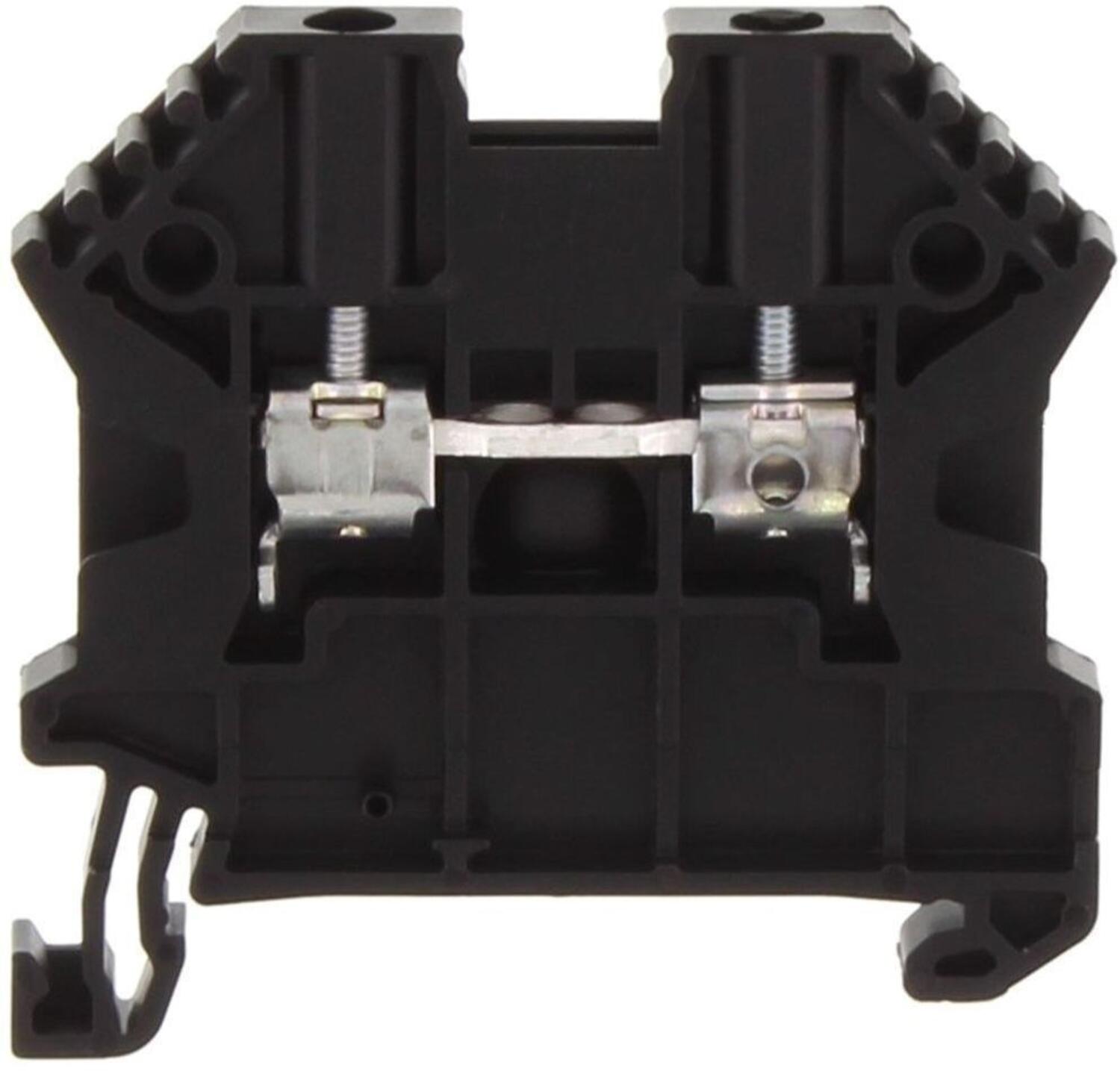

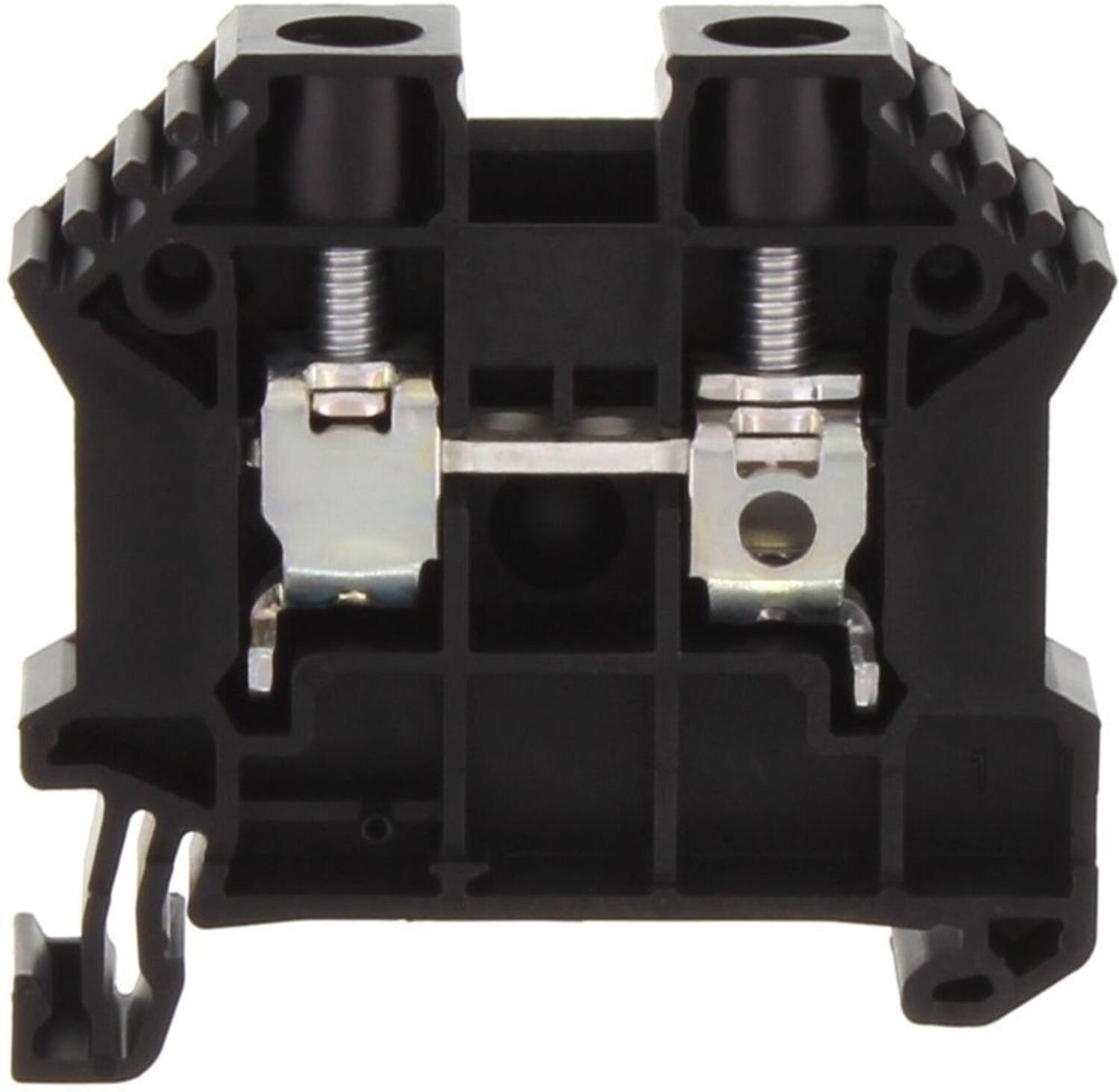

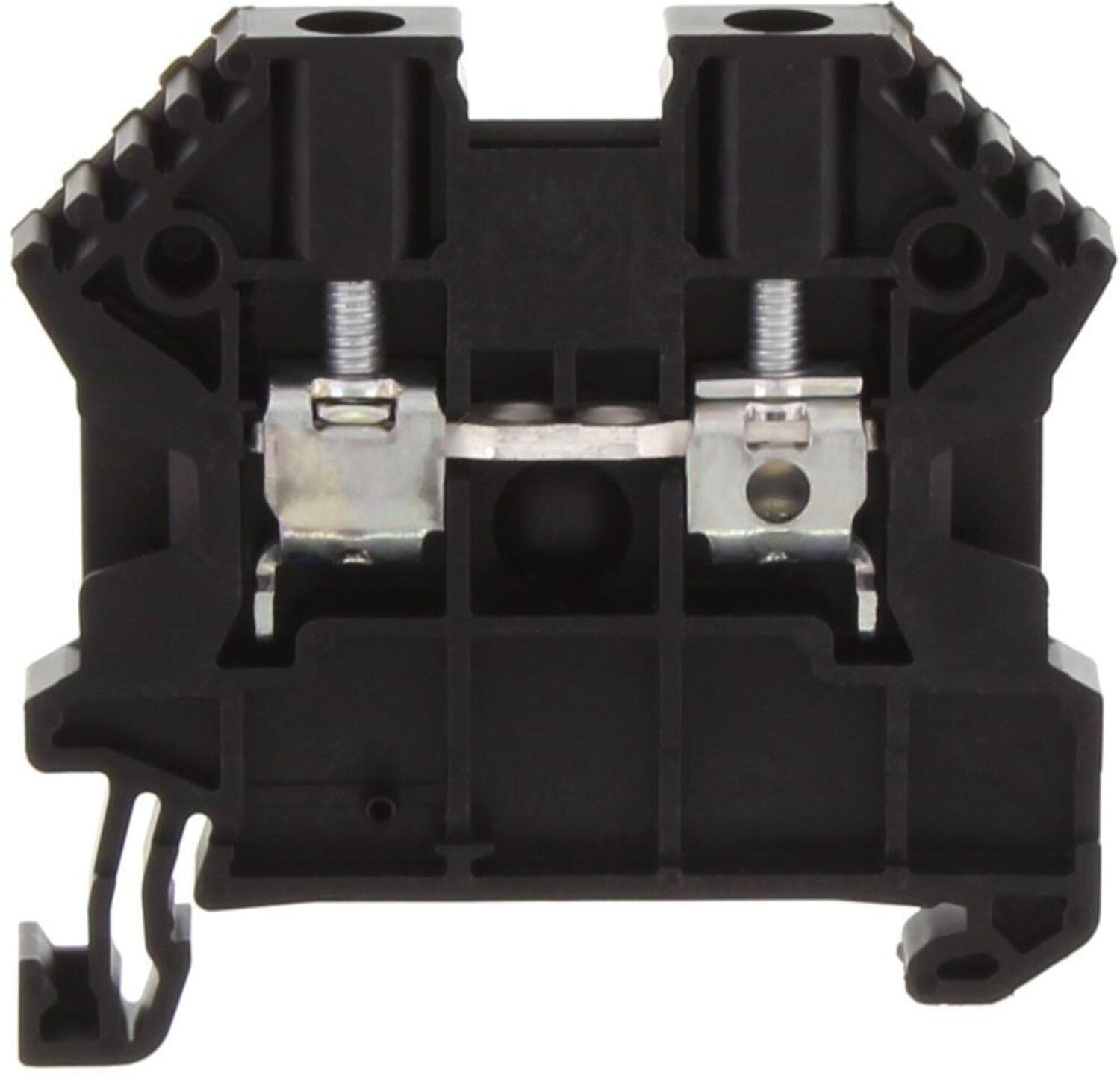

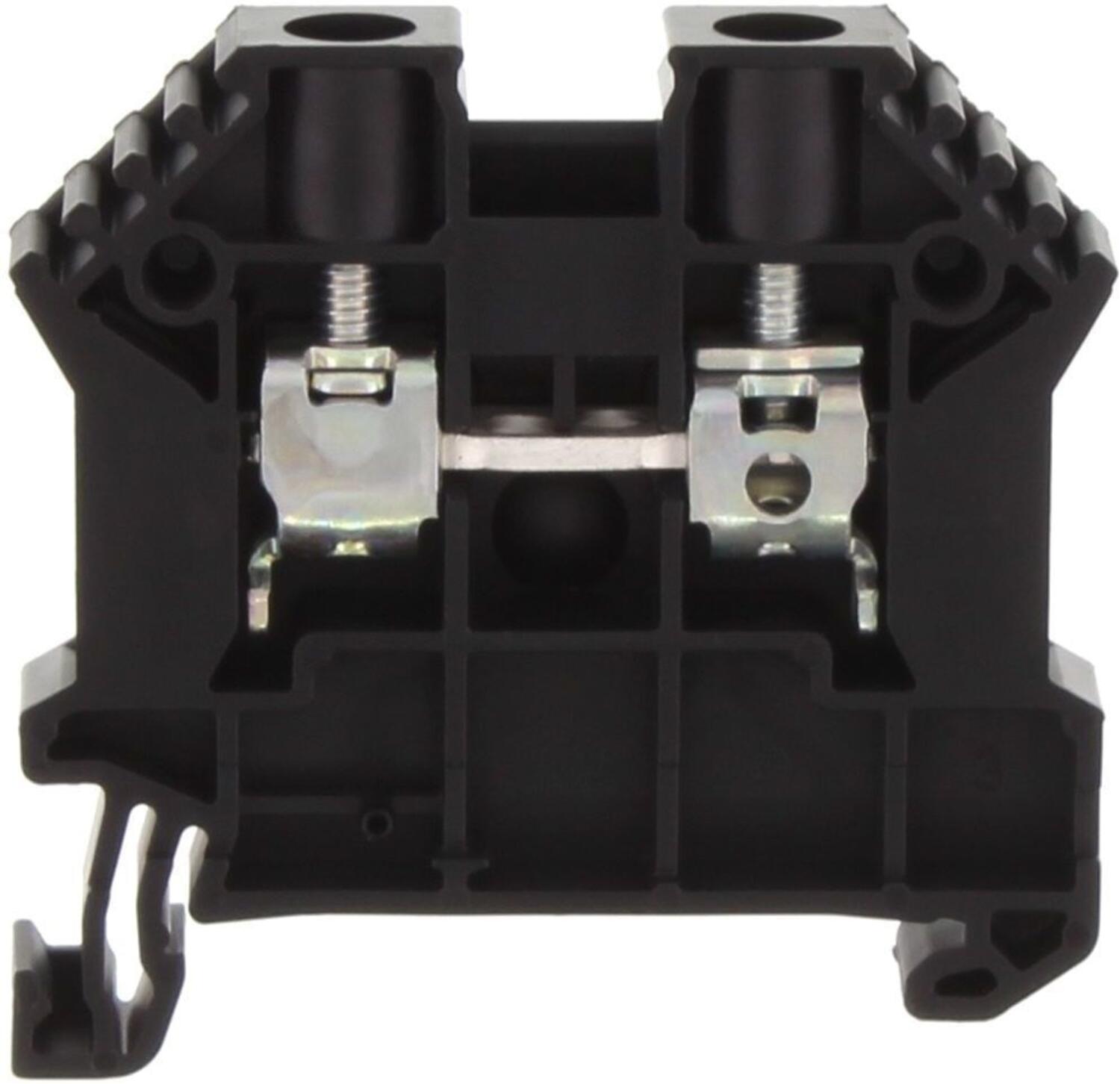

Black connection block with metal contacts for electrical installations
SRK 2.5/2A Black, 2.5mm² Feed through terminal
Art:
17100.4 Copied
2.5 mm²
Black
1000 V
24 A
32 A
TS 35/7,5
8 kV
III
3
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
Yes
48 mm
5 mm
47 mm
2
1
A3
2
1
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
30
12
10 mm
M 2,5
Slotted
0.4
0.8
Polyamide 6.6
UL94-V0
-40 °C
120 °C
600 V
25 A
UL 1059
600 V
25 A
C22.2 No 158
600 V
25 A
UL 1059
600 V
25 A
C22.2 No 158
IEC 60947-7-1:2009
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
7.11 g
100
Screw Terminals, DIN Rail terminals

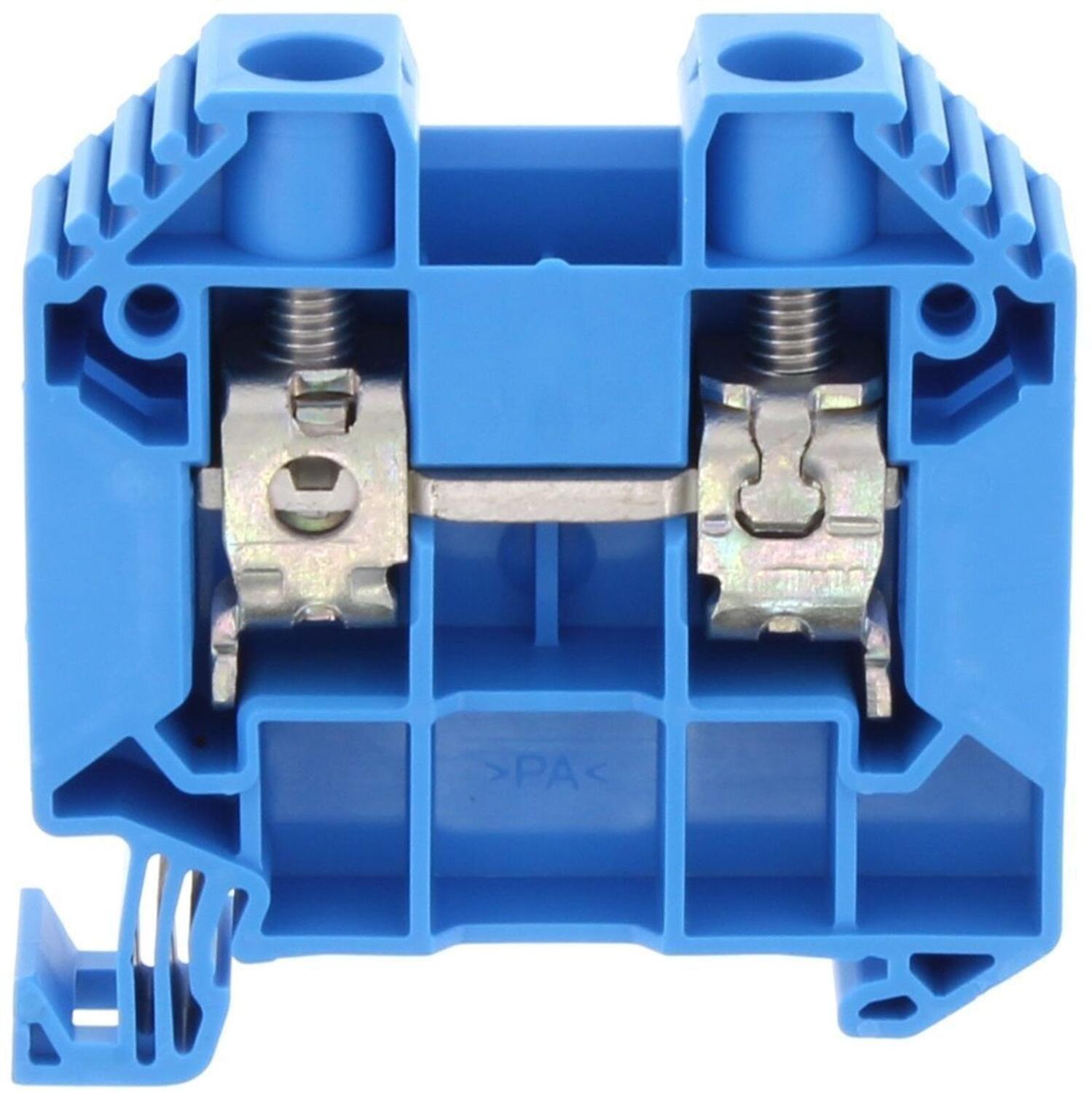

Blue terminal block with metal connectors for electrical installations
SRK2.5/2A - 2.5mm Feed Through Terminal Blue
Art:
17100.5 Copied
2.5 mm²
Blue
1000 V
24 A
32 A
TS 35/7,5
8 kV
III
3
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
Yes
48 mm
5 mm
47 mm
2
1
A3
2
1
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
30
12
10 mm
M 2,5
Slotted
0.4
0.8
Polyamide 6.6
UL94-V0
-40 °C
120 °C
600 V
25 A
UL 1059
600 V
25 A
C22.2 No 158
600 V
25 A
UL 1059
600 V
25 A
C22.2 No 158
IEC 60947-7-1:2009
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
7.11 g
100
Screw Terminals, DIN Rail terminals

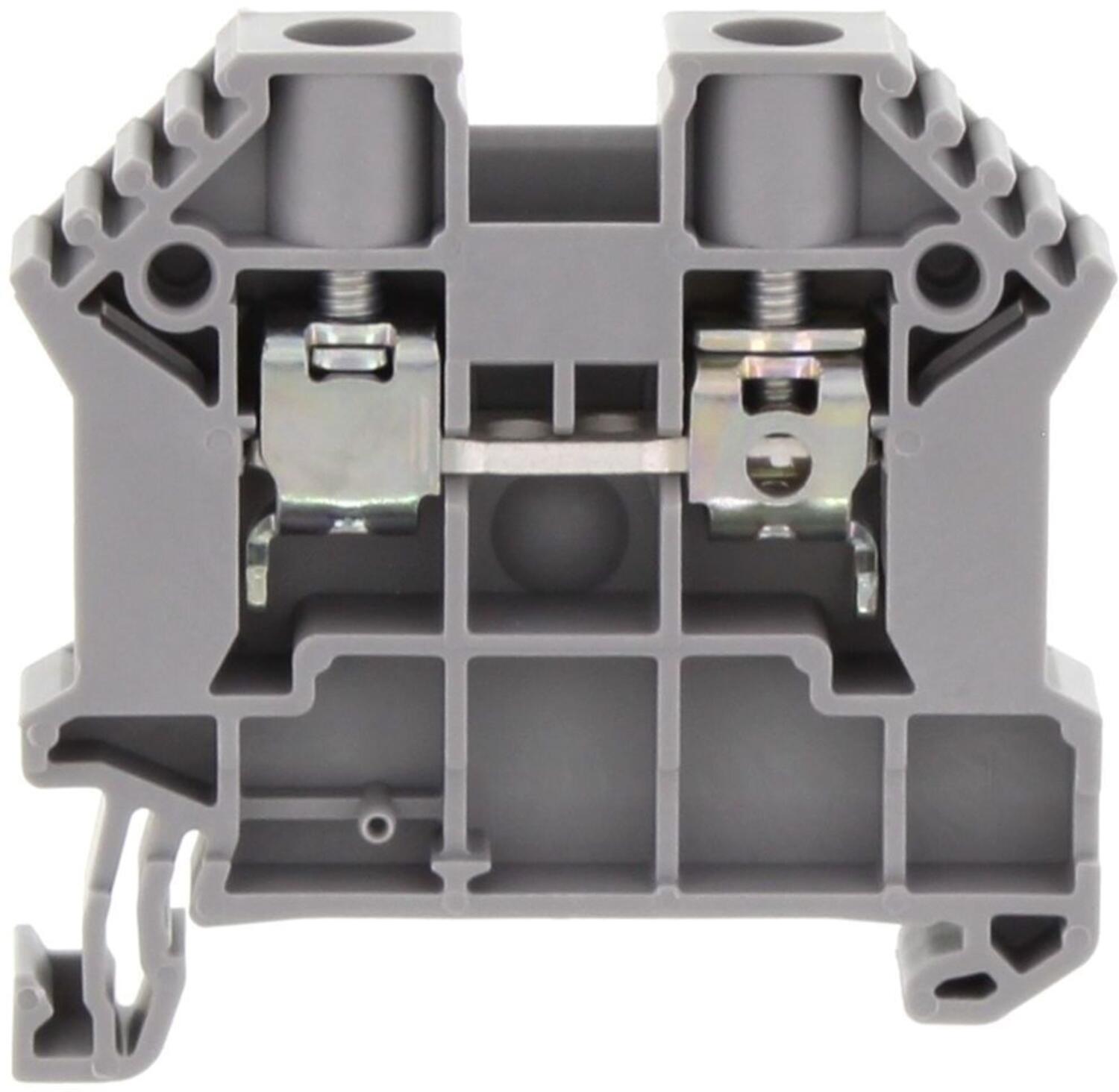

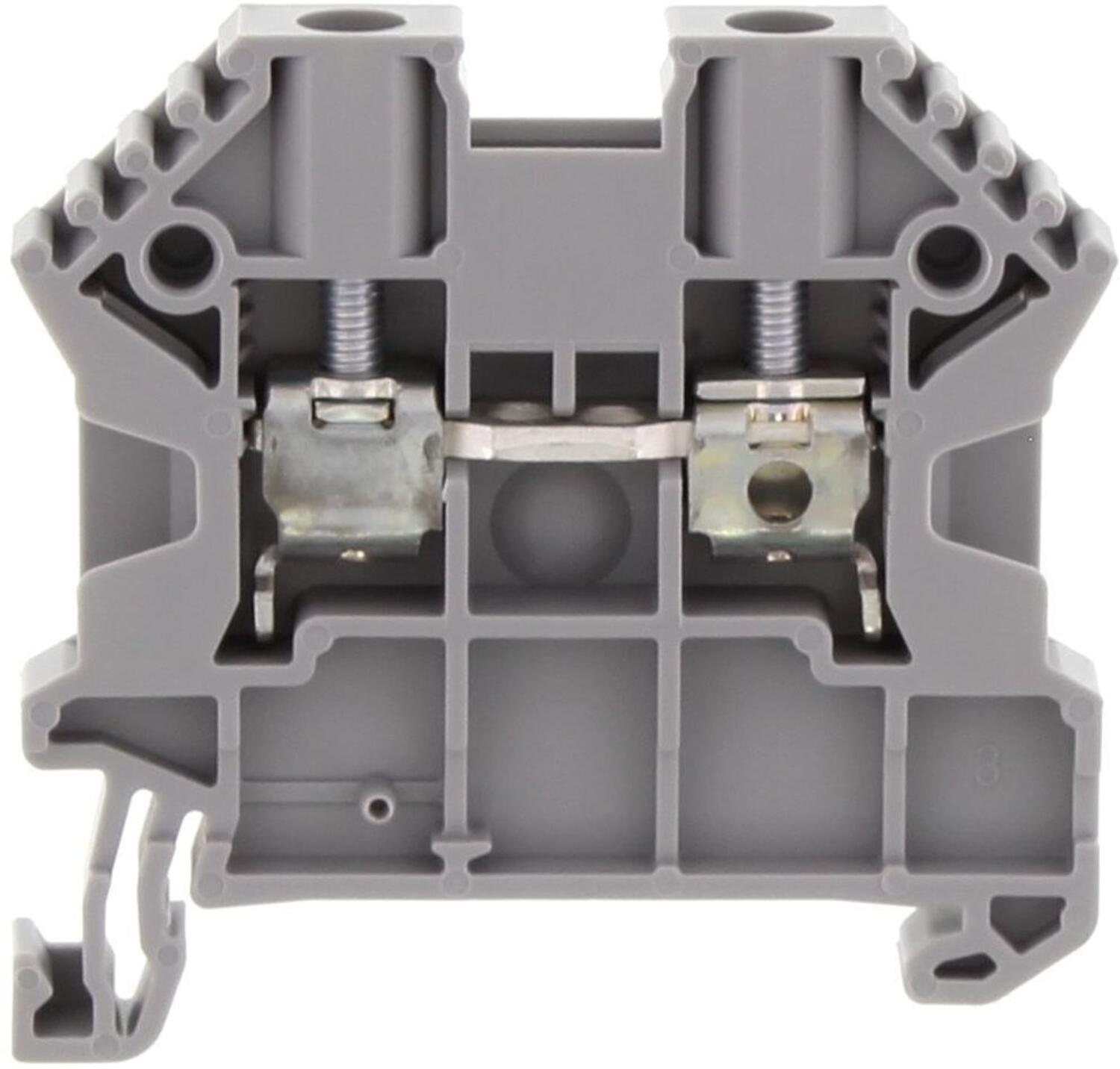

Gray connection clamp with metal brackets and internal components for electrical installations
SRK 2.5/2A Grey, 2.5mm² Feed through terminal
Art:
17100.6 Copied
2.5 mm²
Grey
1000 V
24 A
32 A
TS 35/7,5
8 kV
III
3
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
Yes
48 mm
5 mm
47 mm
2
1
A3
2
1
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
30
12
10 mm
M 2,5
Slotted
0.4
0.8
Polyamide 6.6
UL94-V0
-40 °C
120 °C
600 V
25 A
UL 1059
600 V
25 A
C22.2 No 158
600 V
25 A
UL 1059
600 V
25 A
C22.2 No 158
IEC 60947-7-1:2009
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
7.11 g
100
Screw Terminals, DIN Rail terminals

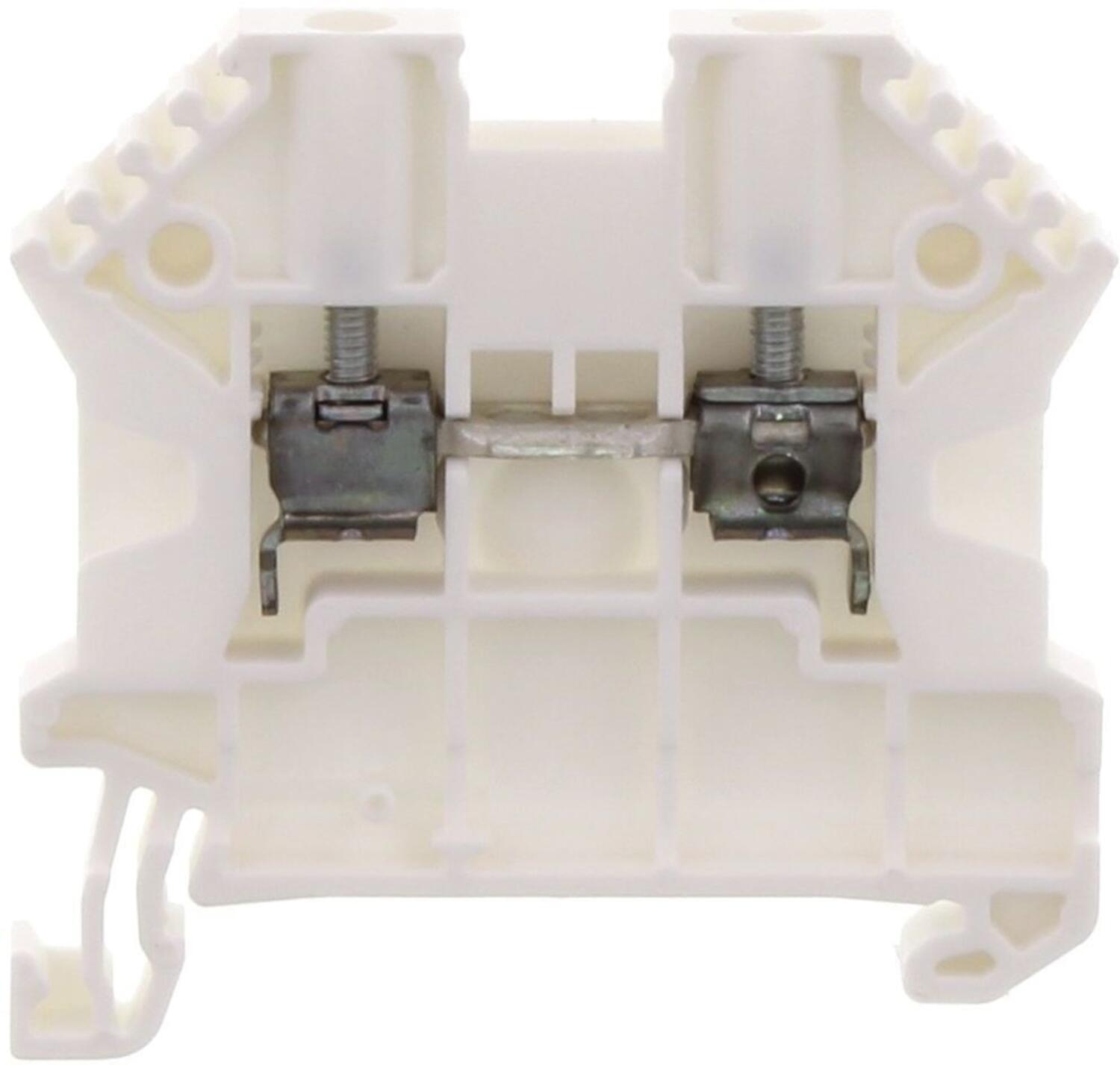

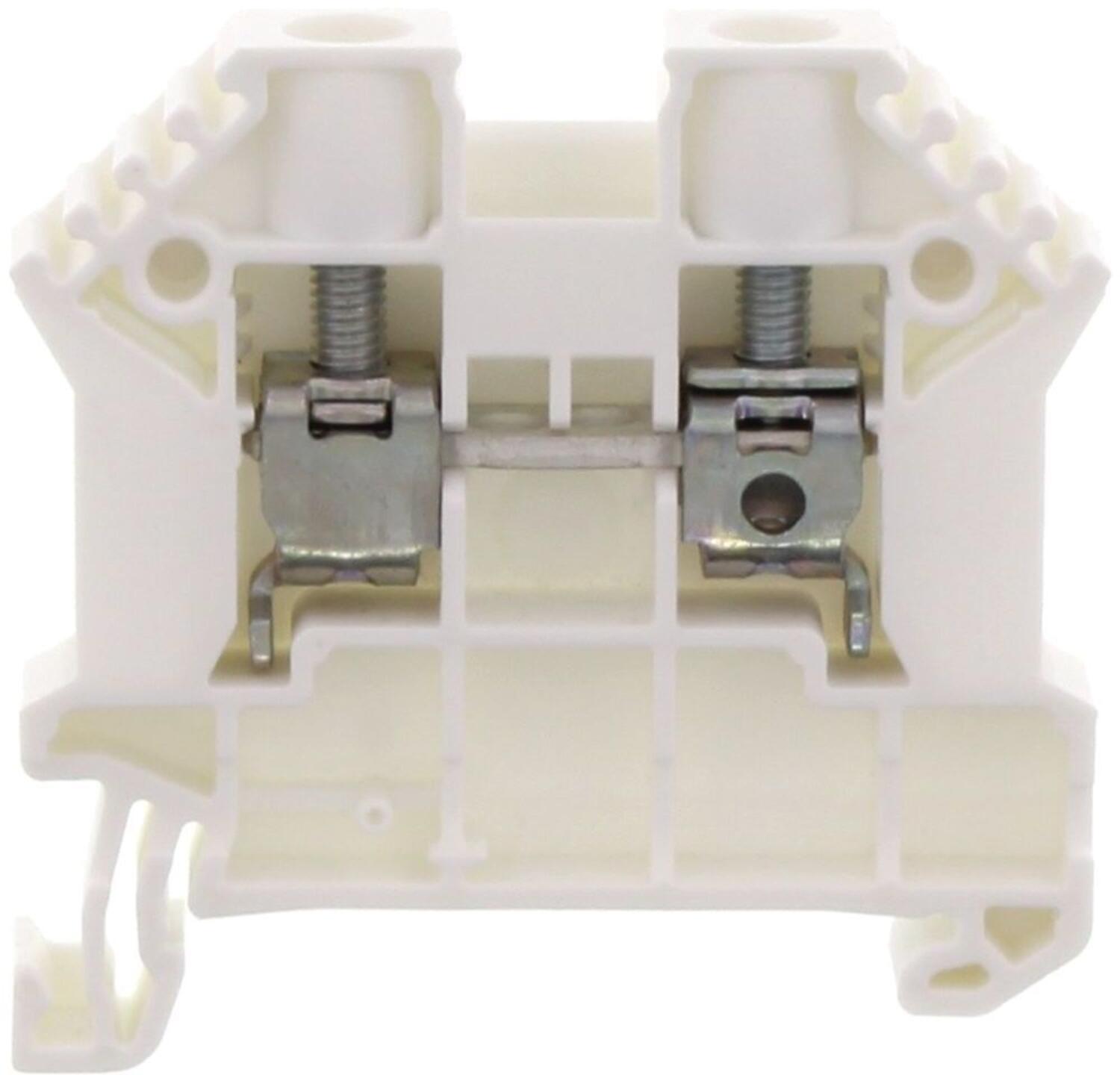

Terminal block in white plastic with metal brackets for electrical connections
SRK 2.5/2A White, 2.5mm² Feed through terminal
Art:
17100.7 Copied
2.5 mm²
White
1000 V
24 A
32 A
TS 35/7,5
8 kV
III
3
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
Yes
48 mm
5 mm
47 mm
2
1
A3
2
1
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
30
12
10 mm
M 2,5
Slotted
0.4
0.8
Polyamide 6.6
UL94-V0
-40 °C
120 °C
600 V
25 A
UL 1059
600 V
25 A
C22.2 No 158
600 V
25 A
UL 1059
600 V
25 A
C22.2 No 158
IEC 60947-7-1:2009
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
7.11 g
100
Screw Terminals, DIN Rail terminals

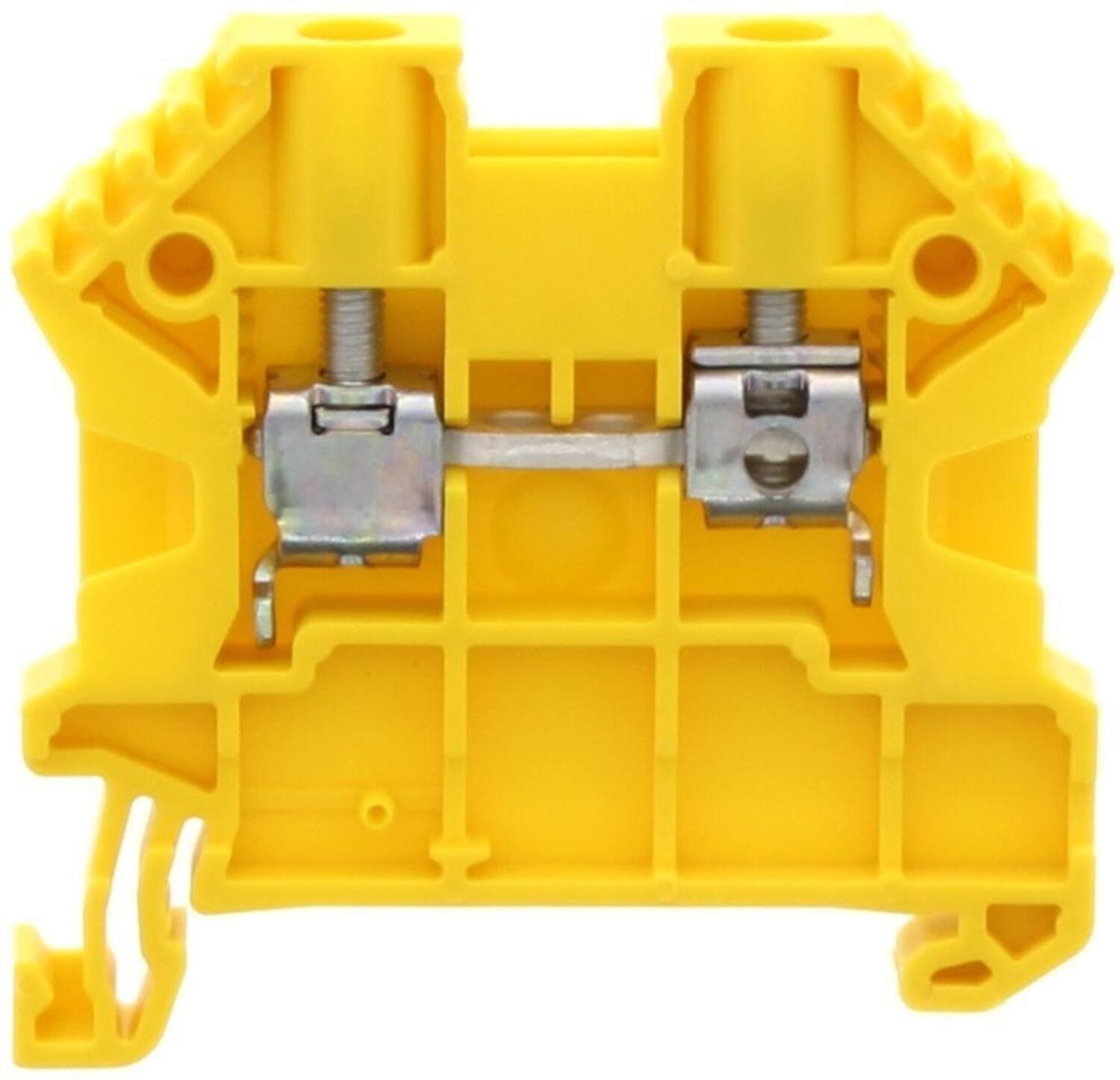

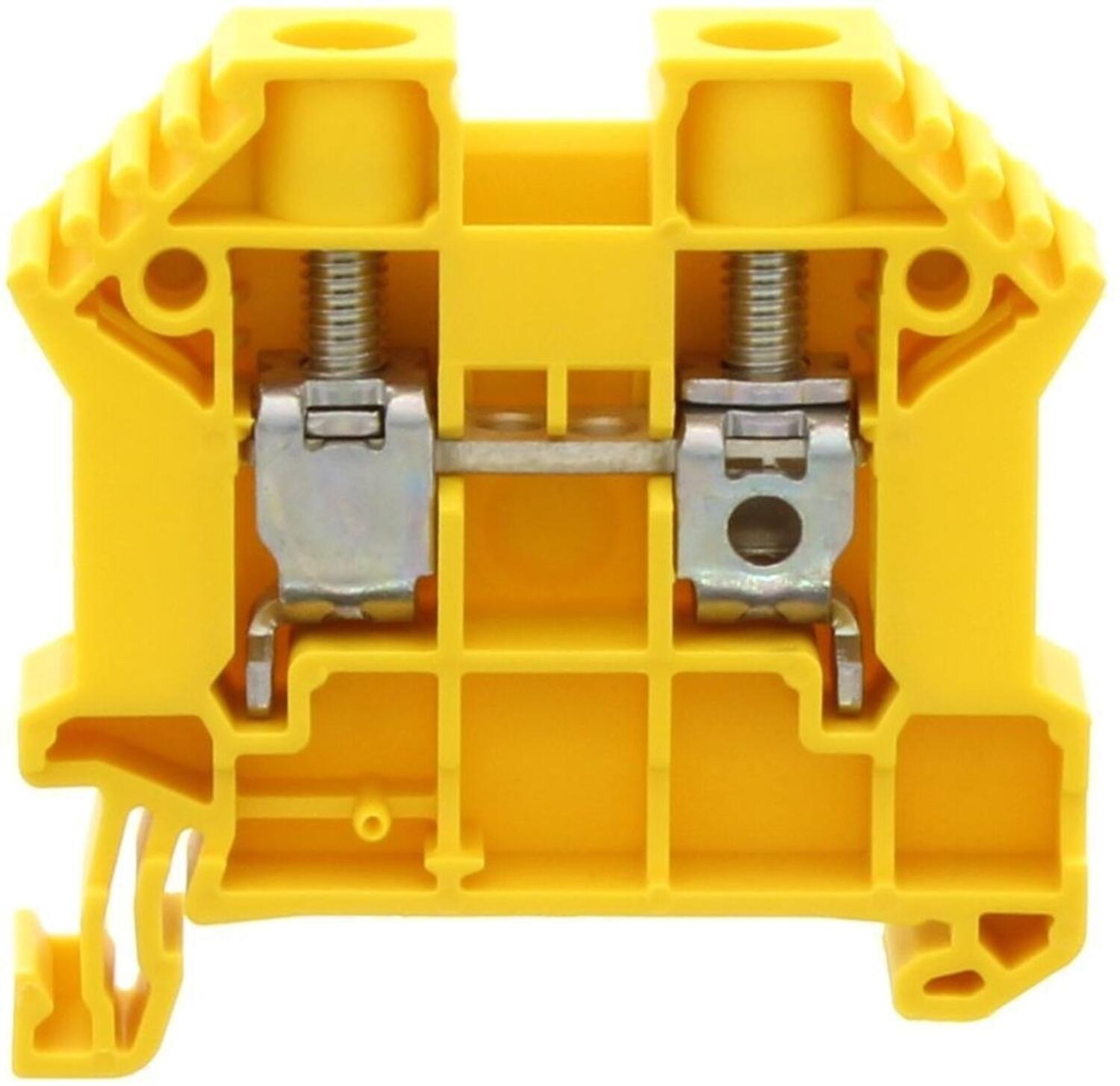

Yellow connection clamp with metal connector for electrical installations
SRK 2.5/2A Yellow, 2.5mm² Feed through terminal
Art:
17100.8 Copied
2.5 mm²
Yellow
1000 V
24 A
32 A
TS 35/7,5
8 kV
III
3
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
Yes
48 mm
5 mm
47 mm
2
1
A3
2
1
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
30
12
10 mm
M 2,5
Slotted
0.4
0.8
Polyamide 6.6
UL94-V0
-40 °C
120 °C
600 V
25 A
UL 1059
600 V
25 A
C22.2 No 158
600 V
25 A
UL 1059
600 V
25 A
C22.2 No 158
IEC 60947-7-1:2009
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
7.11 g
100
Screw Terminals, DIN Rail terminals

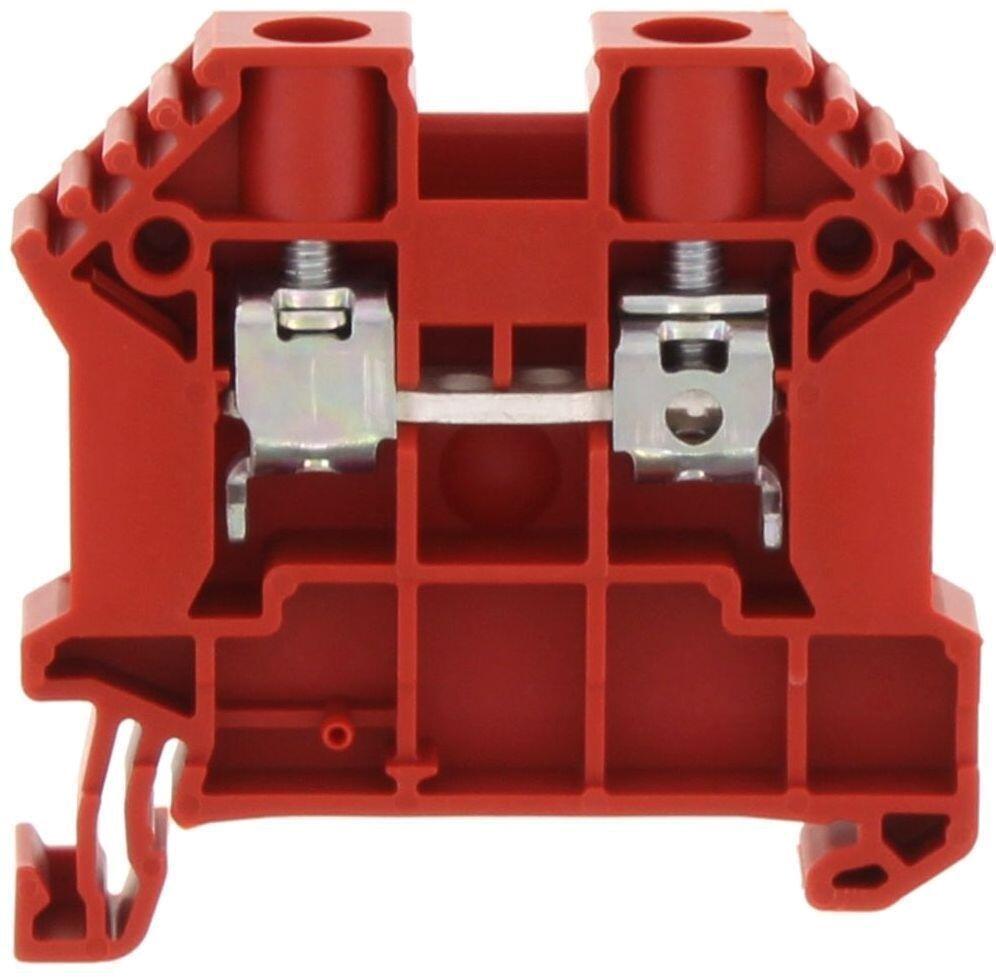

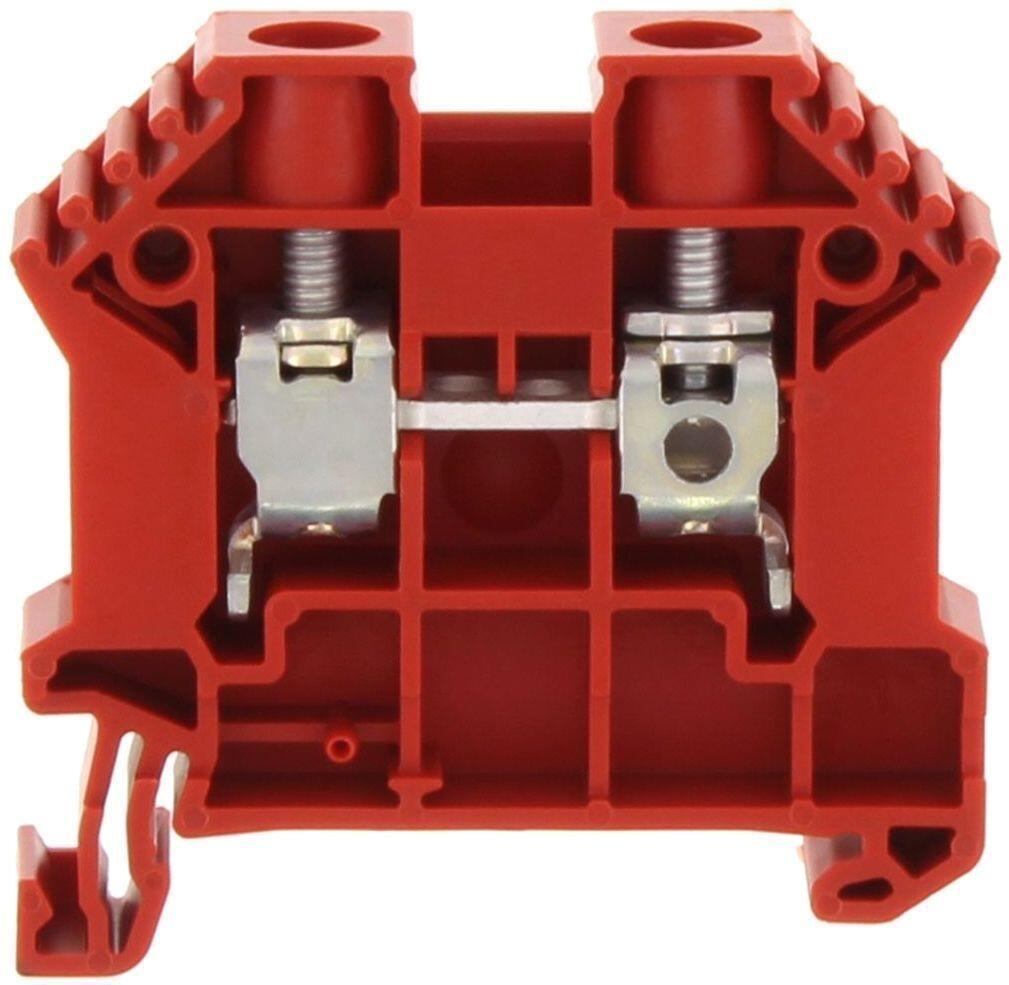

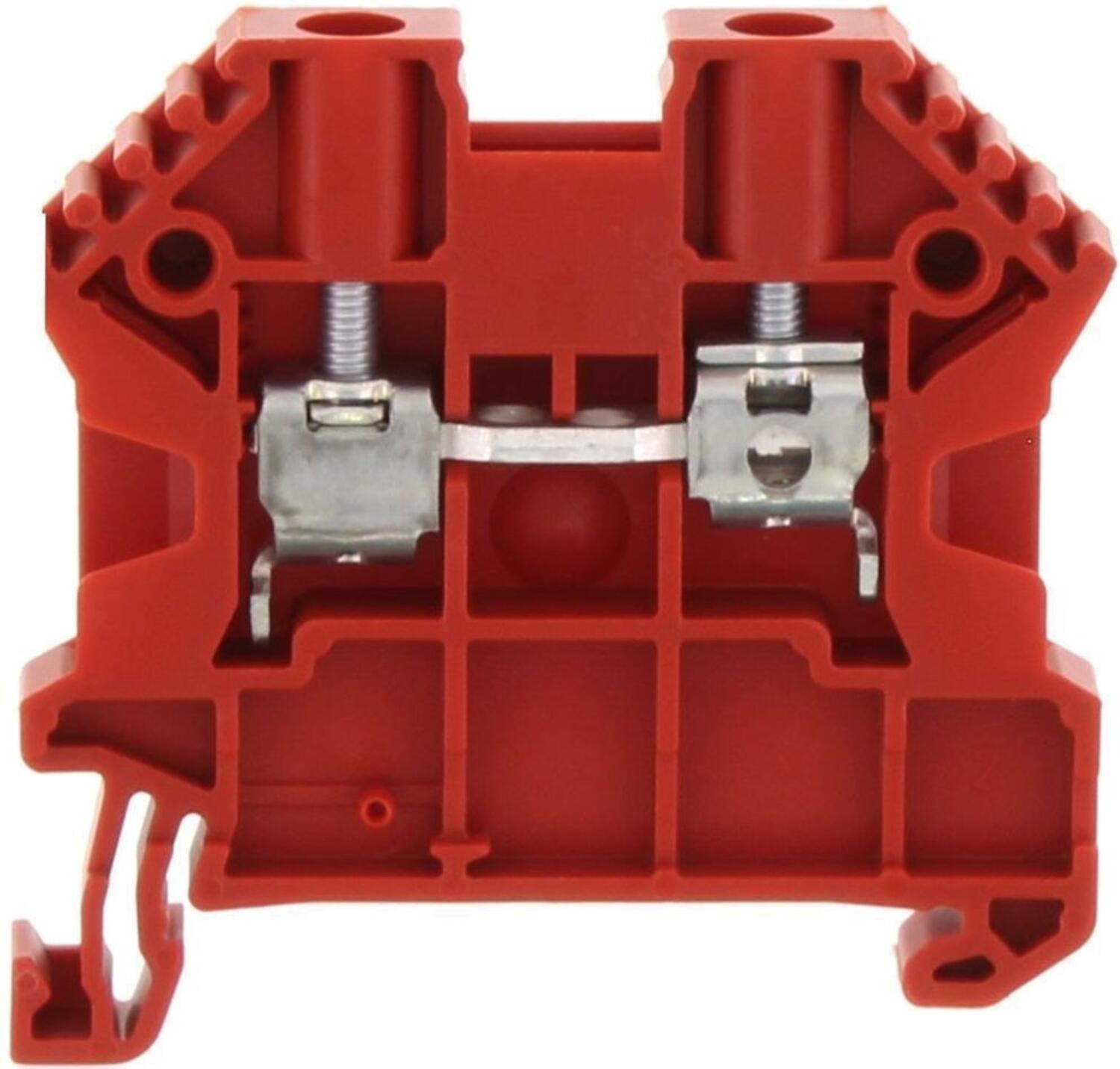

Red connection clamp with metal connectors for electrical installations
SRK 2.5/2A Red, 2.5mm² Feed through terminal
Art:
17100.9 Copied
2.5 mm²
Red
1000 V
24 A
32 A
TS 35/7,5
8 kV
III
3
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
Yes
48 mm
5 mm
47 mm
2
1
A3
2
1
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
30
12
10 mm
M 2,5
Slotted
0.4
0.8
Polyamide 6.6
UL94-V0
-40 °C
120 °C
600 V
25 A
UL 1059
600 V
25 A
C22.2 No 158
600 V
25 A
UL 1059
600 V
25 A
C22.2 No 158
IEC 60947-7-1:2009
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
7.11 g
100
Screw Terminals, DIN Rail terminals
Green connection terminal from CONTA-CLIP with metal couplings, ideal for electrical installations.
SRK 4/2A Green, 4mm² Feed through terminal
Art:
17104.1 Copied
4 mm²
Green
1000 V
32 A
41 A
TS 35/7,5
8 kV
III
3
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
Yes
48 mm
6 mm
47 mm
2
1
A4
2
1
0.2 mm²
6 mm²
0.2 mm²
6 mm²
0.2 mm²
4 mm²
26
10
10 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V0
-40 °C
120 °C
600 V
35 A
UL 1059
600 V
35 A
C22.2 No 158
600 V
35 A
UL 1059
600 V
35 A
C22.2 No 158
IEC 60947-7-1:2009
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
9.08 g
100
Screw Terminals, DIN Rail terminals
Terminal block from CONTA-CLIP, beige with metal contacts and mount for easy installation
SRK 4/2A Beige, 4mm² Feed through terminal
Art:
17104.2 Copied
4 mm²
Beige
1000 V
32 A
41 A
TS 35/7,5
8 kV
III
3
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
Yes
48 mm
6 mm
47 mm
2
1
A4
2
1
0.2 mm²
6 mm²
0.2 mm²
6 mm²
0.2 mm²
4 mm²
26
10
10 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V0
-40 °C
120 °C
600 V
35 A
UL 1059
600 V
35 A
C22.2 No 158
600 V
35 A
UL 1059
600 V
35 A
C22.2 No 158
IEC 60947-7-1:2009
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
9.08 g
100
Screw Terminals, DIN Rail terminals
Orange connection terminal with metal connectors for electrical installations
SRK 4/2A Orange, 4mm² Feed through terminal
Art:
17104.3 Copied
4 mm²
Orange
1000 V
32 A
41 A
TS 35/7,5
8 kV
III
3
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
Yes
48 mm
6 mm
47 mm
2
1
A4
2
1
0.2 mm²
6 mm²
0.2 mm²
6 mm²
0.2 mm²
4 mm²
26
10
10 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V0
-40 °C
120 °C
600 V
35 A
UL 1059
600 V
35 A
C22.2 No 158
600 V
35 A
UL 1059
600 V
35 A
C22.2 No 158
IEC 60947-7-1:2009
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
9.08 g
100
Screw Terminals, DIN Rail terminals
Terminal block from CONTA-CLIP with metal contacts and black plastic construction
SRK 4/2A Black, 4mm² Feed through terminal
Art:
17104.4 Copied
4 mm²
Black
1000 V
32 A
41 A
TS 35/7,5
8 kV
III
3
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
Yes
48 mm
6 mm
47 mm
2
1
A4
2
1
0.2 mm²
6 mm²
0.2 mm²
6 mm²
0.2 mm²
4 mm²
26
10
10 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V0
-40 °C
120 °C
600 V
35 A
UL 1059
600 V
35 A
C22.2 No 158
600 V
35 A
UL 1059
600 V
35 A
C22.2 No 158
IEC 60947-7-1:2009
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
9.08 g
100
Screw Terminals, DIN Rail terminals
Blue terminal block from CONTA-CLIP with metal contacts for electrical connections
SRK 4/2A Blue, 4mm² Feed through terminal
Art:
17104.5 Copied
4 mm²
Blue
1000 V
32 A
41 A
TS 35/7,5
8 kV
III
3
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
Yes
48 mm
6 mm
47 mm
2
1
A4
2
1
0.2 mm²
6 mm²
0.2 mm²
6 mm²
0.2 mm²
4 mm²
26
10
10 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V0
-40 °C
120 °C
600 V
35 A
UL 1059
600 V
35 A
C22.2 No 158
600 V
35 A
UL 1059
600 V
35 A
C22.2 No 158
IEC 60947-7-1:2009
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
9.08 g
100
Screw Terminals, DIN Rail terminals
Gray connection terminal from CONTA-CLIP with metal brackets for electrical connections
SRK 4/2A Grey, 4mm² Feed through terminal
Art:
17104.6 Copied
4 mm²
Grey
1000 V
32 A
41 A
TS 35/7,5
8 kV
III
3
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
Yes
48 mm
6 mm
47 mm
2
1
A4
2
1
0.2 mm²
6 mm²
0.2 mm²
6 mm²
0.2 mm²
4 mm²
26
10
10 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V0
-40 °C
120 °C
600 V
35 A
UL 1059
600 V
35 A
C22.2 No 158
600 V
35 A
UL 1059
600 V
35 A
C22.2 No 158
IEC 60947-7-1:2009
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
9.08 g
100
Screw Terminals, DIN Rail terminals
Connection terminal from CONTA-CLIP with metal clamps for electrical connections
SRK 4/2A White, 4mm² Feed through terminal
Art:
17104.7 Copied
4 mm²
White
1000 V
32 A
41 A
TS 35/7,5
8 kV
III
3
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
Yes
48 mm
6 mm
47 mm
2
1
A4
2
1
0.2 mm²
6 mm²
0.2 mm²
6 mm²
0.2 mm²
4 mm²
26
10
10 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V0
-40 °C
120 °C
600 V
35 A
UL 1059
600 V
35 A
C22.2 No 158
600 V
35 A
UL 1059
600 V
35 A
C22.2 No 158
IEC 60947-7-1:2009
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
9.08 g
100
Screw Terminals, DIN Rail terminals
Yellow connection terminal with metal couplings for electrical installations
SRK 4/2A Yellow, 4mm² Feed through terminal
Art:
17104.8 Copied
4 mm²
Yellow
1000 V
32 A
41 A
TS 35/7,5
8 kV
III
3
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
Yes
48 mm
6 mm
47 mm
2
1
A4
2
1
0.2 mm²
6 mm²
0.2 mm²
6 mm²
0.2 mm²
4 mm²
26
10
10 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V0
-40 °C
120 °C
600 V
35 A
UL 1059
600 V
35 A
C22.2 No 158
600 V
35 A
UL 1059
600 V
35 A
C22.2 No 158
IEC 60947-7-1:2009
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
9.08 g
100
Screw Terminals, DIN Rail terminals
Red connection terminal from CONTA-CLIP with metal coupling and robust design
SRK 4/2A Red, 4mm² Feed through terminal
Art:
17104.9 Copied
4 mm²
Red
1000 V
32 A
41 A
TS 35/7,5
8 kV
III
3
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
Yes
48 mm
6 mm
47 mm
2
1
A4
2
1
0.2 mm²
6 mm²
0.2 mm²
6 mm²
0.2 mm²
4 mm²
26
10
10 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V0
-40 °C
120 °C
600 V
35 A
UL 1059
600 V
35 A
C22.2 No 158
600 V
35 A
UL 1059
600 V
35 A
C22.2 No 158
IEC 60947-7-1:2009
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
9.08 g
100
Screw Terminals, DIN Rail terminals
Green connection terminal from CONTA-CLIP with metal connectors for electrical installations
SRK 6/2A Green, 6mm² Feed through terminal
Art:
17108.1 Copied
6 mm²
Green
1000 V
41 A
57 A
TS 35/7,5
8 kV
III
3
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
48 mm
8 mm
47 mm
2
1
A5
2
1
0.2 mm²
10 mm²
0.2 mm²
10 mm²
0.2 mm²
6 mm²
22
8
10 mm
M 3,5
Slotted
0.8
1.6
Polyamide 6.6
UL94-V0
-40 °C
120 °C
600 V
50 A
UL 1059
600 V
50 A
C22.2 No 158
600 V
50 A
UL 1059
600 V
50 A
C22.2 No 158
IEC 60947-7-1:2009
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
12.4 g
100
Screw Terminals, DIN Rail terminals
Connection terminal in beige plastic with metal contacts for electrical connections
SRK 6/2A Beige, 6mm² Feed through terminal
Art:
17108.2 Copied
6 mm²
Beige
1000 V
41 A
57 A
TS 35/7,5
8 kV
III
3
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
48 mm
8 mm
47 mm
2
1
A5
2
1
0.2 mm²
10 mm²
0.2 mm²
10 mm²
0.2 mm²
6 mm²
22
8
10 mm
M 3,5
Slotted
0.8
1.6
Polyamide 6.6
UL94-V0
-40 °C
120 °C
600 V
50 A
UL 1059
600 V
50 A
C22.2 No 158
600 V
50 A
UL 1059
600 V
50 A
C22.2 No 158
IEC 60947-7-1:2009
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
12.4 g
100
Screw Terminals, DIN Rail terminals
Connection terminal in orange color with metal contacts for electrical connections
SRK 6/2A Orange, 6mm² Feed through terminal
Art:
17108.3 Copied
6 mm²
Orange
1000 V
41 A
57 A
TS 35/7,5
8 kV
III
3
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
48 mm
8 mm
47 mm
2
1
A5
2
1
0.2 mm²
10 mm²
0.2 mm²
10 mm²
0.2 mm²
6 mm²
22
8
10 mm
M 3,5
Slotted
0.8
1.6
Polyamide 6.6
UL94-V0
-40 °C
120 °C
600 V
50 A
UL 1059
600 V
50 A
C22.2 No 158
600 V
50 A
UL 1059
600 V
50 A
C22.2 No 158
IEC 60947-7-1:2009
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
12.4 g
100
Screw Terminals, DIN Rail terminals
Terminal block from CONTA-CLIP, robust design with metal contacts for secure connection
SRK 6/2A Black, 6mm² Feed through terminal
Art:
17108.4 Copied
6 mm²
Black
1000 V
41 A
57 A
TS 35/7,5
8 kV
III
3
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
48 mm
8 mm
47 mm
2
1
A5
2
1
0.2 mm²
10 mm²
0.2 mm²
10 mm²
0.2 mm²
6 mm²
22
8
10 mm
M 3,5
Slotted
0.8
1.6
Polyamide 6.6
UL94-V0
-40 °C
120 °C
600 V
50 A
UL 1059
600 V
50 A
C22.2 No 158
600 V
50 A
UL 1059
600 V
50 A
C22.2 No 158
IEC 60947-7-1:2009
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
12.4 g
100
Screw Terminals, DIN Rail terminals
Blue connection terminal with metal contacts for electrical installations
SRK 6/2A Blue, 6mm² Feed through terminal
Art:
17108.5 Copied
6 mm²
Blue
1000 V
41 A
57 A
TS 35/7,5
8 kV
III
3
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
48 mm
8 mm
47 mm
2
1
A5
2
1
0.2 mm²
10 mm²
0.2 mm²
10 mm²
0.2 mm²
6 mm²
22
8
10 mm
M 3,5
Slotted
0.8
1.6
Polyamide 6.6
UL94-V0
-40 °C
120 °C
600 V
50 A
UL 1059
600 V
50 A
C22.2 No 158
600 V
50 A
UL 1059
600 V
50 A
C22.2 No 158
IEC 60947-7-1:2009
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
12.4 g
100
Screw Terminals, DIN Rail terminals
Gray connection terminal with metal contacts for electrical installations
SRK 6/2A Grey, 6mm² Feed through terminal
Art:
17108.6 Copied
6 mm²
Grey
1000 V
41 A
57 A
TS 35/7,5
8 kV
III
3
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
48 mm
8 mm
47 mm
2
1
A5
2
1
0.2 mm²
10 mm²
0.2 mm²
10 mm²
0.2 mm²
6 mm²
22
8
10 mm
M 3,5
Slotted
0.8
1.6
Polyamide 6.6
UL94-V0
-40 °C
120 °C
600 V
50 A
UL 1059
600 V
50 A
C22.2 No 158
600 V
50 A
UL 1059
600 V
50 A
C22.2 No 158
IEC 60947-7-1:2009
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
12.4 g
100
Screw Terminals, DIN Rail terminals
Connection terminal from CONTA-CLIP with metal clamps for electrical connections
SRK 6/2A White, 6mm² Feed through terminal
Art:
17108.7 Copied
6 mm²
White
1000 V
41 A
57 A
TS 35/7,5
8 kV
III
3
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
48 mm
8 mm
47 mm
2
1
A5
2
1
0.2 mm²
10 mm²
0.2 mm²
10 mm²
0.2 mm²
6 mm²
22
8
10 mm
M 3,5
Slotted
0.8
1.6
Polyamide 6.6
UL94-V0
-40 °C
120 °C
600 V
50 A
UL 1059
600 V
50 A
C22.2 No 158
600 V
50 A
UL 1059
600 V
50 A
C22.2 No 158
IEC 60947-7-1:2009
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
12.4 g
100
Screw Terminals, DIN Rail terminals
Yellow connection terminal with metal components for electrical installations
SRK 6/2A Yellow, 6mm² Feed through terminal
Art:
17108.8 Copied
6 mm²
Yellow
1000 V
41 A
57 A
TS 35/7,5
8 kV
III
3
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
48 mm
8 mm
47 mm
2
1
A5
2
1
0.2 mm²
10 mm²
0.2 mm²
10 mm²
0.2 mm²
6 mm²
22
8
10 mm
M 3,5
Slotted
0.8
1.6
Polyamide 6.6
UL94-V0
-40 °C
120 °C
600 V
50 A
UL 1059
600 V
50 A
C22.2 No 158
600 V
50 A
UL 1059
600 V
50 A
C22.2 No 158
IEC 60947-7-1:2009
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
12.4 g
100
Screw Terminals, DIN Rail terminals
Red terminal block from CONTA-CLIP with metal contacts and mounting for electrical connections
SRK 6/2A Red, 6mm² Feed through terminal
Art:
17108.9 Copied
6 mm²
Red
1000 V
41 A
57 A
TS 35/7,5
8 kV
III
3
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
48 mm
8 mm
47 mm
2
1
A5
2
1
0.2 mm²
10 mm²
0.2 mm²
10 mm²
0.2 mm²
6 mm²
22
8
10 mm
M 3,5
Slotted
0.8
1.6
Polyamide 6.6
UL94-V0
-40 °C
120 °C
600 V
50 A
UL 1059
600 V
50 A
C22.2 No 158
600 V
50 A
UL 1059
600 V
50 A
C22.2 No 158
IEC 60947-7-1:2009
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
12.4 g
100
Screw Terminals, DIN Rail terminals
Green connection terminal with metal contacts for electrical installations
SRK 10/2A Green, 10mm² Feed through terminal
Art:
17112.1 Copied
10 mm²
Green
1000 V
57 A
76 A
TS 35/7,5
8 kV
III
3
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
48 mm
10 mm
47 mm
2
1
B7
2
1
0.2 mm²
16 mm²
0.2 mm²
16 mm²
0.2 mm²
10 mm²
18
6
10 mm
M 4
Slotted
1.2
2.4
Polyamide 6.6
UL94-V0
-40 °C
120 °C
600 V
65 A
UL 1059
600 V
65 A
C22.2 No 158
600 V
65 A
UL 1059
600 V
65 A
C22.2 No 158
IEC 60947-7-1:2009
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
15.91 g
100
Screw Terminals, DIN Rail terminals
Connection terminal from CONTA-CLIP, beige with metal contacts for electrical connections
SRK 10/2A Beige, 10mm² Feed through terminal
Art:
17112.2 Copied
10 mm²
Beige
1000 V
57 A
76 A
TS 35/7,5
8 kV
III
3
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
48 mm
10 mm
47 mm
2
1
B7
2
1
0.2 mm²
16 mm²
0.2 mm²
16 mm²
0.2 mm²
10 mm²
18
6
10 mm
M 4
Slotted
1.2
2.4
Polyamide 6.6
UL94-V0
-40 °C
120 °C
600 V
65 A
UL 1059
600 V
65 A
C22.2 No 158
600 V
65 A
UL 1059
600 V
65 A
C22.2 No 158
IEC 60947-7-1:2009
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
15.91 g
100
Screw Terminals, DIN Rail terminals
Orange connection terminal with metal fasteners for electrical installations
SRK 10/2A Orange, 10mm² Feed through terminal
Art:
17112.3 Copied
10 mm²
Orange
1000 V
57 A
76 A
TS 35/7,5
8 kV
III
3
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
48 mm
10 mm
47 mm
2
1
B7
2
1
0.2 mm²
16 mm²
0.2 mm²
16 mm²
0.2 mm²
10 mm²
18
6
10 mm
M 4
Slotted
1.2
2.4
Polyamide 6.6
UL94-V0
-40 °C
120 °C
600 V
65 A
UL 1059
600 V
65 A
C22.2 No 158
600 V
65 A
UL 1059
600 V
65 A
C22.2 No 158
IEC 60947-7-1:2009
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
15.91 g
100
Screw Terminals, DIN Rail terminals
Terminal block from CONTA-CLIP with metal contacts and black plastic housing
SRK 10/2A Black, 10mm² Feed through terminal
Art:
17112.4 Copied
10 mm²
Black
1000 V
57 A
76 A
TS 35/7,5
8 kV
III
3
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
48 mm
10 mm
47 mm
2
1
B7
2
1
0.2 mm²
16 mm²
0.2 mm²
16 mm²
0.2 mm²
10 mm²
18
6
10 mm
M 4
Slotted
1.2
2.4
Polyamide 6.6
UL94-V0
-40 °C
120 °C
600 V
65 A
UL 1059
600 V
65 A
C22.2 No 158
600 V
65 A
UL 1059
600 V
65 A
C22.2 No 158
IEC 60947-7-1:2009
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
15.91 g
100
Screw Terminals, DIN Rail terminals
Blue connection terminal with metal contacts for electrical installations
SRK 10/2A Blue, 10mm² Feed through terminal
Art:
17112.5 Copied
10 mm²
Blue
1000 V
57 A
76 A
TS 35/7,5
8 kV
III
3
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
48 mm
10 mm
47 mm
2
1
B7
2
1
0.2 mm²
16 mm²
0.2 mm²
16 mm²
0.2 mm²
10 mm²
18
6
10 mm
M 4
Slotted
1.2
2.4
Polyamide 6.6
UL94-V0
-40 °C
120 °C
600 V
65 A
UL 1059
600 V
65 A
C22.2 No 158
600 V
65 A
UL 1059
600 V
65 A
C22.2 No 158
IEC 60947-7-1:2009
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
15.91 g
100
Screw Terminals, DIN Rail terminals
Gray connection terminal with two screws and an open design for easy installation
SRK 10/2A Grey, 10mm² Feed through terminal
Art:
17112.6 Copied
10 mm²
Grey
1000 V
57 A
76 A
TS 35/7,5
8 kV
III
3
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
48 mm
10 mm
47 mm
2
1
B7
2
1
0.2 mm²
16 mm²
0.2 mm²
16 mm²
0.2 mm²
10 mm²
18
6
10 mm
M 4
Slotted
1.2
2.4
Polyamide 6.6
UL94-V0
-40 °C
120 °C
600 V
65 A
UL 1059
600 V
65 A
C22.2 No 158
600 V
65 A
UL 1059
600 V
65 A
C22.2 No 158
IEC 60947-7-1:2009
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
15.91 g
100
Screw Terminals, DIN Rail terminals
Terminal block from CONTA-CLIP, white plastic with metal brackets for electrical connections.
SRK 10/2A White, 10mm² Feed through terminal
Art:
17112.7 Copied
10 mm²
White
1000 V
57 A
76 A
TS 35/7,5
8 kV
III
3
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
48 mm
10 mm
47 mm
2
1
B7
2
1
0.2 mm²
16 mm²
0.2 mm²
16 mm²
0.2 mm²
10 mm²
18
6
10 mm
M 4
Slotted
1.2
2.4
Polyamide 6.6
UL94-V0
-40 °C
120 °C
600 V
65 A
UL 1059
600 V
65 A
C22.2 No 158
600 V
65 A
UL 1059
600 V
65 A
C22.2 No 158
IEC 60947-7-1:2009
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
15.91 g
100
Screw Terminals, DIN Rail terminals
Yellow connection terminal with metal couplings for electrical installations
SRK 10/2A Yellow, 10mm² Feed through terminal
Art:
17112.8 Copied
10 mm²
Yellow
1000 V
57 A
76 A
TS 35/7,5
8 kV
III
3
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
48 mm
10 mm
47 mm
2
1
B7
2
1
0.2 mm²
16 mm²
0.2 mm²
16 mm²
0.2 mm²
10 mm²
18
6
10 mm
M 4
Slotted
1.2
2.4
Polyamide 6.6
UL94-V0
-40 °C
120 °C
600 V
65 A
UL 1059
600 V
65 A
C22.2 No 158
600 V
65 A
UL 1059
600 V
65 A
C22.2 No 158
IEC 60947-7-1:2009
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
15.91 g
100
Screw Terminals, DIN Rail terminals
Red connection terminal from CONTA-CLIP with metal contacts for electrical installations
SRK 10/2A Red, 10mm² Feed through terminal
Art:
17112.9 Copied
10 mm²
Red
1000 V
57 A
76 A
TS 35/7,5
8 kV
III
3
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
48 mm
10 mm
47 mm
2
1
B7
2
1
0.2 mm²
16 mm²
0.2 mm²
16 mm²
0.2 mm²
10 mm²
18
6
10 mm
M 4
Slotted
1.2
2.4
Polyamide 6.6
UL94-V0
-40 °C
120 °C
600 V
65 A
UL 1059
600 V
65 A
C22.2 No 158
600 V
65 A
UL 1059
600 V
65 A
C22.2 No 158
IEC 60947-7-1:2009
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
15.91 g
100
Screw Terminals, DIN Rail terminals
Connection terminal from CONTA-CLIP with two connections and beige plastic construction

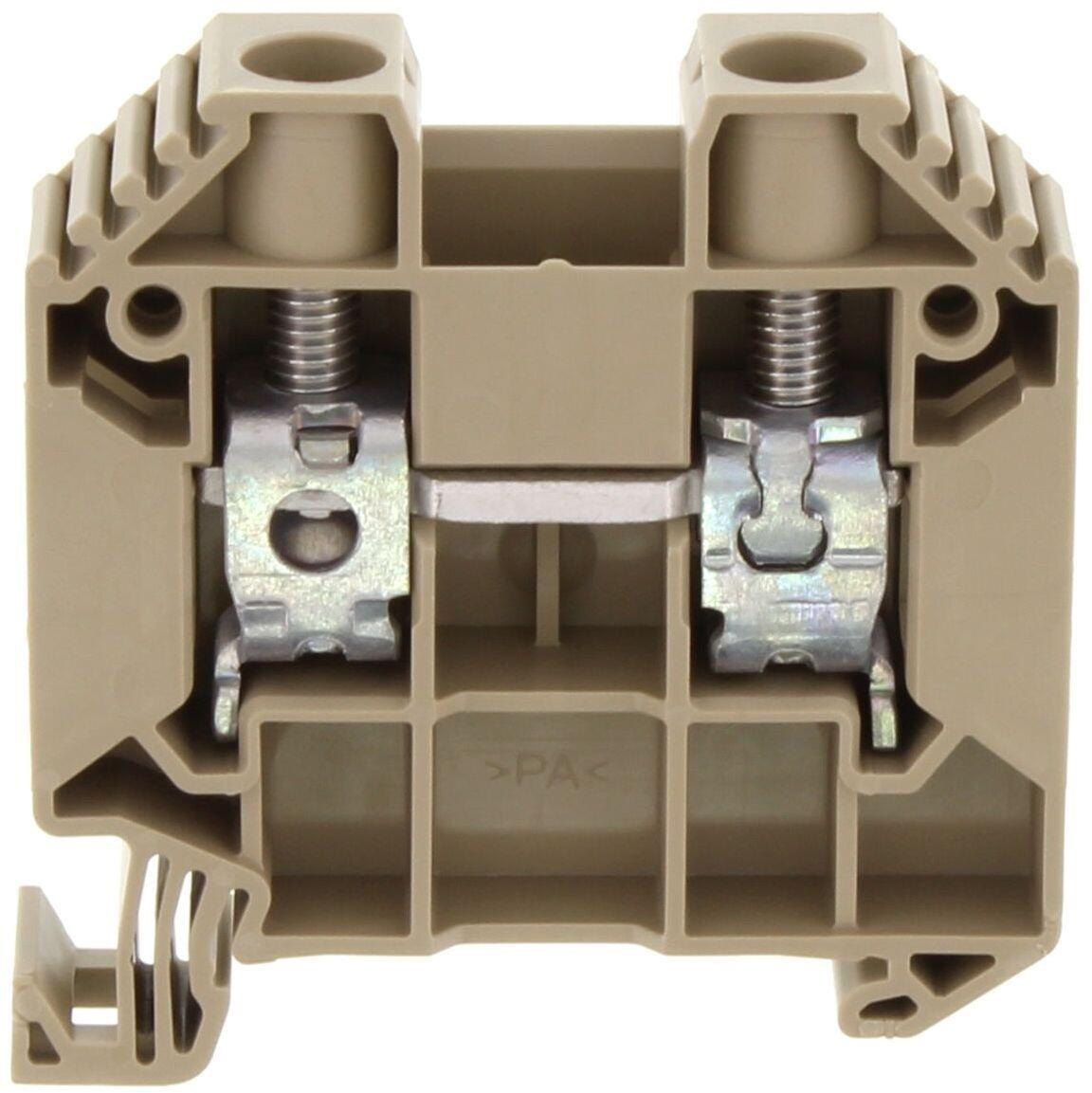

SRK 16/2A Beige, 16mm Feed through terminal
Art:
17124.2 Copied
16 mm²
Beige
1000 V
76 A
101 A
TS 35/7,5
8 kV
III
3
UL, CSA, CSA US, KEMA KUR, EAC
53 mm
12.1 mm
55 mm
2
1
A7
2
1
1.5 mm²
25 mm²
1.5 mm²
25 mm²
1 mm²
16 mm²
16
4
14 mm
M 5
Slotted
2.5
3
Polyamide 6.6
UL94-V0
-40 °C
120 °C
600 V
80 A
UL 1059
600 V
80 A
C22.2 No 158
600 V
80 A
UL 1059
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
29.6 g
50
Screw Terminals, DIN Rail terminals
Blue connection terminal with metal contacts for electrical installations
SRK 16/2A Blue, 16mm Feed through terminal
Art:
17124.5 Copied
16 mm²
Blue
1000 V
76 A
101 A
TS 35/7,5
8 kV
III
3
UL, CSA, CSA US, KEMA KUR, EAC
53 mm
12.1 mm
55 mm
2
1
A7
2
1
1.5 mm²
25 mm²
1.5 mm²
25 mm²
1 mm²
16 mm²
16
4
14 mm
M 5
Slotted
2.5
3
Polyamide 6.6
UL94-V0
-40 °C
120 °C
600 V
80 A
UL 1059
600 V
80 A
C22.2 No 158
600 V
80 A
UL 1059
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
29.6 g
50
Screw Terminals, DIN Rail terminals
[Translation not available]
SRK 35/2A Beige, 35mm Feed through terminal
Art:
17140.2 Copied
35 mm²
Beige
1000 V
125 A
150 A
TS 35/7,5
8 kV
III
3
UL, CSA, CSA US, KEMA KUR, EAC
59 mm
16.1 mm
65.5 mm
2
1
B9
2
1
1.5 mm²
50 mm²
1.5 mm²
50 mm²
1.5 mm²
35 mm²
16
1/0
18 mm
M 6
Slotted
3.2
3.7
Polyamide 6.6
UL94-V0
-40 °C
120 °C
600 V
150 A
UL 1059
600 V
150 A
C22.2 No 158
600 V
150 A
UL 1059
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
60.7 g
20
Screw Terminals, DIN Rail terminals

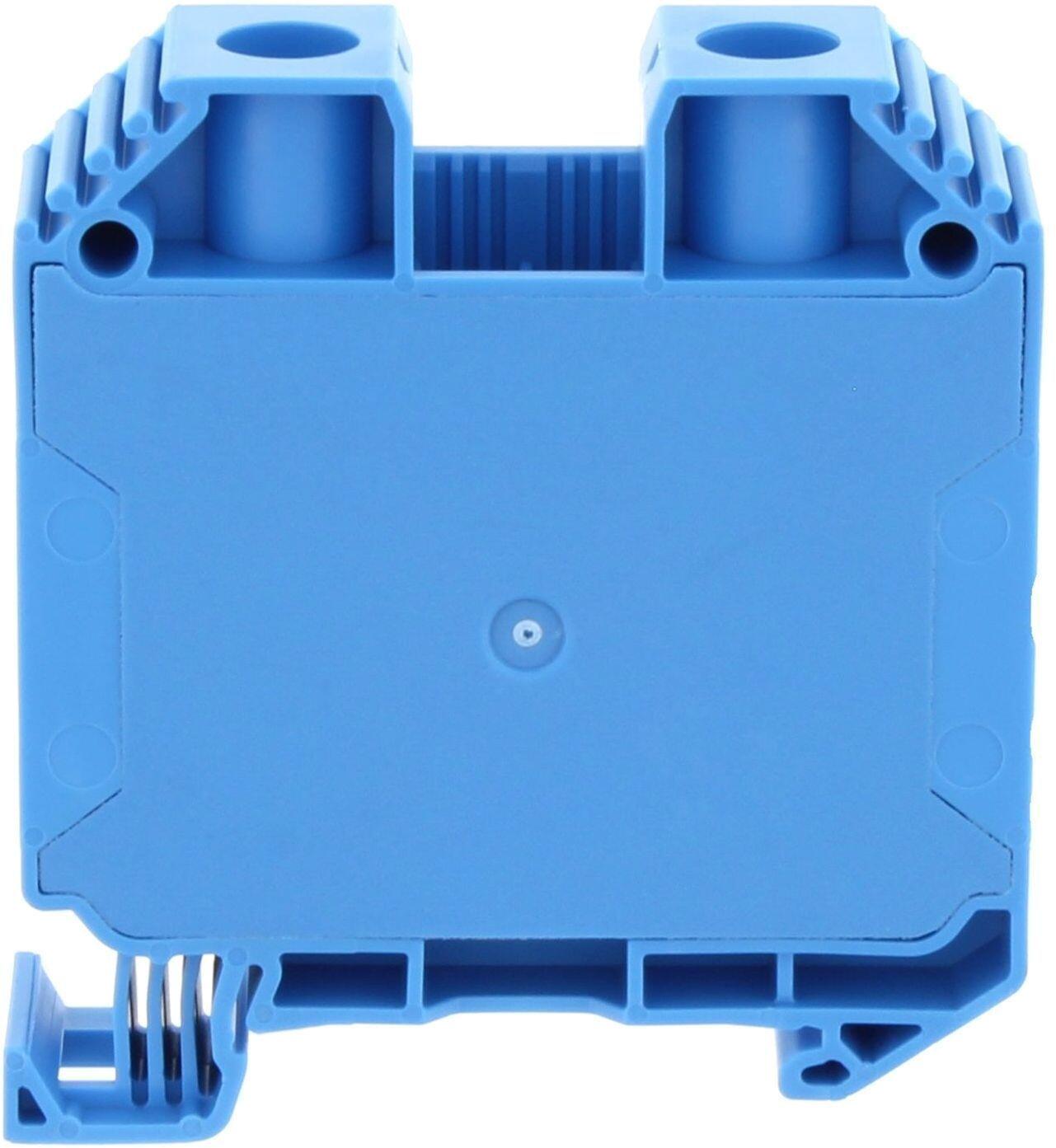

Blue terminal block from CONTA-CLIP with two connections and compact dimensions
SRK 35/2A Blue, 35mm Feed through terminal
Art:
17140.5 Copied
35 mm²
Blue
1000 V
125 A
150 A
TS 35/7,5
8 kV
III
3
UL, CSA, CSA US, KEMA KUR, EAC
59 mm
16.1 mm
65.5 mm
2
1
B9
2
1
1.5 mm²
50 mm²
1.5 mm²
50 mm²
1.5 mm²
35 mm²
16
1/0
18 mm
M 6
Slotted
3.2
3.7
Polyamide 6.6
UL94-V0
-40 °C
120 °C
600 V
150 A
UL 1059
600 V
150 A
C22.2 No 158
600 V
150 A
UL 1059
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
60.6 g
20
Screw Terminals, DIN Rail terminals

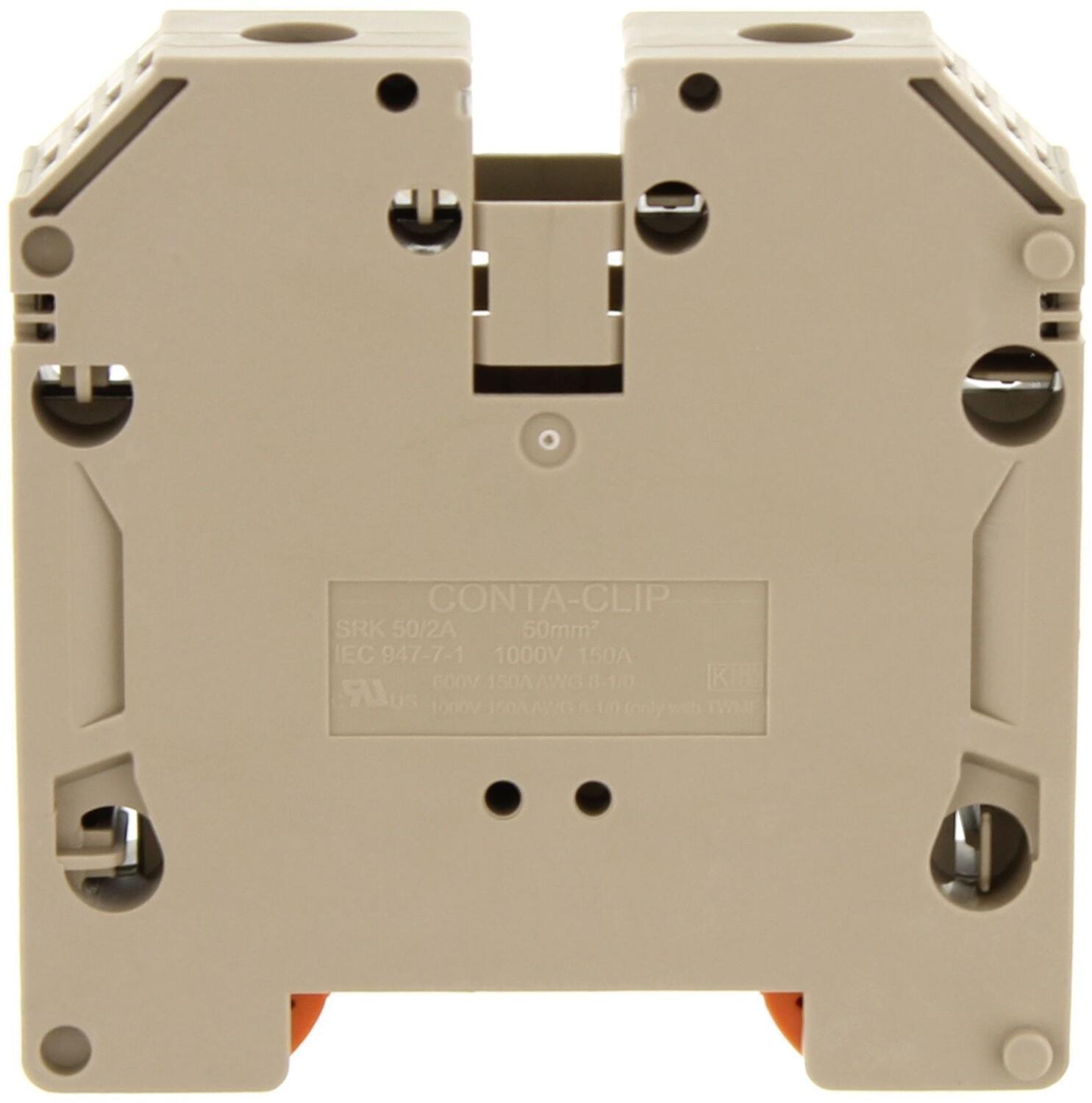

CONTA-CLIP SRK 50/2A terminal block for 50mm² conductors, 1000V, 150A
SRK 50/2A Beige, 50mm Feed through terminal
Art:
17156.2 Copied
50 mm²
Beige
1000 V
150 A
192 A
TS 35/7,5
8 kV
III
3
UL, cUL, KEMA KUR, EAC
72.5 mm
18.5 mm
74 mm
2
1
B10
1
1
10 mm²
70 mm²
10 mm²
50 mm²
10 mm²
50 mm²
8
0
24 mm
M 6
Hexagon/Allen key
3.5
6
Polyamide 6.6
UL94-V0
-40 °C
120 °C
600 V
150 A
UL 1059
600 V
150 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
111 g
10
Screw Terminals, DIN Rail terminals

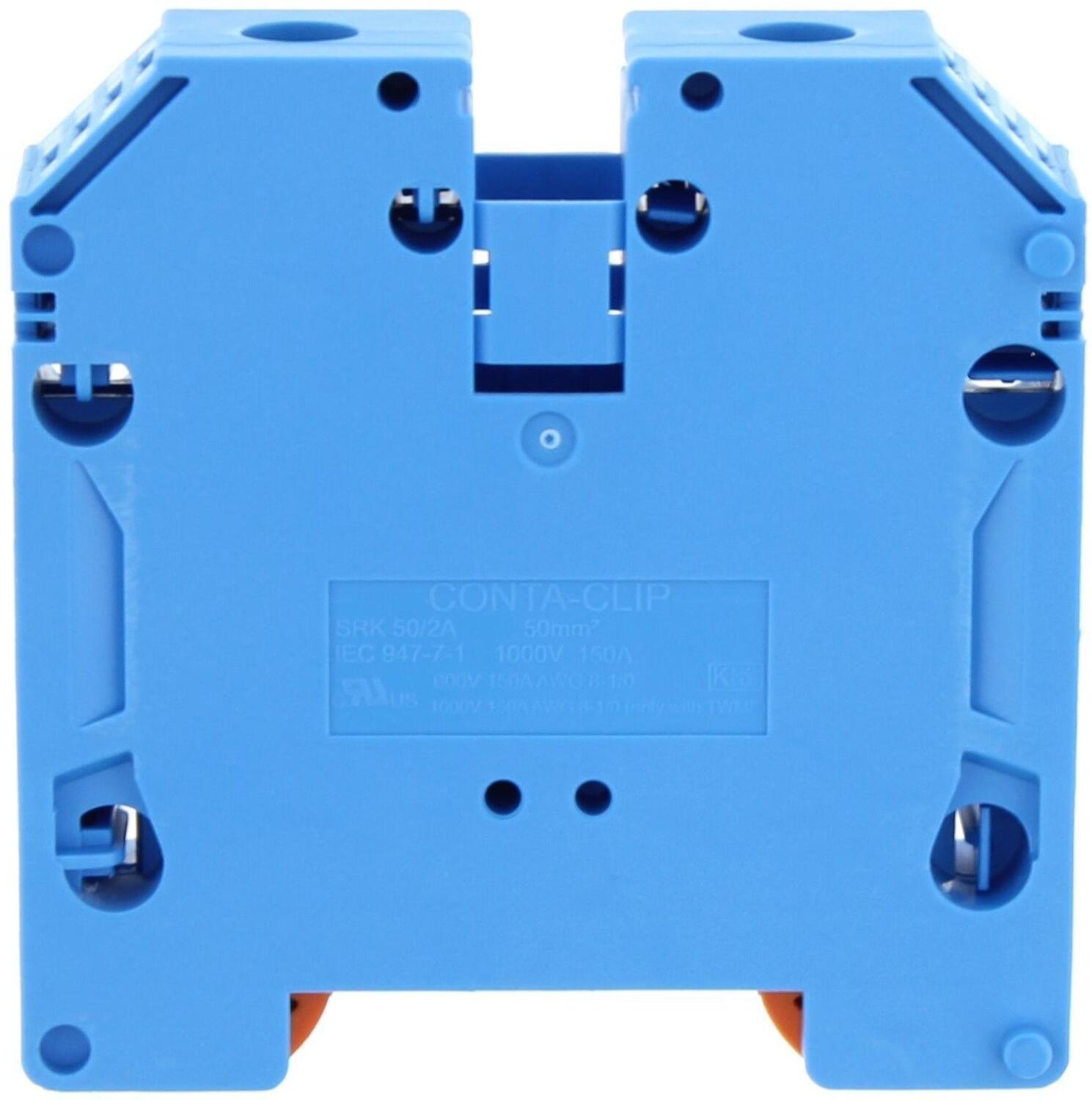

Blue connection terminal from CONTA-CLIP, model SRK 50/2A, for cable area 50mm² and voltage up to 1000V.
SRK 50/2A Blue, 50mm Feed through terminal
Art:
17156.5 Copied
50 mm²
Blue
1000 V
150 A
192 A
TS 35/7,5
8 kV
III
3
UL, cUL, KEMA KUR, EAC
72.5 mm
18.5 mm
74 mm
2
1
B10
1
1
10 mm²
70 mm²
10 mm²
50 mm²
10 mm²
50 mm²
8
0
24 mm
M 6
Hexagon/Allen key
3.5
6
Polyamide 6.6
UL94-V0
-40 °C
120 °C
600 V
150 A
UL 1059
600 V
150 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
111 g
10
Screw Terminals, DIN Rail terminals

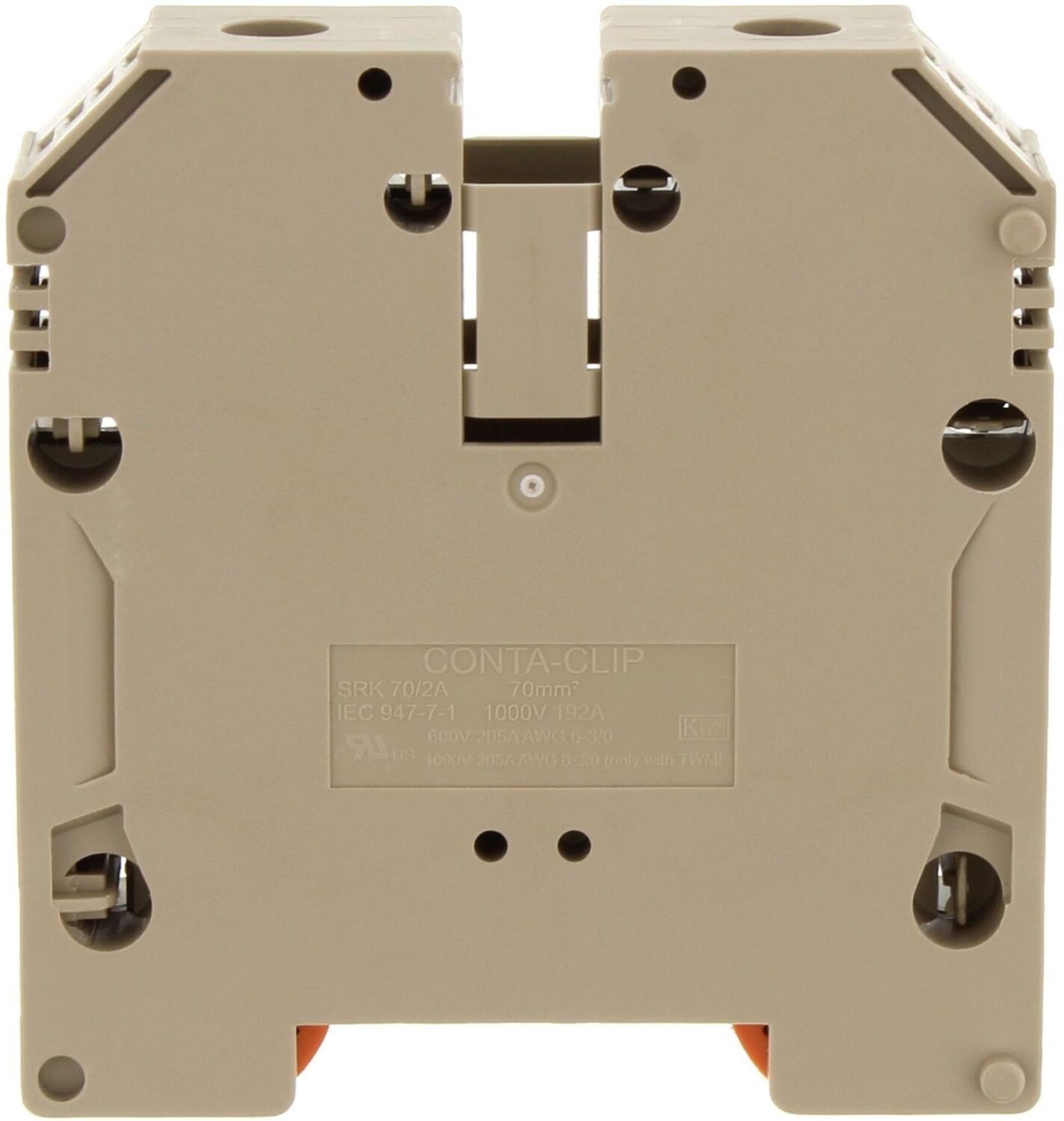

Connection terminal SRK 70/2A from CONTA-CLIP, designed for 70mm² wires and 1000V voltage.
SRK 70/2A Beige, 70mm Feed through terminal
Art:
17161.2 Copied
70 mm²
Beige
1000 V
192 A
232 A
TS 35/7,5
8 kV
III
3
UL, cUL, KEMA KUR, EAC
76.5 mm
20.5 mm
84 mm
2
1
B11
1
1
10 mm²
95 mm²
10 mm²
70 mm²
10 mm²
70 mm²
6
000
22 mm
M 8
Hexagon/Allen key
6
12
Polyamide 6.6
UL94-V0
-40 °C
120 °C
600 V
205 A
UL 1059
600 V
205 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
151 g
10
Screw Terminals, DIN Rail terminals
Blue terminal block from CONTA-CLIP, model SRK 70/2A, for 70mm² wires and 1000V
SRK 70/2A Blue, 70mm Feed through terminal
Art:
17161.5 Copied
70 mm²
Blue
1000 V
192 A
232 A
TS 35/7,5
8 kV
III
3
UL, cUL, KEMA KUR, EAC
76.5 mm
20.5 mm
84 mm
2
1
B11
1
1
10 mm²
95 mm²
10 mm²
70 mm²
10 mm²
70 mm²
6
000
22 mm
M 8
Hexagon/Allen key
6
12
Polyamide 6.6
UL94-V0
-40 °C
120 °C
600 V
205 A
UL 1059
600 V
205 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
150.2 g
10
Screw Terminals, DIN Rail terminals
Terminal block from CONTA-CLIP, model SRK 120/2A, for 120 mm² conductors, 1000V, 269A
SRK 120/2A Beige, 120mm Feed through terminal
Art:
17165.2 Copied
120 mm²
Beige
1000 V
269 A
290 A
TS 35/7,5
8 kV
III
3
UL, cUL, KEMA KUR, EAC
91 mm
27 mm
91 mm
2
1
B13
1
1
16 mm²
150 mm²
16 mm²
120 mm²
16 mm²
95 mm²
4
0000
27 mm
M 10
Hexagon/Allen key
12
20
Polyamide 6.6
UL94-V0
-40 °C
120 °C
600 V
228 A
UL 1059
600 V
228 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
301.9 g
5
Screw Terminals, DIN Rail terminals

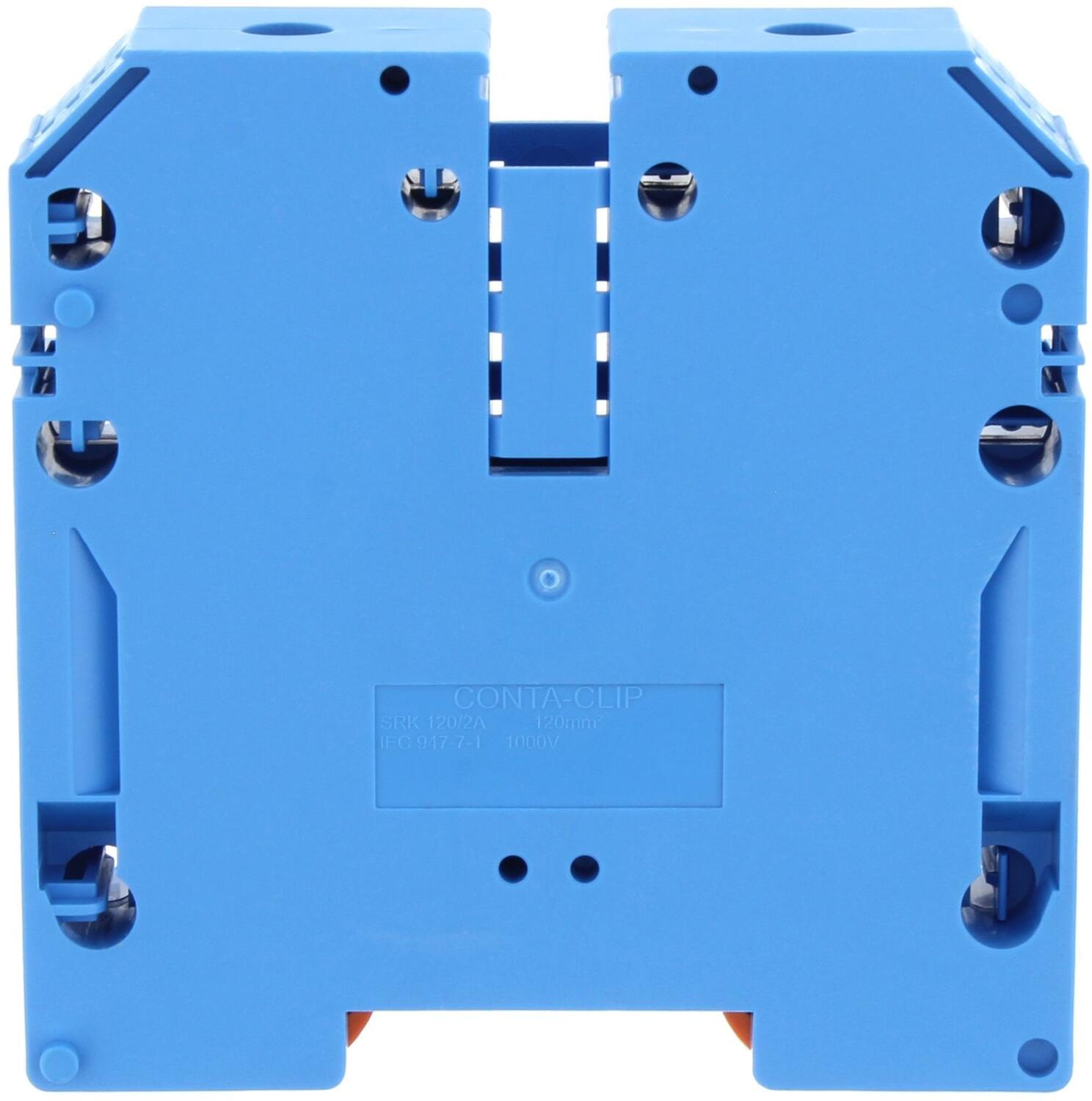

Blue terminal block from CONTA-CLIP, model SRK 120/2A, for 120mm² cables, 1000V
SRK 120/2A Blue, 120mm Feed through terminal
Art:
17165.5 Copied
120 mm²
Blue
1000 V
269 A
290 A
TS 35/7,5
8 kV
III
3
UL, cUL, KEMA KUR, EAC
91 mm
27 mm
91 mm
2
1
B13
1
1
16 mm²
150 mm²
16 mm²
120 mm²
16 mm²
95 mm²
4
0000
27 mm
M 10
Hexagon/Allen key
12
20
Polyamide 6.6
UL94-V0
-40 °C
120 °C
600 V
228 A
UL 1059
600 V
228 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
299 g
5
Screw Terminals, DIN Rail terminals

Selected variant

Select a variant in the list

Contact us
Please contact us for more information.
Send e-mail
Do you need help?
