CONTA-CLIP

Pick-off terminals and test adapters

MAG, SMAG, STA, TA, ZTA

CONTA-CLIP offers specific and innovative accessories for the SRK I SSL screw connection system.

Pick-off terminals SMAG

  • The SMAG pick-off terminals make possible one or two additional extra wire connectors onto the SRK terminal blocks and therefore extend the standard feed-through terminal by up to four connectors.
  • The SMAGs are mechanically snapped into the SRK terminal blocks.
  • The SMAG busbar is connected via the corresponding base connection of the terminal block, the rated cross section is thereby reduced to the next lower size.



Test adapter STA

  • The ST test adapter can be used to quickly and safely test pre-wired terminal blocks.
  •  A test plug block can be mounted with any number of poles using the locking pegs and the STA ZP intermediate plate with widths from 1 to 3 mm. The STA ZP intermediate plate allows the assembly of a test plug block, which can also be mounted on different block widths (SRK/SSL 2.5 | 4 | 6 | 10).
  • Thanks to its innovative design the STA test adapter can be rotated through 180°. It can therefore also be mounted onto the SRK terminal block, whereby one of the cross-connection channels is already occupied by a cross-connector.



























































Read more
  • STA, SMAG compatible with SRK series
  • SMAG extends standard feed-through terminal up to 4 connections
  • STA test adapters for SRK series
  • TA test adapters dfor RK series
  • ZTA Test adaptors for ZIZA/ZRK series

Selected variant


Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Cross-Section 2.5 mm²
Color Beige
Rated Voltage IEC 800 V
Rated Current IEC 24 A
Load Current Max 32 A
Rated impulse voltage 8 kV
Overvoltage category III
Contamination degree 3
Approvals EAC
Additional information for SRK 4/2A
Length 37.8 mm
Width 5.9 mm
Height TS 35/7.5 53 mm
Height 26.7 mm
Connections 1
Plug gauge acc. EN 60 947-1 A3
Cross section single wire from 0.2 mm²
Cross section single wire to 4 mm²
Cross section stranded wire from 0.2 mm²
Cross section stranded wire to 4 mm²
Cross section stranded with ferrule from 0.2 mm²
Cross section stranded with ferrule to 2.5 mm²
Rated wire cross section from (AWG) 22
Rated wire cross section to (AWG) 12
Stripping Length 10 mm
Screw size M 2,5
Screw type Slotted
Torque Min 0.4
Torque max 0.8
Insulation Material Polyamide 6.6
Flamklass UL94-V0
Operating temperature from -40 °C
Operating temperature to 120 °C
EAC test standard TR ZU 004/2011
Tariff code 85369010
Country of origin DE
Weight 6.1 g
Pack Size 10
Type of terminal Screw Terminals, DIN Rail terminals

Downloads

Measurements and connections

Product description

CONTA-CLIP offers specific and innovative accessories for the SRK I SSL screw connection system.

Pick-off terminals SMAG

  • The SMAG pick-off terminals make possible one or two additional extra wire connectors onto the SRK terminal blocks and therefore extend the standard feed-through terminal by up to four connectors.
  • The SMAGs are mechanically snapped into the SRK terminal blocks.
  • The SMAG busbar is connected via the corresponding base connection of the terminal block, the rated cross section is thereby reduced to the next lower size.



Test adapter STA

  • The ST test adapter can be used to quickly and safely test pre-wired terminal blocks.
  •  A test plug block can be mounted with any number of poles using the locking pegs and the STA ZP intermediate plate with widths from 1 to 3 mm. The STA ZP intermediate plate allows the assembly of a test plug block, which can also be mounted on different block widths (SRK/SSL 2.5 | 4 | 6 | 10).
  • Thanks to its innovative design the STA test adapter can be rotated through 180°. It can therefore also be mounted onto the SRK terminal block, whereby one of the cross-connection channels is already occupied by a cross-connector.



























































Accessories

Add product as a new cart row

You already added this product. Choose whether to increase quantity on the existing row or add the product as a new row.

Related

TER - control stations
Product news

Quality solutions for motion controls

TER - Tecno Elettrica Ravasi, is our Italian supplier specializing in the manufacture of control stations. TER has over 60 years of experience in the manufacture of control stations.

Stego Loop Heater lämmityselementit
Product news

LOOP Heater for optimal heat distribution

Thanks to their loop design, LOOP heating elements offer excellent heating performance and ensure optimal heat distribution. Read more now!

PISA-M
Product news

Compact electronic overcurrent protection PISA-M

PISA-M is a 4-channel electronic fuse for 12 and 24 V DC systems. The smallest 4-channel electronic fuse with a width of only 22.5 mm!

Delcon relays
Product news

An effective solution Delcon CRA5

Delcon's CRA5 plug-in relay revolutionizes the control of difficult-to-handle DC loads. Inductive loads, frequent switching, and high DC voltages are a piece of cake for these relays.

LOCC-Box Mini
Product news

LOCC-Box Mini

The Lütze LOCC-Box is an intelligent electronic overcurrent protection device that provides reliable protection for 12/24 V DC systems in a narrow housing measuring just 8.1 mm. Integrated + and - terminals save space on the DIN rail.

DF Electric
Product news

DF Electric – new supplier for fuse solutions

DF Electric is specialized in the manufacturing of fuse links, fuse holders and control transformers since 1987. Presently the company is leading the Spanish market and is also very active in many export markets due to its competitive range of products.

Articles Cross-Section Color Rated Voltage IEC Rated Current IEC Load Current Max Mounting Rated impulse voltage Overvoltage category Contamination degree Approvals Additional information Length Width Height TS 35/7.5 Height Pitch Connections Plug gauge acc. EN 60 947-1 Cross section single wire from Cross section single wire to Cross section stranded wire from Cross section stranded wire to Cross section stranded with ferrule from Cross section stranded with ferrule to Rated wire cross section from (AWG) Rated wire cross section to (AWG) Stripping Length Screw size Screw type Torque Min Torque max Insulation Material Flamklass Operating temperature from Operating temperature to EAC test standard Tariff code Country of origin Weight Pack Size Type of terminal
Terminal block from CONTA-CLIP, model with IEC 947-7-1 standard, 800V, 24A

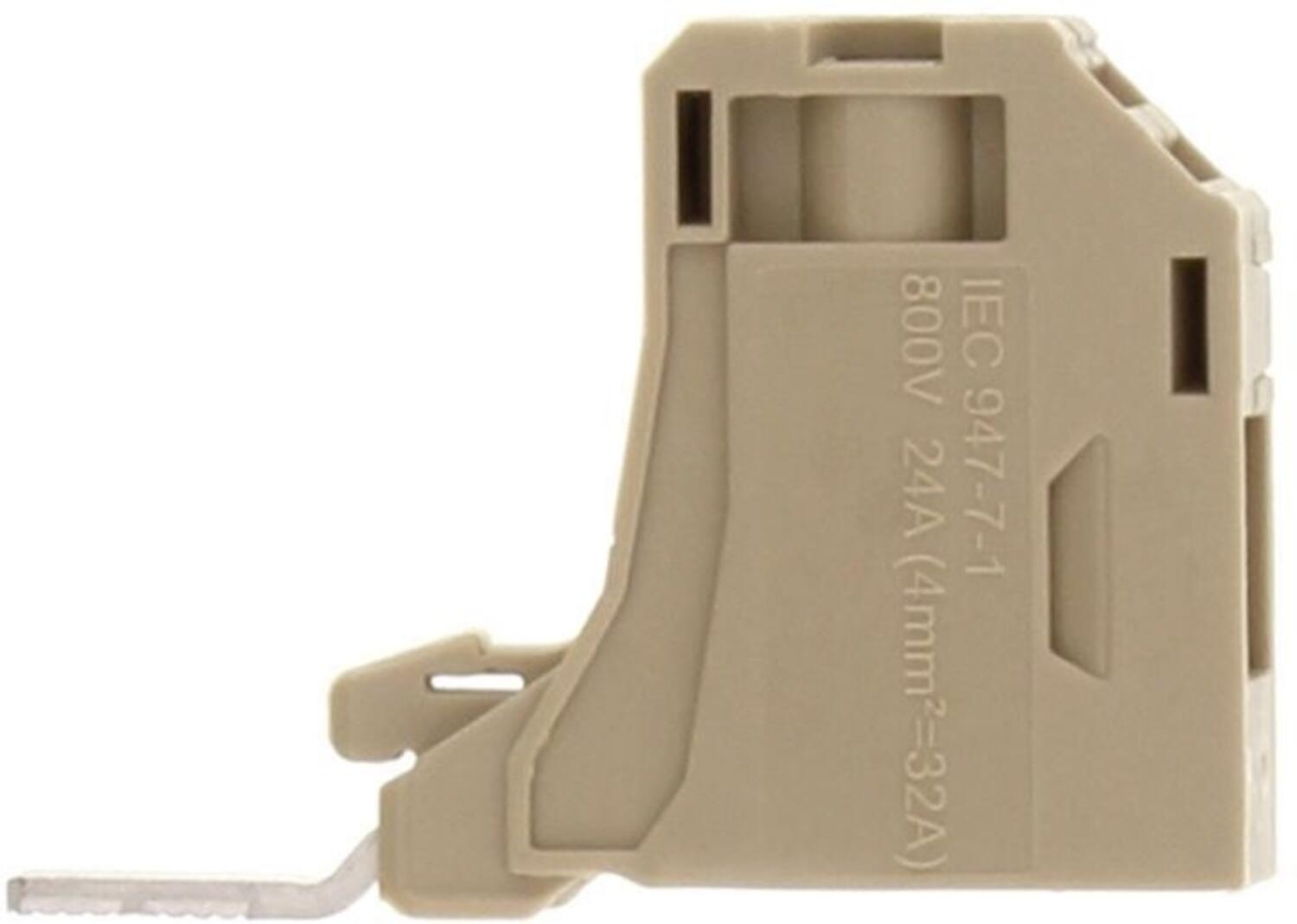

SMAG 4/2.5, Pick off terminal for SRK/SSL4
Art:
17120.2 Copied
2.5 mm²
Beige
800 V
24 A
32 A
8 kV
III
3
EAC
for SRK 4/2A
37.8 mm
5.9 mm
53 mm
26.7 mm
1
A3
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
22
12
10 mm
M 2,5
Slotted
0.4
0.8
Polyamide 6.6
UL94-V0
-40 °C
120 °C
TR ZU 004/2011
85369010
DE
6.1 g
10
Screw Terminals, DIN Rail terminals

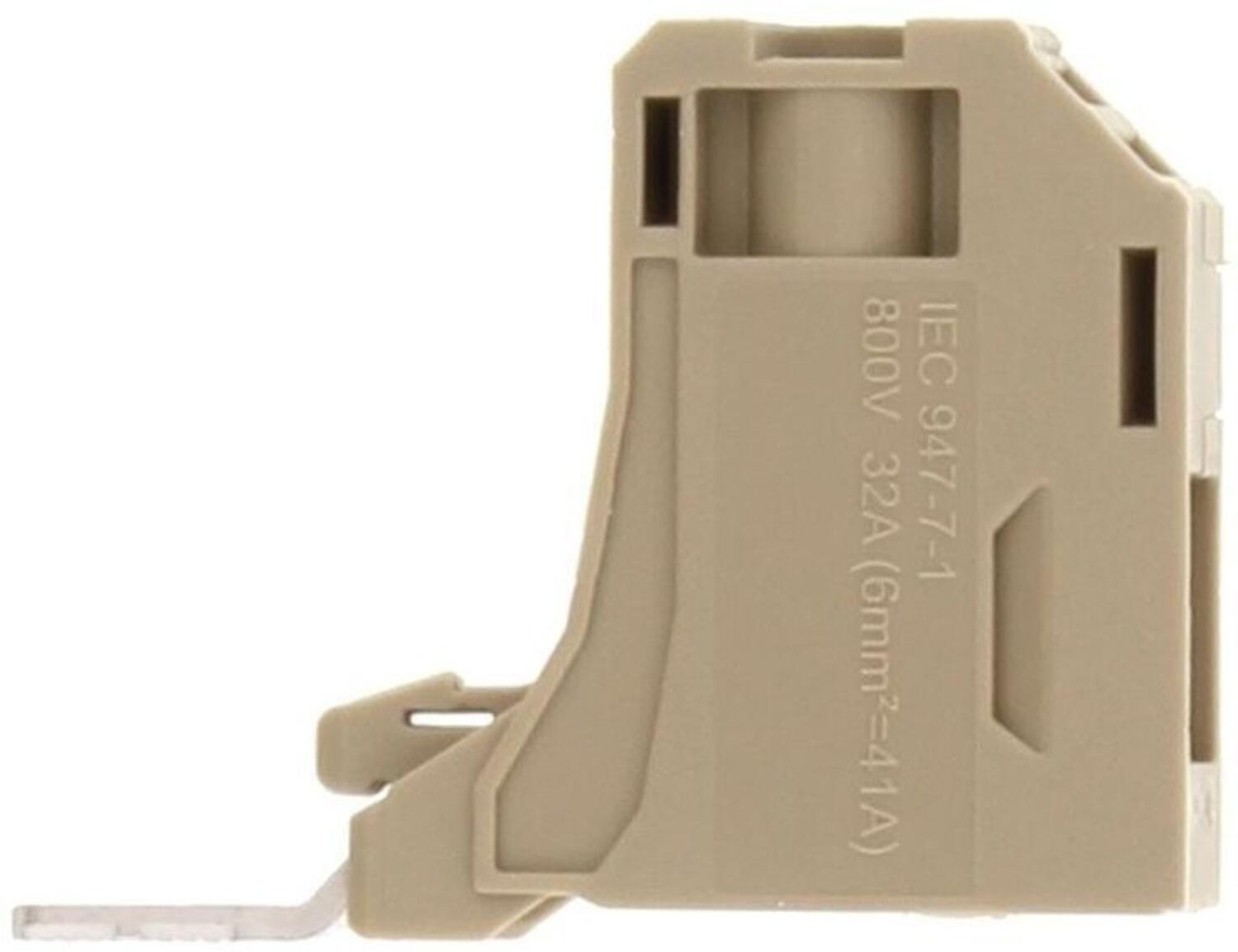

Terminal block from CONTA-CLIP, model IEC 9477-1, 800V, 32A, for electrical installations
SMAG 6/4, Pick off terminal for SRK/SSL6
Art:
17121.2 Copied
4 mm²
Beige
800 V
24 A
32 A
8 kV
III
3
EAC
for SRK 6/2A
38.5 mm
6.6 mm
55.5 mm
29.2 mm
1
A4
0.2 mm²
6 mm²
0.2 mm²
6 mm²
0.2 mm²
4 mm²
22
11
10 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V0
-40 °C
120 °C
TR ZU 004/2011
85369010
DE
7.3 g
10
Screw Terminals, DIN Rail terminals

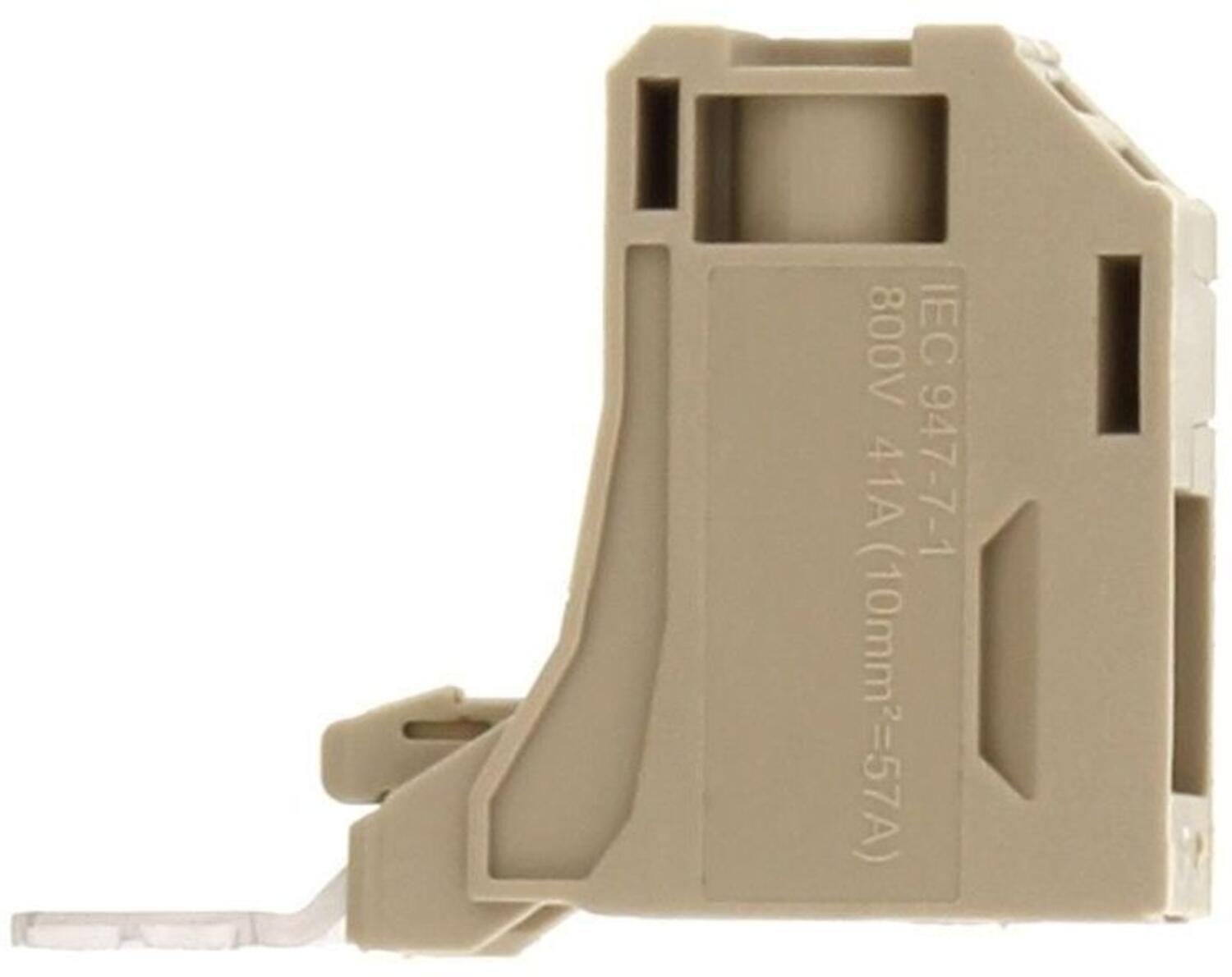

Terminal block from CONTA-CLIP, high-capacity model for electrical connections
SMAG 10/6, Pick off terminal for SRK/SSL10
Art:
17122.2 Copied
10 mm²
Beige
800 V
24 A
32 A
8 kV
III
3
EAC
for SRK 10/2A
38.5 mm
8.3 mm
56 mm
29.7 mm
1
A5
0.2 mm²
10 mm²
0.2 mm²
10 mm²
0.2 mm²
6 mm²
22
8
10 mm
M 3,5
Slotted
1.2
2
Polyamide 6.6
UL94-V0
-40 °C
120 °C
TR ZU 004/2011
85369010
DE
8.3 g
10
Screw Terminals, DIN Rail terminals

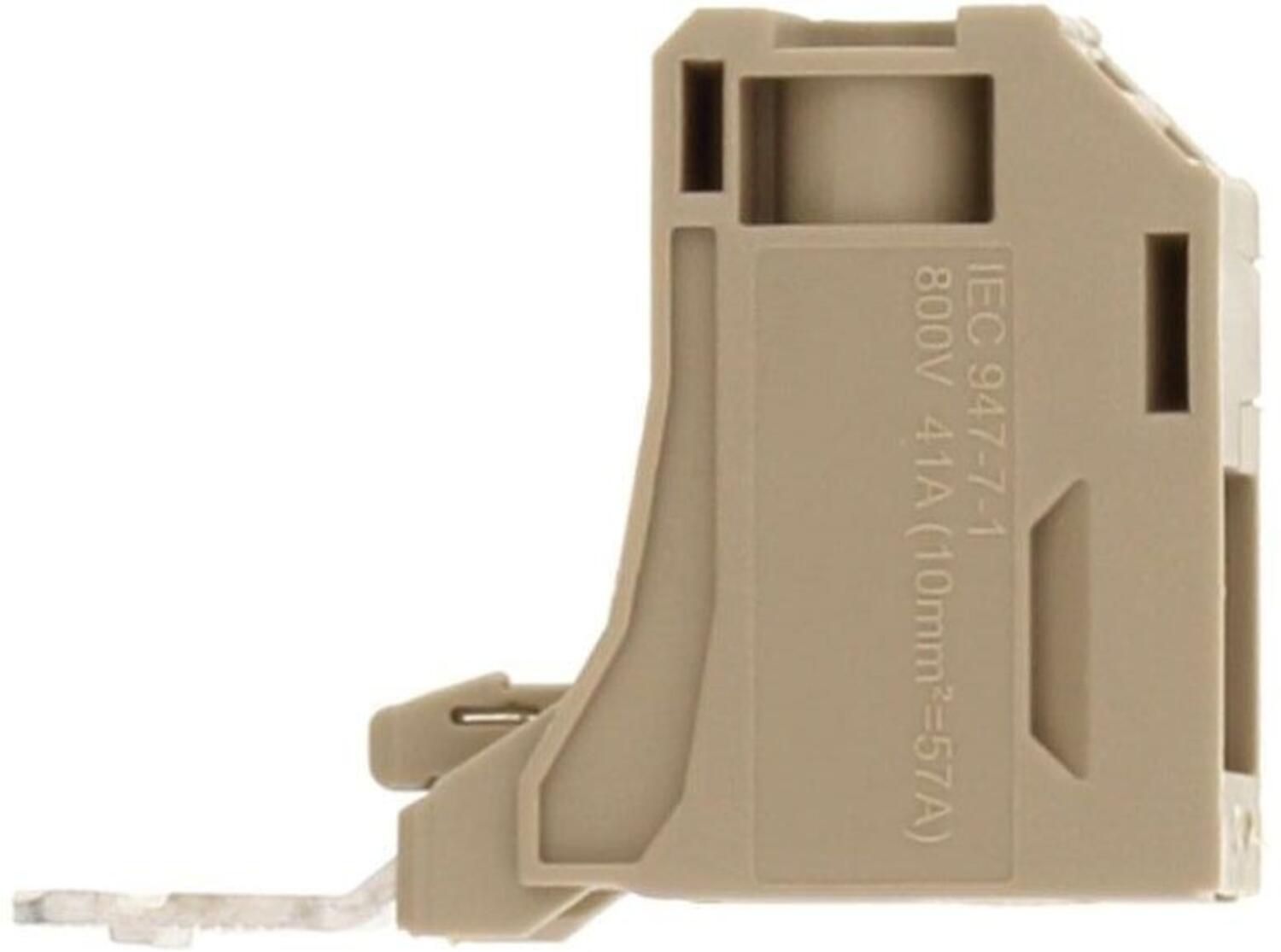

Terminal block from CONTA-CLIP, model with IEC 947-71 standard, 800V and 41A capacity.
SMAG 16/6, Pick off terminal for SRK/SSL16
Art:
17135.2 Copied
6 mm²
Beige
1000 V
41 A
57 A
8 kV
III
3
EAC
for SRK 16/2A
40 mm
8.3 mm
60 mm
29.7 mm
1
A5
2 mm²
10 mm²
2 mm²
10 mm²
2 mm²
6 mm²
22
8
10 mm
M 3,5
Slotted
12
2
Polyamide 6.6
UL94-V0
-40 °C
120 °C
TR ZU 004/2011
85369010
DE
10.94 g
10
Screw Terminals, DIN Rail terminals

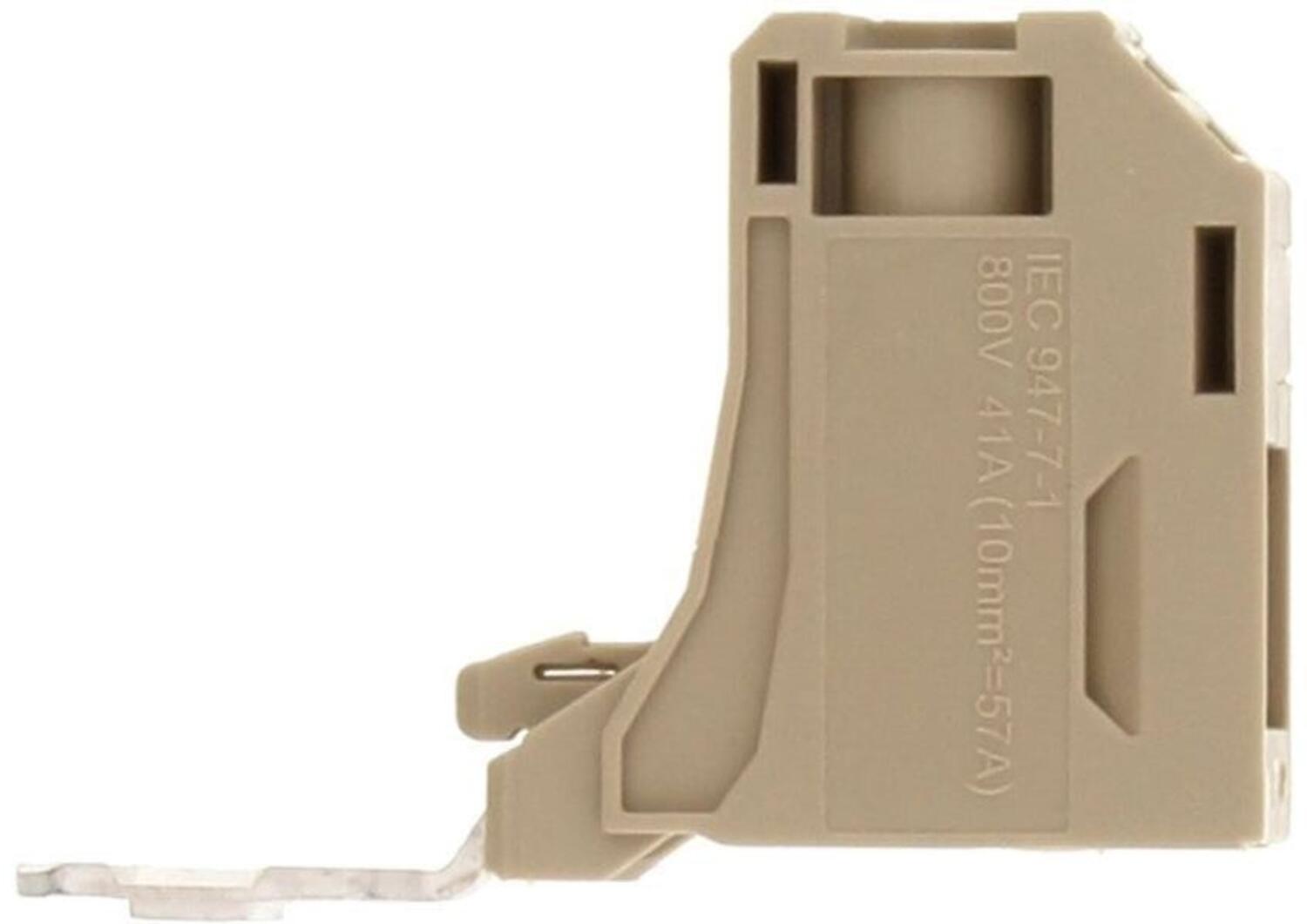

Terminal block from CONTA-CLIP, model with IEC 947-7-1 standard, 800V and 41A capacity.
SMAG 35/6, Pick off terminal for SRK/SSL35
Art:
17148.2 Copied
6 mm²
Beige
1000 V
41 A
57 A
8 kV
III
3
EAC
for SRK 35/2A
43.7 mm
8.3 mm
65 mm
30.7 mm
1
A5
2 mm²
10 mm²
2 mm²
10 mm²
2 mm²
6 mm²
22
8
10 mm
M 3,5
Slotted
12
2
Polyamide 6.6
UL94-V0
-40 °C
120 °C
TR ZU 004/2011
85369010
DE
7.22 g
50
Screw Terminals, DIN Rail terminals

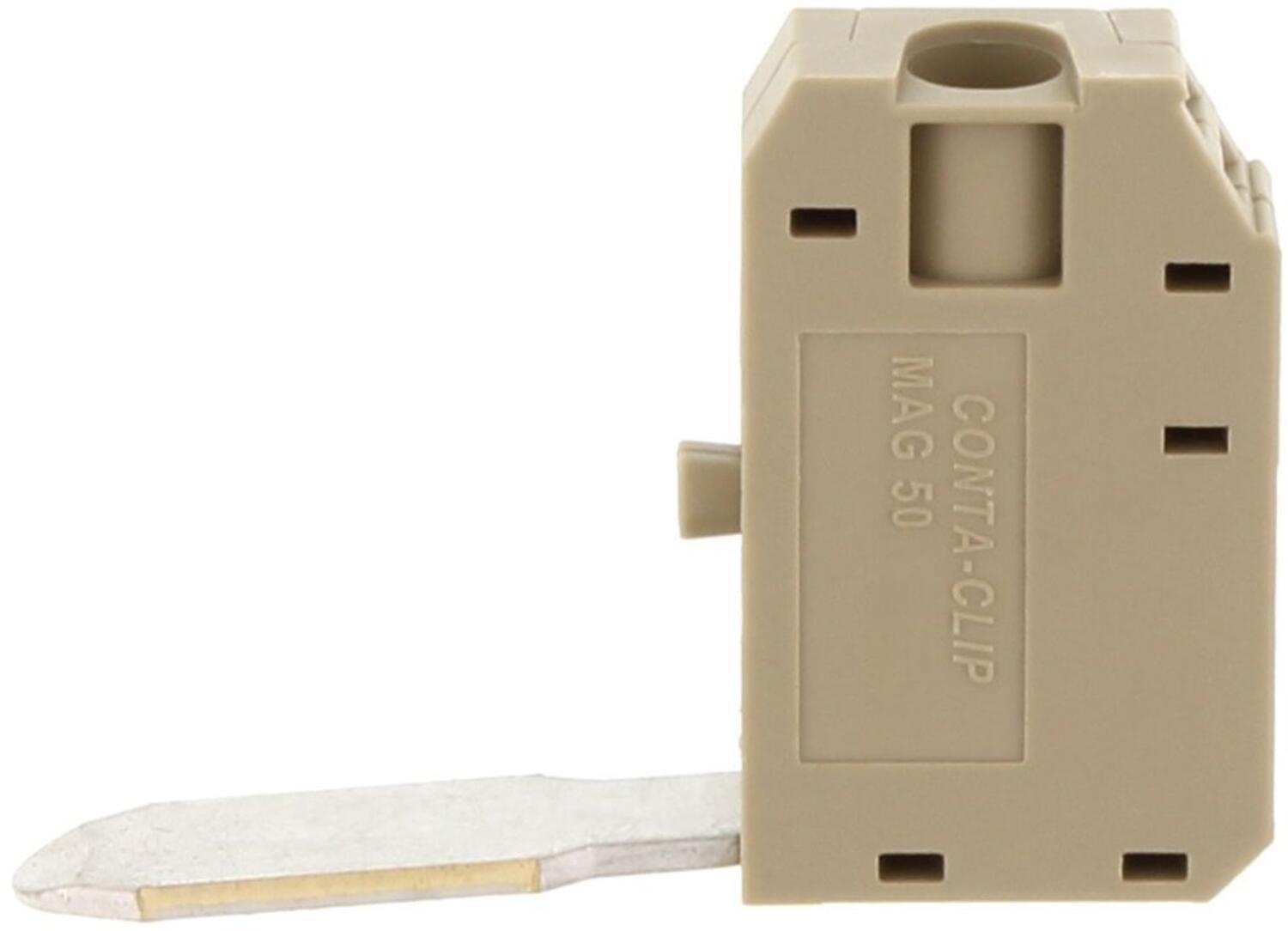

Connector of type MAG 50 from CONT-A-CLIP, beige with a metal tip for connection.
MAG 50, Pick off terminal for RK50/SRK/SSL/50-70
Art:
1121.2 Copied
10 mm²
Beige
1000 V
57 A
57 A
On terminal
6 kV
III
3
EAC
50 mm
10 mm
34 mm
1
A5
0.2 mm²
10 mm²
0.2 mm²
10 mm²
0.2 mm²
10 mm²
22
8
12 mm
M 4
Slotted
1.2
2
Polyamide 6.6
UL94-V2
-40 °C
105 °C
TR ZU 004/2011
85369010
DE
12.2 g
10
Screw Terminals, DIN Rail terminals
Connector from ChangeThis, model MAG 95, in beige color with a metal tip.

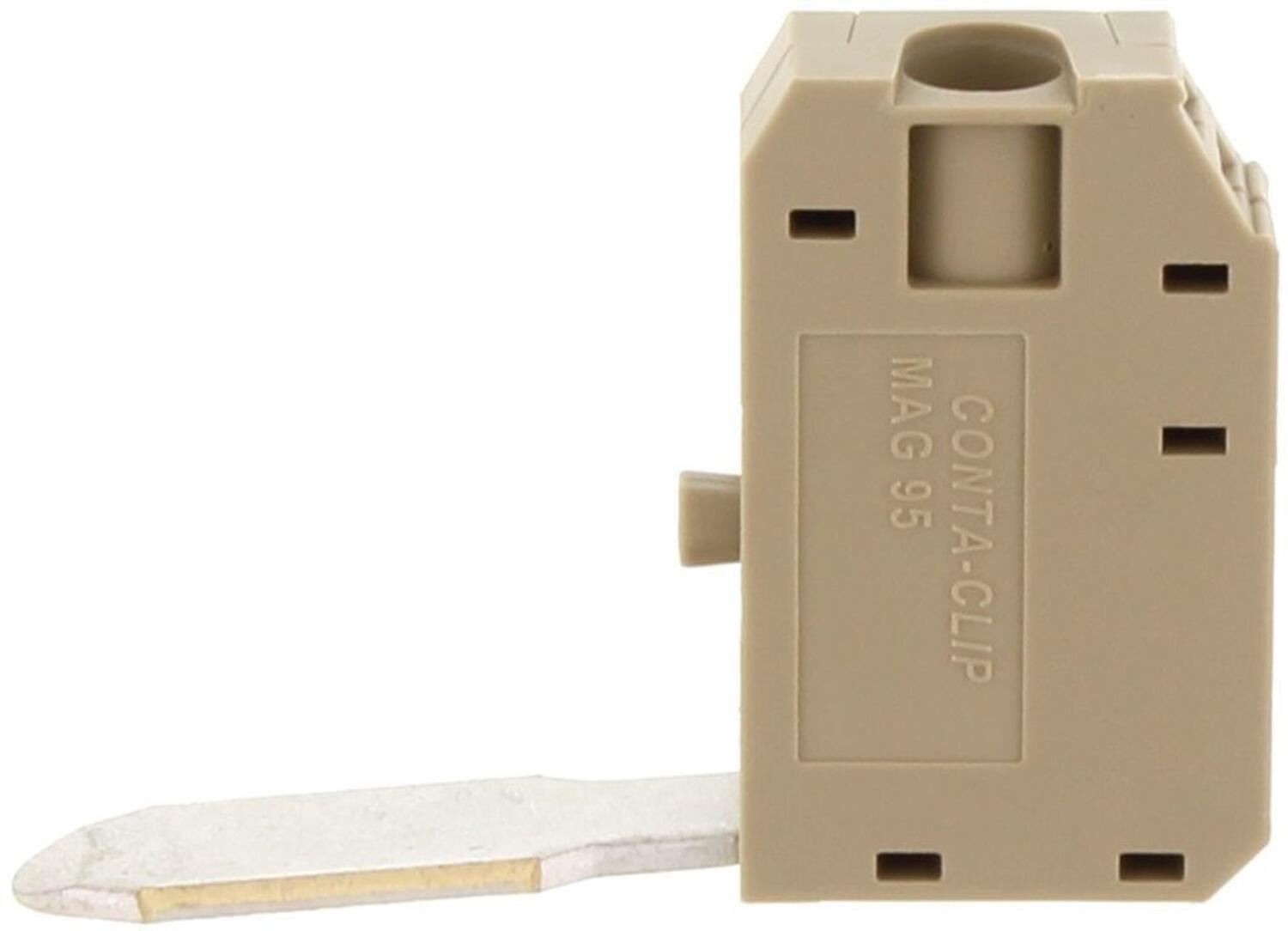

MAG 95, Pick off terminal for RK95
Art:
1123.2 Copied
10 mm²
Beige
1000 V
57 A
57 A
On terminal
6 kV
III
3
EAC
50 mm
10 mm
34 mm
1
A5
0.2 mm²
10 mm²
0.2 mm²
10 mm²
0.2 mm²
10 mm²
22
8
12 mm
M 4
Slotted
1.2
2
Polyamide 6.6
UL94-V2
-40 °C
105 °C
TR ZU 004/2011
85369010
DE
12.2 g
10
Screw Terminals, DIN Rail terminals
Connector from CONTA-CLIP, model MAG 95, in beige color with a metal lever
MAG 150/240, Pick off terminal for RK150-240/SRK120
Art:
1125.2 Copied
10 mm²
Beige
1000 V
57 A
57 A
On terminal
6 kV
III
3
EAC
54.5 mm
10 mm
34 mm
1
A5
0.2 mm²
10 mm²
0.2 mm²
10 mm²
0.2 mm²
10 mm²
22
8
12 mm
M 4
Slotted
1.2
2
Polyamide 6.6
UL94-V2
-40 °C
105 °C
TR ZU 004/2011
85369010
DE
12.6 g
10
Screw Terminals, DIN Rail terminals

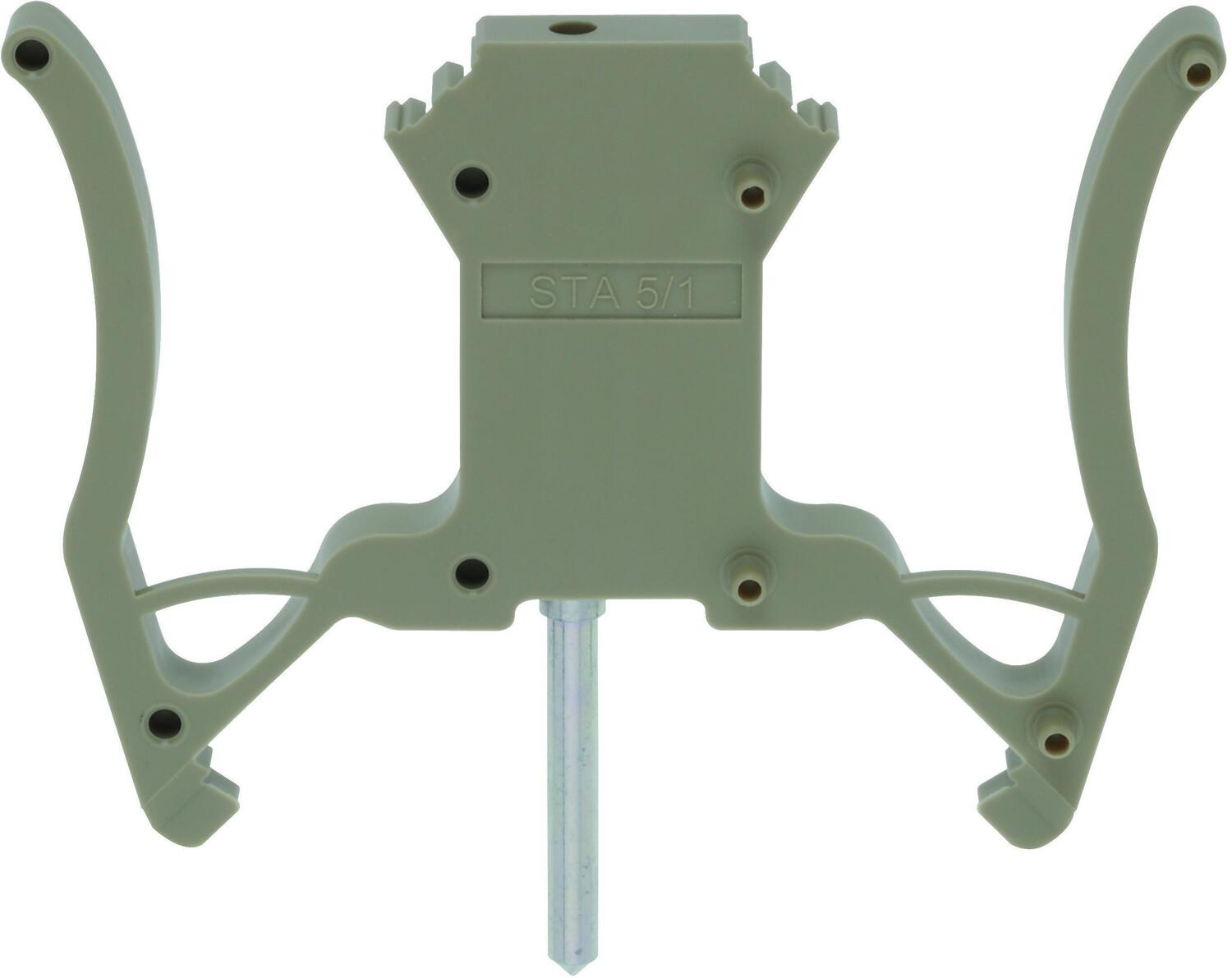

Green holder for cable mounting, model STA 5/1, designed for efficient installation and safety.
STA 5/1, Test adaptor 5mm wide for SRK/SSL series, use with STA ZP for wider terminals
Art:
17260.2 Copied
Beige
for SRK 2,5 on busbar
70 mm
5 mm
0.5 mm²
1 mm²
Polyamide 6.6
UL94-V2
-40 °C
120 °C
85369010
DE
7.3 g
10
Screw Terminals, DIN Rail terminals
Plastic model mount STA ZP1 with two mounting holes, designed for industrial use

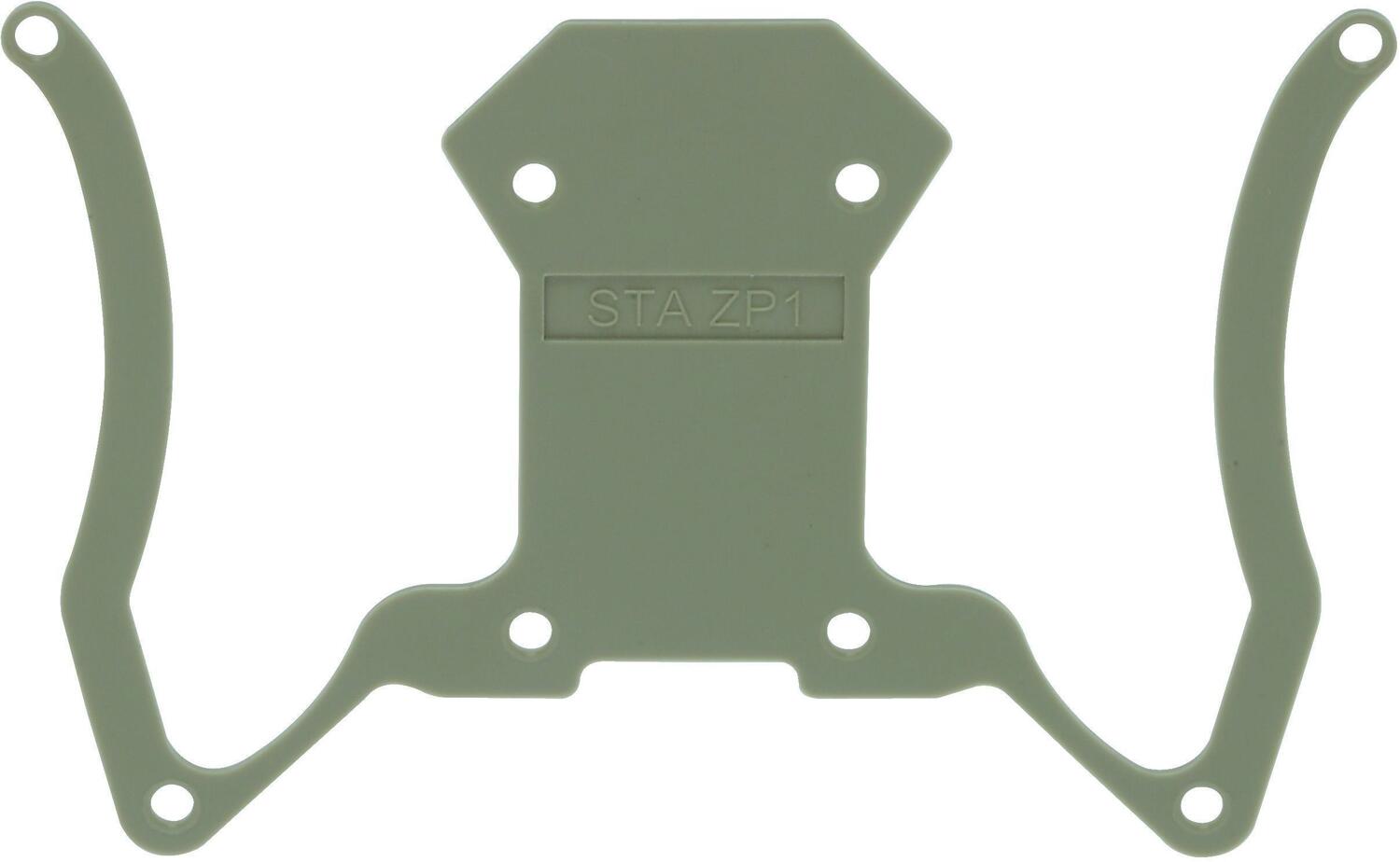

STA ZP1, 1mm Spacer plate for STA 5 test adaptors
Art:
17261.2 Copied
Beige
STA spacer plate 1mm
70 mm
1 mm
Polyamide 6.6
UL94-V2
-40 °C
120 °C
85369010
DE
1.2 g
10
Screw Terminals, DIN Rail terminals
STA ZP3 mounting bracket from CONTA-CLIP, designed for secure mounting of components.
STA ZP3, 3mm Spacer plate for STA 5 test adaptors
Art:
17262.2 Copied
Beige
STA spacer plate 3mm
70 mm
3 mm
Polyamide 6.6
UL94-V2
-40 °C
120 °C
85369010
DE
2.4 g
10
Screw Terminals, DIN Rail terminals
Bracket for electrical installation with metal spike and beige plastic construction

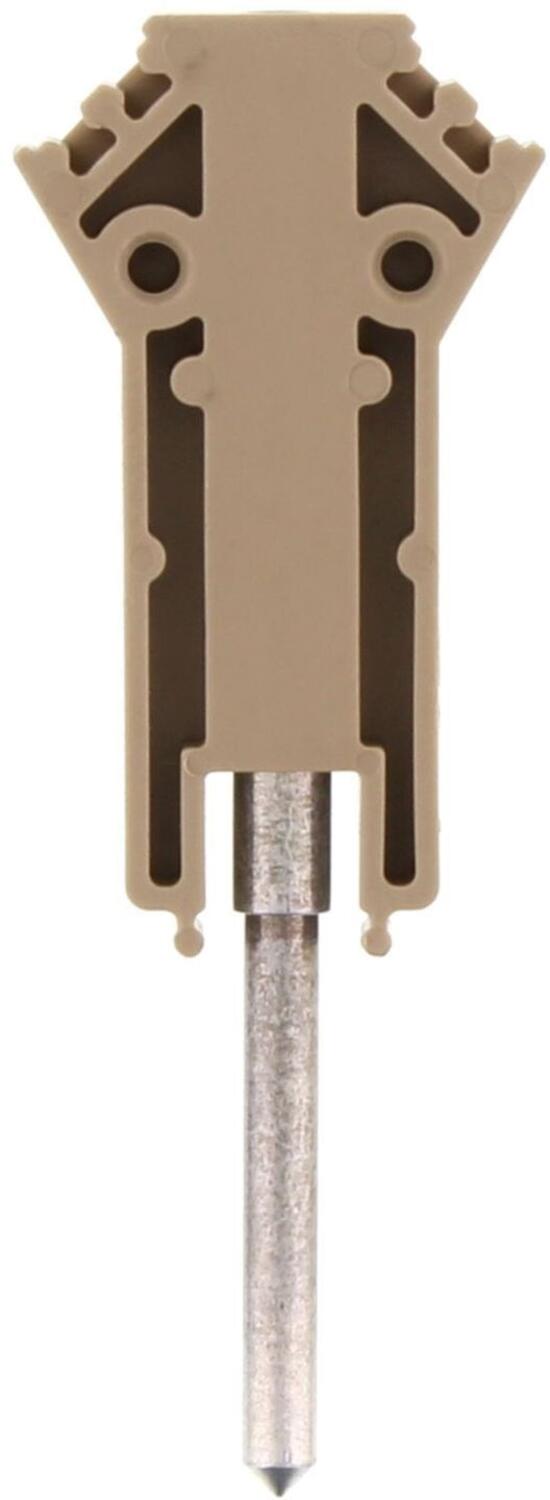

TA 5/1/ST, Test adaptor for RK2.5
Art:
2812.0 Copied
Beige
for RK 2,5 on busbar
37.3 mm
5 mm
0.5 mm²
1 mm²
5 mm
Polyamide 6.6
UL94-V2
-40 °C
105 °C
85369010
DE
4.77 g
10
Mounting for electrical components, beige with metal pin, designed for efficient installation
TA 5/1/Q, Test adaptor for RK2.5 with cross connector fitted
Art:
2823.0 Copied

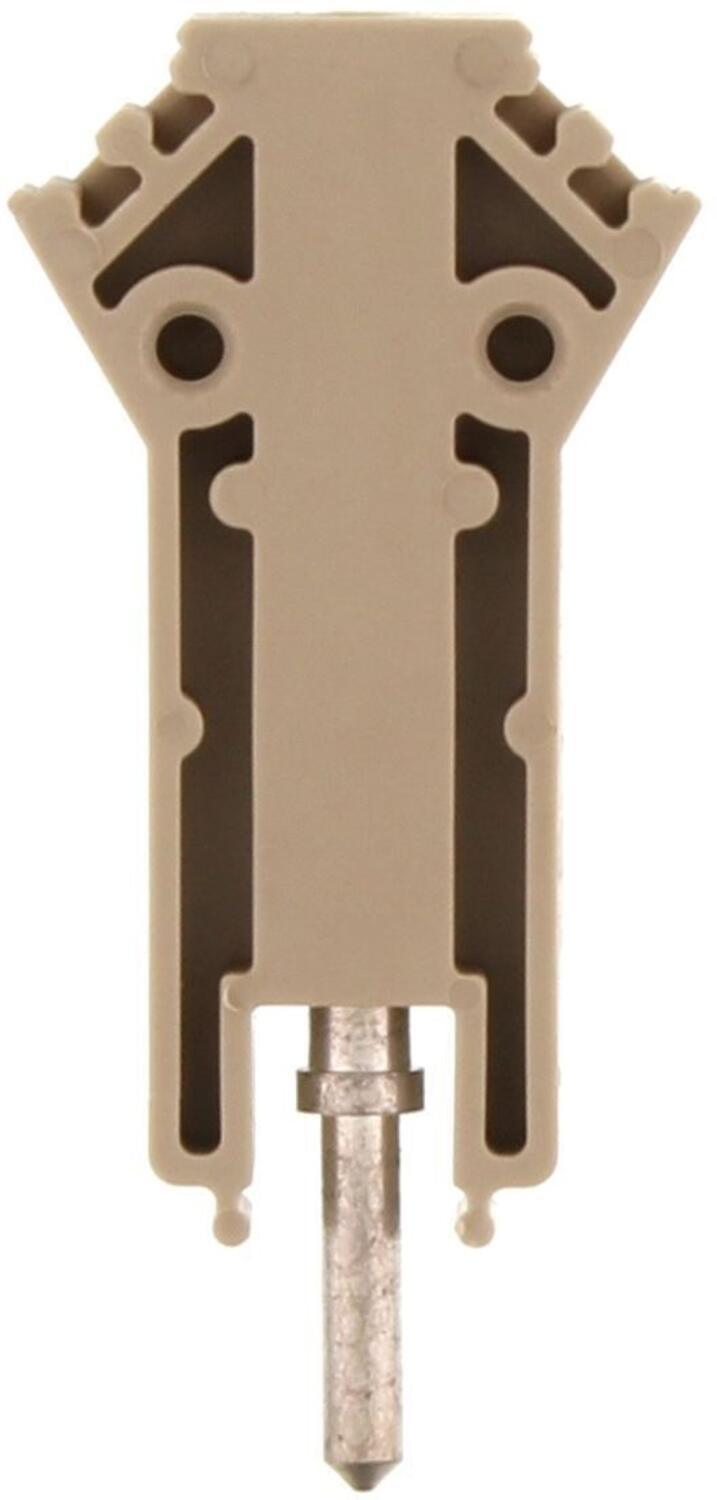

Beige
for RK 2,5 on cross-connector
37.3 mm
5 mm
0.5 mm²
1 mm²
5 mm
Polyamide 6.6
UL94-V2
-40 °C
105 °C
85369010
DE
3.47 g
10
Bracket for mounting with a metal pin, designed for durability and stability.

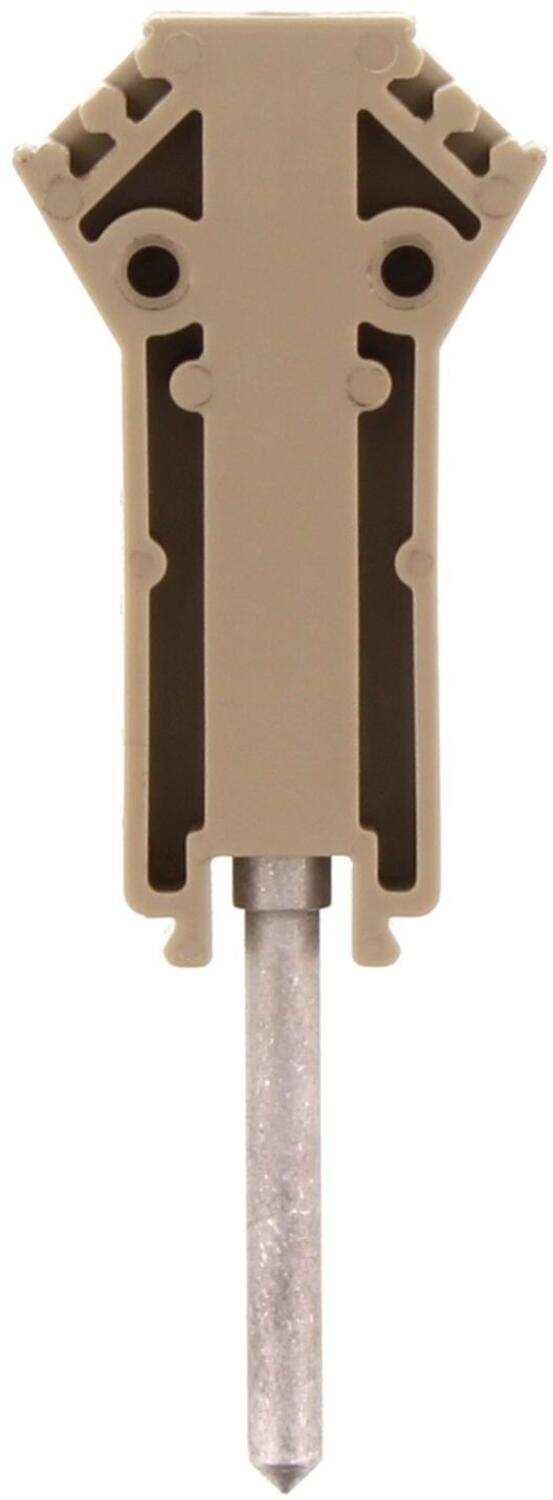

TA 6/1/ST, Test Adaptor for RK2.5-4 terminals
Art:
2813.0 Copied
Beige
for RK 2,5-4 on busbar
37.3 mm
6 mm
0.5 mm²
1 mm²
5 mm
Polyamide 6.6
UL94-V2
-40 °C
105 °C
85369010
DE
5.4 g
10
Connection part in beige plastic with metal pin, designed for industrial use

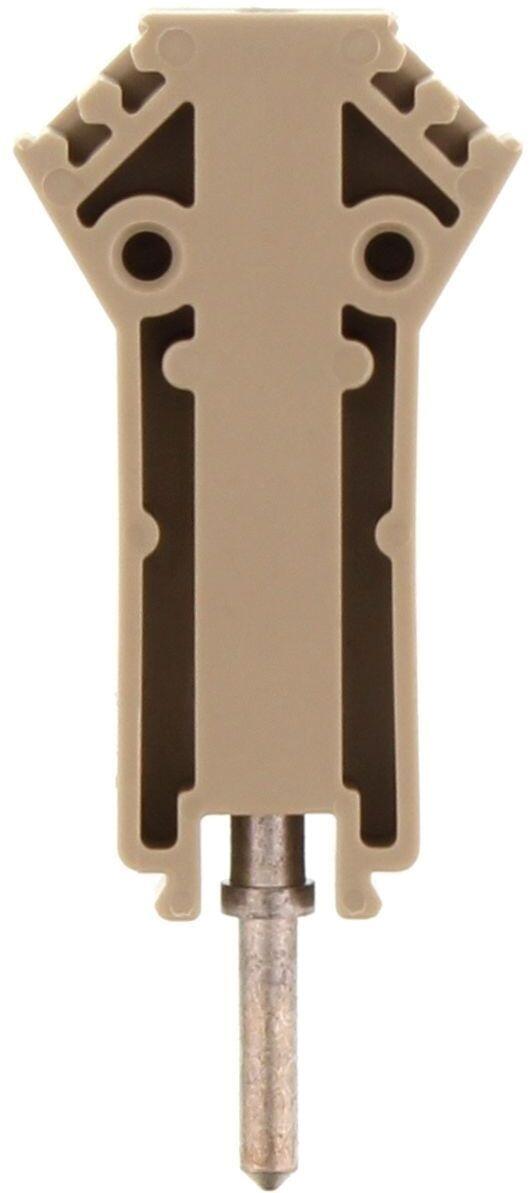

TA 6/1/Q, Test Adaptor for RK2.5-4 with cross connector fitted
Art:
2824.0 Copied
Beige
for RK 2,5-4 on cross-connector
37.3 mm
6 mm
0.5 mm²
1 mm²
5 mm
Polyamide 6.6
UL94-V2
-40 °C
105 °C
85369010
DE
4.02 g
10
Bracket in beige plastic with metal spike, designed for industrial use
TA 8/1/ST, Test adaptor for RK 6-10
Art:
2817.0 Copied
Beige
for RK 6-10 on busbar
37.3 mm
8 mm
0.5 mm²
1 mm²
5 mm
Polyamide 6.6
UL94-V2
-40 °C
105 °C
85369010
DE
5.8 g
10

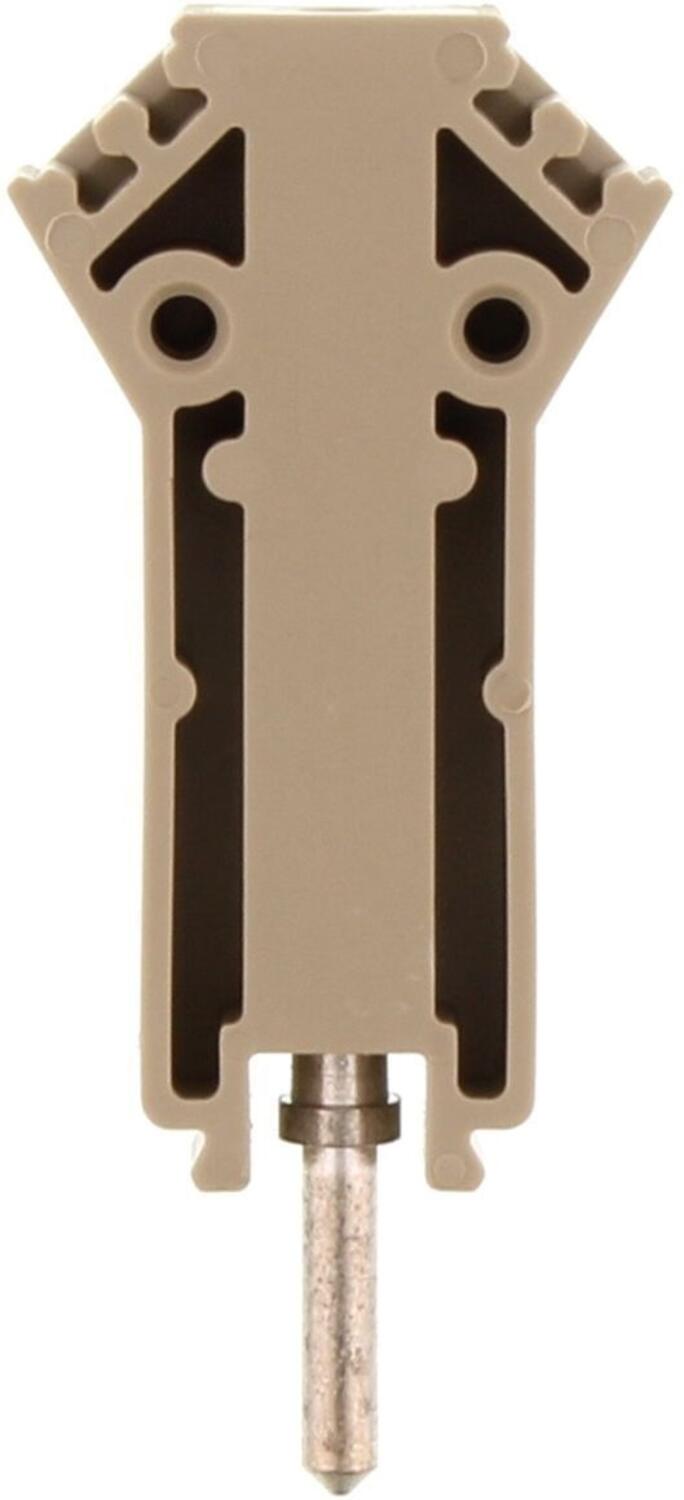

Beige plastic bracket with metal pin, designed for industrial use
TA 8/1/Q, Test adaptor for RK 6-10 with cross connector fitted
Art:
2837.0 Copied
Beige
for RK 6-10 on cross-connector
37.3 mm
8 mm
0.5 mm²
1 mm²
5 mm
Polyamide 6.6
UL94-V2
-40 °C
105 °C
85369010
DE
3 g
10
Bracket for industrial use, robust design in light color, suitable for various applications.
TAD 5/1/S, Test adaptor for RKD2.5
Art:
2821.0 Copied
Beige
for RKD 4 on screw
37.3 mm
5 mm
0.5 mm²
1 mm²
5 mm
Polyamide 6.6
UL94-V2
-40 °C
105 °C
85369010
DE
9.6 g
10
Plastic bracket for mounting, designed for durability and functionality.
TAD 6/1/S, Test adaptor for RKD4
Art:
2822.0 Copied
Beige
for RKD 4 on screw
37.3 mm
6 mm
0.5 mm²
1 mm²
5 mm
Polyamide 6.6
UL94-V2
-40 °C
105 °C
85369010
DE
10 g
10
Connection part in beige plastic with metal tip, designed for electrical connections

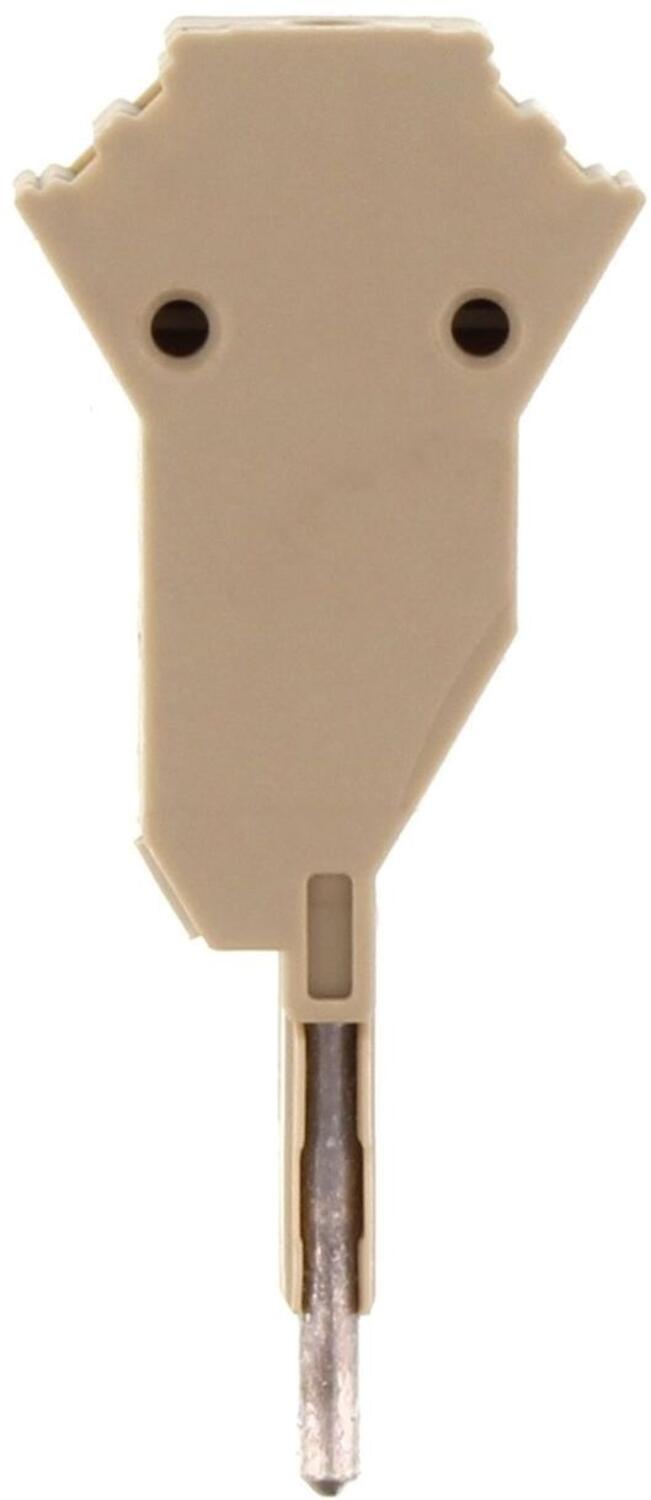

ZTA 1.5, Test adaptor for ZIZA 1.5
Art:
17034.2 Copied
Beige
for tension-spring-terminals 1,5 mm²
32.3 mm
5.1 mm
0.5 mm²
1 mm²
5 mm
Polyamide 6.6
UL94-V2
-40 °C
105 °C
85369010
DE
7.12 g
10
Connection part in beige plastic with two mounting holes and a metal tip for connection

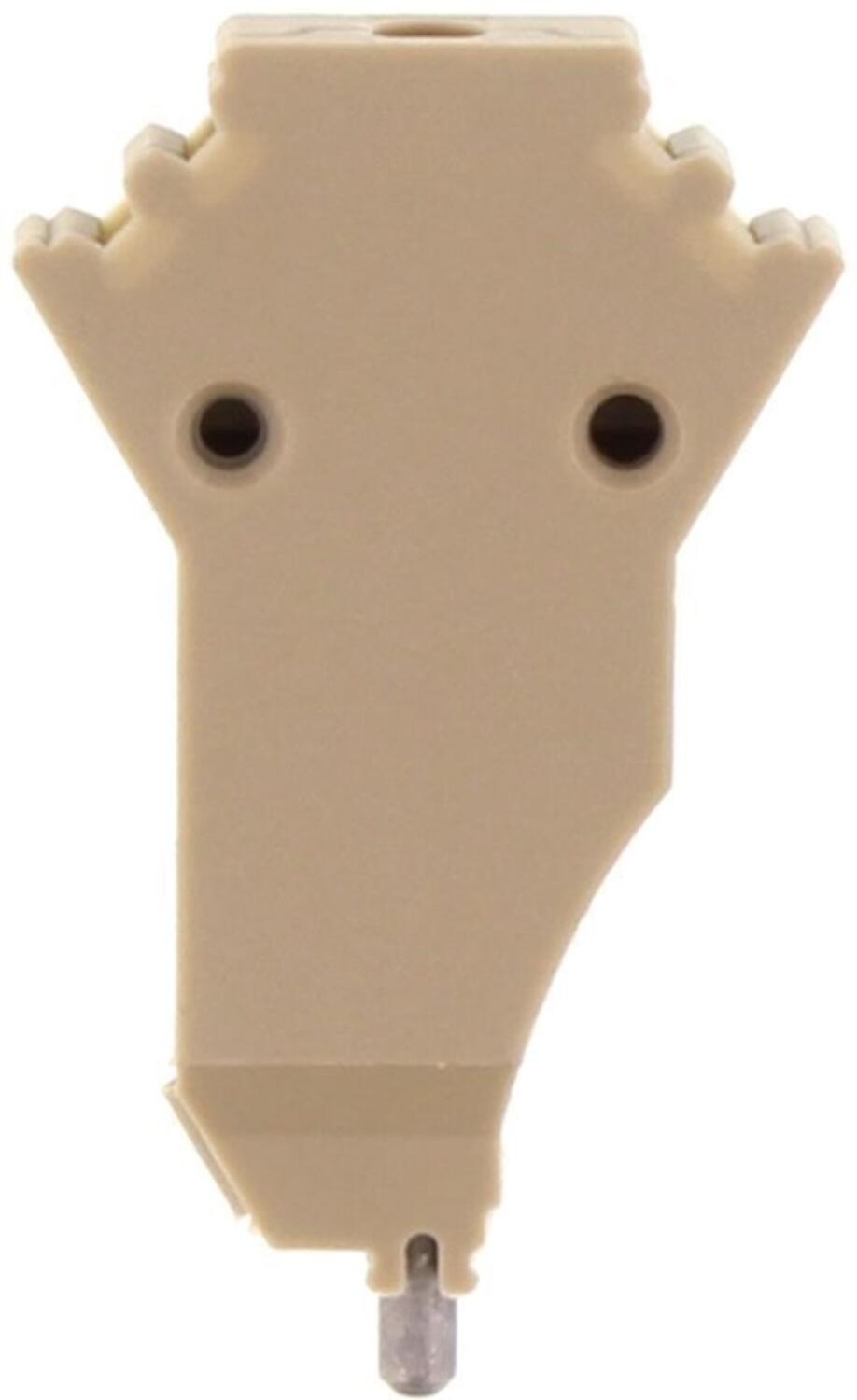

ZTA 2.5, Test adaptor for ZRK/ZSRK/ZSL/ZRKD/ZIKDZTRK/ZVMAK 2.5
Art:
3740.2 Copied
Beige
for tension-spring-terminals 2,5 mm²
32.3 mm
5.1 mm
0.5 mm²
1 mm²
5 mm
Polyamide 6.6
UL94-V2
-40 °C
105 °C
85369010
DE
2.8 g
10

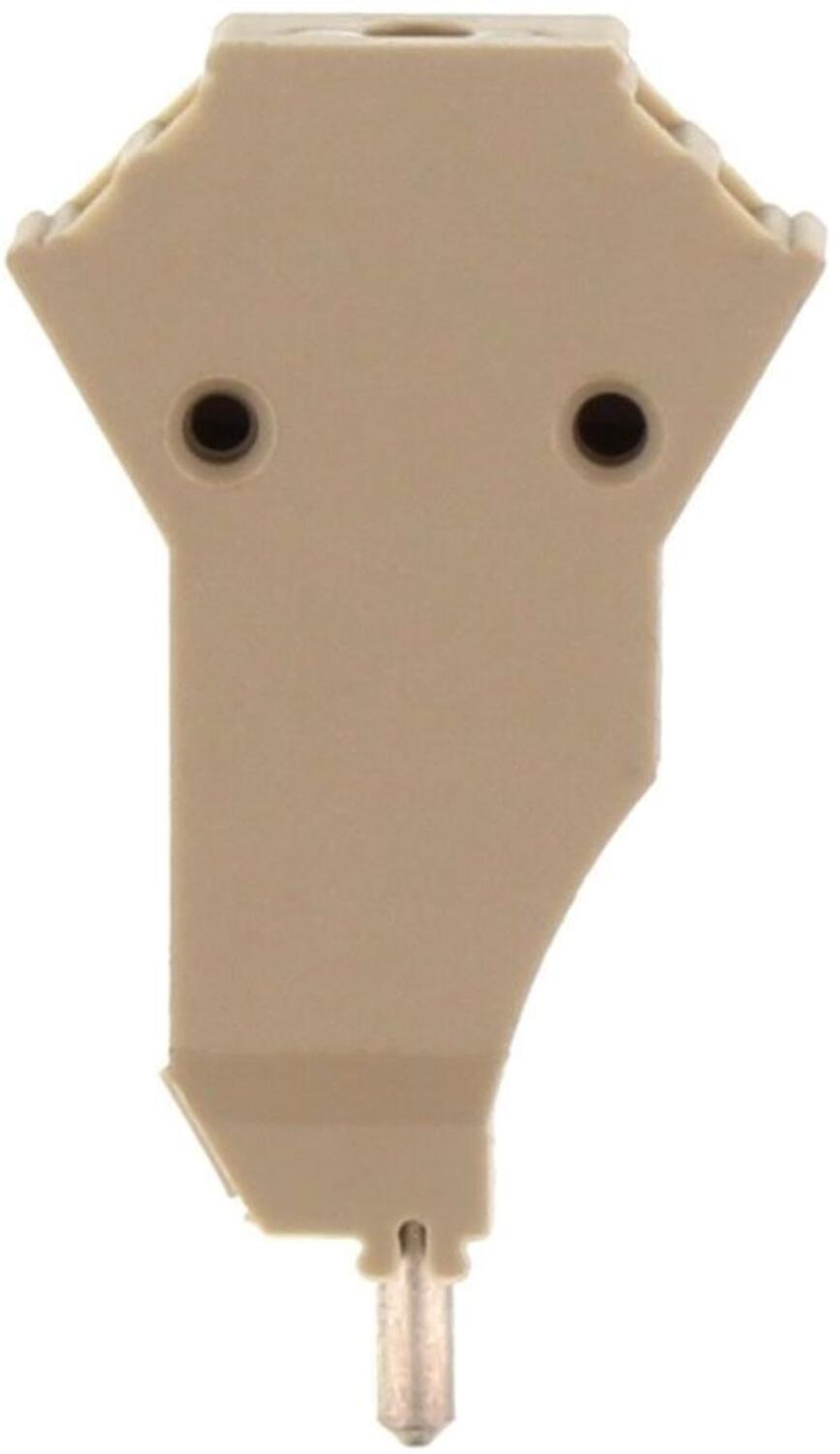

Powerful and compact end cap for electrical applications, model 3741
ZTA 4, Test adaptor for ZRK/ZSL 4
Art:
3741.2 Copied
Beige
for tension-spring terminals 4 mm²
32.3 mm
6.1 mm
0.5 mm²
1 mm²
5 mm
Polyamide 6.6
UL94-V2
-40 °C
105 °C
85369010
DE
2.8 g
10

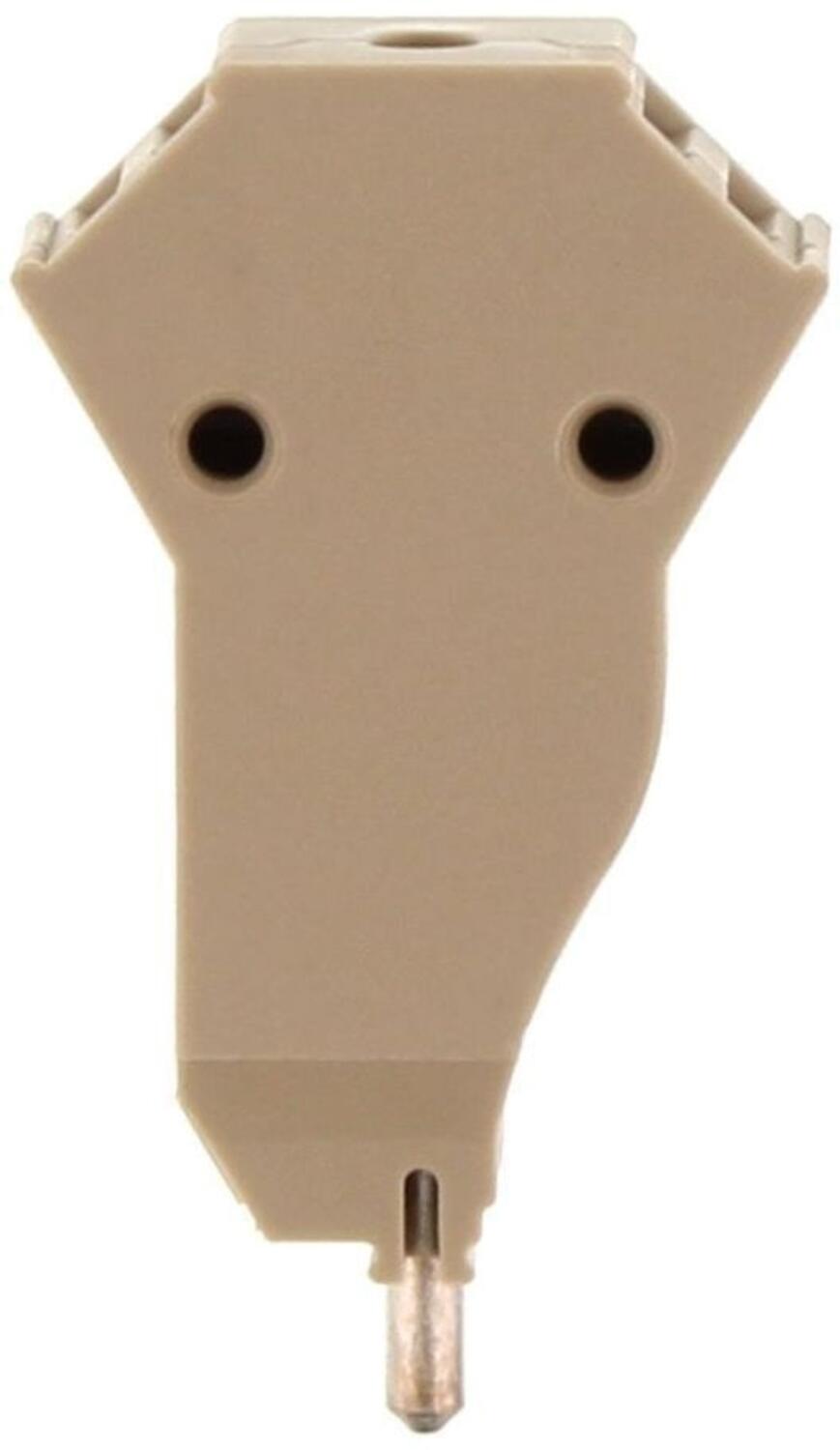

Connecting part in beige plastic with two holes and a metal pin for electrical installations
ZTA 6, Test adaptor for ZRK/ZSL 6
Art:
3772.2 Copied
Beige
for tension-spring terminals 6 mm²
32.3 mm
8.1 mm
0.5 mm²
1 mm²
5 mm
Polyamide 6.6
UL94-V2
-40 °C
105 °C
85369010
DE
3.08 g
10

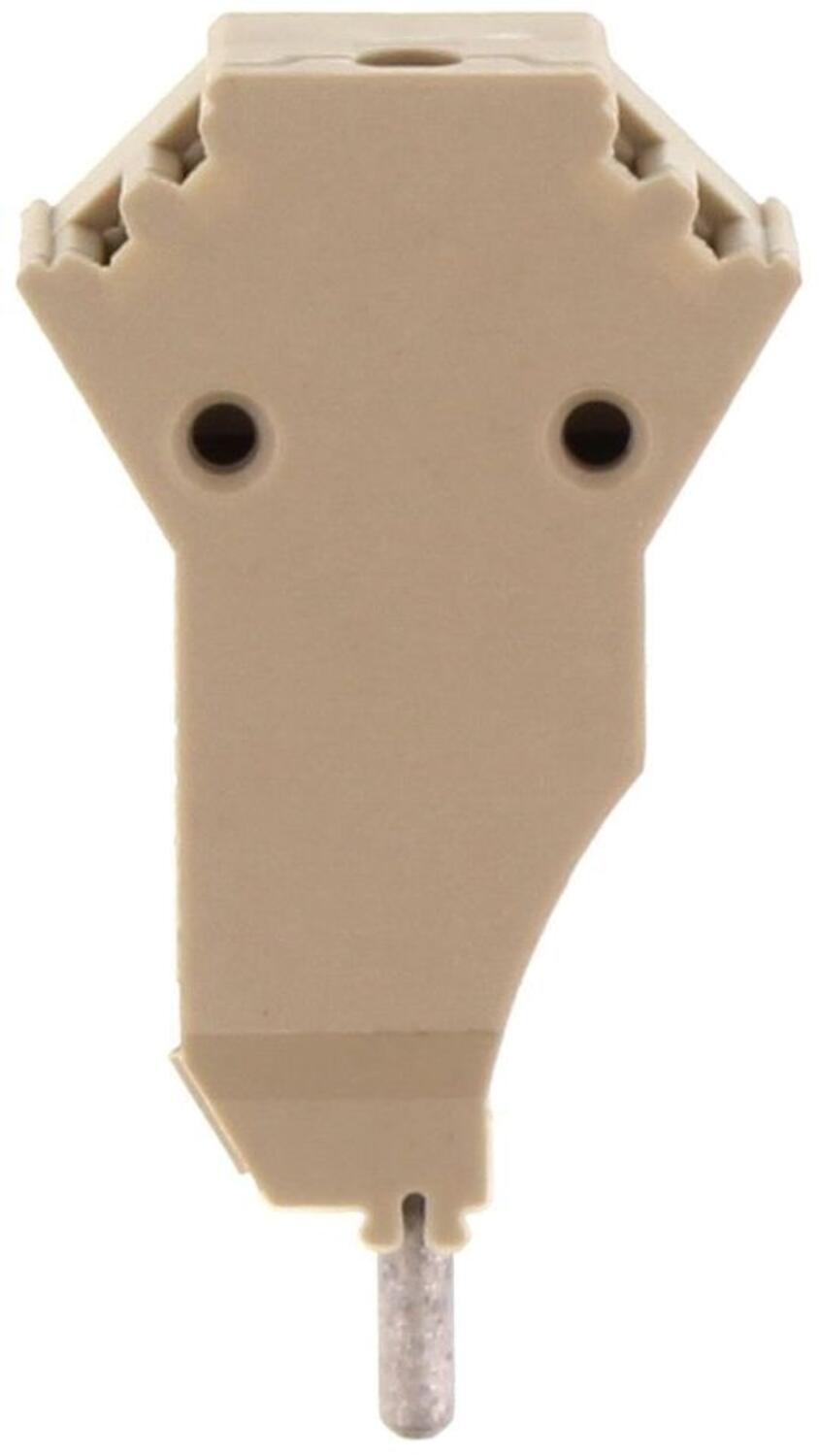

Connecting part in beige plastic with two holes and a metal pin, ideal for electrical installations.
ZTA 10, Test adaptor for ZRK/ZSL 10
Art:
3790.2 Copied
Beige
for tension-spring terminals 10 mm²
32.3 mm
10.1 mm
0.5 mm²
1 mm²
5 mm
Polyamide 6.6
UL94-V2
-40 °C
105 °C
85369010
DE
3.8 g
10

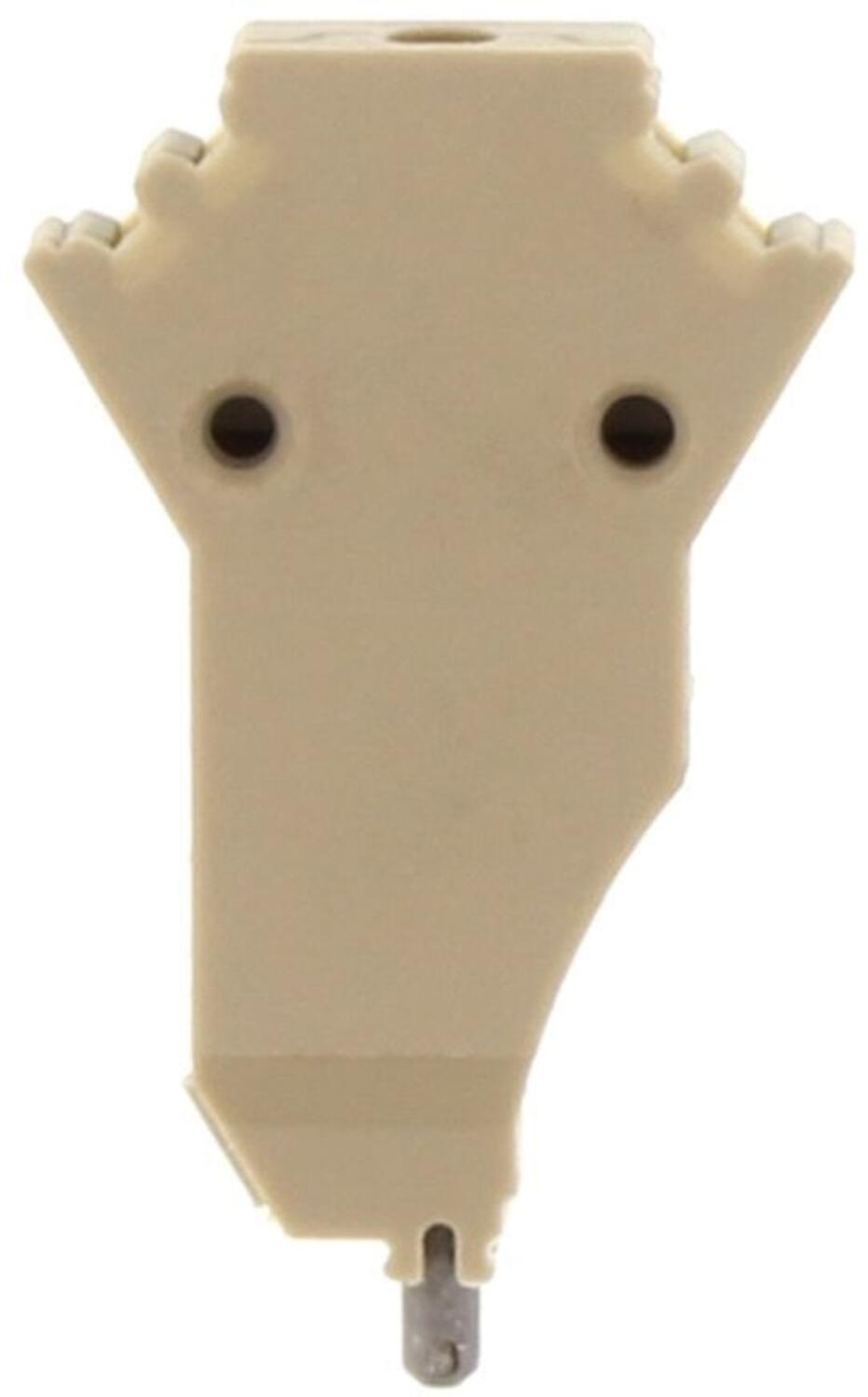

Component for electrical connection, beige in color, with two mounting holes and a contact pin
ZTA 16, Test adaptor for ZRK/ZSL 16
Art:
3810.2 Copied
Beige
for tension-spring terminals 16 mm²
32.3 mm
12 mm
0.5 mm²
1 mm²
5 mm
Polyamide 6.6
UL94-V2
-40 °C
105 °C
85369010
DE
4.14 g
10
Red screwdriver with metal tip, ideal for precision work and repairs.
PS 2.3, Test plug 2.3mm
Art:
2007.0 Copied
Red
32 mm
5.2 mm
0.5 mm²
1 mm²
5 mm
Polyamide 6.6
UL94-V2
-40 °C
105 °C
85366990
DE
1.2 g
20

Selected variant

Select a variant in the list

Contact us
Please contact us for more information.
Send e-mail
Do you need help?
