CONTA-CLIP

Screw fuse terminals

SK, STK, STKD, SIK, SSIK

Conta-Clip offers a wide range of Fuse-disconnect terminals to suit all requirements.

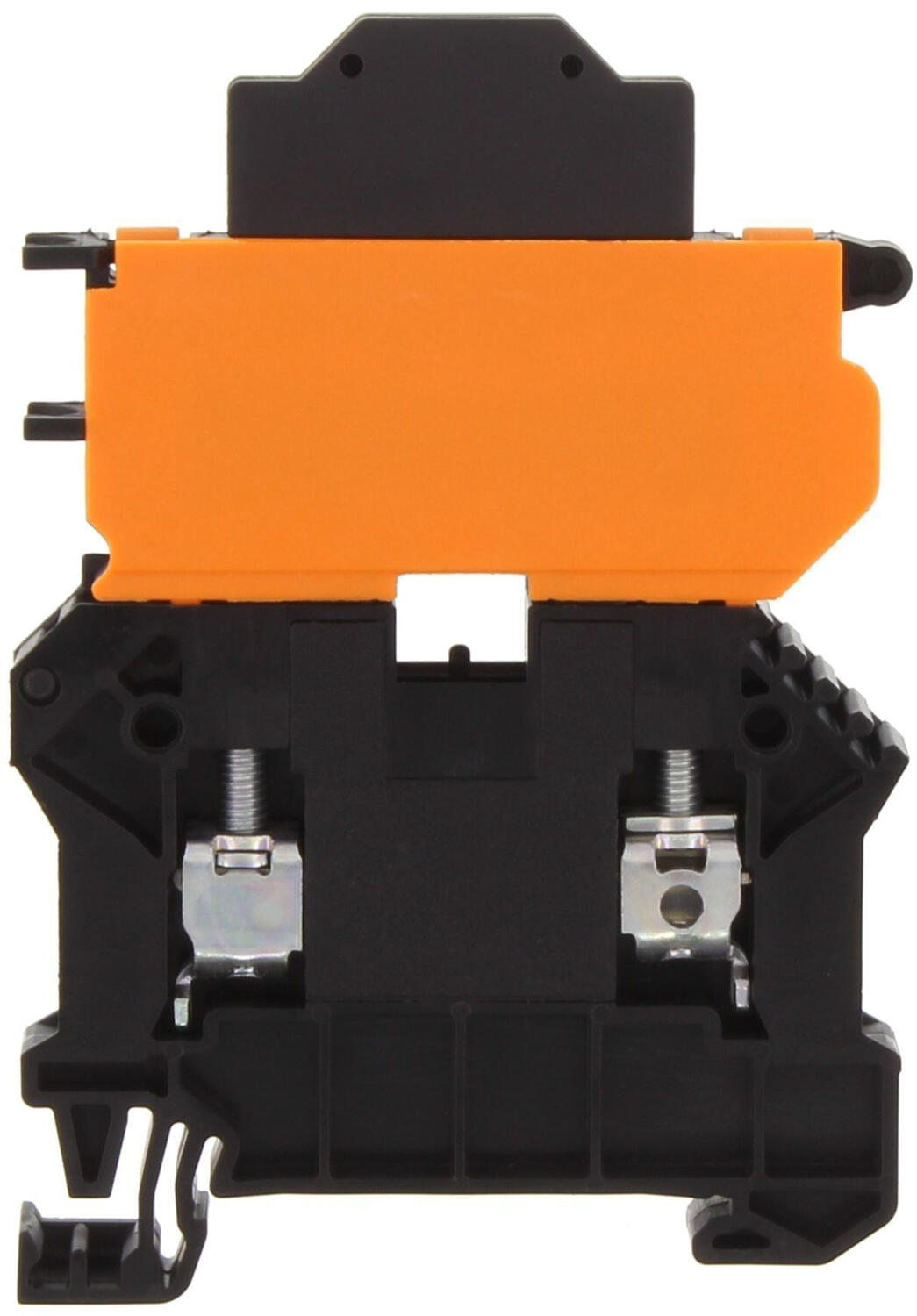

The latest addition to the range is the SSIK 4 and SSIK 6, these complement the SRK range of standard terminals.

These terminals are made from glass-fibre re-inforced polyamide 6.6, giving the terminal a higher operating range and good stability on the rail.



Features of the SSIK range

  • Up to 140°c
  • Two cross connect channels for plugin SQI cross connectors
  • Hinged lever with room for spare fuse

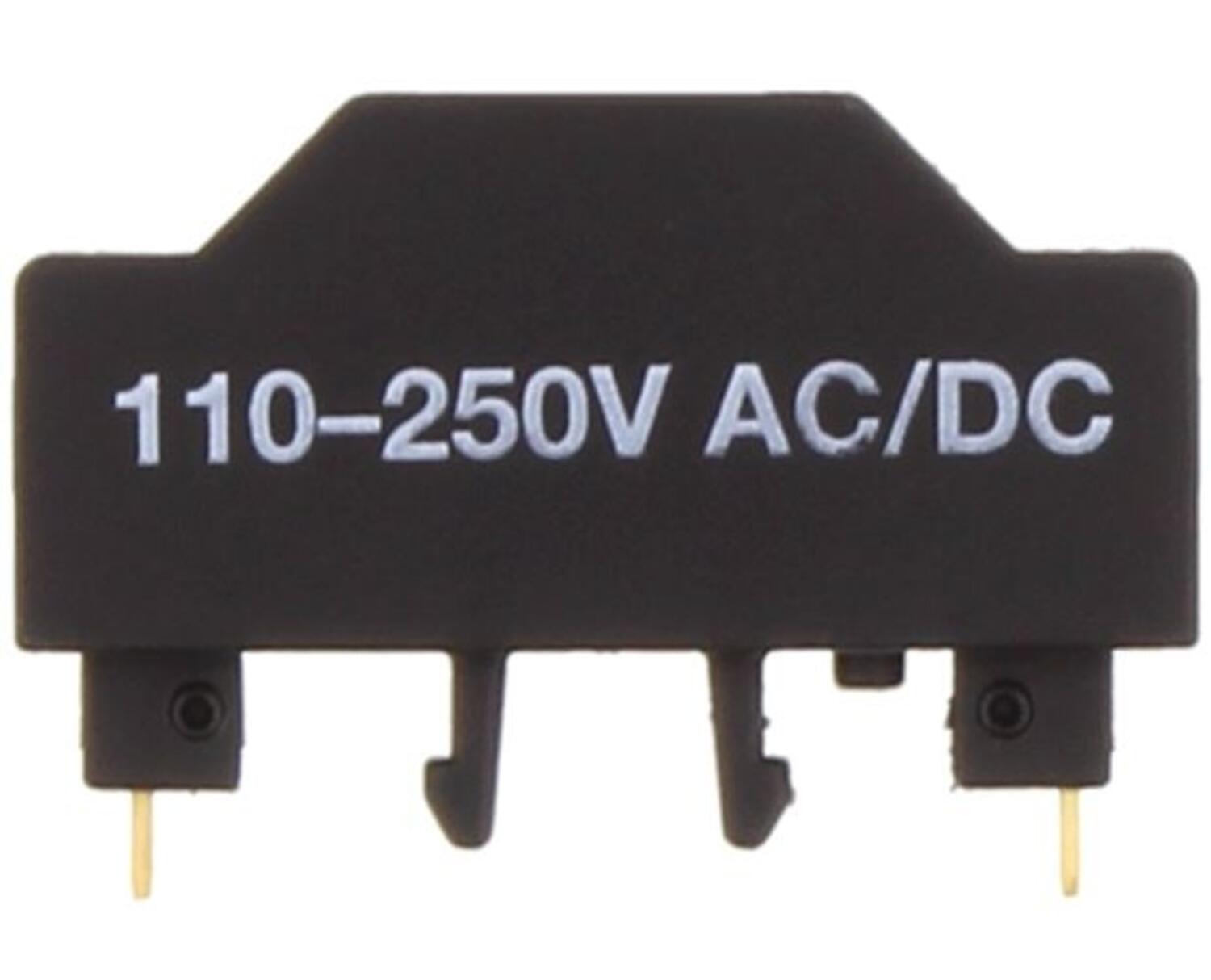

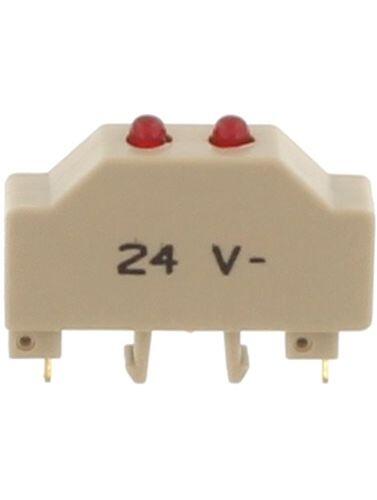

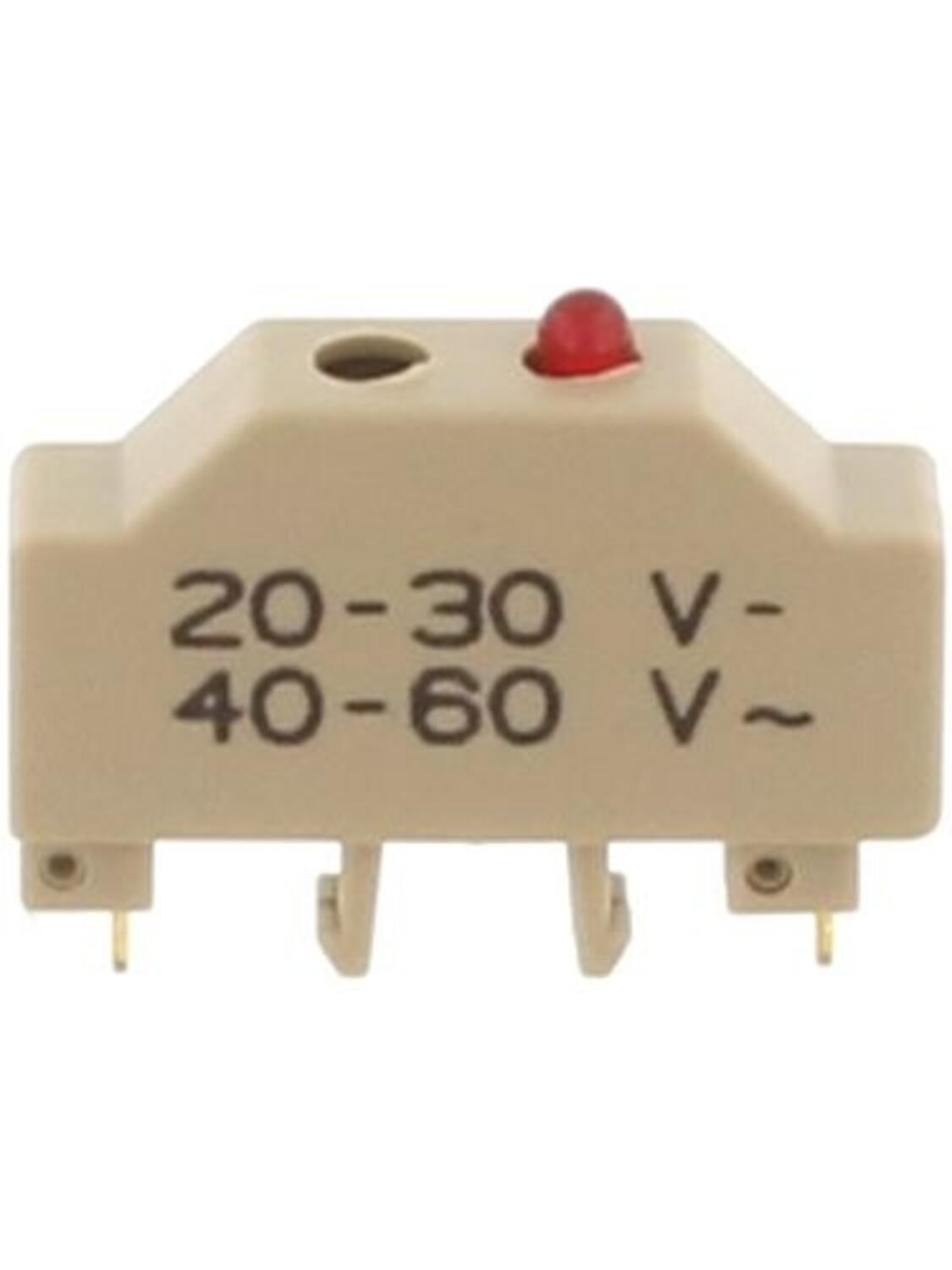

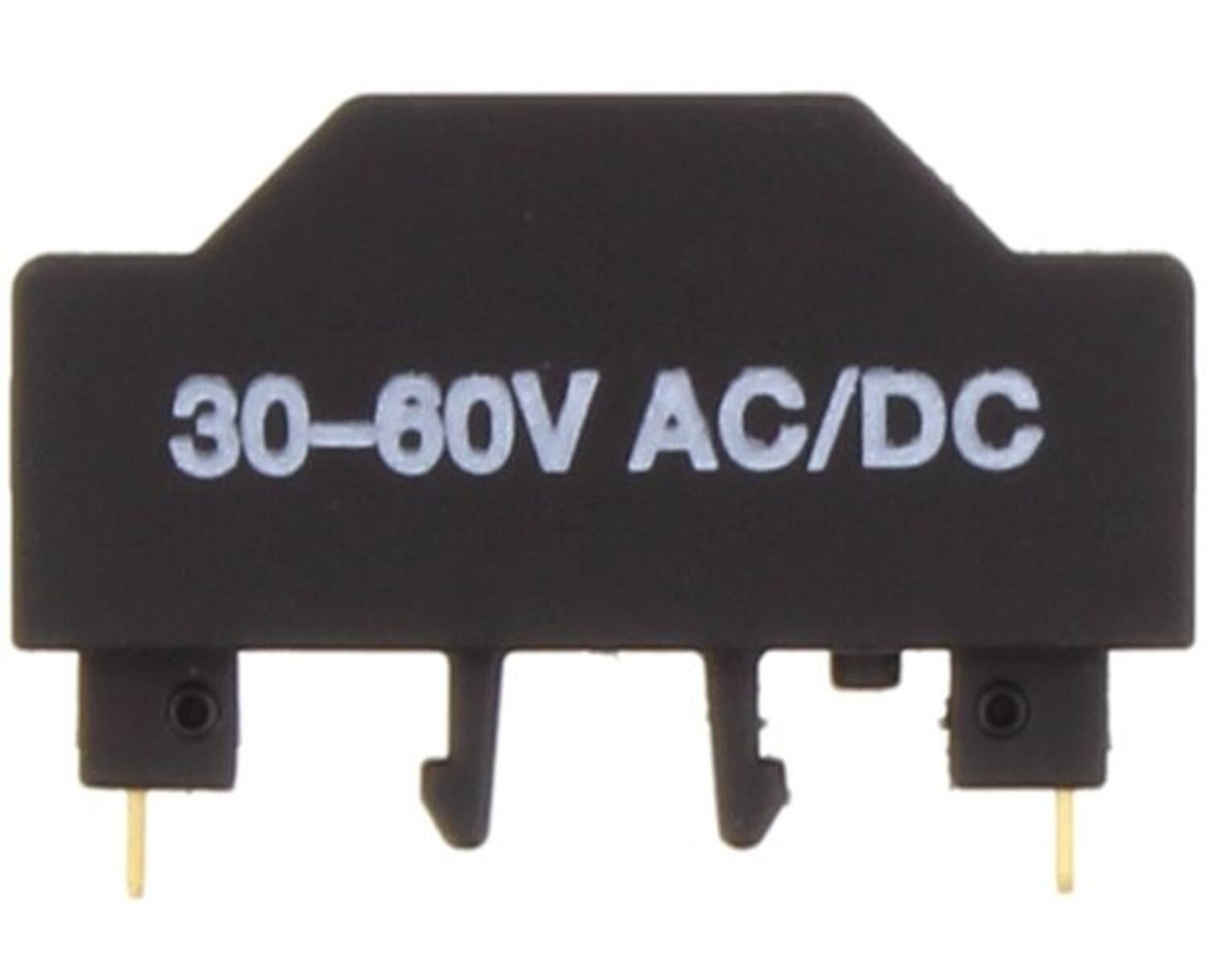

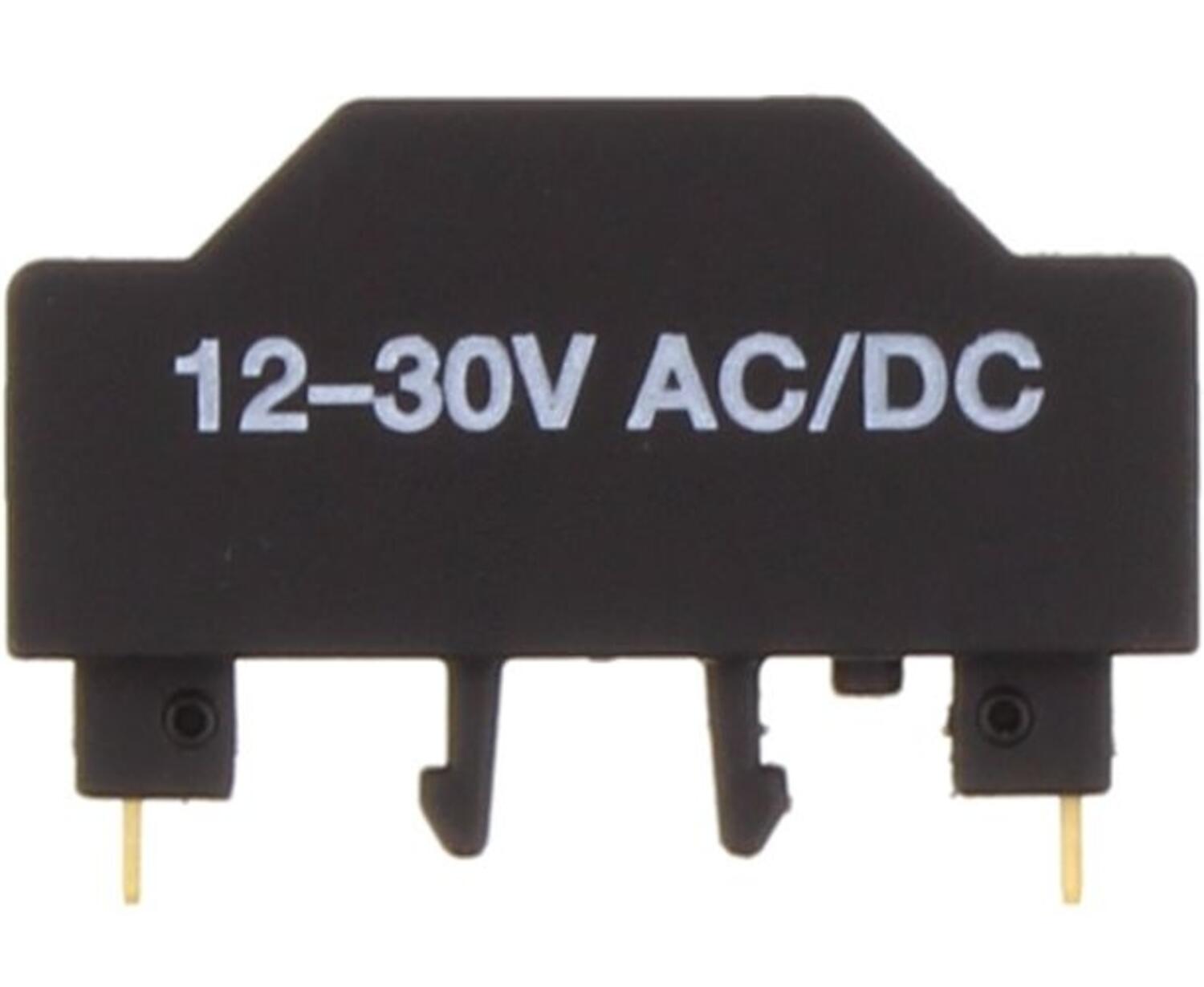

  • Optional LED module
  • SSIK4 fuse sizes 5x20, 5x25 and 5x30
  • SSIK6 fuse sizes 6.3x25 and 6.3x32
  • Can be used with solid link as a disconnect terminal
  • Two or three disconnect levers can be operated simultaneously by using the VBS connection sleeves

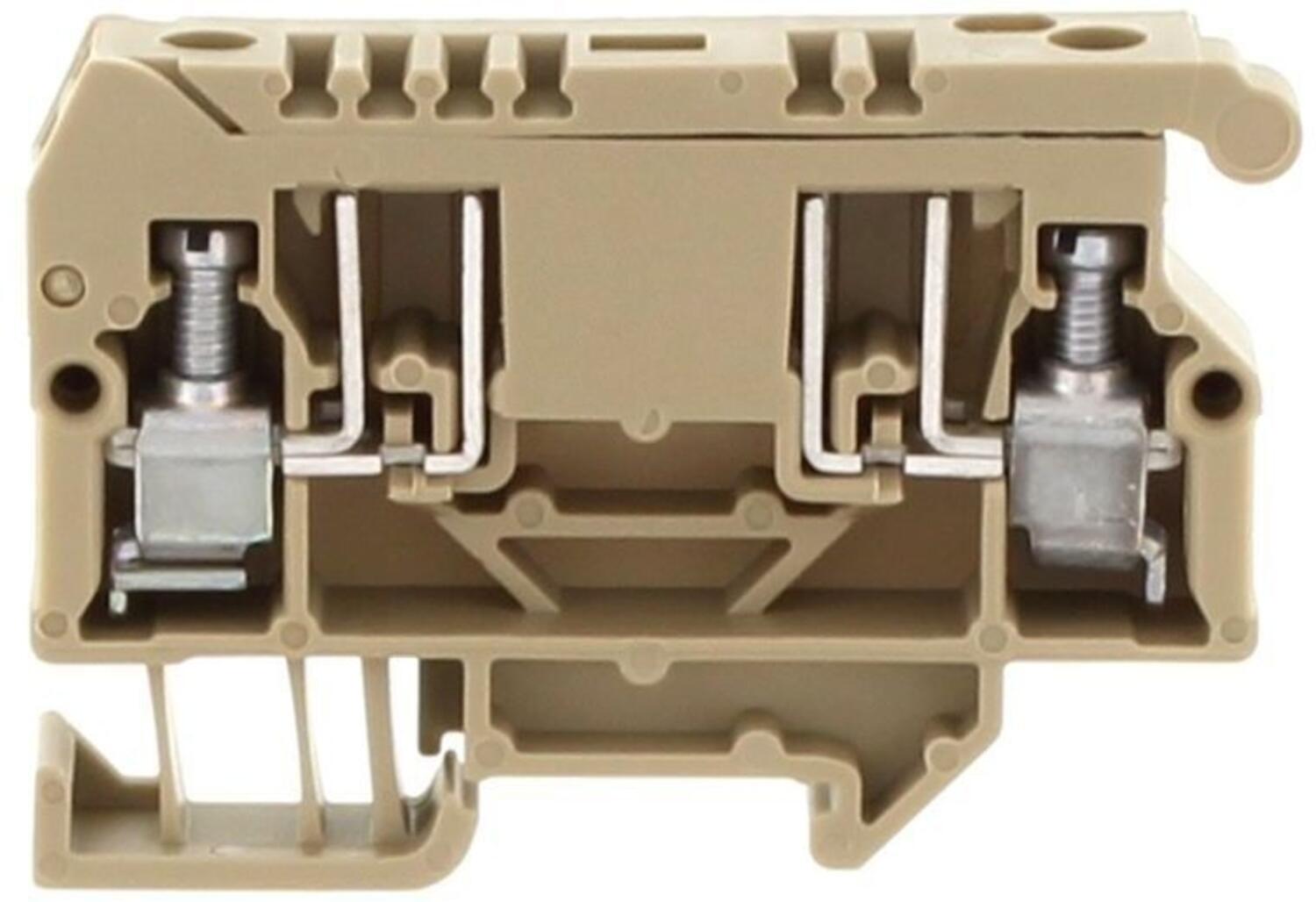

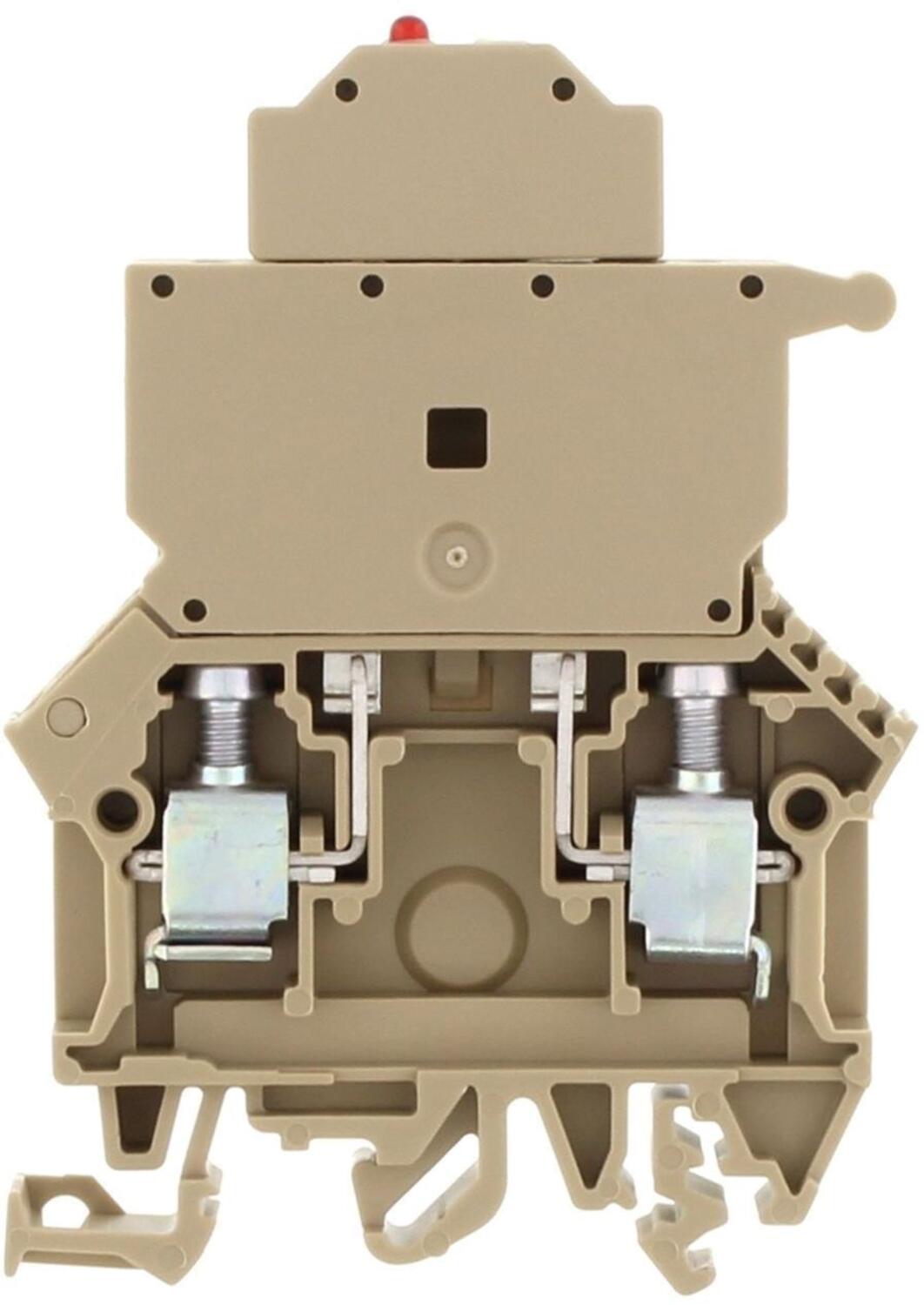

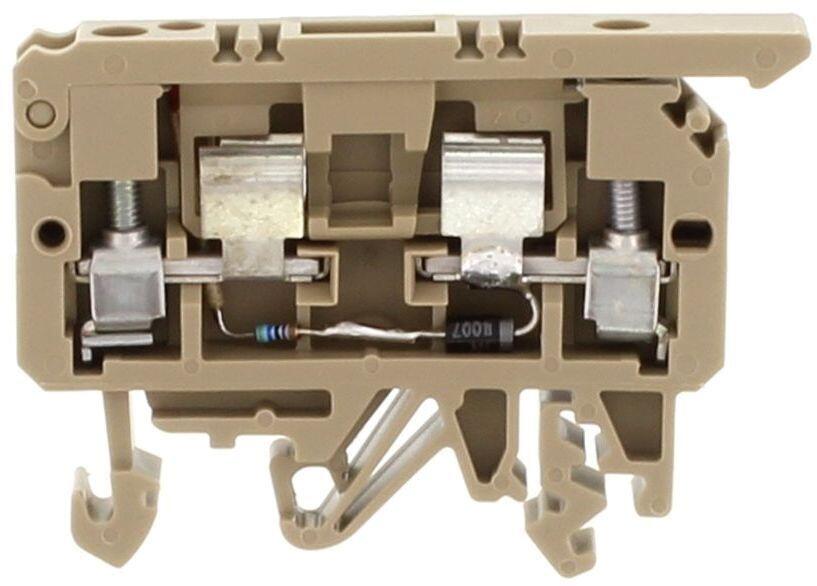

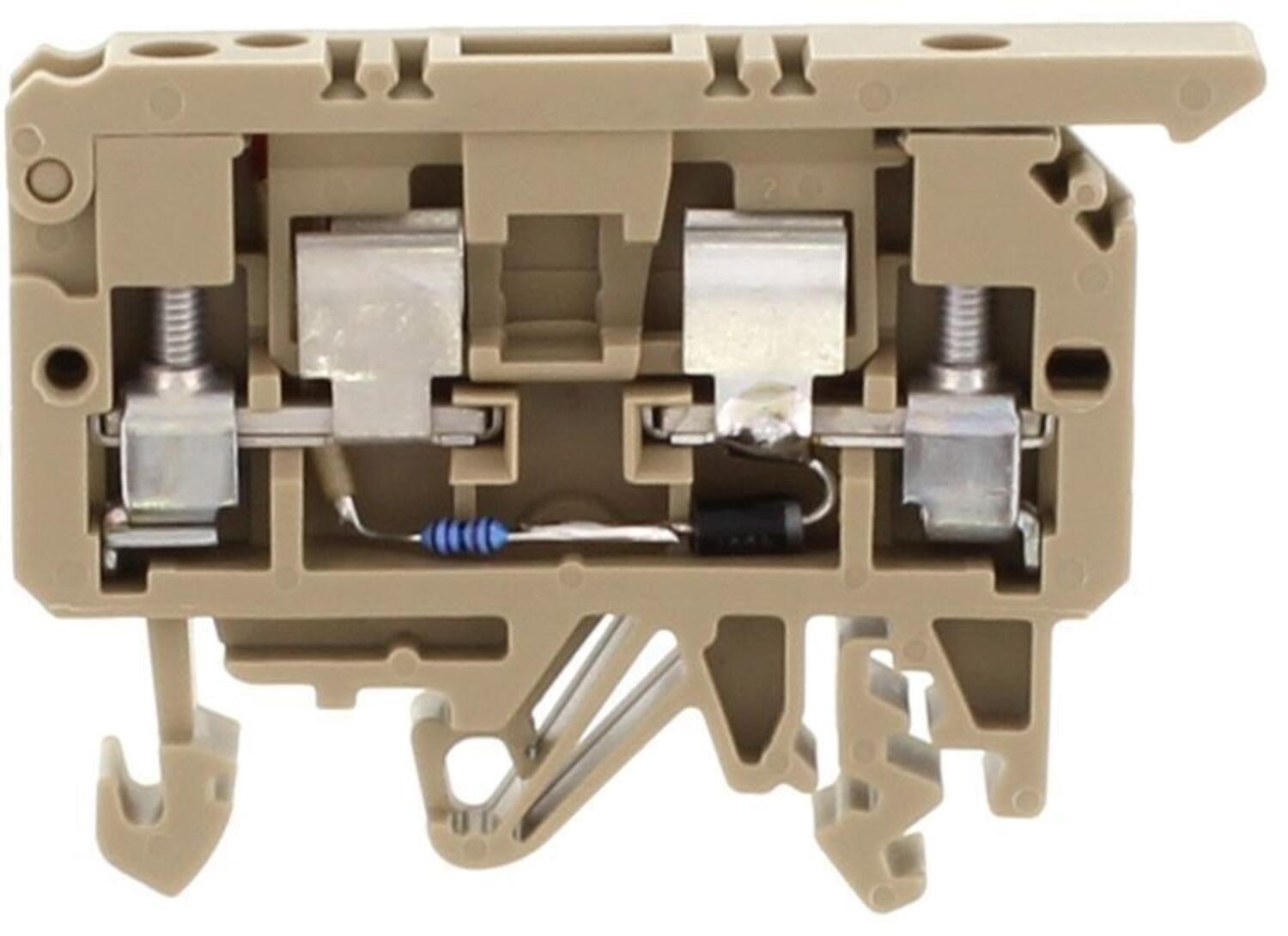

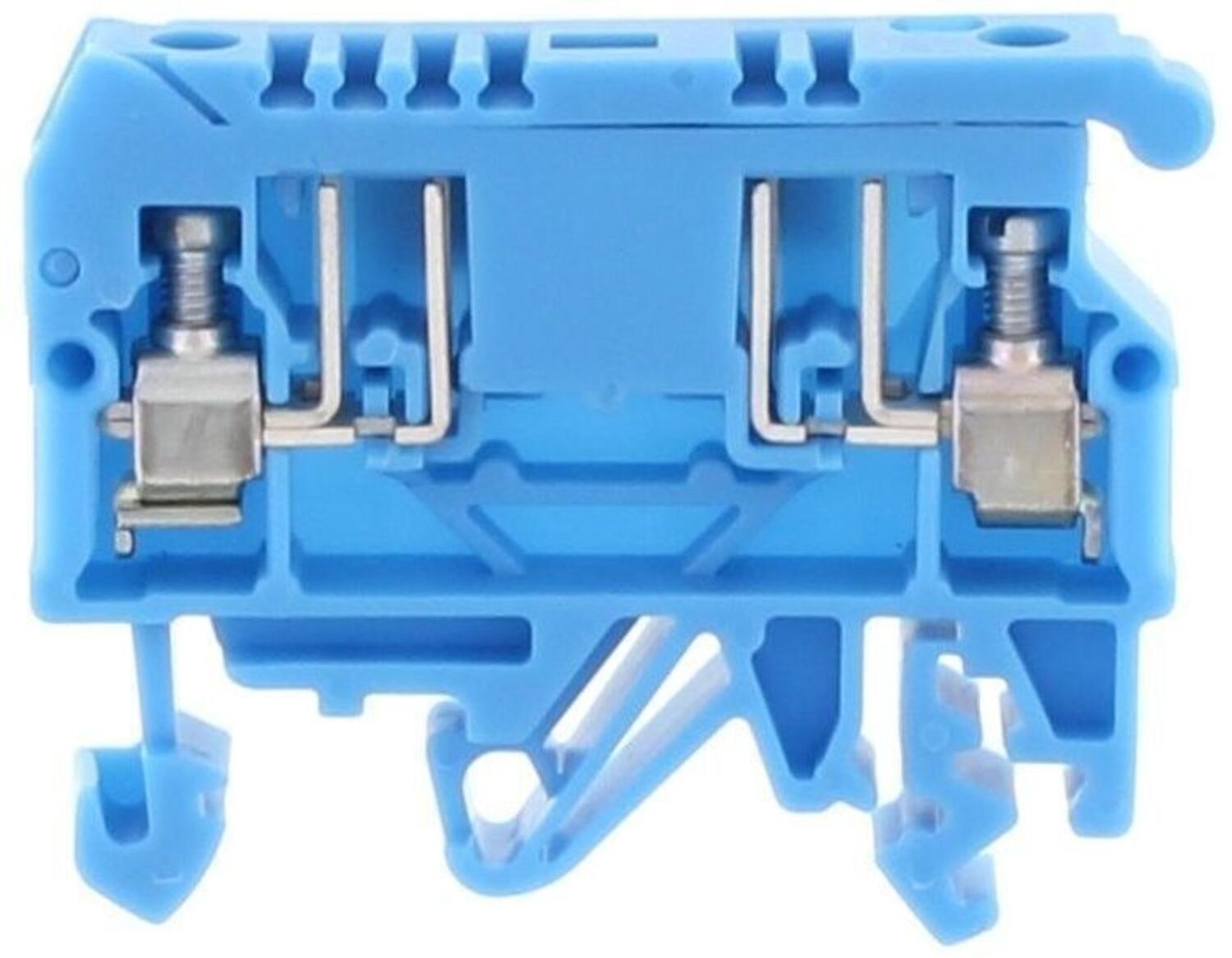

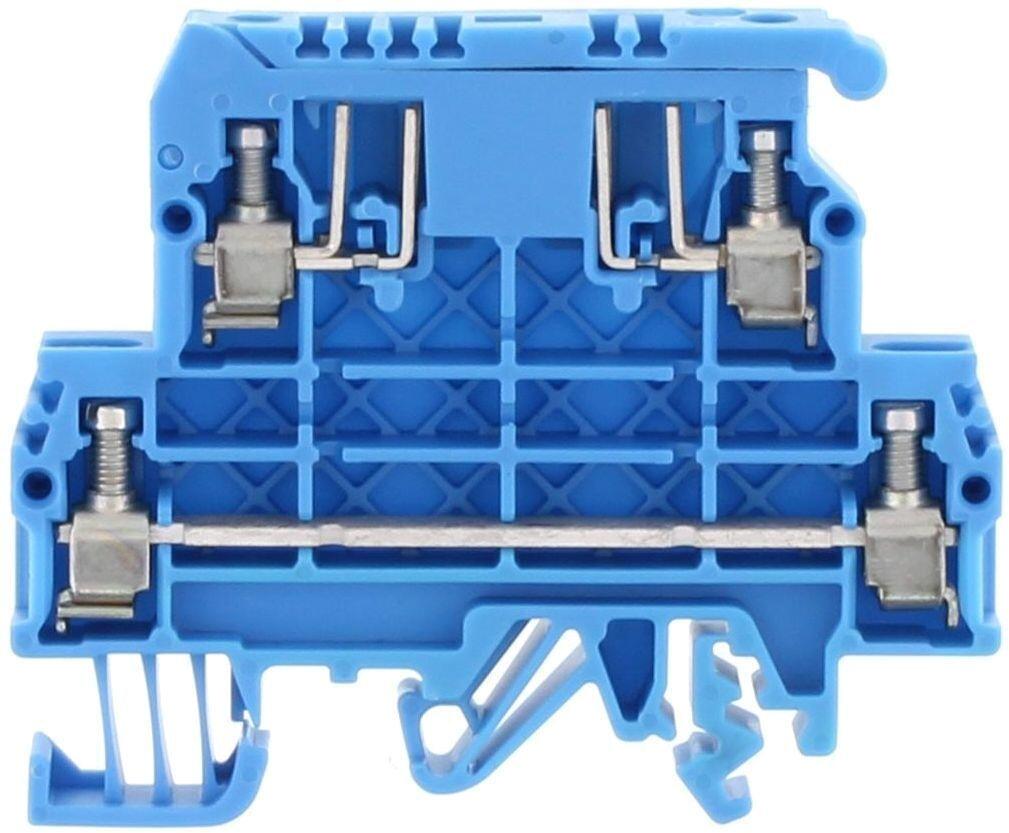

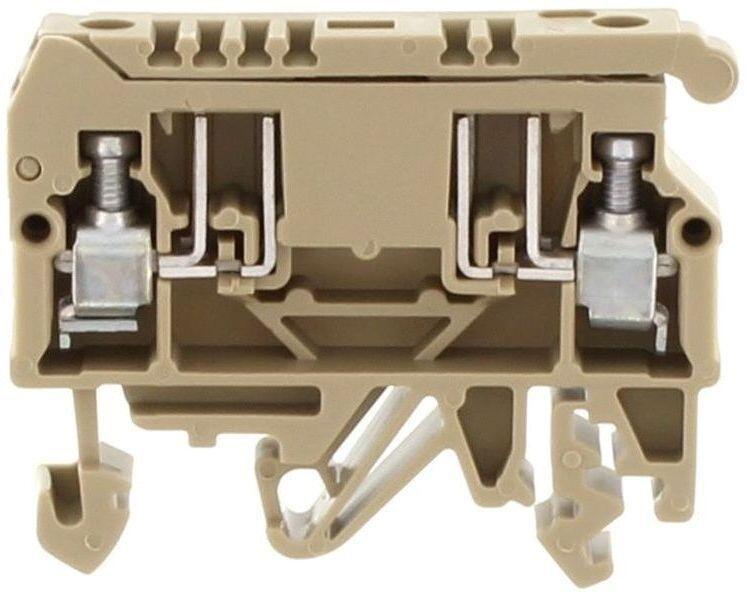

Fuse-disconnect terminal STK 1/STK 2

The STK 1 and the STK 2 fuse-disconnect terminals are a low profile and compact shape so they take up minimal space.

The hinged lever is used to hold the fuse and locks into its open position. LED status displays are available in a variety of voltage ranges.



Features of the STK 1/STK 2

  • Combi-foot snaps on to TS 35/TS 32 or mounting foot for the TS 15 rail
  • Connection cross-section up to 4 mm2
  • STK1 and STK2 hold fuses (5 x 20/5 x 25)
  • Compact design
  • STK2 - Two or three disconnect levers can be operated simultaneously by using the VBS connection sleeves
  • Can be used with solid link as disconnect terminal

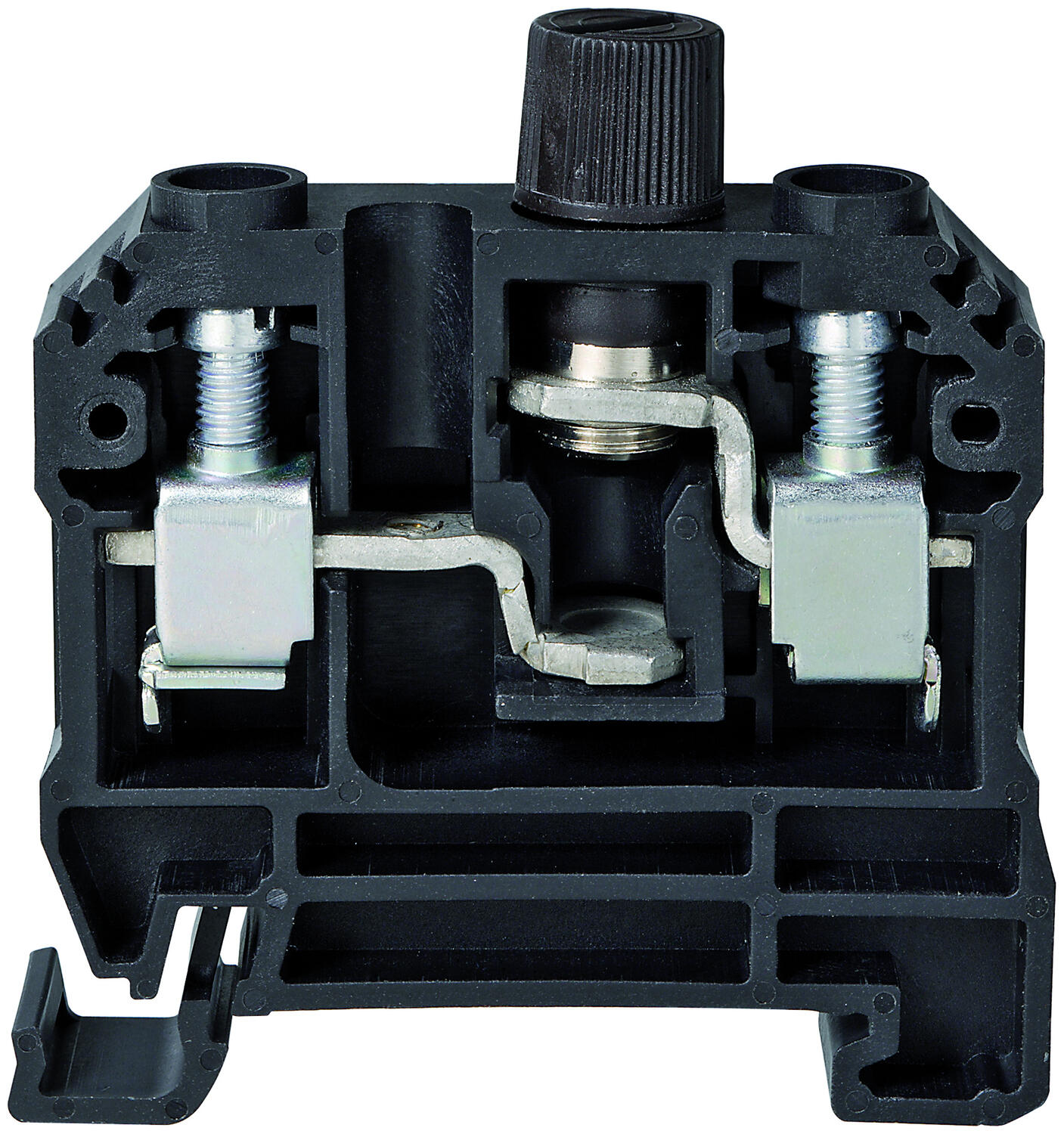

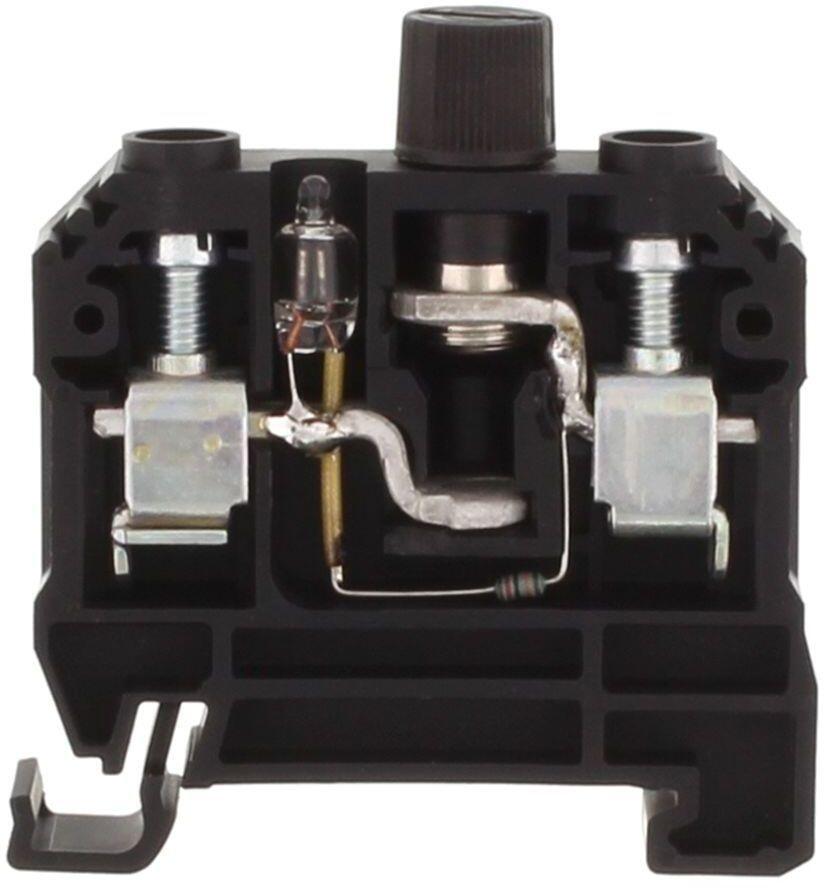

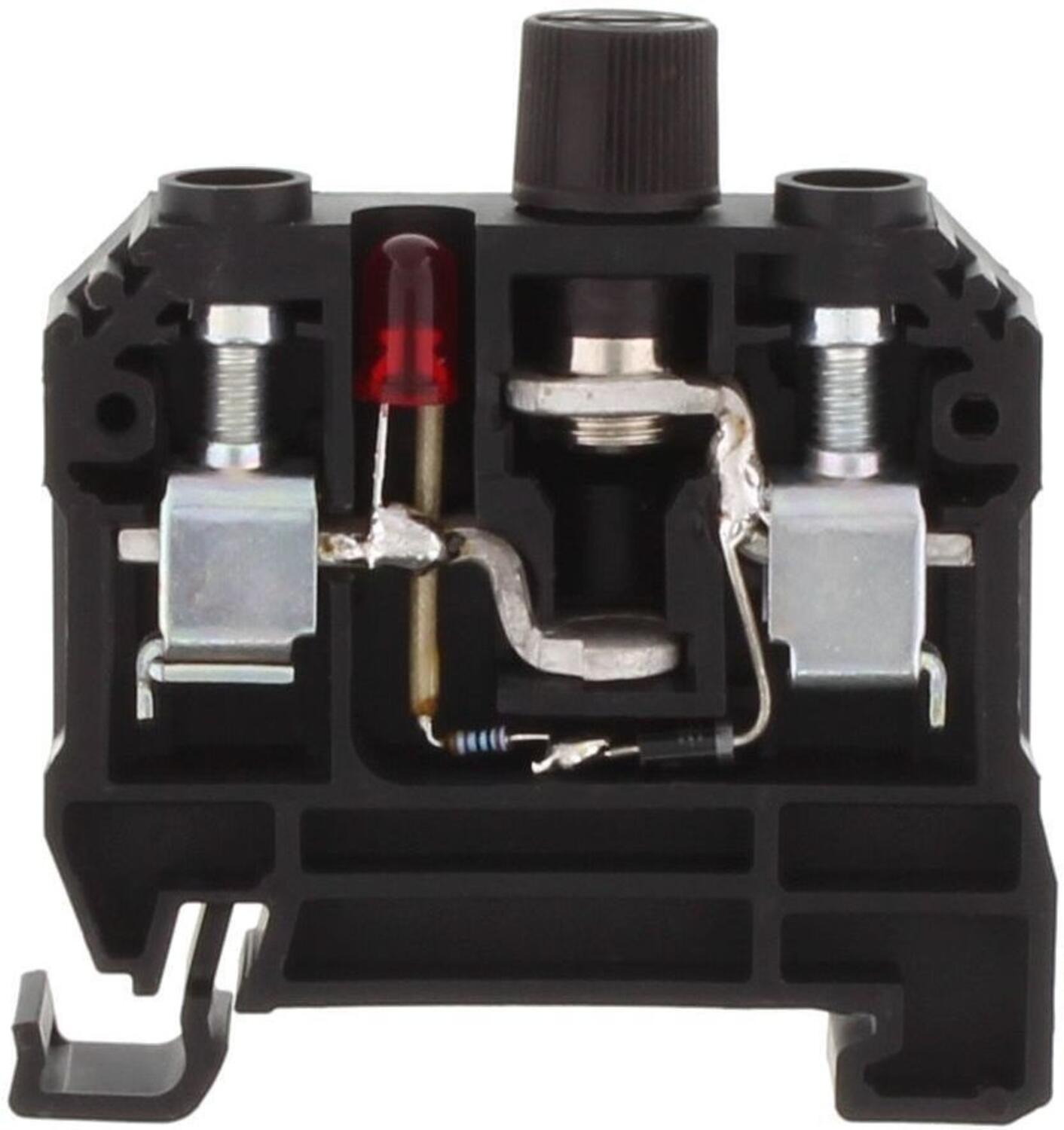

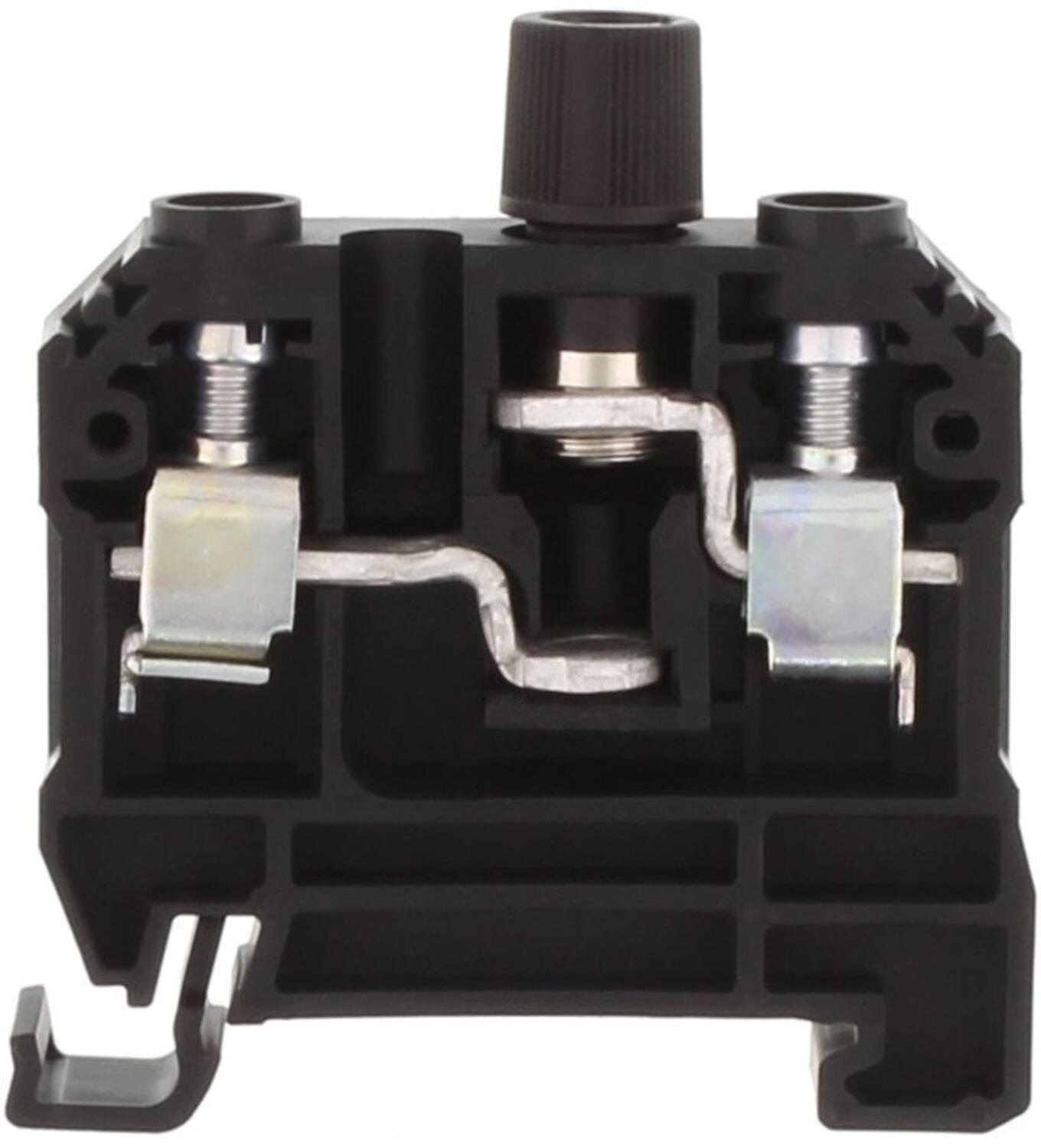

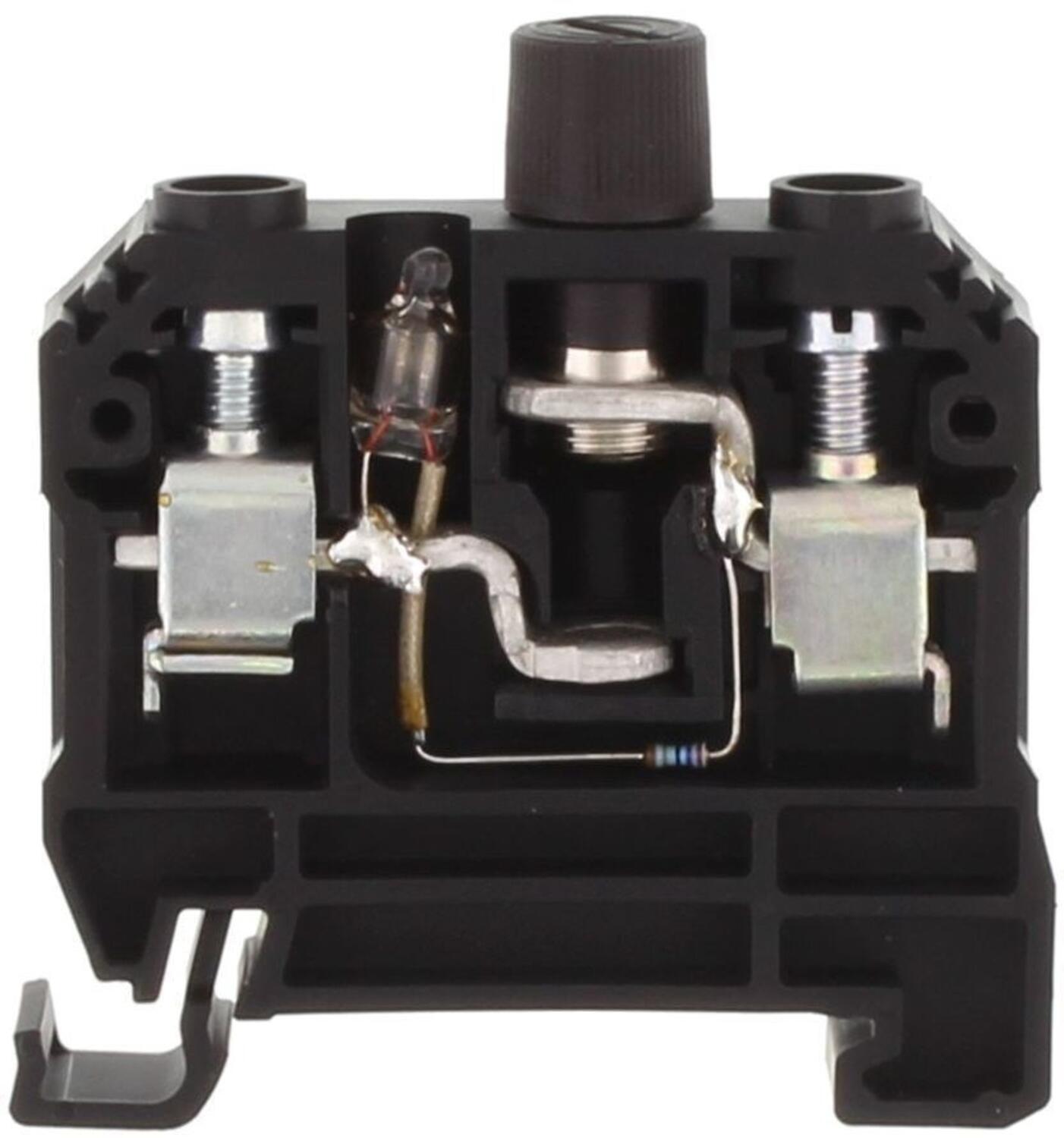

Fused terminal SK 1

The SK 1 fused terminals are constructed with a screw cap are designed for 5 x20 fuses (without indicator) and 5 x 25-sized (with indicator).

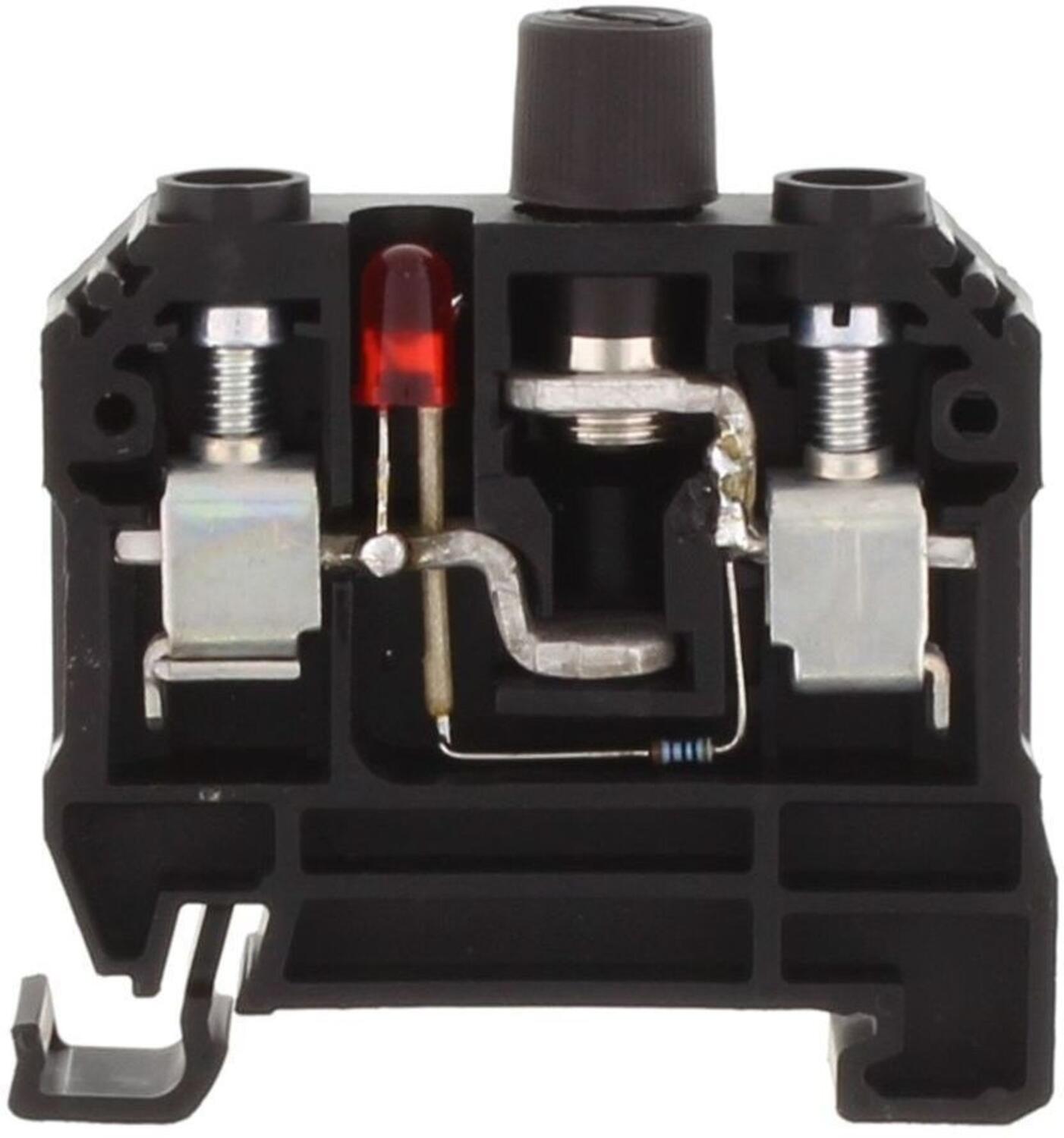

Fuses are screwed into the fused terminal via the screw cap. Status displays using LEDs, neon indicator lamps are also available for a wide variety of voltage ranges.



Features of SK 1

  • Terminal housing PA 6.6 UL 94-V0 glass-fibre reinforced
  • High continuous-use temperature range
  • Fuses are screwed into the fused terminal via the screw cap

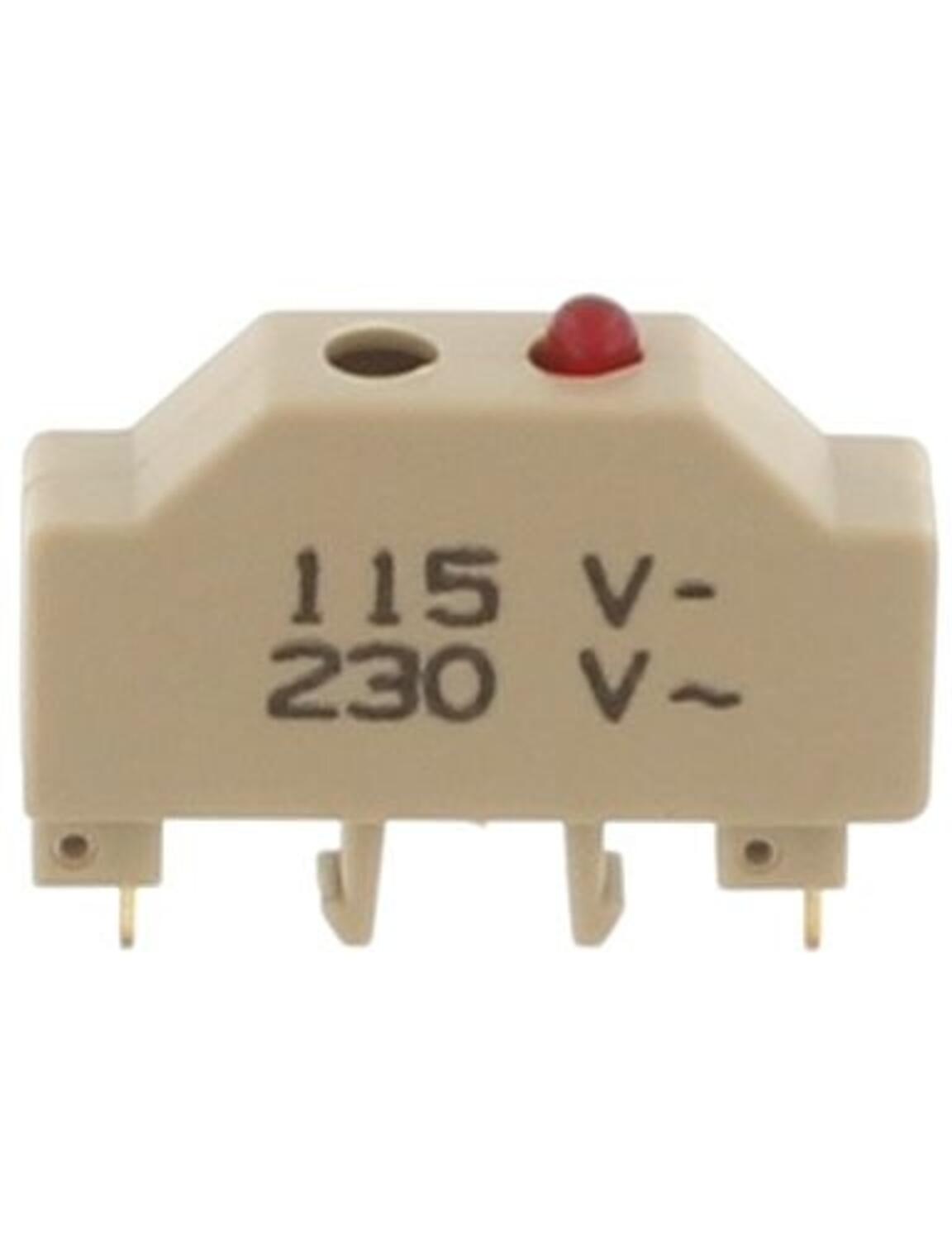

  • Fused terminals are available with status displays for a variety of voltage ranges

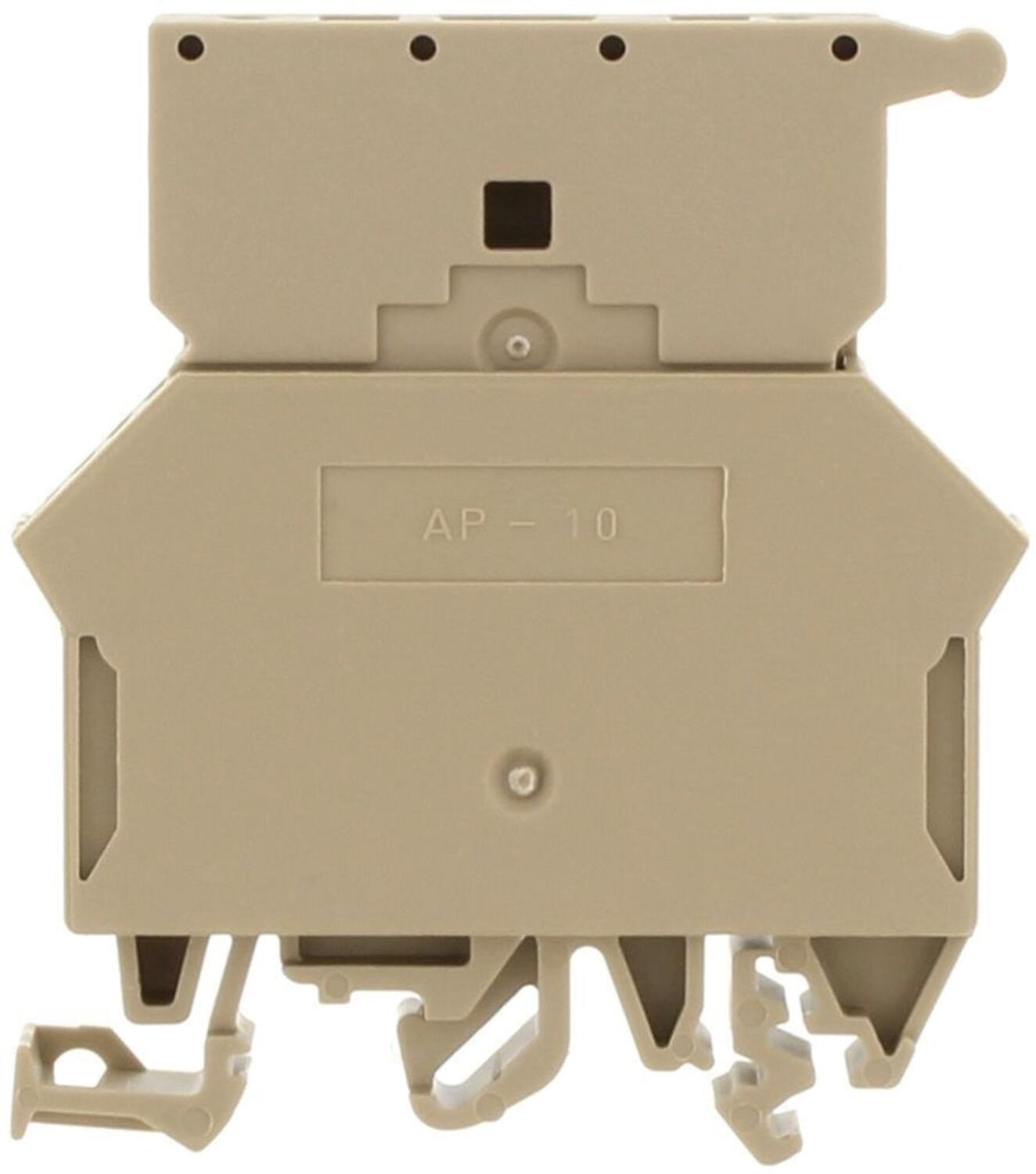

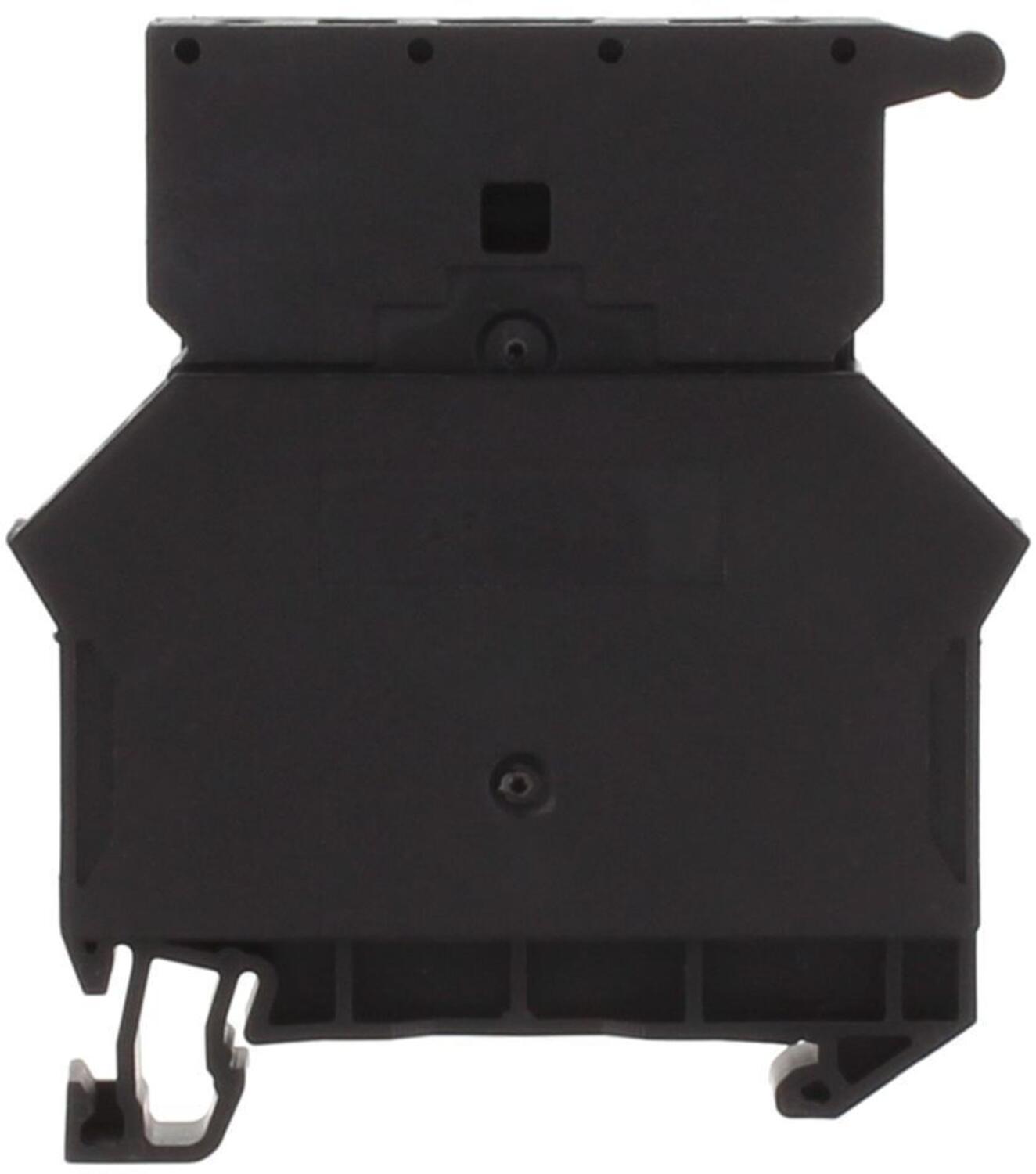

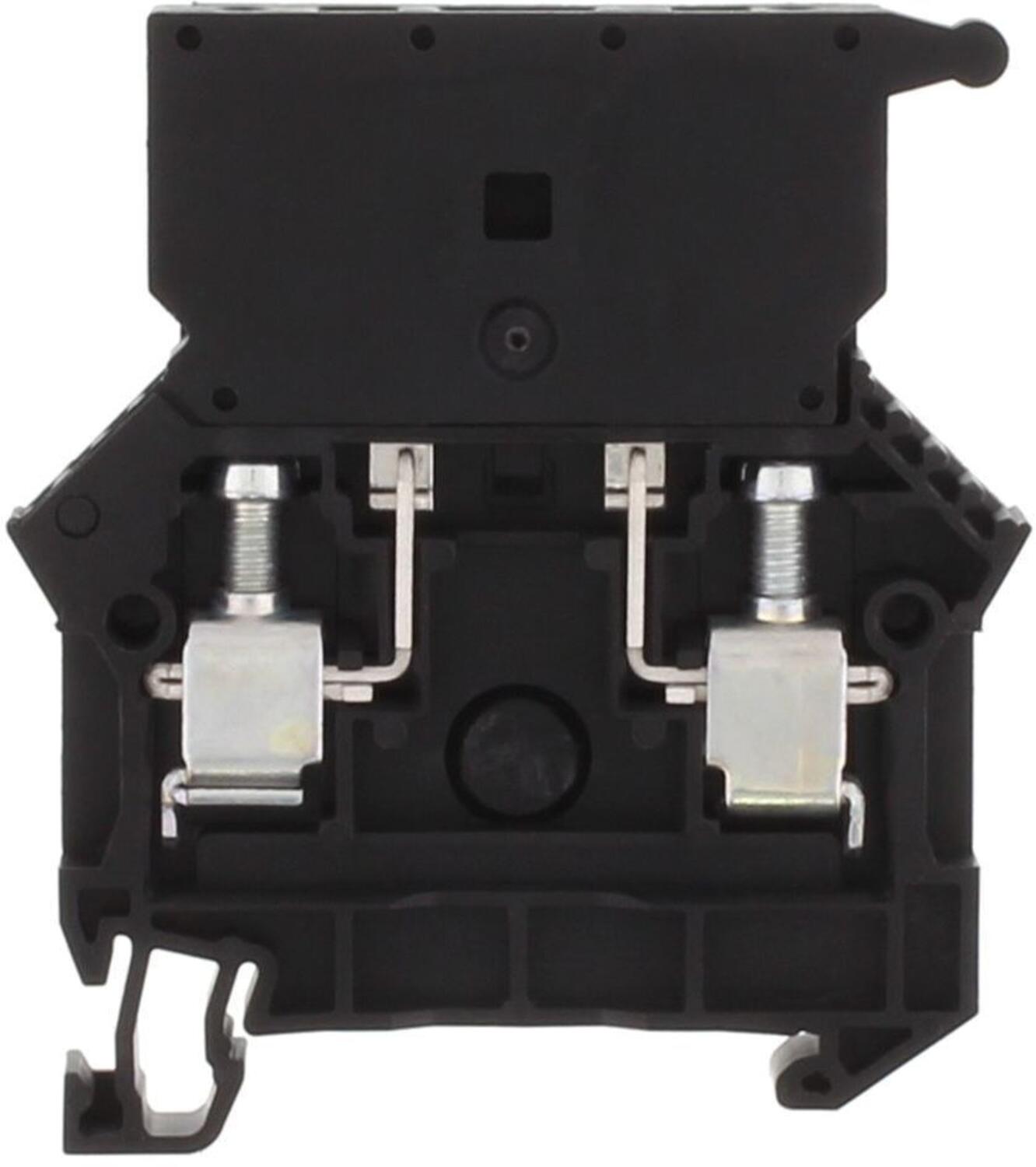

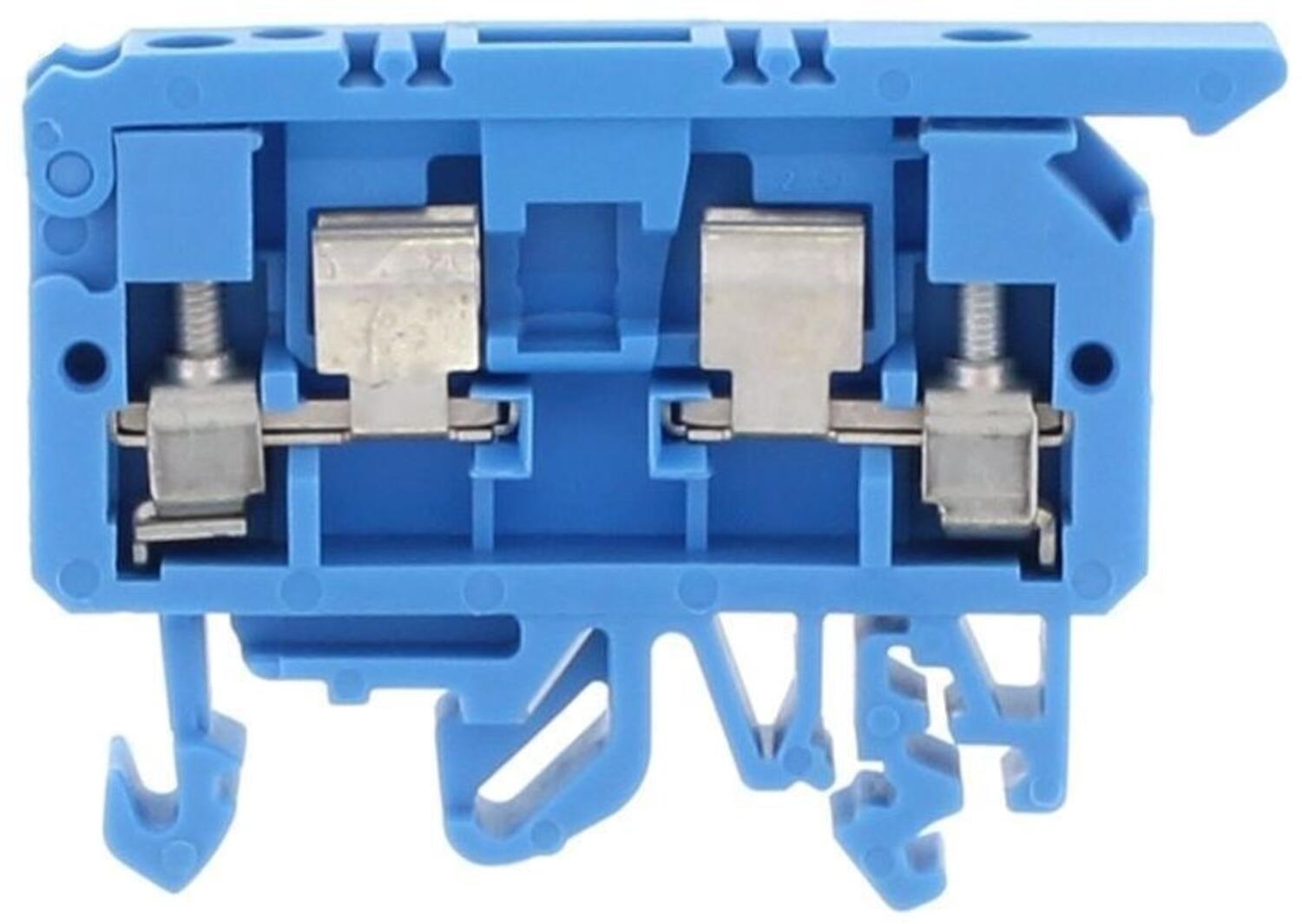

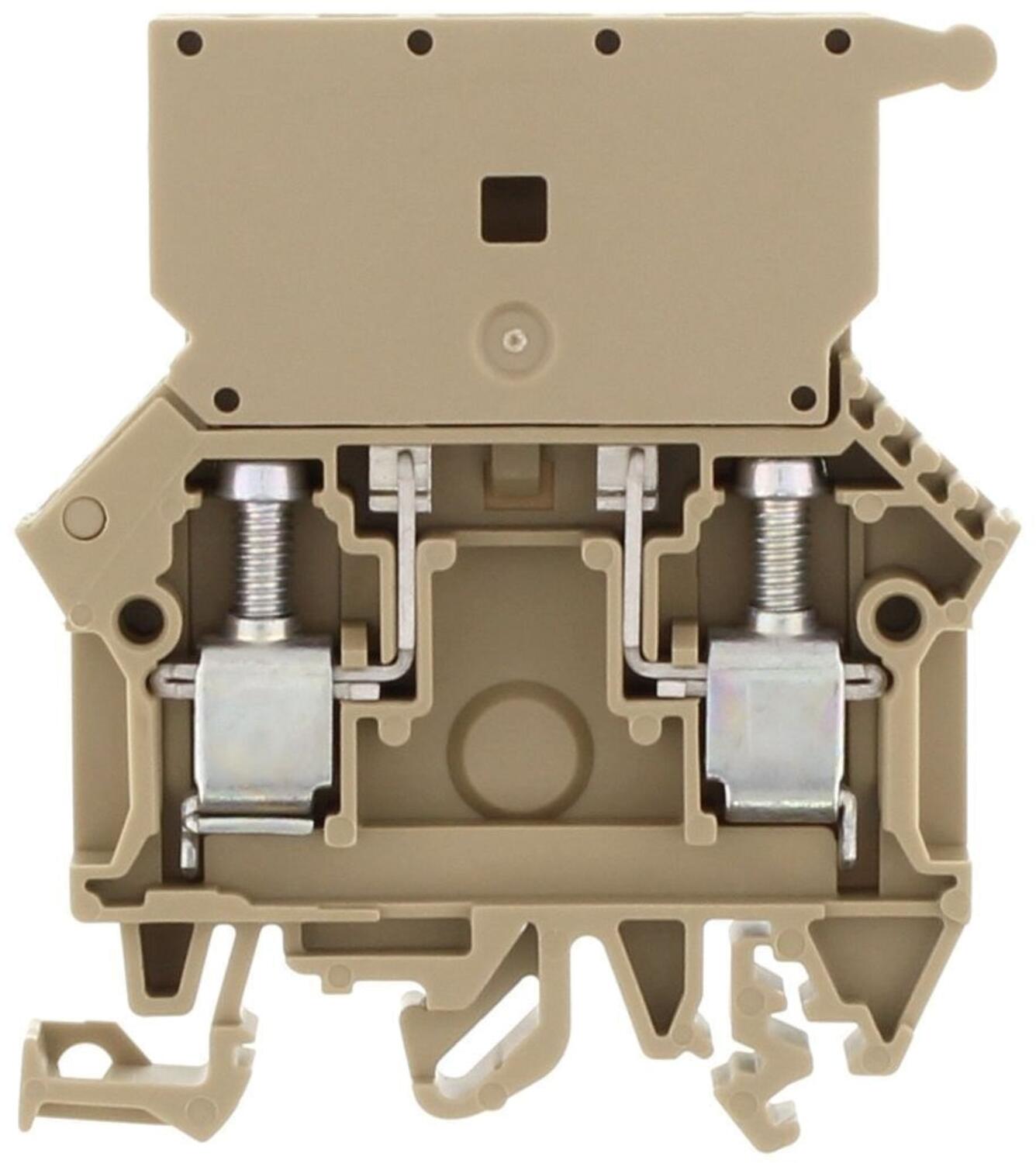

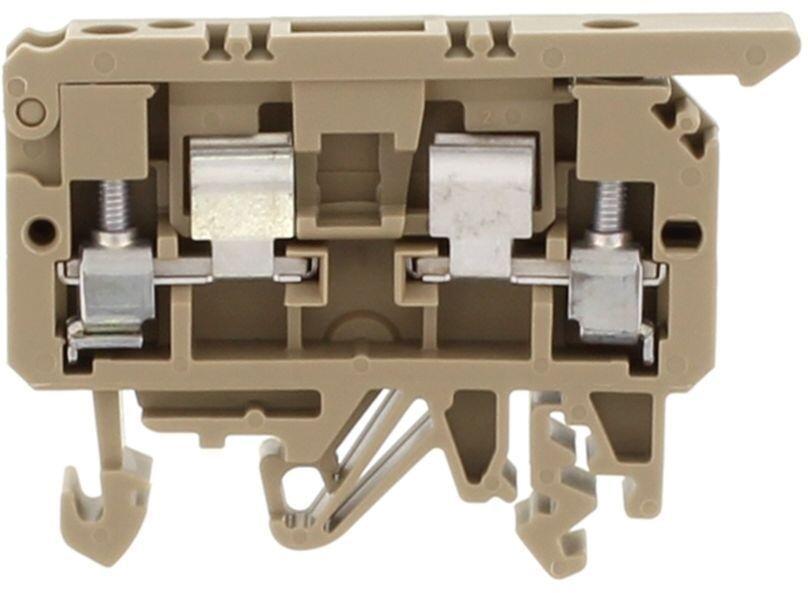

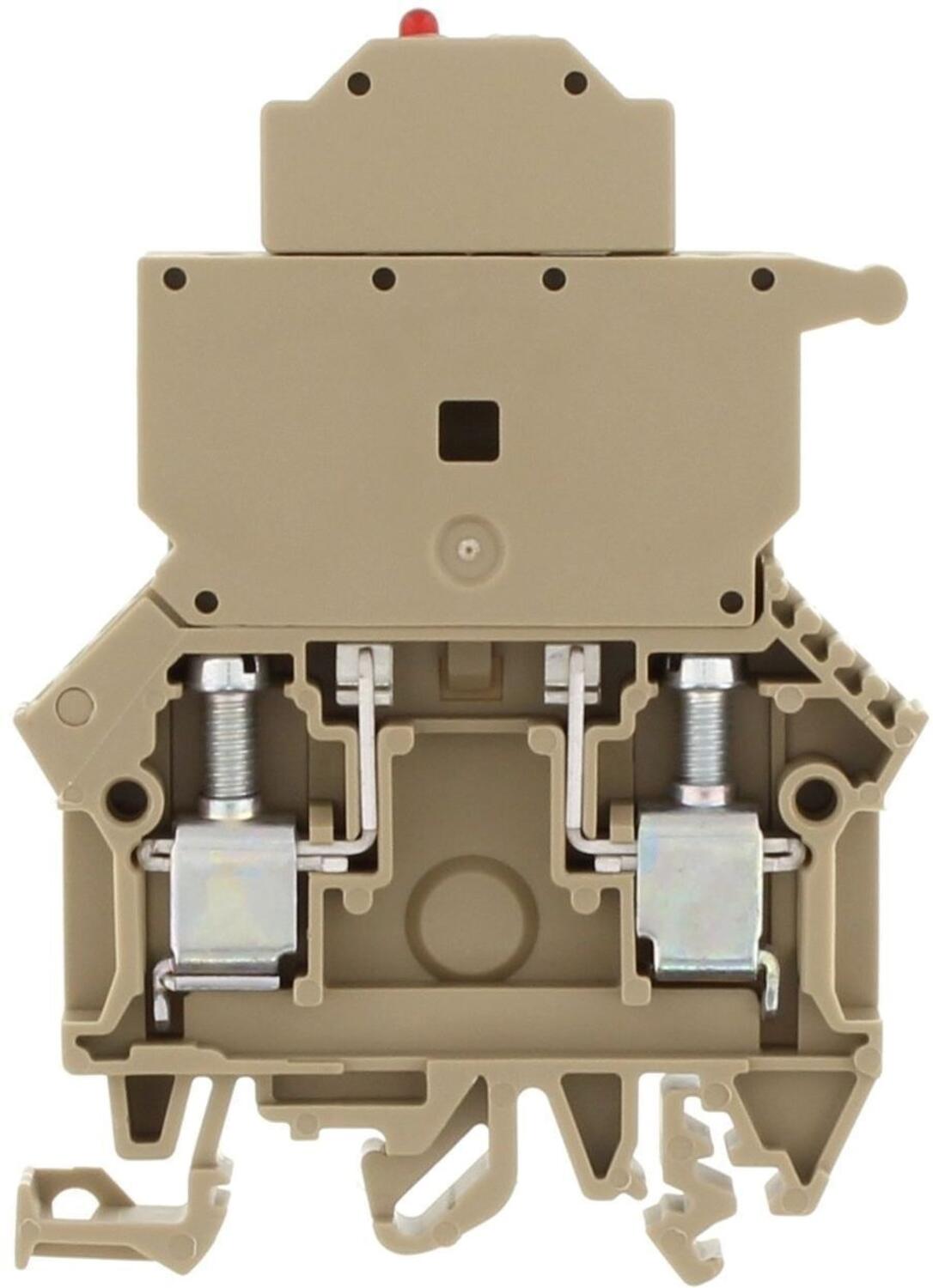

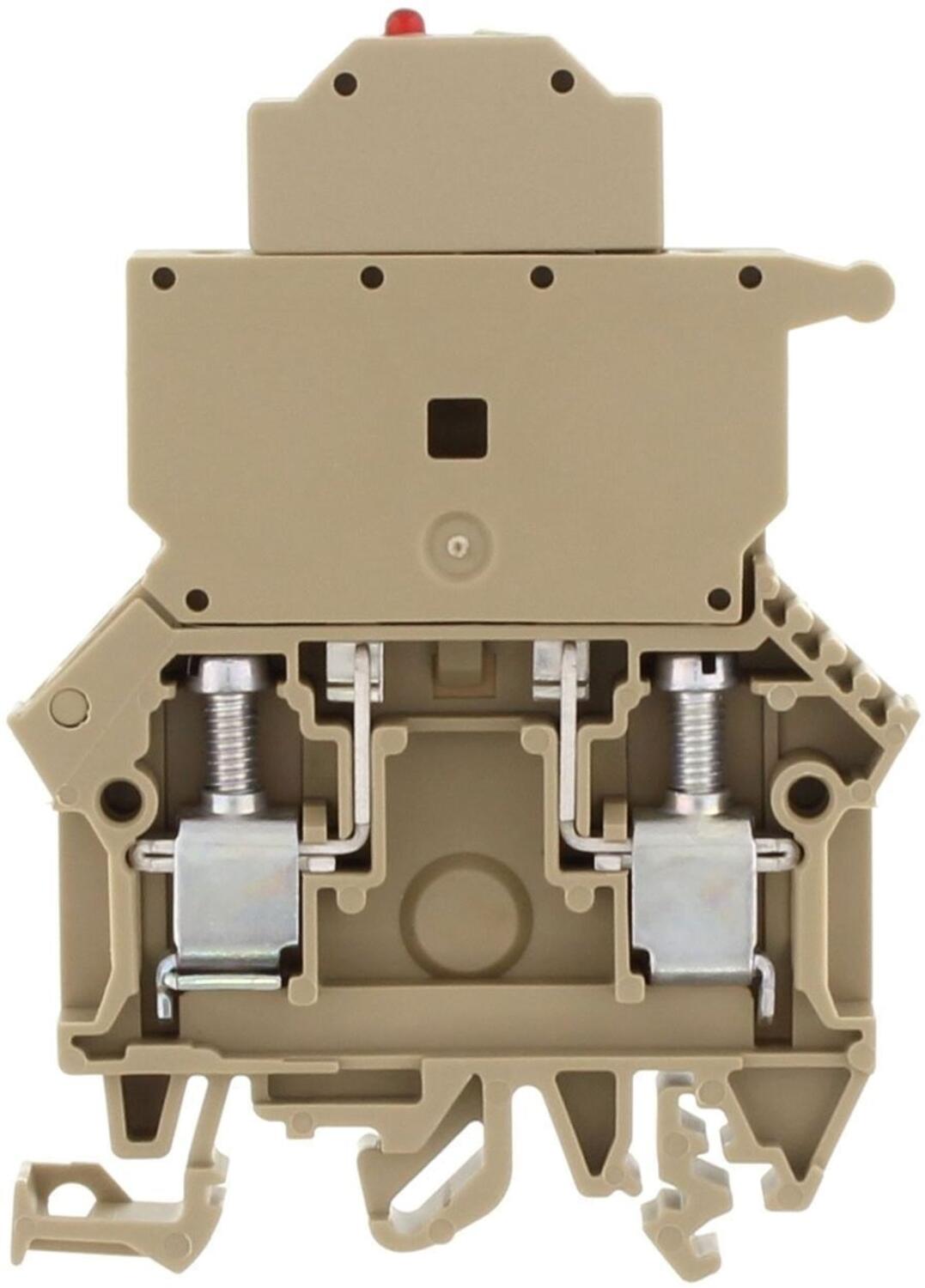

Fuse disconnect terminal SIK 10/SIK 10/Z

This is the old version of fuse-disconnect terminals features a hinged lever that can be locked into its open position for supporting the micro-fuse.



Features of the SIK 10/SIK 10/Z

  • Combi-foot can snap on to TS 32/TS 35 rails
  • Connection cross-section up to 10 mm2
  • SIK 10 holds fuses (5 x 20/5 x 25/5 x 30)
  • SIK 10 Z holds fuses (6.3 x 32/6.3 x 25)





Read more
  • Material polyamide 6.6
  • Temperature resistance -40ºC...+120ºC
  • Fire-resistance class V0 - SSIK
  • LED indicator
  • Pluggable cross connectores - SSIK Range

Selected variant


Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Cross-Section 4 mm²
Color Black
Fuse max 10 A
Fuse size 5 x 20 / 5 x 25 / 5 x 30 mm
Mounting TS 35/7,5
Rated impulse voltage 6 kV
Overvoltage category III
Contamination degree 3
Approvals UL, CSA, CSA US, KEMA KUR
Length 58 mm
Width 6.1 mm
Height TS 35/7.5 70 mm
Connections 2
Number of levels 1
Plug gauge acc. EN 60 947-1 A4
Cross connect channels 2
Cross section single wire from 0.14 mm²
Cross section single wire to 6 mm²
Cross section stranded wire from 0.14 mm²
Cross section stranded wire to 6 mm²
Cross section stranded with ferrule from 0.14 mm²
Cross section stranded with ferrule to 4 mm²
Rated wire cross section from (AWG) 22
Rated wire cross section to (AWG) 10
Stripping Length 9 mm
Screw size M 3
Screw type Slotted
Torque Min 0.5
Torque max 1
Insulation Material Polyamide 6.6
Flamklass UL94-V0
Operating temperature from -40 °C
Operating temperature to 140 °C
Rated Voltage To UL 600 V
Rated Current To UL 6.3 A
UL test standard UL 1059
Voltage CSA 600 V
Rated Current CSA 6.3 A
CSA test standard C22.2 No 158
Rated voltage CSAus 600 V
Rated current CSAus 6.3 A
CSAus test standard UL 1059
KEMA KEUR test standard EN 60947-7-3:2009
Tariff code 85369010
Country of origin DE
Weight 19 g
Pack Size 50
Type of terminal Screw Terminals, DIN Rail terminals

Downloads

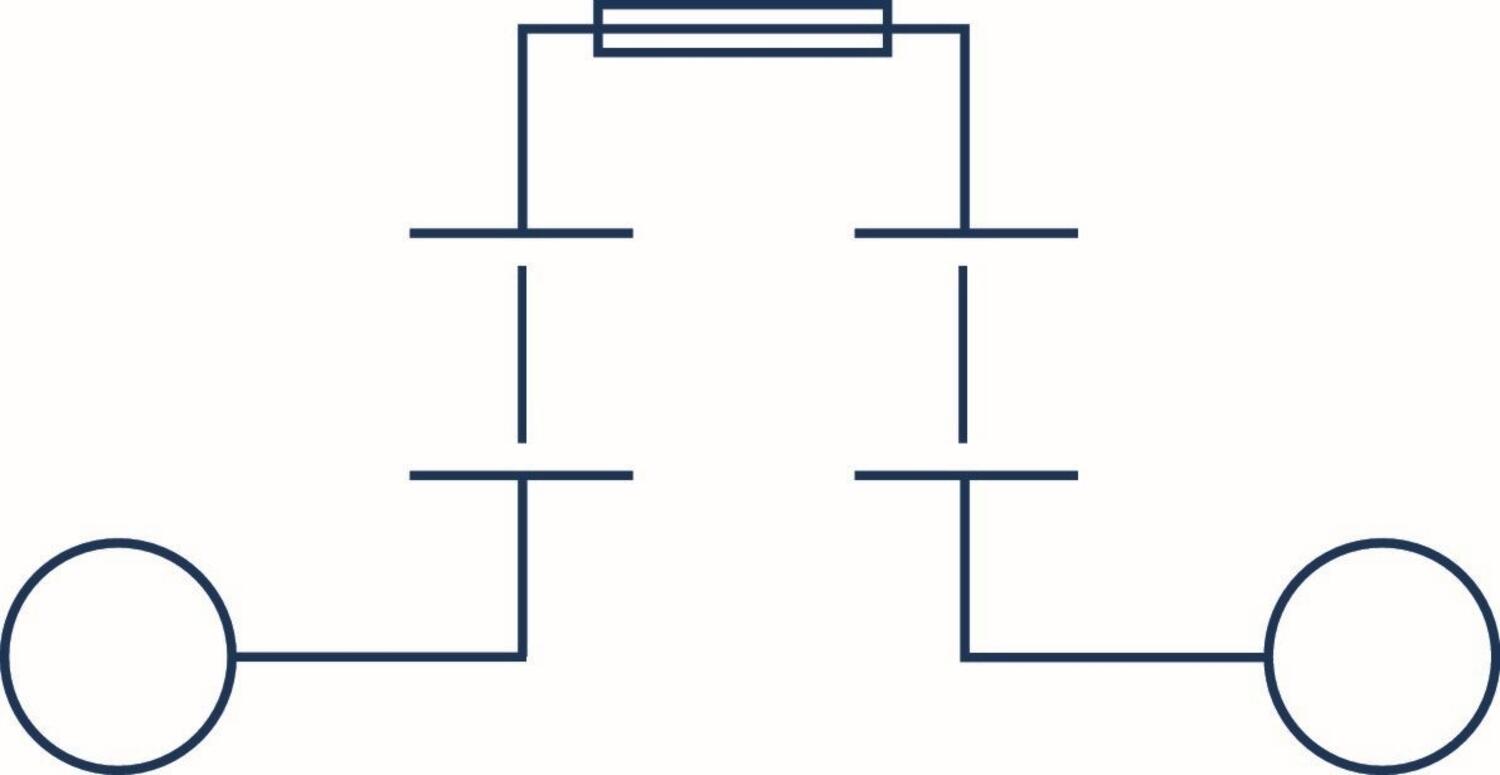

Measurements and connections

Product description

Conta-Clip offers a wide range of Fuse-disconnect terminals to suit all requirements.



The latest addition to the range is the SSIK 4 and SSIK 6, these complement the SRK range of standard terminals.

These terminals are made from glass-fibre re-inforced polyamide 6.6, giving the terminal a higher operating range and good stability on the rail.



Features of the SSIK range

  • Up to 140°c
  • Two cross connect channels for plugin SQI cross connectors
  • Hinged lever with room for spare fuse
  • Optional LED module
  • SSIK4 fuse sizes 5x20, 5x25 and 5x30
  • SSIK6 fuse sizes 6.3x25 and 6.3x32
  • Can be used with solid link as a disconnect terminal
  • Two or three disconnect levers can be operated simultaneously by using the VBS connection sleeves



Fuse-disconnect terminal STK 1/STK 2

The STK 1 and the STK 2 fuse-disconnect terminals are a low profile and compact shape so they take up minimal space.

The hinged lever is used to hold the fuse and locks into its open position. LED status displays are available in a variety of voltage ranges.



Features of the STK 1/STK 2

  • Combi-foot snaps on to TS 35/TS 32 or mounting foot for the TS 15 rail
  • Connection cross-section up to 4 mm2
  • STK1 and STK2 hold fuses (5 x 20/5 x 25)
  • Compact design
  • STK2 - Two or three disconnect levers can be operated simultaneously by using the VBS connection sleeves
  • Can be used with solid link as disconnect terminal



Fused terminal SK 1

The SK 1 fused terminals are constructed with a screw cap are designed for 5 x20 fuses (without indicator) and 5 x 25-sized (with indicator).

Fuses are screwed into the fused terminal via the screw cap. Status displays using LEDs, neon indicator lamps are also available for a wide variety of voltage ranges.



Features of SK 1

  • Terminal housing PA 6.6 UL 94-V0 glass-fibre reinforced
  • High continuous-use temperature range
  • Fuses are screwed into the fused terminal via the screw cap
  • Fused terminals are available with status displays for a variety of voltage ranges

Fuse disconnect terminal SIK 10/SIK 10/Z

This is the old version of fuse-disconnect terminals features a hinged lever that can be locked into its open position for supporting the micro-fuse.



Features of the SIK 10/SIK 10/Z

  • Combi-foot can snap on to TS 32/TS 35 rails
  • Connection cross-section up to 10 mm2
  • SIK 10 holds fuses (5 x 20/5 x 25/5 x 30)
  • SIK 10 Z holds fuses (6.3 x 32/6.3 x 25)





Accessories

Related products

Add product as a new cart row

You already added this product. Choose whether to increase quantity on the existing row or add the product as a new row.

Related

TER - control stations
Product news

Quality solutions for motion controls

TER - Tecno Elettrica Ravasi, is our Italian supplier specializing in the manufacture of control stations. TER has over 60 years of experience in the manufacture of control stations.

Stego Loop Heater lämmityselementit
Product news

LOOP Heater for optimal heat distribution

Thanks to their loop design, LOOP heating elements offer excellent heating performance and ensure optimal heat distribution. Read more now!

PISA-M
Product news

Compact electronic overcurrent protection PISA-M

PISA-M is a 4-channel electronic fuse for 12 and 24 V DC systems. The smallest 4-channel electronic fuse with a width of only 22.5 mm!

Delcon relays
Product news

An effective solution Delcon CRA5

Delcon's CRA5 plug-in relay revolutionizes the control of difficult-to-handle DC loads. Inductive loads, frequent switching, and high DC voltages are a piece of cake for these relays.

LOCC-Box Mini
Product news

LOCC-Box Mini

The Lütze LOCC-Box is an intelligent electronic overcurrent protection device that provides reliable protection for 12/24 V DC systems in a narrow housing measuring just 8.1 mm. Integrated + and - terminals save space on the DIN rail.

DF Electric
Product news

DF Electric – new supplier for fuse solutions

DF Electric is specialized in the manufacturing of fuse links, fuse holders and control transformers since 1987. Presently the company is leading the Spanish market and is also very active in many export markets due to its competitive range of products.

Articles Cross-Section Color Fuse max Fuse size Mounting Rated impulse voltage Overvoltage category Contamination degree Approvals Additional information Length Width Height TS 35/7.5 Height TS 32 Height TS 15/5.5 Height Connections Number of levels Plug gauge acc. EN 60 947-1 Cross connect channels Number of test pick off options Cross section single wire from Cross section single wire to Cross section stranded wire from Cross section stranded wire to Cross section stranded with ferrule from Cross section stranded with ferrule to Rated wire cross section from (AWG) Rated wire cross section to (AWG) Stripping Length Screw size Screw type Torque Min Torque max Insulation Material Flamklass Operating temperature from Operating temperature to Rated voltage UL Rated Voltage To UL Rated Current To UL UL test standard Voltage CSA Rated Current CSA CSA test standard Rated voltage CSAus Rated current CSAus CSAus test standard Rated voltage cUL Rated current cUL cUL test standard GL test standard EAC test standard KEMA KEUR test standard Tariff code Country of origin Weight Pack Size Type of terminal Nemko test standard
Terminal block with orange top and black base, designed for electrical connections.

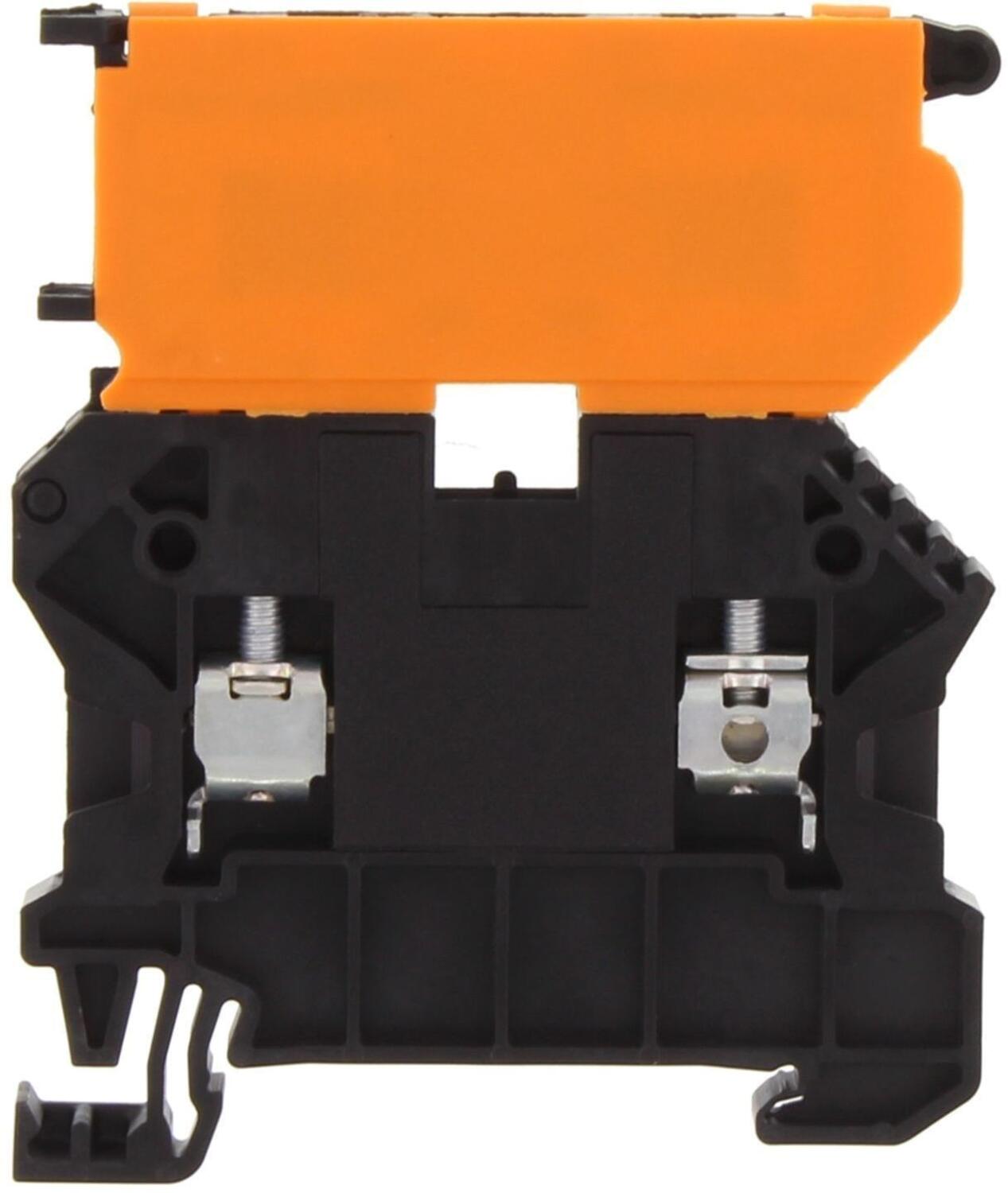

SSIK 4/2A, 4mm² Fuse disconnect terminal, 5x20, 5x25, 5x30, 10A
Art:
17150.4 Copied
4 mm²
Black
10 A
5 x 20 / 5 x 25 / 5 x 30 mm
TS 35/7,5
6 kV
III
3
UL, CSA, CSA US, KEMA KUR
58 mm
6.1 mm
70 mm
2
1
A4
2
0.14 mm²
6 mm²
0.14 mm²
6 mm²
0.14 mm²
4 mm²
22
10
9 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V0
-40 °C
140 °C
600 V
6.3 A
UL 1059
600 V
6.3 A
C22.2 No 158
600 V
6.3 A
UL 1059
EN 60947-7-3:2009
85369010
DE
19 g
50
Screw Terminals, DIN Rail terminals

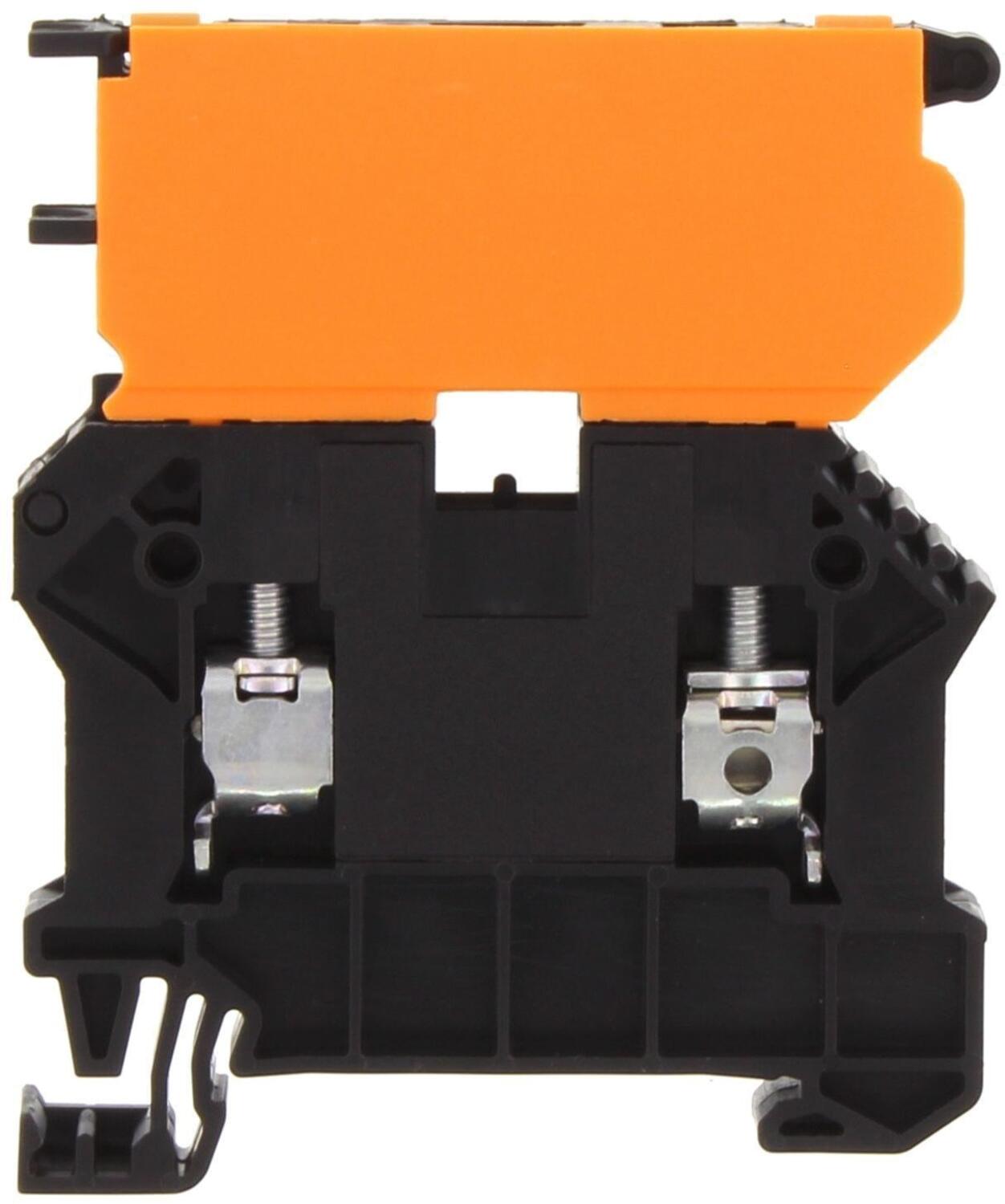

Terminal block with black and orange design, ideal for electrical installations and connections.
SSIK 6/2A, 6mm² Fuse disconnect terminal, 6.3x25, 6.3x32, 10A
Art:
17151.4 Copied
6 mm²
Black
10 A
6.3 x 25 / 6.3 x 32 mm
TS 35/7,5
6 kV
III
3
UL, CSA, CSA US, KEMA KUR
59 mm
8.1 mm
70 mm
2
1
A5
2
0.2 mm²
10 mm²
0.2 mm²
10 mm²
0.2 mm²
6 mm²
22
8
10 mm
M 3
Slotted
0.8
1.6
Polyamide 6.6
UL94-V0
-40 °C
140 °C
600 V
10 A
UL 1059
600 V
10 A
C22.2 No 158
600 V
10 A
UL 1059
EN 60947-7-3:2009
85369010
DE
24.38 g
50
Screw Terminals, DIN Rail terminals
Terminal block with black and orange design, ideal for electrical installations.
SSIK 4/2A/LED 12-30V AC/DC, 4mm² Fuse disconnect terminal with LED, 5x20, 5x25, 5x30, 10A
Art:
17171.4 Copied
4 mm²
Black
10 A
5 x 20 / 5 x 25 / 5 x 30 mm
TS 35/7,5
6 kV
III
3
UL, CSA, CSA US, KEMA KUR
with LED status display
58 mm
6.1 mm
84 mm
2
1
A4
2
0.14 mm²
6 mm²
0.14 mm²
6 mm²
0.14 mm²
4 mm²
22
10
9 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V0
-40 °C
140 °C
600 V
6.3 A
UL 1059
600 V
6.3 A
C22.2 No 158
600 V
6.3 A
UL 1059
EN 60947-7-3:2009
85369010
DE
19.96 g
25
Screw Terminals, DIN Rail terminals
Terminal block with black and orange design, ideal for electrical installations.
SSIK 4/2A/LED 30-60V AC/DC 4mm² Fuse disconnect terminal with LED, 5x20, 5x25, 5x30, 10A
Art:
17172.4 Copied
4 mm²
Black
10 A
5 x 20 / 5 x 25 / 5 x 30 mm
TS 35/7,5
6 kV
III
3
UL, CSA, CSA US, KEMA KUR
with LED status display
58 mm
6.1 mm
84 mm
2
1
A4
2
0.14 mm²
6 mm²
0.14 mm²
6 mm²
0.14 mm²
4 mm²
22
10
9 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V0
-40 °C
140 °C
600 V
6.3 A
UL 1059
600 V
6.3 A
C22.2 No 158
600 V
6.3 A
UL 1059
EN 60947-7-3:2009
85369010
DE
19.96 g
25
Screw Terminals, DIN Rail terminals
Terminal block with black and orange design, ideal for electrical installations.
SSIK 4/2A/LED 110-250V AC/DC 4mm² Fuse disconnect terminal with LED, 5x20, 5x25, 5x30, 10A
Art:
17173.4 Copied
4 mm²
Black
10 A
5 x 20 / 5 x 25 / 5 x 30 mm
TS 35/7,5
6 kV
III
3
UL, CSA, CSA US, KEMA KUR
with LED status display
58 mm
6.1 mm
84 mm
2
1
A4
2
0.14 mm²
6 mm²
0.14 mm²
6 mm²
0.14 mm²
4 mm²
22
10
9 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V0
-40 °C
140 °C
600 V
6.3 A
UL 1059
600 V
6.3 A
C22.2 No 158
600 V
6.3 A
UL 1059
EN 60947-7-3:2009
85369010
DE
19.96 g
25
Screw Terminals, DIN Rail terminals
Terminal block from CONTA-CLIP with black and orange design, ideal for electrical installations.

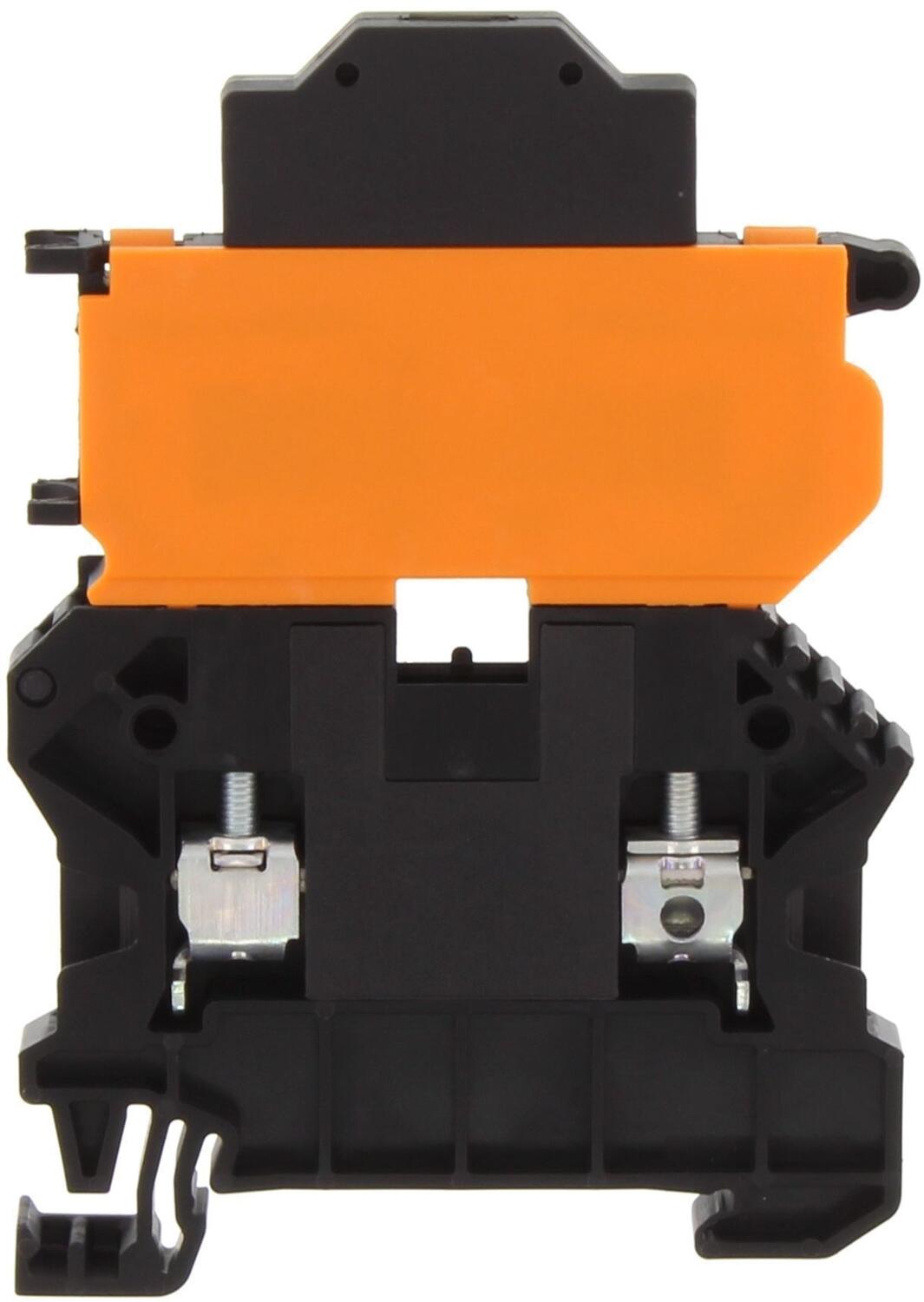

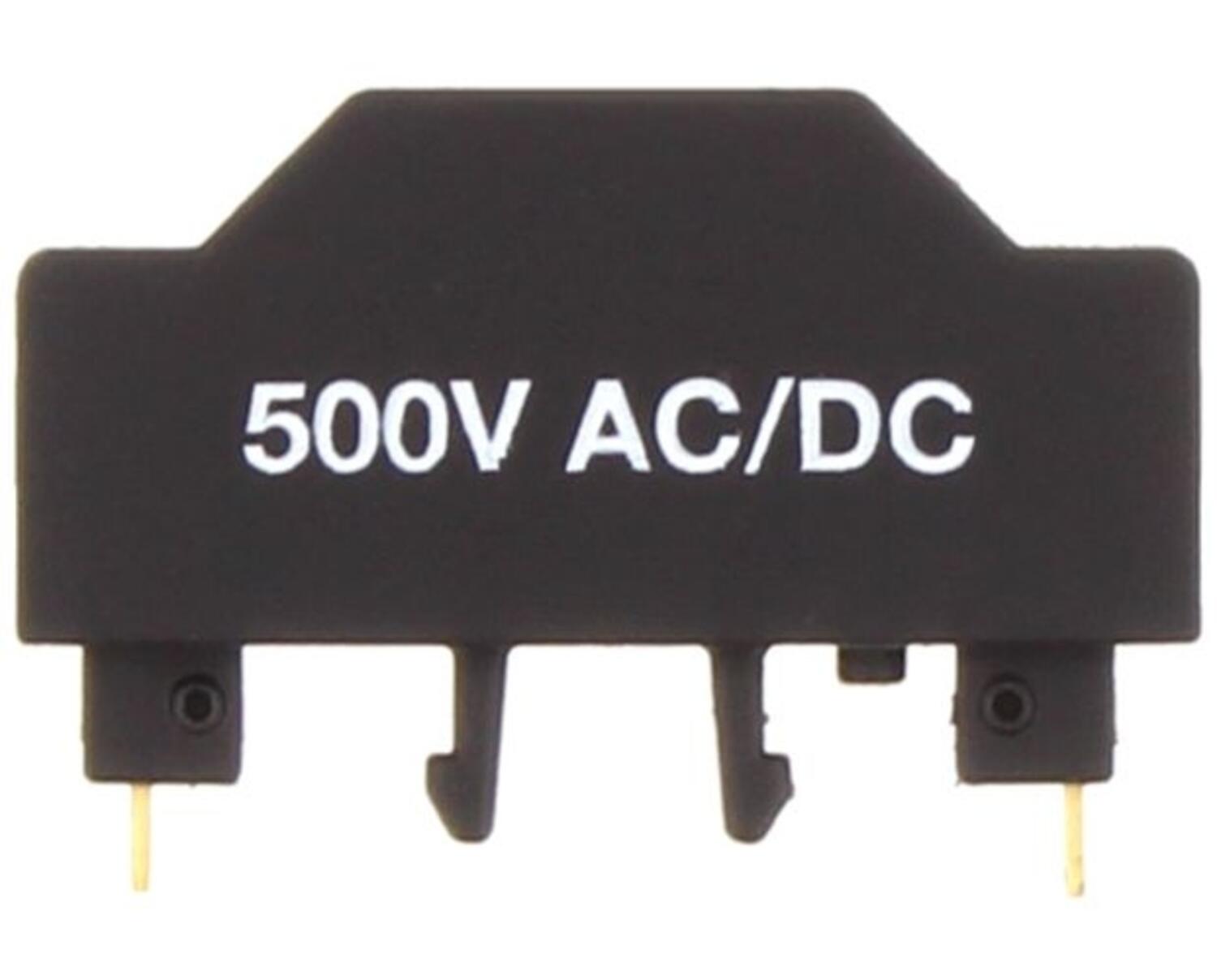

SSIK 4/2A/LED 500V AC/DC 4mm² Fuse disconnect terminal with LED, 5x20, 5x25, 5x30, 10A
Art:
17174.4 Copied
4 mm²
Black
10 A
5 x 20 / 5 x 25 / 5 x 30 mm
TS 35/7,5
6 kV
III
3
UL, CSA, CSA US, KEMA KUR
with LED status display
58 mm
6.1 mm
84 mm
2
1
A4
2
0.14 mm²
6 mm²
0.14 mm²
6 mm²
0.14 mm²
4 mm²
22
10
9 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V0
-40 °C
140 °C
600 V
6.3 A
UL 1059
600 V
6.3 A
C22.2 No 158
600 V
6.3 A
UL 1059
EN 60947-7-3:2009
85369010
DE
19.96 g
25
Screw Terminals, DIN Rail terminals
Terminal block with black and orange design, ideal for electrical installations
SSIK 6/2A/LED 12-30V AC/DC 6mm² Fuse disconnect terminal with LED, 5x20, 5x25, 5x30, 10A
Art:
17175.4 Copied
6 mm²
Black
10 A
6.3 x 25 / 6.3 x 32 mm
TS 35/7,5
6 kV
III
3
UL, CSA, CSA US, KEMA KUR
with LED status display
59 mm
8.1 mm
84 mm
2
1
A5
2
0.2 mm²
10 mm²
0.2 mm²
10 mm²
0.2 mm²
6 mm²
22
8
10 mm
M 3,5
Slotted
0.8
1.6
Polyamide 6.6
UL94-V0
-40 °C
140 °C
600 V
10 A
UL 1059
600 V
10 A
C22.2 No 158
600 V
10 A
UL 1059
EN 60947-7-3:2009
85369010
DE
26.38 g
50
Screw Terminals, DIN Rail terminals
Terminal block with black and orange design, ideal for electrical installations
SSIK 6/2A/LED 30-60V AC/DC 6mm² Fuse disconnect terminal with LED, 5x20, 5x25, 5x30, 10A
Art:
17176.4 Copied
6 mm²
Black
10 A
6.3 x 25 / 6.3 x 32 mm
TS 35/7,5
6 kV
III
3
UL, CSA, CSA US, KEMA KUR
with LED status display
59 mm
8.1 mm
84 mm
2
1
A5
2
0.2 mm²
10 mm²
0.2 mm²
10 mm²
0.2 mm²
6 mm²
22
8
10 mm
M 3,5
Slotted
0.8
1.6
Polyamide 6.6
UL94-V0
-40 °C
140 °C
600 V
10 A
UL 1059
600 V
10 A
C22.2 No 158
600 V
10 A
UL 1059
EN 60947-7-3:2009
85369010
BG
26.38 g
50
Screw Terminals, DIN Rail terminals
Terminal block with black and orange design, ideal for electrical installations
SSIK 6/2A/LED 110-250V AC/DC 6mm² Fuse disconnect terminal with LED, 5x20, 5x25, 5x30, 10A
Art:
17177.4 Copied
6 mm²
Black
10 A
6.3 x 25 / 6.3 x 32 mm
TS 35/7,5
6 kV
III
3
UL, CSA, CSA US, KEMA KUR
with LED status display
59 mm
8.1 mm
84 mm
2
1
A5
2
0.2 mm²
10 mm²
0.2 mm²
10 mm²
0.2 mm²
6 mm²
22
8
10 mm
M 3,5
Slotted
0.8
1.6
Polyamide 6.6
UL94-V0
-40 °C
140 °C
600 V
10 A
UL 1059
600 V
10 A
C22.2 No 158
600 V
10 A
UL 1059
EN 60947-7-3:2009
85369010
DE
26.38 g
50
Screw Terminals, DIN Rail terminals
Terminal block with black and orange design, ideal for electrical installations
SSIK 6/2A/LED 500V AC/DC 6mm² Fuse disconnect terminal with LED, 5x20, 5x25, 5x30, 10A
Art:
17178.4 Copied
6 mm²
Black
10 A
6.3 x 25 / 6.3 x 32 mm
TS 35/7,5
6 kV
III
3
UL, CSA, CSA US, KEMA KUR
with LED status display
59 mm
8.1 mm
84 mm
2
1
A5
2
0.2 mm²
10 mm²
0.2 mm²
10 mm²
0.2 mm²
6 mm²
22
8
10 mm
M 3,5
Slotted
0.8
1.6
Polyamide 6.6
UL94-V0
-40 °C
140 °C
600 V
10 A
UL 1059
600 V
10 A
C22.2 No 158
600 V
10 A
UL 1059
EN 60947-7-3:2009
85369010
BG
26.38 g
50
Screw Terminals, DIN Rail terminals
AC/DC converter for 12-30V, compact design with clear labeling
SST/SSIK/LED 12-30V AC/DC, LED Module for SSIK4/6
Art:
17271.4 Copied
Black
6.3 x 25 / 6.3 x 32 mm
Push in
KEMA KUR
with LED status display
30 mm
6.1 mm
14 mm
Polyamide 6.6
UL94-V0
-40 °C
140 °C
EN 60947-7-3:2009
85369010
DE
1.96 g
10
Screw Terminals, DIN Rail terminals
AC/DC voltage converter for 30-60V, compact design for easy installation
SST/SSIK/LED 30-60V AC/DC, LED Module for SSIK4/6
Art:
17272.4 Copied
Black
6.3 x 25 / 6.3 x 32 mm
Push in
KEMA KUR
with LED status display
30 mm
6.1 mm
14 mm
Polyamide 6.6
UL94-V0
-40 °C
140 °C
EN 60947-7-3:2009
85369010
DE
1.96 g
10
Screw Terminals, DIN Rail terminals
Switch for 110-250V AC/DC with clear labeling
SST/SSIK/LED 110-250V AC/DC, LED Module for SSIK4/6
Art:
17273.4 Copied
Black
6.3 x 25 / 6.3 x 32 mm
Push in
KEMA KUR
with LED status display
30 mm
6.1 mm
14 mm
Polyamide 6.6
UL94-V0
-40 °C
140 °C
EN 60947-7-3:2009
85369010
DE
1.96 g
10
Screw Terminals, DIN Rail terminals
Switch for 500V AC/DC with two connections
SST/SSIK/LED 500V AC/DC, LED Module for SSIK4/6
Art:
17274.4 Copied
Black
6.3 x 25 / 6.3 x 32 mm
Push in
KEMA KUR
with LED status display
30 mm
6.1 mm
14 mm
Polyamide 6.6
UL94-V0
-40 °C
140 °C
EN 60947-7-3:2009
85369010
DE
1.96 g
10
Screw Terminals, DIN Rail terminals
Terminal block from CONTA-CLIP, beige with two connections and springs for secure electrical connection
STK 1 Beige, 4mm² Compact Fuse disconnect terminal , 5x20, 5x25, 5x30, 6.3A, multi-foot
Art:
2190.2 Copied
4 mm²
Beige
6.3 A
5 x 20 / 5 x 25 mm
TS 35/7,5
6 kV
III
3
UL, KEMA KUR
57.5 mm
8 mm
41 mm
45.5 mm
2
1
A4
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
4 mm²
22
12
9 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V2
-40 °C
105 °C
600 V
16 A
UL 1059
EN 60947-7-1:2009, EN 60947-7-3:2009
85369010
CZ
13.83 g
100
Screw Terminals, DIN Rail terminals
Blue connection terminal with two springs and multiple connection points for electrical installations
STK 1 Blue, 4mm² Compact Fuse disconnect terminal , 5x20, 5x25, 5x30, 6.3A
Art:
2190.5 Copied
4 mm²
Blue
6.3 A
5 x 20 / 5 x 25 mm
TS 35/7,5
6 kV
III
3
UL, KEMA KUR
57.5 mm
8 mm
41 mm
45.5 mm
2
1
A4
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
4 mm²
22
12
9 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V2
-40 °C
105 °C
600 V
16 A
UL 1059
EN 60947-7-1:2009, EN 60947-7-3:2009
85369010
CZ
13.83 g
100
Screw Terminals, DIN Rail terminals
Terminal block from CONTA-CLIP, beige with two connections and springs for secure contact.
STK 2 Beige, 4mm² Compact fuse terminal, 5x20, 5x25, 5x30, 6.3A, multi-foot
Art:
1078.2 Copied
4 mm²
Beige
6.3 A
5 x 20 / 5 x 25 mm
TS 35/7,5 and TS 32
4 kV
III
3
UL, CSA, CSA US, KEMA KUR
51.4 mm
8 mm
43.5 mm
39 mm
2
1
A4
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
4 mm²
22
12
9 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V2
-40 °C
105 °C
600 V
16 A
UL 1059
500 V
6.3 A
C22.2 No 158
500 V
6.3 A
UL 1059
EN 60947-7-1:2009, EN 60947-7-3:2009
85369010
CZ
11.14 g
100
Screw Terminals, DIN Rail terminals
Blue connection terminal from CONTA-CLIP, designed for efficient electrical connection.
STK 2 Blue, 4mm² Compact fuse terminal, 5x20, 5x25, 5x30, 6.3A, multi-foot
Art:
1078.5 Copied
4 mm²
Blue
6.3 A
5 x 20 / 5 x 25 mm
TS 35/7,5 and TS 32
4 kV
III
3
UL, CSA, CSA US, KEMA KUR
51.4 mm
8 mm
43.5 mm
39 mm
2
1
A4
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
4 mm²
22
12
9 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V2
-40 °C
105 °C
600 V
16 A
UL 1059
500 V
6.3 A
C22.2 No 158
500 V
6.3 A
UL 1059
EN 60947-7-1:2009, EN 60947-7-3:2009
85369010
CZ
11.14 g
100
Screw Terminals, DIN Rail terminals
Terminal block from CONTA-CLIP, beige with two connections and robust construction
STK 2/15 Beige, 4mm² Compact fuse terminal, 5x20, 5x25, 5x30, 6.3A, TS15
Art:
1190.2 Copied
4 mm²
Beige
6.3 A
5 x 20 / 5 x 25 mm
TS 15/5,5
4 kV
III
3
UL, CSA, CSA US, KEMA KUR
51.4 mm
8 mm
34 mm
2
1
A4
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
4 mm²
22
12
9 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V2
-40 °C
105 °C
600 V
16 A
UL 1059
500 V
6.3 A
C22.2 No 158
500 V
6.3 A
UL 1059
EN 60947-7-1:2009, EN 60947-7-3:2009
85369010
DE
10.26 g
100
Screw Terminals, DIN Rail terminals
Terminal block in beige plastic with metal components for electrical connections
STKD 1 Beige, 4mm² Compact fuse terminal with feed through, 5x20, 5x25, 5x30, 6.3A, multi-foot
Art:
1079.2 Copied
4 mm²
Beige
6.3 A
5 x 20 / 5 x 25 mm
TS 35/7,5 and TS 32
4 kV
III
3
UL, CSA, CSA US, KEMA KUR
67 mm
8 mm
60 mm
55.5 mm
2
2
A4
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
4 mm²
22
12
9 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V2
-40 °C
105 °C
600 V
16 A
UL 1059
500 V
6.3 A
C22.2 No 158
500 V
6.3 A
UL 1059
EN 60947-7-1:2009, EN 60947-7-3:2009
85369010
CZ
21.4 g
50
Screw Terminals, DIN Rail terminals
Blue terminal block with metal brackets and a textured surface, designed for electrical connections.
STKD 1 Blue, 4mm² Compact fuse terminal with feed through, 5x20, 5x25, 5x30, 6.3A, multi-foot
Art:
1079.5 Copied
4 mm²
Blue
6.3 A
5 x 20 / 5 x 25 mm
TS 35/7,5 and TS 32
4 kV
III
3
UL, CSA, CSA US, KEMA KUR
67 mm
8 mm
60 mm
55.5 mm
2
2
A4
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
4 mm²
22
12
9 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V2
-40 °C
105 °C
600 V
16 A
UL 1059
500 V
6.3 A
C22.2 No 158
500 V
6.3 A
UL 1059
EN 60947-7-1:2009, EN 60947-7-3:2009
85369010
CZ
21.4 g
50
Screw Terminals, DIN Rail terminals
Connection module from CONTA-CLIP with beige housing and visible electrical components
STK 1/LED(RD)/24V DC Beige, 4mm² Compact fuse terminal with LED, 24V dc, 5x20, 5x25, 5x30, 6.3A, multi-foot
Art:
2449.2 Copied
4 mm²
Beige
6.3 A
5 x 20 / 5 x 25 mm
TS 35/7,5
III
3
UL, KEMA KUR
with LED status display
57.5 mm
8 mm
41 mm
45.5 mm
2
1
A4
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
4 mm²
22
12
9 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V2
-40 °C
105 °C
600 V
16 A
UL 1059
EN 60947-7-3:2009
85369010
BG
14.28 g
100
Screw Terminals, DIN Rail terminals
Connection module from CONTA-CLIP with beige housing and internal components for electrical connection
STK 1/LED(RD)/230V AC Beige, 4mm² Compact fuse terminal with LED, 230V ac, 5x20, 5x25, 5x30, 6.3A, multi-foot
Art:
2458.2 Copied
4 mm²
Beige
6.3 A
5 x 20 / 5 x 25 mm
TS 35/7,5
III
3
UL, KEMA KUR
with LED status display
57.5 mm
8 mm
41 mm
45.5 mm
2
1
A4
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
4 mm²
22
12
9 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V2
-40 °C
105 °C
600 V
16 A
UL 1059
EN 60947-7-3:2009
85369010
BG
14.28 g
100
Screw Terminals, DIN Rail terminals
Compact electrical component with adjustable control button and internal connections for efficient power management
SK 1/35 PA-G BK, 10mm² Screw top fuse terminal, 5x20mm, 10A
Art:
1367.4 Copied
10 mm²
Black
10 A
5 x 20 mm
TS 35/7,5
4 kV
III
3
CSA, CSA US, KEMA KUR, EAC
52 mm
12.2 mm
62 mm
2
1
A5
1
1
0.2 mm²
10 mm²
0.2 mm²
10 mm²
0.2 mm²
10 mm²
22
8
12 mm
M 4
Slotted
1.2
2
Polyamide 6.6
UL94-V0
-40 °C
140 °C
C22.2 No 158
UL 1059
TR ZU 004/2011
EN 60947-7-3:2009
85369010
DE
33 g
20
Screw Terminals, DIN Rail terminals
Compact electrical component with adjustable button and metal connections, ideal for industrial applications.
SK 1/35 m.K. PA-G BK, 10mm² Screw top fuse terminal, 5x25mm fuse, 10A
Art:
1368.4 Copied
10 mm²
Black
10 A
5 x 25 mm
TS 35/7,5
4 kV
III
3
CSA, CSA US, KEMA KUR, EAC
52 mm
12.2 mm
62 mm
2
1
A5
1
1
0.2 mm²
10 mm²
0.2 mm²
10 mm²
0.2 mm²
10 mm²
22
8
12 mm
M 4
Slotted
1.2
2
Polyamide 6.6
UL94-V0
-40 °C
140 °C
C22.2 No 158
UL 1059
TR ZU 004/2011
EN 60947-7-3:2009
85369010
DE
32.6 g
20
Screw Terminals, DIN Rail terminals
Compact electrical component with metallic parts and an adjustable button, ideal for industrial applications.
SK 1/35 230V AC G PA-G BK
Art:
1375.4 Copied
10 mm²
Black
10 A
5 x 20 mm
TS 35/7,5
4 kV
III
3
CSA, CSA US, KEMA KUR, EAC
with status display
52 mm
12.2 mm
62 mm
2
1
A5
1
0.2 mm²
10 mm²
0.2 mm²
10 mm²
0.2 mm²
10 mm²
22
8
12 mm
M 4
Slotted
1.2
2
Polyamide 6.6
UL94-V0
-40 °C
140 °C
C22.2 No 158
UL 1059
TR ZU 004/2011
EN 60947-7-3:2009
85369010
BG
39.45 g
20
Compact electrical component with adjustable control and internal wiring for efficient operation.
SK 1/35 115V AC G PA-G BK
Art:
1376.4 Copied
10 mm²
Black
10 A
5 x 20 mm
TS 35/7,5
4 kV
III
3
CSA, CSA US, KEMA KUR, EAC
with status display
52 mm
12.2 mm
62 mm
2
1
A5
1
0.2 mm²
10 mm²
0.2 mm²
10 mm²
0.2 mm²
10 mm²
22
8
12 mm
M 4
Slotted
1.2
2
Polyamide 6.6
UL94-V0
-40 °C
140 °C
C22.2 No 158
UL 1059
TR ZU 004/2011
EN 60947-7-3:2009
85369010
DE
39.45 g
20
Compact electrical component with red LED and adjustable button, ideal for industrial use.
SK 1/35 24V DC LED(RD) PA-G BK
Art:
1380.4 Copied
10 mm²
Black
10 A
5 x 20 mm
TS 35/7,5
4 kV
III
3
CSA, CSA US, KEMA KUR, EAC
with LED status display
52 mm
12.2 mm
62 mm
2
1
A5
1
0.2 mm²
10 mm²
0.2 mm²
10 mm²
0.2 mm²
10 mm²
22
8
12 mm
M 4
Slotted
1.2
2
Polyamide 6.6
UL94-V0
-40 °C
140 °C
C22.2 No 158
UL 1059
TR ZU 004/2011
EN 60947-7-3:2009
85369010
BG
39.3 g
20
Connection device with LED light and adjustable button, ideal for industrial use.
SK 1/35 48V DC LED(RD) PA-G BK
Art:
1067.4 Copied
10 mm²
Black
10 A
5 x 20 mm
TS 35/7,5
4 kV
III
3
CSA, CSA US, KEMA KUR, EAC
with LED status display
52 mm
12.2 mm
62 mm
2
1
A5
1
0.2 mm²
10 mm²
0.2 mm²
10 mm²
0.2 mm²
10 mm²
22
8
12 mm
M 4
Slotted
1.2
2
Polyamide 6.6
UL94-V0
-40 °C
140 °C
C22.2 No 158
UL 1059
TR ZU 004/2011
EN 60947-7-3:2009
85369010
BG
39.3 g
20
Connection module with LED indicator and adjustable button, ideal for industrial applications.
SK 1/35 48V AC LED(RD) PA-G BK
Art:
1119.4 Copied
10 mm²
Black
10 A
5 x 20 mm
TS 35/7,5
4 kV
III
3
CSA, CSA US, KEMA KUR, EAC
with LED status display
52 mm
12.2 mm
62 mm
2
1
A5
1
0.2 mm²
10 mm²
0.2 mm²
10 mm²
0.2 mm²
10 mm²
22
8
12 mm
M 4
Slotted
1.2
2
Polyamide 6.6
UL94-V0
-40 °C
140 °C
C22.2 No 158
UL 1059
TR ZU 004/2011
EN 60947-7-3:2009
85369010
BG
39.3 g
20
Terminal block from CONTA-CLIP with two connections and beige color
SIK 10, 10mm² Fuse disconnect terminal, 5x20, 5x25, 5x30, 10A, multi-foot
Art:
1101.2 Copied
10 mm²
Beige
10 A
5 x 20 / 5 x 25 / 5 x 30 mm
TS 35/7,5 and TS 32
8 kV
III
3
UL, GL, cUL, KEMA KUR, NEMKO, EAC
60 mm
8 mm
73 mm
69 mm
2
1
A5
0.2 mm²
10 mm²
0.2 mm²
10 mm²
0.2 mm²
10 mm²
22
8
12 mm
M 4
Slotted
1.2
2
Polyamide 6.6
UL94-V2
-40 °C
105 °C
600 V
10 A
UL 1059
600 V
10 A
C22.2 No 158
IEC 60947-7-3:2002
TR ZU 004/2011
EN 60947-7-3:2009
85369010
CZ
25 g
50
Screw Terminals, DIN Rail terminals
EN 60947-7-3:2002
Connection device from CONTA-CLIP with two connections and a red indicator lamp
SIK 10/LED(RD)/12V DC/24V AC BG
Art:
1103.2 Copied
10 mm²
Beige
10 A
5 x 20 / 5 x 25 / 5 x 30 mm
TS 35/7,5 and TS 32
8 kV
III
3
UL, GL, cUL, KEMA KUR, NEMKO, EAC
with LED status display
60 mm
8 mm
87 mm
83 mm
2
1
A5
0.2 mm²
10 mm²
0.2 mm²
10 mm²
0.2 mm²
10 mm²
22
8
12 mm
M 4
Slotted
1.2
2
Polyamide 6.6
UL94-V2
-40 °C
105 °C
12 V DC / 24 V AC
10 A
UL 1059
10 A
C22.2 No 158
IEC 60947-7-3:2002
TR ZU 004/2011
EN 60947-7-3:2009
85369010
DE
27.8 g
25
Screw Terminals, DIN Rail terminals
EN 60947-7-3:2002
Connection box from CONTA-CLIP with beige housing and visible internal components
SIK 10/LED(RD)/20-30V DC/40-60V AC BG
Art:
1104.2 Copied
10 mm²
Beige
10 A
5 x 20 / 5 x 25 / 5 x 30 mm
TS 35/7,5 and TS 32
8 kV
III
3
UL, GL, cUL, KEMA KUR, NEMKO, EAC
with LED status display
60 mm
8 mm
87 mm
83 mm
2
1
A5
0.2 mm²
10 mm²
0.2 mm²
10 mm²
0.2 mm²
10 mm²
22
8
12 mm
M 4
Slotted
1.2
2
Polyamide 6.6
UL94-V2
-40 °C
105 °C
20-30 V DC / 40-60 V AC
10 A
UL 1059
10 A
C22.2 No 158
IEC 60947-7-3:2002
TR ZU 004/2011
EN 60947-7-3:2009
85369010
DE
27.8 g
25
Screw Terminals, DIN Rail terminals
EN 60947-7-3:2002
Connection module from CONTA-CLIP, beige with metal components, designed for electrical installations.
SIK 10/LED(RD)/115V DC/230V AC, 4mm² Compact fuse terminal with LED, 115V dc, 230VACac, 6.3A, multi-foot
Art:
1106.2 Copied
10 mm²
Beige
10 A
5 x 20 / 5 x 25 / 5 x 30 mm
TS 35/7,5 and TS 32
8 kV
III
3
UL, GL, cUL, KEMA KUR, NEMKO, EAC
with LED status display
60 mm
8 mm
87 mm
83 mm
2
1
A5
0.2 mm²
10 mm²
0.2 mm²
10 mm²
0.2 mm²
10 mm²
22
8
12 mm
M 4
Slotted
1.2
2
Polyamide 6.6
UL94-V2
-40 °C
105 °C
115 V DC / 230 V AC
10 A
UL 1059
10 A
C22.2 No 158
IEC 60947-7-3:2002
TR ZU 004/2011
EN 60947-7-3:2009
85369010
DE
27.8 g
25
Screw Terminals, DIN Rail terminals
EN 60947-7-3:2002
AP-10 product from CONTA-CLIP, beige component with multiple connections for industrial use
SIK 10/Z, 10mm² Fuse disconnect terminal, 6.3x25, 6.3x32, 10A, multi-foot
Art:
1102.2 Copied
10 mm²
Beige
10 A
6.3 x 25 / 6.3 x 32 mm
TS 35/7,5 and TS 32
8 kV
III
3
UL, GL, cUL, KEMA KUR, NEMKO, EAC
60 mm
10 mm
73 mm
69 mm
2
1
A5
0.2 mm²
10 mm²
0.2 mm²
10 mm²
0.2 mm²
10 mm²
22
8
12 mm
M 4
Slotted
1.2
2
Polyamide 6.6
UL94-V2
-40 °C
105 °C
600 V
16 A
UL 1059
600 V
16 A
C22.2 No 158
IEC 60947-7-3:2002
TR ZU 004/2011
EN 60947-7-3:2009
85369010
DE
28.68 g
25
Screw Terminals, DIN Rail terminals
EN 60947-7-3:2002
Voltage switch for 20-30 V and 40-60 V with red indicator light
SST/SIK/LED(RD)/20-30V DC/40-60V AC
Art:
1114.2 Copied
Beige
Push in
EAC
with LED status display
Polyamide 6.6
UL94-V2
-40 °C
105 °C
TR ZU 004/2011
85369010
DE
2.24 g
10
Screw Terminals, DIN Rail terminals
Switch for 115V and 230V with indicator light, compact design
SST/SIK/LED(RD)/115V DC/230V AC
Art:
1116.2 Copied
Beige
Push in
EAC
with LED status display
Polyamide 6.6
UL94-V2
-40 °C
105 °C
TR ZU 004/2011
85369010
DE
2.56 g
10
Screw Terminals, DIN Rail terminals
Relay with two red indicator lights and marking 24 V-
SST/SIK/2 LED`s(RD)/24V DC
Art:
1117.2 Copied
Beige
Push in
EAC
with LED status display
Polyamide 6.6
UL94-V2
-40 °C
105 °C
TR ZU 004/2011
85369010
DE
2.4 g
10
Screw Terminals, DIN Rail terminals
Connection terminal from CONTA-CLIP with two connections and robust design
SIK 10 PA-G Black, High Temp 10mm² Fuse disconnect terminal, 5x20, 5x25, 10A, multi-foot
Art:
17364.4 Copied
10 mm²
Black
10 A
6.3 x 25 / 6.3 x 32 mm
TS 35/7,5
8 kV
III
3
UL, GL, cUL, EAC
disconnect lever TS 35
60 mm
8 mm
69 mm
2
1
A5
1
0.2 mm²
10 mm²
0.2 mm²
10 mm²
0.2 mm²
10 mm²
22
8
12 mm
M 4
Slotted
1.2
2
Polyamide 6.6
UL94-V0
-40 °C
140 °C
600 V
10 A
UL 1059
600 V
10 A
C22.2 No 158
IEC 60947-7-3:2002
TR ZU 004/2011
85369010
BG
25.98 g
50
Screw Terminals, DIN Rail terminals
Black product from CONTA-CLIP, a component for electrical installations
SIK 10/Z PA-G Black, High Temp 10mm² Fuse disconnect terminal, 6.3x25, 6.3x32, 10A, multi-foot
Art:
17365.4 Copied
10 mm²
Black
10 A
6.3 x 25 / 6.3 x 32 mm
TS 35/7,5
8 kV
III
3
UL, GL, cUL, EAC
disconnect lever TS 35
60 mm
10 mm
69 mm
2
1
A5
1
0.2 mm²
10 mm²
0.2 mm²
10 mm²
0.2 mm²
10 mm²
22
8
12 mm
M 4
Slotted
1.2
2
Polyamide 6.6
UL94-V0
-40 °C
140 °C
600 V
16 A
UL 1059
600 V
16 A
C22.2 No 158
IEC 60947-7-3:2002
TR ZU 004/2011
85369010
DE
29.15 g
25
Screw Terminals, DIN Rail terminals

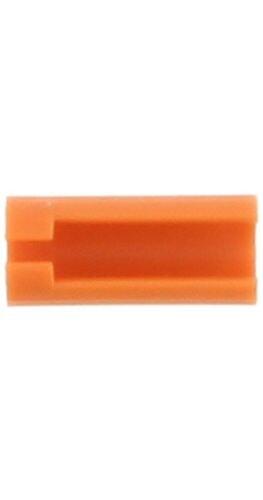

Orange plastic part for electrical connections, designed to ensure stable connections.
VBS 2/10 OG
Art:
2873.3 Copied
Orange
16 mm
Polyamide 6.6
UL94-V2
-40 °C
105 °C
85369010
DE
0.4 g
20

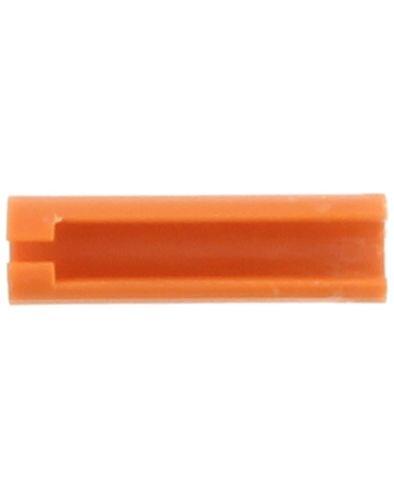

Orange plastic part for electrical connections, designed to ensure stable connections.
VBS 3/10 OG
Art:
2874.3 Copied
Orange
24 mm
Polyamide 6.6
UL94-V2
-40 °C
105 °C
85369010
DE
0.6 g
20
Orange plastic part for electrical connections, designed to ensure safe and efficient connection.
VBS 2/10/Z OG
Art:
2875.3 Copied
Orange
with housing pegs
20 mm
Polyamide 6.6
UL94-V2
-40 °C
105 °C
85369010
DE
0.4 g
20

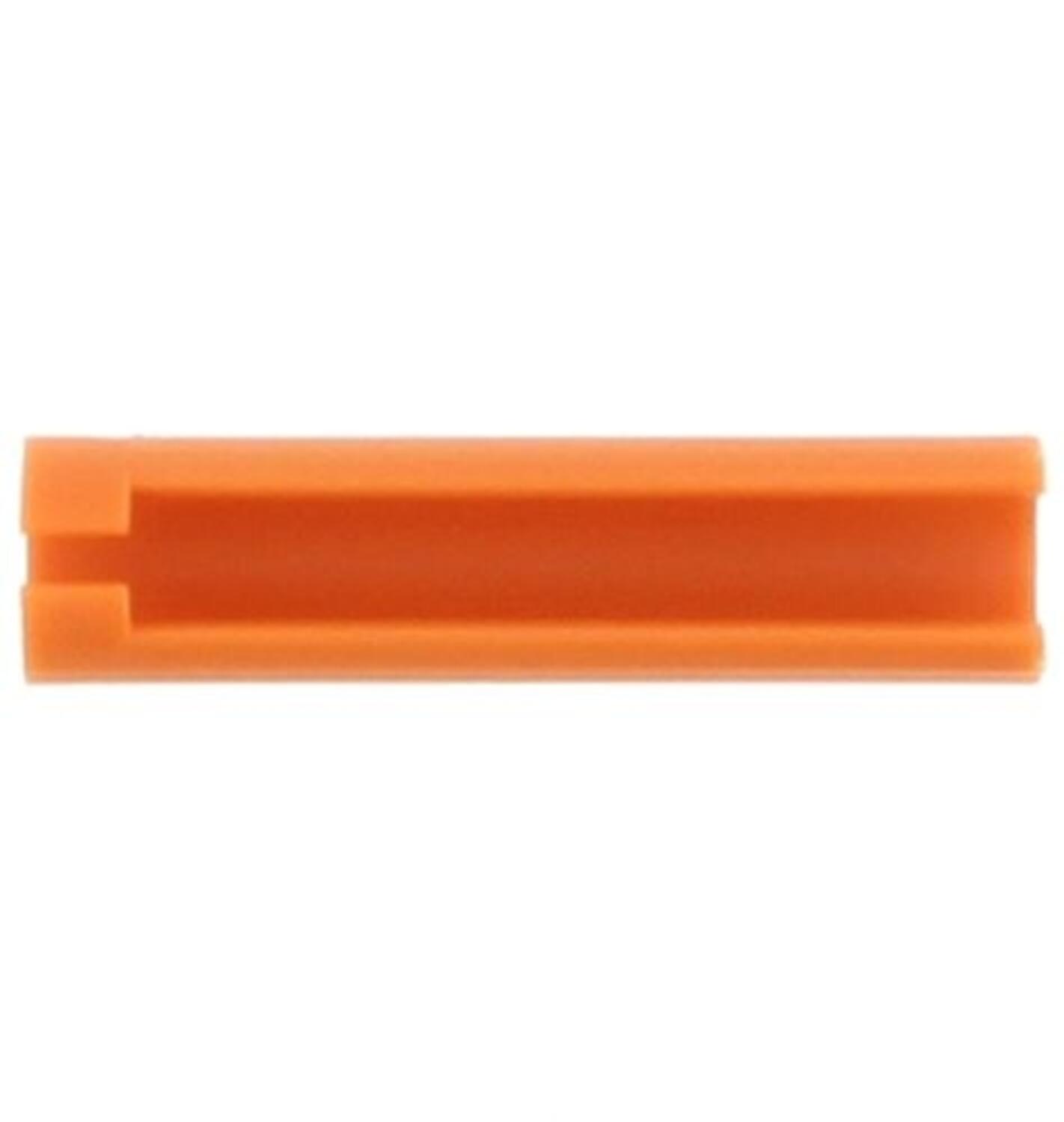

Orange plastic part for industrial use, designed to fit specific components.
VBS 3/10/Z OG
Art:
2876.3 Copied
Orange
with housing pegs
30 mm
Polyamide 6.6
UL94-V2
-40 °C
105 °C
85369010
DE
0.7 g
20

Selected variant

Select a variant in the list

Contact us
Please contact us for more information.
Send e-mail
Do you need help?
