CONTA-CLIP

Triple deck terminals - IKD 2.5mm²/VMAK

IKD, VMAK

  • For connecting encoders or motor outputs
  • Material polyamide 6.6
  • Colour marked versions available
  • Temperature resistance -40 ºC...+150 ºC
  • Flammability class V2

Selected variant


Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

Cross-Section 2.5 mm²
Color Beige
Rated Voltage IEC 250 V
Rated Current IEC 24 A
Mounting TS 35/7,5
Rated impulse voltage 4 kV
Overvoltage category III
Contamination degree 3
Approvals UL, cUL, KEMA KUR
Length 62.8 mm
Width 5 mm
Height TS 35/7.5 58.3 mm
Height TS 32 62.8 mm
Connections 4
Number of levels 3
Plug gauge acc. EN 60 947-1 A3
Cross connect channels 3
Cross section single wire from 0.2 mm²
Cross section single wire to 4 mm²
Cross section stranded wire from 0.2 mm²
Cross section stranded wire to 4 mm²
Cross section stranded with ferrule from 0.2 mm²
Cross section stranded with ferrule to 2.5 mm²
Rated wire cross section from (AWG) 22
Rated wire cross section to (AWG) 14
Stripping Length 7 mm
Screw size M 2,4
Screw type Slotted
Torque Min 0.4
Torque max 0.8
Insulation Material Polyamide 6.6
Flamklass UL94-V2
Operating temperature from -40 °C
Operating temperature to 105 °C
Rated Voltage To UL 300 V
Rated Current To UL 20 A
UL test standard UL 1059
Rated voltage cUL 300 V
Rated current cUL 20 A
cUL test standard C22.2 No 158
KEMA KEUR test standard EN 60947-7-1:2009
Tariff code 85369010
Country of origin CZ
Weight 10.81 g
Pack Size 100
Type of terminal Screw Terminals, DIN Rail terminals

Downloads

Accessories

Related products

Add product as a new cart row

You already added this product. Choose whether to increase quantity on the existing row or add the product as a new row.

Related

TER - control stations
Product news

Quality solutions for motion controls

TER - Tecno Elettrica Ravasi, is our Italian supplier specializing in the manufacture of control stations. TER has over 60 years of experience in the manufacture of control stations.

Stego Loop Heater lämmityselementit
Product news

LOOP Heater for optimal heat distribution

Thanks to their loop design, LOOP heating elements offer excellent heating performance and ensure optimal heat distribution. Read more now!

PISA-M
Product news

Compact electronic overcurrent protection PISA-M

PISA-M is a 4-channel electronic fuse for 12 and 24 V DC systems. The smallest 4-channel electronic fuse with a width of only 22.5 mm!

Delcon relays
Product news

An effective solution Delcon CRA5

Delcon's CRA5 plug-in relay revolutionizes the control of difficult-to-handle DC loads. Inductive loads, frequent switching, and high DC voltages are a piece of cake for these relays.

LOCC-Box Mini
Product news

LOCC-Box Mini

The Lütze LOCC-Box is an intelligent electronic overcurrent protection device that provides reliable protection for 12/24 V DC systems in a narrow housing measuring just 8.1 mm. Integrated + and - terminals save space on the DIN rail.

DF Electric
Product news

DF Electric – new supplier for fuse solutions

DF Electric is specialized in the manufacturing of fuse links, fuse holders and control transformers since 1987. Presently the company is leading the Spanish market and is also very active in many export markets due to its competitive range of products.

Articles Cross-Section Color Rated Voltage IEC Rated Current IEC Mounting Rated impulse voltage Overvoltage category Contamination degree Approvals Additional information Length Width Height TS 35/7.5 Height TS 32 Connections Number of levels Plug gauge acc. EN 60 947-1 Cross connect channels Cross section single wire from Cross section single wire to Cross section stranded wire from Cross section stranded wire to Cross section stranded with ferrule from Cross section stranded with ferrule to Rated wire cross section from (AWG) Rated wire cross section to (AWG) Stripping Length Screw size Screw type Torque Min Torque max Insulation Material Flamklass Operating temperature from Operating temperature to Rated Voltage To UL Rated Current To UL UL test standard Voltage CSA Rated Current CSA CSA test standard Rated voltage CSAus Rated current CSAus CSAus test standard Rated voltage cUL Rated current cUL cUL test standard EAC test standard KEMA KEUR test standard Tariff code Country of origin Weight Pack Size Type of terminal

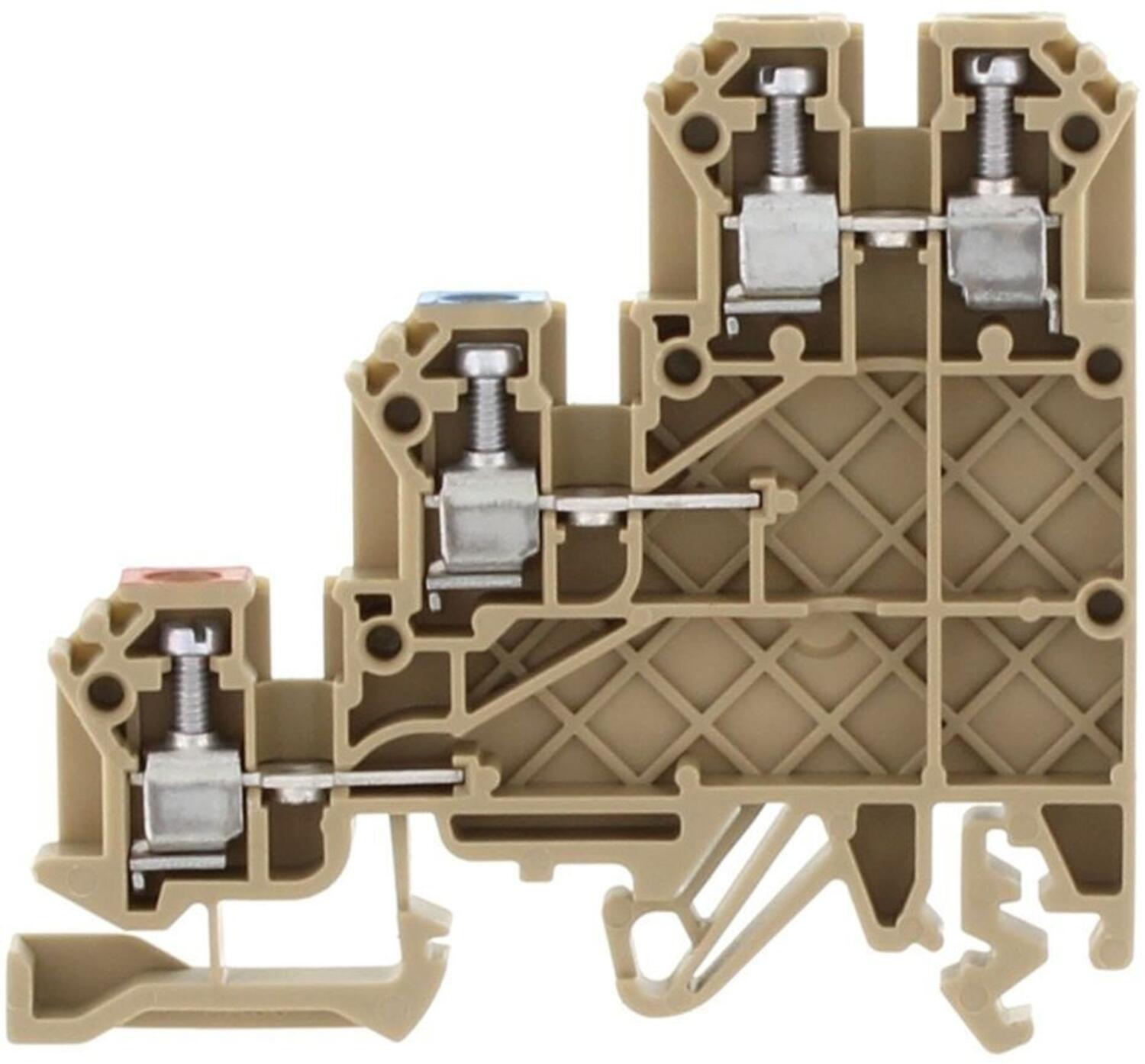

Terminal block with three connections and metal components, beige color, for electrical installations.
IK 2,5 BG
Art:
1260.2 Copied
2.5 mm²
Beige
250 V
24 A
TS 35/7,5
4 kV
III
3
UL, cUL, KEMA KUR
62.8 mm
5 mm
58.3 mm
62.8 mm
4
3
A3
3
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
22
14
7 mm
M 2,4
Slotted
0.4
0.8
Polyamide 6.6
UL94-V2
-40 °C
105 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
EN 60947-7-1:2009
85369010
CZ
10.81 g
100
Screw Terminals, DIN Rail terminals

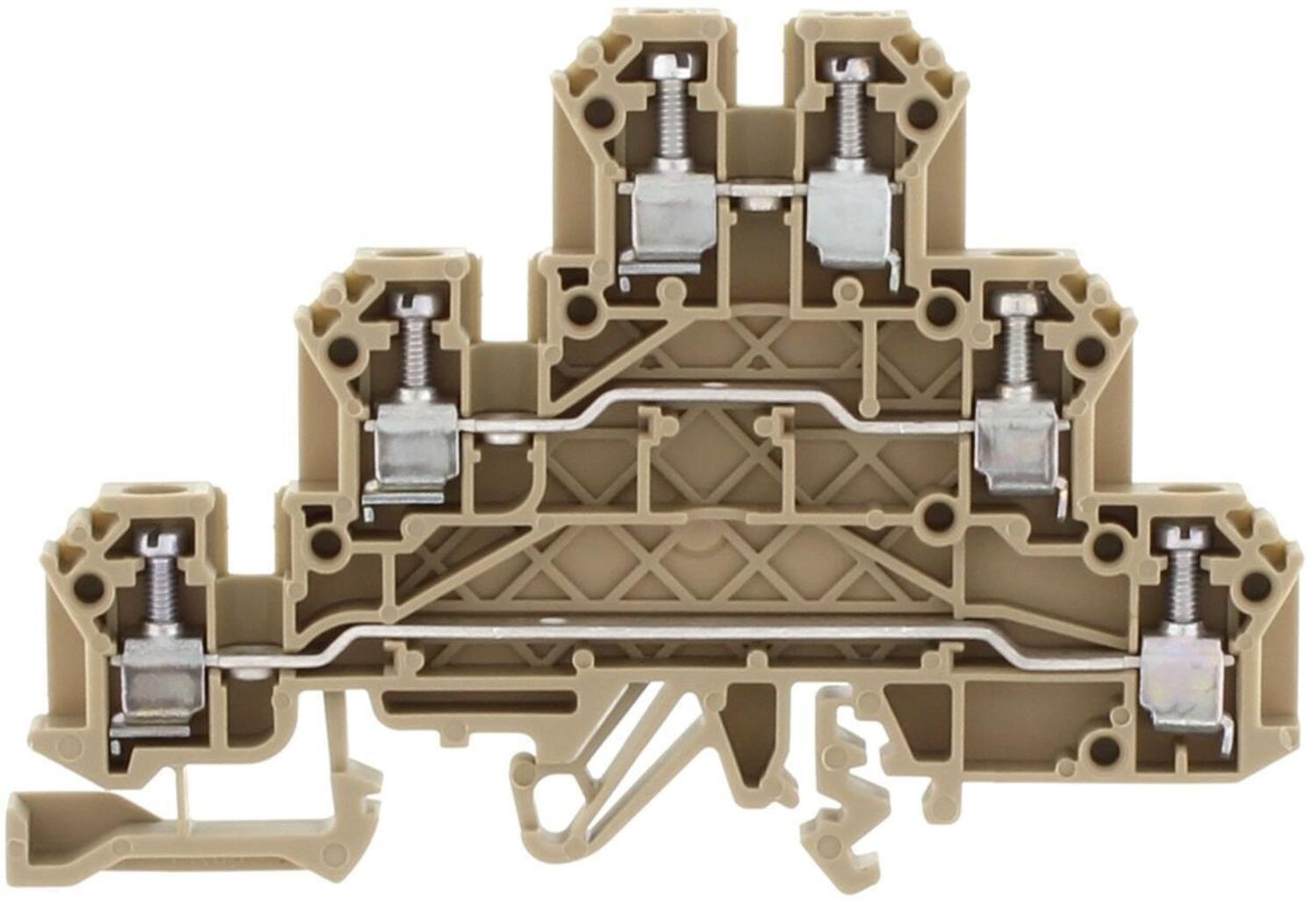

Terminal block from CONTA-CLIP with three connections and robust design for industrial use
IKD 2,5/Q BG
Art:
2268.2 Copied
2.5 mm²
Beige
250 V
24 A
TS 35/7,5
4 kV
III
3
CSA, CSA US, KEMA KUR, EAC
with cross connection option
84.8 mm
5 mm
58.3 mm
62.8 mm
6
3
A3
3
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
22
14
7 mm
M 2,4
Slotted
0.4
0.8
Polyamide 6.6
UL94-V2
-40 °C
105 °C
C22.2 No 158
UL 1059
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
17.18 g
50
Screw Terminals, DIN Rail terminals

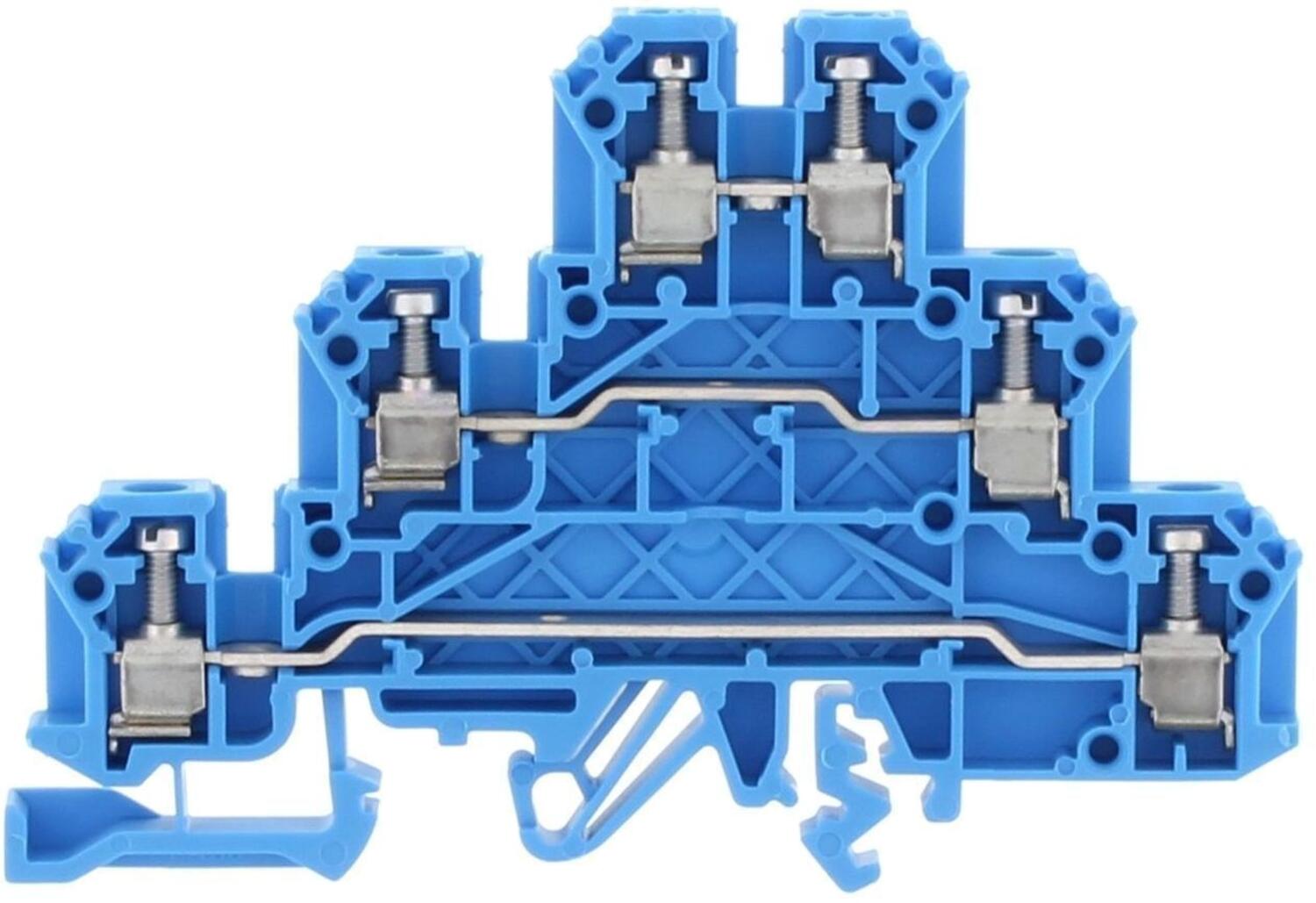

Blue terminal block from CONTA-CLIP with multiple connections and metal components
IKD 2,5/Q BU
Art:
2268.5 Copied
2.5 mm²
Blue
250 V
24 A
TS 35/7,5
4 kV
III
3
CSA, CSA US, KEMA KUR, EAC
with cross connection option
84.8 mm
5 mm
58.3 mm
62.8 mm
6
3
A3
3
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
22
14
7 mm
M 2,4
Slotted
0.4
0.8
Polyamide 6.6
UL94-V2
-40 °C
105 °C
C22.2 No 158
UL 1059
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
17.18 g
50
Screw Terminals, DIN Rail terminals

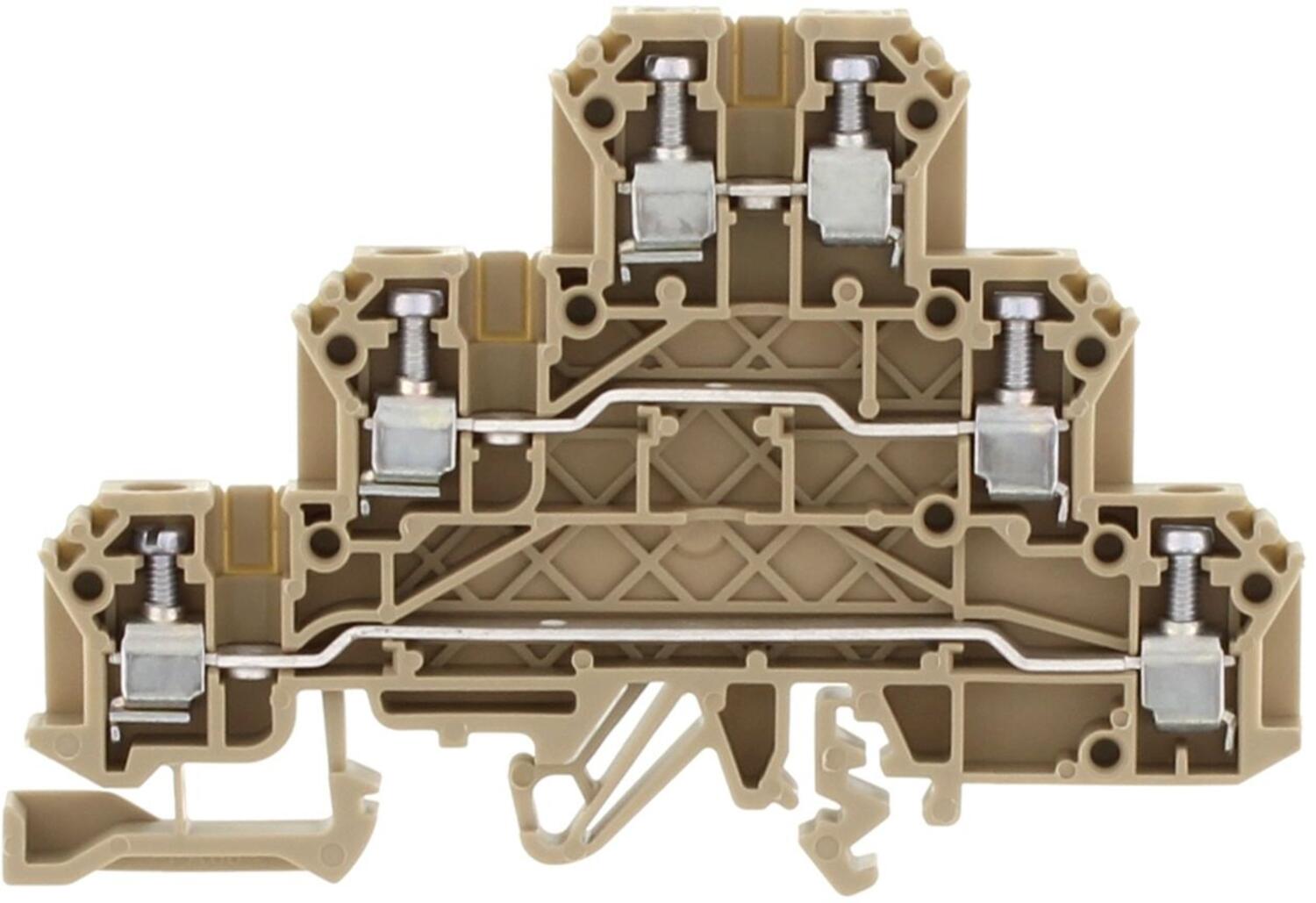

Product image of an electrical connection block with multiple connections and metal components
IKD 2,5 BG
Art:
1261.2 Copied
2.5 mm²
Beige
250 V
24 A
TS 35/7,5
4 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
84.8 mm
5 mm
58.3 mm
62.8 mm
3 x 2
3
A3
3
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
22
14
7 mm
M 2,4
Slotted
0.4
0.8
Polyamide 6.6
UL94-V2
-40 °C
105 °C
300 V
20 A
UL 1059
C22.2 No 158
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
17.22 g
50
Screw Terminals, DIN Rail terminals

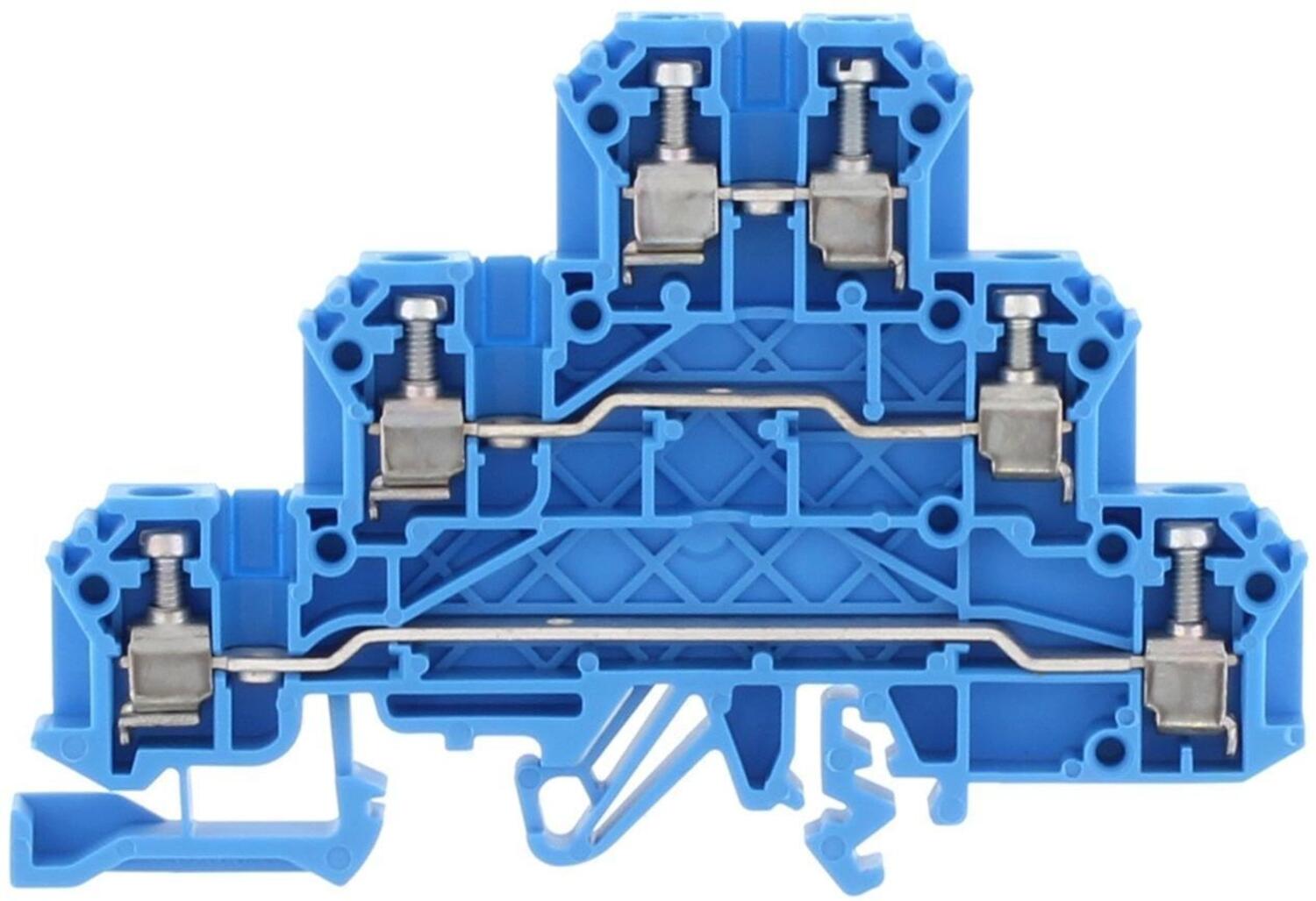

Blue terminal block from CONTA-CLIP with multiple connections and metal components
IKD 2,5 BU
Art:
1261.5 Copied
2.5 mm²
Blue
250 V
24 A
TS 35/7,5
4 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
84.8 mm
5 mm
58.3 mm
62.8 mm
3 x 2
3
A3
3
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
22
14
7 mm
M 2,4
Slotted
0.4
0.8
Polyamide 6.6
UL94-V2
-40 °C
105 °C
300 V
20 A
UL 1059
C22.2 No 158
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
17.22 g
50
Screw Terminals, DIN Rail terminals

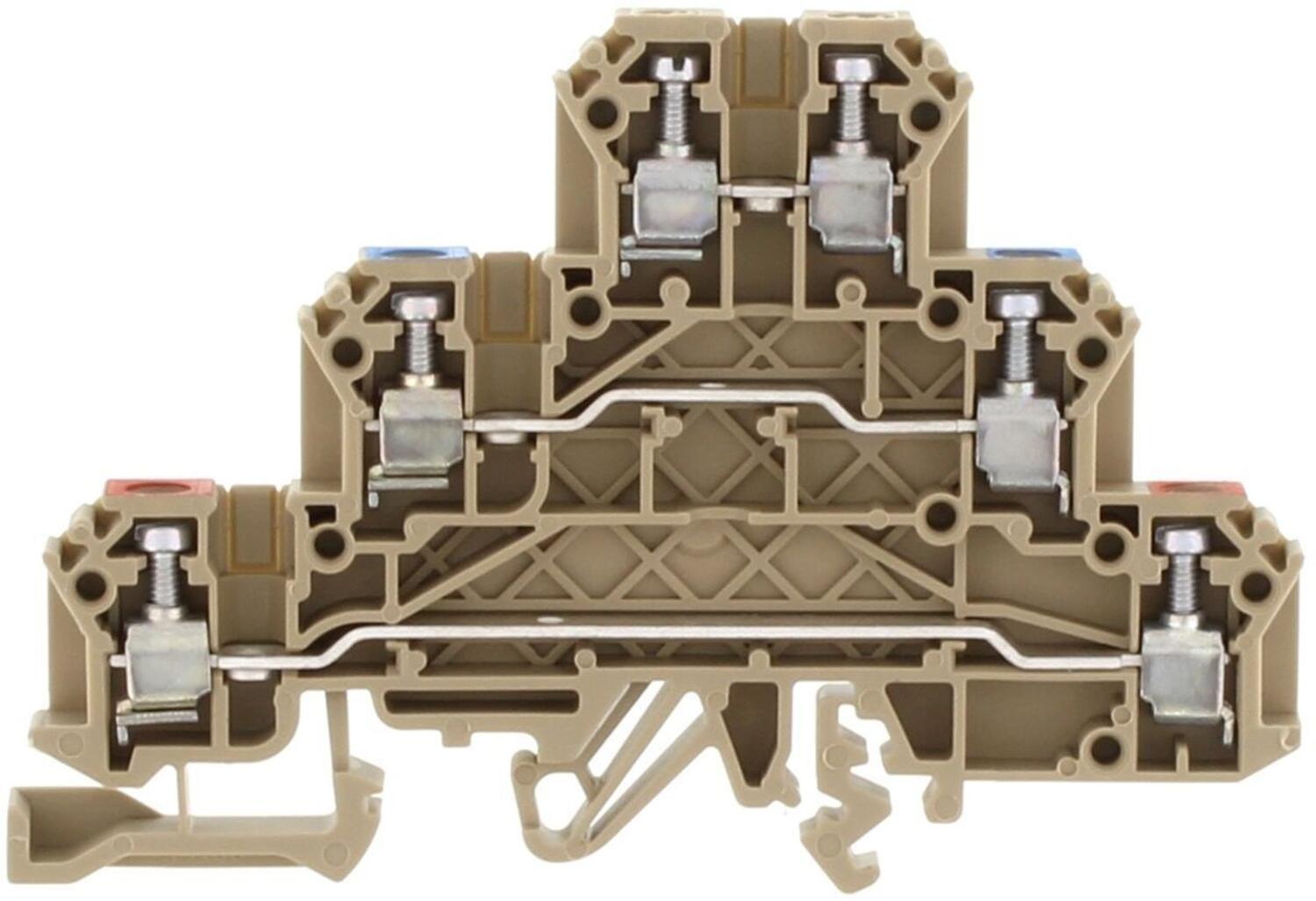

Terminal block from CONTA-CLIP with multiple connections and a robust design for industrial use
IKD 2,5/F BG
Art:
1295.2 Copied
2.5 mm²
Beige
250 V
24 A
TS 35/7,5
4 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
printed with colour
84.8 mm
5 mm
58.3 mm
62.8 mm
6
3
A3
3
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
22
14
7 mm
M 2,4
Slotted
0.4
0.8
Polyamide 6.6
UL94-V2
-40 °C
105 °C
300 V
20 A
UL 1059
C22.2 No 158
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
17.24 g
50
Screw Terminals, DIN Rail terminals

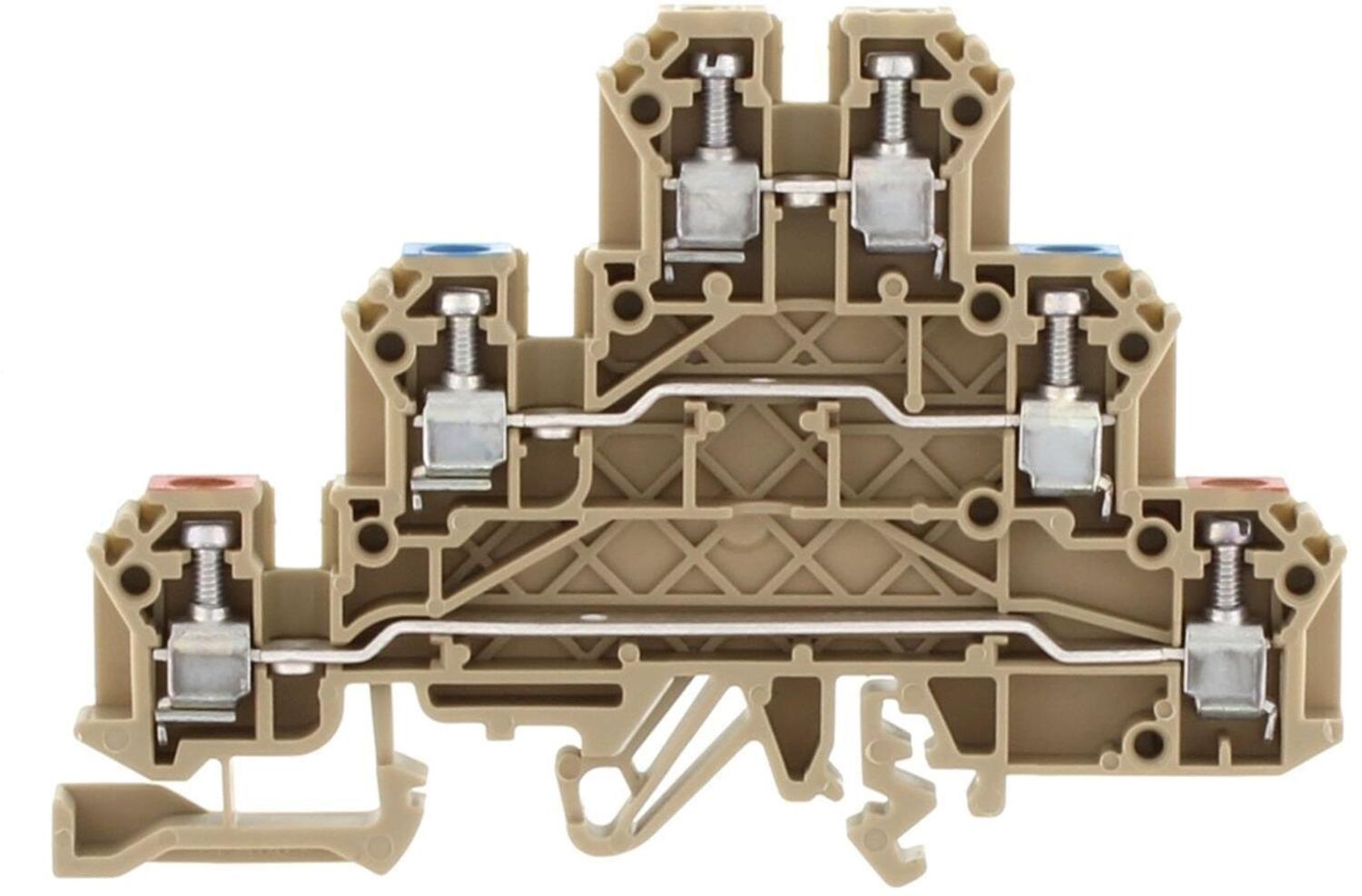

Terminal block from CONTA-CLIP with multiple connections and a beige plastic construction.
IKD 2,5/F/Q BG
Art:
2269.2 Copied
2.5 mm²
Beige
250 V
24 A
TS 35/7,5
4 kV
III
3
CSA, CSA US, KEMA KUR, EAC
with cross connection option
84.8 mm
5 mm
58.3 mm
62.8 mm
6
3
A3
3
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
22
14
7 mm
M 2,4
Slotted
0.4
0.8
Polyamide 6.6
UL94-V2
-40 °C
105 °C
C22.2 No 158
UL 1059
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
17.18 g
50
Screw Terminals, DIN Rail terminals

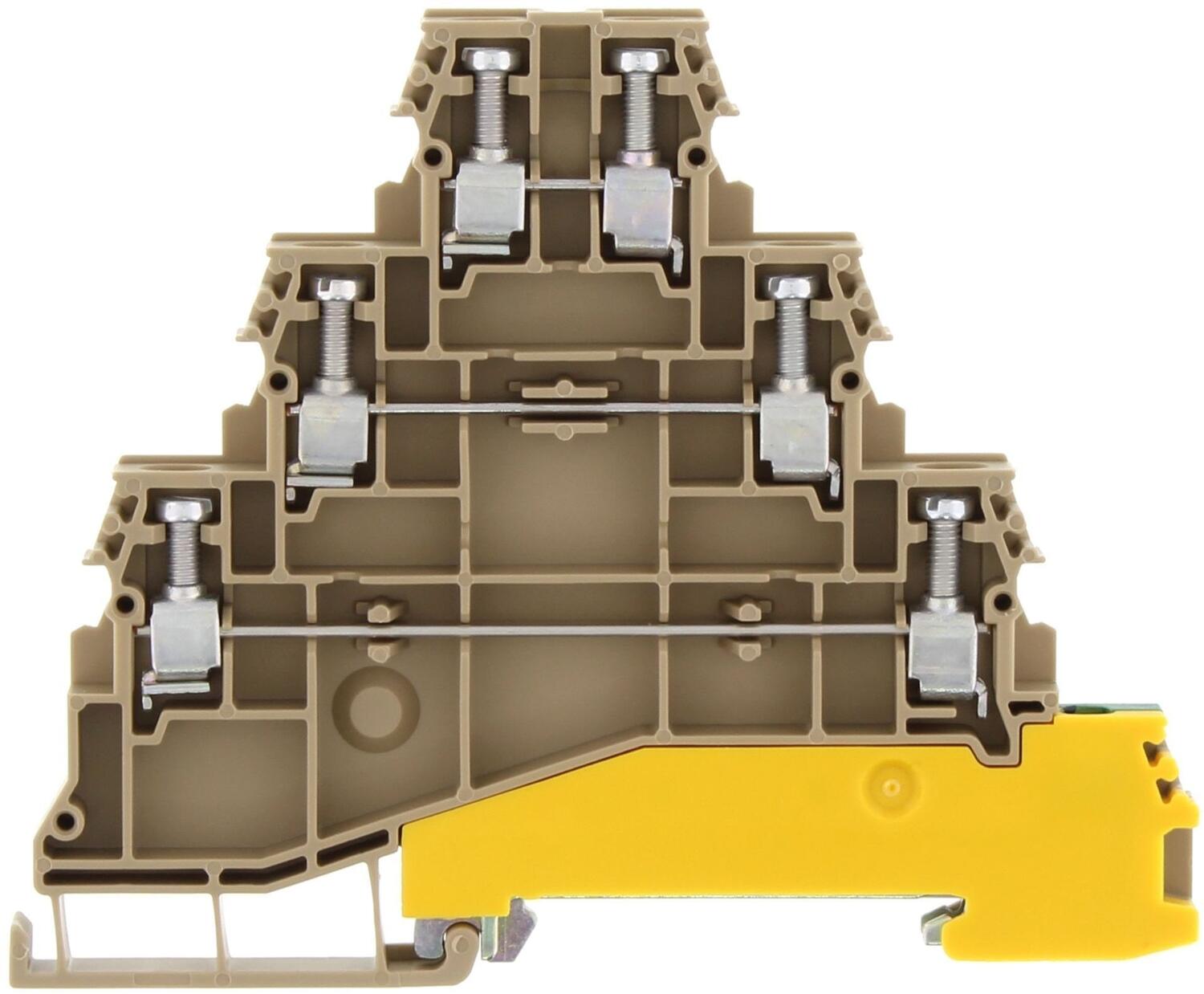

Connection terminal from CONTA-CLIP with multiple connections and a yellow base, ideal for electrical installations.
VMAK 2,5 BG
Art:
1425.2 Copied
2.5 mm²
Beige
400 V
24 A
TS 35/7,5
6 kV
III
3
CSA, CSA US, KEMA KUR, EAC
93.3 mm
6 mm
77 mm
3 x 2 + 1
3
A4
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
22
14
9 mm
M 2,5
Slotted
0.4
0.8
Polyamide 6.6
UL94-V2
-40 °C
105 °C
300 V
10 A
C22.2 No 158
300 V
10 A
UL 1059
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
33.05 g
40
Screw Terminals, DIN Rail terminals

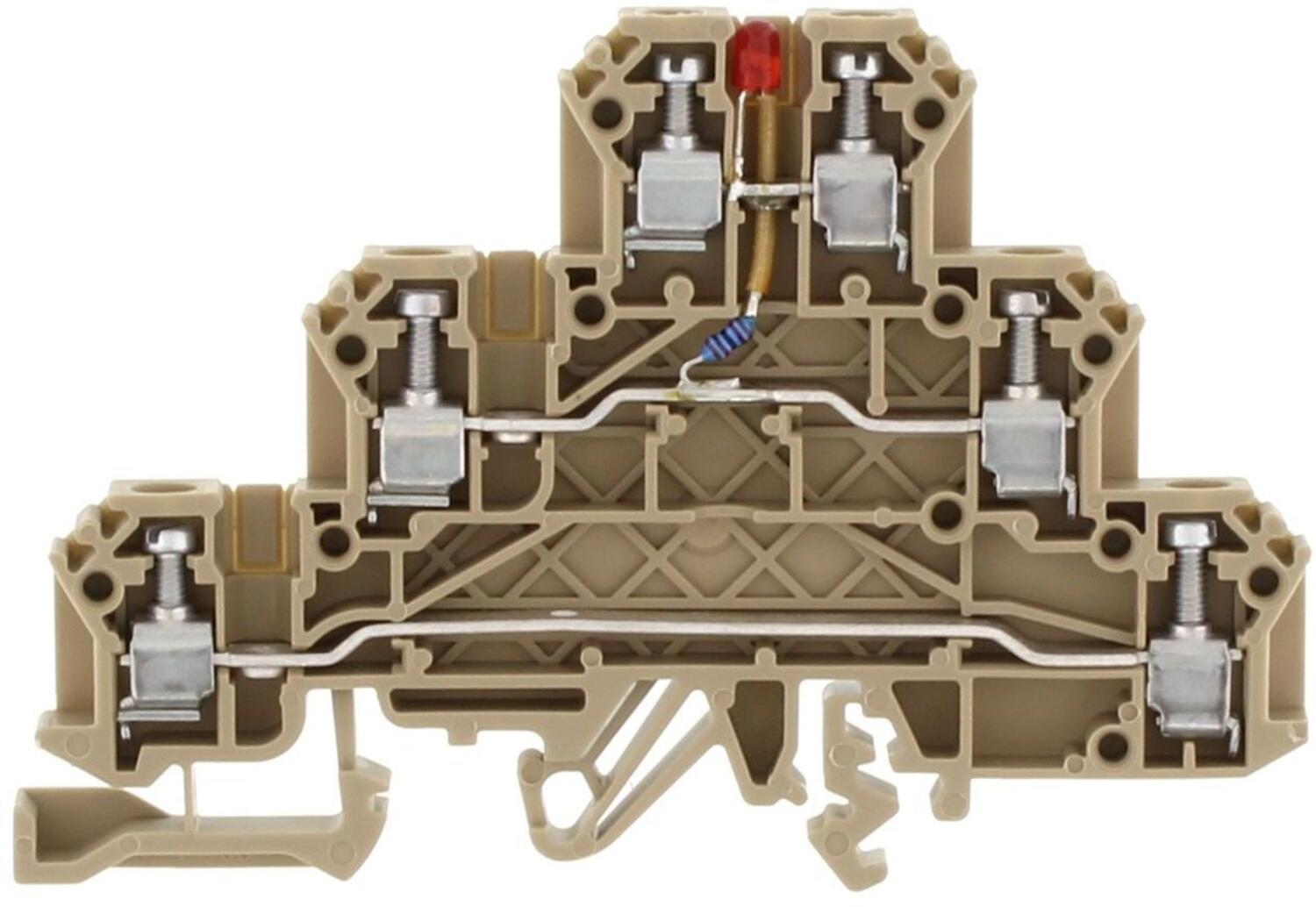

Terminal block from CONTA-CLIP with multiple connections and a red indicator light
IKD 2,5 PNP/DC/LED(RD)/24V BG
Art:
1283.2 Copied
2.5 mm²
Beige
250 V
24 A
TS 35/7,5
4 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
with LED status display
84.8 mm
5 mm
58.3 mm
62.8 mm
6
3
A3
3
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
22
14
7 mm
M 2,4
Slotted
0.4
0.8
Polyamide 6.6
UL94-V2
-40 °C
105 °C
300 V
20 A
UL 1059
C22.2 No 158
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
BG
17.54 g
50
Screw Terminals, DIN Rail terminals

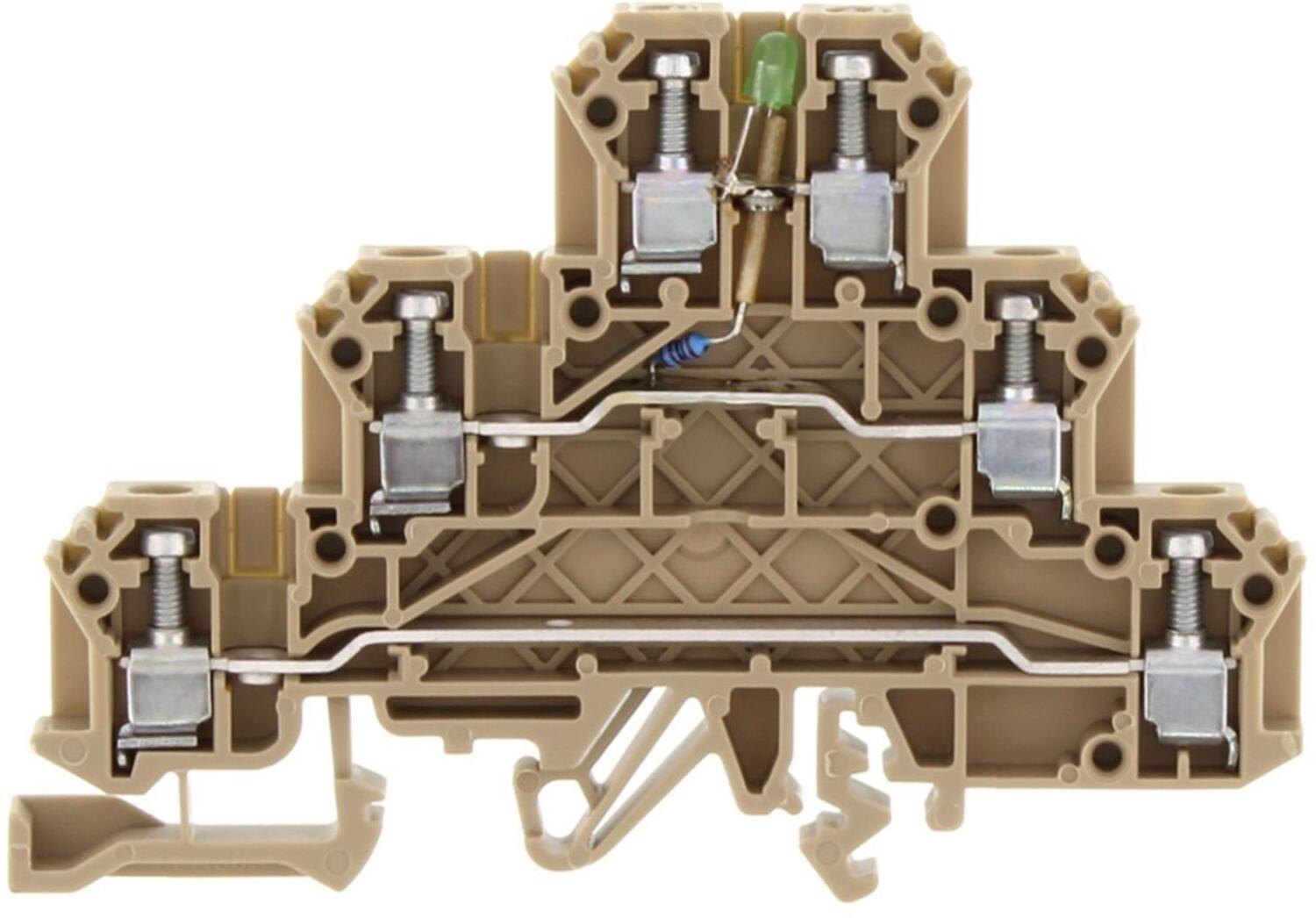

Connection terminal from CONTA-CLIP with multiple connections and a green LED indicator
IKD 2,5 PNP/DC/LED(GN)/24V BG
Art:
1284.2 Copied
2.5 mm²
Beige
250 V
24 A
TS 35/7,5
4 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
with LED status display
84.8 mm
5 mm
58.3 mm
62.8 mm
6
3
A3
3
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
22
14
7 mm
M 2,4
Slotted
0.4
0.8
Polyamide 6.6
UL94-V2
-40 °C
105 °C
300 V
20 A
UL 1059
C22.2 No 158
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
BG
17.54 g
50
Screw Terminals, DIN Rail terminals

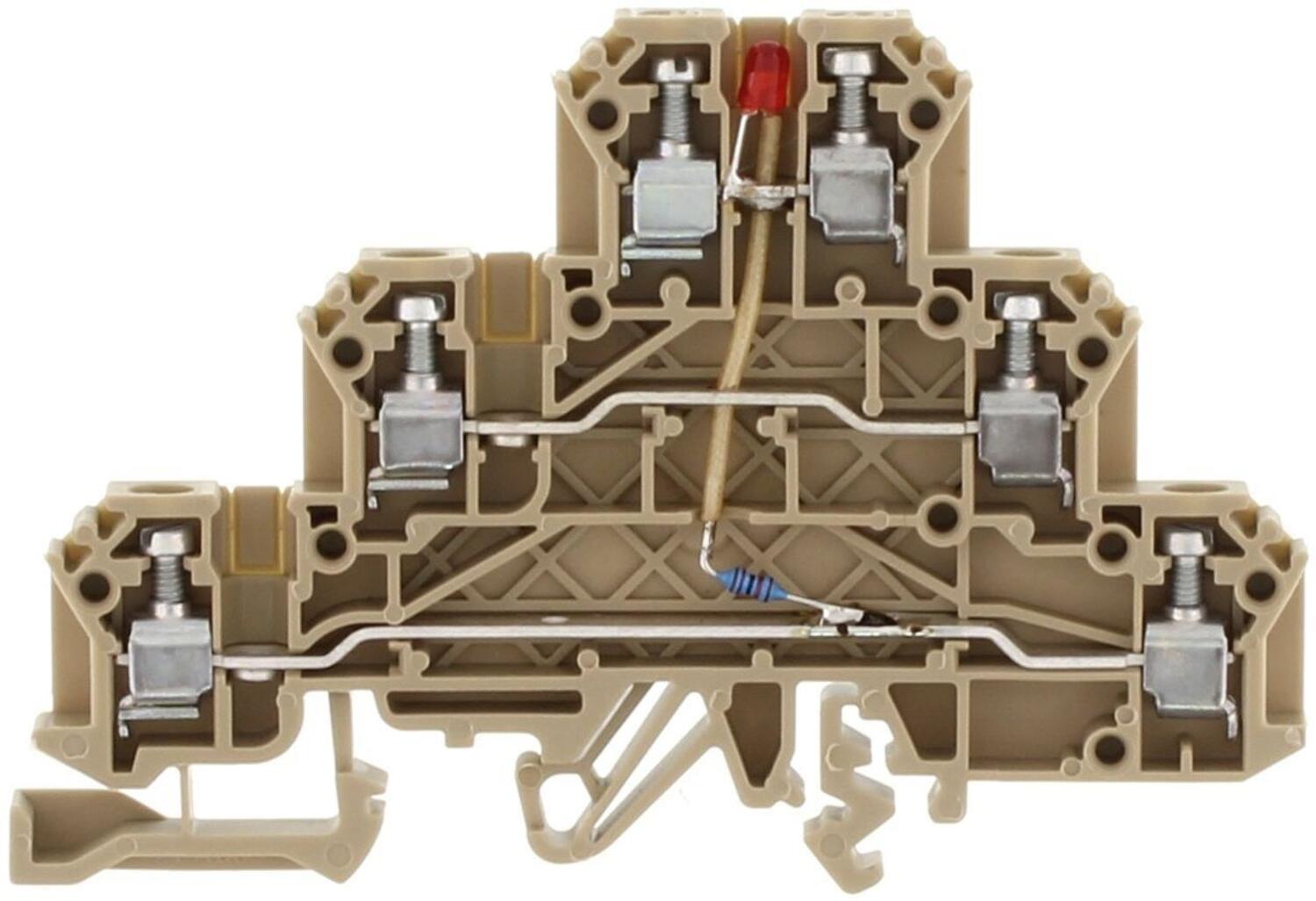

Terminal block from CONTA-CLIP with multiple connections and a red indicator light
IKD 2,5 NPN/DC/LED(RD)/24V BG
Art:
1289.2 Copied
2.5 mm²
Beige
250 V
24 A
TS 35/7,5
4 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
with LED status display
84.8 mm
5 mm
58.3 mm
62.8 mm
6
3
A3
3
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
22
14
7 mm
M 2,4
Slotted
0.4
0.8
Polyamide 6.6
UL94-V2
-40 °C
105 °C
300 V
20 A
UL 1059
C22.2 No 158
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
BG
17.54 g
50
Screw Terminals, DIN Rail terminals
245711_566.tif
IKD 2,5 NPN/DC/LED(GN)/24V BG
Art:
1290.2 Copied
2.5 mm²
Beige
250 V
24 A
TS 35/7,5
4 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
with LED status display
84.8 mm
5 mm
58.3 mm
62.8 mm
6
3
A3
3
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
22
14
7 mm
M 2,4
Slotted
0.4
0.8
Polyamide 6.6
UL94-V2
-40 °C
105 °C
300 V
20 A
UL 1059
C22.2 No 158
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
BG
17.54 g
50
Screw Terminals, DIN Rail terminals
