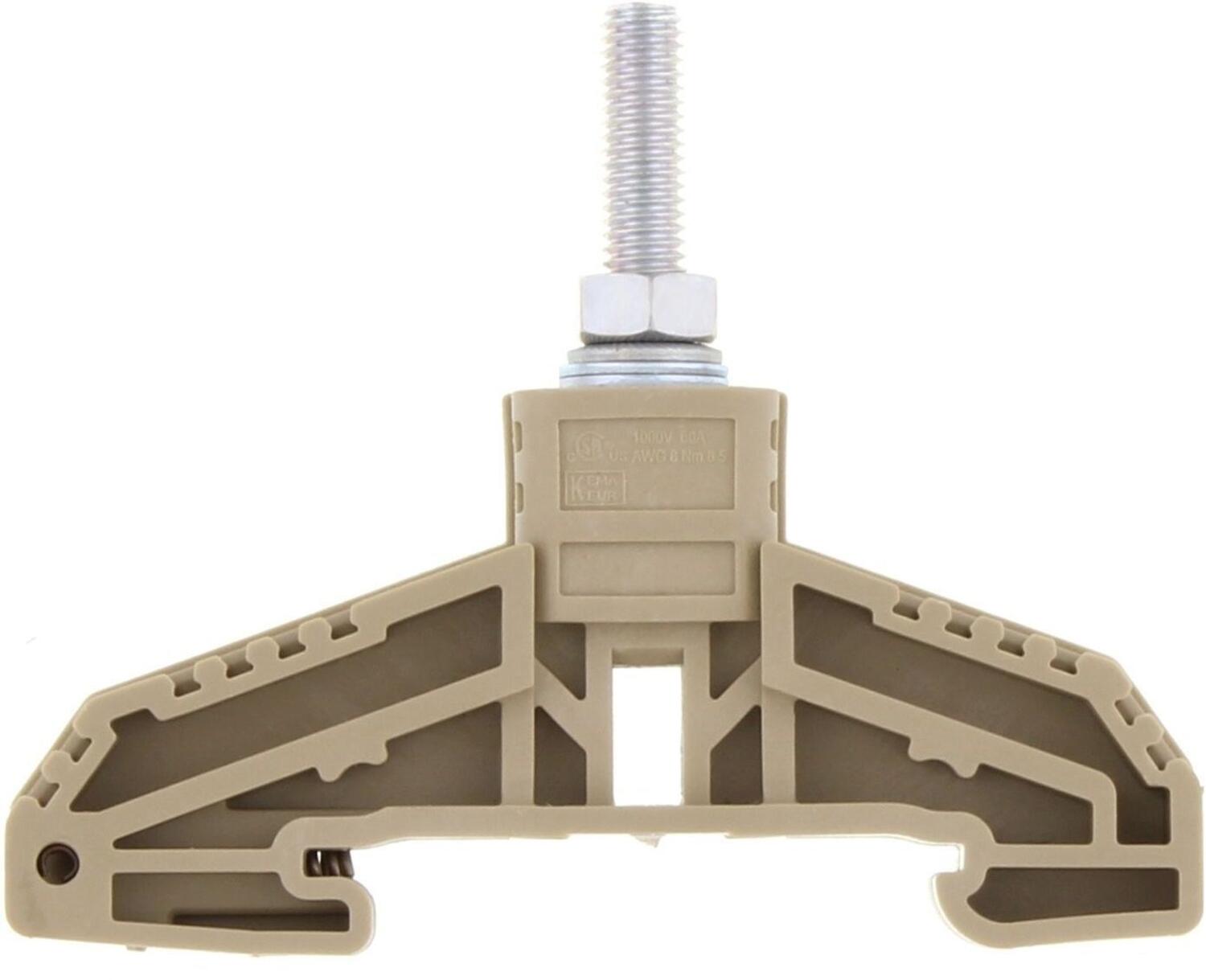

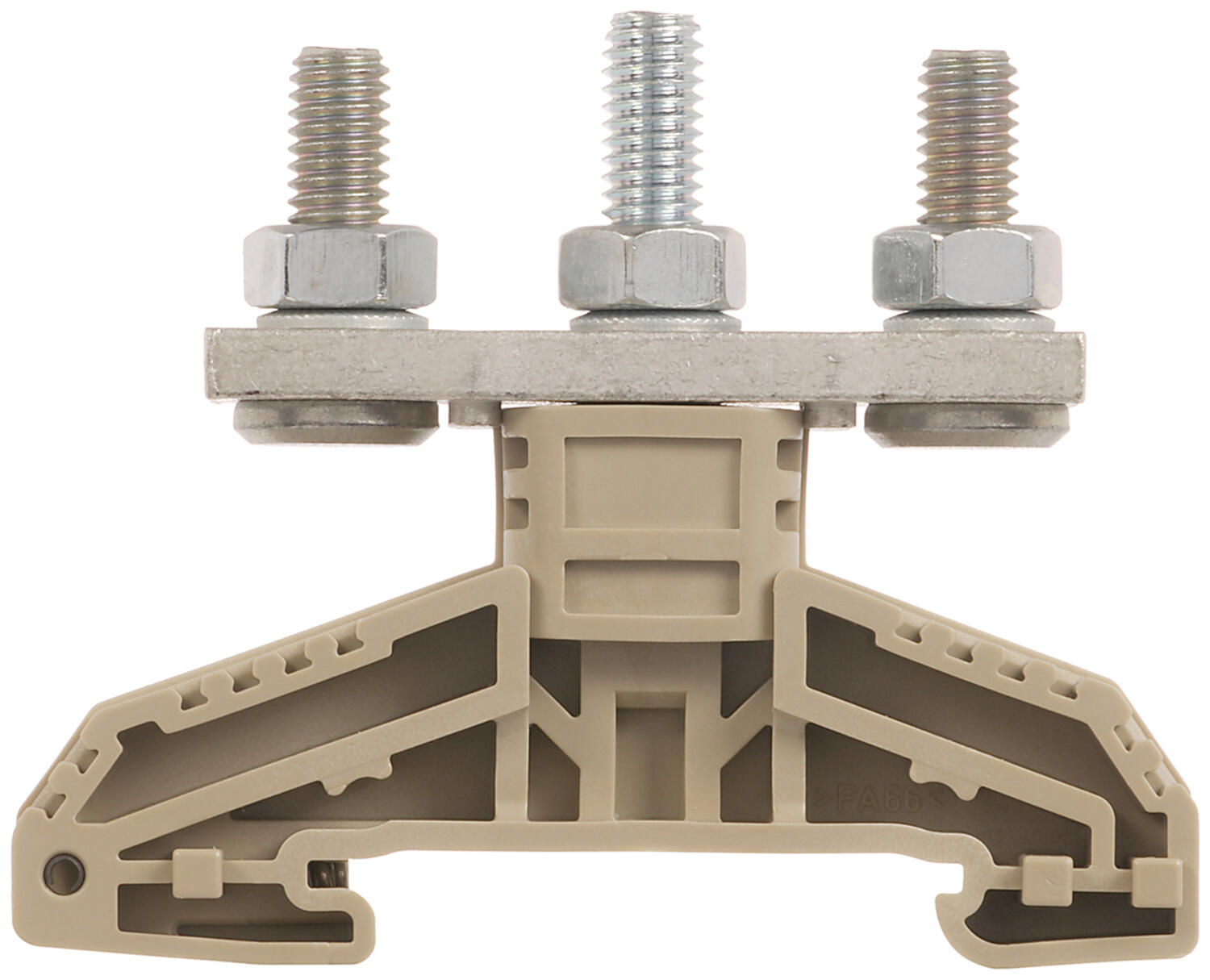

High-power stud terminals - HSK 16-120mm²

HSK

 The HSK range of stud terminals offers secure connections for all high power cables in a compact housing.

 Depending on the conductor cross-section, stud terminals can be used with threaded studs from M5 to M12.



This range can accept cable sizes from 0.2 mm² to 120 mm² with rated current ranges from 76 A to 269 A at 1000 V.



Designed for mounting onto TS 35 DIN rails, the stud terminals have a range of accessories such as TW partition plates, AD yellow covers and cross connection plates to suit most applications.

These products are easy to use and no cutting tools are required when assembling on the rail.

Read more
  • Compact Single and Dual studs
  • Up to 4 cable connections per stud
  • 1000V rated
  • Material polyamide 6.6
  • Fire-resistance class V0

Selected variant


Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Cross-Section 16 mm²
Color Beige
Rated Voltage IEC 1000 V
Rated Current IEC 76 A
Mounting TS 35/7,5
Rated impulse voltage 8 kV
Overvoltage category III
Contamination degree 3
Approvals UL, CSA, CSA US, cUL, KEMA KUR, EAC
Length 67 mm
Width 13 mm
Height TS 35/7.5 55.5 mm
Height with TW/ADH 58 mm
Length with TW/ADH 67 mm
Contact clamping area ≤ 16 mm²
Connections 1
Number of levels 1
Stud size M 5
Cross connect channels 1
Rated wire cross section from (AWG) 10
Rated wire cross section to (AWG) 1/0
Torque Min 2
Torque max 4
DIN 46234 / 1 cable lug per side, min. 0.1 mm²
DIN 46234 / 1 cable lug per side, max. 16 mm²
DIN 46234 / 2 cable lugs per side, min. 0.1 mm²
DIN 46234 / 2 cable lugs per side, max. 16 mm²
DIN 46235: 1 cable lug per side, min. 6 mm²
DIN 46235: 1 cable lug per side, max. 10 mm²
DIN 46235: 2 cable lugs per side, min. 6 mm²
DIN 46235: 2 cable lugs per side, max. 10 mm²
Insulation Material Polyamide 6.6
Flamklass UL94-V0
Operating temperature from -40 °C
Operating temperature to 120 °C
UL test standard UL 1059
Voltage CSA 1000 V
Rated Current CSA 60 A
CSA test standard C22.2 No 158
Rated voltage CSAus 1000 V
Rated current CSAus 60 A
CSAus test standard UL 1059
cUL test standard C22.2 No 158
EAC test standard TR ZU 004/2011
KEMA KEUR test standard EN 60947-7-1:2009
Tariff code 85369010
Country of origin DE
Weight 22.12 g
Pack Size 10

Downloads

Measurements and connections

Product description

 The HSK range of stud terminals offers secure connections for all high power cables in a compact housing.

 Depending on the conductor cross-section, stud terminals can be used with threaded studs from M5 to M12.



This range can accept cable sizes from 0.2 mm² to 120 mm² with rated current ranges from 76 A to 269 A at 1000 V.



Designed for mounting onto TS 35 DIN rails, the stud terminals have a range of accessories such as TW partition plates, AD yellow covers and cross connection plates to suit most applications.

These products are easy to use and no cutting tools are required when assembling on the rail.

Accessories

Related products

Add product as a new cart row

You already added this product. Choose whether to increase quantity on the existing row or add the product as a new row.

Related

TER - control stations
Product news

Quality solutions for motion controls

TER - Tecno Elettrica Ravasi, is our Italian supplier specializing in the manufacture of control stations. TER has over 60 years of experience in the manufacture of control stations.

Stego Loop Heater lämmityselementit
Product news

LOOP Heater for optimal heat distribution

Thanks to their loop design, LOOP heating elements offer excellent heating performance and ensure optimal heat distribution. Read more now!

PISA-M
Product news

Compact electronic overcurrent protection PISA-M

PISA-M is a 4-channel electronic fuse for 12 and 24 V DC systems. The smallest 4-channel electronic fuse with a width of only 22.5 mm!

Delcon relays
Product news

An effective solution Delcon CRA5

Delcon's CRA5 plug-in relay revolutionizes the control of difficult-to-handle DC loads. Inductive loads, frequent switching, and high DC voltages are a piece of cake for these relays.

LOCC-Box Mini
Product news

LOCC-Box Mini

The Lütze LOCC-Box is an intelligent electronic overcurrent protection device that provides reliable protection for 12/24 V DC systems in a narrow housing measuring just 8.1 mm. Integrated + and - terminals save space on the DIN rail.

DF Electric
Product news

DF Electric – new supplier for fuse solutions

DF Electric is specialized in the manufacturing of fuse links, fuse holders and control transformers since 1987. Presently the company is leading the Spanish market and is also very active in many export markets due to its competitive range of products.

Articles Cross-Section Color Rated Voltage IEC Rated Current IEC Mounting Rated impulse voltage Overvoltage category Contamination degree Approvals Length Width Height TS 35/7.5 Height with TW/ADH Length with TW/ADH Contact clamping area Connections Number of levels Stud size Cross connect channels Rated wire cross section from (AWG) Rated wire cross section to (AWG) Torque Min Torque max DIN 46234 / 1 cable lug per side, min. DIN 46234 / 1 cable lug per side, max. DIN 46234 / 2 cable lugs per side, min. DIN 46234 / 2 cable lugs per side, max. DIN 46235: 1 cable lug per side, min. DIN 46235: 1 cable lug per side, max. DIN 46235: 2 cable lugs per side, min. DIN 46235: 2 cable lugs per side, max. Insulation Material Flamklass Operating temperature from Operating temperature to UL test standard Voltage CSA Rated Current CSA CSA test standard Rated voltage CSAus Rated current CSAus CSAus test standard cUL test standard EAC test standard KEMA KEUR test standard Tariff code Country of origin Weight Pack Size
Cable management bracket from CONTA-CLIP, robust design with threaded rod for easy installation
HSK 16/M5 B, 16mm² Single M5 stud terminal
Art:
17000.2 Copied
16 mm²
Beige
1000 V
76 A
TS 35/7,5
8 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
67 mm
13 mm
55.5 mm
58 mm
67 mm
≤ 16 mm²
1
1
M 5
1
10
1/0
2
4
0.1 mm²
16 mm²
0.1 mm²
16 mm²
6 mm²
10 mm²
6 mm²
10 mm²
Polyamide 6.6
UL94-V0
-40 °C
120 °C
UL 1059
1000 V
60 A
C22.2 No 158
1000 V
60 A
UL 1059
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
22.12 g
10
Mounting bracket for cable installation with threaded shaft, designed for secure and stable installation.

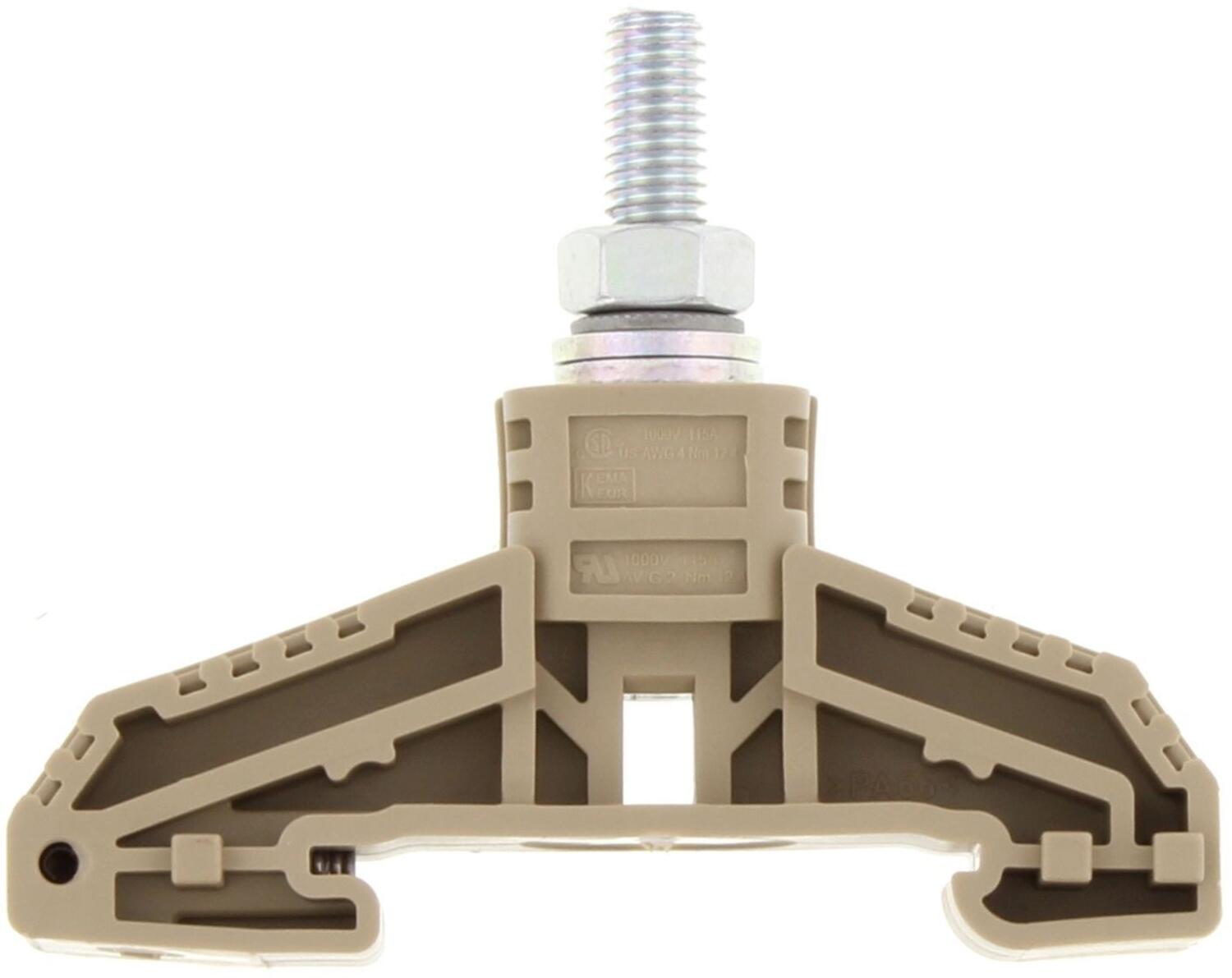

HSK 35/M6 B, 35mm² Single M6 stud terminal
Art:
17001.2 Copied
35 mm²
Beige
1000 V
125 A
TS 35/7,5
8 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
67 mm
16 mm
55.5 mm
58 mm
67 mm
≤ 35 mm²
1
1
M 6
1
14
2
3
6
2.5 mm²
35 mm²
2.5 mm²
35 mm²
6 mm²
35 mm²
6 mm²
35 mm²
Polyamide 6.6
UL94-V0
-40 °C
120 °C
UL 1059
1000 V
115 A
C22.2 No 158
1000 V
115 A
UL 1059
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
31.23 g
10
Mounting with threaded rod and plastic base, ideal for industrial applications.

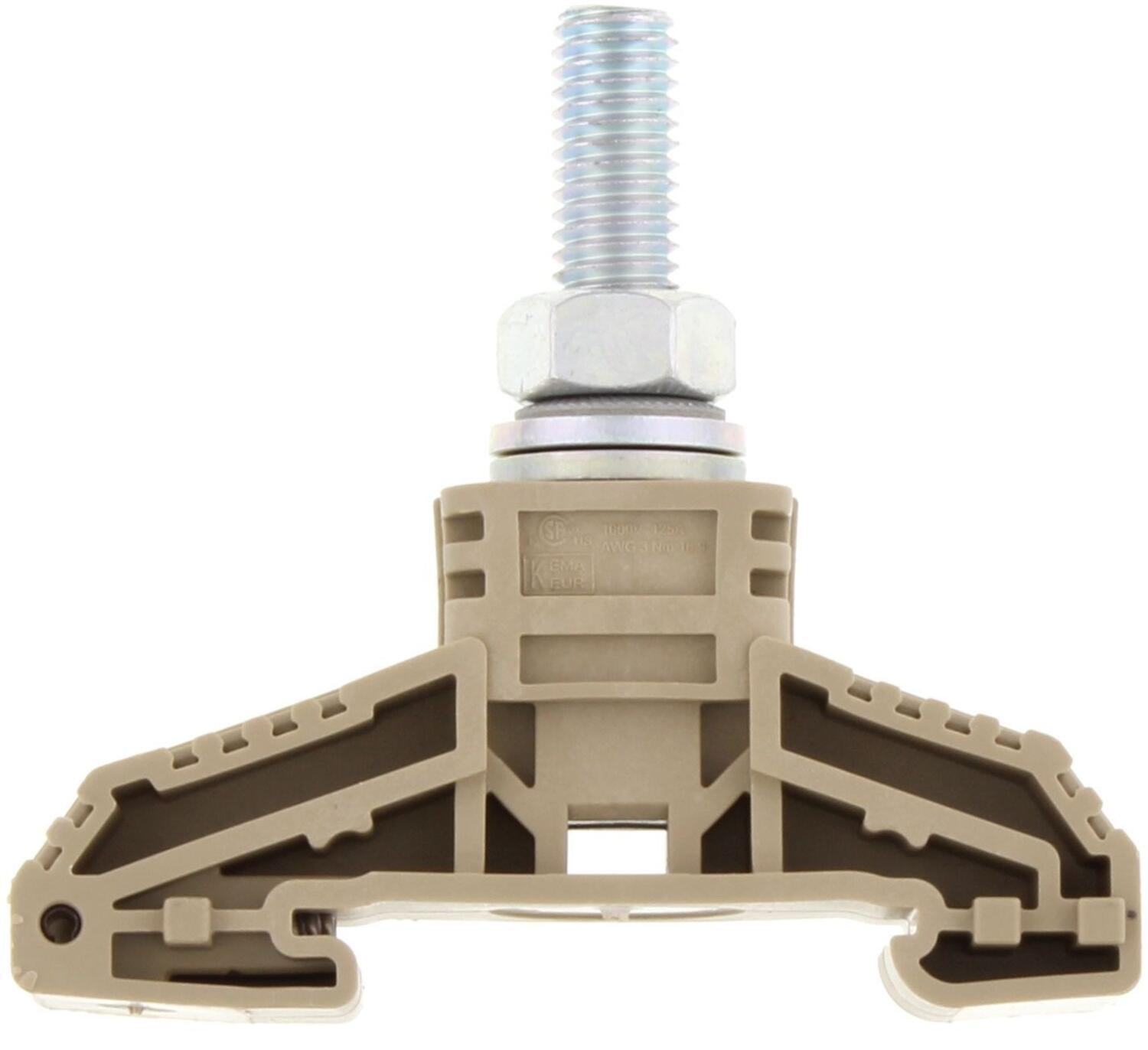

HSK 50/M8 B, 50mm² Single M8 stud terminal
Art:
17002.2 Copied
50 mm²
Beige
1000 V
150 A
TS 35/7,5
8 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
67 mm
21 mm
63.5 mm
66 mm
67 mm
≤ 50 mm²
1
1
M 8
1
14
1/0
6
12
2.5 mm²
50 mm²
2.5 mm²
50 mm²
6 mm²
35 mm²
6 mm²
35 mm²
Polyamide 6.6
UL94-V0
-40 °C
120 °C
UL 1059
1000 V
125 A
C22.2 No 158
1000 V
125 A
UL 1059
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
50.64 g
10
Mounting from CONTA-CLIP with threaded rod and nut, designed for industrial use

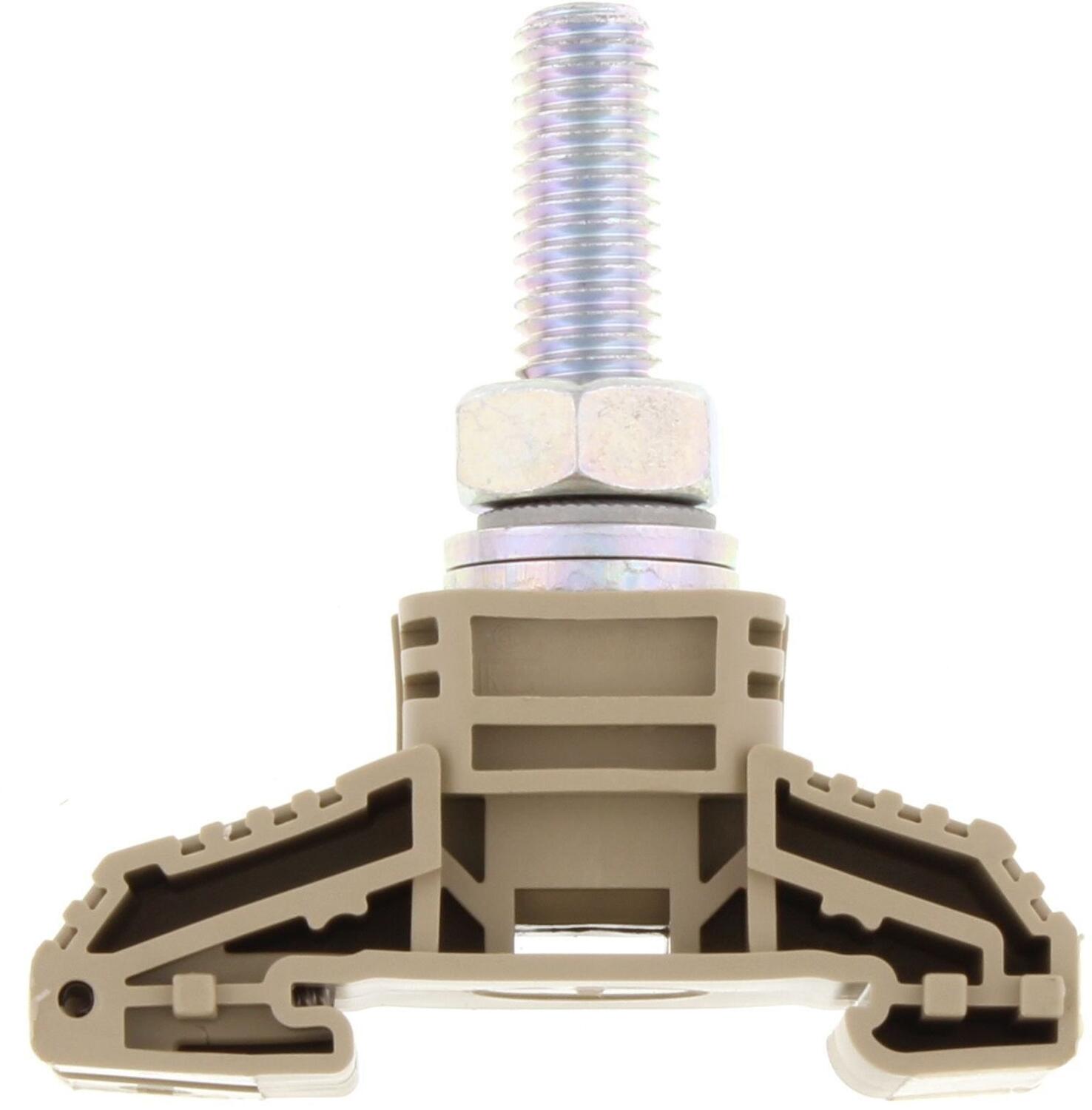

HSK 120/M10 B, 120mm² Single M10 stud terminal
Art:
17003.2 Copied
120 mm²
Beige
1000 V
269 A
TS 35/7,5
8 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
67 mm
32 mm
73.5 mm
76 mm
67 mm
≤ 120 mm²
1
1
M 10
1
10
250 Kcmil
10
20
6 mm²
120 mm²
6 mm²
120 mm²
10 mm²
95 mm²
10 mm²
95 mm²
Polyamide 6.6
UL94-V0
-40 °C
120 °C
UL 1059
1000 V
220 A
C22.2 No 158
1000 V
220 A
UL 1059
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
90.95 g
10
Mounting for cable installation with threaded shaft and robust design, ideal for industrial use

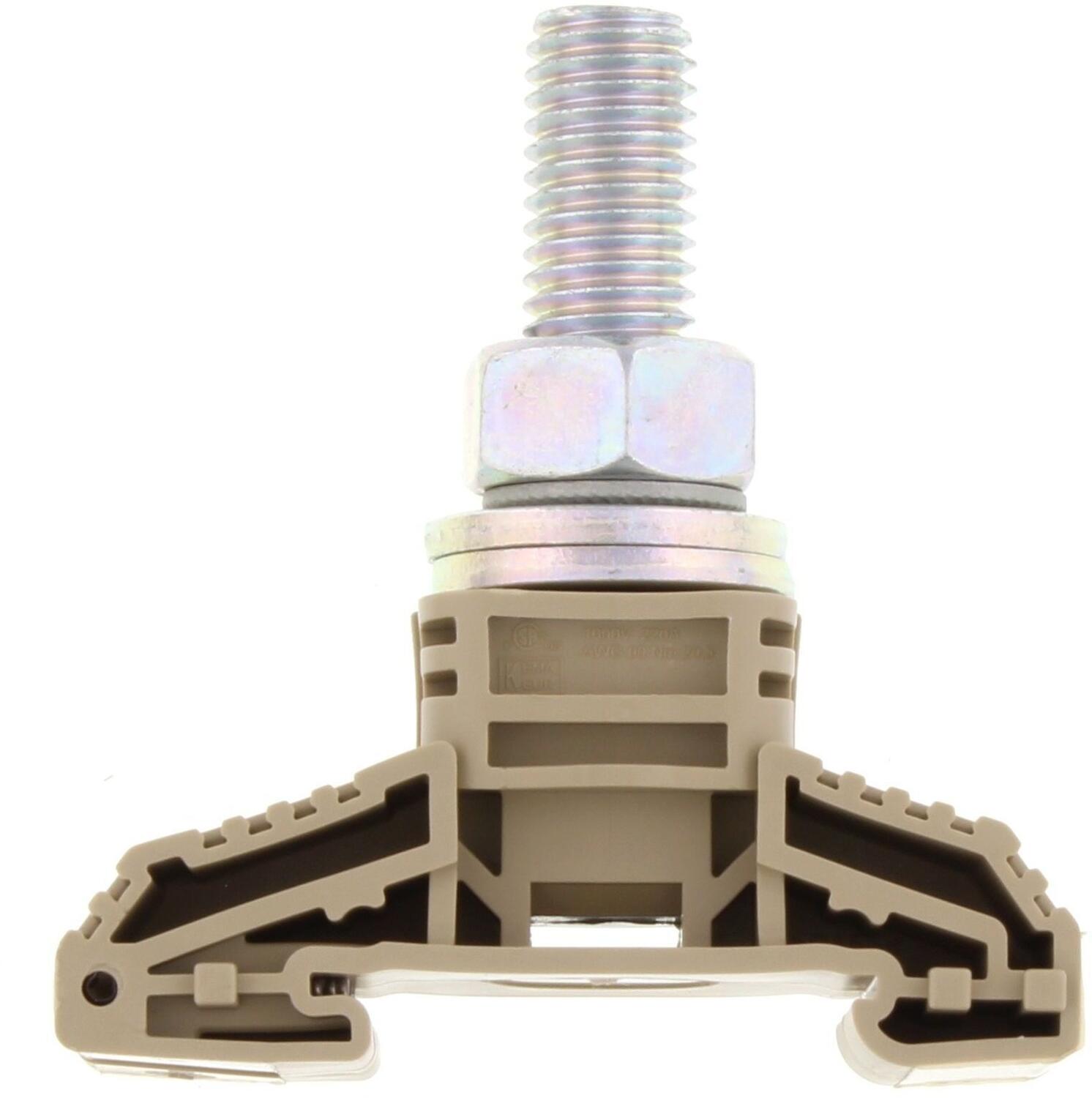

HSK 120/M12 B, 120mm² Single M12 stud terminal
Art:
17004.2 Copied
120 mm²
Beige
1000 V
269 A
TS 35/7,5
8 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
67 mm
32 mm
73.5 mm
76 mm
67 mm
≤ 120 mm²
1
1
M 10
1
10
250 Kcmil
14
31
6 mm²
120 mm²
6 mm²
120 mm²
10 mm²
95 mm²
10 mm²
95 mm²
Polyamide 6.6
UL94-V0
-40 °C
120 °C
UL 1059
1000 V
220 A
C22.2 No 158
1000 V
220 A
UL 1059
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
114.39 g
10
Mounting with metal screws and plastic base, ideal for industrial use

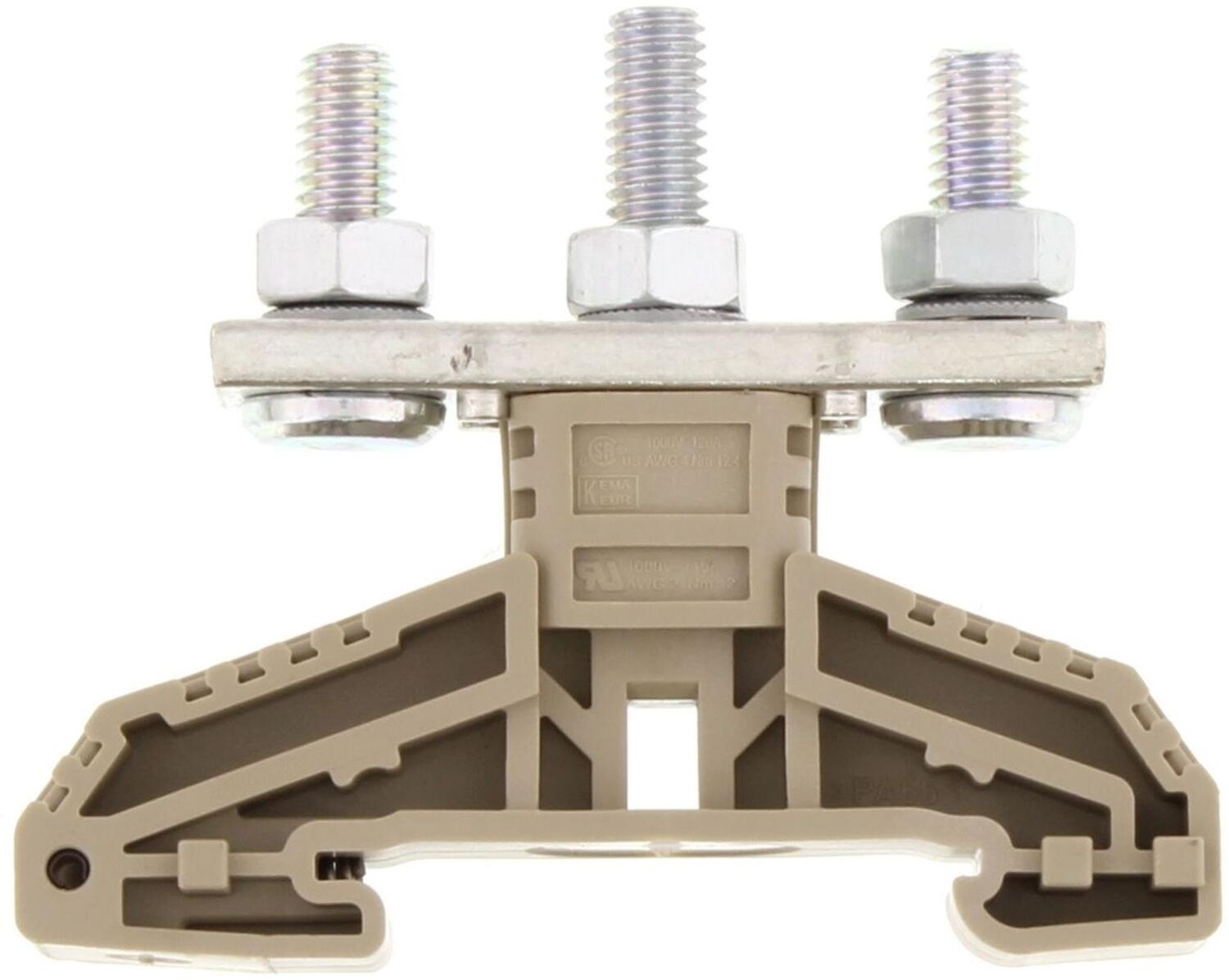

HSK 35/M6 B/B, 35mm² Dual M6 stud terminal
Art:
17005.2 Copied
35 mm²
Beige
1000 V
125 A
TS 35/7,5
8 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
67 mm
16 mm
55.5 mm
61.5 mm
67 mm
≤ 35 mm²
2
1
M 6
1
14
2
3
6
2.5 mm²
35 mm²
2.5 mm²
35 mm²
6 mm²
35 mm²
6 mm²
35 mm²
Polyamide 6.6
UL94-V0
-40 °C
120 °C
UL 1059
1000 V
120 A
C22.2 No 158
1000 V
120 A
UL 1059
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
68.29 g
10
Mounting with two screws and nuts, designed for electrical installations, CONTA-CLIP product

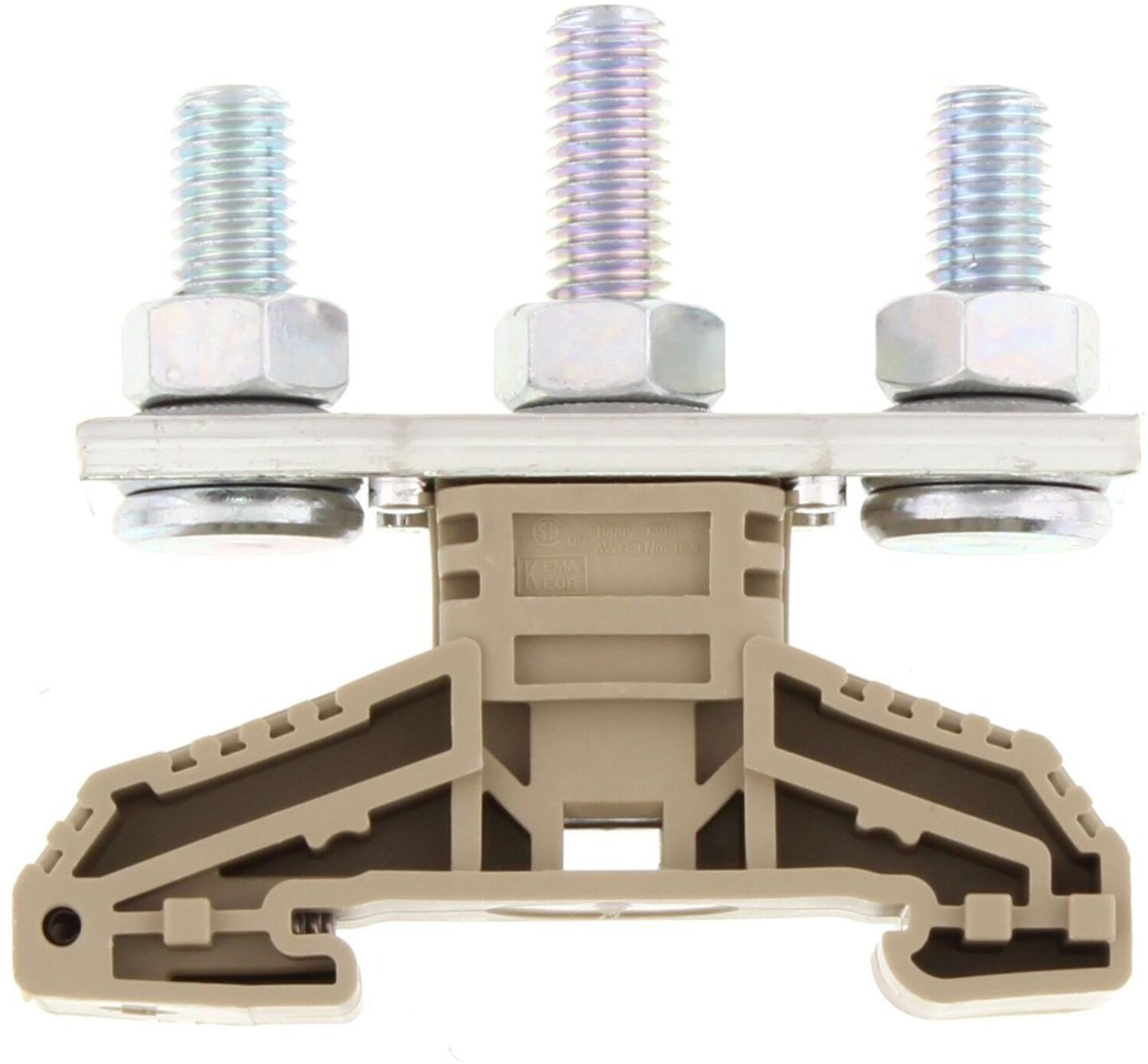

HSK 50/M8 B/B, 50mm² Dual M8 stud terminal
Art:
17006.2 Copied
50 mm²
Beige
1000 V
150 A
TS 35/7,5
8 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
67 mm
21 mm
63.5 mm
71.5 mm
120 mm
≤ 50 mm²
2
1
M 8
1
14
1/0
6
12
2.5 mm²
50 mm²
2.5 mm²
50 mm²
6 mm²
35 mm²
6 mm²
35 mm²
Polyamide 6.6
UL94-V0
-40 °C
120 °C
UL 1059
1000 V
130 A
C22.2 No 158
1000 V
130 A
UL 1059
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
121.98 g
10
Mounting with metal screws and plastic component for industrial use

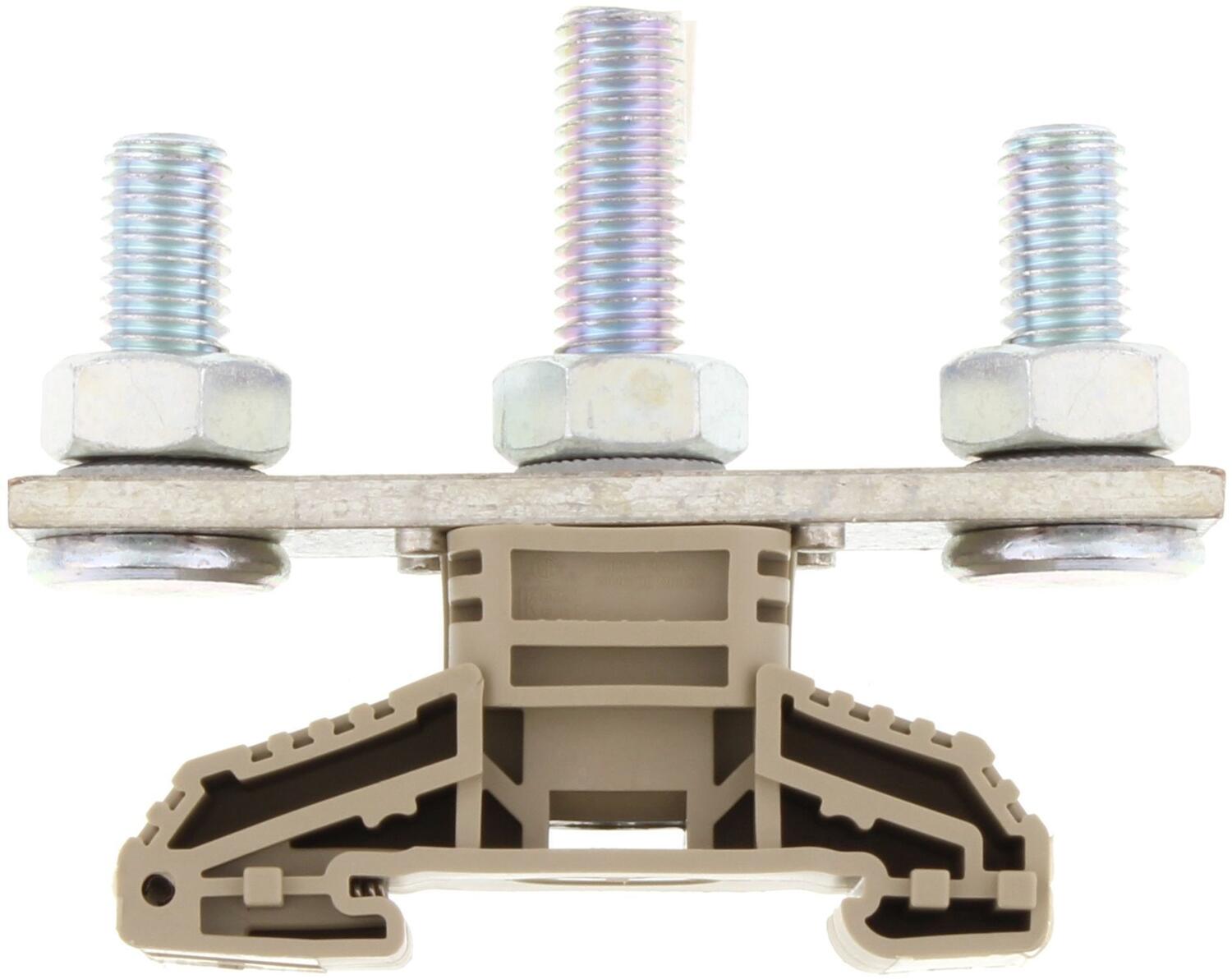

HSK 120/M10 B/B, 120mm² Dual M10 stud terminal
Art:
17007.2 Copied
120 mm²
Beige
1000 V
269 A
TS 35/7,5
8 kV
III
3
UL, CSA, CSA US, cUL, KEMA KUR, EAC
67 mm
32 mm
73.5 mm
78.5 mm
156 mm
≤ 120 mm²
2
1
M 10
1
10
250 Kcmil
10
20
6 mm²
120 mm²
6 mm²
120 mm²
10 mm²
95 mm²
10 mm²
95 mm²
Polyamide 6.6
UL94-V0
-40 °C
120 °C
UL 1059
1000 V
225 A
C22.2 No 158
1000 V
225 A
UL 1059
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
220.9 g
10
