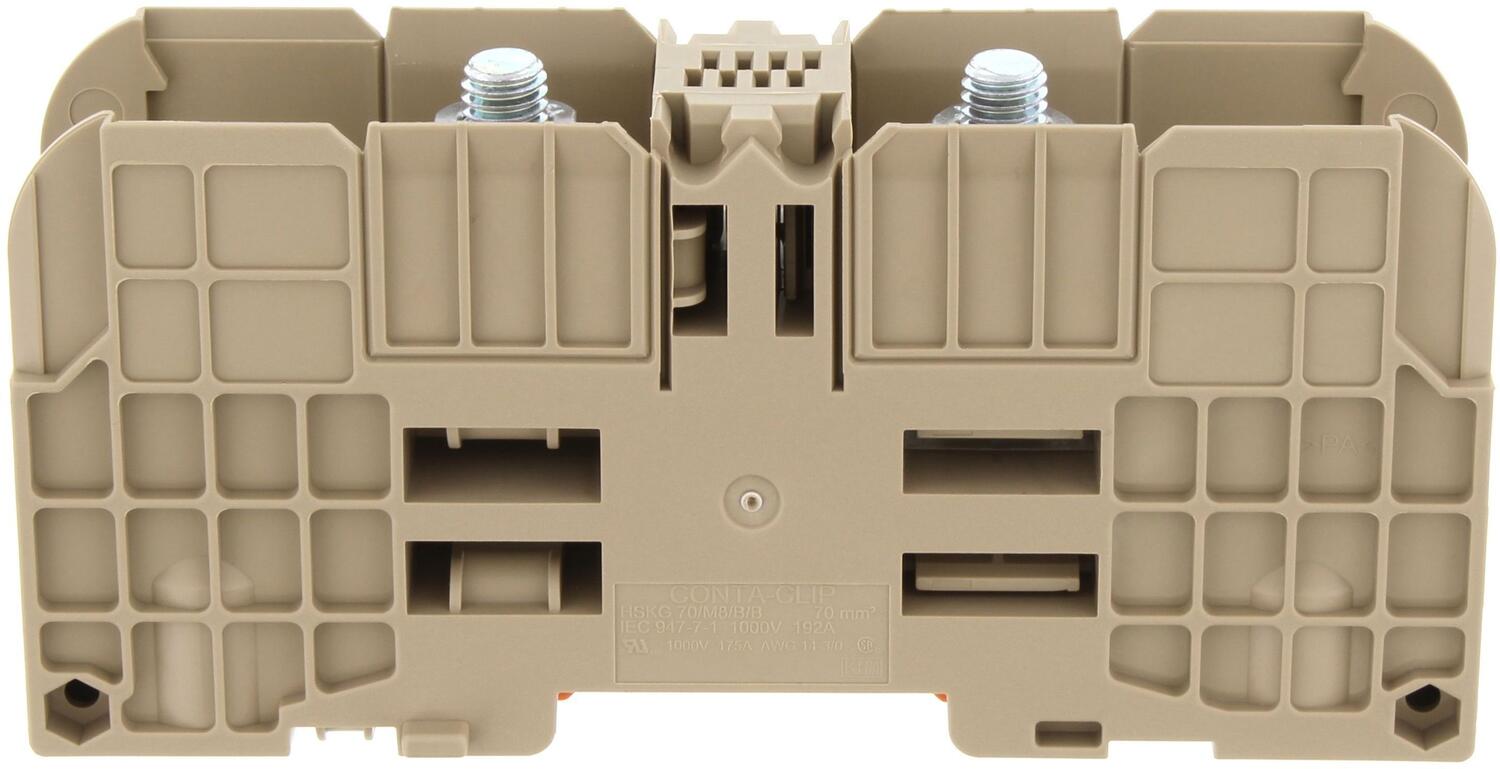

High-power stud terminals - HSKG 35-300mm²
HSKG
The newest generation of stud terminals from CONTA-CLIP offers secure connections for all high power conductors.
The HSKG stud terminals are available with stud sizes of with M6, M8, M10, M12 and rated current is from 125 A to 520A at a rated voltage of 1000 V.
The wire connection range is from 2.5 mm² to 300 mm². and crimped lugs are used to fit the cables to the busbar using the hexagonal nut with built in washer.
When used together with the ADH hinged covers, the HSKG stud terminals provide outstanding finger and touch protection. The ADH cover is easy to mount; it simply snaps into the side walls of the stud terminals as it is closed.
In this quick and reliable way, touch-safe protection of the terminal points is always guaranteed.
Added features include -
- Measuring Point located on the ADH covers to allow probes to be inserted without exposing the conductor.
- Direct or DIN Rail Mount

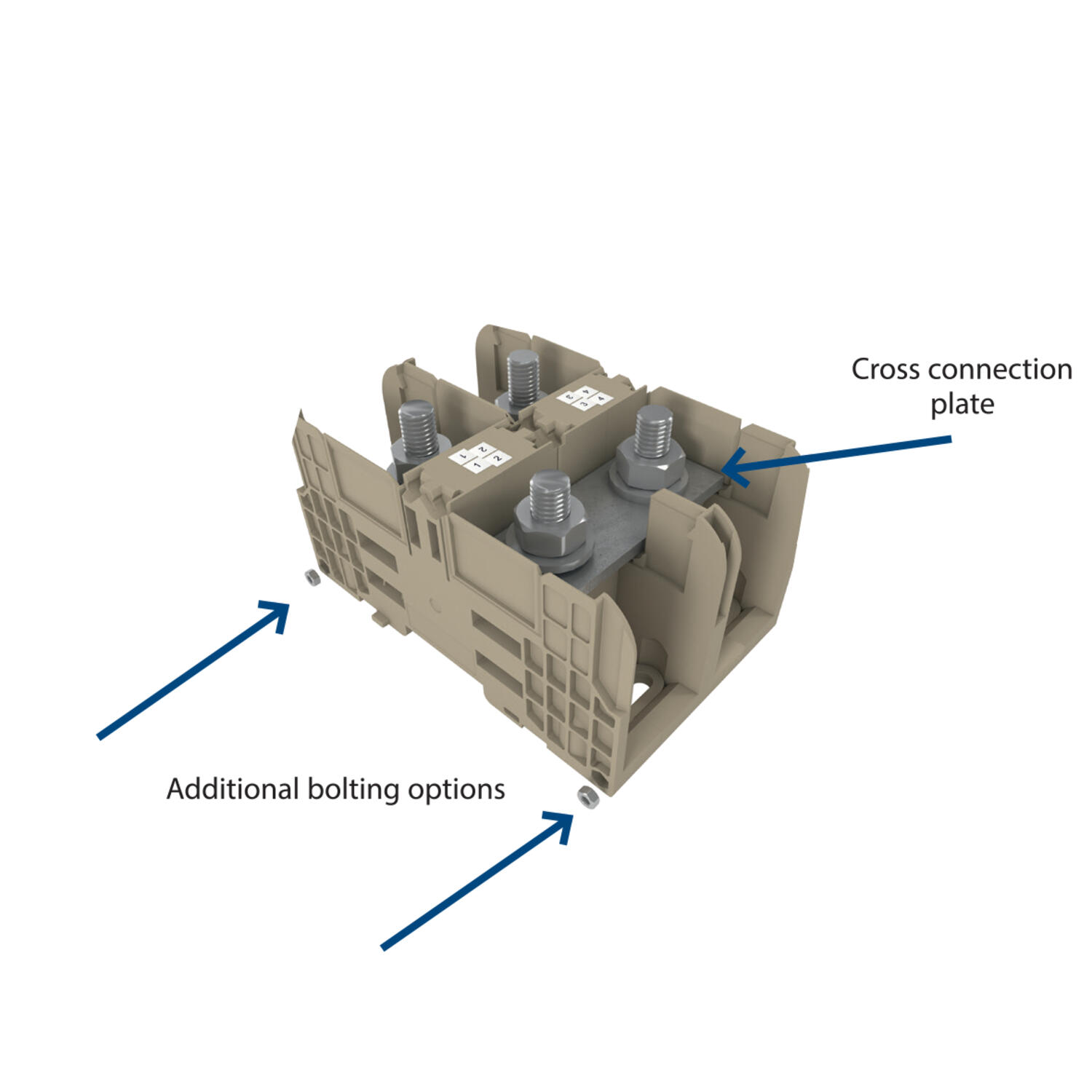

- Interlocking housings for improved stability
- Cross connectable
- Dual stud connection
- Direct & TS35 mount
- IP20 with Gull Wing Covers fitted
- Material polyamide 6.6
- Fire-resistance class V0

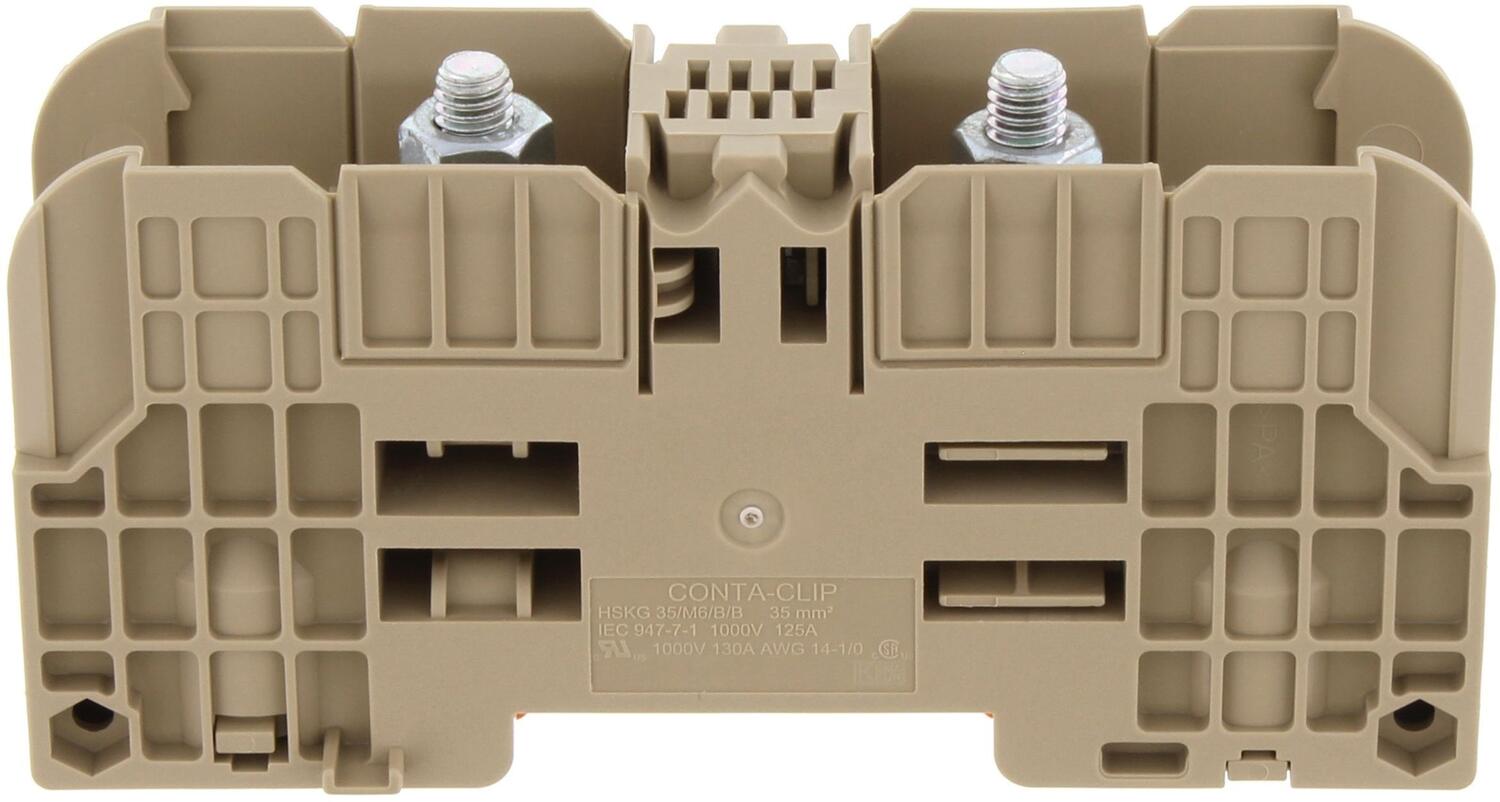

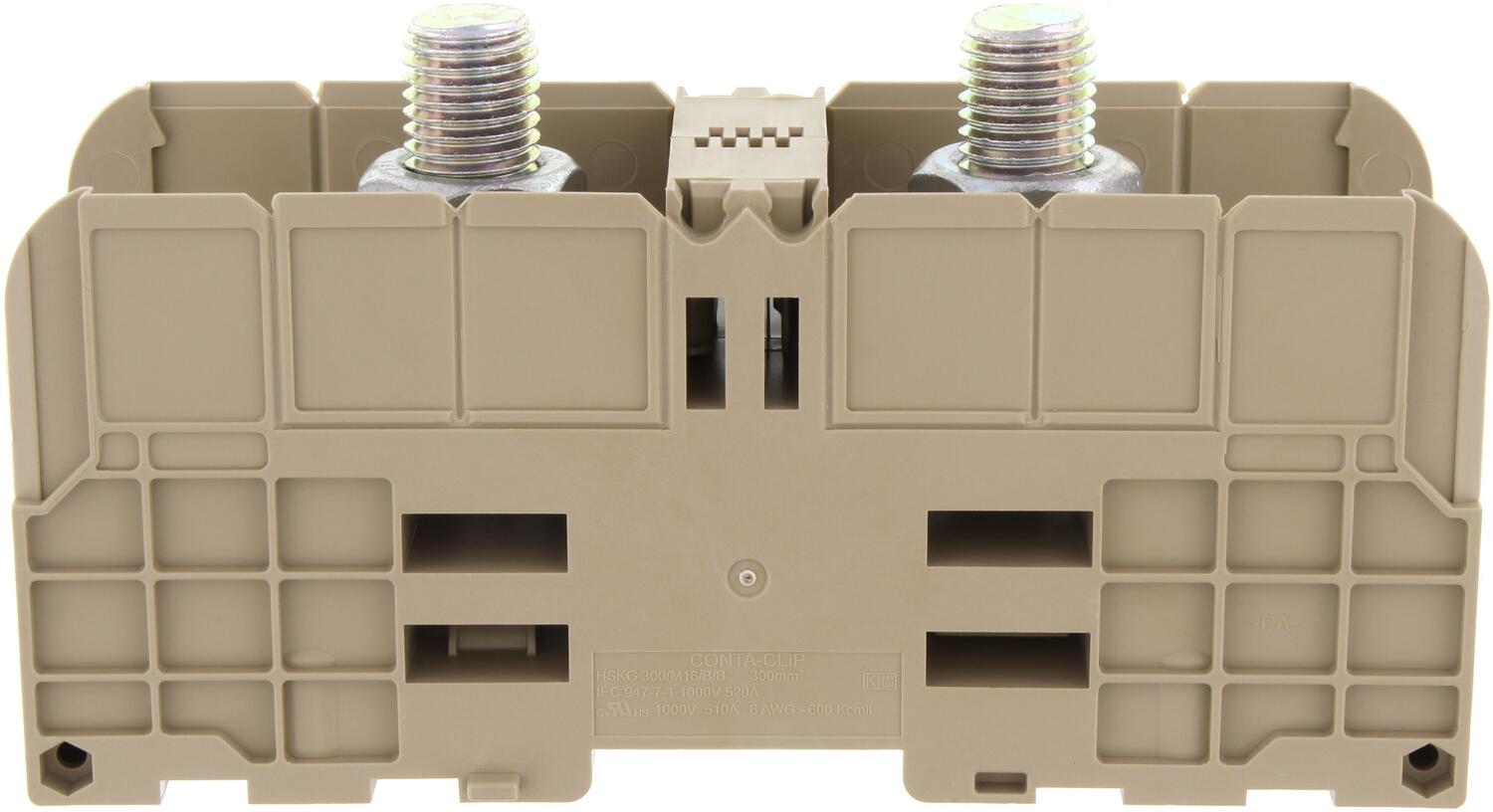

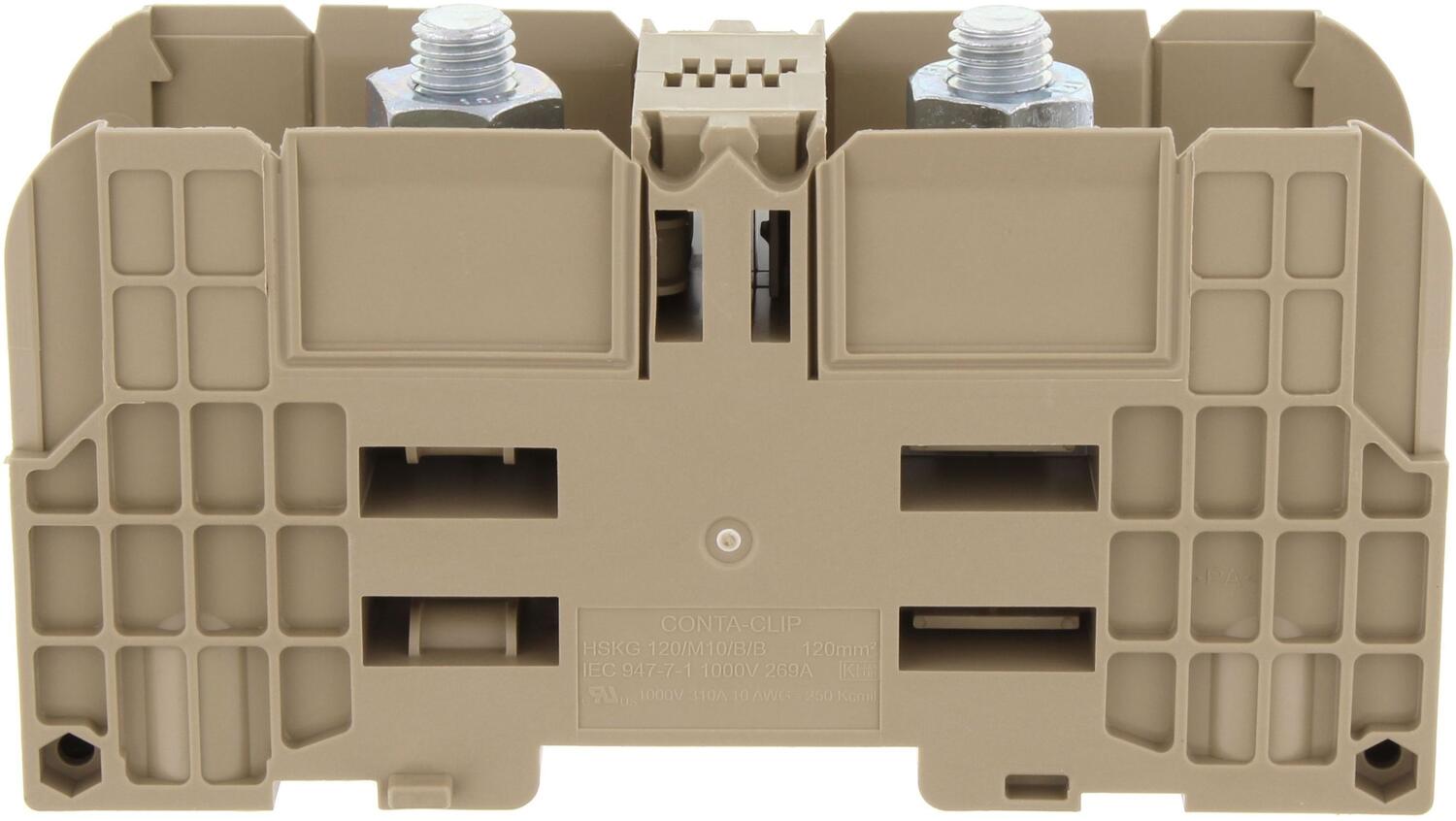

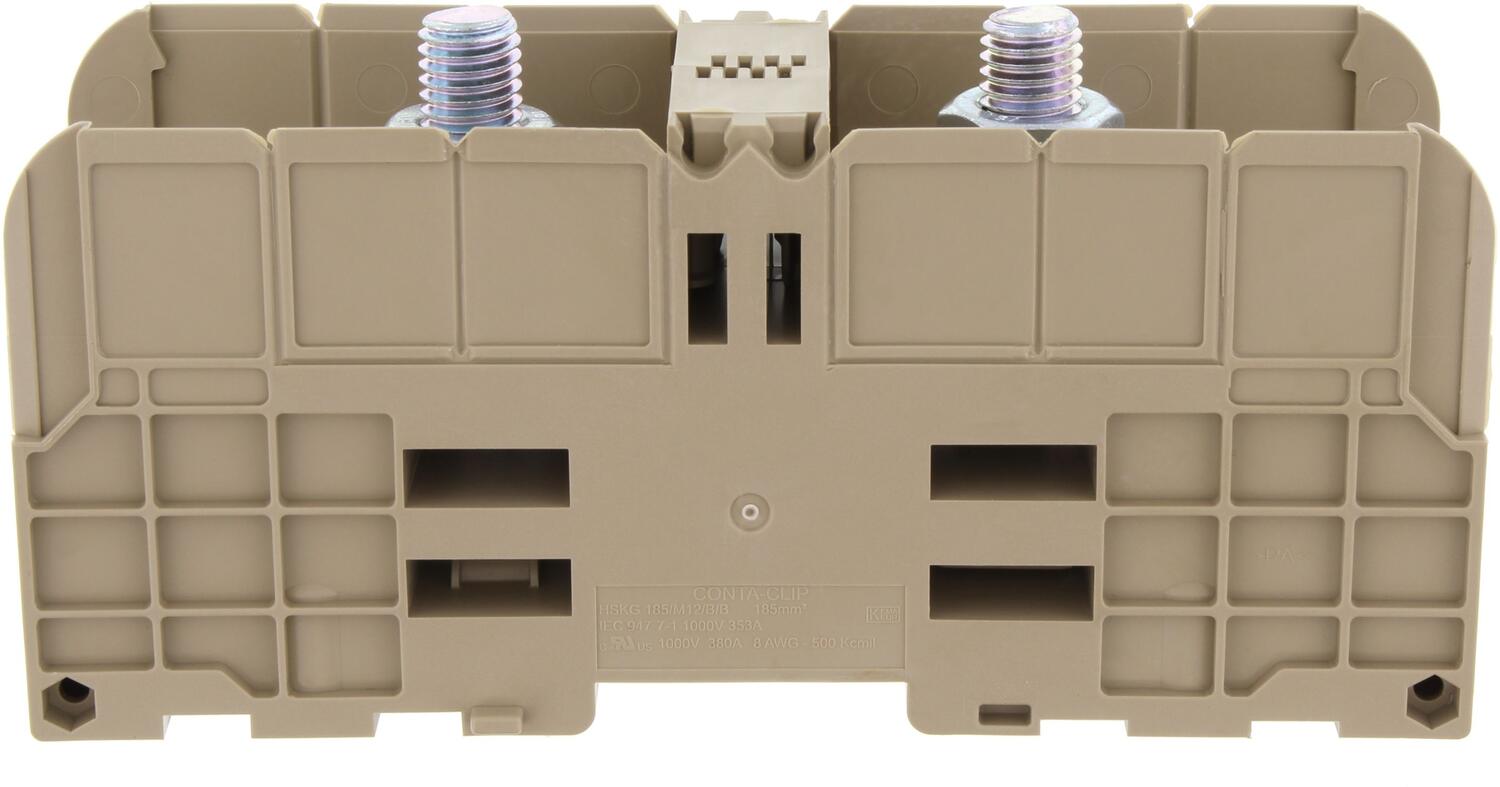

Selected variant
Specifications
| Cross-Section | 35 mm² |
|---|---|
| Color | Beige |
| Rated Voltage IEC | 1000 V |
| Rated Current IEC | 125 A |
| Mounting | TS 35/7,5 |
| Rated impulse voltage | 8 kV |
| Overvoltage category | III |
| Contamination degree | 3 |
| Approvals | UL, CSA, CSA US, cUL, KEMA KUR |
| Length | 107 mm |
| Width | 27 mm |
| Height TS 35/7.5 | 51 mm |
| Height with TW/ADH | 60 mm |
| Length with TW/ADH | 131 mm |
| Contact clamping area | ≤ 50 mm² |
| Connections | 2 |
| Number of levels | 1 |
| Stud size | M 6 |
| Rated wire cross section from (AWG) | 14 |
| Rated wire cross section to (AWG) | 1/0 |
| Torque Min | 3 |
| Torque max | 6 |
| DIN 46234 / 1 cable lug per side, min. | 2.5 mm² |
| DIN 46234 / 1 cable lug per side, max. | 50 mm² |
| DIN 46235: 1 cable lug per side, min. | 6 mm² |
|---|---|
| DIN 46235: 1 cable lug per side, max. | 25 mm² |
| Insulation Material | Polyamide 6.6 |
| Flamklass | UL94-V0 |
| Operating temperature from | -40 °C |
| Operating temperature to | 120 °C |
| Rated Voltage To UL | 1000 V |
| UL test standard | UL 1059 |
| Voltage CSA | 1000 V |
| Rated Current CSA | 130 A |
| CSA test standard | C22.2 No 158 |
| Rated voltage CSAus | 1000 V |
| Rated current CSAus | 130 A |
| CSAus test standard | UL 1059 |
| Rated voltage cUL | 1000 V |
| Rated current cUL | 130 A |
| cUL test standard | C22.2 No 158 |
| KEMA KEUR test standard | EN 60947-7-1:2028 |
| Tariff code | 85369010 |
| Country of origin | DE |
| Weight | 88.6 g |
| Pack Size | 10 |
Product description
The newest generation of stud terminals from CONTA-CLIP offers secure connections for all high power conductors.
The HSKG stud terminals are available with stud sizes of with M6, M8, M10, M12 and rated current is from 125 A to 520A at a rated voltage of 1000 V.
The wire connection range is from 2.5 mm² to 300 mm². and crimped lugs are used to fit the cables to the busbar using the hexagonal nut with built in washer.
When used together with the ADH hinged covers, the HSKG stud terminals provide outstanding finger and touch protection. The ADH cover is easy to mount; it simply snaps into the side walls of the stud terminals as it is closed.
In this quick and reliable way, touch-safe protection of the terminal points is always guaranteed.
Added features include -
- Measuring Point located on the ADH covers to allow probes to be inserted without exposing the conductor.
- Direct or DIN Rail Mount
- Interlocking housings for improved stability
- Cross connectable
Add product as a new cart row
You already added this product. Choose whether to increase quantity on the existing row or add the product as a new row.
