Selected variant

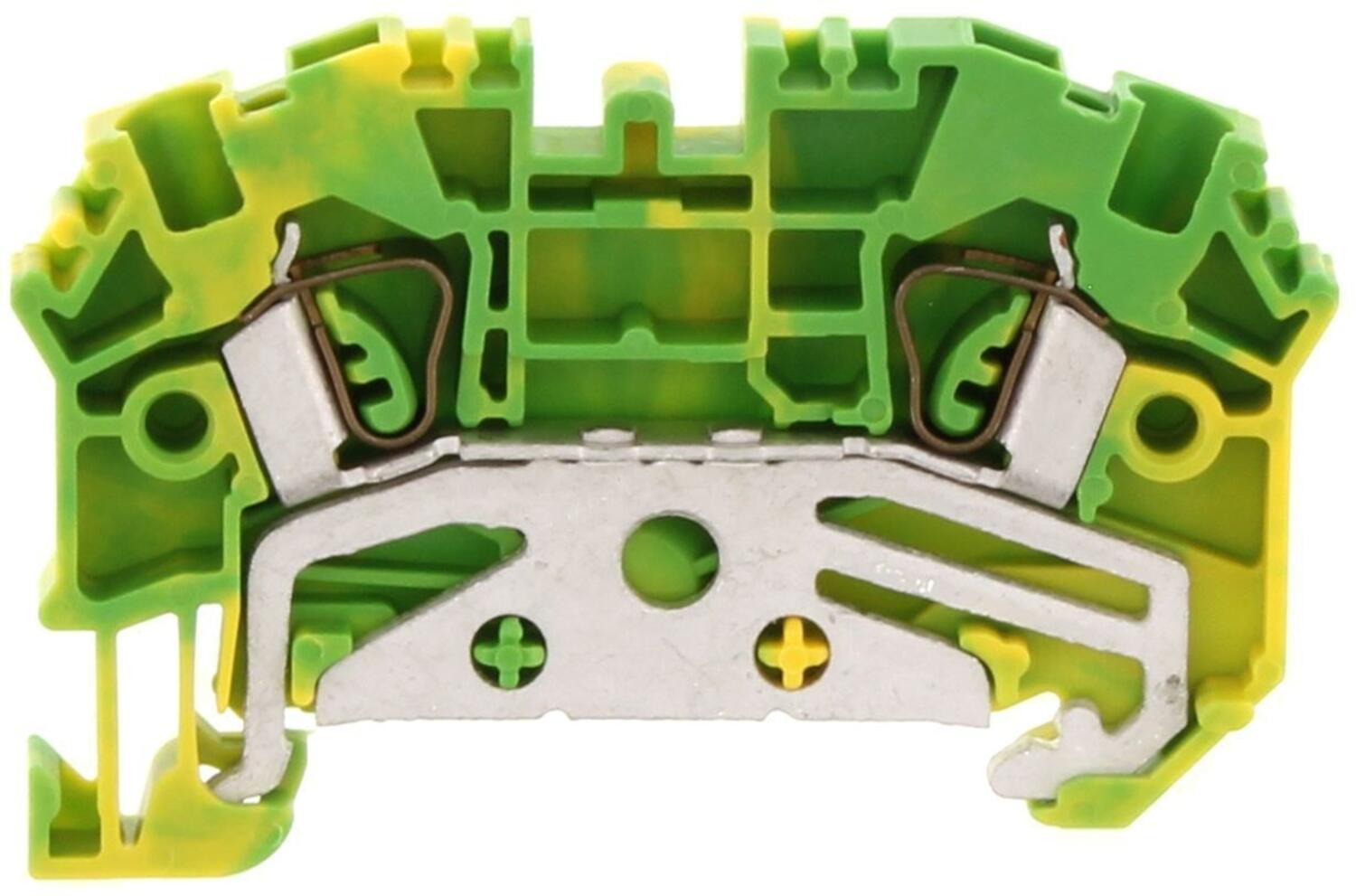

Specifications
| Cross-Section | 2.5 mm² |
|---|---|

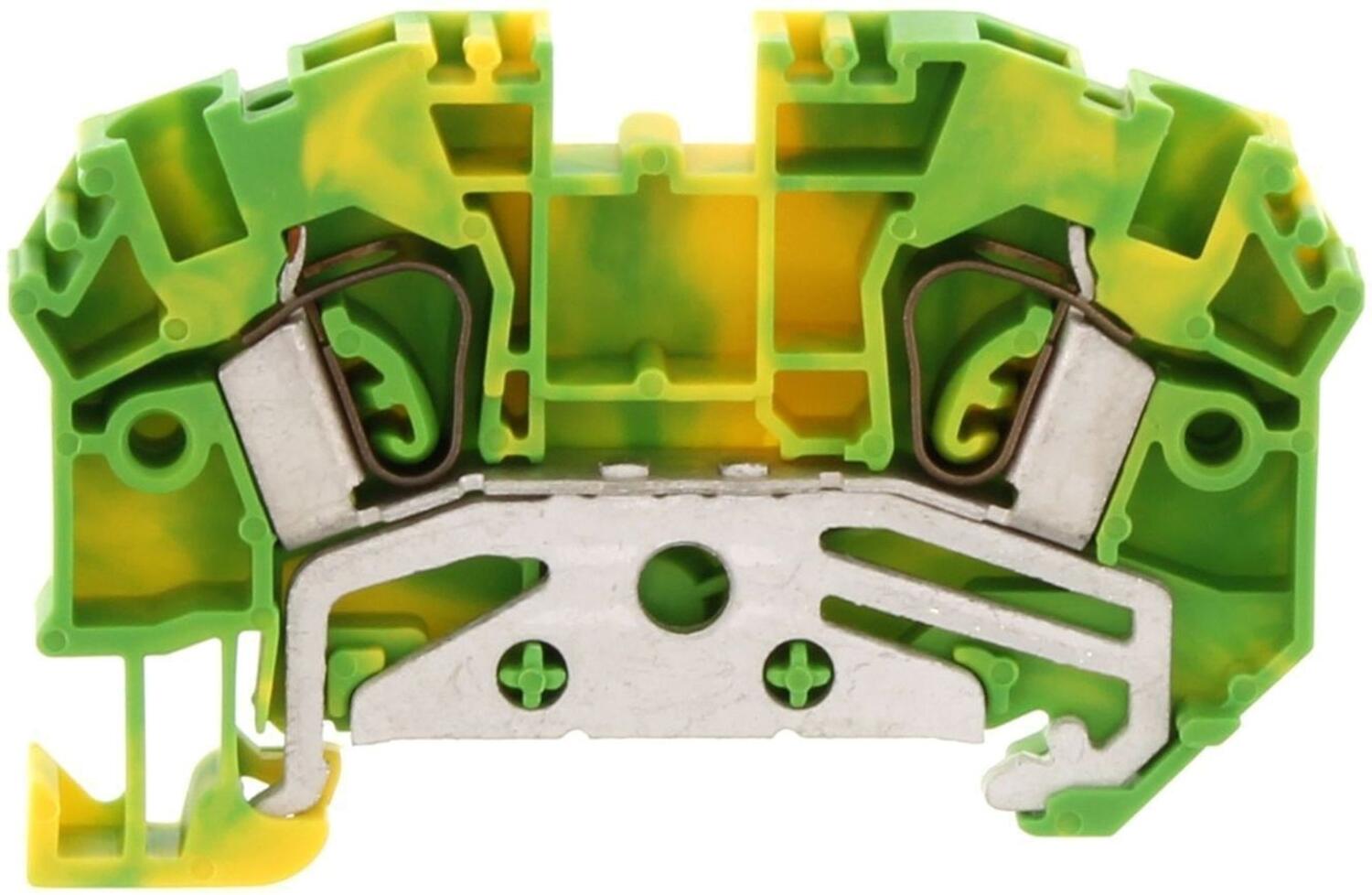

| Color | Green/yellow |
| Mounting | TS 35/7,5 |
| Overvoltage category | III |
| Contamination degree | 3 |
| Approvals | UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC |
| Length | 59 mm |
| Width | 5.1 mm |
| Height TS 35/7.5 | 39 mm |
| Connections | 2 |
| Number of levels | 1 |
| Plug gauge acc. EN 60 947-1 | A3 |
| Cross connect channels | 0 |
| Number of test pick off options | 2 |
| Cross section single wire from | 0.5 mm² |
| Cross section single wire to | 4 mm² |
| Cross section stranded wire from | 0.5 mm² |
| Cross section stranded wire to | 4 mm² |
| Cross section stranded with ferrule from | 0.5 mm² |
| Cross section stranded with ferrule to | 2.5 mm² |
| Rated wire cross section from (AWG) | 20 |
|---|---|
| Rated wire cross section to (AWG) | 12 |
| Stripping Length | 10 mm |
| Insulation Material | Polyamide 6.6 |
| Flamklass | UL94-V0 |
| Operating temperature from | -40 °C |
| Operating temperature to | 120 °C |
| UL test standard | UL 1059 |
| CSA test standard | C22.2 No 158 |
| CSAus test standard | UL 1059 |
| cUL test standard | C22.2 No 158 |
| GL test standard | IEC 60947-7-2:2009 |
| EAC test standard | TR ZU 004/2011 |
| KEMA KEUR test standard | EN 60947-7-2:2009 |
| Tariff code | 85369010 |
| Country of origin | BG |
| Weight | 12 g |
| Pack Size | 100 |
