CONTA-CLIP

Fuse terminals - ZTRK 2.5mm², OT/ZS

ZTRK/OT, ZTRK/ZS

  • Material polyamide 6.6
  • Temperature resistance -40°C...+120°C
  • Fire-resistance class V0
  • Current limited by an automotive fuse 10 A

Selected variant


Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

Cross-Section 2.5 mm²
Color Beige
Rated Voltage IEC 400 V
Rated Current IEC 18 A
Mounting TS 35/7,5
Rated impulse voltage 6 kV
Overvoltage category III
Contamination degree 3
Approvals CSA, CSA US, KEMA KUR
Additional information without function element
Length 68 mm
Width 5.1 mm
Height TS 35/7.5 39.2 mm
Connections 2
Number of levels 1
Plug gauge acc. EN 60 947-1 A3
Cross connect channels 1
Number of test pick off options 2
Cross section single wire from 0.5 mm²
Cross section single wire to 4 mm²
Cross section stranded wire from 0.5 mm²
Cross section stranded wire to 4 mm²
Cross section stranded with ferrule from 0.5 mm²
Cross section stranded with ferrule to 2.5 mm²
Rated wire cross section from (AWG) 20
Rated wire cross section to (AWG) 12
Stripping Length 10 mm
Insulation Material Polyamide 6.6
Flamklass UL94-V0
Operating temperature from -40 °C
Operating temperature to 120 °C
CSA test standard C22.2 No 158
CSAus test standard UL 1059
KEMA KEUR test standard EN 60947-7-1:2009, EN 60947-7-3:2009
Tariff code 85369010
Country of origin CZ
Weight 8.82 g
Pack Size 100

Downloads

Measurements and connections

Accessories

Related products

Add product as a new cart row

You already added this product. Choose whether to increase quantity on the existing row or add the product as a new row.

Related

TER - control stations
Product news

Quality solutions for motion controls

TER - Tecno Elettrica Ravasi, is our Italian supplier specializing in the manufacture of control stations. TER has over 60 years of experience in the manufacture of control stations.

Stego Loop Heater lämmityselementit
Product news

LOOP Heater for optimal heat distribution

Thanks to their loop design, LOOP heating elements offer excellent heating performance and ensure optimal heat distribution. Read more now!

PISA-M
Product news

Compact electronic overcurrent protection PISA-M

PISA-M is a 4-channel electronic fuse for 12 and 24 V DC systems. The smallest 4-channel electronic fuse with a width of only 22.5 mm!

Delcon relays
Product news

An effective solution Delcon CRA5

Delcon's CRA5 plug-in relay revolutionizes the control of difficult-to-handle DC loads. Inductive loads, frequent switching, and high DC voltages are a piece of cake for these relays.

LOCC-Box Mini
Product news

LOCC-Box Mini

The Lütze LOCC-Box is an intelligent electronic overcurrent protection device that provides reliable protection for 12/24 V DC systems in a narrow housing measuring just 8.1 mm. Integrated + and - terminals save space on the DIN rail.

DF Electric
Product news

DF Electric – new supplier for fuse solutions

DF Electric is specialized in the manufacturing of fuse links, fuse holders and control transformers since 1987. Presently the company is leading the Spanish market and is also very active in many export markets due to its competitive range of products.

Articles Cross-Section Color Rated Voltage IEC Rated Current IEC Fuse max Fuse size Mounting Rated impulse voltage Overvoltage category Contamination degree Approvals Additional information Length Width Height TS 35/7.5 Connections Number of levels Plug gauge acc. EN 60 947-1 Cross connect channels Number of test pick off options Cross section single wire from Cross section single wire to Cross section stranded wire from Cross section stranded wire to Cross section stranded with ferrule from Cross section stranded with ferrule to Rated wire cross section from (AWG) Rated wire cross section to (AWG) Stripping Length Insulation Material Flamklass Operating temperature from Operating temperature to Voltage CSA Rated Current CSA CSA test standard Rated voltage CSAus Rated current CSAus CSAus test standard KEMA KEUR test standard Tariff code Country of origin Weight Pack Size

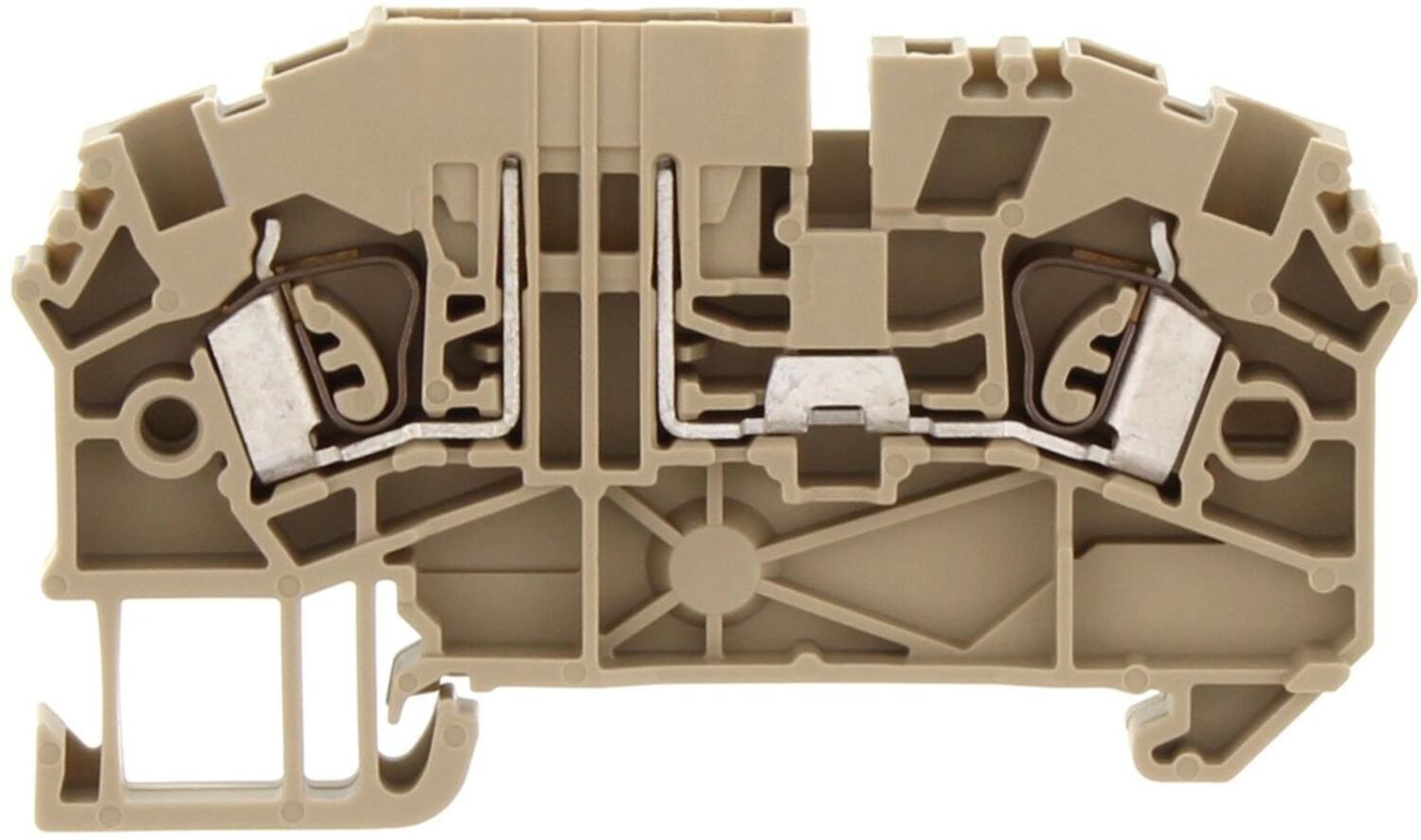

Terminal block from CONTA-CLIP with detailed internal structure and beige color
ZTRK 2,5/2A/OT BG
Art:
3609.2 Copied
2.5 mm²
Beige
400 V
18 A
TS 35/7,5
6 kV
III
3
CSA, CSA US, KEMA KUR
without function element
68 mm
5.1 mm
39.2 mm
2
1
A3
1
2
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
C22.2 No 158
UL 1059
EN 60947-7-1:2009, EN 60947-7-3:2009
85369010
CZ
8.82 g
100

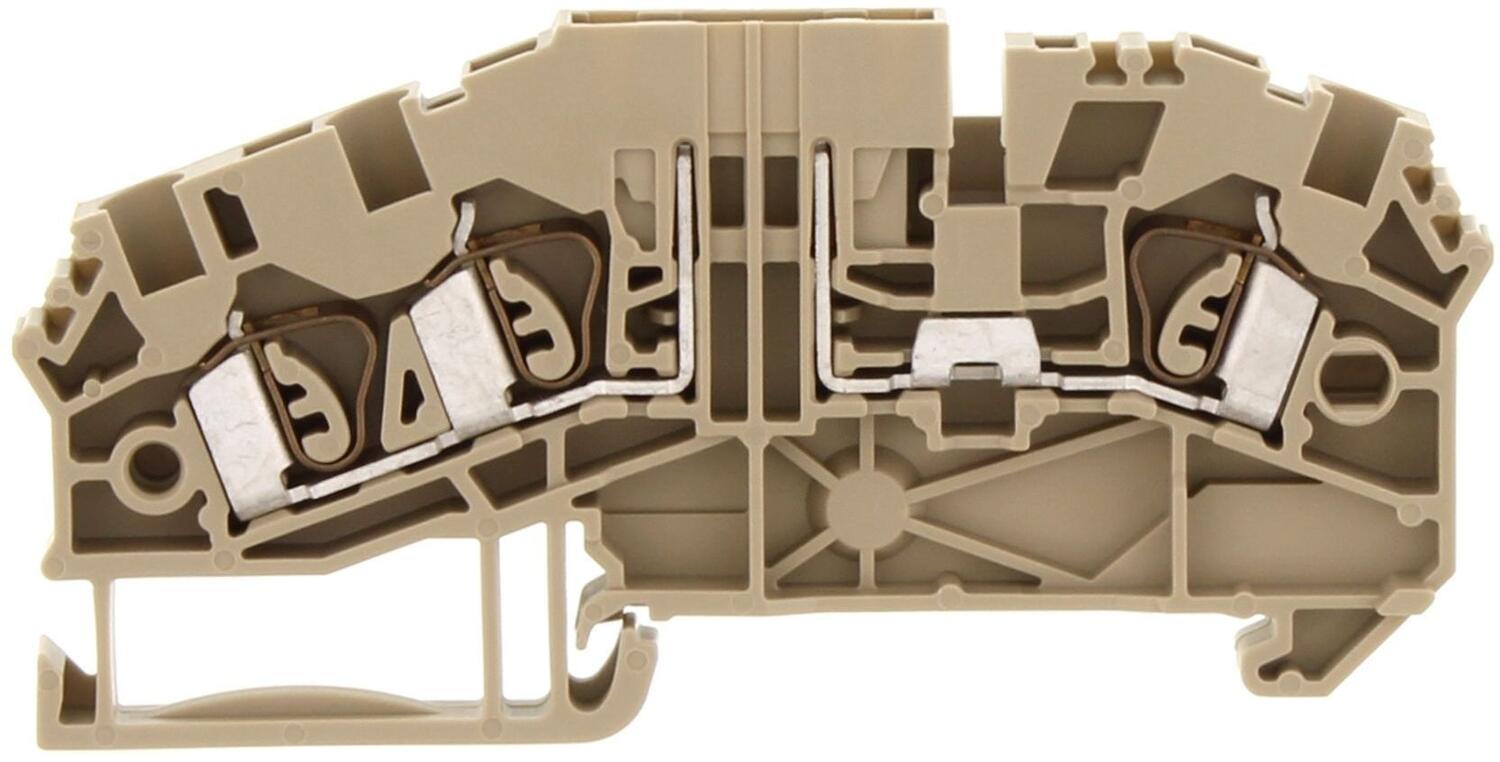

Terminal block from CONTA-CLIP with detailed interior and beige color, ideal for electrical installations.
ZTRK 2,5/3A/OT BG
Art:
3610.2 Copied
2.5 mm²
Beige
400 V
18 A
TS 35/7,5
6 kV
III
3
CSA, CSA US, KEMA KUR
without function element
80.2 mm
5.1 mm
39.2 mm
3
1
A3
1
2
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
C22.2 No 158
UL 1059
EN 60947-7-1:2009, EN 60947-7-3:2009
85369010
CZ
10.99 g
100

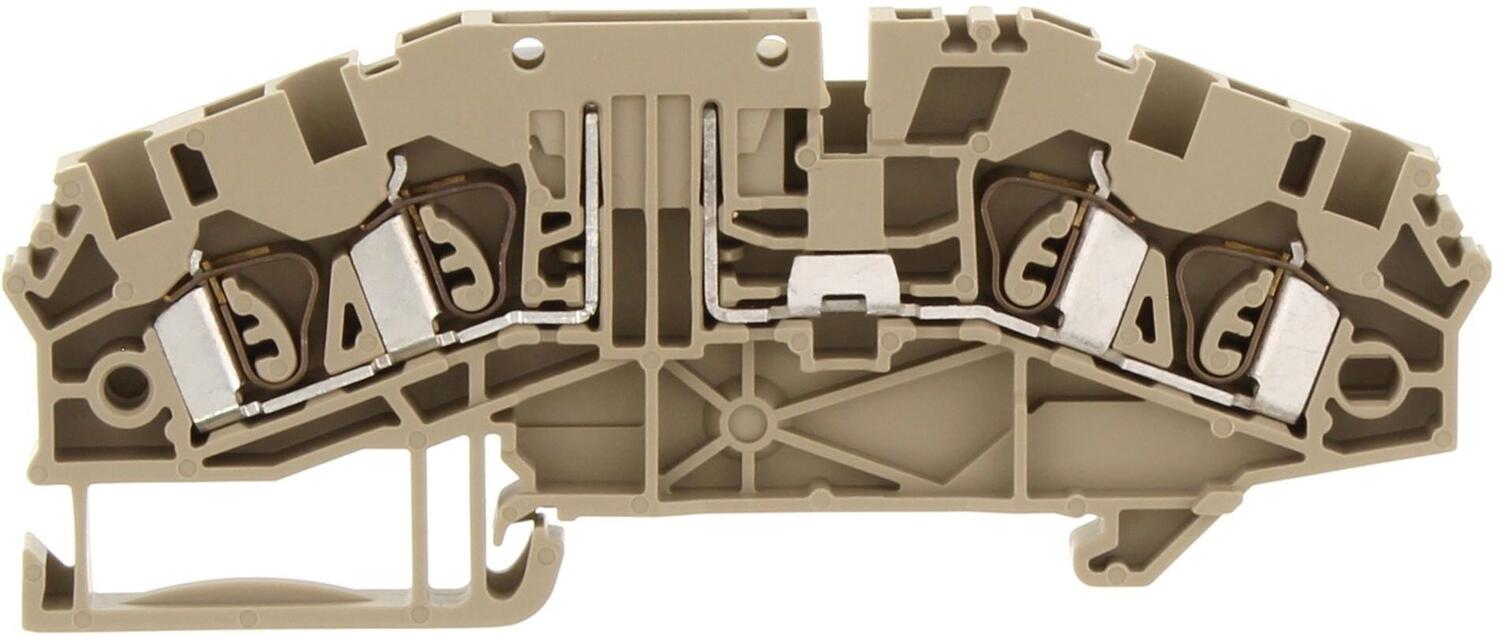

Terminal block from CONTA-CLIP with multiple connections and robust design, ideal for electrical installations.
ZTRK 2,5/4A/OT BG
Art:
3611.2 Copied
2.5 mm²
Beige
400 V
18 A
TS 35/7,5
6 kV
III
3
CSA, CSA US, KEMA KUR
without function element
92.4 mm
5.1 mm
39.2 mm
4
1
A3
1
2
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
C22.2 No 158
UL 1059
EN 60947-7-1:2009, EN 60947-7-3:2009
85369010
CZ
12.66 g
100
Terminal block with yellow handle, designed for efficient electrical connection and installation.
ZTRK 2,5/2A/ZS BG
Art:
3616.2 Copied
2.5 mm²
Beige
18 A
5 x 20 mm
TS 35/7,5
6 kV
III
3
CSA, CSA US, KEMA KUR
with fuse plug
68 mm
5.1 mm
78.7 mm
2
1
A3
1
2
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
12
20
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
10 A
C22.2 No 158
300 V
10 A
UL 1059
EN 60947-7-1:2009, EN 60947-7-3:2009
85369010
DE
16 g
100

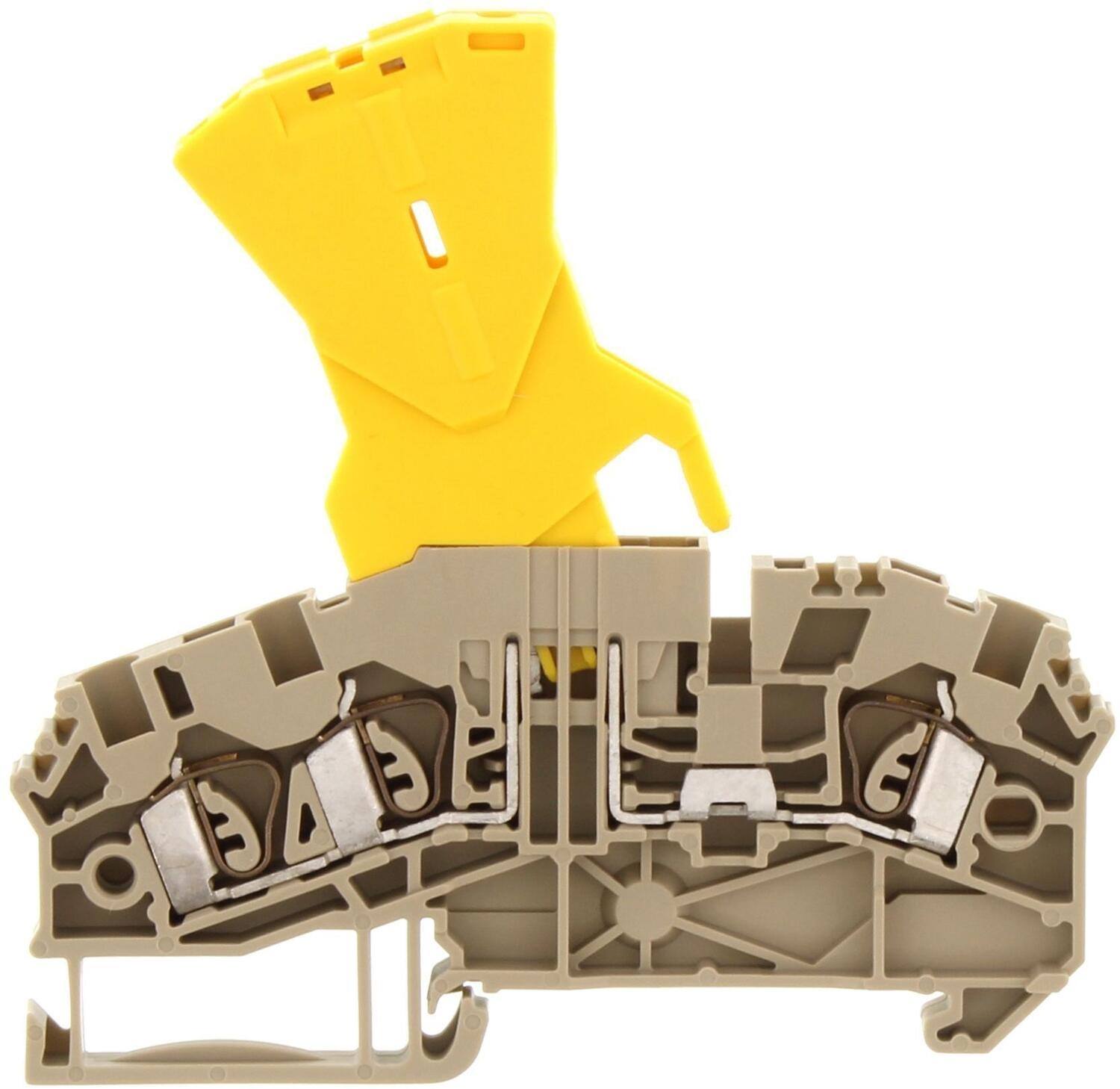

Connection terminal with yellow locking mechanism and gray base, designed for electrical connections.
ZTRK 2,5/3A/ZS BG
Art:
3621.2 Copied
2.5 mm²
Beige
18 A
5 x 20 mm
TS 35/7,5
6 kV
III
3
CSA, CSA US, KEMA KUR
with fuse plug
80.2 mm
5.1 mm
78.7 mm
3
1
A3
1
2
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
12
20
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
10 A
C22.2 No 158
300 V
10 A
UL 1059
EN 60947-7-1:2009, EN 60947-7-3:2009
85369010
DE
19 g
100

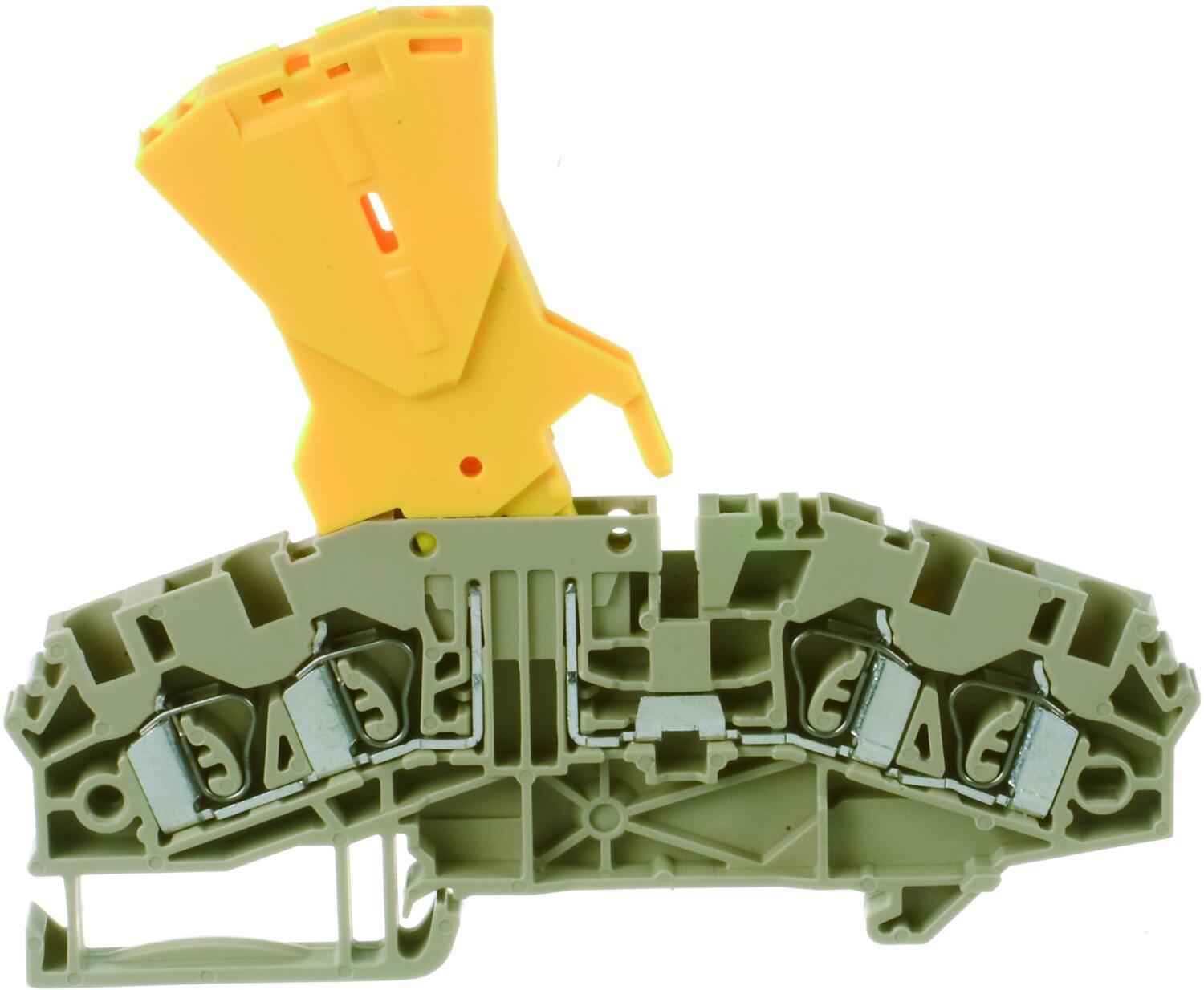

Product image of an electric connection terminal with a yellow and green plastic part, designed for industrial use.
ZTRK 2,5/4A/ZS BG
Art:
3626.2 Copied
2.5 mm²
Beige
18 A
5 x 20 mm
TS 35/7,5
6 kV
III
3
CSA, CSA US, KEMA KUR
with fuse plug
92.4 mm
5.1 mm
78.7 mm
4
1
A3
1
2
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
12
20
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
10 A
C22.2 No 158
300 V
10 A
UL 1059
EN 60947-7-1:2009, EN 60947-7-3:2009
85369010
DE
21 g
100

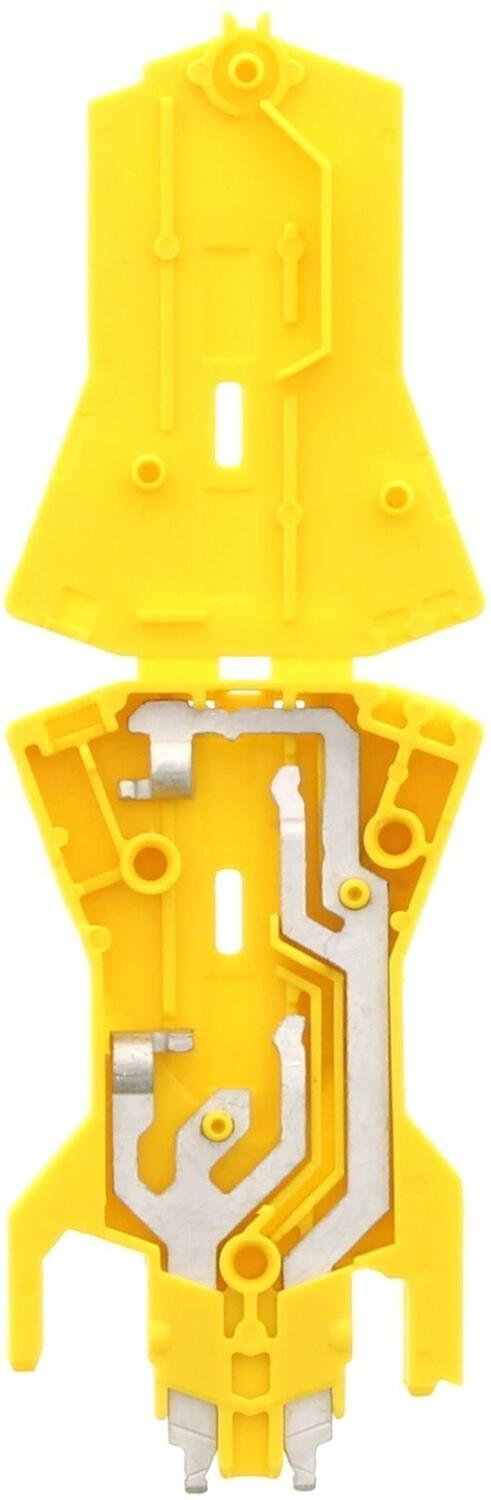

Yellow component with metallic details, designed for industrial use.
ZS/H0/ZTR
Art:
3635.2 Copied
Yellow
5 x 20 mm
4 kV
III
3
CSA, CSA US
without status display
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
10 A
C22.2 No 158
300 V
10 A
UL 1059
85369010
DE
6.55 g
20
