CONTA-CLIP

Triple deck terminals - ZIKD 2.5mm²

ZIKD

  • Material polyamide 6.6
  • Temperature resistance -40 °C...+120 °C
  • Flammability class V0

Selected variant


Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

Cross-Section 2.5 mm²
Color Beige
Rated Voltage IEC 500 V
Rated Current IEC 24 A
Mounting TS 35/7,5
Rated impulse voltage 6 kV
Overvoltage category III
Contamination degree 3
Approvals UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
Length 116.2 mm
Width 5.1 mm
Height TS 35/7.5 68 mm
Connections 3 x 2
Number of levels 3
Plug gauge acc. EN 60 947-1 A3
Cross connect channels 3
Number of test pick off options 6
Cross section single wire from 0.5 mm²
Cross section single wire to 4 mm²
Cross section stranded wire from 0.5 mm²
Cross section stranded wire to 4 mm²
Cross section stranded with ferrule from 0.5 mm²
Cross section stranded with ferrule to 2.5 mm²
Rated wire cross section from (AWG) 20
Rated wire cross section to (AWG) 12
Stripping Length 10 mm
Insulation Material Polyamide 6.6
Flamklass UL94-V0
Operating temperature from -40 °C
Operating temperature to 120 °C
Rated Voltage To UL 300 V
Rated Current To UL 15 A
UL test standard UL 1059
Voltage CSA 300 V
Rated Current CSA 15 A
CSA test standard C22.2 No 158
Rated voltage CSAus 300 V
Rated current CSAus 15 A
CSAus test standard UL 1059
Rated voltage cUL 300 V
Rated current cUL 15 A
cUL test standard C22.2 No 158
GL test standard IEC 60947-7-1:2009
EAC test standard TR ZU 004/2011
KEMA KEUR test standard EN 60947-7-1:2009
Tariff code 85369010
Country of origin CZ
Weight 17.37 g
Pack Size 50

Downloads

Measurements and connections

Accessories

Related products

Add product as a new cart row

You already added this product. Choose whether to increase quantity on the existing row or add the product as a new row.

Related

TER - control stations
Product news

Quality solutions for motion controls

TER - Tecno Elettrica Ravasi, is our Italian supplier specializing in the manufacture of control stations. TER has over 60 years of experience in the manufacture of control stations.

Stego Loop Heater lämmityselementit
Product news

LOOP Heater for optimal heat distribution

Thanks to their loop design, LOOP heating elements offer excellent heating performance and ensure optimal heat distribution. Read more now!

PISA-M
Product news

Compact electronic overcurrent protection PISA-M

PISA-M is a 4-channel electronic fuse for 12 and 24 V DC systems. The smallest 4-channel electronic fuse with a width of only 22.5 mm!

Delcon relays
Product news

An effective solution Delcon CRA5

Delcon's CRA5 plug-in relay revolutionizes the control of difficult-to-handle DC loads. Inductive loads, frequent switching, and high DC voltages are a piece of cake for these relays.

LOCC-Box Mini
Product news

LOCC-Box Mini

The Lütze LOCC-Box is an intelligent electronic overcurrent protection device that provides reliable protection for 12/24 V DC systems in a narrow housing measuring just 8.1 mm. Integrated + and - terminals save space on the DIN rail.

DF Electric
Product news

DF Electric – new supplier for fuse solutions

DF Electric is specialized in the manufacturing of fuse links, fuse holders and control transformers since 1987. Presently the company is leading the Spanish market and is also very active in many export markets due to its competitive range of products.

Articles Cross-Section Color Rated Voltage IEC Rated Current IEC Mounting Rated impulse voltage Overvoltage category Contamination degree Approvals Additional information Length Width Height TS 35/7.5 Connections Number of levels Plug gauge acc. EN 60 947-1 Cross connect channels Number of test pick off options Cross section single wire from Cross section single wire to Cross section stranded wire from Cross section stranded wire to Cross section stranded with ferrule from Cross section stranded with ferrule to Rated wire cross section from (AWG) Rated wire cross section to (AWG) Stripping Length Insulation Material Flamklass Operating temperature from Operating temperature to Rated Voltage To UL Rated Current To UL UL test standard Voltage CSA Rated Current CSA CSA test standard Rated voltage CSAus Rated current CSAus CSAus test standard Rated voltage cUL Rated current cUL cUL test standard GL test standard EAC test standard KEMA KEUR test standard Tariff code Country of origin Weight Pack Size

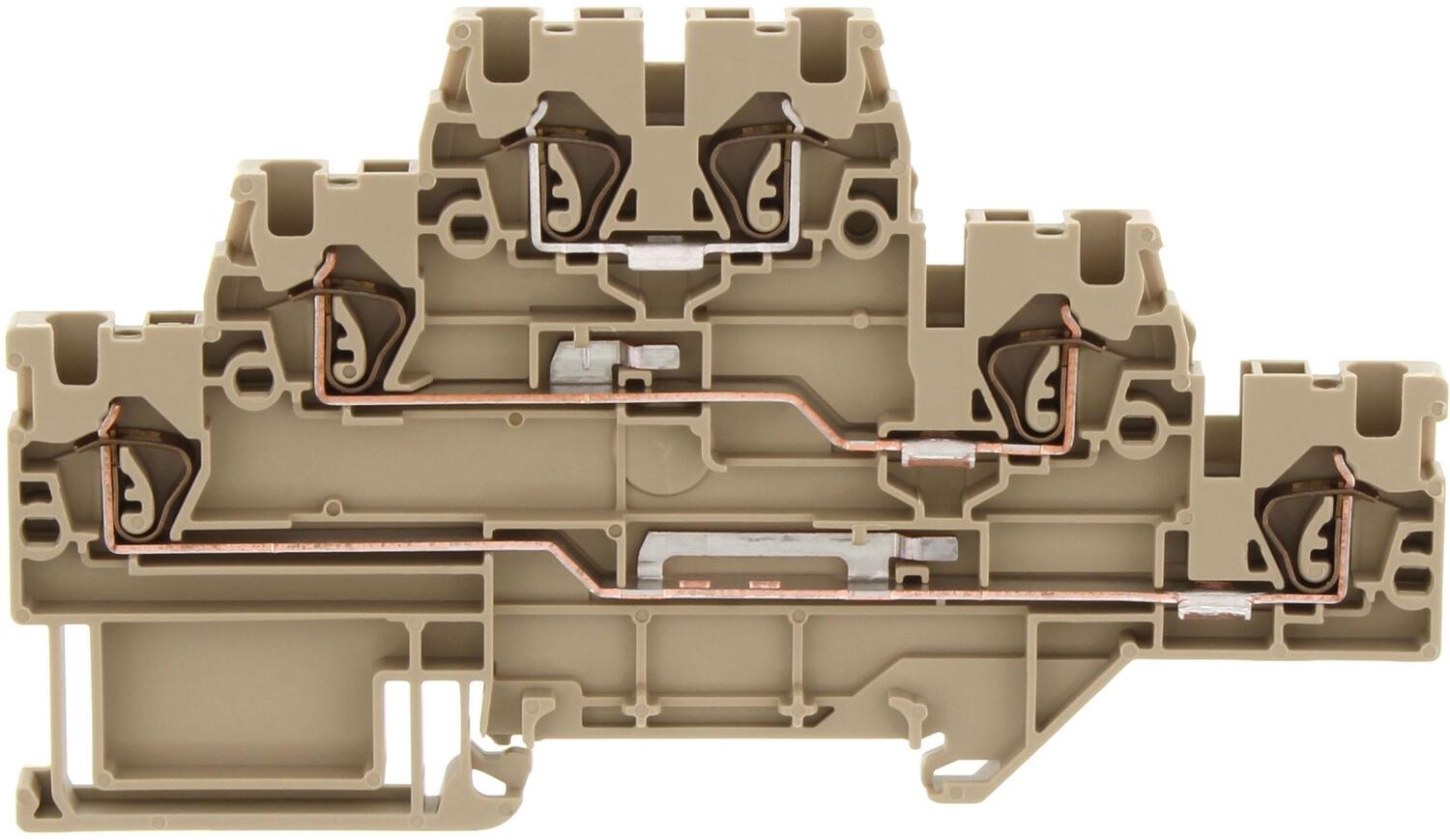

Connection terminal from CONTA-CLIP with multiple connections and copper wires, designed for efficient electrical connection.
ZIKD 2,5 BG
Art:
3590.2 Copied
2.5 mm²
Beige
500 V
24 A
TS 35/7,5
6 kV
III
3
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
116.2 mm
5.1 mm
68 mm
3 x 2
3
A3
3
6
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
15 A
UL 1059
300 V
15 A
C22.2 No 158
300 V
15 A
UL 1059
300 V
15 A
C22.2 No 158
IEC 60947-7-1:2009
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
17.37 g
50

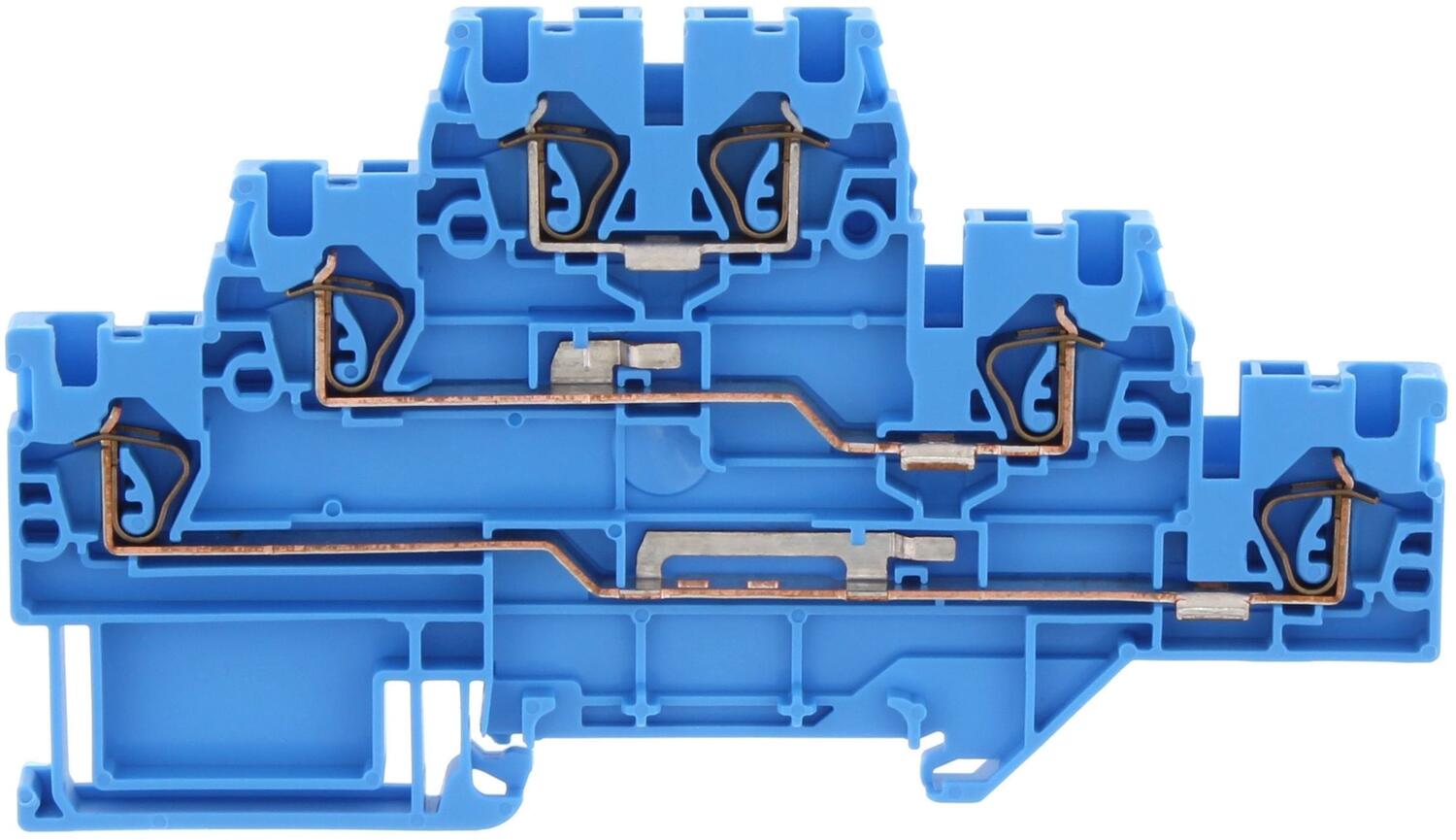

Blue terminal block with metal wires and mounts for electrical connections
ZIKD 2,5 BU
Art:
3590.5 Copied
2.5 mm²
Blue
500 V
24 A
TS 35/7,5
6 kV
III
3
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
116.2 mm
5.1 mm
68 mm
3 x 2
3
A3
3
6
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
15 A
UL 1059
300 V
15 A
C22.2 No 158
300 V
15 A
UL 1059
300 V
15 A
C22.2 No 158
IEC 60947-7-1:2009
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
23.75 g
50

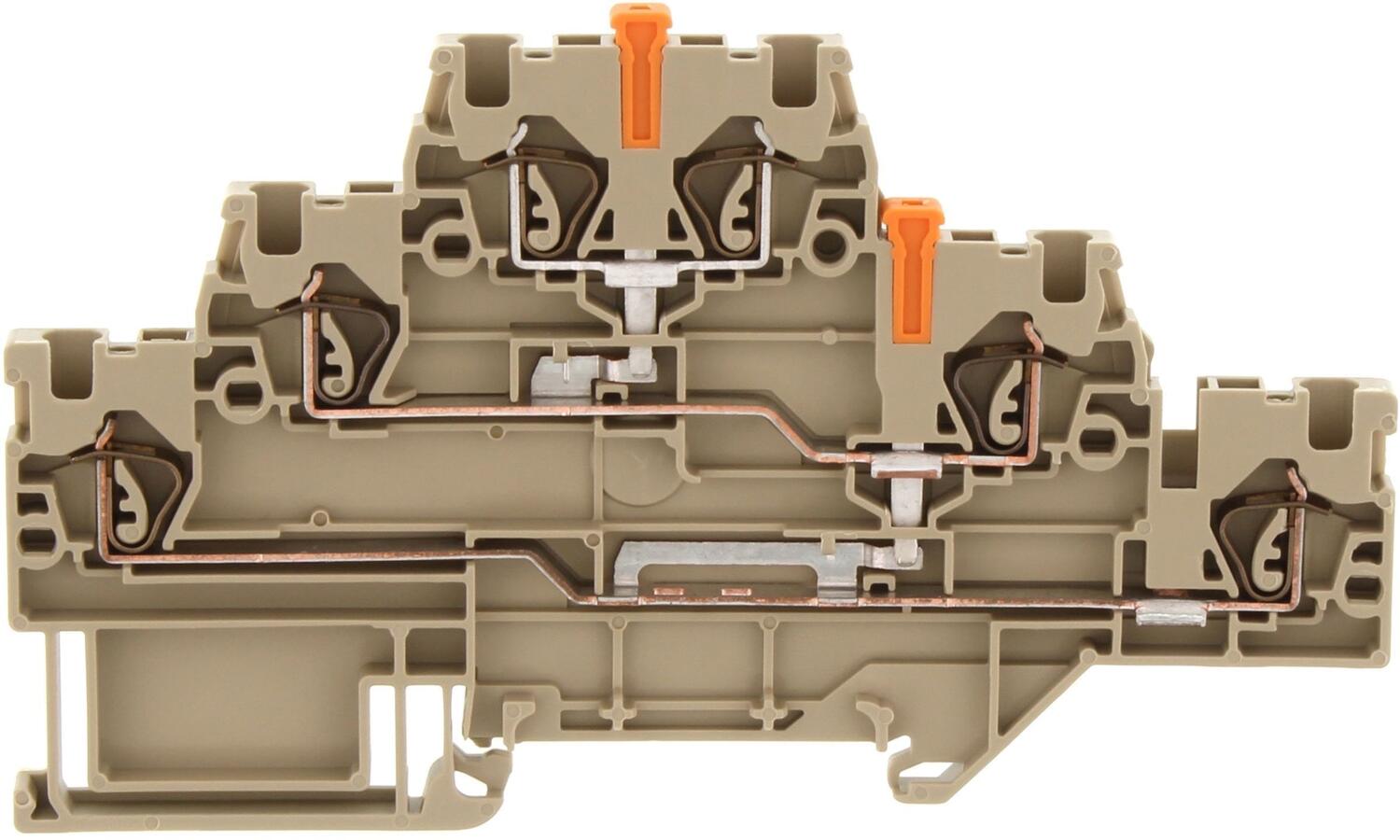

Terminal block from CONTA-CLIP with multiple connections and an orange locking mechanism
ZIKD 2,5/SV BG
Art:
3591.2 Copied
2.5 mm²
Beige
500 V
24 A
TS 35/7,5
6 kV
III
3
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
connected vertically
116.2 mm
5.1 mm
68 mm
6
3
A3
1
6
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
15 A
UL 1059
300 V
15 A
C22.2 No 158
300 V
15 A
UL 1059
300 V
15 A
C22.2 No 158
IEC 60947-7-1:2009
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
25.4 g
50

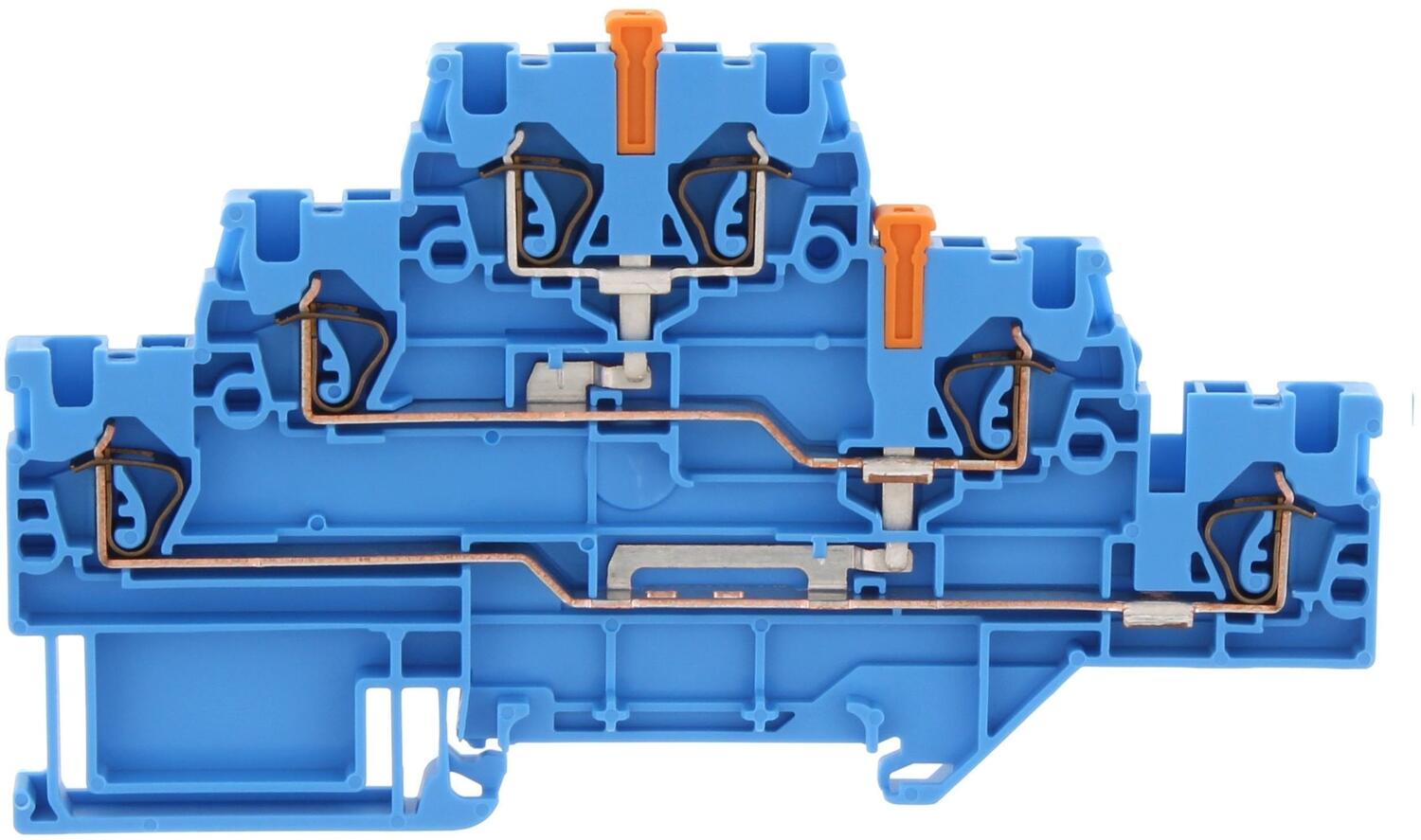

Blue terminal block with metal conductors and orange lock, designed for electrical installations.
ZIKD 2,5/SV BU
Art:
3591.5 Copied
2.5 mm²
Blue
500 V
24 A
TS 35/7,5
6 kV
III
3
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
connected vertically
116.2 mm
5.1 mm
68 mm
6
3
A3
1
6
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
15 A
UL 1059
300 V
15 A
C22.2 No 158
300 V
15 A
UL 1059
300 V
15 A
C22.2 No 158
IEC 60947-7-1:2009
TR ZU 004/2011
EN 60947-7-1:2009
85369010
CZ
25.4 g
50

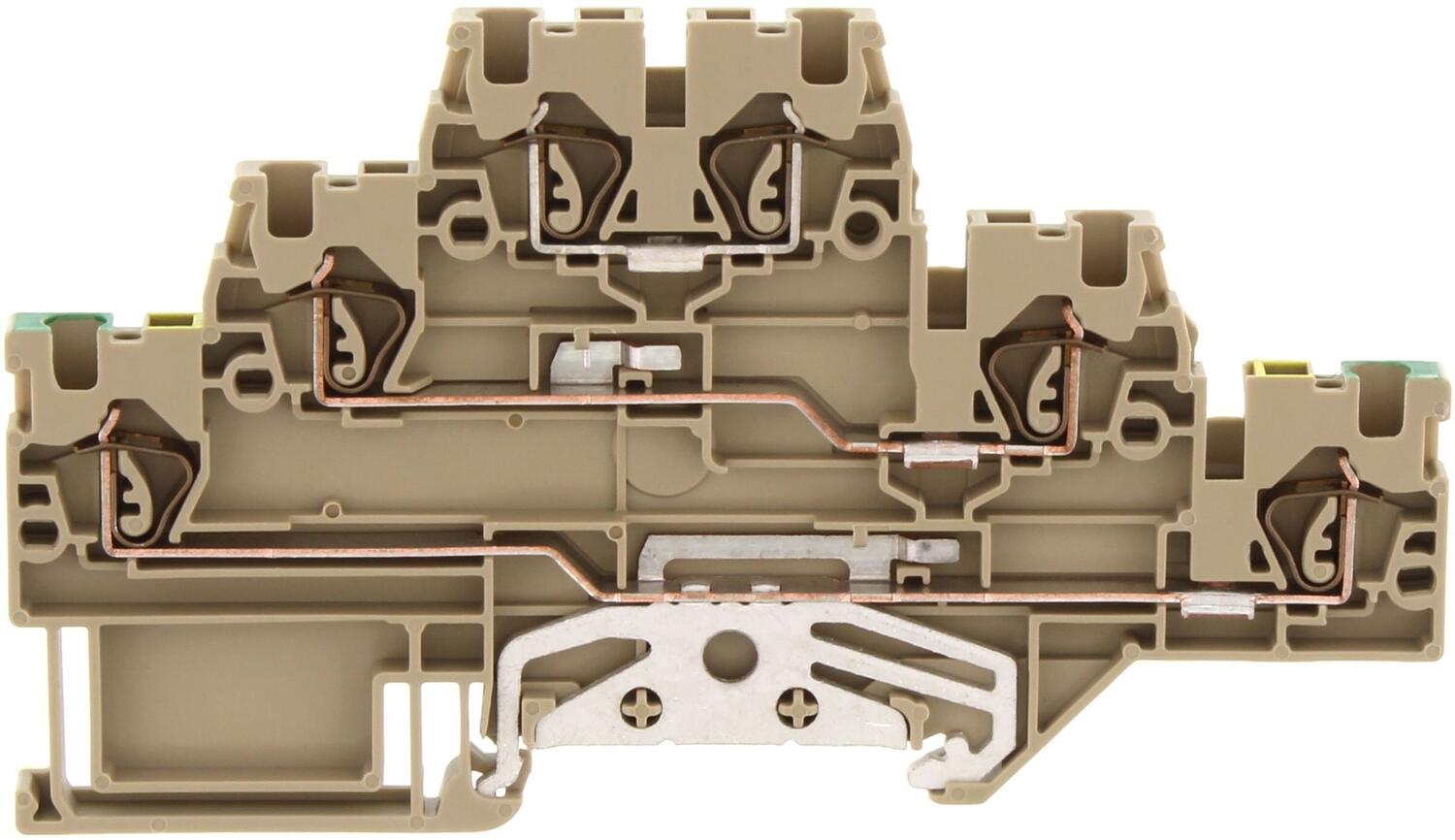

Connection terminal from CONTA-CLIP with multiple connections and copper wires, designed for efficient electrical connection.
ZIKD 2,5/PE/L/L BG
Art:
3592.2 Copied
2.5 mm²
Beige
500 V
24 A
TS 35/7,5
6 kV
III
3
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
116.2 mm
5.1 mm
68 mm
3 x 2
3
A3
2
6
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
15 A
UL 1059
300 V
15 A
C22.2 No 158
300 V
15 A
UL 1059
300 V
15 A
C22.2 No 158
IEC 60947-7-1:2009, IEC 60947-7-2:2009
TR ZU 004/2011
EN 60947-7-1:2009, EN 60947-7-2:2009
85369010
CZ
28 g
50

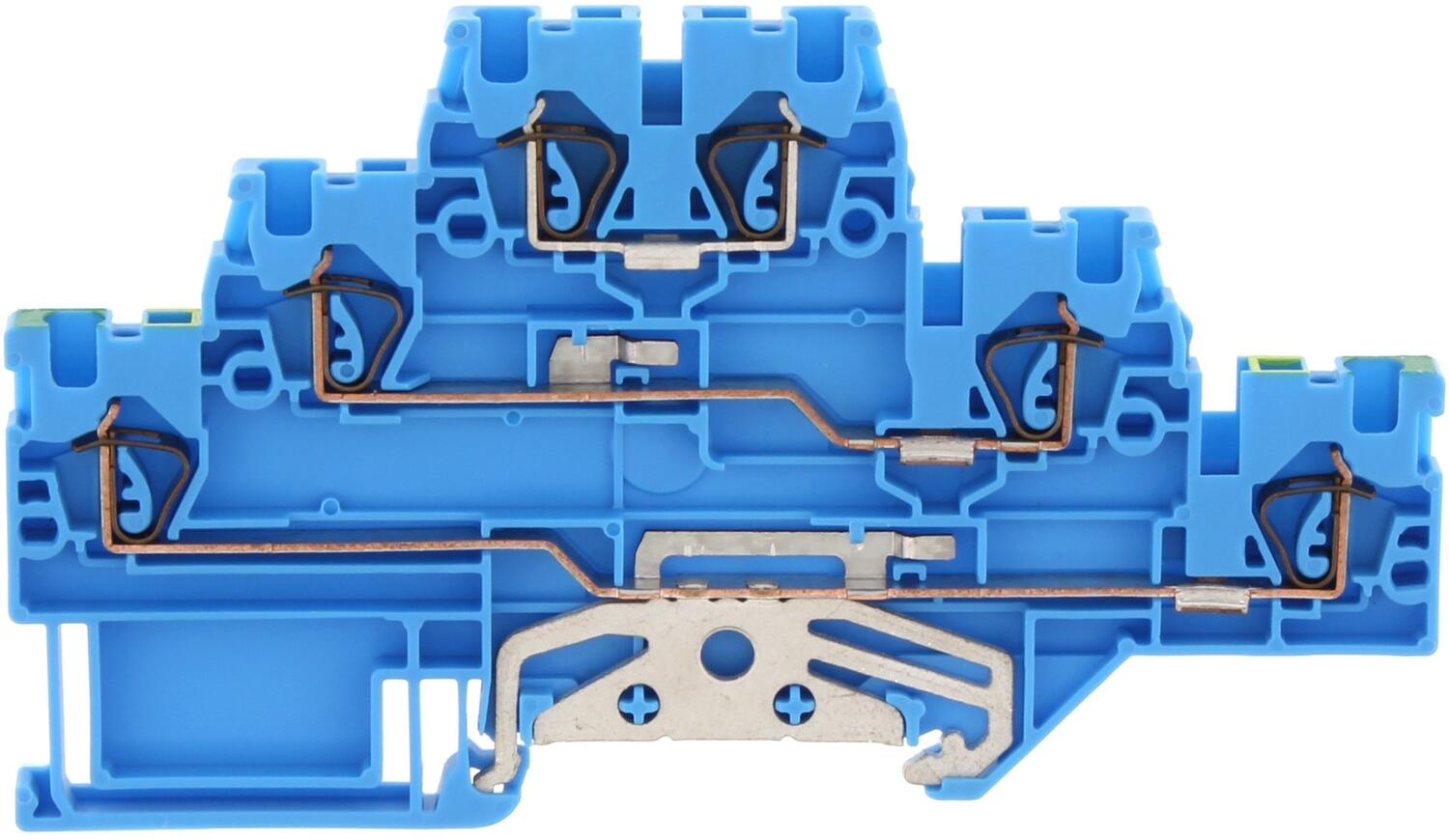

Blue connection terminal with metal components for electrical installations
ZIKD 2,5/PE/N/N BU
Art:
3592.5 Copied
2.5 mm²
Blue
500 V
24 A
TS 35/7,5
6 kV
III
3
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
116.2 mm
5.1 mm
68 mm
3 x 2
3
A3
2
6
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
300 V
15 A
UL 1059
300 V
15 A
C22.2 No 158
300 V
15 A
UL 1059
300 V
15 A
C22.2 No 158
IEC 60947-7-1:2009, IEC 60947-7-2:2009
TR ZU 004/2011
EN 60947-7-1:2009, EN 60947-7-2:2009
85369010
CZ
28 g
50

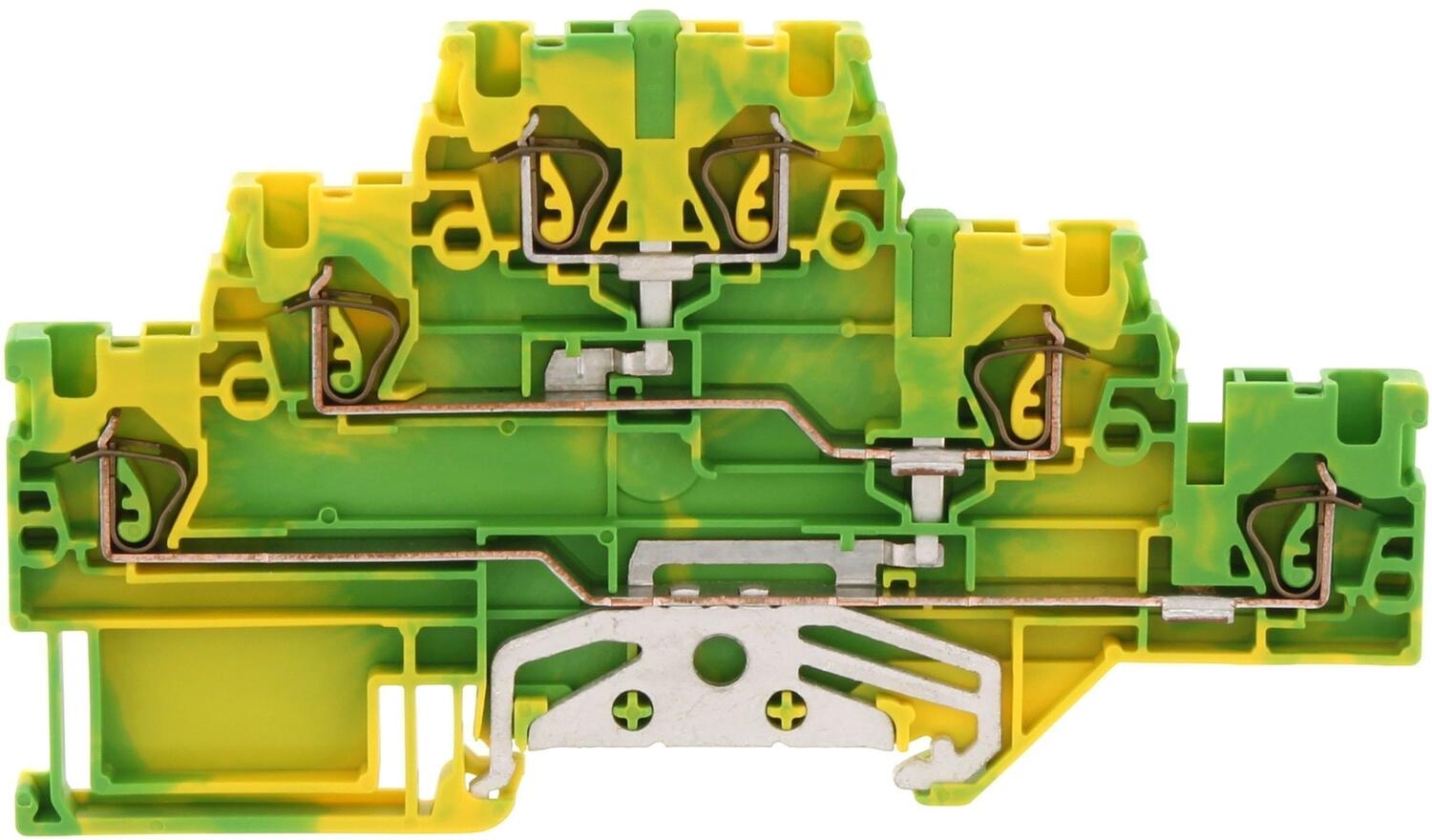

Terminal block with green and yellow plastic, designed for electrical connections and installations.
ZIKD 2,5/SV/PE GNYE
Art:
3593.2 Copied
2.5 mm²
Green/yellow
TS 35/7,5
III
3
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
connected vertically
116.2 mm
5.1 mm
68 mm
6
3
A3
0
6
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
20
12
10 mm
Polyamide 6.6
UL94-V0
-40 °C
120 °C
UL 1059
C22.2 No 158
UL 1059
C22.2 No 158
IEC 60947-7-1:2009, IEC 60947-7-2:2009
TR ZU 004/2011
EN 60947-7-1:2009, EN 60947-7-2:2009
85369010
CZ
30.4 g
50
