CONTA-CLIP

Direct mount screw terminals

BKA, RD-D

  • Compact 2.5mm -10mm² versions snap together
  • Pre-labeled versions

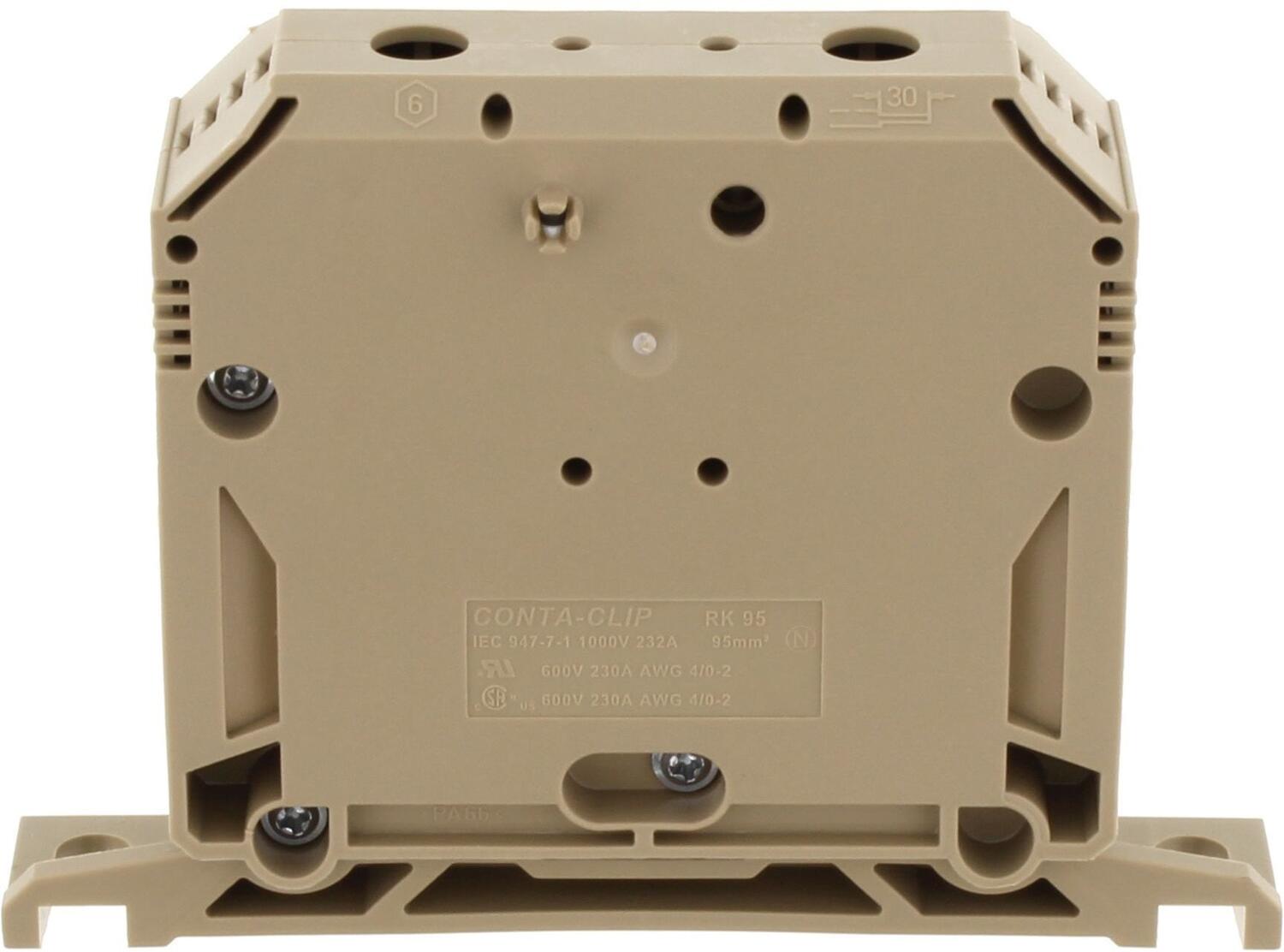

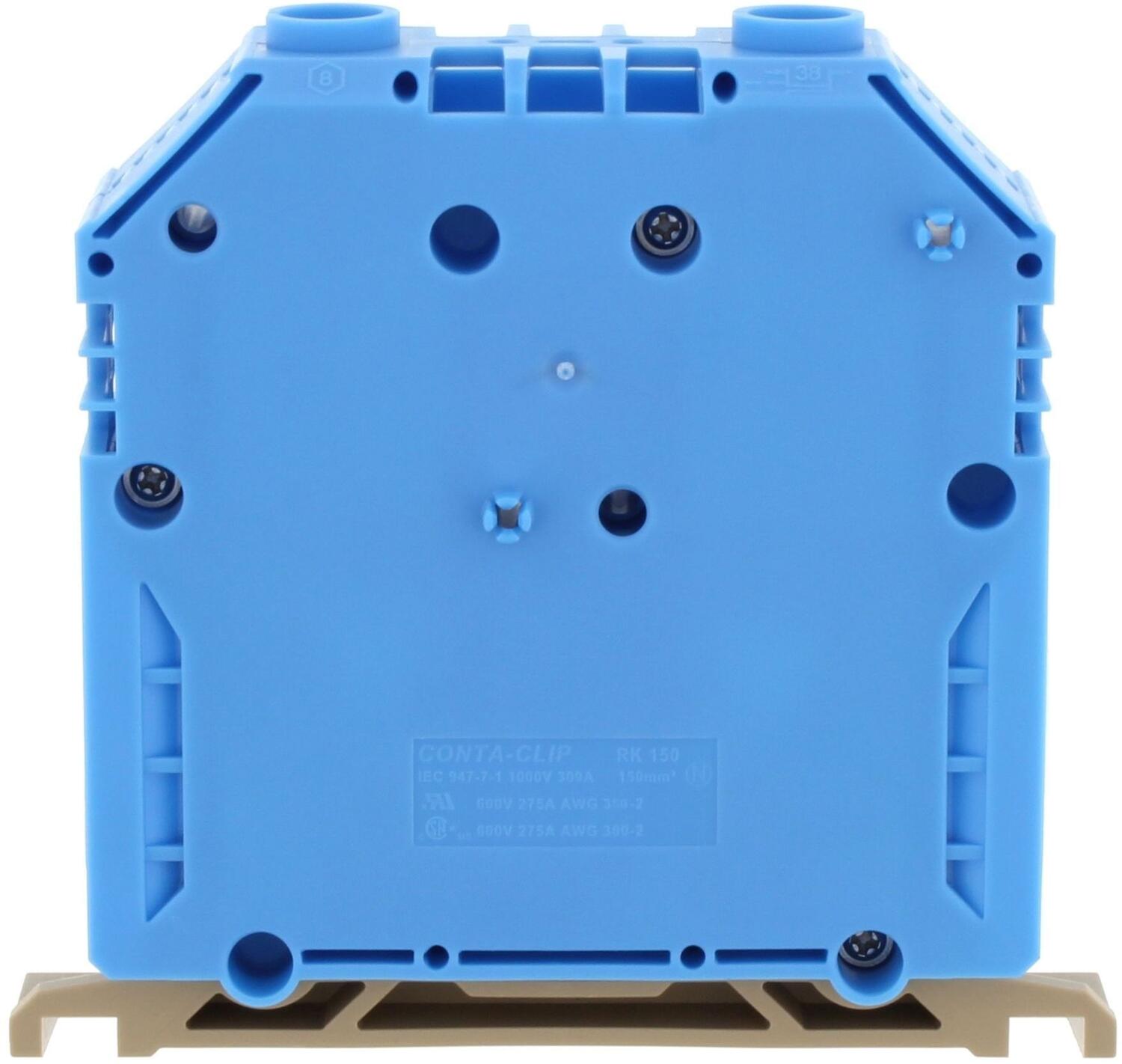

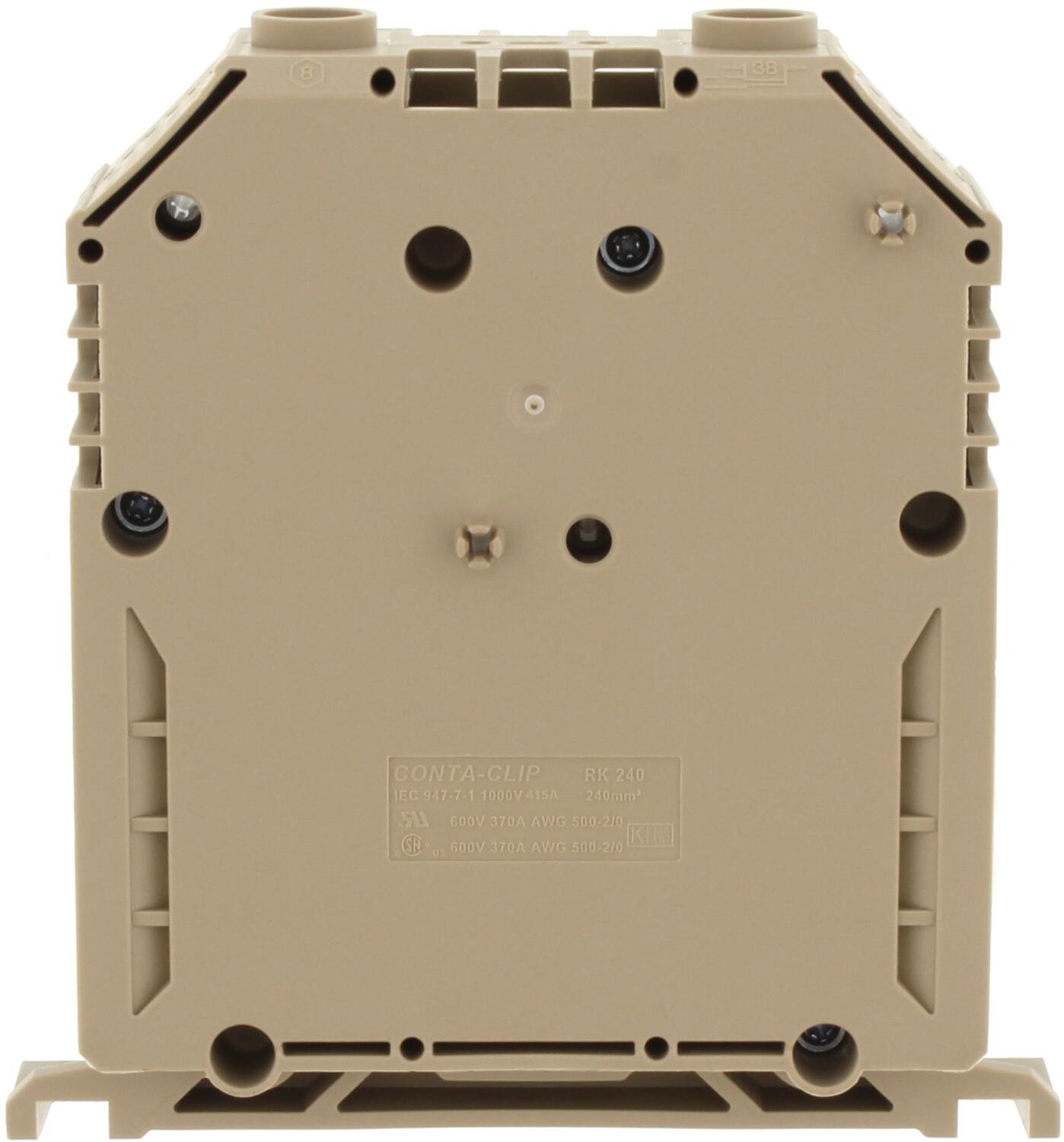

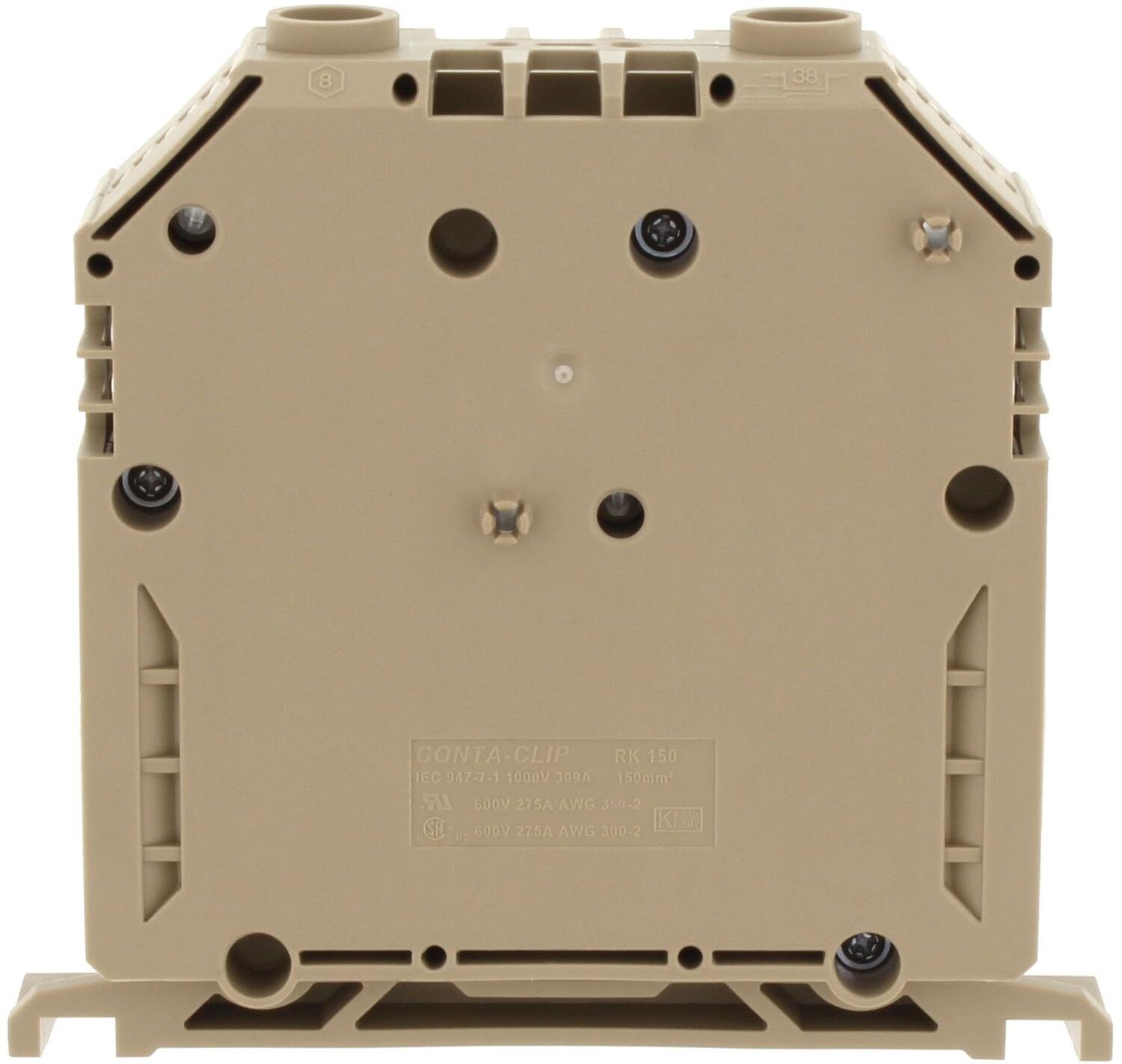

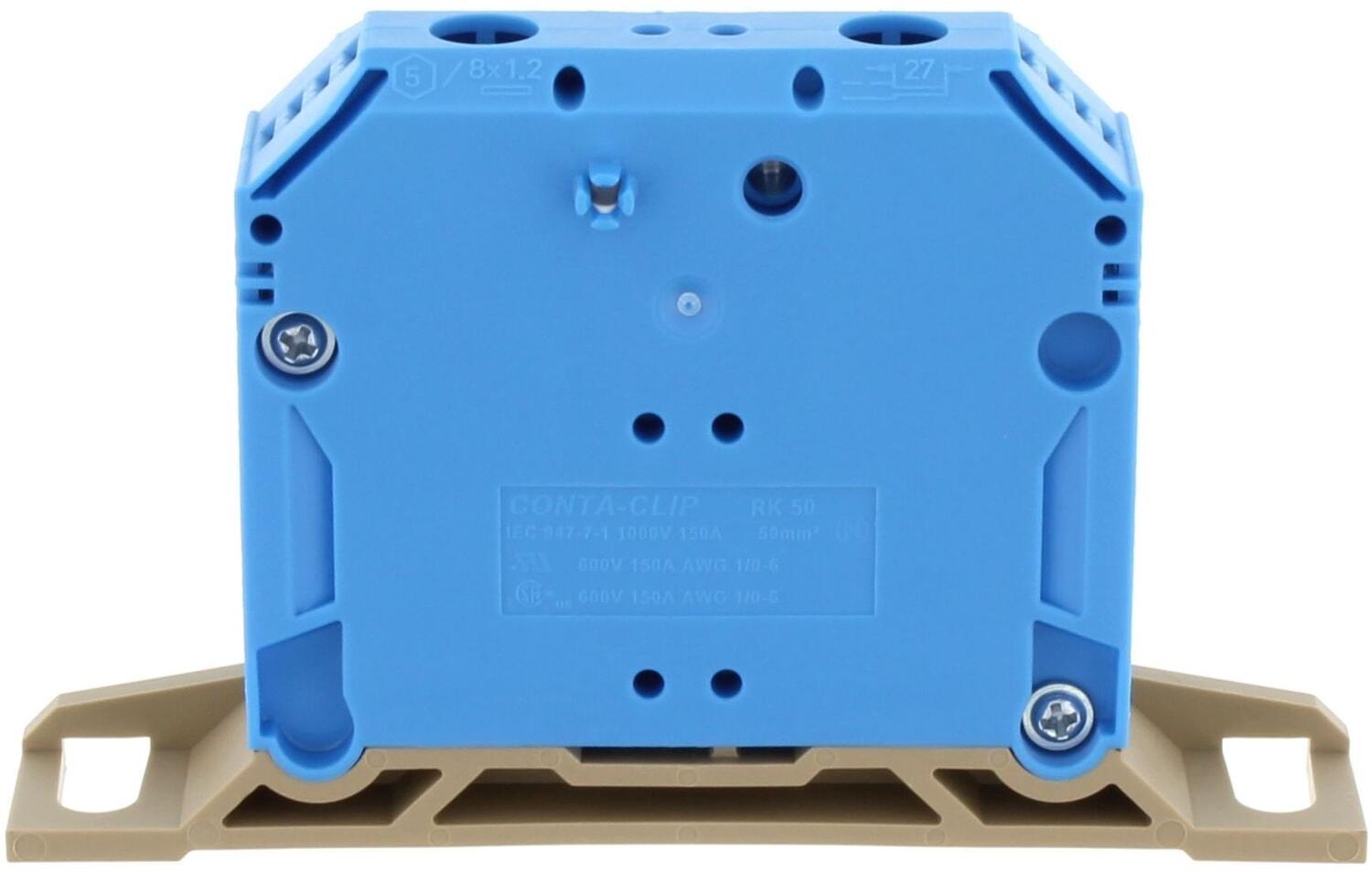

  • RK-D 50mm -240mm² Direct mount
  • External cross connectors

Selected variant


Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

Cross-Section 2.5 mm²
Color Beige
Rated Voltage IEC 400 V
Rated Current IEC 24 A
Mounting Direct mount
Rated impulse voltage 6 kV
Overvoltage category III
Contamination degree 3
Approvals UL, cUL, KEMA KUR, EAC
Length 22 mm
Width 5 mm
Height 23 mm
Connections 2
Number of levels 1
Plug gauge acc. EN 60 947-1 A3
Cross section single wire from 0.2 mm²
Cross section single wire to 4 mm²
Cross section stranded wire from 0.2 mm²
Cross section stranded wire to 4 mm²
Cross section stranded with ferrule from 0.2 mm²
Cross section stranded with ferrule to 2.5 mm²
Rated wire cross section from (AWG) 22
Rated wire cross section to (AWG) 12
Stripping Length 7 mm
Screw size M 2,5
Screw type Slotted
Torque Min 0.4
Torque max 0.8
Insulation Material Polyamide 6.6
Flamklass UL94-V2
Operating temperature from -40 °C
Operating temperature to 105 °C
Rated Voltage To UL 300 V
Rated Current To UL 20 A
UL test standard UL 1059
Rated voltage cUL 300 V
Rated current cUL 20 A
cUL test standard C22.2 No 158
EAC test standard TR ZU 004/2011
KEMA KEUR test standard EN 60947-7-1:2009
Tariff code 85369010
Country of origin DE
Weight 3.4 g
Pack Size 100

Downloads

Measurements and connections

Accessories

Related products

Add product as a new cart row

You already added this product. Choose whether to increase quantity on the existing row or add the product as a new row.

Related

TER - control stations
Product news

Quality solutions for motion controls

TER - Tecno Elettrica Ravasi, is our Italian supplier specializing in the manufacture of control stations. TER has over 60 years of experience in the manufacture of control stations.

Stego Loop Heater lämmityselementit
Product news

LOOP Heater for optimal heat distribution

Thanks to their loop design, LOOP heating elements offer excellent heating performance and ensure optimal heat distribution. Read more now!

PISA-M
Product news

Compact electronic overcurrent protection PISA-M

PISA-M is a 4-channel electronic fuse for 12 and 24 V DC systems. The smallest 4-channel electronic fuse with a width of only 22.5 mm!

Delcon relays
Product news

An effective solution Delcon CRA5

Delcon's CRA5 plug-in relay revolutionizes the control of difficult-to-handle DC loads. Inductive loads, frequent switching, and high DC voltages are a piece of cake for these relays.

LOCC-Box Mini
Product news

LOCC-Box Mini

The Lütze LOCC-Box is an intelligent electronic overcurrent protection device that provides reliable protection for 12/24 V DC systems in a narrow housing measuring just 8.1 mm. Integrated + and - terminals save space on the DIN rail.

DF Electric
Product news

DF Electric – new supplier for fuse solutions

DF Electric is specialized in the manufacturing of fuse links, fuse holders and control transformers since 1987. Presently the company is leading the Spanish market and is also very active in many export markets due to its competitive range of products.

Articles Cross-Section Color Rated Voltage IEC Rated Current IEC Mounting Rated impulse voltage Overvoltage category Contamination degree Approvals Additional information Length Width Height TS 35/7.5 Height Distance to hole centres Connections Number of levels Plug gauge acc. EN 60 947-1 Cross section single wire from Cross section single wire to Cross section stranded wire from Cross section stranded wire to Cross section stranded with ferrule from Cross section stranded with ferrule to Rated wire cross section from (AWG) Rated wire cross section to (AWG) Stripping Length Screw size Screw type Torque Min Torque max Banded wire up to Insulation Material Flamklass Operating temperature from Operating temperature to Rated Voltage To UL Rated Current To UL UL test standard Voltage CSA Rated Current CSA CSA test standard Rated voltage CSAus Rated current CSAus CSAus test standard Rated voltage cUL Rated current cUL cUL test standard GL test standard EAC test standard KEMA KEUR test standard Tariff code Country of origin Weight Pack Size

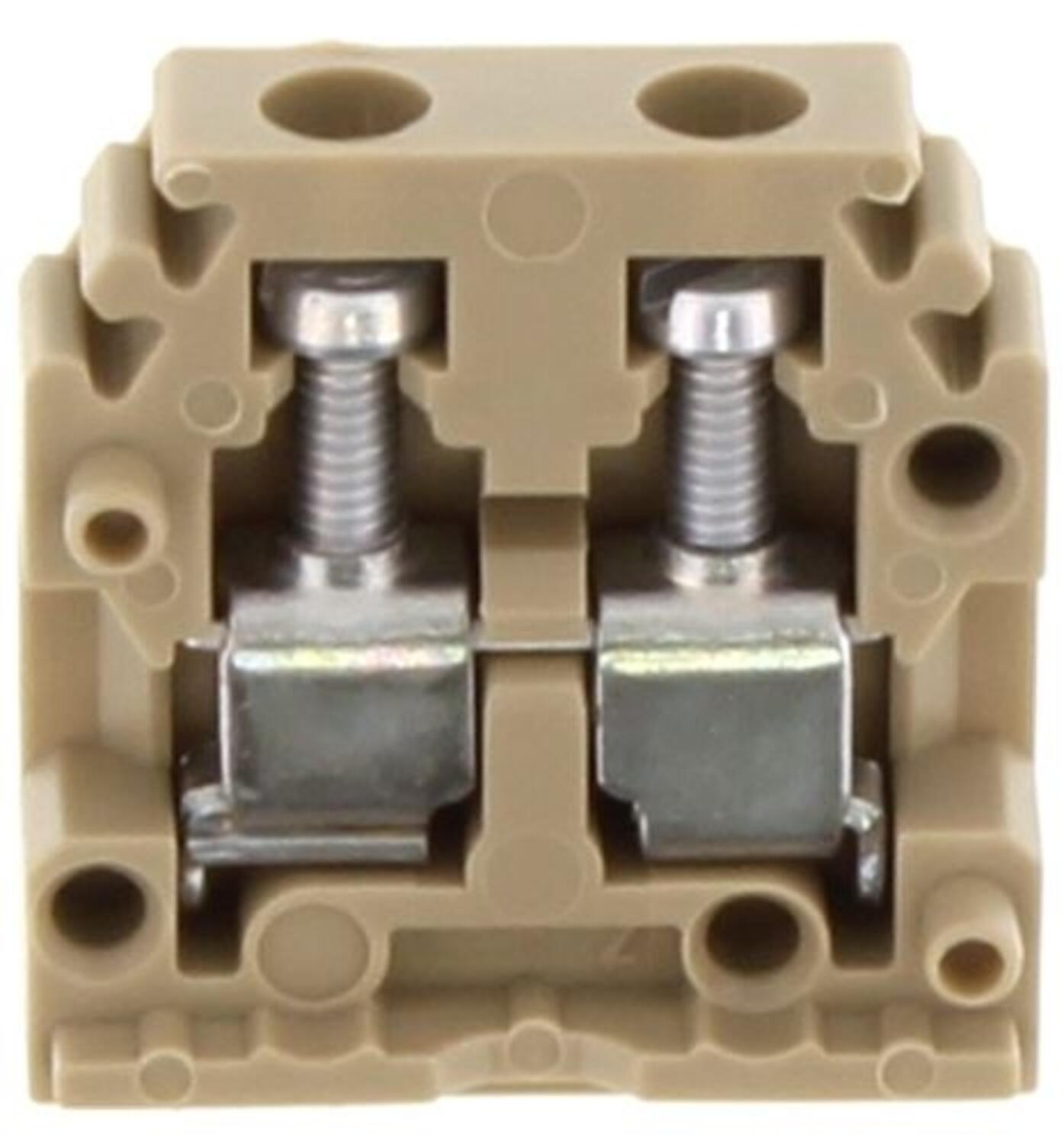

Connection block in beige with two screw terminals for electrical installations
BKA 2.5/1 Beige, 2.5mm² Direct mountable compact
Art:
1320.2 Copied
2.5 mm²
Beige
400 V
24 A
Direct mount
6 kV
III
3
UL, cUL, KEMA KUR, EAC
22 mm
5 mm
23 mm
2
1
A3
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
22
12
7 mm
M 2,5
Slotted
0.4
0.8
Polyamide 6.6
UL94-V2
-40 °C
105 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
3.4 g
100
Blue connection clamp with two screws for electrical installations
BKA 2.5/1 Blue, 2.5mm² Direct mountable compact
Art:
1320.5 Copied
2.5 mm²
Blue
400 V
24 A
Direct mount
6 kV
III
3
UL, cUL, KEMA KUR, EAC
22 mm
5 mm
23 mm
2
1
A3
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
22
12
7 mm
M 2,5
Slotted
0.4
0.8
Polyamide 6.6
UL94-V2
-40 °C
105 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
3.4 g
100
299826_877.tif
BKA 2.5/2 Beige, 2.5mm², 2-pole Direct mount compact
Art:
1321.2 Copied
2.5 mm²
Beige
400 V
24 A
Direct mount
6 kV
III
3
UL, cUL, KEMA KUR, EAC
24.5 mm
23 mm
17.4 mm
4
1
A3
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
22
12
7 mm
M 2,5
Slotted
0.4
0.8
Polyamide 6.6
UL94-V2
-40 °C
105 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
13 g
50
299826_877.tif
BKA 2.5/3 Beige, 2.5mm², 3-pole Direct mount compact
Art:
1322.2 Copied
2.5 mm²
Beige
400 V
24 A
Direct mount
6 kV
III
3
UL, cUL, KEMA KUR, EAC
29.6 mm
23 mm
22.5 mm
6
1
A3
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
22
12
7 mm
M 2,5
Slotted
0.4
0.8
Polyamide 6.6
UL94-V2
-40 °C
105 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
14.4 g
50
299826_877.tif
BKA 2.5/4 Beige, 2.5mm², 4-pole Direct mount compact
Art:
1323.2 Copied
2.5 mm²
Beige
400 V
24 A
Direct mount
6 kV
III
3
UL, cUL, KEMA KUR, EAC
34.6 mm
23 mm
27.5 mm
8
1
A3
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
22
12
7 mm
M 2,5
Slotted
0.4
0.8
Polyamide 6.6
UL94-V2
-40 °C
105 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
19.8 g
50
299826_877.tif
BKA 2.5/5 Beige, 2.5mm², 5-pole Direct mount compact
Art:
1324.2 Copied
2.5 mm²
Beige
400 V
24 A
Direct mount
6 kV
III
3
UL, cUL, KEMA KUR, EAC
39.8 mm
23 mm
32.7 mm
10
1
A3
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
22
12
7 mm
M 2,5
Slotted
0.4
0.8
Polyamide 6.6
UL94-V2
-40 °C
105 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
21 g
50
299826_877.tif
BKA 2.5/6 Beige, 2.5mm², 6-pole Direct mount compact
Art:
1325.2 Copied
2.5 mm²
Beige
400 V
24 A
Direct mount
6 kV
III
3
UL, cUL, KEMA KUR, EAC
44.9 mm
23 mm
37.8 mm
12
1
A3
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
22
12
7 mm
M 2,5
Slotted
0.4
0.8
Polyamide 6.6
UL94-V2
-40 °C
105 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
25 g
50
299826_877.tif
BKA 2.5/8 Beige, 2.5mm², 8-pole Direct mount compact
Art:
1326.2 Copied
2.5 mm²
Beige
400 V
24 A
Direct mount
6 kV
III
3
UL, cUL, KEMA KUR, EAC
55.1 mm
23 mm
48 mm
16
1
A3
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
22
12
7 mm
M 2,5
Slotted
0.4
0.8
Polyamide 6.6
UL94-V2
-40 °C
105 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
32 g
20
299826_877.tif
BKA 2.5/10 Beige, 2.5mm², 10-pole Direct mount compact
Art:
1327.2 Copied
2.5 mm²
Beige
400 V
24 A
Direct mount
6 kV
III
3
UL, cUL, KEMA KUR, EAC
65.3 mm
23 mm
58.2 mm
20
1
A3
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
22
12
7 mm
M 2,5
Slotted
0.4
0.8
Polyamide 6.6
UL94-V2
-40 °C
105 °C
300 V
20 A
UL 1059
300 V
20 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
38 g
20
Terminal block in beige plastic with metal contacts, designed for electrical connections.
RKB 4 Beige, 4mm², Cross connectable Direct mount compact feed through
Art:
1018.2 Copied
4 mm²
Beige
500 V
32 A
Direct mount
4 kV
III
3
UL, KEMA KUR, EAC
27 mm
6 mm
27.5 mm
2
1
A3
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
4 mm²
22
12
9 mm
M 2,5
Slotted
0.4
0.8
Polyamide 6.6
UL94-V2
-40 °C
105 °C
UL 1059
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
4.8 g
100

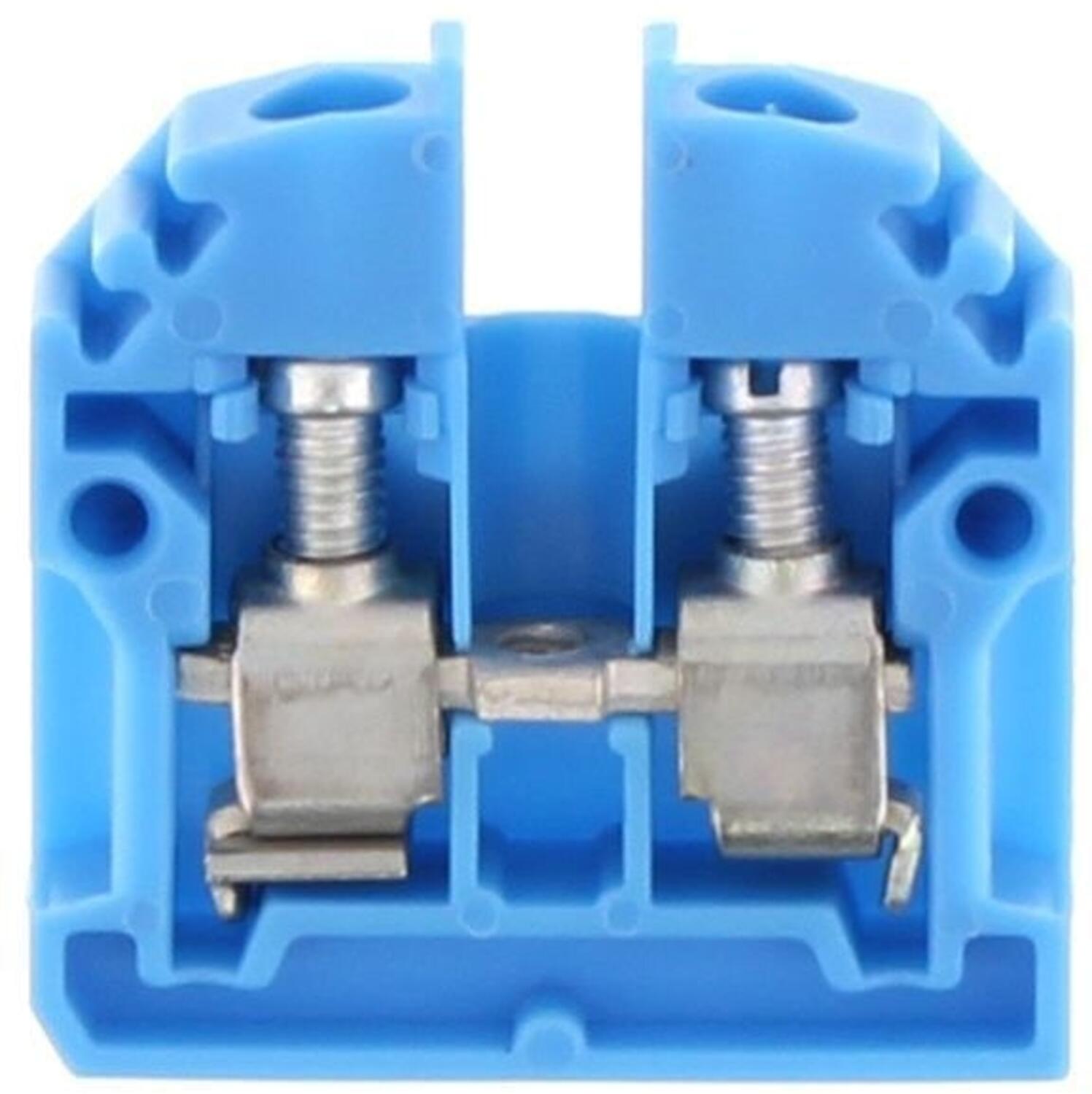

Blue connection clamp with metal components for electrical installations
RKB 4 Blue, 4mm², Cross connectable Direct mount compact feed through
Art:
1018.5 Copied
4 mm²
Blue
500 V
32 A
Direct mount
4 kV
III
3
UL, KEMA KUR, EAC
27 mm
6 mm
27.5 mm
2
1
A3
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
4 mm²
22
12
9 mm
M 2,5
Slotted
0.4
0.8
Polyamide 6.6
UL94-V2
-40 °C
105 °C
UL 1059
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
4.8 g
100

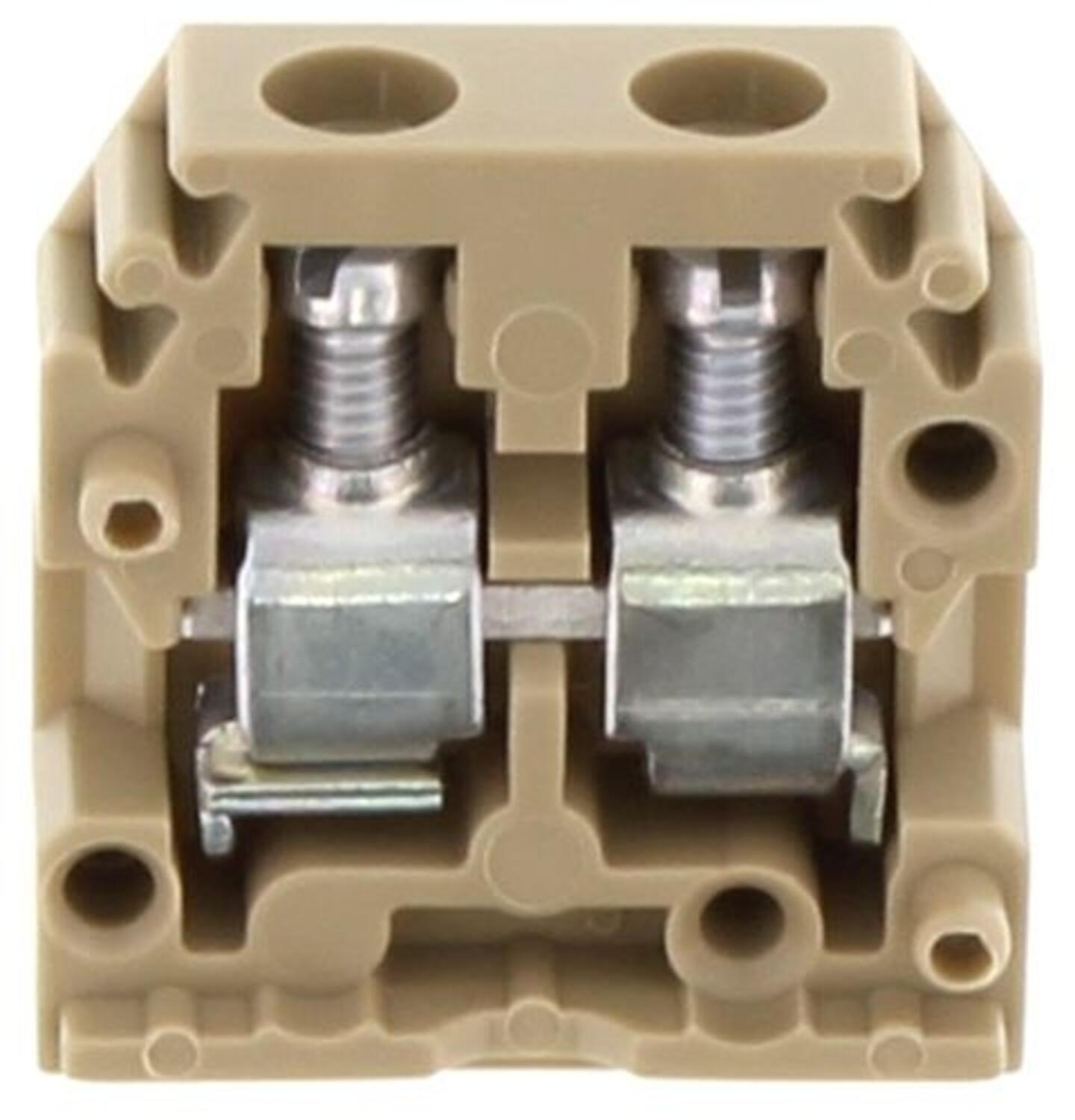

Terminal block in beige with two screw connections, ideal for electrical installations.
BKA 4/1 Beige, 4mm² Direct mountable compact
Art:
2158.2 Copied
4 mm²
Beige
400 V
32 A
Direct mount
6 kV
III
3
UL, CSA, KEMA KUR, EAC
22 mm
6 mm
23 mm
2
1
A3
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
4 mm²
22
12
9 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V2
-40 °C
105 °C
300 V
30 A
UL 1059
300 V
25 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
4.4 g
100

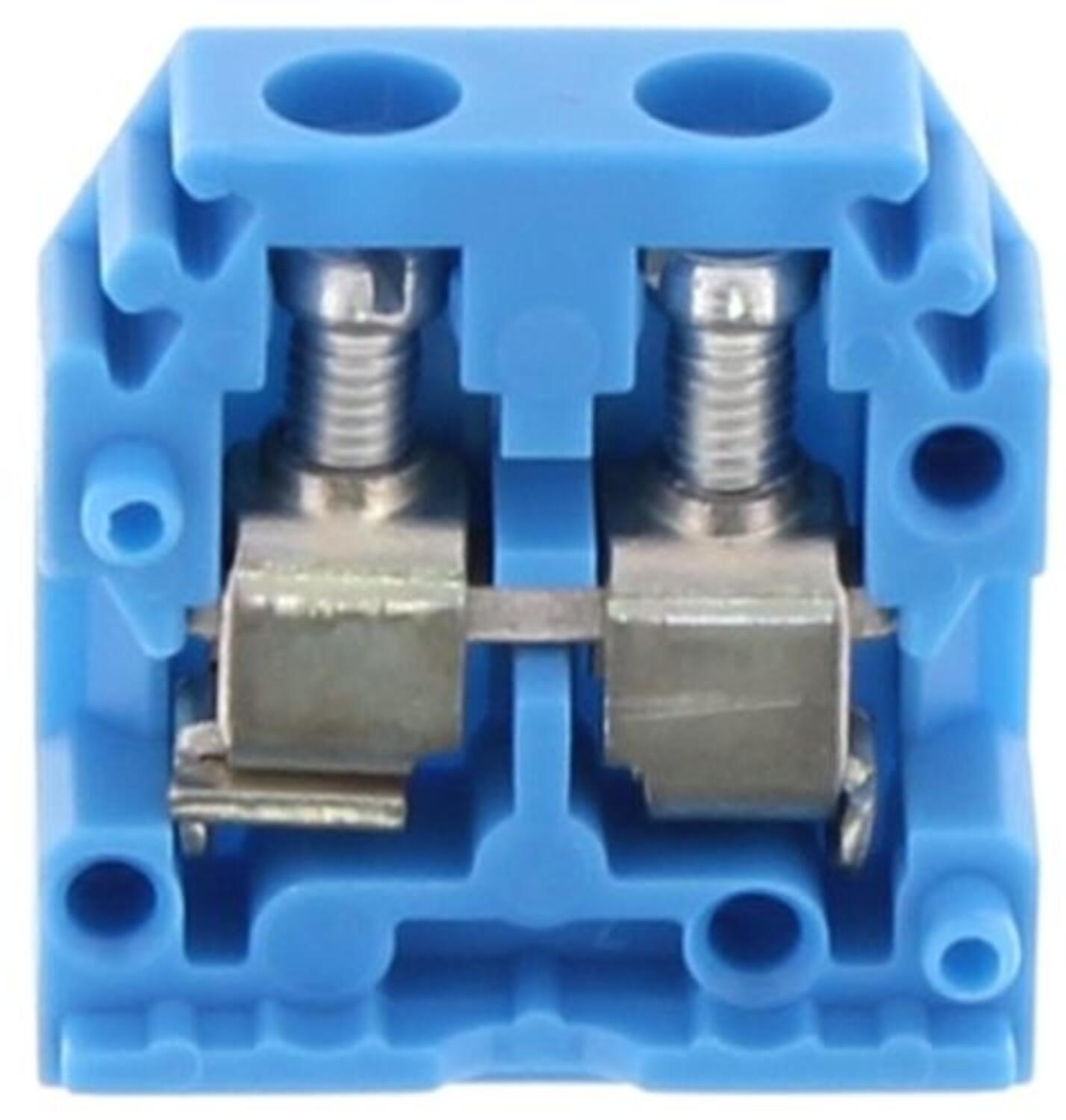

Blue terminal block with two screws for electrical connection
BKA 4/1 Blue, 4mm² Direct mountable compact
Art:
2158.5 Copied
4 mm²
Blue
400 V
32 A
Direct mount
6 kV
III
3
UL, CSA, KEMA KUR, EAC
22 mm
6 mm
23 mm
2
1
A3
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
4 mm²
22
12
9 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V2
-40 °C
105 °C
300 V
30 A
UL 1059
300 V
25 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
4.4 g
100
299826_877.tif
BKA 4/2 Beige, 4mm², 2-pole Direct mount compact
Art:
2170.2 Copied
4 mm²
Beige
400 V
32 A
Direct mount
6 kV
III
3
UL, CSA, KEMA KUR, EAC
26.5 mm
23 mm
19.4 mm
4
1
A3
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
4 mm²
22
12
9 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V2
-40 °C
105 °C
300 V
30 A
UL 1059
300 V
25 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
13 g
50
299826_877.tif
BKA 4/3 Beige, 4mm², 3-pole Direct mount compact
Art:
2171.2 Copied
4 mm²
Beige
400 V
32 A
Direct mount
6 kV
III
3
UL, CSA, KEMA KUR, EAC
32.6 mm
23 mm
25.5 mm
6
1
A3
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
4 mm²
22
12
9 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V2
-40 °C
105 °C
300 V
30 A
UL 1059
300 V
25 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
17.4 g
50
299826_877.tif
BKA 4/4Beige, 4mm², 4-pole Direct mount compact
Art:
2172.2 Copied
4 mm²
Beige
400 V
32 A
Direct mount
6 kV
III
3
UL, CSA, KEMA KUR, EAC
38.6 mm
23 mm
31.5 mm
8
1
A3
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
4 mm²
22
12
9 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V2
-40 °C
105 °C
300 V
30 A
UL 1059
300 V
25 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
21.8 g
50
299826_877.tif
BKA 4/5 Beige, 4mm², 5-pole Direct mount compact
Art:
2173.2 Copied
4 mm²
Beige
400 V
32 A
Direct mount
6 kV
III
3
UL, CSA, KEMA KUR, EAC
44.8 mm
23 mm
37.7 mm
10
1
A3
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
4 mm²
22
12
9 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V2
-40 °C
105 °C
300 V
30 A
UL 1059
300 V
25 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
26.2 g
50
299826_877.tif
BKA 4/6 Beige, 4mm², 6-pole Direct mount compact
Art:
2174.2 Copied
4 mm²
Beige
400 V
32 A
Direct mount
6 kV
III
3
UL, CSA, KEMA KUR, EAC
50.9 mm
23 mm
43.8 mm
12
1
A3
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
4 mm²
22
12
9 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V2
-40 °C
105 °C
300 V
30 A
UL 1059
300 V
25 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
30.6 g
50
299826_877.tif
BKA 4/10 Beige, 4mm², 10-pole Direct mount compact
Art:
2176.2 Copied
4 mm²
Beige
400 V
32 A
Direct mount
6 kV
III
3
UL, CSA, KEMA KUR, EAC
75.3 mm
23 mm
68.2 mm
20
1
A3
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
4 mm²
22
12
9 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V2
-40 °C
105 °C
300 V
30 A
UL 1059
300 V
25 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
48.2 g
20
299826_877.tif
BKA 4/3 e.B. Beige, 4mm², 3-pole Direct mount compact with tags one side
Art:
2309.2 Copied
4 mm²
Beige
400 V
32 A
Direct mount
6 kV
III
3
UL, CSA, KEMA KUR, EAC
with one sided marking
32.6 mm
23 mm
25.5 mm
6
1
A3
0.2 mm²
4 mm²
0.2 mm²
4 mm²
0.2 mm²
4 mm²
22
12
9 mm
M 3
Slotted
0.5
1
Polyamide 6.6
UL94-V2
-40 °C
105 °C
300 V
30 A
UL 1059
300 V
25 A
C22.2 No 158
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
17.4 g
50
299826_877.tif
RK 50-D Beige, 50mm² Direct mount feed through terminal
Art:
1582.2 Copied
50 mm²
Beige
1000 V
150 A
TS 35/7,5
8 kV
III
3
UL, CSA, GL, CSA US, KEMA KUR, EAC
with housing pegs and allen screws
109 mm
20 mm
65.75 mm
2
1
B10
16 mm²
50 mm²
25 mm²
50 mm²
25 mm²
50 mm²
6
1/0
27 mm
M 6
Hexagon/Allen key
3
6
11.8 x 5.0 mm
Polyamide 6.6
UL94-V2
-40 °C
105 °C
600 V
150 A
UL 1059
600 V
150 A
C22.2 No 158
600 V
150 A
UL 1059
IEC 60947-7-1:2002
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
111.2 g
10
Blue connection box from CONTA-CLIP, model RK 50, for installation with 150A capacity
RK 50-D Blue, 50mm² Direct mount feed through terminal
Art:
1582.5 Copied
50 mm²
Blue
1000 V
150 A
TS 35/7,5
8 kV
III
3
UL, CSA, GL, CSA US, KEMA KUR, EAC
with housing pegs and allen screws
109 mm
20 mm
65.75 mm
2
1
B10
16 mm²
50 mm²
25 mm²
50 mm²
25 mm²
50 mm²
6
1/0
27 mm
M 6
Hexagon/Allen key
3
6
11.8 x 5.0 mm
Polyamide 6.6
UL94-V2
-40 °C
105 °C
600 V
150 A
UL 1059
600 V
150 A
C22.2 No 158
600 V
150 A
UL 1059
IEC 60947-7-1:2002
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
111.2 g
10
Terminal block from CONTA-CLIP, model RK 95, for 95 mm² wires, beige color, with markings and mounting holes.
RK 95-D Beige, 95mm² Direct mount feed through terminal
Art:
1583.2 Copied
95 mm²
Beige
1000 V
232 A
TS 35/7,5
8 kV
III
3
UL, CSA, GL, CSA US, KEMA KUR, EAC
with housing pegs and allen screws
109 mm
25 mm
77.5 mm
2
1
B12
25 mm²
95 mm²
35 mm²
95 mm²
35 mm²
95 mm²
2
4/0
30 mm
M 8
Hexagon/Allen key
6
12
16.6 x 6.0 mm
Polyamide 6.6
UL94-V2
-40 °C
105 °C
600 V
230 A
UL 1059
600 V
230 A
C22.2 No 158
600 V
230 A
UL 1059
IEC 60947-7-1:2002
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
177.4 g
10
299826_877.tif
RK 95-D Blue, 95mm² Direct mount feed through terminal
Art:
1583.5 Copied
95 mm²
Blue
1000 V
232 A
TS 35/7,5
8 kV
III
3
UL, CSA, GL, CSA US, KEMA KUR, EAC
with housing pegs and allen screws
109 mm
25 mm
77.5 mm
2
1
B12
25 mm²
95 mm²
35 mm²
95 mm²
35 mm²
95 mm²
2
4/0
30 mm
M 8
Hexagon/Allen key
6
12
16.6 x 6.0 mm
Polyamide 6.6
UL94-V2
-40 °C
105 °C
600 V
230 A
UL 1059
600 V
230 A
C22.2 No 158
600 V
230 A
UL 1059
IEC 60947-7-1:2002
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
177.4 g
10
CONTA-CLIP RK 150 product with beige color and specifications for electrical connections
RK 150-D Beige, 150mm² Direct mount feed through terminal
Art:
1584.2 Copied
150 mm²
Beige
1000 V
309 A
TS 35/7,5
8 kV
III
3
UL, CSA, GL, CSA US, KEMA KUR, EAC
with housing pegs and allen screws
109 mm
31 mm
99 mm
2
1
B14
35 mm²
150 mm²
50 mm²
150 mm²
50 mm²
150 mm²
2
300 Kcmil
38 mm
M 8
Hexagon/Allen key
10
20
20 x 8 mm
Polyamide 6.6
UL94-V2
-40 °C
105 °C
600 V
275 A
UL 1059
600 V
275 A
C22.2 No 158
600 V
275 A
UL 1059
IEC 60947-7-1:2002
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
291.2 g
5
Blue product from CONTA-CLIP, model RK 150, with connection points and labeling for electrical use.
RK 150-D Blue, 150mm² Direct mount feed through terminal
Art:
1584.5 Copied
150 mm²
Blue
1000 V
309 A
TS 35/7,5
8 kV
III
3
UL, CSA, GL, CSA US, KEMA KUR, EAC
with housing pegs and allen screws
109 mm
31 mm
99 mm
2
1
B14
35 mm²
150 mm²
50 mm²
150 mm²
50 mm²
150 mm²
2
300 Kcmil
38 mm
M 8
Hexagon/Allen key
10
20
20 x 8 mm
Polyamide 6.6
UL94-V2
-40 °C
105 °C
600 V
275 A
UL 1059
600 V
275 A
C22.2 No 158
600 V
275 A
UL 1059
IEC 60947-7-1:2002
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
291.2 g
5
Connector from CONTA-CLIP, model RK 240, beige with specifications for electrical connection.
RK 240-D Beige, 240mm² Direct mount feed through terminal
Art:
1585.2 Copied
240 mm²
Beige
1000 V
380 A
TS 35/7,5
8 kV
III
3
UL, CSA, GL, CSA US, KEMA KUR, EAC
with housing pegs and allen screws
109 mm
36 mm
112.8 mm
2
1
B16
70 mm²
240 mm²
70 mm²
240 mm²
70 mm²
185 mm²
2/0
500 Kcmil
38 mm
M 10
Hexagon/Allen key
10
20
20 x 12 mm
Polyamide 6.6
UL94-V2
-40 °C
105 °C
600 V
370 A
UL 1059
600 V
370 A
C22.2 No 158
600 V
370 A
UL 1059
IEC 60947-7-1:2002
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
352.4 g
5
299826_877.tif
RK 240-D Blue, 240mm² Direct mount feed through terminal
Art:
1585.5 Copied
240 mm²
Blue
1000 V
380 A
TS 35/7,5
8 kV
III
3
UL, CSA, GL, CSA US, KEMA KUR, EAC
with housing pegs and allen screws
109 mm
36 mm
112.8 mm
2
1
B16
70 mm²
240 mm²
70 mm²
240 mm²
70 mm²
185 mm²
2/0
500 Kcmil
38 mm
M 10
Hexagon/Allen key
10
20
20 x 12 mm
Polyamide 6.6
UL94-V2
-40 °C
105 °C
600 V
370 A
UL 1059
600 V
370 A
C22.2 No 158
600 V
370 A
UL 1059
IEC 60947-7-1:2002
TR ZU 004/2011
EN 60947-7-1:2009
85369010
DE
352.4 g
5

Selected variant

Select a variant in the list

Contact us
Please contact us for more information.
Send e-mail
Do you need help?
